Please call for parts assistance

Every part in the Konica Minolta FS-519 Finisher Parts Guide Manual (A01G, June 2009), section by section with the exploded diagram. Call or email with the part number for price and availability.

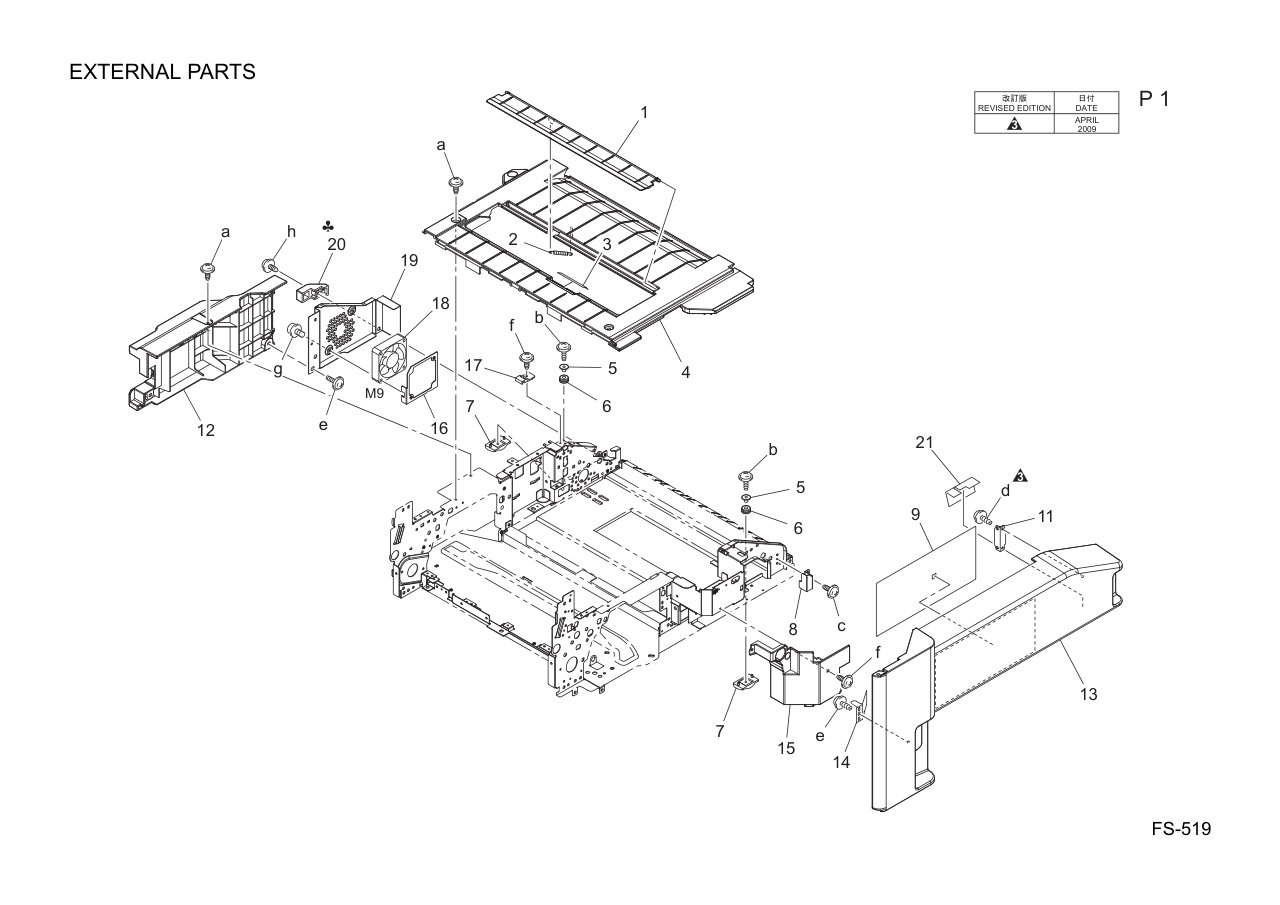

External Parts 1 A01G162200 COVER 2 9J08102301 TENSION SPRING 3 A01G940700 LABEL 4 A01G160700 TOP COVER 5 9J08112701 SPACER 6 9J08112601 CUSHION 7 9J08112001 GUIDE 8 9J08102001 BRACKET 9 A01G940100 LABEL OPERATION 11 4426260702 MAGNET CATCH 12 A01G160900 REAR COVER 13 A01G160100 FRONT COVER 14 9J08101901 BRACKET 15 9J08101401 COVER 16 9J08102604 BRACKET 17 9J08130701 GUIDE 18 9J06M10000 FAN MOTOR 19 9J08101102 REAR COVER 20 9J08102702 SPACER (Model No. Y2) (For A02E) 21 A0DA161400 Guide

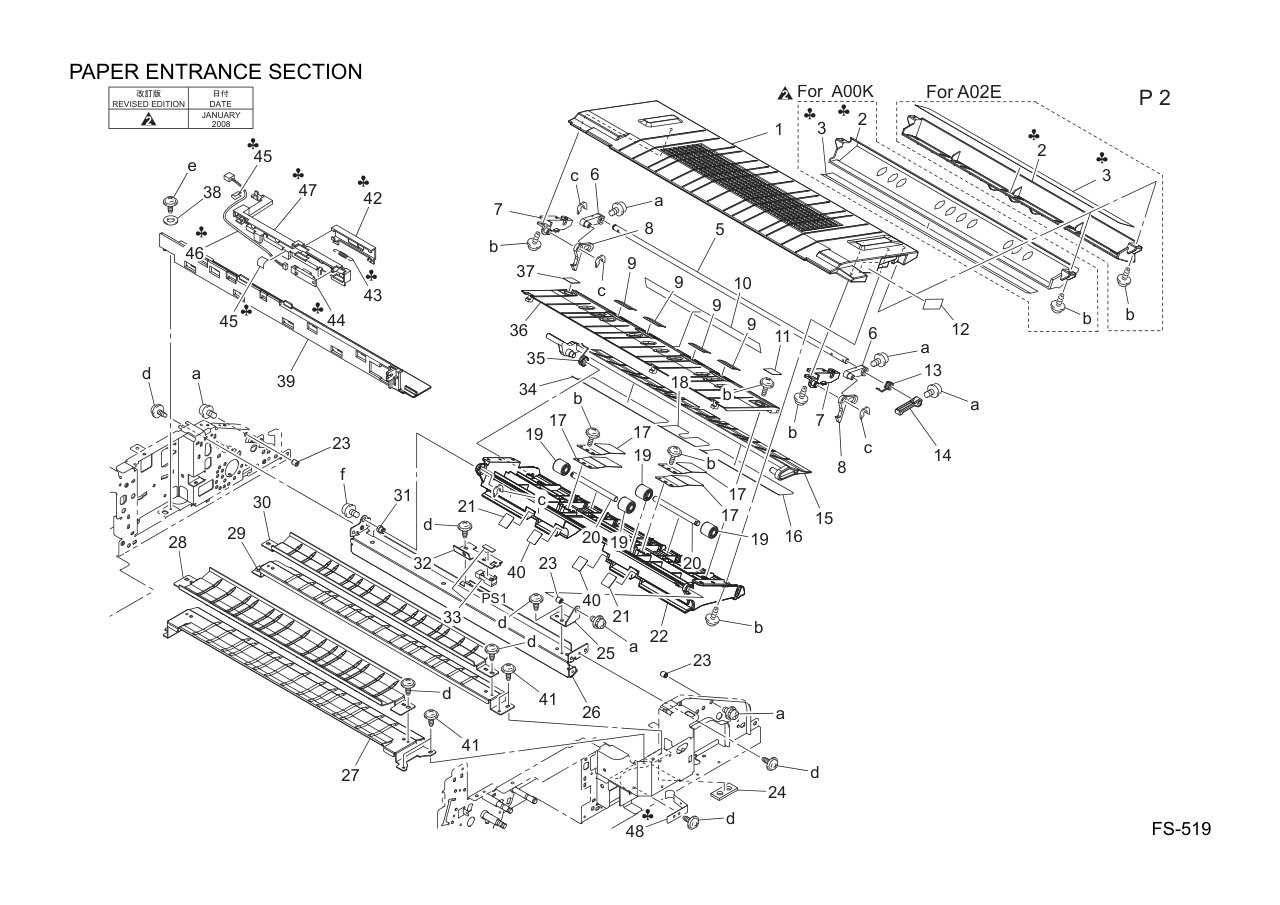

Paper Entrance Section 1 A01G700300 GUIDE 2 A01G700000 GUIDE (For A00K) 2 9J08142401 GUIDE (Model No. Y2) (For A02E) 3 A01G700200 GUIDE (For A00K) 3 9J08142801 GUIDE (Model No. Y2) (For A02E) 5 9J08136701 SHAFT 6 9J08139901 LEVER 7 9J08139201 BRACKET 8 9J08136601 PAWL 9 9J08139101 GUIDE 10 9J08143401 GUIDE 11 9J08134301 GUIDE 12 A01G940500 LABEL FN1 13 9J08139401 TORSION SPRING 14 9J08132601 LEVER 15 9J08140102 GUIDE 16 9J08142503 GUIDE 17 9J08133301 PLATE SPRING 18 9J08890400 GUIDE 19 9J08142101 ROLL 20 9J08142201 SHAFT 21 9J08134401 GUIDE 22 9J08130104 Guide 23 9J08139701 SHAFT 24 9J08910300 CUSHION 25 9J08143101 BRACKET 26 9J08130302 GUIDE 27 4349133603 Guide 28 4349130601 GUIDE 29 4349133503 Guide 30 4349130501 GUIDE 31 9J08143001 SHAFT 32 9J08134602 BRACKET 33 4037090201 PHOTO INTERRUPTER 34 9J08890500 GUIDE 35 9J08140402 TORSION SPRING 36 9J08136401 GUIDE 37 9J08134201 GUIDE 38 9J08890700 WASHER 39 9J08113401 BRACKET 40 A01G700400 GUIDE 41 4106206301 SCREW 42 4512250701 DETECTING PLATE (Model No. Y2) 43 4512250801 TENSION SPRING (Model No. Y2) 44 9335191052 SOLID STATE SWITCH (Model No. Y2) 45 4512253101 COVER (Model No. Y2) 46 4512680101 WIRE HARNESS ASSY (Model No. Y2) 47 4512250601 BRACKET (Model No. Y2) 48 4512251802 PLATE SPRING (Model No. Y2)

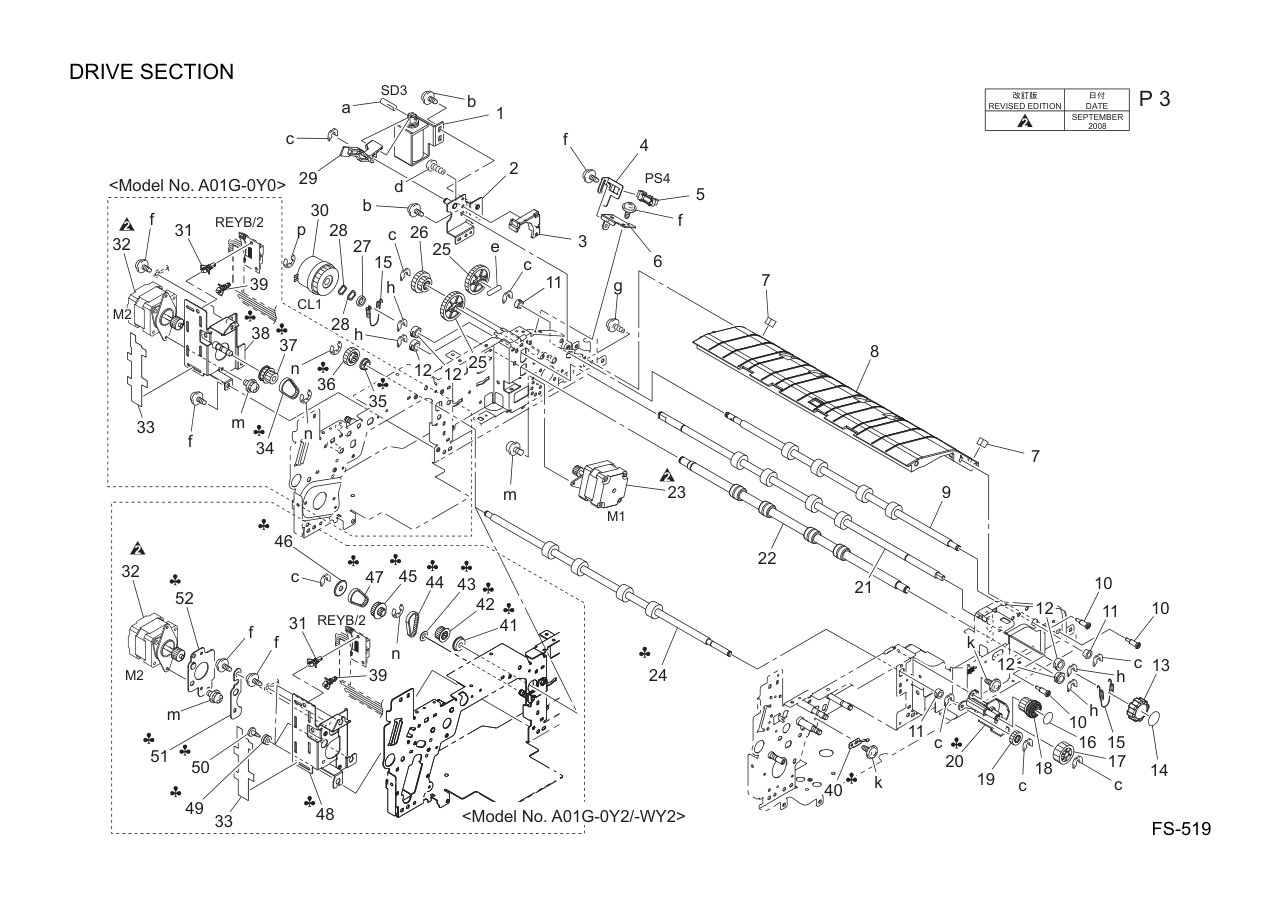

Drive Section 1 4683M20000 SOLENOID 2 A0DAR7AC00 Bracket Assy 3 9J08700000 Cover 4 9J08810000 BRACKET 5 9335130061 PHOTO INTERRUPTER 6 9J08140202 BRACKET 7 9J08810101 CUSHION 8 9J08130203 GUIDE 9 9J08131201 ROLLER 10 4643300701 SHOULDER SCREW 11 4131253701 BUSHING 12 A01G210000 BUSHING 13 9J08700300 KNOB 14 A01G940800 LABEL FN2 15 4349133801 TENSION SPRING 16 A01G940600 LABEL FN4 17 9J08132201 GEAR 22T 18 9J08132101 KNOB 19 9J08132901 GEAR 14T 20 A0DA132700 Holder 21 9J08131402 ROLLER 22 9J08133902 ROLLER 23 9J08M10600 MOTOR 24 9J08131902 ROLLER (Model No. 24 A0DA131900 Roller (Model No. Y2) 25 9J08135301 GEAR 45T 26 9J08135601 GEAR 21/32T 27 9J08135902 COLLAR 28 4011302001 WASHER 29 9J08140303 LEVER 30 9322100081 CLUTCH 31 9384101031 PWB SUPPORT 11.11H 32 9J08M10400 Stepping motor 33 9J08113301 GUIDE 34 9J08150201 TIMING BELT 88L (Model No. 35 4131353202 BUSHING (Model No. 36 9J08137801 GEAR 24T (Model No. 37 9J08138002 PULLEY 15/27T (Model No. 38 9J08138201 BRACKET (Model No. 39 9384190056 PWB SUPPORT 6.35H 40 A0DA702000 Plate spring (Model No. Y2) 41 4011575802 BALL BEARING (Model No. Y2) 42 A0DA137800 Pulley 24T (Model No. Y2) 43 A0DA702600 Flange (Model No. Y2) 44 A0DA701100 Timing belt (Model No. Y2) 45 A0DA138000 Pulley 27/15T (Model No. Y2) 46 A0DA702500 Flange (Model No. Y2) 47 A0DA702800 Timing belt (Model No. Y2) 48 A0DA138200 Bracket (Model No. Y2) 49 A0DA701200 Bushing (Model No. Y2) 50 A0DA701300 Shoulder screw (Model No. Y2) 51 A0DA701000 Bracket (Model No. Y2) 52 A0DA700900 Bracket (Model No. Y2)

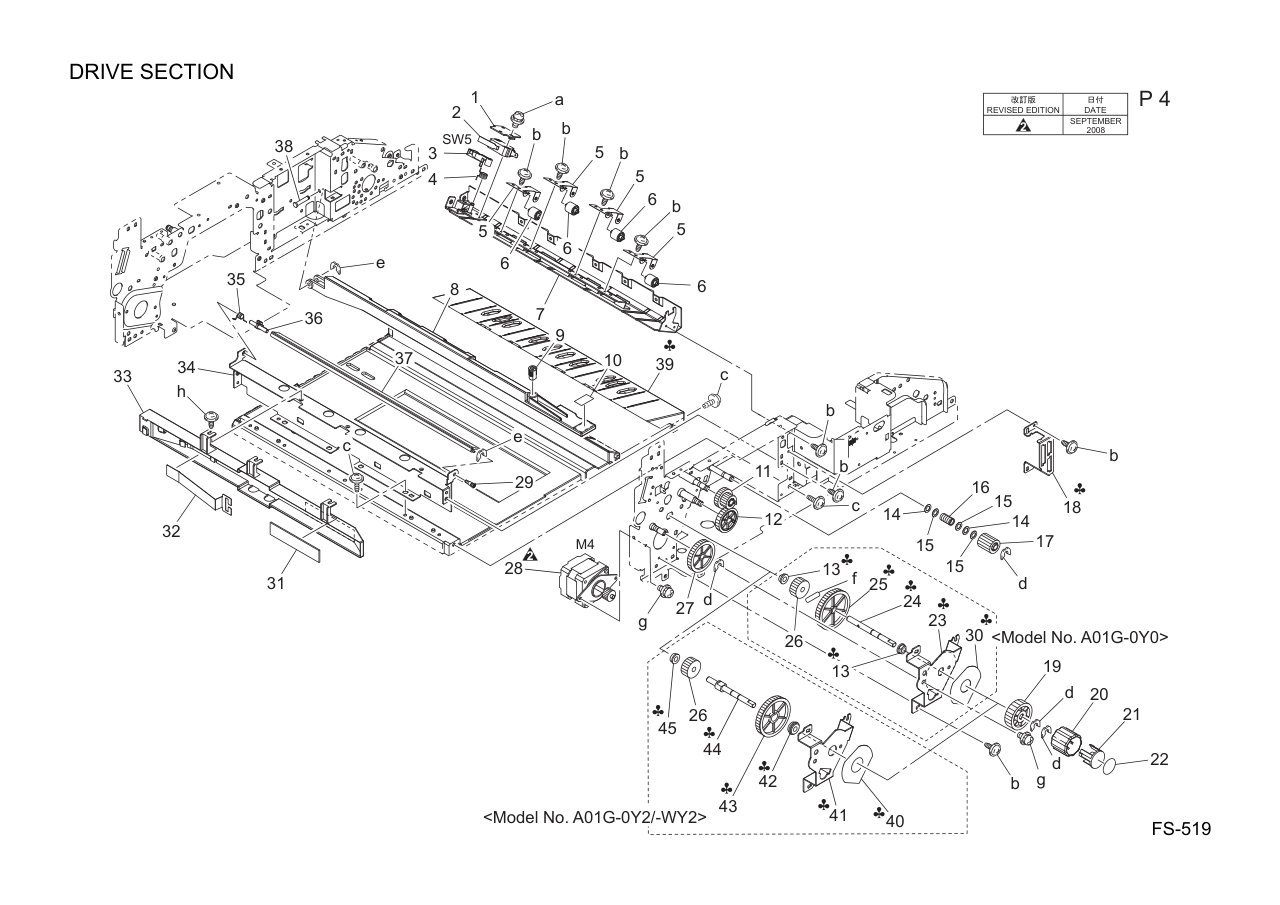

Drive Section 1 9J08143502 SET PLATE 2 9J06M60100 MICRO SWITCH 3 9J08143202 Actuator 4 9J08143302 TORSION SPRING 5 4349132101 PLATE SPRING 6 4426441102 ROLL 7 9J08134901 GUIDE 8 9J08134101 GUIDE 9 4475360101 MAGNET 10 A01G941100 LABEL FN3 11 4349160101 GEAR 15/22T 12 4349160401 GEAR 29T 13 4131300301 BUSHING (Model No. 14 4349164101 WASHER 15 4349164001 WASHER 16 4349163901 PRESSURE SPRING 17 4349161401 GEAR 15T 18 9J08113101 BRACKET (Model No. 19 4349163301 GEAR 32T 20 4349163112 KNOB 21 4349163601 COLLAR 22 A01G941000 LABEL FN6 23 9J08162701 BRACKET (Model No. 24 4349161013 SHAFT (Model No. 25 4349161301 GEAR 63T (Model No. 26 4349161101 GEAR 19T 27 4349171901 GEAR 35T 28 9J08M10600 MOTOR 29 4349184801 SHOULDER SCREW 30 A0DA211000 Guide (Model No. 31 9J08143600 GUIDE 32 9J08185901 GUIDE 33 9J08185701 GUIDE 34 9J08112104 Bracket 35 4349184602 TORSION SPRING 36 9J08890100 MEMBER 37 4349184502 GUIDE 38 4349134201 SHAFT 39 A01G700100 GUIDE (For A00K) 40 A0DA211000 Guide (Model No. Y2) 41 A0DA162700 Bracket (Model No. Y2) 42 A00J211200 Ball Bearing (Model No. Y2) 43 A0DA895000 Gear 63T (Model No. Y2) 44 A0DA720301 Shaft (Model No. Y2) 45 A00J617800 BALL BEARING (Model No. Y2)

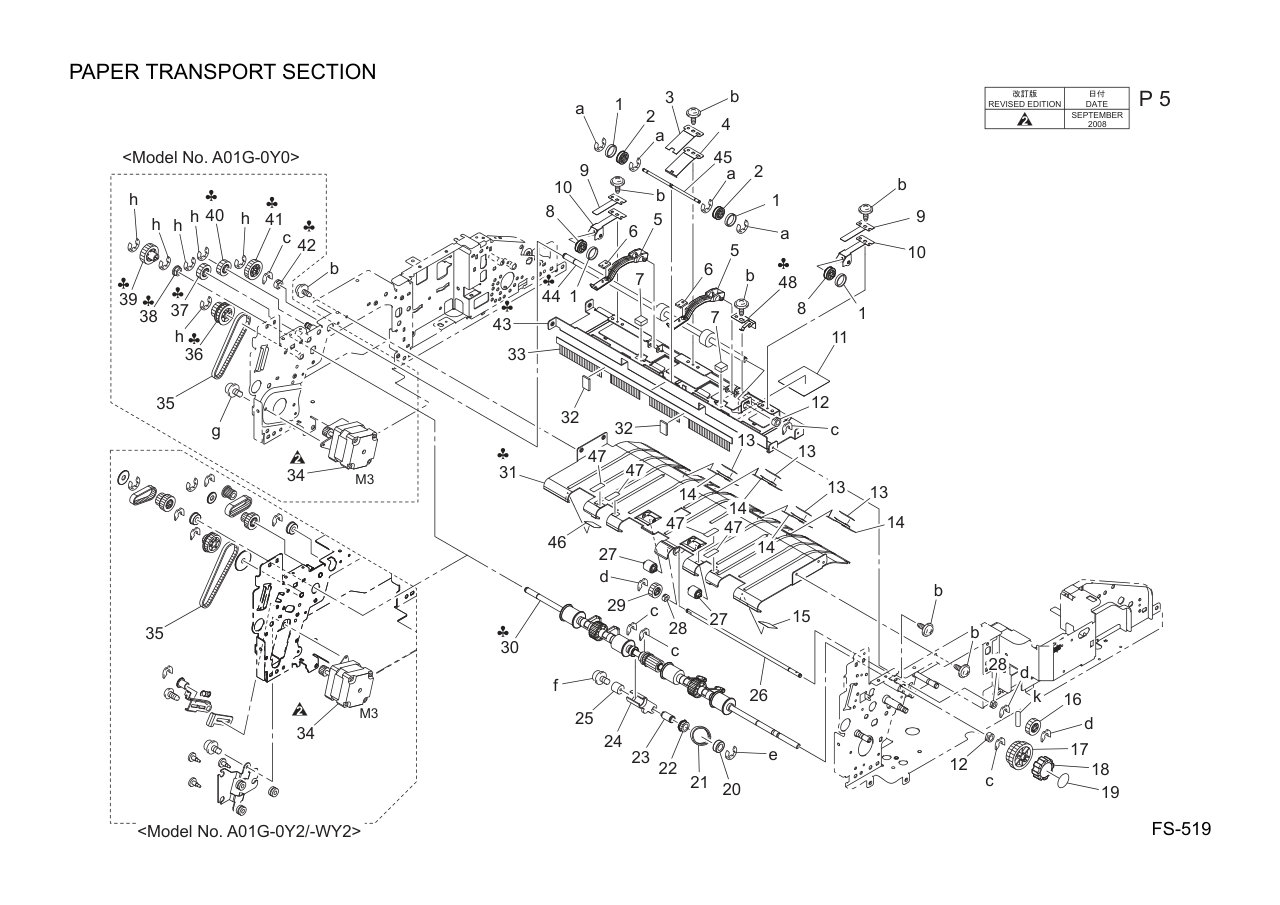

Paper Transport Section 1 9J08141701 BAND 2 9J08135501 ROLL 3 9J08141601 PLATE SPRING 4 9J08137401 PLATE SPRING 5 9J08132503 LEVER 6 9J08141402 Weight 7 4698108601 CUSHION 8 9J08130501 ROLL 9 9J08141501 PLATE SPRING 10 9J08137301 PLATE SPRING 11 9J08130901 GUIDE 12 4131253701 BUSHING 13 9J08135701 GUIDE 14 9J08135402 GUIDE 15 4349131601 GUIDE 16 4349162501 GEAR 17T 17 9J08161501 GEAR 26/31T 18 9J08700300 KNOB 19 A01G940900 LABEL FN5 20 9J08163401 COLLAR 21 4349163203 TIMING BELT 92L 22 9J08161802 PULLEY 20T 23 4349162101 SHAFT 24 9J08162001 ARM 25 9J08163501 WEIGHT 26 9J08161601 SHAFT 27 4426441102 ROLL 28 4004533901 BUSHING 29 9J08162602 GEAR 20T 30 A01G700500 ROLLER (Model No. 30 A0DA700500 Roller (Model No. Y2) 31 9J08130802 GUIDE 32 4349139201 CUSHION 33 4349130901 NEUTRALIZING BRUSH 34 9J08M10500 Stepping motor 35 9J08137601 TIMING BELT 186L 36 9J08137702 PULLEY 15/24T (Model No. 37 9J08138501 GEAR 15T (Model No. 38 4131300301 BUSHING (Model No. 39 9J08137502 GEAR 20T (Model No. 40 9J08137901 GEAR 15T (Model No. 41 9J08138601 GEAR 20T (Model No. 42 9J08210501 BUSHING (Model No. 43 A0DA135000 Guide 44 A0DA132400 Roller (Model No. 44 A0DA132400 Roller (Model No. Y2) 45 9J08136001 SHAFT 46 4349131301 GUIDE 47 A01G720900 Guide 48 A0DA701700 Plate spring (Model No. Y2)

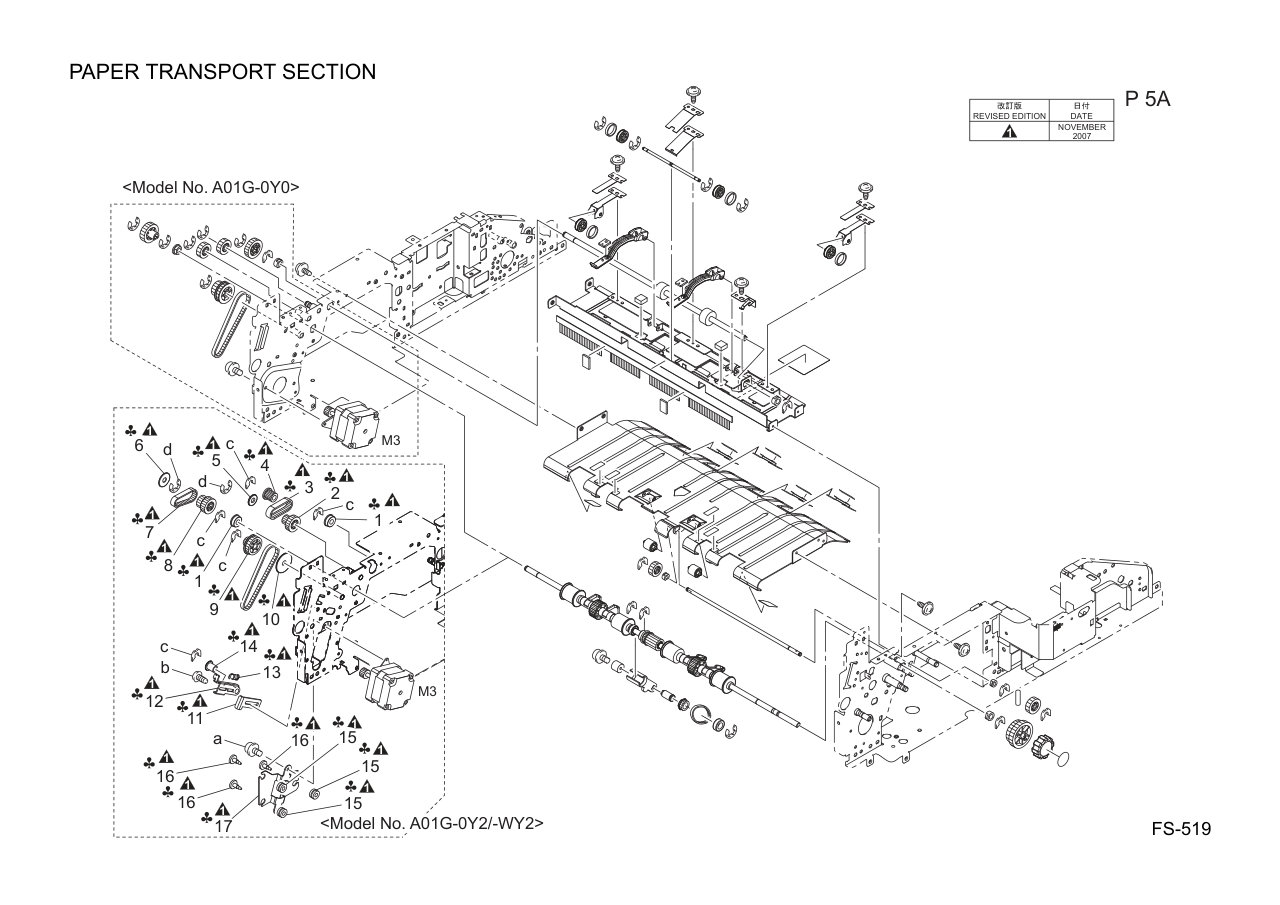

Paper Transport Section 1 A00J211200 Ball Bearing (Model No. Y2) 2 A0DA138500 Gear 18/16T (Model No. Y2) 3 A0DA701600 Timing belt 78L (Model No. Y2) 4 A0DA138600 Pulley 18T (Model No. Y2) 5 A0DA701900 Flange (Model No. Y2) 6 A0DA701800 Flange (Model No. Y2) 7 A0DA701500 Timing belt 90L (Model No. Y2) 8 A0DA137500 Gear 24/16T (Model No. Y2) 9 A0DA137700 Pulley 24/15T (Model No. Y2) 10 A0DA702700 Flange (Model No. Y2) 11 A0DA703100 Spacer (Model No. Y2) 12 A0DAR7AB00 Bracket Assy (Model No. Y2) 13 A0DA702400 Tension spring (Model No. Y2) 14 A0DA702100 Roller (Model No. Y2) 15 A0DA701200 Bushing (Model No. Y2) 16 A0DA701300 Shoulder screw (Model No. Y2) 17 A0DA701400 Bracket (Model No. Y2)

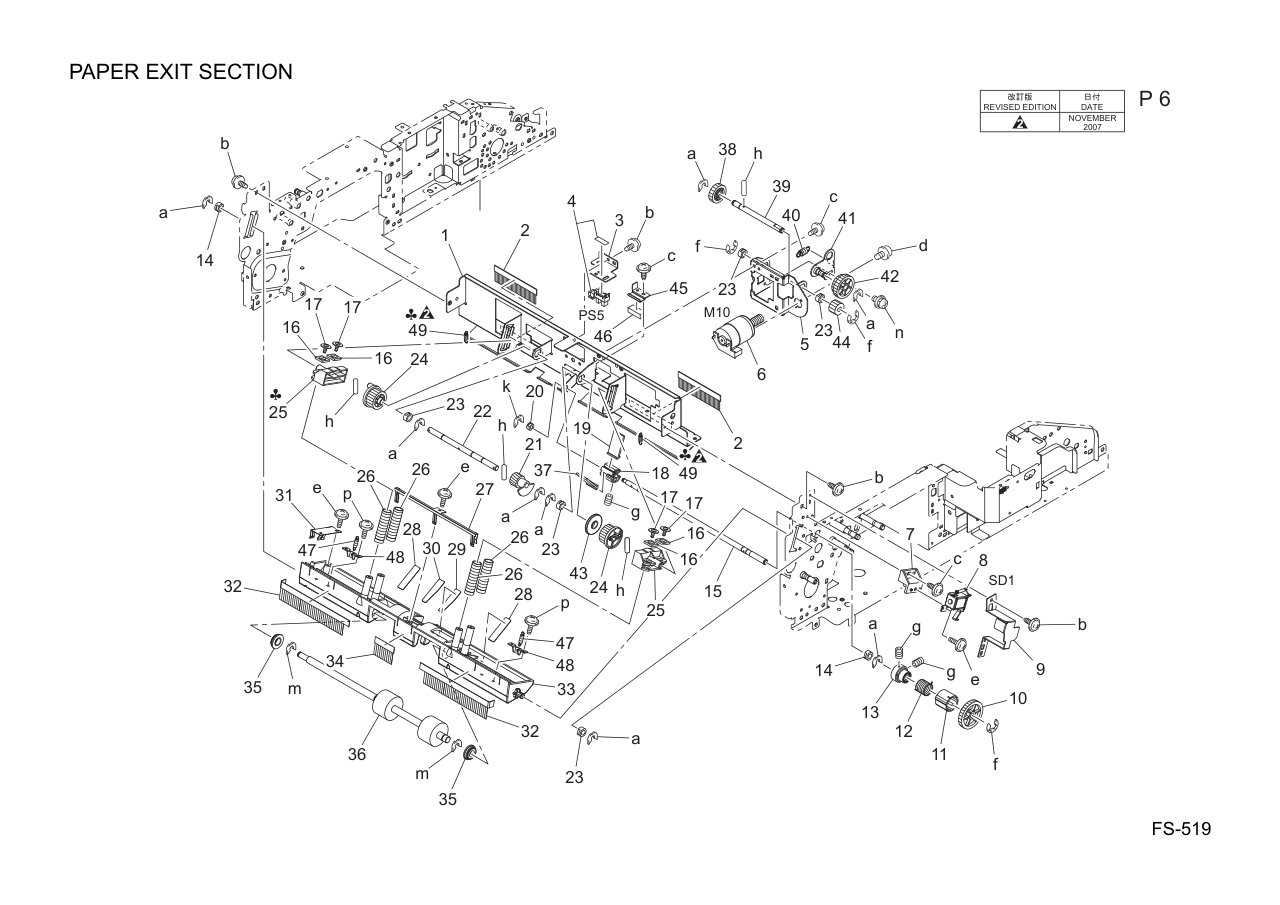

Paper Exit Section 1 A01G892301 bracket 2 4349139402 NEUTRALIZING BRUSH 3 A01G892700 BRACKET 4 4037090501 PHOTO INTERRUPTER 5 A01G893100 BRACKET 6 9J08031701 MOTOR 7 4349163701 SPACER 8 9J06M20000 SOLENOID 9 9J08163802 Cover 10 4349160201 GEAR 33T 11 4349211502 COLLAR 12 4643522001 TORSION SPRING 13 4643521903 DRUM 14 4131253701 BUSHING 15 9J08160101 SHAFT 16 4349174801 CUSHION 17 4163529301 SCREW 18 9J08910900 HOLDER 19 A0DA160500 Paddle 20 4004533901 BUSHING 21 9J08170501 GEAR 18T 22 9J08170801 SHAFT 23 9J08210501 BUSHING 24 4349171001 CAM 25 4349171101 ARM (Model No. 25 A0DA895100 Arm (Model No. Y2) 26 9J08173201 PRESSURE SPRING 27 4349173601 EARTH GROUND 28 4349173901 GUIDE 29 9J08174601 GUIDE 30 9J08173901 GUIDE 31 4349173801 EARTH GROUND 32 4349171501 NEUTRALIZING BRUSH 33 A0DA171400 Guide 34 4349174001 NEUTRALIZING BRUSH 35 4131260701 BALL BEARING 36 4349170324 (Old) ROLLER 36 4349170336 Roller 37 A01G720301 Paddle 38 A01G893000 GEAR 28T 39 A01G892900 SHAFT 40 A01G893800 TENSION SPRING 41 A0DAR7A900 Bracket Assy 42 A01G893400 GEAR 36T 43 A01G893700 COLLOR 44 A01G892800 GEAR 18T 45 A01G720400 BRACKET 46 A01G720500 CLEANING PAD 47 A01G893300 TENSION SPRING 48 A01G894100 BRACKET 49 A0DA895200 Tension spring (Model No. Y2)

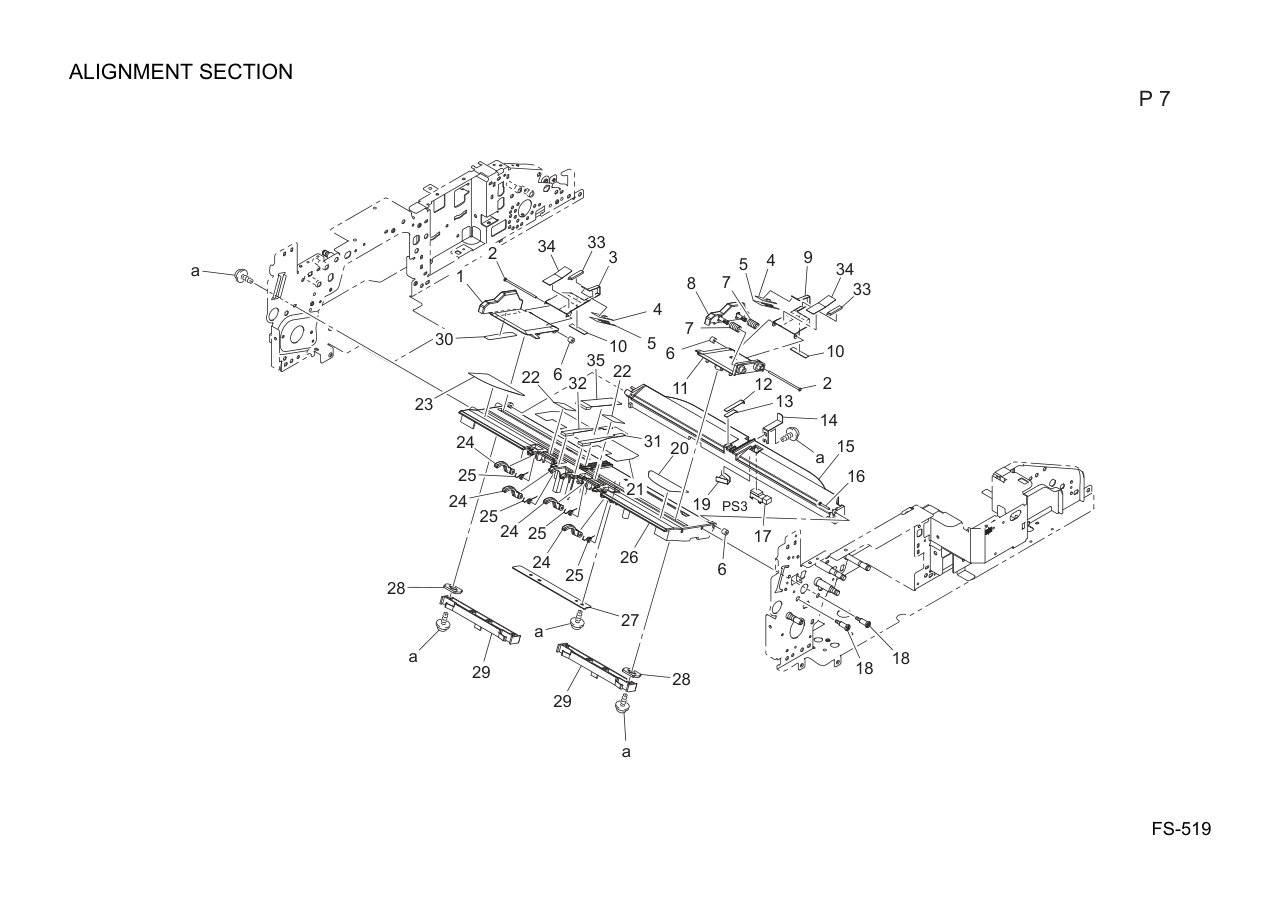

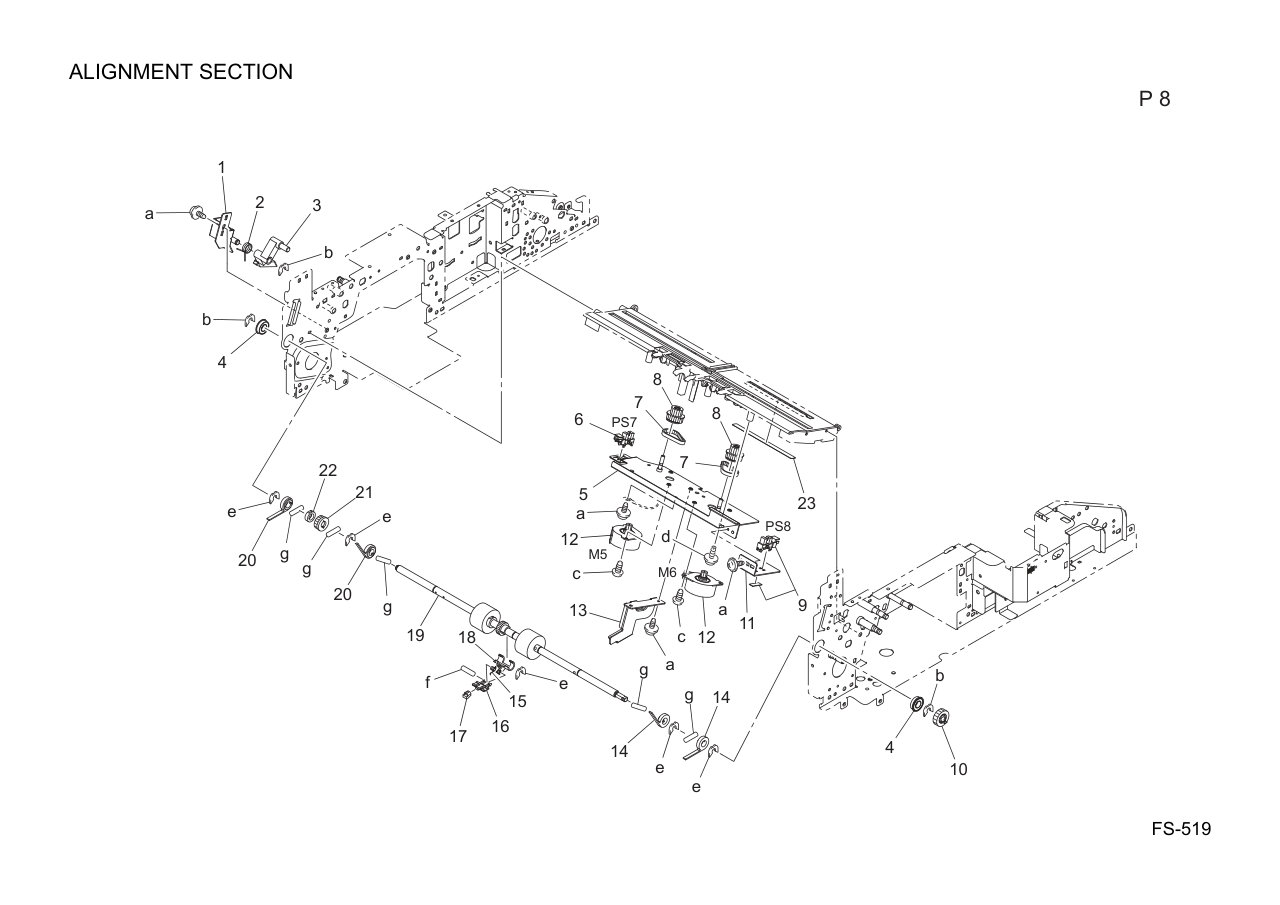

Alignment Section 1 9J08152001 PLATE 2 9J08210701 SHAFT 3 9J08151901 STOPPER 4 9J08910200 GUIDE 5 A0DA910100 Guide 6 9J08210401 COLLAR 7 4643540402 PRESSURE SPRING 8 9J08150701 PLATE 9 9J08150602 STOPPER 10 4349152612 TAPE 11 9J08150902 PLATE 12 9J08164301 GUIDE 13 9J08164201 GUIDE 14 9J08152402 STOPPER 15 9J08150404 TRAY 16 9J08210601 SHAFT 17 9335140071 SOLID STATE SWITCH 18 4643300701 SHOULDER SCREW 19 9J08910000 COVER 20 4349153101 GUIDE 21 9J08152102 GUIDE 22 4349152401 GUIDE 23 4349153201 GUIDE 24 4349150401 GUIDE 25 4349150501 TORSION SPRING 26 9J08150103 TRAY 27 4349151101 SET PLATE 28 4349152501 SPACER 29 4349151001 RACK 30 9J08152701 GUIDE 31 9J08720100 GUIDE 32 9J08720200 GUIDE 33 A01G720600 GUIDE 34 A01G720700 GUIDE 35 A01G720800 Guide
Alignment Section 1 9J08021401 BRACKET ASSY 2 9J08150801 TORSION SPRING 3 9J08150501 LEVER 4 4004454001 BALL BEARING 5 A0DAR7A700 Bracket Assy 6 9335130061 PHOTO INTERRUPTER 7 9J08150201 TIMING BELT 88L 8 9J08151601 GEAR 16/31T 9 4037090501 PHOTO INTERRUPTER 10 4349172002 GEAR 17T 11 4349152201 BRACKET 12 9J08M10300 MOTOR 13 9J08151801 BRACKET 14 4349174602 PADDLE 15 4349203802 TORSION SPRING 16 9J08890600 ARM 17 4349203601 SET PLATE 18 9J08890000 Arm 19 4349015113 (Old) ROLLER ASSY 19 4349015125 Roller Assy 20 4349174402 PADDLE 21 4349202401 GEAR 14T 22 4490344801 BUSHING 23 9J08700200 GUIDE

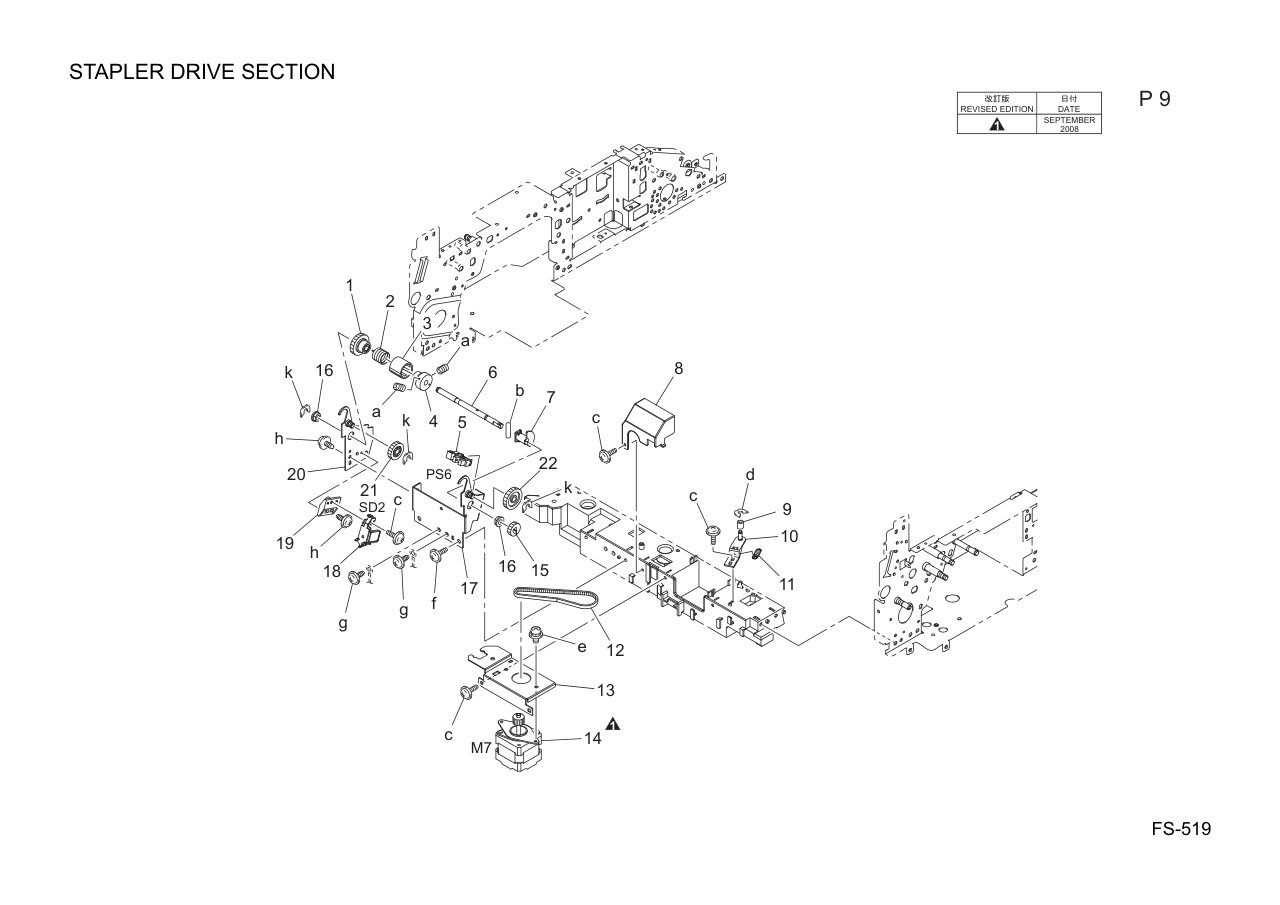

Stapler Drive Section 1 4643520801 GEAR 24T 2 4349201401 TORSION SPRING 3 4349201203 DRUM 4 4643521903 DRUM 5 9335130061 PHOTO INTERRUPTER 6 4349201502 SHAFT 7 4349201001 SHIELD PLATE 8 9J08186902 COVER 9 9J08186201 COLLAR 10 9J08186301 LEVER 11 9J08186401 TENSION SPRING 12 4349137601 TIMING BELT 222L 13 9J08185401 BRACKET 14 9J08M10500 Stepping motor 15 4349203501 GEAR 14T 16 4131300301 BUSHING 17 9J08201302 BRACKET 18 9J06M20000 SOLENOID 19 4349209702 SPACER 20 A0DAR7AA00 Bracket assy 21 4349202601 GEAR 19T 22 4156381801 GEAR 24T

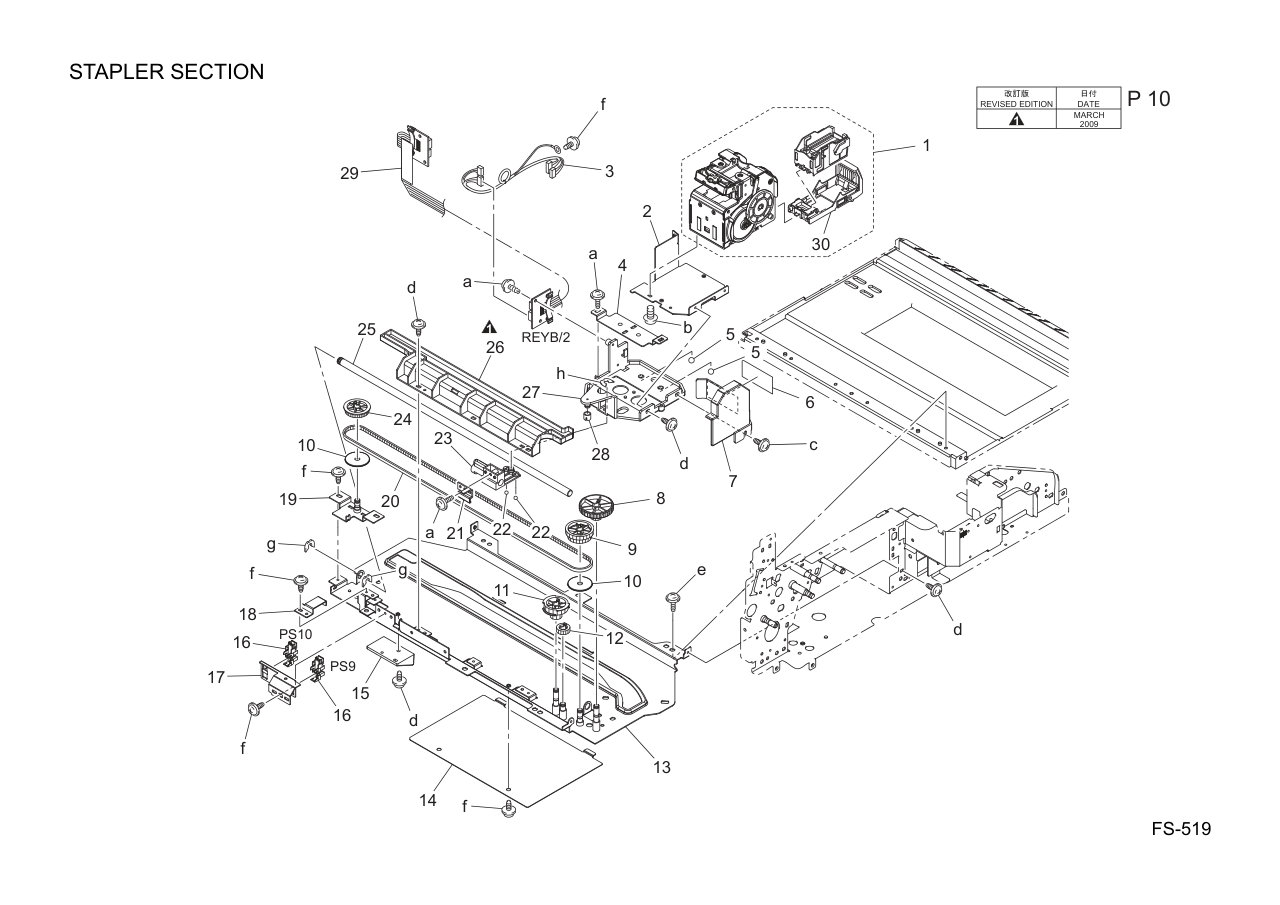

Stapler Section 1 9J08031301 STAPLER UNIT 2 9J08180401 BRACKET 3 9J08680601 WIRE HARNESS ASSY 4 A0DAR7A600 Bracket Assy 5 9J08184201 ROLL 6 A01G940200 LABEL CAUTION 7 9J08180301 COVER 8 9J08180901 KNOB 9 4349181202 Pulley Assy 42T 10 4349184901 FLANGE 11 9J08181801 GEAR 16/30T 12 9J08185501 GEAR 19T 13 9J08020301 (Old) BASE FRAME ASSY 13 A0DAG72602 BASE FRAME ASSY 14 9J08186001 COVER 15 9J08115401 STOPPER 16 9335130061 PHOTO INTERRUPTER 17 9J08182301 BRACKET 18 A0DA186100 Reinforce plate 19 A0DAR7A500 Bracket Assy 20 9J08180601 TIMING BELT 825L 21 9J08180801 HOLDER 22 9J08185301 ROLL 23 9J08180701 HOLDER 24 4349181101 PULLEY 30T 25 9J08180201 SHAFT 26 9J08183601 (Old) RAIL 26 A0DA183601 Rail 27 9J08180101 BASE FRAME 28 9J08182401 COLLAR 29 9J08605104 FNS PWB ASSEMBLY

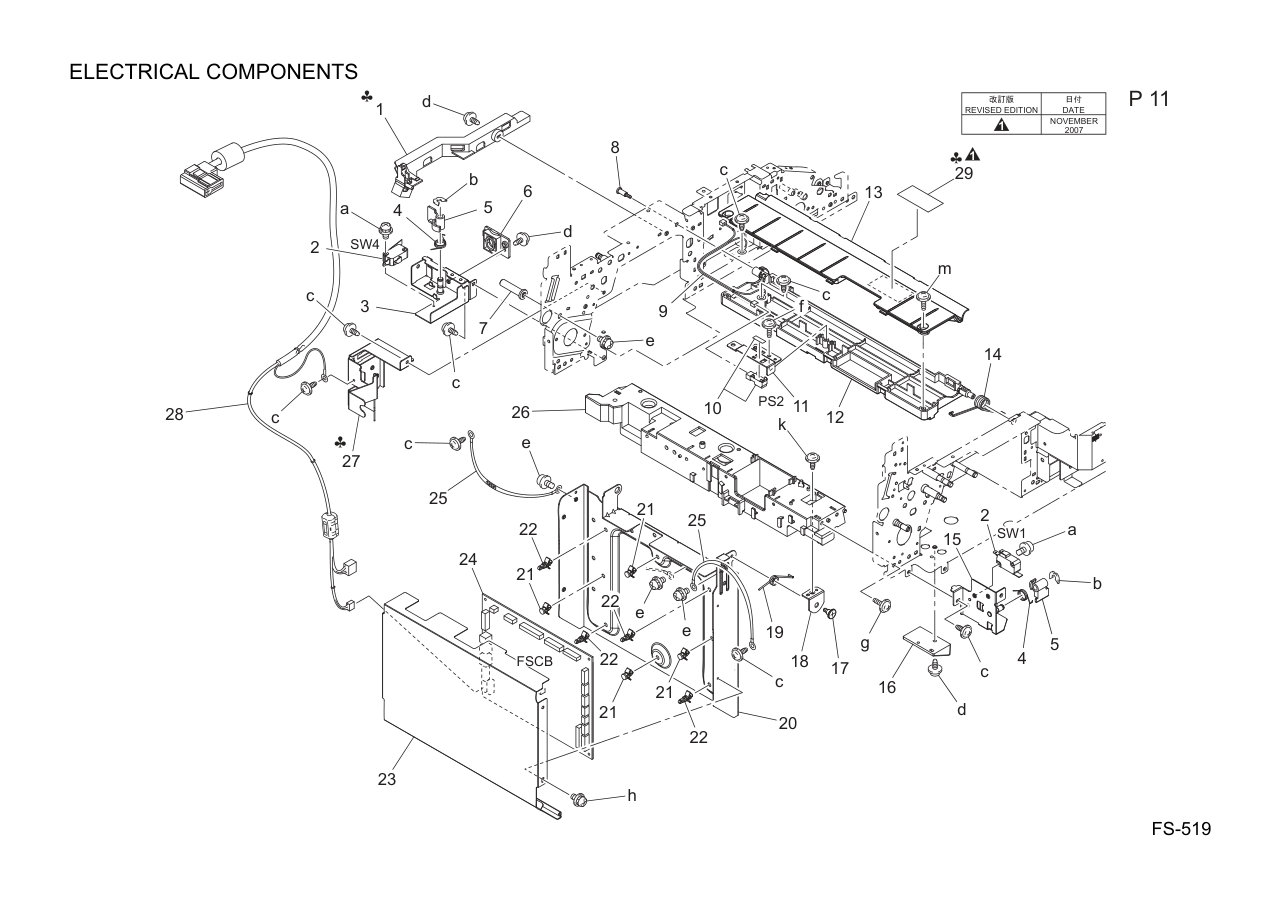

Electrical Components 1 A0DA113000 Bracket (Model No. 1 A0DA113000 Bracket (Model No. Y2) 2 9J06M60100 MICRO SWITCH 3 9J08020801 BRACKET ASSY 4 9J08121301 TORSION SPRING 5 9J08121101 ACTUATOR 6 9J08121701 GUIDE 7 9J08112401 SHAFT 8 4643300701 SHOULDER SCREW 9 9J08681001 WIRE HARNESS ASSY 10 4037090201 PHOTO INTERRUPTER 11 9J08132301 BRACKET 12 9J08134001 GUIDE 13 A01G160800 TOP COVER 14 9J08136101 TORSION SPRING 15 A0DAR7A200 Bracket Assy 16 9J08115401 STOPPER 17 1054260101 SHOULDER SCREW 18 9J08111701 BRACKET 19 9J08115801 TORSION SPRING 20 A0DA111501 Bracket 21 9384162121 PWB SUPPORT 6.4H 22 9384190056 PWB SUPPORT 6.35H 23 9J08111602 Bracket 24 A0DAH00101 PWB ASSY 25 4349681301 WIRE HARNESS ASSY 26 9J08111401 BASE FRAME 27 9J08113201 BRACKET (Model No. 27 A0DA113200 Bracket (Model No. Y2) 28 A01GN10000 WIRE HARNESS ASSY 29 4511940100 Label (Model No. Y2)

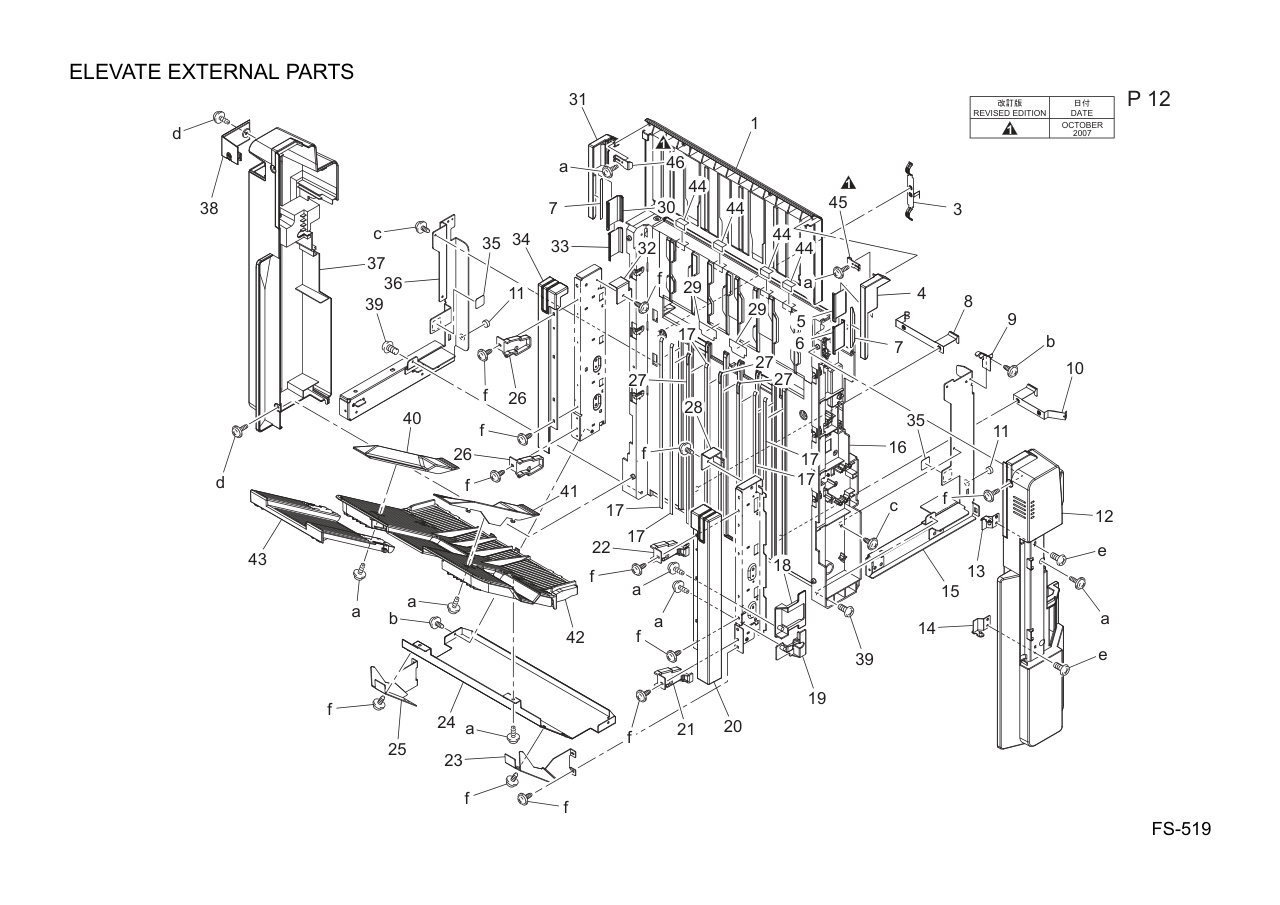

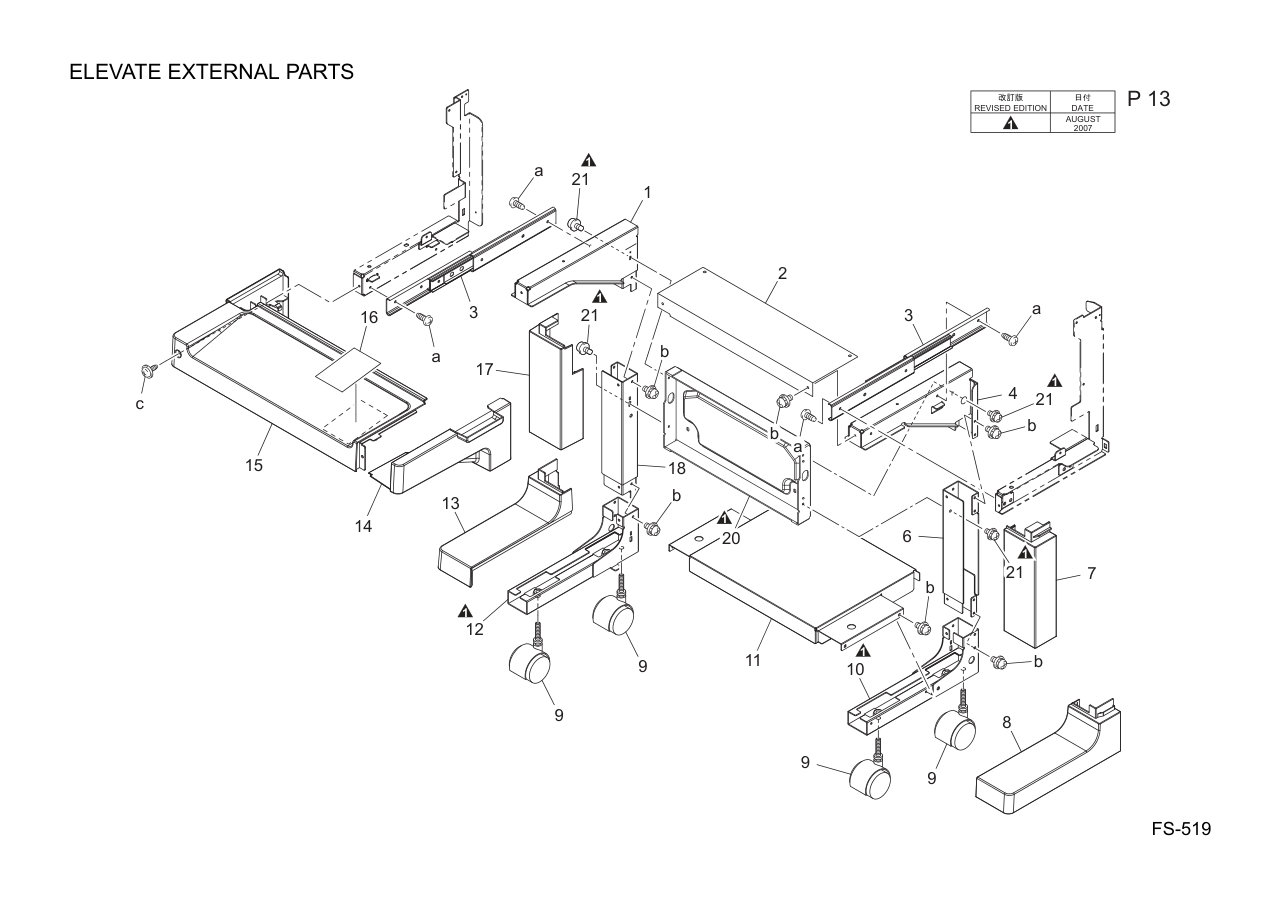

Elevate External Parts 1 A01G890400 GUIDE 3 9J08201701 EARTH GROUND 4 A01G891200 COVER 5 A01G891300 COVER 6 A01G891400 COVER 7 4349211801 GUIDE 8 9J08115601 PLATE SPRING 9 9J08122401 PLATE SPRING 10 9J08115701 PLATE SPRING 11 4643100902 STOPPER 12 A01G160300 COVER 13 4349023302 BRACKET ASSY 14 4349023402 BRACKET ASSY 15 9J08110904 BRACKET 16 A01G891900 FRAME 17 4349211901 GUIDE 18 4349205901 BRACKET 19 4349205801 BRACKET 20 A01G890000 COVER 21 A01G890500 HOLDER 22 A01G890600 HOLDER 23 4349210901 BRACKET 24 4349202201 BRACKET 25 4349211001 BRACKET 26 A01G890700 HOLDER 27 4349212001 GUIDE 28 A01G890800 COVER 29 4349213701 GUIDE 30 A01G891600 COVER 31 A01G891500 COVER 32 A01G890900 COVER 33 A01G891700 COVER 34 A01G890100 COVER 35 9J08122600 SEAL 36 9J08111004 BRACKET 37 A01G160400 COVER 38 A01G161800 COVER 39 4002258101 SCREW 40 A01G891100 GUIDE 41 A01G891000 GUIDE 42 A01G890200 TRAY 43 A0DA890300 Tray 44 A01G100000 Guide 45 A0DA896100 Reinforce plate 46 A0DA896200 Reinforce plate
Elevate External Parts 1 9J08110502 (Old) FRAME 1 9J08110513 (Old) Frame 1 9J08110514 Frame 2 9J08115201 BRACKET 3 9J08110602 RAIL 4 9J08110402 (Old) FRAME 4 9J08110413 (Old) Frame 4 9J08110414 Frame 6 A01G111800 (Old) JOINT 6 A01G111812 (Old) Joint 6 A01G111813 Joint 7 A01G163200 FRONT COVER 8 A01G163300 FRONT COVER 9 A0DA116100 Castor 10 9J08115002 (Old) Frame 10 9J08115004 Frame 11 A01G110800 BRACKET 12 9J08115102 (Old) Frame 12 9J08115104 Frame 13 A01G163600 REAR COVER 14 A01G163100 FRONT COVER 15 A01G163400 REAR COVER 16 A01G940300 LABEL CAUTION 17 A01G163500 REAR COVER 18 A01G111900 (Old) JOINT 18 A01G111912 (Old) Joint 18 A01G111913 Joint 20 A0DA113501 Bracket 21 A00J815900 Screw

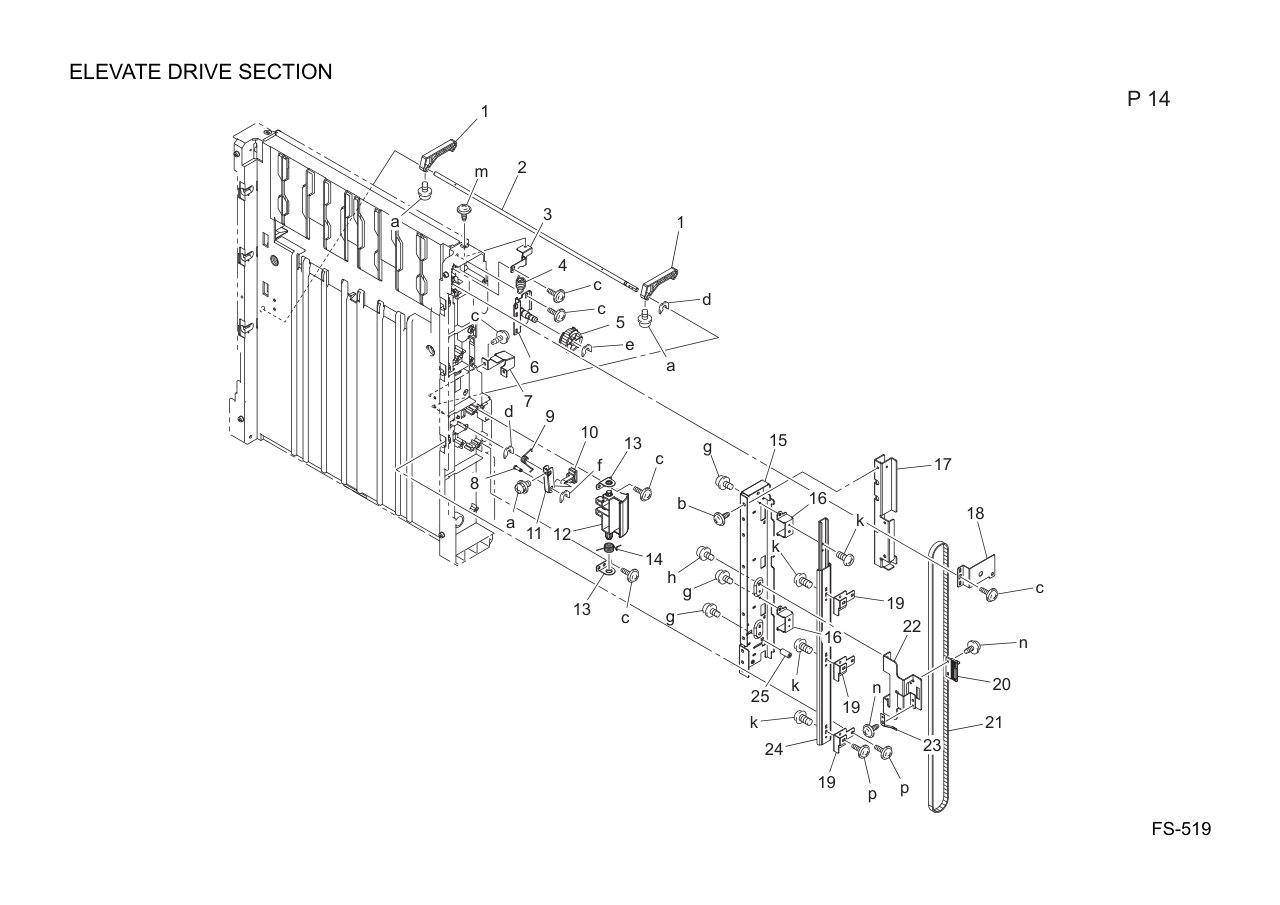

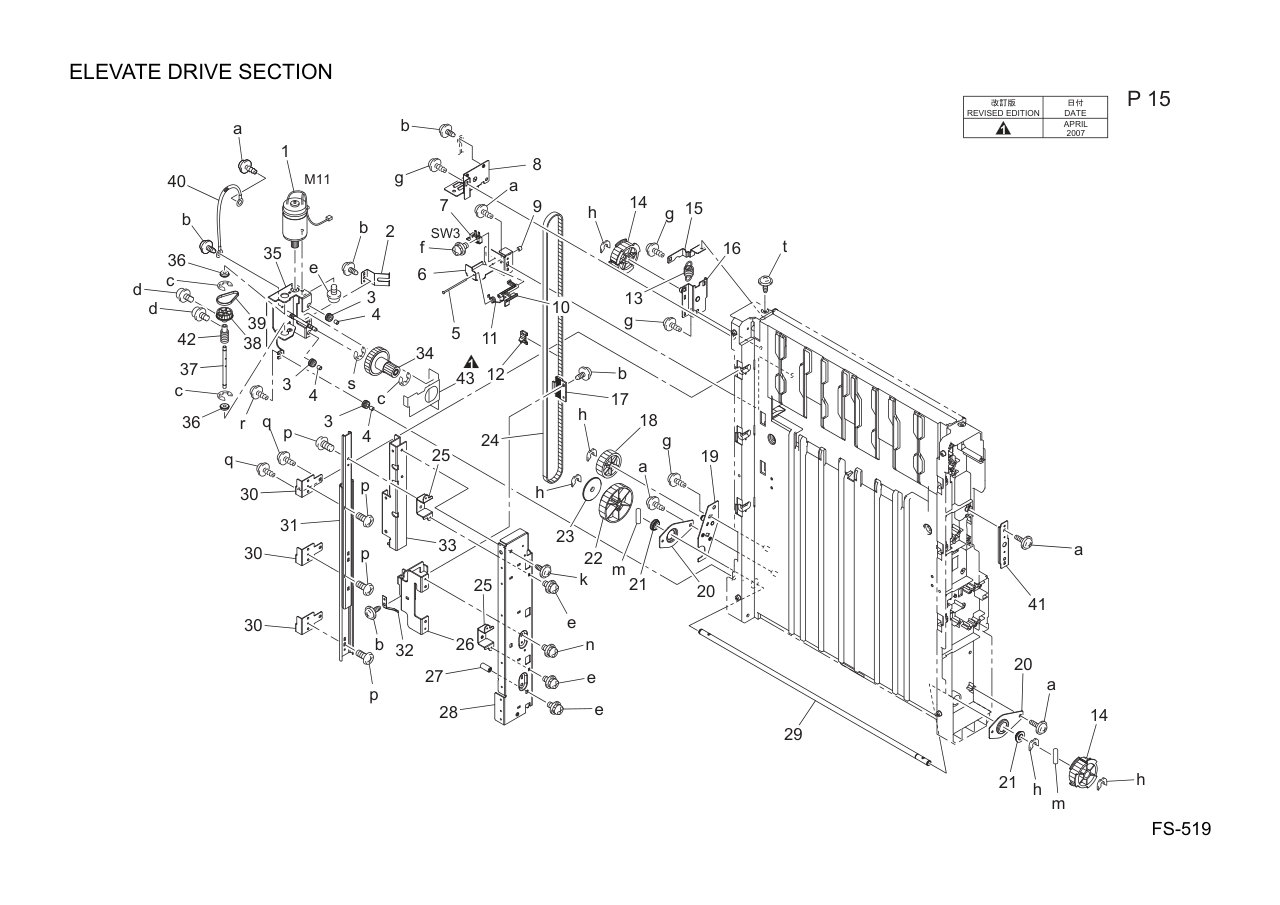

Elevate Drive Section 1 9J08120401 PAWL 2 9J08120601 SHAFT 3 9J08207501 BRACKET 4 4349206601 TENSION SPRING 5 4349205601 PULLEY 36T 6 A0DAR7AE00 Bracket Assy 7 9J08212601 BRACKET 8 9J08120201 SHAFT 9 9J08120902 TORSION SPRING 10 9J08120301 LEVER 11 9J08120701 ARM 12 A01G190100 LEVER 13 9J08121401 BRACKET 14 9J08122201 TORSION SPRING 15 4349201802 BRACKET 16 4349203001 BRACKET 17 4349202801 REINFORCE PLATE 18 9J08206801 BRACKET 19 9J08620000 BRACKET 20 4349204602 BRACKET 21 4349204901 TIMING BELT 1050L 22 4349209301 BRACKET 23 4349206501 PLATE SPRING 24 4349200401 RAIL 25 4349200602 SHAFT
Elevate Drive Section 1 A01GM10000 BRUSH MOTOR 2 9J08207602 Plate spring 3 1139162001 RETAINING RING 4 1139162501 SLEEVE 5 9J08210701 SHAFT 6 9J08204401 BRACKET 7 9331220031 MICRO-SWITCH 8 9J08206901 BRACKET 9 9J08210401 COLLAR 10 4349206202 ACTUATOR 11 4349207201 TORSION SPRING 12 4349206701 LEVER 13 4349206601 TENSION SPRING 14 4349205601 PULLEY 36T 15 9J08207401 BRACKET 16 A0DAR7AD00 Bracket Assy 17 4349204602 BRACKET 18 A01G894000 GEAR 38T 19 A0DAR7AH00 Bracket Assy 20 9J08212701 REINFORCE PLATE 21 4131260701 BALL BEARING 22 4349205401 GEAR 36/59T 23 4643452701 FLANGE 24 4349204901 TIMING BELT 1050L 25 4349203101 BRACKET 26 9J08202001 BRACKET 27 4349200602 SHAFT 28 4349201901 BRACKET 29 4349205223 SHAFT 30 9J08620000 BRACKET 31 4349200401 RAIL 32 4349206501 PLATE SPRING 33 4349202901 REINFORCE PLATE 34 A01G892600 GEAR 19/34T 35 A0DAR7AF00 Bracket Assy 36 4011575802 BALL BEARING 37 A01G894600 Shaft 38 A01G894400 Pulley 46T 39 A01G892400 TIMING BELT 124L 40 4349681002 WIRE HARNESS ASSY 41 9J08212502 BRACKET 42 A01G894500 Worm 43 A01G894700 Cover film

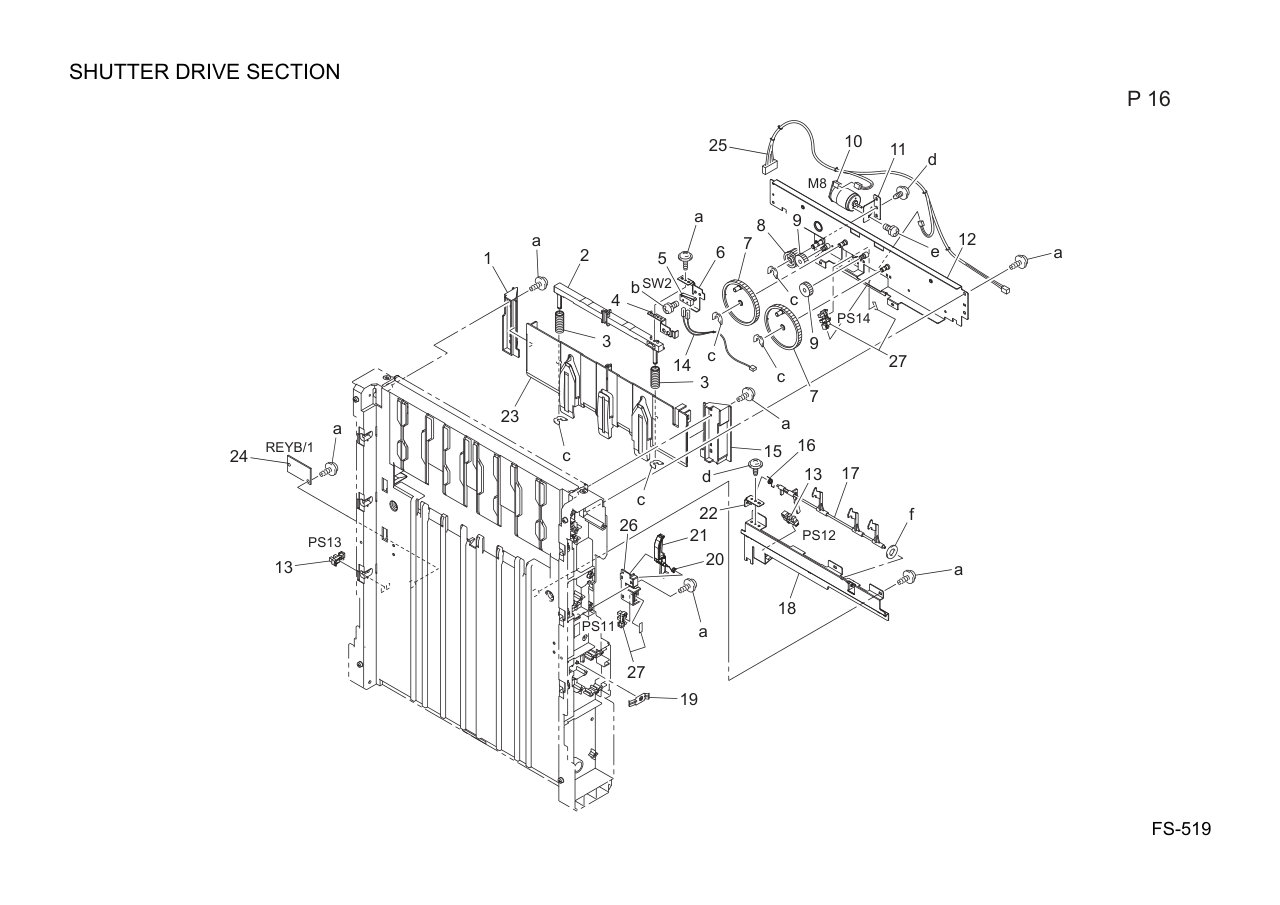

Shutter Drive Section 1 4349209001 RAIL 2 4349208302 BRACKET 3 4349209201 PRESSURE SPRING 4 4349209902 COVER 5 9331220031 MICRO-SWITCH 6 4349209802 BRACKET 7 9J08209102 GEAR 72T 8 4643520901 GEAR 24/30T 9 9J08212401 GEAR 20T 10 9J08036300 MOTOR 11 9J08210001 BRACKET 12 A0DAR7AG00 Bracket Assy 13 9335130061 PHOTO INTERRUPTER 14 4349681202 WIRE HARNESS ASSY 15 4349208202 RAIL 16 4349207003 TORSION SPRING 17 9J08206101 ACTUATOR 18 9J08204502 BRACKET 19 9J08121901 PLATE SPRING 20 4349207101 TORSION SPRING 21 9J08206001 ACTUATOR 22 4349210701 BRACKET 23 A01G891801 SHUTTER 24 4349010203 PWB ASSY 25 9J08680801 WIRE HARNESS ASSY 26 9J08910400 BRACKET 27 4037090501 PHOTO INTERRUPTER

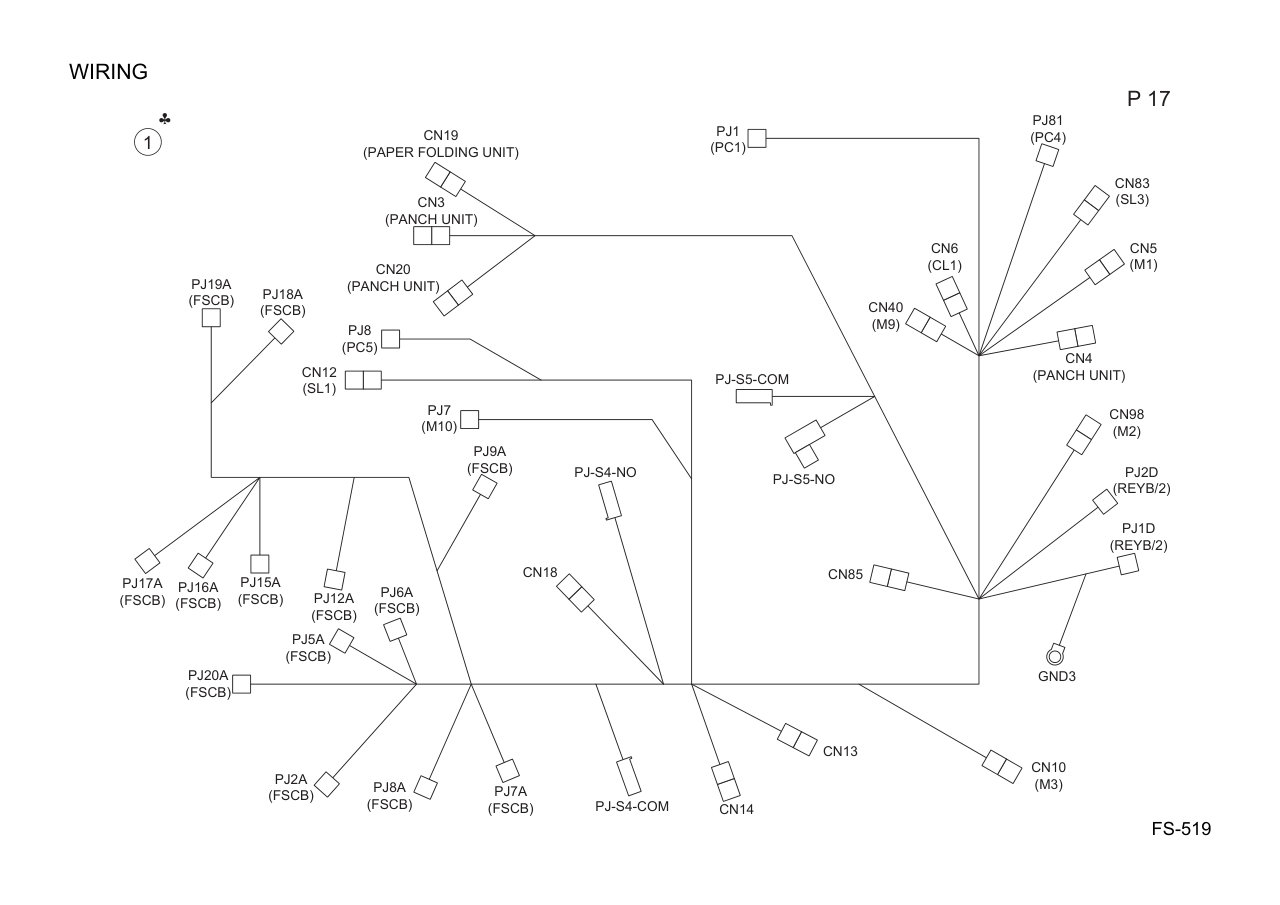

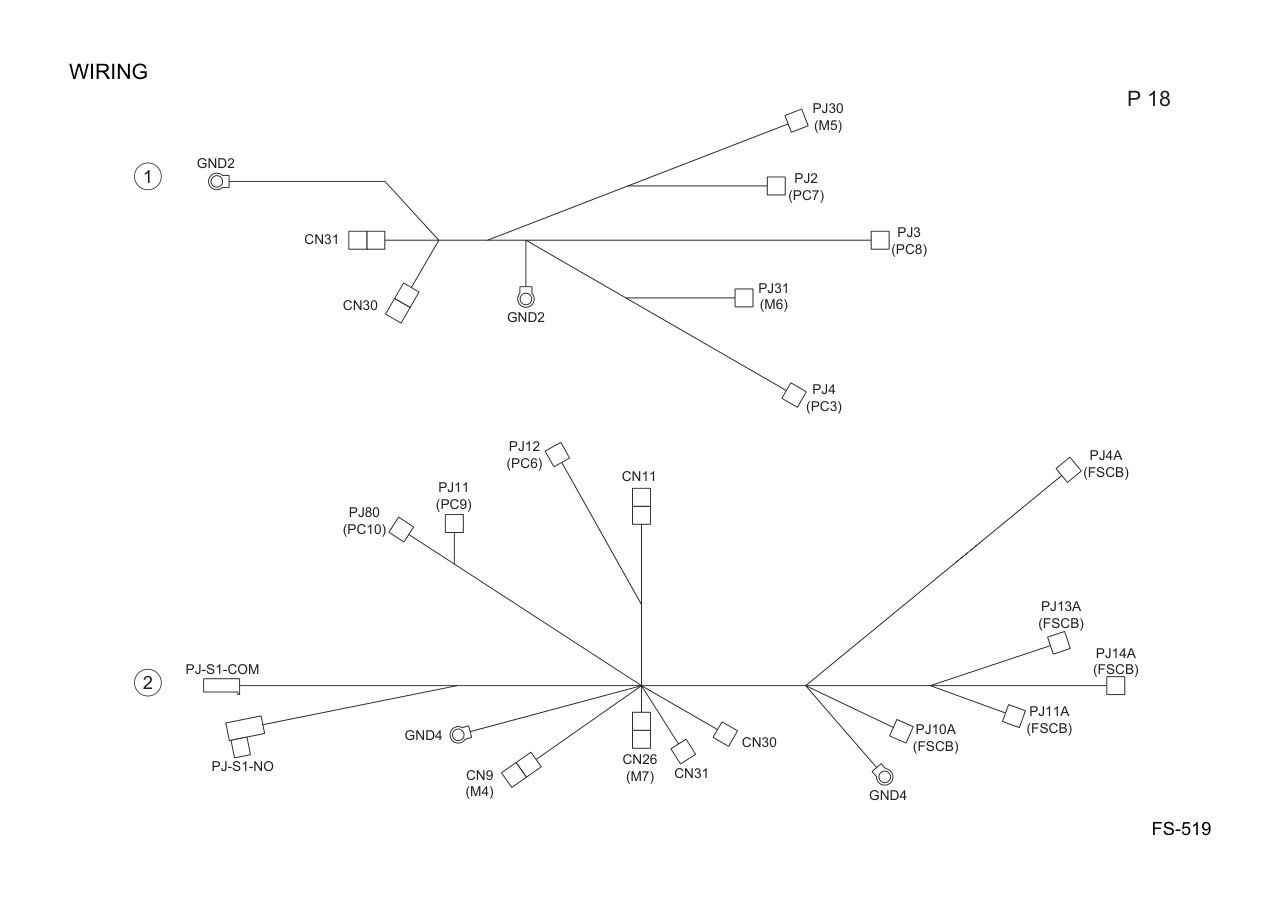

Wiring 1 A01GN10101 Wire Harness Assy (Model No. 1 A0DAN10103 FNS Wiring (Model No. Y2)

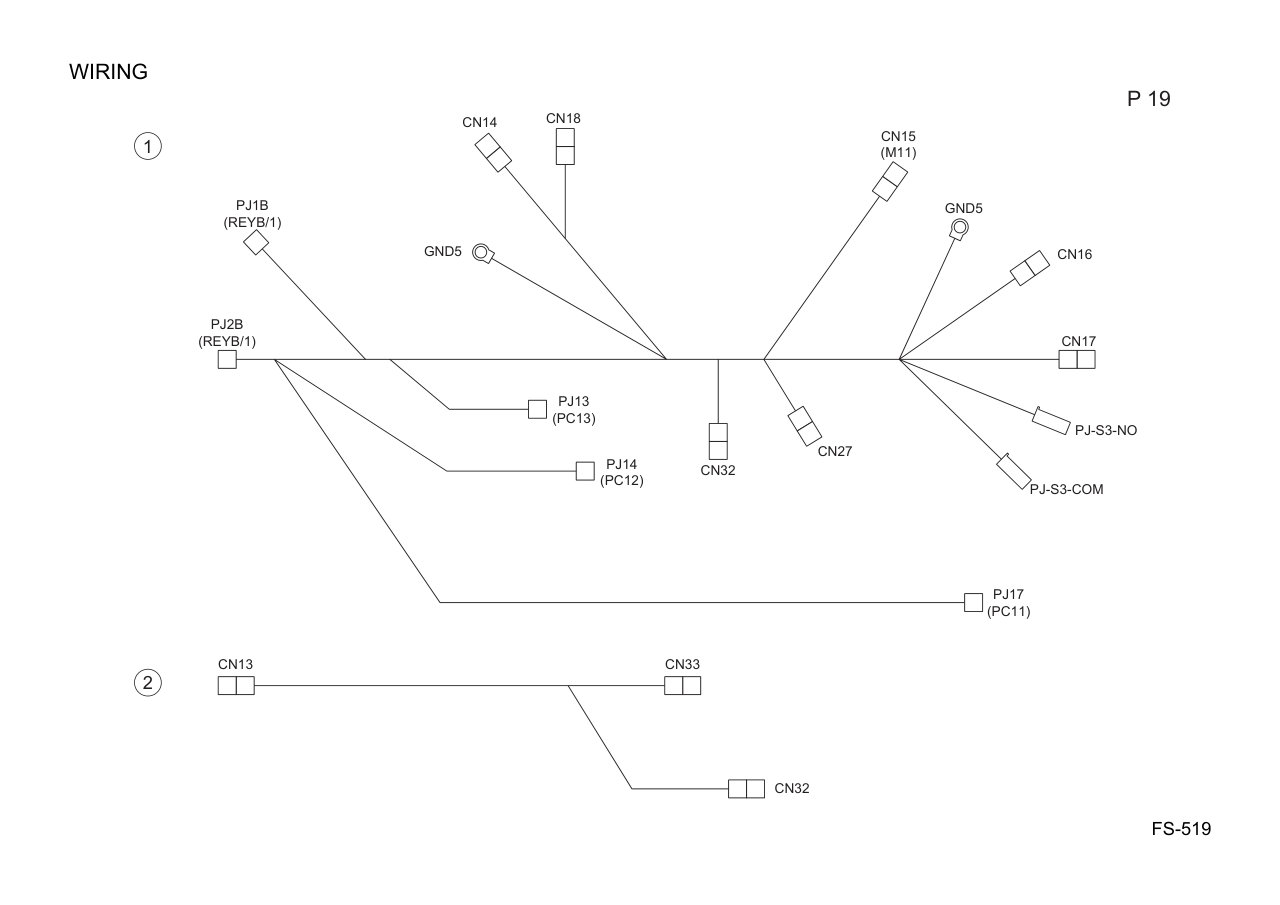

Wiring 1 9J08680302 Wire Harness Assy 2 A01GN10200 Wire Harness Assy
Wiring 1 9J08680701 WIRE HARNESS ASSY 2 9J08680902 Wire Harness Assy

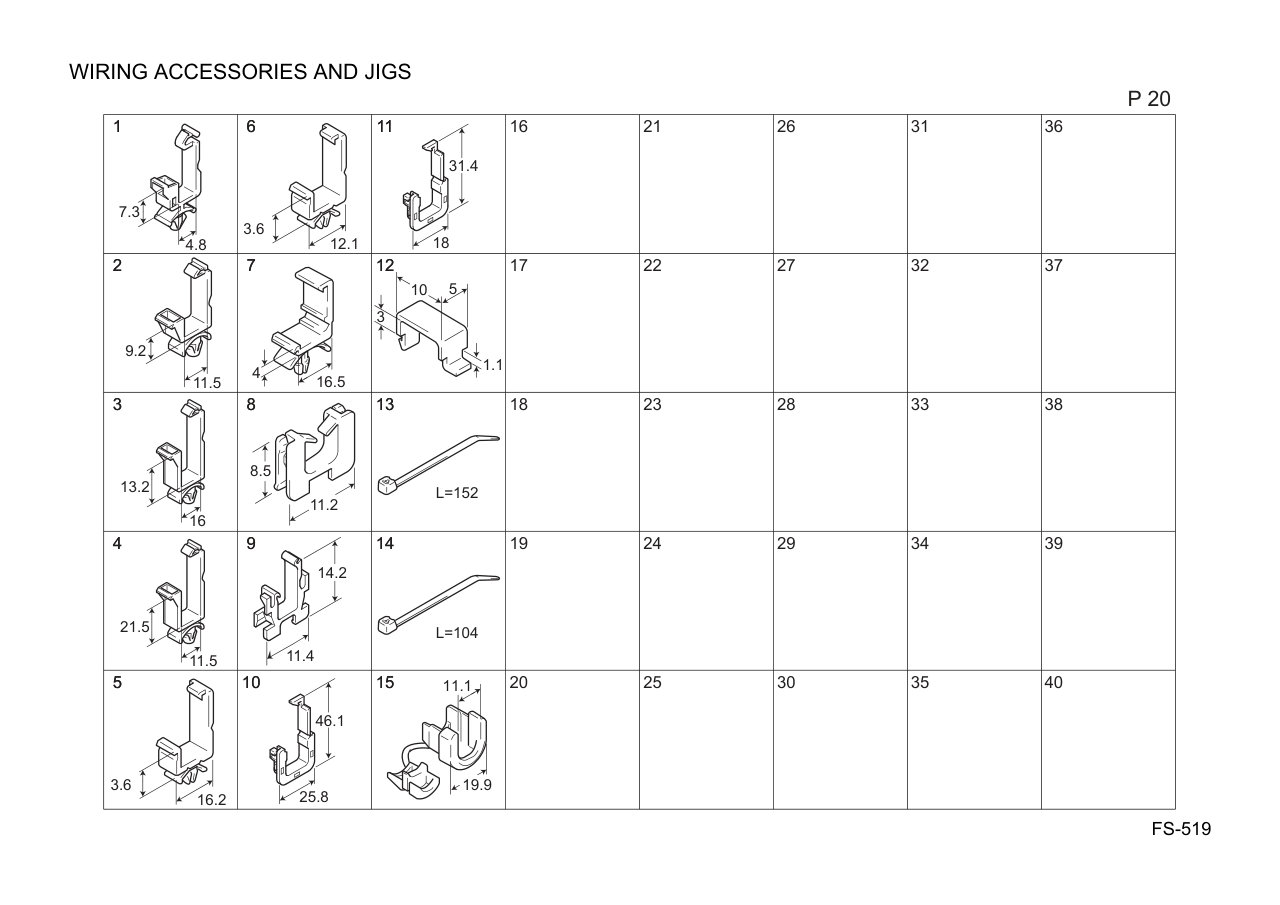

Wiring Accessories And Jigs 1 9384110091 WIRING SADDLE 2 9384192111 WIRING SADDLE 9.2H 3 9384192121 WIRING SADDLE 15.2H 4 9384192131 WIRING SADDLE 17.3H 5 9384131091 WIRING SADDLE 18.5H 6 9384131121 WIRING SADDLE 16.8H 7 9384190054 WIRING SADDLE 23.0H 8 9384201021 EDGE COVER 8.5H 9 9384271042 EDGE COVER 10 9384291021 EDGE COVER 11 9384291031 EDGE COVER 12 1053481201 CORD CLAMP 13 9384151021 CABLE TIE 14 9384131111 CABLE TIE 104L 15 9384152151 CORD BUSHING

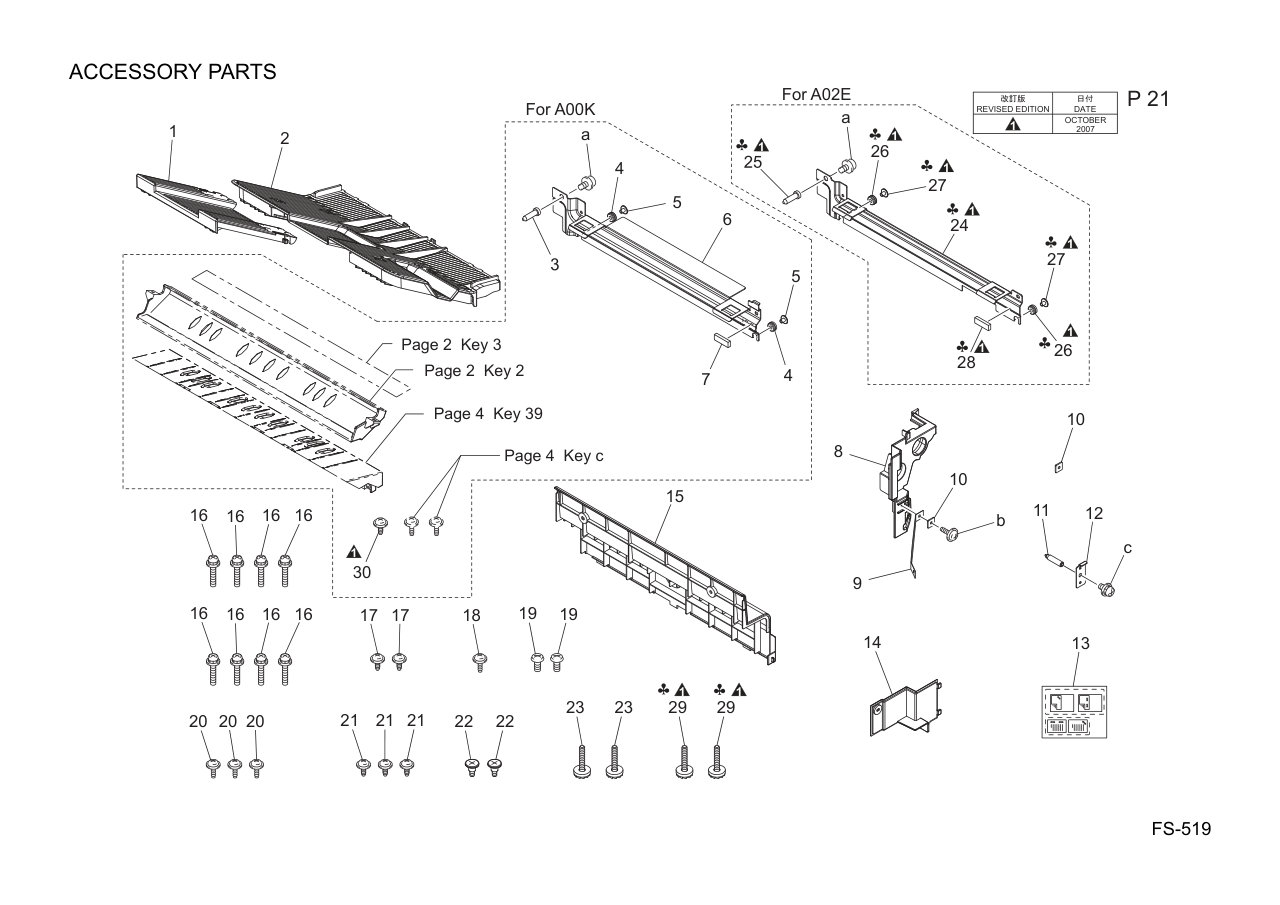

Accessory Parts 1 A0DA890300 Tray 2 A01G890200 TRAY 3 9J08121202 PIN 4 9J08112601 CUSHION 5 9J08112701 SPACER 6 A01G120500 BRACKET 7 A01GM90000 GASKET 8 9J08100502 COVER 9 4643102003 BAND 10 9J08210101 SET PLATE 11 9J08112301 SHAFT 12 9J08112501 BRACKET 13 9J08940000 LABEL STAPLE POSITION 14 A01G161700 COVER 15 A01G160601 COVER 16 9646041814 SCREW 17 9735040807 TAPPING SCREW 18 9739040807 TAPPING SCREW 19 9654030814 SCREW 20 9739030814 TAPPING SCREW 21 9735030814 TAPPING SCREW 22 1054260101 SHOULDER SCREW 23 A0DA115901 Adjusting plate 24 9J08120502 BRACKET (Model No. Y2) 25 9J08121202 PIN (Model No. Y2) 26 9J08112601 CUSHION (Model No. Y2) 27 9J08112701 SPACER (Model No. Y2) 28 A01GM90000 GASKET (Model No. Y2) 29 A0DA115901 Adjusting plate (Model No. Y2) 30 9735040807 TAPPING SCREW (Model No. Y2)
