Every part in the Konica Minolta FS-524 Finisher Parts Guide Manual (A0R1, December 2008), section by section with the exploded diagram. Call or email with the part number for price and availability.

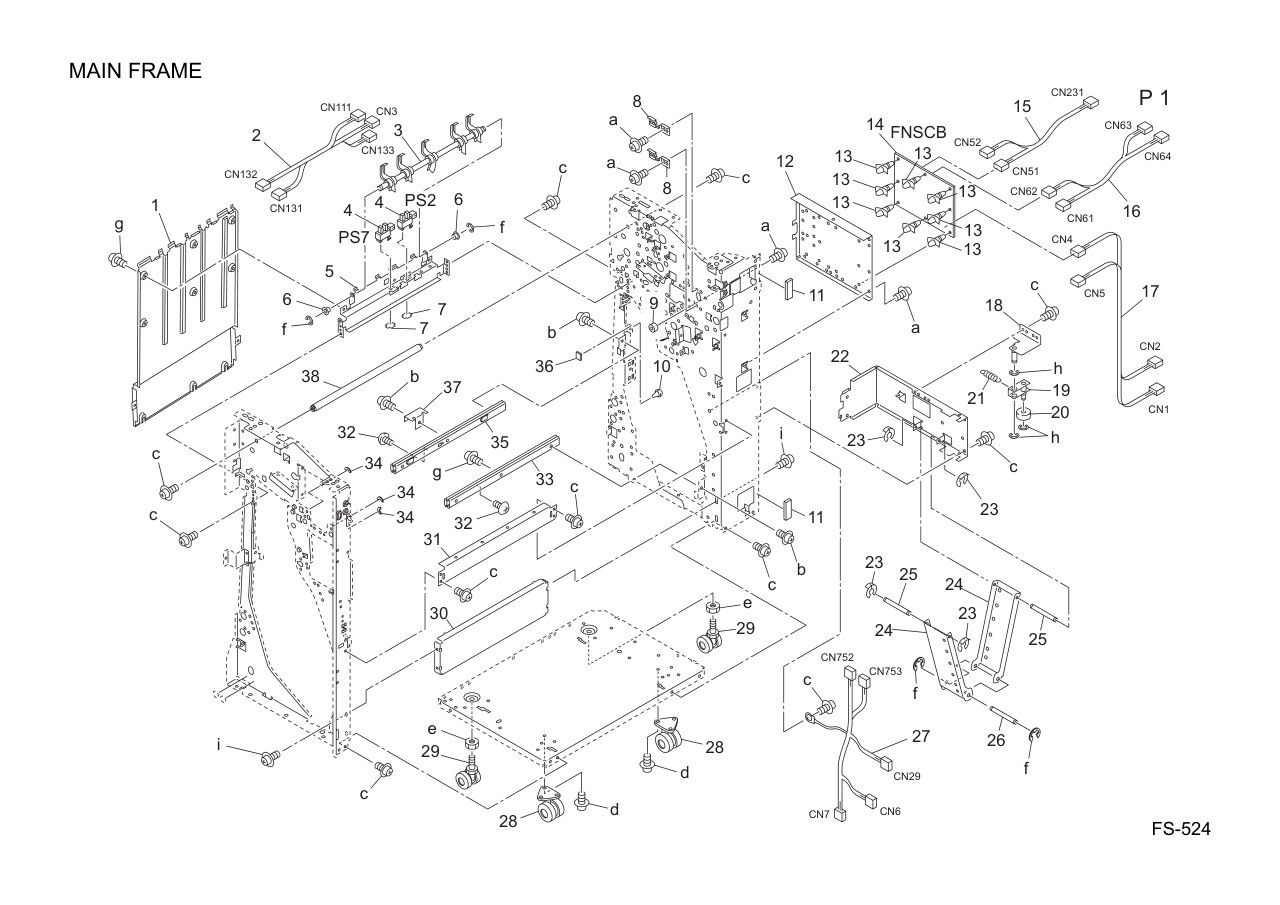

Main Frame 1 15JKR70200 PAPER EXIT STOPPER PLATE ASSY 2 15JK90052 FNS WIRING 5 3 14JS49010 PAPER EXIT UP/DOWN ACTUATOR 4 08AA85512 PHOTO SENSOR 5 15JK10071E PAPER EXIT REINFORCE STAY 6 12AA75560 DRIVEN SHAFT HOLDER 7 13GL46720 FIXING PLATE 8 13QE10171 PUNCH GUIDE PLATE A 9 12VL42540 PRESSURE RUBBER 2 10 048645260 STOPPER RUBBER 11 15JK121200 Protection Part /1 12 15JK73011E BOARD MOUNTING PLATE /1 13 V502010015 support 14 15JK-9012E CONTROL BOARD UNIT 15 13QE90082E FNS WIRING /8 16 13QE90092 FNS WIRING 9 17 15JK90110 FNS WIRING A 18 15JK-1120 LOCK PLATE CAULKING 19 15AAR70900 LOCKING LEVER CAULKING 20 066031142 ROLLER 21 129U10300 LOCK SPRING 22 15JK10090 REINFORCE STAY REAR 23 396040681 STOPPER RING 24 129U10151 WIRING GUIDE ARM 25 15JK10200 SUPPORT SHAFT A 26 129U10180 SUPPORT SHAFT B 27 15JK90060 FNS WIRING 6 28 049810021 CARRIGE ROLLER R 29 129U10350 CARRIAGE ROLLER 1 30 13QE10041 REINFORCE STAY /1 31 13QE10061 REINFORCE STAY /3 32 129U10460 STOPPER SCREW 33 129U10312 SLIDE RAIL /RIGHT 34 15JL104000 PROTECTION SEAL 35 129U10322E Slide Rail /Left 36 55VA12730 EARTH CUSHION C 37 15JK10080 FIXING PLATE 38 13QE10141 REGULATING SHAFT

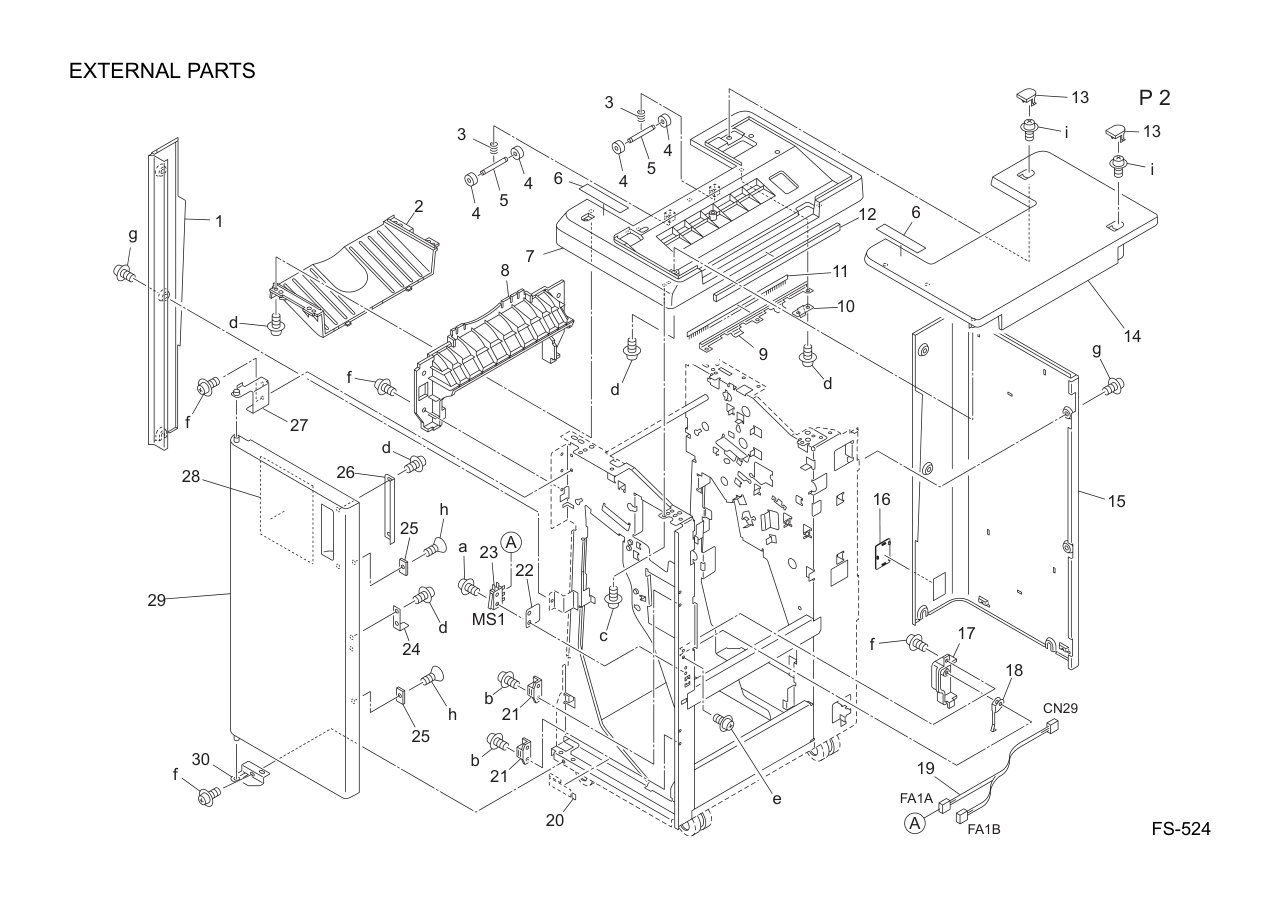

External Parts 1 A0R1160300 Side Cover /Left 2 A0R1161001 Top plate /2 3 129U46110 SPRING LOWER 4 25SA43330 PAPER EXIT DRIVEN ROLLER B 5 12QR45780 SHAFT LOWER 6 A0R1940100 Caution Label 7 A0R1160101 Top plate /1 8 A0R1160200 Side Cover /Upper 9 15JK48100 NEUTRALIZING PLATE 10 13QE48060 EARTH PLATE 1 11 14JS47210 NEUTRALIZING BRUSH 12 A07R161500 Preventing Part /1 13 A07R160700 Screw Cover 14 A0R1160901 Top plate /3 15 A0R1160700 Rear Cover 16 A0R1161100 Key counter Cover 17 12QR12190 COVER 18 12AR45611 ACTUATOR 19 13QE90070 FNS WIRING 7 20 56UF97280 SEPARATION PROCESSING LABEL 21 07BA12352 MAGNETCATCH 22 12QR12260 SWITCH INSULATING SHEET 23 12QR86011 INTERLOCK SWITCH 24 12AR12161E ACTUATOR 25 300011191 MAGNET HOLDER PLATE 26 A0R1160600 Handle 27 13QE12051 HINGE MOUNTING PLATE UPPER 28 A07R940102 PROCESSING LABEL 29 A0R1160401 Front Door 30 13QE12121 HINGE MOUNTING PLATE LOWER

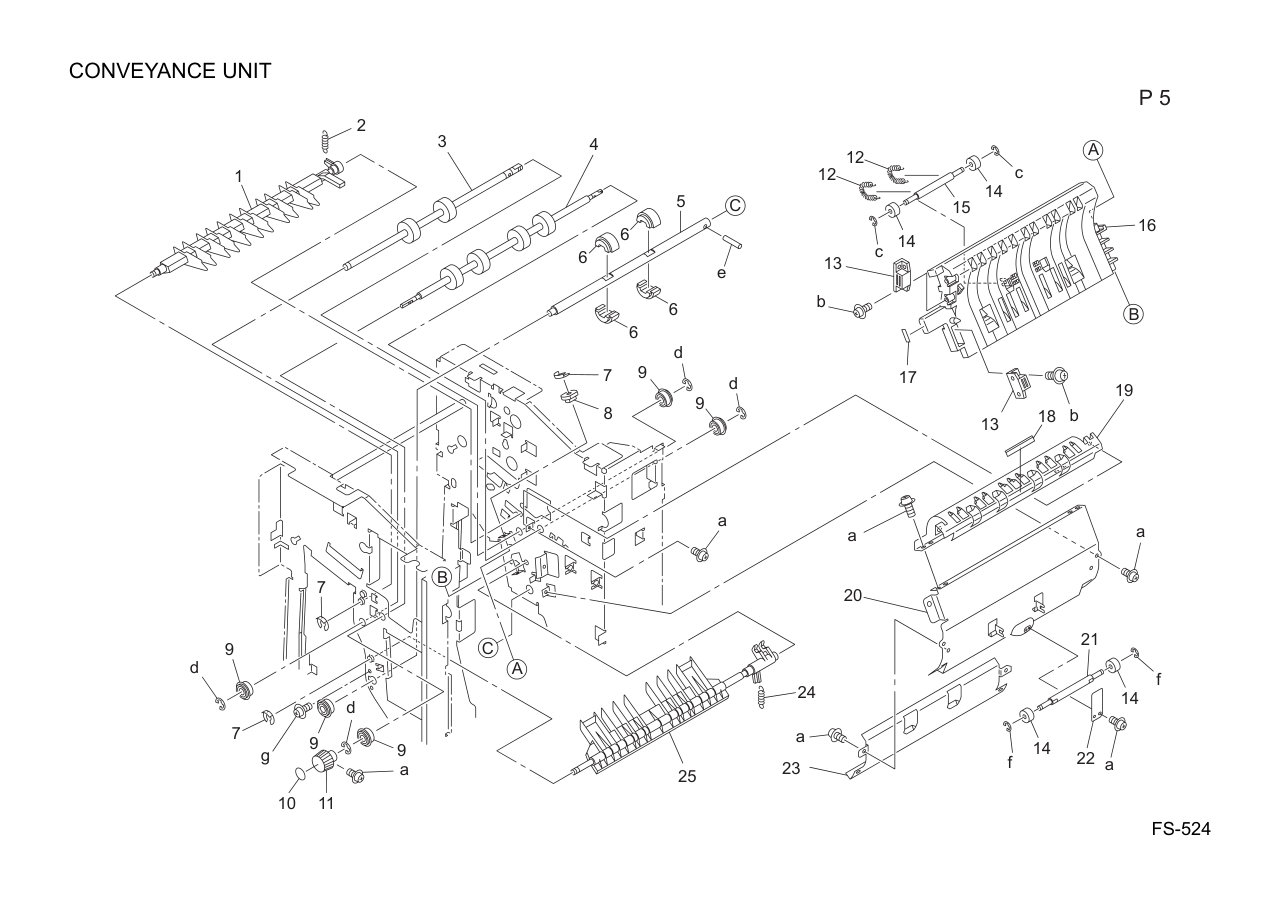

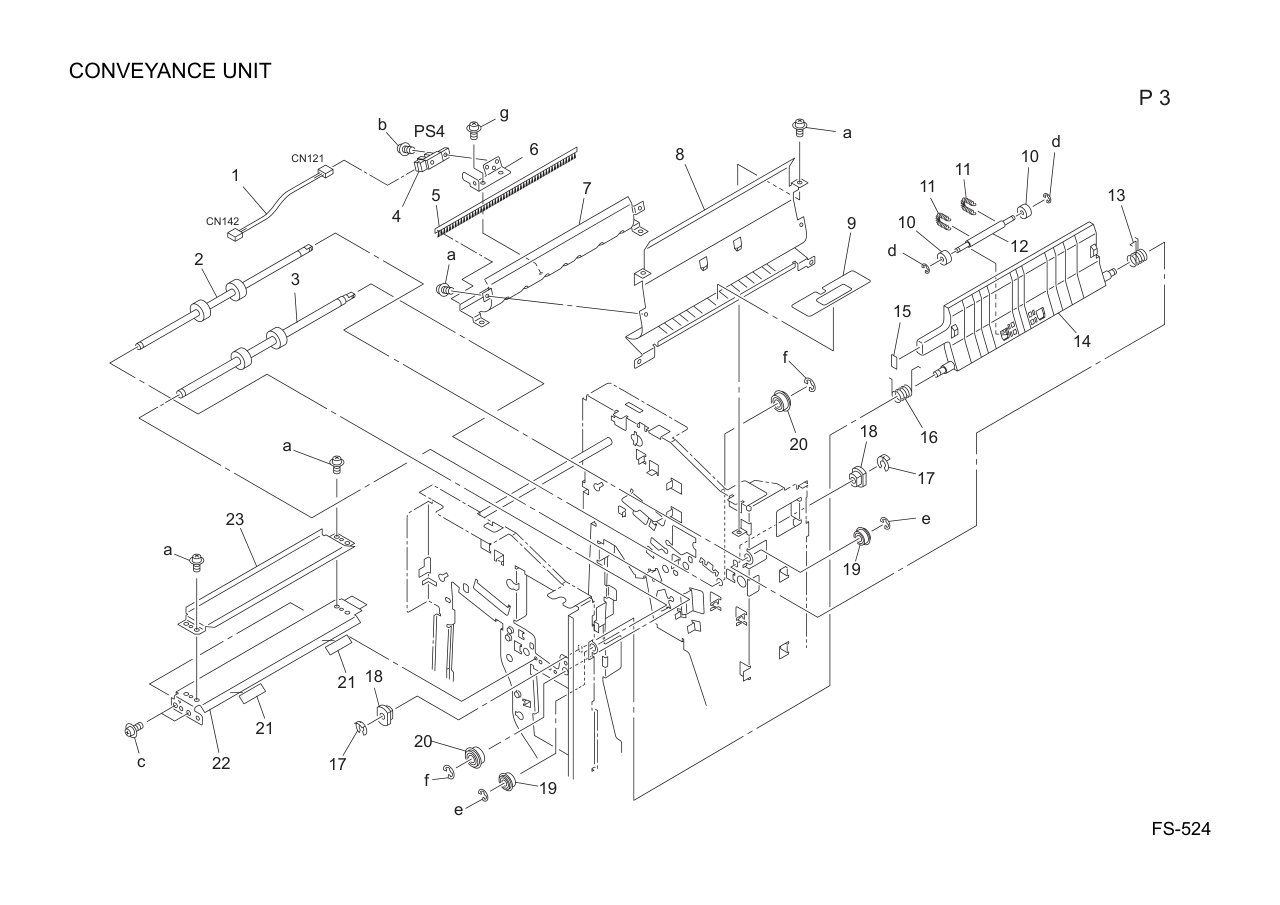

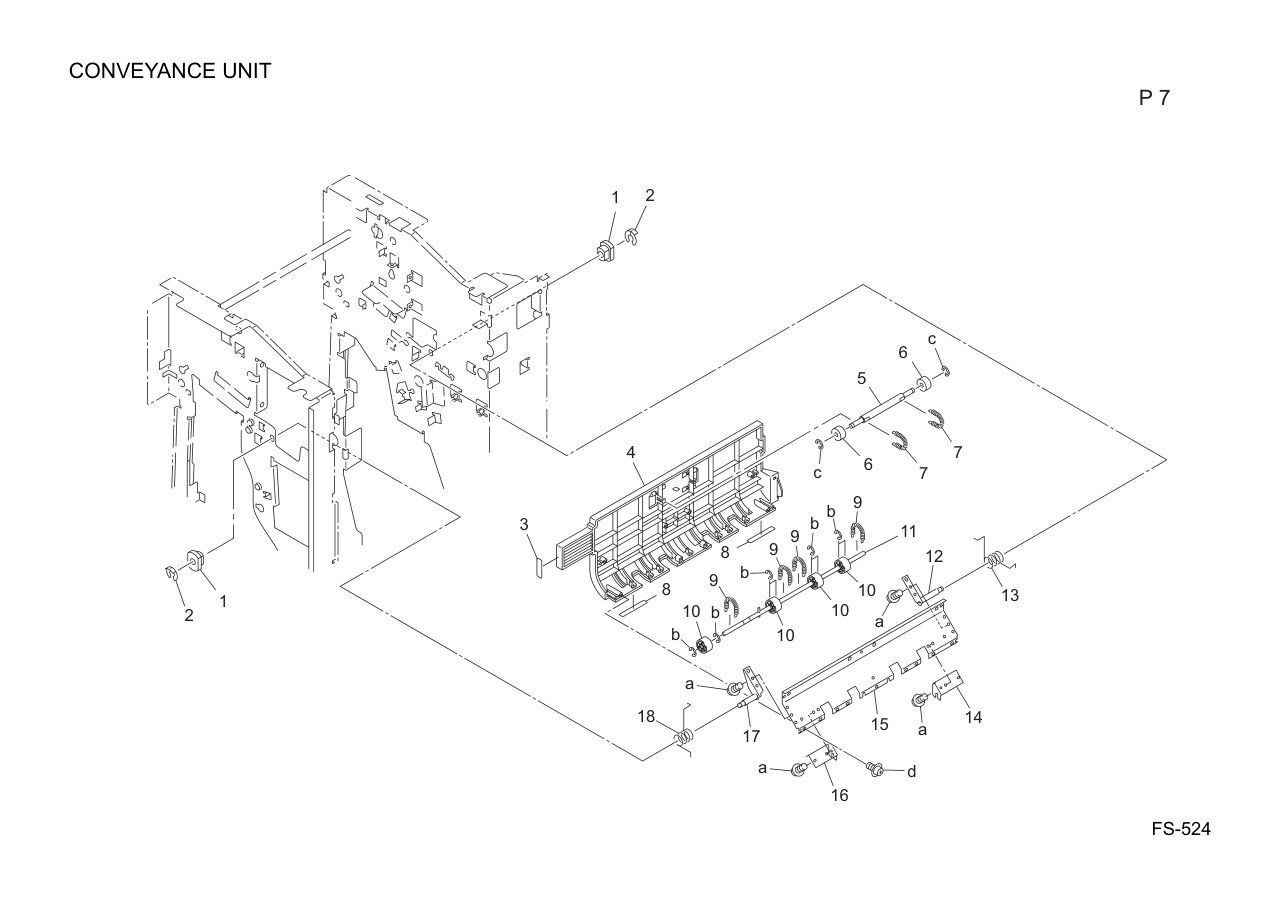

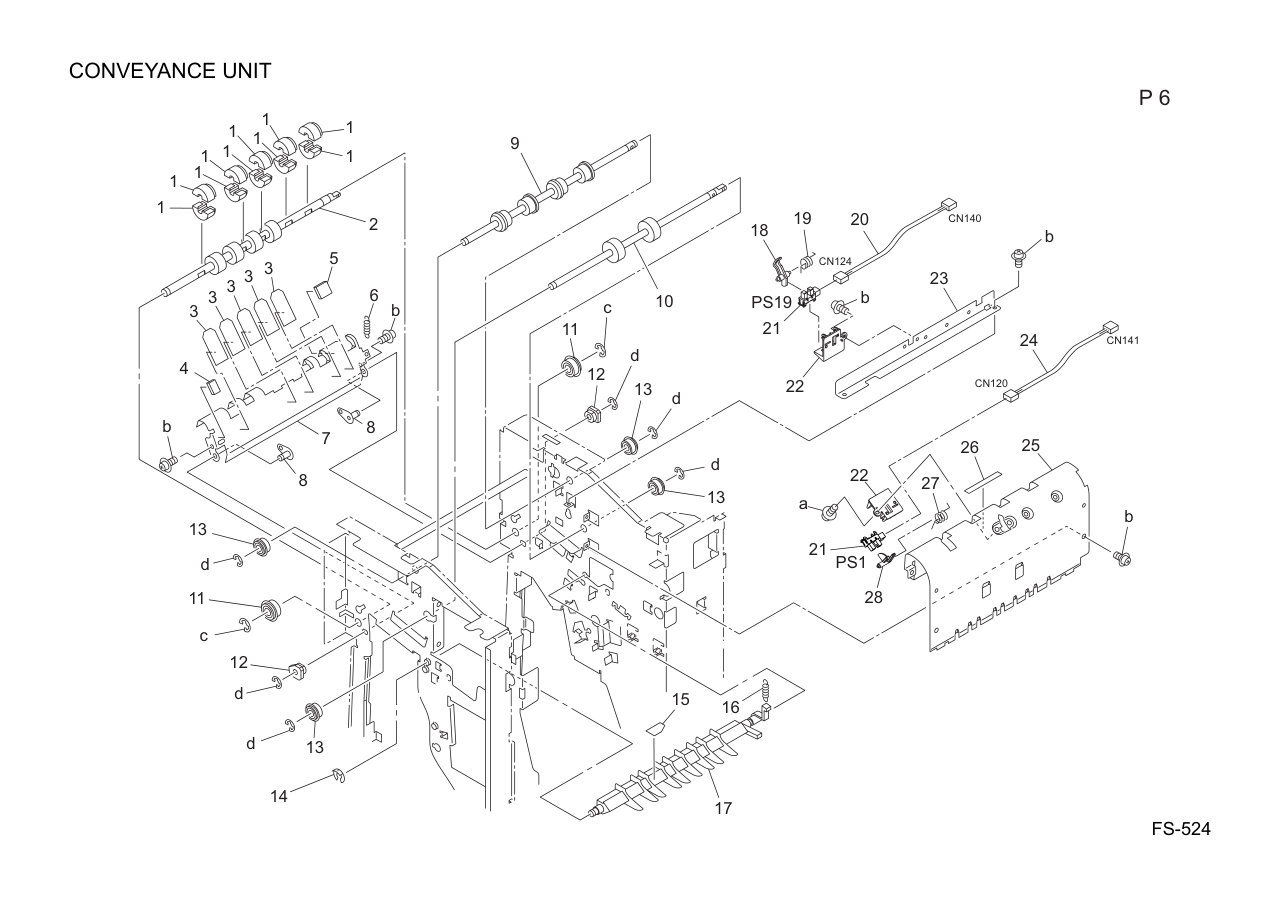

Conveyance Unit 1 13QE90030 FNS WIRING 3 2 14JS45110 CONVEYANCE ROLLER 1 3 14JS45371 CONVEYANCE ROLLER 4 4 13QA85521 SENSOR 2 5 14JS47210 NEUTRALIZING BRUSH 6 13QE45352 MOUNTING PLATE 2 7 15JK45040D Conveyance Guide Plate /4 8 13QE45021 CONVEYANCE GUIDE PLATE 2 9 13QE45360 CONVEYANCE GUIDE SHEET 10 15JK42840 ENTRANCE ROLLER 3 11 13QE45390 PRESSING SPRING 2 12 13QE45161 DRIVEN SHAFT/1 13 13QE45270 HINGE SPRING 2 14 13QE45031 CONVEYANCE GUIDE PLATE 3 15 A07R940300 RELEASE LABEL /A 16 13QE45260 HINGE SPRING 1 17 396040681 STOPPER RING 18 13GQ76020 SHAFT HOLDER A 19 55GA75031 BALL BEARING 20 540076050 BALL BEARING 21 15JK45610 ENTRANCE GUIDE SHEET 22 13QE45400 CONVEYANCE GUIDE PLATE A 23 13QE45410E CONVEYANCE GUIDE PLATE /B

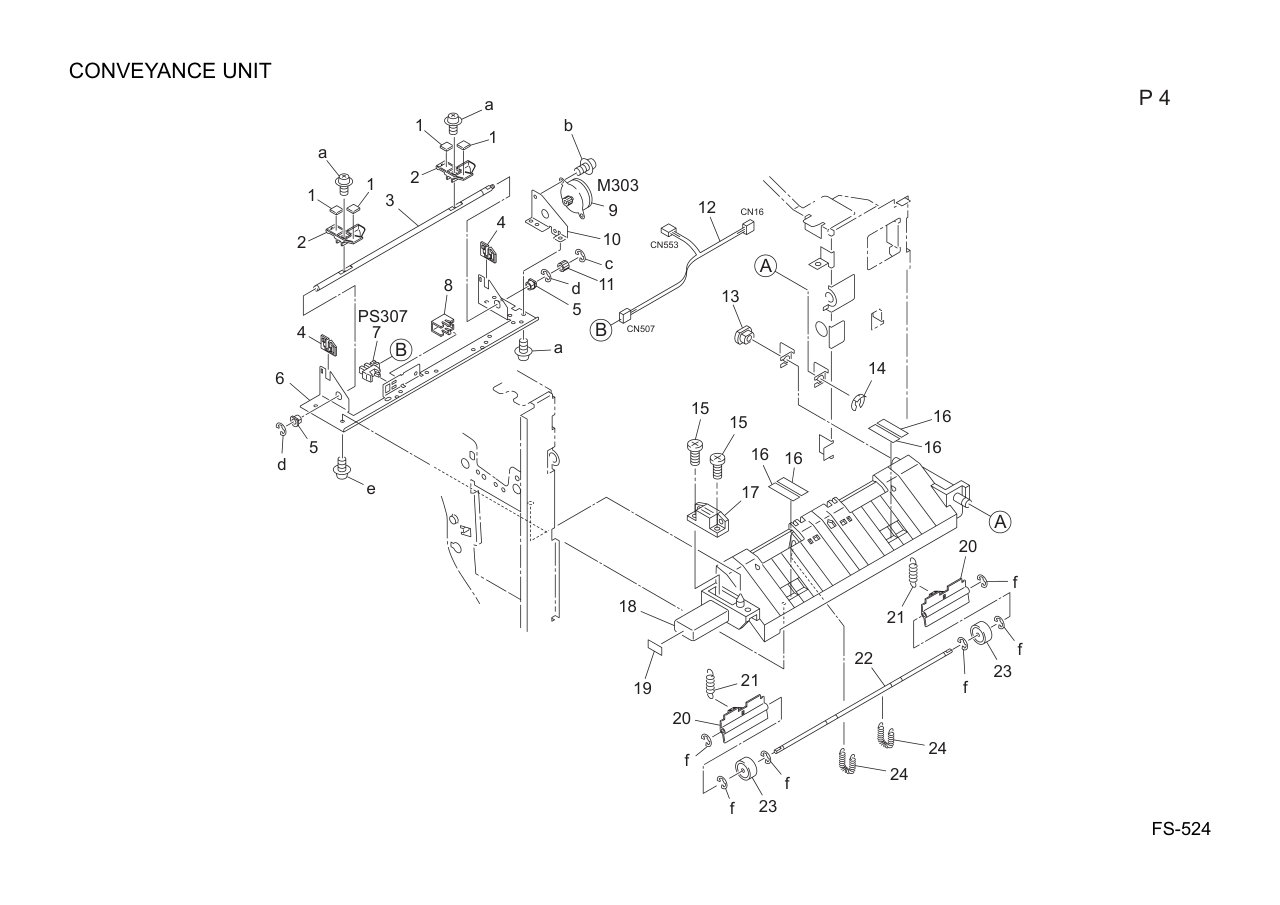

Conveyance Unit 1 12ER40350 STICKING PART 2 15JK47060 REGIST ROTATION LEVER 3 15JK47020 REGIST DRIVE SHAFT 4 15JK47070 SHAFT SLIDE PART 5 15JK75510 SHAFT HOLDER 6 6 15JK47010 SHAFT SUPPORT PLATE 7 08AA85512 PHOTO SENSOR 8 13QN40750 COVER 9 13GQ80012 FNS COMPENSATING MOTOR 10 15JK47030 MOTOR MOUNTING PLATE 11 15JK77010 REGISTRATION DRIVE GEAR 17T 12 15JK90240 REGISTRATION DRIVE WIRING 13 13GQ76020 SHAFT HOLDER A 14 396040681 STOPPER RING 15 13QE45200 MAGNET MOUNTING SCREW 16 15JK45620 GUIDE SHEET A 17 059010620 MAGNET CATCH 18 15JK45010 CONVEYANCE GUIDE PLATE 1 19 A07R940400 RELEASE LABEL /B 20 15JK47050 REGIST STOPPER 21 15JK47090 PUNCH REGISTRATION SPRING 22 15JK47040 REGIST IDLER SHAFT 23 15JK42760 ENTRANCE ROLLER 4 24 13QE45390 PRESSING SPRING 2
Conveyance Unit 1 13QE45170 PAPER GUIDE PART 1 2 13QE48650 SOLENOID SPRING 3 14JS45120 CONVEYANCE ROLLER 2 4 13QE45132 CONVEYANCE ROLLER 3 5 13QE45140 CONVEYANCE SHAFT 4 6 13QE45310 CONVEYANCE ROLLER 4 7 396040681 STOPPER RING 8 13GQ76020 SHAFT HOLDER A 9 55GA75031 BALL BEARING 10 A07R940500 RELEASE LABEL /C 11 14GE45470 ROTARY KNOB 12 13QE45250 PRESSING SPRING 4 13 07BA12352 MAGNETCATCH 14 15JK42840 ENTRANCE ROLLER 3 15 13QE45161 DRIVEN SHAFT/1 16 15JK45081 CONVEYANCE GUIDE PLATE 8 17 A07R940700 RELEASE LABEL /E 18 13QE45590 SHEET A 19 13QE45071 CONVEYANCE GUIDE PLATE 7 20 15JK45301 CONVEYANCE GUIDE PLATE A 21 13QE45320 IDLER SHAFT 2 22 15JK43190 CONVEYANCE PRESSING SPRING 23 15JK45091E CONVEYANCE GUIDE PLATE /9 24 13QE48730 SOLENOID SPRING 2 25 15JK45190 PAPER GUIDE PART 3
Conveyance Unit 1 122H48251 PAPER EXIT ROLLER A 2 14JS45150 PAPER EXIT ROLLER 1 3 13QE45420 PAPER EXIT AUXILIARY SHEET 4 13QE45430 STOPPER PART 5 13QE45470 STOPPER PART 6 13QE48390 PAPER EXIT SPRING 7 15JK45101F Paper exit Guide Plate 8 13QE-3260 IDLER SHAFT 2 9 13QE48020 PAPER EXIT ROLLER 10 14JS45120 CONVEYANCE ROLLER 2 11 540076050 BALL BEARING 12 15JK75530 SHAFT HOLDER A 13 55GA75031 BALL BEARING 14 396040681 STOPPER RING 15 13QE45481E CONVEYANCE GUIDE SHEET 16 13QE48650 SOLENOID SPRING 17 13QE45180 PAPER GUIDE PART/2 18 20AK48090 ACTUATOR /2 19 20AK48080 SPRING /2 20 13QE90100 FNS WIRING 10 21 08AA85512 PHOTO SENSOR 22 13QE48300 BLOCK 23 13QE48031 PAPER EXIT STAY 24 13QE90020 FNS WIRING 2 25 15JK45060E CONVEYANCE GUIDE PLATE /6 26 20AK45980 CONVEYANCE PROTECTION SHEET 27 13QE48080 SPRING 1 28 13QE48070 ACTUATOR 1
Conveyance Unit 1 13GQ76020 SHAFT HOLDER A 2 396040681 STOPPER RING 3 A07R940600 RELEASE LABEL /D 4 13QE45051 CONVEYANCE GUIDE PLATE 5 5 13QE45161 DRIVEN SHAFT/1 6 15JK42840 ENTRANCE ROLLER 3 7 13QE45450 PRESSING SPRING 3 8 A07R701200 COVER SHEET 9 13QE45240 PRESSING SPRING 1 10 15JK42760 ENTRANCE ROLLER 4 11 13QE-3710 ROLLER DRIVEN SHAFT ASSY 12 15JK-3690 FULCRUM PLATE REAR CAULKING 13 13QE45290 HINGE SPRING 4 14 13QE45521 ROLLER SUPPORT PLATE REAR 15 13QE45501 CONVEYANCE GUIDE STAY 5 16 13QE45511 ROLLER SUPPORT PLATE FRONT 17 15JK-3680 FULCRUM PLATE FRONT CAULKING 18 13QE45280 HINGE SPRING 3

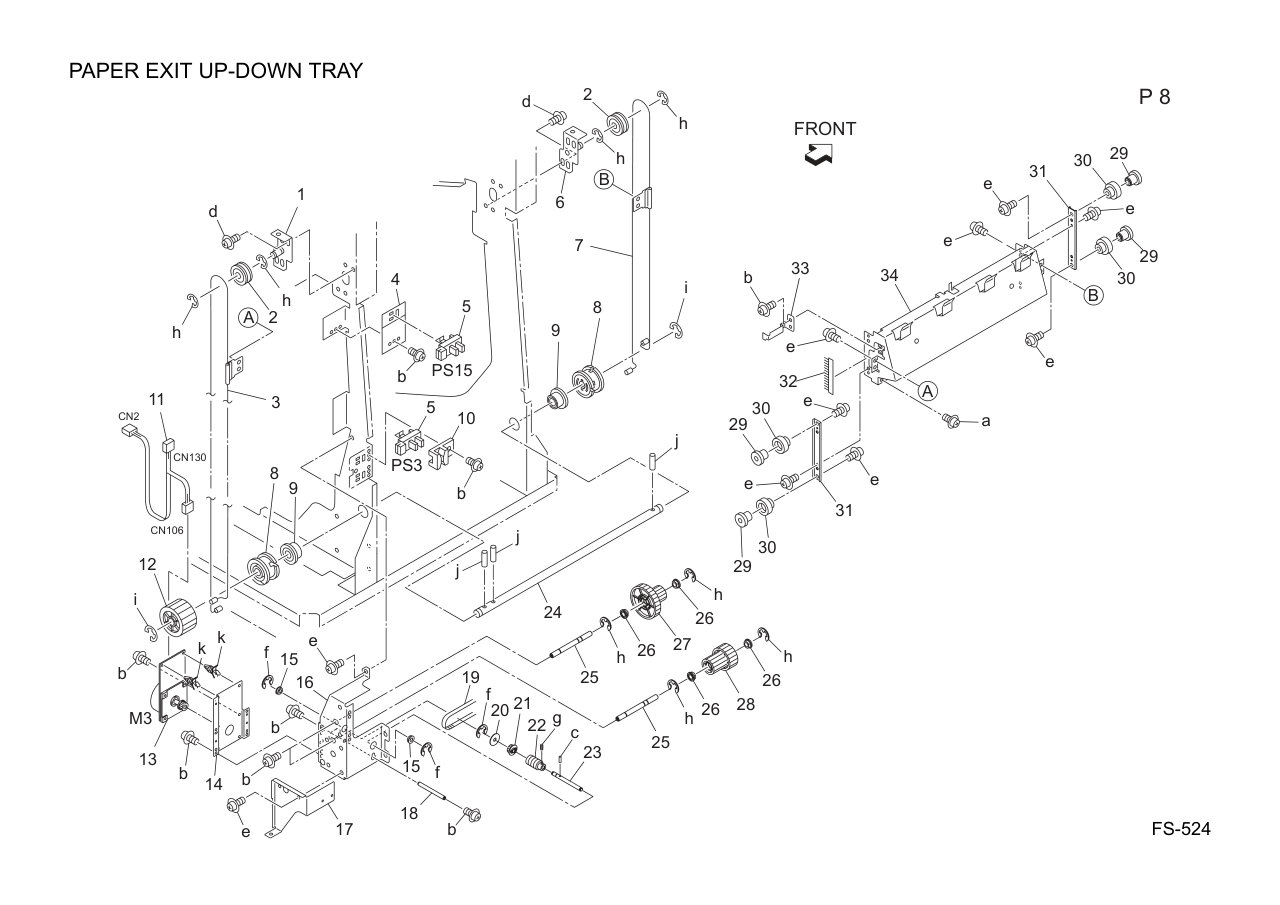

Paper Exit Up-down Tray 1 15JK-1140 TENSION PLATE / REAR CAULKING 2 13QE49140 BUSHING 3 13QE49070 UP DOWN WIRE R 4 13QE10211 MOUNTING PLATE A 5 08AA85512 PHOTO SENSOR 6 15JK-1130 TENSION PLATE FRONT CAULKING 7 13QE49060 UP DOWN WIRE F 8 12QR48070 UP DOWN PULLEY 9 13QE75010 BEARING/A 10 13QE49150 PROTECTION PART 11 14JS90041 FNS WIRING /4 12 14JS77030 UP DOWN GEAR C 23T 13 15JKR70400 CONVEYANCE MOTOR ASSY 14 14JS49220 MOTOR FIXING PLATE 1 15 55VA75030 BALL BEARING 16 14JS49021 MOTOR MOUNTING PLATE 1 17 14JS49210 FIXING PLATE 18 14JS49230 SUPPORT SHAFT 1 19 14JS77610 MOTOR DRIVE BELT 93L 20 40BA52390 BELT HOLDER 21 14JS77520 DRIVE PULLEY 2 16T 22 14JS77141F UP/DOWN WORM 23 14JS49200 IDLING SHAFT 1 24 14JS49051E UP/DOWN SHAFT 25 14JS49030D IDLING SHAFT /A 26 14QH75530 SHAFT HOLDER G 27 14JS77020 UP/DOWN GEAR /B 16/59T 28 14JS77010 UP/DOWN GEAR /A 27/40T 29 13QE49090 SLIDE SHAFT 30 13QE49160 GUIDE ROLLER 31 15JK491700 UP/DOWN PLATE /1 32 14JS49040 NEUTRALIZING BRUSH 33 13QE49131 ACTUATOR 1 34 15JK49083G UP/DOWN STAY

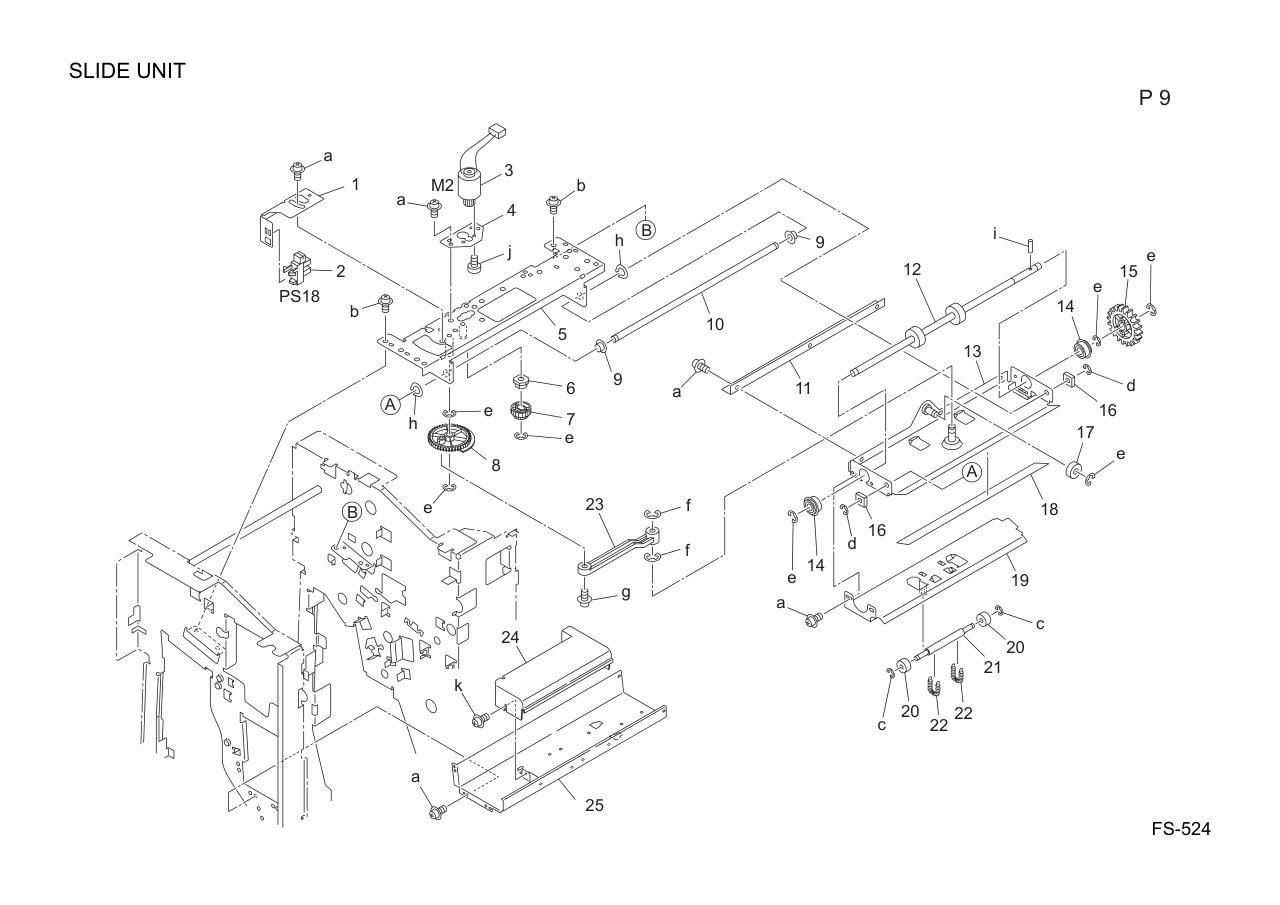

Slide Unit 1 15JK46080 MOUNTING PLATE 2 08AA85512 PHOTO SENSOR 3 12QR-3611 SHIFT MOTOR ASSY 4 12QR46281 MOTOR MOUNTING PLATE 5 15JK-3640 SRIDE STAY CAULKING 6 15JK75510 SHAFT HOLDER 6 7 15JK77060 SLIDE GEAR 1 43/24T 8 13QE77071 SLIDE GEAR 2 128T 9 12AR75510 SHAFT HOLDER A 10 13QE46050 SLIDE SHAFT 11 15JK46130 GUIDE PLATE 12 14JS46040 CONVEYANCE ROLLER A 13 15JK-3660 GUIDE PLATE UPPER CAULKING 14 55GA75031 BALL BEARING 15 13QE77040 DRIVE GEAR 1 32T 16 25AA52090 STOPPER SHEET 17 504045110 PRESSURE ROLLER 18 20AK46120 CONVEYANCE GUIDE SHEET 3 19 15JK46030 GUIDE PLATE /LOWER 20 15JK42840 ENTRANCE ROLLER 3 21 13QE46100 IDLER SHAFT A 22 13QE45240 PRESSING SPRING 1 23 12QR46111 SLIDE ARM 24 13QE73030 BASE PLATE COVER 25 13QE73022 BOARD MOUNTING PLATE/2

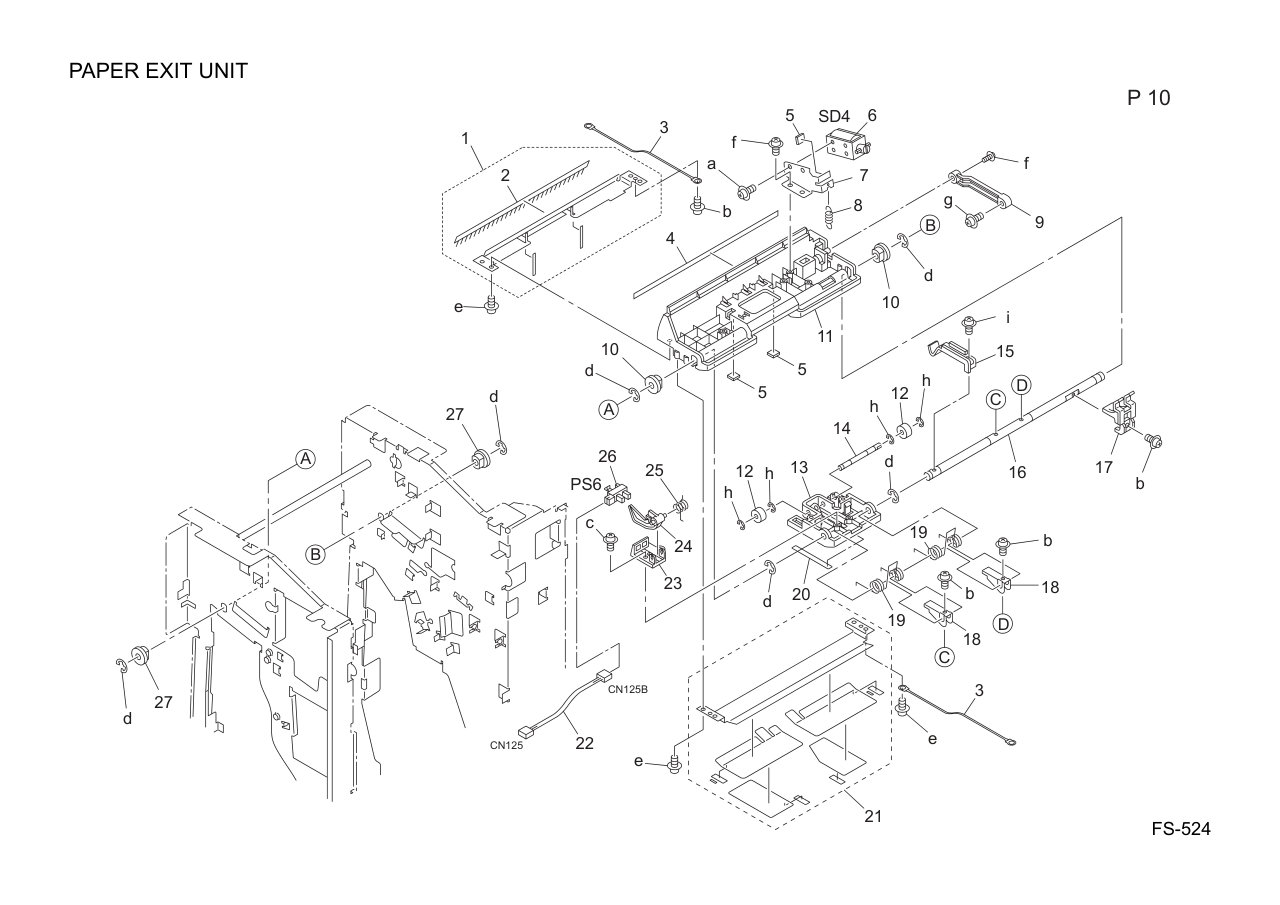

Paper Exit Unit 1 15SJR70200 NEUTRALIZING PLATE ASSY 2 2 14JS48420 NEUTRALIZING BRUSH 3 13QE90210 FNS WIRING 20 4 13QE48460 SPACER A 5 12ER40350 STICKING PART 6 13QER70400 PAPER EXIT SOLENOID ASSY 7 13QE48331 SOLENOID MOUNTING PLATE 8 13QE48350 SOLENOID SPRING 9 13QE48401 SLIDE ARM 10 13GQ76030 SHAFT HOLDER B 11 A07R890800 Paper exit Slide Stay 12 15JK42840 ENTRANCE ROLLER 3 13 A07R890700 Paper exit Guide Part 14 13QE48240 DRIVEN SHAFT 15 13QE48361 HOLDING PLATE 16 13QE48231 PAPER EXIT SUPPORT SHAFT 17 13QE48340 SOLENOID LEVER 18 13QE48320 STOPPER PLATE 19 13QE48310 PRESSING SPRING 20 A07R891200 Guide Sheet 21 15SJR70100 PAPER EXIT GUIDE PLATE LOWER ASSY 22 15JKN12500 WIRING 23 13QE48300 BLOCK 24 13QE48280 ACTUATOR 25 13QE48080 SPRING 1 26 08AA85512 PHOTO SENSOR 27 14QH75530 SHAFT HOLDER G

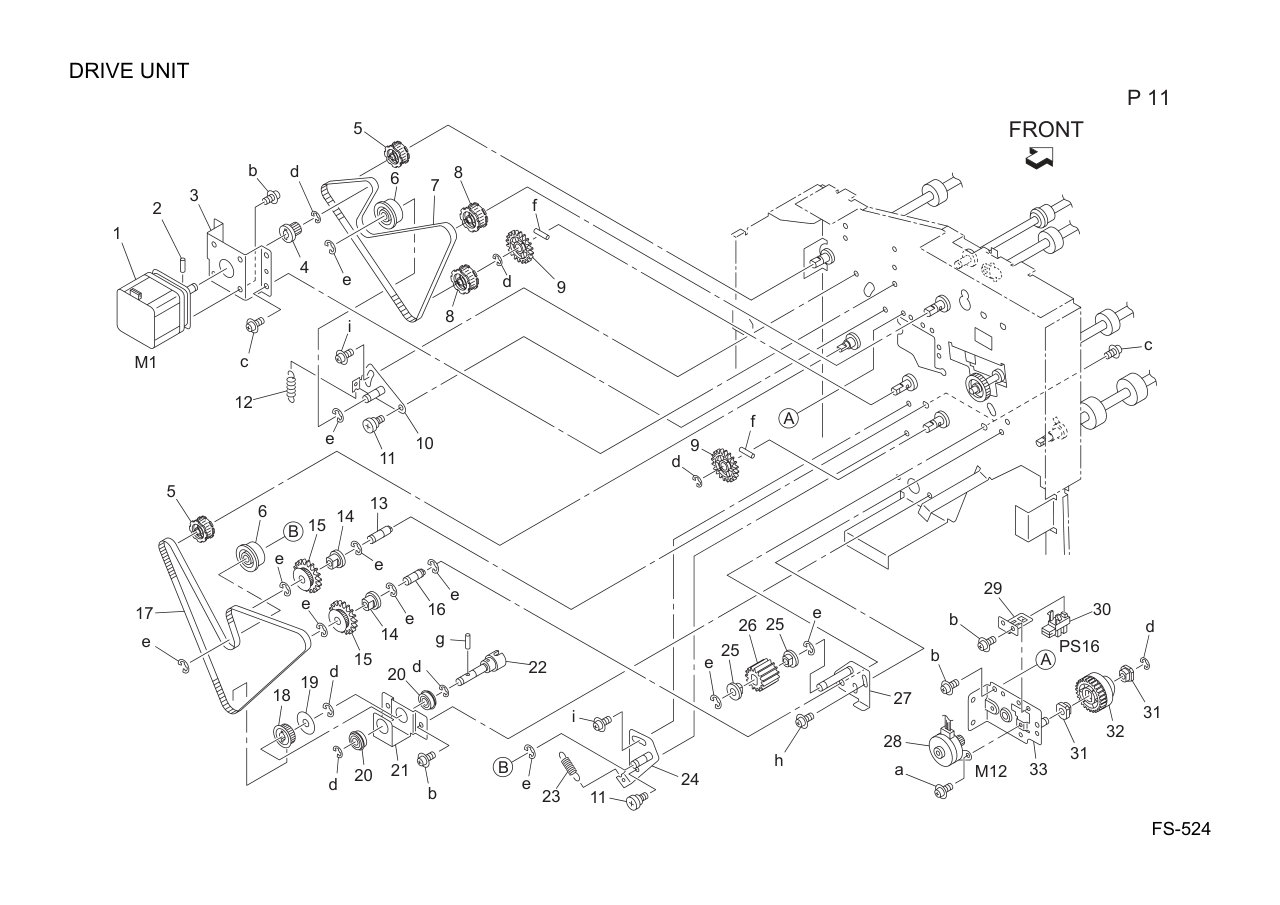

Drive Unit 1 56AA80112 PAPER EXIT DRIVE MOTOR 2 113620600 PIN A 3 13QE48511E MOTOR MOUNTING PLATE /1 4 15JK76530 MOTOR PULLEY 20T 5 15JK76630 DRIVE PULLEY 2 20T 6 122H15220 TENSION ROLLER 7 13QE77540 BELT 1 651L 8 15JK76540 DRIVE PULLEY 1 25T 9 13QE77040 DRIVE GEAR 1 32T 10 15JK-1610 TENSION PLATE 1 CAULKING 11 25AA47670 GUIDE SCREW 12 13QE48740 TENSION SPRING/1 13 13QE48670 TENSION SHAFT 3 14 326040330 SHAFT HOLDER A 15 13QE76550 IDLING PULLEY 1 32T 16 13QE48620 IDLING SHAFT 2 17 13QE77550 BELT 2 741L 18 13QE76650 DRIVE PULLEY 3 25T 19 25AA47930 COLLAR C 20 55GA75031 BALL BEARING 21 13QE48691 FIXING PLATE 22 13QER70200 COUPLING SHAFT ASSY 23 13QE48640 TENSION SPRING 1 24 15JK-1620 TENSION PLATE 2 CAULKING 25 14QH75530 SHAFT HOLDER G 26 129R77160 IDLER GEAR 24T 27 15JK-1630 TENSION PLATE 3 CAULKING 28 13GQ80012 FNS COMPENSATING MOTOR 29 13QE45231 MOUNTING PLATE 1 30 08AA85512 PHOTO SENSOR 31 15JK75530 SHAFT HOLDER A 32 13QE77050 CAM GEAR 71T 33 13QE-3270 CAM MOTOR MOUNTING PLATE CAULKING
Drive Unit 1 08AA85512 PHOTO SENSOR 2 13QE48411 MOUNTING PLATE 3 12QR-3611 SHIFT MOTOR ASSY 4 13QE77210 DRIVE GEAR 2 22T 5 13QE48710 IDLING SHAFT/4 6 13QE77200 IDLING GEAR/1 37/25T 7 15JK48120 MOTOR MOUNTING PLATE /A 8 15JKR70800 MOTOR 1 ASSY 9 13QE48260 IDLING SHAFT/1 10 12QR77110 PAPER EXIT GEAR 20/100T 11 129U77010 SLIDE GEAR A 100T 12 13QE48270 IDLING SHAFT/2 13 13QE48533 SOLENOID MOUNTING PLATE 14 15JKR70300 FNS SOLENOID ASSY 15 12ER40350 STICKING PART 16 15JK-1680 PULLEY MOUNTING PLT / CAULK 17 15JK76560E PAPER EXIT PULLEY 56T 18 15JK77560 BELT 3 597L 19 12QR76550 DRIVING PULLEY A 24T 20 13QE48610 TENSION SHAFT 2 21 122H15220 TENSION ROLLER 22 326040330 SHAFT HOLDER A 23 13QE76560 IDLING PULLEY 2 31/24T 24 13QE-1670 MOTOR MOUNTING PLATE 2 CAULKING 25 57AA80080 DC BRUSHLESS MOTOR 15

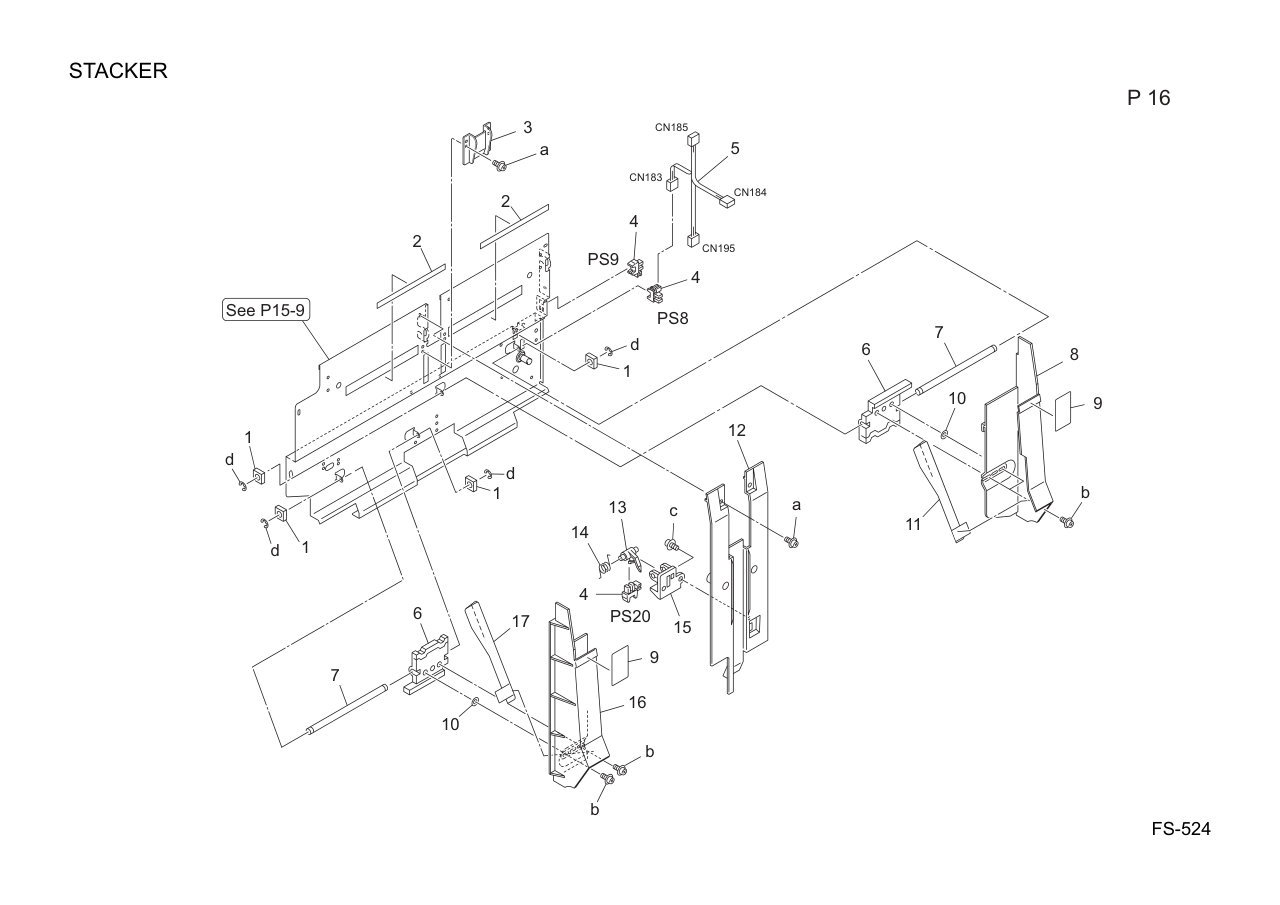

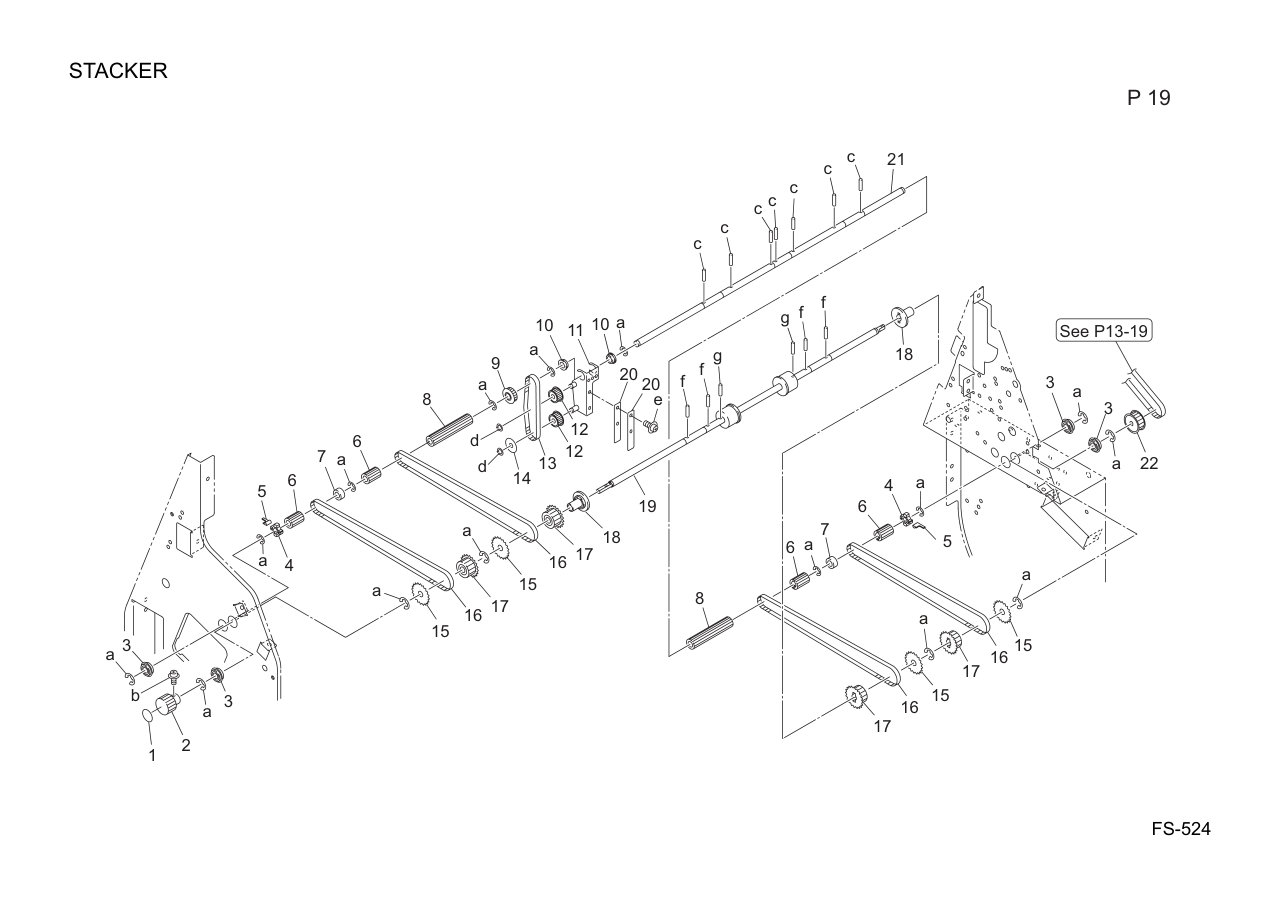

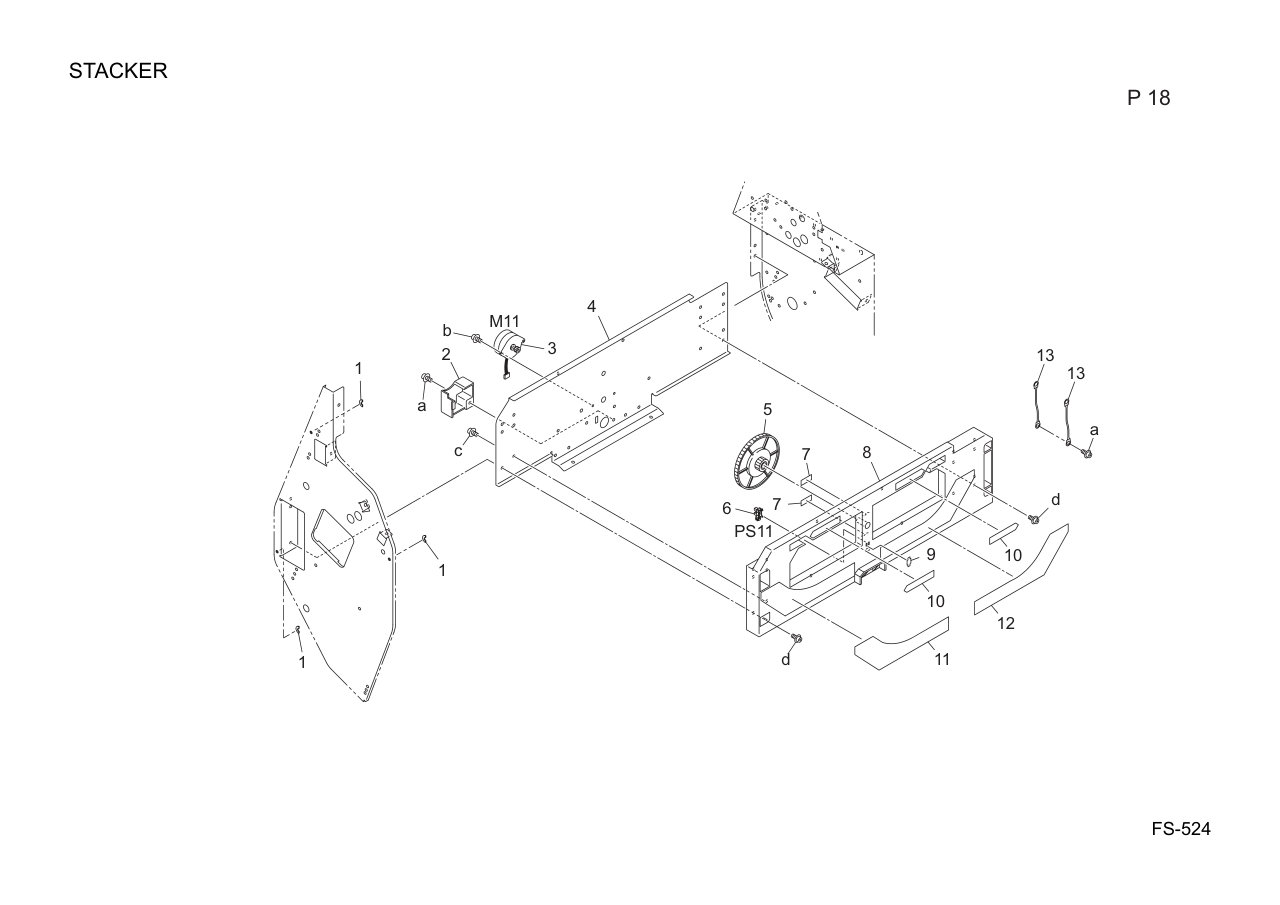

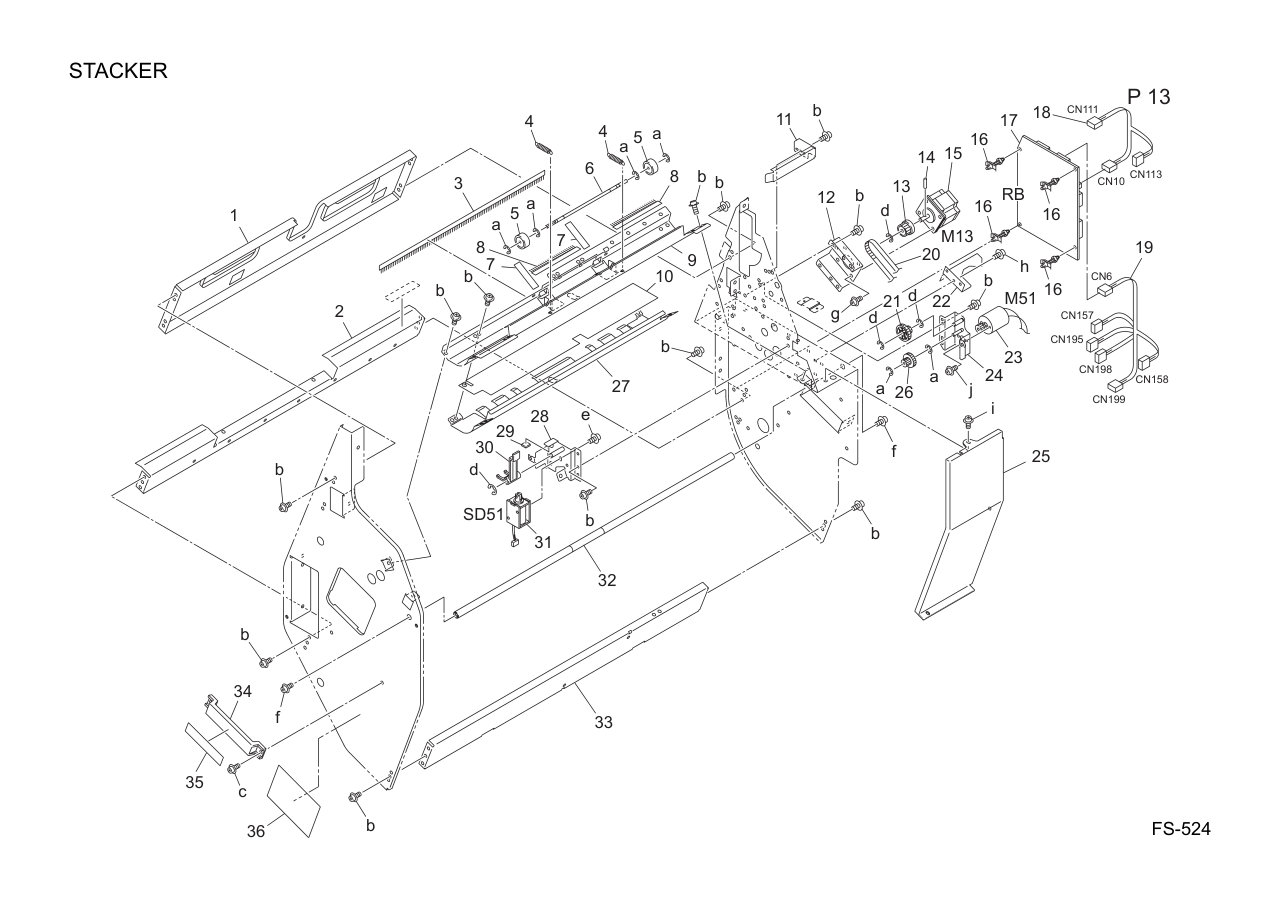

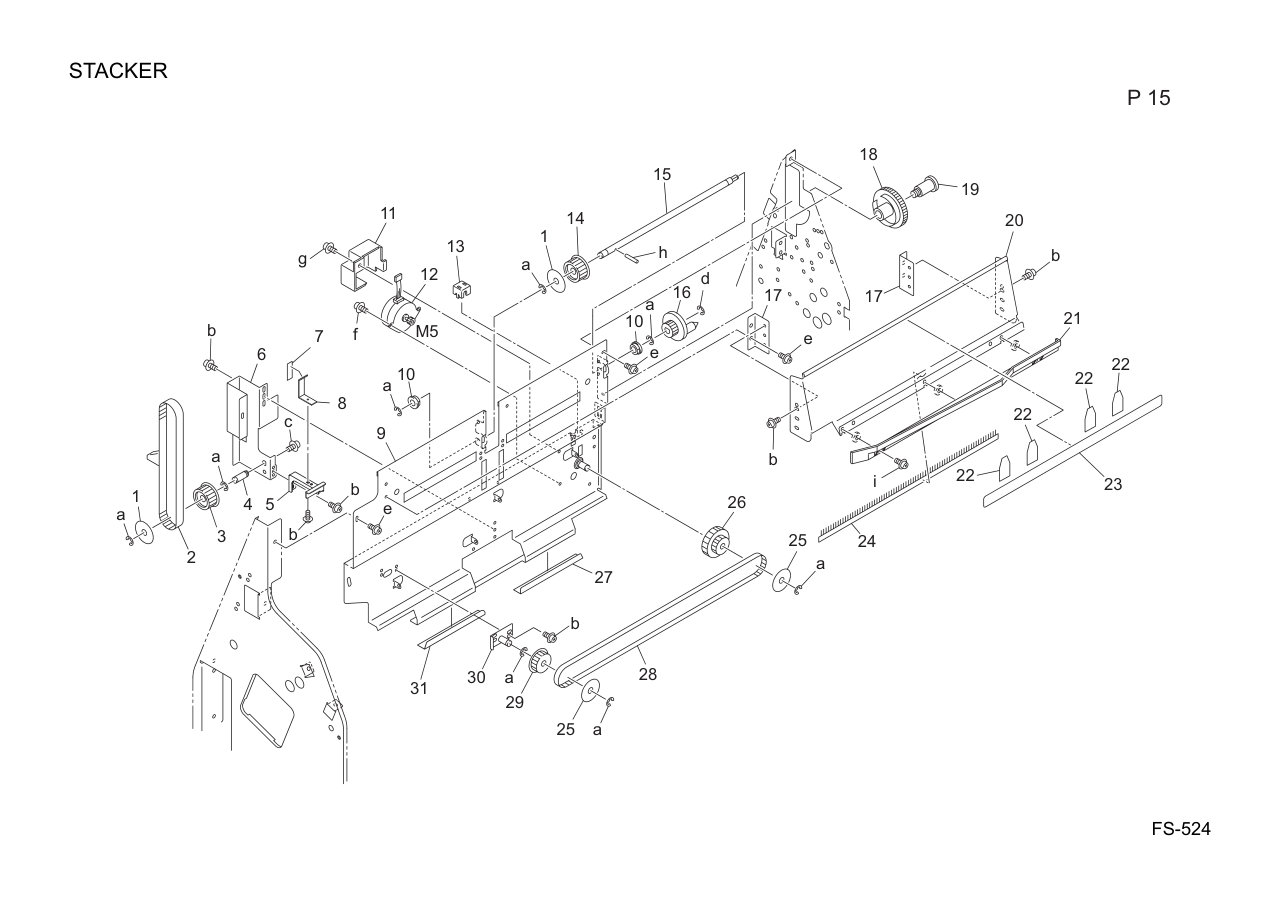

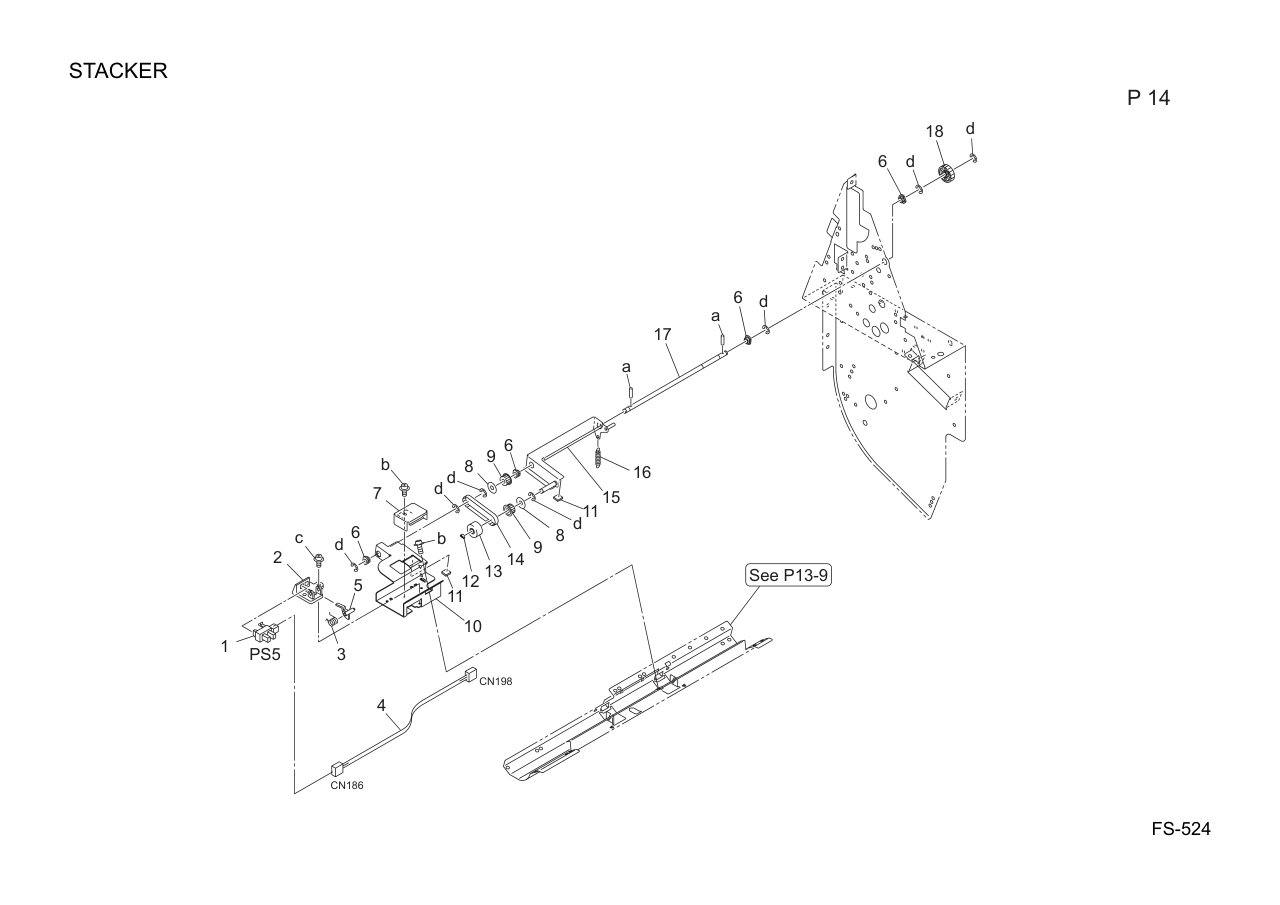

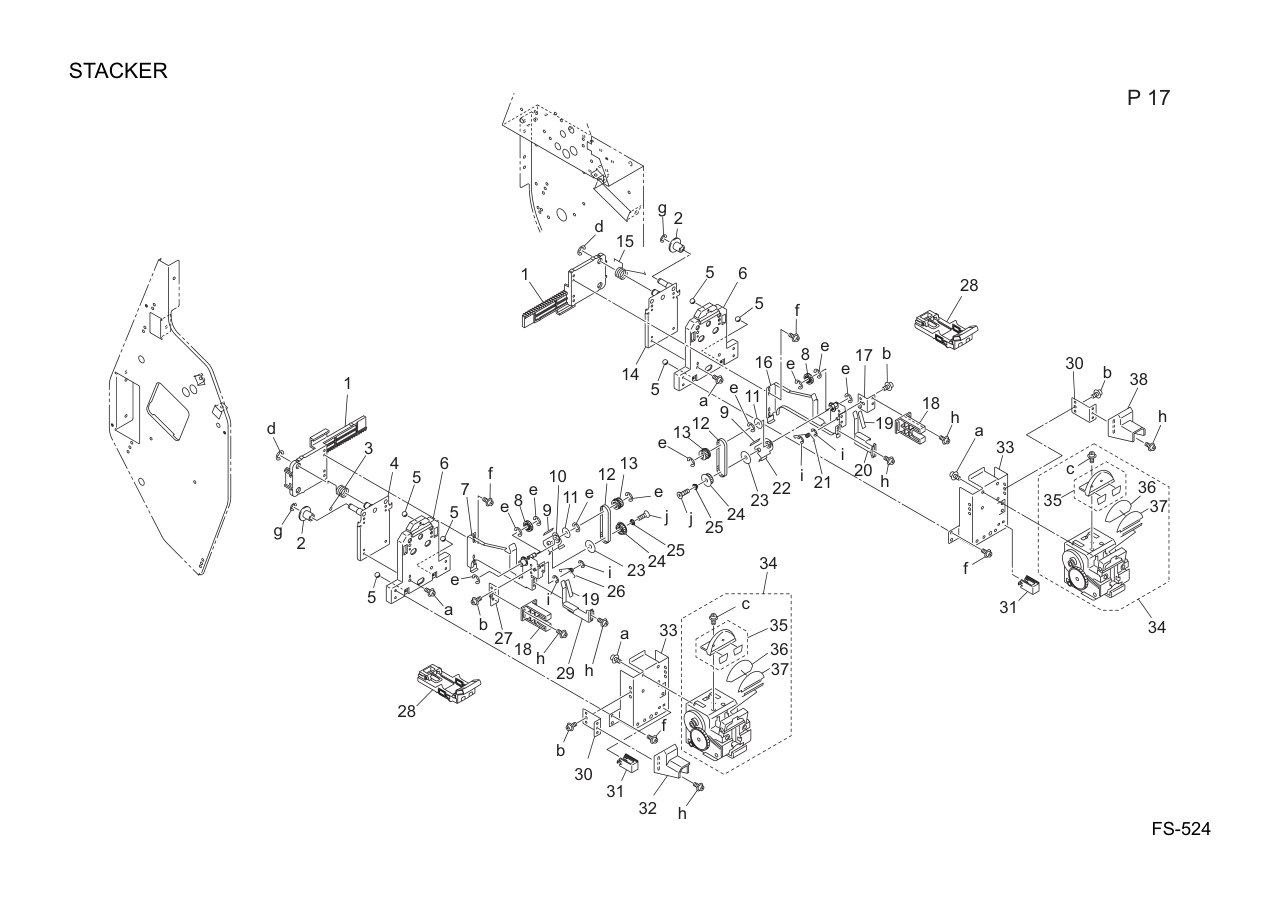

Stacker 1 15JK42041F Carriage Mounting Stay /Upper 2 15JK42060 CARRIAGE MOUNTING STAY /MIDDLE 3 15JK50260 NEUTRALIZING BRUSH 4 15JK42780 CONVEYANCE PRESSING SPRING A 5 15JK42760 ENTRANCE ROLLER 4 6 15JK42770 IDLER SHAFT 7 15JK42830 EXIT GUIDE SHEET 8 15JK43341 NEUTRALIZING BRUSH 9 15JK43081E Conveyance Guide Plate /Upper 10 15JK43350 NEUTRALIZING SHEET 11 15JK43260 GUIDE PART/2 12 15JK42590 MOTOR MOUNTING PLATE 13 129R76910 MOTOR PULLEY 18T 14 098030300 PIN D2X8 15 12WM80031 STR DRIVE MOTOR 16 V502010015 support 17 15JK-9321F RELAY BOARD ASSY 18 15JK90220 PAPER EXIT COMPENSATING WIRING 19 15JK90140 FNS WIRING D 20 13QE77530 BELT E 189L 21 13GQ77080 SWING IDLER /2 20/48T 22 13QE10111 LOCK CAM 23 12QR-3611 SHIFT MOTOR ASSY 24 15JK-5590 MOTOR MOUNTING PLATE CAULLKING 25 15JK424301 COVER 26 13GQ77070 SWING IDLER /1 20/40T 27 15JK43090 CONVEYANCE GUIDE PLATE /LOWER 28 15JK-5560 SOLENOID M-PLATE CAULLKING 29 12ER40350 STICKING PART 30 15JK55061 SOLENOID LEVER 31 15JKR70300 FNS SOLENOID ASSY 32 15JK42070 REGULATING SHAFT 33 15JK42032F Carriage Mounting Stay /Lower 34 20AM42180 KNOB 35 A07R940900 RELEASE LABEL /G 36 A07R940201 REPLACEMENT LABEL
Stacker 1 08AA85512 PHOTO SENSOR 2 13QE48300 BLOCK 3 13QE48080 SPRING 1 4 13QE90170E RELAY WIRING /B 5 15JK48070 ACTUATOR 1 6 322076010 PAPER LIFT UP LEVER SHAFT HOLDER 7 15JK42800 COVER 8 13GQ45490 COLLAR B 9 12VR76510 PAPER FEED PULLEY 19T 10 A07R723300 Feeding Board /2 11 12ER40350 STICKING PART 12 396040681 STOPPER RING 13 20AK42100 PAPER CONVEYING ROLLER /A 14 20AK77510 DRIVING BELT 136L 15 15JK-5520 ROTARY STAY CAULLKING 16 15JK55120 HOLDING SPRING 17 15JK55070 DRIVE SHAFT 18 15JK77300 DRIVE GEAR A 48T
Stacker 1 12QR50610 BELT HOLDER 2 A0R1A7400 PAPER EXIT BELT ASSY 3 15JK76590 BELT IDLER PULLEY 18T 4 15JK43120 IDLING SHAFT /A 5 15JK43250 FIXING STOPPER 6 15JK43050 BELT TENSION PLATE 7 15JK43330 STAPLE GUIDE SHEET /D 8 15JK43300 STAPLE GUIDE PART 9 15JK-4311 REGULATING B-PLATE/CAULKING 10 14QH75530 SHAFT HOLDER G 11 15JK50170 MOTOR COVER 12 15AAR73600 MOTOR 2 ASSY 13 13QN40750 COVER 14 15JK76580 BELT DRIVE PULLEY 18T 15 15JK43130 PAPER EXIT DRIVE SHAFT 16 13TR77040 COUPLING GEAR 18T 17 15JK43240 SIDE FIXING PLATE 18 15JK77260 BELT DETECTION GEAR 123T 19 12QR50530 BELT DETECTING SCREW 20 15JL432201 PAPER EXIT REGULATING PLATE 21 15JK43231E GUIDE PART /1 22 15JL434600 Paper exit Sheet /2 23 15JL434300 Paper exit Sheet /1 24 15JK50260 NEUTRALIZING BRUSH 25 25AA52140 BELT HOLDER B 26 25AA52510 REGULATING GEAR /S 28/55T 27 15JK43281 STAPLE GUIDE SHEET 1 28 12QR77510 BELT A 752L 29 25AA52710 IDLER PULLEY 28T 30 13QE-4380 TENSION SHAFT CAULKING 31 15JK43291E Staple Guide Sheet /2
Stacker 1 25AA52090 STOPPER SHEET 2 15JK43160 SLIDE SHEET 3 15JK43320 PAPER REGULATING PART/1 4 08AA85512 PHOTO SENSOR 5 15JK90150 FNS WIRING E 6 15JK43360 SLIDE BLOCK A 7 15JK42540 SLIDE SHAFT/1 8 15JK43040 REGULATING PLATE REAR 9 15JK43060 PAPER EXIT REGULATING SHEET U 10 15JK98010 SPACER/A 11 A07R723700 Regulating Sheet /Rear 12 15JK43020E REGULATING PLATE /MIDDLE 13 A07R723600 Actuator 14 13QE48080 SPRING 1 15 13QE48300 BLOCK 16 15JK43030 REGULATING PLATE FRONT 17 A07R722811 Paper exit Regulating Sheet /2
Stacker 1 15JK50123E STAPLE DRIVE RACK 2 15JK50110 STAPLE SLIDE ROLLER 3 15JK50130 STAPLE ROTATION SPRING FRONT 4 15JK-5020 ROTARY PLATE CAULLKING /F 5 13GQ50170 CLICK PART 6 15JK50041 STAPLE ROTATION PLATE /UPPER 7 15JK-5230 SUPPORT PLATE CAULLKING /FRONT 8 15SF77090 SWING GEAR 14T 9 15JK52330 STAPLE GUIDE SHEET /C 10 15JK-5290 ROCKING PLATE CAULLKING /FRONT 11 15JK52340 SWING SHEET /A 12 13TQ42720 ROCKING BELT 116L 13 15JK77250 SWING PULLEY 2 14T 14 15JK-5040 ROTARY PLATE CAULLKING /R 15 15JK50140 STAPLE ROTATION SPRING REAR 16 15JK-5240 SUPPORT PLATE CAULLKING /REAR 17 15JK52320 STOPPER PLATE /REAR 18 15JK52171 REGULATING BLOCK 19 15JK52130 STAPLAE GUIDE SHEET B 20 15JK52041 STAPLE STOPPER REAR 21 15JK52120 PAPER HOLDING SPRING REAR 22 15JK-5300 ROCKING PLATE CAULLKING /REAR 23 07BA15930 SPACER B 24 13TQ43160 ROCKING PULLEY 2 30T 25 13TQ43310 ROCKING SHAFT 3 26 15JK52110 PAPER HOLDING SPRING FRONT 27 15JK52310 STOPPER PLATE /FRONT 28 15JKP72100 STAPLE CASE FOR 50 SHEETS 29 15JK52031 STAPLE STOPPER FRONT 30 15JK50160 STOPPER PLATE/1 31 15JK50180 WIRING COVER S 32 15JK50150E STAPLE STOPPER /FRONT 33 15JK50020 STAPLE MOUNTING PLATE 34 15JKR70600 STAPLE ASSY 35 15JKR70700 STAPLE GUIDE BLOCK ASSY 36 15JK50230 STAPLE GUIDE SHEET MIDDLE 37 15JK50221 STAPLE GUIDE SHEET UPPER 38 15JK50190E STAPLE STOPPER /REAR
Stacker 1 15JL104000 PROTECTION SEAL 2 15JK50170 MOTOR COVER 3 15AAR73600 MOTOR 2 ASSY 4 15JK50051E MOTOR MOUNTING PLATE 5 15JK77210 MOTOR DRIVE GEAR 192/20T 6 08AA85512 PHOTO SENSOR 7 15JK50250 STOPPER SHEET 8 15JK50012F STAPLE PEDESTAL 9 13GL46720 FIXING PLATE 10 15JK50082F STAPLE SLIDE PART /UPPER 11 15JK50061E STAPLE SLIDE PART /FRONT 12 15JK50071E STAPLE SLIDE PART /REAR 13 13QE90182 EARTH WIRING A
Stacker 1 A07R940800 RELEASE LABEL /F 2 14GE45470 ROTARY KNOB 3 56QA75070 BEARING/8 4 13TQ42670 BELT MOUNTING ROLLER 5 15JK43400 REGULATING BELT 3 6 13TQ42640 BELT DRIVEN PULLEY 1 22T 7 13TQ43410 SPACER 8 A07R702900 Swing Gear /1 14T 9 15JK42660 ENTRANCE ENTRANCE PULLEY 30T 10 25AA75090 BALL BEARING 11 15JK-4420 ROCKING PLATE CAULKING 12 13QE76520 ROCKING PULLEY 32T 13 15JK77520 BELT J 172L 14 120H42180 COLLAR 15 12QR50700 BELT HOLDER B 16 13TQ42660 ENTRANCE DRIVEN BELT 102L 17 12QR76680 ENTRANCE GUIDE PULLEY A 34T 18 15JK43150 CONVEYANCE AUXILIARY COLLAR 19 15JK43110 DRIVE ROLLER 20 15JK42710 SWING PART 21 15JK43101E Belt Idler Shaft 22 12QR76550 DRIVING PULLEY A 24T

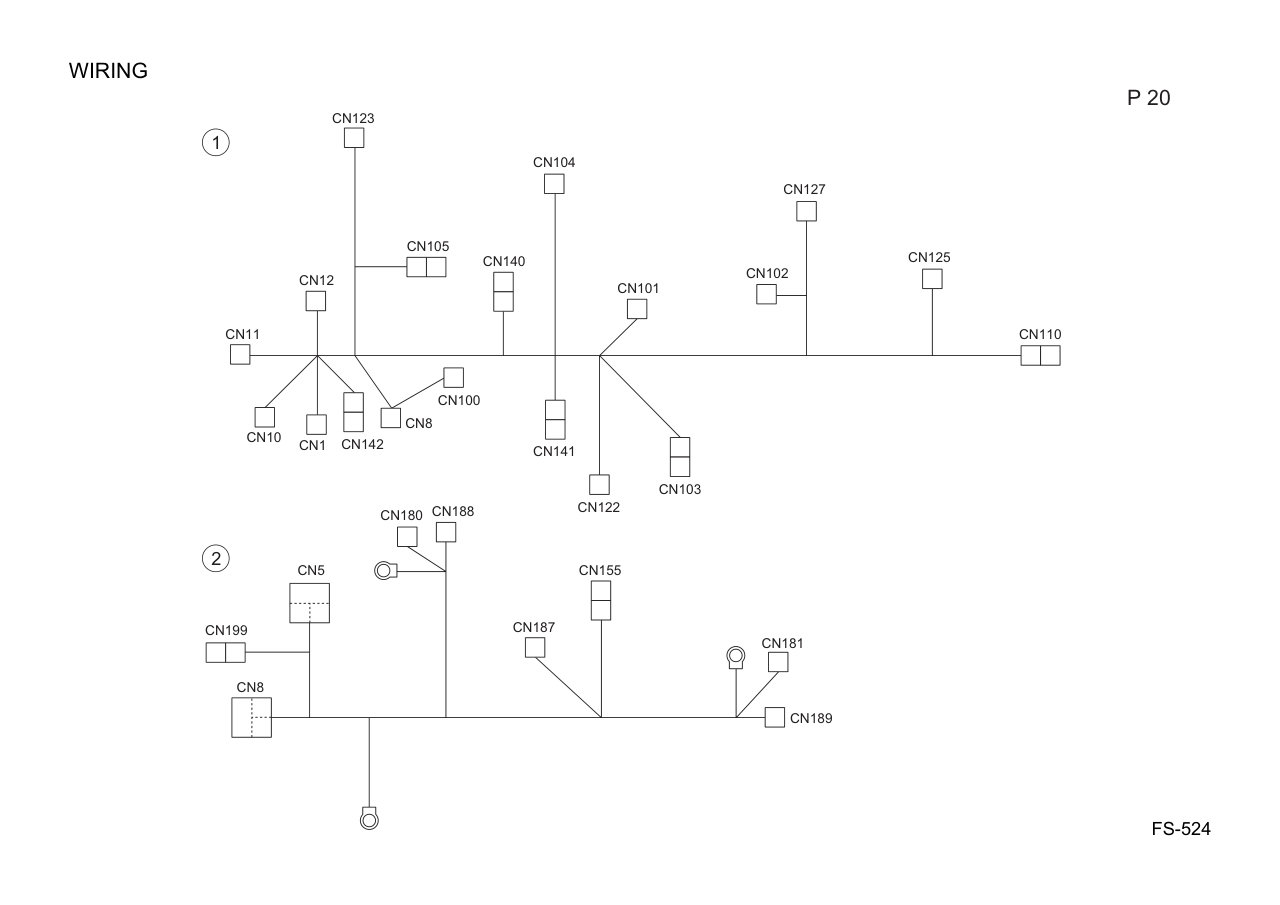

Wiring 1 15JK90011E FNS WIRING /1 2 15JK90130 FNS WIRING C

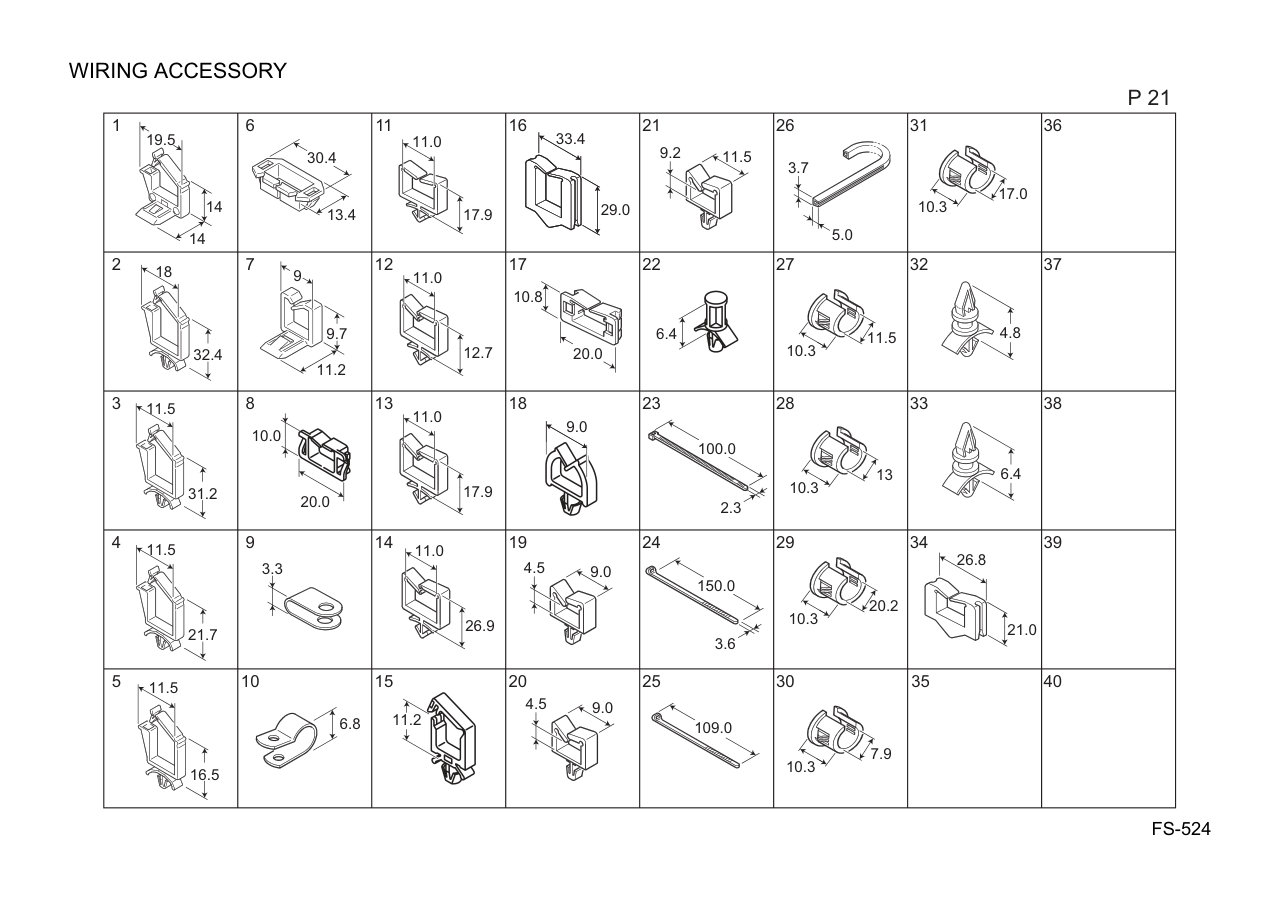

Wiring Accessory 1 V500010021 saddle 2 V500010015 saddle 3 V500010013 saddle 4 V500010007 saddle 5 V500010005 saddle 6 V570010037 bushing 7 V500010027 saddle 8 V570010023 saddle 9 V500020001 clamp 10 V500020003 clamp 11 V500010038 saddle 12 V500010006 saddle 13 V500010011 saddle 14 V500010016 saddle 15 V500010009 saddle 16 V570010015 saddle 17 V570010007 saddle 18 V500020048 clamp 19 V500010024 saddle 20 V500010026 saddle 21 V500010031 saddle 22 V502010030 spacer 23 V501010002 band 24 V501010004 band 25 V501010003 band 26 V360300000 EDGING 27 V500020045 bushing 28 V500020046 bushing 29 V500020043 bushing 30 V500020044 bushing 31 00Z924696 Open Closed Bushing 32 V502010014 support 33 V502010015 support 34 V570010012 saddle

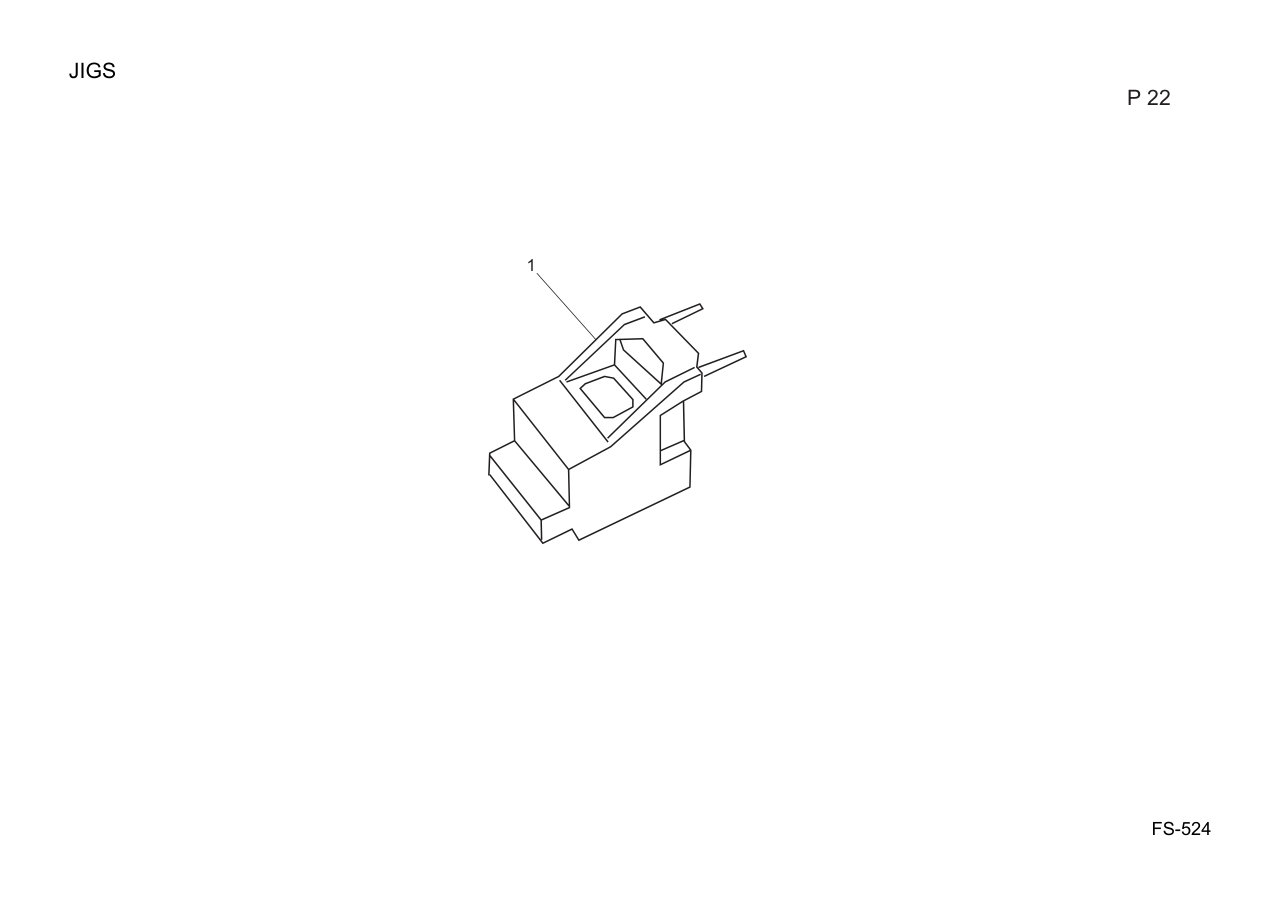

Jigs 1 13QEJG010 Stapler Positioning Jig

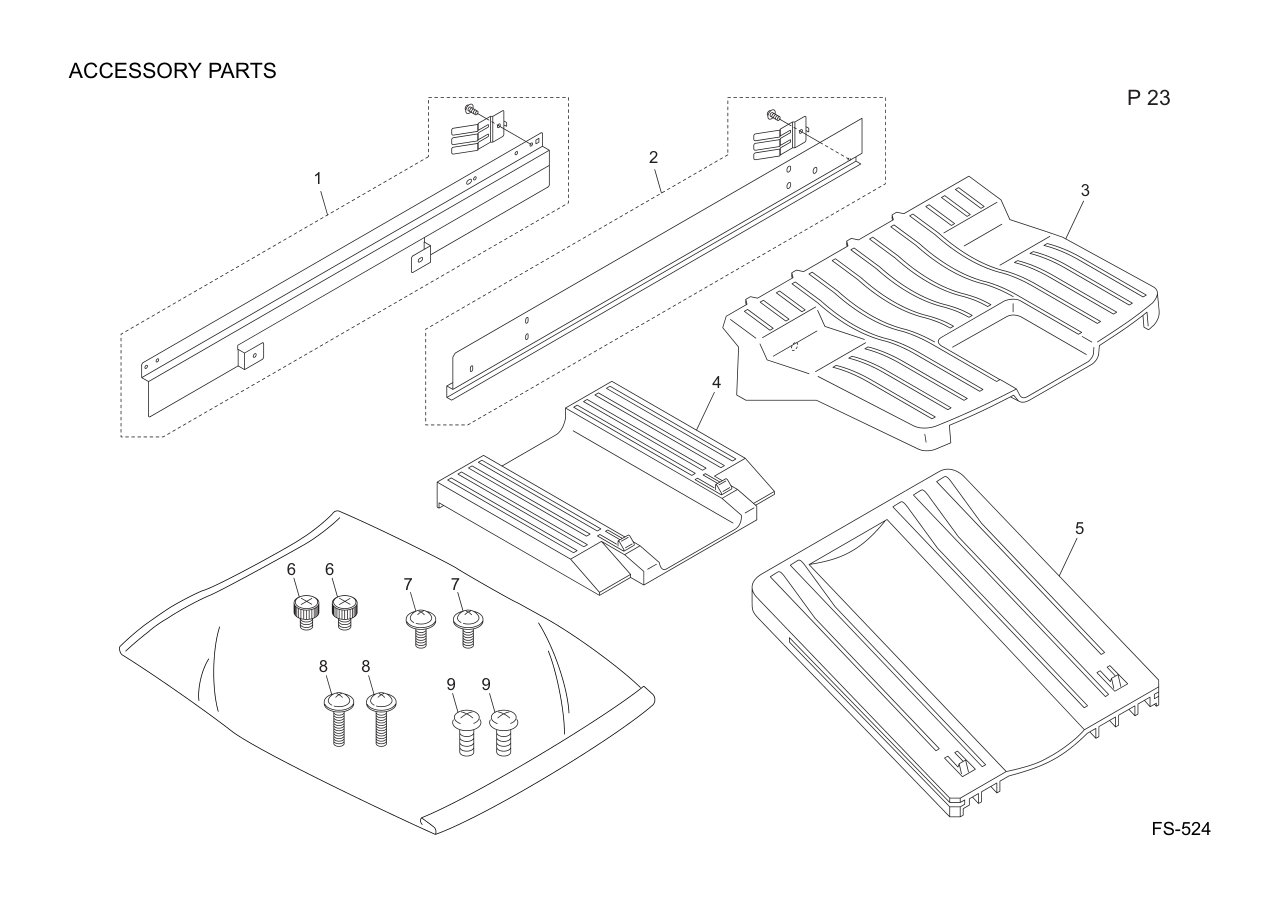

Accessory Parts 1 129UR70100 MAIN MOUNT PLATE LOWER 2 15JKR70100 MAIN BODY MT PLATE UPPER 3 A07R890101 PAPER EXIT TRAY /1 4 A07R890001 PAPER EXIT TRAY /2 5 A0R1160801 Paper exit Tray /1 6 12QV10101 ADF MOUNTING SCREW 7 V121040603 screw 8 V121041403 screw 9 V114040816 screw
