Every part in the Konica Minolta FS-527 Finisher Parts Guide Manual (A0HR, July 2009), section by section with the exploded diagram. Call or email with the part number for price and availability.

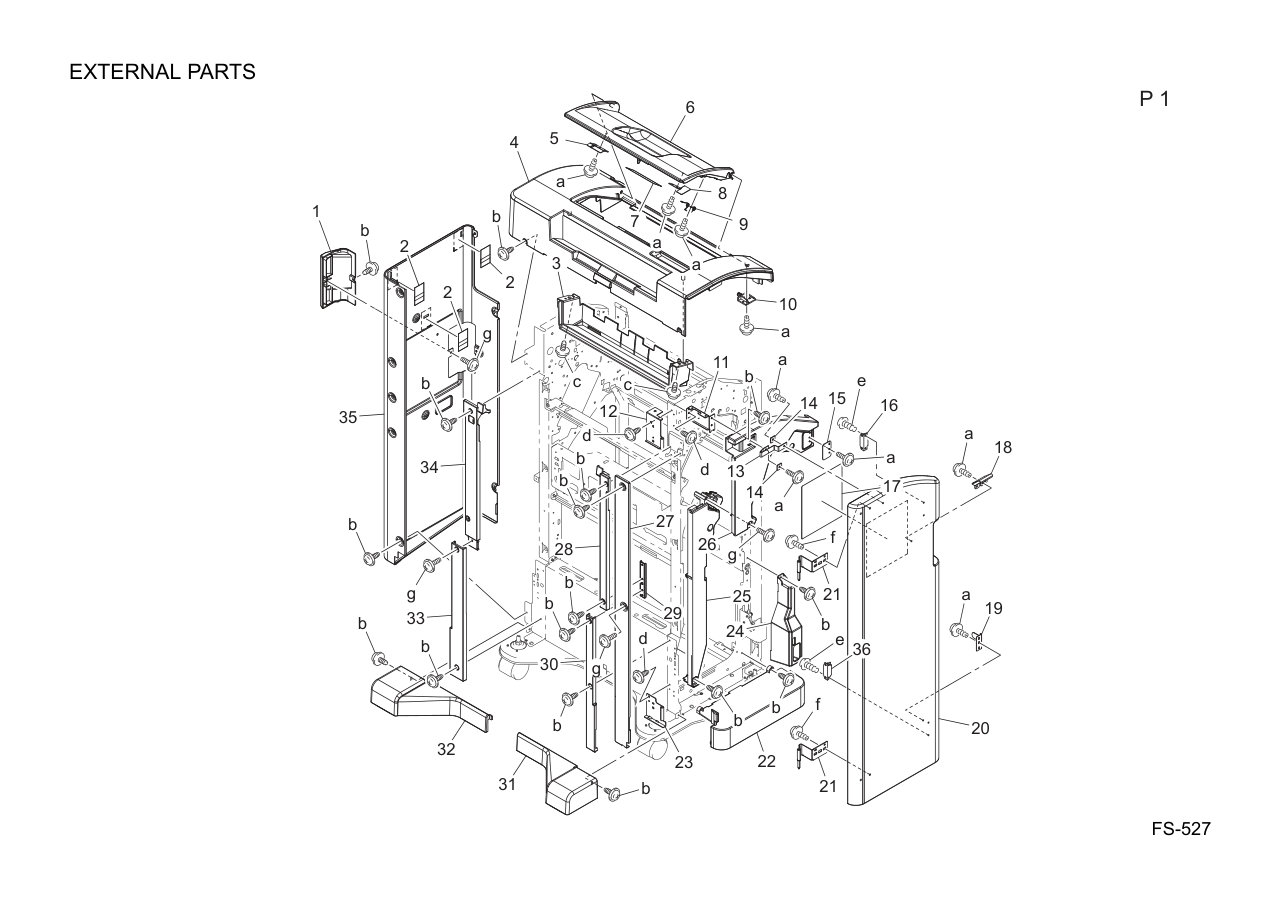

External Parts 1 A0HR172900 Cover 2 A0HR172300 Guide 3 A0HR170501 Mounting Plate 4 A0HR170100 Top Cover 5 A0HR172400 Suction Plate /3 6 A0HR170800 Upper Door 7 A0HR941000 Label 8 A0HR172800 Suction Plate /4 9 A0HR172601 Torsion Coil spring 10 A0HR171600 Hinge 11 A0HR130300 Wiring Plate /3 12 A0HR171500 Hinge 13 4643102003 BAND 14 9J08210101 SET PLATE 15 A0HR172100 Suction Plate /2 16 4426260702 MAGNET CATCH 17 A0HR940000 Label 18 A0HR173500 Pressing Plate spring /1 19 A0HR171900 Pressing Plate 20 A0HR170000 Front Door 21 A0HR173000 Hinge 22 A0HR170700 Cover /2 23 A0HR171400 Hinge 24 A0HR171800 Cover /5 25 A0HR170600 Cover /1 26 A0HR170400 Drive Cover 27 A0HR170300 Cover 28 A0HR171000 Cover /Right 29 A0HR173300 Support Plate 30 A0HR173100 Cover /Right 31 A0HR171200 Cover /3 32 A0HR171100 Cover /3 33 A0HR173200 Cover /Left 34 A0HR170900 Cover /Left 35 A0HR170200 Rear Cover 36 4425337201 MAGNET CATCH

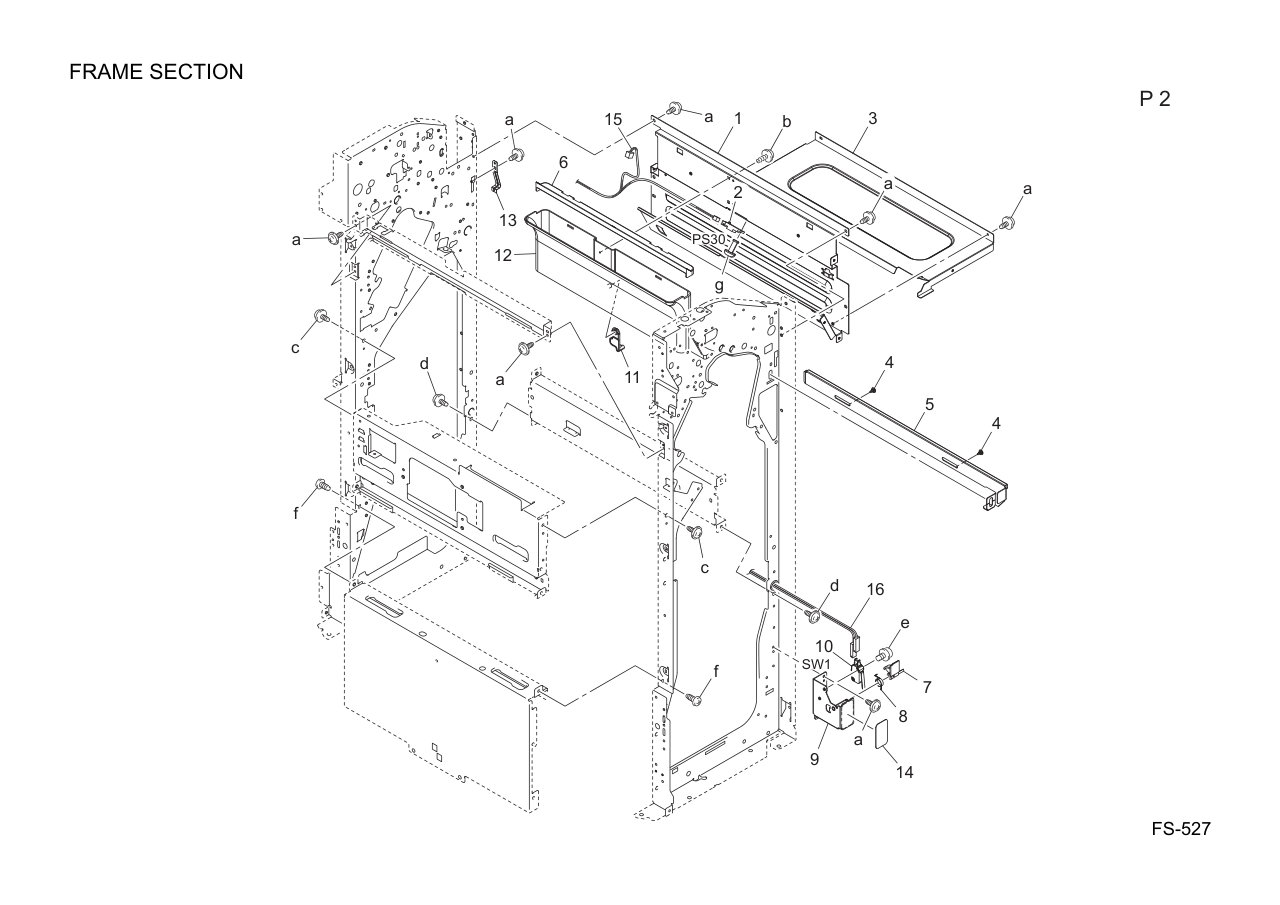

Frame Section 1 A0HR110401 Stay /2 2 9335191052 SOLID STATE SWITCH 3 A0HR173400 Cover /9 4 A092145400 Shoulder screw 5 A0HR115200 Lever 6 A0HR911300 Cover 7 A0HR111100 Guide Switch 8 A0HR111501 Torsion Coil spring 9 A0HRG10000 Opening and shutting sw 10 9J06M60100 MICRO SWITCH 11 A0HR910900 Light blocking Plate 12 A0HR910600 Punch Duct 13 A0HR115400 Ground Plate /Lower 14 A0HR111600 Sheet 15 A0HRN10501 FNS Wiring /6 16 A0HRN10102 FNS Wiring /2

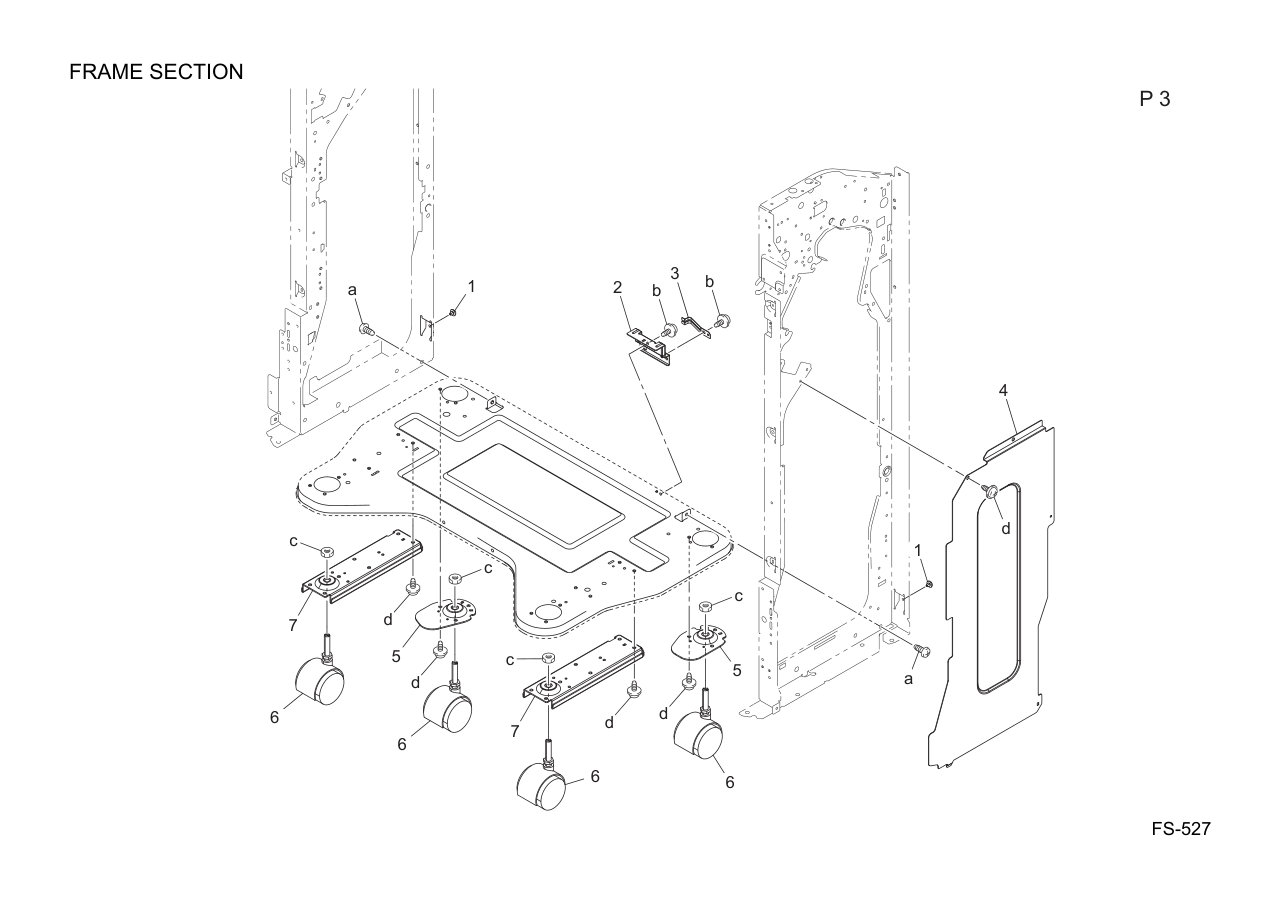

Frame Section 1 15AA10380 STOPPER RUBBER 2 A0HR116000 Mounting Plate 3 A0HR115400 Ground Plate /Lower 4 A0HR172700 Cover /8 5 A0HR111200 Mounting Plate 6 A0HR111400 Castor 7 A0HR111300 Mounting Plate

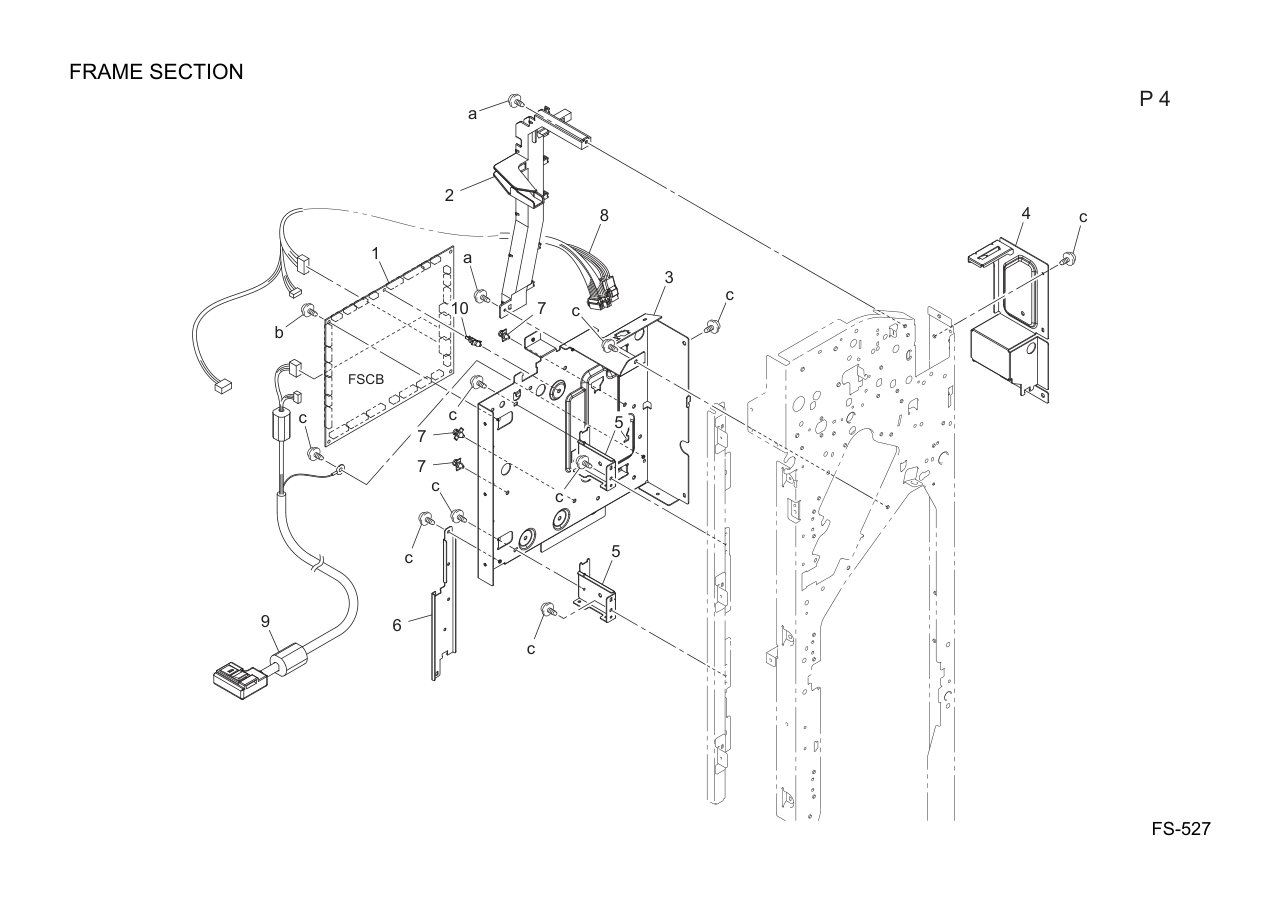

Frame Section 1 A0HRH10003 PWB-MC 2 A0HR130900 Wiring Guide /2 3 A0HR130500 Wiring Plate /5 4 A0HR130700 Mounting Plate /2 5 A0HR130300 Wiring Plate /3 6 A0HR130400 Wiring Plate /4 7 V502010026 SUPPORT 8 A0HRN11700 FNS Wiring /16 9 A0HRN10002 FNS Wiring /1 10 V502010033 spacer

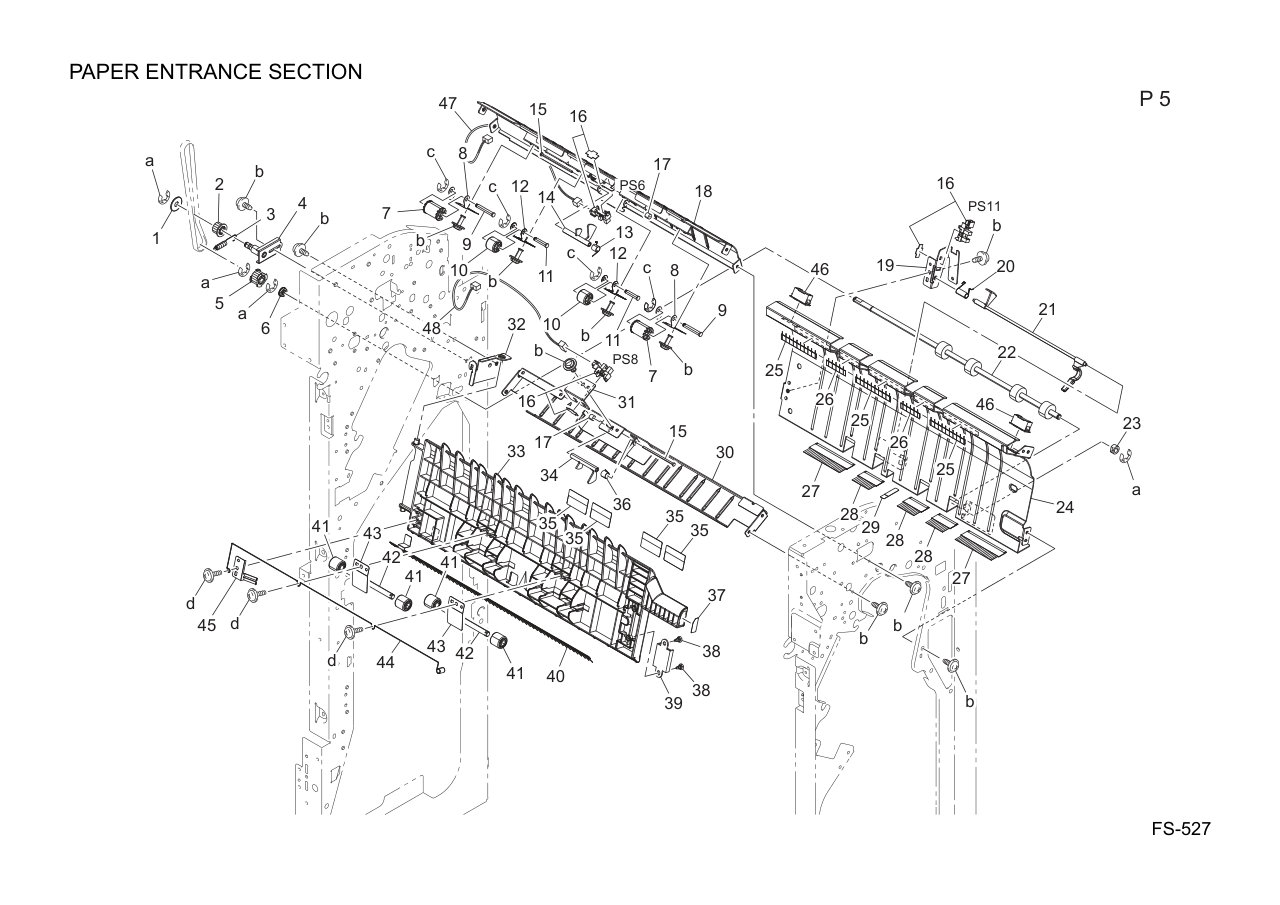

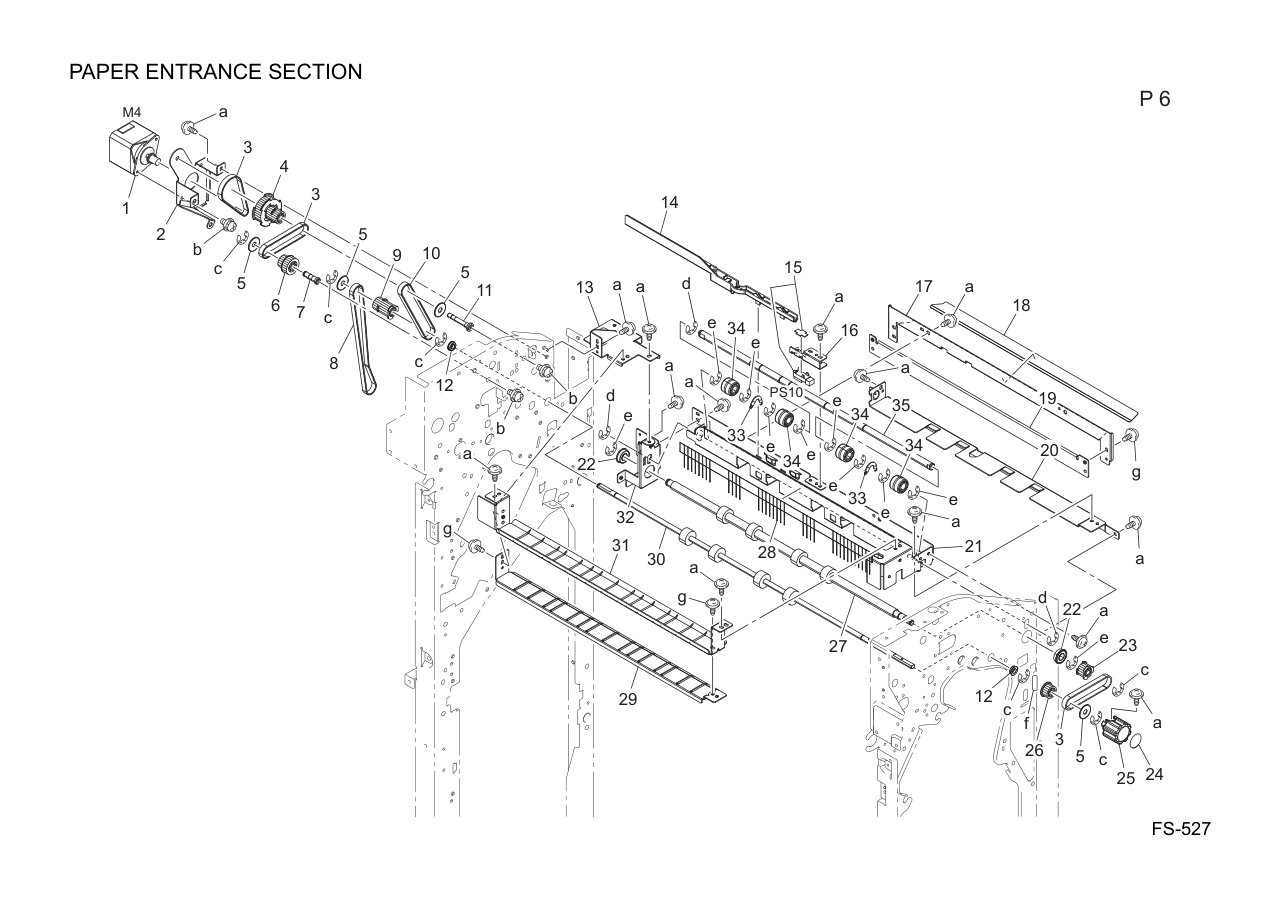

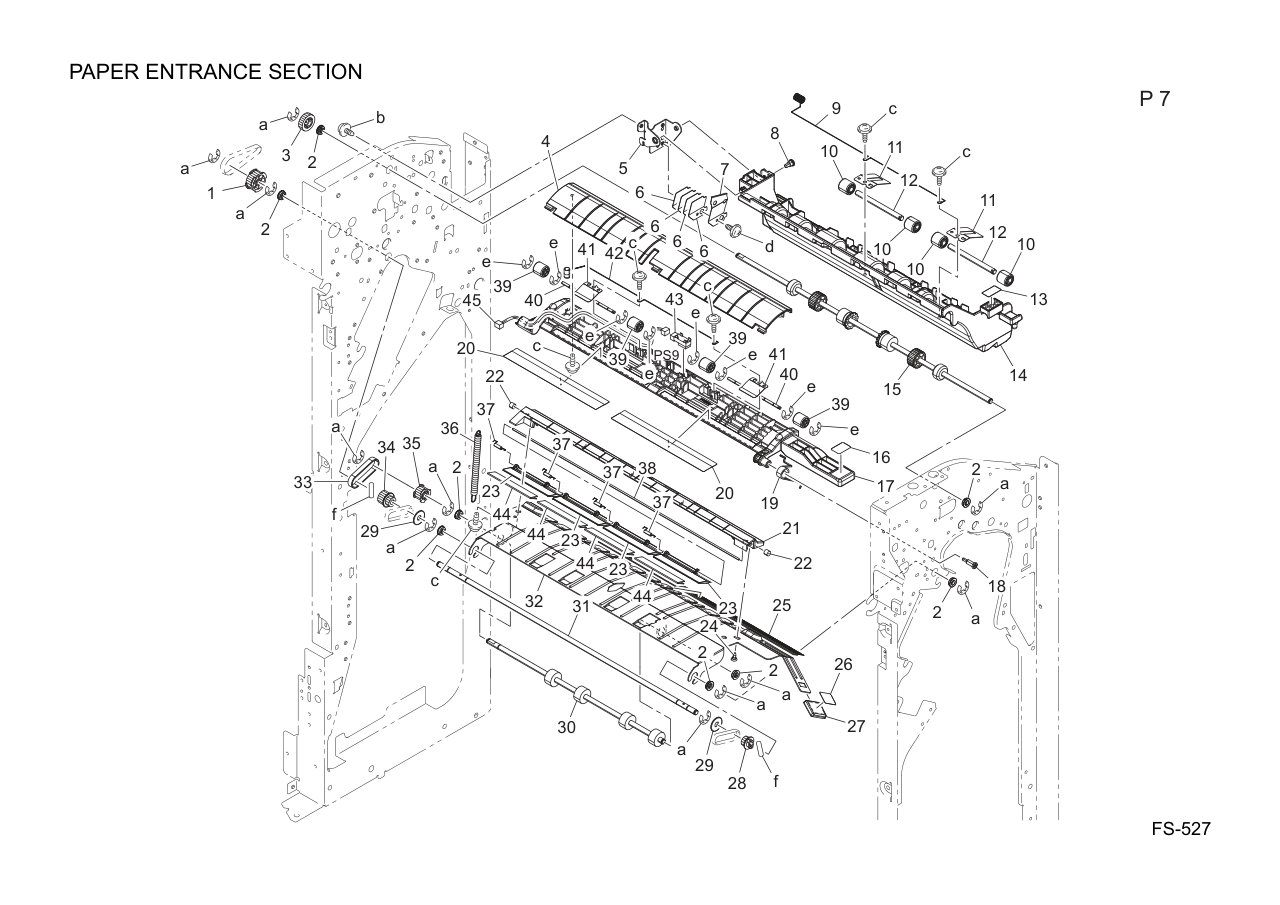

Paper Entrance Section 1 A0DA701800 Flange 2 9J07501901 ROLL 3 A0HR222100 Pulling Coil spring 4 A0HRG21000 Cashime under tension 5 A0HR220600 Pulley 25T 6 A00J617800 BALL BEARING 7 A0HR222800 Conveyance Roll 8 A0HR223200 Tension Plate spring 9 A0HR224900 Shaft 10 A0HR226000 Conveyance Roll 11 A0HR226200 Shaft 12 A0HR226100 Plate spring 13 A0HR717000 Torsion Coil spring 14 A0HR712400 Sensor Arm 15 1200521304 SHAFT 16 4037090601 PHOTO INTERRUPTER 17 9J08210401 COLLAR 18 A0HR712802 Guide Plate 19 A0HR713800 Mounting Plate /5 20 A0HR711900 Torsion Coil spring /3 21 A0HR711500 Sensor Arm /1 22 A0HR220500 Conveyance Roller 23 4131253701 BUSHING 24 A0HR710400 Guide Plate /5 25 A0HR716500 Neutralizing Brush 26 A0HR716400 Neutralizing Brush 27 A0HR716700 Neutralizing Brush 28 A0HR716800 Neutralizing Brush 29 A0HR717600 Guide 30 A0HR711001 Guide Plate /ASSY 31 A0HR716300 Mounting Plate 32 A0HR715601 Mounting Plate /8 33 A0HR711102 Guide Plate /12 34 A0HR711700 Sensor Arm 35 A0HR716900 Guide Sheet /8 36 A0HR712100 Torsion Coil spring 37 A0HR940400 Label 38 4349131101 SHOULDER SCREW 39 4425324903 MAGNET CATCH 40 A0HR717100 Neutralizing Brush 41 A0HR222700 Conveyance Roll 42 A0HR223001 Pressing Shaft 43 A0HR224200 Tension Plate spring /4 44 A0HR715700 Ground Spring 45 A0HR717200 Ground Plate spring 46 4030104002 CATCH 47 A0HRN10801 FNS Wiring /9 48 A0HRN11801 FNS Wiring /17
Paper Entrance Section 1 A0HRM10000 Stepping motor 2 A0HR222201 Mounting Plate 3 A0HR223700 Timing belt 168L 4 A0HR220800 Pulley 25/25/51T 5 A0DA701800 Flange 6 A0HR224600 Pulley 18/25T 7 A0HR224800 Shaft 8 A0HR221400 Timing belt 350L 9 A0HR220700 Pulley 25/25T 10 A0HR221300 Timing belt 230L 11 A0HR222301 Shaft 12 A00J617800 BALL BEARING 13 A0HR713601 Mounting Plate /3 14 A0HR130000 Wiring Guide /1 15 4037090601 PHOTO INTERRUPTER 16 A0HR713700 Mounting Plate /4 17 A0HR710001 Guide Plate /1 18 A0HR714200 Guide Sheet /3 19 A0HR710100 Guide Plate /2 20 A0HR713300 Guide Plate /15 21 A0HR713101 Guide Plate /14 22 4004454001 BALL BEARING 23 A0HR220600 Pulley 25T 24 A0HR940200 Label 25 A0HR223500 Rotation Knob 26 A0HR225800 Pulley 25T 27 A0HR220100 Registration Roller /Lower 28 A0HR714800 Neutralizing Brush 29 A0HR710300 Guide Plate /4 30 A0HR220200 Conveyance Roller 31 A0HR710200 Guide Plate /3 32 A0HR713201 Mounting Plate /2 33 A0HR222600 Pulling Coil spring 34 A0HR224500 Registration Roll 35 A0HR220000 Registration Shaft /Upper
Paper Entrance Section 1 A0HR800700 Pulley 36T 2 A00J617800 BALL BEARING 3 A0HR224700 Gear 18T 4 A0HR710800 Guide Plate 5 A0HR716101 Mounting Plate /6 6 A0HR717400 Plate spring 7 A0HR717300 Plate spring 8 1273300301 SHOULDER SCREW 9 A0HR225600 Ground Spring 10 A0HR222700 Conveyance Roll 11 A0HR223100 Tension Plate spring /1 12 A0HR223001 Pressing Shaft 13 A0HR941100 Label 14 A0HR710502 Guide Plate /6 15 A0HR220400 Paper exit Roller 16 A0HR940300 Label 17 A0HR710900 Guide Plate 18 4643300701 SHOULDER SCREW 19 A0HR712000 Torsion Coil spring 20 A0HR714300 Guide Sheet 21 A0HR715800 Swing Guide 22 9J08210401 COLLAR 23 A0HR715900 Swing Guide 24 4349131101 SHOULDER SCREW 25 A0HR717500 Neutralizing Brush 26 A0HR940100 Label 27 A0HR715500 Open/close Knob 28 9J07331901 PULLEY 19T 29 A0DA701800 Flange 30 A0HR220300 Conveyance Roller 31 A0HR223600 Shaft 32 A0HR710601 Guide Plate 33 A0HR221600 Timing belt 110L 34 A0HR225300 Pulley 19/25T 35 A0HR220600 Pulley 25T 36 A0HR225900 Pulling Coil spring 37 A0HR225700 Torsion Coil spring 38 A0HR716000 Fixing Shaft 39 A0HR222900 Conveyance Roll 40 A0HR225200 Pressing Shaft 41 A0HR223300 Tension Plate spring 42 A0HR225500 Ground Spring /1 43 9335140071 SOLID STATE SWITCH 44 A0HR717700 Guide Sheet 45 A0HRN10900 FNS Wiring /10

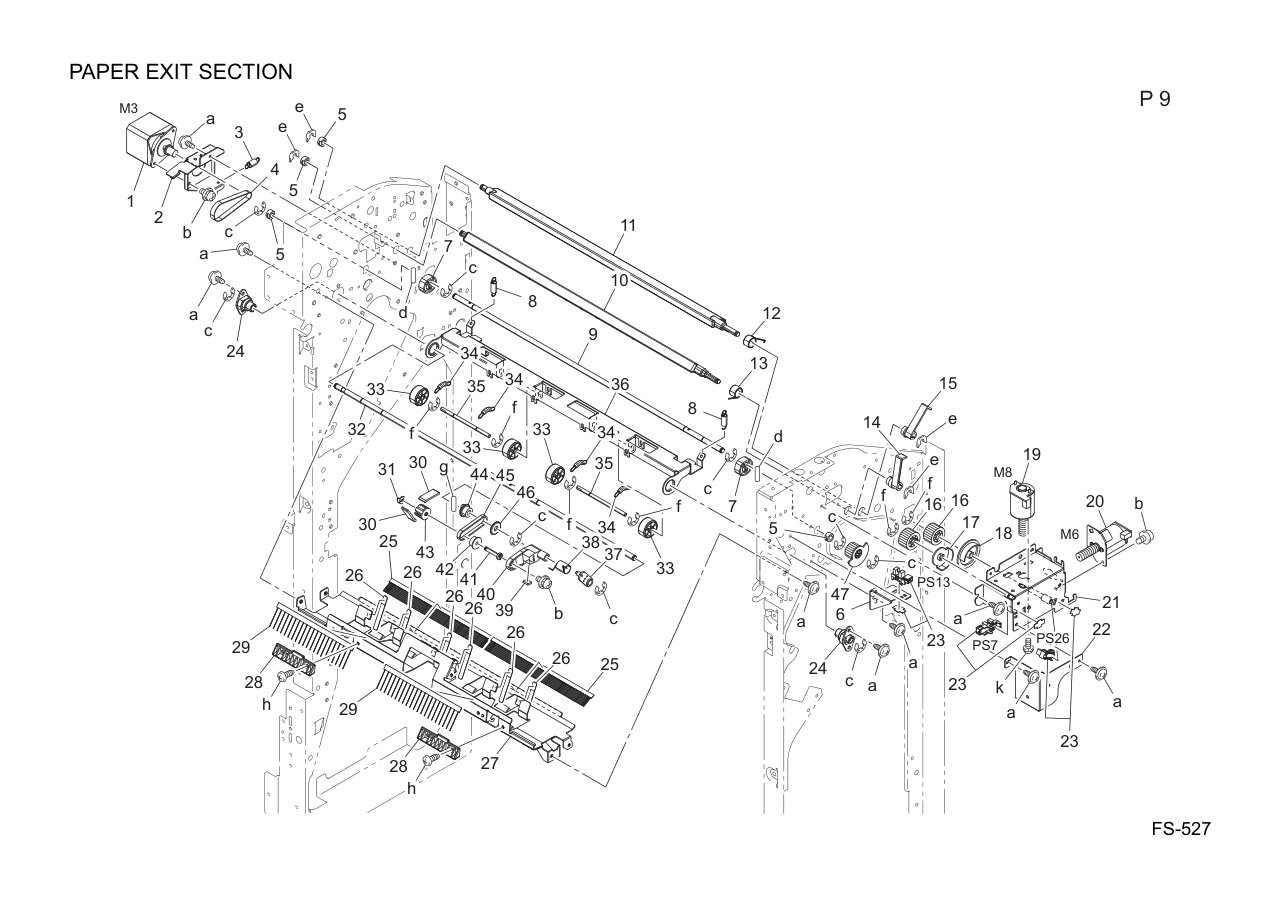

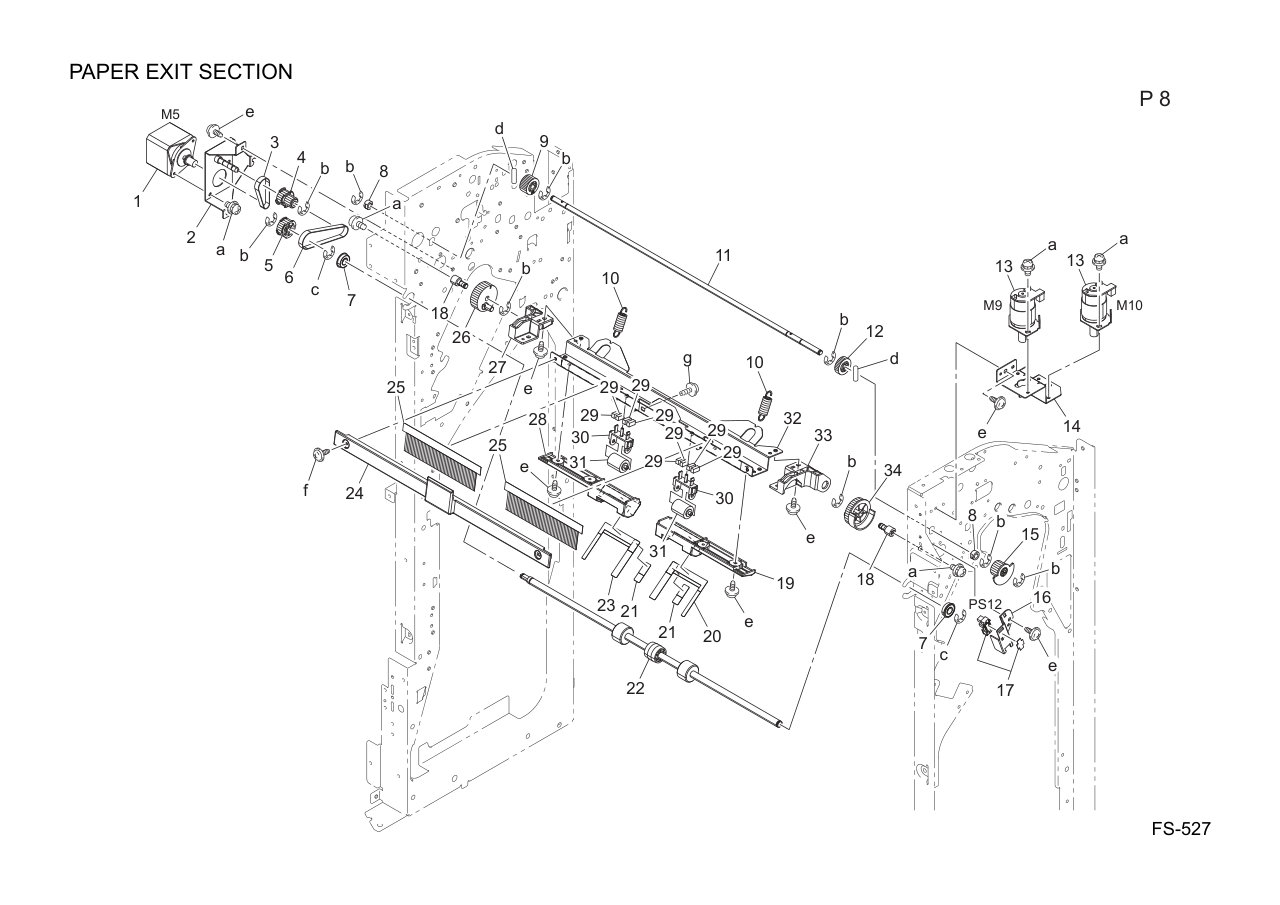

Paper Exit Section 1 A0HRM10000 Stepping motor 2 A0HRG72000 Bunch exhaust drive motor cashime 3 A0HR806400 Timing belt 104L 4 A0HR805700 Pulley 21/28T 5 A0HR805800 Pulley 33T 6 A0HR806200 Timing belt 174L 7 4004454001 BALL BEARING 8 4131253701 BUSHING 9 A0HR808900 Gear 18T 10 A0HR808300 Pulling Coil spring 11 A0HR807700 Shaft 12 A0HR807800 Gear 18T 13 A0HRA89600 Pressure touching alienation motor 14 A0HR807300 Mounting Plate 15 A0HR804400 Gear 22T 16 A0HR808700 Mounting Plate 17 4037090601 PHOTO INTERRUPTER 18 A0HR807600 Shaft 19 A0HR806300 Guide /Front 20 A0HR809400 Guide Sheet /Front 21 4643307802 GUIDE 22 A0HR805200 Paper exit Roller 23 A0HR801400 Guide Sheet /Rear 24 A0HR809100 Cover 25 A0HR808800 Neutralizing Brush 26 A0HR808600 Gear 30T 27 A0HR807100 Arm /1 28 A0HR806500 Guide /Rear 29 4643502012 CUSHION 30 4643500701 HOLDER 31 4643500801 ROLLER 32 A0HR805000 Guide 33 A0HR809700 Arm /2 34 A0HR807000 Gear 30T
Paper Exit Section 1 A0HRM10000 Stepping motor 2 A0HR804100 Mounting Plate 3 A0HR801300 Pulling Coil spring 4 A0HR803900 Timing belt 142L 5 4131253701 BUSHING 6 A0HR807500 Mounting Plate 7 A0HR803000 Cam 8 A0HR800600 Pulling Coil spring 9 A0HR804200 Shaft 10 A0HR820900 Swing Claw /2 11 A0HR820000 Swing Claw /1 12 A0HR821400 Torsion Coil spring 13 A0HR821000 Torsion Coil spring 14 A0HR821100 Lever 15 A0HR821300 Lever 16 A083705400 Gear 20T 17 A0HR820800 Light blocking Plate /2 18 A0HR820700 Light blocking Plate /1 19 A0HRA71400 Tray 2 change motor 20 A0HRA71300 Upper and lower change motor 21 A0HRG70000 Route change installation board kas hime 22 A0HR130200 Wiring Plate /2 23 4037090601 PHOTO INTERRUPTER 24 A0HR808500 Bushing 25 A0HR809800 Neutralizing Brush 26 A0HR806600 Holding Sheet 27 A0HR800000 Guide /Upper 28 A0HR809600 Guide 29 A0HR801500 Neutralizing Brush 30 A0HR731700 Paddle /1 31 A0HR734600 Stopper 32 A0HR800300 Shaft 33 A0HR800400 Roll 34 A0HR801200 Pulling Coil spring 35 A0HR800800 Shaft 36 A0HR800100 Mounting Plate 37 A0HR733501 Drum /3 38 A0HR733100 Torsion Coil spring 39 A0HR733300 Cushion 40 A0HR731100 Arm 41 A0HR731900 Shaft /3 42 A0HR730300 Pulley 19T 43 A0HR731800 Drum /1 44 9J07331901 PULLEY 19T 45 A0HR733000 Timing belt 106L 46 4349138001 FLANGE 47 A0HR804400 Gear 22T

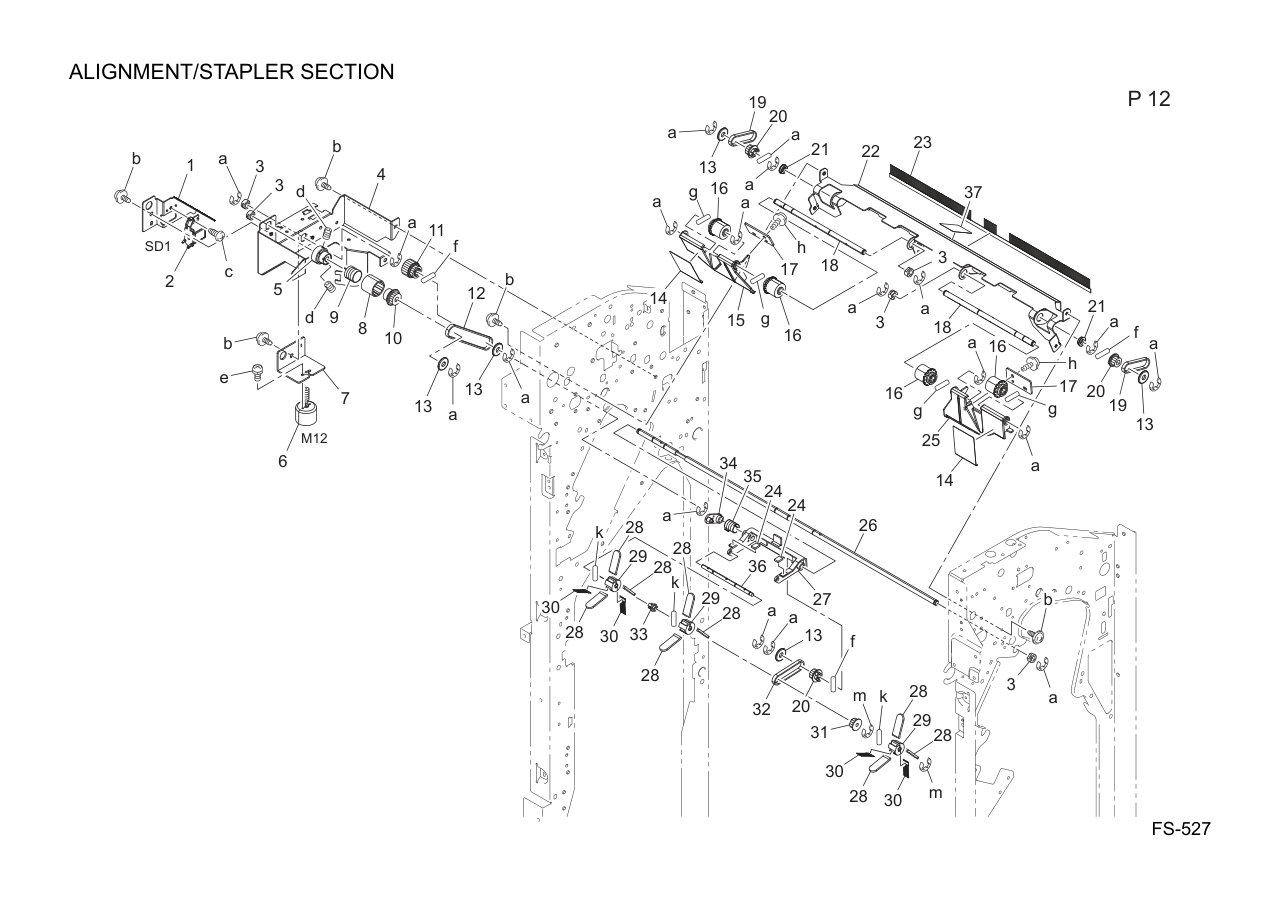

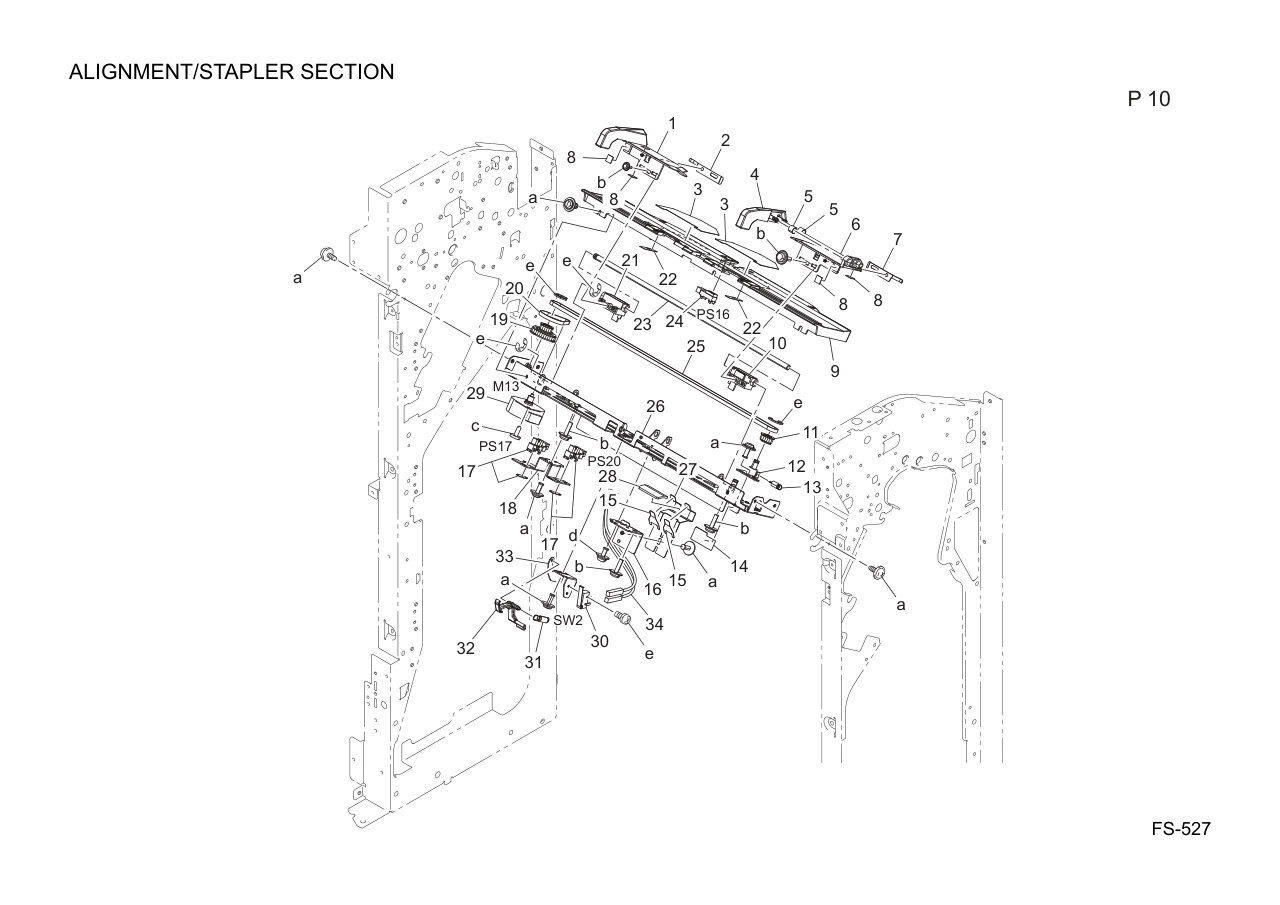

Alignment/stapler Section 1 A0HR740100 Regulating Plate /Rear 2 A0HR741400 Plate spring /1 3 A0HR721800 Guide Sheet /1 4 A0HR740300 Regulating Plate /Front 5 A0HR741600 Compressing Coil spring 6 A0HR740200 Regulating Plate /Front 7 A0HR741500 Plate spring /2 8 A0HR740400 Tape 9 A0HR720101 Regulating Tray 10 A0HR721300 Slide Holder /2 11 A0HR741000 Pulley 24T 12 A0HRG72500 Adjustment board kashime 13 A0HR720900 Pulling Coil spring 14 A0HR722300 Cover 15 A0HR722200 Guide Sheet /2 16 A0HR721900 Adjusting Plate 17 4037090601 PHOTO INTERRUPTER 18 A0HR740600 Mounting Plate 19 A0HR740900 Pulley 24/48T 20 A0HR741100 Timing belt 118L 21 A0HR721200 Slide Holder /1 22 A0HR722400 Guide Sheet /3 23 A0HR740800 Shaft 24 9335140071 SOLID STATE SWITCH 25 A0HR740700 Timing belt 752L 26 A0HRG72400 Adjustment bed plate 27 A0HR720300 Stopper /Middle 28 A0HR722500 Regulating Sheet 29 A083M10000 Stepping motor 30 9331220031 MICRO-SWITCH 31 A0HR897100 Pulling Coil spring 32 A0HR897001 Actuator /1 33 A0HR897200 Sensor Pedestal 34 A0HRN10202 FNS Wiring /3

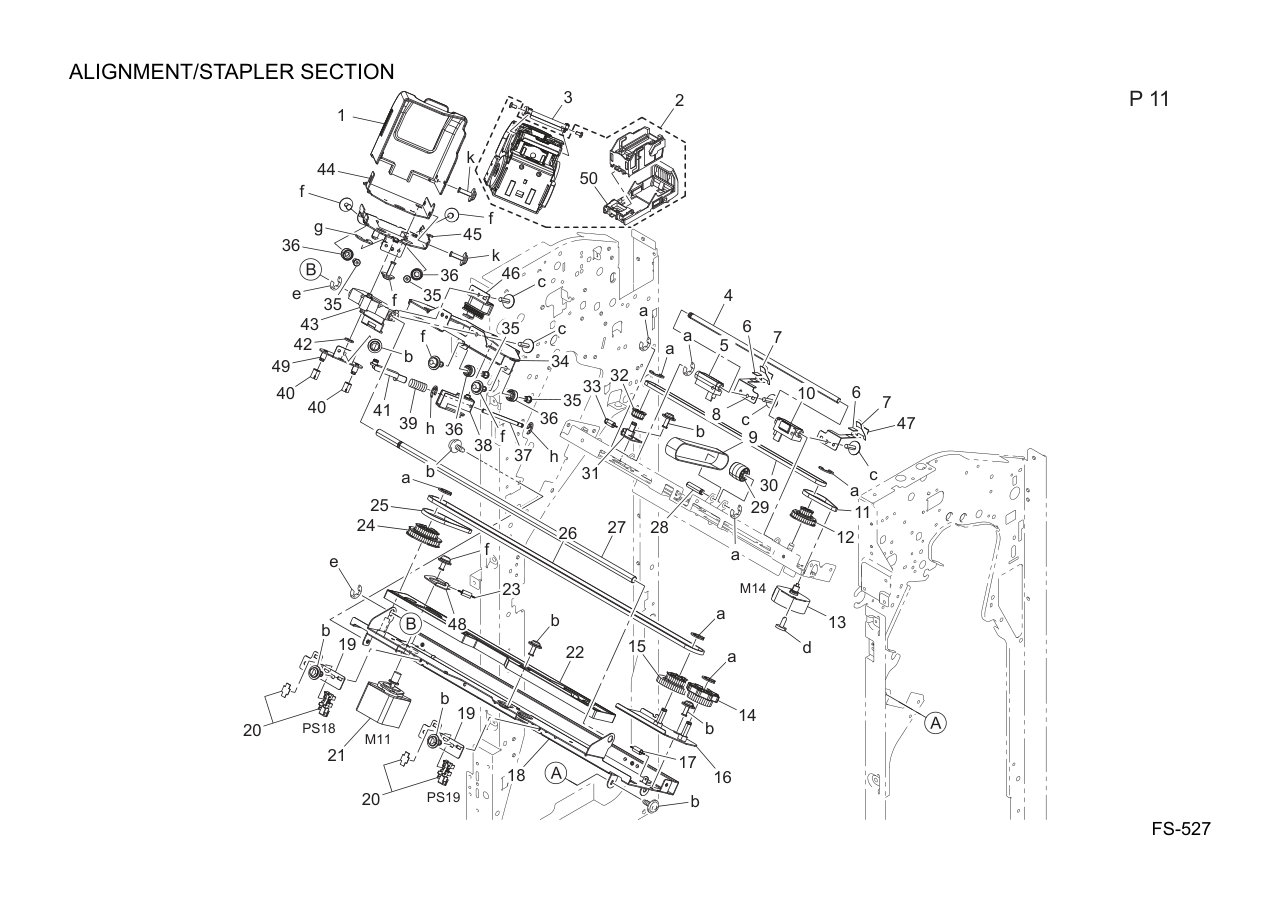

Alignment/stapler Section 1 A0HR750300 Cover 2 9J08560101 STAPLER UNIT 3 A0HR751400 Stapler Guide 4 A0HR721400 Shaft 5 A0HR721300 Slide Holder /2 6 A0HR740400 Tape 7 A0HR722200 Guide Sheet /2 8 A0HR720501 Stopper /Rear 9 4643540801 BELT 212.5L 10 A0HR721200 Slide Holder /1 11 A0HR722000 Timing belt 138L 12 A0HR740900 Pulley 24/48T 13 A083M10000 Stepping motor 14 A0HR761600 Knob 15 A0HR761500 Pulley 30/42T 16 A0HRG72100 Adjustment board kashime 17 A0HR762100 Pulling Coil spring 18 A0HRG72200 Bed plate kashime 19 A0HR761300 Mounting Plate 20 4037090601 PHOTO INTERRUPTER 21 A0HRM10000 Stepping motor 22 A0HR761400 Guide Rail 23 A0HR762600 Pulling Coil spring 24 A0HR760700 Pulley 30/63T 25 A0HR760800 Timing belt 158L 26 A0HR760400 Timing belt 918L 27 A0HR760300 Shaft 28 A0HR741200 Shaft 29 A0HR741300 Pulley 30 A0HR721500 Timing belt 600L 31 A0HRG72500 Adjustment board kashime 32 A0HR741000 Pulley 24T 33 A0HR720900 Pulling Coil spring 34 A0HR762200 Stapler Table 35 A0HR750800 Shaft 36 A0HR751300 Roll 37 A0HR751100 Guide Shaft 38 A0HR751200 Holder /2 39 A0HR750700 Compressing Coil spring 40 A0HR751500 Collar 41 A0HR751000 Holder /1 42 1500266012 WAVE WASHER 43 A0HR760500 Slide Part 44 A0HR750101 Adjusting Plate 45 A0HR750201 Base frame 46 A0HR760600 Holder 47 A0HR720400 Stopper /Front 48 A0HR762500 Adjusting Plate 49 A0HRG72300 Neck appearance board
Alignment/stapler Section 1 A0HR734700 Cover 2 A0HRM20000 Flaper solenoid 3 4131253701 BUSHING 4 A0HR732000 Mounting Plate 5 4643521903 DRUM 6 A0HRA73200 Under Paddle driving motor 7 A0HR735000 Spacer 8 4349211502 COLLAR 9 4643522001 TORSION SPRING 10 A0HR731500 Pulley 24T 11 A0HR732500 Gear 22/24T 12 A0HR732100 Timing belt 196L 13 4349138001 FLANGE 14 A0HR734200 Guide Sheet /1 15 A0HR734100 Guide /3 16 A0HR730800 Roller 17 A0HR734400 Weight 18 A0HR734500 Shaft 19 A0HR731200 Timing belt 100L 20 9J07331901 PULLEY 19T 21 A00J617800 BALL BEARING 22 A0HR730101 Guide /ASSY 23 A0HR735500 Neutralizing Brush /1 24 A0HR733300 Cushion 25 A0HR734000 Guide /2 26 A0HR730500 Shaft /2 27 A0HR730400 Arm 28 A0HR734801 Paddle /2 29 A0HR735100 Drum /2 30 A0HR735600 Neutralizing Brush /2 31 A0HR730300 Pulley 19T 32 A0HR734900 Timing belt 112L 33 A0HR735200 Stopper 34 A0HR733501 Drum /3 35 A0HR733200 Torsion Coil spring 36 A0HR730200 Shaft /1 37 A0HR735700 Guide Sheet /2

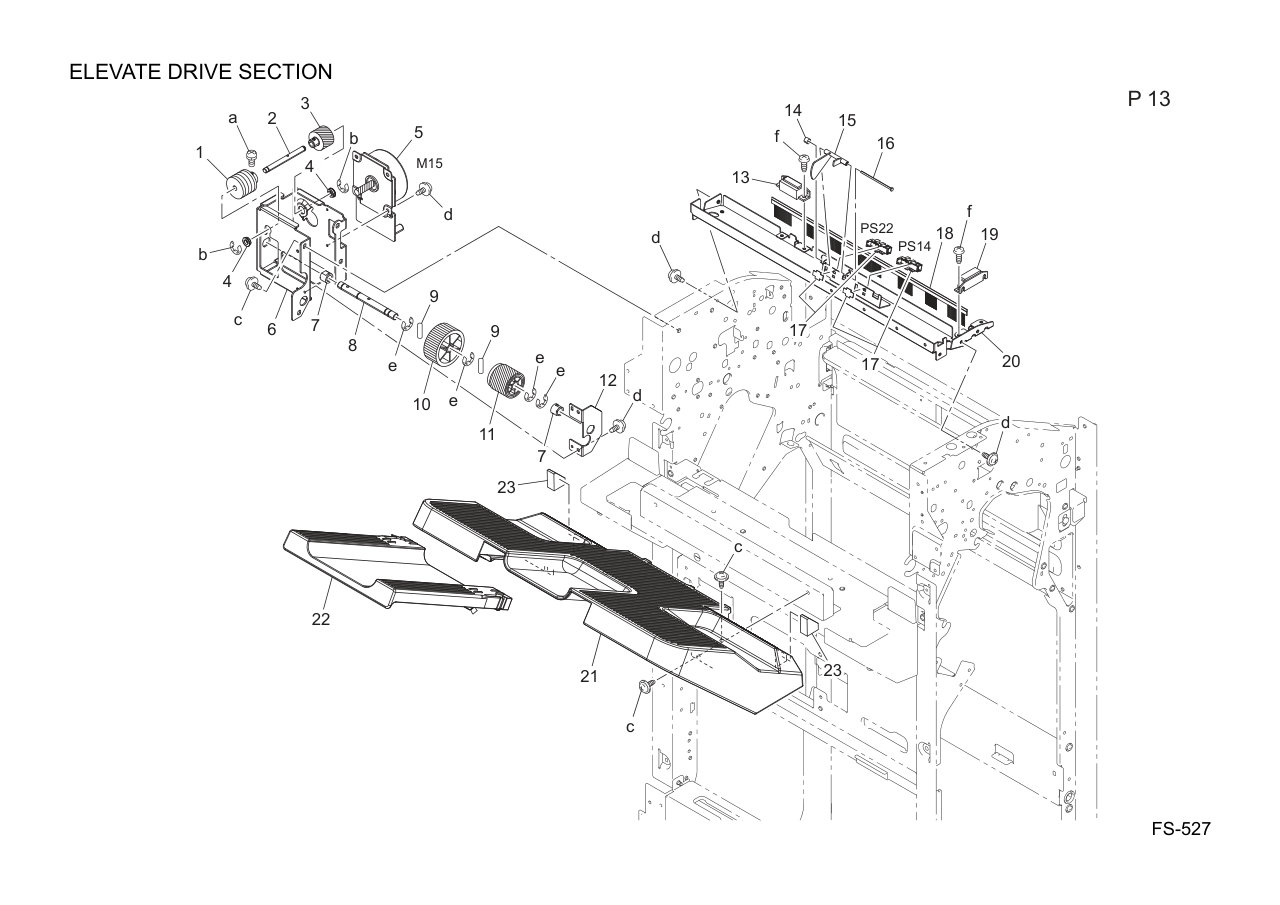

Elevate Drive Section 1 A0HR892900 Worm 2 A0HR893000 Shaft 3 A0HR892800 Gear 43T 4 A00J617800 BALL BEARING 5 A0PNM10200 DC Brushless motor /20 6 A0HR893200 Mounting Plate 7 1079553001 BUSHING 8 A0HR893100 Shaft 9 A0HR894200 Connecting Pin 10 A0HR892400 Worm wheel 11 A0HR892300 Gear 18T 12 A0HR893600 Mounting Plate 13 4426260702 MAGNET CATCH 14 9J08210401 COLLAR 15 A0HR892500 Actuator 16 1200521304 SHAFT 17 4037090601 PHOTO INTERRUPTER 18 A0HR892600 Neutralizing Brush 19 4425337201 MAGNET CATCH 20 A0HR890901 Mounting Plate 21 A0HR890300 Tray /1 22 A0HR890200 Tray /2 23 A0HR904000 Cushion

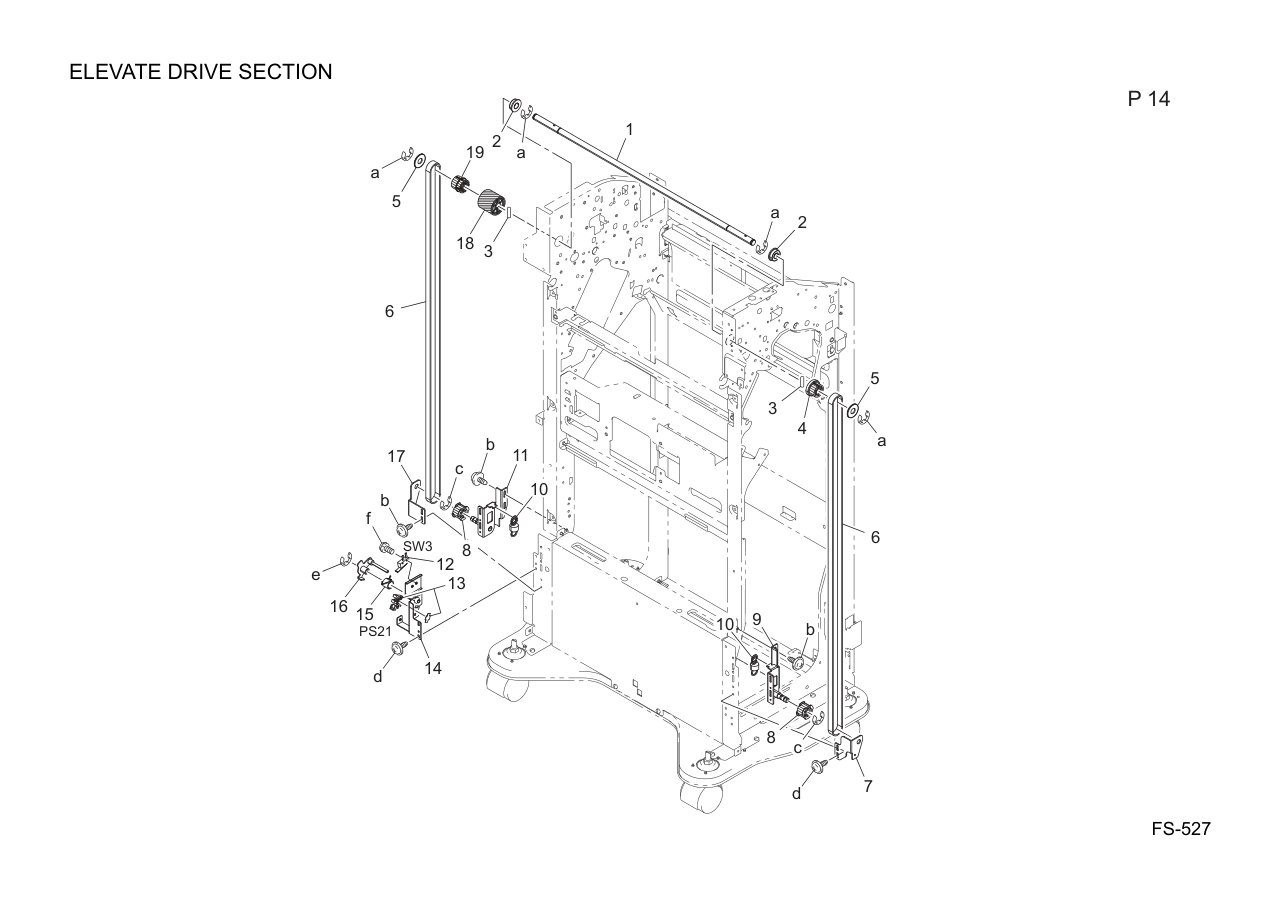

Elevate Drive Section 1 A0HR891000 Shaft 2 13QE75010 BEARING/A 3 A0HR894200 Connecting Pin 4 A0HR893700 Pulley 24T 5 A0HR890800 Flange 6 A0HR890500 Timing belt 1401L 7 A0HR892200 Reinforce Plate 8 A0HR891800 Pulley 24T 9 A0HRG89500 Front fulcrum kashime 10 4349206601 TENSION SPRING 11 A0HRG89400 Rear fulcrum kashime 12 9331220031 MICRO-SWITCH 13 4037090601 PHOTO INTERRUPTER 14 A0HRG89300 Detection sw installation board Cas hime 15 A0HR891200 Spring 16 A0HRG89200 Actuata kashime 17 A0HR892100 Auxiliary Plate 18 A0HR890600 Gear 19T 19 A0HR890700 Pulley 24T

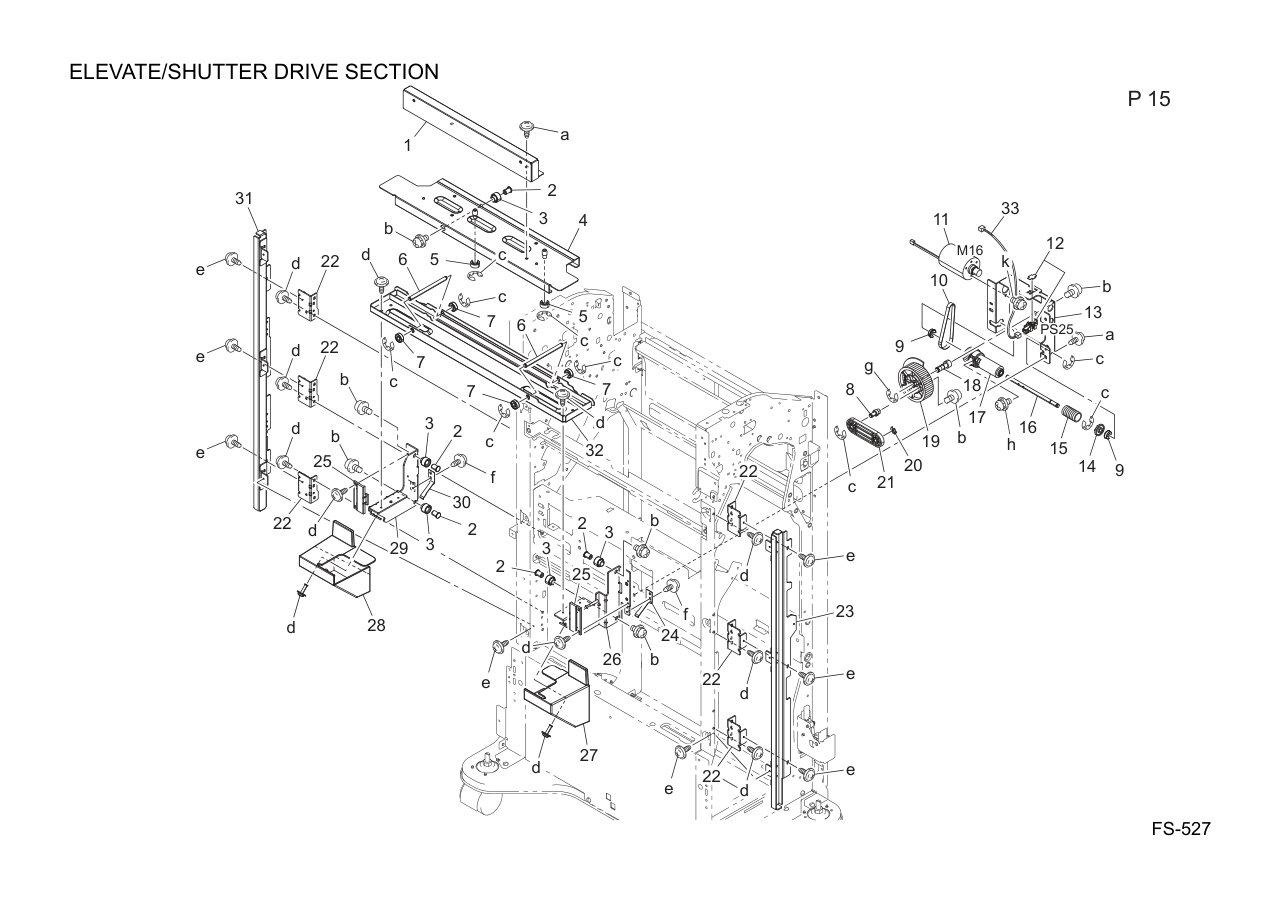

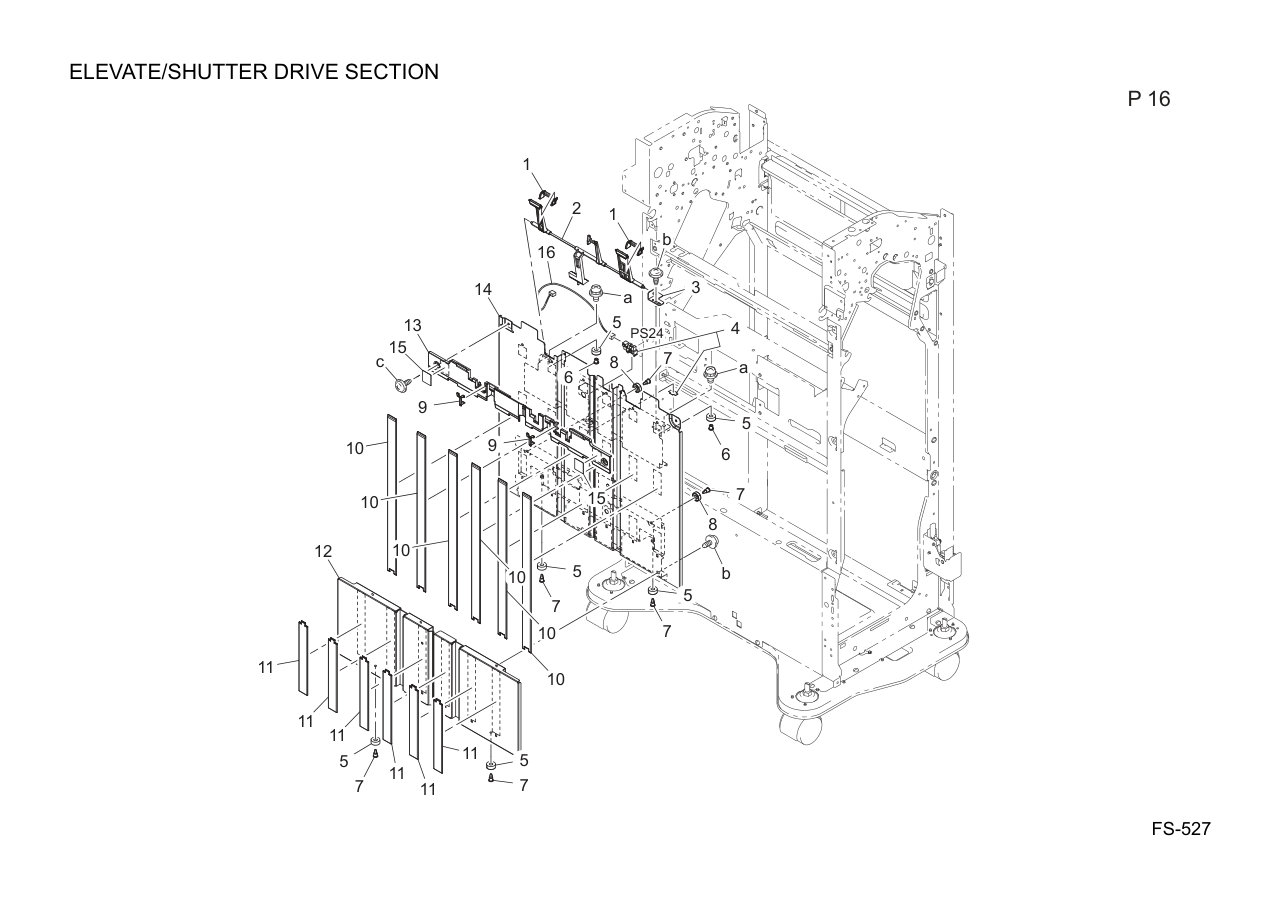

Elevate/shutter Drive Section 1 A0HR900000 Mounting Plate /Upper 2 A0HR903000 Shaft 3 A0HR902900 Roll 4 A0HRG89000 Going up and down tray top kashime 5 4643460401 ROLL 6 A0HR903600 Shaft 7 1300432201 BALL BEARING 8 A0HR902100 Support Shaft 9 A00J211200 Ball Bearing 10 A0HR901800 Timing belt 192L 11 A01GM10000 BRUSH MOTOR 12 4037090601 PHOTO INTERRUPTER 13 A0HR902700 Mounting Pedestal 14 A0HR902800 Collar /1 15 A0HR902600 Compressing Coil spring /1 16 A0HR902300 Rotation Shaft /1 17 A0HR902200 Worm 18 A0HR901500 Shaft /1 19 A0HR901400 Gear 40T 20 1033440203 STOPPER RING 21 A0HR901900 Connecting Plate 22 A0HR903200 Mounting Plate 23 A0HR903300 Rail 24 A0HR891500 Plate spring 25 A0HR891400 Mounting Plate 26 A0HR900300 Mounting Plate 27 A0HR900801 Cover Base frame 28 A0HR900901 Cover Tray 29 A0HR900400 Mounting Plate 30 A0HR891600 Plate spring 31 A0HR903400 Rail 32 A0HR900202 Mounting Plate 33 A0HRN11100 FNS Wiring /12
Elevate/shutter Drive Section 1 A0HR903800 Actuator /Rear 2 A0HR897300 Actuator /2 3 A0HR897500 Mounting Plate 4 4037090601 PHOTO INTERRUPTER 5 4643460401 ROLL 6 A0HR750800 Shaft 7 4643460501 SHOULDER SCREW 8 1300432201 BALL BEARING 9 A0HR903900 Guide Cover /2 10 A0HR901001 Guide /3 11 A0HR901101 Guide /1 12 A0HR901300 Receiving Plate /2 13 A0HR901601 Guide /5 14 A0HR901200 Receiving Plate /1 15 A0HR941200 Label 16 A0HRN11003 FNS Wiring /11

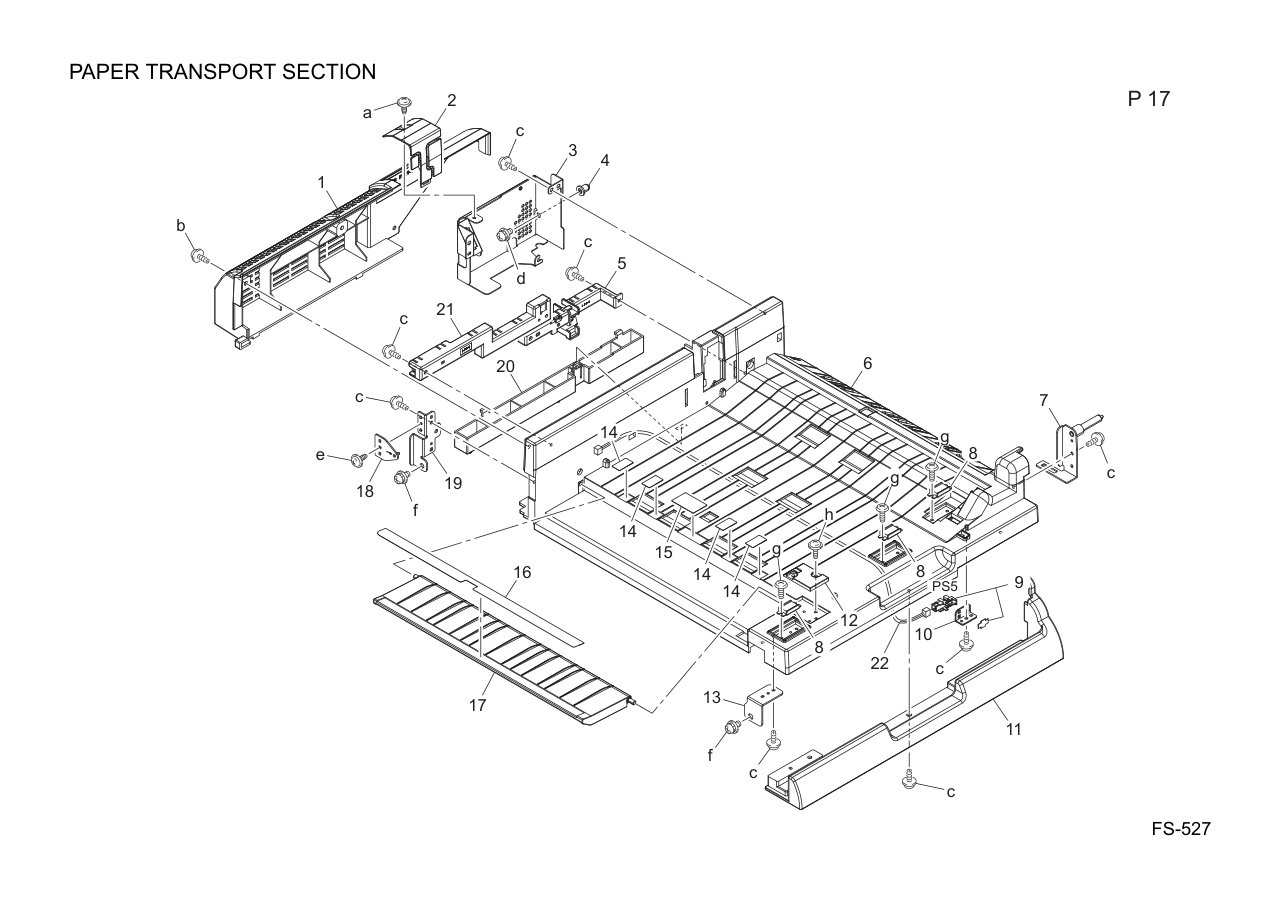

Paper Transport Section 1 A0HR160300 Rear Cover 2 A0HR160500 Cover 3 A0HR160401 Cover Side plate /Right 4 A0HR100700 Pin 5 A0HR703000 Wiring Guide /2 6 A0HR100001 Guide Plate /Lower 7 A0HRG73100 Mounting Plate Assy 8 40AA32290 MAGNET CATCH 9 4037090601 PHOTO INTERRUPTER 10 A0HR701200 Mounting Plate 11 A0HR100600 Installing Pedestal /Front 12 A0HR702200 Fixing Plate /7 13 A0HR100200 Fixing Part /Front 14 A0HR703200 Guide Film /4 15 A0HR703300 Guide Film /5 16 A0HR701300 Guide Film /1 17 A0HR701600 Swing Guide /Lower 18 A0HRG73000 Support Plate Assy 19 A0HR100400 Fixing Part /Rear 20 A0HR100900 Installing Pedestal /Rear 21 A0HR702700 Wiring Guide /1 22 A0HRN11400 FNS Wiring /15

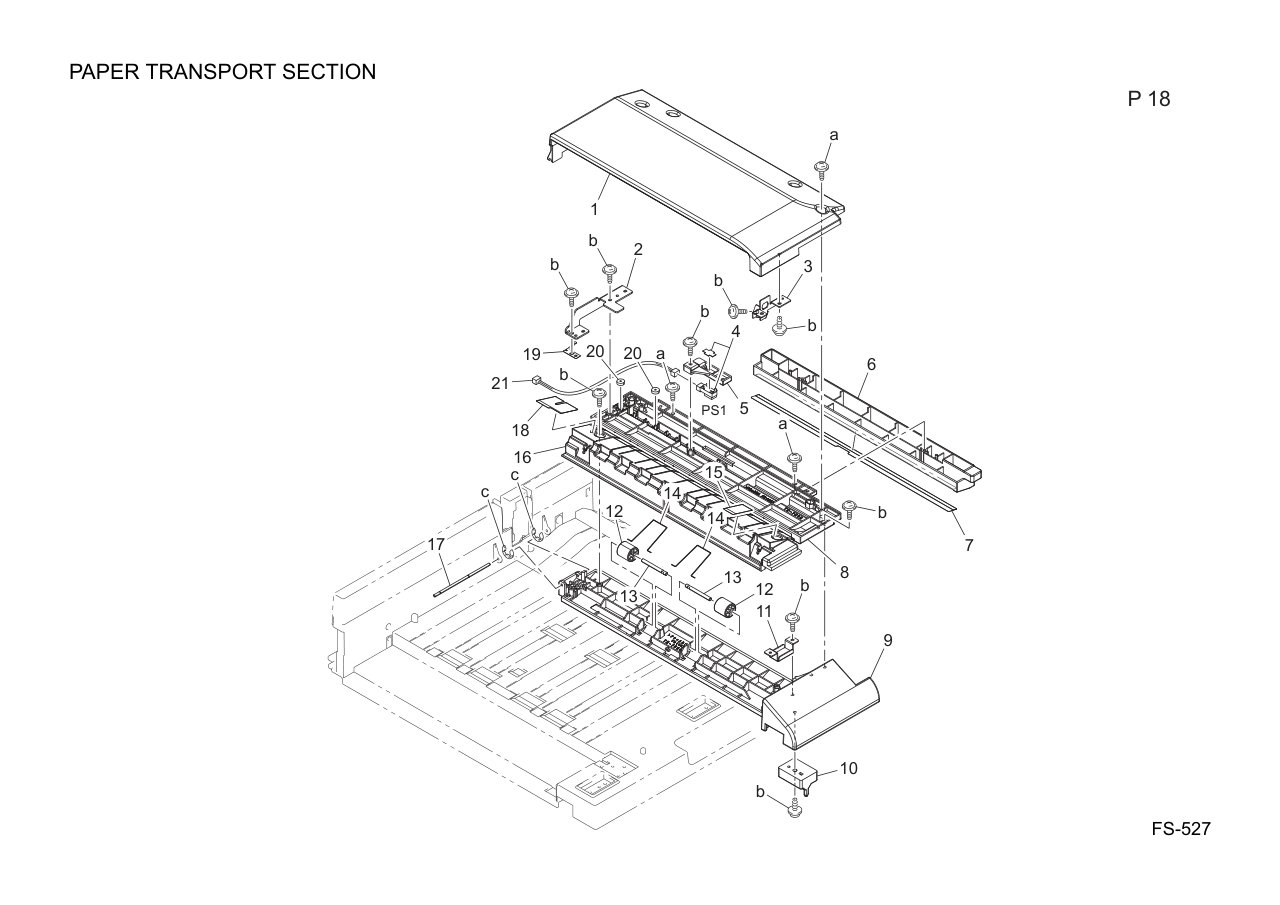

Paper Transport Section 1 A0HR160200 Top Right Cover 2 A0HR702600 Mounting Plate 3 A0HR230201 Holder 4 4037090601 PHOTO INTERRUPTER 5 A0HR700600 Mounting Plate /1 6 A0HR700101 Guide Plate /A 7 A0HR701700 Guide Film /3 8 A0HR700900 Entrance Guide /1 9 A0HR701001 Entrance Guide /2 10 A0HR701100 Detecting Lever 11 A07R812700 Suction Plate /1 12 A0HR212700 Idler Roll /1 13 A0HR212800 Idler Shaft /1 14 A0HR213500 Spring 15 A0HR813100 Sheet 16 A0HR811101 Guide 17 A0HR702400 Support Shaft /2 18 A0HR813200 Sheet 19 A0HR702900 Ground Plate 20 4036365901 COLLAR 21 A0HRN11200 FNS Wiring /13

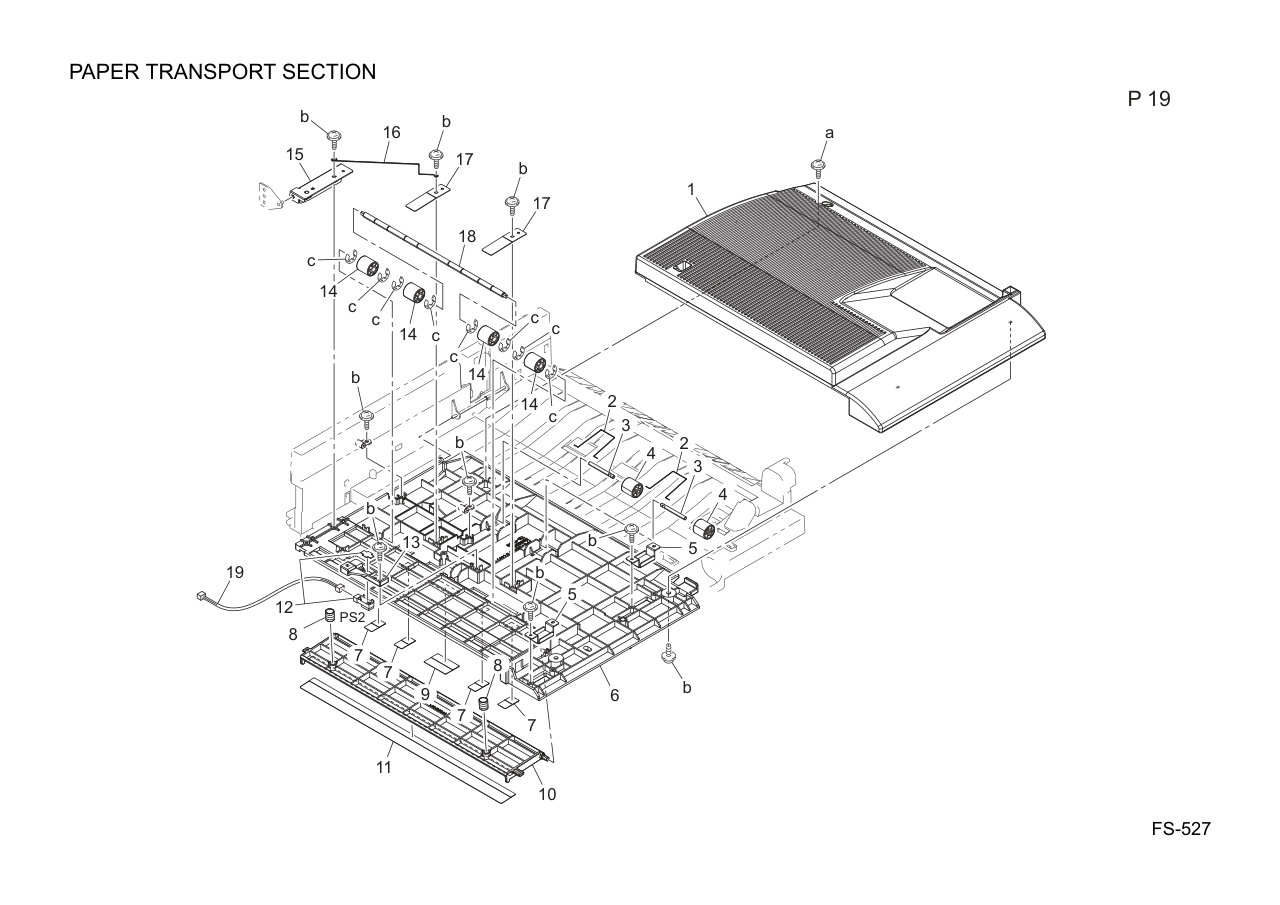

Paper Transport Section 1 A0HR160001 Top Left Cover 2 A0HR213500 Spring 3 A0HR212800 Idler Shaft /1 4 A0HR212700 Idler Roll /1 5 A07R812700 Suction Plate /1 6 A0HR700201 Guide Plate /Left 7 A0HR703200 Guide Film /4 8 A0HR702000 Compressing Coil spring 9 A0HR703300 Guide Film /5 10 A0HR701400 Swing Guide /Upper 11 A0HR701500 Guide Film /2 12 4037090601 PHOTO INTERRUPTER 13 A0HR700600 Mounting Plate /1 14 A0HR212600 Idler Roll /3 15 A0HR701900 Support Plate /2 16 A0HR702800 Ground Terminal 17 A0HR212400 Conveyance Plate Spring 18 A0HR212500 Idler Shaft /3 19 A0HRN11300 FNS Wiring /14

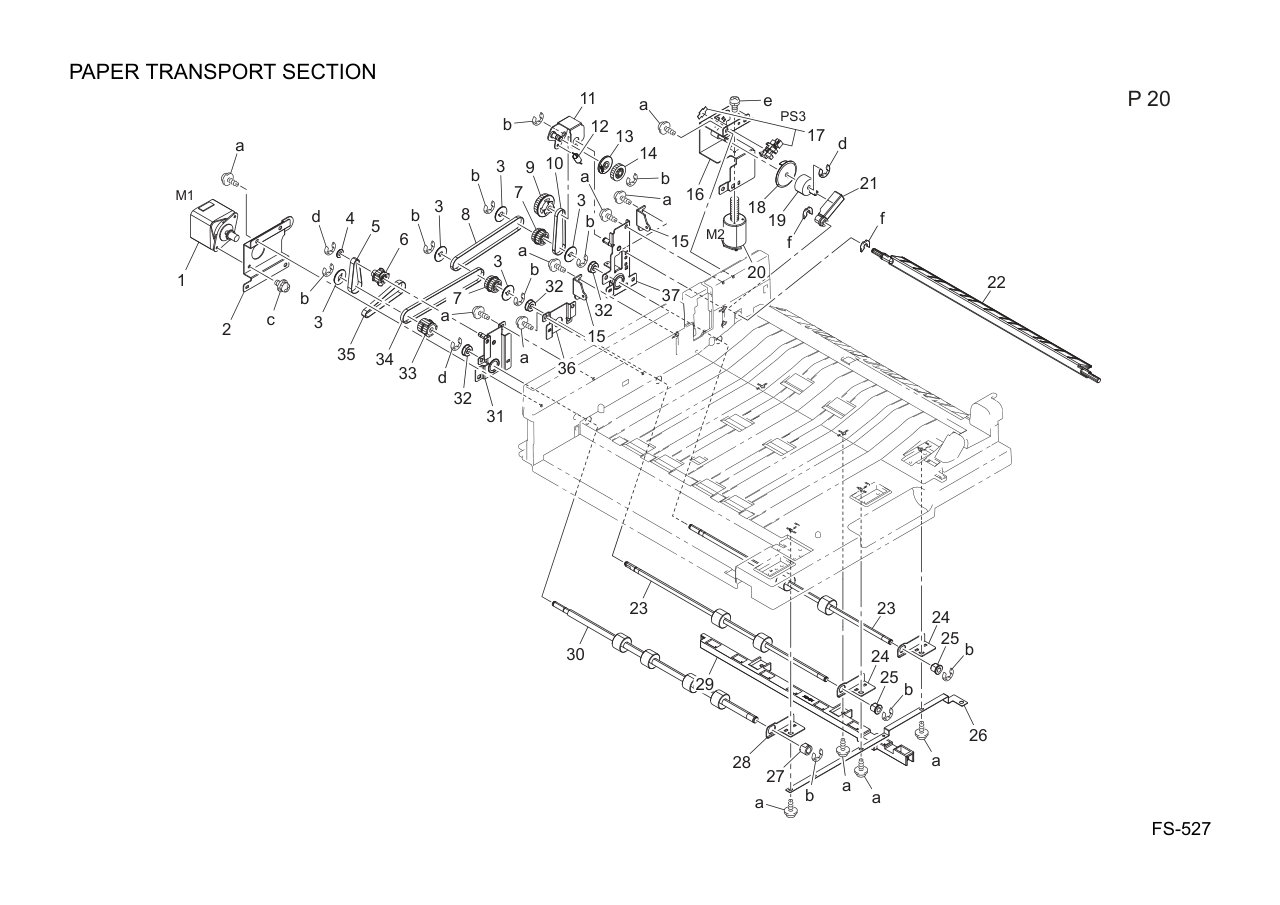

Paper Transport Section 1 A0HRM10000 Stepping motor 2 A0HR213800 Mounting Plate 3 A0HR210300 Flange 4 A0HR213600 Flange 5 A0HR213000 Drive Belt /3 6 A0HR210200 Pulley 14/26T 7 A0HR211000 Pulley 28T 8 A0HR211600 Drive Belt /1 9 A0HR212000 Pulley 21/25T 10 A0HR211900 Drive Belt /5 11 A0HRG72800 Swing Plate Assy 12 A0HR213200 Pulling Coil spring /5 13 A0HR213701 Ring 14 A0HR213300 Gear 19T 15 A0HR700300 Support Plate /Right 16 A0HRG72900 Bracket Assy 17 4037090601 PHOTO INTERRUPTER 18 A0HR810200 Light blocking Plate 19 A083705400 Gear 20T 20 A0HRA71400 Tray 2 change motor 21 A0HR810300 Arm 22 A0HR810401 Guide Plate 23 A0HR211200 Drive Roller /1 24 A0HR211800 Fixing Plate /4 25 A02E815200 BUSHING 26 A0HR210700 Ground Part /2 27 1079553001 BUSHING 28 A0HR214000 Fixing Plate /5 29 A0HR703100 Wiring Guide /3 30 A0HR210500 Drive Roller /3 31 A0HRG72600 Mounting Plate Assy 32 A00J211200 Ball Bearing 33 A0HR213100 Pulley 28T 34 A0HR210900 Drive Belt /2 35 A0HR210100 Drive Belt /4 36 A0HR211100 Fixing Plate /2 37 A0HRG72700 Fixing Plate Assy

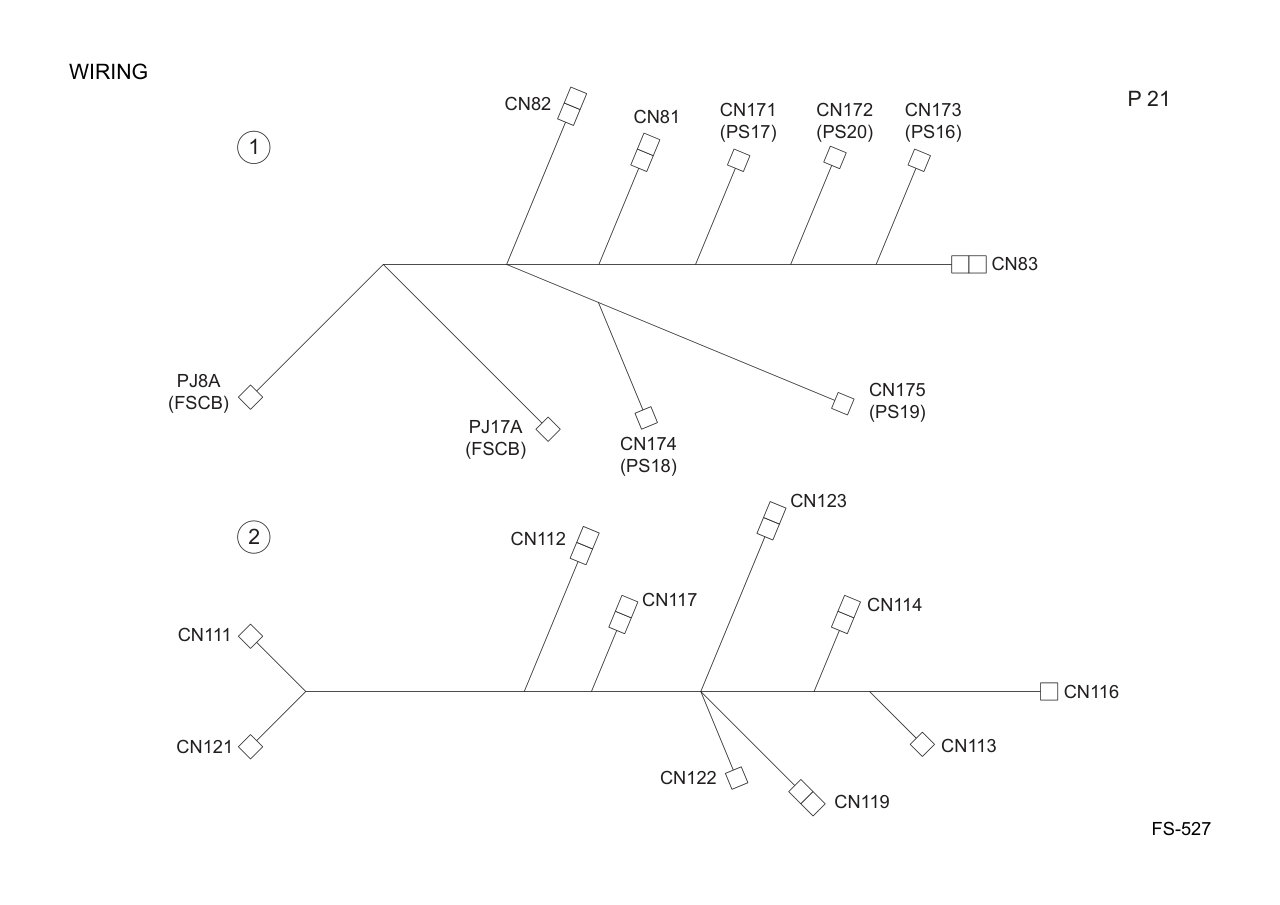

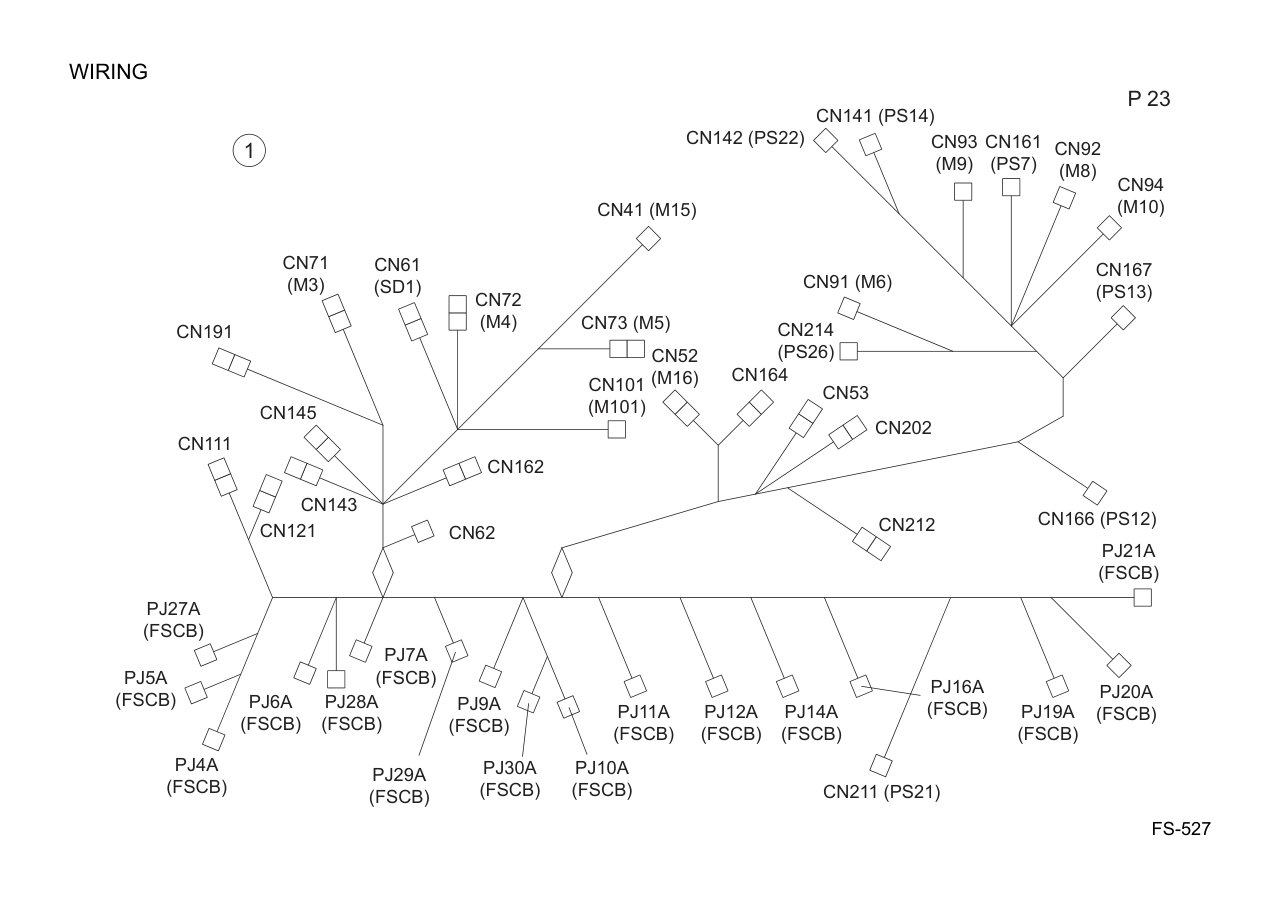

Wiring 1 A0HRN10401 FNS Wiring /5 2 A0HRN10701 FNS Wiring /8

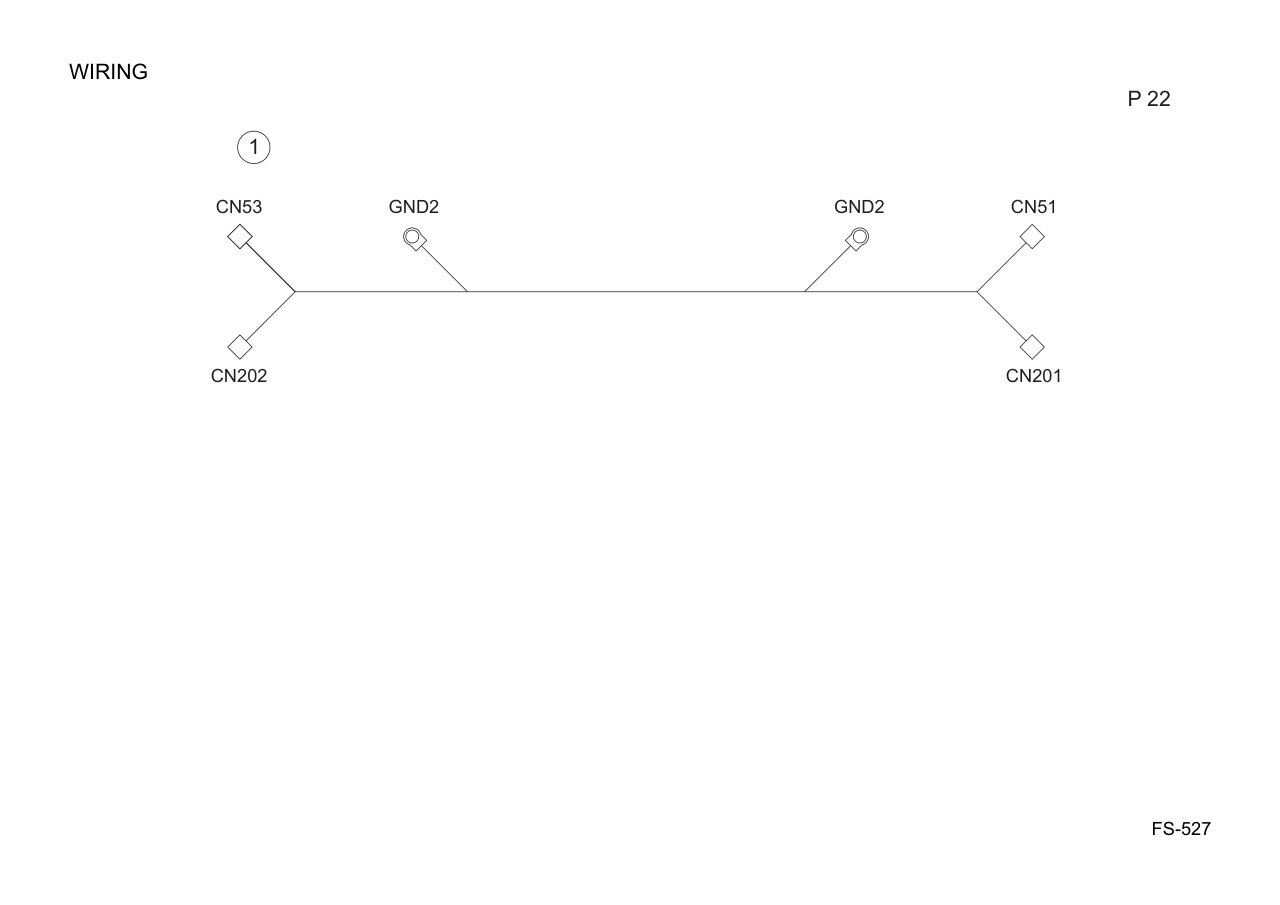

Wiring 1 A0HRN10300 FNS Wiring /4
Wiring 1 A0HRN10602 FNS Wiring /7

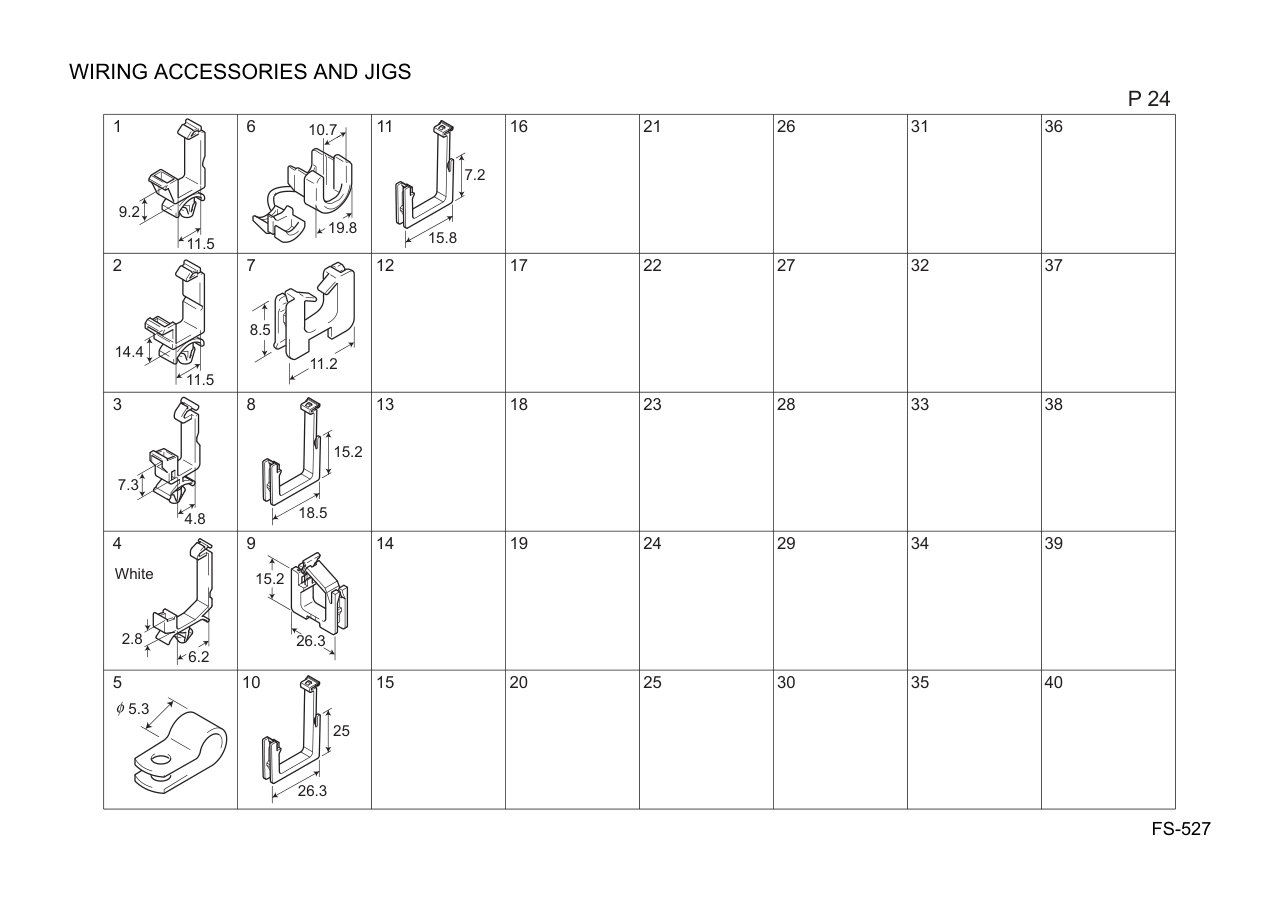

Wiring Accessories And Jigs 1 V500010005 saddle 2 V500010007 saddle 3 V500010020 Saddle 4 V500010046 saddle 5 V500020037 clamp 6 V500020052 bushing 7 V570010021 Saddle 8 V570010026 saddle 9 V570010027 saddle 10 V570010028 saddle 11 V570010046 SADDLE

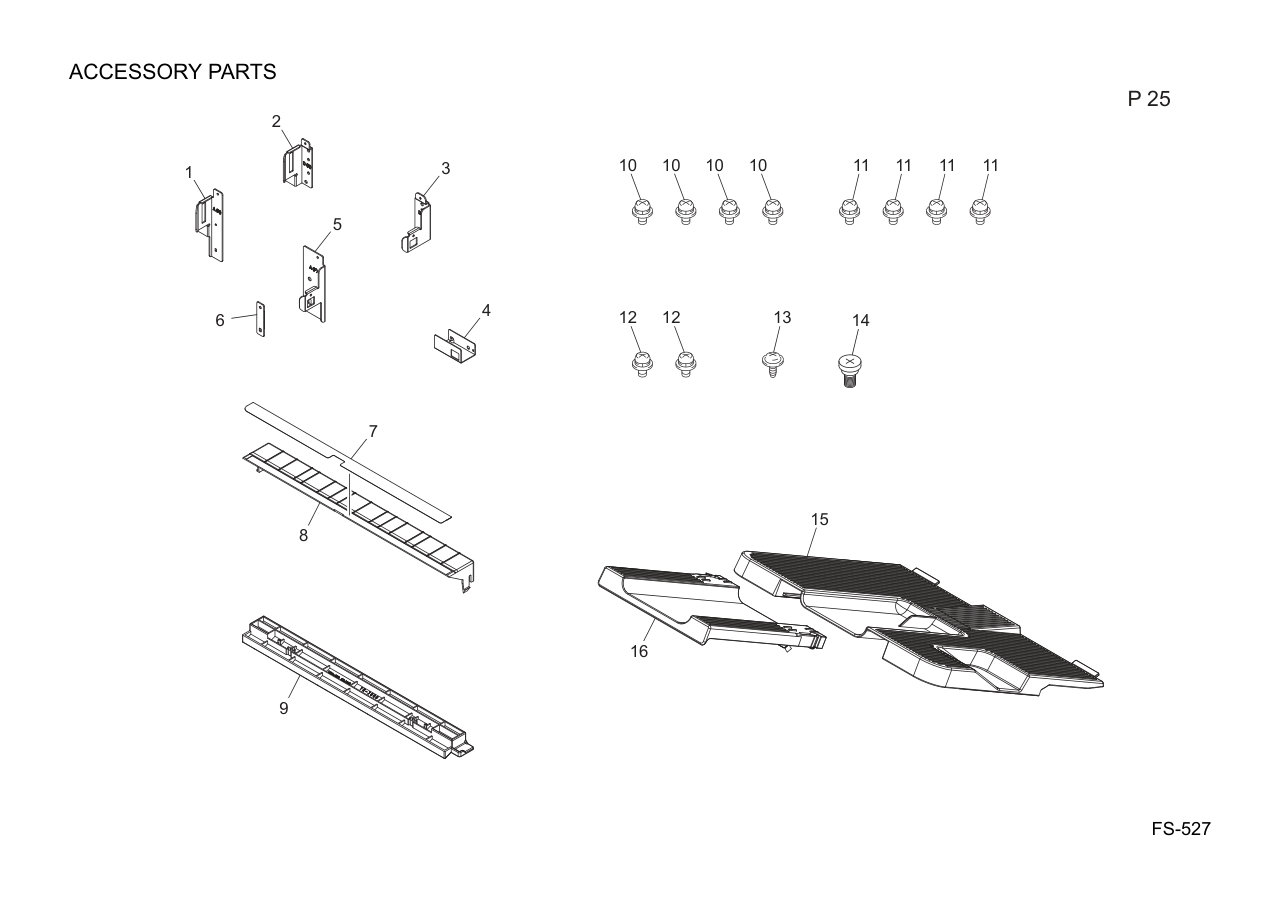

Accessory Parts 1 A0HR116501 Mounting Plate /Rear 2 A0HR115101 Mounting Plate /Rear 3 A0HR115001 Mounting Plate /Front 4 A0HR116600 Mounting Plate 5 A0HR116401 Mounting Plate /Front 6 A0HR116700 Spacer 7 A0HR701300 Guide Film /1 8 A0HR700700 Entrance Guide /D 9 A0HR700001 Guide Plate /D 10 V116030803 Screw 11 V116031603 Screw 12 V116040803 Screw 13 V137040803 SCREW 14 A02E193400 Shoulder screw 15 A0HR890100 Tray /1 16 A0HR890200 Tray /2
External Parts (Konica Minolta parts guide manual) 18 A0HR173501 Pressing Plate spring /1
Frame Section (Konica Minolta parts guide manual) 16 A0HRN10103 FNS Wiring /2
Paper Entrance Section (Konica Minolta parts guide manual) 33 A0HR711113 Guide Plate /12 42 A0HR223012 Pressing Shaft 44 A0HR715711 Ground Spring 49 A0HR226400 Pulling Coil spring
Paper Entrance Section (Konica Minolta parts guide manual) 15 A0HRR90000 Solid State Switch 20 A0HR713301 Guide Plate /15 22 A1RF529300 Ball bearing 36 A0HR717800 Guide
Paper Entrance Section (Konica Minolta parts guide manual) 4 A0HR710811 Guide Plate 9 A0HR225611 Ground Spring 14 A0HR710513 Guide Plate /6 17 A0HR710911 Guide Plate 37 A0HR225701 Torsion Coil spring 40 A0HR225211 Pressing Shaft 42 A0HR225511 Ground Spring /1 46 A0HR226300 Pulling Coil spring 47 A0HR226500 Pulling Coil spring
Paper Exit Section (Konica Minolta parts guide manual) 13 A0HRA89611 PRESSURE TOUCHING ALIENATION MOTOR 35 A0HR808000 Mounting Plate 36 A0HR807400 Mounting Plate
Paper Exit Section (Konica Minolta parts guide manual) 48 A0HR809900 Mounting Plate
Alignment/stapler Section (Konica Minolta parts guide manual) 1 A0HR740111 Regulating Plate /Rear 4 A0HR740311 Regulating Plate /Front 6 A0HR740211 Regulating Plate /Front
Alignment/stapler Section (Konica Minolta parts guide manual) 3 A0HR751402 Stapler Guide 51 A0HR762700 Protection Part 52 A0HR762800 Light blocking Plate
Alignment/stapler Section (Konica Minolta parts guide manual) 14 A0HR734202 Guide Sheet /1 16 A0HR730812 Roller 38 A0HR735800 Roller Outside
Elevate/shutter Drive Section (Konica Minolta parts guide manual) 13 A0HR901603 Guide /5
Paper Transport Section (Konica Minolta parts guide manual) 1 A0HR160012 Top Left Cover 6 A0HR700202 Guide Plate /Left
Wiring Accessories And Jigs (Konica Minolta parts guide manual) 1 V500010082 Locking Wire Saddle 2 V500010083 Locking Wire Saddle 3 V500020098 Mini Locking wire saddle 4 V500020099 Mini Locking wire saddle
