Every part in the Konica Minolta FS-529 Finisher Parts Guide Manual (A0U7, July 2009), section by section with the exploded diagram. Call or email with the part number for price and availability.

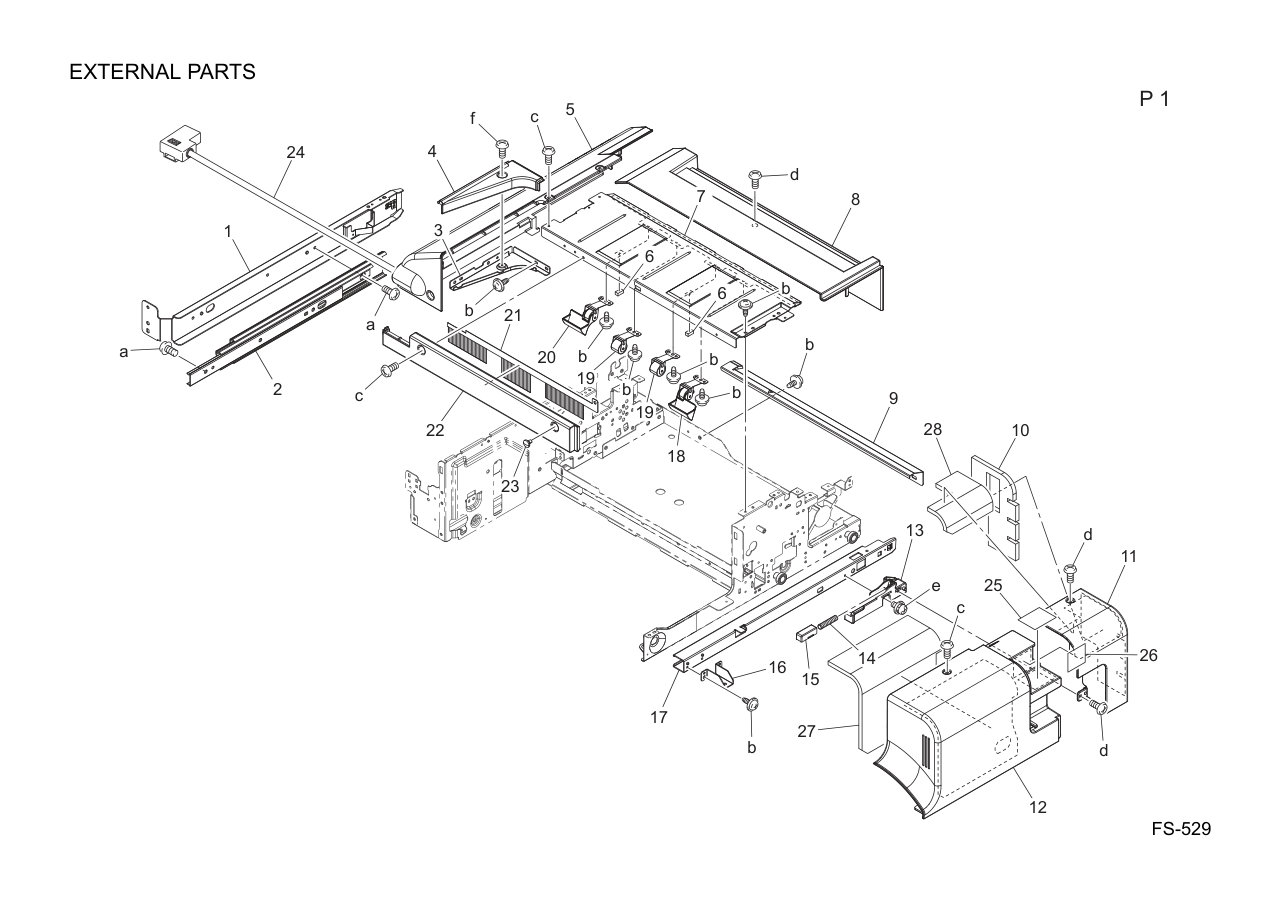

| External Parts 1 A0U7PP6V01 Mounting Plate 2 A0U7PP2N00 SLIDE RAIL 3 A0U7PP7E00 MOUNTING PLATE 4 A0U7PP9W00 COVER 5 A0U7PP4P00 REAR COVER 6 A0U7PP9400 CUSHION 7 A0U7PP6S00 COVER 8 A0U7PP4600 UPPER COVER 9 A0U7PP7C00 GUIDE 10 A0U7PPB100 Cushion 11 A0U7PP5800 Cover 12 A0U7PP4N01 Front Cover 13 A0U7PP6J00 HOLDER 14 A0U7PPAX01 Pressing Spring 15 A0U7PP9K00 HOLDER 16 A0U7PP7P00 MOUNTING PLATE 17 A0U7PP6U01 Rail 18 A0U7PPAM01 Roller Assy 19 A0U7PPAN01 Roller Assy 20 A0U7PPAP01 Roller Assy 21 A0U7PP8P00 NEUTRALIZING BRUSH 22 A0U7PP6701 Cover 23 A0U7PPB001 Shoulder Screw 24 A0U7PP3J01 Harness 25 A0U7PPB900 Label 26 A0U7PPBA00 Label 27 A0U7PPAU00 Cushion 28 A0U7PPAV00 Cushion |  |

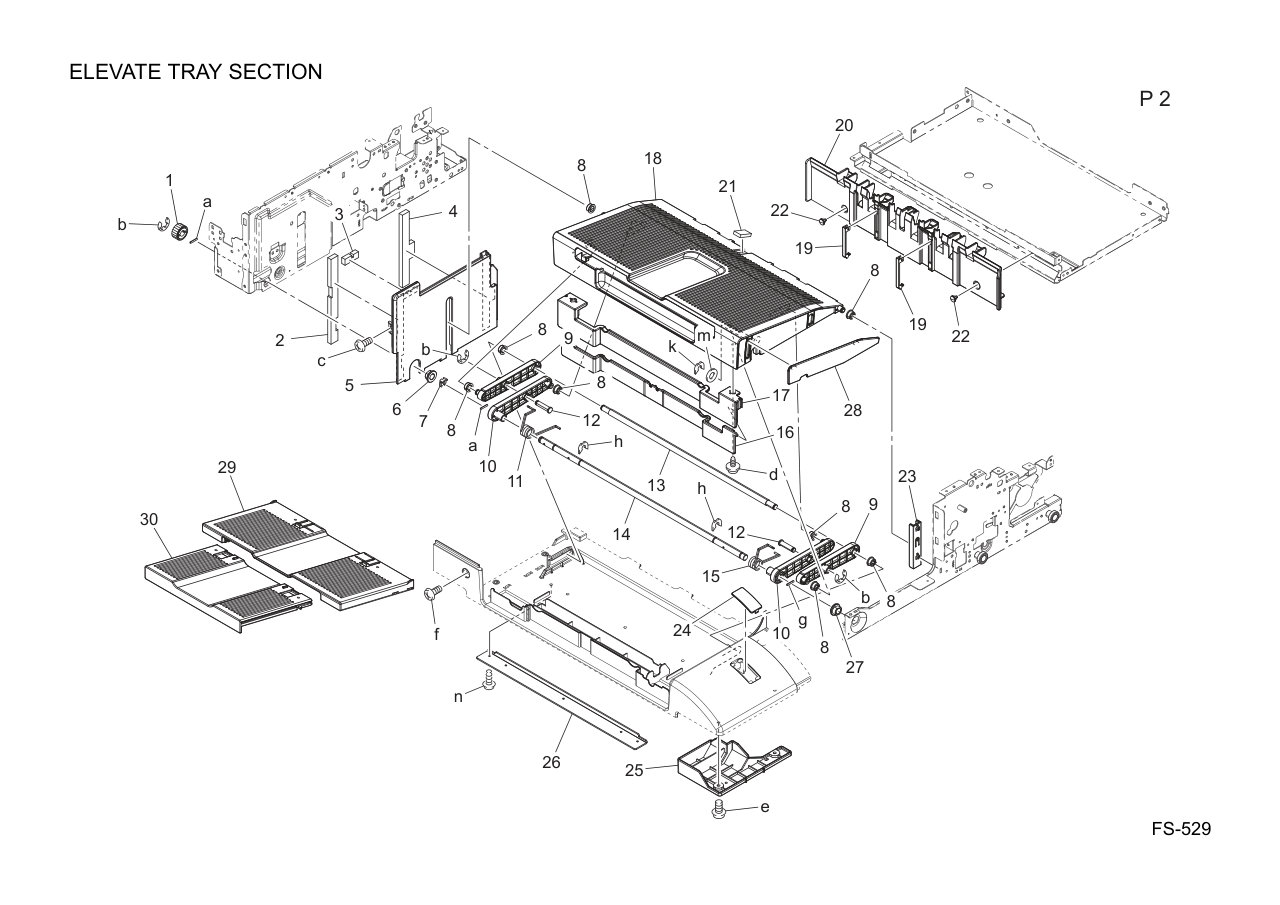

| Elevate Tray Section 1 A0U7PPC100 GEAR 2 A0U7PPB300 Cushion 3 A0U7PPB200 Cushion 4 A0U7PP8T00 CUSHION 5 A0U7PP6G01 Cover 6 A0U7PP1300 BUSHING 7 A0U7PP0X00 STOPPER RING 8 A0U7PP4J01 Roll 9 A0U7PP5W00 ARM 10 A0U7PP4H01 Arm 11 A0U7PP9201 Torsion Spring 12 A0U7PP8000 SHAFT 13 A0U7PPAT00 Shaft 14 A0U7PP7R01 Shaft 15 A0U7PP9101 Torsion Spring 16 A0U7PPC001 Shutter 17 A0U7PPBY00 Shutter 18 A0U7PP4E01 Tray 19 A0U7PP6W00 GUIDE 20 A0U7PP4S00 COVER 21 A01FPP1H00 CUSHION 22 A0U7PP8S01 Shoulder Screw 23 A0U7PP5901 Rail 24 A0U7PP6M01 Cover 25 A0U7PP9X00 COVER 26 A0U7PPBC00 Reinforce Plate 27 A0U7PP1200 BUSHING 28 A0U7PPBV00 Guide 29 A0U7PP4F01 Sub Tray 30 A0U7PP4G01 Sub Tray |  |

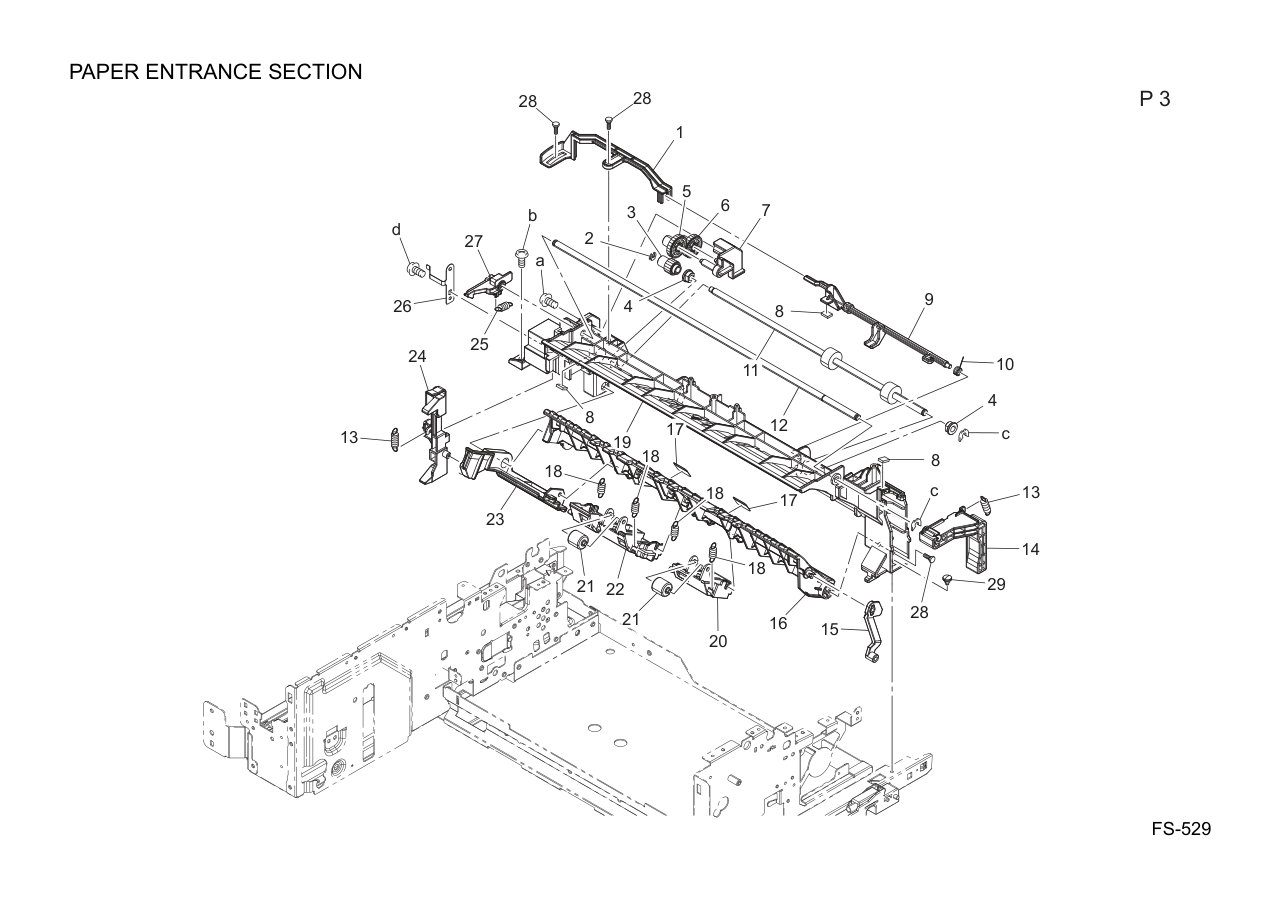

| Paper Entrance Section 1 A0U7PP4501 Holder 2 A0U7PP0U00 STOPPER RING 3 A0U7PP9Q00 GEAR 4 A0U7PP0S00 BUSHING 5 A0U7PP9P00 GEAR 6 A0U7PP9N00 GEAR 7 A0U7PP4100 HOLDER 8 A0U7PP1W00 CUSHION 9 A0U7PP4401 Lever 10 A0U7PP8800 TORSION SPRING 11 A0U7PP8400 ROLLER 12 A0U7PP7Q00 SHAFT 13 A0U7PP8701 Tension Spring 14 A0U7PP4700 LEVER 15 A0U7PP4200 STOPPER 16 A0U7PP3U01 Guide 17 A0U7PP8600 GUIDE 18 A0U7PP8500 Tension Spring 19 A0U7PP3T01 Guide 20 A0U7PP9G00 HOLDER 21 A0U7PP2K00 ROLLER 22 A0U7PP3V01 Holder 23 A0U7PP3W00 HOLDER 24 A0U7PP3X00 HOLDER 25 A0U7PP8Y00 TENSION SPRING 26 A0U7PP6R01 Plate Spring 27 A0U7PP4301 Hook 28 A0U7PP1A00 SHOULDER SCREW 29 A0U7PPB001 Shoulder Screw |  |

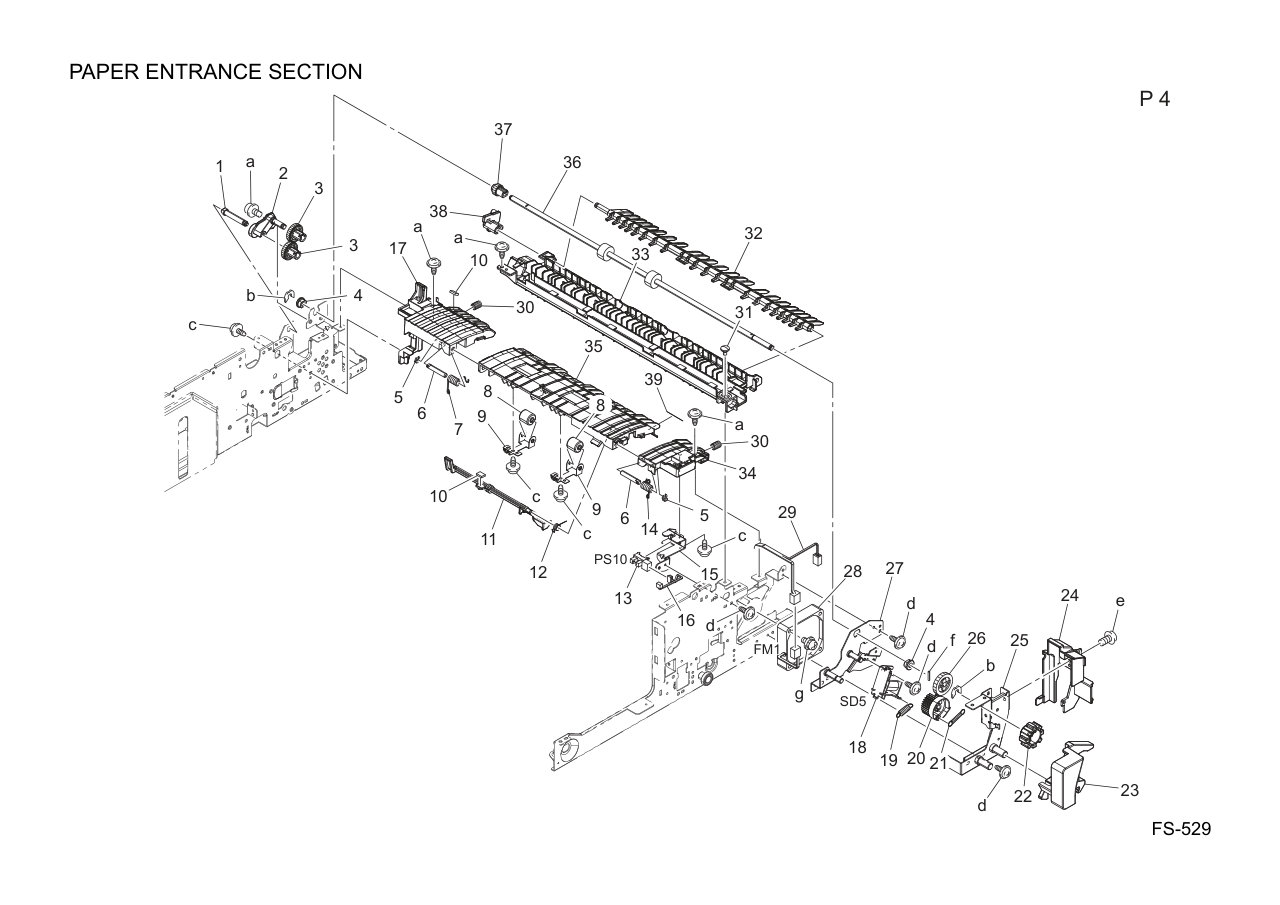

| Paper Entrance Section 1 A0U7PP7W00 SHAFT 2 A0U7PP5A00 HOLDER 3 A0U7PP4000 GEAR 4 A0U7PP1100 BUSHING 5 A0U7PP0U00 STOPPER RING 6 A0U7PP7X00 SHAFT 7 A0U7PP8J00 TORSION SPRING 8 A0U7PP2K00 ROLLER 9 A0U7PP7M00 PLATE SPRING 10 A0U7PP1W00 CUSHION 11 A0U7PP5B00 LEVER 12 A0U7PP8800 TORSION SPRING 13 A0U7PP0900 PHOTOINTERRUPTER 14 A0U7PP8H00 TORSION SPRING 15 A0U7PP7G01 Mounting Plate 16 A0U7PP3P00 HARNESS 17 A0U7PP5000 GUIDE 18 A0U7PPA500 Solenoid 19 A0U7PPBU00 Tension Spring 20 A0U7PP6P00 GEAR 21 A0U7PP8N02 Tension Spring 22 A0U7PP5J00 KNOB 23 A0U7PP6K01 Lever 24 A0U7PP6N00 COVER 25 A0U7PP3301 Mounting Plate 26 A0U7PP1K00 GEAR 27 A0U7PP3201 Mounting Plate 28 A0U7PP2300 FUN MOTOR 29 A0U7PP3K01 Harness 30 A0U7PP8G00 PRESSING SPRING 31 A0U7PPB001 Shoulder Screw 32 A0U7PP4X00 GUIDE 33 A0U7PP4Y00 GUIDE 34 A0U7PP4M00 GUIDE 35 A0U7PP4W00 GUIDE 36 A0U7PP8B00 ROLLER 37 A0U7PP3Y00 GEAR 38 A0U7PP5101 Joint 39 A0U7PPBS00 Label |  |

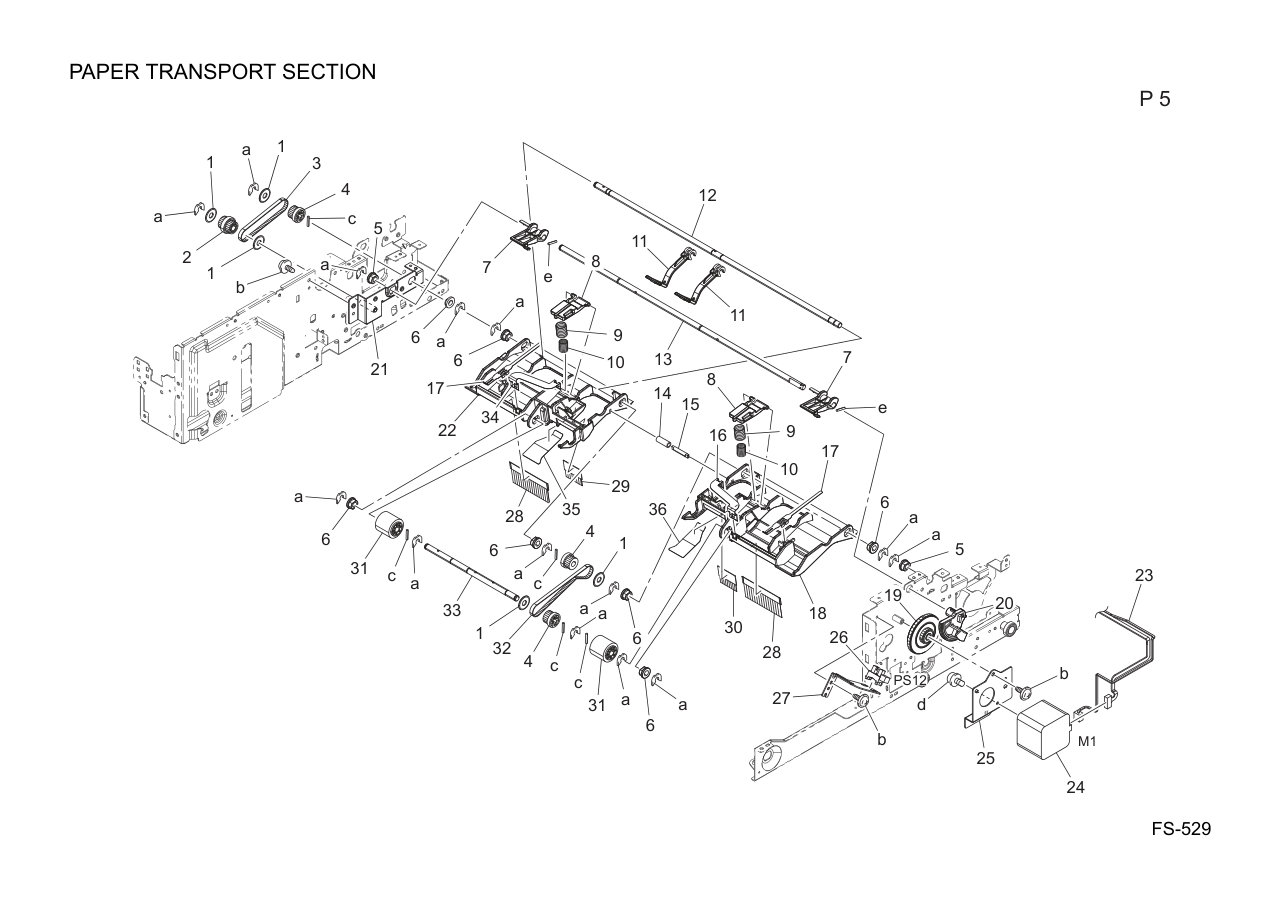

| Paper Transport Section 1 A0U7PP1E00 FLANGE 2 A0U7PP9H00 PULLEY 3 A0U7PP0P00 TIMING BELT 4 A01FPP1800 PULLEY 22T 5 A0U7PP1100 BUSHING 6 A0U7PP0S00 BUSHING 7 A0U7PP9D00 ARM 8 A0U7PP4V01 Lever 9 A0U7PPB501 Pressing Spring 10 A0U7PPB400 Pressing Spring 11 A0U7PP6H00 LEVER 12 A0U7PP7T00 SHAFT 13 A0U7PP7U01 Shaft 14 A0U7PP4Q00 ROLL 15 A0U7PP2F00 SHAFT 16 A0U7PP7D00 GUIDE 17 A0U7PP7900 PLATE SPRING 18 A0U7PP4T01 Holder 19 A0U7PP9900 GEAR 20 A0U7PP9801 Gear 21 A0U7PP3100 MOUNTING PLATE 22 A0U7PP4U01 Holder 23 A0U7PP3E01 Harness 24 A0U7PP3R00 MOTOR 25 A0U7PP7600 MOUNTING PLATE 26 A0U7PP0900 PHOTOINTERRUPTER 27 A0U7PP6X00 MOUNTING PLATE 28 A0U7PP8R01 Neutralizing Brush 29 A0U7PP9001 Neutralizing Brush 30 A0U7PPB801 Neutralizing Brush 31 A0U7PP8E01 Roller 32 A0U7PPAF00 Timing Belt 33 A0U7PP8301 Shaft 34 A0U7PP7F00 GUIDE 35 A0U7PPB600 Sheet 36 A0U7PPB700 Sheet |  |

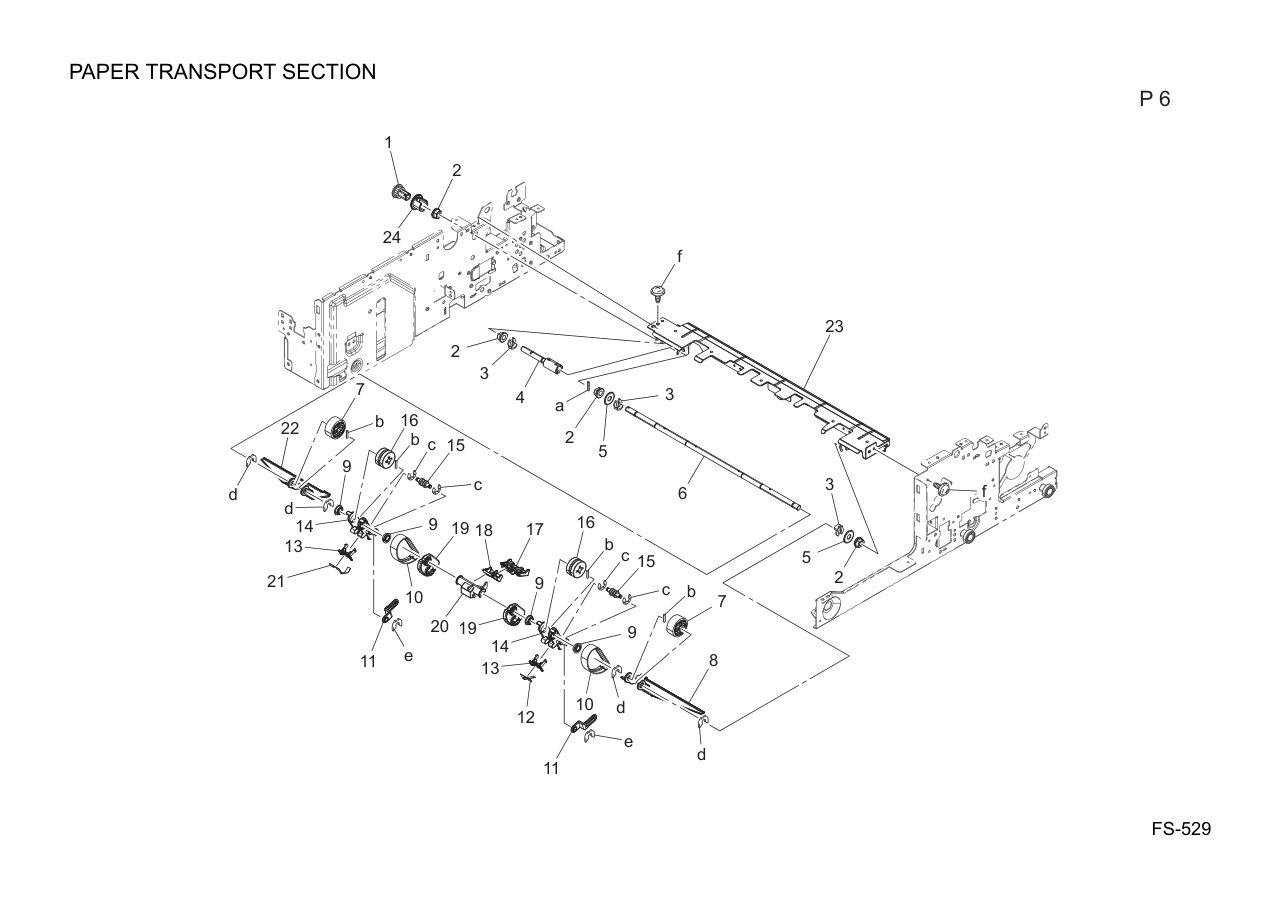

| Paper Transport Section 1 A0U7PP5E00 PULLEY 2 A0U7PP1100 BUSHING 3 A0U7PP0W00 STOPPER RING 4 A0U7PP2T00 JOINT ASSY 5 A0U7PP1E00 FLANGE 6 A0U7PP7S00 SHAFT 7 A0U7PP8F01 Roller 8 A0U7PP9E00 GUIDE 9 A0U7PP0R00 ROLLER BEARING 10 A0U7PP2G00 BELT 11 A0U7PP5T00 LEVER 12 A0U7PP9R00 SHEET 13 A0U7PP9C00 HOLDER 14 A0U7PP5R01 Holder 15 A0U7PP2M00 ROLLER 16 A0U7PP1J00 ROLLER 17 A0U7PP2700 HOLDER 18 A0U7PP2B00 HOLDER 19 A0U7PP9V00 GUIDE 20 A0U7PP9A00 HOLDER 21 A0U7PP9S00 SHEET 22 A0U7PP9F00 GUIDE 23 A0U7PP6T01 Guide 24 A0U7PPBT00 Collar |  |

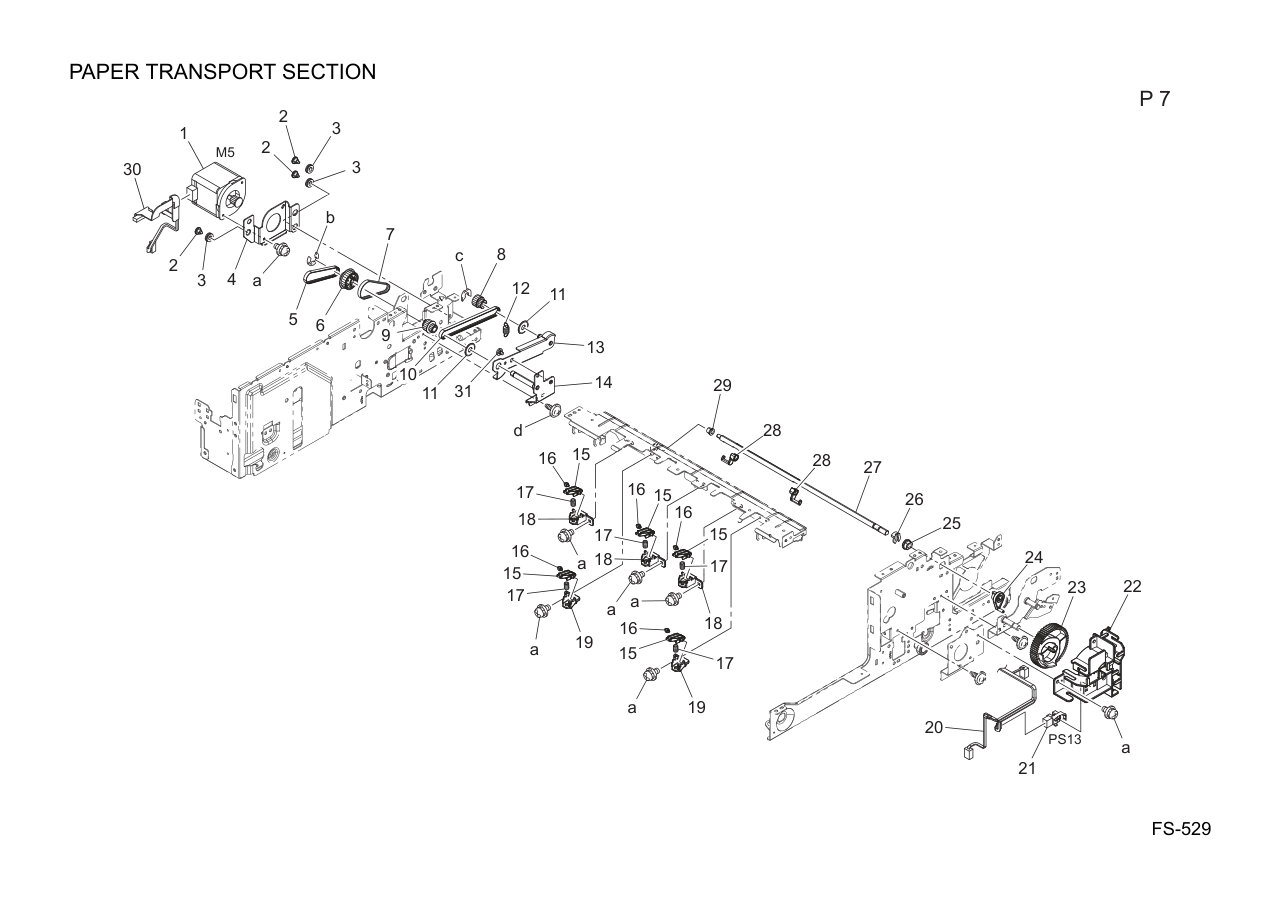

| Paper Transport Section 1 A0U7PP1H00 MOTOR 2 A0U7PP8S01 Shoulder Screw 3 A0U7PPAK00 Rubber 4 A0U7PP7300 MOUNTING PLATE 5 A0U7PP0G00 TIMING BELT 6 A0U7PP5500 PULLEY 7 A0U7PP0K00 TIMING BELT 8 A0U7PP9M00 PULLEY 9 A0U7PP5300 PULLEY 10 A0U7PP0J00 TIMING BELT 11 A0U7PP1E00 FLANGE 12 A0U7PP8900 TENSION SPRING 13 A0U7PP2X00 MOUNTING PLATE 14 A0U7PP2Y00 MOUNTING PLATE 15 A0U7PP4900 ARM 16 A0U7PP4A00 ROLLER 17 A0U7PP8A00 PRESSING SPRING 18 A0U7PP4800 HOLDER 19 A0U7PP4B00 HOLDER 20 A0U7PP3B01 Harness 21 A0U7PP0900 PHOTOINTERRUPTER 22 A0U7PP5X00 GUIDE 23 A0U7PP2600 GEAR 24 A0U7PP5V00 LEVER 25 A0U7PP1100 BUSHING 26 A0U7PP0W00 STOPPER RING 27 A0U7PP7Y00 SHAFT 28 A0U7PP5U00 ARM 29 A0U7PP0Y00 BUSHING 30 A0U7PP3F00 HARNESS 31 A0U7PP1900 SHOULDER SCREW |  |

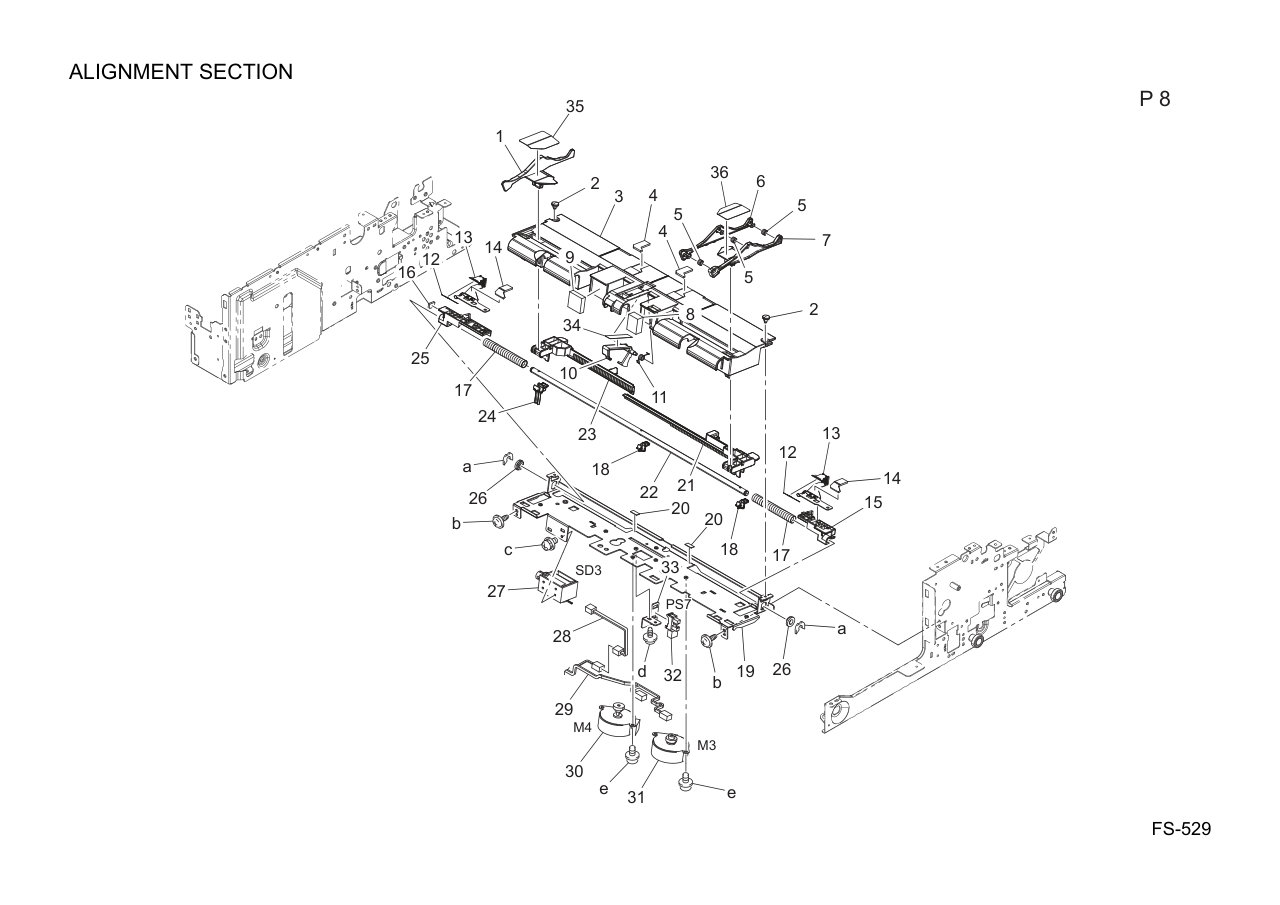

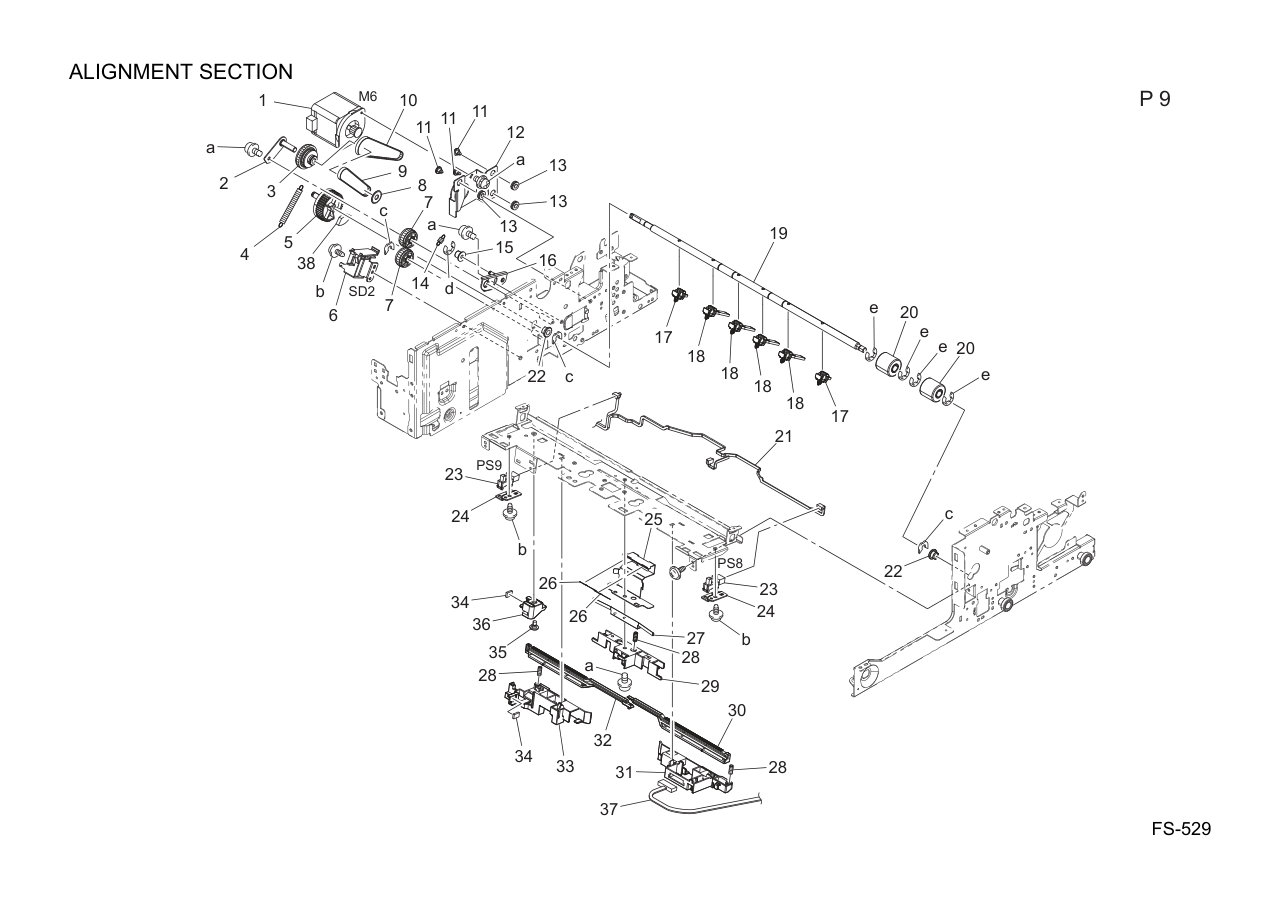

| Alignment Section 1 A0U7PP6C02 Guide 2 A0U7PP8S01 Shoulder Screw 3 A0U7PP6600 GUIDE 4 A0U7PP8Q00 CUSHION 5 A0U7PP1T00 PRESSING SPRING 6 A0U7PP6B01 Guide 7 A0U7PP6Q02 Guide 8 A0U7PP2100 PAD 9 A0U7PP2000 PAD 10 A0U7PP9J00 LEVER 11 A0U7PP1S00 TORSION SPRING 12 A0U7PP1R00 GUIDE 13 A0U7PP7K00 HOLDER 14 A0U7PP8Q00 CUSHION 15 A0U7PP5K00 HOLDER 16 A0U7PPBN00 Cushion 17 A0U7PP8C00 PRESSING SPRING 18 A0U7PP6800 STOPPER 19 A0U7PP7700 MOUNTING PLATE 20 A0U7PP9700 CUSHION 21 A0U7PP5G02 Rack 22 A0U7PP8100 SHAFT 23 A0U7PP5H01 Rack 24 A0U7PP6900 Stopper 25 A0U7PP5M00 HOLDER 26 A0U7PP1000 BUSHING 27 A01FPP0R00 SOLINOID ASSY 28 A0U7PP3Q00 HARNESS 29 A0U7PP3D00 HARNESS 30 A0U7PPA100 MOTOR 31 A0U7PPA000 MOTOR 32 A0U7PP0900 PHOTOINTERRUPTER 33 A0U7PP7800 MOUNTING PLATE 34 A0U7PPBQ00 Sheet 35 A0U7PPBR00 Sheet 36 A0U7PPC300 Sheet |  |
| Alignment Section 1 A0U7PP1H00 MOTOR 2 A0U7PP3000 MOUNTING PLATE 3 A0U7PP5F00 PULLEY 4 A0U7PP1U00 TENSION SPRING 5 A0U7PP2500 GEAR 6 A0U7PPA400 SOLENOID 7 A0U7PP5Q00 GEAR 8 A0U7PP1E00 FLANGE 9 A0U7PP0H00 TIMING BELT 10 A0U7PP0N00 TIMING BELT 11 A0U7PP8S01 Shoulder Screw 12 A0U7PP7400 MOUNTING PLATE 13 A0U7PPAK00 Rubber 14 A0U7PP8X00 TENSION SPRING 15 A0U7PP4C00 ROLL 16 A0U7PP3700 MOUNTING PLATE 17 A0U7PP2S00 PADDLE ASSY 18 A0U7PP2R00 PADDLE ASSY 19 A0U7PP8200 SHAFT 20 A0U7PP2C00 ROLLER 21 A0U7PP3A00 HARNESS 22 A0U7PP1100 BUSHING 23 A0U7PP0900 PHOTOINTERRUPTER 24 A0U7PP7H00 MOUNTING PLATE 25 A0U7PP7B00 GUIDE 26 A0U7PP1R00 GUIDE 27 A0U7PP7A00 GUIDE 28 A0U7PP8D00 PRESSING SPRING 29 A0U7PP5N00 HOLDER 30 A0U7PP6F01 Rack 31 A0U7PP6D00 HOLDER 32 A0U7PP6501 Rack 33 A0U7PP6E00 HOLDER 34 A0U7PP1W00 CUSHION 35 A0U7PPB001 Shoulder Screw 36 A0U7PP6A00 HOLDER 37 A0U7PP3M01 Harness 38 A0U7PP9500 CUSHION |  |

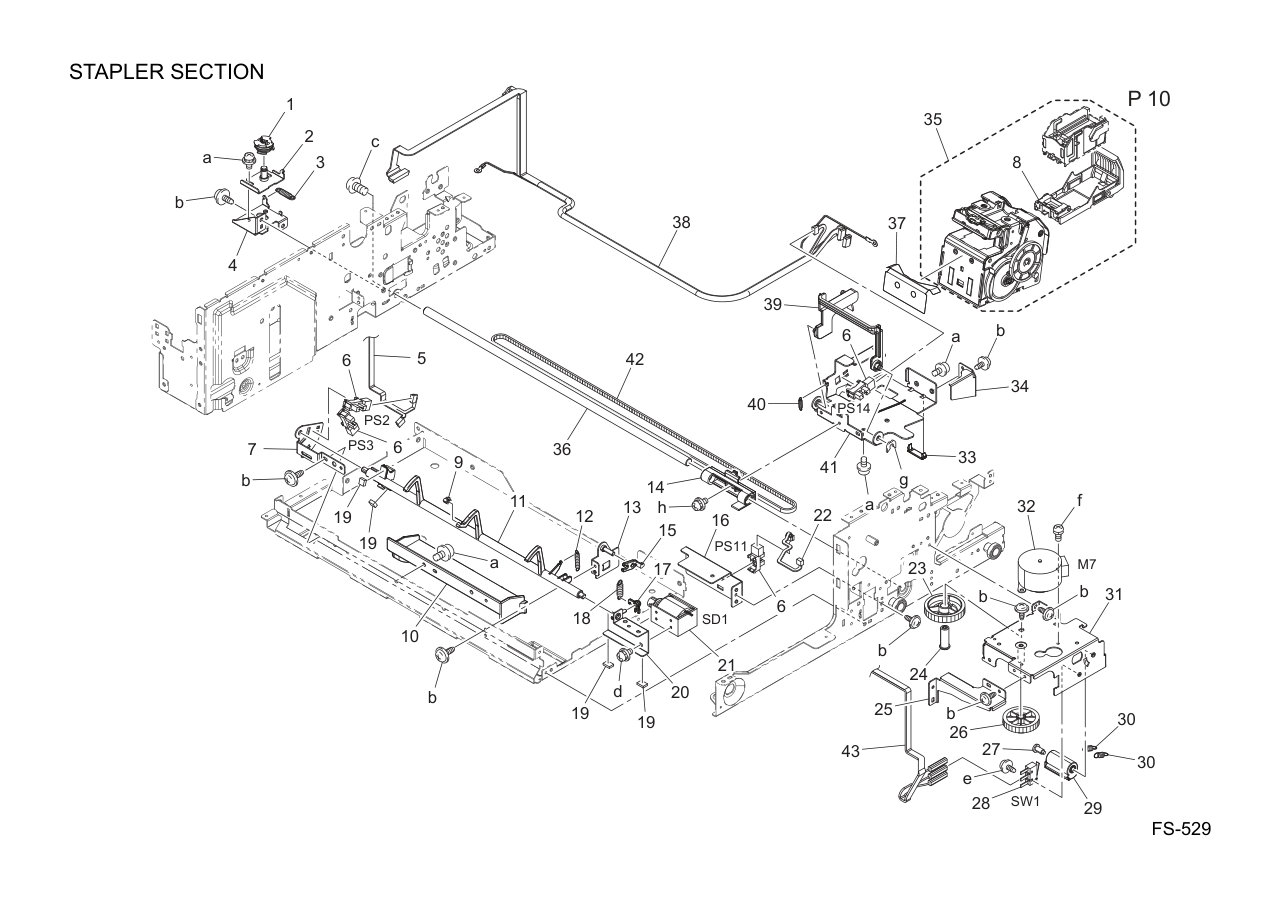

| Stapler Section 1 A0U7PP2400 PULLEY 2 A0U7PP2W00 MOUNTING PLATE 3 A0U7PP8K00 TENSION SPRING 4 A0U7PP6Y00 MOUNTING PLATE 5 A0U7PP3901 Harness 6 A0U7PP0900 PHOTOINTERRUPTER 7 A0U7PP7500 MOUNTING PLATE 9 A0U7PP1G00 CUSHION 10 A0U7PP5700 HOLDER 11 A0U7PP5C01 Lever 12 A01FPP0V00 TENSION SPRING 13 A0U7PP2U00 MOUNTING PLATE 14 A0U7PP5600 HOLDER 15 A0U7PP2200 LEVER 16 A0U7PP7101 Mounting Plate 17 A0U7PP4R00 LEVER 18 A0U7PP8U00 TENSION SPRING 19 A0U7PP1W00 CUSHION 20 A0U7PP2P00 MOUNTING PLATE 21 A0U7PPAC00 Solenoid 22 A0U7PP3N01 Harness 23 A0U7PP5400 GEAR 24 A0U7PP7V00 SHAFT 25 A0U7PP7N01 Guide 26 A0U7PP9U00 GEAR 27 A0U7PP1800 SHOULDER SCREW 28 A0U7PP0800 MICRO SWITCH 29 A0U7PP9B00 LEVER 30 A0U7PP8W01 Tension Spring 31 A0U7PP2V01 Mounting Plate 32 A0U7PPA200 MOTOR 33 A0U7PP5200 HOLDER 34 A0U7PP7J00 MOUNTING PLATE 35 A01FPP5X00 STAPLER UNIT 36 A0U7PP1N00 SHAFT 37 A0U7PP2H00 GUIDE 38 A0U7PP3G01 Harness 39 A0U7PP5S00 LEVER 40 A0U7PP8M00 TENSION SPRING 41 A0U7PP7000 MOUNTING PLATE 42 A0U7PP0M00 TIMING BELT 43 A0U7PP3801 Harness |  |

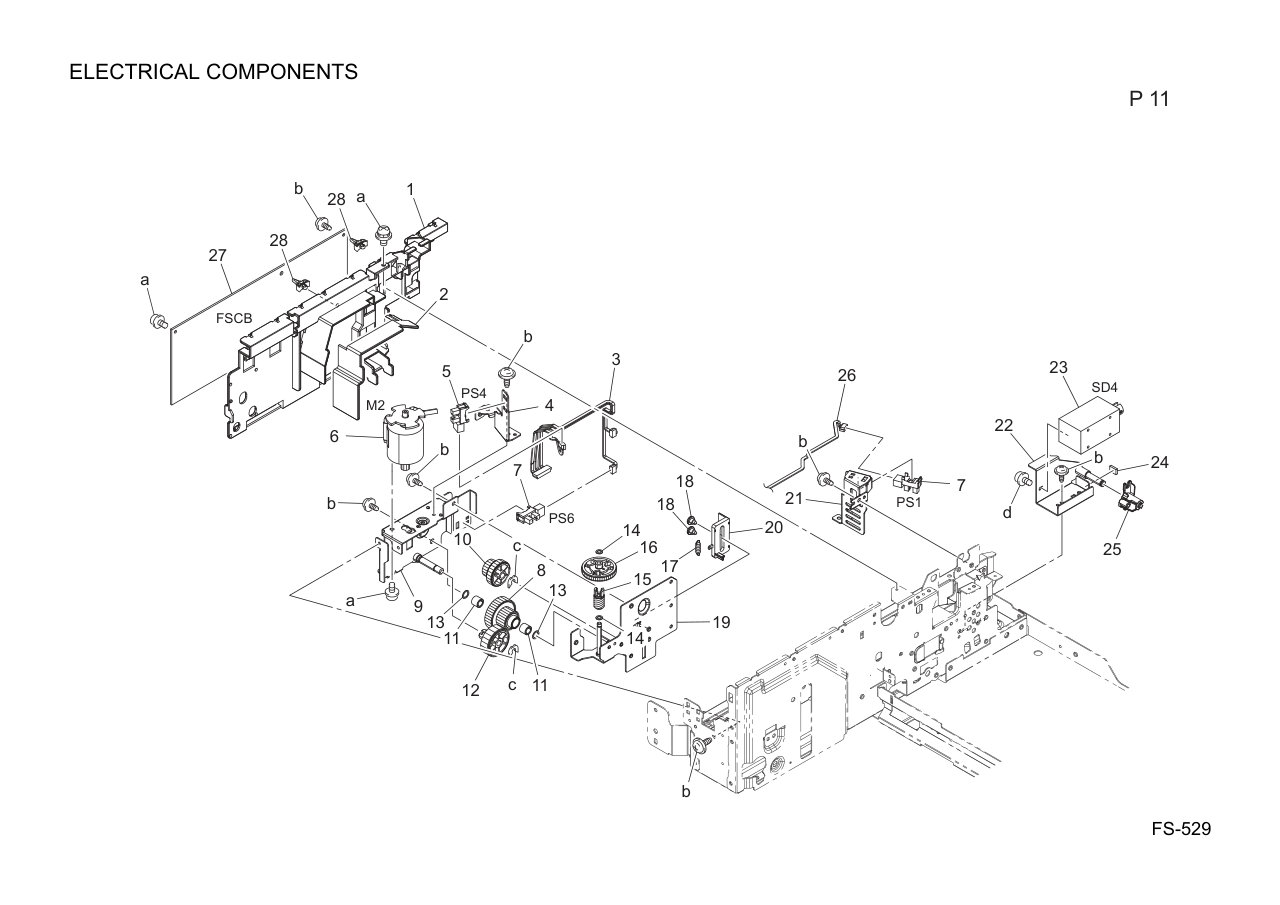

| Electrical Components 1 A0U7PP5D01 Guide 2 A0U7PPAW01 Cushion 3 A0U7PP3C01 Harness 4 A0U7PPAA00 MOUNTING PLATE 5 A0U7PPAB00 PHOTOINTERRUPTER 6 A0U7PPAR00 Motor Assy 7 A0U7PP0900 PHOTOINTERRUPTER 8 A0U7PPBF00 Gear 9 A0U7PP3601 Mounting Plate 10 A0U7PP6000 GEAR 11 A0U7PPBG00 Collar 12 A0U7PP6300 GEAR 13 A0U7PPBB00 Spacer 14 A0U7PPA600 WASHER 15 A0U7PPBJ01 Gear 16 A0U7PPBH00 Gear 17 A0U7PP9600 TENSION SPRING 18 A0U7PP8S01 Shoulder Screw 19 A0U7PP3401 Mounting Plate 20 A0U7PP6401 Holder 21 A0U7PP7200 MOUNTING PLATE 22 A0U7PP3500 MOUNTING PLATE 23 A0U7PPAD00 Solenoid 24 A0U7PP1W00 CUSHION 25 A0U7PP5P00 LEVER 26 A0U7PP3H01 Harness 27 A0U7PP3S02 PWB Assembly 28 A0U7PPAG00 Spacer |  |

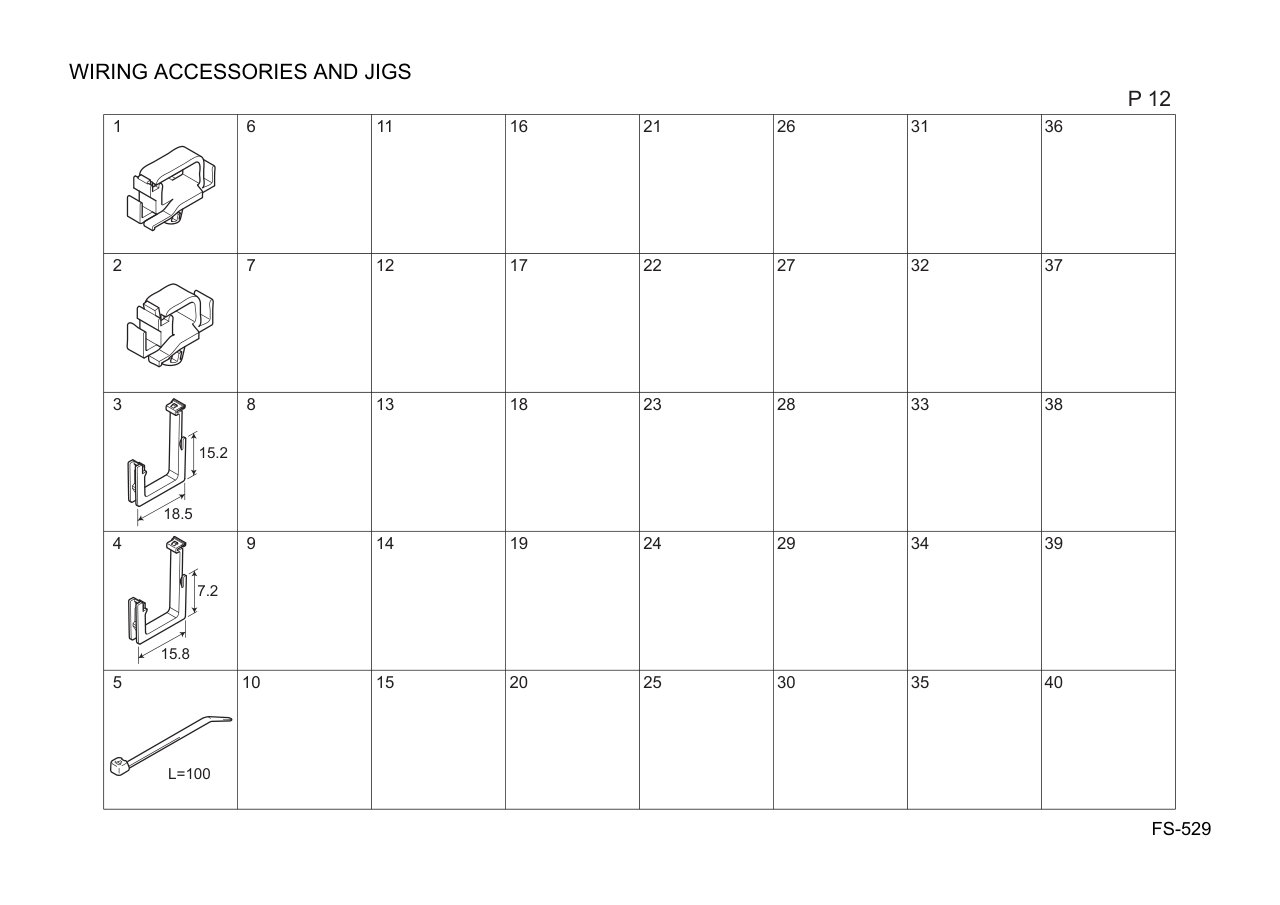

| Wiring Accessories And Jigs 1 A0U7PP0C00 CODE CLAMP 2 A0U7PP0D00 CODE CLAMP 3 A0U7PP0A00 EDGE COVER 4 A0U7PP0B00 SADDLE 5 4688675101 CABLE TIE |  |
