Every part in the Konica Minolta FS-534 Finisher Parts Guide Manual (A3EP, December 2019), section by section with the exploded diagram. Call or email with the part number for price and availability.

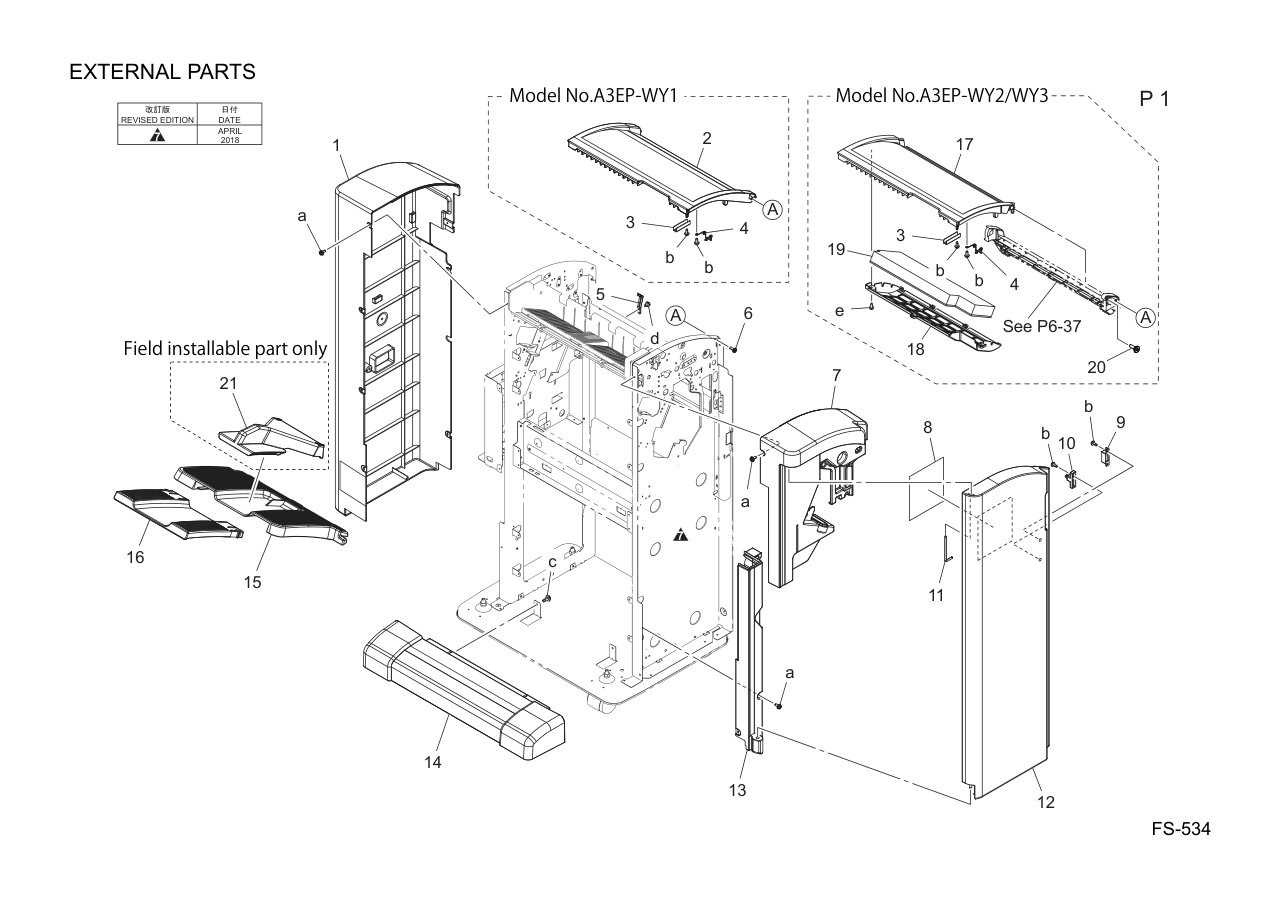

External Parts 1 A3EPPP1P03 Rear Cover (Model No. ) 1 A3EPPPF403 Rear Cover (Model No. /WY3) 2 A3EPPP1R02 Upper Cover (Model No. ) 3 A3EPPP1S02 (Old) Bracket 3 A3EPPP1S03 Bracket 4 A0HR172601 (Old) Torsion Coil spring 4 A3EPPPF100 Torsion Coil spring 5 A0HR115401 Ground Plate /Lower 6 A3EPPP2501 Screw (Model No. ) 6 V153041003 screw (Model No. /WY3) 7 A3EPPP1K03 Cover 8 A3EPPPBG04 Label 9 A3EPPPCP00 MAGNET CATCH 10 A3EPPP2301 (Old) Actuator 10 A3EPPP2302 Actuator 11 A3EPPP1N00 Shaft 12 A3EPPP1M04 (Old) Front Cover 12 A3EPPP1M05 Front Cover 13 A3EPPP1L02 (Old) Cover 13 A3EPPP1L04 Cover 14 A3EPPP1G01 Lower Cover 15 A87GPP1301 Tray 16 A3EPPP1Y01 Tray 17 A3EPPPF200 Upper Cover (Model No. /WY3) 18 A3EPPPF300 Holder (Model No. /WY3) 19 A3EPPPF600 Cushion (Model No. /WY3) 20 A3EPPP4Y01 Screw (Model No. /WY3) 21 A3EPP00200 Tray A,A1

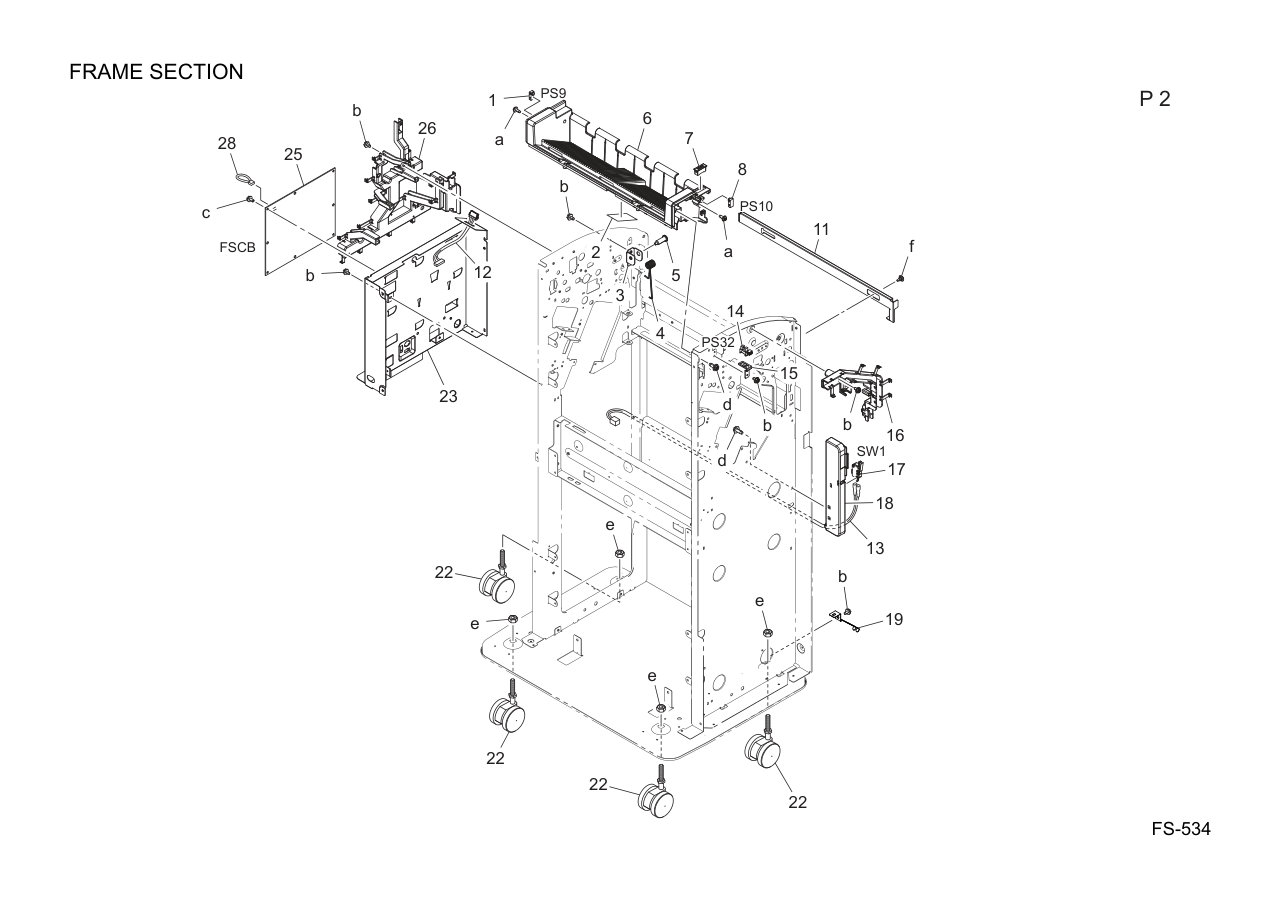

Frame Section 1 A3EPPP2600 Photoreflector 2 A3EPPPBD01 Sheet 3 A3EPPP2N02 Bracket 4 A3EPPP4C01 Torsion Coil spring 5 A3EPPP5201 Screw 6 A3EPPP1F07 Cover 7 4030104002 CATCH 8 A3EPPP2700 Photoreflector 11 A3EPPP1B01 (Old) Reinforce Plate 11 A3EPPP1B03 Reinforce Plate 12 A3EPPPBV00 Wire Harness Assy 13 A3EPPPBT01 Wire Harness Assy 14 A5C1M50100 Photointerrupter 15 A3EPPP2201 Bracket 16 A3EPPP1X02 Guide 17 9J06M60100 MICRO SWITCH 18 A3EPPP1V02 (Old) Cover 18 A3EPPP1V06 Cover 19 A87GPP2000 Ground Plate 22 A3EP116100 Castor 23 A3EPPP1J02 (Old) Bracket 23 A3EPPP1J06 Bracket 25 A3EPPPBE01 Main PCB Assy 26 A3EPPP1T05 Guide 28 A3EPPPFH00 Wire Harness Assy

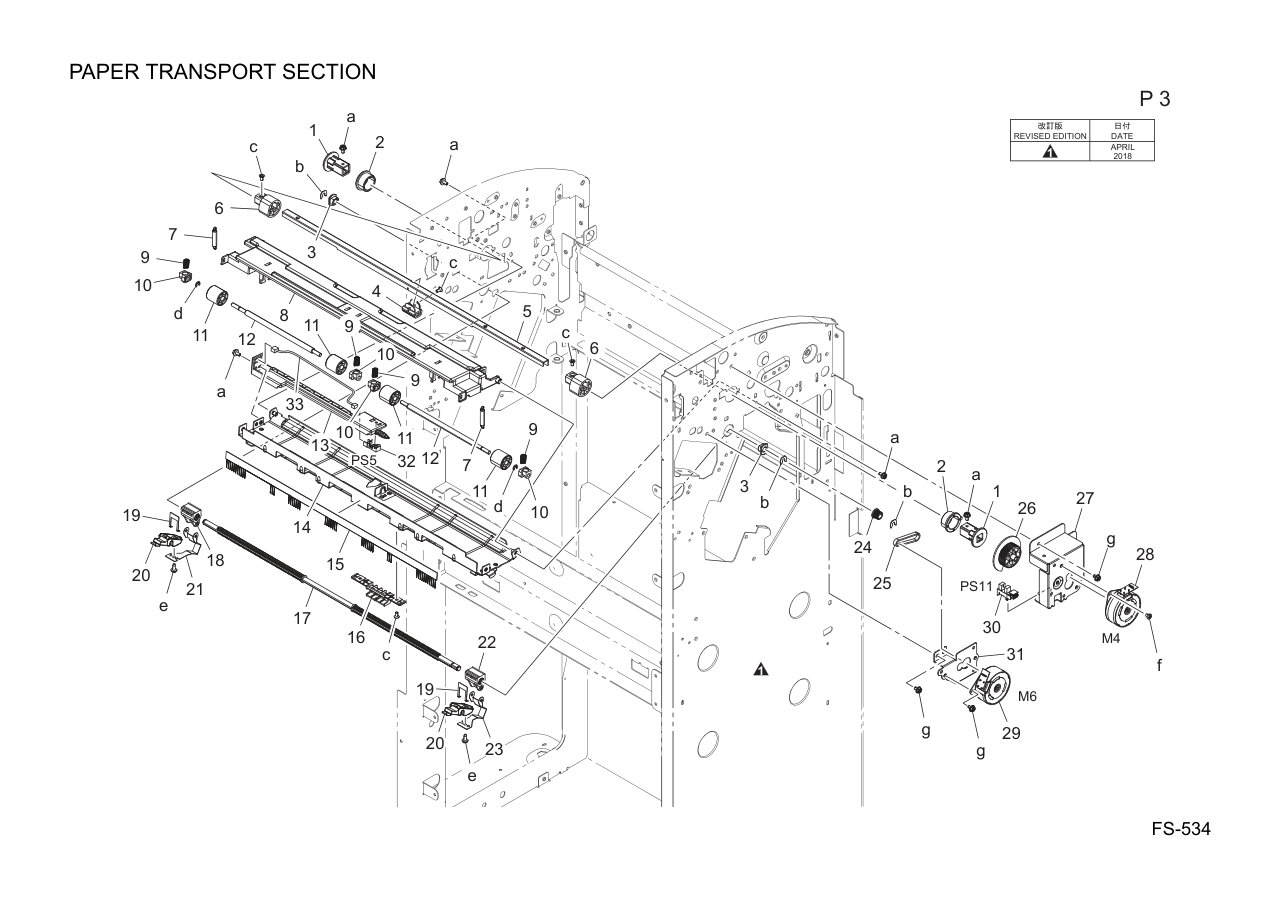

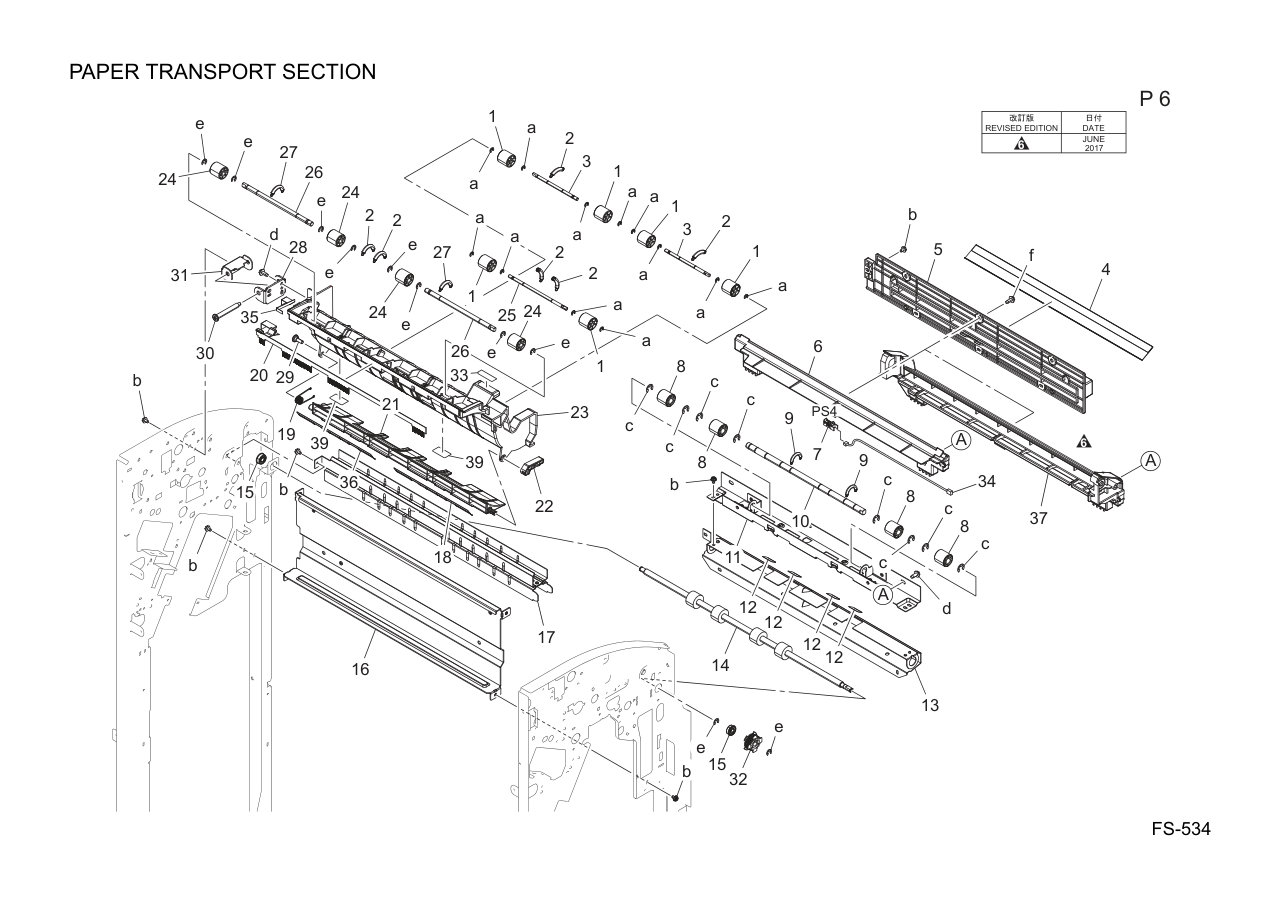

Paper Transport Section 1 A3EPPP3J01 Bush 2 A3EPPP3F01 Bush 3 A3EPPP1400 Bushing 4 A3EPPP3M00 Cam 5 A3EPPP2J01 Bracket 6 A3EPPP3901 Cam 7 A3EPPP4902 Tension Spring 8 A3EPPP3K04 Guide 9 A3EPPP4701 Pressure Spring 10 A3EPPP1A01 Bush 11 A3EPPP2Q02 Roller 12 A3EPPP3X00 Shaft 13 A3EPPP3L02 Guide 14 A3EPPP2P01 Guide Assy 15 A3EPPP5403 Neutralizing Brush 16 A3EPPP3R02 Holder 17 A3EPPP4102 Shaft 18 A3EPPP3Q00 Nut 19 A3EPPP6L01 Film 20 A3EPPP6G00 Drum 21 A3EPPP6H01 Stopper 22 A3EPPP3P01 Nut 23 A3EPPP6F01 Stopper 24 A3EPPP3N00 Pulley 25 A3EPPP4U00 Timing Belt 26 A3EPPP3201 Cam 27 A3EPPPCQ00 Bracket 28 A3EPPP5600 Motor Assy 29 A3EPPP5500 Motor Assy 30 A108M50100 Photointerrupter 31 A3EPPP2M01 Bracket 32 A0EDM50100 Photoreflector 33 A3EPPPC500 Wire Harness Assy

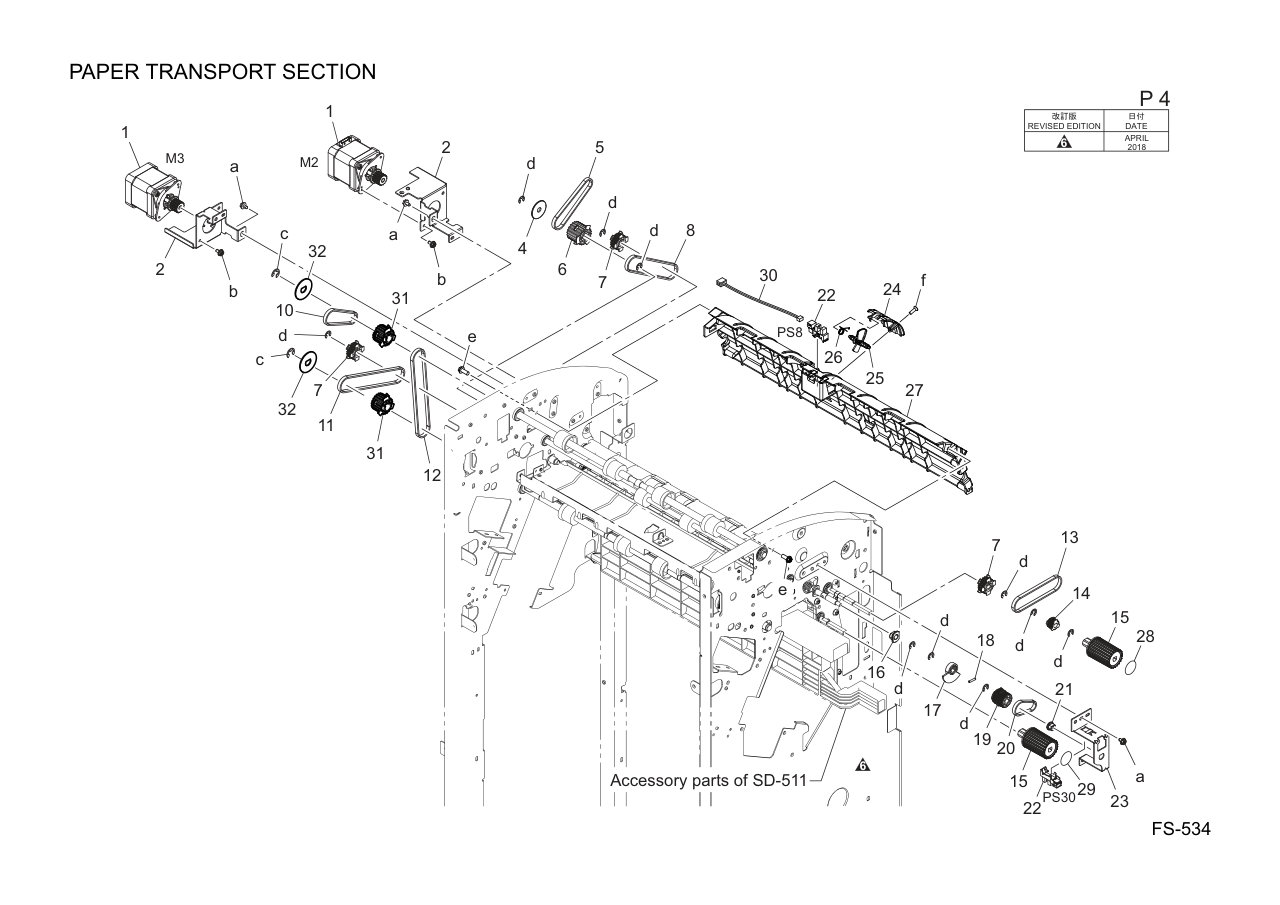

Paper Transport Section 1 A3EPPP5302 Motor 2 A3EPPP2D03 Bracket 4 A3EPPP3800 Flange 5 A3EPPP4P00 Timing Belt 6 A3EPPPBB00 (Old) Pulley Assy 6 A3EPPPBB11 Pulley Assy 7 A3EPPP2R01 Pulley 8 A3EPPP4M00 Timing Belt 10 A3EPPP4Q00 Timing Belt 11 A3EPPP4L00 Timing Belt 12 A3EPPP4N00 Timing Belt 13 A3EPPP4K00 Timing Belt 14 A3EPPP3C00 Pulley 15 A3EPPP2V02 Knob 16 A3EPPP1101 Bushing 17 A3EPPP3D02 Cam 18 A3EPPPAQ01 Pin 19 A0HR213100 Pulley 28T 20 A3EPPP4U00 Timing Belt 21 A3EPPP1001 Bushing 22 A5C1M50100 Photointerrupter 23 A3EPPP2H01 Bracket 24 A3EPPP3B02 Cover 25 A3EPPP3402 Actuator 26 A3EPPP4600 Torsion Coil spring 27 A3EPPP3A03 Guide 28 A3EPPPBK01 Label 29 A3EPPPBL01 Label 30 A3EPPPC601 Wire Harness Assy 31 A3EPPPDF01 Pulley 32 A3EPPPDG00 Flange

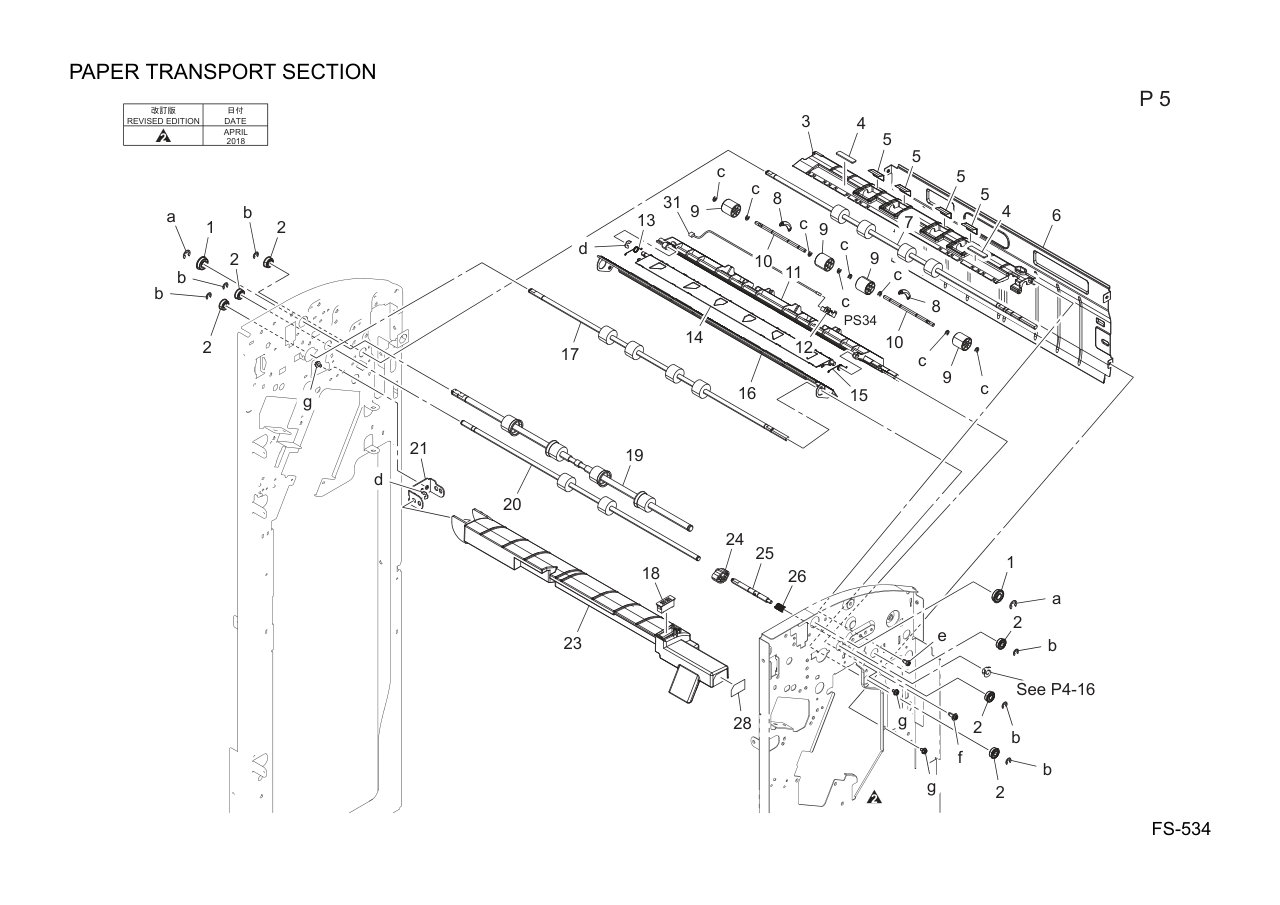

Paper Transport Section 1 A00V240600 Ball Bearing 2 A3EPPP1501 Ball Bearing 3 A3EPPP2X01 Guide 4 A3EPPP4V00 Sponge (Model No. ) 5 A3EPPP4S01 Film 6 A3EPPP2B02 Guide 7 A3EPPP4F04 Roller 8 A3EPPP4302 Tension Spring 9 A3EPPP3702 Roll 10 A3EPPP3T01 Shaft 11 A3EPPP2T02 Guide 12 A0EDM50100 Photoreflector 13 A3EPPP4400 Torsion Coil spring 14 A3EPPP2U01 Guide Plate 15 A3EPPP4800 Torsion Coil spring 16 A3EPPP2F02 Guide 17 A3EPPP4E04 Roller 18 4030104002 CATCH 19 A3EPPP4J03 (Old) Roller 19 A3EPPP4J04 Roller 20 A3EPPP4G02 (Old) Roller 20 A3EPPP4G15 Roller 21 A3EPPP2K02 (Old) Hinge 21 A3EPPP2K03 Hinge 23 A3EPPP3500 (Old) Guide 23 A3EPPP3501 Guide 24 A3EPPP3001 Cam 25 A3EPPP3V01 Shaft 26 A3EPPP4B00 Pressure Spring 28 A3EPPPBH02 Label 31 A3EPPPC401 Wire Harness Assy
Paper Transport Section 1 A3EPPP3702 Roll 2 A3EPPP4302 Tension Spring 3 A3EPPP4000 Shaft 4 A3EPPPF900 Film (Model No. ) 4 A3EPPPF900 Film (Model No. /WY3) 5 A3EPPP3E01 Guide 6 A3EPPP3G03 Guide (Model No. ) 7 A0EDM50100 Photoreflector 8 A3EPPP3H01 Roller 9 A3EPPP4202 Tension Spring 10 A3EPPP3S00 Shaft 11 A3EPPP2902 Guide Assy 12 A3EPPP4X01 Film 13 A3EPPP2803 Guide 14 A3EPPP4D04 Roller 15 A3EPPP1501 Ball Bearing 16 A3EPPP1E03 (Old) Reinforce Stay 16 A3EPPPFT00 Reinforce Stay 17 A3EPPP2A02 Guide Assy 18 A3EPPP4T02 Film 19 A3EPPP4501 Torsion Coil spring 20 A3EPPP5701 Neutralizing Brush 21 A3EPPP2Y02 Guide Plate 22 A3EPPP3104 Lever 23 A3EPPP3306 Guide 24 A3EPPP3603 Roller 25 A3EPPP3U00 Shaft 26 A3EPPP3Y01 Shaft 27 A3EPPP4A02 Tension Spring 28 A3EPPP2E02 Bracket 29 A3EPPP4Y01 Screw 30 A3EPPP5101 Screw 31 A3EPPP2L03 Bracket 32 A3EPPP2R01 Pulley 33 A3EPPPBJ01 Label 34 A3EPPPC300 Wire Harness Assy 35 A3EPPPD500 Seal 36 A3EPPPD900 Film 37 A3EPPPF501 Guide (Model No. /WY3) 39 A3EPPPFE00 Guide Film

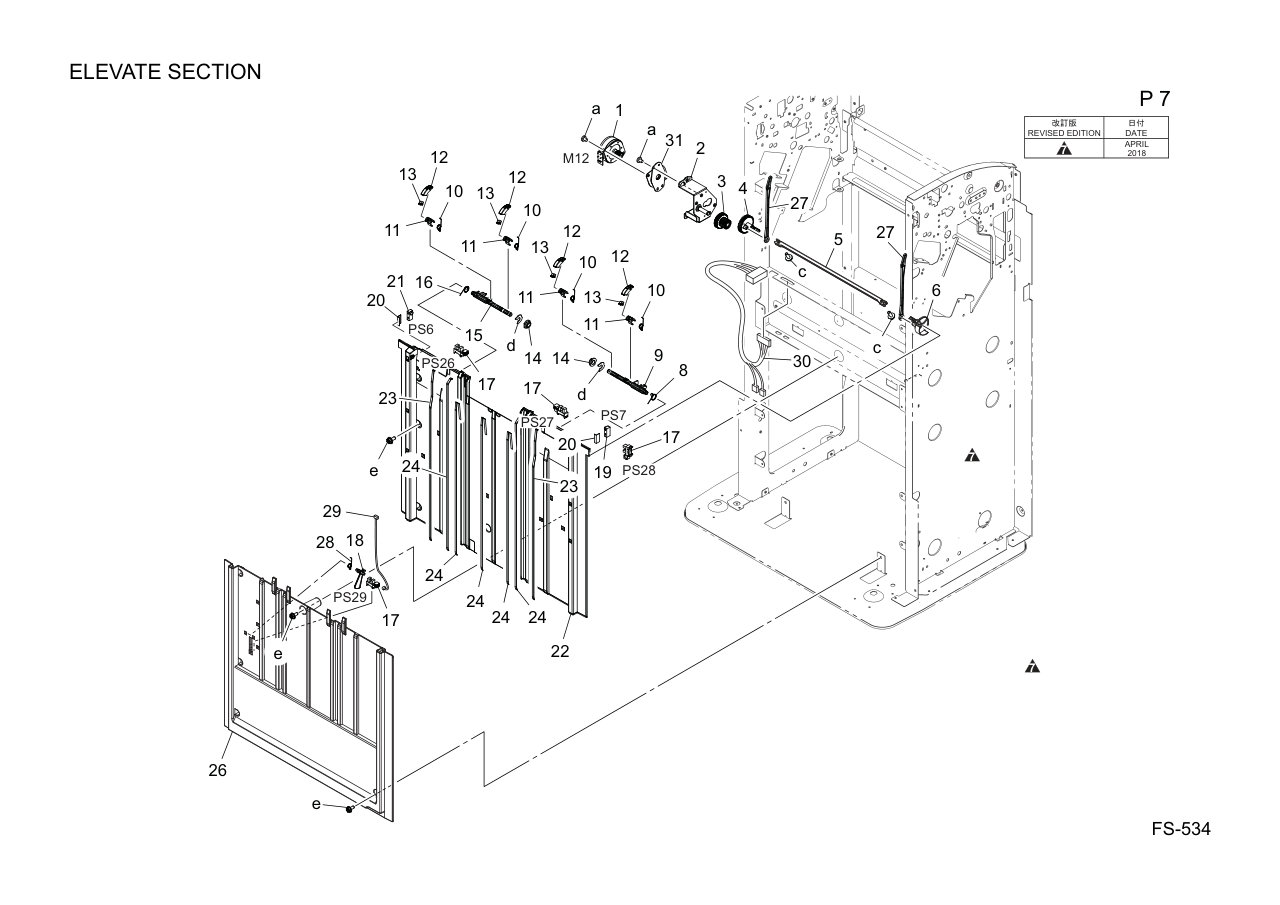

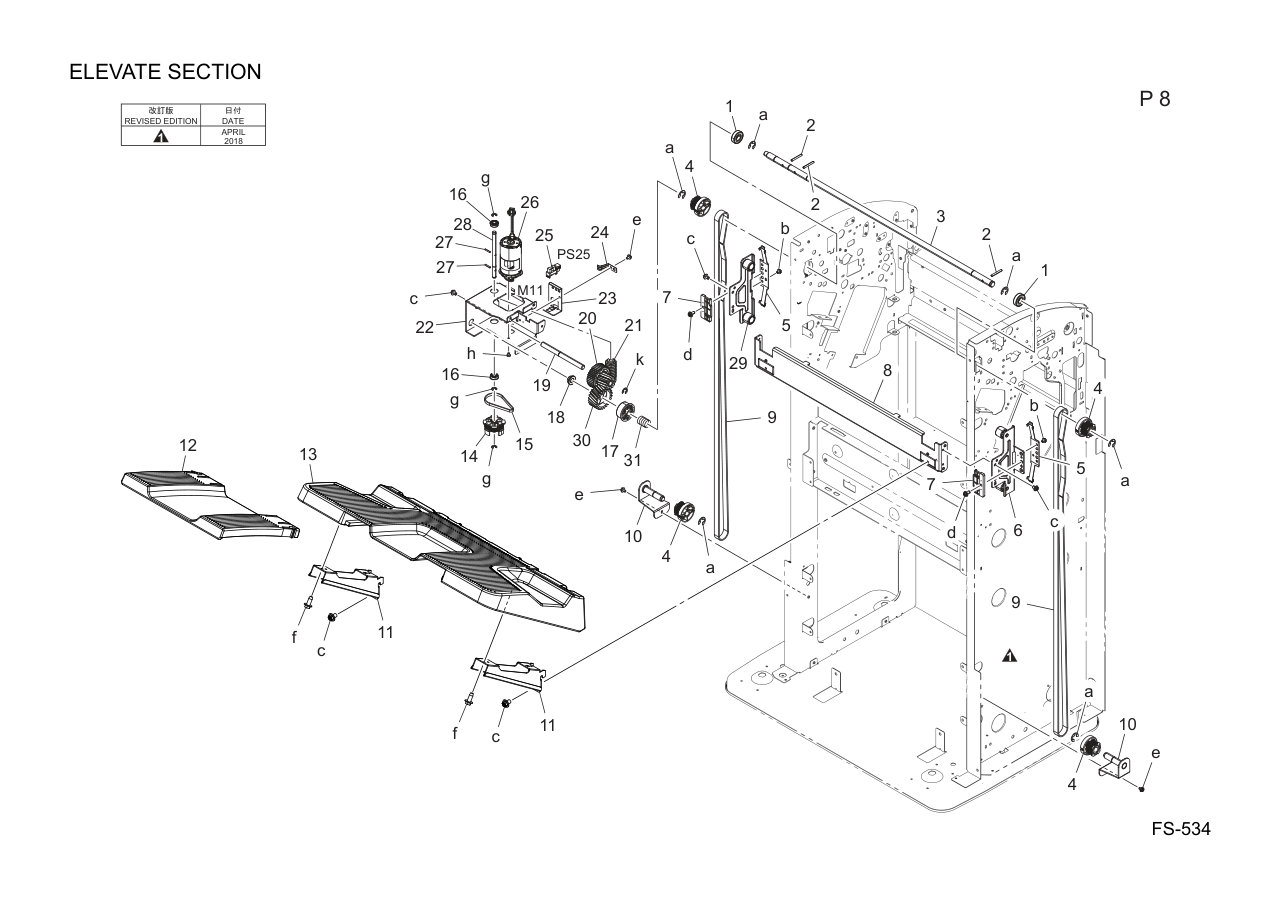

Elevate Section 1 A3EPPPAA00 Motor 2 A3EPPPCY00 Mounting Plate 3 A3EPPPAD00 Gear 4 A3EPPPA401 Gear 5 A3EPPP9S02 Shaft 6 A3EPPPAC01 Actuator 8 A3EPPP9Y02 Torsion Spring 9 A3EPPPA302 Actuator 10 A3EPPP9X01 Torsion Spring 11 A3EPPPA101 Holder 12 A3EPPP9Q01 Holder 13 A3EPPP9T01 Cushion 14 A3EPPP1300 Bushing 15 A3EPPPA202 Actuator 16 A3EPPPA603 Torsion Spring 17 A108M50100 Photointerrupter 18 A3EPPPA802 Actuator 19 A3EPPP2600 Photoreflector 20 A3EPPPAH00 Seal 21 A3EPPP2700 Photoreflector 22 A3EPPP9509 Cover 23 A3EPPPAG02 Slide Part 24 A3EPPPAF02 Slide Part 26 A3EPPP9U02 Cover 27 A3EPPP9R01 Arm 28 A3EPPPBS00 Torsion Coil spring 29 A3EPPPCH01 Wire Harness Assy 30 A3EPPPC101 Wire Harness Assy (Model No. ) 30 A3EPPPFS00 Wire Harness Assy (Model No. /WY3) 31 A3EPPPAB02 Vibrating Plate
Elevate Section 1 A3EPPPCF01 Ball Bearing 2 A3EPPPAS01 Pin 3 A3EPPP9B00 Shaft 4 A3EPPP9C01 Gear 5 A3EPPPA001 Plate Spring 6 A3EPPPD100 Support Plate Assy 7 A3EPPP9N02 Holder 8 A3EPPP9602 Mounting Plate 9 A3EPPP9901 Timing Belt 10 A3EPPPD000 Support Plate 11 A3EPPP9A02 Frame 12 A3EPPP1Y01 Tray 13 A3EPPP9P01 Tray 14 A3EPPP9L02 Pulley 15 A3EPPPBP00 Timing Belt 16 A3EPPP1501 Ball Bearing 17 A3EPPP9E00 Ratchet 18 A3EPPP1201 Bushing 19 A3EPPP9G00 Shaft 20 A3EPPP9H04 Gear 21 A3EPPP9J02 Worm Gear 22 A3EPPP9F03 Mounting Plate 23 A3EPPP9M01 Mounting Plate 24 A3EPPPA901 Plate Spring 25 A5C1M50100 Photointerrupter 26 A3EPPPA703 Motor 27 A3EPPPAR01 Pin 28 A3EPPP9K00 Shaft 29 A3EPPPD200 Support Plate Assy 30 A3EPPP9D01 Gear 31 A3EPPPBR01 Pressure Spring

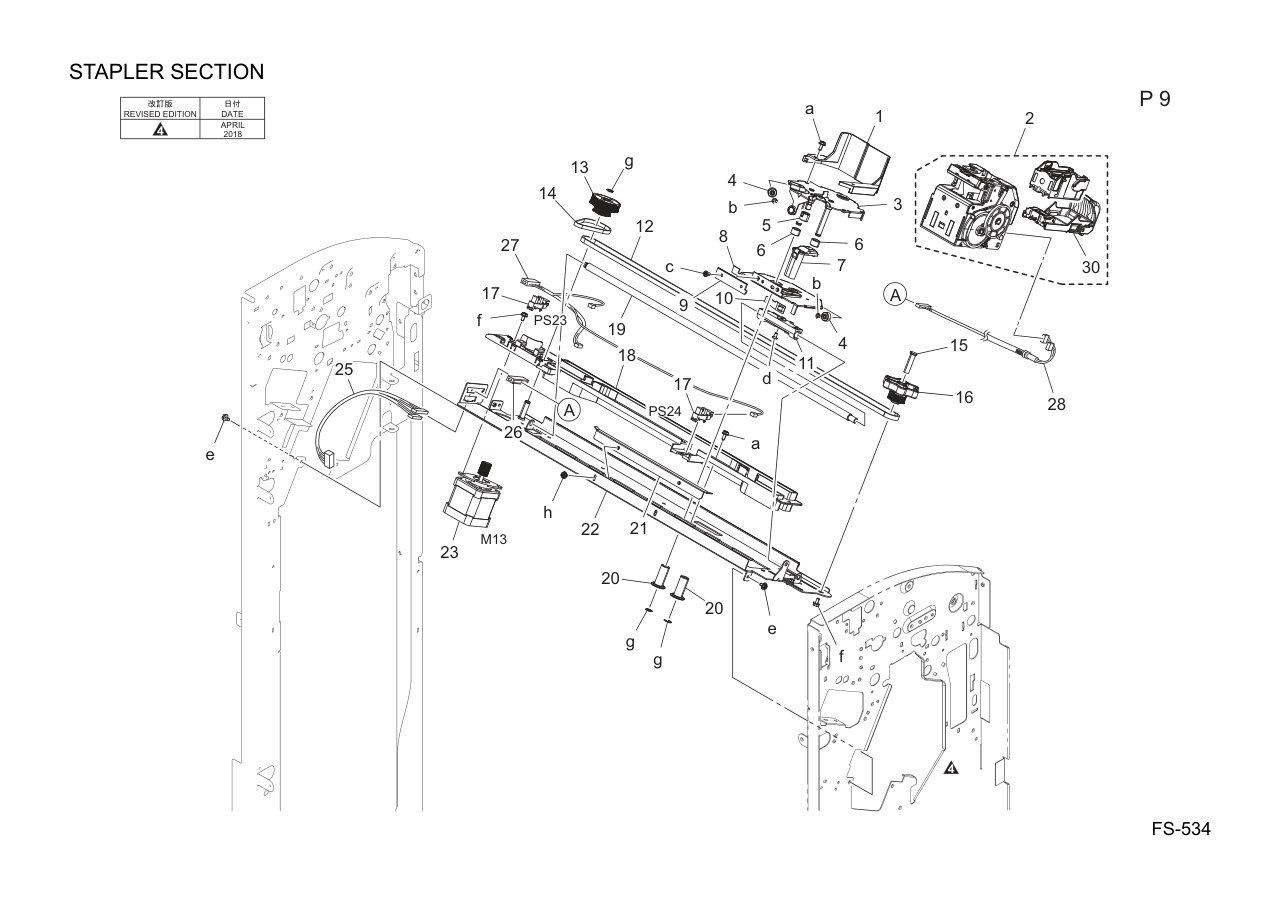

Stapler Section 1 A3EPPP8Y03 Holder 2 A3EP560100 Stapler Unit 3 A3EPPP8K02 Mounting Plate 4 A3EPPP9001 Roll 5 A3EPPP8L00 Collar 6 A3EPPP8N01 Roll 7 A3EPPP8P04 Holder 8 A3EPPP8J01 Mounting Plate 9 A3EPPP9301 Guide 10 A3EPPP8R01 Plate Spring 11 A3EPPP8Q02 Holder 12 A3EPPP8S00 Timing Belt 13 A3EPPP8V01 Gear 14 A3EPPP8T00 Timing Belt 15 A3EPPP9200 Shaft 16 A3EPPP8X02 Knob 17 A5C1M50100 Photointerrupter 18 A3EPPP8H05 Holder 19 A3EPPP8U00 Shaft 20 A3EPPP8M03 Shaft 21 A3EPPP9402 Plate 22 A3EPPPCX00 (Old) Mounting Plate 22 A3EPPPCX01 Mounting Plate 23 A3EPPP9104 Motor 25 A3EPPPBY00 Wire Harness Assy 26 A3EPPPCB00 Wire Harness Assy 27 A3EPPPCA01 Wire Harness Assy 28 A3EPPPCC01 Wire Harness Assy

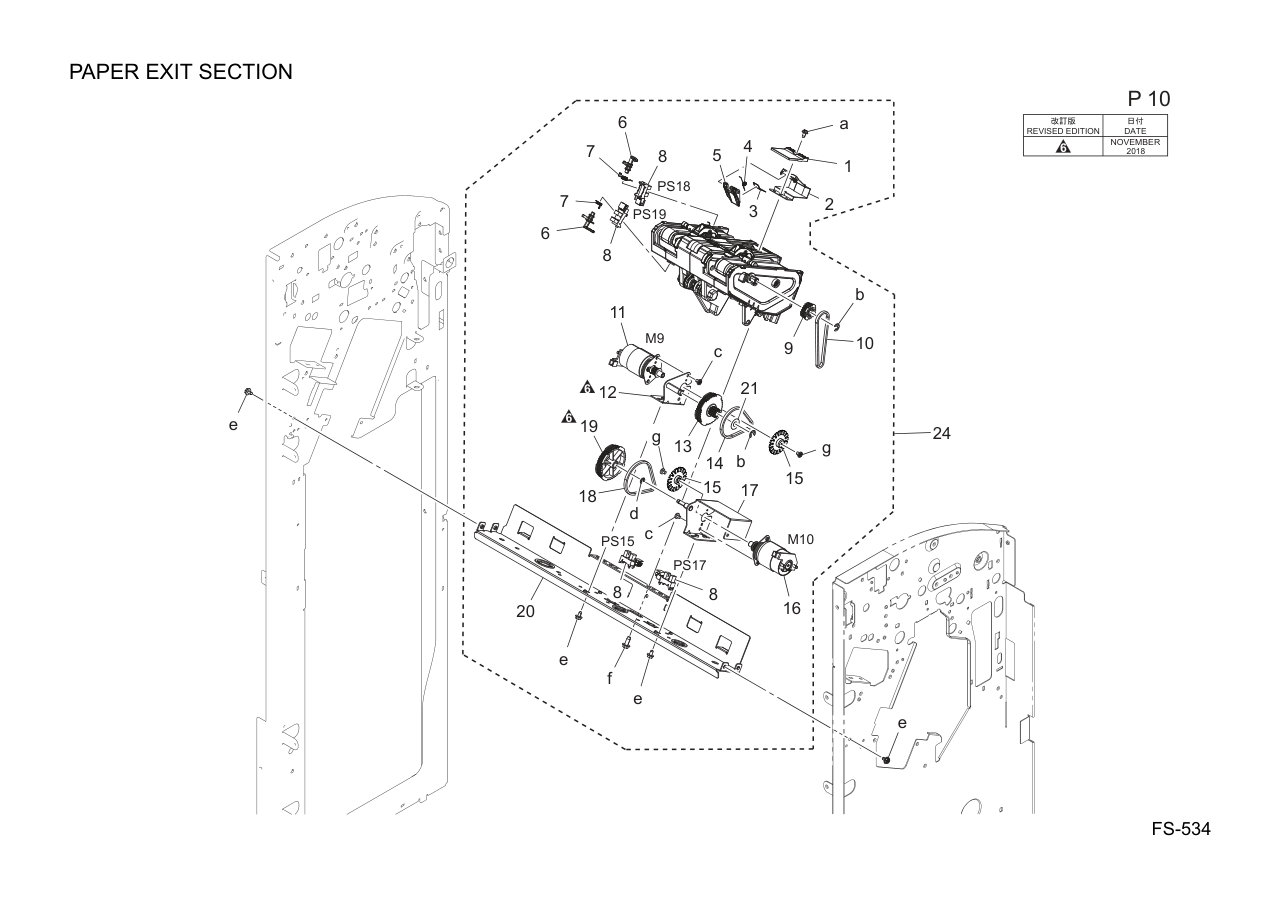

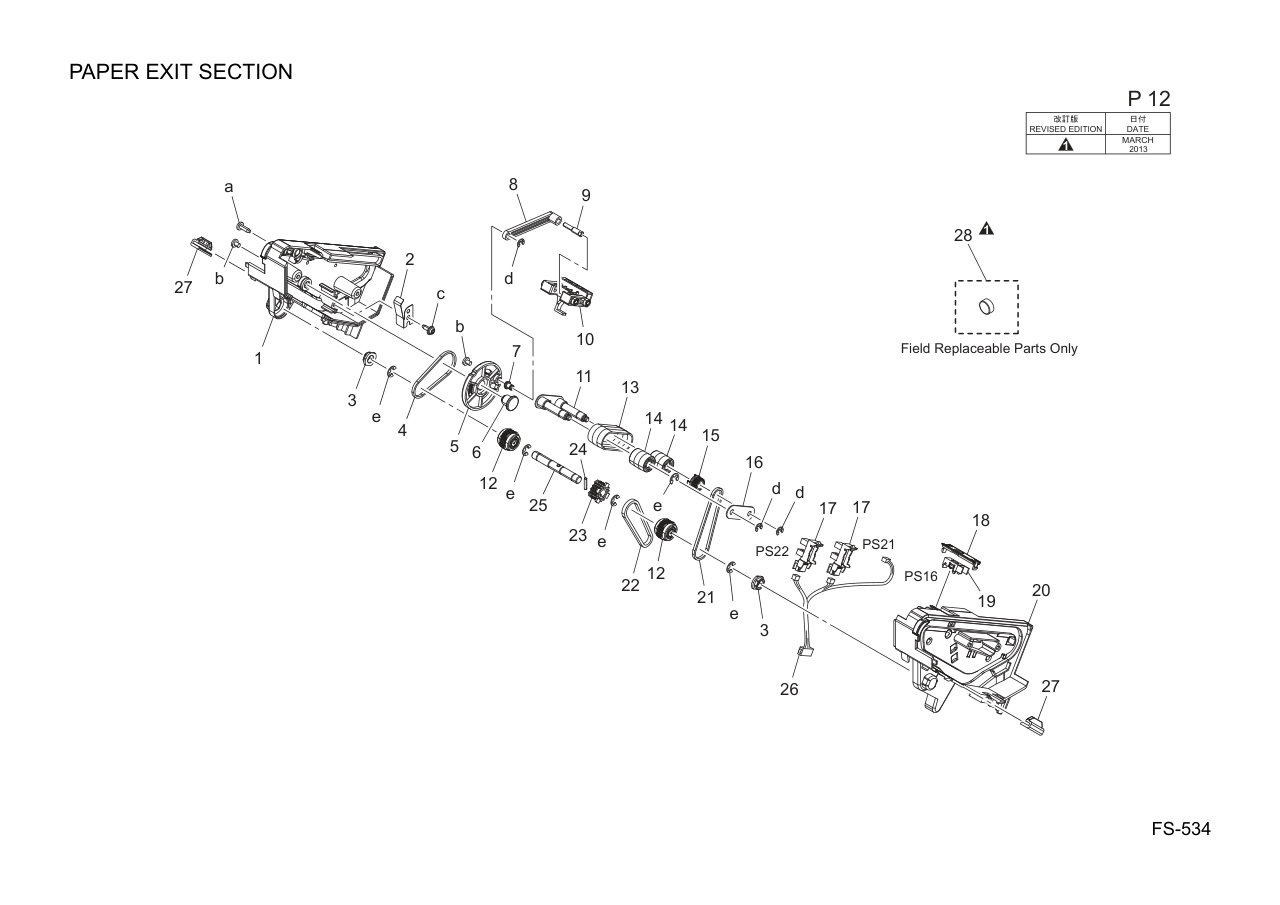

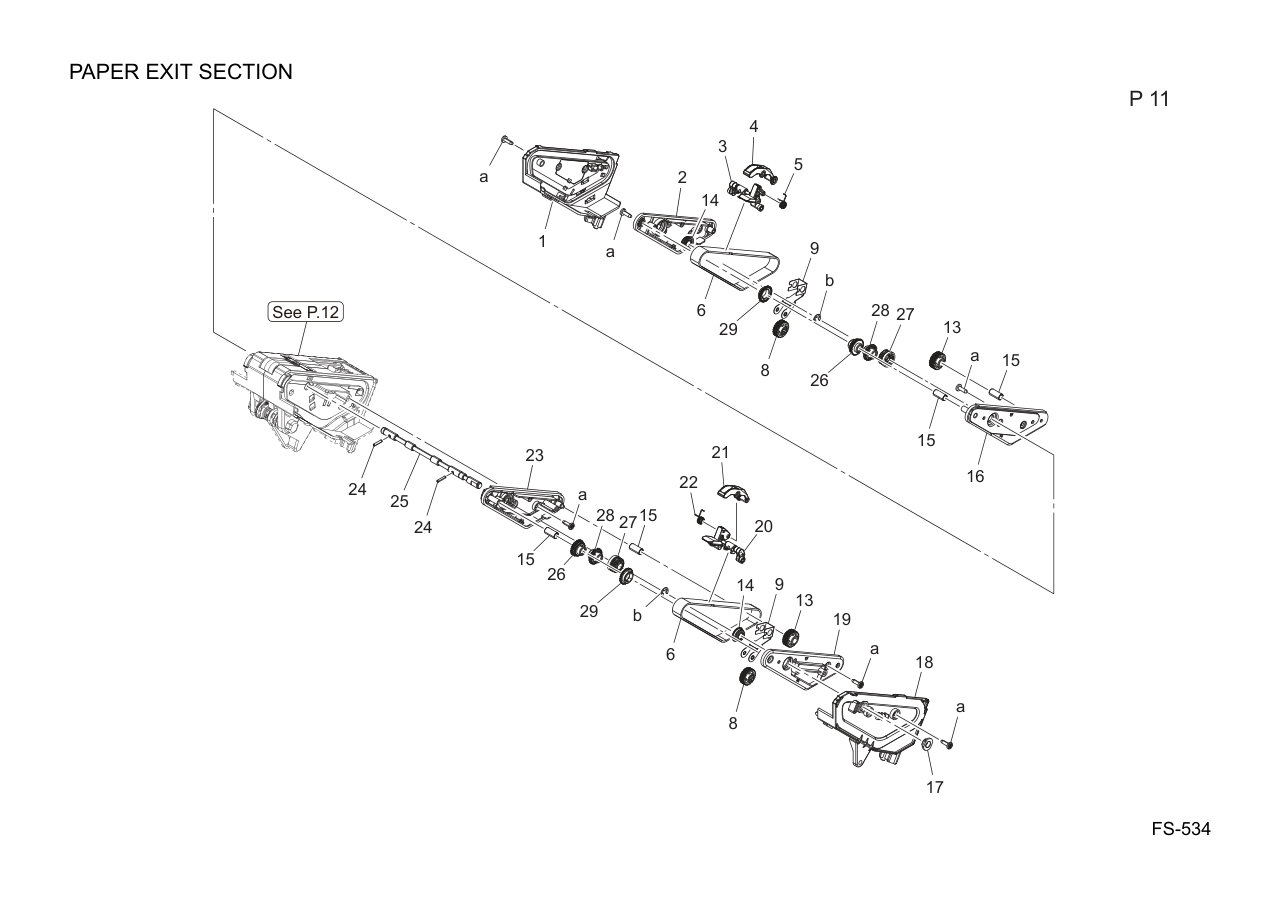

Paper Exit Section 1 A3EPPP6T03 Cover 2 A3EPPP6S01 Bracket 3 A3EPPP8501 Film 4 A3EPPP8400 Torsion Coil spring 5 A3EPPP8202 Lever 6 A3EPPP7P01 Actuator 7 A3EPPP7X01 Torsion Coil spring 8 A5C1M50100 Photointerrupter 9 A3EPPP7Y01 Pulley 10 A3EPPP7S00 Timing Belt 11 A87GPP1500 Motor Assy 12 A3EPPPCV01 (Old) Bracket 12 A3EPPPCV02 Bracket 13 A3EPPP7503 (Old) Pulley 13 A3EPPP7504 Pulley 14 A3EPPP7600 Timing Belt 15 A87HPP7400 Sprocket 16 A87GPP1400 Motor Assy 17 A3EPPP7R02 (Old) Bracket 17 A3EPPP7R04 (Old) Bracket 17 A3EPPP7R05 Bracket 18 A3EPPP8000 Timing Belt 19 A3EPPP8102 (Old) Pulley 19 A3EPPP8103 Pulley 20 A3EPPP7T05 Frame 21 A3EPPPD600 Flange 24 A3EPPPDE04 Ejector Unit
Paper Exit Section 1 A3EPPP7N04 (Old) Frame 1 A3EPPP7N06 Frame 2 A3EPPP7K00 (Old) Frame 2 A3EPPP7K01 (Old) Frame 2 A3EPPP7K02 Frame 3 A3EPPPAJ00 Holder Assy 4 A3EPPPAN00 Arm 5 A3EPPP7V01 Torsion Coil spring 6 A3EPPP7H00 Timing Belt 8 A3EPPP7G00 Pulley 9 A3EPPP7F01 Bracket 13 A3EPPP7D00 Pulley 14 A3EPPPAT00 Ball Bearing 15 A3EPPP7900 Shaft 16 A3EPPP7803 (Old) Frame 16 A3EPPP7805 Frame 17 A3EPPP1300 Bushing 18 A3EPPP7M06 Frame 19 A3EPPP7J01 (Old) Frame 19 A3EPPP7J02 (Old) Frame 19 A3EPPP7J03 Frame 20 A3EPPPAK00 Belt Assy 21 A3EPPPAP00 Arm 22 A3EPPP7U01 Torsion Coil spring 23 A3EPPP7701 (Old) Frame 23 A3EPPP7702 (Old) Frame 23 A3EPPP7703 Frame 24 A3EPPPAQ01 Pin 25 A3EPPP7L02 (Old) Shaft 25 A3EPPP7L03 Shaft 26 A3EPPPFV00 Gear 26/26T 27 A3EPPPFW00 Gear 26T 28 A3EPPPFX00 Gear 29T 29 A3EPPPFU00 Gear 26T
Paper Exit Section 1 A3EPPP7303 Frame 2 A3EPPP8301 Plate Spring 3 A3EPPP1300 Bushing 4 A3EPPP8A00 Timing Belt 5 A3EPPP6U01 Pulley 6 A3EPPP6X00 Pin 7 A3EPPP6V01 Hinge 8 A3EPPP6R01 Arm 9 A3EPPP6Q00 Pin 10 A3EPPPAM00 Drum 11 A3EPPP8D02 Adjusting Plate Assy 12 A87HPP7500 Pulley 25T 13 A3EPPP8701 Belt 14 A3EPPP8601 Roll 15 A3EPPP8900 Pulley 16 A3EPPP8802 Bracket 17 A5C1M50100 Photointerrupter 18 A3EPPP8C01 Cover 19 A0EDM50100 Photoreflector 20 A3EPPP7203 Frame 21 A3EPPP8B00 Timing Belt 22 A3EPPP7100 Timing Belt 23 A3EPPP7002 Pulley 24 A3EPPPAQ01 Pin 25 A3EPPP6Y01 Shaft 26 A3EPPPC801 Wire Harness Assy 27 A3EPPPD800 Guide 28 A3EPPPDH00 Magnet

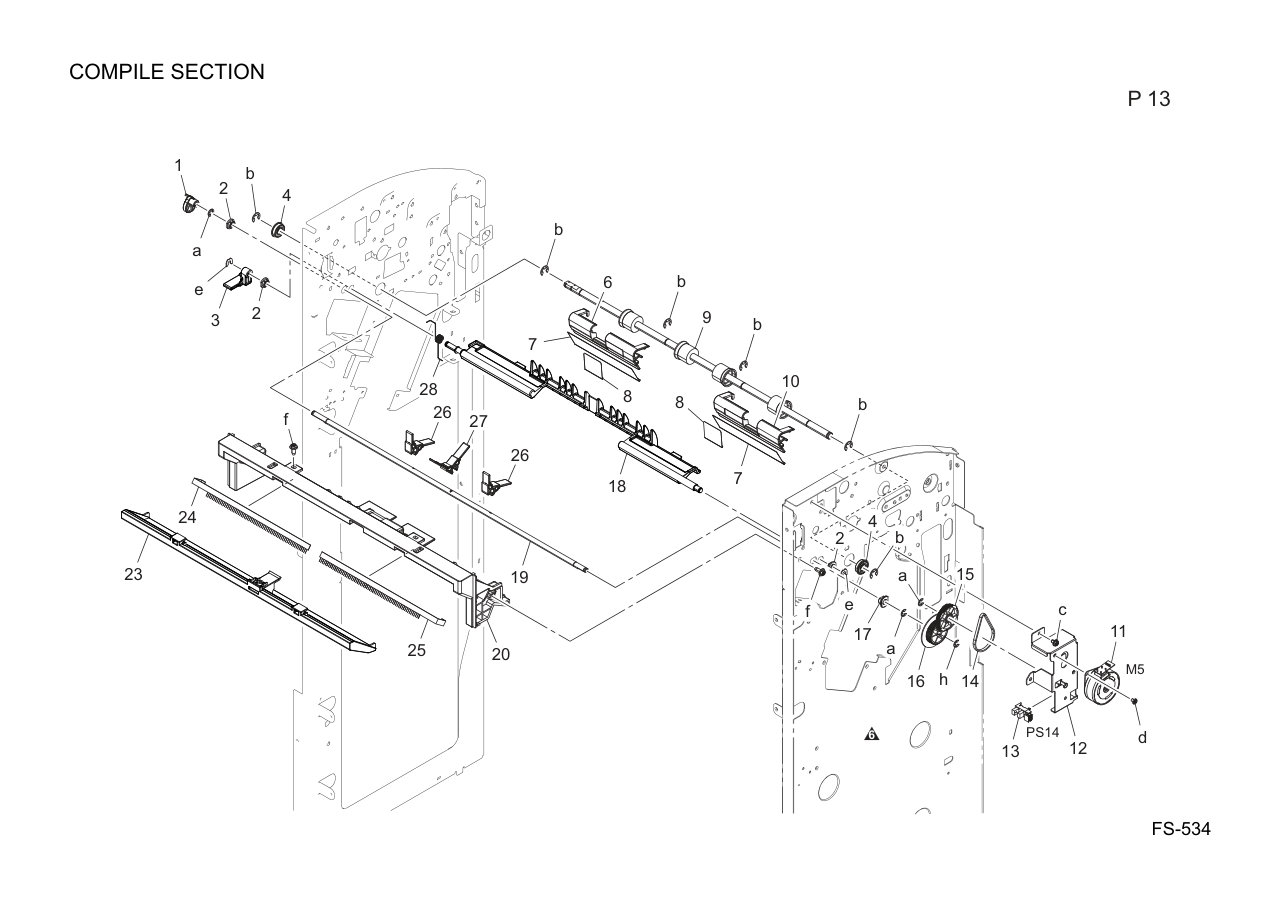

Compile Section 1 A3EPPP5E01 Cam 2 A87GPP0000 Bushing 3 A3EPPP5G04 (Old) Actuator 3 A3EPPP5G05 Actuator 4 A00V240600 Ball Bearing 6 A3EPPP6B01 (Old) Guide Plate 6 A3EPPP6B02 Guide Plate 7 A3EPPP6M02 Film 8 A3EPPP6K01 Film 9 A3EPPP4H03 (Old) Roller 9 A3EPPP4H04 (Old) Roller 9 A3EPPP4H05 Roller 10 A3EPPP6A01 (Old) Guide Plate 10 A3EPPP6A02 Guide Plate 11 A3EPPP5500 Motor Assy 12 A3EPPPCS00 Bracket 13 A5C1M50100 Photointerrupter 14 A3EPPP5H00 Timing Belt 15 A3EPPP6C02 Gear 16 A3EPPP5B01 (Old) Gear 16 A3EPPP5B02 Gear 17 A3EPPP1101 Bushing 18 A3EPPP5F03 Guide Plate 19 A3EPPP5801 (Old) Shaft 19 A3EPPP5802 Shaft 20 A3EPPP5J02 Guide Plate 23 A3EPPP6801 (Old) Guide 23 A3EPPP6802 Guide 24 A3EPPP6N01 Neutralizing Brush 25 A3EPPP6P01 Neutralizing Brush 26 A3EPPPD301 Paddle Assy 27 A3EPPPD401 Paddle Assy 28 A3EPPP6000 Torsion Coil spring

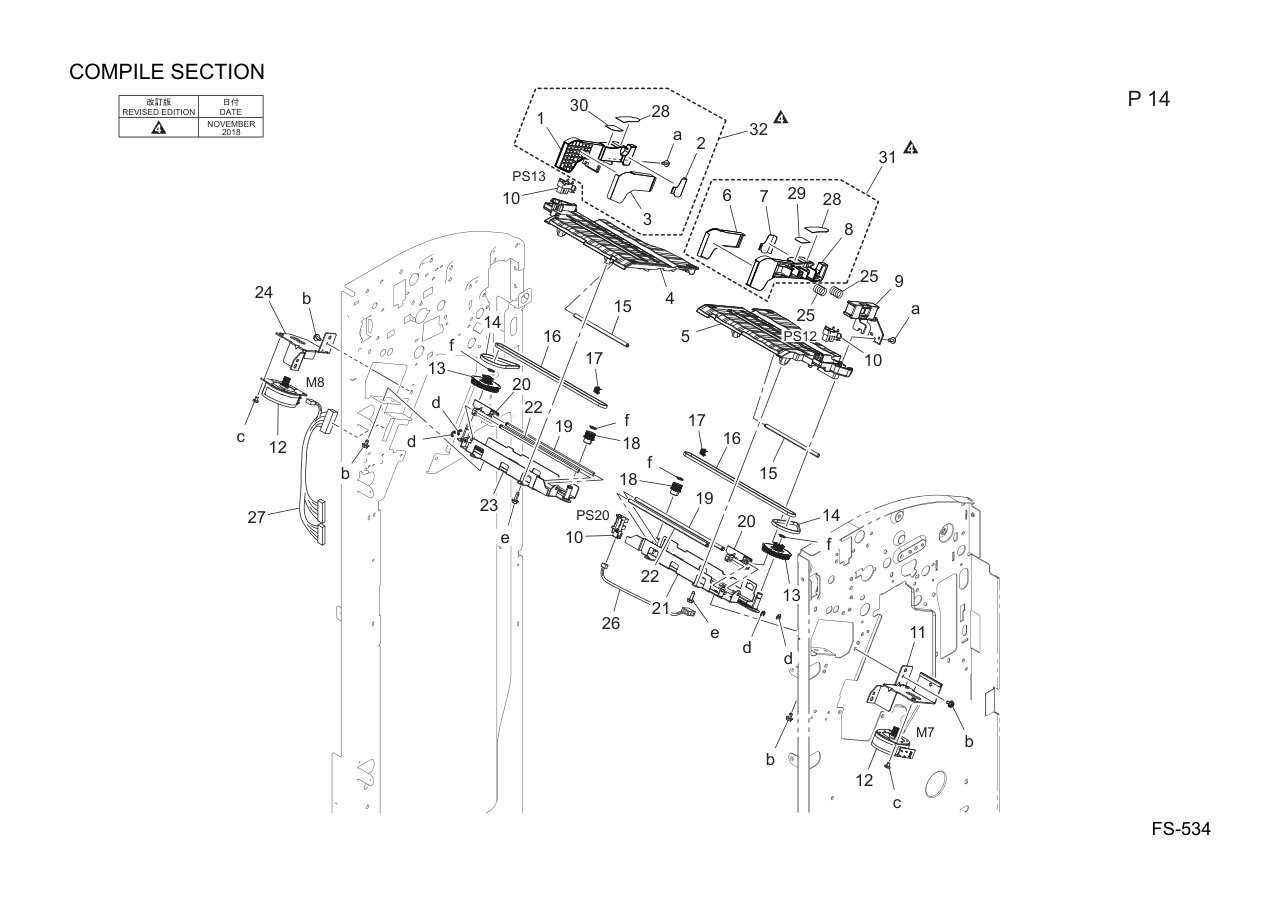

Compile Section 1 A3EPPP6301 (Old) Regulating Plate 1 A87GPP1100 Guide 2 A3EPPP6501 Reinforce Plate 3 A3EPPP6401 (Old) Reinforce Plate 3 A87GPP0701 Guide 4 A3EPPP6201 Cover 5 A3EPPP5U01 Cover 6 A3EPPP5V01 (Old) Reinforce Plate 6 A87GPP0601 Guide 7 A3EPPP5X01 Reinforce Plate 8 A3EPPP5P01 (Old) Regulating Plate 8 A87GPP1000 Guide 9 A3EPPP5N01 Cover 10 A5C1M50100 Photointerrupter 11 A3EPPP5Y01 Bracket 12 A3EPPP5500 Motor Assy 13 A3EPPP5R01 Pulley 14 A3EPPP5C00 Timing Belt 15 A3EPPP6J00 Shaft 16 A3EPPP5Q00 Timing Belt 17 A3EPPP6701 Torsion Coil spring 18 A3EPPP5T02 Pulley 19 A3EPPP5K00 Shaft 20 A3EPPP5M01 Drum 21 A3EPPPCT00 Frame 22 A3EPPP5L00 Shaft 23 A3EPPPCU00 Frame 24 A3EPPP6601 Bracket 25 A3EPPPBM01 Pressure Spring 26 A3EPPPC700 Wire Harness Assy 27 A3EPPPC001 Wire Harness Assy 28 A3EPPPF700 (Old) Film (Model No. /WY3) 28 A87GPP0A00 Guide Film (Model No. /WY3) 29 A87GPP0800 Guide 30 A87GPP0900 Guide 31 A87GPP1800 Guide Assy /Front 32 A87GPP1900 Guide Assy /Rear

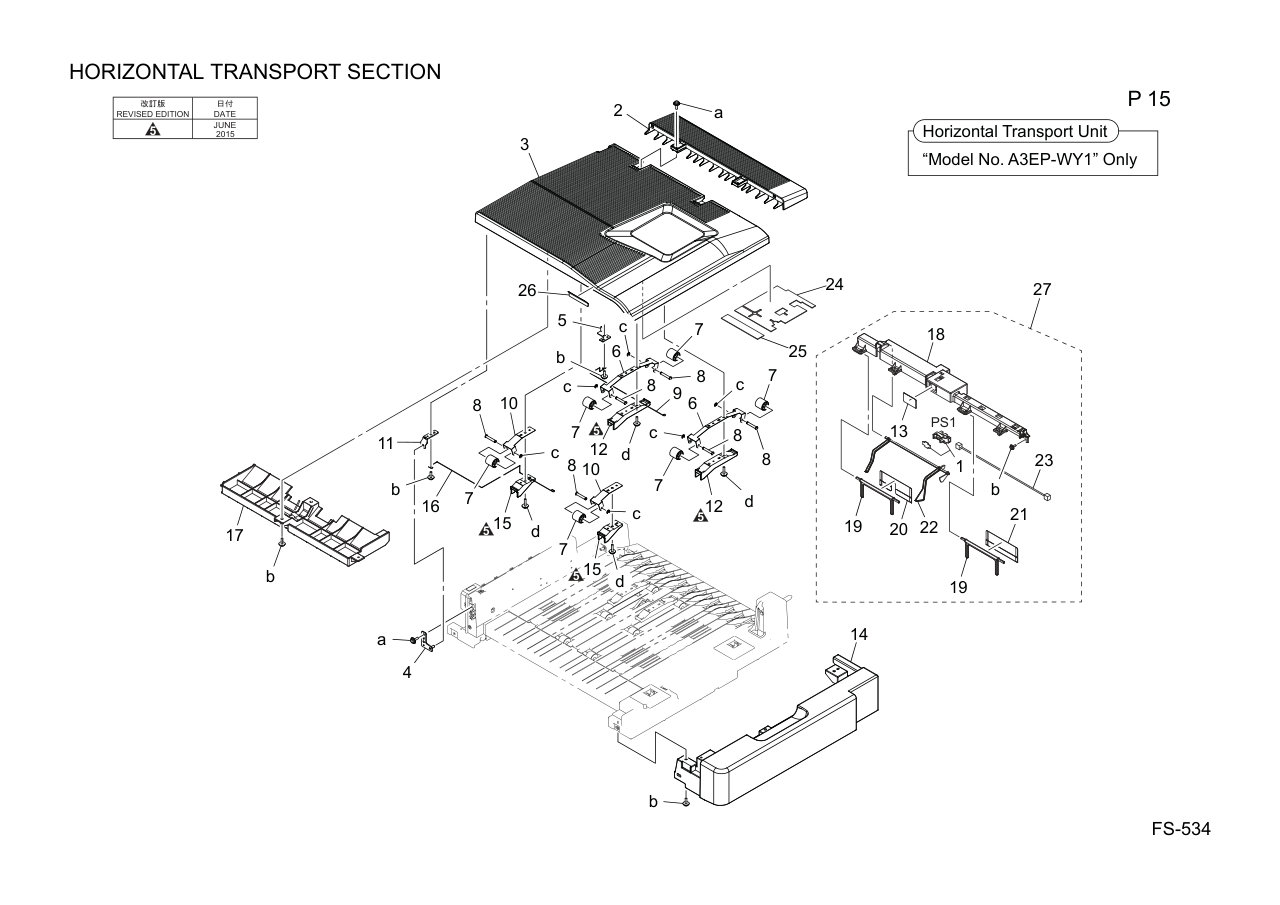

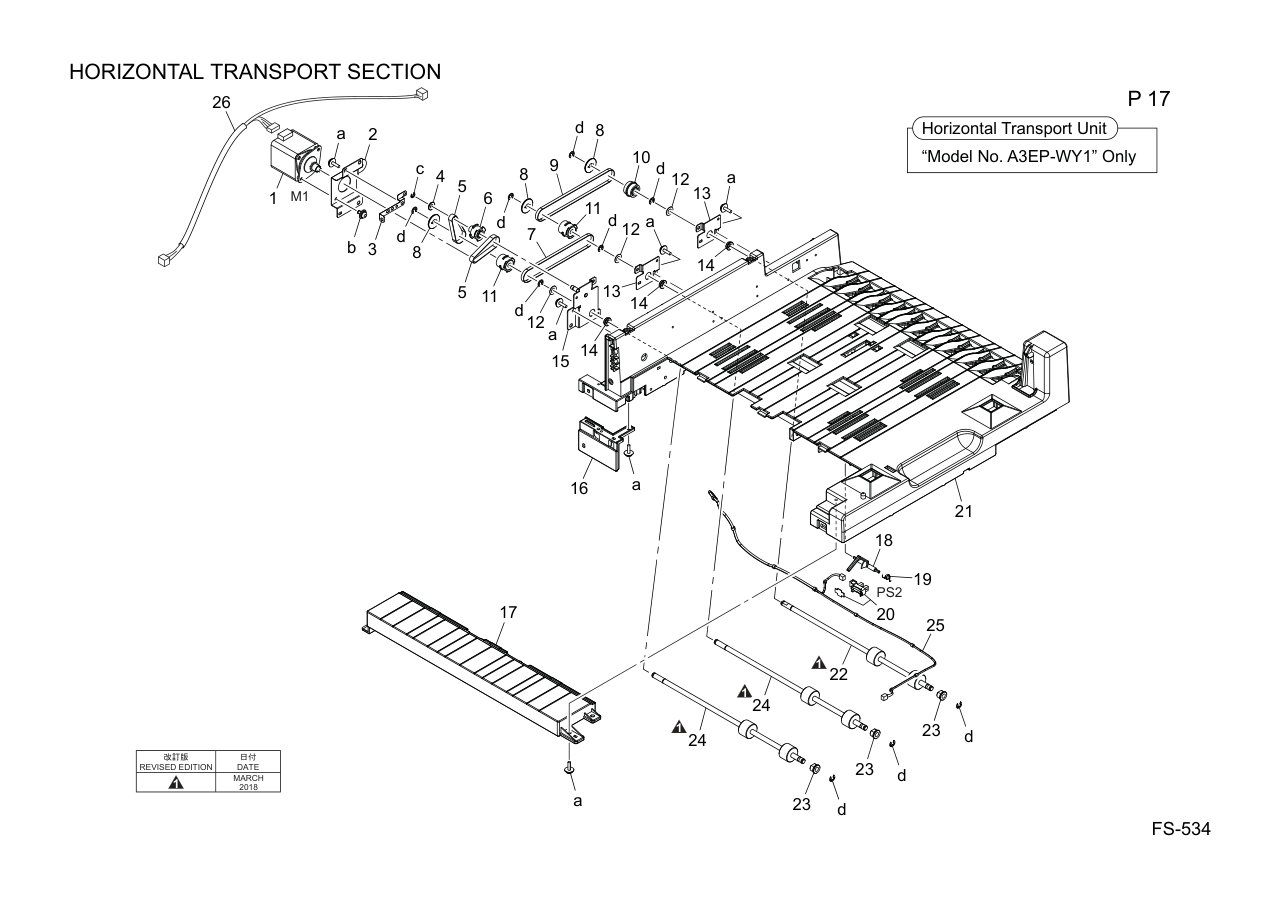

Horizontal Transport Section 1 A108R90000 PHOTO INTERRUPTER (Model No. ) 2 A3EP820100 Guide /1 (Model No. ) 3 A3EP819001 Guide /Upper (Model No. ) 4 A3EP811100 Support Plate /1 (Model No. ) 5 A3EP811800 Support Plate /4 (Model No. ) 6 A3EP812500 Idler Plate spring /2 (Model No. ) 7 A0HR212700 Idler Roll /1 (Model No. ) 8 A3EP812100 Idler Shaft /1 (Model No. ) 9 A3EP814300 Ground Spring /2 (Model No. ) 10 A3EP812200 Idler Plate spring /1 (Model No. ) 11 A3EP811201 Support Plate /2 (Model No. ) 12 A3EP822801 Holding Part /1 (Model No. ) 13 A3EP822600 Sheet (Model No. ) 14 A3EP814600 Cover /Front (Model No. ) 15 A3EP822901 Holding Part /2 (Model No. ) 16 A3EP814200 Ground Spring /1 (Model No. ) 17 A3EP822100 Guide /7 (Model No. ) 18 A3EP822202 Holder (Model No. ) 19 A3EP822300 Holding Part /1 (Model No. ) 20 A3EP822500 Holding Sheet /2 (Model No. ) 21 A3EP822400 Holding Sheet /1 (Model No. ) 22 A3EP822701 Lever (Model No. ) 23 A3EPN10200 Sensor Relay harness (Model No. ) 24 A3EP817200 Seal (Model No. ) 25 A3EP817300 Seal (Model No. ) 26 A3EP817100 Guide (Model No. ) 27 A2YVR70100 Sensor Assy (Model No. )

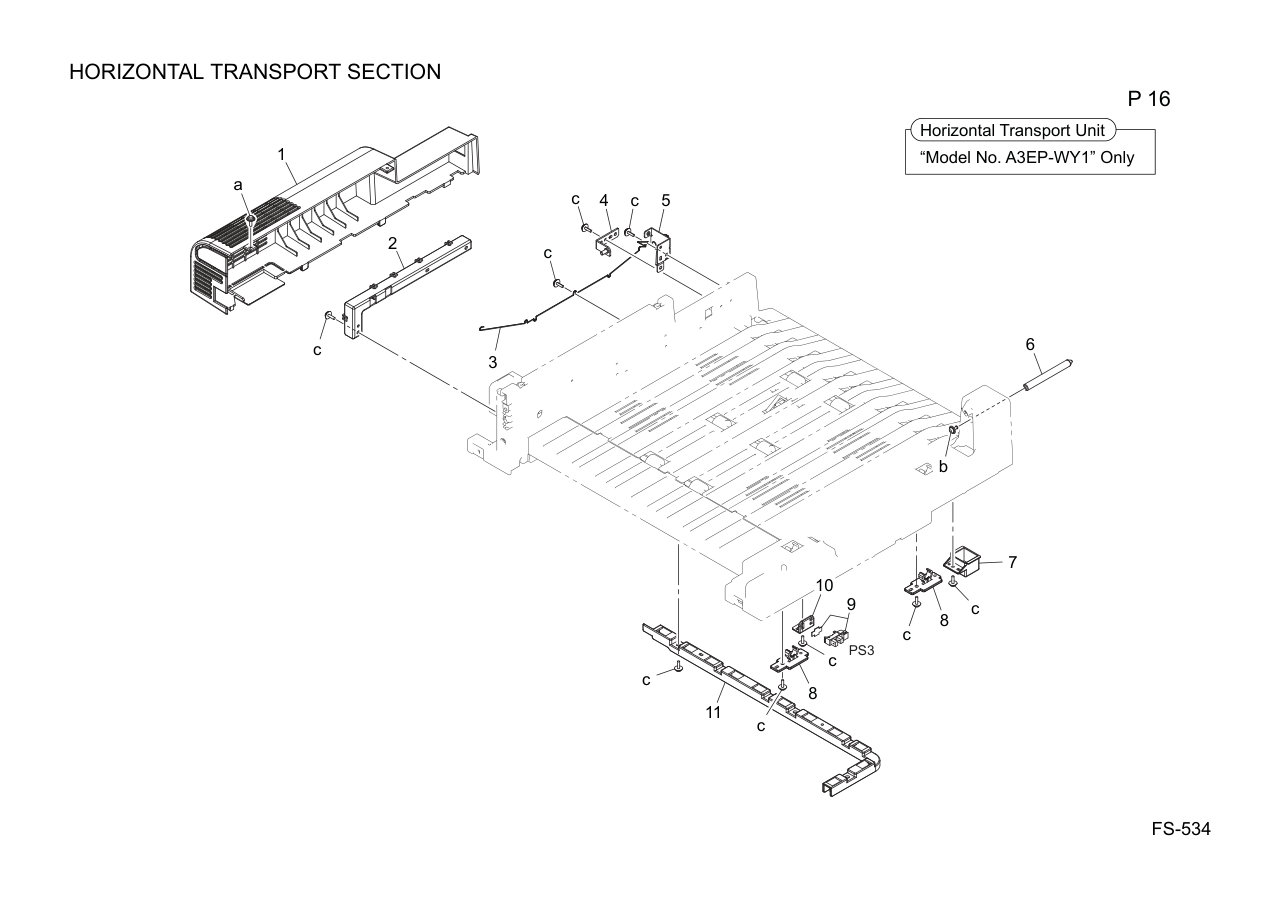

Horizontal Transport Section 1 A3EP814701 Cover /Rear (Model No. ) 2 A3EP812000 Regulating Part /1 (Model No. ) 3 A3EP815500 Ground Spring /3 (Model No. ) 4 A3EP811700 Support Plate /3 (Model No. ) 5 A3EP815000 Fixing Plate /3 (Model No. ) 6 A3EP815200 Positioning Shaft /2 (Model No. ) 7 A3EP821800 Cover Part (Model No. ) 8 A3EP813900 Lock Part /2 (Model No. ) 9 A108R90000 PHOTO INTERRUPTER (Model No. ) 10 A0HR701200 Mounting Plate (Model No. ) 11 A3EP821600 Regulating Part /3 (Model No. )
Horizontal Transport Section 1 A0HRM10000 Stepping motor (Model No. ) 2 A3EP810700 Mounting Plate /1 (Model No. ) 3 A3EP815400 Ground Plate /3 (Model No. ) 4 A0HR213600 Flange (Model No. ) 5 A0HR213000 Drive Belt /3 (Model No. ) 6 A0HR210200 Pulley 14/26T (Model No. ) 7 A3EP820300 Belt/3 276L (Model No. ) 8 A0HR210300 Flange (Model No. ) 9 A0HR210900 Drive Belt /2 (Model No. ) 10 A0HR211000 Pulley 28T (Model No. ) 11 A3EP816200 Drive Pulley/1 28T (Model No. ) 12 07BA15930 SPACER B (Model No. ) 13 A3EP816500 Fixing Plate /5 (Model No. ) 14 A00J617800 Ball Bearing (Model No. ) 15 A3EP810800 Fixing Plate /1 (Model No. ) 16 A3EP814800 Fixing Part /2 (Model No. ) 17 A3EP814901 Guide /6 (Model No. ) 18 A3EP819801 Actuator (Model No. ) 19 A3EP821700 Sensor Spring /1 (Model No. ) 20 A108R90000 PHOTO INTERRUPTER (Model No. ) 21 A3EP810002 Guide /Lower (Model No. ) 22 A3EP810601 Roller /1 (Model No. ) 23 A3EP822000 Bushing (Model No. ) 24 A3EP811501 Roller /2 (Model No. ) 25 A3EPN10100 Sensor Relay harness (Model No. ) 26 A3EPN10000 I/F Wiring (Model No. )

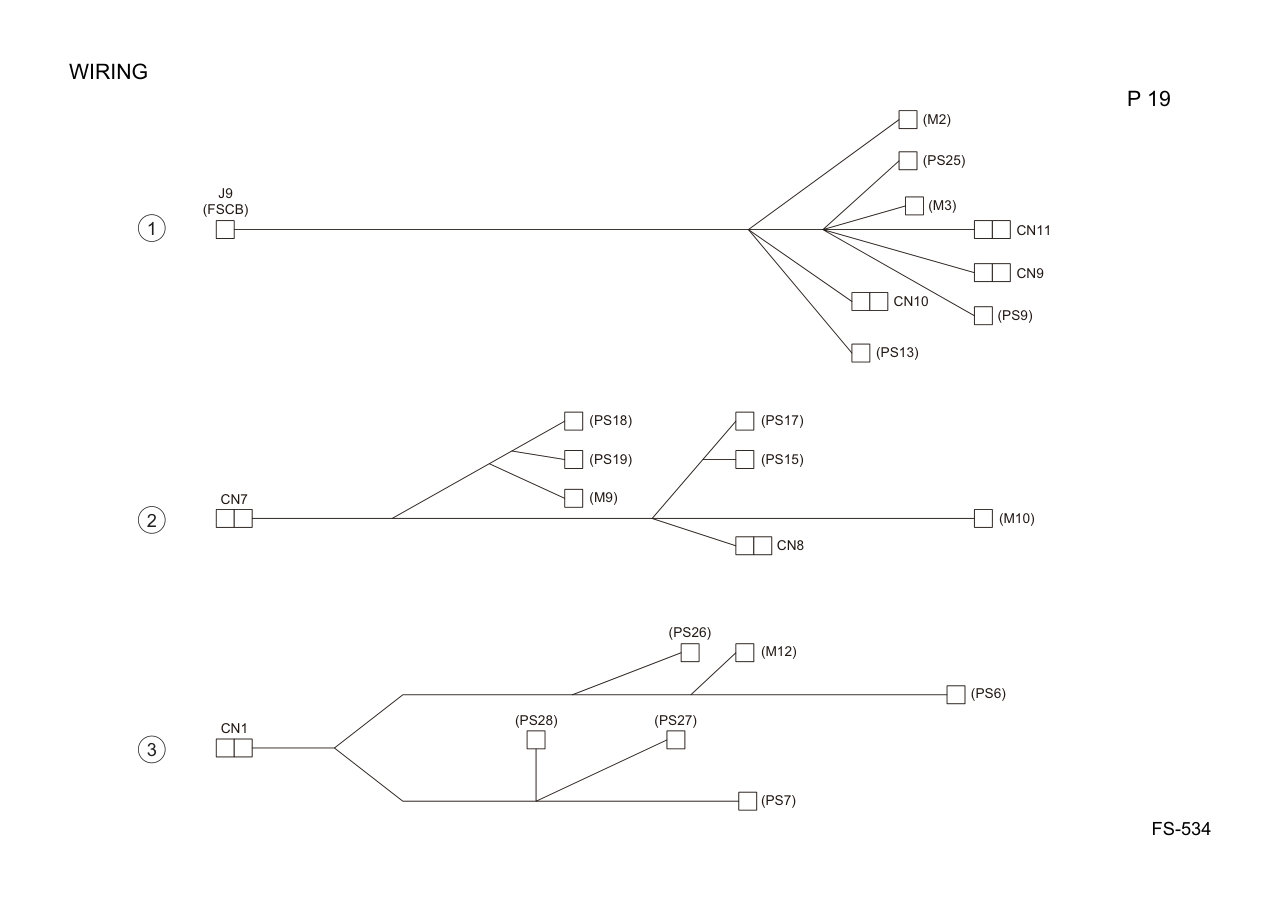

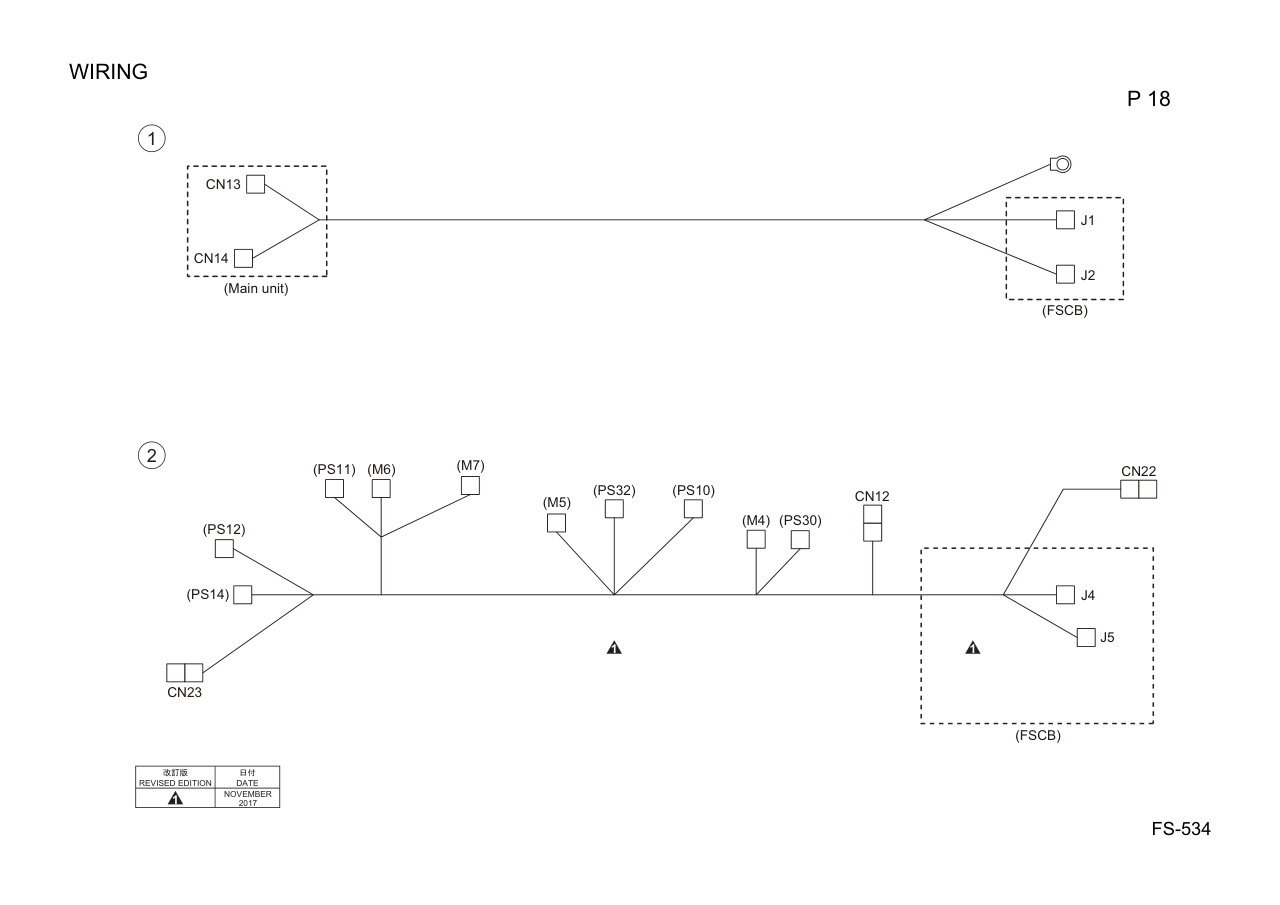

Wiring 1 A3EPPPBF02 Harness Assy 2 A3EPPPBU02 (Old) Wire Harness Assy 2 A3EPPPBU04 Wire Harness Assy
Wiring 1 A3EPPPBX01 Wire Harness Assy 2 A3EPPPC901 Wire Harness Assy 3 A3EPPPCM01 Wire Harness Assy

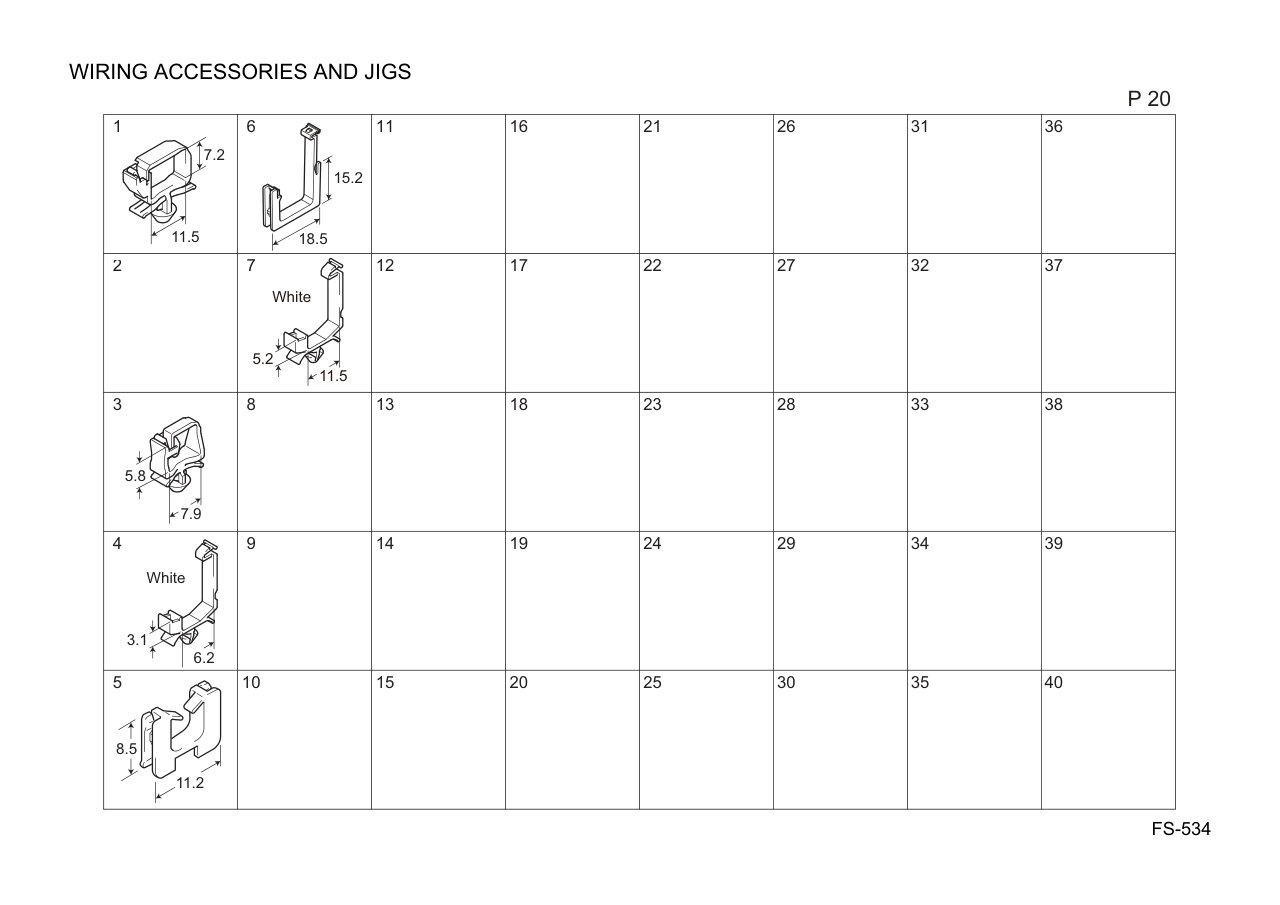

Wiring Accessories And Jigs 1 V500010082 Locking Wire Saddle 3 V500020098 Mini Locking wire saddle 4 V500020099 Mini Locking wire saddle 5 V570010021 Saddle 6 V570010026 Locking Edge Saddle 7 V500010081 Locking Wire Saddle

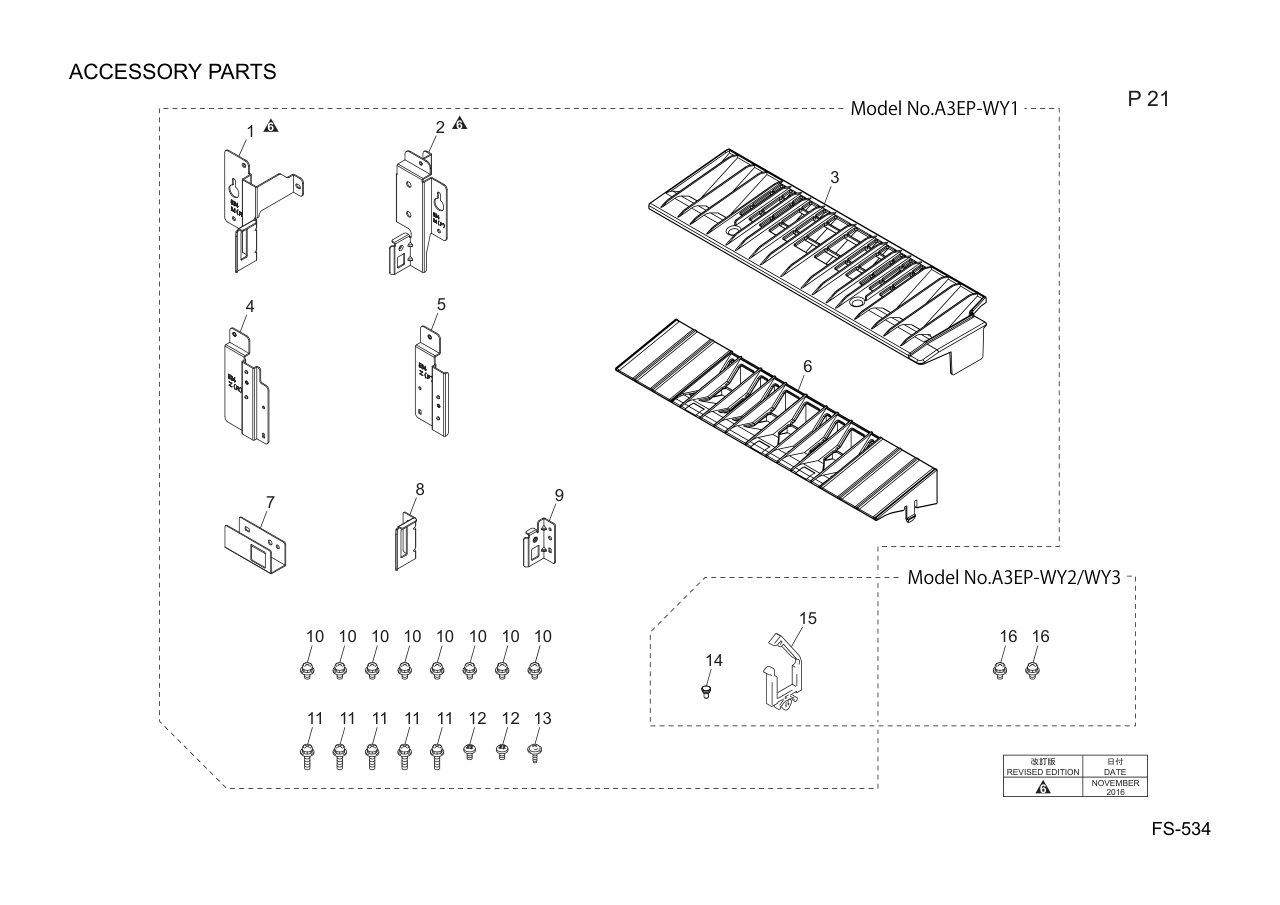

Accessory Parts 1 A3EP115101 Mounting Plate /Rear (Model No. ) 2 A3EP115002 Mounting Plate /Front (Model No. ) 3 A3EP810501 Guide /3 (Model No. ) 4 A3EP116500 Mounting Plate /Rear (Model No. ) 5 A3EP116400 Mounting Plate /Front (Model No. ) 6 A3EP810401 Guide /2 (Model No. ) 7 A3EP957100 Mounting Plate (Model No. ) 8 A3EPPP1C01 Mounting Plate (Model No. ) 9 A3EPPP1D01 Mounting Plate (Model No. ) 10 V116040803 Screw (Model No. ) 11 V116031603 Screw (Model No. ) 12 V118030603 Screw (Model No. ) 13 V153030803 Screw (Model No. ) 14 A02E193400 Shoulder screw 15 A3EPPPDB00 Wire Saddle 16 V116040803 Screw (Model No. /WY3)
