Konica SD-509 Saddle Stitcher Parts
Please call for parts assistance
Every part in the Konica Minolta SD-509 Saddle Stitcher Parts Guide Manual (A10D, July 2009), section by section with the exploded diagram. Call or email with the part number for price and availability.

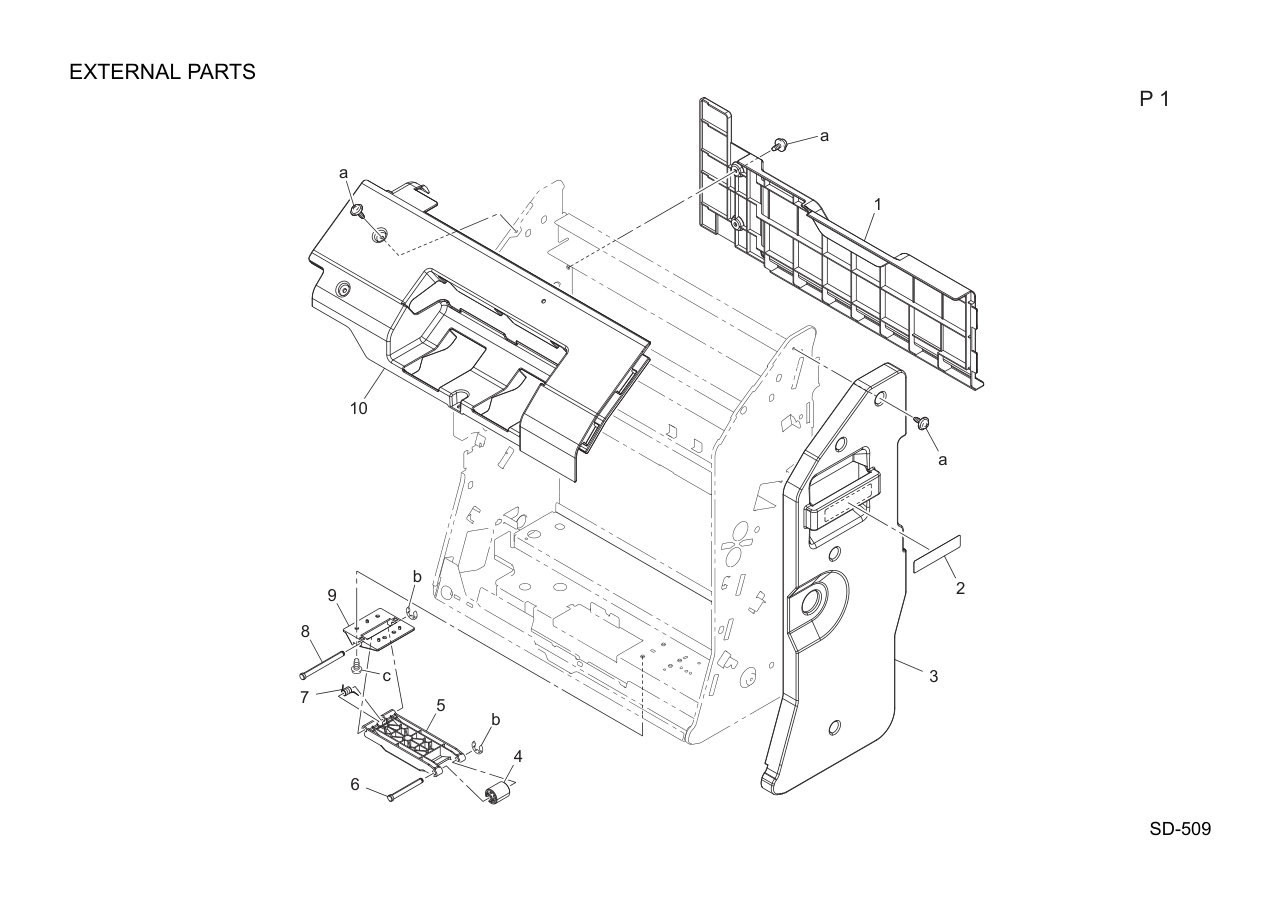

| External Parts 1 A10D402300 Cover /Right 2 A10D940100 Label 3 A10D402100 Cover /Front 4 A10D401600 Roll 5 A10D401400 Lever 6 A10D401700 Shaft 7 A10D401900 Torsion Coil spring 8 A10D401800 Shaft 9 A10D401500 Mounting Plate 10 A10D402200 Cover /Upper |  |

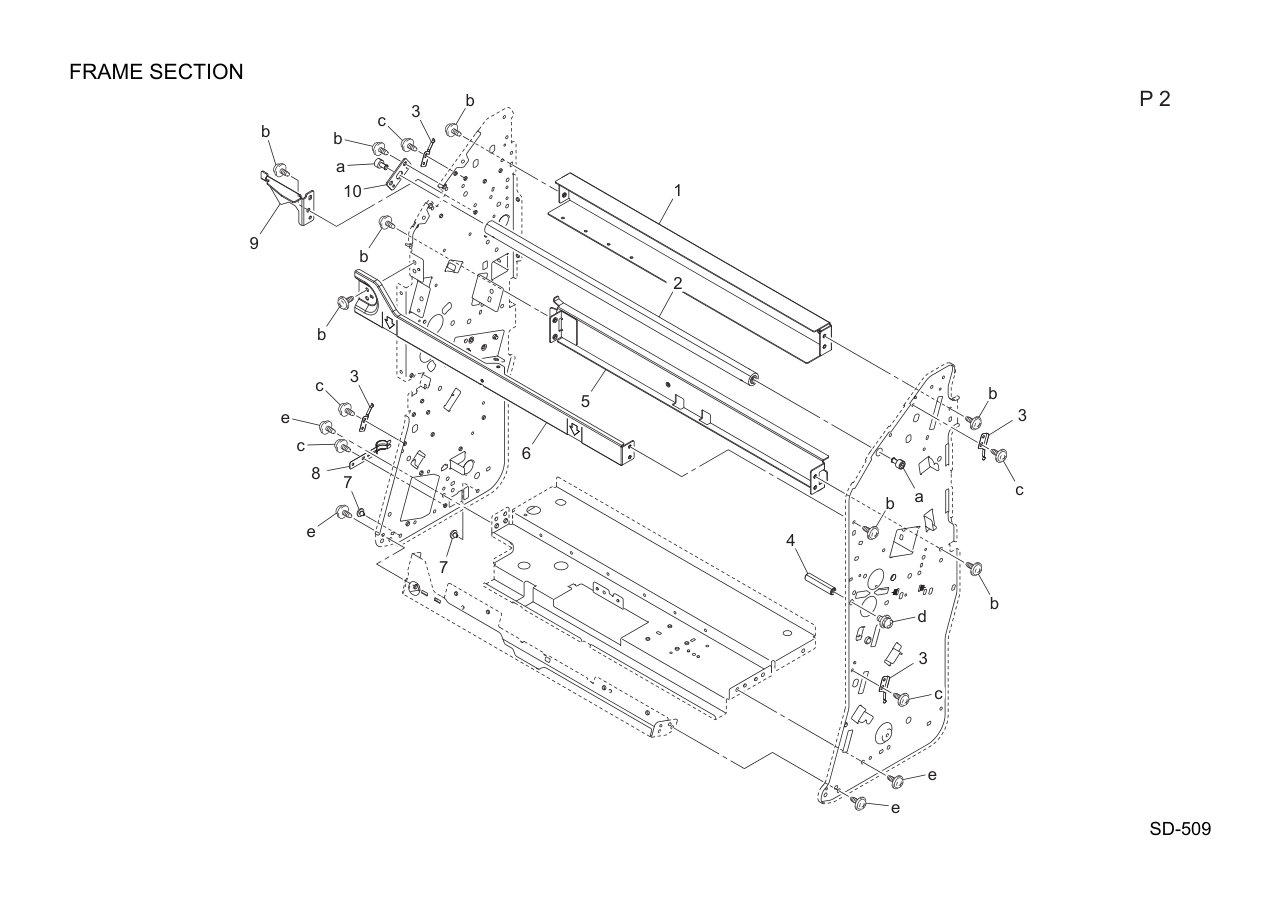

| Frame Section 1 A10D401300 Mounting Plate 2 A10D403000 Slide Shaft 3 A10D405000 Plate spring 4 A10D426800 Shaft 5 A10D400700 Stay 6 A10D400300 Mounting Stay /1 7 15AA10380 STOPPER RUBBER 8 A10D426900 Ground Plate 9 A10D409500 Lock Cam 10 13QE42441 SHAFT MOUNTING PLATE |  |

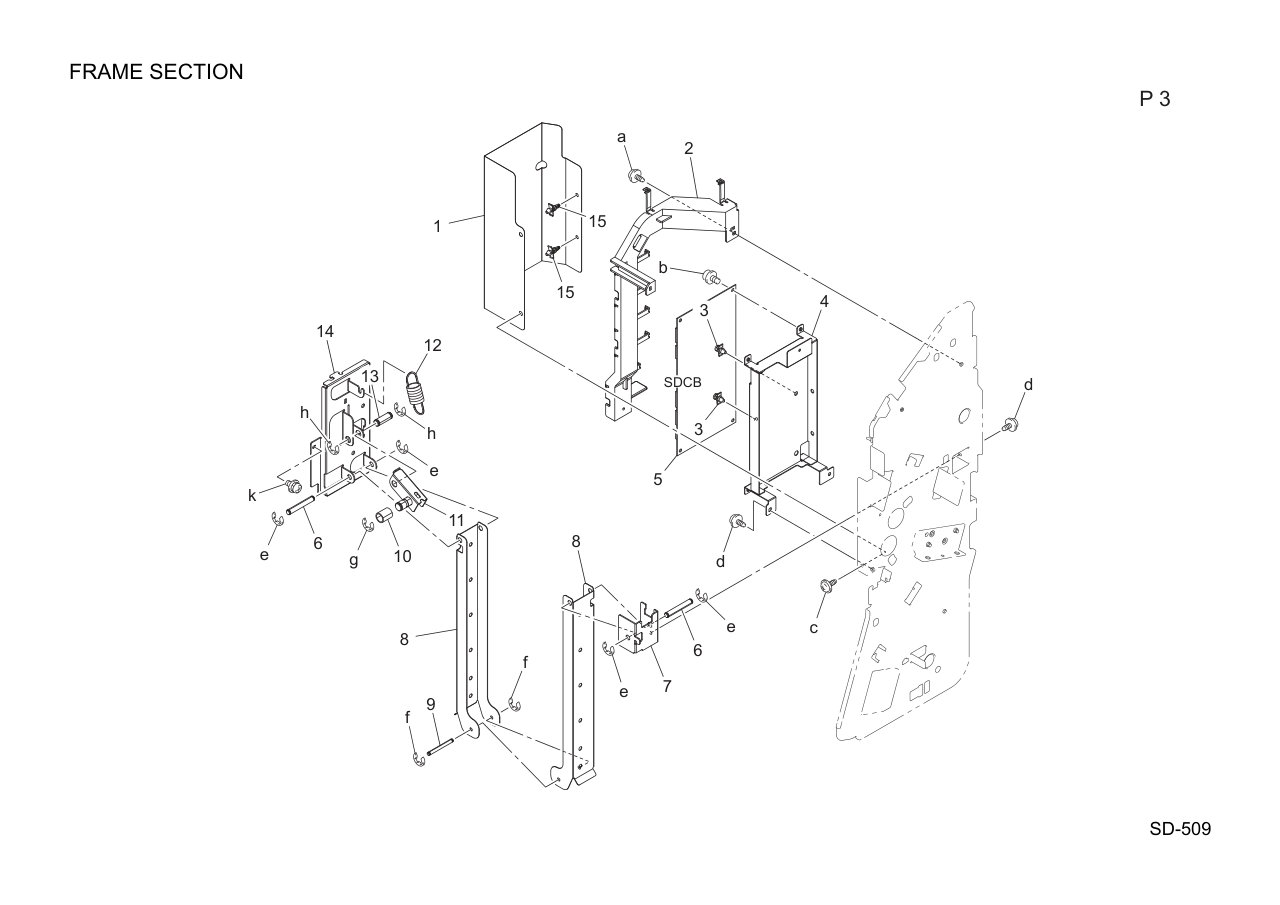

| Frame Section 1 A10D404900 Cover 2 A10D409000 Wiring Guide /1 3 V502010026 SUPPORT 4 A10D400501 Mounting Plate 5 A10DH10003 PWB-SD 6 A10D400900 Support Shaft /1 7 A10D402000 Support Part 8 A10D400800 Guide Arm 9 A10D401000 Support Shaft /2 10 A10D410000 Collar 11 A10DG40800 Lock lever 12 A10D409900 Lock Spring 13 A10D409800 Lock Shaft 14 A10D400600 Mounting Plate /1 15 V502010032 spacer |  |

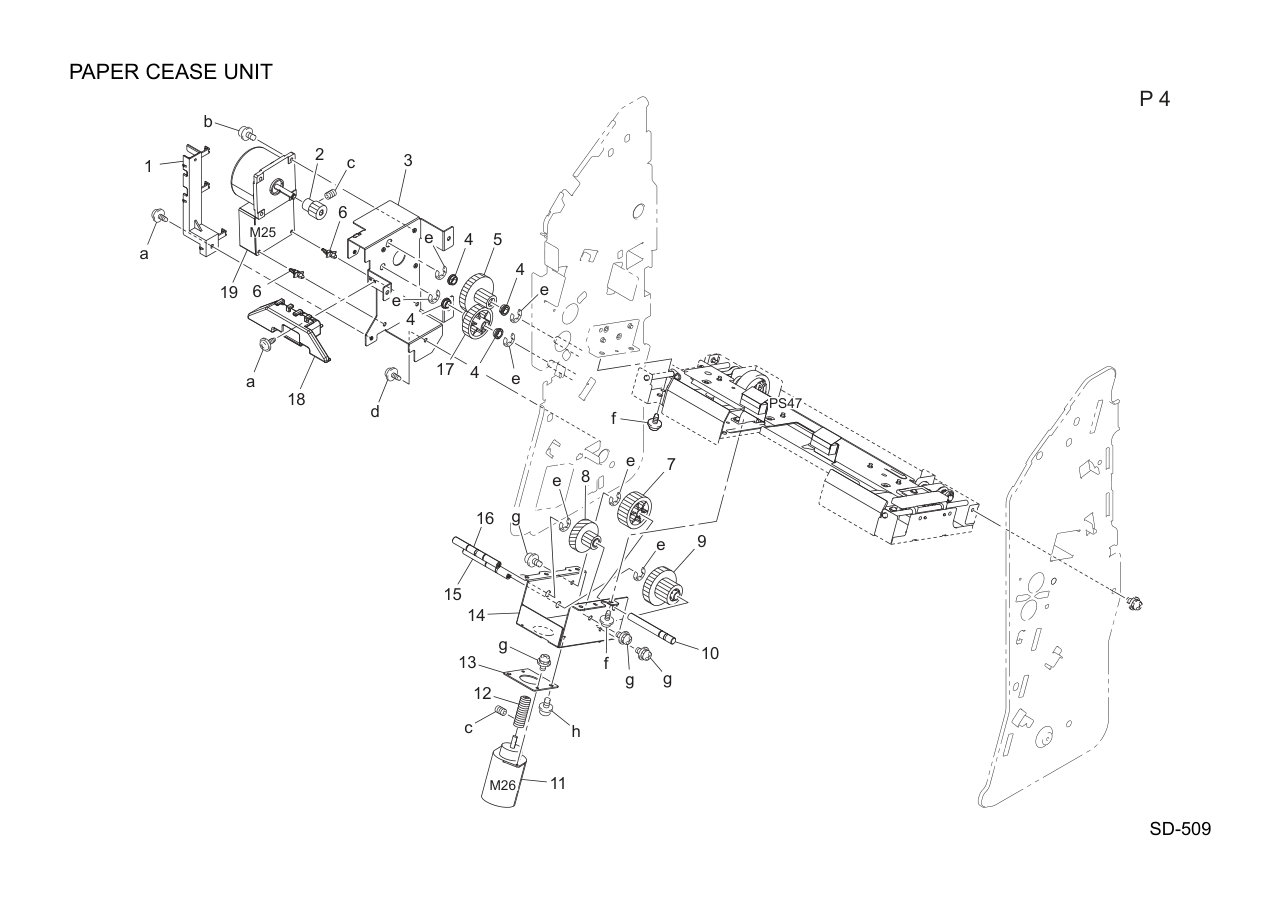

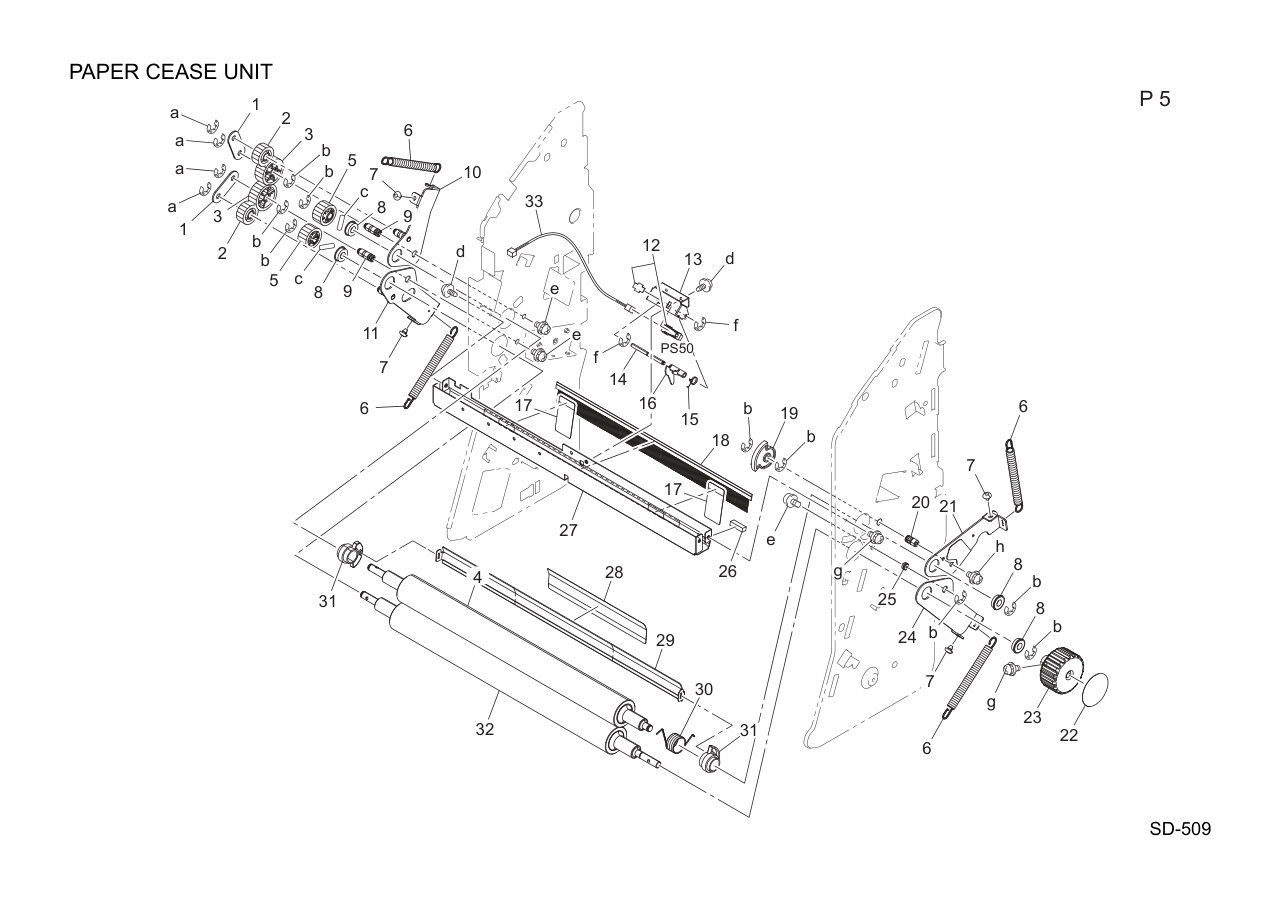

| Paper Cease Unit 1 A10D409100 Wiring Guide /2 2 13QJ77120 MOTOR GEAR 16T 3 A10D415500 Mounting Plate /1 4 13QJ75520 DRIVING SHAFT HOLDER 5 13QJ77190 Idling Gear /2 45/15T 6 V502010014 support 7 13QJ77180 Idling Gear 3 25T 8 13QJ77160 IDLING GEAR /1 35/15T 9 13QJ77170 Idling Gear /2 43/15T 10 A10D430100 Idling Shaft /1 11 120H80012 FNS DRIVE MOTOR 1 12 13QJ77110 PAPER FOLDING WORM 13 120H18040 MOTOR MOUNTING PLATE 14 A11R915303 Drive Casing 15 A10D430200 Idling Shaft /2 16 A10D430300 Idling Shaft /3 17 13QJ77130 Idling Gear /1 38/15T 18 A10D426500 Guide 19 15AA80050 DC BRUSHRESS MOTOR 40 |  |
| Paper Cease Unit 1 13QJ43501 DRIVE REINFORCE PLATE 2 A11R916501 Idling Gear/3 23T 3 A11R916400 Drive Gear /2 32T 4 A10D416900 Folding Roller /2 5 13QJ77140 Driving Gear 1 24T 6 13QJ44300 PRESSING SPRING A 7 123Y45261 STOPPRE RUBBER 8 540076050 BALL BEARING 9 A10D430500 Support Shaft /Rear 10 A10DG40700 Occasion arm/2 11 A10DG40600 Occasion arm/4 12 4037090601 PHOTO INTERRUPTER 13 A10D421301 Mounting Plate /3 14 A10D427400 Sensor Shaft 15 A10D426702 Sensor Spring 16 A10D426302 Actuator 17 A10D426200 Guide 18 A0HR717500 Neutralizing Brush 19 A10D416100 Gear 42T 20 A10D416401 Support Shaft /Front 21 A10D416501 Folding Arm /1 22 A10D940200 Label 23 20AL48470 JAM RELEASE KNOB 24 A10D415200 Folding Arm /3 25 A10D415700 Support Shaft /Front 26 A10D417600 Cushion 27 A10D421202 Conveyance Guide /1 28 A10D417000 Guide 29 A10D415800 Mounting Plate 30 A10D416600 Torsion Coil spring 31 A10D416200 Gear 20T 32 A10D416800 Folding Roller /1 33 A10DN10300 FNS Wiring /4 |  |

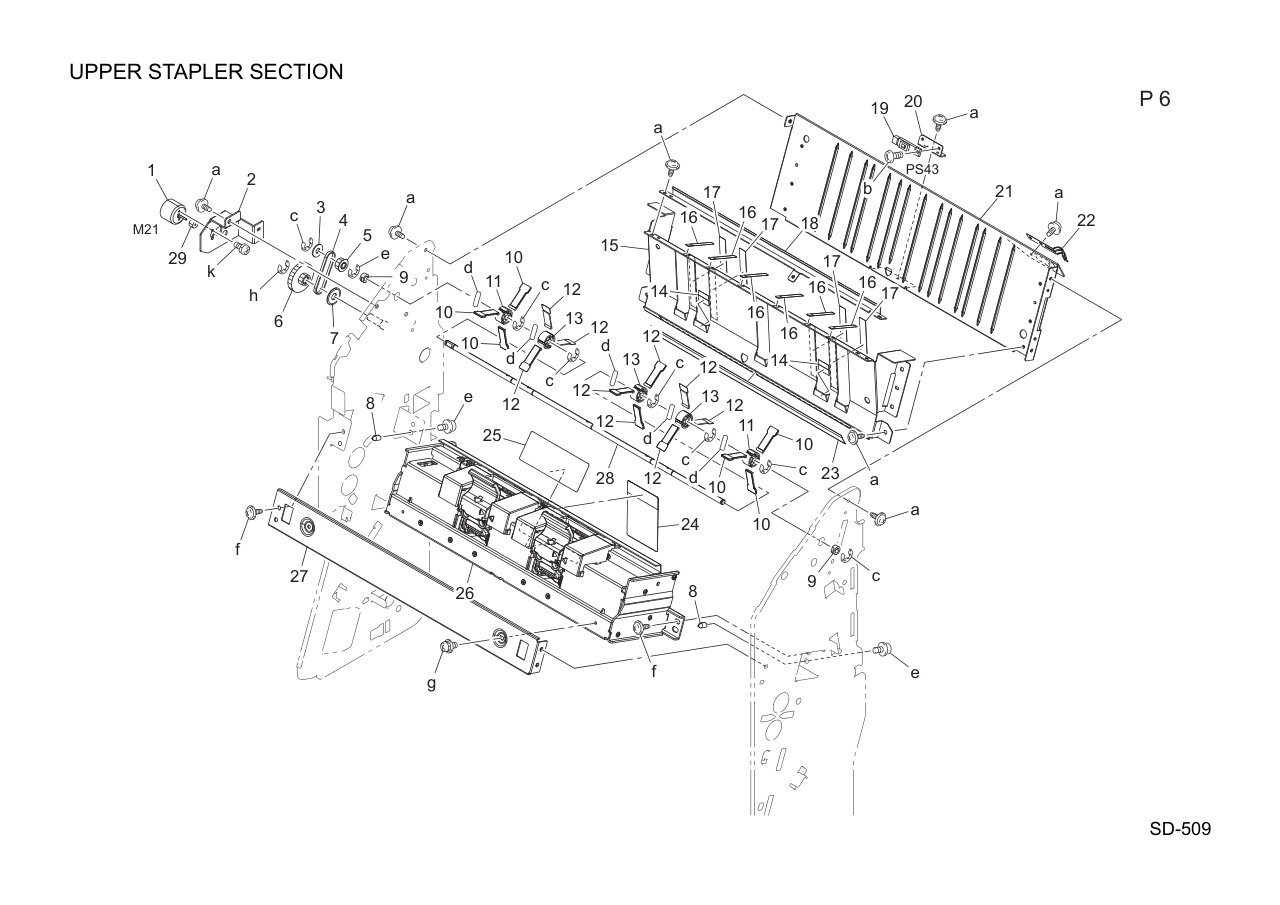

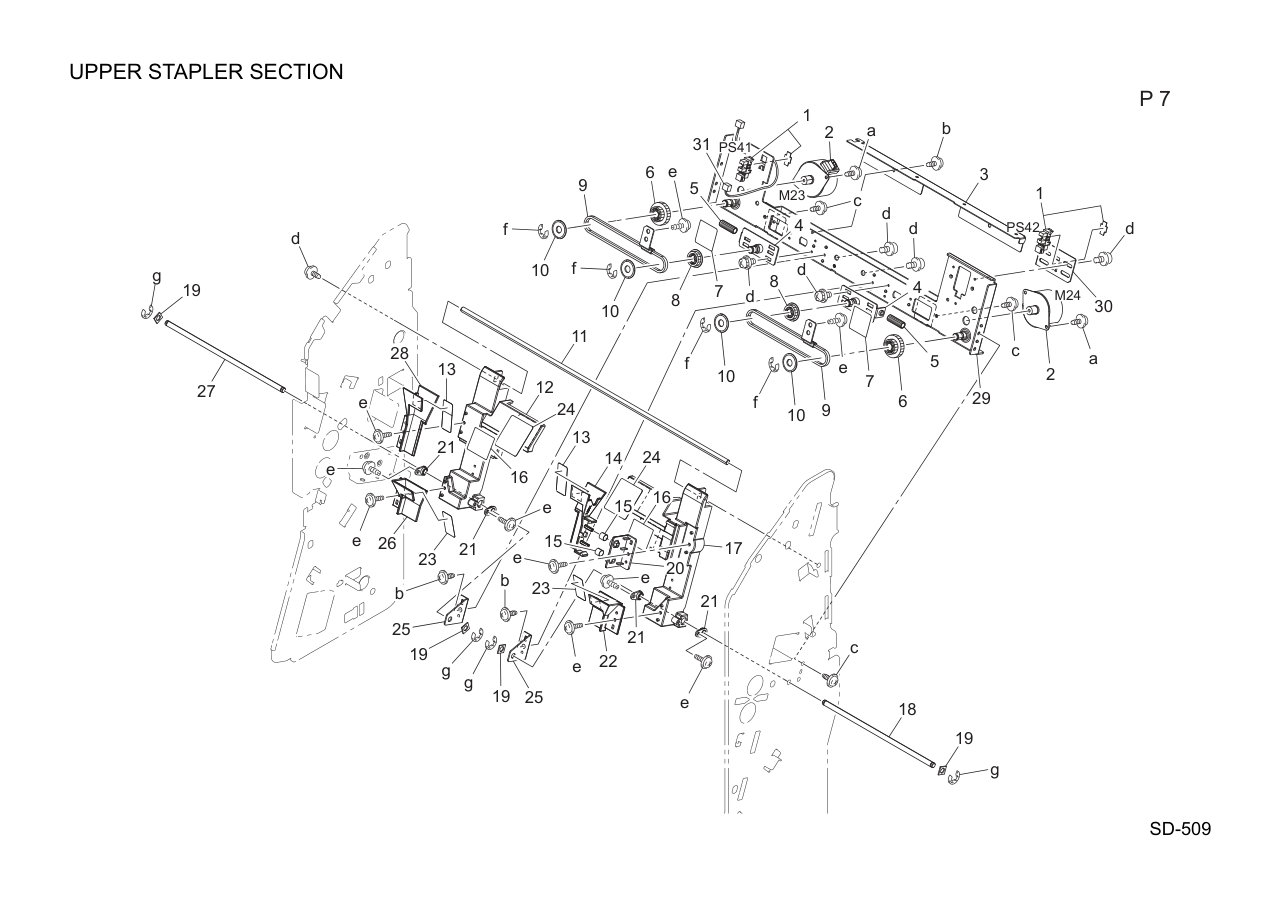

| Upper Stapler Section 1 A11RM10111 DC Brushless motor /3 2 A10D413300 Mounting Plate 3 13GQ45490 COLLAR B 4 A11R729600 Drive Belt/5 122L 5 A11R728200 Drive Pulley 22T 6 A11R729400 Idling Gear/2 72T 7 15AA43140 Belt Holding Part 8 A10D929501 Shaft 9 4131253701 BUSHING 10 A10D431500 Paddle /4 11 A10D431600 Support Part /2 12 A10D431401 Paddle /3 13 A10D404500 Support Part 14 A10D431300 Guide 15 A10D403500 Guide Plate /1 16 A10D404200 Guide 17 A10D406000 Guide 18 A10D404000 Conveyance Guide 19 9335191092 SOLID STATE SWITCH 20 A10D404300 Sensor Plate /1 21 A10D403300 Support Plate /1 22 A10D426900 Ground Plate 23 A10D409200 Neutralizing Brush 24 A10D430900 Guide 25 A10D929800 Guide Sheet 26 A10D929300 Stapler Unit 27 A10D929400 Mounting Plate 28 A10D403700 Drive Shaft /4 29 A11R729500 Drive Gear /4 |  |
| Upper Stapler Section 1 4037090601 PHOTO INTERRUPTER 2 9314120091 MOTOR 3 A10D408500 Mounting Plate 4 A10DG40200 Tension board 5 A11R731200 Adjusting Spring /1 6 A10D408100 Idling Gear /1 7 A11R731500 Protection Sheet 8 13QE76640 Idling Pulley 19T 9 A10D408200 Regulating Belt 10 15AA43140 Belt Holding Part 11 A10D408000 Guide Shaft /1 12 A10D407400 Regulating Pedestal /Rear 13 A10D409300 Guide Sheet 14 A10D407100 Regulating Plate /Front 15 A0HR741600 Compressing Coil spring 16 A10D417500 Guide Sheet 17 A10D407300 Regulating Pedestal /Front 18 A10D413100 Guide Shaft 19 A11R731100 Stopper Rubber 20 A10D408800 Mounting Plate 21 A10D408600 Guide Bearing /A 22 A10D407501 Regulating Plate /Front 23 A10D407900 Guide Sheet 24 A10D432100 Guide Sheet 25 A11R726400 Support Plate /8 26 A10D407600 Regulating Plate /Rear 27 A11R731000 Guide Shaft /3 28 A10D407200 Regulating Plate /Rear 29 A10DG40100 Guidance stay/2 kashime 30 A10D407700 Mounting Plate 31 A10DN10200 FNS Wiring /3 |  |

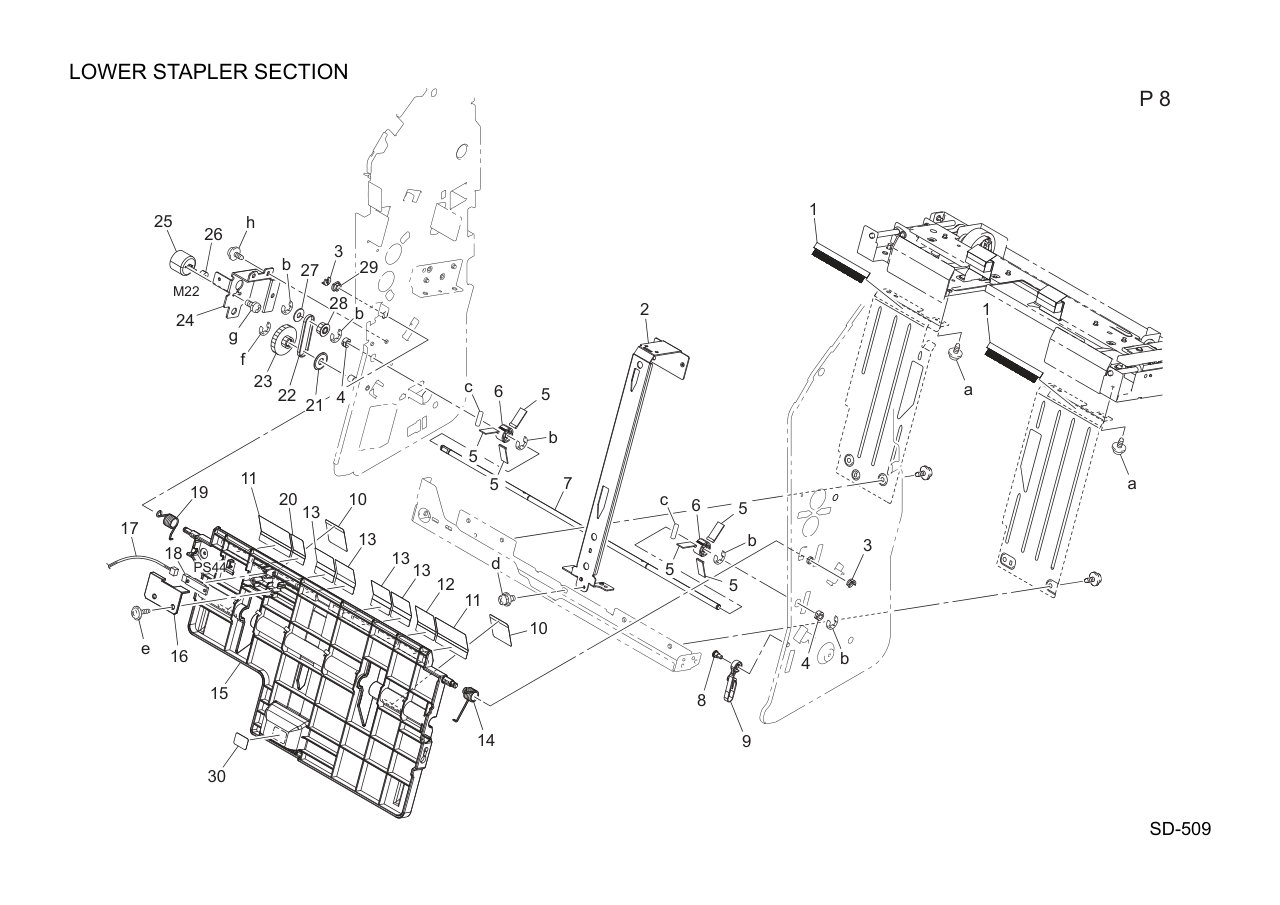

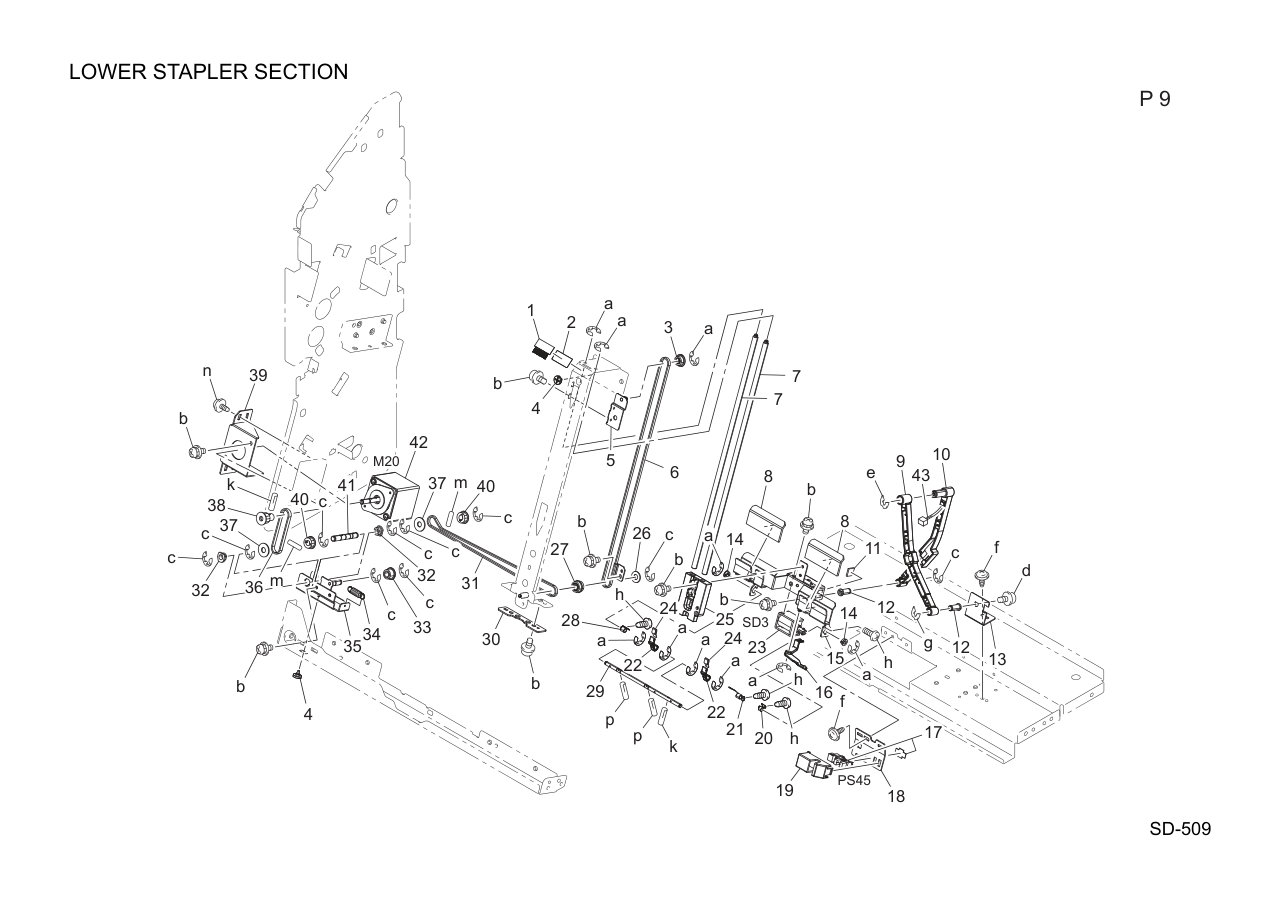

| Lower Stapler Section 1 A10D404700 Electrostaticproof Brush /1 2 A10DG40400 Stopper stay 3 396040681 STOPPER RING 4 4131253701 BUSHING 5 A10D405800 Paddle /2 6 A11P897801 Support Part /1 7 A10D405100 Drive Shaft /4 8 1273300301 SHOULDER SCREW 9 A00J816400 STOPPER 10 A10D406500 Guide 11 A10D406100 Guide 12 A10D406200 Guide 13 A10D405900 Guide 14 A10D413600 Open/close Spring /Front 15 A10D404100 Guide Plate /2 16 A11R731600 Support Block 17 A10DN10500 FNS Wiring /6 18 9335191052 SOLID STATE SWITCH 19 A10D413500 Open/close Spring /Rear 20 A10D406300 Guide 21 15AA43140 Belt Holding Part 22 A11R729600 Drive Belt/5 122L 23 A11R729400 Idling Gear/2 72T 24 A10D405700 Mounting Plate 25 A11RM10111 DC Brushless motor /3 26 A11R729500 Drive Gear /4 27 13GQ45490 COLLAR B 28 A11R728200 Drive Pulley 22T 29 13GQ76020 SHAFT HOLDER A 30 A11P940800 Release Label /7 |  |
| Lower Stapler Section 1 A11R730900 Electrostaticproof Brush /4 2 A11R731800 Protection Sheet 3 A11R729200 Idling Pulley 20T 4 25AA47670 GUIDE SCREW 5 A10DG40500 Support board/7 6 A11R722401 Stopper Belt 600L 7 A11R721300 Slide Shaft 8 A10D413200 Stopper 9 A10D412600 Wiring Arm 10 A10D412500 Wiring Arm 11 12ER40350 STICKING PART 12 A10D412800 Support Shaft /3 13 A10D412700 Mounting Plate 14 12AA75560 DRIVEN SHAFT HOLDER 15 A10D412300 Stopper Plate 16 A10D413000 Drive Lever 17 4037090601 PHOTO INTERRUPTER 18 A10D430700 Mounting Plate 19 A10D404800 Cover 20 A11R729101 Torsion Spring /3 21 A11R729001 Torsion Spring /2 22 A10D413400 Pressing Part 23 A10DM20000 Plunger solenoid 24 A10D412901 Holding Rubber 25 A11R722500 Guide Part 26 15JL429400 COLLAR 27 A11R727700 Idling Pulley 20T 28 A11R728901 Torsion Spring /1 29 A10D413700 Support Shaft /4 30 A11R728000 Support Plate /10 31 A11R722700 Drive Belt/3 436L 32 322076010 PAPER LIFT UP LEVER SHAFT HOLDER 33 13NG15050 Tension Roller 34 A11R732500 Tension Spring /1 35 A10D431200 Support Plate /ASSY 36 A11R722900 Drive Belt/4 126L 37 13GQ45490 COLLAR B 38 13QJ76600 Motor Pulley 20T 39 A10D408900 Support Plate 40 12VR76600 PAPER FEED PULLEY/B 20T 41 A10D431100 Drive Shaft /2 42 A10DM10000 Stepping motor 43 A10DN10100 FNS Wiring /2 |  |

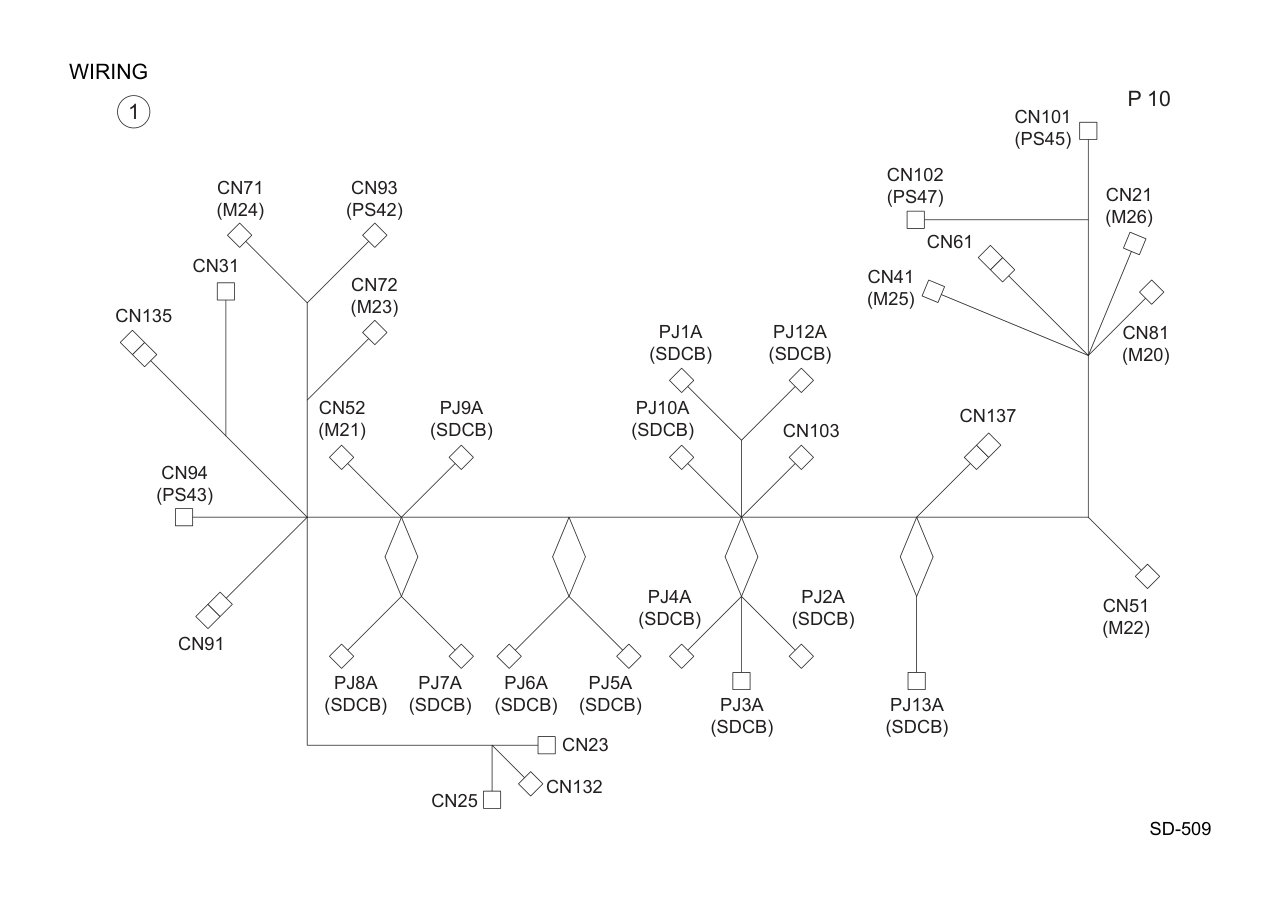

| Wiring 1 A10DN10003 FNS Wiring /1 |  |

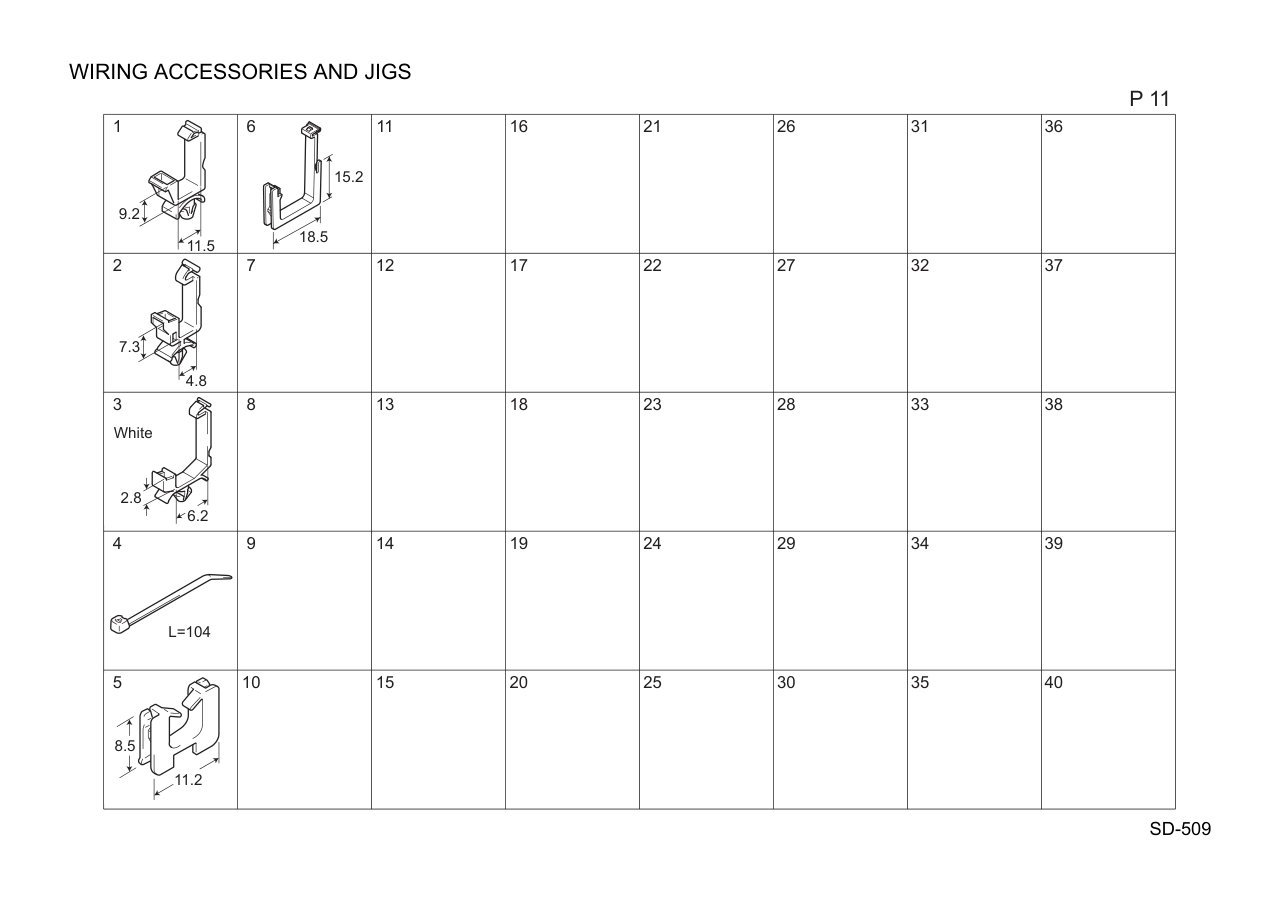

| Wiring Accessories And Jigs 1 V500010005 saddle 2 V500010020 Saddle 3 V500010046 saddle 4 V501010001 band 5 V570010021 Saddle 6 V570010026 saddle |  |

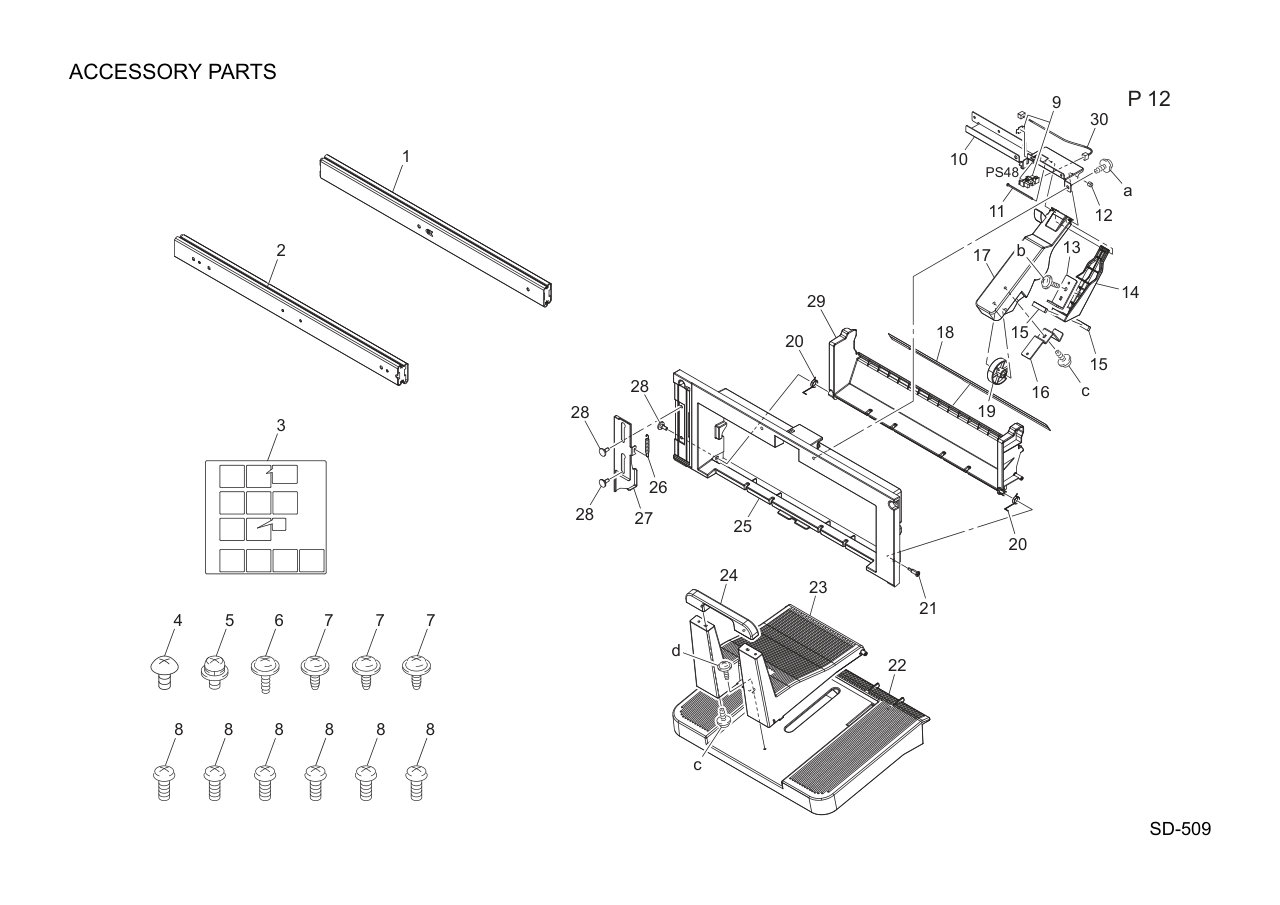

| Accessory Parts 1 A10D400400 Slide Rail /Right 2 129U10322H Slide Rail /Left 3 A10D940000 Label 4 129U10460 STOPPER SCREW 5 V116030603 Screw 6 V153030804 screw 7 V137030803 screw 8 V118040403 screw 9 4037090601 PHOTO INTERRUPTER 10 A10D426100 Mounting Plate 11 1200521304 SHAFT 12 9J08210401 COLLAR 13 A10D427200 Mounting Plate /B 14 A10D427001 Lever /2 15 A10D427300 Cushion 16 A10D427100 Mounting Plate /A 17 A10D425501 Lever /1 18 A10D426400 Sheet 19 A10D425600 Roll 20 A10D426000 Torsion Coil spring 21 4643300701 SHOULDER SCREW 22 A10D425800 Tray /1 23 A10D425701 Tray /2 24 A10D426600 Tray /3 25 A10D424101 Cover 26 A10D424600 Pulling Coil spring 27 A10D424501 Mounting Plate 28 9J07810000 SHOULDER SCREW 29 A10D425901 Guide 30 A10DN10401 FNS Wiring /5 |  |
