HP 9050 Parts






Please call for parts assistance

HP LaserJet 9050
External Covers and Panels Diagram

1
RB2-5676 Tray 1 cover
Fully refurbished with 90-day warranty
RB2-5676



2

3

4
RB2-5684 Right rear cover
Fully refurbished with 90-day warranty
RB2-5684



5
RB2-5685 Left back cover
Fully refurbished with 90-day warranty
RB2-5685



6
RB2-5687 Lower left cover
Fully refurbished with 90-day warranty
RB2-5687
$49.00



7
RB2-5689 Lower right cover
Fully refurbished with 90-day warranty
RB2-5689



8

9
RG5-5701 Rear Cover Assembly
Fully refurbished with 90-day warranty
RG5-5701
$57.00



10
RG5-5702-050CN Front Cover Assembly
Fully refurbished with 90-day warranty
RG5-5702
$56.71



11
RB2-5653 Restraining strap
Fully refurbished with 90-day warranty
RB2-5653



12
RB2-5655 Retaining clip
Fully refurbished with 90-day warranty
RB2-5655



13
RB2-5652 Cover hinge
Fully refurbished with 90-day warranty
RB2-5652



14
RB2-5700 Front cover latch
Fully refurbished with 90-day warranty
RB2-5700


https://www.argecy.com/images/hp_9050_external_covers_panels.jpg

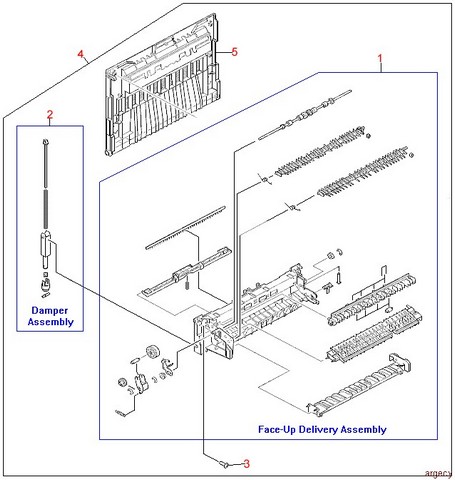

HP LaserJet 9050 Left Door and Diverter Assembly Diagram

1
RG5-5647 Face-Up Delivery Assembly
Fully refurbished with 90-day warranty
RG5-5647
$300.00

Retired, no longer available: Contact for alternatives



2
RG5-5648 Left door damper assembly
Fully refurbished with 90-day warranty
RG5-5648



3 XA9-1189 Machine screw with attached washer - M3, 10mm

4
RG5-5646 Left Door Assembly
Fully refurbished with 90-day warranty
RG5-5646



5
RB2-6007 Left Side Door
Fully refurbished with 90-day warranty
RB2-6007
$38.00


https://www.argecy.com/images/hp_9050_left_door_and_diverter_assembly.jpg

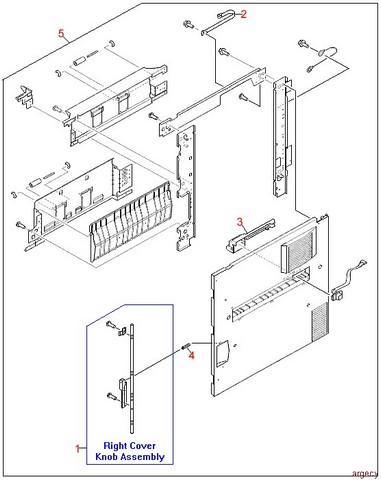

HP LaserJet 9050 Right Side Cover Assembly Diagram

1
RG5-5740 Right Cover Latch Handle Assembly
Fully refurbished with 90-day warranty
RG5-5740
$28.00



2
RB2-5653 Restraining strap
Fully refurbished with 90-day warranty
RB2-5653



3
RB2-5664 Tray 1/MP Tray cable cover
Fully refurbished with 90-day warranty
RB2-5664



4 RS6-2301 Compression spring

5
RG5-5737 Right Cover Assembly
Fully refurbished with 90-day warranty
RG5-5737
$157.00


https://www.argecy.com/images/hp_9050_right_side_cover_assembly.jpg

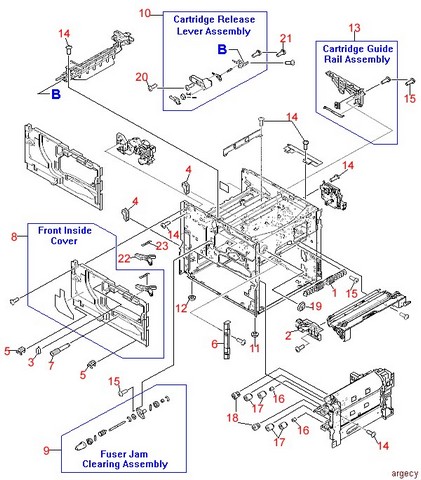

HP LaserJet 9050 Internal Components (1 of 4) Diagram

1 RB2-5522 Paper pickup guide

2
RB2-5526 Cartridge guide
Fully refurbished with 90-day warranty
RB2-5526



3
RB2-5531 Blanking cover
Fully refurbished with 90-day warranty
RB2-5531



4
RB2-5570 Door dampener hinge mount
Fully refurbished with 90-day warranty
RB2-5570



5
RB2-5654 Front cover hinge
Fully refurbished with 90-day warranty
RB2-5654



6
RB2-5697 Right front inside corner cover
Fully refurbished with 90-day warranty
RB2-5697



7
RB2-5845 Jam removal knob
Fully refurbished with 90-day warranty
RB2-5845



8
RG5-5721 Front Inside Cover
Fully refurbished with 90-day warranty
RG5-5721
$34.00



9
RG5-5700-030CN Jam Clearing Assembly - Fuser
Fully refurbished with 90-day warranty
RG5-5700
$39.16



10
RG5-5746 Cartridge release lever assembly
Fully refurbished with 90-day warranty
RG5-5746



11 RB1-6421 Chassis foot

12
RB2-5529 Chassis foot
Fully refurbished with 90-day warranty
RB2-5529



13
RG5-5718 Cartridge guide rail
Fully refurbished with 90-day warranty
RG5-5718



14 XA9-1275 Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess

15 XA9-1276 Wafer head machine screw, clear zinc, 3M X 8mm

16
RB2-5759 Torque limiter
Fully refurbished with 90-day warranty
RB2-5759



17
RF5-3338-000CN Feed/separation/pickup roller
New
RF5-3338 2-Pack (New)
$14.00



18

19
RB2-5547 Left side alignment latch for front door
Fully refurbished with 90-day warranty
RB2-5547



20 XB6-7300-805CN TP Screw - Pan/washer head machine screw - M3X8

21 XB6-7300-605CN TP Screw - Pan/washer head machine screw - M3X6

22
RB2-5528 Connector link
Fully refurbished with 90-day warranty
RB2-5528



23 RS6-2285 Tension spring
https://www.argecy.com/images/hp_9050_internal_components_1.jpg
HP LaserJet 9050 Internal Components (2 of 4) Diagram

1 RB2-5517 Front fusing assembly mount

2
RB2-5515 Front Fusing Rail
Fully refurbished with 90-day warranty
RB2-5515



3
RB2-5516 Rear Fusing Rail
Fully refurbished with 90-day warranty
RB2-5516



4
RB2-5518 Rear fusing assembly mount
Fully refurbished with 90-day warranty
RB2-5518



5
RB2-5523 Fuser electrical contact leaf spring
Fully refurbished with 90-day warranty
RB2-5523



6 XA9-1275 Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess

7
RG5-5724 Fuser Connector Holder Assembly
Fully refurbished with 90-day warranty
RG5-5724
$34.00



8
RG5-8025 Cable Assembly
Fully refurbished with 90-day warranty
RG5-8025



9 RS5-0708 21 tooth gear

10

11
RG5-5651 Transfer Guide Assembly
Fully refurbished with 90-day warranty
RG5-5651
$32.00



12 XA9-1275 Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess

13 XA9-1276 Wafer head machine screw, clear zinc, 3M X 8mm

14 C8519-69033 Fusing Assembly? For 100-127V

RG5-5750 Fuser Assembly, 110V
Fully refurbished with 90-day warranty
RG5-5750
$249.75



15
RG5-5717 Toner cartridge contact assembly
Fully refurbished with 90-day warranty
RG5-5717



16 RS6-2299 Shutter arm spring

17
RB2-5639 Shutter arm
Fully refurbished with 90-day warranty
RB2-5639



18
RB2-5640 Laser shutter
Fully refurbished with 90-day warranty
RB2-5640



19 RS6-2296 Laser shutter spring
https://www.argecy.com/images/hp_9050_internal_components_2.jpg
HP LaserJet 9050 Internal Components (3 of 4) Diagram

1
RB2-5607 Fan cover
Fully refurbished with 90-day warranty
RB2-5607



2 XA9-1275 Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess

3 XA9-1276 Wafer head machine screw, clear zinc, 3M X 8mm

4
RG5-5704 Latch mount assembly
Fully refurbished with 90-day warranty
RG5-5704



5
RG5-5699 End paper sensor assembly
Fully refurbished with 90-day warranty
RG5-5699



6
RG5-5710 Rear pressure mount for toner cartridge
Fully refurbished with 90-day warranty
RG5-5710



7
RG5-5729 Tube Axial Fan
Fully refurbished with 90-day warranty
RG5-5729
$24.00



8
RG5-5715 Right rail assembly
Fully refurbished with 90-day warranty
RG5-5715



9
RG5-5709 Front pressure mount for toner cartridge
Fully refurbished with 90-day warranty
RG5-5709



10 RS6-2302 Compression spring? ON/OFF switch

11
RG5-5826-180CN Laser/Scanner Assembly
Fully refurbished with 90-day warranty
RG5-5826
$128.25



12
RB2-5661 ON/OFF switch push rod
Fully refurbished with 90-day warranty
RB2-5661



13
RG5-5713 Left upper rail assembly
Fully refurbished with 90-day warranty
RG5-5713



14
RG5-5714 Left lower rail assembly
Fully refurbished with 90-day warranty
RG5-5714



15
RG5-7787 Upper cable guide assembly
Fully refurbished with 90-day warranty
RG5-7787


https://www.argecy.com/images/hp_9050_internal_components_3.jpg

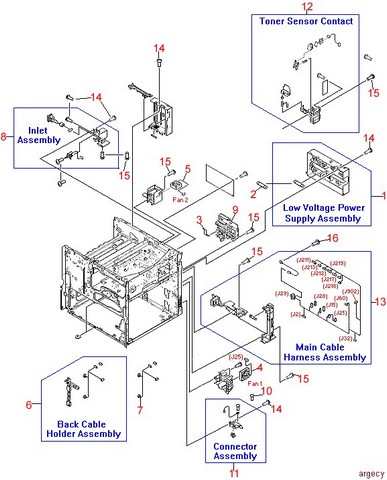

HP LaserJet 9050 Internal Components (4 of 4) Diagram

1 RG5-7779 Low voltage power supply assembly - For 220-240VAC operation - Mounts on the upper rear of the printer

2 VD5-0246 Low voltage power supply fuse - 110V

VD7-0643 Fuse - 3.15A, 250V max - Low voltage power supply fuse - 220V

3 RH2-5445 High voltage power supply ribbon cable

4 RH7-1657 Tube axial fan - (Fan 1)

5 RH7-1623 Controller board tube axial fan

6

7
RG5-7783 Fan Connecting Cable
Fully refurbished with 90-day warranty
RG5-7783



8
RG5-5727 A/C Power Input Receptacle Module And Power Switch
Fully refurbished with 90-day warranty
RG5-5727
$34.00



9 C8519-69015 High voltage power supply board

10 XA9-1200 M3 X 8 Screw

11
RG5-5779 Jet link connector
Fully refurbished with 90-day warranty
RG5-5779



12
RG5-5719-100CN Toner Sensor Contact with Memory (Antenna)
Fully refurbished with 90-day warranty
RG5-5719
$52.66



13
RG5-5722 Main Cable Harness And Holder Assembly
Fully refurbished with 90-day warranty
RG5-5722
$57.00



14 XA9-1275 Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess

15 XA9-1276 Wafer head machine screw, clear zinc, 3M X 8mm

16 XA9-1200 M3 X 8 Screw
https://www.argecy.com/images/hp_9050_internal_components_4.jpg

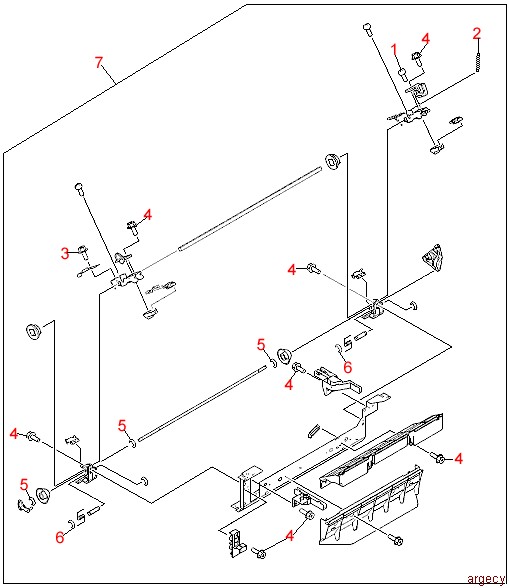

HP LaserJet 9050 Cartridge Lifter Assembly Diagram

1 XA9-0596 M3 X 6 screw

2 RS6-2298 Tension spring

3 XA9-1275 Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess

4 XA9-1276 Wafer head machine screw, clear zinc, 3M X 8mm

5 XD9-0136 Retaining E-ring

6 XD9-0134 E-ring retainer clip - Retaining E-Ring -

7
RG5-5741 Cartridge Lifter Assembly
Fully refurbished with 90-day warranty
RG5-5741
$66.00


https://www.argecy.com/images/hp_9050_printer_cartridge_lifter_assembly.jpg

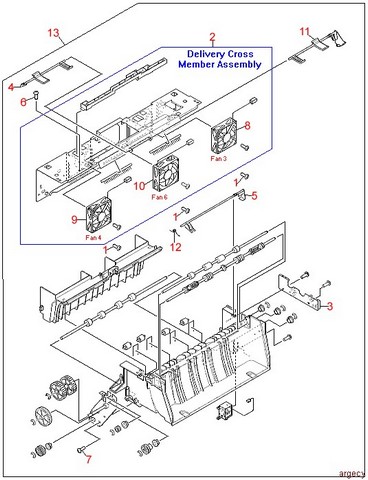

HP LaserJet 9050 Delivery Assembly Diagram

1 XB6-7303 Machine screw - M3, 30mm long with self-tapping threads -

2
RG5-5645-020CN Delivery cross member assembly
Fully refurbished with 90-day warranty
RG5-5645



3
RG5-8013 Delivery assembly PC board
Fully refurbished with 90-day warranty
RG5-8013



4
RB2-6037 Sensor flag
Fully refurbished with 90-day warranty
RB2-6037



5
RB2-6035 Sensor flag
Fully refurbished with 90-day warranty
RB2-6035



6 XA9-1469 Machine screw with attached washer - M3, 10mm -

7 XA9-1500 M3 pan-head Phillips screw with flat washer - 8mm long

8 RH7-1661 Tube axial fan - (Fan 6 - Face down tray) -

9
RB2-6036 Sensor flag
Fully refurbished with 90-day warranty
RB2-6036



10
RB2-6042 Torsion spring
Fully refurbished with 90-day warranty
RB2-6042



11
RG5-5643-080CN Delivery Assembly
Fully refurbished with 90-day warranty
RG5-5643
$236.25


https://www.argecy.com/images/hp_9050_delivery_assembly.jpg

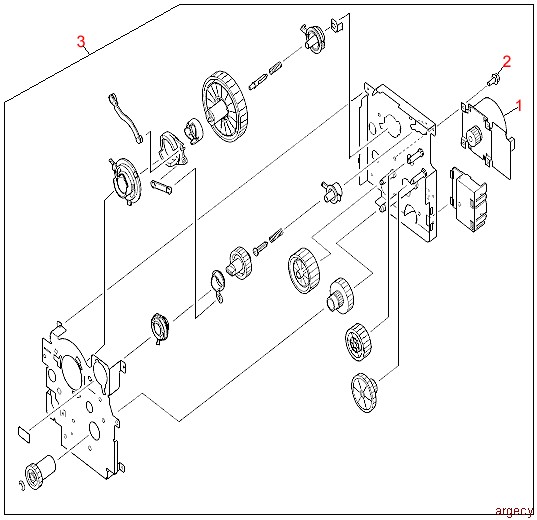

HP LaserJet 9050 Drum Feed Drive Assembly Diagram

1 RH7-1656 Drum feed drive motor

2 XA9-1275 Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess

3
RG5-5656 Drum Feed Drive Assembly
Fully refurbished with 90-day warranty
RG5-5656
$138.00


https://www.argecy.com/images/hp_9050_drum_feed_drive_assembly.jpg

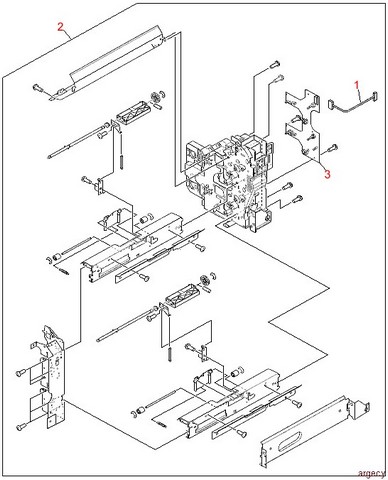

HP LaserJet 9050 Paper Input Unit Diagram

1
RG5-5679 Cable assembly - Paper pickup cable
Fully refurbished with 90-day warranty
RG5-5679



2
RG5-5681-100CN Paper Input Unit
Fully refurbished with 90-day warranty
RG5-5681
$465.75



3
RG5-7896 Paper Pickup Board
Fully refurbished with 90-day warranty
RG5-7896


https://www.argecy.com/images/hp_9050_paper_pickup_assembly.jpg

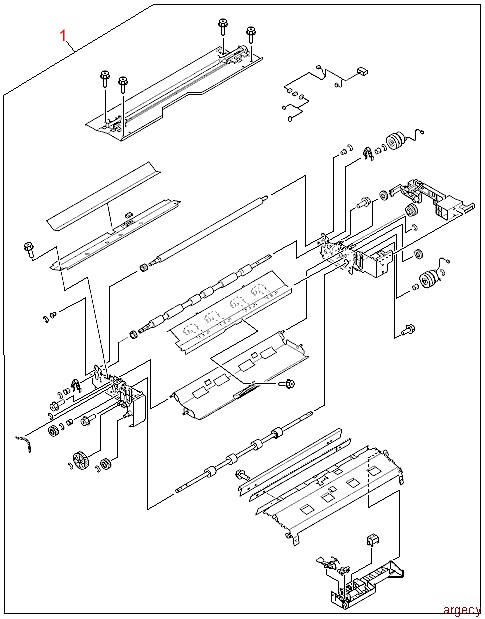

HP LaserJet 9050 Registration Roller Assembly Diagram

1
RG5-5663-000CN Registration assembly
Fully refurbished with 90-day warranty
RG5-5663
$249.00


https://www.argecy.com/images/hp_9050_registration_assembly.jpg

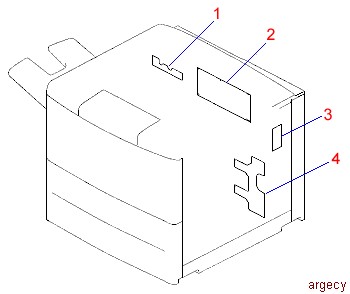

HP LaserJet 9050 PC Board Locations Diagram

1
RG5-7780-070CN DC Controller
Fully refurbished with 90-day warranty
RG5-7780
$101.25



2
RG5-5649 Delivery assembly PC board
Fully refurbished with 90-day warranty
RG5-5649



3

4
RG5-7896 Paper Pickup Board
Fully refurbished with 90-day warranty
RG5-7896


https://www.argecy.com/images/hp_9050_pc_board_locations.jpg

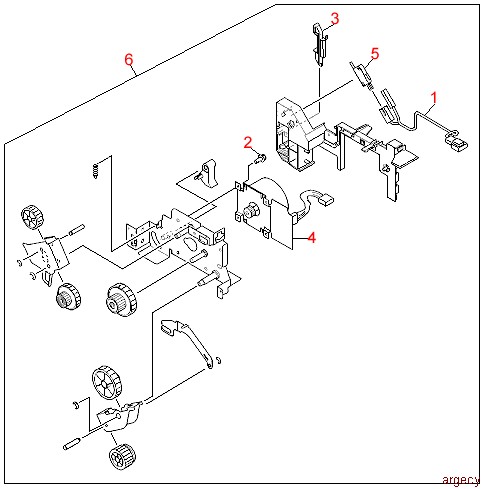

HP LaserJet 9050 Fuser Delivery Drive Assembly Diagram

1
RG5-5770 Cable assembly
Fully refurbished with 90-day warranty
RG5-5770



2 XA9-1275 Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess

3
RB2-6077 Micro switch lever
Fully refurbished with 90-day warranty
RB2-6077



4 RH7-1622 Fuser delivery motor - 24VDC

5 WC4-5171 Fuser delivery drive assembly micro switch

6 RG5-7789 Fuser delivery drive assembly - Includes gears, motor and micro switch for fuser drive - Also drives delivery roller
https://www.argecy.com/images/hp_9050_fuser_delivery_drive_assembly.jpg

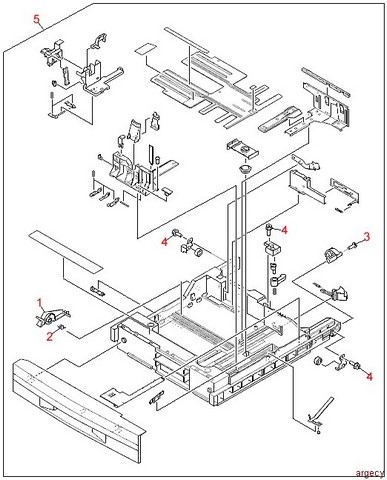

HP LaserJet 9050 500 Sheet Tray Assembly Diagram

1

2
RB2-5816 Torsion spring
Fully refurbished with 90-day warranty
RB2-5816



3 XA9-0668 Machine screw with captured washer - M3 X 29.5mm long

4 XA9-1189 Machine screw with attached washer - M3, 10mm

5
RG5-5635 500-Sheet Paper Input Tray Assembly
Fully refurbished with 90-day warranty
RG5-5635
$114.00


https://www.argecy.com/images/hp_9050_500_sheet_tray_assembly.jpg

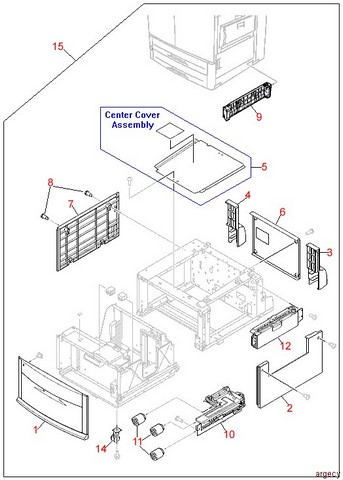

HP LaserJet 9050 Tray 4 Main Body (1 of 2) Diagram

1
RB2-7648 Front cover for the 2000-sheet paper feeder assembly
Fully refurbished with 90-day warranty
RB2-7648
$62.00



2
RB2-7649 Right Cover For The 2000-Sheet Paper Feeder Assembly
Fully refurbished with 90-day warranty
RB2-7649
$38.00



3

4

5

6 RF5-3644 Rear center cover for the 2,000-sheet paper feeder assembly

7 RF5-3645 Left cover for the 2,000-sheet paper feeder assembly

8 RS5-9099 Stepped screw

9

10
RG5-6208-180CN Paper Pickup Assembly HCF
Fully refurbished with 90-day warranty
RG5-6208
$106.66



11 RF5-3338 Feed/separation/pickup roller - Rubber roller on a plastic collar with integrated gear and locking tab

12
RG5-6225 Vertical Registration Assembly
Fully refurbished with 90-day warranty
RG5-6225



14
RB2-7709 Caster
Fully refurbished with 90-day warranty
RB2-7709



15 C8531-69004 2,000-sheet High Capacity Input (HCI) tray assembly
https://www.argecy.com/images/hp_9050_tray_4_main_body_1.jpg

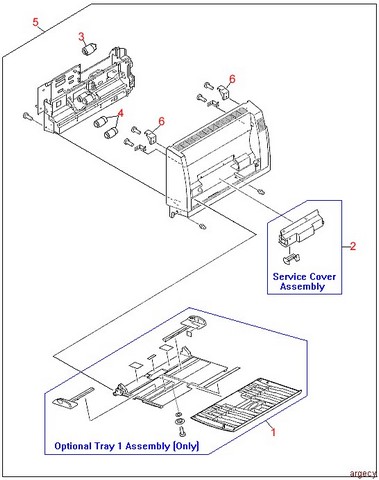

HP LaserJet 9050 Optional Tray 1 Assembly Diagram

1
RG5-5809 Multi-purpose Tray
Fully refurbished with 90-day warranty
RG5-5809



2

3 RF5-3403 Pickup roller for optional Tray 1

4 RF5-3404 Separation roller

5 C8568-69002 Optional Tray 1 assembly

6 RB2-6537 Cover hook
https://www.argecy.com/images/hp_9050_optional_tray_1_assembly.jpg

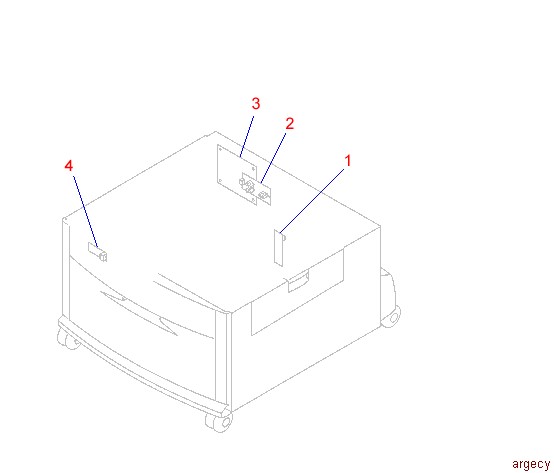

HP LaserJet 9050 Tray 4 PC Board Locations Diagram

1
RG5-6238 Paper Size PC Board
Fully refurbished with 90-day warranty
RG5-6238



2
RG5-6237 Paper Volume PC board
Fully refurbished with 90-day warranty
RG5-6237
$15.00



3
RG5-6235 Controller PC board
Fully refurbished with 90-day warranty
RG5-6235
$195.00



4
https://www.argecy.com/images/hp_9050_tray_4_pc_board_locator.jpg

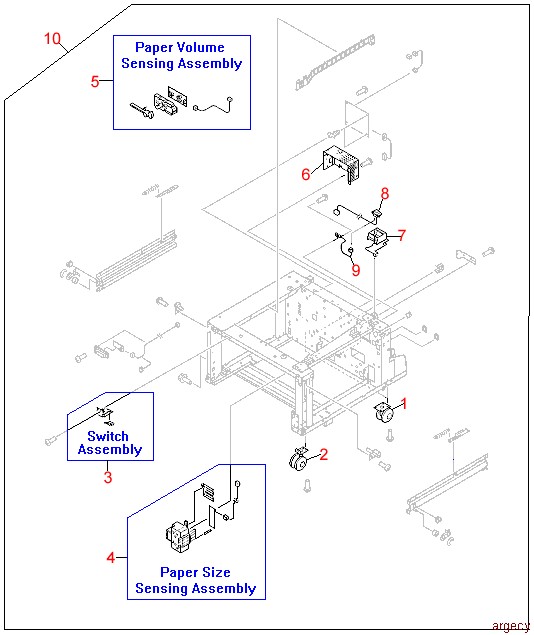

HP LaserJet 9050 Tray 4 Main Body (2 of 2) Diagram

1
RB2-7678 Stationary rear caster
Fully refurbished with 90-day warranty
RB2-7678



2 RB3-0304 Front swivel caster

3
RG5-6206 Switch assembly
Fully refurbished with 90-day warranty
RG5-6206



4
RG5-6207 Paper Size Sensing Assembly
Fully refurbished with 90-day warranty
RG5-6207
$21.00



5
RG5-6229 Paper Volume Sensing Assembly
Fully refurbished with 90-day warranty
RG5-6229
$16.00



6
RG5-6250 Power Supply Assembly
Fully refurbished with 90-day warranty
RG5-6250
$95.00



7

8
RG5-6240 Jet Link Connector Socket And Cable
Fully refurbished with 90-day warranty
RG5-6240
$18.00



9
RG5-6249 Jet link connector grounding cable
Fully refurbished with 90-day warranty
RG5-6249



10 C8531-69004 2,000-sheet High Capacity Input (HCI) tray assembly
https://www.argecy.com/images/hp_9050_tray_4_main_body_2.jpg
