Lexmark 2580 2581 2590 2591 (and +) Parts
Looking for whole machines? Click on the one of the linked models below:
2580 & 2580 plus
2581 & 2581 plus
2590 & 2590 plus
2591 & 2591 plus
Please call for parts assistance

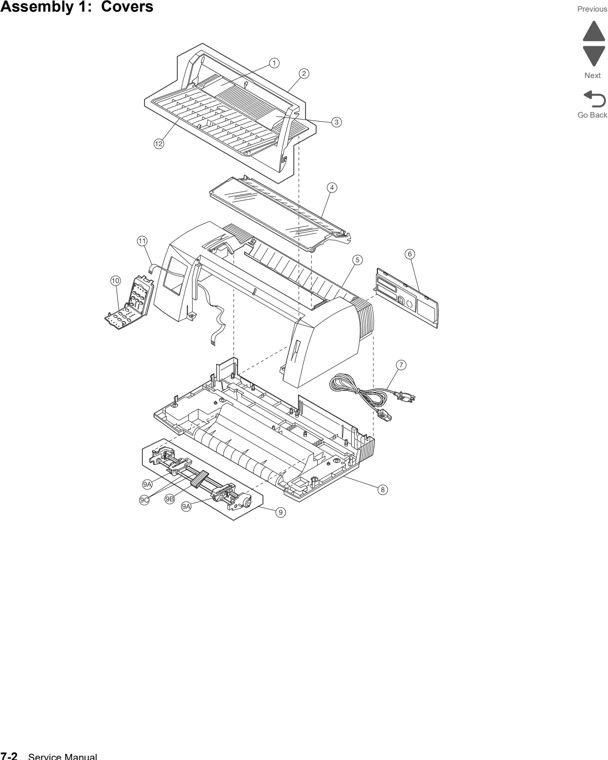

| Assembly 1: Covers 1 40X2912 left paper Next 2 40X2992 assembly, front unit (2580, 2590) Lexmark 40X2992 Front Unit Cover Assembly Narrow New 40X2992 (New) Retired, no longer available: Contact for alternatives Lexmark 40X2992 Front unit cover assembly narrow Fully refurbished with 90-day warranty 40X2992 $73.00 2 40X8449 assembly—flint gray, front unit (2580, 2590) 2 40X2993 assembly, front unit (2581, 2591) Go Back Lexmark 40X2993 Front Unit Cover Assembly Wide Fully refurbished with 90-day warranty 40X2993 $85.00 3 40X2913 right paper 4 40X3013 access cover unit (2580) 4 40X3014 access cover unit (2581) Lexmark 40X3014 Ribbon access unit cover (2481 2581) Fully refurbished with 90-day warranty 40X3014 $42.00 4 40X3025 access cover unit (2590) 4 40X3026 access cover unit (2591) 5 40X7978 top (2580, 2590) Lexmark 40X7978 Top Cover, Narrow (Plus Models) Fully refurbished with 90-day warranty 40X7978 $49.00 5 40X8474 gray, top (2580, 2590) 5 40X7979 top (2581, 2591) Lexmark 40X7979 Top cover, wide (Plus models) New 40X7979 (New) $159.00 Retired, no longer available: Contact for alternatives 6 40X2911 rear (2581, 2591) 6 40X8455 gray, rear 7 40X0297 cord: U.S., AFE (LV), Canada, Central and Lexmark 40X0297 Power cord; 1.8 m, 6 ft. Straight, US, Canada, Latin America, AP Fully refurbished with 90-day warranty 40X0297 7 40X0271 cord: Malaysia, Singapore, United Kingdom Lexmark 40x0271 Power Cord; 2.5m, 8ft. Straight, UK, Ireland, HK, IT New 40x0271 (New) Retired, no longer available: Contact for alternatives 7 40X3141 cord: Austria, Belgium, Brazil, Germany, Lexmark 40x3141 Power cord; 2.5m, 8ft. Europe, Middle East, Indonesia, Africa (HV) New 40x3141 (New) 7 40X0294 cord: Denmark 7 40X0287 cord: Chile, Italy 7 40X0275 cord: Israel Lexmark 40x0275 Power cord; 1.8m, 6ft. Straight, Israel New 40x0275 (New) Retired, no longer available: Contact for alternatives 7 40X0276 cord: South Africa 7 40X0274 cord: Switzerland 7 40X0296 cord: Australia, New Zealand 7 40X1766 cord: Peru 8 40X8032 bottom (2580, 2590) 8 40X8475 gray, bottom (2580, 2590) 8 40X7980 bottom (2581, 2591) 9 40X3002 unit (2580, 2590) Lexmark 40X3002 Tractor unit narrow New 40X3002 (New) Retired, no longer available: Contact for alternatives 9 40X3003 unit (2581, 2591) 9A 40X2918 left and right Lexmark 40X2918 Left And Right Tractors New 40X2918 (New) Retired, no longer available: Contact for alternatives 9B 40X2905 tractor paper Lexmark 40X2905 Tractor paper support New 40X2905 (New) Retired, no longer available: Contact for alternatives 9C 40X3001 set, tractor (2581, 2591) 10 40X7982 panel assembly (258X) Lexmark 40X7982 Operator panel assembly, 258x+ New 40X7982 Plus models only (New) Retired, no longer available: Contact for alternatives 10 40X8476 panel assembly—flint gray (258X) 10 40X7983 panel assembly (259X) Parts catalog 7-3 Lexmark 40X7983 Operator panel assembly, 259x+ New 40X7983 Plus models only (New) Retired, no longer available: Contact for alternatives | ![]() |

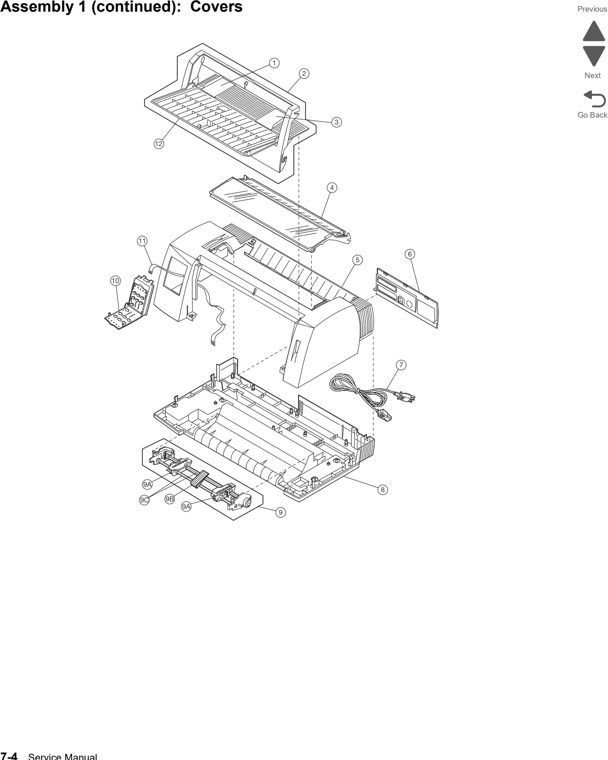

| Assembly 1: Covers 11 40X7984 operator panel Next 12 40X2994 front guide (2580, 2590) 12 40X2995 front guide (2581, 2591) NS 40X2897 operator panel front with overlay packs Go Back Lexmark 40X2897 Operator panel front cover with overlay Fully refurbished with 90-day warranty 40X2897 NS 40X8473 gray, operator panel front with overlay NS 40X2996 pack, operator panel (258X) NS 40X8480 pack—flint gray, all languages NS 40X2937 paper Parts catalog 7-5 | ![]() |

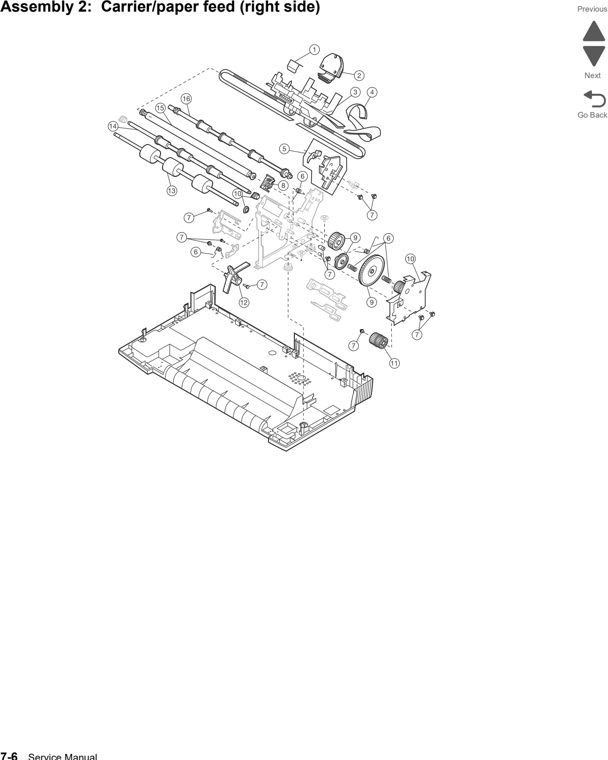

| Assembly 2: Carrier/paper feed (right side) 1 40X2887 roller set Next 2 40X7985 assembly (2580, 2581) Lexmark 40X7985 Printhead assembly, 2580+ 2581+ New 40X7985 PH-9242-02 059356 Plus models only (New) $189.00 2 40X7986 assembly (2590, 2591) 3 40X7987 unit (2580/2590) Go Back Lexmark 40X7987 Carrier unit, narrow New 40X7987 25XX PLUS models only (New) Retired, no longer available: Contact for alternatives Lexmark 40X7987 Carrier unit, narrow Fully refurbished with 90-day warranty 40X7987 25XX PLUS models only 3 40X7988 unit (2581/2591) Lexmark 40X7988 Carrier unit, wide Fully refurbished with 90-day warranty 40X7988 25xx PLUS models only $135.00 4 40X7991 printhead (2580) Lexmark 40X7991 Printhead cable, 2580+ New 40X7991 Plus models only (New) Retired, no longer available: Contact for alternatives 4 40X7992 printhead (2581) Lexmark 40X7992 Printhead cable, 2581+ New 40X7992 Plus models only (New) Retired, no longer available: Contact for alternatives 4 40X7993 printhead (2590) Lexmark 40X7993 Printhead cable, 2590+ New 40X7993 Plus models only (New) Retired, no longer available: Contact for alternatives 4 40X7994 printhead (2591) Lexmark 40X7994 Printhead cable, 2591+ New 40X7994 Plus models only (New) Retired, no longer available: Contact for alternatives 5 40X2931 pull tractor actuator Lexmark 40X2931 Pull Tractor Actuator Kit New 40X2931 (New) Retired, no longer available: Contact for alternatives 6 40X2906 parts packet 7 40X2926 washers and clips, parts packet Lexmark 40X2926 Screws washers and clips Parts Packet Fully refurbished with 90-day warranty 40X2926 $18.55 8 40X2922 Head Gap adjustment 9 40X2910 and bushings, parts packet (258X) 10 40X2980 frame, right side 11 40X2956 idler (2580, 2581) 11 40X2957 idler (2590, 2591) 12 40X2907 Select lever 13 40X2971 lower feed (2581, 2591) Lexmark 40X2971 Lower Feed Roller Wide New 40X2971 (New) Retired, no longer available: Contact for alternatives 13 40X2981 lower feed (2580, 2590) Lexmark 40X2981 Lower Feed Roller Narrow New 40X2981 (New) Retired, no longer available: Contact for alternatives 14 40X3019 lower pinch (2580, 2590) Lexmark 40X3019 Lower pinch roller narrow New 40X3019 (New) Retired, no longer available: Contact for alternatives 14 40X3020 lower pinch (2581, 2591) Lexmark 40X3020 Lower pinch roller wide New 40X3020 (New) Retired, no longer available: Contact for alternatives 15 40X2988 carrier (2580, 2590) Lexmark 40X2988 Carrier Shaft Narrow New 40X2988 (New) Retired, no longer available: Contact for alternatives 15 40X2989 carrier (2581, 2591) Lexmark 40X2989 Carrier Shaft Wide New 40X2989 (New) Retired, no longer available: Contact for alternatives 16 40X2978 upper feed (2580, 2590) Lexmark 40X2978 Upper Feed Roller Narrow New 40X2978 (New) Retired, no longer available: Contact for alternatives 16 40X2979 upper feed (2581, 2591) NS 40X3028 auto feeder assembly (2580, 2590) Lexmark 40X3028 Narrow auto feeder assembly New 40X3028 (New) Retired, no longer available: Contact for alternatives NS 40X3035 dual tractor assembly (2581, 2591) Parts catalog 7-7 Lexmark 40X3035 Wide dual tractor assembly New 40X3035 (New) Retired, no longer available: Contact for alternatives | ![]() |

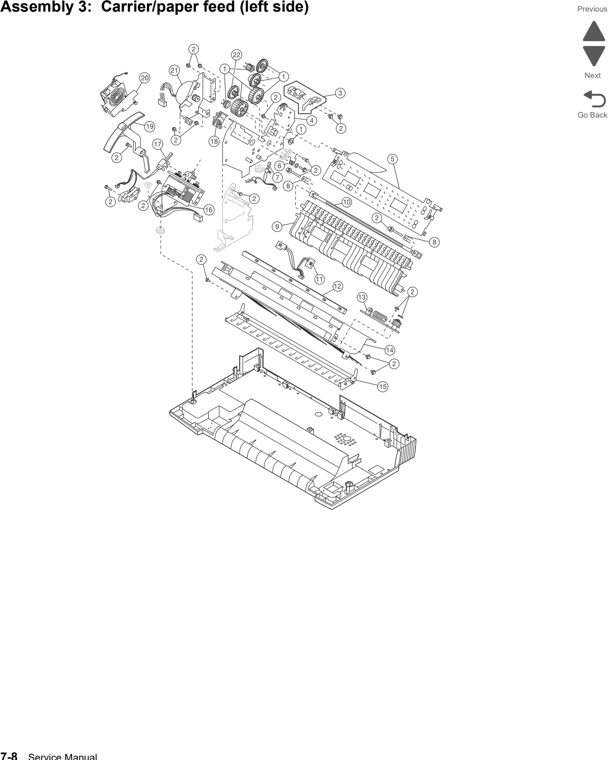

| Assembly 3: Carrier/paper feed (left side) 1 40X2910 and bushings, parts packet (258X) Next 2 40X2926 washers and clips, parts packet Lexmark 40X2926 Screws washers and clips Parts Packet Fully refurbished with 90-day warranty 40X2926 $18.55 3 40X2931 pull tractor actuator Lexmark 40X2931 Pull Tractor Actuator Kit New 40X2931 (New) Retired, no longer available: Contact for alternatives 4 40X2967 left side (2590, 2591) Go Back Lexmark 40X2967 Left Side Frame (249x 259x) New 40X2967 (New) Retired, no longer available: Contact for alternatives 5 40X3008 frame support (2581, 2591) 6 40X2906 parts packet 7 40X7995 pull tractor and paper select 8 40X2908 platen 9 40X2969 paper assembly (2580, 2590) Lexmark 40X2969 Paper Guide Assembly Narrow New 40X2969 (New) Retired, no longer available: Contact for alternatives 9 40X2970 paper assembly (2581, 2591) Lexmark 40X2970 Paper Guide Assembly Wide New 40X2970 (New) Retired, no longer available: Contact for alternatives 10 40X2973 (2580, 2590) Lexmark 40X2973 Platen Narrow New 40X2973 (New) Retired, no longer available: Contact for alternatives 10 40X2974 (2581, 2591) Lexmark 40X2974 Platen Wide New 40X2974 (New) Retired, no longer available: Contact for alternatives 11 40X7998 top-of-form and paper present Lexmark 40X7998 Sensor, top-of-form and paper present New 40X7998 (New) Retired, no longer available: Contact for alternatives 12 40X2986 ribbon drive rack (2580, 2590) 12 40X2987 ribbon drive rack (2581, 2591) 13 40X2977 tension pulley assembly Lexmark 40X2977 Tension Pulley Plate Assembly New 40X2977 (New) Retired, no longer available: Contact for alternatives 14 40X3021 carrier assembly (2580, 2590) 14 40X3022 carrier assembly (2581, 2591) Lexmark 40X3022 Carrier plate assembly wide New 40X3022 (New) Retired, no longer available: Contact for alternatives 15 40X2975 paper (2580, 2590) Lexmark 40X2975 Paper Separator Narrow New 40X2975 (New) Retired, no longer available: Contact for alternatives 15 40X2976 paper (2581, 2591) Lexmark 40X2976 Paper Separator Wide New 40X2976 (New) Retired, no longer available: Contact for alternatives 16 40X8010 carrier (with BKT) Lexmark 40X8010 Carrier motor with BKT New 40X8010 (New) Retired, no longer available: Contact for alternatives 17 40X7997 head gap and home position 18 40X2922 Head Gap adjustment 19 40X2894 Forms Thickness 20 40X8014 fan Lexmark 40X8014 Carrier fan New 40X8014 (New) Retired, no longer available: Contact for alternatives 21 40X8008 paper feed (with BKT) 22 40X2956 idler (258X) Parts catalog 7-9 | ![]() |

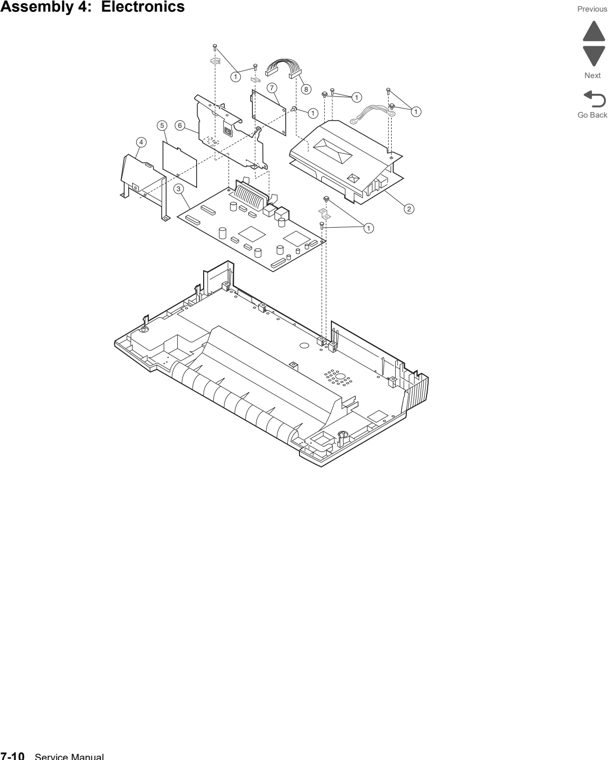

| Assembly 4: Electronics 1 40X2926 washers and clips, parts packet Next Lexmark 40X2926 Screws washers and clips Parts Packet Fully refurbished with 90-day warranty 40X2926 $18.55 2 40X8011 supply unit 3 40X8071 logic (2580) Lexmark 40X8071 Logic board, 2580+ New 40X8071 (New) $225.00 Retired, no longer available: Contact for alternatives 3 40X8073 logic (2581) Go Back Lexmark 40X8073 Logic board, 2581+ New 40X8073 (New) Retired, no longer available: Contact for alternatives 3 40X8075 logic (2590) Lexmark 40X8075 Logic board, 2590+ New 40X8075 (New) Retired, no longer available: Contact for alternatives 3 40X8077 logic (2591) 4 40X2903 serial interface card 5 40X2915 serial interface card 6 40X4968 support frame 7 40X4791 card (INA) 8 40X8069 power supply (2580, 2590) 8 40X8070 power supply (2581, 2591) NS 40X4970 LAN card NS 40X5006 cable NS 40X2909 fuse (LV) NS 40X2930 serial interface card with plate NS 40X2934 interface cable Parts catalog 7-11 | ![]() |

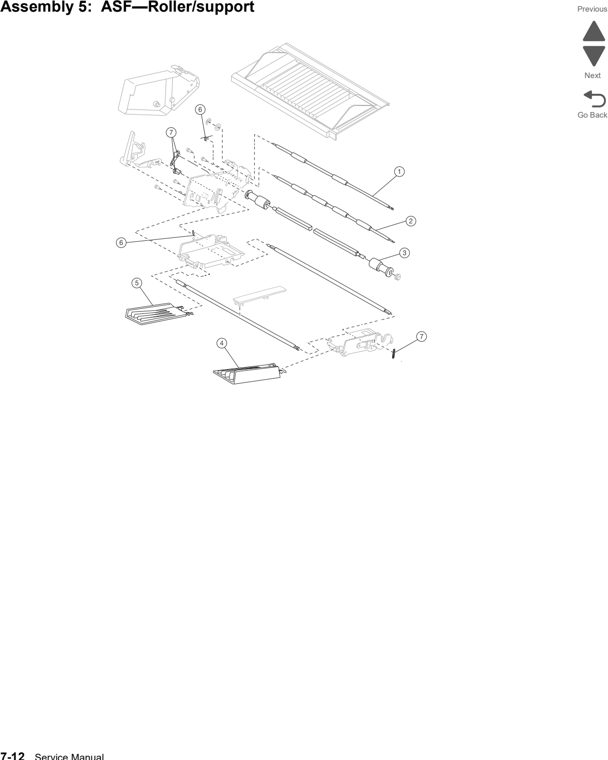

| Assembly 5: ASF—Roller/support 1 40X2888 ASF upper feed (2580, 2590) Next Lexmark 40X2888 ASF Upper Feed Roller Narrow New 40X2888 (New) Retired, no longer available: Contact for alternatives 1 40X3023 ASF upper feed (2581, 2591) Lexmark 40X3023 ASF Upper feed roller - wide New 40X3023 (New) Retired, no longer available: Contact for alternatives 2 40X2889 ASF lower feed (2580, 2590) Lexmark 40X2889 ASF Lower Feed Roller Narrow New 40X2889 (New) Retired, no longer available: Contact for alternatives 3 40X2984 ASF pick-up left and right (2580, 2590) Go Back Lexmark 40X2984 ASF Pickup (left and right) roller - narrow Fully refurbished with 90-day warranty 40X2984 $42.00 Lexmark 40X2984 ASF Pickup (Left And Right) Roller - Narrow New 40X2984 (New) Retired, no longer available: Contact for alternatives 4 40X2985 ASF pick-up left and right (2581, 2591) Lexmark 40X2985 ASF Pickup (left and right) roller - wide New 40X2985 (New) Retired, no longer available: Contact for alternatives Lexmark 40X2985 ASF Pickup (Left And Right) Roller - Wide Fully refurbished with 90-day warranty 40X2985 $28.18 4 40X2927 ASF paper right Lexmark 40X2927 ASF Right Paper support New 40X2927 (New) Retired, no longer available: Contact for alternatives 5 40X2928 ASF paper left Lexmark 40X2928 ASF Left Paper support New 40X2928 (New) Retired, no longer available: Contact for alternatives 6 40X2891 springs, parts packet Lexmark 40X2891 ASF Springs Parts Packet New 40X2891 (New) Retired, no longer available: Contact for alternatives 7 40X3136 gears and bushings, parts packet Parts catalog 7-13 Lexmark 40X3136 ASF Gear bushings and bearing Parts Packet New 40X3136 (New) Retired, no longer available: Contact for alternatives Lexmark 40X3136 ASF Gear bushings and bearing Parts Packet Fully refurbished with 90-day warranty 40X3136 $75.99 | ![]() |

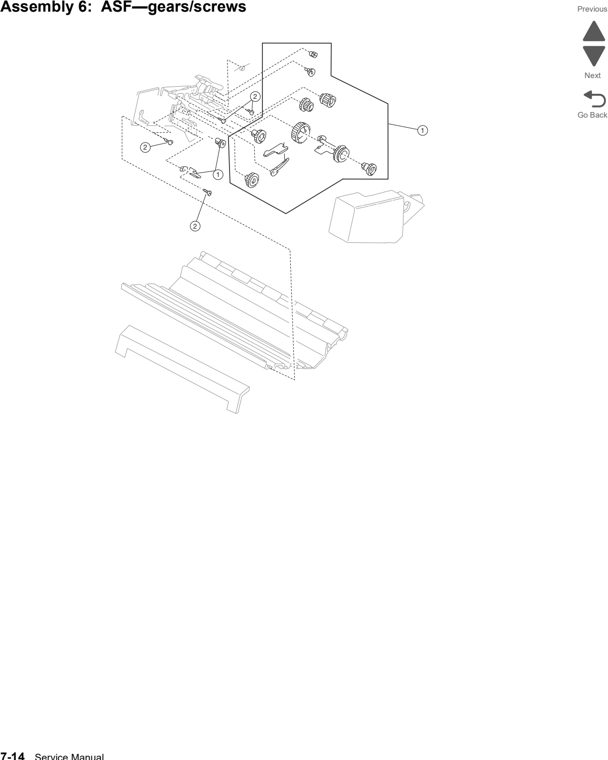

| Assembly 6: ASF—gears/screws 1 40X2890 gears and bushings, parts packet Next Lexmark 40X2890 Assembly for 25xx - +ASF Gears, Screws Parts Packets New 40X2890 (New) Retired, no longer available: Contact for alternatives Lexmark 40X2890 ASF Gears and bushings Parts Packet Fully refurbished with 90-day warranty 40X2890 $79.05 2 40X2892 screws, parts packet Go Back Parts catalog 7-15 | ![]() |

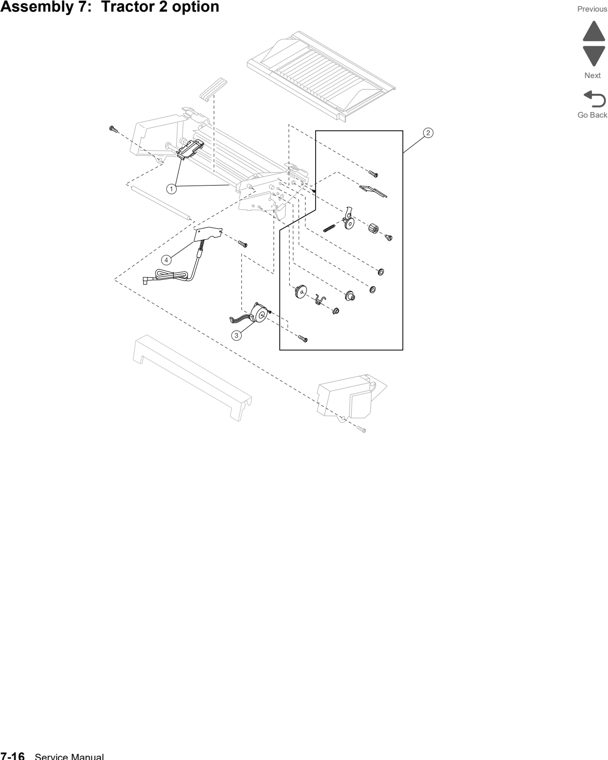

| Assembly 7: Tractor 2 option 1 40X2918 tractors left and right Next Lexmark 40X2918 Left And Right Tractors New 40X2918 (New) Retired, no longer available: Contact for alternatives 2 40X2882 packet, Tractor 2 Lexmark 40X2882 Tractor 2 Parts Packet New 40X2882 (New) Retired, no longer available: Contact for alternatives 3 40X2880 Tractor 2 4 40X2961 assembly with cable and ferrite, Tractor 2 Go Back | ![]() |
| Other listed parts 12G3812 Module EPROM (248X, 258x) 40X2881 Paper guide tractor 40X2886 Power Supply Unit LV 40X2893 Head Gap sensor 40X2895 Left Guide ASF/DTR 40X2896 Right ASF/DTR guide 40X2901 Carrier Motor (With BKT) Lexmark 40X2901 Carrier motor (with BKT) Fully refurbished with 90-day warranty 40X2901 12G3846 $62.00 40X2902 Paper feed motor (with BKT) 40X2914 Operator Panel Cable 40X2916 Left side tractor frame 40X2917 Right Side Tractor Frame 40X2919 Top-Of-Form Sensor 40X2920 Home position sensor 40X2923 Tractor 2 Right cover 40X2924 ASF Left Side Frame 40X2929 ASF Left Hopper Lexmark 40X2929 ASF Left Hopper New 40X2929 (New) Retired, no longer available: Contact for alternatives 40X2932 ASF Paper load lever 40X2933 ASF Paper load link 40X2935 ASF Left Cover 40X2936 ASF Right Cover Lexmark 40X2936 ASF Right Cover New 40X2936 (New) $26.00 Retired, no longer available: Contact for alternatives 40X2938 Pull tractor sensor 40X2939 Paper select sensor 40X2948 Carrier Unit (2480 2580) 40X2949 Carrier Unit (2481 2581 40X2950 Carrier Unit (2490 2590) 40X2951 Carrier Unit (2491 2591) 40X2952 Printhead Cable (2480 2580) 40X2953 Printhead Cable (2481 2581) Lexmark 40X2953 Printhead Cable (2481 2581) Fully refurbished with 90-day warranty 40X2953 12G3888 $25.00 40X2954 Printhead Cable (2490 2590) 40X2955 Printhead Cable (2491 2591) 40X2958 Tractor 2 Support Shaft - Narrow Lexmark 40X2958 Tractor 2 support shaft - Narrow Fully refurbished with 90-day warranty 40X2958 $22.31 40X2959 Tractor 2 Support Shaft - Wide 40X2960 Tractor 2 Board Assembly With Cable And Ferrite - Narrow Lexmark 40X2960 New Tractor 2 Board Assembly With Cable And Ferrite - Narrow New 40X2960 (New) $82.57 Lexmark 40X2960 Tractor 2 Board Assembly with cable and Ferrite - Narrow Fully refurbished with 90-day warranty 40X2960 $67.35 40X2962 Operator Panel Assembly (248x 258x) Lexmark 40X2962 Operator Panel Assembly (248x 258x) Fully refurbished with 90-day warranty 40X2962 $51.00 40X2963 Operator Panel Assembly (249x 259x) Lexmark 40X2963 Operator panel assembly (249x 259x) Fully refurbished with 90-day warranty 40X2963 $33.00 40X2964 Module EPROM (249X 259x) 40X2965 ASF Cut Sheet Support With Guides Narrow Lexmark 40X2965 ASF cut sheet support with guides narrow Fully refurbished with 90-day warranty 40X2965 $66.46 40X2966 Left Side Frame (248x 258x) 40X2968 Right Side Frame Lexmark 40X2968 Right Side Frame New 40X2968 (New) Retired, no longer available: Contact for alternatives 40X2972 Paper Present Sensor Lexmark 40X2972 Paper Present Sensor New 40X2972 (New) Retired, no longer available: Contact for alternatives 40X2982 ESD Ground Kit (248x 258x) 40X2983 ESD Ground Kit (249x 259x) 40X2997 Operator panel overlay pack (249x 259x) Lexmark 40X2997 Operator panel overlay pack (249x 259x) Fully refurbished with 90-day warranty 40X2997 $12.78 40X2998 Printhead Assembly (248x, 258x) Lexmark 40X2998 Printhead Assembly (248x, 258x) Fully refurbished with 90-day warranty 40X2998 Advanced Exchange 40X2999 Printhead Assembly (249x 259x) 40X3000 Tractor shaft set narrow 40X3004 ASF Right Hopper - wide 40X3007 Frame support plate narrow 40X3009 Tractor And Frame Assembly Tractor 2 Narrow Lexmark 40X3009 Tractor and frame assembly Tractor 2 narrow Fully refurbished with 90-day warranty 40X3009 $240.15 40X3010 Right Lower pinch roller shaft holder Lexmark 40X3010 Right Lower pinch roller shaft holder Fully refurbished with 90-day warranty 40X3010 40X3011 ASF Right side Frame 40X3015 Power supply cable narrow 40X3016 Cable, power supply (2581, 2591) 40X3017 ASF cut sheet support with guides wide 40X3018 Tractor 2 paper table with guides narrow Lexmark 40X3018 Tractor 2 paper table with guides narrow Fully refurbished with 90-day warranty 40X3018 $61.55 40X3024 ASF Lower feed roller - wide 40X3029 Narrow Dual Tractor Assembly 40X3030 12G3812 Module EPROM (248X, 258x) Lexmark 40X3030 12G3812 Module EPROM (248X, 258x) Fully refurbished with 90-day warranty 40X3030 $29.97 40X3034 Wide auto feeder assembly 40X4960 Logic board 2580 LV 40X4962 Logic board 2581 LV 40X4964 Logic board 2590 LV 40X4966 Logic board 2591 LV 40X4969 INA support plate 40X4972 Bottom Cover narrow 40X4973 Bottom Cover wide 40X4974 Top Cover narrow 40X4975 Top Cover wide |
