Assembly 1: 2-line control panel
1 41X2070 CS321 control panel badge cover
1 41X2127 SC2325 control panel badge cover
Lexmark 41X2127 C2325 control panel badge cover
Fully refurbished with 90-day warranty
41X2127




2 41X2044 2-line control panel bezel
Lexmark 41X2044 2-line Control Panel Bezel
Fully refurbished with 90-day warranty
41X2044




3 41X2047 2-line control panel assembly
Lexmark 41X2047 Control panel display assembly
Fully refurbished with 90-day warranty
41X2047



4 41X2045 2-line control panel top cover
Lexmark 41X2045 2-line Control Panel Top Cover
Fully refurbished with 90-day warranty
41X2045




5 41X2046 2-line control panel ribbon cable
Lexmark 41X2046 2-line Control Panel Ribbon Cable
Fully refurbished with 90-day warranty
41X2046




6 41X1305 2-line control panel base cover Parts catalog
Lexmark 41X1305 2-line Control Panel Base Cover
Fully refurbished with 90-day warranty
41X1305

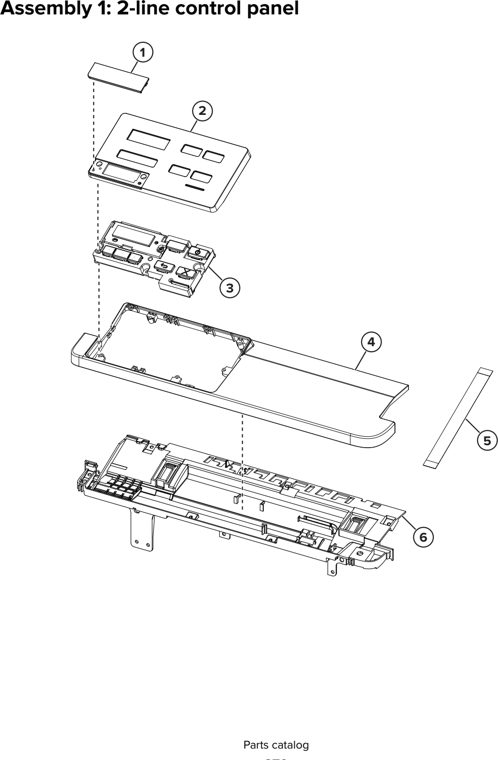

Assembly 1: 2-line control panel parts diagram - Lexmark CS421 CS521 CS622 C2240 C2325 C2425 C2535 Parts
Assembly 2: 2.4-inch and 4.3-inch control panel
1 41X2049 CS421 control panel badge cover

1 41X2050 CS521 control panel badge cover

1 41X2132 SC2425 control panel badge cover

1 41X2133 SC2535 control panel badge cover

2 41X1304 2.4-inch control panel bezel (CS421, C2425, CS521, and CS2535)

3 41X1627 2.4-inch control panel assembly (CS421, C2425, CS521, and CS2535)
Lexmark 41X1627 Control panel display assembly
Fully refurbished with 90-day warranty
41X1627



4 41X1308 Headphone cable
Lexmark 41X1308 Headphone cable
New
41X1308 (New)
$23.38


Lexmark 41X1308 Headphone cable
Fully refurbished with 90-day warranty
41X1308



5 41X1309 2.4‑inch control panel FFC (CS421, C2425, CS521, and CS2535)

5 41X2021 4.3-inch control panel FFC (CS622 and CS2240)
Lexmark 41X2021 4.3-inch Control Panel FFC
Fully refurbished with 90-day warranty
41X2021
$10.39



6 41X2021 Control panel ribbon cable
Lexmark 41X2021 4.3-inch Control Panel FFC
Fully refurbished with 90-day warranty
41X2021
$10.39



7 41X1307 USB cable
Lexmark 41X1307 USB cable
New
41X1307 (New)
$19.09


Lexmark 41X1307 USB cable
Fully refurbished with 90-day warranty
41X1307



8 41X1305 Control panel base cover
Lexmark 41X1305 2-line Control Panel Base Cover
Fully refurbished with 90-day warranty
41X1305




9 41X1306 4.3-inch control panel top cover (CS622 and CS2240)
Lexmark 41X1306 4.3-inch Control Panel Top Cover
Fully refurbished with 90-day warranty
41X1306



10 41X2113 4.3-inch control panel assembly (CS622 and CS2240)
Lexmark 41X2113 4.3-inch Control Panel Assembly
New
41X2113 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$203.13


Lexmark 41X2113 4.3-inch Control Panel Assembly
Fully refurbished with 90-day warranty
41X2113



11 41X1302 4.3-inch control panel bezel (CS622 and CS2240)
Lexmark 41X1302 4.3-inch Control Panel Bezel
Fully refurbished with 90-day warranty
41X1302



12 41X2115 4.3-inch control panel keyboard cover without volume (CS622 and CS2240)


13 41X1310 4.3-inch control panel keyboard cover (CS622 and CS2240)
Lexmark 41X1310 4.3-inch Control Panel Keyboard Cover
Fully refurbished with 90-day warranty
41X1310
$6.57



14 41X2048 CS622 control panel badge cover Parts catalog
Lexmark 41X2048 Control Panel Badge Cover
Fully refurbished with 90-day warranty
41X2048



14 41X2134 C2240 control panel badge cover

NS 41X2119 Control panel power cable Parts catalog

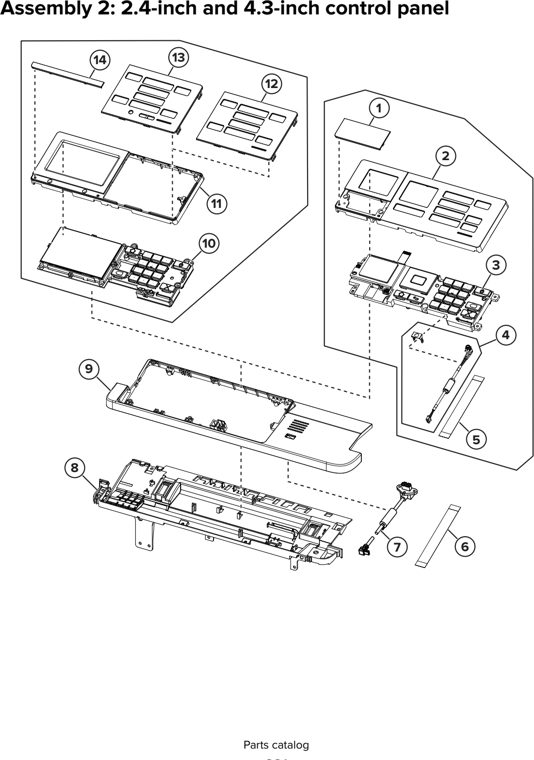

Assembly 2: 2.4-inch and 4.3-inch control panel parts diagram - Lexmark CS421 CS521 CS622 C2240 C2325 C2425 C2535 Parts
Assembly 3: Covers
1 40X7633 Top cover
Lexmark 40X7633 Top cover assembly
New
40X7633 (New)
$38.13


Lexmark 40X7633 Top cover assembly
Fully refurbished with 90-day warranty
40X7633
$22.50



2 40X7621 Toner cover
Lexmark 40X7621 Toner supply door
New
40X7621 (New)
$17.13


Lexmark 40X7621 Toner supply door
Fully refurbished with 90-day warranty
40X7621
$13.03



3 40X9244 Front toner door bracket
Lexmark 40X9244 Front toner door pivot Bracket
Fully refurbished with 90-day warranty
40X9244
$3.25



4 41X0397 System fan
Lexmark 41X0397 Main fan
New
41X0397 (New)
$39.36


Lexmark 41X0397 Main fan
Fully refurbished with 90-day warranty
41X0397



5 41X2100 Rear cover, CS62x
Lexmark 41X2100 Rear cover
New
41X2100 (New)
$30.80



5 41X1788 Rear cover, CS3x, CS4x, CS52x
Lexmark 41X1788 Rear cover
New
41X1788 (New)
$29.86


Lexmark 41X1788 Rear cover
Fully refurbished with 90-day warranty
41X1788



6 40X7630 Right cover
Lexmark 40X7630 Right cover assembly
New
40X7630 (New)

Retired, no longer available: Contact for alternatives


Lexmark 40X7630 Right cover assembly
Fully refurbished with 90-day warranty
40X7630
$18.38



7 41X1285 250-sheet tray assembly
Lexmark 41X1285 250-sheet tray assembly
New
41X1285 (New)
$95.50


Lexmark 41X1285 250-sheet tray assembly
Fully refurbished with 90-day warranty
41X1285



8 40X7619 Door straps
Lexmark 40X7619 Front cover straps
New
40X7619 (New)
$3.33


Lexmark 40X7619 Front cover straps
Fully refurbished with 90-day warranty
40X7619



9 41X1286 Front door assembly
Lexmark 41X1286 Front Door Assembly
New
41X1286 (New)
$78.14


Lexmark 41X1286 Front Door Assembly
Fully refurbished with 90-day warranty
41X1286



10 41X1305 Control pane base
Lexmark 41X1305 2-line Control Panel Base Cover
Fully refurbished with 90-day warranty
41X1305




11 41X1291 Left cover Parts catalog
Lexmark 41X1291 Left Cover
New
41X1291 (New)
$48.35


Lexmark 41X1291 Left Cover
Fully refurbished with 90-day warranty
41X1291

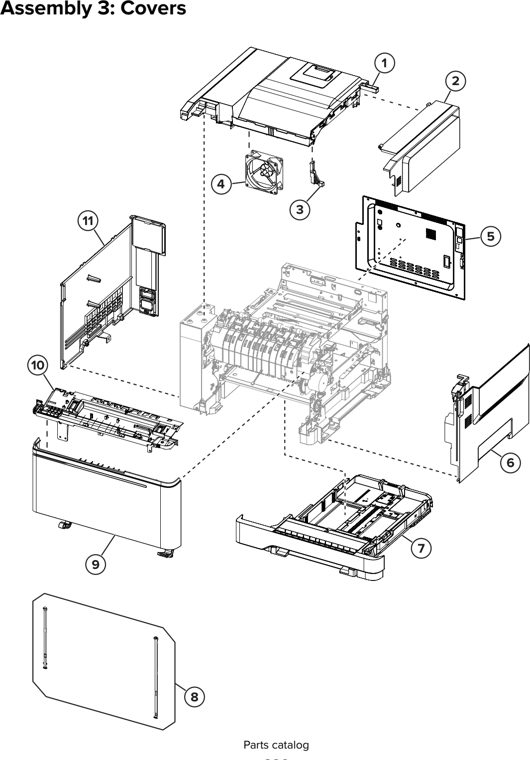

Assembly 3: Covers parts diagram - Lexmark CS421 CS521 CS622 C2240 C2325 C2425 C2535 Parts
Assembly 4: Paper path and frame
1 41X2305 Fuser deflector
Lexmark 41X2305 Fuser deflector
New
41X2305 (New)
$17.14


Lexmark 41X2305 Fuser deflector
Fully refurbished with 90-day warranty
41X2305



2 41X2349 Narrow media/bin full flag
Lexmark 41X2349 Narrow Media/Bin Full Flag
Fully refurbished with 90-day warranty
41X2349



3 41X2350 Right deflector flag
Lexmark 41X2350 Right Deflector Flag
New
41X2350 (New)
$15.35


Lexmark 41X2350 Right Deflector Flag
Fully refurbished with 90-day warranty
41X2350



4 41X1041 110 V Fuser
Lexmark 41X1041 110 V Fuser
New
41X1041 (New)
$225.00


Lexmark 41X1041 110 V Fuser
Fully refurbished with 90-day warranty
41X1041



4 41X1300 220 V Fuser
4 41X1299 100 V Fuser
Lexmark 41X1299 100 V Fuser
Fully refurbished with 90-day warranty
41X1299



5 41X1040 Printhead
Lexmark 41X1040 Printhead
New
41X1040 (New)
$303.87


Lexmark 41X1040 Printhead
Fully refurbished with 90-day warranty
41X1040
$154.50



6 40X7629 Motor (fuser drive)
Lexmark 40X7629 Fuser drive motor assembly
Fully refurbished with 90-day warranty
40X7629
$11.50



7 41X2327 Subframe cable cover
Lexmark 41X2327 Subframe Cable Cover
New
41X2327 (New)
$17.14


Lexmark 41X2327 Subframe Cable Cover
Fully refurbished with 90-day warranty
41X2327



8 41X1312 Lower right subframe
Lexmark 41X1312 Lower Right Subframe
New
41X1312 (New)
$34.00


Lexmark 41X1312 Lower Right Subframe
Fully refurbished with 90-day warranty
41X1312



9 40X5168 Pick tires
Lexmark 40X5168 Pick Tires
New
40X5168 Set of Two (New)
$13.93


Lexmark 40X5168 Pick Tires
New
40X5168 Set of Two Compatible (New)



10 41X1292 Media feeder
Lexmark 41X1292 Media Feeder
New
41X1292 (New)
$91.90


Lexmark 41X1292 Media Feeder
Fully refurbished with 90-day warranty
41X1292
$59.00



11 41X1039 Transfer module
12 41X0580 Transfer module guide
Lexmark 41X0580 ITU guide
Fully refurbished with 90-day warranty
41X0580



13 41X2326 Lower left subframe
Lexmark 41X2326 Lower Left Subframe
New
41X2326 (New)
$24.90


Lexmark 41X2326 Lower Left Subframe
Fully refurbished with 90-day warranty
41X2326



14 41X1289 EP drive assembly
Lexmark 41X1289 EP Drive Assembly
New
41X1289 (New)
$194.68


Lexmark 41X1289 EP Drive Assembly
Fully refurbished with 90-day warranty
41X1289



NS 41X2360 Sub‑frame foot Parts catalog
Lexmark 41X2360 Sub-frame Foot
New
41X2360 (New)
$12.38


Lexmark 41X2360 Sub-frame Foot
Fully refurbished with 90-day warranty
41X2360

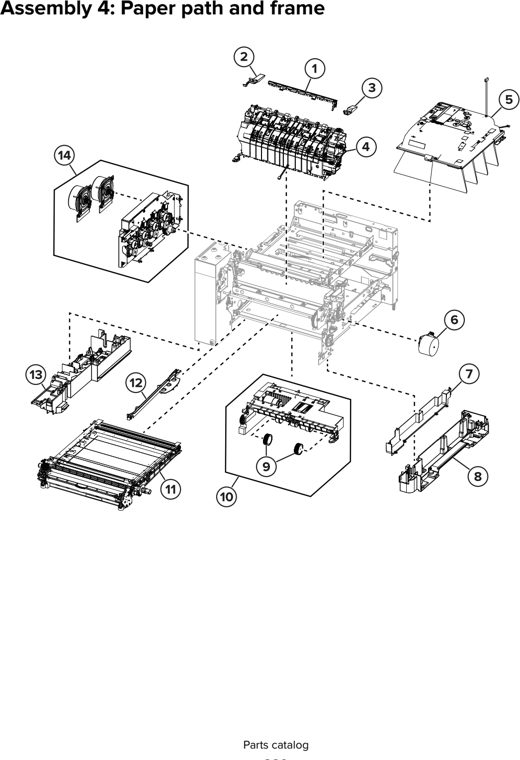

Assembly 4: Paper path and frame parts diagram - Lexmark CS421 CS521 CS622 C2240 C2325 C2425 C2535 Parts
Assembly 5: Electronics
1 41X1789 Controller board (CS421 and C2425)
Lexmark 41X1789 Controller board
New
41X1789 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$353.50



1 41X2098 Controller board (CS521 and CS2535)
Lexmark 41X2098 Controller board (and C2535)
New
41X2098 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$392.50



1 41X1790 Controller board (CS622 and CS2240)
Lexmark 41X1790 Controller board (CS622 and C2240)
New
41X1790 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$392.00


Lexmark 41X1790 Controller board (and C2240)
Fully refurbished with 90-day warranty
41X1790



1 41X2140 Controller board (CS2325)
Lexmark 41X2140 Controller board (C2325)
New
41X2140 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$392.50


Lexmark 41X2140 Controller board (C2325)
Fully refurbished with 90-day warranty
41X2140



2 40X7620 Toner meter card
Lexmark 40X7620 Toner meter cycle card assembly
Fully refurbished with 90-day warranty
40X7620
$23.02



3 41X1042 High voltage power supply
Lexmark 41X1042 High Voltage Power Supply
Fully refurbished with 90-day warranty
41X1042
$112.00



4 40X7301 Photo sensors: (cid:129) Sensor (tray present) (cid:129) Sensor (duplex) (cid:129) Sensor (narrow media/bin full)


5 41X1290 Weather station
Lexmark 41X1290 Weather Station
Fully refurbished with 90-day warranty
41X1290



6 40X5413 Sensor (fuser exit)
Lexmark 40X5413 Fuser exit sensor
Fully refurbished with 90-day warranty
40X5413



7 41X2019 110 W low-voltage power supply (CS2325)


7 41X1043 175 W low voltage power supply ( CS421, C2425, CS521, CS2535, CS622 and CS2240)
Lexmark 41X1043 Advanced Exchange 175 W Low Voltage Power Supply
New
41X1043 Advanced exchange (New)
$209.00


Lexmark 41X1043 175 W Low Voltage Power Supply
Fully refurbished with 90-day warranty
41X1043
$206.50



NS 41X1311 Speaker (CS622)
Lexmark 41X1311 Speaker
Fully refurbished with 90-day warranty
41X1311
$9.54

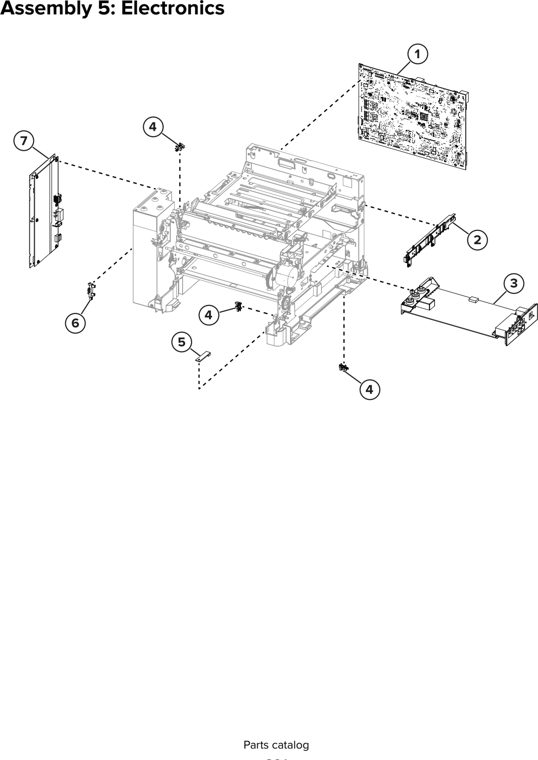

Assembly 5: Electronics parts diagram - Lexmark CS421 CS521 CS622 C2240 C2325 C2425 C2535 Parts

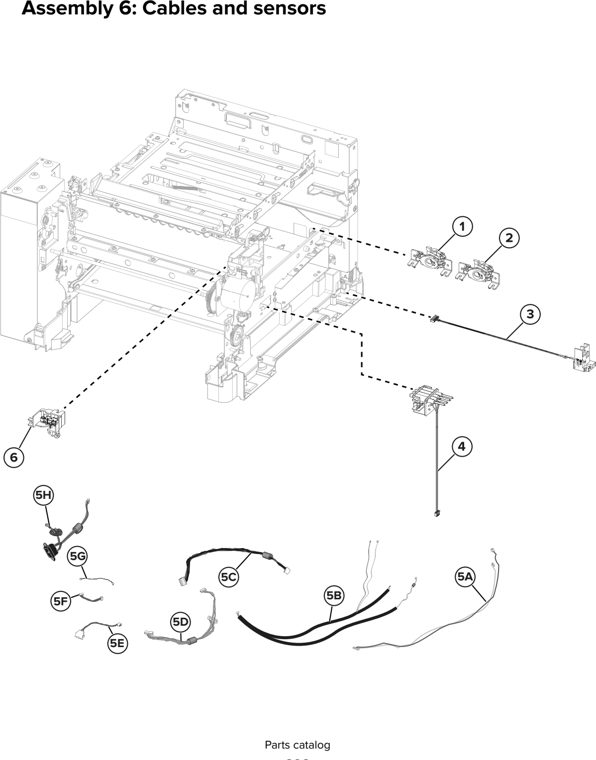

Assembly 6: Cables and sensors
1 41X1904 Sensor (left toner patch with thermistor)

2 41X2348 Sensor (right toner patch with thermistor)

3 41X1722 Waste toner bottle contact block
Lexmark 41X1722 Waste toner bottle contact block
Fully refurbished with 90-day warranty
41X1722



4 41X1723 Toner cartridge contact
Lexmark 41X1723 Toner cartridge contact
Fully refurbished with 90-day warranty
41X1723



5A 41X2328 Fuser exit narrow media to controller board

5B 41X2329 Fuser/input sensor cable
Lexmark 41X2329 Fuser/input sensor cable
Fully refurbished with 90-day warranty
41X2329



5C 41X2332 LVPS to controller board cable
Lexmark 41X2332 LVPS to controller board cable
Fully refurbished with 90-day warranty
41X2332



5D 41X2330 EP motor to controller board cable
Lexmark 41X2330 EP motor to controller board cable
Fully refurbished with 90-day warranty
41X2330



5E 41X2335 Tray 2 to controller board cable
Lexmark 41X2335 Tray 2 to controller board cable
Fully refurbished with 90-day warranty
41X2335



5F 41X2334 HVPS to controller board cable --
Lexmark 41X2334 HVPS to controller board cable
Fully refurbished with 90-day warranty
41X2334



5G 41X2336 Tray present sensor cable
Lexmark 41X2336 Tray present sensor cable
Fully refurbished with 90-day warranty
41X2336



5H 41X2331 AC power to LVPS cable
Lexmark 41X2331 AC power to LVPS cable
Fully refurbished with 90-day warranty
41X2331



6 41X1561 Front and right side interlock switch cover assembly

NS 41X2333 Weather station cable
Lexmark 41X2333 Weather Station Cable
Fully refurbished with 90-day warranty
41X2333



Assembly 6: Cables and sensors parts diagram - Lexmark CS421 CS521 CS622 C2240 C2325 C2425 C2535 Parts
Assembly 7: Option trays
1 41X1783 Optional 650-sheet duo tray
Lexmark 41X1783 Optional 650-sheet duo tray
Fully refurbished with 90-day warranty
41X1783



2 40X5168 Pick tires
Lexmark 40X5168 Pick Tires
New
40X5168 Set of Two (New)
$13.93


Lexmark 40X5168 Pick Tires
New
40X5168 Set of Two Compatible (New)



3 41X1784 650-sheet duo tray insert
Lexmark 41X1784 650-sheet duo tray insert
Fully refurbished with 90-day warranty
41X1784



4 40X7178 650-sheet duo tray MPF --
SaleLexmark 40X7178 MPF pick tire roll with wear strips
Fully refurbished with 90-day warranty
40X7178



5 41X1780 550-sheet tray
Lexmark 41X1780 550-sheet tray
Fully refurbished with 90-day warranty
41X1780



6 41X1781 550‑sheet tray insert -- Parts catalog
Lexmark 41X1781 550-sheet tray insert
Fully refurbished with 90-day warranty
41X1781

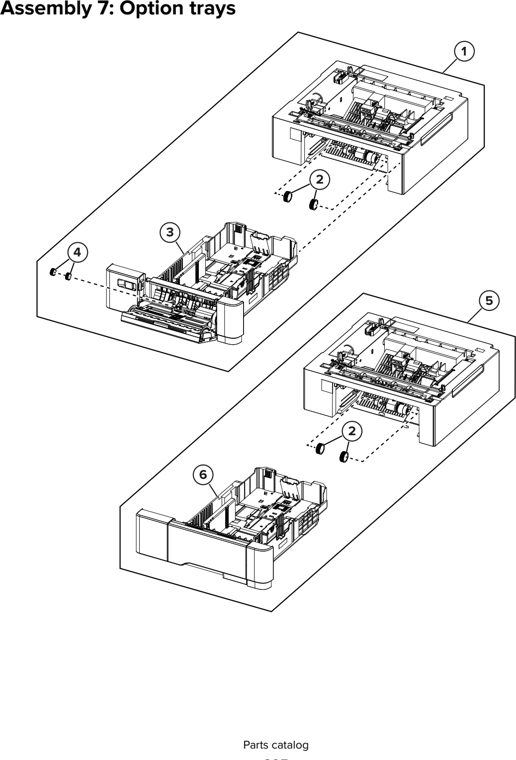

Assembly 7: Option trays parts diagram - Lexmark CS421 CS521 CS622 C2240 C2325 C2425 C2535 Parts
Assembly 8: Miscellaneous
NS 41X2096 115 V Fuser maintenance kit

NS 41X2097 230 V Fuser maintenance kit
NS 41X2095 100 V Fuser maintenance kit
NS 40X9934 320 GB SATA hard disk drive
Lexmark 40X9934 500GB SATA Hard disk
New
40X9934 (New)
$299.00


Lexmark 40X9934 500GB SATA Hard disk
Fully refurbished with 90-day warranty
40X9934
$161.00



NS 41X1373 SATA hard disk drive with FIPS
Lexmark 41X1373 Hard disk drive SATA with FIPS
Fully refurbished with 90-day warranty
41X1373



NS 41X1873 Wireless network card cardlet without cable
Lexmark 41X1873 Wireless module
New
41X1873 (New)
$92.34



NS 41X1871 1 port vertical fax card
Lexmark 41X1871 1 port vertical fax card
New
41X1871 (New)
$152.86


Lexmark 41X1871 1 port vertical fax card
Fully refurbished with 90-day warranty
41X1871



NS 40X4823 1284-B THCK parallel adapter
Lexmark 40X4823 Parallel 1284-B interface card
Fully refurbished with 90-day warranty
40X4823
$80.00



NS 41X1945 N8230 fiber ISP with side cover adapter


NS 41X1946 N8230 fiber ISP with backpack adapter


NS 41X1013 Simplified Chinese font card
Lexmark 41X1013 Simplified Chinese Font Card
Fully refurbished with 90-day warranty
41X1013



NS 41X1014 Traditional Chinese font card
NS 41X1015 Korean font card
Lexmark 41X1015 Korean Font Card
New
41X1015 (New)
$86.42


Lexmark 41X1015 Korean Font Card
Fully refurbished with 90-day warranty
41X1015



NS 41X1016 Japanese font card
NS 41X1010 256 MB flash card
Lexmark 41X1010 Flash memory 256 MB
New
41X1010 (New)
$92.60


Lexmark 41X1010 Flash memory 256 MB
Fully refurbished with 90-day warranty
41X1010
$62.50



NS 41X2055 Security element smart card with interconnect Smart card Parts catalog
Lexmark 41X2055 Smart card
New
41X2055 (New)
$291.50


Lexmark 41X2055 Smart card
Fully refurbished with 90-day warranty
41X2055



NS 41X0020 Serial ISP with backpack adapter
Lexmark 41X0020 CS72x SVC Adapter Serial ISP with Backpa
Fully refurbished with 90-day warranty
41X0020
$226.50



NS 41X0997 Contact front solutions module
Lexmark 41X0997 Contact Front Authentication Device
Fully refurbished with 90-day warranty
41X0997



NS 41X0998 Contactless front solutions module


NS 41X0045 English keyboard
NS 41X0046 French keyboard
NS 41X0048 German keyboard
NS 41X0049 Spanish keyboard
NS 41X2033 PCIe 8 GB x32 DDP RAM card
Lexmark 41X2033 RAM card PCIe 8GB x32 DDP
Fully refurbished with 90-day warranty
41X2033



NS 41X2302 Braille label kit
Lexmark 41X2302 Braille label kit
New
41X2302 (New)
$181.08


Lexmark 41X2302 Braille label kit
Fully refurbished with 90-day warranty
41X2302



NS 41X0357 110 V surge protector
Lexmark 41X0357 Surge Protective Device 110-120V
Fully refurbished with 90-day warranty
41X0357



NS 41X0370 220 V surge protector
NS 40X1367 10 ft. parallel cable
Lexmark 40X1367 Parallel Cable Packaged (3 m)
New
40X1367 (New)

Retired, no longer available: Contact for alternatives



NS 40X1368 USB cable
Lexmark 40X1368 2-Meter USB Cable
New
40X1368 (New)

Retired, no longer available: Contact for alternatives



NS 40X7648 Screws parts pack
Lexmark 40X7648 Screw part packet
New
40X7648 (New)
$79.49


Lexmark 40X7648 Screws parts packet
Fully refurbished with 90-day warranty
40X7648



NS 40X7652 Spring kit Parts catalog
Lexmark 40X7652 Spring parts package
New
40X7652 (New)
$11.32



NS 3085348 Software and document CD Note: This part number is for internal use only and is not available for order.

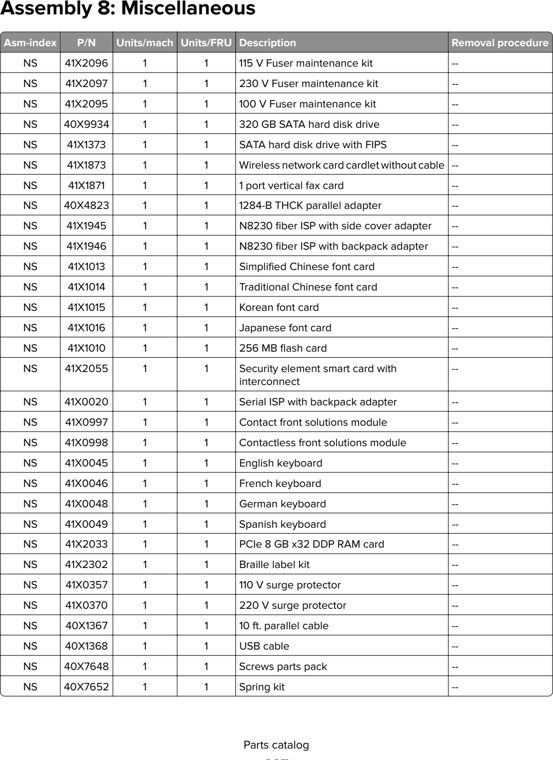

Assembly 8: Miscellaneous parts diagram - Lexmark CS421 CS521 CS622 C2240 C2325 C2425 C2535 Parts
Other listed parts
41X2300 Access cover link
Lexmark 41X2300 Access cover link
New
41X2300 (New)
$11.36



41X4537 Front USB cable
