Lexmark C510 Parts







Looking for whole machines? Click here

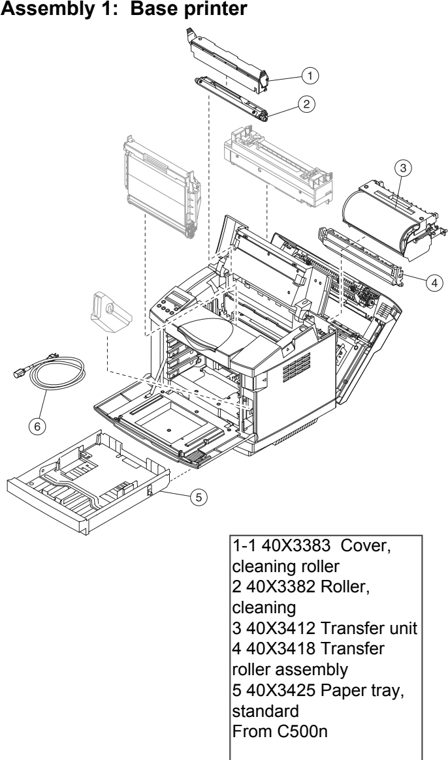

1-1

56P1611 Cover cleaning roller
Fully refurbished with 90-day warranty
56P1611


2
56P1607 Cleaning Roller
New
56P1607 (New)
$95.00



56P1607 Roller cleaning
Fully refurbished with 90-day warranty
56P1607
$95.00



3

56P1651 Transfer unit
Fully refurbished with 90-day warranty
56P1651



4
56P1660 Transfer Roller
New
56P1660 (New)
$86.94



56P1660 Transfer Roller
Fully refurbished with 90-day warranty
56P1660
$86.94



5
56P1669 250-Sheet Tray complete assembly
New
56P1669 (New)
$61.75

Retired, no longer available: Contact for alternatives



56P1669 250-Sheet Tray complete assembly
Fully refurbished with 90-day warranty
56P1669
$61.75



6 12G7008 Power cord, USA
https://www.argecy.com/images/C510-02.jpg

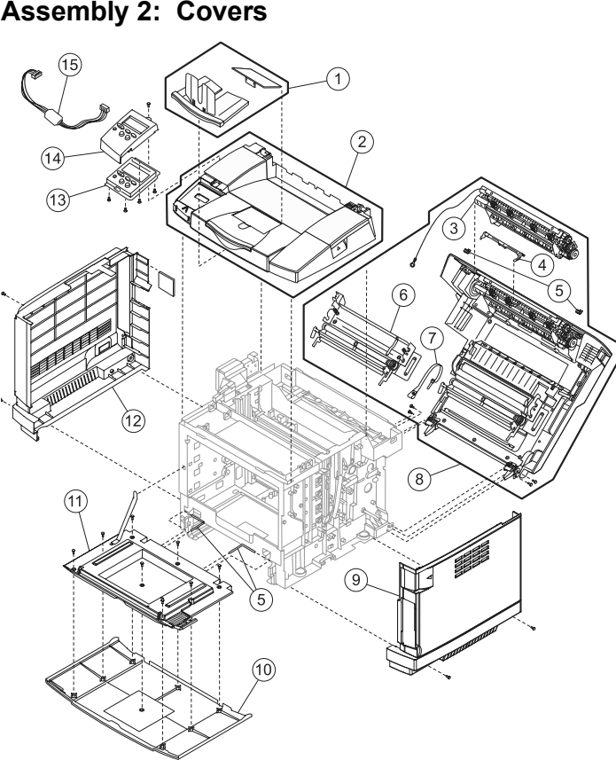

2-1
56P1676 Assembly paper ramp and stop
Fully refurbished with 90-day warranty
56P1676





2

56P1612 Cover assembly, top
Fully refurbished with 90-day warranty
56P1612



3

4 56P1672 Actuator, paper exit

5 Packet, parts P/N 56P1662

6

56P1679 Assembly registration
Fully refurbished with 90-day warranty
56P1679



7 56P1685 Strap, rear cover support

8

56P1659 Rear Cover Assembly
Fully refurbished with 90-day warranty
56P1659



9

56P1613 Cover right
Fully refurbished with 90-day warranty
56P1613



10

56P1616 Cover front
Fully refurbished with 90-day warranty
56P1616



11
56P1615 Cover inner front
Fully refurbished with 90-day warranty
56P1615





12

56P1614 Cover left
Fully refurbished with 90-day warranty
56P1614



13
56P1668 Operator panel
Fully refurbished with 90-day warranty
56P1668





14

56P1666 Cover operator panel
Fully refurbished with 90-day warranty
56P1666



15 56P1604 Cable, operator panel
https://argecy.com/images/C510-04.jpg

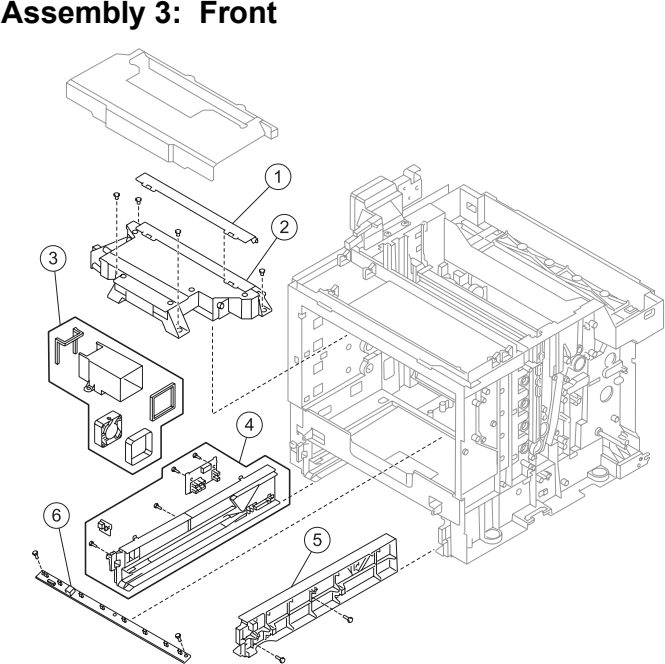

3-1
56P1688 Laser unit lens cover assembly
Fully refurbished with 90-day warranty
56P1688
$20.97





2

56P1632 Laser unit assembly (printhead)
Fully refurbished with 90-day warranty
56P1632



3
56P1671 Fan assembly laser unit
Fully refurbished with 90-day warranty
56P1671





4



5 56P1633 Right tray guide

6

56P1657 Lamp erase
Fully refurbished with 90-day warranty
56P1657


https://www.argecy.com/images/C510-06.jpg

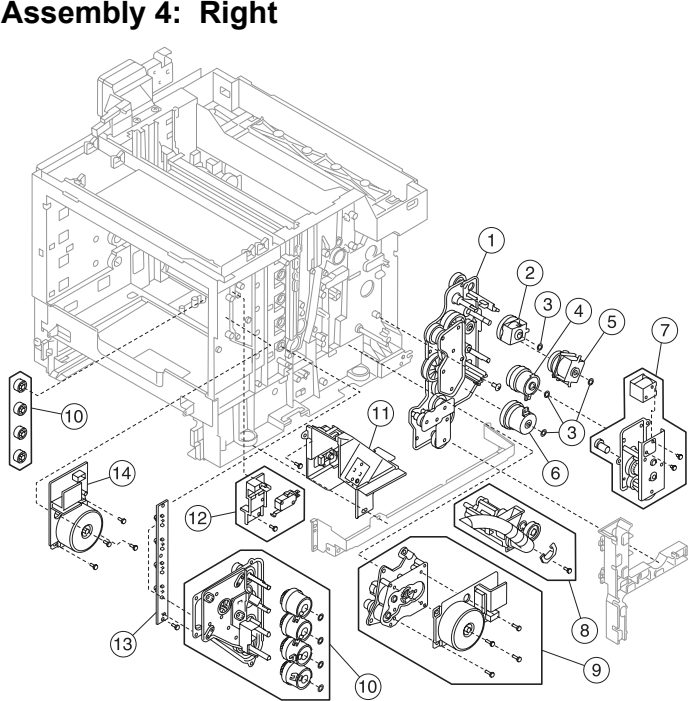

4-1
56P1625 Gear assembly main drive
Fully refurbished with 90-day warranty
56P1625





2



56P1622 Clutch fuser
Fully refurbished with 90-day warranty
56P1622



3 Packet, parts P/N 56P1662

4

56P1621 Clutch registration
Fully refurbished with 90-day warranty
56P1621



5
56P1623 Clutch transfer roller
Fully refurbished with 90-day warranty
56P1623





6

56P1620 Clutch paper feed
Fully refurbished with 90-day warranty
56P1620



7

56P1624 Clutch cleaning roller
Fully refurbished with 90-day warranty
56P1624



8
56P1626 Waste toner feeder
Fully refurbished with 90-day warranty
56P1626





9
56P1619 Motor assembly main
New
56P1619 (New)
$224.30



56P1619 Motor Assembly, Main
Fully refurbished with 90-day warranty
56P1619
$224.30



10
56P1628 Drive Assembly Developer
Fully refurbished with 90-day warranty
56P1628





11
56P1629 Assembly waste toner holder
Fully refurbished with 90-day warranty
56P1629





12

56P1681 Assembly interlock switch
Fully refurbished with 90-day warranty
56P1681



13

56P1631 Sensor toner
Fully refurbished with 90-day warranty
56P1631



14


https://www.argecy.com/images/C510-08.jpg

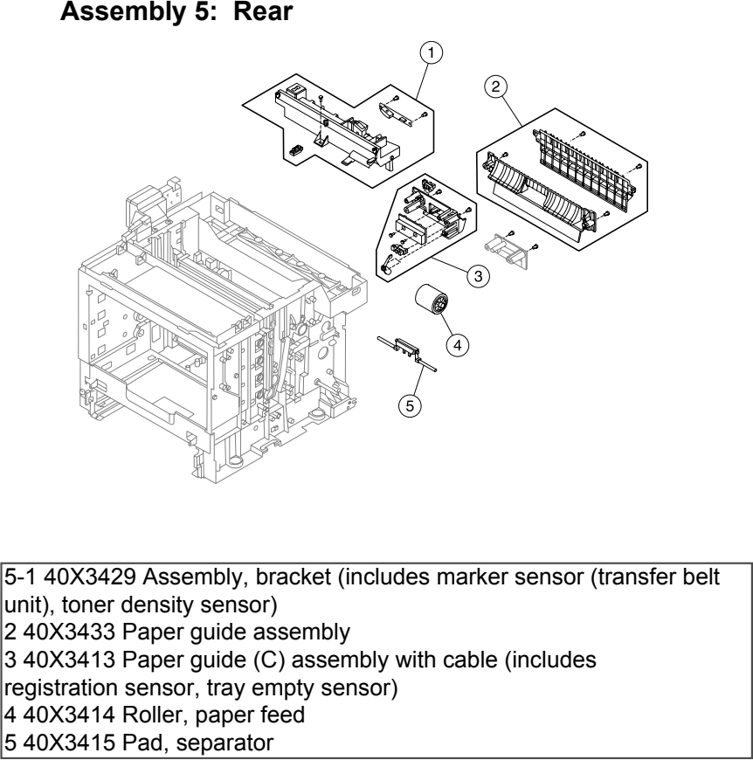

5-1



2
56P1682 Paper guide assembly
Fully refurbished with 90-day warranty
56P1682





3



4
56P1655 Roller paper feed
Fully refurbished with 90-day warranty
56P1655





5
56P1656 Pad separator
Fully refurbished with 90-day warranty
56P1656




https://www.argecy.com/images/C510-10.jpg

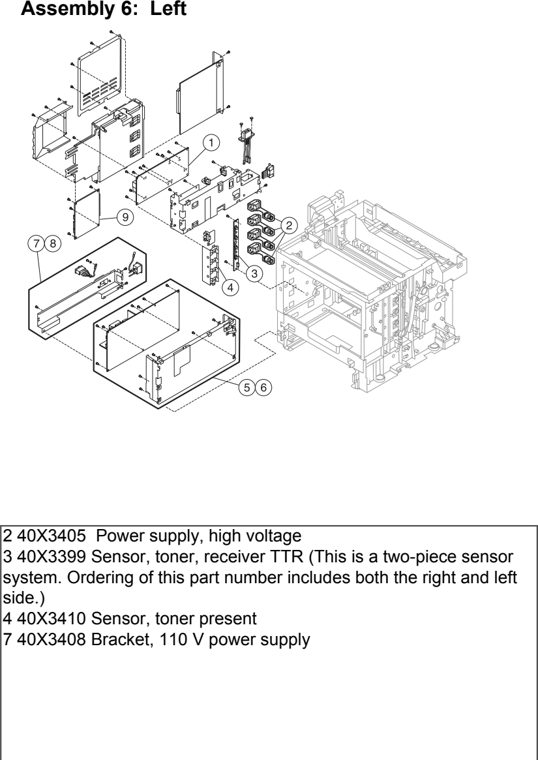

6-1

56P1640 Power supply high voltage HVPS
Fully refurbished with 90-day warranty
56P1640

Retired, no longer available: Contact for alternatives



2
56P1683 Assembly toner retract
Fully refurbished with 90-day warranty
56P1683





3

56P1631 Sensor toner
Fully refurbished with 90-day warranty
56P1631



4
56P1648 Sensor toner present
Fully refurbished with 90-day warranty
56P1648





5

56P1641 Power supply 110 V low voltage
Fully refurbished with 90-day warranty
56P1641



6 56P1642 Power supply, 220 V low voltage

7
56P1643 Bracket 110 V power supply
Fully refurbished with 90-day warranty
56P1643





8 56P1650 Bracket, 220 V power supply

9

56P1639 Board Engine Controller
Fully refurbished with 90-day warranty
56P1639


https://www.argecy.com/images/C510-12.jpg

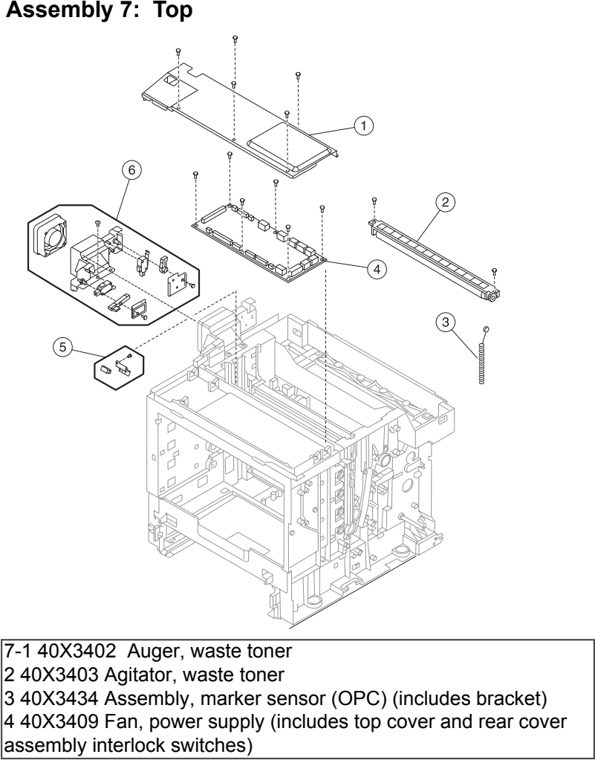

7-1

56P1618 Cover I/O board
Fully refurbished with 90-day warranty
56P1618



2
56P1637 Auger waste toner
Fully refurbished with 90-day warranty
56P1637





3
56P1638 Agitator waste toner
Fully refurbished with 90-day warranty
56P1638





4

56P1617 Board I/O
Fully refurbished with 90-day warranty
56P1617



5



6


https://www.argecy.com/images/C510-14.jpg

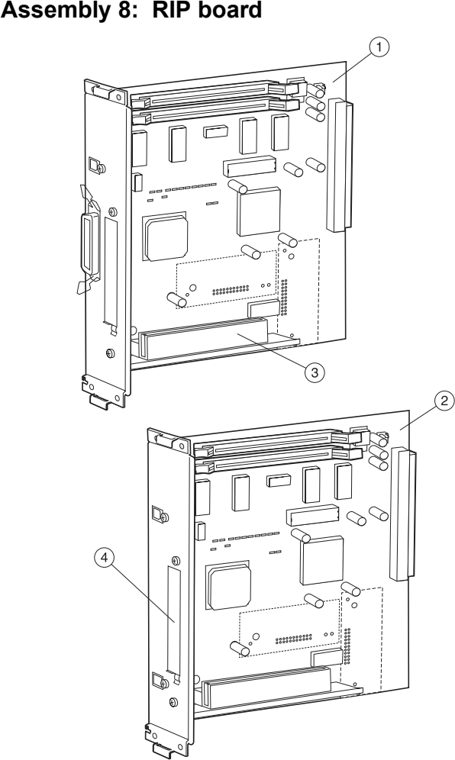

8-1

56P2714 Board Base RIP
New
56P2714 L Advanced Exchange (New)



2

56P2715 Board, Network RIP
Fully refurbished with 90-day warranty
56P2715 L



56P2715 Board Network RIP
New
56P2715 L Advanced Exchange (New)



56P2715 Board, Network RIP
Fully refurbished with 90-day warranty
56P2715 L



3 12G7229 Card assembly, riser

4 56P1667 Shield, INA

NS 99A1611 Shield, Ethernet

NS 99A2432 Shield, parallel
https://www.argecy.com/images/C510-16.jpg

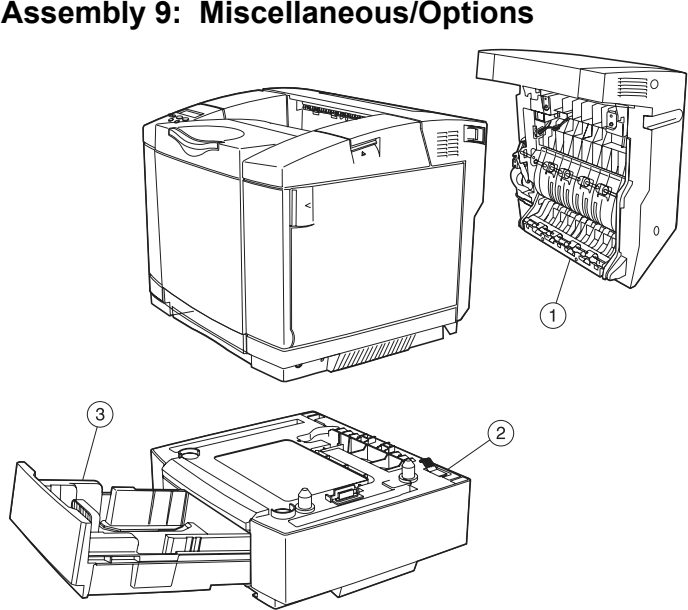

9-1

56P1663 Duplex Unit complete assembly C510
Fully refurbished with 90-day warranty
56P1663
$1230.42



2
56P1664 530-Sheet Drawer complete assembly C510
Fully refurbished with 90-day warranty
56P1664
$736.21





3
56P1665 530-Sheet Tray complete assembly C510
Fully refurbished with 90-day warranty
56P1665
$453.08





NS

56P1670 250-Sheet Legal Tray complete assembly C510
Fully refurbished with 90-day warranty
56P1670
