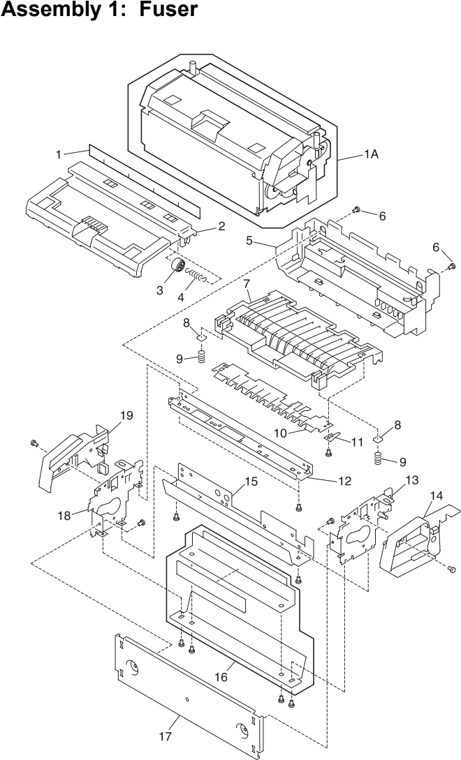

| Assembly 1: Fuser 1A 12G1698 Fuser ASM, 110v W/Lamp Lexmark 12G1698 Fuser Assembly Optra C710 Fully refurbished with 90-day warranty 12G1698 Retired, no longer available: Contact for alternatives 1A 12G1699 Fuser ASM, 220v W/Lamp 1 12G1014 Brush, Discharge 2 12G1100 Cover 1, Heat-insulating 3 12G1380 Roller 2 4 12G1339 Spring, Pinch Roller 5 12G1101 Cover, Paper Exit 6 12G1024 Screw, Shoulder 7 12G1102 Cover 2, Heat-insulating 8 12G1156 Spacer, Fuser 9 12G1309 Spring, Heat-insulating Cover 10 12G1129 Guide, Upper Paper Exit 11 12G1222 Guide, Ground Leaf Spring 12 12G1070 Plate, Cable Guide/Exit Sensor 13 12G1662 Plate Asm., Fuser, Right Side 14 12G1530 Handle, Right 15 12G1128 Guide, Upper Front 16 12G1167 Blade Asm., Oil 17 12G1055 Plate, Bottom 18 12G1661 Plate Asm., Fuser, Left Side 19 12G1529 Handle, Left Parts Catalog 7-3 |  |

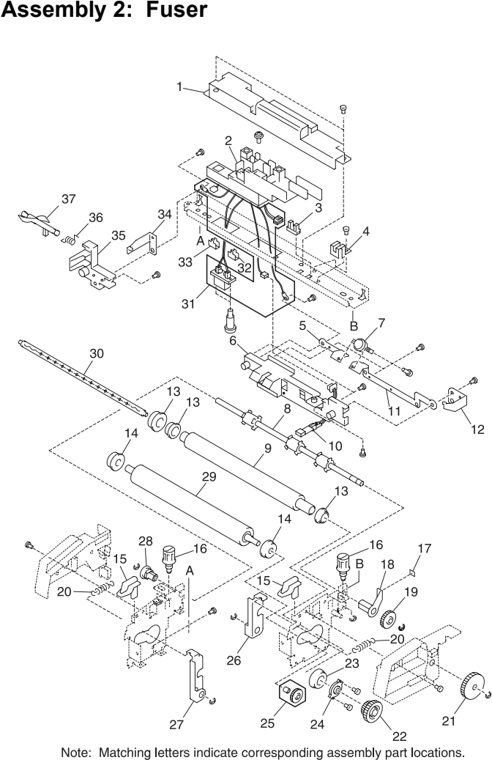

| Assembly 2: Fuser 1 12G1010 Cover, Cable 2 12G1131 Guide, Cable 3 12G1664 Sensor, Paper Exit 4 12G1115 Plate, Shield 5 12G1203 Terminal, Thermostat 2 6 12G1172 Bracket, Thermistor 7 12G1020 Thermostat 8 12G1389 Roller, Paper Exit 9 12G1387 Roll, Hot 10 12G1009 Thermistor 11 12G1202 Terminal, Thermostat 1 12 12G1013 Terminal, Fuser Lamp, Right 13 12G1479 Bushing, Heat-insulation 14 12G1489 Bearing, Pressure Roller 15 12G1155 Spacer, Pressure Release 16 12G1027 Screw, Shoulder 17 12G1046 Sheet 18 12G1494 Bushing, Paper Exit Roller 19 12G1466 Gear, Paper Exit Roller 20 12G1308 Spring, Pressure 21 12G1430 Gear, Paper Exit, Idle 22 12G1420 Gear, Hot Roll 23 12G1484 Bearing, Hot Roll 24 12G1082 Plate, Bearing Pressure 25 12G1431 Gear, Pressure Roller 26 12G1068 Plate, Pressure, Right 27 12G1069 Plate, Pressure, Left 28 12G1490 Bushing, Paper Exit Roller, Left 29 12G1388 Roller, Pressure 30 12G1684 Lamp, Fuser 115V 30 12G1685 Lamp, Fuser 220V 31 12G1591 Cable Asm., HTU Parts Catalog 7-5 32 12G1347 Spacer, Connector, Right 33 12G1381 Spacer, Connector, Left 34 12G1012 Terminal, Fuser Lamp, Left 35 12G1173 Bracket, Lead/Fuser Lamp, Left 36 12G1363 Spring, Paper Exit Sensor 37 12G1280 Flag, Paper Exit Sensor Parts Catalog 7-7 |  |

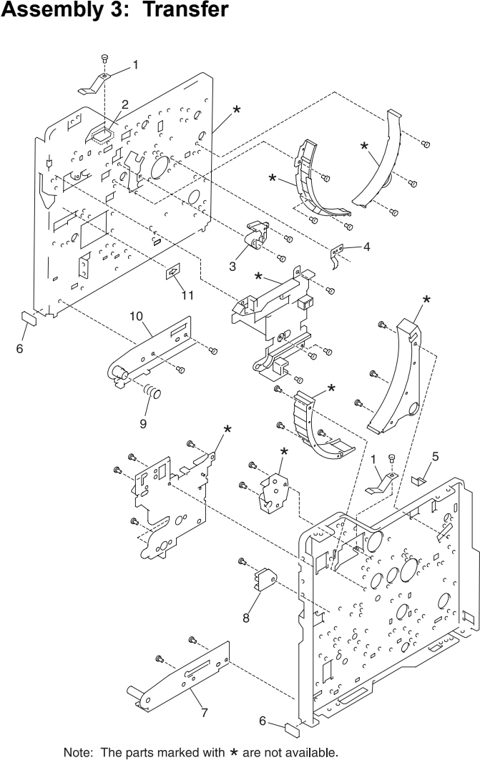

| Assembly 3: Transfer 1 12G1345 Spring, Transfer Unit 2 12G1182 Bracket, Spring 3 12G1074 Holder, Middle Transfer, Upper Rt. 4 12G1344 Spring, Center Pipe Ground 5 12G1018 Sheet, Discharge, Right 6 12G1052 Packing B 7 12G1616 Plate Asm., Fulcrum, Right 8 12G1073 Holder, Middle Transfer, Lower Rt. 9 12G1342 Spring, Ground 10 12G1617 Plate Asm., Fulcrum, Left 11 12G1665 Label, Insert Direction Parts Catalog 7-9 |  |

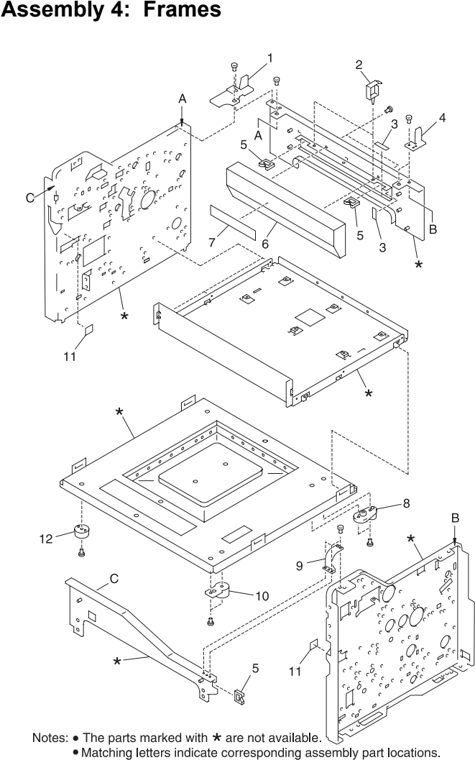

| Assembly 4: Frames 1 12G1085 Support, ADU, Rear Left 2 12G1676 Clamp, Cable 3 12G1047 Sheet, Edge 4 12G1075 Support, ADU, Rear 5 12G1006 Clip, Edge 6 12G1105 Cover, Cable 4 7 12G1552 Label, Caution Laser 8 12G1372 Collar, Guide, 2 9 12G1230 Support, #1, Right 10 12G1371 Collar, Guide, 1 11 12G1558 Label, Insertion 12 12G1532 Foot, Machine Parts Catalog 7-11 |  |

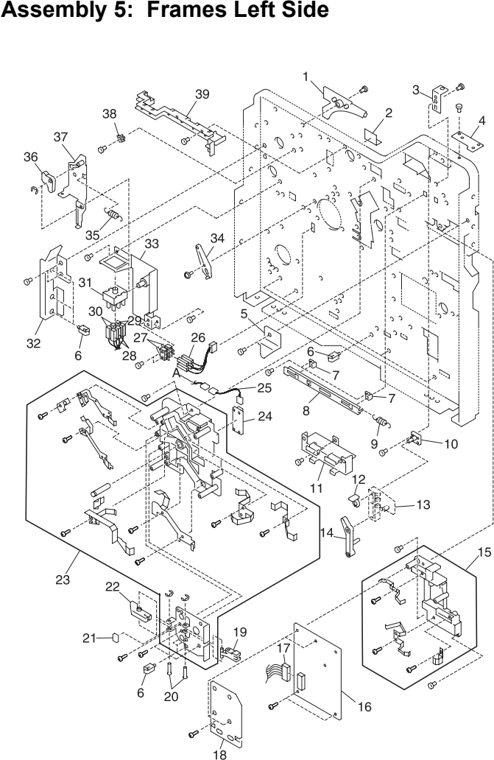

| Assembly 5: Frames Left Side 1 12G1516 Cover, Inner, L 2 12G1016 Sheet, Discharge, L1 3 12G1181 Bracket, Fuser Fixing, Right 4 12G1231 Plate, Support 2, Left 5 12G1122 Stop, Latch, Left 6 12G1676 Clamp, Cable, LWS 7 12G1132 Guide, Door Actuator, 1 8 12G1285 Actuator, Door, 3 9 12G1313 Spring, Door Actuator 10 12G1634 Plate Asm., Door Switch Pin 11 12G1179 Bracket, HVPS Mounting 12 12G1036 Ring, Touch 13 12G1288 Actuator, Door, 4 14 12G1287 Actuator, Door, 5 15 12G1011 Block Asm., Grid, 2 16 12G1572 Board Asm., HVPS 16 12G1575 Board Asm., HVPS Lexmark 12G1575 Optra C710 HVPS Fully refurbished with 90-day warranty 12G1575 Retired, no longer available: Contact for alternatives 17 12G1585 Cable, HVPS - Engine Board 18 12G1051 Shield, Mylar, HVPS 19 12G1269 Arm, 1 20 12G1251 Shaft 21 12G1048 Bumper, A 22 12G1270 Arm, 2 23 12G1635 Block Asm., Grid, 1 24 12G1566 Board Asm., Waste Toner Sensor 25 12G1615 Cable, TFS 26 12G1577 Cable, LINT 27 12G1001 Switch, Micro 28 12G1598 Cable, HT-LVPS to Interlock Sw S2 29 12G1589 Cable, VH-LVPS to Interlock Sw S2 30 12G1576 Cable, HTT Fu Lamps - Interlock S2 31 12G1007 Switch, Door 32 12G1107 Cover, Harness, 5 Parts Catalog 7-13 33 12G1637 Bracket, Door, Switch 34 12G1201 Plate, Lens Adjustubg, A 35 12G1314 Spring, Door Actuator, 2 36 12G1286 Actuator, Switch 37 12G1633 Actuator Asm., Door Switch, 1 38 12G1133 Guide, Door Actuator, 2 39 12G1104 Cover, Cable, 3 Parts Catalog 7-15 |  |

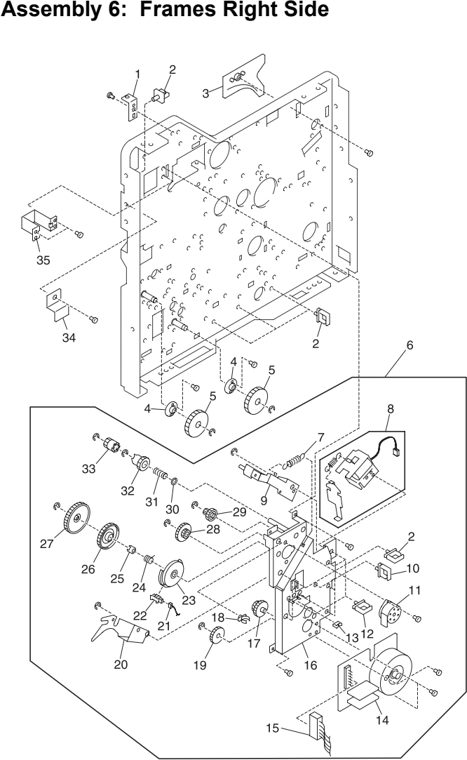

| Assembly 6: Frames Right Side 1 12G1181 Bracket, Fuser Fixing, Right 2 12G1676 Clamp, Cable, LWS 3 12G1515 Cover, Inner, Right 4 12G1491 Bushing, Paper Feed 5 12G1422 Gear, 4 6 12G1348 Block Asm., Fuser Drive 7 12G1322 Spring, Lever 8 12G1019 Solenoid 9 12G1629 Lever, Asm., C2 10 12G1679 Clamp, Cable, LWS 11 12G1626 Motor Asm., Fuser Drive 12 12G1678 Clamp, Cable, LWS 13 12G1006 Clip, Edge 14 12G1004 Motor Asm., Developer Drive 15 12G1586 Cable, MK1 16 12G1627 Stay Asm., Motor Mounting, C 17 12G1443 Gear, Paper Feed Decrease, 1 18 12G1669 Clamp 19 12G1417 Gear, Fuser Idle 20 12G1628 Lever Asm., C1 21 12G1584 Cable, Cam Sensor 22 12G1664 Sensor, Cam 23 12G1262 Cam, Clutch 24 12G1672 Spring, Clutch 25 12G1374 Boss, Clutch 26 12G1475 Gear, Clutch Inner 27 12G1439 Gear, C5, Outer Clutch 28 12G1438 Gear, C4 29 12G1440 Gear, C2 30 12G1083 Plate, Spring 31 12G1321 Spring, Clutch 32 12G1437 Gear, C3-1 33 12G1451 Gear, C3-2 Parts Catalog 7-17 34 12G1123 Stop, Latch, Right 35 12G1072 Support Parts Catalog 7-19 |  |

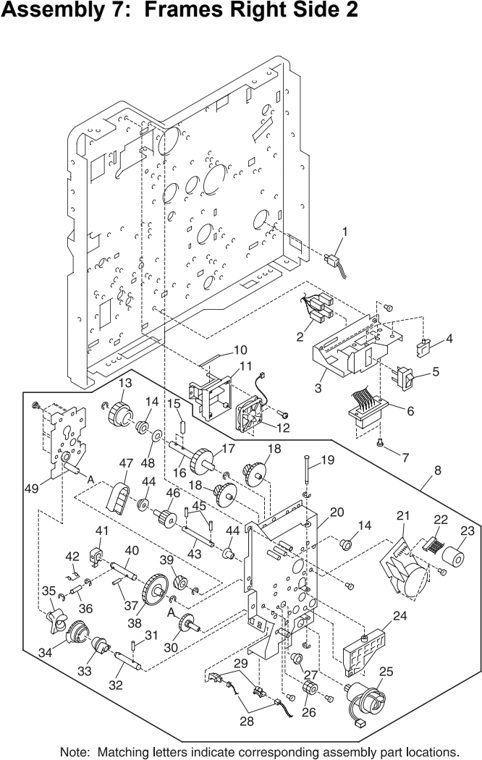

| Assembly 7: Frames Right Side 2 1 12G1595 Cable, SVL 2 12G1588 Cable, AC, On/Off Switch 3 12G1176 Bracket, Door Lock Connector Mounting 4 12G1676 Clamp, Cable 5 12G1682 Switch, Main Power On/Off 6 12G1587 Cable, Operator Panel 7 12G1025 Screw, Shoulder 8 12G1225 Block Asm., OPC/Coupling Drive 10 12G1049 Seal, 2 11 12G1178 Bracket, Fan Mounting 12 12G1008 Fan, Main 13 12G1434 Gear, A10 14 12G1481 Bearing, TFR Belt Connecting Shaft 15 12G1692 Pin, Dowel, TFR Belt Connecting Shaft 16 12G1246 Shaft, Transfer Belt Connecting 17 12G1467 Gear, A71 18 12G1432 Gear, A6 19 12G1248 Shaft, Coupling Arm 20 12G1618 Stay Asm., Motor Mounting, A 21 12G1003 Motor Asm., OPC Drive 22 12G1586 Cable, OPC Drive Motor, MK 1 23 12G1005 Core, Ferrite 24 12G1268 Arm, Coupling, 1 25 12G1620 Motor Asm., Coupling Drive 26 12G1237 Knob, Coupling Arm 1, Release 27 12G1493 Bushing, Coupling, 1 28 12G1584 Cable, Sensor 29 12G1664 Sensor, Coupling On and Coupling Off 30 12G1435 Gear, Idler 31 12G1035 Pin, Dowel, Carriage Positioning 32 12G1032 Pin, Carriage Positioning Parts Catalog 7-21 33 12G1375 Sleeve, Coupling Cam 34 12G1261 Cam, Coupling 35 12G1263 Cam, 2 36 12G1256 Shaft, Coupling 37 12G1692 Pin, Dowel, Coupling Shaft 38 12G1433 Gear, A7 39 12G1445 Gear, B16 40 12G1247 Shaft, Coupling 41 12G1050 Coupling, Coupling Shaft 42 12G1310 Spring, Coupling 43 12G1253 Shaft, Developer Transmission 44 12G1476 Bearing, Developer Sleeve 45 12G1690 Pin, Dowel, Dev Transmission Shaft 46 12G1408 Sleeve, Developer 47 12G1469 Belt, Timing 48 12G1498 Slider, Poly, TFR Belt Connecting Shaft 49 12G1619 Bracket Asm., Drive Parts Catalog 7-23 |  |

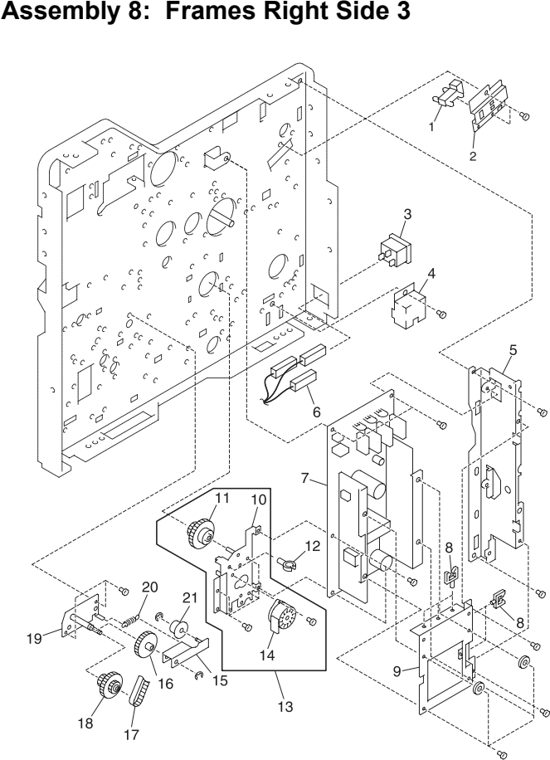

| Assembly 8: Frames Right Side 3 1 12G1664 Sensor, Carriage Home Position 2 12G1067 Holder, Carriage Home Position 3 12G1673 Socket, AC Power Input 4 12G1180 Bracket, LVPS Mounting 5 12G1174 Bracket, LVPS Mounting 6 12G1588 Cable, AC Power Input 7 12G1570 LVPS, 115V 7 12G1571 LVPS, 220V 8 12G1676 Clamp, Cable 9 12G1232 Support, LVPS 10 12G1624 Plate Asm., Motor Mounting 11 12G1436 Gear, Idler 12 12G1669 Clamp, Cable 13 12G1130 Block Asm., Carriage Unit 14 12G1623 Motor Asm., Carriage Unit 14 12G1625 Motor Asm., Fuser Drive 15 12G1621 Base Asm., Idler Pulley 16 12G1444 Gear, B28 17 12G1469 Belt, Timing 18 12G1442 Gear, Developer Decrease 19 12G1622 Shaft Asm., Paper Feed Gear 20 12G1312 Spring, Tension Pulley 21 12G1407 Pulley, Idler, #1 Parts Catalog 7-25 |  |

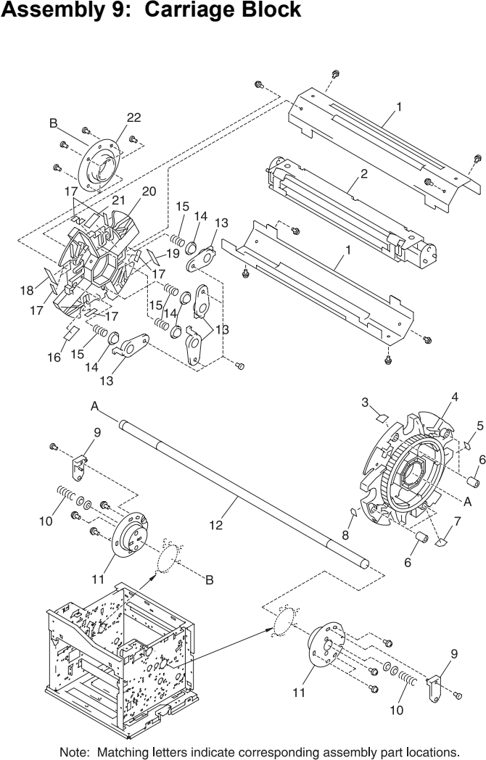

| Assembly 9: Carriage Block 1 12G1043 Pipe, Center 2 12G1040 Lens Asm. 3 12G1556 Seal, Color, Cyan 4 12G1066 Plate, Carriage Side, Right 5 12G1553 Seal, Color, Black 6 12G1495 Bushing, Carriage 7 12G1554 Seal, Color, Yellow 8 12G1555 Seal, Color, Magenta 9 12G1492 Bushing, Coupling Transmission 10 12G1311 Spring, Bushing 11 12G1162 Block, Carriage Center 12 12G1249 Shaft, Coupling Transmission 13 12G1099 Cover, Carriage Pressure 14 12G1031 Pin, Carriage Pressure 15 12G1307 Spring, Carriage Pressure 16 12G1547 Seal, Color, Magenta 17 12G1543 Tape, Carriage Protection 18 12G1546 Seal, Color, Cyan 19 12G1548 Seal, Color, Yellow 20 12G1065 Plate, Carriage Side, Left 21 12G1545 Seal, Color, Black 22 12G1488 Bushing, Carriage, Left Parts Catalog 7-27 |  |

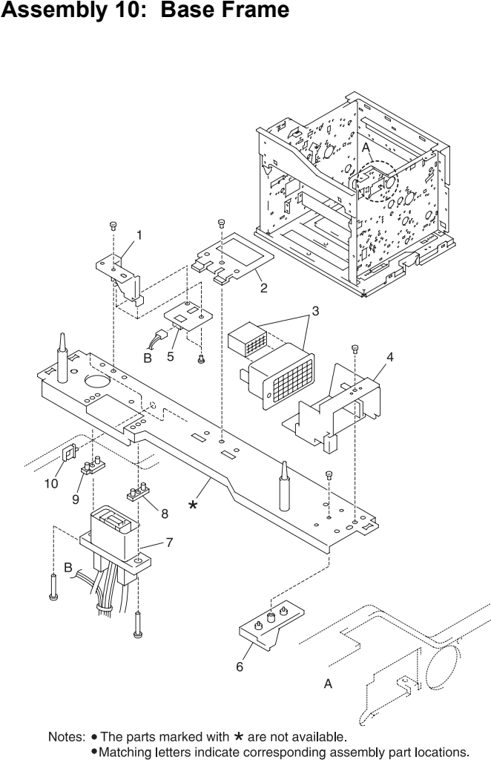

| Assembly 10: Base Frame 1 12G1175 Bracket, Sensor Mounting 2 12G1076 Plate, ADU Support, F 3 12G1638 Case, Ozone Filter 4 12G1077 Holder, Ozone Filter 5 12G1563 Sensor, Belt Home Position, PCB 6 12G1084 Holder, Ozone Filter, 2 7 12G1593 Cable, HTT 8 12G1028 Spacer, Connector, 1 9 12G1346 Spacer, Connector, 2 10 12G1676 Clamp, Cable NS 12G1636 Stay, Belt Sensor Parts Catalog 7-29 |  |

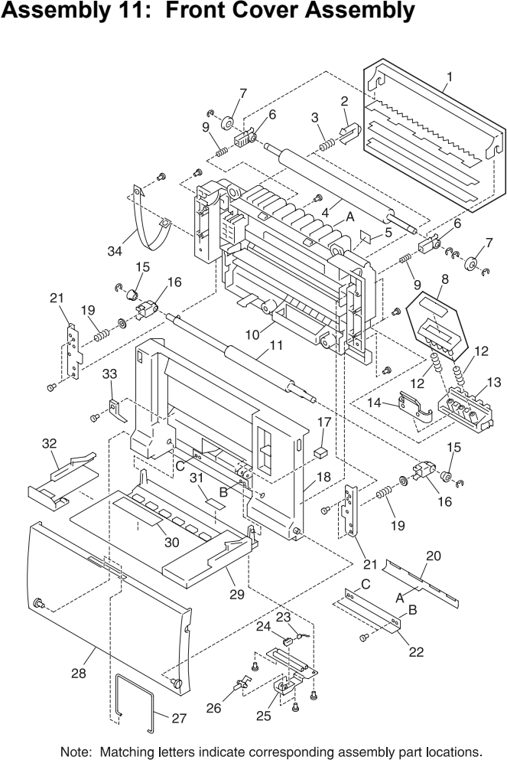

| Assembly 11: Front Cover Assembly 1 12G1631 Needle Asm., Discharge 2 12G1054 Block, Mid Transfer Unit Pressure 3 12G1340 Spring, Pressure 4 12G1382 Roll, Transfer 5 12G1041 Plate, OHP Detecting Reflection 6 12G1485 Bushing, Transfer Roll 7 12G1384 Roller, Transfer Roll 8 12G1639 Pad Asm., DFP 9 12G1299 Spring, Transfer Pressure 10 12G1096 Cover, Rear 11 12G1383 Roll, Registration 12 12G1302 Spring, DFP Pressure 13 12G1118 Guide, Pad Holder 14 12G1358 Spring, Anti-vibration 15 12G1483 Bushing, Registration Roll 16 12G1060 Holder, Resist Bushing 17 12G1164 Pad, Front Cover 18 12G1500 Cover, Front 19 12G1301 Spring, Resist Pressure 20 12G1045 Sheet, Transfer Guide 21 12G1063 Plate, Resist Spring Pressure 22 12G1226 Plate, Anti-vibration 23 12G1581 Cable, HF 24 12G1664 Sensor, Registration 25 12G1116 Cover, Cable 26 12G1296 Flag, Registration Sensor 27 12G1531 Support, Legal 28 12G1536 Tray, Bypass 2 29 12G1535 Tray, Bypass, 1 30 12G1549 Label, Paper Size 31 12G1168 Pad, Tray Friction 32 12G1540 Guide, Paper 33 12G1117 Cover, Cable, 2 Parts Catalog 7-31 34 12G1157 Strap, Front Cover Parts Catalog 7-33 |  |

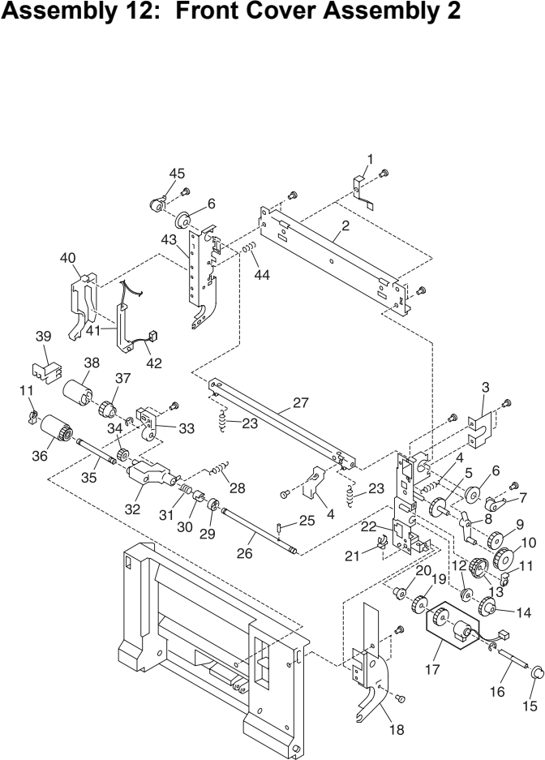

| Assembly 12: Front Cover Assembly 2 1 12G1355 Spring, Ground 2 12G1062 Plate, Discharge Needle 3 12G1094 Plate, Latch Support 4 12G1303 Spring, Gear Pressure 5 12G1424 Gear, Fulcrum 6 12G1486 Bushing, Latch 7 12G1265 Latch, Right 8 12G1266 Arm 9 12G1423 Gear, Drive 10 12G1425 Gear 11 12G1036 Clip, Shaft Locking 12 12G1482 Bushing, Bypass Roller Shaft 13 12G1428 Gear, Paper Feed Idler 14 12G1427 Gear, Paper Feed Shaft 15 12G1497 Bushing, Clutch Shaft, Outer 16 12G1243 Shaft, Clutch 17 12G1674 Clutch, Magnet 18 12G1267 Arm, Fulcrum, Right 19 12G1426 Gear, Paper Feed Drive 20 12G1477 Bushing, Clutch Shaft, Inner 21 12G1669 Clamp, Cable 22 12G1630 Plate, Paper Feed Side, Right 23 12G1300 Spring, Return 24 12G1276 Lever, Latch 25 12G1689 Pin, Dowel, Bypass Roller Shaft 26 12G1241 Shaft, Bypass Roller 27 12G1200 Plate, Latch Shaft 28 12G1298 Spring, Pickup Return 29 12G1056 Lock, Pickup, Pressure 30 12G1373 Boss, Pickup Limiter 31 12G1365 Spring, Pickup Limiter 32 12G1059 Bracket, Pickup Parts Catalog 7-35 33 12G1487 Bushing, Bypass Roller 34 12G1419 Gear, Pickup Idle 35 12G1242 Shaft, Bypass Pickup Roller 36 12G1379 Roll, Pickup 37 12G1418 Gear, Paper Feed Roller 38 12G1378 Roll, Paper Feed 39 12G1154 Guide, Paper 40 12G1097 Cover, Cable 41 12G1061 Holder, Cable 42 12G1581 Cable, HF 43 12G1058 Cover, Side, Left 44 12G1342 Spring, Ground, 2 45 12G1264 Latch, Front Cover Release Parts Catalog 7-37 |  |

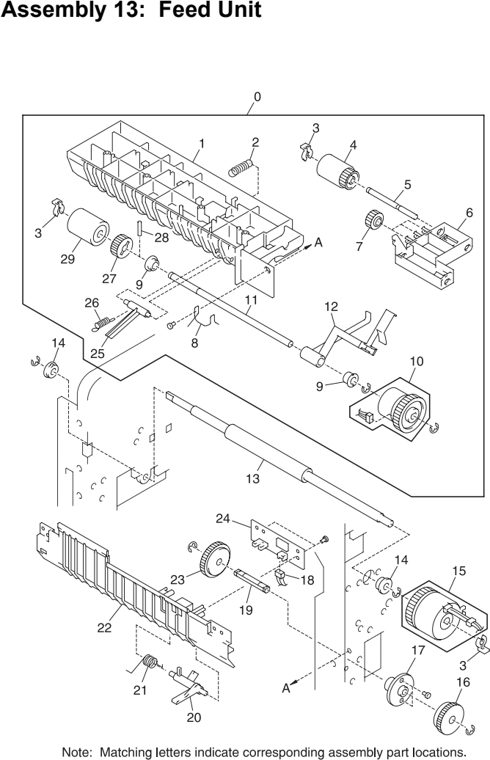

| Assembly 13: Feed Unit 0 12G1632 Feed Assembly, Complete Unit 1 12G1064 Frame, Feed 2 12G1319 Spring, Pickup Pressure 3 12G1036 Clip, Shaft Locking 4 12G1379 Roller, Pickup 5 12G1245 Shaft, Pickup Roller 6 12G1171 Bracket, Pickup Roller 7 12G1419 Gear, Pickup Roller Idler 8 12G1362 Spring, Ground 9 12G1477 Bushing, Paper Feed Roll Shaft 10 12G1674 Clutch, Magnet 11 12G1244 Shaft, Paper Feed Roller 12 12G1277 Lever, Paper Detector Sensor 13 12G1385 Roll, Registration 14 12G1481 Bushing, Registration Roll Shaft 15 12G1675 Clutch, Magnet 16 12G1422 Gear, Gear B4 17 12G1491 Bushing, Paper Feed 18 12G1582 Cable, KU 19 12G1252 Shaft, Cassette Transmission 20 12G1279 Flag, Resist Sensor 21 12G1366 Spring, Resist Sensor Flag Return 22 12G1121 Guide, Paper A 23 12G1441 Gear, B1 24 12G1564 Sensor Asm., Resist Sensor Board 25 12G1278 Lever, Release 26 12G1304 Spring, Pickup Return 27 12G1429 Gear, Pickup 28 12G1690 Pin, Pickup Gear 29 12G1297 Roller, Paper Feed Parts Catalog 7-39 |  |

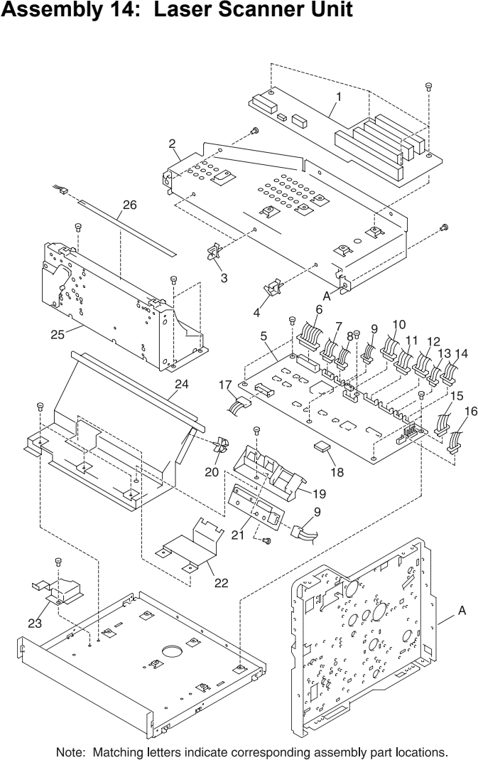

| Assembly 14: Laser Scanner Unit 1 12G1703 Board, Interconnect 2 12G1177 Bracket, PCI Board 3 12G1679 Clamp, Cable 4 12G1680 Clamp, Cable 5 12G1562 Board Asm., Engine 6 12G1597 Cable, VINT 7 12G1594 Cable, MSN 8 12G1584 Cable, SN Laser 9 12G1578 Cable, TE 10 12G1587 Cable, OP 11 12G1585 Cable, HVPS 12 12G1586 Cable, MK 1 13 12G1583 Cable, CRF 14 12G1580 Cable, MK 2 15 12G1589 Cable, VH 16 12G1590 Cable, EVL 17 12G1592 Cable, Printhead 18 12G1000 Base, ANP 19 12G1103 Cover, Toner Level/New Cartridge 20 12G1669 Clamp, Cable 21 12G1565 Sensor Asm., Toner Level/New 22 12G1228 Plate, Blind 23 12G1108 Cover, Harness 24 12G1204 Plate, EC PCB Shield 25 12G1042 Printhead Assembly 26 12G1568 LED, Discharge PCB Parts Catalog 7-41 27 12G1708 Board, Controller Level 2 28 12G1702 SIMM, Code Overlay Parts Catalog 7-43 |  |

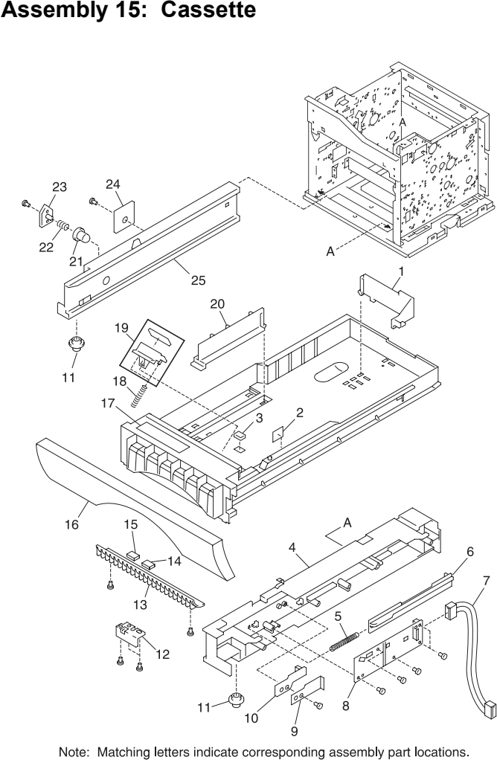

| Assembly 15: Cassette 1 12G1542 Guide, Paper, Rear 2 12G1544 Label, Paper Upper Limit 3 12G1168 Pad, Tray 4 12G1125 Guide, Cassette, Right 5 12G1306 Spring, Return 6 12G1159 Plate, Size Detecting 7 12G1579 Cable, CST 8 12G1567 Sensor, Cassette Size/Paper Detecting, 9 12G1359 Spring, Support 10 12G1295 Lever, Cassette Detecting 11 12G1386 Roller, Guide 12 12G1224 Sheet, Anti-vibration 13 12G1119 Guide, Paper 14 12G1166 Sheet, Anti-vibration, 2 15 12G1165 Sheet, Anti-vibration, 1 16 12G1098 Cover, Cassette Front 17 12G1250 Label, Cassette Caution 18 12G1305 Spring, Pad Pressure 19 12G1641 Pad Asm., DFP 20 12G1541 Guide, Paper, Left 21 12G1137 Stop, Cassette 22 12G1323 Spring, Cassette Stop 23 12G1492 Bushing, Cassette Stop 24 12G1670 Sensor, Temperature/Humidity 25 12G1124 Guide, Cassette, Left Parts Catalog 7-45 |  |

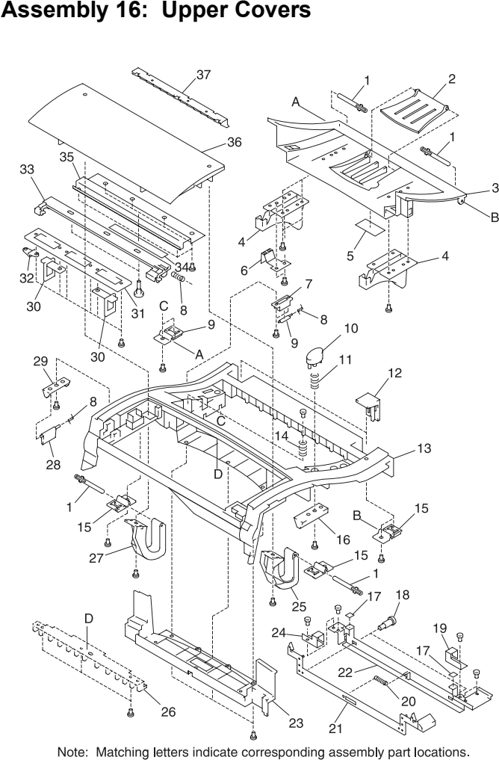

| Assembly 16: Upper Covers 1 12G1033 Pin, Cover 2 12G1537 Tray, Paper Exit 3 12G1502 Cover, Cartridge, A 4 12G1514 Cover, Cartridge, B 5 12G1551 Label, Cartridge Insertion 6 12G1227 Plate, Cartridge SW 7 12G1093 Holder, Switch Plate, Rear 8 12G1324 Spring, Switch Plate 9 12G1209 Plate, Switch, Rear 10 12G1239 Button, Cartridge 11 12G1317 Spring, Cartridge Button 12 12G1539 Cover, Hinge 13 12G1501 Cover, Top 14 12G1318 Spring, Cartridge Cover 15 12G1079 Hinge, Cover 16 12G1240 Button, Cartridge, Lower 17 12G1559 Label, ADU Support Cover 18 12G1026 Screw, Shoulder 19 12G1138 Guide, Lever, Right 20 12G1315 Spring, Return, 1 21 12G1284 Lever, Cartridge 22 12G1207 Plate, Cartridge Cover 23 12G1524 Cover, Top, Small 24 12G1139 Guide, Lever, Left 25 12G1281 Lever, Right 26 12G1160 Rib 1 27 12G1282 Lever, Left 28 12G1210 Plate, Switch, Front 29 12G1030 Holder, Switch Plate, Front 30 12G1163 Lib, Fuser Pressure 31 12G1233 Plate, Fuser Cover Support 32 12G1234 Plate, Fuser Latch Support, Left Parts Catalog 7-47 33 12G1283 Lever, Fuser Latch 34 12G1560 Label, Fuser Unit Operation 35 12G1235 Support, Fuser Cover 36 12G1503 Cover, Fuser 37 12G1161 Rib, 2 Parts Catalog 7-49 |  |

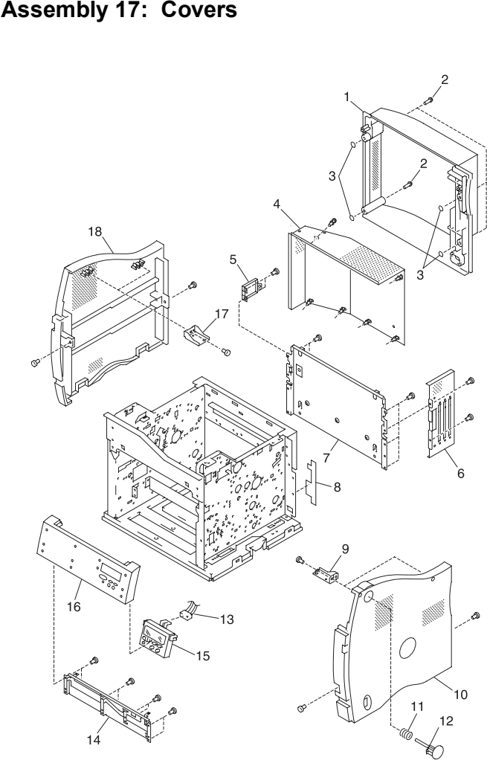

| Assembly 17: Covers 1 12G1513 Cover, Rear 2 12G1029 Screw, Shoulder 3 12G1038 Ring, C, Rear Cover 4 12G1640 Shield Asm., SC PCB 5 12G1187 Bracket, Main Fan Motor 6 12G1205 Plate, SC PCB Shield, 1 7 12G1206 Plate, SC PCB Shield, 2 8 12G1557 Cover, Label, Welder 9 12G1186 Plate, Cover Mounting, Right 10 12G1512 Cover, Side, Right 11 12G1316 Spring, Return, 2 12 12G1238 Button, Side 13 12G1596 Cable, Operator Panel 14 12G1078 Plate, Operator Panel Support 15 12G1561 Operator Panel Assembly 16 12G1523 Panel, Operator Lexmark 12G1523 Optra C710 Control Panel Fully refurbished with 90-day warranty 12G1523 Retired, no longer available: Contact for alternatives 17 12G1183 Plate, Cover Mounting, Left 18 12G1511 Cover, Side, Left Parts Catalog 7-51 |  |

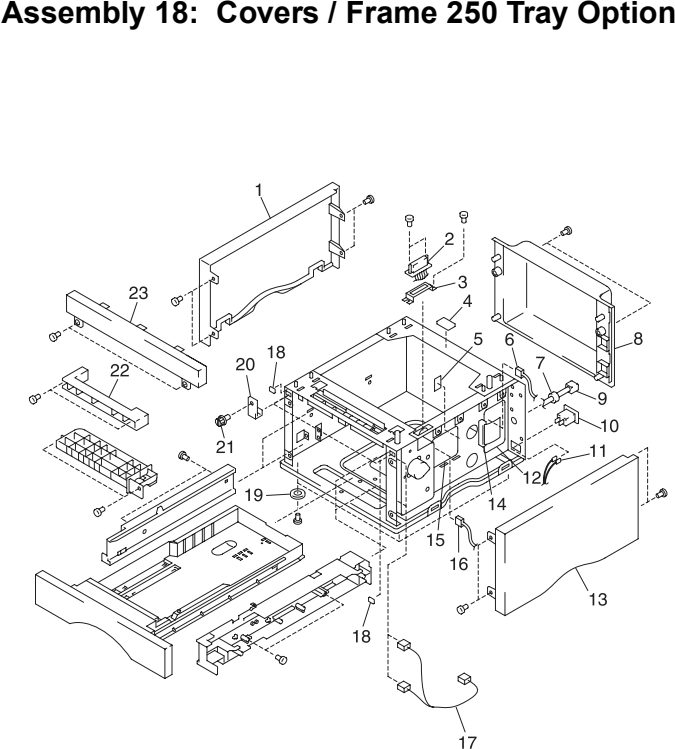

| Assembly 18: Covers / Frame 250 Tray Option 1 12G1508 Cover, Left 2 12G1601 Cable, OP 3 12G1185 Bracket, Connector Mounting 4 12G1053 Pad, Ground, B 5 12G1044 Sheet, Duck, 1 6 12G1602 Cable, OV 7 12G1687 Bushing, Cord 8 12G1509 Cover, Rear (Japan, North America) 8 12G1510 Cover, Rear (Europe) 9 1339517 Power Cord, LV U.S., Canada, 9 1339518 Power Cord, HV, Argentina 9 1339520 Power Cord, HV, Brazil 9 1339524 Power Cord, HV, Chili 9 1339528 Power Cord, HV, UK, Ireland 9 1339529 Power Cord, HV, EURO English, 9 1339530 Power Cord, HV, Israel 9 1339531 Power Cord, HV, Switzerland French, 9 1339532 Power Cord, HV, South Africa 9 1339533 Power Cord, HV, Italy 9 1339534 Power Cord, HV, Denmark Parts Catalog 7-53 10 12G1673 Socket, AC, Cord 11 12G1604 Cable, OAC 12 12G1574 LVPS, Paper Tray Option 13 12G1506 Cover, Right (Japan, North America) 13 12G1507 Cover, Right (Europe) 14 12G1106 Cover, LVPS 15 12G1569 Board Asm., Option Interconnect 16 12G1599 Cable, OM 17 12G1600 Cable, OC 18 12G1052 Pad, Ground, A 19 12G1532 Foot, Paper Cassette Asm. 20 12G1208 Plate, Fixing 21 12G1023 Screw, Fixing 22 12G1136 Guide, Paper, 5 23 12G1505 Cover, Front, 1 Parts Catalog 7-55 |  |

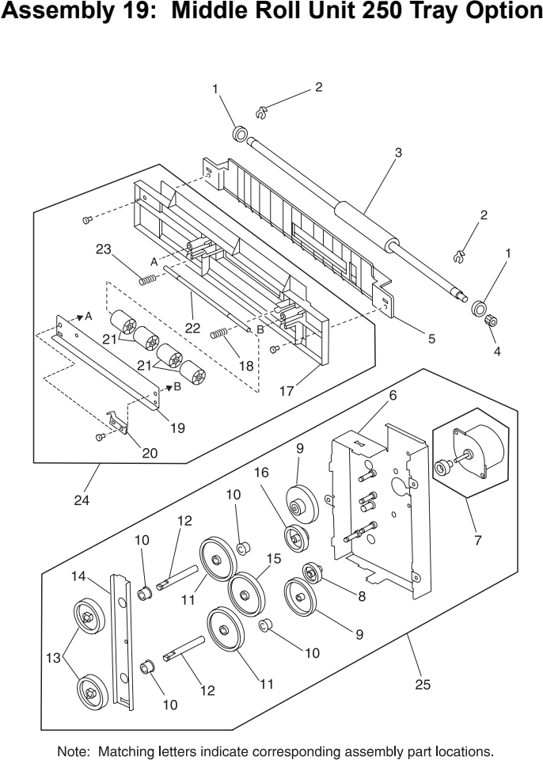

| Assembly 19: Middle Roll Unit 250 Tray Option 1 12G1480 Bearing, Middle Roller 1 Shaft 2 12G1037 Clip, Retainer, Middle Roller 1 Shaft 3 12G1390 Roller, Middle, 1 4 12G1446 Gear, Middle Roller Drive 5 12G1134 Guide, Paper, 1 6 12G1659 Plate Asm., Paper Feed Drive 7 12G1658 Motor Asm., Paper Feed 8 12G1450 Gear, Idler 9 12G1448 Gear, Reduction, Big 10 12G1483 Bushing, Paper Drive Gear Shaft 11 12G1447 Gear, Paper Feed Drive 12 12G1254 Shaft, Paper Feed Drive Gear 13 12G1421 Gear, Drive Shaft 2 14 12G1080 Plate, Pressure 15 12G1465 Gear, Idle, 2 16 12G1449 Gear, Reduction, Small 17 12G1135 Guide, Paper, 4 18 12G1320 Spring, Roller Pressure 19 12G1081 Plate, Pressure 20 12G1360 Spring, Ground 21 12G1391 Roller, Middle, 2 22 12G1255 Shaft, Middle Shaft 23 12G1341 Spring, Roller Pressure 24 12G1126 Roller Asm., Middle 25 12G1127 Drive Asm., Paper Feed NS 12G1693 Pin, Dowel, Paper Feed Drive Gear |  |

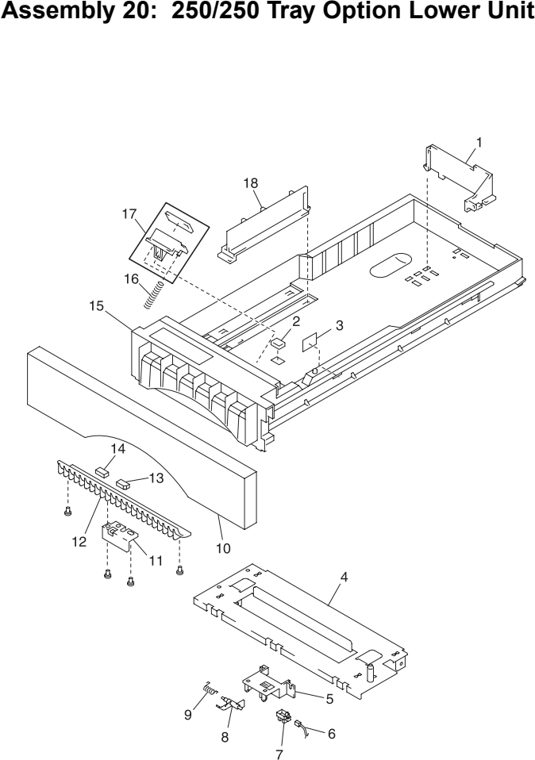

| Assembly 20: 250/250 Tray Option Lower Unit 1 12G1542 Guide, Paper, Right 2 12G1168 Pad, Tray 3 12G1544 Label, Paper Upper Limit 4 12G1660 Stay 5 12G1184 Bracket, Paper Pass Sensor 6 12G1603 Cable, OPS 7 12G1664 Sensor, Paper Pass 8 12G1289 Flag, Paper Pass Sensor 9 12G1364 Spring, Paper Pass Sensor Flag 10 12G1504 Panel, Cassette 11 12G1224 Plate, Anti-vibration 12 12G1119 Guide, Paper 13 12G1165 Sheet, Anti-vibration, 1 14 12G1166 Sheet, Anti-vibration, 2 15 12G1071 Label, Cassette, Caution 16 12G1305 Spring, DFP 17 12G1641 Pad Asm., DFP 18 12G1541 Guide, Paper, Left Parts Catalog 7-59 |  |

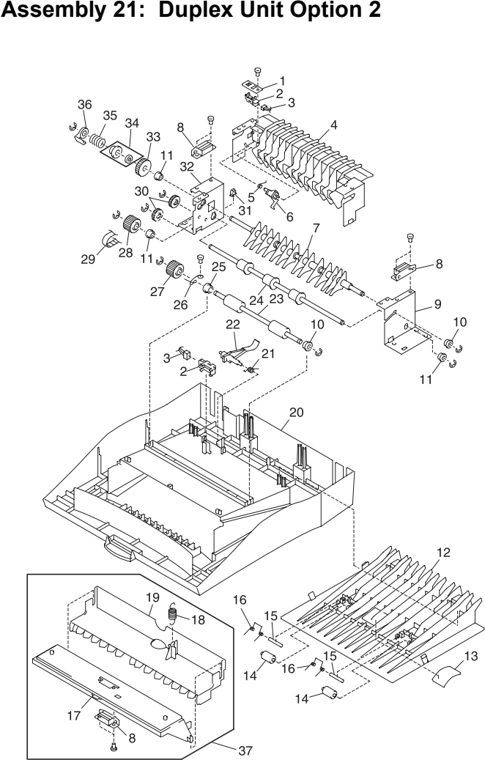

| Assembly 21: Duplex Unit Option 2 1 12G1188 Bracket, Sensor, 1 2 12G1664 Sensor, Exit or Pass Thru Sensors 3 12G1610 Cable, ADT 4 12G1141 Guide, Paper Exit/Storage 5 12G1368 Spring, Exit Sensor 6 12G1290 Flag, Exit Sensor 7 12G1271 Guide, Paper Exit/Storage Selection 8 12G1526 Magnet, Duplex 9 12G1087 Plate, Paper Exit, 2 10 12G1477 Bushing, Paper Exit/Storage 11 12G1483 Bushing, Paper Exit Roller Asm. 12 12G1538 Tray, Paper Exit 13 12G1525 Cover, Blind 14 12G1394 Roller, Pinch 15 12G1034 Pin, Pinch Roller 16 12G1369 Spring, Pinch Roller 17 12G1144 Guide, Paper, Lower (for Printer) 18 12G1328 Spring, Pressure (for Printer) 19 12G1143 Guide, Paper, Upper (for Printer) 20 12G1517 Cover, Upper 21 12G1367 Spring, Pass Thru Sensor 22 12G1291 Flag, Pass Thru Sensor 23 12G1393 Roller, Transport 24 12G1392 Roller, Paper Exit 25 12G1478 Bushing, Transport Roller Asm. 26 12G1338 Spring, Transport Shaft Ground 27 12G1454 Gear, Transport Roller 28 12G1453 Gear, Paper Exit Drive 29 12G1470 Belt, Timing, (40S2M300) 30 12G1455 Gear, 18T 31 12G1668 Clamp, Cable 32 12G1643 Plate Asm., Paper Exit Parts Catalog 7-61 33 12G1452 Gear, 27Z 34 12G1657 Disc Asm., Limiter 35 12G1325 Spring, Limiter 36 12G1212 Holder, Limiter Spring 37 12G1017 Guide Asm., Paper (for Printer) Parts Catalog 7-63 |  |

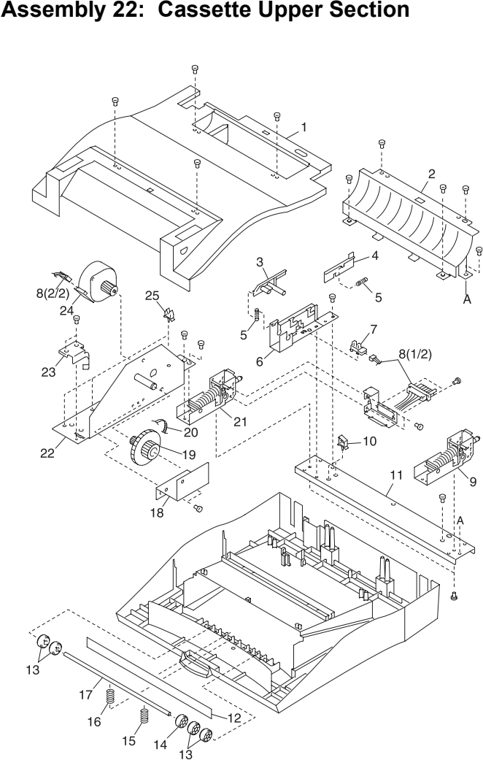

| Assembly 22: Cassette Upper Section 1 12G1142 Guide, Paper Exit 2 12G1140 Guide, Upper 3 12G1330 Flag, Open/Close Sensor 4 12G1272 Actuator, Open/Close Sensor 5 12G1326 Spring, Actuator, Open/Close 6 12G1189 Bracket, Open/Close Sensor 7 12G1664 Sensor, Open/Close 8 12G1610 Cable, ADT 9 12G1528 Hinge Asm., Left 10 12G1671 Clamp, Cable 11 12G1086 Plate, Hinge Mounting 12 12G1015 Brush, Discharge 13 12G1380 Roller, Pinch 14 12G1377 Roller Guide 15 12G1337 Spring, Pinch Roller, 2 16 12G1327 Spring, Pinch Roller, Right 17 12G1257 Shaft, Paper Exit Idle, Right 18 12G1211 Plate, Gear 19 12G1376 Gear, (50/23Z) 20 12G1470 Belt, Timing, (40S2M300) 21 12G1527 Hinge Asm., Right 22 12G1642 Plate Asm., Gear 23 12G1356 Spring, Ground 24 12G1653 Motor Assembly 25 12G1668 Clamp, Cable Parts Catalog 7-65 |  |

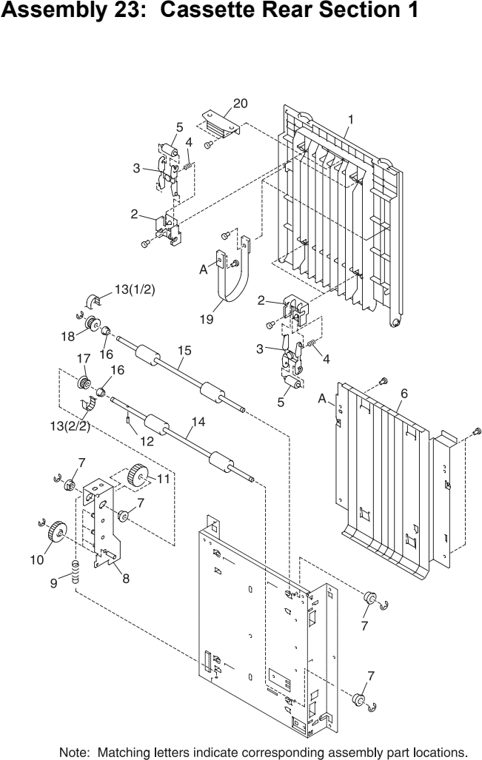

| Assembly 23: Cassette Rear Section 1 1 12G1518 Cover, Rear 2 12G1088 Holder, Pinch Roller 3 12G1273 Arm, Pinch Roller 4 12G1329 Spring, Pinch Roller 5 12G1394 Roller, Pinch 6 12G1145 Plate, Paper Guide 7 12G1496 Bushing 8 12G1646 Arm Asm., Gear 9 12G1331 Spring, Pressure 10 12G1455 Gear, (18) 11 12G1459 Gear, (18Z) 12 12G1688 Pin, Dowel, Lower Transfer Roller 13 12G1471 Belt, Timing, (40S2M560) 14 12G1396 Roller Asm., Transfer, Lower 15 12G1395 Roller, Transfer, Upper 16 12G1483 Bushing, Transfer Roller Asm., 17 12G1409 Pulley, (20T) 18 12G1406 Pulley 19 12G1157 Belt, Rear Cover 20 12G1526 Magnet Parts Catalog 7-67 |  |

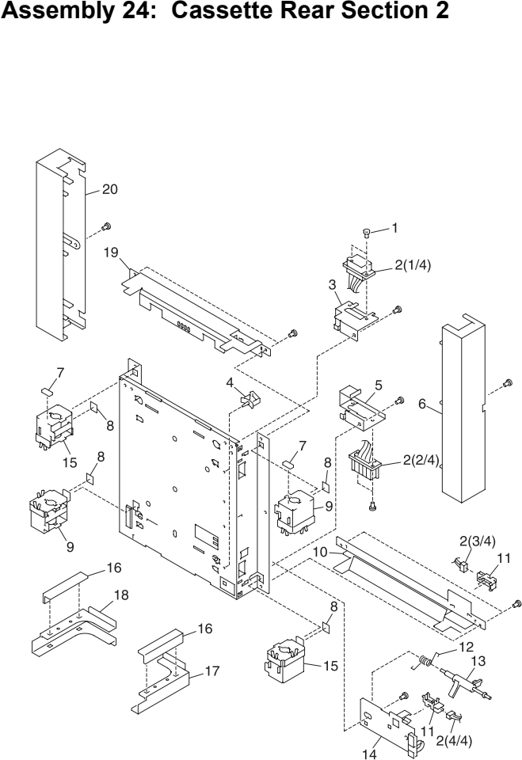

| Assembly 24: Cassette Rear Section 2 1 12G1025 Screw, Shoulder 2 12G1609 Cable, ADB 3 12G1191 Bracket, Connector 4 12G1678 Clamp, Cable 5 12G1190 Bracket, P Connector 6 12G1519 Cover, Side, Right 7 12G1052 Pad, Ground, A 8 12G1550 Label 9 12G1644 Holder Asm., Sub Lock 10 12G1214 Plate, Lower Connecting 11 12G1664 Sensor 12 12G1361 Spring, Sensor Lever 13 12G1275 Lever, Sensor 14 12G1057 Bracket, Sensor 15 12G1645 Holder Asm., Main Lock 16 12G1109 Cover, Rear Side Bracket 17 12G1192 Bracket, Rear Side, Right 18 12G1199 Bracket, Rear Side, Left 19 12G1213 Plate, Upper Connecting 20 12G1520 Cover, Side, Left Parts Catalog 7-69 |  |

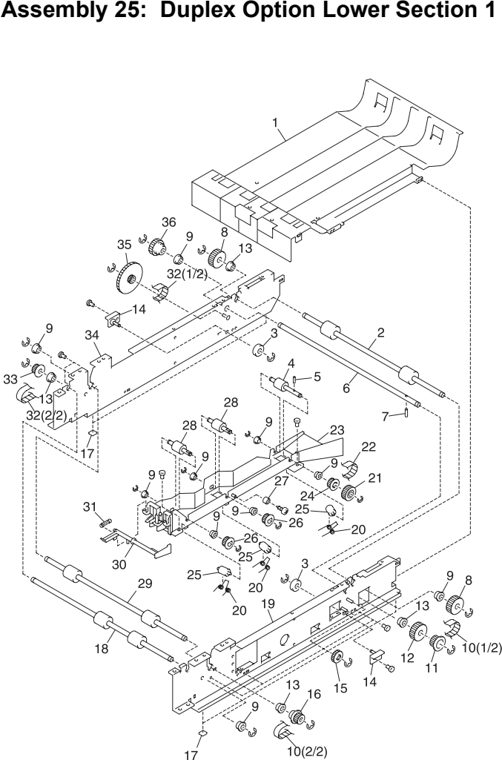

| Assembly 25: Duplex Option Lower Section 1 1 12G1150 Plate, Transfer Lower Guide 2 12G1400 Roller, Reverse 3 12G1401 Roller, Sub Plate Asm. 4 12G1403 Roller, A 5 12G1688 Pin, Dowel, Roller A 6 12G1259 Shaft, Gear 7 12G1690 Pin, Dowel, Gear Shaft 8 12G1456 Gear, (20Z) 9 12G1477 Bushing, Guide Frame Asm. 10 12G1472 Belt, Timing, (40S2M710) 11 12G1413 Pulley, (25T) 12 12G1458 Gear, Idle, (20P) 13 12G1483 Bushing 14 12G1654 Plate Asm., Sub 15 12G1455 Gear (18) 16 12G1412 Pulley, Left (25T) 17 12G1223 Sheet Slide 18 12G1402 Roller, Feed, 2 19 12G1090 Plate, Side, Right 20 12G1370 Spring, Pressure 21 12G1457 Gear, (20Z) 22 12G1474 Belt, Timing, (35S2M448) 23 12G1655 Frame Asm., Guide 24 12G1409 Pulley, (20T) 25 12G1405 Roller, Idler 26 12G1414 PUlley, S (20T) 27 12G1415 Pulley 28 12G1404 Roller, B 29 12G1399 Roller, Feed, 1 30 12G1293 Lever, Sensor 31 12G1333 Spring, Sensor Lever 32 12G1468 Belt, Timing, (40S2M800) Parts Catalog 7-71 33 12G1406 Pulley, Feed Roller 2 34 12G1091 Plate, Side, Left 35 12G1411 Pulley, (34Z17T) 36 12G1462 Gear, (16Z) Parts Catalog 7-73 |  |

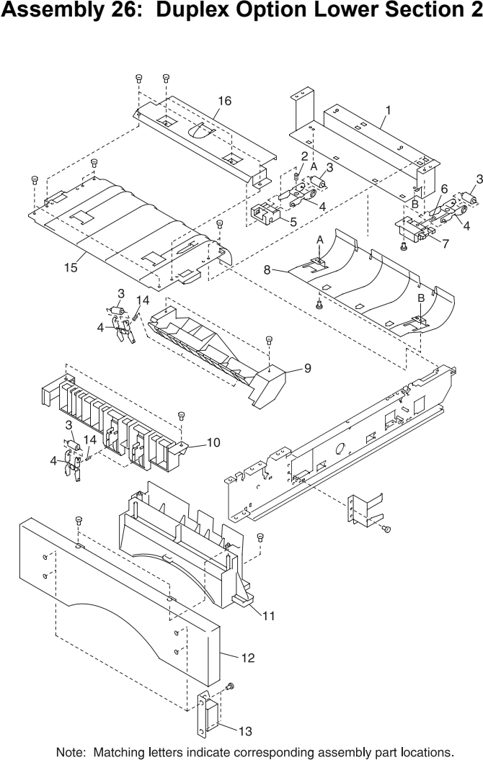

| Assembly 26: Duplex Option Lower Section 2 1 12G1197 Plate, Reverse Section Mounting, 2 2 12G1329 Spring, Pinch Roller 3 12G1394 Roller, Pinch 4 12G1273 Arm, Pinch Roller 5 12G1088 Holder, Pinch Roller 6 12G1334 Spring, Pinch Roller, 2 7 12G1089 Holder, Pinch Roller, 2 8 12G1151 Guide, Reverse Lower, 2 9 12G1152 Guide, Transfer, A 10 12G1153 Guide, Transfer, B 11 12G1217 Bracket, Tray Front Panel 12 12G1534 Panel, Tray Front 13 12G1526 Magnet 14 12G1336 Spring, Pinch Roller, 3 15 12G1149 Guide, Reverse Lower 16 12G1196 Plate, Reverse Section Mounting NS 12G1218 Actuator, Micro Switch Parts Catalog 7-75 |  |

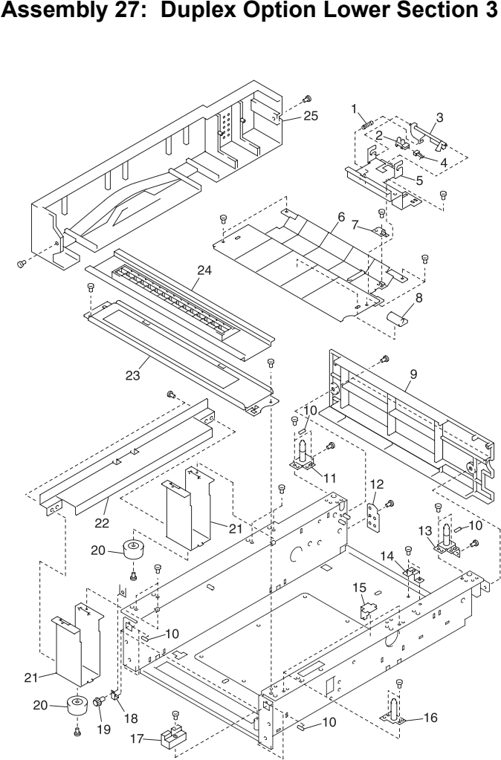

| Assembly 27: Duplex Option Lower Section 3 1 12G1335 Spring, Sensor 2 12G1664 Sensor 3 12G1292 Lever, Sensor 4 12G1613 Cable, ADRV 5 12G1194 Bracket, Sensor 6 12G1146 Plate, Reverse Section Upper 7 12G1357 Spring, Leaf 8 12G1053 Packing, Ground, B 9 12G1533 Panel, Rear 10 12G1052 Packing, Ground, A 11 12G1650 Plate Asm., Sub, C 12 12G1229 Plate, Sub, E 13 12G1649 Plate Asm., Sub, B 14 12G1648 Plate Asm., Sub, A 15 12G1095 Plate, Positioning 16 12G1236 Plate, Fixing, A 17 12G1158 Block, Lock Piece 18 12G1208 Plate, Fixing 19 12G1023 Screw, Shoulder 20 12G1532 Foot 21 12G1198 Bracket, Foot 22 12G1219 Plate, Knob, Left 23 12G1092 Stay, Front 24 12G1148 Guide, Lower 25 12G1522 Cover, Side, Left Parts Catalog 7-77 |  |

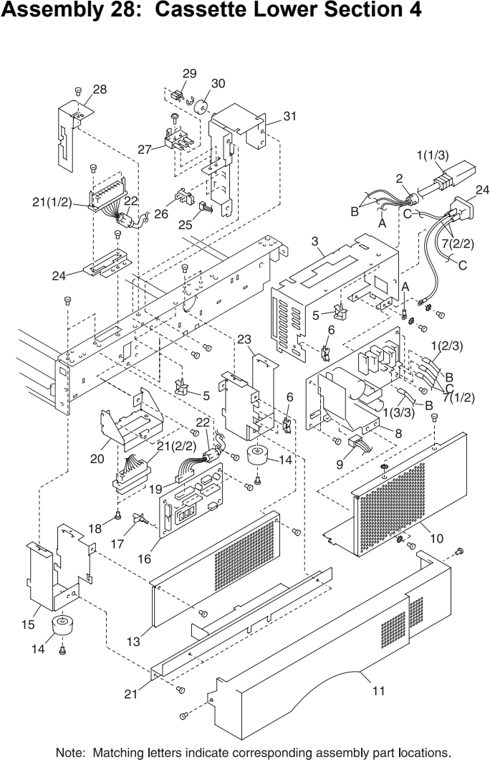

| Assembly 28: Cassette Lower Section 4 1 12G1021 Power Cord, AC 1 12G1022 Power Cord, AC 2 12G1687 Bushing, Cord 3 12G1110 Case, LVPS 4 12G1673 Socket, AC 5 12G1676 Clamp, Cable 6 12G1006 Clip, Cable 7 12G1614 Cable, OAC 8 12G1574 Board Asm., LVPS 9 12G1606 Cable, ADP 10 12G1111 Cover, LVPS 11 12G1521 Cover, Side, Right 12 12G1220 Plate, Knob, Right 13 12G1112 Cover, Controller Board 14 12G1532 Foot 15 12G1216 Plate, Positioning, 2 16 12G1573 Board Asm., Controller 17 12G1686 Standoff, Controller Board Asm. 18 12G1025 Screw, Shoulder 19 12G1608 Cable, ADL 20 12G1193 Plate, Connector 21 12G1605 Cable, ADM 22 12G1005 Core, Ferrite 23 12G1215 Plate, Positioning, 1 24 12G1221 Plate, Connector, Lower 25 12G1611 Cable, ADSN 26 12G1664 Sensor 27 12G1002 Switch, Micro 28 12G1114 Cover, Sensor 29 12G1607 Cable, ADSW 30 12G1401 Roller 31 12G1651 Bracket Asm., Sensor/Switch NS 12G1668 Clamp, Cable Parts Catalog 7-79 |  |

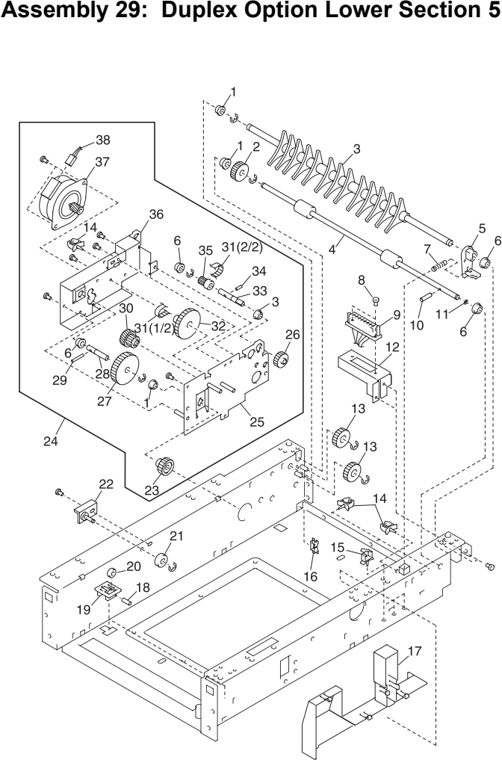

| Assembly 29: Duplex Option Lower Section 5 1 12G1483 Bushing 2 12G1459 Gear, 18Z 3 12G1274 Guide, Selecting, 2 4 12G1397 Roller, Reverse 5 12G1294 Lever, Selecting 6 12G1477 Bushing 7 12G1332 Spring, Selecting Lever 8 12G1025 Screw, Shoulder 9 12G1608 Cable, ADL 10 12G1694 Pin, Dowel Reverse Roll Shaft Asm 11 12G1499 Slider, Poly Reverse Roll Shaft Asm 12 12G1195 Bracket, Rear Side Connector 13 12G1455 Gear, 18R 14 12G1668 Clamp, Cable 15 12G1676 Clamp, Cable 16 12G1006 Clip, Edge 17 12G1113 Cover, Cable 18 12G1039 Pin, Guide Roller 19 12G1147 Holder, Roller 20 12G1398 Roller, Guide 21 12G1401 Roller 22 12G1654 Plate Asm., Sub 23 12G1460 Gear, 22Z 24 12G1343 Block Asm., Lower Section Drive 25 12G1647 Bracket Asm., Gear 2 26 12G1463 Gear, 18D 27 12G1461 Gear 50Z 28 12G1260 Shaft, 50Z/22Z 29 12G1691 Pin, Dowel, Shaft 50Z/22Z 30 12G1464 Gear, 25/20R 31 12G1473 Belt, Timing, (40S2M172) 32 12G1410 Pulley, 50Z/22T Parts Catalog 7-81 33 12G1258 Shaft 34 12G1689 Pin, Dowel, Shaft 35 12G1416 Pulley, 16T 36 12G1656 Bracket Asm., Gear, 1 37 12G1652 Motor Assembly 38 12G1612 Cable, ADMT Parts Catalog 7-83 |  |

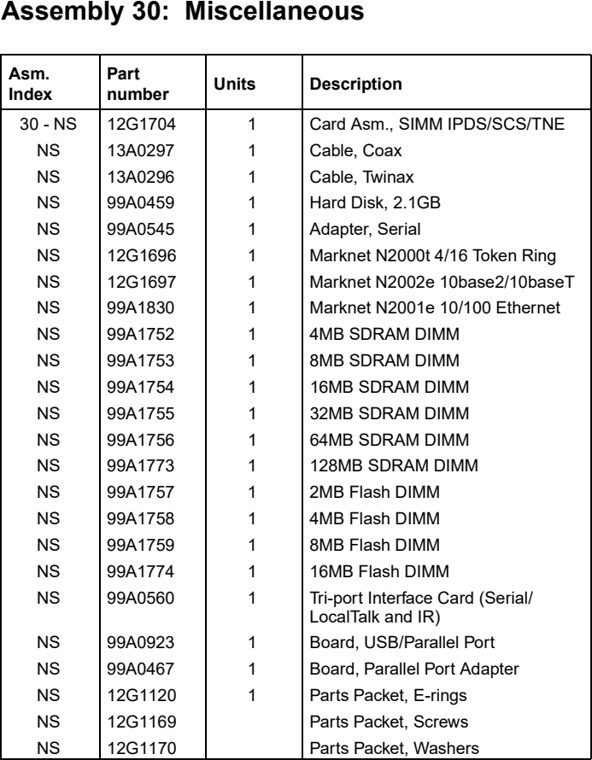

| Assembly 30: Miscellaneous NS 12G1704 Card Asm., SIMM IPDS/SCS/TNE NS 13A0297 Cable, Coax NS 13A0296 Cable, Twinax NS 99A0459 Hard Disk, 2.1GB NS 99A0545 Adapter, Serial NS 12G1696 Marknet N2000t 4/16 Token Ring NS 12G1697 Marknet N2002e 10base2/10baseT NS 99A1830 Marknet N2001e 10/100 Ethernet NS 99A1752 4MB SDRAM DIMM NS 99A1753 8MB SDRAM DIMM NS 99A1754 16MB SDRAM DIMM NS 99A1755 32MB SDRAM DIMM NS 99A1756 64MB SDRAM DIMM NS 99A1773 128MB SDRAM DIMM NS 99A1757 2MB Flash DIMM NS 99A1758 4MB Flash DIMM NS 99A1759 8MB Flash DIMM NS 99A1774 16MB Flash DIMM NS 99A0560 Tri-port Interface Card (Serial/ NS 99A0923 Board, USB/Parallel Port NS 99A0467 Board, Parallel Port Adapter NS 12G1120 Parts Packet, E-rings NS 12G1169 Parts Packet, Screws NS 12G1170 Parts Packet, Washers |  |
| Other listed parts 12G1710 C710 Rip card 39V4348 39V4349 39V4350 39V4351 39V4354 39V4355 39V4537 |
