Assembly 1: Covers 1 12G6410 Top cover assembly Lexmark 12G6410 Top cover assembly New 12G6410 (New) $29.99 1.1–1 12G6408 Left upper cover assembly Lexmark 12G6408 Left upper cover assembly New 12G6408 (New) $24.43 2 12G6507 250 output flag, includes flag retainer 3 12G6506 Bin full sensor 3 12G6392 Left upper pivot cover 4 12G6319 Cable, options - stacker 4 12G6485 Lower access jam door assembly Lexmark 12G6485 Door Assembly Lower Jam Access Fully refurbished with 90-day warranty 12G6485 Contact for Details 5 12G6409 Redrive cap cover assembly Lexmark 12G6409 Redrive cap cover assembly New 12G6409 (New) $24.88 5 12G6398 Left lower pivot cover 6 12G6380 Machine pad 6 12G6395 Cover, left lower 7 12G6389 Top front support bracket 7 12G6400 Waste container door Lexmark 12G6400 Waste container door New 12G6400 (New) Contact for Details Lexmark 12G6400 Door Waste Container Fully refurbished with 90-day warranty 12G6400 Contact for Details 8 12G6396 Right rear cover 8 12G6339 Blank, TLI/SN label 9 12G6390 Rear cover Lexmark 12G6390 Cover Rear Fully refurbished with 90-day warranty 12G6390 $21.38 10 12G6393 Right front cover 10 12G6401 Rear fan cover Lexmark 12G6401 Rear fan cover New 12G6401 (New) $21.88 11 12G6383 Fuser latch slide 12 12G6356 Lower right door assembly Lexmark 12G6356 Lower access jam door assembly New 12g6356 (New) $19.10 12 12G6384 Fuser latch slide spring 13 12G6405 Front right light shield cover Lexmark 12G6405 Front Right light shield cover New 12g6405 (New) Contact for Details 13 12G6340 Fuser top duct 14 56P2216 Shield, door spring 14 12G6386 Duplex actuator arm Lexmark 12G6386 Actuator Assembly Duplex New 12G6386 (New) Contact for Details 15 12G6360 Fuser wall duct 16 12G6376 Spring, rear hold down 16 12G6358 Fuser bottom duct 17 12G6347 Front hold down bellcrank 17 56P2290 Fuser left duct 18 56P2246 Detent spring 18 56P2291 Redrive belt cover duct 19 56P2218 Detent, front access door 20 56P2219 Housing, front access door 21 56P2217 Handle, front access door 22 12G6357 Front cover assembly Lexmark 12G6357 Front cover assembly New 12G6357 (New) Contact for Details 23 12G6394 Front lower right cover 24 12G6411 Front right handle cover assembly 25 12G6391 Paper path access door 26 12G6403 Spring, paper path access door 27 12G6388 Front lower left cover Lexmark 12G6388 Front lower left cover New 12G6388 (New) $20.71 28 12G6412 Front left handle cover assembly Lexmark 12g6412 Front Left handle cover assembly New 12G6412 (New) $13.79 29 12G6404 Left front light shield cover 30 56P1277 Paper tray guide 31 12G6402 Operator panel bezel with logos 32 12G6344 Operator panel assembly, low volt Lexmark 12g6344 Control Panel New 12g6344 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 12G6344 Panel Assembly Operator Low Volt Fully refurbished with 90-day warranty 12G6344 Contact for Details 32 12G6345 Operator panel assembly, high volt 34 12G6399 Front upper pivot cover 35 12G6397 Front access door support 36 12G6504 Cable, HVPS interlock/cover open (2-wire) 37 12G6503 Cable, printhead interlock/cover open (3-wire) 38 56P2489 Label, top paper jam Parts catalog 7-3 NS 12G6510 Cable tie (6 in pack) Parts catalog 7-5

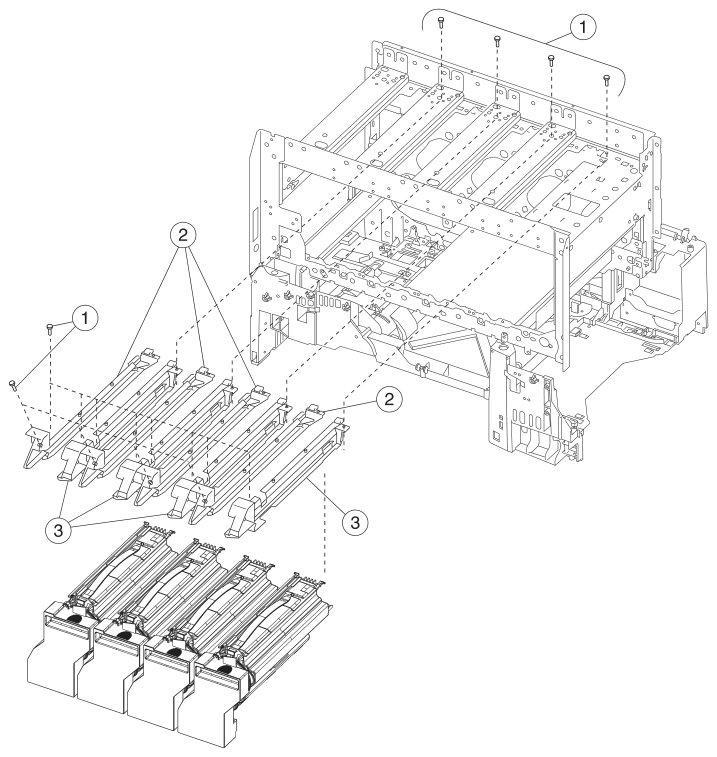

Assembly 2: Cartridge mounting 2 12G6535 Guide assembly, left side 3 12G6536 Guide assembly, right side Parts catalog 7-7

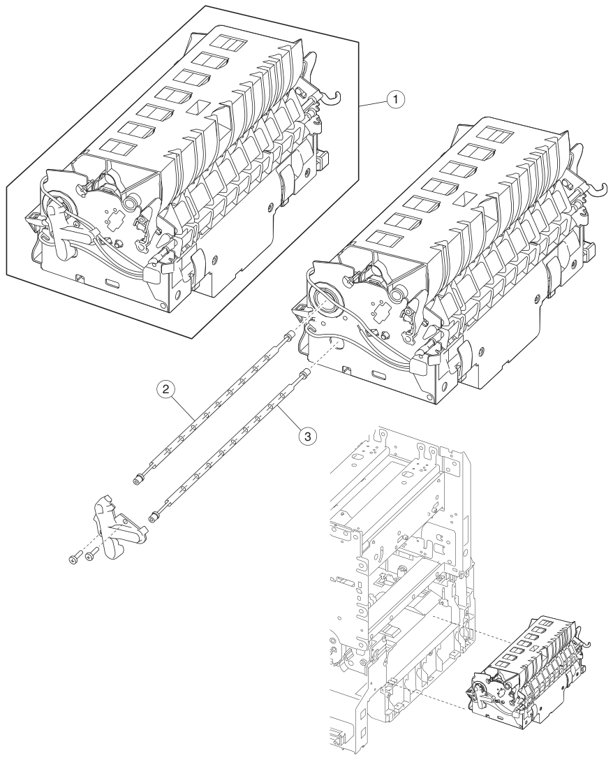

Assembly 3: Fuser 1 12G6495 Fuser assembly 100V 500W 1 12G6301 Fuser assembly 115V 500W Lexmark 12G6301 C750 C752 Fuser 115V 500W New 12g6301 (New) Contact for Details 1 12G6302 Fuser assembly 220V 500W 2 12G6516 Fuser lamp, 100V 500W hot roll 2 12G6337 Fuser lamp, 115V 500W hot roll 2 12G6341 Fuser lamp, 220V 500W hot roll 2 12G6495 Fuser assembly, web oiler 100V 500W 2 12G6514 Fuser assembly, web oiler 115V 500W Lexmark 12G6514 Fuser Assembly Web Oiler Fully refurbished with 90-day warranty 12G6514 $316.65 2 12G6515 Fuser assembly, web oiler 220V 500W 3 12G6517 Fuser lamp, 100V 400W backup roll 3 12G6338 Fuser lamp, 115V 400W backup roll Lexmark 12G6338 LAMP15 500W BUR Fully refurbished with 90-day warranty 12G6338 $21.39 3 12G6342 Fuser lamp, 220V 400W backup roll Parts catalog 7-9 3 12G6543 Web oiler index drive assembly Parts catalog 7-11 Lexmark 12G6543 Drive Assembly Oiler Index Fully refurbished with 90-day warranty 12G6543 Contact for Details 3.1–1 12G6545 Web oiler assembly

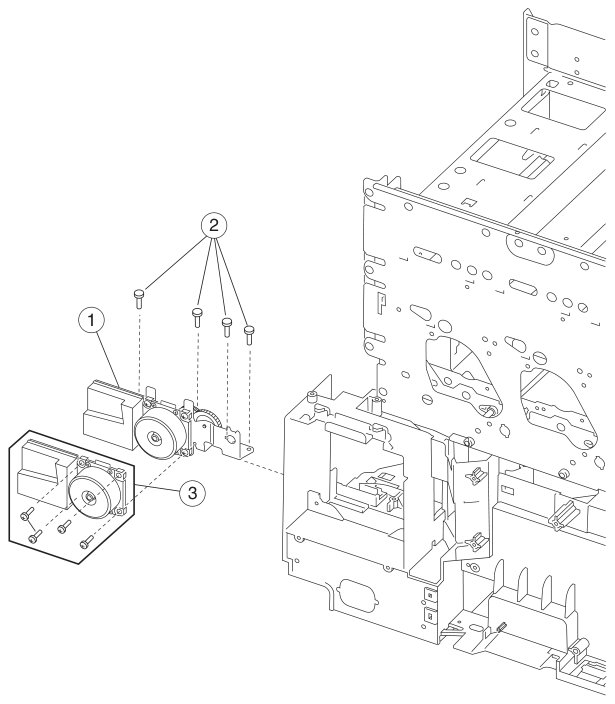

Assembly 4: Fuser drive 1 56P1213 Fuser drive assembly w/motor 56P1213 Fuser drive assembly w/motor New 56P1213 (New) $108.00 56P1213 Fuser Drive Assembly Fully refurbished with 90-day warranty 56P1213 $117.00 3 56P1238 Fuser drive motor 56P1238 Fuser drive motor New 56P1238 (New) $149.00 56P1238 Motor Assembly Fuser Drive Fully refurbished with 90-day warranty 56P1238 $99.00

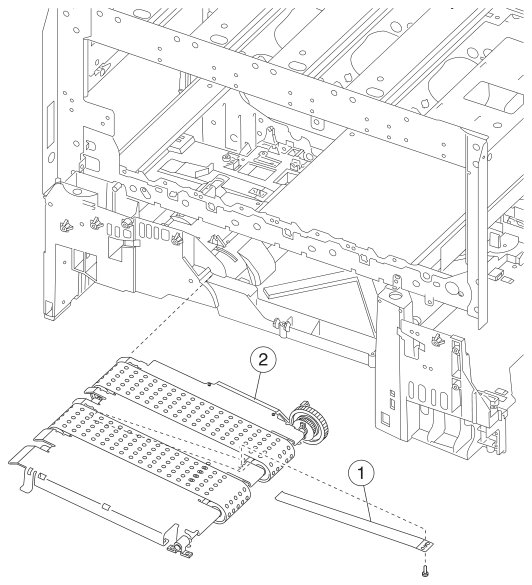

Assembly 5: Vacuum transport belt assembly 1 12G6491 Jam access spring 2 12G6489 Vacuum transport belt assembly Parts catalog 7-13 Lexmark 12G6489 Transport Assembly Vacuum Belt Fully refurbished with 90-day warranty 12G6489 Contact for Details

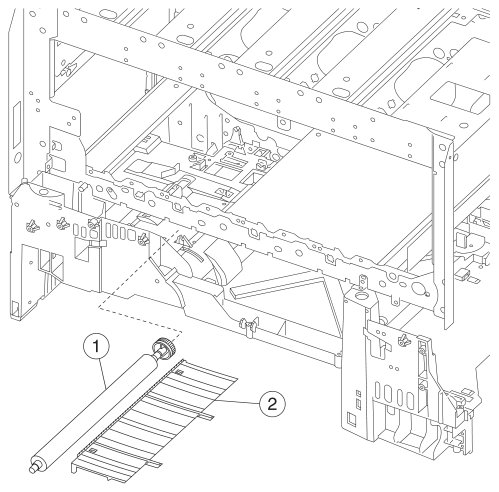

Assembly 6: Transfer 1 12G6303 Second transfer roll Lexmark 12G6303 Second transfer roll New 12G6303 (New) Contact for Details 2 12G6488 Transfer plate assembly Lexmark 12G6488 Transfer Plate assembly New 12g6488 (New) Contact for Details Lexmark 12G6488 Plate Assembly Transfer Fully refurbished with 90-day warranty 12G6488 Contact for Details

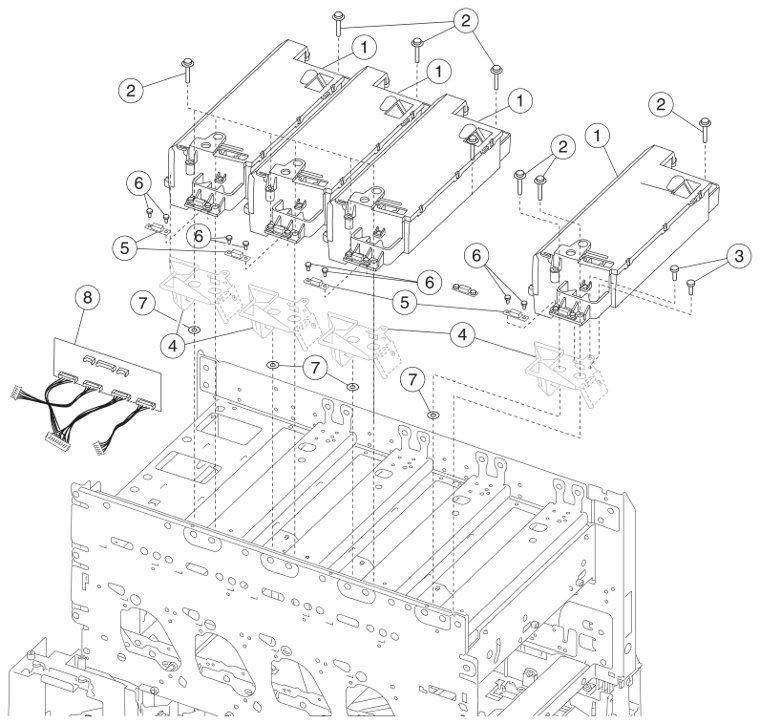

Assembly 7: Printheads 1 12G6322 Printhead assembly (Do not replace more than one printhead at a time.) 5 56P1198 Thermistor card 56P1198 Thermistor card New 56P1198 (New) $18.00 7 56P2292 Printhead spacer 8 56P2296 Card assembly, printhead diagnostic aid Parts catalog 7-15

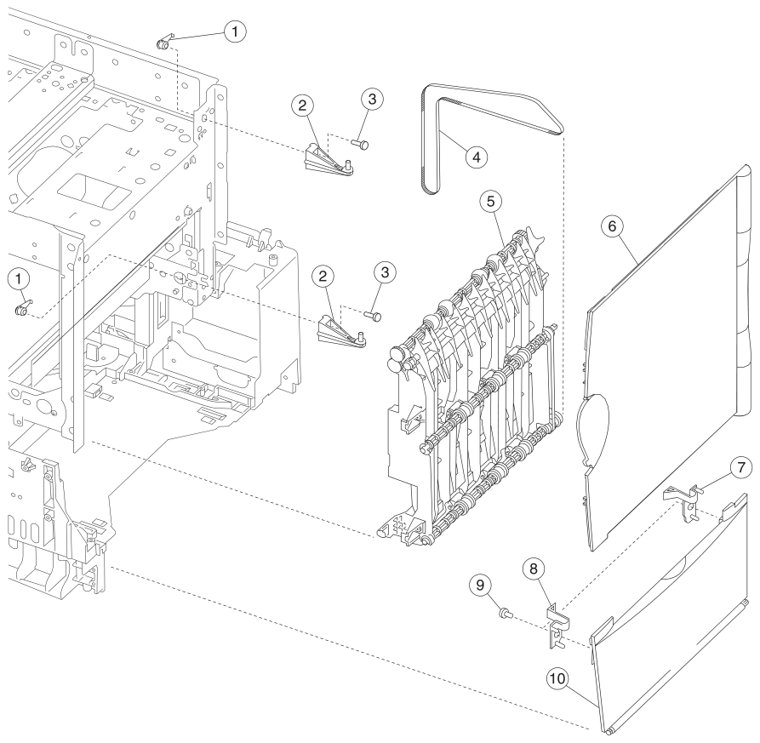

Assembly 8: Paper feed output (redrive) 1 56P0167 Anchor, bracket mounting 56P0167 Anchor bracket mounting Fully refurbished with 90-day warranty 56P0167 Contact for Details 2 12G6493 Upper door hinge 4 56P2204 Redrive belt 300 T 5 12G6492 Redrive assembly Lexmark 12G6492 Redrive Assembly Inner Fully refurbished with 90-day warranty 12G6492 Contact for Details 6 12G6355 Redrive door Lexmark 12G6355 Redrive door assembly New 12G6355 (New) Contact for Details Lexmark 12G6355 Door Assembly Upper Right Fully refurbished with 90-day warranty 12G6355 Contact for Details 7 12G6513 Lower rear door latch 8 12G6512 Lower front door latch 10 12G6356 Door assembly, lower right Lexmark 12G6356 Lower access jam door assembly New 12g6356 (New) $19.10

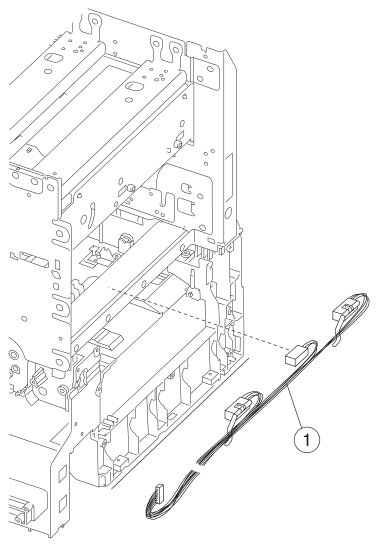

Assembly 9: Paper feed input 1 12G6486 S2/transparency/narrow media sensor assembly Parts catalog 7-17 Lexmark 12G6486 Sensor S2 Nms Transparency Fully refurbished with 90-day warranty 12G6486 Contact for Details

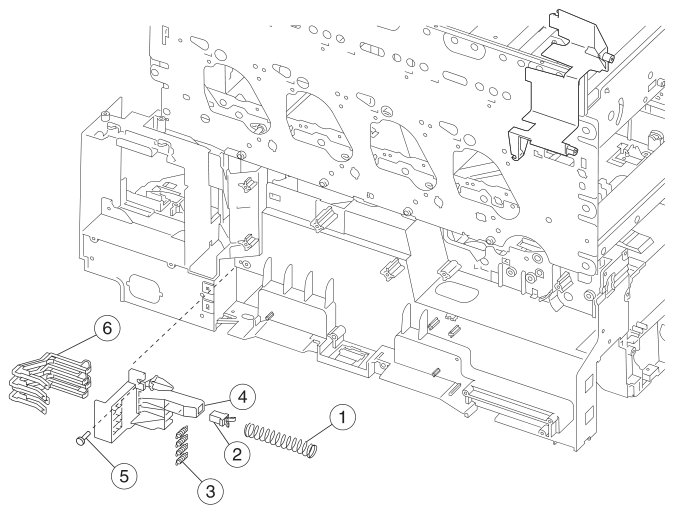

Assembly 10: Paper size sensing 1 12G6470 Waste container latch spring 2 12G6469 Waste container latch 3 12G6467 Paper size sensing spring 4 12G6468 Paper size sensing bracket 6 12G6466 Paper size sensing link

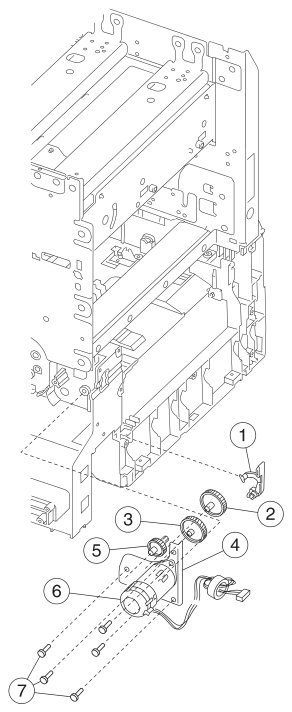

Assembly 11: Paper feed transport 1 56P2199 Nip relief handle 2 12G6483 Gear, staging idler 3 12G6482 Gear, staging reduction #1 4 12G6481 Registration plate assembly 5 12G6484 Gear, reference plate drive 6 12G6480 Registration motor Lexmark 12G6480 Registration motor New 12G6480 (New) Contact for Details Lexmark 12G6480 Motor Assembly Registration Pick Fully refurbished with 90-day warranty 12G6480 Contact for Details

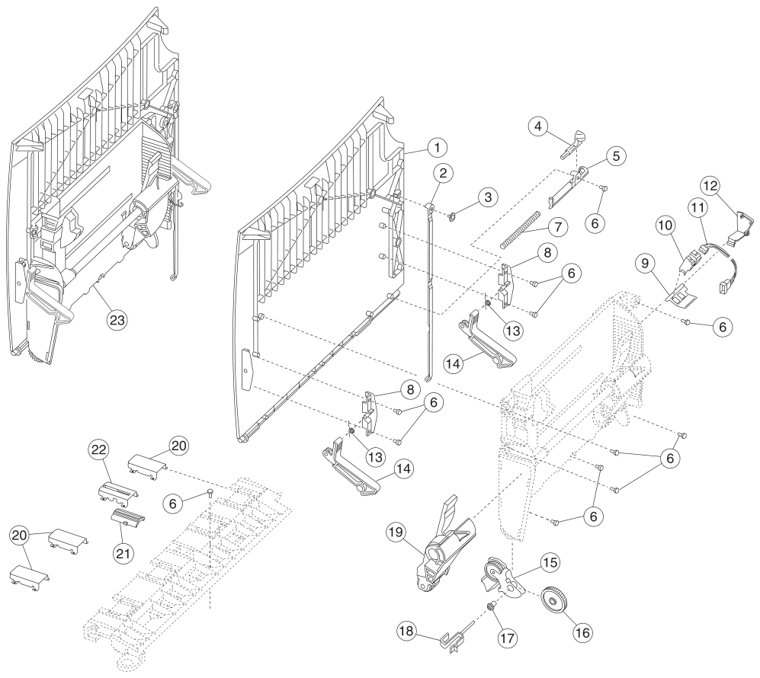

Assembly 12: Multipurpose Feeder (MPF) 1 12G6452 MP feeder door cover Lexmark 12G6452 Cover Mp Feeder Door Fully refurbished with 90-day warranty 12G6452 Contact for Details 2 12G6460 Door hinge restraint 4 12G6453 Frame bias latch 5 12G6455 Frame bias latch cover 7 12G6454 Frame bias spring 8 12G6457 MPF support bracket cover 9 12G6456 Sensor mount bracket 10 12G6461 Paper out/low sensor 11 12G6448 MPF cable 12 12G6449 MPF cable cover 13 12G6458 MPF support bracket spring 14 12G6459 MPF support bracket 15 12G6462 MPF bracket assembly 16 12G6463 MPF drive gear 17 12G6465 MPF drive gear bushing 18 12G6464 MPF drive gear shaft 19 12G6451 MPF autocompensator pick assembly 20 12G6354 Rib housing 21 12G6447 Friction buckler 22 12G6346 Buckler housing 23 12G6450 MPF door assembly Parts catalog 7-21 Lexmark 12G6450 MPF door assembly New 12G6450 (New) Contact for Details Lexmark 12G6450 Door Assembly Multi Purpose Feed Fully refurbished with 90-day warranty 12G6450 Contact for Details

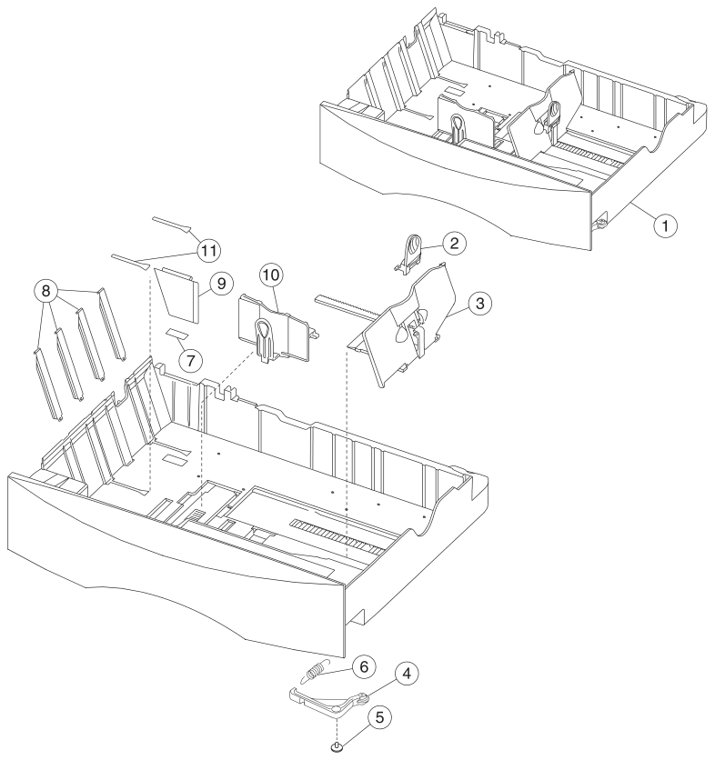

Assembly 13: 500-sheet integrated tray 1 12G6416 500-Sheet tray assembly Lexmark 12G6416 500-Sheet tray complete assembly New 12g6416 (New) $24.71 Lexmark 12G6416 Tray Assembly 500 Sheet Fully refurbished with 90-day warranty 12G6416 $24.71 2 12G6419 Back restraint latch 3 12G6418 Back restraint 4 12G6425 Tray bias bellcrank assembly 6 12G6426 Tray bias spring 7 12G6568 Reflector label 8 12G6421 Wear strip 9 12G6420 Tray wear clip 10 12G6417 Side restraint 11 56P1504 Active restraint pad Parts catalog 7-23

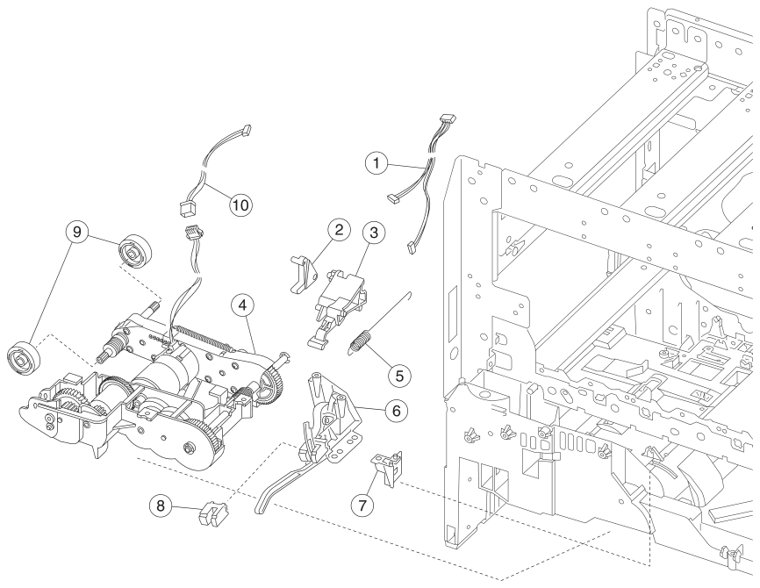

Assembly 14: Autocompensator assembly 1 56P0551 Cable, paper media low/out 2 12G6471 Tray interlock bellcrank 3 12G6558 Pick arm lift bellcrank 4 12G6427 Pick assembly 500-tray Lexmark 12G6427 Pick assembly 500-tray New 12G6427 (New) $24.71 Lexmark 12G6427 Pickup Assembly Fully refurbished with 90-day warranty 12G6427 $24.71 5 12G6557 Bellcrank lift spring 6 12G6476 Paper level sensing assembly 7 12G6472 Tray interlock bracket 8 12G6461 Sensor, paper out/low 9 99A0070 Pick rolls (2 each per package) Lexmark 99A0070 Pick Rolls (Set Of Two) New 99A0070 (New) Contact for Details 10 56P0552 Cable, pick motor extension NS 56P1237 Autocomp shaft assembly

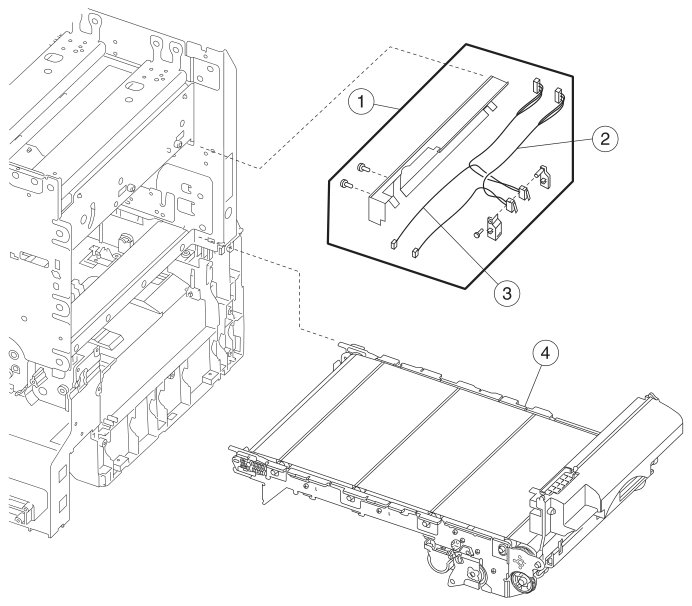

Assembly 15: ITU assembly 1 12G6413 ITU light shield assembly Lexmark 12G6413 ITU light shield assembly New 12G6413 (New) Contact for Details Lexmark 12G6413 Shield Assembly ITM Light Fully refurbished with 90-day warranty 12G6413 Contact for Details 2 12G6503 Cable, printhead interlock/cover open (3-wire) 3 12G6504 Cable, HVPS interlock/cover open (2-wire) 4 56P1295 ITU assembly Parts catalog 7-25 56P1295 ITU Belt Assembly New 56P1295 (New) $665.00

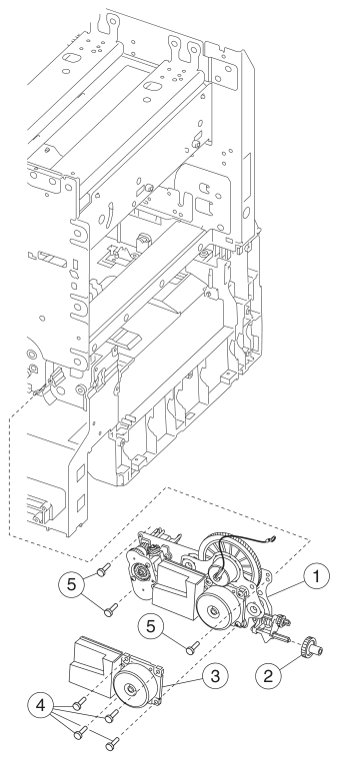

Assembly 16: ITU drive assembly 1 56P1216 ITU motor drive assembly with SKC motor 56P1216 ITU motor drive assembly with SKC motor New 56P1216 (New) Contact for Details 56P1216 Motor Assembly ITU Drive Fully refurbished with 90-day warranty 56P1216 $209.00 2 12G6385 #58 Gear 3 56P0568 ITU drive motor, SKC 56P0568 ITU drive motor assembly Fully refurbished with 90-day warranty 56P0568 $228.00 56P0568 Cartride Drive Motor New 56P0568 (New) Contact for Details

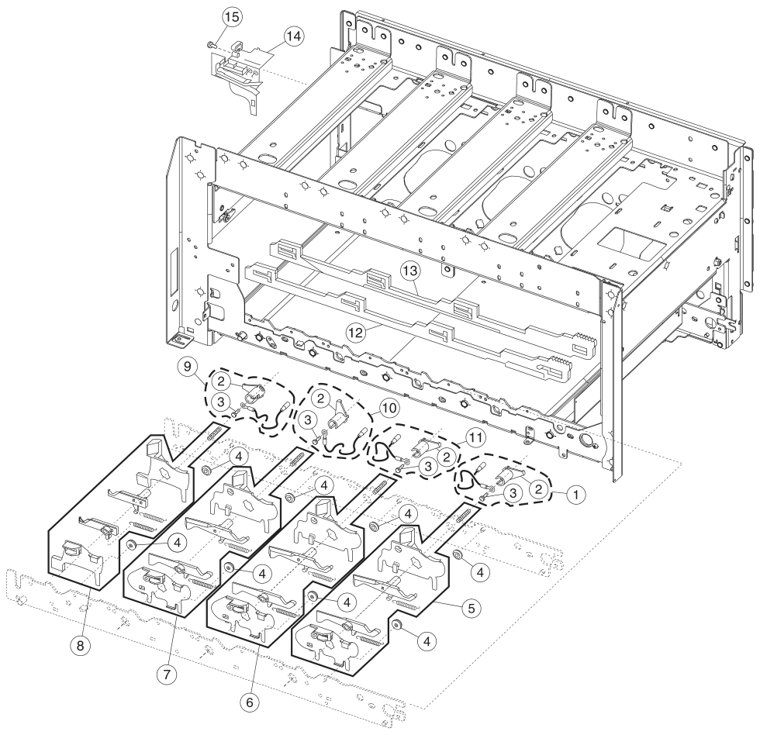

Assembly 17: ITU loading 1 12G6546 Yellow terminal contact assembly 2 12G6442 Terminal, contact spring 4 12G6353 Cartridge support roller 5 56P1495 Parts packet, ITU loading - yellow, including 6 56P1496 Parts packet, ITU loading - cyan, including 7 56P1497 Parts packet, ITU loading - magenta, including 8 56P1498 Parts packet, ITU loading - black, including 9 12G6439 Black terminal contact assembly 10 12G6440 Magenta terminal contact assembly 11 12G6441 Cyan terminal contact assembly 12 56P0594 Cam, BOR front 13 56P0595 Cam, BOR rear 14 56P0560 Rear ITU guide

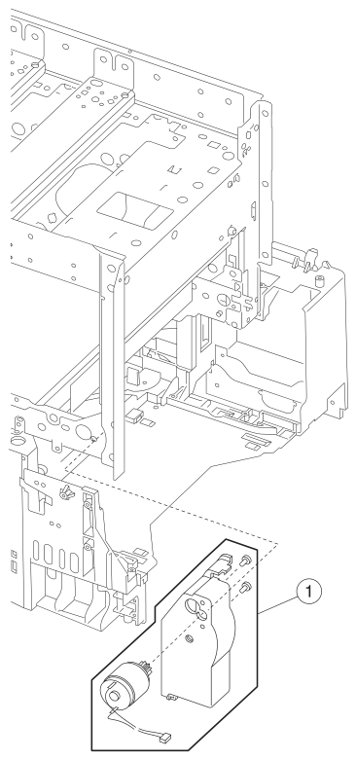

Assembly 18: BOR drive assembly 1 12G6446 BOR housing assembly with motor Lexmark 12G6446 BOR housing assembly with motor New 12G6446 (New) Contact for Details

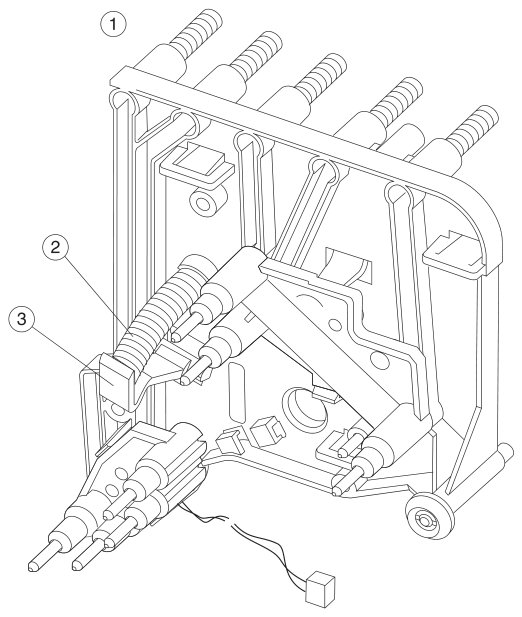

Assembly 19: Cartridge contact assembly 1 56P0310 Cartridge contact assembly, complete 56P0310 Cartridge contact assembly, complete, cyan, magenta, yellow Fully refurbished with 90-day warranty 56P0310 Contact for Details 2 12G6377 Rear hold down bellcrank 3 12G6376 Rear hold down spring Parts catalog 7-31

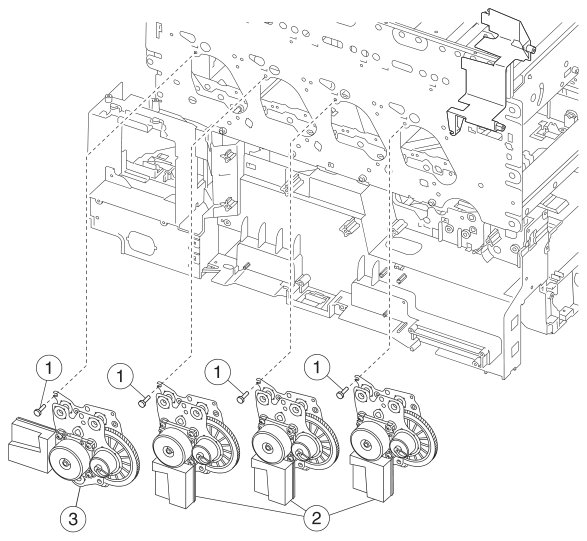

Assembly 20: Cartridge drive assembly 2 56P1214 Cartridge drive assembly, cyan/magenta/black 56P1214 Cartridge drive assembly cyan/magenta/black New 56P1214 (New) $168.00 56P1214 Cartridge Drive Assembly Fully refurbished with 90-day warranty 56P1214 $197.00 3 56P1215 Cartridge drive assembly, yellow Parts catalog 7-33 56P1215 Cartridge drive assembly yellow New 56P1215 (New) $92.00 56P1215 Cartridge drive assembly yellow Fully refurbished with 90-day warranty 56P1215 Contact for Details 56P1215 Drive Assembly Cart Drive 3 Fully refurbished with 90-day warranty 56P1215 Contact for Details

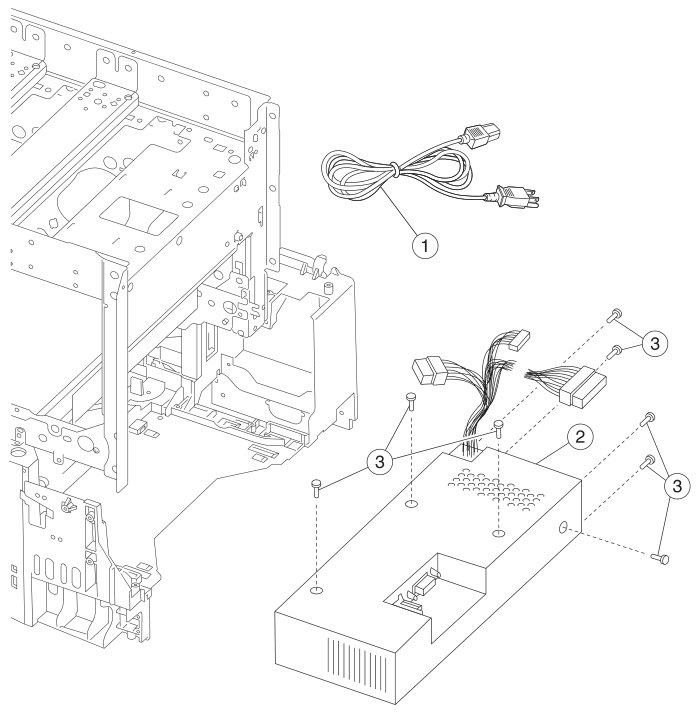

Assembly 21: Electronics 1 11A9095 Power cord set U.S., Canada (LV), Brazil (LV), Colombia (LV), Costa Rica (LV), Dominican 11A9095 Power cord; 2.5 m 8 ft. Straight US Canada Latin America (LV) Fully refurbished with 90-day warranty 11A9095 Contact for Details 1 43H5544 Power cord set PRC (HV) 1 1339517 Power cord set Bolivia (HV), Peru (HV) 1 1339519 Power cord set Kuwait (HV), Bahrain (HV), Qatar (HV), UAE (HV), Oman (HV) Pakistan 1 1339520 Power cord set Brazil (HV), Paraguay (HV), Uruguay (HV), African Countries Denmark 1 1339521 Power cord set Israel (HV) 1 1339522 Power cord set Switzerland HV (French/German and Italian) 1 1339523 Power cord set South Africa (HV), Namibia (HV), Lesotho (HV), Botswana (HV) 1 1339524 Power cord set Chile (HV) 1 1339525 Power cord set Denmark, (HV) 1 1339544 Power cord set Argentina (HV) 2 12G6329 LVPS, 115V Lexmark 12G6329 Low Voltage Power Supply 115V New 12G6329 (New) $58.21 2 12G6330 LVPS, 220V 2 12G6331 RIP board ground shield Lexmark 12G6331 Shield RIP Card Ground Fully refurbished with 90-day warranty 12G6331 Contact for Details 3 12G6511 Cable mount 3 12G6323 Engine board 3 12G6361 RIP fan Lexmark 12G6361 RIP fan New 12G6361 (New) $19.71 4 56P1188 RIP board assembly - network, model 5060-002 Lexmark 56P1188 RIP Board Assembly network, model 5060-002 New 56P1188 (New) Contact for Details 56P1188 Card Assembly RIP PCBA Network Fully refurbished with 90-day warranty 56P1188 $179.00 4 12G6387 Ground strap 4 12G6479 VTB fan Lexmark 12G6479 VTB fan New 12G6479 (New) Contact for Details 5 12G6334 INA riser support bracket 5 12G6541 Standoff, high voltage power supply - developer 5 12G6490 VTB fan gap cover 6 12G6326 Riser card assembly w/o support brackets 6 12G6382 Fuser fan Lexmark 12G6382 Fuser fan New 12G6382 (New) Contact for Details Lexmark 12G6382 Fan Fuser 20Mm Fully refurbished with 90-day warranty 12G6382 Contact for Details 7 12G6335 Standoff, INA RIP spacer 7 12G6328 Developer HVPS board Lexmark 12G6328 Developer HVPS board New 12g6328 (New) $58.21 7 12G6529 Screws, fuser fan mounting Parts catalog 7-41 8 56P9910 SDRAM DIMM 128MB 56P9910 128MB SDRAM card assembly New 56P9910 (New) $16.56 56P9910 128MB SDRAM card assembly Fully refurbished with 90-day warranty 56P9910 $45.00 8 12G6509 SDRAM DIMM 64MB Lexmark 12G6509 SDRAM DIMM 64MB Fully refurbished with 90-day warranty 12G6509 $44.71 9 56P1187 RIP board assembly, non-network, Model 5060-001 56P1187 RIP Board Assembly, Non-Network, Model 5060-001 New 56P1187 (New) $665.00 56P1187 Rip Card Pcba ( Non-Net ) Fully refurbished with 90-day warranty 56P1187 $796.00 10 99A0426 Screw, parallel connector mounting 11 99A1611 Ethernet blank shield, use with non-network RIP boards 12 99A0408 INA blank flat shield, use when options are not installed 13 99A2432 Blank parallel shield, use with network RIP boards 14 12G6333 RIP board shield assembly Lexmark 12G6333 RIP board shield assembly New 12G6333 (New) Contact for Details 15 12G6332 RIP board cover shield 16 12G6487 Ground strap Parts catalog 7-37 21.2–1 12G6327 Transfer HVPS board Lexmark 12G6327 HVPS Transfer Fully refurbished with 90-day warranty 12G6327 Contact for Details Lexmark 12G6327 HVPS Transfer New 12G6327 (New) Contact for Details 21.3–1 12G6336 Engine board shield 21.4–1 12G6343 RIP fan duct

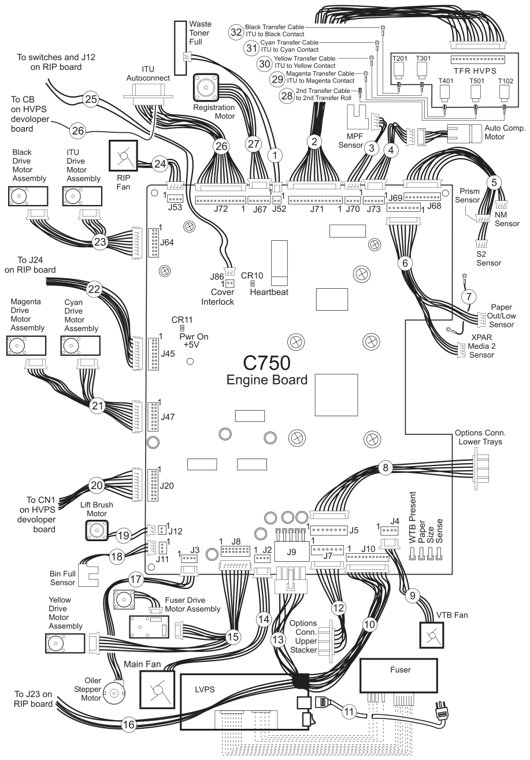

Assembly 22: Electronic cabling—engine board 2 12G6317 Cable, HVPS control - transfer 3 12G6448 Cable, MPF paper level 4 56P0552 Cable, autocompensator motor 5 12G6486 Cable assembly (includes S2/NMS/transparency sensors) Lexmark 12G6486 Sensor S2 Nms Transparency Fully refurbished with 90-day warranty 12G6486 Contact for Details 6 56P0551 Cable, paper out/low and transparency media 2 sensors 7 12G6387 Cable, ground 8 12G6320 Cable, options - bottom 12 12G6319 Cable, options - stacker 14 12G6350 Cable, attached to main fan (P/N 12G6382) 15 12G6349 Cable, fuser and yellow cartridge motor 17 56P2031 Cable, web oiler motor 20 12G6316 Cable, HVPS control - developer 21 12G6350 Cable, cyan and magenta cartridge drive motors 22 12G6318 Cable, engine/RIP communications 23 12G6351 Cable, ITU and black cartridge drive motors 25 12G6504 Cable, HVPS interlock/cover open 26 56P0311 Cable ITU autoconnect 28 56P0174 Cable, second transfer roll 56P0174 Cable assembly second transfer voltage New 56P0174 (New) $31.00 56P0174 Cable assembly second transfer voltage Fully refurbished with 90-day warranty 56P0174 $31.00 29 12G6440 Cable, magenta transfer 30 12G6546 Cable, yellow transfer 31 12G6441 Cable, cyan transfer 32 12G6439 Cable, black transfer Parts catalog 7-43

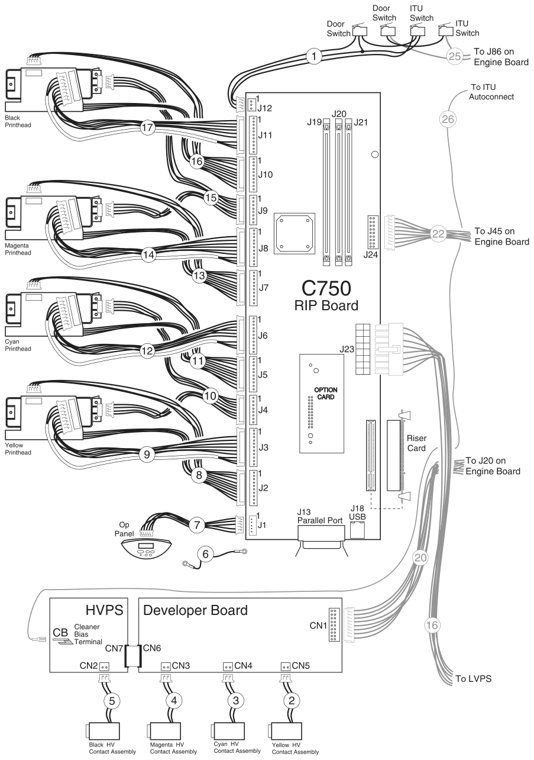

Assembly 23: Electronic cabling—RIP board 1 12G6503 Cable, printhead interlock/cover open 2 56P0310 Cable, signature button, attached to yellow HV contact assembly 56P0310 Cartridge contact assembly, complete, cyan, magenta, yellow Fully refurbished with 90-day warranty 56P0310 Contact for Details 3 56P0310 Cable, signature button, attached to cyan HV contact assembly 56P0310 Cartridge contact assembly, complete, cyan, magenta, yellow Fully refurbished with 90-day warranty 56P0310 Contact for Details 4 56P0310 Cable, signature button, attached to magenta HV contact assembly 56P0310 Cartridge contact assembly, complete, cyan, magenta, yellow Fully refurbished with 90-day warranty 56P0310 Contact for Details 5 56P0310 Cable, signature button, attached to black HV contact assembly 56P0310 Cartridge contact assembly, complete, cyan, magenta, yellow Fully refurbished with 90-day warranty 56P0310 Contact for Details 6 12G6387 Cable, ground 7 12G6321 Cable, operator panel 9 12G6310 Cable, video printhead - yellow 10 12G6314 Cable, thermistor - yellow and cyan 12 12G6311 Cable, video printhead - cyan 14 12G6312 Cable, video printhead - magenta 15 12G6315 Cable, thermistor - magenta and black 17 12G6313 Cable, video printhead - black Parts catalog 7-45

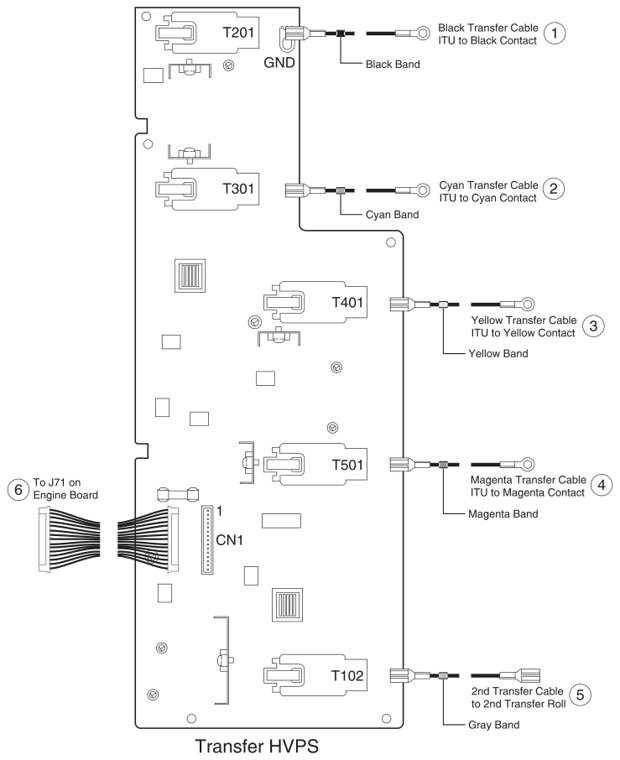

Assembly 24: Electronic cabling—transfer HVPS 1 56P1565 Cable assembly, black terminal contact 2 56P1567 Cable assembly, cyan terminal contact 3 56P1568 Cable assembly, yellow terminal contact 4 56P1566 Cable assembly, magenta terminal contact 5 56P0174 Cable assembly, second transfer voltage 56P0174 Cable assembly second transfer voltage New 56P0174 (New) $31.00 56P0174 Cable assembly second transfer voltage Fully refurbished with 90-day warranty 56P0174 $31.00 6 56P1502 Cable, HVPS control - transfer

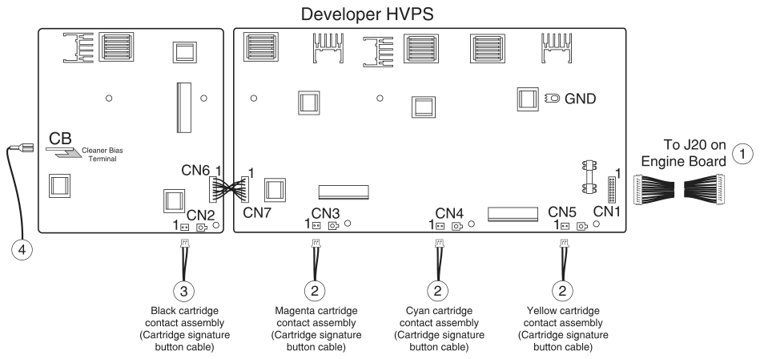

Assembly 25: Electronic cabling—developer HVPS 1 56P1502 Cable assembly, HVPS control - developer 2 56P0310 Cartridge contact assembly, complete, cyan/magenta/yellow 56P0310 Cartridge contact assembly, complete, cyan, magenta, yellow Fully refurbished with 90-day warranty 56P0310 Contact for Details 3 56P1561 Cartridge contact assembly, complete, black 4 56P0311 Cable, ITU Autocomp out with CB lead Parts catalog 7-47

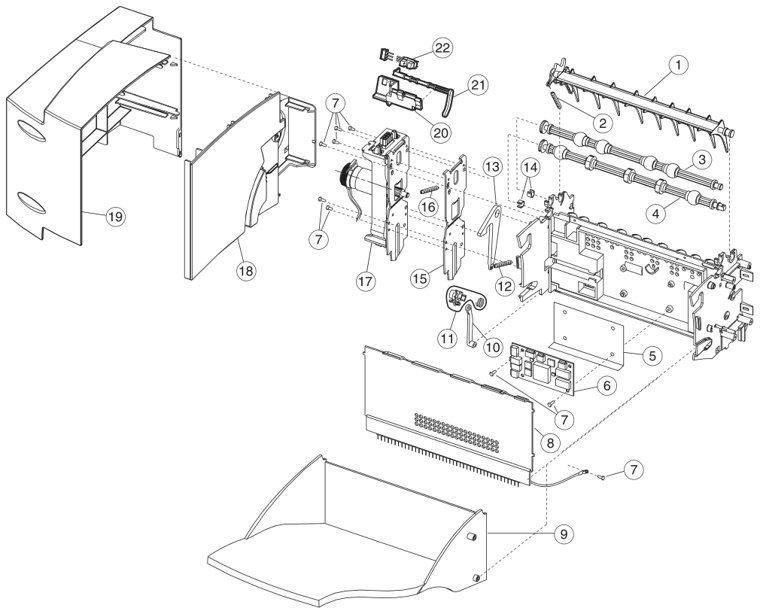

Assembly 26: Output expander 1 99A0107 Deflector, upper redrive, Lexmark 99A0107 Upper Diverter Fully refurbished with 90-day warranty 99A0107 $18.35 2 99A0104 Spring, upper diverter Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 2 99A0368 Shaft assembly, lower, 3 99A0369 shaft assembly, exit, 3 99A0363 Pulley, drive 4 99A0052 Shaft assembly, lower exit, 4 56P0410 Bracket, attach 5 56P0407 Shield, output option card 6 99A0915 Board, Output Expander DC motor 6 56P0400 Cover, front 7 99A0361 Belt, 160 gear 8 56P0409 Cover, front control board 8 99A0362 Arm assembly, belt idler 9 99A1817 Tray, Output Expander 9 99A0364 Spring, belt tensioner 10 99A1688 Diverter arm 10 99A0482 Spring, output tray 11 99A1689 Spring clutch assembly Lexmark 99A1689 Spring Clutch Assembly New 99A1689 (New) $27.06 11 99A0481 Latch, output tray 12 99A0482 Spring, output tray 12 99A0912 Frame assembly 13 99A0481 Latch, output tray 13 99A0351 Sensor, Output Expander pass thru 15 99A1784 Bracket, attach 15 99A0913 Shaft assembly, middle 40T, 16 99A0415 Spring, swing arm 17 56P0408 Output Expander assembly, mechanical linkage 18 56P0402 Cover, rear support 19 56P0401 Rear cover 20 99A0409 Level sensor bracket 21 99A1580 Flag, output paper level Lexmark 99A1580 Flag 500 Bin Level Fully refurbished with 90-day warranty 99A1580 $5.00 22 99A0414 Sensor, dual bin full Parts catalog 7-49 26.1–1 56P0405 Door assembly, right jam access NS 99A1744 Kit, Multi-Bin Stacker Parts catalog 7-51

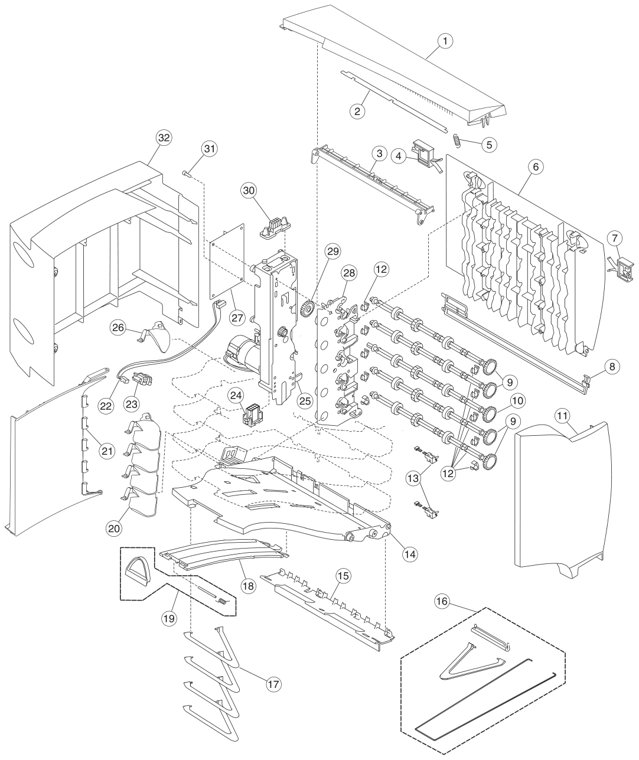

Assembly 27: 5-bin mailbox 1 12G6409 Cover, redrive cap Lexmark 12G6409 Redrive cap cover assembly New 12G6409 (New) $24.88 2 99A1710 Cover, wire 2 99A1727 Frame asm, right side Lexmark 99A1727 Frame Assembly, Right Side New 99A1727 (New) $22.79 3 56P0416 Cover, top bin 4 56P0423 Latch, rear access door 4 99A1728 Cam, diverter actuator 5 99A0104 Spring, upper diverter Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 5 99A1731 Spring, diverter actuator 6 56P0411 Door, front 6 99A1729 Latch, diverter actuator 7 56P0422 Latch, access door front 7 99A1730 Arbor, diverter actuator 8 56P0415 Cover, right 8 99A1789 C-clip 9 99A1723 Shaft asm, drive 9 56P0418 Bracket, attach front 10 99A1724 Shaft asm, drive with gear 10 99A1732 Solenoid, diverter 11 99A1708 Cover, right side 11 99A1738 Deflector, paper exit w/brush 12 99A1725 Packet, drive shaft bushing 12 99A1722 Deflector, paper 13 99A1742 Sensor, 5-Bin Mailbox pass thru 13 99A1787 Deflector 14 99A1712 Tray, paper cap 14 99A1721 Deflector, paper top bin 15 56P0420 Bracket asm, bail attach 16 99A1743 Kit, 5-Bin Mailbox asm 18 99A1713 Support, paper tray 19 99A1687 Stop asm, paper tray 20 99A1735 Flag, bin full 21 56P0412 Rear structural cover 22 99A1736 Cable, dual sensor 23 99A1737 Sensor, dual bin level 24 99A1718 Cable asm, lower autoconnect 25 99A1716 Drive asm, main DC drive 26 56P0417 Flag, bin full 27 99A1740 Board asm, 5-Bin Mailbox system 27.1–1 99A1741 Spring, diverter 28 99A1726 Frame asm, left w/clutch asm Lexmark 99A1726 Frame Assembly, Left w/Clutch Assembly New 99A1726 (New) $46.57 29 99A1786 Gear, drive 30 99A1719 Cable asm, upper autoconnect 32 56P0413 Cover, left side Parts catalog 7-53 NS 56P0421 Spring, static ground NS 99A0462 Grease packet, IBM #23 Lexmark 99A0462 #23 Nyogel Grease New 99A0462 (New) $14.72 NS 99A1715 Roller asm, rear access door NS 99A1717 Gear, drive NS 99A1788 Retainer, R-ring NS 99A0450 Retainer NS 56P0550 Cable, tray media level sensor Parts catalog 7-55

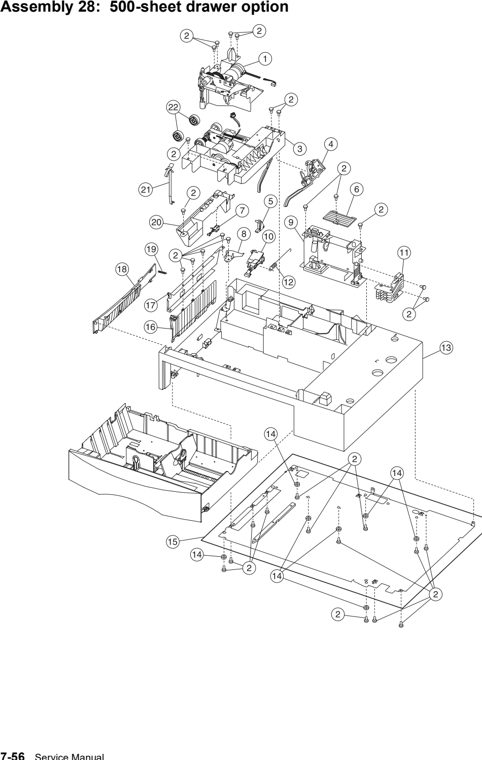

Assembly 28: 500-sheet tray option 1 56P0168 Drive assembly, 500 option 2 2 12G6419 Back restraint latch 3 12G6550 500-Sheet Option tray pick assembly 3 12G6418 Back restraint 4 12G6565 Paper level sensing assembly 4 12G6425 Tray bias bellcrank assembly 5 12G6471 Tray interlock bellcrank 6 12G6556 Cover, frame 6 12G6426 Tray bias spring 7 12G6553 Pass thru sensor 7 12G6568 Reflector label 8 12G6562 Hinge 8 12G6421 Wear strip 9 12G6559 Electronics/size sensing assembly with system board 9 12G6420 Tray wear clip 10 12G6558 Pick arm lift bellcrank 10 12G6417 Side restraint 11 12G6566 Paper size sensing assembly 11 56P1504 Active restraint pad Parts catalog 7-59 12 12G6557 Bellcrank lift spring 13 12G6560 500 base assembly 14 12G6380 Machine pad 15 12G6554 Paper guide 16 12G6563 Wall support plate 17 12G6552 Base door assembly 18 12G6561 Spring 19 12G6555 500 option deflector 20 12G6567 Grounding spring 21 99A0070 Pick roll tires Lexmark 99A0070 Pick Rolls (Set Of Two) New 99A0070 (New) Contact for Details 28.1–1 12G6416 500-Sheet tray assembly Lexmark 12G6416 500-Sheet tray complete assembly New 12g6416 (New) $24.71 Lexmark 12G6416 Tray Assembly 500 Sheet Fully refurbished with 90-day warranty 12G6416 $24.71 NS 12G6510 Cable tie Parts catalog 7-57

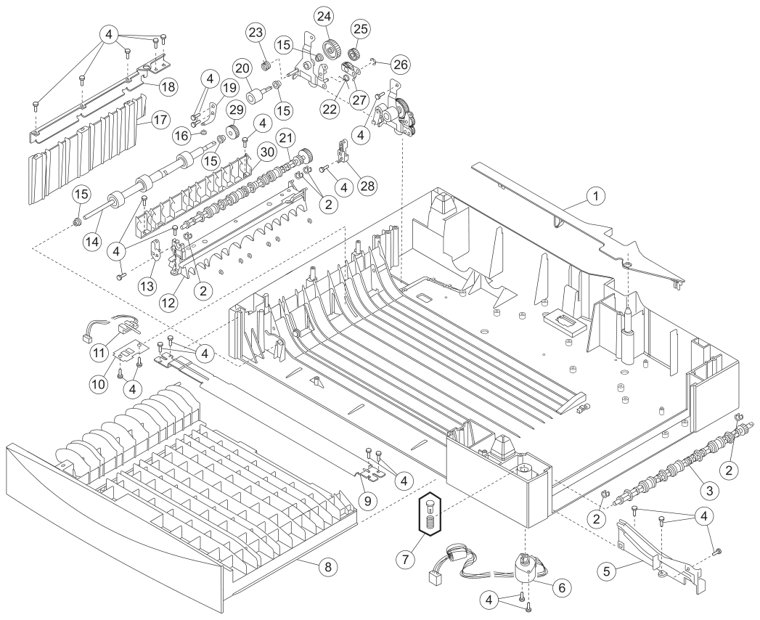

Assembly 29: Duplex option 1 56P0480 Back cover 2 99A2540 Redrive bearing Lexmark 99A2540 Redrive Bearing New 99A2540 40X1965 (New) $24.44 2 56P0462 Autoconnect cable assembly 3 56P0447 Duplex entry shaft assembly 3 56P0463 DC forward/reverse motor assembly 4 56P0464 DC duplex feed motor 5 56P0434 Right side front tray guide 6 56P0483 Deflector actuator assembly 6 12G6510 Cable Tie (6 in pack) 7 56P0432 Duplex front jam tray assembly 7 56P0459 Back support 8 56P0457 Duplex support bracket 8 56P0430 Duplex card assembly 9 56P0455 Sensor mount plate 9 56P2484 Belt, transfer 10 56P0442 Duplex exit sensor 10 56P0433 Right jam clearance tray assembly 11 56P0435 Duplex shaft mount 11 56P0458 Chassis ground spring 12 56P0479 Front decurl assembly 12 99A1789 Retainer, C-clip 13 56P0444 F/R backup shaft assembly 13 56P0478 Aligner spring 14 56P0476 5 mm bushing 14 99A0323 Paper guide assembly 15 56P0473 Brake pad 15 56P0465 Drive alignment shaft assembly 16 56P0439 Duplex paper guide 16 56P0477 Reduction gear shaft 17 56P0454 Wall support 17 56P0451 Backup spring assembly 18 56P0475 Brake spring 18 99A1717 32 ppm drive gear 19 56P0472 Pass thru shaft assembly 19 56P0452 Backup spring assembly 20 56P0441 Duplex shaft assembly 20 56P0436 Upper rib assembly 21 56P0468 Pass thru spring 21 56P0437 Duplex output sensor 22 56P0470 Aligner arm spring 23 56P0466 Spur drive gear 24 56P0467 26T duplex gear 25 99A0267 Retainer PP 99A0267 26 56P0471 Bellcrank assembly 27 56P0474 Decurl BAC assembly 28 56P0445 40T shaft drive F/R gear 29 56P0449 Support decurl guide 29.1–1 56P0456 Duplex support plate NS 56P0482 Pulley washer Parts catalog 7-61 NS 99A0323 Paper guide assembly Parts catalog 7-63

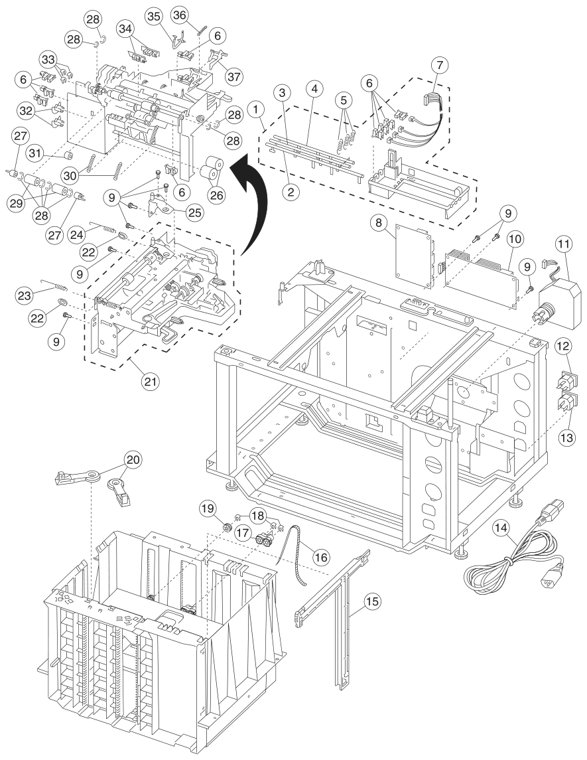

Assembly 30: High-capacity input tray (HCIT) 1 56P0561 Paper size sensor box assembly 2 56P0519 Flag, paper size R 2 56P0503 Right side cover 3 56P0520 Flag, paper size F 3 56P0491 Caster, movable 4 56P0518 Flag, paper size C 5 56P0522 Spring, paper size flag 5 56P0493 F adjuster 6 56P0516 Sensor, photo interrupter 6 56P0500 Front cover 7 56P0511 Paper size sensors cable 7 56P0501 Cover, main CA 8 56P0494 System control board 8 56P0492 Caster, fixed 9 56P0504 Left side cover 10 56P0495 LVPS 10 56P0508 Upper left side jam cover 11 56P0513 Elevator motor assembly 11 56P0507 Locating pin, options front right 12 56P0497 AC power outlet 12 56P0506 Locating pin, options rear left 13 56P0498 AC power inlet 13 56P0514 Options autoconnect cable assembly 14 56P0490 Jumper, AC power cord 14 56P0517 Options cable mounting plate 15 56P0524 Paper tray guide 16 56P0547 Elevator lift belt 17 56P0549 Elevator lift 18 56P0563 Ring 7, elevator lift gear/elevator lift 19 56P0548 Elevator lift gear 20 56P0523 Paper tray arms 21 56P0525 Feed unit, complete assembly 22 56P0527 Bushing 23 56P0533 Spring, feed unit front 24 56P0534 Spring, feed unit rear 25 56P0562 Feed cover 26 56P0542 Separation/torque roller 27 56P0529 Feed cam 29 56P0528 Feed roller 30 56P0530 Spring, feed unit 30.1–1 56P0505 Rear cover 31 56P0532 Bushing, 060 32 56P0544 Emitter timing wheel 33 56P0535 Clip, plastic 5W 34 56P0526 Sensors, special optical 35 56P0536 Level sensor flag 36 56P0540 Spring, extension 37 56P0539 Near empty sensor flag Parts catalog 7-65 NS 56P0509 Cable, feed unit special sensors NS 56P0510 Cable, feed unit sensors NS 56P0512 Cable, elevator motor NS 56P0515 Magnetic latch NS 56P0541 Tray present lever NS 56P0543 Cable clamp NS 56P0564 Kit, stabilizer with mounting screws Parts catalog 7-67

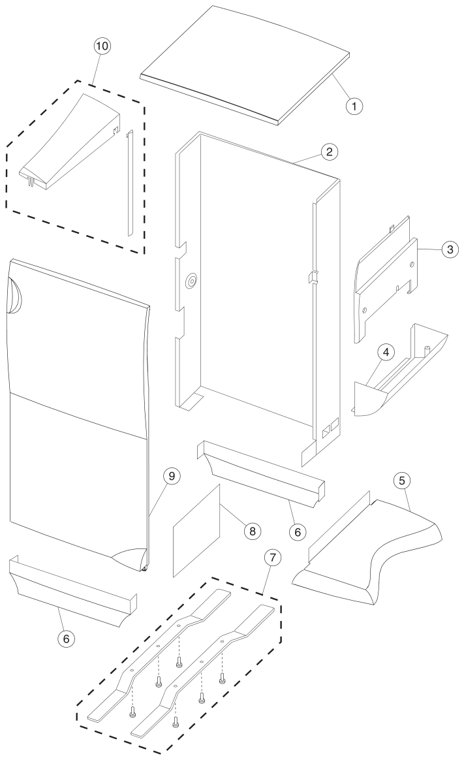

Assembly 31: High-capacity output finisher (HCOF) 1 56P0321 Top cover (tall finisher) 1 56P1287 Scanner plate (short finisher) 2 56P0569 Rear cover 2 56P0357 Actuation assembly 2 56P0385 Solenoid drop assembly 3 56P0573 Upper right side cover (tall finisher) 3 56P1286 Upper right side cover (short finisher) 3 56P1471 HCOF control board assembly 3 56P0347 Jogger fence homing sensor (EE-SX1235A-P2) 4 56P0574 Lower tray cover 4 56P0325 Motor assembly paper feed 4 56P0384 Accumulator belt (hook) 5 56P0576 Bottom kick cover 5 56P0332 Accumulator paper feed belt (40S3M900) 5 56P2294 Accumulator drive belt (B30S2M334) 6 56P0575 Front/rear lower cover 6 56P2294 Accumulator drive belt (B30S2M334) 6 56P0319 Accumulator w/o stapler 7 56P0387 Bar tip unit 7 56P0315 Punch assembly 7 56P0348 Drop timing sensor (OS-535223-602) 8 56P0577 Lower right side cover 8 56P0345 Punch motor homing sensor (GP1A73A) 8 56P0349 Accumulator homing sensor (OS-311D-A5) 9 56P0320 Cover front door 9 56P0318 Box chad 9 56P0316 Staple assembly 10 56P0566 Finisher install kit 10 56P0329 Inverter D drive belt (40S3M225) 10 56P0358 Accumulator slides 11 56P1290 Cover wire 11 56P0383 Solenoid inverter 11 56P0317 Staple cartridge 12 56P0347 Inverter jam/tray near full/output tray offset sensor (EE-SX1235A-P2) 12 56P0346 Chad box full sensor (EE-SPY415) 13 56P0342 Caster 13 56P0344 Inverter timing sensor (OJ511K-A5) 14 56P0338 Low voltage power supply 14 56P0330 Paper feed-input belt (40S3M279) 15 56P0333 Tray elevator belt (60S6M1420) 15 56P0351 Cover open switch 16 56P0323 Output tray offset motor and gear assembly 16 56P2295 Jogger fence belt (B40S2M460) 17 56P0386 Fan assembly DC motor 18 56P0322 Tray paper 19 56P0326 Flag paper full 20 56P0331 Exit foam Roller drive belt (40S3M80) 21 56P0334 Tray elevator drive belt (170P2M4) 22 56P0335 Exit roller drive belt (40S2M264) 23 56P0336 Output tray offset drive belt (40S2M134) 24 56P0337 Punch belt (40S2M176) 25 56P0578 Tray wall cover 26 56P0327 Paper feed belt (40S3M888) 27 56P0343 Punch timing sensor (OJ-541-A5) 28 56P0350 Paper surface sensor (EE-SX460-P1-CHN) 29 56P0352 Printer docking switch SS-5FL-3T(10E) 30 56P0388 Tray limit switches (includes two) 31 56P0346 Exit timing sensor (EE-SPY415) 31.1–1 56P0324 Motor assembly elevator tray 31.2–1 56P0355 Guide vertical paper 32 56P0328 Inverter transfer belt (40S3M198) NS 56P0317 Cartridge staple Parts catalog 7-69 NS 56P0340 Cable, communications NS 56P0341 Power cord NS 56P0354 Bracket finisher alignment NS 56P0356 Pack magnet, strong and weak and door latch Parts catalog 7-71 NS 56P0382 Harness cable assembly D5 - low voltage power supply to low voltage power relay board Parts catalog 7-73

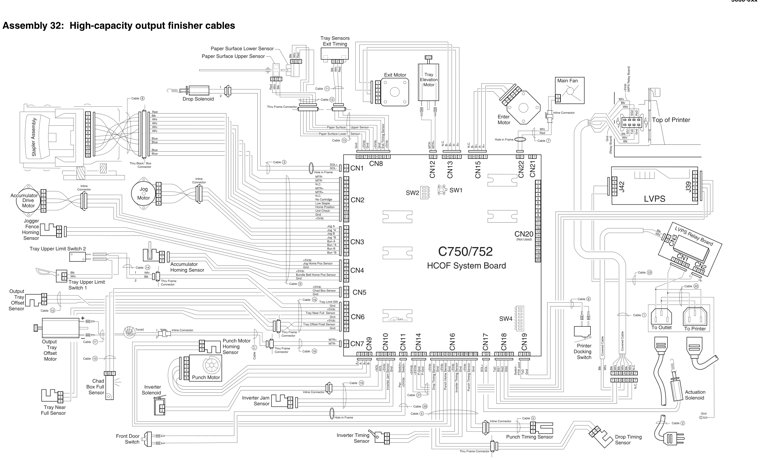

Assembly 32: High-capacity output finisher cables 1 56P0340 Cable, communications 2 56P0341 Power cord 3 56P0359 Harness cable assembly H2 - system board to drop solenoid 4 56P0360 Harness cable assembly H3 - system board to harness cable assembly H4/drop timing 5 56P0361 Harness cable assembly H4 - harness cable H3 to punch timing sensor 6 56P0362 Harness cable assembly H5 - system board to printer docking switch 7 56P0363 Harness cable assembly H6 - system board to fan 8 56P0364 Harness cable assembly S1 - stapler cable to stapler assembly 9 56P1280 Harness cable assembly stapler - system board to cable S1/jogger fence homing 10 56P0368 Harness cable assembly S5 - system board to chad box full sensor 11 56P0369 Harness cable assembly E2 - cable E5 to exit timing sensor 12 56P0370 Harness cable assembly E3 - cable E5 to paper surface upper sensor/paper surface 13 56P0371 Harness cable assembly E5 - system board to cable E2/E3 14 56P0372 Harness cable assembly E6 - cable E8 to tray limit switches 15 56P0373 Harness cable assembly E7 - cable E8 to output tray offset sensor 16 56P0374 Harness cable assembly E8 - system board to E6/E7 17 56P0375 Harness cable assembly E9 - cable E10 to output offset motor 18 56P0376 Harness cable assembly E10 - system board to cable E9 19 56P0378 Harness cable assembly R1 - system board to inverter solenoid/inverter jam sensor 20 56P0379 Harness cable assembly D1 - system board to front door switch 21 56P0380 Harness cable assembly D2 - system board to low voltage power supply 22 56P0381 Harness cable assembly D3 - low voltage power supply relay board to AC input/output 23 56P0382 Harness cable assembly D5 - low voltage power supply to low voltage power supply
Assembly 33: Options NS 56P9909 Card assembly, PRESCRIBE NS 12G6509 Card assembly, 64MB SDRAM Lexmark 12G6509 SDRAM DIMM 64MB Fully refurbished with 90-day warranty 12G6509 $44.71 NS 56P9910 Card assembly, 128MB SDRAM 56P9910 128MB SDRAM card assembly New 56P9910 (New) $16.56 56P9910 128MB SDRAM card assembly Fully refurbished with 90-day warranty 56P9910 $45.00 NS 56P9911 Card assembly, 256MB SDRAM NS 56P9912 Card assembly, 4MB flash DIMM NS 56P9913 Card assembly, 8MB flash DIMM NS 56P9914 Card assembly, 16MB flash DIMM NS 56P2107 Card assembly IPDS/SCS/Tne NS 56P1120 Card assembly, Bar code NS 56P1461 Card assembly, ImageQuick™ NS 56P9935 Card assembly, Traditional Chinese font DIMM NS 56P9936 Card assembly, Simplified Chinese Font DIMM NS 56P9975 Card assembly, Japanese font DIMM NS 56P0162 Adapter, parallel 1284 C-B NS 56P9982 Hard disk, 20GB with/adapter (formatted) NS 56P9926 Lexmark Optra Forms™ software NS 56P9927 Lexmark Forms Director software NS 56P9928 Lexmark Forms 4MB flash DIMM NS 56P9929 Lexmark Forms 8MB flash DIMM NS 56P9930 Lexmark Forms 16MBMB flash DIMM NS 56P9932 Hard disk, Lexmark Forms NS 56P9942 Hard drive mounting kit NS 56P9934 MarkNet™ Token-Ring Print Server NS 12G1695 MarkNet N2001e Ethernet 10/100BaseTX Lexmark 12G1695 10/100 BaseTX Ethernet adapter Fully refurbished with 90-day warranty 12G1695 $19.50 NS 12G1696 MarkNet N2002e Ethernet 10BaseT/2 NS 56P1431 MarkNet X2011e Ethernet 10/100 BaseTX-1 port NS 56P1432 MarkNet X2012e Ethernet 10/100 BaseTX/10 Base2 - 1 port NS 56P1433 MarkNet X2031e Ethernet 10/100 Base TX - 3 port NS 56P1434 MarkNet X2030e Token-Ring - 3 port NS 99A0545 External serial adapter NS 99A0560 Tri-Port Adapter - LocalTalk/serial/infrared Lexmark 99A0560 Tri-Port Adapter (Serial, LocalTalk and Infrared) New 99A0560 (New) Contact for Details NS 99A0629 Coax/Twinax Adapter for SCS Lexmark 99A0629 Coax/Twinax Interface Fully refurbished with 90-day warranty 99A0629 $61.46 NS 99A0424 Infrared adapter Lexmark 99a0424 IR (Infrared) Dongle Fully refurbished with 90-day warranty 99a0424 $174.03 NS 56P0161 RS-232-C serial/parallel 1284-C adapter NS 99A0923 Parallel port + USB INA card assembly
Assembly 34: Miscellaneous NS 7370235 Kit, relocation package assembly printer NS 7370563 Kit, relocation package assembly Output Expander NS 7370564 Kit, relocation package assembly 5-Bin Mailbox NS 7370565 Kit, relocation package assembly 500 Drawer NS 7370566 Kit, relocation package assembly Duplex NS 7370595 Kit, relocation package assembly Finisher Parts catalog 7-77
Other listed parts 12G6309 12G6362 Spring toner plug 12G6363 Housing, cartridge contacts 12G6364 Cleaner contacts cap 12G6365 Cap, developer contacts 12G6366 Developer roll contact 12G6367 TAR contact 12G6368 Doctor blade contact 12G6369 PC drum contact 12G6370 Charge roll contact 12G6371 Contact pin 12G6372 Plug spring 12G6373 Cleaner pin spring 12G6374 Developer pin spring 12G6375 Toner level spring 12G6378 Cartridge support roller 12G6379 Smart chip cable assembly 12G6422 Size sensing barrel cam 12G6423 Size sensing gear 12G6424 Size sensing gear cover 12G6443 ITU bias spring 12G6478 Flag, paper out/low 12G6530 12G6531 12G6532 12G6533 12G6534 12G6538 Screw, M 3x5mm 12G6539 12G6540 28P1991 56P1189 Lexmark Engine Board Lexmark 56P1189 Lexmark Engine Board New 56P1189 12g6323 L (New) Contact for Details 56P4331 Printhead assembly includes HSYNC and mirror motor cables 56P4331 Printhead assembly includes HSYNC and mirror motor cables New 56P4331 (New) Retired, no longer available: Contact for alternatives Contact for Details 56P4331 Printhead assembly includes HSYNC and mirror motor cables Fully refurbished with 90-day warranty 56P4331 Contact for Details 255161-001 Ribbons (12 Pack) Ultra Capacity Plus 255161-001 Ribbons (12 Pack) Ultra Capacity Plus New 255161-001 (New) $39.71
