Lexmark C760 & C762 Parts (5060)

Please call for parts assistance

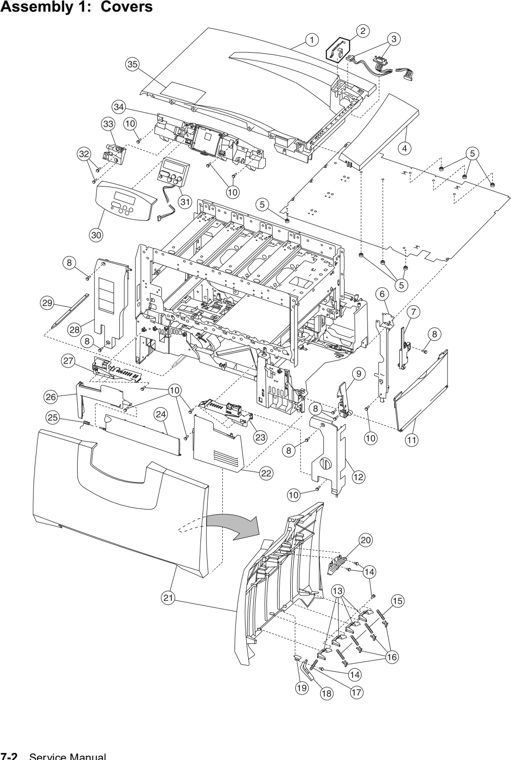

Assembly 1: Covers 1 56P2821 Top cover assembly 56P2821 Top cover assembly New 56P2821 (New) $47.00 56P2821 Top Cover Assembly Fully refurbished with 90-day warranty 56P2821 $38.00 1.1–1 56P2819 Left upper cover assembly 56P2819 Left upper cover assembly New 56P2819 (New) $24.00 56P2819 Left upper cover assembly Fully refurbished with 90-day warranty 56P2819 $16.00 2 56P3854 250 output flag and retainer 3 56P1539 Cable, options - stacker, including output bin sensor 56P1539 Cable, Options - Stacker, Including Output Bin Sensor Fully refurbished with 90-day warranty 56P1539 $16.00 3 56P2809 Left upper pivot cover 56P2809 Pivot, left upper cover New 56P2809 (New) Contact for Details 4 56P2820 Redrive cap cover assembly 56P2820 Redrive Cap Cover Assembly New 56P2820 (New) $30.00 56P2820 Redrive Cap Cover Assembly Fully refurbished with 90-day warranty 56P2820 $28.00 4 12G6491 Jam access spring 5 12G6380 Machine pad 5 56P2835 Lower access jam door assembly 56P2835 Lower access jam door assembly New 56P2835 (New) $13.00 6 12G6389 Top front support bracket 6 56P2814 Left lower pivot cover 56P2814 Left lower pivot cover Fully refurbished with 90-day warranty 56P2814 Contact for Details 7 56P2813 Right rear cover 56P2813 Right rear cover New 56P2813 (New) $47.00 56P2813 Right rear cover Fully refurbished with 90-day warranty 56P2813 $38.00 7 56P2812 Cover, left lower 56P2812 Cover left lower New 56P2812 (New) $47.00 56P2812 Cover left lower Fully refurbished with 90-day warranty 56P2812 $34.00 8 56P2815 Waste container door 56P2815 Waste container door New 56P2815 (New) Contact for Details 9 56P2810 Right front cover 9 56P2800 Blank, TLI/SN label 10 12G6387 Ground cable 11 56P2837 Lower right door assembly 56P2837 Lower right door assembly New 56P2837 (New) $30.00 56P2837 Lower right door assembly Fully refurbished with 90-day warranty 56P2837 $20.00 11 56P2824 Rear cover 56P2824 Rear cover New 56P2824 (New) $43.00 56P2824 Rear cover Fully refurbished with 90-day warranty 56P2824 $24.00 12 12G6405 Front right light shield cover Lexmark 12G6405 Front Right light shield cover New 12g6405 (New) Contact for Details 12 12G6383 Fuser latch slide 13 56P2216 Shield, door spring 56P2216 Shield, door spring New 56P2216 (New) Contact for Details 13 12G6384 Fuser latch slide spring 14 12G6340 Fuser top duct 15 12G6376 Spring, rear hold down 15 12G6386 Duplex actuator arm assembly Lexmark 12G6386 Actuator Assembly Duplex New 12G6386 (New) Contact for Details 16 12G6347 Bellcrank, front hold down 16 56P1500 RIP fan duct 56P1500 RIP fan duct Fully refurbished with 90-day warranty 56P1500 Contact for Details 17 56P2246 Detent spring 56P2246 Detent spring Fully refurbished with 90-day warranty 56P2246 Contact for Details 56P2246 Detent spring New 56P2246 (New) Contact for Details 17 12G6360 Fuser wall duct 18 56P2218 Detent, front access door 18 12G6358 Fuser bottom duct 19 56P2219 Housing, front access door 56P2219 Housing, front access door Fully refurbished with 90-day warranty 56P2219 Contact for Details 19 56P2290 Fuser left duct 56P2290 Fuser left duct Fully refurbished with 90-day warranty 56P2290 Contact for Details 20 56P2816 Handle, front access door 20 56P2291 Redrive belt cover duct 56P2291 Redrive belt cover duct Fully refurbished with 90-day warranty 56P2291 Contact for Details 21 56P2818 Front cover assembly 56P2818 Front access door Assembly New 56P2818 (New) $56.00 56P2818 Front access door Assembly Fully refurbished with 90-day warranty 56P2818 $43.00 22 56P2811 Front lower right cover 56P2811 Front lower right cover New 56P2811 (New) $47.00 56P2811 Front lower right cover Fully refurbished with 90-day warranty 56P2811 $34.00 23 56P2822 Front right handle cover assembly 56P2822 Front right handle cover assembly Fully refurbished with 90-day warranty 56P2822 Contact for Details 24 56P2808 Paper path access door 56P2808 Paper Path Access Door New 56P2808 (New) $27.00 56P2808 Paper Path Access Door Fully refurbished with 90-day warranty 56P2808 $19.00 25 12G6403 Spring, paper path access door 26 56P2807 Front lower left cover 56P2807 Front lower left cover Fully refurbished with 90-day warranty 56P2807 Contact for Details 27 56P2823 Front left handle cover assembly 56P2823 Front left handle cover assembly Fully refurbished with 90-day warranty 56P2823 Contact for Details 28 12G6404 Left front light shield cover 29 56P1277 Paper tray guide 56P1277 Paper tray guide New 56P1277 (New) $116.00 56P1277 Paper Tray Guide Fully refurbished with 90-day warranty 56P1277 Contact for Details 30 56P2817 Operator panel bezel with overlays, 421/422 only 30 56P2842 Operator panel bezel with overlays, 401/402 only 31 56P2844 Operator panel assembly Lexmark 56P2844 Operator panel assembly New 56P2844 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 56P2844 Operator panel assembly Fully refurbished with 90-day warranty 56P2844 Contact for Details 33 12G6399 Front upper pivot cover 34 12G6397 Front access door support 35 56P2489 Label, top paper jam, 421/422 only 35 56P2505 Label, top paper jam, 401/402 only Parts catalog 7-3 NS 12G6510 Cable tie (6 in pack) NS 12G6511 Cable tie pad Parts catalog 7-5

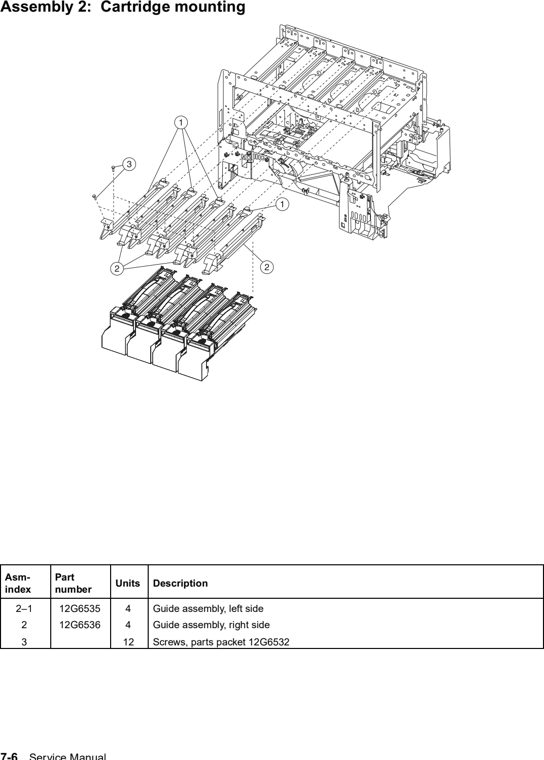

Assembly 2: Cartridge mounting 1 12G6535 Guide assembly, left side 2 12G6536 Guide assembly, right side

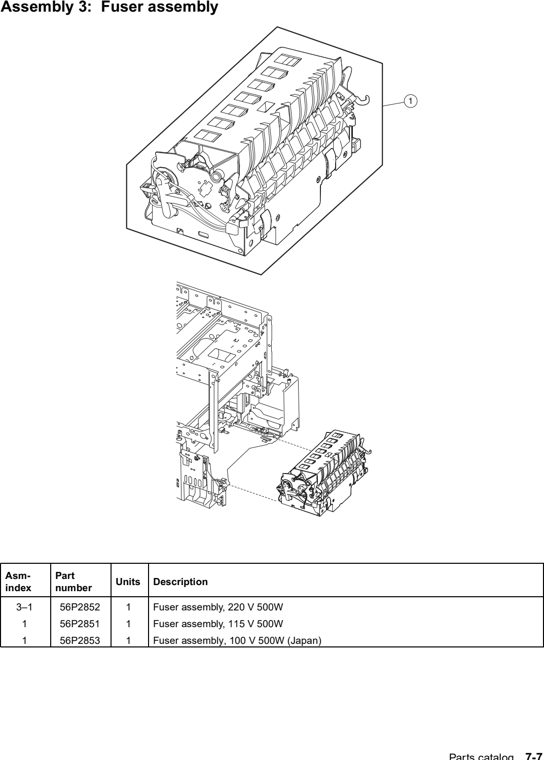

Assembly 3: Fuser assembly 1 56P2852 Fuser assembly, 220 V 500W 1 56P2851 Fuser assembly, 115 V 500W 56P2851 Fuser assembly 115 V 500W New 56P2851 (New) $170.12 56P2851 Fuser assembly 115 V 500W Fully refurbished with 90-day warranty 56P2851 Used, tests good Contact for Details 1 56P2853 Fuser assembly, 100 V 500W (Japan) Parts catalog 7-7 2 56P2856 Fuser assembly, web oiler 220 V 500W 2 56P2855 Fuser assembly, web oiler 115 V 500W 2 56P2854 Fuser assembly, web oiler 100 V 500W (Japan) 3 56P1558 Web oiler driver board assembly 3.1–1 12G6545 Web oiler assembly 4 12G6543 Web oiler index drive assembly Parts catalog 7-9

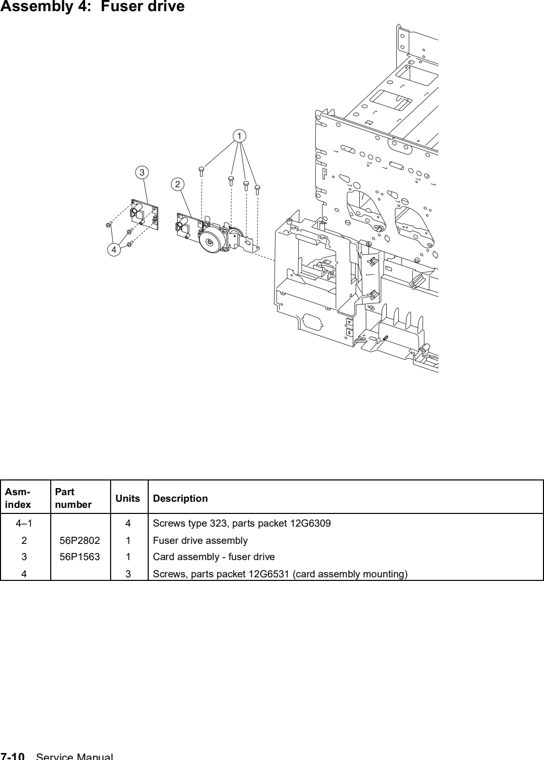

Assembly 4: Fuser drive 2 56P2802 Fuser drive assembly 56P2802 Fuser Drive Assembly Fully refurbished with 90-day warranty 56P2802 $39.00 3 56P1563 Card assembly - fuser drive 56P1563 Card assembly - fuser drive New 56P1563 (New) $15.00 56P1563 Card assembly - fuser drive Fully refurbished with 90-day warranty 56P1563 $24.00

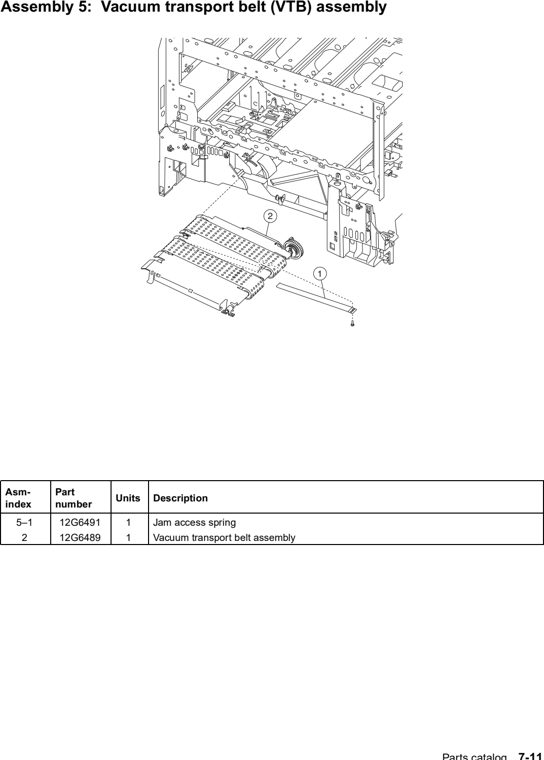

Assembly 5: Vacuum transport belt (VTB) assembly 1 12G6491 Jam access spring 2 12G6489 Vacuum transport belt assembly Parts catalog 7-11 Lexmark 12G6489 Transport Assembly Vacuum Belt New 12G6489 (New) Contact for Details Lexmark 12G6489 Transport Assembly Vacuum Belt Fully refurbished with 90-day warranty 12G6489 Contact for Details

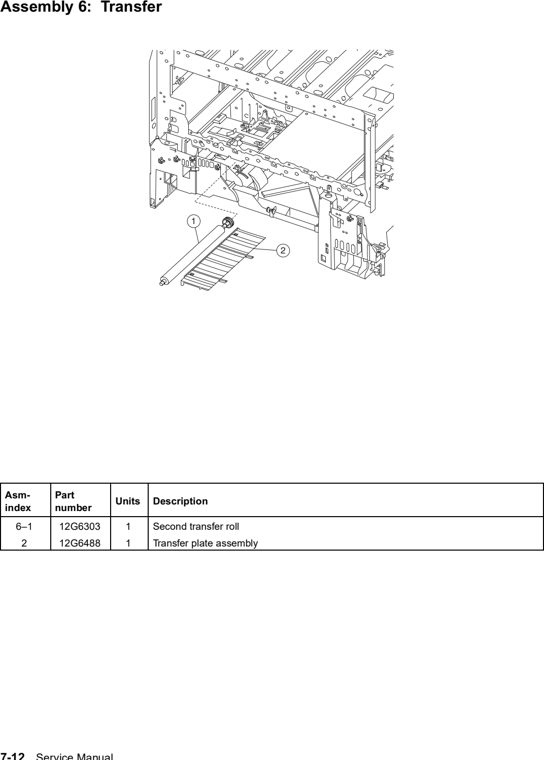

Assembly 6: Transfer 1 12G6303 Second transfer roll Lexmark 12G6303 Second transfer roll New 12G6303 (New) Contact for Details Lexmark 12G6303 Second transfer roll Fully refurbished with 90-day warranty 12G6303 Contact for Details 2 12G6488 Transfer plate assembly Lexmark 12G6488 Transfer Plate assembly New 12g6488 (New) Contact for Details Lexmark 12G6488 Plate Assembly Transfer Fully refurbished with 90-day warranty 12G6488 Contact for Details

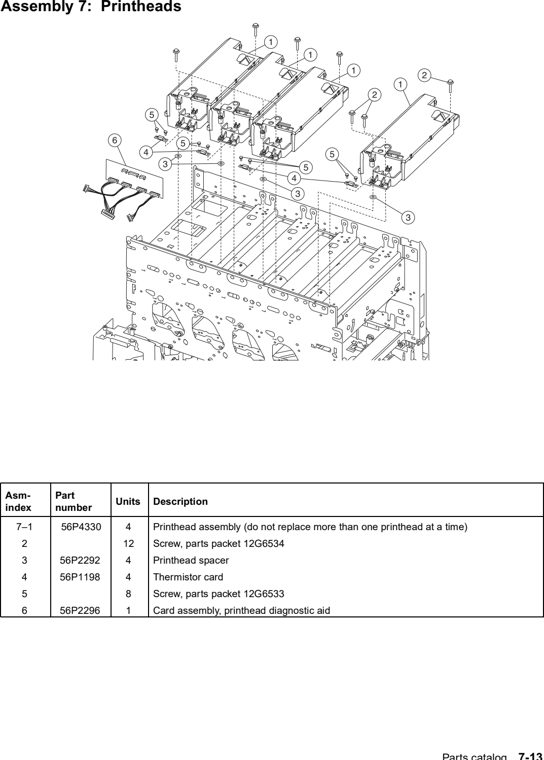

Assembly 7: Printheads 1 56P4330 Printhead assembly (do not replace more than one printhead at a time) Lexmark 56p4330 Printhead Assembly Fully refurbished with 90-day warranty 56p4330 $120.00 56P4330 Printhead Assembly New 56P4330 (New) Contact for Details 56p4330 Printhead Assembly Fully refurbished with 90-day warranty 56p4330 Contact for Details 3 56P2292 Printhead spacer 56P2292 4 Printhead spacer Fully refurbished with 90-day warranty 56P2292 Contact for Details 4 56P1198 Thermistor card 56P1198 Thermistor card New 56P1198 (New) $18.00 6 56P2296 Card assembly, printhead diagnostic aid Parts catalog 7-13

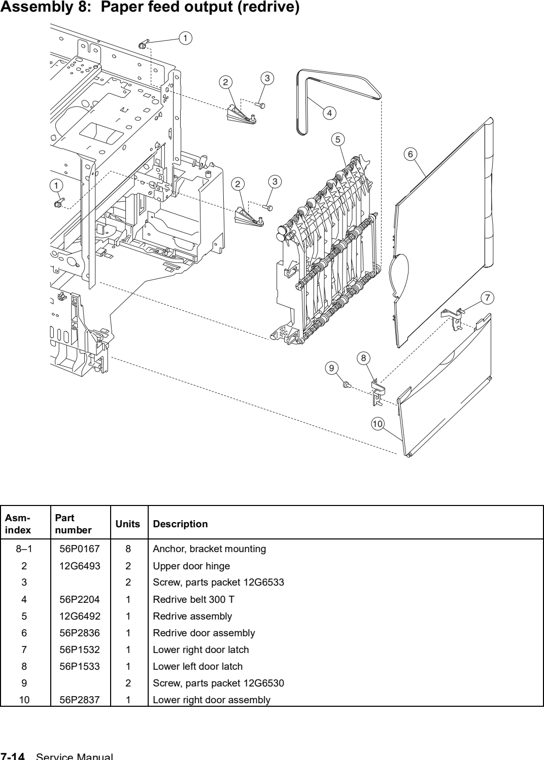

Assembly 8: Paper feed output (redrive) 1 56P0167 Anchor, bracket mounting 2 12G6493 Upper door hinge 4 56P2204 Redrive belt 300 T 56P2204 Redrive belt 300 T New 56P2204 (New) $22.00 5 12G6492 Redrive assembly Lexmark 12G6492 Redrive Assembly Inner Fully refurbished with 90-day warranty 12G6492 Contact for Details 6 56P2836 Redrive door assembly 56P2836 Redrive door assembly New 56P2836 (New) Contact for Details 56P2836 Redrive door assembly Fully refurbished with 90-day warranty 56P2836 $38.00 7 56P1532 Lower right door latch 56P1532 Lower right door latch Fully refurbished with 90-day warranty 56P1532 Contact for Details 8 56P1533 Lower left door latch 56P1533 Lower left door latch Fully refurbished with 90-day warranty 56P1533 Contact for Details 10 56P2837 Lower right door assembly 56P2837 Lower right door assembly New 56P2837 (New) $30.00 56P2837 Lower right door assembly Fully refurbished with 90-day warranty 56P2837 $20.00

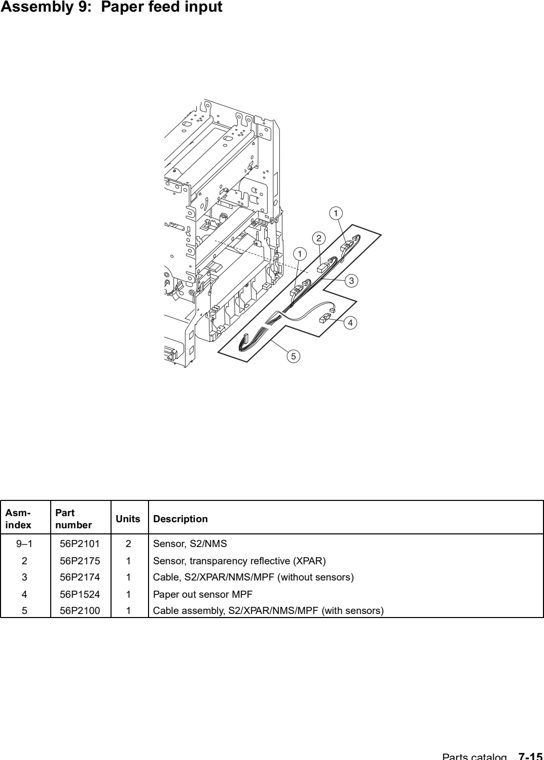

Assembly 9: Paper feed input 1 56P2101 Sensor, S2/NMS 2 56P2175 Sensor, transparency reflective (XPAR) 56P2175 Sensor, transparency reflective (XPAR) Fully refurbished with 90-day warranty 56P2175 Contact for Details 3 56P2174 Cable, S2/XPAR/NMS/MPF (without sensors) 56P2174 Cable, S2/XPAR/NMS/MPF (without sensors) Fully refurbished with 90-day warranty 56P2174 Contact for Details 4 56P1524 Paper out sensor MPF 56P1524 Paper out sensor MPF Fully refurbished with 90-day warranty 56P1524 Contact for Details 5 56P2100 Cable assembly, S2/XPAR/NMS/MPF (with sensors) Parts catalog 7-15 56P2100 Cable assembly S2/XPAR/NMS/MPF (with sensors) New 56P2100 (New) $31.00

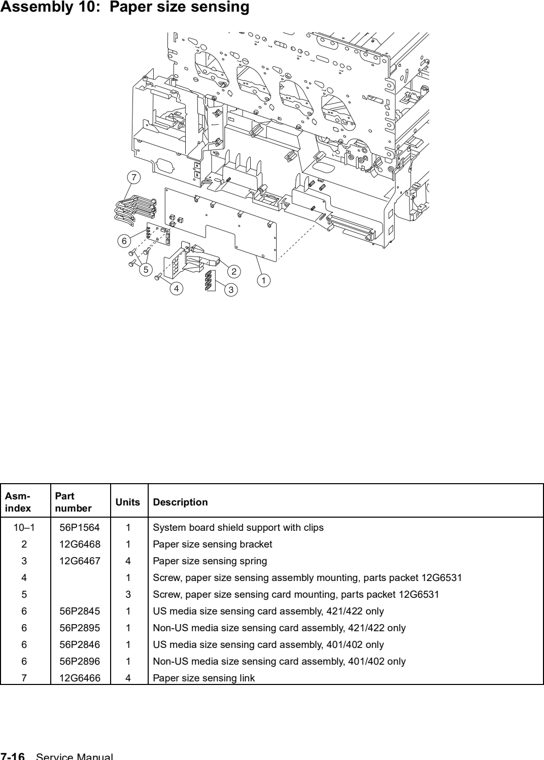

Assembly 10: Paper size sensing 1 56P1564 System board shield support with clips 56P1564 System board shield support with clips Fully refurbished with 90-day warranty 56P1564 Contact for Details 2 12G6468 Paper size sensing bracket 3 12G6467 Paper size sensing spring 6 56P2845 US media size sensing card assembly, 421/422 only 56P2845 Paper Size Sensor New 56P2845 (New) $65.00 56P2845 Paper Size Sensor Fully refurbished with 90-day warranty 56P2845 $47.00 6 56P2895 Non-US media size sensing card assembly, 421/422 only 56P2895 Card Assembly Paper Size Sensing New 56P2895 (New) $65.00 56P2895 Card Assembly Paper Size Sensing Fully refurbished with 90-day warranty 56P2895 $53.00 6 56P2846 US media size sensing card assembly, 401/402 only 56P2846 Paper Size Sensor New 56P2846 (New) $65.00 56P2846 Paper Size Sensor Fully refurbished with 90-day warranty 56P2846 $47.00 6 56P2896 Non-US media size sensing card assembly, 401/402 only 56P2896 Card Assembly Paper Size Sensing New 56P2896 (New) $47.00 56P2896 Card Assembly Paper Size Sensing Fully refurbished with 90-day warranty 56P2896 $38.00 7 12G6466 Paper size sensing link

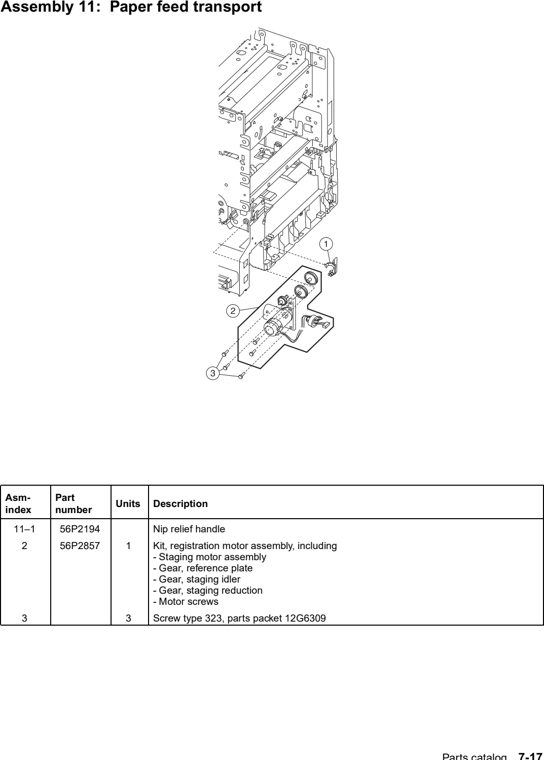

Assembly 11: Paper feed transport 1 56P2194 Nip relief handle 2 56P2857 Kit, registration motor assembly, including 56p2857 Kit, staging drive assembly New 56p2857 (New) $40.00 56p2857 Kit staging drive assembly Fully refurbished with 90-day warranty 56p2857 $32.00

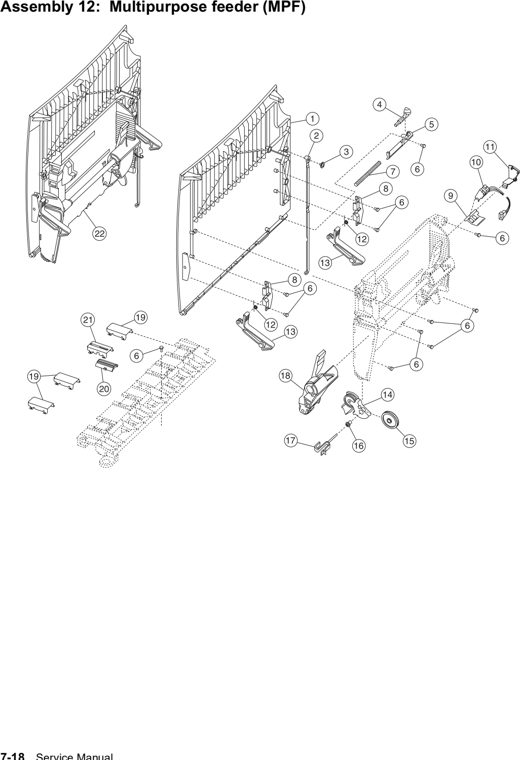

Assembly 12: Multipurpose feeder (MPF) 1 56P2825 MP feeder door cover 56P2825 MP feeder door cover New 56P2825 (New) $22.00 56P2825 MP feeder door cover Fully refurbished with 90-day warranty 56P2825 $17.00 2 12G6460 Door hinge restraint 4 56P2826 Frame bias latch 5 56P2827 Frame bias latch cover 7 12G6454 Frame bias spring 8 56P2831 MPF support bracket cover 56P2831 MPF support bracket cover Fully refurbished with 90-day warranty 56P2831 Contact for Details 9 56P2828 Sensor mount bracket 56P2828 Sensor mount bracket Fully refurbished with 90-day warranty 56P2828 Contact for Details 10 56P1524 Paper out sensor MPF 56P1524 Paper out sensor MPF Fully refurbished with 90-day warranty 56P1524 Contact for Details 11 56P2829 MPF cable cover 56P2829 MPF cable cover Fully refurbished with 90-day warranty 56P2829 Contact for Details 12 12G6458 MPF support bracket spring 13 56P2833 MPF support bracket 56P2833 2 MPF support bracket Fully refurbished with 90-day warranty 56P2833 Contact for Details 14 12G6462 MPF bracket assembly 15 12G6463 MPF drive gear 16 12G6465 MPF drive gear bushing 17 12G6464 MPF drive gear shaft 18 56P2832 MPF autocompensator pick assembly 56P2832 MPF autocompensator pick assembly New 56P2832 (New) $13.50 19 12G6354 Rib housing 20 12G6447 Friction buckler 21 12G6346 Buckler housing 22 56P2830 MPF door assembly Parts catalog 7-19 56P2830 MPF door assembly New 56P2830 (New) $24.00

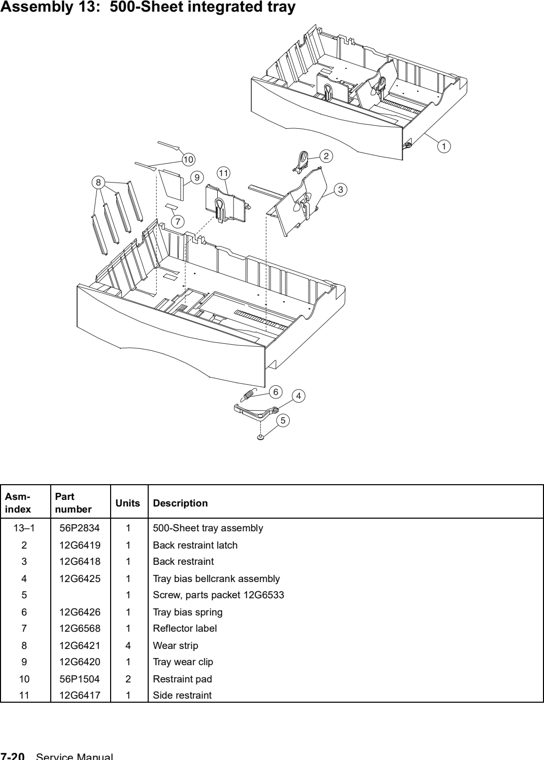

Assembly 13: 500-Sheet integrated tray 1 56P2834 500-Sheet tray assembly 56P2834 500-Sheet tray assembly New 56P2834 (New) $45.00 56P2834 500-Sheet tray assembly Fully refurbished with 90-day warranty 56P2834 $38.00 2 12G6419 Back restraint latch 3 12G6418 Back restraint 4 12G6425 Tray bias bellcrank assembly 6 12G6426 Tray bias spring 7 12G6568 Reflector label 8 12G6421 Wear strip 9 12G6420 Tray wear clip 10 56P1504 Restraint pad 11 12G6417 Side restraint

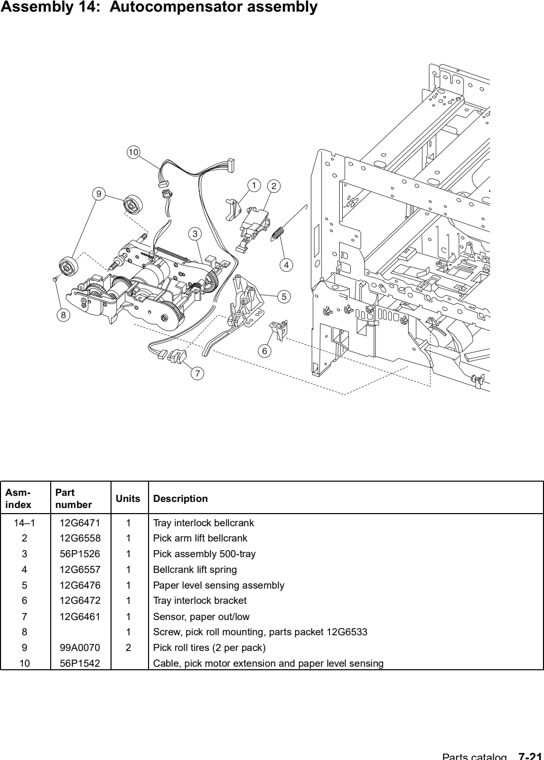

Assembly 14: Autocompensator assembly 1 12G6471 Tray interlock bellcrank 2 12G6558 Pick arm lift bellcrank 3 56P1526 Pick assembly 500-tray 56P1526 Pick assembly 500-tray New 56P1526 (New) $75.00 4 12G6557 Bellcrank lift spring 5 12G6476 Paper level sensing assembly 6 12G6472 Tray interlock bracket 7 12G6461 Sensor, paper out/low 9 99A0070 Pick roll tires (2 per pack) Lexmark 99A0070 Pick Rolls (Set Of Two) New 99A0070 (New) Contact for Details 10 56P1542 Cable, pick motor extension and paper level sensing Parts catalog 7-21 56P1542 Cable pick motor extension and paper level sensing Fully refurbished with 90-day warranty 56P1542 Contact for Details 56P1542 Cable pick motor extension and paper level sensing New 56P1542 (New) Contact for Details

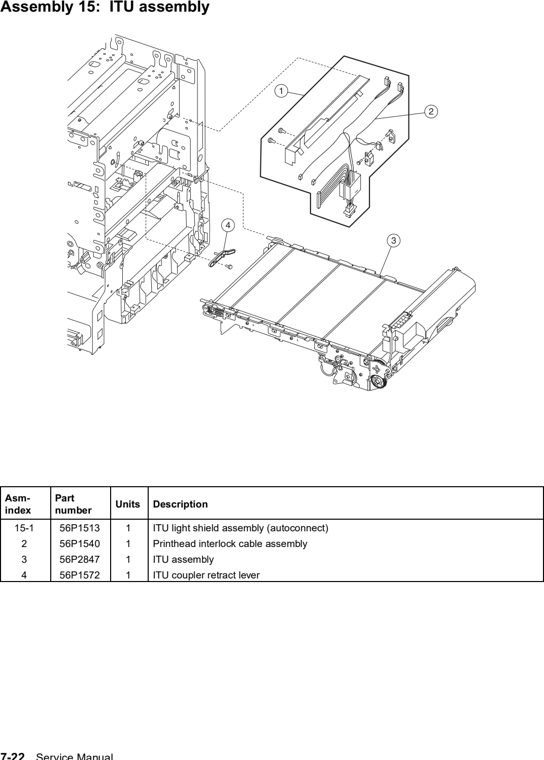

Assembly 15: ITU assembly 1 56P1513 ITU light shield assembly (autoconnect) 56P1513 ITU light shield assembly (autoconnect) New 56P1513 (New) $39.00 2 56P1540 Printhead interlock cable assembly 56P1540 Printhead Interlock Cable Assembly Fully refurbished with 90-day warranty 56P1540 Contact for Details 3 56P2847 ITU assembly 56P2847 Image Transfer Unit ITU C752 C760 C762 New 56P2847 L (New) $639.00 4 56P1572 ITU coupler retract lever 56P1572 ITU coupler retract lever Fully refurbished with 90-day warranty 56P1572 Contact for Details

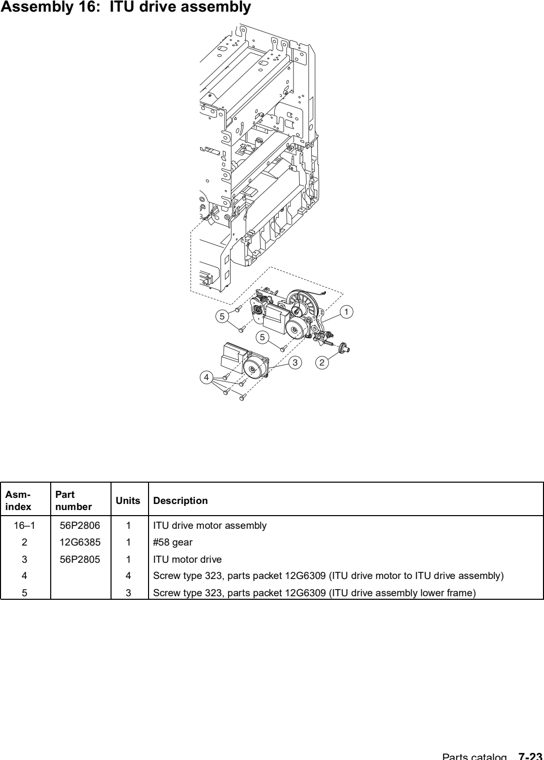

Assembly 16: ITU drive assembly 1 56P2806 ITU drive motor assembly 56P2806 ITU Drive Motor Assembly New 56P2806 (New) $115.00 2 12G6385 #58 gear 3 56P2805 ITU motor drive 56P2805 ITU motor drive New 56P2805 (New) $75.00

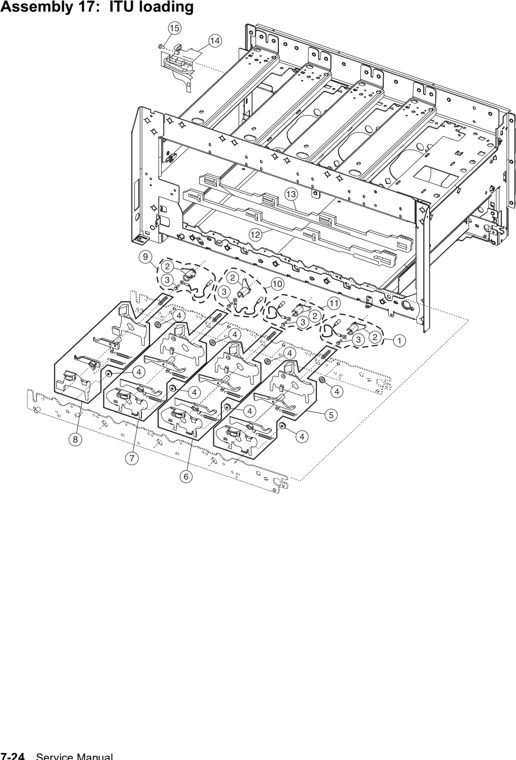

Assembly 17: ITU loading 1 56P1568 Yellow terminal contact assembly 56P1568 Yellow terminal contact assembly Fully refurbished with 90-day warranty 56P1568 Contact for Details 2 12G6442 Terminal, contact spring 4 12G6353 Cartridge support roller 5 56P1495 Parts packet, ITU loading - yellow, including 6 56P1496 Parts packet, ITU loading - cyan, including 7 56P1497 Parts packet, ITU loading - magenta, including 8 56P1498 Parts packet, ITU loading - black, including 9 56P1565 Black terminal contact assembly 56P1565 Black terminal contact assembly Fully refurbished with 90-day warranty 56P1565 Contact for Details 10 56P1566 Magenta terminal contact assembly 56P1566 Magenta terminal contact assembly Fully refurbished with 90-day warranty 56P1566 Contact for Details 11 56P1567 Cyan terminal contact assembly 56P1567 Cyan Terminal Contact Assembly Fully refurbished with 90-day warranty 56P1567 Contact for Details 12 56P0594 Cam, BOR front 56P0594 Cam, BOR front New 56P0594 (New) Contact for Details 13 56P0595 Cam, BOR rear 56P0595 Cam, BOR rear New 56P0595 (New) Contact for Details 14 56P0560 Rear ITU guide 56P0560 Rear ITU guide New 56P0560 (New) $94.00

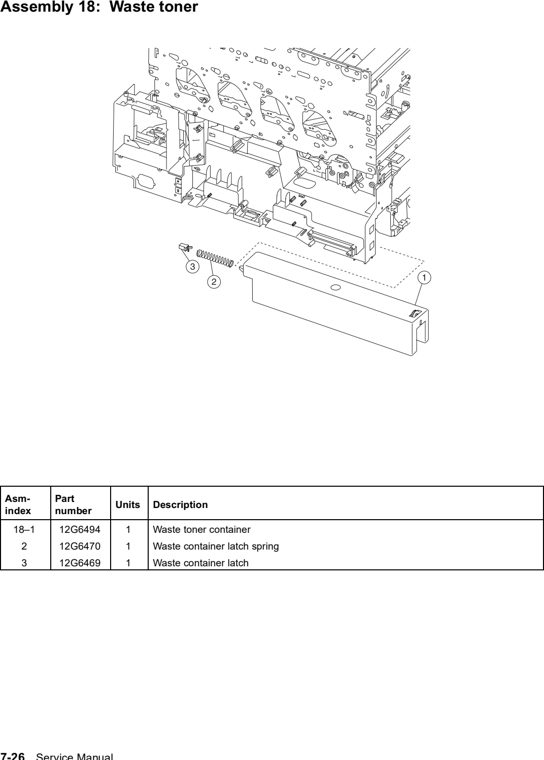

Assembly 18: Waste toner 1 12G6494 Waste toner container Lexmark 12G6494 Waste Toner Bottle New 12G6494 (New) Contact for Details 2 12G6470 Waste container latch spring 3 12G6469 Waste container latch

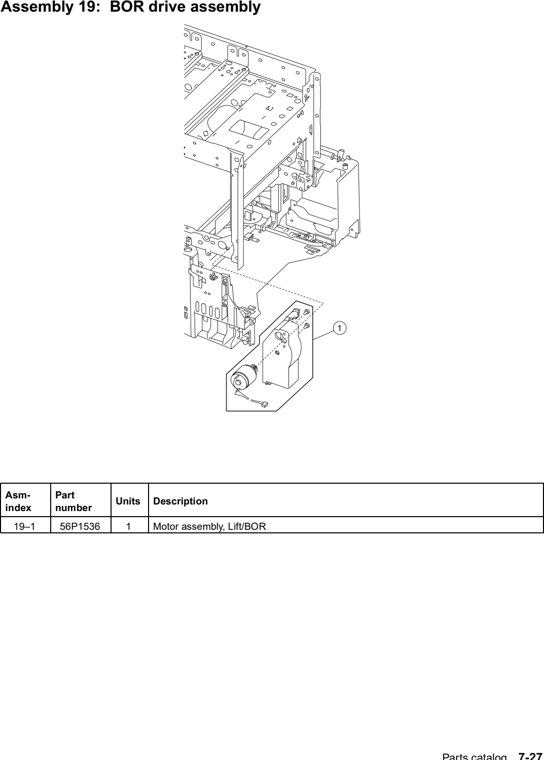

Assembly 19: BOR drive assembly 1 56P1536 Motor assembly, Lift/BOR Parts catalog 7-27 56P1536 Motor assembly Lift/BOR New 56P1536 (New) $30.00

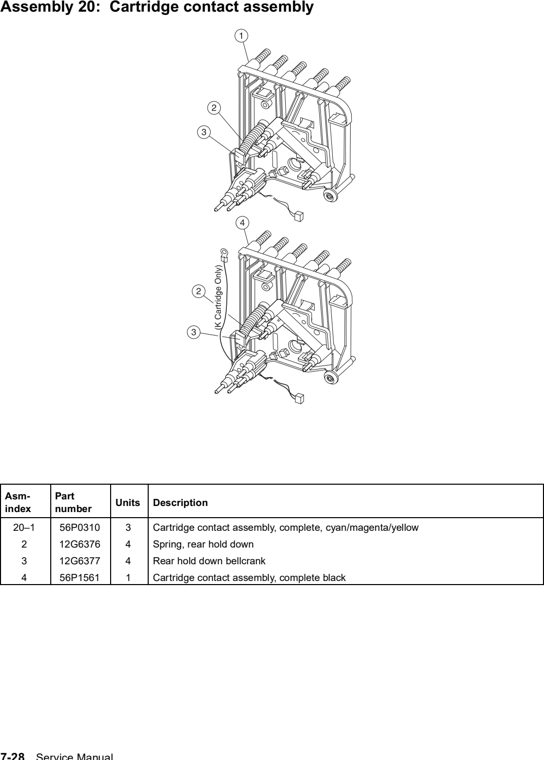

Assembly 20: Cartridge contact assembly 1 56P0310 Cartridge contact assembly, complete, cyan/magenta/yellow 56P0310 Cartridge contact assembly complete cyan/magenta/yellow New 56P0310 (New) $22.00 2 12G6376 Spring, rear hold down 3 12G6377 Rear hold down bellcrank 4 56P1561 Cartridge contact assembly, complete black 56P1561 Cartridge contact assembly complete black New 56P1561 (New) $22.00

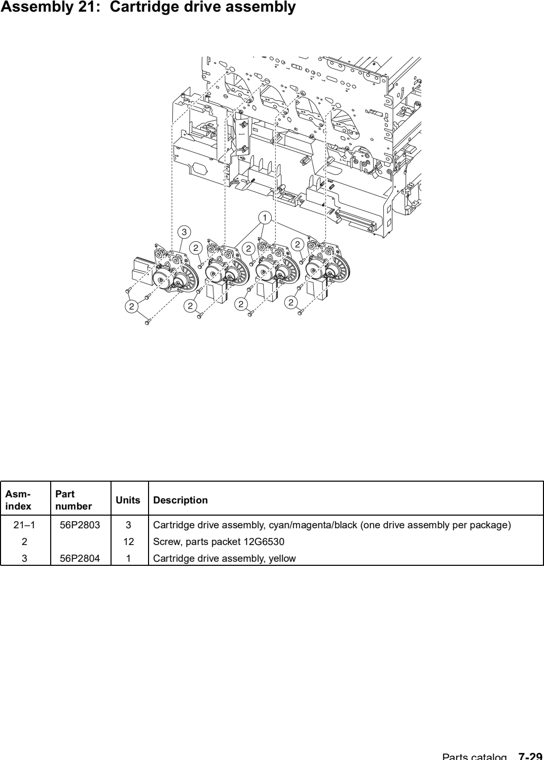

Assembly 21: Cartridge drive assembly 1 56P2803 Cartridge drive assembly, cyan/magenta/black (one drive assembly per package) 56P2803 Cartridge drive assembly cyan/magenta/black (one drive assembly per package) New 56P2803 (New) $158.00 56P2803 Cartridge drive assembly cyan/magenta/black (one drive assembly per package) Fully refurbished with 90-day warranty 56P2803 $89.00 3 56P2804 Cartridge drive assembly, yellow Parts catalog 7-29 56P2804 Cartridge drive assembly, yellow New 56P2804 (New) $76.00 56P2804 Cartridge Drive Assembly, Yellow Fully refurbished with 90-day warranty 56P2804 $47.00

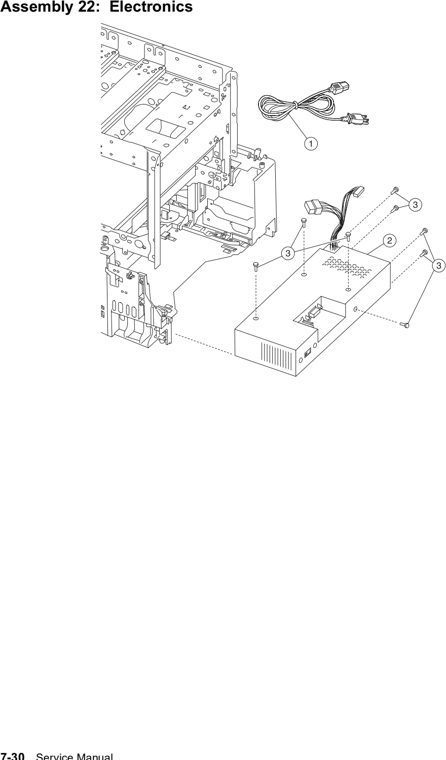

Assembly 22: Electronics 1 11A9095 Power cord set (LV)—U.S., Asia Pacific (English), Canada, Colombia, Costa Rica, 11A9095 Power cord; 2.5 m 8 ft. Straight US Canada Latin America (LV) Fully refurbished with 90-day warranty 11A9095 Contact for Details 1 1339553 Power cord set (LV)—Japan 1 43H5544 Power cord set (HV)—PRC 1 1339517 Power cord set (HV)—Bolivia, Peru 1 1339544 Power cord set (HV)—Argentina 1 1339529 Power cord set —African countries - Bluemark, Austria, Belgium, Bulgaria, Catalan, 1 1339530 Power cord set (HV)—Israel 1 1339531 Power cord set (HV)—Switzerland 1 1339532 Power cord set—Botswana, Lesotho, Namibia, South Africa 1 1339524 Power cord set (HV)—Chile, Uruguay 1 1339534 Power cord set—Denmark 1 1339550 Power cord set (LV)—Brazil 1 1339520 Power cord set (HV)—Paraguay 1 1339528 Power cord set (HV)—Ireland, UK 2 56P1514 LVPS, 115V/230V switchable Lexmark 56P1514 LVPS, 115V/230V Switchable Fully refurbished with 90-day warranty 15G1050 56p1514 Contact for Details 2 56P1547 Cable clip 56P1547 Cable clip Fully refurbished with 90-day warranty 56P1547 Contact for Details 56P1547 Cable clip New 56P1547 (New) Contact for Details 2 12G6490 VTB fan gap cover 3 56P1518 System board shield assembly with clips 56P1518 System board shield assembly with clips Fully refurbished with 90-day warranty 56P1518 Contact for Details 56P1518 System board shield assembly with clips New 56P1518 (New) Contact for Details 3 56P1509 Fuser fan assembly with cable 56P1509 Fuser fan assembly with cable New 56P1509 (New) $47.00 56P1509 Fuser fan assembly with cable Fully refurbished with 90-day warranty 56P1509 $38.00 4 56P1545 Cable, ground 56P1545 Cable ground Fully refurbished with 90-day warranty 56P1545 Contact for Details 56P1545 Cable ground New 56P1545 (New) Contact for Details 4 12G6541 Standoff, high voltage power supply - developer board 4 12G6529 Screws, fuser fan mounting 5 56P1564 System board shield support with clips 56P1564 System board shield support with clips Fully refurbished with 90-day warranty 56P1564 Contact for Details 5 56P1538 RIP fan, 92 mm 56P1538 RIP fan 92 mm New 56P1538 (New) $35.00 6 56P2897 Developer HVPS board 56P2897 Developer HVPS board New 56P2897 (New) $95.00 56P2897 Developer HVPS board Fully refurbished with 90-day warranty 56P2897 $66.00 6 56P1500 RIP fan duct 56P1500 RIP fan duct Fully refurbished with 90-day warranty 56P1500 Contact for Details 7 56P2841 System board, network, 402/422 only Lexmark 56P2841 System Board, Network (RIP) New 56P2841 L (New) $209.72 56P2841 System Board, Network (RIP) Fully refurbished with 90-day warranty 56P2841 L $209.00 7 56P2840 System board, non-network, 401/421 only 8 12G6335 Stand off 9 56P2297 Card assembly, bar code 10 56P9910 128MB SDRAM card assembly 10 12G6509 64MB SDRAM card assembly Lexmark 12G6509 SDRAM DIMM 64MB Fully refurbished with 90-day warranty 12G6509 $44.71 11 99A1611 Ethernet blank shield, use with non-network system boards 12 56P2236 Shield, parallel port 56P2236 Shield parallel port Fully refurbished with 90-day warranty 56P2236 Contact for Details 56P2236 Shield parallel port New 56P2236 (New) Contact for Details 13 56P1543 INA blank flat shield, use when options are not installed Parts catalog 7-33 56P1543 INA blank flat shield use when options are not installed Fully refurbished with 90-day warranty 56P1543 Contact for Details 56P1543 INA blank flat shield use when options are not installed New 56P1543 (New) Contact for Details 22.1–1 56P1517 System board outer shield 56P1517 System board outer shield Fully refurbished with 90-day warranty 56P1517 Contact for Details 22.2–1 12G6327 Transfer HVPS board Lexmark 12G6327 HVPS Transfer New 12G6327 (New) $129.00 Lexmark 12G6327 HVPS Transfer Fully refurbished with 90-day warranty 12G6327 Contact for Details 22.3–1 56P1551 VTB fan, 60 mm 56P1551 VTB fan 60 mm New 56P1551 (New) Contact for Details 56P1551 VTB fan 60 mm Fully refurbished with 90-day warranty 56P1551 $25.00

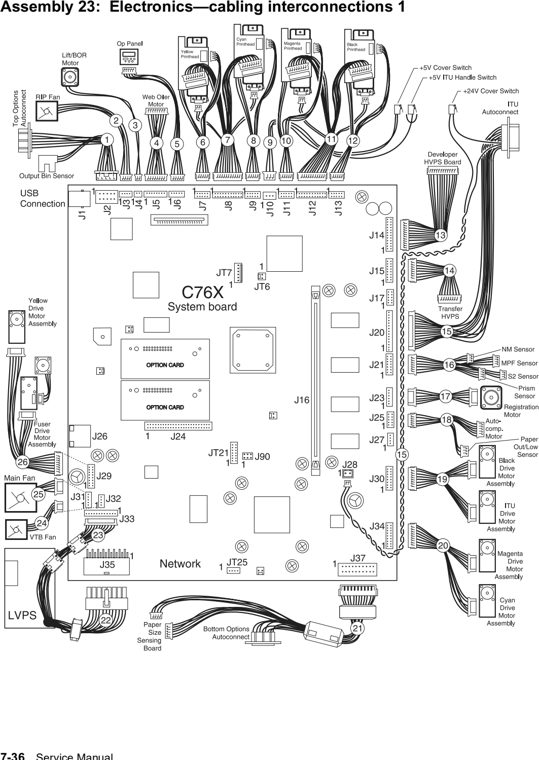

Assembly 23: Electronics—cabling interconnections 1 1 56P1539 Cable, options - stacker with output bin sensor 56P1539 Cable, Options - Stacker, Including Output Bin Sensor Fully refurbished with 90-day warranty 56P1539 $16.00 2 56P1538 RIP fan, 92 mm 56P1538 RIP fan 92 mm New 56P1538 (New) $35.00 3 56P1536 Motor assembly, Lift/BOR 56P1536 Motor assembly Lift/BOR New 56P1536 (New) $30.00 4 56P1550 Cable, oiler motor driver 5 12G6321 Cable, operator panel 6 56P4330 Printhead assembly - yellow mirror motor (attached to yellow printhead) Lexmark 56p4330 Printhead Assembly Fully refurbished with 90-day warranty 56p4330 $120.00 56P4330 Printhead Assembly New 56P4330 (New) Contact for Details 56p4330 Printhead Assembly Fully refurbished with 90-day warranty 56p4330 Contact for Details 7 56P1549 Cable, laser - cyan/yellow 8 56P4330 Printhead assembly - cyan mirror motor (attached to cyan printhead) Lexmark 56p4330 Printhead Assembly Fully refurbished with 90-day warranty 56p4330 $120.00 56P4330 Printhead Assembly New 56P4330 (New) Contact for Details 56p4330 Printhead Assembly Fully refurbished with 90-day warranty 56p4330 Contact for Details 9 56P1540 Printhead interlock cable assembly 56P1540 Printhead Interlock Cable Assembly Fully refurbished with 90-day warranty 56P1540 Contact for Details 10 56P4330 Printhead assembly - magenta mirror motor (attached to magenta printhead) Lexmark 56p4330 Printhead Assembly Fully refurbished with 90-day warranty 56p4330 $120.00 56P4330 Printhead Assembly New 56P4330 (New) Contact for Details 56p4330 Printhead Assembly Fully refurbished with 90-day warranty 56p4330 Contact for Details 11 56P1548 Cable, laser - black/magenta 12 56P4330 Printhead assembly - black mirror motor (attached to black printhead) Lexmark 56p4330 Printhead Assembly Fully refurbished with 90-day warranty 56p4330 $120.00 56P4330 Printhead Assembly New 56P4330 (New) Contact for Details 56p4330 Printhead Assembly Fully refurbished with 90-day warranty 56p4330 Contact for Details 13 56P1501 Cable, HVPS control - developer 14 56P1502 Cable, HVPS control - transfer 15 56P1513 ITU light shield assembly (autoconnect) 56P1513 ITU light shield assembly (autoconnect) New 56P1513 (New) $39.00 16 56P2174 Cable, S2/XPAR/NMS/MPF (without sensors) 56P2174 Cable, S2/XPAR/NMS/MPF (without sensors) Fully refurbished with 90-day warranty 56P2174 Contact for Details 17 56P2857 Registration motor assembly with cable 56p2857 Kit, staging drive assembly New 56p2857 (New) $40.00 56p2857 Kit staging drive assembly Fully refurbished with 90-day warranty 56p2857 $32.00 18 56P1542 Cable, pick motor extension and paper level sensing 56P1542 Cable pick motor extension and paper level sensing Fully refurbished with 90-day warranty 56P1542 Contact for Details 56P1542 Cable pick motor extension and paper level sensing New 56P1542 (New) Contact for Details 19 56P1508 Cable, ITU and K cartridge motor 20 56P1507 Cable, C and M cartridge motor 21 56P1503 Cable assembly - options bottom/paper size sensing 22 56P1514 LVPS assembly - with cable - power Lexmark 56P1514 LVPS, 115V/230V Switchable Fully refurbished with 90-day warranty 15G1050 56p1514 Contact for Details 23 56P1514 LVPS assembly - for fuser DC control Lexmark 56P1514 LVPS, 115V/230V Switchable Fully refurbished with 90-day warranty 15G1050 56p1514 Contact for Details 24 56P1551 VTB fan, 60 mm 56P1551 VTB fan 60 mm New 56P1551 (New) Contact for Details 56P1551 VTB fan 60 mm Fully refurbished with 90-day warranty 56P1551 $25.00 25 56P1509 Fuser fan assembly with cable 56P1509 Fuser fan assembly with cable New 56P1509 (New) $47.00 56P1509 Fuser fan assembly with cable Fully refurbished with 90-day warranty 56P1509 $38.00 26 56P1506 Cable, fuser and Y cartridge motor

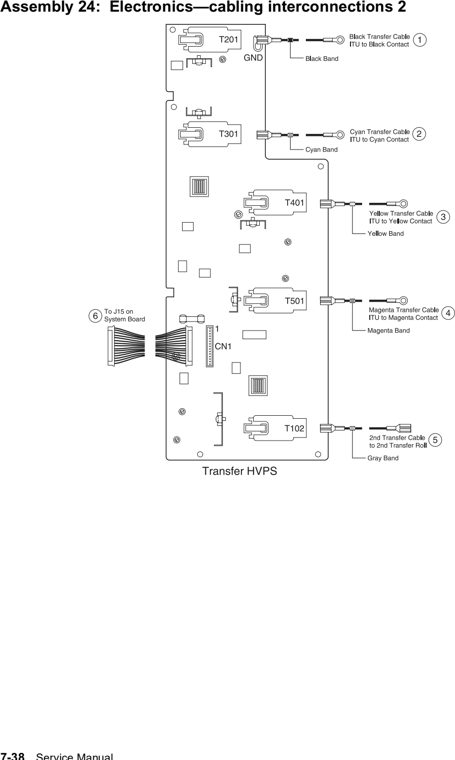

Assembly 24: Electronics—cabling interconnections 2 1 56P1565 Black terminal contact assembly 56P1565 Black terminal contact assembly Fully refurbished with 90-day warranty 56P1565 Contact for Details 2 56P1567 Cyan terminal contact assembly 56P1567 Cyan Terminal Contact Assembly Fully refurbished with 90-day warranty 56P1567 Contact for Details 3 56P1568 Yellow terminal contact assembly 56P1568 Yellow terminal contact assembly Fully refurbished with 90-day warranty 56P1568 Contact for Details 4 56P1566 Magenta terminal contact assembly 56P1566 Magenta terminal contact assembly Fully refurbished with 90-day warranty 56P1566 Contact for Details 5 56P0174 Cable assembly, second transfer voltage 6 56P1502 Cable, HVPS control - transfer Parts catalog 7-39

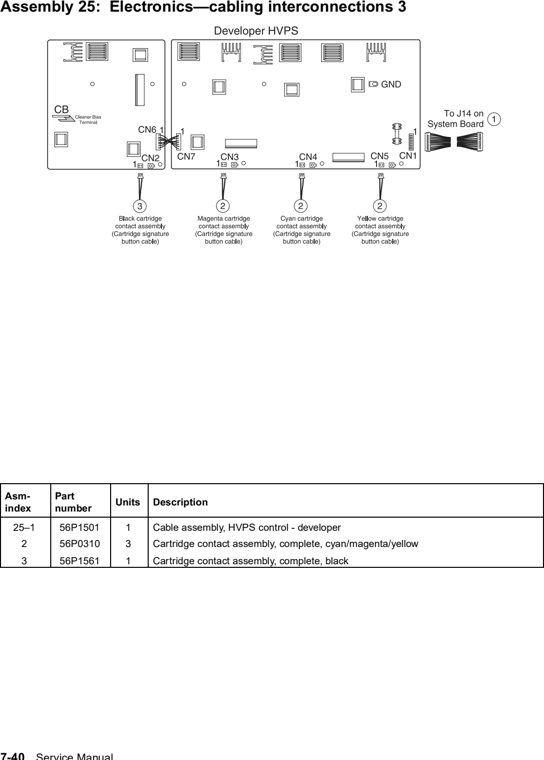

Assembly 25: Electronics—cabling interconnections 3 1 56P1501 Cable assembly, HVPS control - developer 2 56P0310 Cartridge contact assembly, complete, cyan/magenta/yellow 56P0310 Cartridge contact assembly complete cyan/magenta/yellow New 56P0310 (New) $22.00 3 56P1561 Cartridge contact assembly, complete, black 56P1561 Cartridge contact assembly complete black New 56P1561 (New) $22.00

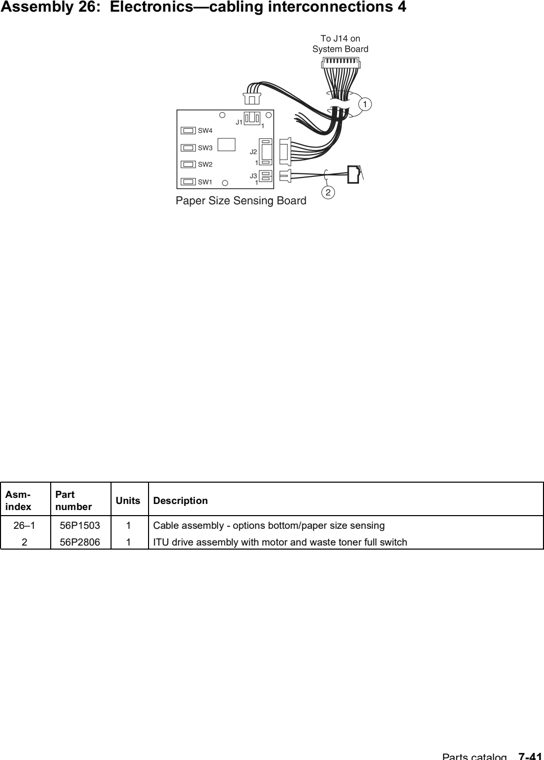

Assembly 26: Electronics—cabling interconnections 4 1 56P1503 Cable assembly - options bottom/paper size sensing 2 56P2806 ITU drive assembly with motor and waste toner full switch Parts catalog 7-41 56P2806 ITU Drive Motor Assembly New 56P2806 (New) $115.00

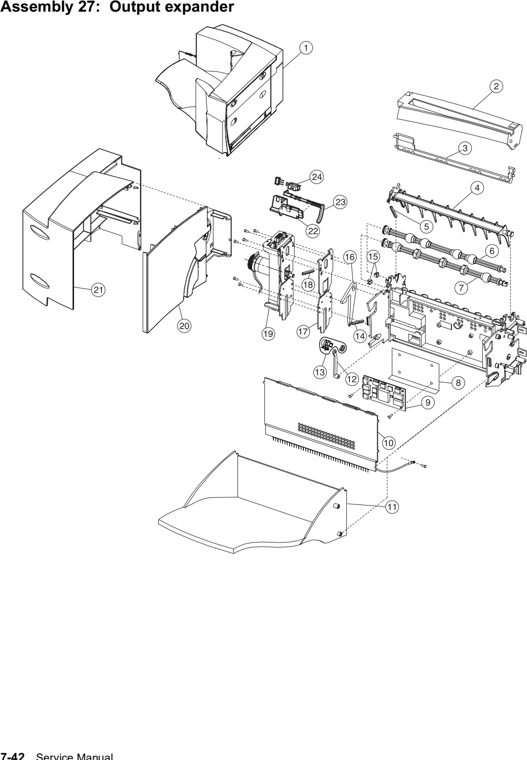

Assembly 27: Output expander 1 56P2870 Output expander, complete 2 56P2918 Right cover 2 99A0368 Shaft assembly, lower, 3 56P2919 ESD brush cover 3 99A0363 Pulley, drive 4 56P2875 Deflector, upper redrive, 4 56P0410 Bracket, rear attach 5 99A0104 Spring, upper diverter Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 6 99A0369 Shaft assembly, exit, 6 56P2872 Cover, front 7 99A0052 Shaft assembly, lower exit, 7 99A0361 Belt, 160 gear 8 56P0407 Shield, output option card 8 99A0362 Arm assembly, belt idler 9 99A0915 Board, output expander DC motor 9 99A0364 Spring, belt tensioner 10 56P2871 Cover, front control board 10 99A0482 Spring, output tray 11 56P2879 Tray, output expander 11 56P2878 Latch, output tray 12 99A1688 Diverter arm 12 56P2899 Frame assembly 13 99A1689 Spring clutch assembly Lexmark 99A1689 Spring Clutch Assembly New 99A1689 (New) $27.06 13 99A0351 Sensor, output expander pass thru 14 99A0482 Spring, output tray 15 99A0913 Shaft assembly, middle 40T, 16 56P2878 Latch, output tray 17 56P0406 Bracket, front attach 18 99A0415 Spring, swing arm 19 56P2917 Output expander assembly, mechanical linkage 20 56P2874 Cover, rear support 21 56P2873 Rear cover 22 56P2876 Level sensor bracket 23 56P2877 Flag, output paper level 24 99A0414 Sensor, dual bin full Parts catalog 7-43 27.1–1 56P2916 Door assembly, right jam access NS 56P2943 Kit, multi-bin stacker Parts catalog 7-45

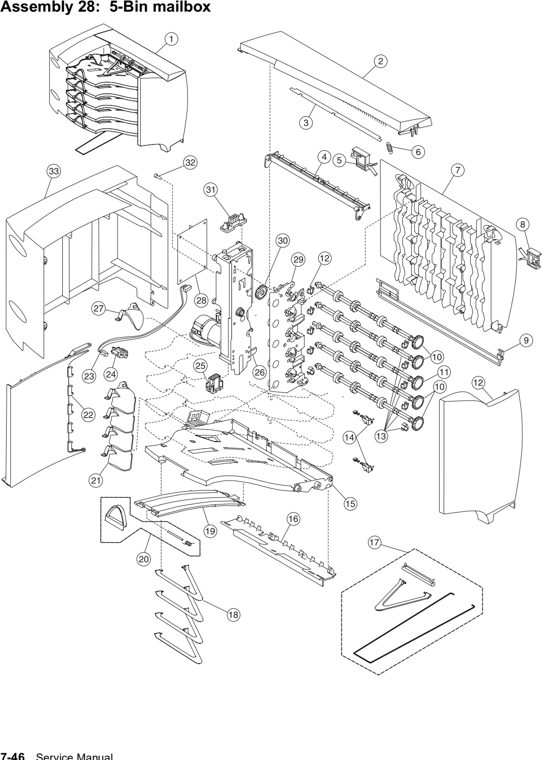

Assembly 28: 5-Bin mailbox 1 56P2880 5-Bin mailbox, complete 2 56P2820 Redrive cap cover assembly 56P2820 Redrive Cap Cover Assembly New 56P2820 (New) $30.00 56P2820 Redrive Cap Cover Assembly Fully refurbished with 90-day warranty 56P2820 $28.00 2 56P2936 Frame asm, right side 3 56P2937 Cover, wire 4 56P2882 Cover, top bin 4 99A1728 Cam, diverter actuator 5 56P2931 Latch, access door rear 5 99A1731 Spring, diverter actuator 6 99A0104 Spring, upper diverter Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 6 99A1729 Latch, diverter actuator 7 56P2889 Door, front 7 99A1730 Arbor, diverter actuator 8 56P2881 Latch, access door front 8 99A1789 Retainer, C-clip 9 56P2930 Cover, right 9 56P0418 Bracket, attach front 10 99A1723 Shaft asm, drive 10 99A1732 Solenoid, diverter 11 99A1724 Shaft asm, drive with gear 11 56P2938 Deflector, paper exit w/brush 12 56P2886 Cover, right side 12 56P2934 Deflector, paper 13 99A1725 Packet, drive shaft bushing 13 99A1787 Deflector 14 99A1742 Sensor, 5-bin mailbox pass thru 14 56P2933 Deflector, paper top bin 15 56P2885 Tray, paper cap 16 56P2884 Bracket asm, bail attach 17 56P2940 Kit, 5-bin mailbox asm 19 56P2932 Support, paper tray 20 56P2939 Stop asm, paper tray 21 56P2935 Flag, bin full 22 56P2887 Rear structural cover 23 99A1736 Cable, dual sensor 24 99A1737 Sensor, dual bin level 25 99A1718 Cable asm, lower autoconnect 26 99A1716 Drive asm, main DC drive 27 56P2883 Flag, bin full 28 99A1740 Board asm, 5-bin mailbox system 28.1–1 99A1741 Spring, diverter 29 56P2941 Frame asm, left w/clutch asm 30 99A1786 Gear, drive 31 99A1719 Cable asm, upper autoconnect 33 56P2888 Cover, left side Parts catalog 7-47 NS 56P0421 Spring, static ground NS 99A0462 Grease packet, IBM #23 Lexmark 99A0462 #23 Nyogel Grease New 99A0462 (New) $14.72 NS 99A1715 Roller asm, rear access door NS 99A1717 32 ppm drive gear NS 99A1788 Retainer, R-ring NS 99A0450 Retainer NS 56P0550 Cable, tray media level sensor Parts catalog 7-49

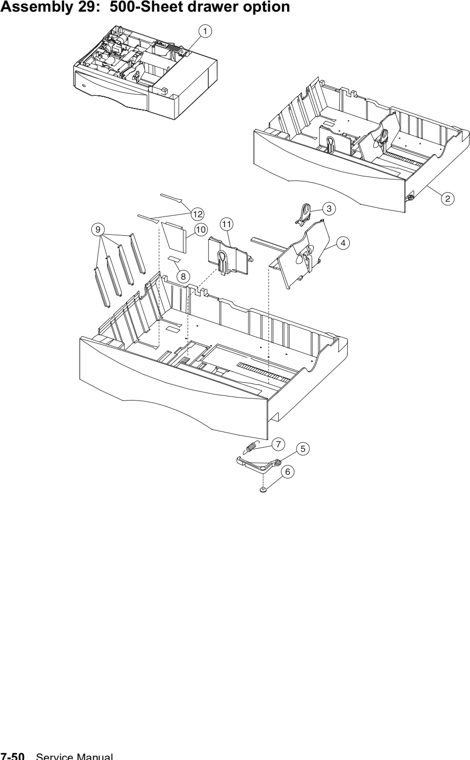

Assembly 29: 500-Sheet drawer option 1 56P2850 500-Sheet drawer option, complete 2 56P2834 500-Sheet tray assembly 56P2834 500-Sheet tray assembly New 56P2834 (New) $45.00 56P2834 500-Sheet tray assembly Fully refurbished with 90-day warranty 56P2834 $38.00 3 12G6419 Back restraint latch 3 56P2868 500-Sheet option tray pick assembly 4 12G6418 Back restraint 4 12G6565 Paper level sensing assembly 5 12G6425 Tray bias bellcrank assembly 5 12G6471 Tray interlock bellcrank 6 56P2859 Cover, frame 7 12G6426 Tray bias spring 7 12G6553 Pass thru sensor 8 12G6568 Reflector label 8 12G6562 Hinge 9 12G6421 Wear strip 9 12G6559 Electronics/size sensing assembly with system board 10 12G6420 Tray wear clip 10 12G6558 Pick arm lift bellcrank 11 12G6417 Side restraint 11 12G6566 Paper size sensing assembly 12 56P1504 Restraint pad Parts catalog 7-51 12 12G6557 Bellcrank lift spring 13 56P2858 500 base assembly 14 12G6380 Machine pad 15 56P1571 Plate, 500 support assembly 16 56P2867 Paper guide 17 12G6563 Wall support plate 18 56P2869 Base door assembly 19 12G6561 Spring 20 56P2849 500 option deflector 21 56P2176 Grounding spring 22 99A0070 Pick roll tires Lexmark 99A0070 Pick Rolls (Set Of Two) New 99A0070 (New) Contact for Details 29.1–1 56P0168 Drive assembly, 500 option 2 NS 12G6510 Cable tie (6 in a pack) Parts catalog 7-53

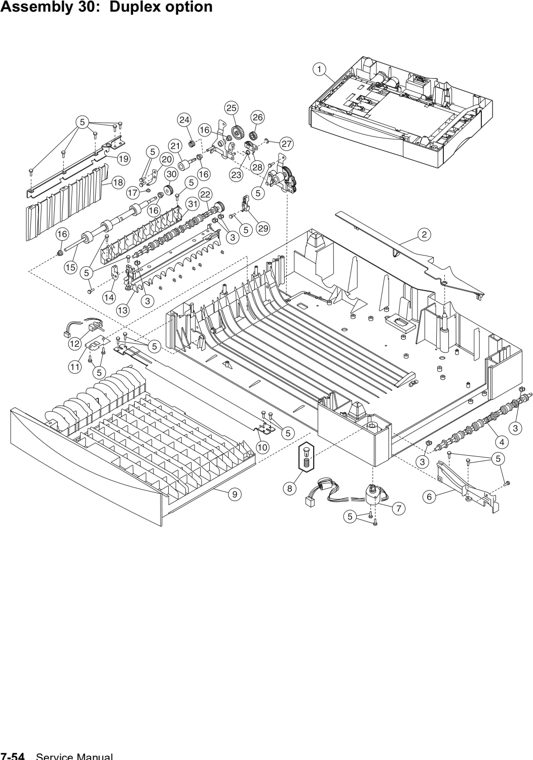

Assembly 30: Duplex option 1 56P2860 Duplex option, complete 2 56P2863 Back cover 2 56P0462 Autoconnect cable assembly 3 56P2898 Redrive bearing 3 56P0463 DC forward/reverse motor assembly 4 56P0447 Duplex entry shaft assembly 4 56P0464 DC duplex feed motor 6 56P0434 Right side front tray guide 6 12G6510 Cable tie (6 in pack) 7 56P0483 Deflector actuator assembly 8 56P1570 Deflector follower assembly 8 56P0459 Back support 9 56P2861 Duplex front jam tray assembly 9 56P0430 Duplex card assembly 10 56P0457 Duplex support bracket 10 56P2484 Belt, transfer 11 56P2866 Sensor mount plate 11 56P2862 Right jam clearance tray assembly 12 56P0442 Duplex exit sensor 12 56P0458 Chassis ground spring 13 56P0435 Duplex shaft mount 13 99A1789 Retainer, C-clip 14 56P0479 Front decurl assembly 14 56P0478 Aligner spring 15 56P0444 F/R backup shaft assembly 15 99A0323 Paper guide assembly 16 56P0476 5 mm bushing 16 56P0465 Drive alignment shaft assembly 17 56P0473 Brake pad 17 56P0477 Reduction gear shaft 18 56P2865 Duplex paper guide 18 56P0451 Right backup spring assembly 19 56P0454 Wall support 19 99A1717 32 ppm drive gear 20 56P0475 Brake spring 20 56P0452 Left backup spring assembly 21 56P0472 Pass thru shaft assembly 21 56P2864 Upper rib assembly 22 56P0441 Duplex shaft assembly 22 56P0437 Duplex input sensor 23 56P0468 Pass thru spring 24 56P0470 Aligner arm spring 25 56P0466 Spur drive gear 26 56P0467 26T duplex gear 28 56P0471 Bellcrank assembly 29 56P0474 Decurl BAC assembly 30 56P0445 40T shaft drive F/R gear 30.1–1 56P0456 Duplex support plate 31 56P0449 Support decurl guide NS 56P0482 Pulley washer Parts catalog 7-55

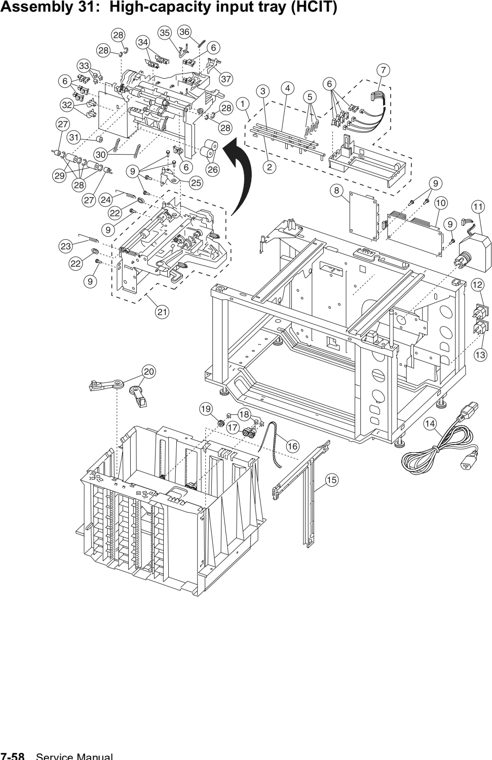

Assembly 31: HCIT 1 56P0561 Paper size sensor box assembly 2 56P0519 Flag, paper size F 2 56P2903 Right side cover 3 56P0520 Flag, paper size C 3 56P0491 Caster, movable 4 56P0518 Flag, paper size R 5 56P0522 Spring, paper size flag 5 56P0493 F adjuster 6 56P0516 Sensor, photo interrupter 6 56P2901 Front cover 7 56P0511 Paper size sensors cable 7 56P2902 Cover, main CA 8 56P0494 System control board 8 56P0492 Caster, fixed 9 56P2904 Left side cover 10 56P0495 LVPS 10 56P2906 Upper left side jam cover 11 56P0513 Elevator motor assembly 11 56P0507 Locating pin, options front right 12 56P0497 AC power outlet 12 56P0506 Locating pin, options rear left 13 56P0498 AC power inlet 13 56P0514 Options autoconnect cable assembly 14 56P0490 Jumper, AC power cord 14 56P0517 Options cable mounting plate 15 56P0524 Paper tray guide 16 56P0547 Elevator lift belt 17 56P0549 Elevator lift 18 56P0563 Ring 7, elevator lift gear/elevator lift 19 56P0548 Elevator lift gear 20 56P0523 Paper tray arms 21 56P0525 Feed unit, complete assembly 22 56P0527 Bushing 23 56P0533 Spring, feed unit front 24 56P0534 Spring, feed unit rear 25 56P0562 Feed cover 26 56P0542 Separation/torque roller 27 56P0529 Feed cam 29 56P0528 Feed roller 30 56P0530 Spring, feed unit 31 56P0532 Bushing, 060 31.1–1 56P2905 Rear cover 32 56P0544 Emitter timing wheel 33 56P0535 Clip, plastic 5W 34 56P0526 Sensors, special optical 35 56P0536 Level sensor flag 36 56P0540 Spring, extension 37 56P0539 Near empty sensor flag Parts catalog 7-59 NS 56P0509 Cable, feed unit special sensors NS 56P0510 Cable, feed unit sensors NS 56P0512 Cable, elevator motor NS 56P0515 Magnetic latch NS 56P0541 Tray present lever NS 56P0543 Cable clamp NS 56P0564 Kit, stabilizer with mounting screws Parts catalog 7-61

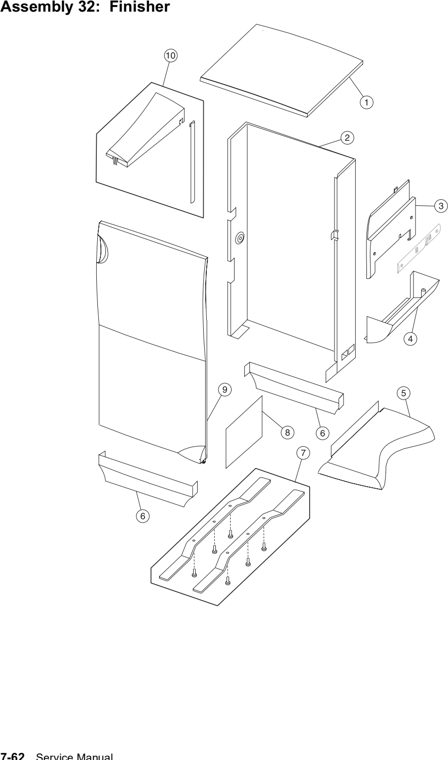

Assembly 32: Finisher 1 56P0321 Top cover (tall finisher) 2 56P0569 Rear cover (tall finisher) 2 56P1285 Rear cover (short finisher) 2 56P0357 Actuation assembly 2 56P0385 Solenoid drop assembly 3 56P0573 Upper right side cover (tall finisher) 3 56P1471 HCOF control board assembly 3 56P0347 Jogger fence homing sensor (EE-SX1235A-P2) 4 56P0574 Lower tray cover 4 56P0325 Motor assembly paper feed 4 56P0384 Accumulator belt (hook) 5 56P0576 Bottom kick cover 5 56P0332 Accumulator paper feed belt (40S3M900) 5 56P2294 Accumulator drive belt (B30S2M334) 6 56P0575 Front/rear lower cover 6 56P2294 Accumulator drive belt (B30S2M334) 6 56P0319 Accumulator w/o stapler 7 56P0387 Bar tip unit 7 56P0315 Punch assembly 7 56P0348 Drop timing sensor (OS-535223-602) 8 56P0577 Lower right side cover 8 56P0345 Punch motor homing sensor (GP1A73A) 8 56P0349 Accumulator homing sensor (OS-311D-A5) 9 56P0320 Cover front door 9 56P0318 Box, chad 9 56P0316 Staple assembly 10 56P0566 Finisher install kit 10 56P0329 Inverter D drive belt (40S3M225) 10 56P0358 Accumulator slides 11 56P0383 Solenoid inverter 11 56P0317 Staple cartridge 12 56P0347 Jogger fence homing sensor (EE-SX460-P1-CHN) 12 56P0346 Exit timing sensor (EE-SPY415) 13 56P0342 Caster 13 56P0344 Inverter timing sensor (OJ511K-A5) 14 56P0338 Low voltage power supply 14 56P0330 Paper feed-input belt (40S3M279) 15 56P0333 Tray elevation belt (60S6M1420) 15 56P0351 Cover open switch 16 56P0323 Output tray offset motor and gear assembly 16 56P2295 Jogger fence belt (B40S2M460) 17 56P0386 Fan assembly DC motor 18 56P0322 Tray paper 19 56P0326 Flag paper full 20 56P0331 Exit foam Roller drive belt (40S3M80) 21 56P0334 Tray elevation drive belt (170P2M4) 22 56P0335 Exit roller drive belt (40S2M264) 23 56P0336 Output tray offset drive belt (40S2M134) 24 56P0337 Punch belt (40S2M176) 25 56P0578 Tray wall cover 26 56P0327 Paper feed belt (40S3M888) 27 56P0343 Punch timing sensor (OJ-541-A5) 28 56P0350 Paper surface sensor (EE-SX460-P1-CHN) 29 56P0352 Printer docking switch SS-5FL-3T(10E) 30 56P0388 Tray limit switches (includes two) 31 56P0346 Exit timing sensor (EE-SPY415) 32 56P0328 Inverter transfer belt (40S3M198) 32.1–1 56P0324 Motor assembly elevator tray 32.2–1 56P0355 Guide vertical paper NS 56P0391 2-Pin attachment bracket (male) Parts catalog 7-63 NS 56P0340 Communications cable NS 56P0341 Power cord NS 56P0354 Bracket finisher alignment NS 56P0356 Pack magnet, strong and weak and door latch Parts catalog 7-65 NS 56P0382 Harness cable assembly D5 - low voltage power supply to low voltage power relay

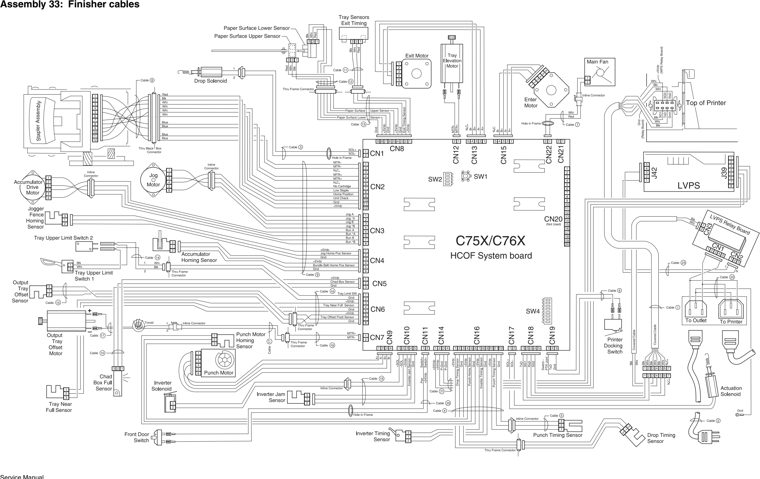

Assembly 33: Finisher cables 1 56P0340 Communications cable 2 56P0341 Power cord 3 56P0359 Harness cable assembly H2 - system board to drop solenoid 4 56P0360 Harness cable assembly H3 - system board to harness cable assembly H4/drop timing 5 56P0361 Harness cable assembly H4 - harness cable H3 to punch timing sensor 6 56P0362 Harness cable assembly H5 - system board to printer docking switch 7 56P0363 Harness cable assembly H6 - system board to fan 8 56P0364 Harness cable assembly S1 - stapler cable to stapler assembly 9 56P0368 Harness cable assembly S5 - system board to chad box full sensor 10 56P0369 Harness cable assembly E2 - cable E5 to exit timing sensor 11 56P0370 Harness cable assembly E3 - cable E5 to paper surface upper sensor/paper surface 12 56P0371 Harness cable assembly E5 - system board to cable E2/E3 13 56P0372 Harness cable assembly E6 - cable E8 to tray limit switches 14 56P0373 Harness cable assembly E7 - cable E8 to output tray offset sensor 15 56P0374 Harness cable assembly E8 - system board to E6/E7 16 56P0375 Harness cable assembly E9 - cable E10 to output offset motor 17 56P0376 Harness cable assembly E10 - system board to cable E9 18 56P0378 Harness cable assembly R1 - system board to inverter solenoid/inverter jam sensor 19 56P0379 Harness cable assembly D1 - system board to front door switch 20 56P0380 Harness cable assembly D2 - system board to low voltage power supply 21 56P0381 Harness cable assembly D3 - low voltage power supply relay board to AC input/output 22 56P0382 Harness cable assembly D5 - low voltage power supply to low voltage power supply

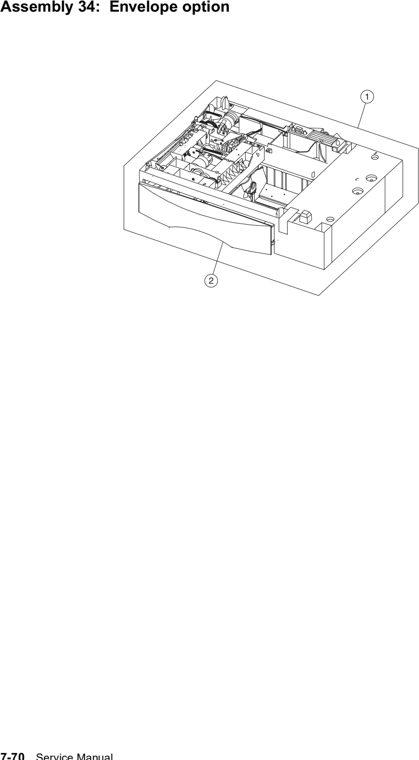

Assembly 34: Envelope option 1 56P2890 Envelope option (complete) 2 56P2891 Envelope tray assembly Parts catalog 7-71

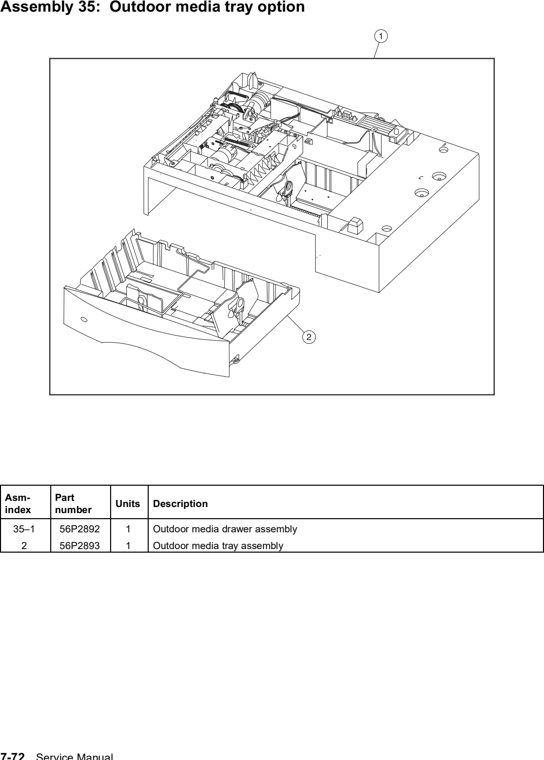

Assembly 35: Outdoor media tray option 1 56P2892 Outdoor media drawer assembly 2 56P2893 Outdoor media tray assembly

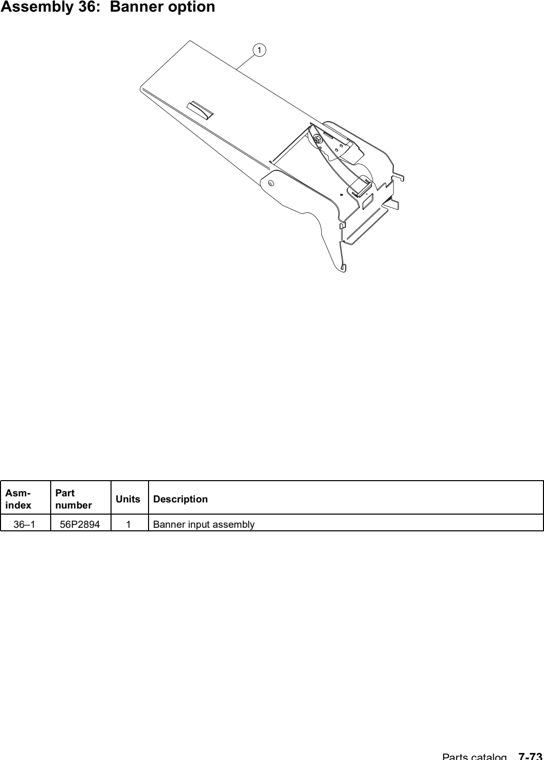

Assembly 36: Banner option 1 56P2894 Banner input assembly Parts catalog 7-73

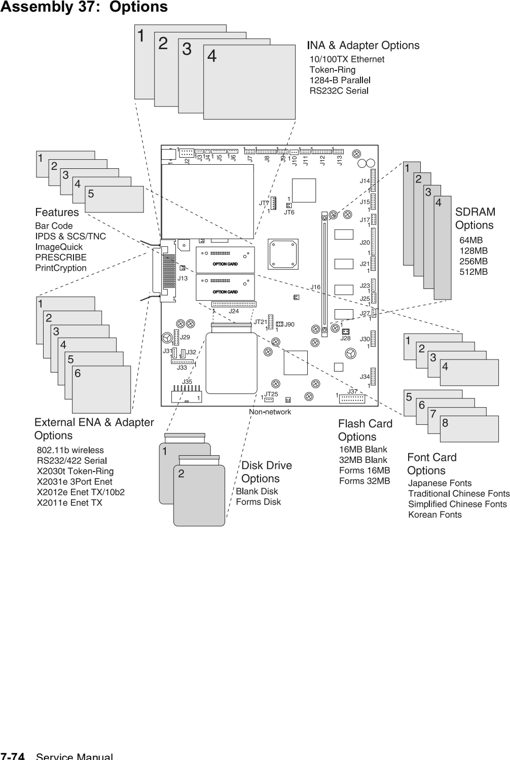

Assembly 37: Options NS 12G6509 64MB SDRAM card assembly Lexmark 12G6509 SDRAM DIMM 64MB Fully refurbished with 90-day warranty 12G6509 $44.71 NS 56P9910 128MB SDRAM card assembly NS 56P9911 256MB SDRAM card assembly NS 56P2223 512MB SDRAM card assembly NS 56P1417 16MB Flash DIMM card assembly NS 56P1418 32MB Flash DIMM card assembly NS 56P1430 Traditional Chinese font DIMM card assembly NS 56P1429 Simplified Chinese font DIMM card assembly NS 56P1437 Adapter, parallel 1284-B NS 56P9982 Hard Disk, 20GB with/Adapter (formatted) NS 56P9926 Lexmark Optra Forms™ Software NS 56P9927 Lexmark Forms Director Software NS 56P1428 Lexmark Forms 16MB Flash DIMM NS 56P1427 Lexmark Forms 32MB Flash DIMM NS 56P9942 Hard Drive Mounting Kit NS 56P1741 MarkNet™ Token-Ring Print Internal Server NS 56P1431 MarkNet X2011e Ethernet 10/100BaseTX - 1 Port External Server NS 56P1432 MarkNet X2012e Ethernet 10BaseT/2 10BaseTX/10Base 2 - 1 Port External Server NS 56P1435 External serial adapter (RS 232) NS 56P0159 Coax/Twinax adapter for SCS NS 56P1436 RS-232 serial interface card NS 56P3090 IPDS/SCS card assembly NS 56P1438 Japanese font card assembly NS 56P2231 Korean font card assembly card assembly NS 56P3142 PrintCryption™ card assembly NS 56P3143 Bar code card assembly NS 56P3302 ImageQuick™ card assembly NS 56P3303 PRESCRIBE card assembly NS 56P1433 MarkNet X2031e Ethernet 10/100BaseTX - 3 Port External Server NS 56P1434 MarkNet X2030t Token-Ring External Server NS 56P1742 MarkNet N2101e Ethernet 10/100BaseTX Internal Server Lexmark 56P1742 MarkNet N2101e Ethernet Internal Print Server Fully refurbished with 90-day warranty 56P1742 $195.00 NS 56P9932 Lexmark Forms hard disk, 5GB or larger w/adapter Parts catalog 7-75

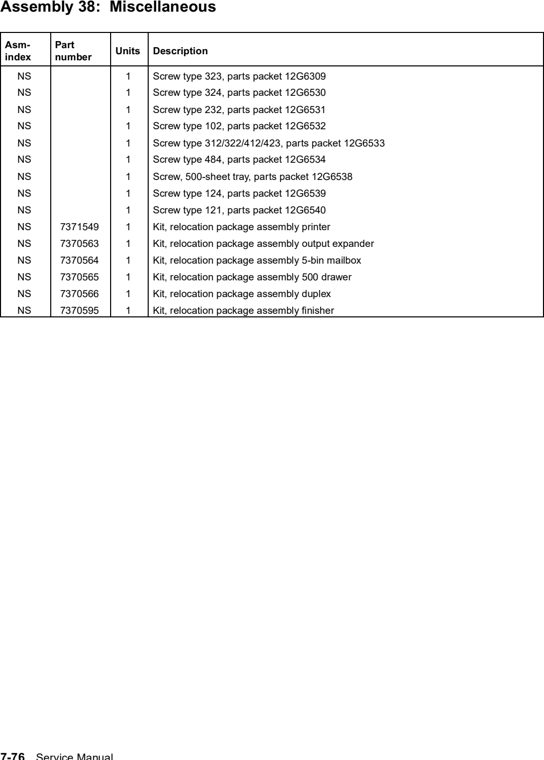

Assembly 38: Miscellaneous NS 7371549 Kit, relocation package assembly printer NS 7370563 Kit, relocation package assembly output expander NS 7370564 Kit, relocation package assembly 5-bin mailbox NS 7370565 Kit, relocation package assembly 500 drawer NS 7370566 Kit, relocation package assembly duplex NS 7370595 Kit, relocation package assembly finisher
Other listed parts 12G6309 PACK SCREW 12G6443 SPRING ITM BIAS 12G6530 PARTS PACK SCREWS 12G6531 PARTS PACK SCREWS 12G6532 PARTS PACK SCREWS 12G6533 PARTS PACK SCREWS 12G6534 PARTS PACK SCREWS 12G6540 STANDOFF DEV HVPS 40X0070 Pick roll assembly - set of two Lexmark 40X0070 Pick roll assembly - set of two New 40X0070 40X4308 CET5894 (New) $18.95 56P2220 PARTS PACK SCREWS 56P2801 Printhead Assembly 56P2801 Printhead Assembly New 56P2801 (New) Contact for Details 56P2801 Printhead Assembly Fully refurbished with 90-day warranty 56P2801 $197.00 56P2838 250 output flag and retainer 56P2838 250 output flag and retainer New 56P2838 (New) Contact for Details 56P3835 Network System Board, network (RIP) 56p3835 Network System Board, network (RIP) New 56p3835 (New) $190.00 56p3835 Network System Board network (RIP) Fully refurbished with 90-day warranty 56p3835 $190.00 56P9774 Motor, feeder drive 56P9774 Motor, feeder drive New 56P9774 (New) Contact for Details 56P9774 Motor feeder drive Fully refurbished with 90-day warranty 56P9774 Contact for Details 7621464 255161-001 Ribbons (12 Pack) Ultra Capacity Plus 255161-001 Ribbons (12 Pack) Ultra Capacity Plus New 255161-001 (New) $39.71
