Lexmark C920 Parts

-- select -- AMT Datasouth Parts Avision Parts Brother Printer Parts Canon imagePROGRAF iPF610 Parts Compuprint Parts Dascom Parts Dell Laser Printer Parts Epson Parts Fujitsu Printer Parts Genicom Parts Godex Printer Parts HP Parts for Printers, MFPs, & Scanners IBM Infoprint Parts Ithaca Parts Konica Parts Lexmark Parts for Printers and Scanners Oki Parts (Okidata Parts) Olivetti Parts OTC (Output Technology) Parts Printek Parts Printronix Parts PSI Parts Ricoh Parts Samsung Printer and MFP Parts Sato Parts Sharp Printer Parts Source Technologies Parts Tally Parts Tharo Parts Toshiba Parts TSC Parts Videojet Spare Parts Visioneer Parts Xerox Parts Zebra Parts

-- select -- Lexmark Color Laser Printer Parts Lexmark Impact Printer Parts Lexmark MFP Parts Lexmark Mono Laser Parts Lexmark Specialized Printer Parts

-- select -- Lexmark 5-Bin Mailbox (Color Laser) Parts Lexmark C3224 Parts Lexmark C500 Parts Lexmark C510 Parts Lexmark C520 Parts Lexmark C522 & C523 Parts Lexmark C524 Parts Lexmark C530 Parts Lexmark C532 Parts Lexmark C534 Parts Lexmark C540 Parts Lexmark C543 Parts Lexmark C544 Parts Lexmark C546 Parts Lexmark C710 Parts Lexmark C720 Parts Lexmark C734 Parts Lexmark C736 Parts Lexmark C746 & C748 Parts Lexmark C750 Parts Lexmark C752 Parts Lexmark C75x & C76x Options Parts Lexmark C760 & C762 Parts (5060) Lexmark C770 & C772 Parts Lexmark C780 & C782 Parts Lexmark C792 (c792 c795 cs796 cs797 cs798 cs799) Parts Lexmark C910 & C912 Parts Lexmark C920 Parts Lexmark C925 Parts Lexmark C935 Parts Lexmark C935 X940 X945 Finisher Parts Lexmark C950 Parts Lexmark CS310 CS410 CS510 Parts Lexmark CS331 CS431 CS439 C2326 C3224 C3326 C3426 Parts Lexmark CS421 CS521 CS622 C2240 C2325 C2425 C2535 Parts Lexmark CS531 CS632 C2335 Parts Lexmark CS720 CS725 & C4150 Parts Lexmark CS730 CS735 C4342 C4352 Parts Lexmark CS737 Parts Lexmark CS820 C6160 Family Parts Lexmark CS921 C9235 CS927 Parts Lexmark CS923 Parts Lexmark CS943 Parts Lexmark Duplexer (Color Laser) Parts Lexmark Finisher (C77x, C78x) Parts Lexmark Hi-Cap Drawer Parts (Optra S and T) Lexmark Output Expander (Color Lasers) Parts

Please call for parts assistance

Looking for whole machines? View Printer Info

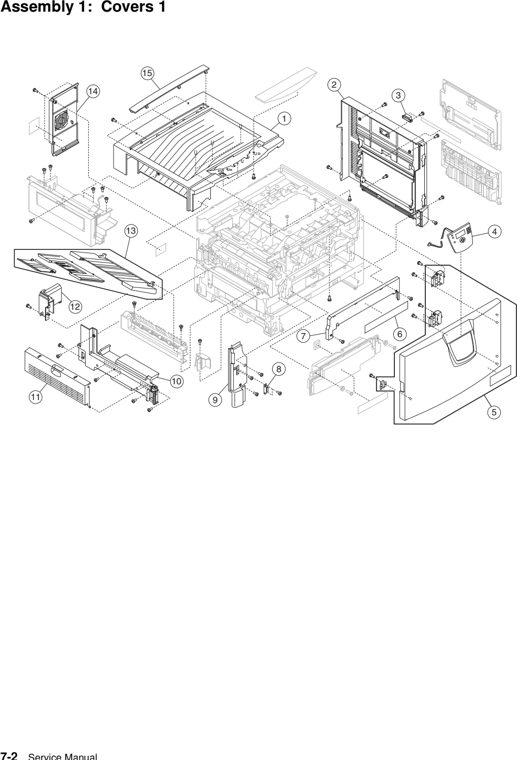

Assembly 1: Covers 1 1 40X1131 Cover, top Lexmark 40X1131 Cover- Top New 40X1131 (New) Contact for Details Lexmark 40X1131 Cover- Top Fully refurbished with 90-day warranty 40X1131 Contact for Details 2 40X1124 Cover assembly, right side Lexmark 40X1124 Cover Assembly- Right Side New 40X1124 (New) Contact for Details Lexmark 40X1124 Cover Assembly- Right Side Fully refurbished with 90-day warranty 40X1124 Contact for Details 3 40X1139 Magnet, right side latch 4 40X1259 Operator panel Lexmark 40X1259 Operator Panel New 40X1259 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X1259 Operator Panel Fully refurbished with 90-day warranty 40X1259 Retired, no longer available: Contact for alternatives Contact for Details 5 40X1123 Cover assembly, front Lexmark 40X1123 Cover Assembly- Front New 40X1123 (New) Contact for Details Lexmark 40X1123 Cover Assembly- Front Fully refurbished with 90-day warranty 40X1123 Contact for Details 6 56P9545 Label, operator panel 7 40X1132 Cover, waste toner bottle Lexmark 40X1132 Cover- Waste Toner Bottle New 40X1132 (New) Contact for Details Lexmark 40X1132 Cover- Waste Toner Bottle Fully refurbished with 90-day warranty 40X1132 Contact for Details 8 40X1140 Magnet, front cover latch 9 40X1129 Cover, left front Lexmark 40X1129 Cover- Left Front New 40X1129 (New) Contact for Details Lexmark 40X1129 Cover- Left Front Fully refurbished with 90-day warranty 40X1129 Contact for Details 10 40X1126 Cover, left side Lexmark 40X1126 Cover- Left Side New 40X1126 (New) Contact for Details Lexmark 40X1126 Cover- Left Side Fully refurbished with 90-day warranty 40X1126 Contact for Details 11 40X1127 Cover, paper feed Lexmark 40X1127 Cover- Paper Feed New 40X1127 (New) Contact for Details Lexmark 40X1127 Cover- Paper Feed Fully refurbished with 90-day warranty 40X1127 Contact for Details 12 40X1125 Cover, solenoid Lexmark 40X1125 Cover- Solenoid New 40X1125 (New) Contact for Details Lexmark 40X1125 Cover- Solenoid Fully refurbished with 90-day warranty 40X1125 Contact for Details 13 40X1122 Tray assembly, exit Lexmark 40X1122 Tray Assembly- Exit New 40X1122 (New) Contact for Details Lexmark 40X1122 Tray Assembly- Exit Fully refurbished with 90-day warranty 40X1122 Contact for Details 14 40X1128 Cover, rear Lexmark 40X1128 Cover- Rear New 40X1128 (New) Contact for Details Lexmark 40X1128 Cover- Rear Fully refurbished with 90-day warranty 40X1128 Contact for Details 15 40X1130 Cover, adjustment Lexmark 40X1130 Cover- Adjustment New 40X1130 (New) Contact for Details Lexmark 40X1130 Cover Adjustment Fully refurbished with 90-day warranty 40X1130 Contact for Details NS 40X1516 Label, MPT NS 40X1262 Parts packet Parts catalog 7-3

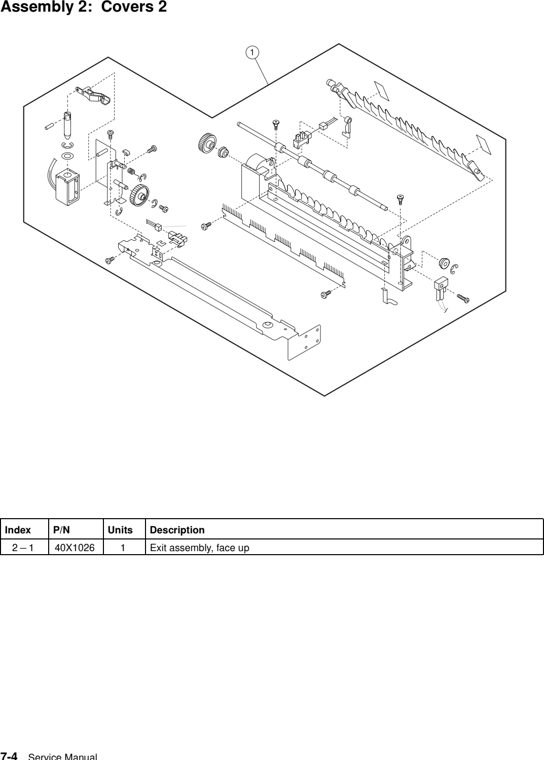

Assembly 2: Covers 2 1 40X1026 Exit assembly, face up Lexmark 40X1026 Exit Assembly- Face Up New 40X1026 (New) $129.00 Lexmark 40X1026 Exit Assembly- Face Up Fully refurbished with 90-day warranty 40X1026 $99.00

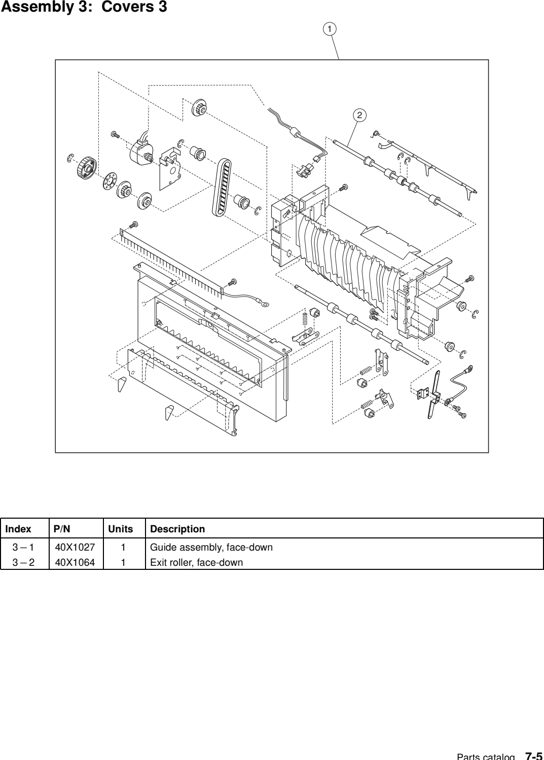

Assembly 3: Covers 3 1 40X1027 Guide assembly, face-down Lexmark 40X1027 Guide Assembly- Face-Down New 40X1027 (New) Contact for Details Lexmark 40X1027 Guide Assembly- Face-Down Fully refurbished with 90-day warranty 40X1027 Contact for Details 2 40X1064 Exit roller, face-down Parts catalog 7-5 Lexmark 40X1064 Exit roller- Face-Down New 40X1064 (New) Contact for Details Lexmark 40X1064 Exit roller- Face-Down Fully refurbished with 90-day warranty 40X1064 Contact for Details

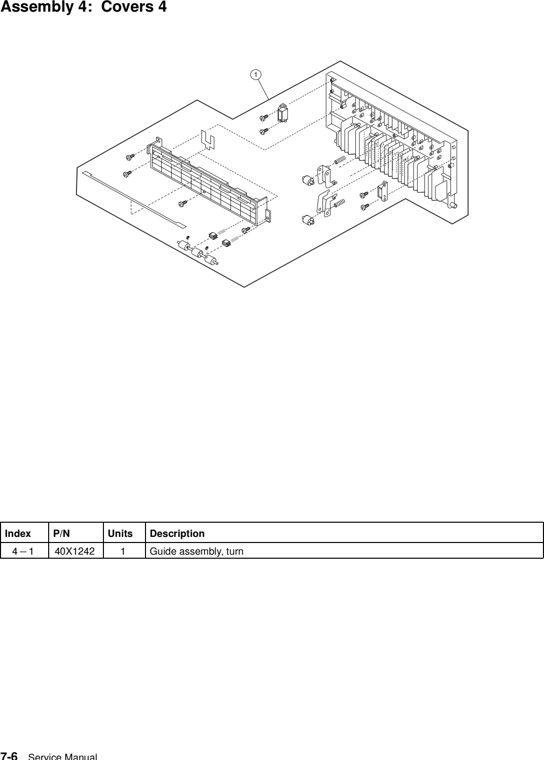

Assembly 4: Covers 4 1 40X1242 Guide assembly, turn Lexmark 40X1242 Guide Assembly- Turn New 40X1242 (New) Contact for Details Lexmark 40X1242 Guide Assembly- Turn Fully refurbished with 90-day warranty 40X1242 Contact for Details

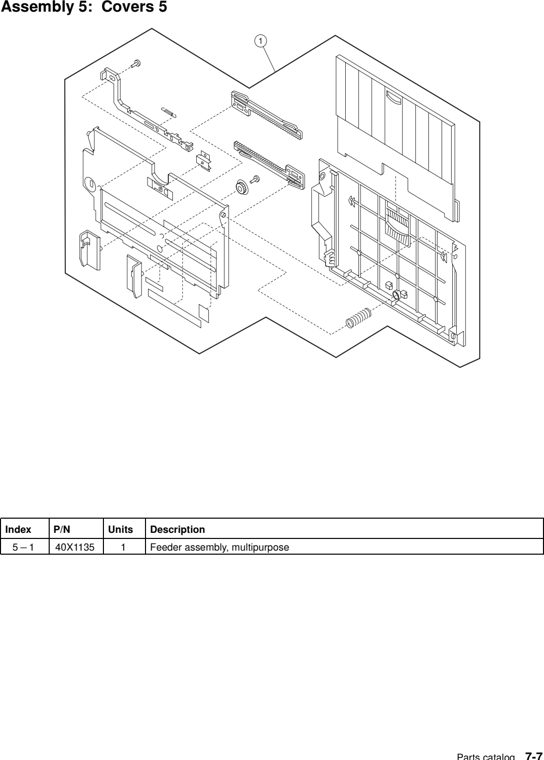

Assembly 5: Covers 5 1 40X1135 Feeder assembly, multipurpose Parts catalog 7-7 Lexmark 40X1135 Feeder Assembly- Multipurpose New 40X1135 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X1135 Feeder Assembly- Multipurpose Fully refurbished with 90-day warranty 40X1135 $79.00

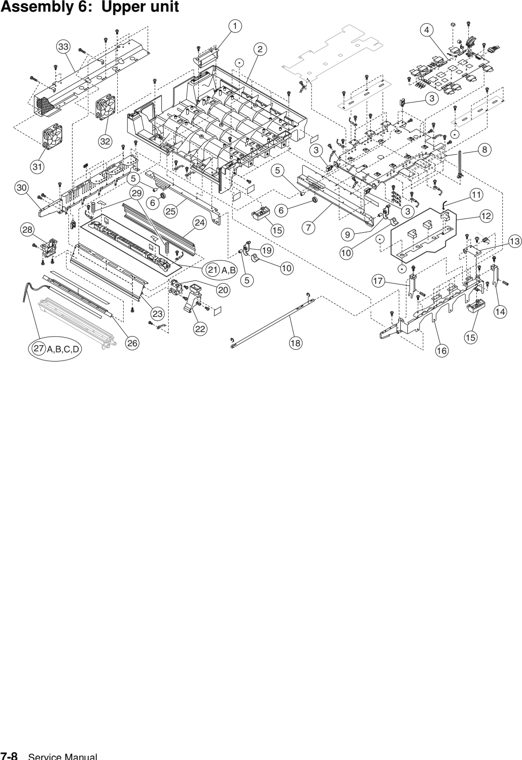

Assembly 6: Upper unit 1 56P9632 Shroud, cable 2 56P9591 Frame, upper 56P9591 Frame upper Fully refurbished with 90-day warranty 56P9591 Contact for Details 56P9591 Frame- upper New 56P9591 (New) Contact for Details 3 56P9638 Holder, cable 4 40X1220 Board, printhead controller Lexmark 40X1220 Board- Printhead Controller New 40X1220 (New) Contact for Details Lexmark 40X1220 Board Printhead Controller Fully refurbished with 90-day warranty 40X1220 Contact for Details 5 56P9628 Pivot, color link 56P9628 Pivot Color Ink Fully refurbished with 90-day warranty 56P9628 Contact for Details 56P9628 Pivot Color Ink New 56P9628 (New) Contact for Details 6 56P9627 Bearing, roller 56P9627 Bearing Roller Fully refurbished with 90-day warranty 56P9627 Contact for Details 56P9627 Bearing Roller New 56P9627 (New) Contact for Details 7 56P9624 Link, frame 56P9624 Link Frame Fully refurbished with 90-day warranty 56P9624 Contact for Details 56P9624 Link- frame New 56P9624 (New) Contact for Details 8 40X1149 Frame, printhead controller Lexmark 40X1149 Printhead Controller Frame New 40X1149 (New) Contact for Details Lexmark 40X1149 Printhead Controller Frame Fully refurbished with 90-day warranty 40X1149 Contact for Details 9 56P9625 Hook, right link 10 56P9626 Cover, hook 11 40X1118 Cable, RFID Lexmark 40X1118 Cable, RFID New 40X1118 (New) Contact for Details Lexmark 40X1118 Cable RFID Fully refurbished with 90-day warranty 40X1118 Contact for Details 12 40X1117 Assembly, RFID Lexmark 40X1117 Assembly- RFID Fully refurbished with 90-day warranty 40X1117 Contact for Details Lexmark 40X1117 Assembly, RFID New 40X1117 (New) Contact for Details 13 40X1145 Hook, middle 14 40X1147 Hook, right 15 40X1257 Handle, up opening 16 40X1143 Bracket, front upper Lexmark 40X1143 Bracket- Front Upper New 40X1143 (New) Contact for Details Lexmark 40X1143 Bracket- Front Upper Fully refurbished with 90-day warranty 40X1143 Contact for Details 17 40X1146 Hook, left 18 40X1144 Rod, interlocking Lexmark 40X1144 Rod- Interlocking New 40X1144 (New) Contact for Details Lexmark 40X1144 Rod- Interlocking Fully refurbished with 90-day warranty 40X1144 Contact for Details 19 56P9630 Hook, left link 56P9630 Hook Left Link Fully refurbished with 90-day warranty 56P9630 Contact for Details 56P9630 Hook Left Link New 56P9630 (New) Contact for Details 20 40X1142 Holder, front hsp Lexmark 40X1142 Holder- Front Hsp New 40X1142 (New) Contact for Details Lexmark 40X1142 Holder- Front Hsp Fully refurbished with 90-day warranty 40X1142 Contact for Details 21A 40X1133 Assembly, LED printhead (K) Lexmark 40X1133 LED Printhead (K) Assembly New 40X1133 (New) Contact for Details Lexmark 40X1133 LED Printhead (K) Assembly Fully refurbished with 90-day warranty 40X1133 Contact for Details 21B 40X1134 Assembly, LED printhead (C) Lexmark 40X1134 LED Printhead (C) Assembly New 40X1134 (New) Contact for Details Lexmark 40X1134 LED Printhead (C) Assembly Fully refurbished with 90-day warranty 40X1134 Contact for Details 22 56P9611 Holder, front printhead 56P9611 printhead holder front Fully refurbished with 90-day warranty 56P9611 Contact for Details 56P9611 Printhead Holder Front New 56P9611 (New) Contact for Details 23 56P9592 Rail, left side 56P9592 Rail- left side New 56P9592 (New) Contact for Details 24 56P9610 Rail, right side 56P9610 right slide rail Fully refurbished with 90-day warranty 56P9610 Contact for Details 56P9610 Rail- right side New 56P9610 (New) Contact for Details 25 56P9629 Link, frame 56P9629 Frame- link New 56P9629 (New) Contact for Details 26 56P9594 Cover, eraser 27A 40X1028 Lamp, M erase Lexmark 40X1028 Lamp- M Erase New 40X1028 (New) Contact for Details Lexmark 40X1028 Lamp- M Erase Fully refurbished with 90-day warranty 40X1028 Contact for Details 27B 40X1029 Lamp, C erase Lexmark 40X1029 Lamp- C Erase New 40X1029 (New) Contact for Details Lexmark 40X1029 Lamp- C Erase Fully refurbished with 90-day warranty 40X1029 Contact for Details 27C 40X1030 Lamp, Y erase Lexmark 40X1030 Lamp- Y Erase New 40X1030 (New) Contact for Details Lexmark 40X1030 Lamp- Y Erase Fully refurbished with 90-day warranty 40X1030 Contact for Details 27D 40X1031 Lamp, K erase Lexmark 40X1031 Lamp- K Erase New 40X1031 (New) Contact for Details Lexmark 40X1031 Lamp- K Erase Fully refurbished with 90-day warranty 40X1031 Contact for Details 28 56P9593 Holder, rear printhead 56P9593 rear printhead holder Fully refurbished with 90-day warranty 56P9593 Contact for Details 29 56P9609 Spring, printhead 56P9609 printhead spring Fully refurbished with 90-day warranty 56P9609 Contact for Details 56P9609 Printhead Spring New 56P9609 (New) Contact for Details 30 40X1148 Bracket, rear upper Lexmark 40X1148 Bracket- Rear Upper New 40X1148 (New) Contact for Details Lexmark 40X1148 Bracket- Rear Upper Fully refurbished with 90-day warranty 40X1148 Contact for Details 31 40X1032 Fan, upper right Lexmark 40X1032 Fan- Upper Right New 40X1032 (New) Contact for Details Lexmark 40X1032 Fan- Upper Right Fully refurbished with 90-day warranty 40X1032 Contact for Details 32 40X1033 Fan, upper left Lexmark 40X1033 Fan- Upper Left New 40X1033 (New) Contact for Details Lexmark 40X1033 Fan- Upper Left Fully refurbished with 90-day warranty 40X1033 Contact for Details 33 56P9621 Bracket, fan holder 56P9621 Bracket, fan holder New 56P9621 (New) $74.00 56P9621 Fan Holder Bracket Fully refurbished with 90-day warranty 56P9621 $29.00 NS 56P9993 Shield, light (used on p/n 56P9594) NS 40X1263 Parts packet Parts catalog 7-9

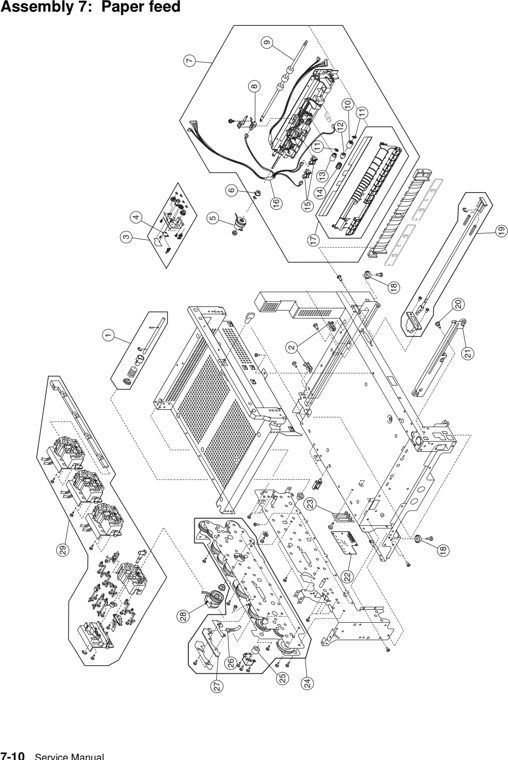

Assembly 7: Paper feed 1 40X1119 Shaft, changing 2 40X1103 Bushing, turn guide 3 40X1112 Assembly, drive link Lexmark 40X1112 Assembly- Drive Link New 40X1112 (New) Contact for Details Lexmark 40X1112 Assembly- Drive Link Fully refurbished with 90-day warranty 40X1112 Contact for Details 4 40X1247 Sensor, humidity (not included in 7-3) Lexmark 40X1247 Sensor- Humidity New 40X1247 (New) Contact for Details Lexmark 40X1247 Sensor- Humidity Fully refurbished with 90-day warranty 40X1247 Contact for Details 5 40X1082 Clutch, paper feed Lexmark 40X1082 Clutch- Paper Feed New 40X1082 (New) Contact for Details Lexmark 40X1082 Clutch- Paper Feed Fully refurbished with 90-day warranty 40X1082 Contact for Details 6 40X1081 Clutch, roller 6 x 10 x 14 Lexmark 40X1081 Clutch- Roller 6 x 10 x 14 New 40X1081 (New) $39.60 Lexmark 40X1081 Clutch- Roller Fully refurbished with 90-day warranty 40X1081 $39.89 7 40X1075 Assembly, paper-feed base Lexmark 40X1075 Assembly- Paper-Feed Base New 40X1075 (New) Contact for Details Lexmark 40X1075 Assembly- Paper-Feed Base Fully refurbished with 90-day warranty 40X1075 Contact for Details 8 40X1107 Sensor, relay Lexmark 40X1107 Sensor- Relay New 40X1107 (New) Contact for Details Lexmark 40X1107 Sensor- Relay Fully refurbished with 90-day warranty 40X1107 Contact for Details 9 40X1108 Roller, relay Lexmark 40X1108 Roller- Relay New 40X1108 (New) Contact for Details Lexmark 40X1108 Roller- Relay Fully refurbished with 90-day warranty 40X1108 Contact for Details 10 40X1079 Roller, separator Lexmark 40X1079 Roller- Separator New 40X1079 (New) $33.00 Lexmark 40X1079 Roller- Separator Fully refurbished with 90-day warranty 40X1079 Contact for Details 11 40X1106 Clip, paper-feed shaft 12 40X1080 Clutch, friction (torque limiter) Lexmark 40X1080 Clutch- Friction (Torque Limiter) New 40X1080 (New) $185.81 Lexmark 40X1080 Clutch- Friction (Torque Limiter) Fully refurbished with 90-day warranty 40X1080 Contact for Details 13 40X1078 Roller, paper feed Lexmark 40X1078 Roller- Paper Feed New 40X1078 (New) $87.00 Lexmark 40X1078 Roller- Paper Feed Fully refurbished with 90-day warranty 40X1078 Contact for Details 14 40X1077 Roller, pickup Lexmark 40X1077 Roller Pickup New 40X1077 (New) $24.50 Lexmark 40X1077 Roller- Pickup Fully refurbished with 90-day warranty 40X1077 Contact for Details 15 40X1173 Interrupt, photo Lexmark 40X1173 Photo Interrupter New 40X1173 (New) $23.40 Lexmark 40X1173 Photo Interrupter Fully refurbished with 90-day warranty 40X1173 Contact for Details 16 40X1098 Cable asm, paper-feed type 1 Lexmark 40X1098 Cable Assembly- Paper-Feed Type 1 New 40X1098 (New) Contact for Details Lexmark 40X1098 Cable Assembly- Paper-Feed Type 1 Fully refurbished with 90-day warranty 40X1098 Contact for Details 17 40X1076 Plate, guide rocking Lexmark 40X1076 Plate- Guide Rocking New 40X1076 (New) Contact for Details Lexmark 40X1076 Plate- Guide Rocking Fully refurbished with 90-day warranty 40X1076 Contact for Details 18 56P9503 Foot, rubber 19 56P9641 Actuator, front cover open switch 56P9641 Actuator Frt Cover Open Switch Fully refurbished with 90-day warranty 56P9641 Contact for Details 20 56P9524 Screw, slide rail 21 40X1034 Rail, base left side Lexmark 40X1034 Rail- base left side New 40X1034 (New) Contact for Details Lexmark 40X1034 Rail- base left side Fully refurbished with 90-day warranty 40X1034 Contact for Details 22 40X1083 Board, CK2 daughter board/sensor Lexmark 40X1083 Board- CK2 Daughter Board/Sensor New 40X1083 (New) Contact for Details Lexmark 40X1083 Board- CK2 Daughter Board/Sensor Fully refurbished with 90-day warranty 40X1083 Contact for Details 23 56P9521 Lever, size sense 56P9521 lever size sensor Fully refurbished with 90-day warranty 56P9521 Contact for Details 56P9521 lever size sensor New 56P9521 (New) Contact for Details 24 40X1035 Unit, drive 120V Lexmark 40X1035 Drive Unit- 120V New 40X1035 (New) Contact for Details Lexmark 40X1035 Drive Unit- 120V Fully refurbished with 90-day warranty 40X1035 Contact for Details 24 40X1036 Unit, drive 230V 25 40X1150 Clutch, drive unit Lexmark 40X1150 Clutch- Drive Unit New 40X1150 (New) Contact for Details Lexmark 40X1150 Clutch- Drive Unit Fully refurbished with 90-day warranty 40X1150 Contact for Details 26 56P9644 Cable asm, drive unit sensor 27 56P9645 Sensor, drive unit 56P9645 Sensor- drive unit gear New 56P9645 (New) Contact for Details 56P9645 Sensor Drive Unit Fully refurbished with 90-day warranty 56P9645 $42.00 28 40X1037 Clutch, belt up/down Lexmark 40X1037 Clutch Belt Up/Down New 40X1037 (New) Contact for Details Lexmark 40X1037 Clutch Belt Up/Down Fully refurbished with 90-day warranty 40X1037 Contact for Details 29 40X1038 Frame, sub Lexmark 40X1038 Sub Frame New 40X1038 (New) Contact for Details Lexmark 40X1038 Sub Frame Fully refurbished with 90-day warranty 40X1038 Contact for Details NS 40X1264 Parts packet (See “Parts packets” on page7-58 for contents) Parts catalog 7-11

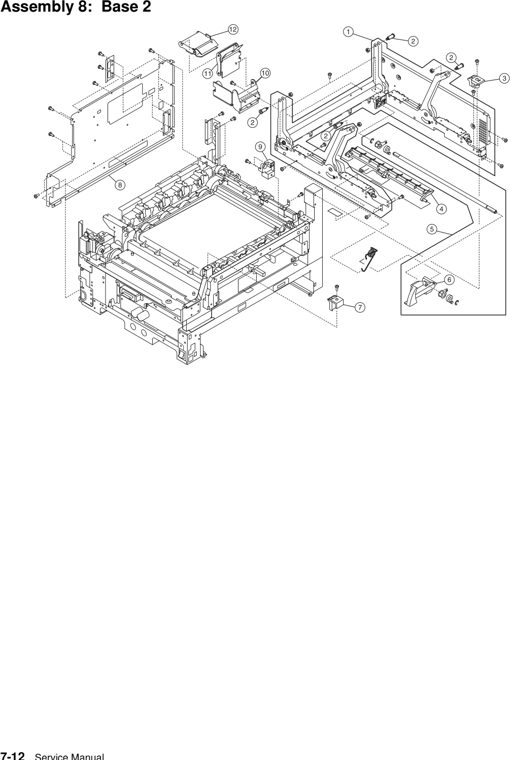

Assembly 8: Base 2 1 40X1207 Support assembly, upper unit Lexmark 40X1207 Support Assembly- Upper Unit New 40X1207 (New) Contact for Details Lexmark 40X1207 Support Assembly- Upper Unit Fully refurbished with 90-day warranty 40X1207 Contact for Details 2 56P9667 Pin, upper unit support 3 40X2776 Stop, right 4 40X2779 Cover, black photodeveloper Lexmark 40X2779 Black Photodeveloper Cover New 40X2779 (New) Contact for Details 5 40X1208 Handle assembly, lock Lexmark 40X1208 Handle Assembly- Lock New 40X1208 (New) $48.19 Lexmark 40X1208 Handle Assembly- Lock Fully refurbished with 90-day warranty 40X1208 $39.30 6 56P9669 Handle, lock 56P9669 Handle- lock New 56P9669 (New) Contact for Details 56P9669 Handle- lock Fully refurbished with 90-day warranty 56P9669 Contact for Details 7 40X2778 Stop, left 8 40X1151 Cover, electronic Lexmark 40X1151 Cover- Electronic New 40X1151 (New) Contact for Details Lexmark 40X1151 Cover- Electronic Fully refurbished with 90-day warranty 40X1151 Contact for Details 9 40X2777 Guide, lock 10 56P9670 Shroud, cable 11 56P9672 Guide, cable 12 56P9671 Guide, cable NS 40X1265 Parts packet Parts catalog 7-13

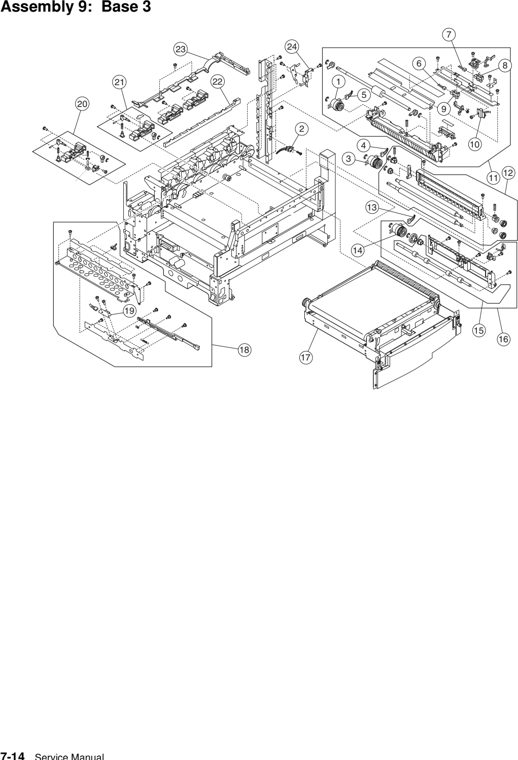

Assembly 9: Base 3 1 40X1067 Clutch, MPF Lexmark 40X1067 Clutch- MPF New 40X1067 (New) Contact for Details Lexmark 40X1067 Clutch- MPF Fully refurbished with 90-day warranty 40X1067 Contact for Details 2 40X1085 Switch, turn guide Lexmark 40X1085 Switch- Turn Guide New 40X1085 (New) Contact for Details Lexmark 40X1085 Switch- Turn Guide Fully refurbished with 90-day warranty 40X1085 Contact for Details 3 40X1040 Clutch, registration Lexmark 40X1040 Clutch- Registration New 40X1040 (New) Contact for Details Lexmark 40X1040 Clutch- Registration Fully refurbished with 90-day warranty 40X1040 Contact for Details 4 40X1113 Cable, registration clutch 5 40X1116 Cable, MPF clutch 6 40X1115 Cable, registration sensor 7 40X1115 Cable, registration sensor 8 40X1137 Photo interruptor 9 40X1136 Photo interruptor 10 40X1211 Sensor, upper OHP 11 40X1039 Frame assembly, MPF Lexmark 40X1039 MPF Frame assembly New 40X1039 (New) Contact for Details Lexmark 40X1039 MPF Frame assembly Fully refurbished with 90-day warranty 40X1039 Contact for Details 12 40X1154 Frame assembly, registration Lexmark 40X1154 Frame Assembly- Registration New 40X1154 (New) Contact for Details Lexmark 40X1154 Frame Assembly Registration Fully refurbished with 90-day warranty 40X1154 Contact for Details 13 40X1114 Cable, carrying clutch 14 40X1040 Clutch, registration (used on carrying frame) Lexmark 40X1040 Clutch- Registration New 40X1040 (New) Contact for Details Lexmark 40X1040 Clutch- Registration Fully refurbished with 90-day warranty 40X1040 Contact for Details 15 56P9683 Roller assembly, carrying 56P9683 Carrying Roller assembly New 56P9683 (New) Contact for Details 16 40X1025 Frame assembly, carrying Lexmark 40X1025 Frame Assembly- Carrying New 40X1025 (New) Contact for Details Lexmark 40X1025 Frame Assembly- Carrying Fully refurbished with 90-day warranty 40X1025 Contact for Details 17 40X1041 Unit, transfer belt Lexmark 40X1041 Transfer Belt ITU (Image Transfer Unit) New 40X1041 (New) $424.00 18 40X1209 Guide assembly, fuser entry Lexmark 40X1209 Guide Assembly- Fuser Entry New 40X1209 (New) Contact for Details Lexmark 40X1209 Guide Assembly- Fuser Entry Fully refurbished with 90-day warranty 40X1209 Contact for Details 19 40X1152 Sensor, density Lexmark 40X1152 Sensor- Density New 40X1152 (New) Contact for Details Lexmark 40X1152 Sensor- Density Fully refurbished with 90-day warranty 40X1152 Contact for Details 20 40X1155 Frame assembly, F1 sub Lexmark 40X1155 Frame Assembly- F1 Sub New 40X1155 (New) Contact for Details Lexmark 40X1155 Frame Assembly- F1 Sub Fully refurbished with 90-day warranty 40X1155 Contact for Details 21 56P9685 Frame assembly, F2 sub 56P9685 Frame Assembly- F2 sub New 56P9685 (New) Contact for Details 22 56P9686 Rod, lock 56P9686 Rod Lock Fully refurbished with 90-day warranty 56P9686 Contact for Details 23 56P9687 Cover, gear 56P9687 Cover- gear New 56P9687 (New) Contact for Details 24 40X1156 Stopper, clutch NS 56P9697 Bushing NS 40X1266 Parts packet Parts catalog 7-15

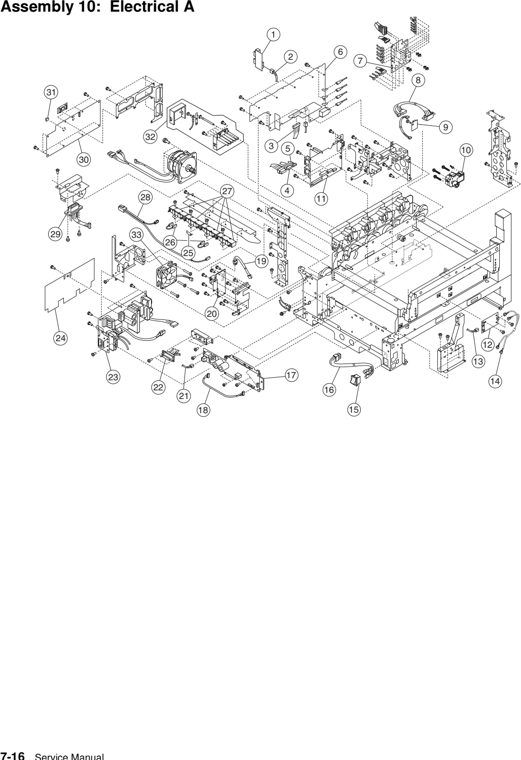

Assembly 10: Electrical A 1 40X1101 Asm, HCF/FIN D-Sub Lexmark 40X1101 Assembly- HCF/FIN D-Sub New 40X1101 (New) Contact for Details Lexmark 40X1101 Assembly- HCF/FIN D-Sub Fully refurbished with 90-day warranty 40X1101 Contact for Details 2 40X1102 Cable asm, finisher Lexmark 40X1102 Cable Assembly- Finisher New 40X1102 (New) Contact for Details Lexmark 40X1102 Cable Assembly- Finisher Fully refurbished with 90-day warranty 40X1102 Contact for Details 3 56P9715 Cable asm, HVU 4 56P9727 Cable asm, printer controller power 2 5 40X1053 Cable asm, printer controller power 1 6 40X1159 Supply, high voltage Lexmark 40X1159 Power Supply High Voltage HVPS New 40X1159 (New) Contact for Details Lexmark 40X1159 Supply High Voltage HVPS Fully refurbished with 90-day warranty 40X1159 Contact for Details 7 40X1084 Card, CK1 Daughter Lexmark 40X1084 Card- CK1 Daughter New 40X1084 (New) Contact for Details Lexmark 40X1084 Card- CK1 Daughter Fully refurbished with 90-day warranty 40X1084 Contact for Details 8 40X1042 Cable asm, feeder Lexmark 40X1042 Cable Assembly- Feeder New 40X1042 (New) Contact for Details Lexmark 40X1042 Cable Assembly- Feeder Fully refurbished with 90-day warranty 40X1042 Contact for Details 9 40X1247 Sensor, humidity Lexmark 40X1247 Sensor- Humidity New 40X1247 (New) Contact for Details Lexmark 40X1247 Sensor- Humidity Fully refurbished with 90-day warranty 40X1247 Contact for Details 10 40X1097 Motor, paper tray lift Lexmark 40X1097 Motor- Paper Tray Lift New 40X1097 (New) Contact for Details Lexmark 40X1097 Motor- Paper Tray Lift Fully refurbished with 90-day warranty 40X1097 Contact for Details 11 40X1162 Supply, 120V power 2 Lexmark 40X1162 Supply- 120V power 2 New 40X1162 (New) Contact for Details Lexmark 40X1162 Supply- 120V power 2 Fully refurbished with 90-day warranty 40X1162 Contact for Details 11 40X1163 Supply, 230V power 2 12 40X1043 Board, sensor Lexmark 40X1043 Board- Sensor New 40X1043 (New) Contact for Details Lexmark 40X1043 Board- Sensor Fully refurbished with 90-day warranty 40X1043 Contact for Details 13 40X1044 Cable asm, sensor board 14 40X1120 Cable, belt relay Lexmark 40X1120 Cable- Belt Relay New 40X1120 (New) Contact for Details Lexmark 40X1120 Cable- Belt Relay Fully refurbished with 90-day warranty 40X1120 Contact for Details 15 40X1158 Switch, power Lexmark 40X1158 Switch- Power Fully refurbished with 90-day warranty 40X1158 Contact for Details Lexmark 40X1158 Switch- Power New 40X1158 (New) Contact for Details 16 40X1157 Cable, power switch 17 40X1045 Board, 120V motor driver Lexmark 40X1045 Board- 120V Motor Driver Fully refurbished with 90-day warranty 40X1045 Contact for Details Lexmark 40X1045 Board- 120V Motor Driver New 40X1045 (New) Contact for Details 17 40X1046 Board, 230V motor driver 18 40X1055 Cable asm, MIF 19 40X1205 Cable asm, conditioning printer controller 20 40X1164 Card, conditioning (230V only) 21 56P9747 Cable, motor driver power 22 40X1048 Cable asm, duplex connector Lexmark 40X1048 Cable Assembly- Duplex Connector New 40X1048 (New) Contact for Details Lexmark 40X1048 Cable Assembly- Duplex Connector Fully refurbished with 90-day warranty 40X1048 Contact for Details 23 40X1160 Supply, 120V power 1 Lexmark 40X1160 Supply 120V power 1 LVPS New 40X1160 P621-MPS-JU (2) (New) Contact for Details Lexmark 40X1160 Supply- 120V power 1 LVPS Fully refurbished with 90-day warranty 40X1160 P621-MPS-JU (2) Contact for Details 23 40X1161 Supply, 230V power 1 24 56P9737 Sheet, insulation 25 40X1517 Fuse, thermal (230V only) 26 56P9738 Cable, conditioning joint (230V only) 27 56P9741 Resistor, conditioning (230V only) 28 56P9740 Cable, conditioning resistor (230V only) 29 40X1049 Cable, fuser drawer Lexmark 40X1049 Cable- Fuser Drawer New 40X1049 (New) Contact for Details Lexmark 40X1049 Cable- Fuser Drawer Fully refurbished with 90-day warranty 40X1049 Contact for Details 29 40X1050 Cable, fuser drawer (230V only) 30 40X1051 Board, printer controller Lexmark 40X1051 Board Controller New 40X1051 56P2654 (New) Contact for Details Lexmark 40X1051 Board Controller Fully refurbished with 90-day warranty 40X1051 56P2654 Contact for Details 31 56P9729 EEPROM, printer controller 56P9729 EPROM, controller New 56P9729 (New) Contact for Details 56P9729 EPROM controller Fully refurbished with 90-day warranty 56P9729 Contact for Details 32 40X1052 Belt, power supply Lexmark 40X1052 Belt- Power Supply New 40X1052 (New) Contact for Details Lexmark 40X1052 Belt- Power Supply Fully refurbished with 90-day warranty 40X1052 Contact for Details 33 40X1047 Fan, power supply Lexmark 40X1047 Fan- Power Supply New 40X1047 (New) Contact for Details Lexmark 40X1047 Fan- Power Supply Fully refurbished with 90-day warranty 40X1047 Contact for Details NS 40X0269 Cord (8ft right angle) , US, Canada, ET AL Lexmark 40x0269 Power Cord; 2.5m, 8ft. Right angle, US, CA, La New 40x0269 (New) $30.90 NS 40X0270 Cord (8ft 15A straight), Japan Lexmark 40x0270 Power cord; 2.5m, 8ft. Straight, Japan New 40x0270 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X0286 Cord (6ft straight), England, France, Germany, Spain, Belgium NS 40X0272 Cord (8ft right angle), Argentina, Paraguay, Uruguay NS 40X0273 Cord (8ft straight), Italy Lexmark 40x0273 Power cord; 2.5m, 8ft. Straight, Italy, Chile, Uruguay New 40x0273 (New) $44.20 Retired, no longer available: Contact for alternatives NS 40X0274 Cord (6ft straight), Switzerland NS 40X0271 Cord (8ft straight ), UK Parts catalog 7-17 Lexmark 40x0271 Power Cord; 2.5m, 8ft. Straight, UK, Ireland, HK, IT New 40x0271 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X0275 Cord (6ft straight), Israel Lexmark 40x0275 Power cord; 1.8m, 6ft. Straight, Israel New 40x0275 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X0276 Cord (6ft straight), South Africa NS 40X0277 Cord (6ft high amp straight), Brazil (HV, LV) NS 40X0278 Cord (HV 6ft straight), Austria, Russia NS 40X0279 Cord (6ft straight), Denmark, Finland, Norway, Sweden NS 40X0280 Cord (10A 3 cond. 6ft straight) , Korea NS 40X0281 Cord (13A 3 cond. 6ft straight), Taiwan NS 40X0282 Cord (1.77M straight), People’s Republic of China NS 40X0296 Cord (6ft straight), Australia NS 40X1104 Interuptor, photo (paper low sensor) NS 40X1267 Parts packet NS 56P9964 Transformer (Japan Only) Parts catalog 7-19

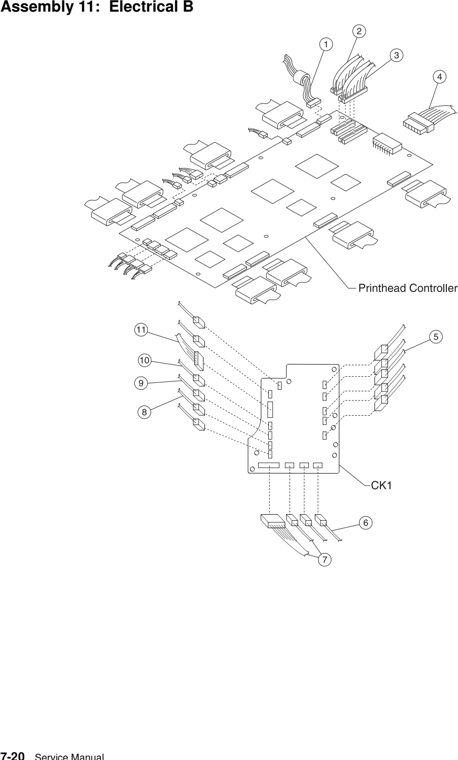

Assembly 11: Electrical B 1 40X1068 Cable assembly, 8 pin PH controller Lexmark 40X1068 Cable Assembly- 8 Pin Ph Controller New 40X1068 (New) Contact for Details Lexmark 40X1068 Cable Assembly- 8 Pin Ph Controller Fully refurbished with 90-day warranty 40X1068 Contact for Details 2 40X1074 Cable assembly, 30 pin RIP harness 3 40X1073 Cable assembly, 36 pin RIP harness Lexmark 40X1073 Cable Assembly- 36 Pin Rip Harness New 40X1073 (New) Contact for Details Lexmark 40X1073 Cable Assembly- 36 Pin Rip Harness Fully refurbished with 90-day warranty 40X1073 Contact for Details 4 56P9720 Cable assembly, printhead controller power 56P9720 Cable assembly- PH controller power New 56P9720 (New) Contact for Details 5 40X1099 Cable assembly, paper tray lift motor 6 40X1100 Cable assembly, cassette bottom sensor 7 40X1098 Cable assembly, paper feed type 1 Lexmark 40X1098 Cable Assembly- Paper-Feed Type 1 New 40X1098 (New) Contact for Details Lexmark 40X1098 Cable Assembly- Paper-Feed Type 1 Fully refurbished with 90-day warranty 40X1098 Contact for Details 8 40X1114 Cable assembly, carrying clutch 9 40X1116 Cable assembly, MPF clutch 10 40X1113 Cable assembly, registration clutch 11 40X1115 Cable assembly, registration sensor NS 40X1267 Parts packet Parts catalog 7-21

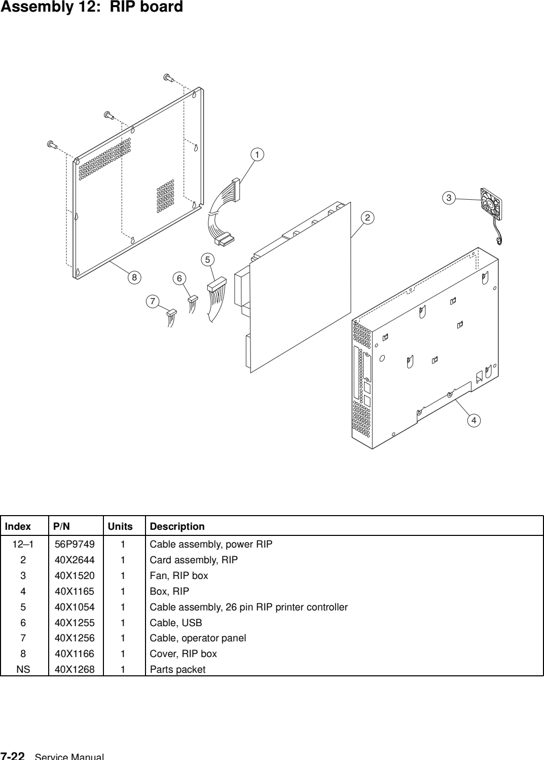

Assembly 12: RIP board 1 56P9749 Cable assembly, power RIP 2 40X2644 Card assembly, RIP Lexmark 40X2644 RIP Card Assembly New 40X2644 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 3 40X1520 Fan, RIP box Lexmark 40X1520 Fan- RIP box New 40X1520 (New) Contact for Details 4 40X1165 Box, RIP Lexmark 40X1165 Box- RIP New 40X1165 (New) Contact for Details Lexmark 40X1165 Box- RIP Fully refurbished with 90-day warranty 40X1165 Contact for Details 5 40X1054 Cable assembly, 26 pin RIP printer controller 6 40X1255 Cable, USB 7 40X1256 Cable, operator panel 8 40X1166 Cover, RIP box Lexmark 40X1166 Cover- RIP box New 40X1166 (New) Contact for Details Lexmark 40X1166 Cover- RIP box Fully refurbished with 90-day warranty 40X1166 Contact for Details NS 40X1268 Parts packet

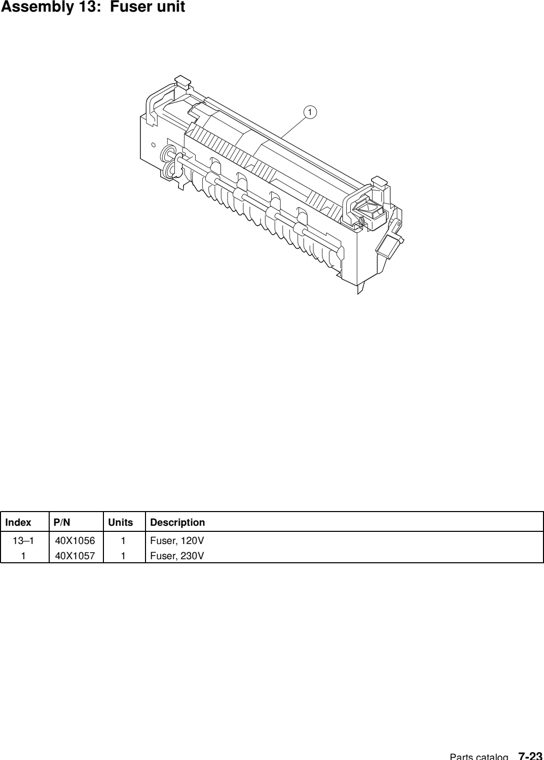

Assembly 13: Fuser unit 1 40X1056 Fuser, 120V Lexmark 40X1056 Fuser Unit C920 1567 New 40x1056 (New) $835.00 $735.00 Lexmark 40X1056 Fuser Unit C920 1567 Fully refurbished with 90-day warranty 40X1056 Contact for Details Lexmark 40X1056 Fuser Unit C920 1567 New 40X1056 Advanced Exchange (New) Contact for Details 1 40X1057 Fuser, 230V Parts catalog 7-23

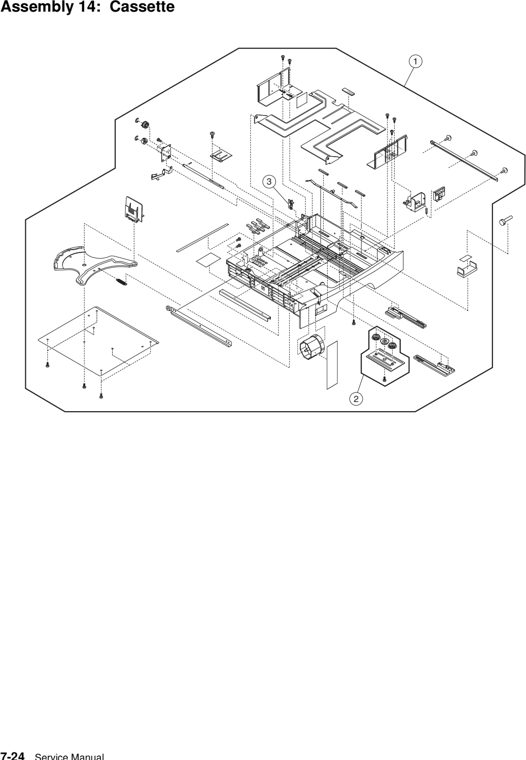

Assembly 14: Cassette 1 40X1058 Cassette, paper feed Lexmark 40X1058 550-Sheet Tray New 40X1058 (New) Contact for Details Lexmark 40X1058 550-Sheet Tray Fully refurbished with 90-day warranty 40X1058 Contact for Details 2 40X1501 Kit, rack guard holder 3 40X1105 Flag, bottom sense Parts catalog 7-25

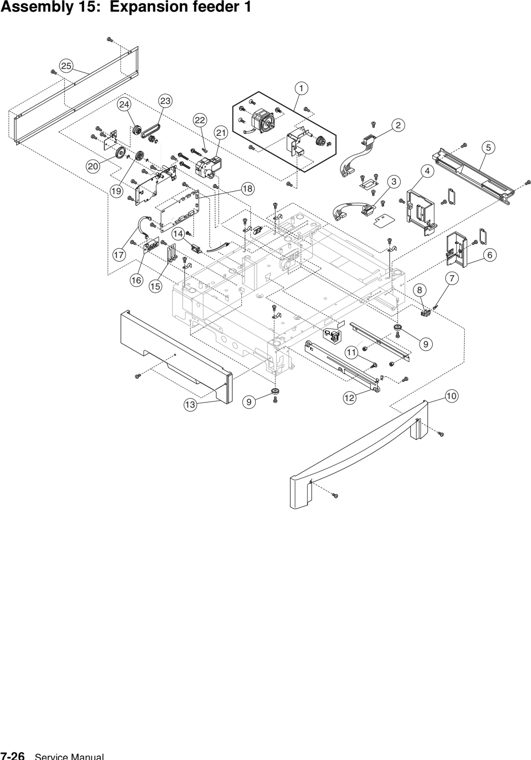

Assembly 15: Expansion feeder 1 1 40X1090 Motor asm, stepping Lexmark 40X1090 Stepping Motor Assembly New 40X1090 (New) Contact for Details Lexmark 40X1090 Stepping Motor Assembly Fully refurbished with 90-day warranty 40X1090 Contact for Details 2 56P9777 Cable asm, upper optional drawer 3 56P9778 Cable asm, lower optional drawer 4 40X1204 Cover, right side C Lexmark 40X1204 Cover- Right Side C New 40X1204 (New) Contact for Details Lexmark 40X1204 Cover- Right Side C Fully refurbished with 90-day warranty 40X1204 Contact for Details 5 40X1203 Cover, right side B Lexmark 40X1203 Cover- Right Side B New 40X1203 (New) Contact for Details Lexmark 40X1203 Cover- Right Side B Fully refurbished with 90-day warranty 40X1203 Contact for Details 6 40X1202 Cover, right side A Lexmark 40X1202 Cover- Right Side A New 40X1202 (New) Contact for Details Lexmark 40X1202 Cover- Right Side A Fully refurbished with 90-day warranty 40X1202 Contact for Details 7 40X1091 Cable asm, expansion paper level 8 40X1173 Interrupt, photo Lexmark 40X1173 Photo Interrupter New 40X1173 (New) $23.40 Lexmark 40X1173 Photo Interrupter Fully refurbished with 90-day warranty 40X1173 Contact for Details 9 56P9503 Foot, rubber 10 40X1200 Cover, front feed 11 56P9524 Screw, slide rail 12 40X1034 Rail, base left side Lexmark 40X1034 Rail- base left side New 40X1034 (New) Contact for Details Lexmark 40X1034 Rail- base left side Fully refurbished with 90-day warranty 40X1034 Contact for Details 13 40X1201 Cover. left side Lexmark 40X1201 Cover, Left Side New 40X1201 (New) Contact for Details Lexmark 40X1201 Cover Left Side Fully refurbished with 90-day warranty 40X1201 Contact for Details 14 11G0199 Guide, wire 15 56P9521 Lever, size sense 56P9521 lever size sensor Fully refurbished with 90-day warranty 56P9521 Contact for Details 56P9521 lever size sensor New 56P9521 (New) Contact for Details 16 40X3482 Card, size sense Lexmark 40X3482 Card Size Sense New 40X3482 (New) Contact for Details 17 56P9775 Cable asm, size sense 18 40X1059 Board, expansion feeder controller Lexmark 40X1059 Controller Board- 550-Sheet New 40X1059 (New) Contact for Details Lexmark 40X1059 Controller Board- 550-Sheet Fully refurbished with 90-day warranty 40X1059 Contact for Details 19 40X1096 Gear, Z30 20 40X1093 Gear, IDS 38 21 40X1097 Motor, paper tray lift Lexmark 40X1097 Motor- Paper Tray Lift New 40X1097 (New) Contact for Details Lexmark 40X1097 Motor- Paper Tray Lift Fully refurbished with 90-day warranty 40X1097 Contact for Details 22 40X1092 Cable asm, expansion lift motor 23 40X1095 Belt, timing S3M:177 24 40X1246 Gear, Z28:20T 25 40X1167 Cover, rear Lexmark 40X1167 Cover- Rear New 40X1167 (New) Contact for Details Lexmark 40X1167 Cover- Rear Fully refurbished with 90-day warranty 40X1167 Contact for Details NS 40X2634 Assembly, expansion feeder Lexmark 40X2634 550-Sheet Drawer with Tray, Complete Assembly Fully refurbished with 90-day warranty 40X2634 Contact for Details NS 11G0399 Plate, ground NS 40X1094 Pulley, timing 20t NS 40X1269 Parts packet Parts catalog 7-27

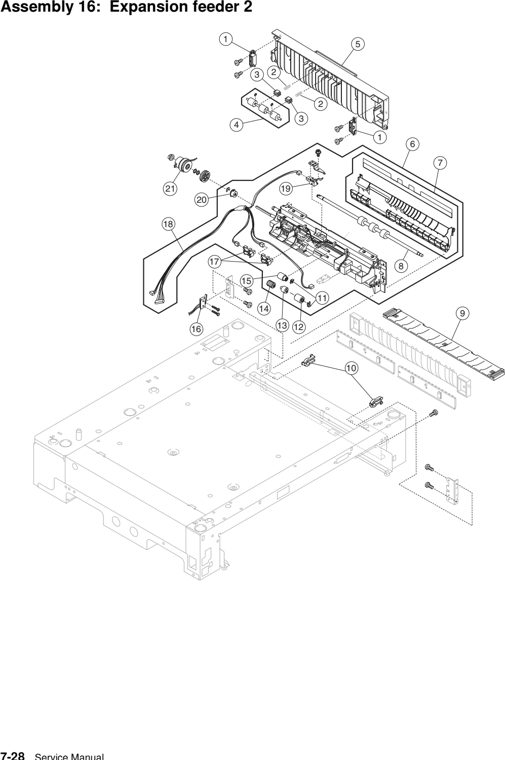

Assembly 16: Expansion feeder 2 1 40X1140 Magnet, front cover latch 2 40X1071 Spring, paper carry 2 3 40X1070 Bushing, pressure 4 40X1072 Roller, follow up Lexmark 40X1072 Roller- Follow Up New 40X1072 (New) Contact for Details Lexmark 40X1072 Roller- Follow Up Fully refurbished with 90-day warranty 40X1072 Contact for Details 5 40X1069 Guide assembly, expansion turn guide Lexmark 40X1069 Guide Assembly- Expansion Turn Guide New 40X1069 (New) Contact for Details Lexmark 40X1069 Guide Assembly- Expansion Turn Guide Fully refurbished with 90-day warranty 40X1069 Contact for Details 6 40X1086 Assembly, paper feed expansion Lexmark 40X1086 Assembly- Paper Feed Expansion New 40X1086 (New) Contact for Details Lexmark 40X1086 Assembly- Paper Feed Expansion Fully refurbished with 90-day warranty 40X1086 Contact for Details 7 40X1076 Plate, guide rocking Lexmark 40X1076 Plate- Guide Rocking New 40X1076 (New) Contact for Details Lexmark 40X1076 Plate- Guide Rocking Fully refurbished with 90-day warranty 40X1076 Contact for Details 8 40X1111 Roller, relay expansion feed Lexmark 40X1111 Roller- Relay Expansion Feed New 40X1111 (New) $126.32 Lexmark 40X1111 Roller- Relay Expansion Feed Fully refurbished with 90-day warranty 40X1111 Contact for Details 9 40X3484 Guide, HCPF Lexmark 40X3484 Guide- HCF New 40X3484 (New) Contact for Details 10 40X1103 Bushing, turn guide 11 40X1106 Clip, paper feed shaft 12 40X1079 Roller, separator Lexmark 40X1079 Roller- Separator New 40X1079 (New) $33.00 Lexmark 40X1079 Roller- Separator Fully refurbished with 90-day warranty 40X1079 Contact for Details 13 40X1080 Clutch, friction Lexmark 40X1080 Clutch- Friction (Torque Limiter) New 40X1080 (New) $185.81 Lexmark 40X1080 Clutch- Friction (Torque Limiter) Fully refurbished with 90-day warranty 40X1080 Contact for Details 14 40X1077 Roller, pickup Lexmark 40X1077 Roller Pickup New 40X1077 (New) $24.50 Lexmark 40X1077 Roller- Pickup Fully refurbished with 90-day warranty 40X1077 Contact for Details 15 40X1078 Roller, paper feed Lexmark 40X1078 Roller- Paper Feed New 40X1078 (New) $87.00 Lexmark 40X1078 Roller- Paper Feed Fully refurbished with 90-day warranty 40X1078 Contact for Details 16 40X1088 Assembly, turn guide switch option Lexmark 40X1088 Assembly- Turn Guide Switch Option New 40X1088 (New) Contact for Details Lexmark 40X1088 Assembly- Turn Guide Switch Option Fully refurbished with 90-day warranty 40X1088 Contact for Details 17 40X1173 Interrupt, photo Lexmark 40X1173 Photo Interrupter New 40X1173 (New) $23.40 Lexmark 40X1173 Photo Interrupter Fully refurbished with 90-day warranty 40X1173 Contact for Details 18 40X1089 Cable asm, paper feed type 2 Lexmark 40X1089 Cable Assembly- Paper Feed Type 2 New 40X1089 (New) Contact for Details Lexmark 40X1089 Cable Assembly- Paper Feed Type 2 Fully refurbished with 90-day warranty 40X1089 Contact for Details 19 40X1107 Sensor, relay Lexmark 40X1107 Sensor- Relay New 40X1107 (New) Contact for Details Lexmark 40X1107 Sensor- Relay Fully refurbished with 90-day warranty 40X1107 Contact for Details 20 40X1081 Clutch, roller 6 x 10 x 14 Lexmark 40X1081 Clutch- Roller 6 x 10 x 14 New 40X1081 (New) $39.60 Lexmark 40X1081 Clutch- Roller Fully refurbished with 90-day warranty 40X1081 $39.89 21 40X1087 Clutch, paper feed Lexmark 40X1087 Clutch- Paper Feed New 40X1087 (New) $48.69 Lexmark 40X1087 Clutch- Paper Feed Fully refurbished with 90-day warranty 40X1087 $39.69 NS 40X1270 Parts packet Parts catalog 7-29

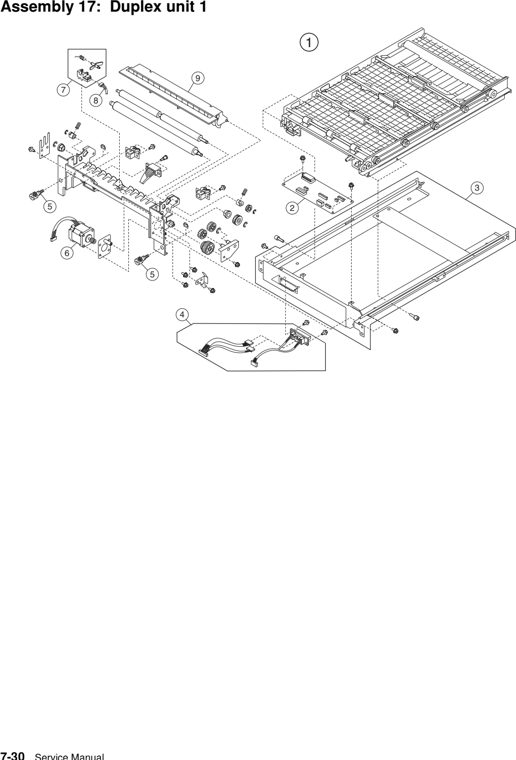

Assembly 17: Duplex Unit 1 1 40X1252 Duplex assembly Lexmark 40X1252 Duplex Unit- Complete Assembly New 40X1252 (New) Contact for Details 2 40X1060 Board, duplex interface Lexmark 40X1060 Board- Duplex Interface New 40X1060 (New) Contact for Details Lexmark 40X1060 Board- Duplex Interface Fully refurbished with 90-day warranty 40X1060 Contact for Details 3 40X1168 Frame, duplex Lexmark 40X1168 Frame- Duplex New 40X1168 (New) Contact for Details Lexmark 40X1168 Frame- Duplex Fully refurbished with 90-day warranty 40X1168 Contact for Details 4 40X1172 Cable assembly, duplex connection Lexmark 40X1172 Cable Assembly- Duplex Connection New 40X1172 (New) Contact for Details Lexmark 40X1172 Cable Assembly- Duplex Connection Fully refurbished with 90-day warranty 40X1172 Contact for Details 5 40X1169 Screw, duplex mounting 6 40X1170 Motor, duplex stepping Lexmark 40X1170 Motor- Duplex Stepping New 40X1170 (New) $243.00 Lexmark 40X1170 Motor- Duplex Stepping Fully refurbished with 90-day warranty 40X1170 $177.73 7 40X1171 Interrupter, photo Lexmark 40X1171 Photo Interrupter New 40X1171 (New) Contact for Details Lexmark 40X1171 Photo Interrupter Fully refurbished with 90-day warranty 40X1171 Contact for Details 8 56P9806 Cable assembly, paper detection 9 56P9994 Plate, duplex guide NS 56P9807 Cable assembly, duplex interface NS 40X1271 Parts packet Parts catalog 7-31

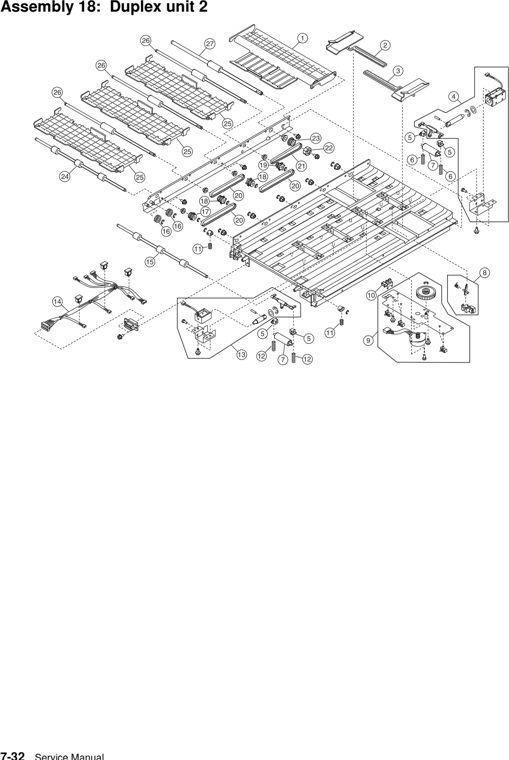

Assembly 18: Duplex unit 2 1 56P9825 Plate, paper re-feed drawer 2 56P9827 Guide, rear side 3 56P9826 Guide, front side 4 40X1179 Solenoid assembly, paper re-feed Lexmark 40X1179 Solenoid Assembly- Paper Re-Feed New 40X1179 (New) Contact for Details Lexmark 40X1179 Solenoid Assembly- Paper Re-Feed Fully refurbished with 90-day warranty 40X1179 Contact for Details 5 56P9814 Bearing, release 6 56P9816 Spring, re-feed roller 7 56P9813 Roll, release 8 40X1171 Interrupter, photo Lexmark 40X1171 Photo Interrupter New 40X1171 (New) Contact for Details Lexmark 40X1171 Photo Interrupter Fully refurbished with 90-day warranty 40X1171 Contact for Details 9 56P9828 Motor assembly, paper guide 10 40X1173 Interrupter, photo Lexmark 40X1173 Photo Interrupter New 40X1173 (New) $23.40 Lexmark 40X1173 Photo Interrupter Fully refurbished with 90-day warranty 40X1173 Contact for Details 11 56P9526 Spring, feed roller 12 56P9815 Spring, reed roller 13 40X1178 Solenoid assembly, feed roller Lexmark 40X1178 Solenoid Assembly- Feed Roller New 40X1178 (New) Contact for Details Lexmark 40X1178 Solenoid Assembly- Feed Roller Fully refurbished with 90-day warranty 40X1178 Contact for Details 14 40X1180 Cable assembly, duplex drawer Lexmark 40X1180 Cable Assembly- Duplex Drawer New 40X1180 (New) Contact for Details Lexmark 40X1180 Cable Assembly- Duplex Drawer Fully refurbished with 90-day warranty 40X1180 Contact for Details 15 40X1175 Roller, follow-up feed Lexmark 40X1175 Roller- Follow-Up Feed New 40X1175 (New) Contact for Details Lexmark 40X1175 Roller- Follow-Up Feed Fully refurbished with 90-day warranty 40X1175 Contact for Details 16 56P9527 Gear, idler 17 56P9817 Gear, carrying roller 18 56P9818 Pulley, carrying roller timing 19 56P9819 Pulley, feed roller 20 56P9822 Belt, timing 21 56P9823 Belt, timing 22 56P9821 Knob, paper re-feed 23 56P9820 Pulley, re-feed roller 24 40X1174 Roller, drive feed Lexmark 40X1174 Roller- Drive Feed New 40X1174 (New) Contact for Details Lexmark 40X1174 Roller- Drive Feed Fully refurbished with 90-day warranty 40X1174 Contact for Details 25 56P9824 Plate, paper carrying drawer 26 40X1176 Roller, middle feed Lexmark 40X1176 Roller- Middle Feed New 40X1176 (New) Contact for Details Lexmark 40X1176 Roller- Middle Feed Fully refurbished with 90-day warranty 40X1176 Contact for Details 27 40X1177 Roller, re-feed Lexmark 40X1177 Roller- Re-Feed New 40X1177 (New) Contact for Details Lexmark 40X1177 Roller- Re-Feed Fully refurbished with 90-day warranty 40X1177 Contact for Details NS 40X1271 Parts packet Parts catalog 7-33

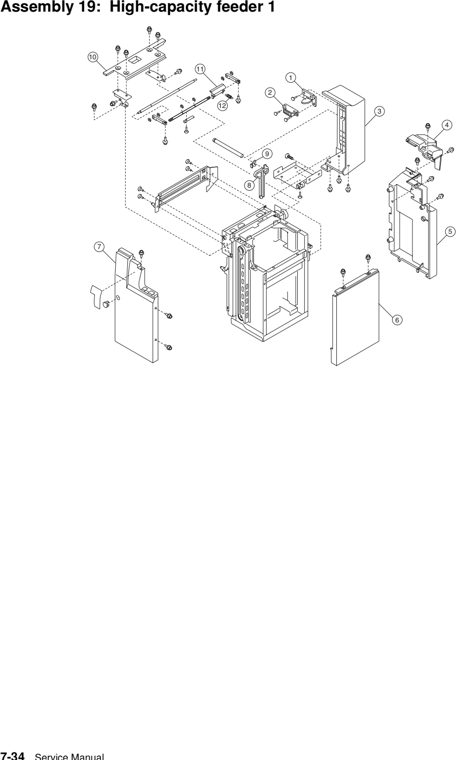

Assembly 19: High-capacity feeder 1 1 40X1182 Catch, door 2 40X1181 Magnet, latch 3 40X1215 Cover, upper 4 40X1214 Cover, upper rear 5 40X1218 Cover, lower rear 6 40X1245 Cover, right 7 40X1213 Cover, front 8 56P9836 Fence, end 9 56P9940 Ring, snap 10 40X1217 Cover assembly, upper 11 40X1216 Lever, vertical transport 12 56P9842 Spring, tension NS 40X1272 Parts packet Parts catalog 7-35
Assembly 20: High-capacity feeder 3 1 40X1185 Solenoid assembly, paper pickup 2 40X1153 Clutch, paper feed 3 40X1183 Motor assembly, transport 4 56P9941 Arm, pick-up 5 56P9501 Spring, pressure 6 40X1184 Interrupter, photo 7 56P9849 Roller, manual feed pickup 8 56P9850 Roller, manual feed 9 56P9852 Limiter, torque 10 56P9851 Roller, manual feed separate 11 56P9847 Spring, compression 12 56P9845 Sensor assembly, paper feed NS 40X1273 Parts packet Parts catalog 7-37

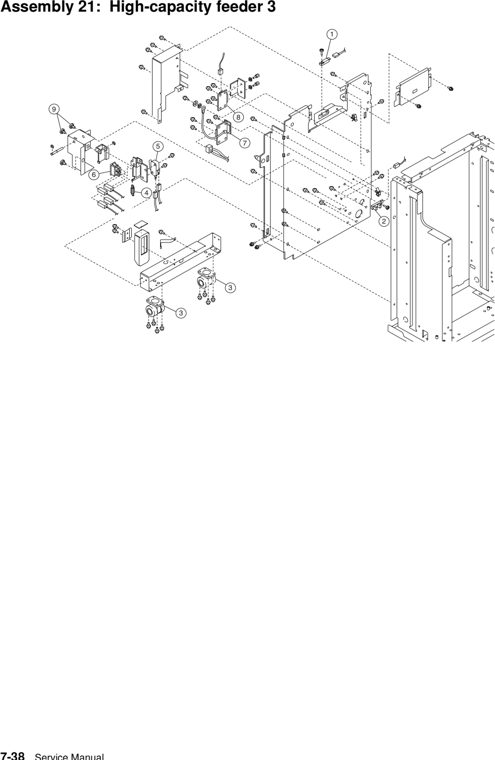

Assembly 21: High-capacity feeder 3 1 40X1244 Sensor assembly, photo 2 40X1186 Interrupter, photo 3 56P9529 Caster, HCF 4 56P9856 Spring, tension 5 40X1188 Switch, micro 6 40X1187 Switch, push 7 40X1190 Connector, inlet 8 40X1189 Connector, I/F 9 56P9853 Screw, shoulder NS 40X1274 Parts packet Parts catalog 7-39

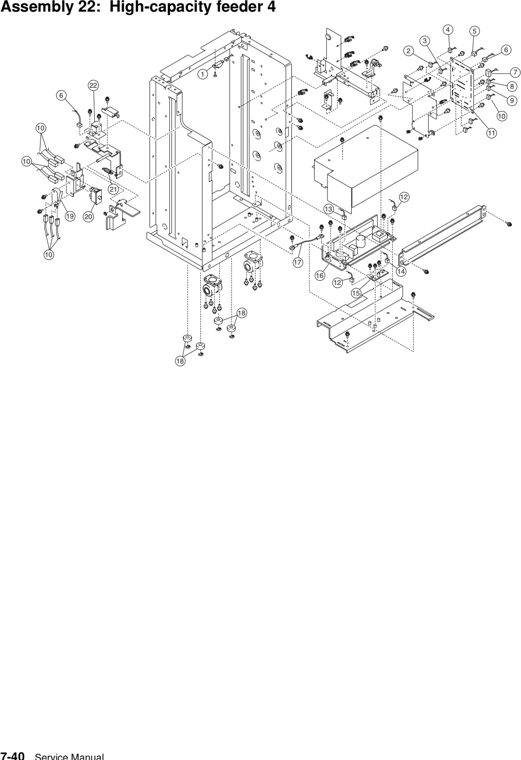

Assembly 22: High-capacity feeder 4 1 40X1192 Sensor, resistor 2 40X3490 Cable assembly, safety switch 3 40X3486 Cable assembly, HCF motor 4 40X3489 Cable assembly, I/F 5 40X3487 Cable assembly, paper feed sensor 6 40X3495 Cable, up/down switch 7 40X3494 Cable, paper volume 8 40X3493 Cable assembly, sensor 9 40X3492 Cable assembly, paper size sensor 10 40X3491 Cable assembly, lift motor 11 40X1219 Board, high-capacity feed 12 40X1061 Cable assembly, power supply out 13 40X1194 Cable assembly, power supply in 14 40X1195 Cable assembly, power supply 15 40X1193 Converter, DC/DC 16 40X1062 Power supply, HCF 17 40X3488 Cable assembly, drawer ground 18 56P9861 Roller, track 19 40X3485 Switch, micro 20 40X1187 Switch, push 21 56P9501 Spring, pressure pickup 22 40X1191 Switch, HCF push NS 40X1275 Parts packet Parts catalog 7-41

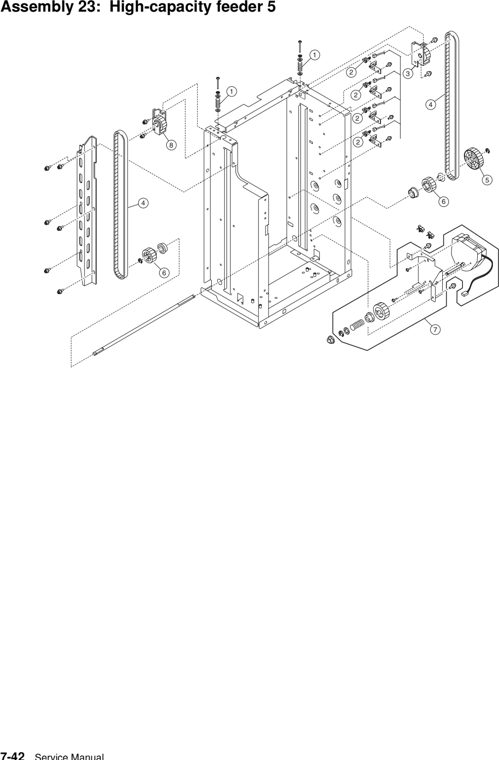

Assembly 23: High-capacity feeder 5 1 56P9883 Spring, pressure 2 40X1184 Interrupter, photo 3 40X1198 Bracket, rear idler 4 56P9884 Belt, timing 5 56P9886 Gear, drive 6 56P9885 Pulley, timing 7 40X1196 Motor, HCF DC 8 40X1197 Bracket, front idler NS 40X1521 Parts packet Parts catalog 7-43

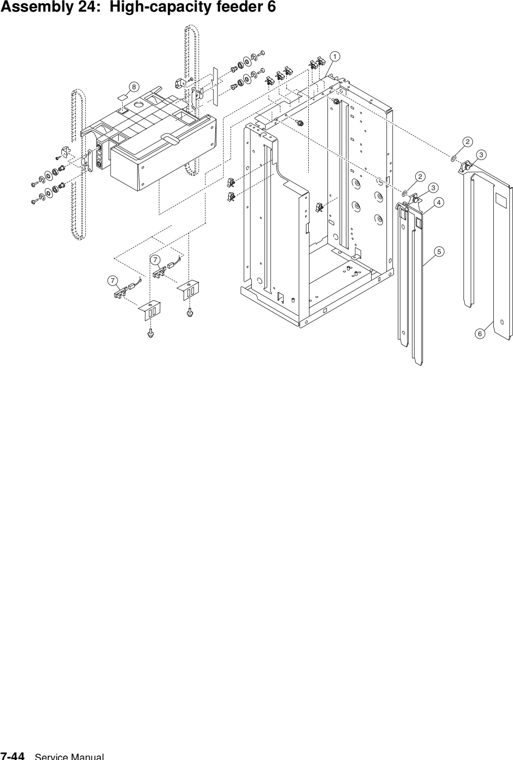

Assembly 24: High-capacity feeder 6 1 40X1199 Plate, upper side fence 2 56P9893 Knob, stopper 3 56P9891 Knob, tray 4 56P9890 Plate, paper adhesion 5 56P9915 Fence assembly, front side 6 56P9894 Fence assembly, rear side 7 40X1184 Interrupter, photo 8 56P9889 Pad, friction NS 40X1522 Parts packet Parts catalog 7-45

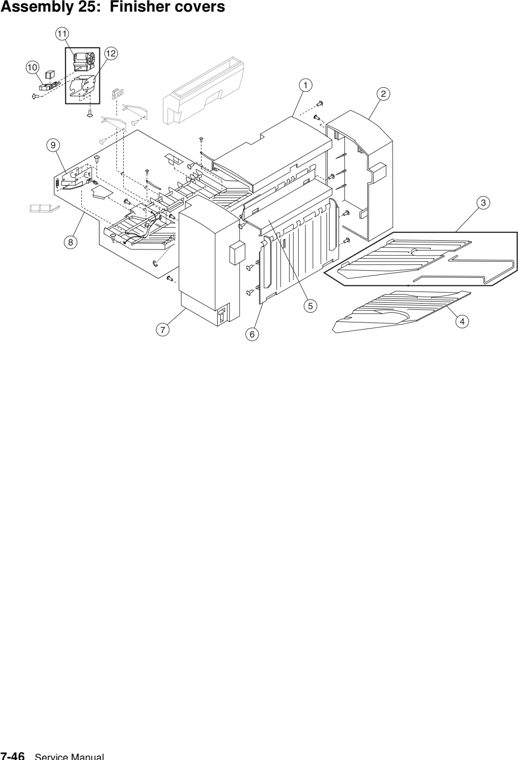

Assembly 25: Finisher covers 1 56P4064 Cover, top 2 56P4065 Cover, front 3 56P4067 Tray, upper 4 56P4068 Tray, lower 5 56P4062 Panel, left upper 6 40X1227 Assembly, lower left panel 7 56P4066 Cover, rear 8 56P4063 Assembly, staple cover 9 56P9365 Cover, staple A 10 56P9367 Cartridge, staple 11 40X2622 Stapler 12 56P9364 Cover, staple B Parts catalog 7-47

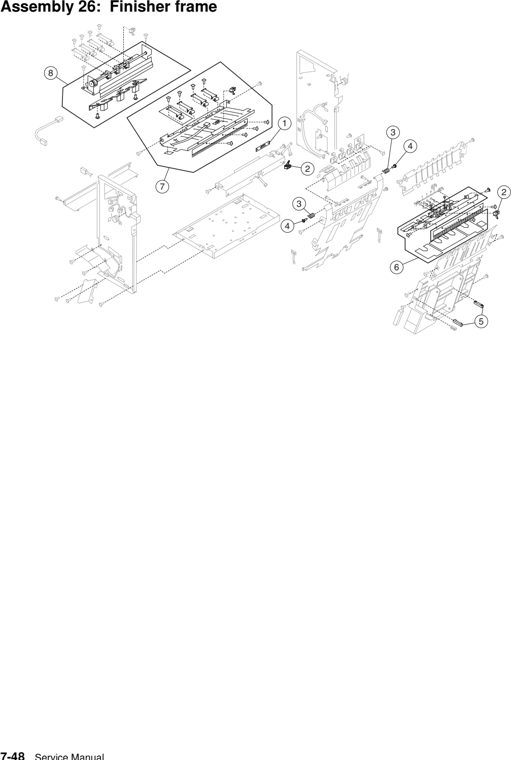

Assembly 26: Finisher frame 1 56P4069 Handle 2 40X2628 Sensor, photo 3 56P9386 Spring 4 40X2626 Screw, M4 5 40X2607 Assembly, exit guide inverter Lexmark 40X2607 Exit guide inverter Assembly New 40X2607 (New) Contact for Details 6 56P9399 Sensor, photo 7 40X1223 Assembly, exit guide straight 8 40X2608 Unit, 3 hole punch (U.S. only) 8 40X2609 Unit, 4 hole punch (non U.S.) NS 56P4072 Kit, punch speed up Parts catalog 7-49

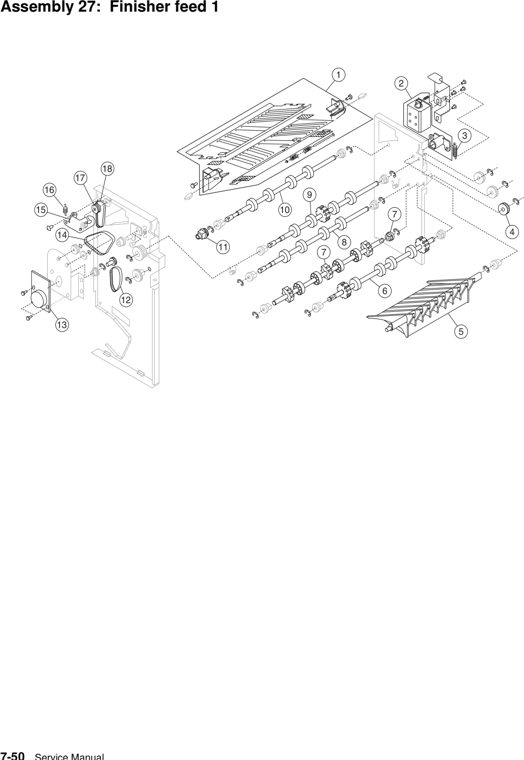

Assembly 27: Finisher feed 1 1 40X2640 Assembly, guide plate 2 40X2615 Assembly, solenoid 3 56P9396 Spring, H 4 56P9398 Gear, Z19 5 56P9310 Gate 6 56P9400 Roller 7 56P9361 Roller, patting 8 56P9401 Roller, I 9 56P9312 Roller, F 10 56P9405 Roller, G 11 40X2616 Clutch, registration 12 56P9407 Belt, timing 60S2M184 13 40X2617 Assembly, feed motor 14 56P9339 Belt, timing 60S2M334 15 56P4060 Assembly, punch drive 16 56P9318 Spring, B 17 56P4070 Pulley gear Z36/T24 18 56P4061 Belt Parts catalog 7-51

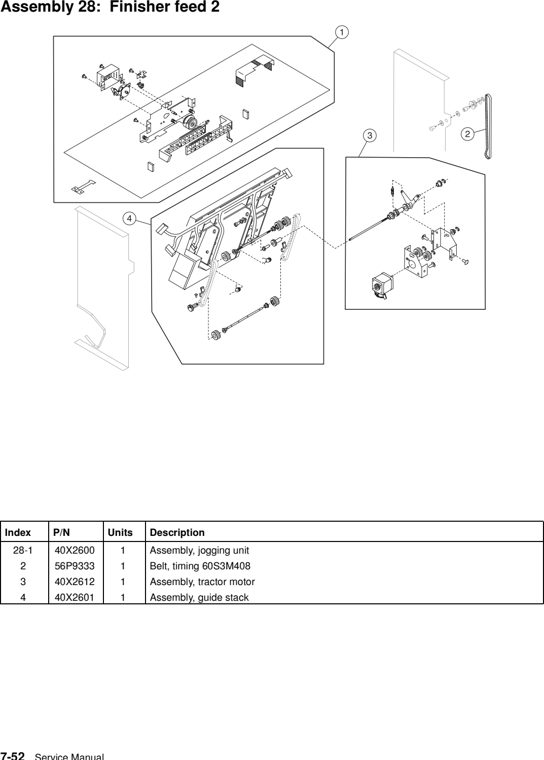

Assembly 28: Finisher feed 2 1 40X2600 Assembly, jogging unit 2 56P9333 Belt, timing 60S3M408 3 40X2612 Assembly, tractor motor 4 40X2601 Assembly, guide stack

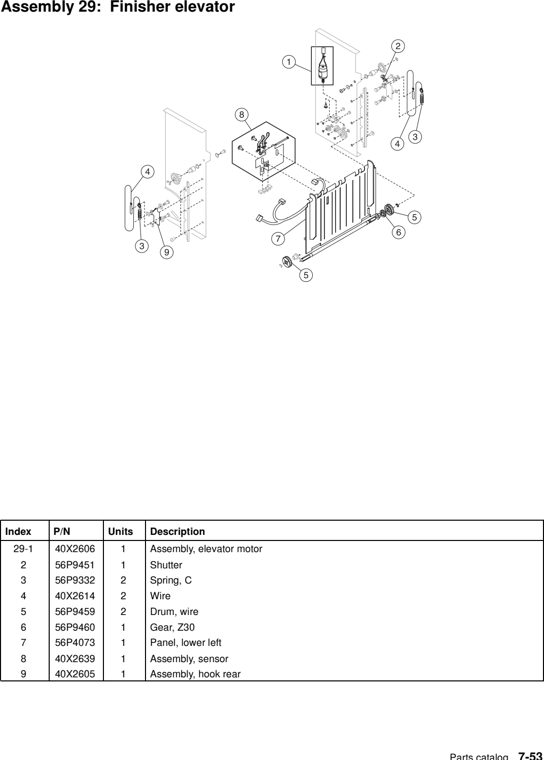

Assembly 29: Finisher elevator 1 40X2606 Assembly, elevator motor 2 56P9451 Shutter 3 56P9332 Spring, C 4 40X2614 Wire 5 56P9459 Drum, wire 6 56P9460 Gear, Z30 7 56P4073 Panel, lower left 8 40X2639 Assembly, sensor 9 40X2605 Assembly, hook rear Parts catalog 7-53

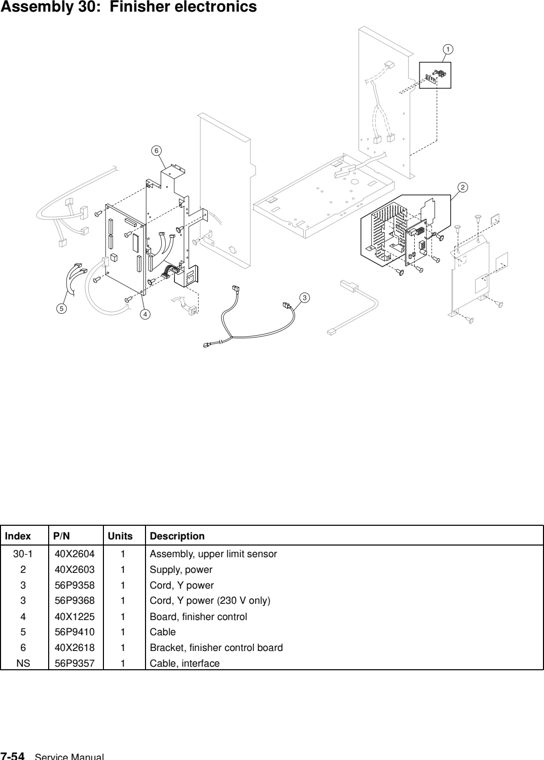

Assembly 30: Finisher electronics 1 40X2604 Assembly, upper limit sensor 2 40X2603 Supply, power 3 56P9358 Cord, Y power 3 56P9368 Cord, Y power (230 V only) 4 40X1225 Board, finisher control 5 56P9410 Cable 6 40X2618 Bracket, finisher control board NS 56P9357 Cable, interface

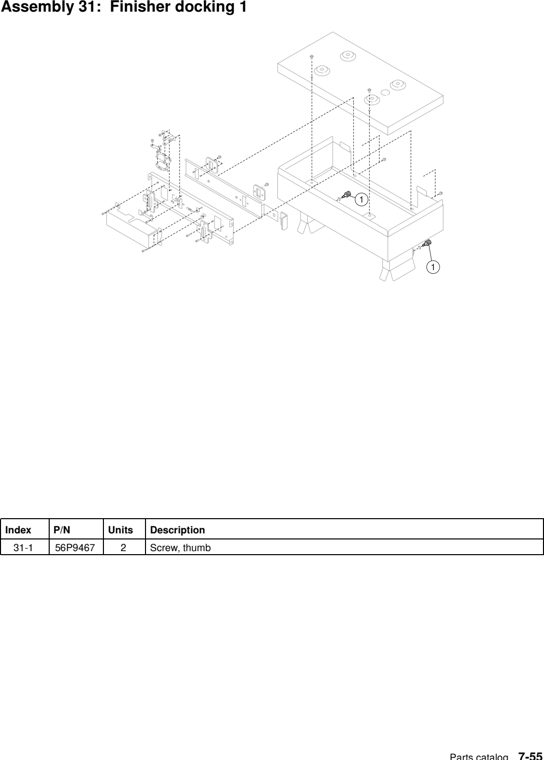

Assembly 31: Finisher docking 1 1 56P9467 Screw, thumb Parts catalog 7-55

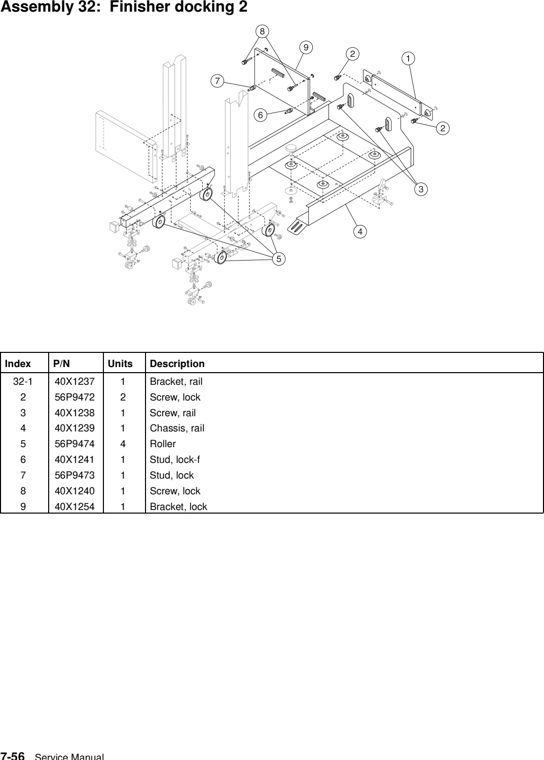

Assembly 32: Finisher docking 2 1 40X1237 Bracket, rail 2 56P9472 Screw, lock 3 40X1238 Screw, rail 4 40X1239 Chassis, rail 5 56P9474 Roller 6 40X1241 Stud, lock-f 7 56P9473 Stud, lock 8 40X1240 Screw, lock 9 40X1254 Bracket, lock

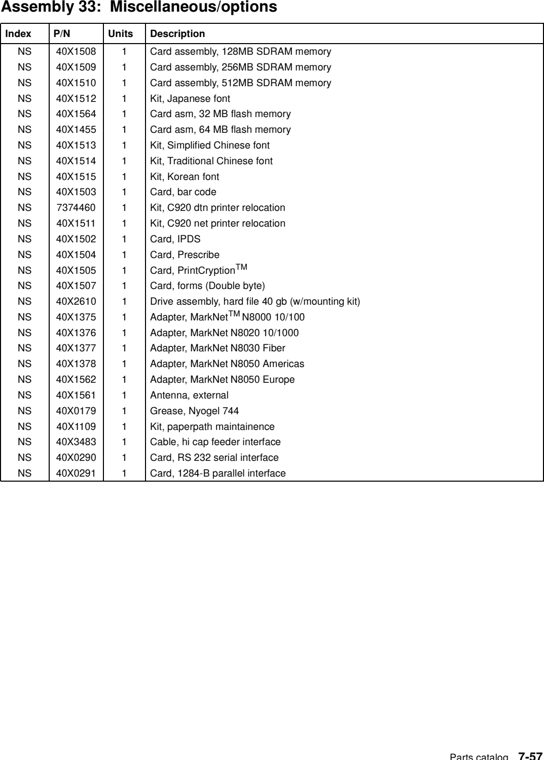

Assembly 33: Miscellaneous/options NS 40X1508 Card assembly, 128MB SDRAM memory Lexmark 40X1508 Lexmark Brand 128MB Memory New 40X1508 (New) $27.50 Lexmark 40X1508 Lexmark Brand 128MB Memory Fully refurbished with 90-day warranty 40X1508 $24.50 NS 40X1509 Card assembly, 256MB SDRAM memory Lexmark 40X1509 Lexmark Brand 256 MB DIMM New 40X1509 (New) $71.21 Lexmark 40X1509 Lexmark Brand 256 MB DIMM Fully refurbished with 90-day warranty 40X1509 $69.71 NS 40X1510 Card assembly, 512MB SDRAM memory Lexmark 40x1510 512MB DDR Memory New 40X1510 40X5939 (New) $199.00 Lexmark 40x1510 512MB DDR Memory Fully refurbished with 90-day warranty 40X1510 40X5939 Compatible $49.00 NS 40X1512 Kit, Japanese font NS 40X1564 Card asm, 32 MB flash memory Lexmark 40X1564 32MB Flash Fully refurbished with 90-day warranty 40X1564 $25.00 NS 40X1455 Card asm, 64 MB flash memory Lexmark 40X1455 64MB Flash Memory Card New 40X1455 (New) Contact for Details Lexmark 40X1455 64MB Flash Memory Card Fully refurbished with 90-day warranty 40X1455 Contact for Details NS 40X1513 Kit, Simplified Chinese font NS 40X1514 Kit, Traditional Chinese font NS 40X1515 Kit, Korean font NS 40X1503 Card, bar code NS 7374460 Kit, C920 dtn printer relocation NS 40X1511 Kit, C920 net printer relocation NS 40X1502 Card, IPDS NS 40X1504 Card, Prescribe NS 40X1505 Card, PrintCryptionTM NS 40X1507 Card, forms (Double byte) Lexmark 40X1507 Forms Card (Double Bytes Languages) C920 New 40X1507 (New) Contact for Details Lexmark 40X1507 Forms Card (Double Bytes Languages) C920 Fully refurbished with 90-day warranty 40X1507 Contact for Details NS 40X2610 Drive assembly, hard file 40 gb (w/mounting kit) Lexmark 40x2610 Hard disk with adapter - 40+ GB New 40x2610 (New) Contact for Details NS 40X1375 Adapter, MarkNetTM N8000 10/100 Lexmark 40X1375 MarkNet N8000 Fast Ethernet Fully refurbished with 90-day warranty 40X1375 $195.00 NS 40X1376 Adapter, MarkNet N8020 10/1000 Lexmark 40X1376 MarkNet N8020 GigaBit Ethernet New 40X1376 (New) $175.00 Lexmark 40X1376 MarkNet N8020 GigaBit Ethernet Fully refurbished with 90-day warranty 40X1376 $125.00 NS 40X1377 Adapter, MarkNet N8030 Fiber Lexmark 40X1377 MarkNet N8030 Fiber Ethernet 100BaseTX New 40X1377 (New) Contact for Details Lexmark 40X1377 MarkNet N8030 Fiber Ethernet 100BaseTX Fully refurbished with 90-day warranty 40X1377 Contact for Details NS 40X1378 Adapter, MarkNet N8050 Americas Lexmark 40X1378 MarkNet N8050 802.11g Wireless Print Server US New 40X1378 (New) Contact for Details Lexmark 40X1378 MarkNet N8050 802.11g Wireless Print Server US Fully refurbished with 90-day warranty 40X1378 Contact for Details NS 40X1562 Adapter, MarkNet N8050 Europe Lexmark 40X1562 MarkNet N8050 802.11g Wireless Print Server Not-US New 40X1562 (New) Contact for Details Lexmark 40X1562 MarkNet N8050 802.11g Wireless Print Server Not-US Fully refurbished with 90-day warranty 40X1562 Contact for Details NS 40X1561 Antenna, external Lexmark 40X1561 Antenna External New 40X1561 (New) Contact for Details Lexmark 40X1561 Antenna External Fully refurbished with 90-day warranty 40X1561 Contact for Details NS 40X0179 Grease, Nyogel 744 NS 40X1109 Kit, paperpath maintainence Lexmark 40X1109 Paper Path Maintenance Kit New 40X1109 (New) $365.00 NS 40X3483 Cable, hi cap feeder interface Lexmark 40X3483 HCF Interface Cable New 40X3483 (New) Contact for Details NS 40X0290 Card, RS 232 serial interface Lexmark 40X0290 Serial RS232C Card Assembly New 40X0290 56P1436 (New) $15.00 NS 40X0291 Card, 1284-B parallel interface Parts catalog 7-57 Lexmark 40X0291 Parallel 1284B Card Assembly New 40X0291 (New) $15.00

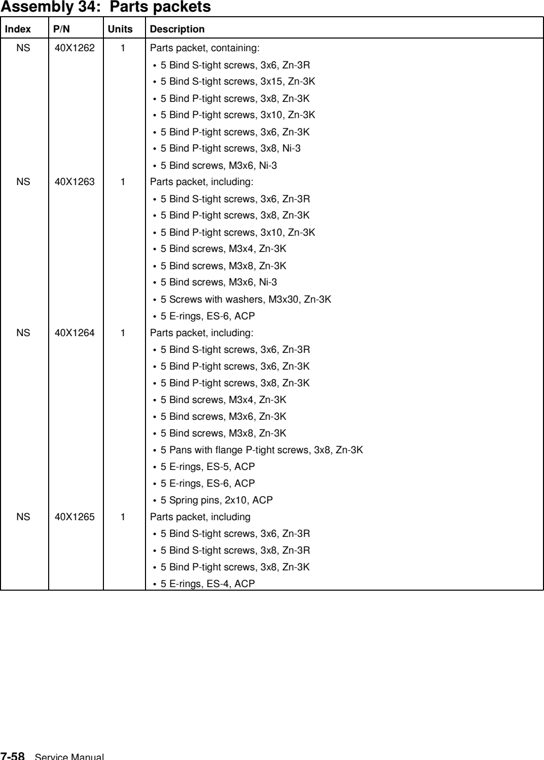

Assembly 34: Parts packets NS 40X1262 Parts packet, containing: • 5 Bind S-tight screws, 3x6, Zn-3R • 5 Bind S-tight screws, 3x15, Zn-3K • 5 Bind P-tight screws, 3x8, Zn-3K • 5 Bind P-tight screws, 3x10, Zn-3K • 5 Bind P-tight screws, 3x6, Zn-3K • 5 Bind P-tight screws, 3x8, Ni-3 • 5 Bind screws, M3x6, Ni-3 NS 40X1263 Parts packet, including: • 5 Bind S-tight screws, 3x6, Zn-3R • 5 Bind P-tight screws, 3x8, Zn-3K • 5 Bind P-tight screws, 3x10, Zn-3K • 5 Bind screws, M3x4, Zn-3K • 5 Bind screws, M3x8, Zn-3K • 5 Bind screws, M3x6, Ni-3 • 5 Screws with washers, M3x30, Zn-3K • 5 E-rings, ES-6, ACP NS 40X1264 Parts packet, including: • 5 Bind S-tight screws, 3x6, Zn-3R • 5 Bind P-tight screws, 3x6, Zn-3K • 5 Bind P-tight screws, 3x8, Zn-3K • 5 Bind screws, M3x4, Zn-3K • 5 Bind screws, M3x6, Zn-3K • 5 Bind screws, M3x8, Zn-3K • 5 Pans with flange P-tight screws, 3x8, Zn-3K • 5 E-rings, ES-5, ACP • 5 E-rings, ES-6, ACP • 5 Spring pins, 2x10, ACP NS 40X1265 Parts packet, including • 5 Bind S-tight screws, 3x6, Zn-3R • 5 Bind S-tight screws, 3x8, Zn-3R • 5 Bind P-tight screws, 3x8, Zn-3K • 5 E-rings, ES-4, ACP

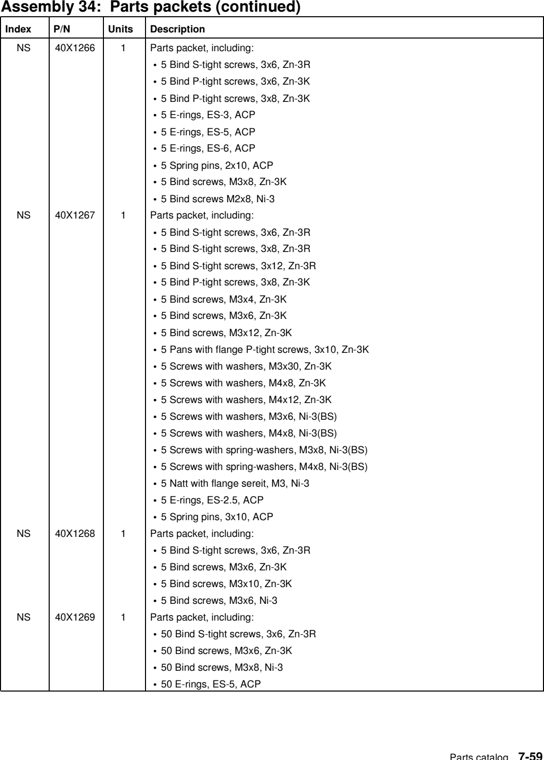

Assembly 34: Parts packets (continued) NS 40X1266 Parts packet, including: • 5 Bind S-tight screws, 3x6, Zn-3R • 5 Bind P-tight screws, 3x6, Zn-3K • 5 Bind P-tight screws, 3x8, Zn-3K • 5 E-rings, ES-3, ACP • 5 E-rings, ES-5, ACP • 5 E-rings, ES-6, ACP • 5 Spring pins, 2x10, ACP • 5 Bind screws, M3x8, Zn-3K • 5 Bind screws M2x8, Ni-3 NS 40X1267 Parts packet, including: • 5 Bind S-tight screws, 3x6, Zn-3R • 5 Bind S-tight screws, 3x8, Zn-3R • 5 Bind S-tight screws, 3x12, Zn-3R • 5 Bind P-tight screws, 3x8, Zn-3K • 5 Bind screws, M3x4, Zn-3K • 5 Bind screws, M3x6, Zn-3K • 5 Bind screws, M3x12, Zn-3K • 5 Pans with flange P-tight screws, 3x10, Zn-3K • 5 Screws with washers, M3x30, Zn-3K • 5 Screws with washers, M4x8, Zn-3K • 5 Screws with washers, M4x12, Zn-3K • 5 Screws with washers, M3x6, Ni-3(BS) • 5 Screws with washers, M4x8, Ni-3(BS) • 5 Screws with spring-washers, M3x8, Ni-3(BS) • 5 Screws with spring-washers, M4x8, Ni-3(BS) • 5 Natt with flange sereit, M3, Ni-3 • 5 E-rings, ES-2.5, ACP • 5 Spring pins, 3x10, ACP NS 40X1268 Parts packet, including: • 5 Bind S-tight screws, 3x6, Zn-3R • 5 Bind screws, M3x6, Zn-3K • 5 Bind screws, M3x10, Zn-3K • 5 Bind screws, M3x6, Ni-3 NS 40X1269 Parts packet, including: • 50 Bind S-tight screws, 3x6, Zn-3R • 50 Bind screws, M3x6, Zn-3K • 50 Bind screws, M3x8, Ni-3 • 50 E-rings, ES-5, ACP Parts catalog 7-59

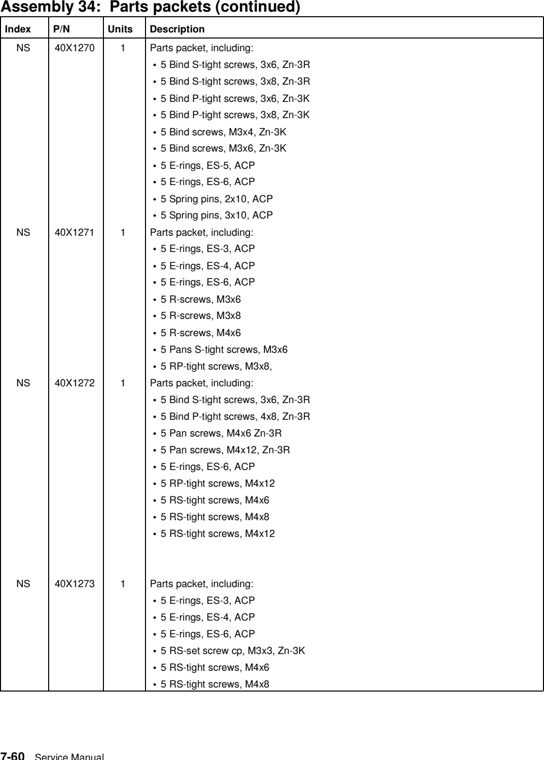

Assembly 34: Parts packets (continued) NS 40X1270 Parts packet, including: • 5 Bind S-tight screws, 3x6, Zn-3R • 5 Bind S-tight screws, 3x8, Zn-3R • 5 Bind P-tight screws, 3x6, Zn-3K • 5 Bind P-tight screws, 3x8, Zn-3K • 5 Bind screws, M3x4, Zn-3K • 5 Bind screws, M3x6, Zn-3K • 5 E-rings, ES-5, ACP • 5 E-rings, ES-6, ACP • 5 Spring pins, 2x10, ACP • 5 Spring pins, 3x10, ACP NS 40X1271 Parts packet, including: • 5 E-rings, ES-3, ACP • 5 E-rings, ES-4, ACP • 5 E-rings, ES-6, ACP • 5 R-screws, M3x6 • 5 R-screws, M3x8 • 5 R-screws, M4x6 • 5 Pans S-tight screws, M3x6 • 5 RP-tight screws, M3x8, NS 40X1272 Parts packet, including: • 5 Bind S-tight screws, 3x6, Zn-3R • 5 Bind P-tight screws, 4x8, Zn-3R • 5 Pan screws, M4x6 Zn-3R • 5 Pan screws, M4x12, Zn-3R • 5 E-rings, ES-6, ACP • 5 RP-tight screws, M4x12 • 5 RS-tight screws, M4x6 • 5 RS-tight screws, M4x8 • 5 RS-tight screws, M4x12 NS 40X1273 Parts packet, including: • 5 E-rings, ES-3, ACP • 5 E-rings, ES-4, ACP • 5 E-rings, ES-6, ACP • 5 RS-set screw cp, M3x3, Zn-3K • 5 RS-tight screws, M4x6 • 5 RS-tight screws, M4x8

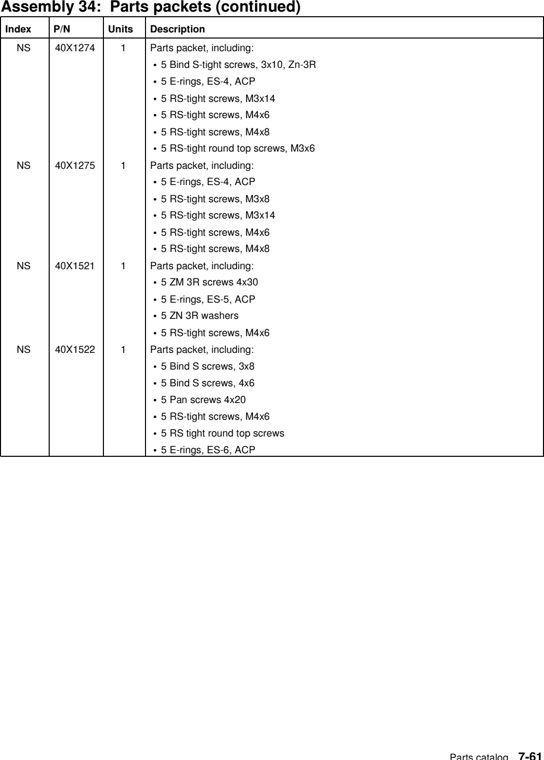

Assembly 34: Parts packets (continued) NS 40X1274 Parts packet, including: • 5 Bind S-tight screws, 3x10, Zn-3R • 5 E-rings, ES-4, ACP • 5 RS-tight screws, M3x14 • 5 RS-tight screws, M4x6 • 5 RS-tight screws, M4x8 • 5 RS-tight round top screws, M3x6 NS 40X1275 Parts packet, including: • 5 E-rings, ES-4, ACP • 5 RS-tight screws, M3x8 • 5 RS-tight screws, M3x14 • 5 RS-tight screws, M4x6 • 5 RS-tight screws, M4x8 NS 40X1521 Parts packet, including: • 5 ZM 3R screws 4x30 • 5 E-rings, ES-5, ACP • 5 ZN 3R washers • 5 RS-tight screws, M4x6 NS 40X1522 Parts packet, including: • 5 Bind S screws, 3x8 • 5 Bind S screws, 4x6 • 5 Pan screws 4x20 • 5 RS-tight screws, M4x6 • 5 RS tight round top screws • 5 E-rings, ES-6, ACP Parts catalog 7-61
