Lexmark CS730 CS735 C4342 C4352 Parts

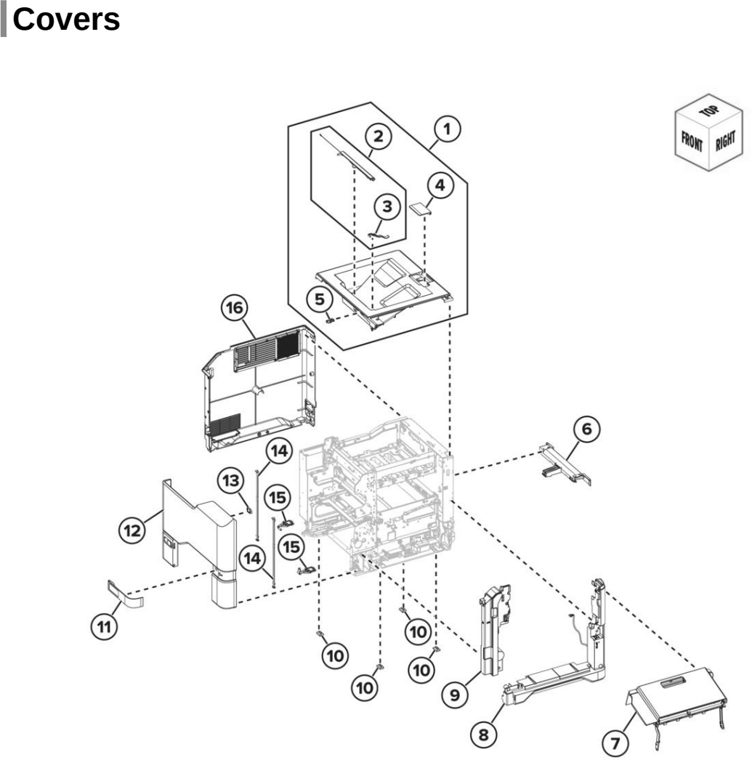

1) C4342, C4352, Cs730, And Cs735 Models Only

01 Top cover 41X2899

02 Bin exit cover 41X3895

03
41X0772 CS720 CS725 CS4150 Output bin flag
Fully refurbished with 90-day warranty
41X0772


04
41X0410 CS720 CS725 CS4150 Bin extender
Fully refurbished with 90-day warranty
41X0410
$15.87


06
41X0424 Rear Handle Cover
New
41X0424 (New)
$26.32


41X0424 Rear Handle Cover
Fully refurbished with 90-day warranty
41X0424
$21.43


07 Toner door 41X2917

08
41X2827 Right cover
New
41X2827 (New)
$55.00


41X2827 Right cover
Fully refurbished with 90-day warranty
41X2827


09
41X2828 Motor cover
New
41X2828 (New)
$39.00


41X2828 Motor cover
Fully refurbished with 90-day warranty
41X2828

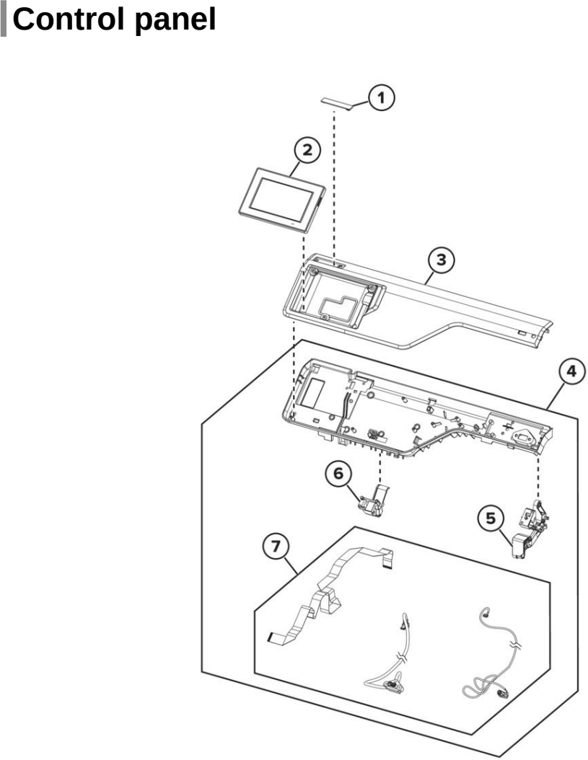

2) Control panel

01 Badge cover (C4342, C4352, CS730, and CS735 models only) 41X4317

02
41X4351 Control panel display 4.3-inch control
Fully refurbished with 90-day warranty
41X4351


03
41X2886 Control panel cover
New
41X2886 (New)
$39.00


41X2886 Control panel cover
Fully refurbished with 90-day warranty
41X2886


04
41X2834 Control panel base
New
41X2834 (New)
$139.00


41X2834 Control panel base
Fully refurbished with 90-day warranty
41X2834


05
41X0562 Right control panel arm
New
41X0562 (New)
$15.30


41X0562 Right control panel arm
Fully refurbished with 90-day warranty
41X0562
$9.24


06
41X0561 Left control panel arm
New
41X0561 (New)
$15.04


41X0561 Left control panel arm
Fully refurbished with 90-day warranty
41X0561
$9.01


07 Control panel cables 41X2887

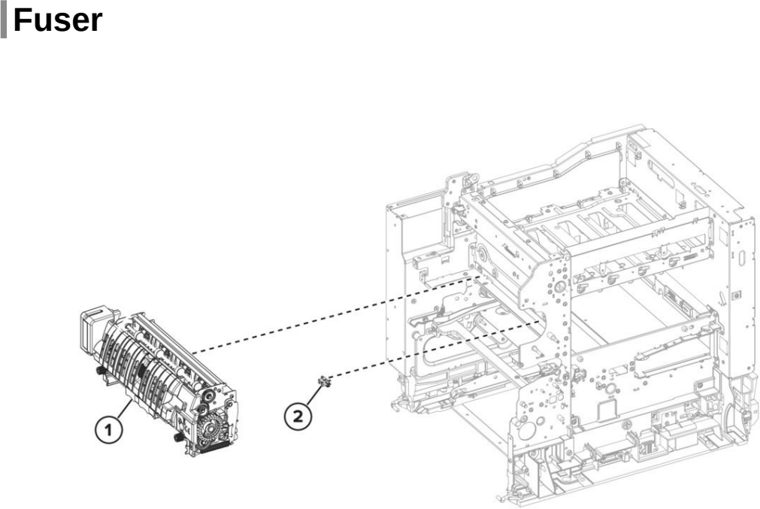

01a
41X2930 Fuser
New
41X2930 (New)
$449.00


41X2930 Fuser
Fully refurbished with 90-day warranty
41X2930


01b Fuser, 220 V 41X2931

01c Fuser, 100 V 41X2932

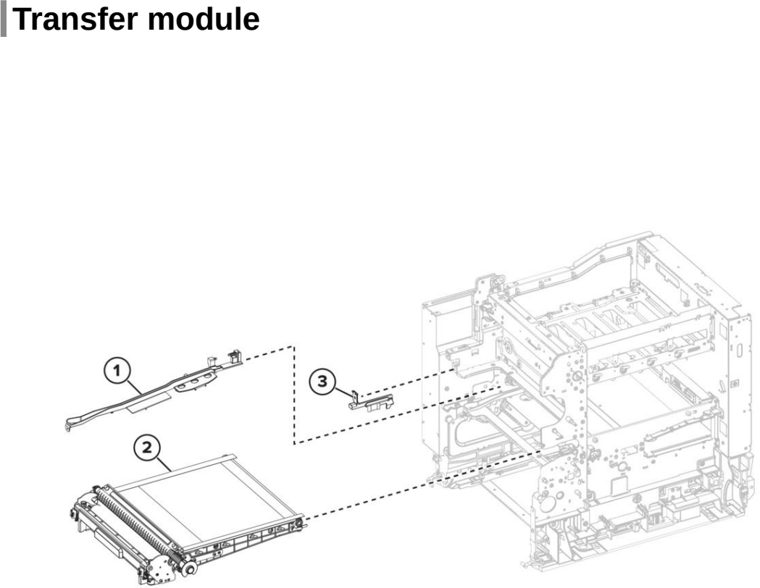

01
41X2900 Transfer module guide rail
New
41X2900 (New)
$29.00


02
41X2689 Transfer module
New
41X2689 (New)
$242.96


41X2689 Transfer module
Fully refurbished with 90-day warranty
41X2689


03
41X2833 Transfer module retainer
New
41X2833 (New)
$19.00


41X2833 Transfer module retainer
Fully refurbished with 90-day warranty
41X2833



01
40X7911 Media size sensor
New
40X7911 (New)
$13.37


40X7911 Media size sensor
Fully refurbished with 90-day warranty
40X7911
$7.50


02
41X0372 Tray rails
New
41X0372 (New)
$23.07


41X0372 Tray rails
Fully refurbished with 90-day warranty
41X0372
$20.73


03
41X0825 Support strap
New
41X0825 (New)
$17.47


41X0825 Support strap
Fully refurbished with 90-day warranty
41X0825
$15.69


04
41X0268 550-sheet tray
Fully refurbished with 90-day warranty
41X0268
$124.60


41X0268 550-sheet tray
New
41X0268 (New)
$180.23


05
41X0374 Separation block
Fully refurbished with 90-day warranty
41X0374
$17.53


41X0374 Separator Bracket Assembly
New
41X0374 (New)
$19.51


06
41X0373 Paper size sensor actuators
New
41X0373 (New)
$14.52


41X0373 Paper size sensor actuators
Fully refurbished with 90-day warranty
41X0373
$8.54


07
41X0956 Pick roller (tray 1 and MPF)
New
41X0956 (New)
$28.26


08
41X4450 Paper feeder
New
41X4450 (New)
$69.00


41X4450 Paper feeder
Fully refurbished with 90-day warranty
41X4450


09
41X2034 Paper out actuator spring
New
41X2034 (New)
$9.00


41X2034 Paper out actuator spring
Fully refurbished with 90-day warranty
41X2034

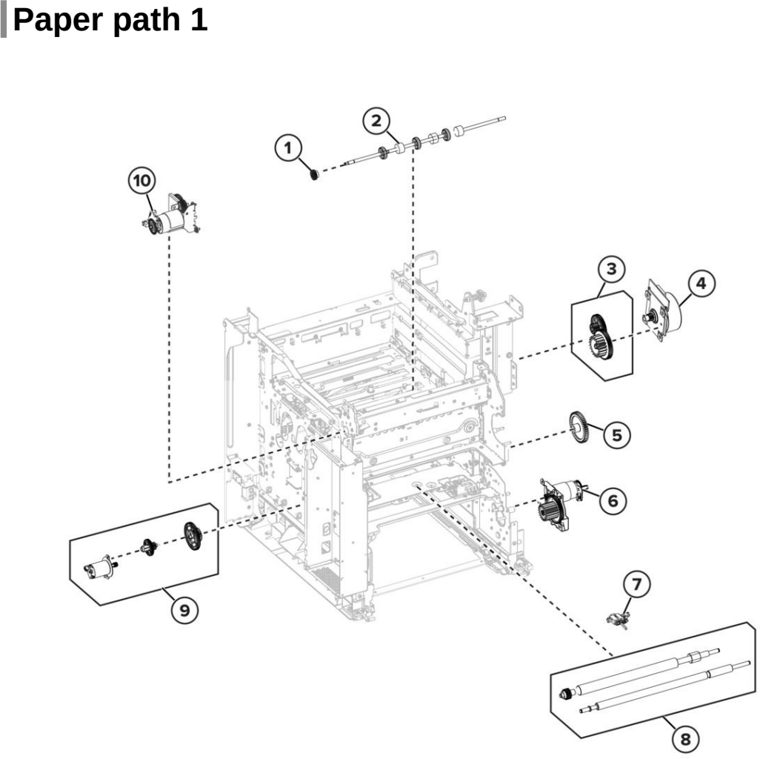

01
41X0391 Output gear
New
41X0391 (New)
$14.22


41X0391 Output gear
Fully refurbished with 90-day warranty
41X0391
$8.27


02
41X0390 Output roll
New
41X0390 (New)
$19.47


41X0390 Output roll
Fully refurbished with 90-day warranty
41X0390
$12.99


03
41X0395 Fuser drive gear
New
41X0395 (New)
$16.67


41X0395 Fuser drive gear
Fully refurbished with 90-day warranty
41X0395
$10.47


04
41X4460 Motor (fuser)
New
41X4460 (New)
$54.00


41X4460 Motor (fuser)
Fully refurbished with 90-day warranty
41X4460


05
41X0757 Waste toner bottle idler gear
New
41X0757 (New)
$13.92


41X0757 Waste toner bottle idler gear
Fully refurbished with 90-day warranty
41X0757
$8.00


06
41X0381 Motor (duplex/MPF)
Fully refurbished with 90-day warranty
41X0381
$20.41


41X0381 Motor (duplex/MPF)
New
41X0381 (New)
$26.45


07
41X0385 Sensor
New
41X0385 (New)
$17.74


41X0385 Sensor
Fully refurbished with 90-day warranty
41X0385
$11.44


08
41X0386 Deskew rollers
New
41X0386 (New)
$36.81


41X0386 Deskew rollers
Fully refurbished with 90-day warranty
41X0386
$30.00


09
41X2825 Motor (BOR)
New
41X2825 (New)
$27.00


41X2825 Motor (BOR)
Fully refurbished with 90-day warranty
41X2825


10
41X0392 Output drive
New
41X0392 (New)
$24.28


41X0392 Output drive
Fully refurbished with 90-day warranty
41X0392
$19.77

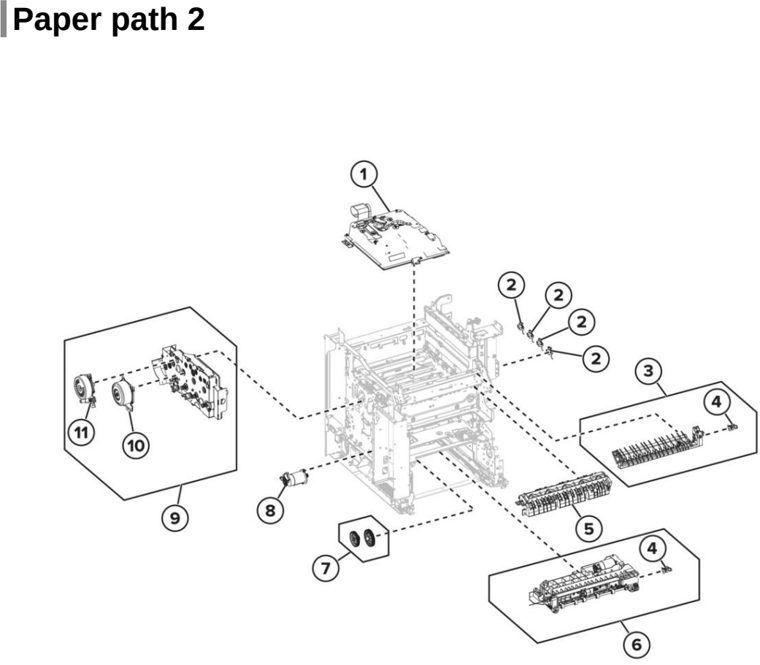

01
41X2844 Printhead
New
41X2844 (New)
$219.00


41X2844 Printhead
Fully refurbished with 90-day warranty
41X2844


02
41X0897 Developer hold down arm
New
41X0897 (New)
$14.18


41X0897 Developer hold down arm
Fully refurbished with 90-day warranty
41X0897
$8.23


03
41X0389 Diverter
New
41X0389 (New)
$17.47


41X0389 Diverter
Fully refurbished with 90-day warranty
41X0389
$15.69


04
41X0570 Sensor (door interlock)
New
41X0570 (New)
$15.25


41X0570 Sensor (door interlock)
Fully refurbished with 90-day warranty
41X0570
$9.20


05
41X0388 Redrive guide
New
41X0388 (New)
$31.30


41X0388 Redrive guide
Fully refurbished with 90-day warranty
41X0388
$25.49


06
41X0384 Isolation unit
New
41X0384 (New)
$105.43


41X0384 Isolation unit
Fully refurbished with 90-day warranty
41X0384
$87.81


07
41X0758 Aligner drivetrain kit
New
41X0758 (New)
$15.91


41X0758 Aligner drivetrain kit
Fully refurbished with 90-day warranty
41X0758
$9.79


08
41X0387 Motor (deskew)
New
41X0387 (New)
$39.31


41X0387 Motor (deskew)
Fully refurbished with 90-day warranty
41X0387
$32.04


09
41X2768 EP drive gearbox
New
41X2768 (New)
$149.00


41X2768 EP drive gearbox
Fully refurbished with 90-day warranty
41X2768


10
41X4461 Motor (CMY)
New
41X4461 (New)
$54.00


41X4461 Motor (CMY)
Fully refurbished with 90-day warranty
41X4461


11
41X4460 Motor (fuser)
New
41X4460 (New)
$54.00


41X4460 Motor (fuser)
Fully refurbished with 90-day warranty
41X4460

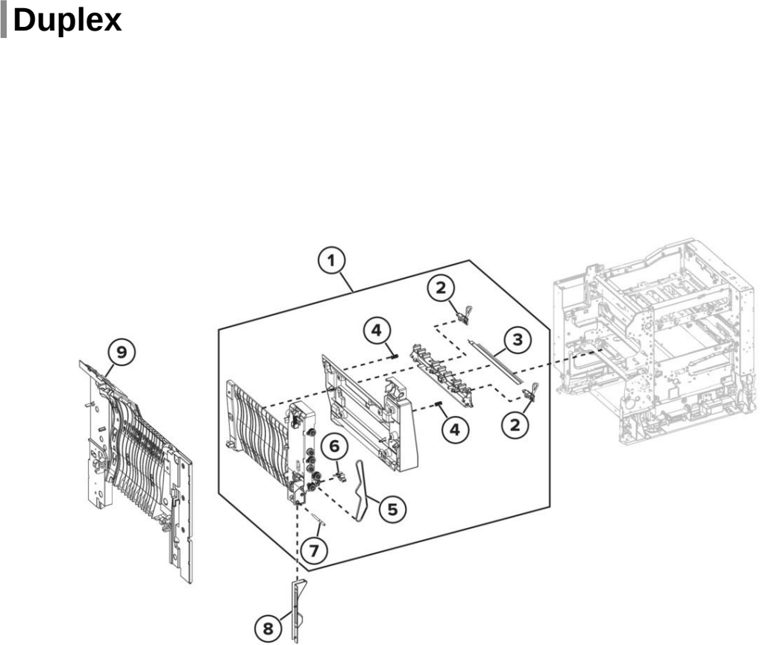

01
41X0376 Duplex inner guide
New
41X0376 (New)
$71.94


41X0376 Duplex inner guide
Fully refurbished with 90-day warranty
41X0376
$58.67


02
41X0447 Sensor (fuser buckle / narrow media)
Fully refurbished with 90-day warranty
41X0447
$11.76


03
41X0824 Static brush
New
41X0824 (New)
$16.57


41X0824 Static brush
Fully refurbished with 90-day warranty
41X0824
$10.38


04
41X0379 Guide spring
New
41X0379 (New)
$13.87


41X0379 Guide spring
Fully refurbished with 90-day warranty
41X0379
$7.95


05
41X0378 Tensioner belt
New
41X0378 (New)
$15.20


41X0378 Tensioner belt
Fully refurbished with 90-day warranty
41X0378
$9.15


06
41X0446 Sensor (duplex path 1 2)
Fully refurbished with 90-day warranty
41X0446
$10.97


41X0446 Sensor (duplex path 1 2)
New
41X0446 (New)
$17.22


07
41X0377 Pivot shaft
New
41X0377 (New)
$14.32


41X0377 Pivot shaft
Fully refurbished with 90-day warranty
41X0377
$8.36


08
41X0400 Cable cover
New
41X0400 (New)
$13.87


41X0400 Cable cover
Fully refurbished with 90-day warranty
41X0400
$7.95


09
41X0407 Duplex outer guide
New
41X0407 (New)
$53.33


41X0407 Duplex outer guide
Fully refurbished with 90-day warranty
41X0407
$43.48

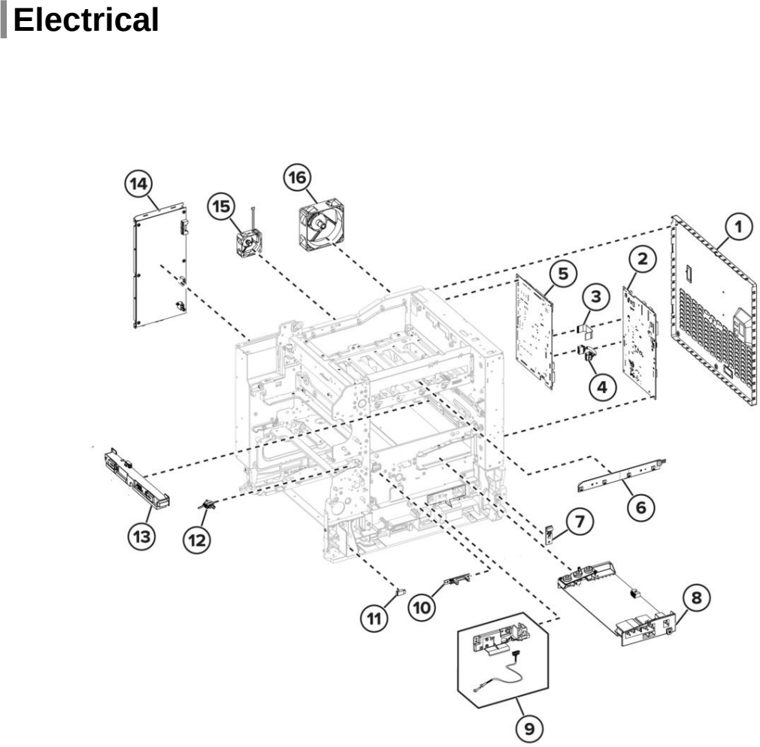

01 Controller board shield 41X1906

02
41X2874 Controller board
New
41X2874 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$299.00


03
41X2878 Print data cable
New
41X2878 (New)
$18.00


41X2878 Print data cable
Fully refurbished with 90-day warranty
41X2878


04
41X2877 Controller power cable
New
41X2877 (New)
$22.00


41X2877 Controller power cable
Fully refurbished with 90-day warranty
41X2877


05
41X2876 Engine board
New
41X2876 (New)
$209.00


41X2876 Engine board
Fully refurbished with 90-day warranty
41X2876


06
41X0394 TMC card
New
41X0394 (New)
$26.52


41X0394 TMC card
Fully refurbished with 90-day warranty
41X0394
$21.60


07
41X0785 Weather station
New
41X0785 (New)
$24.71


41X0785 Weather station
Fully refurbished with 90-day warranty
41X0785
$20.12


08
41X2777 HVPS
New
41X2777 (New)
$119.00


41X2777 HVPS
Fully refurbished with 90-day warranty
41X2777


09
41X0486 Sensor (waste toner contact)
New
41X0486 (New)
$15.59


41X0486 Sensor (waste toner contact)
Fully refurbished with 90-day warranty
41X0486
$14.00


10
41X4488 Sensor (waste toner)
New
41X4488 (New)
$29.00


41X4488 Sensor
Fully refurbished with 90-day warranty
41X4488


11
41X0566 Sensor (MPF paper present)
New
41X0566 (New)
$15.74


41X0566 Sensor (MPF paper present)
Fully refurbished with 90-day warranty
41X0566
$14.14


12
41X0385 Sensor
New
41X0385 (New)
$17.74


41X0385 Sensor
Fully refurbished with 90-day warranty
41X0385
$11.44


13
41X2832 Sensor (TPS)
New
41X2832 (New)
$39.00


41X2832 Sensor (TPS)
Fully refurbished with 90-day warranty
41X2832


14
41X0578 TPS wipers
New
41X0578 (New)
$15.00


41X0578 TPS wipers
Fully refurbished with 90-day warranty
41X0578
$8.97


15a
41X2794 LVPS, 110 V
New
41X2794 (New)
$119.00


41X2794 LVPS, 110 V
Fully refurbished with 90-day warranty
41X2794


15b LVPS, 220 V 41X2795

16
41X0398 Fuser fan
New
41X0398 (New)
$19.05


41X0398 Fuser fan
Fully refurbished with 90-day warranty
41X0398
$17.12


17
41X0397 Main fan
New
41X0397 (New)
$31.73


41X0397 Main fan
Fully refurbished with 90-day warranty
41X0397
$25.85

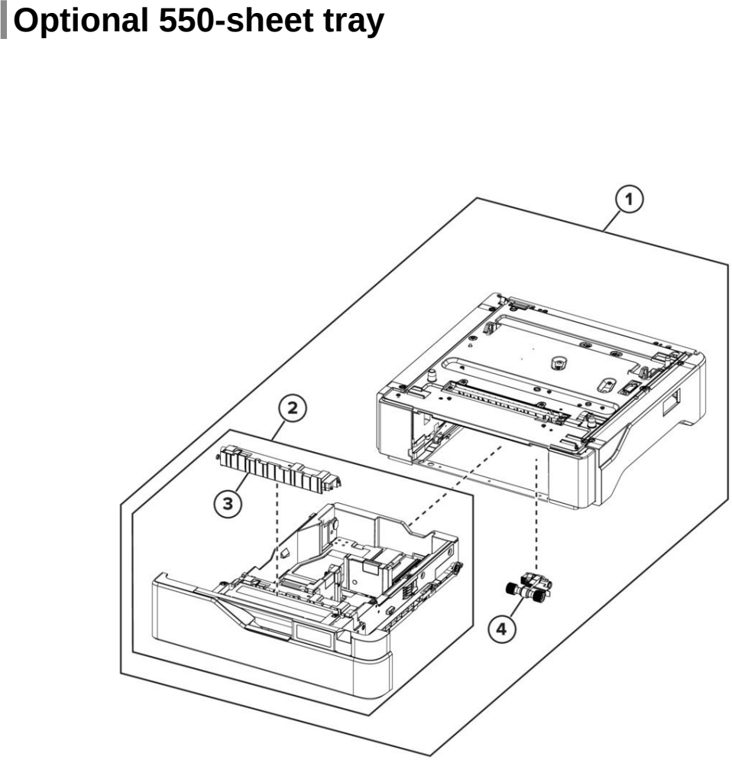

01
41X0271 550-sheet tray
New
41X0271 (New)
$463.60


41X0271 550-sheet tray
Fully refurbished with 90-day warranty
41X0271
$353.60


02
41X0361 550-sheet tray insert
New
41X0361 (New)
$151.75


41X0361 550-sheet tray insert
Fully refurbished with 90-day warranty
41X0361
$110.58


03
41X0374 Separator Bracket Assembly
New
41X0374 (New)
$19.51


41X0374 Separation block
Fully refurbished with 90-day warranty
41X0374
$17.53


04
41X0956 Pick roller (tray 1 and MPF)
New
41X0956 (New)
$28.26

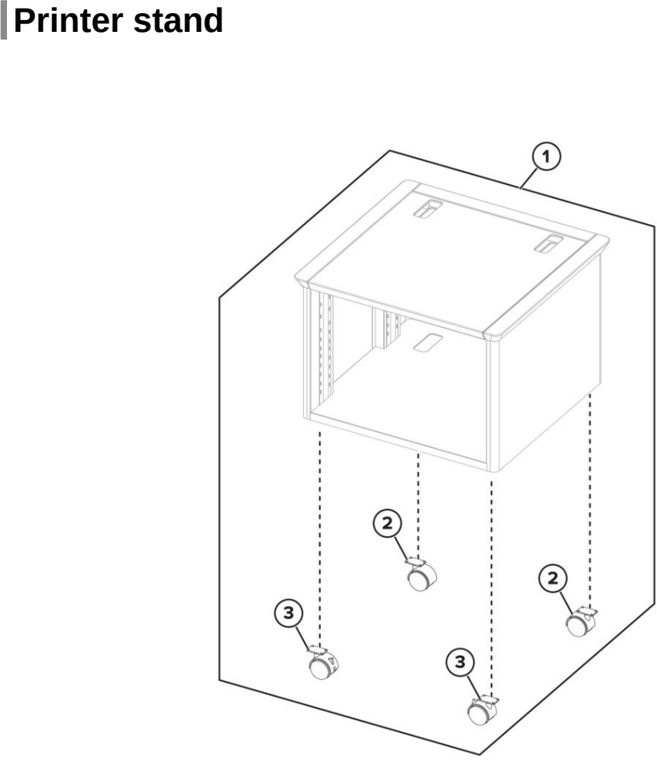

01
41X0764 Locking caster Adjustable Stand
New
41X0764 (New)
$928.31


41X0764 Locking caster Adjustable Stand
Fully refurbished with 90-day warranty
41X0764
$714.02


02
41X0775 Non-locking caster
New
41X0775 (New)
$37.46


41X0775 Non-locking caster
Fully refurbished with 90-day warranty
41X0775
$30.53


03
41X0774 Locking caster
New
41X0774 (New)
$39.50


41X0774 Locking caster
Fully refurbished with 90-day warranty
41X0774
$32.19
