Lexmark CS820 C6160 Family Parts

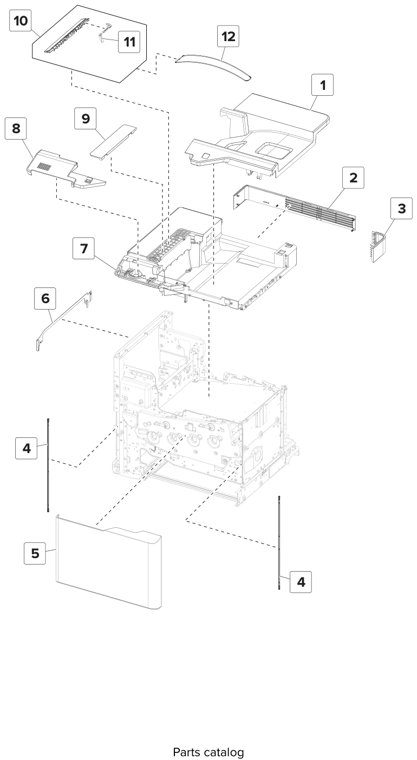

1 41X0183 Standard bin insert cover

2 41X0185 Rear upper cover

3 41X0186 Rear corner cover

4 41X0780 Front door strap

5 41X0192 Front door

6 41X0187 Left spacer

7 41X0182 Standard bin cover

8 41X0188 Control panel support cover

9 41X0184 Redrive cover

10 41X0212 Static brush and bin full actuator

11 41X1737 Bin full actuator

12 41X0716 Stacking bail

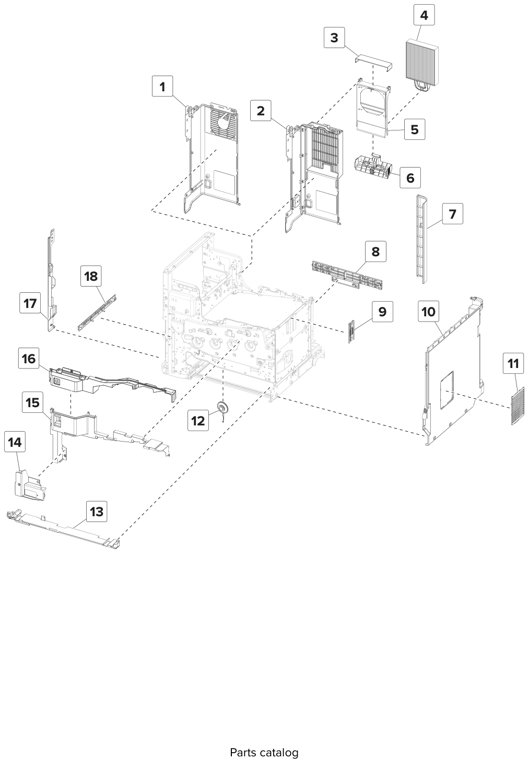

1 41X0089 Rear left cover

2 41X0099 Connector access cover

3 41X0088 Rear lower cover

4 41X0092 Right cover

5 41X0070 Right cover bracket

6 41X0090 Vent cover

7 40X9079 Audio speaker

8 41X0094 Lower front cover

9 41X0097 Door rod cover

10 41X0093 Inner lower cover

11 41X0715 Inner upper cover

12 41X0096 Left lower cover

13 41X0091 Left front cover

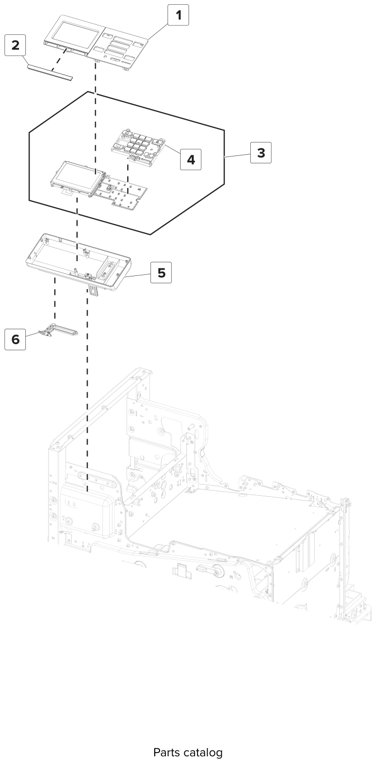

1 41X0542 Bezel, 4.3 inch control panel

3 41X0050 Board, control panel

4 41X0191 Button kit, 4.3 inch control panel

5 41X0541 Control panel

6 41X0189 Pivot, control panel

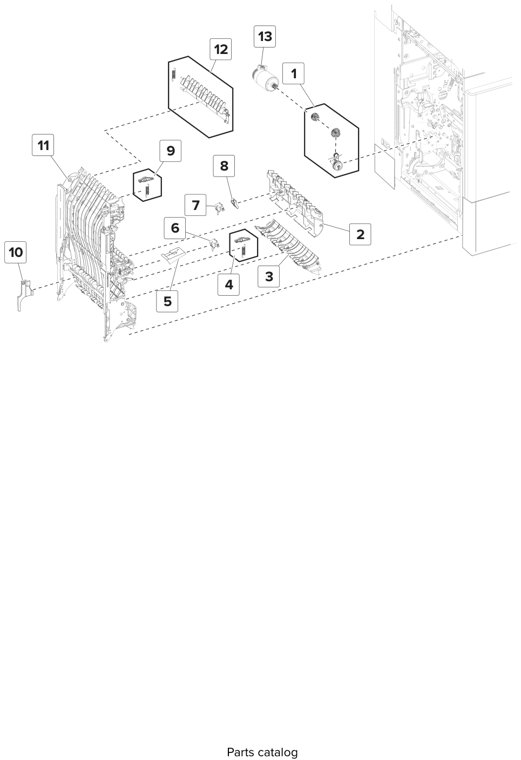

1 41X0133 Duplex drive gears

2 41X0123 Duplex lower pinch roller guide

3 41X0121 Duplex turn guide

4 41X0066 Front nip release arm

5 41X0072 Lower duplex sensor bracket

6 41X0915 Sensor (duplex path 2)

7 41X0915 Sensor (duplex path 1)

8 41X0071 Upper duplex sensor bracket

9 41X0065 Rear nip release arm

10 41X0098 Connector cover, plastic

11 41X0105 Duplex

12 41X0122 Duplex upper guide

13 41X0140 Motor (duplex)

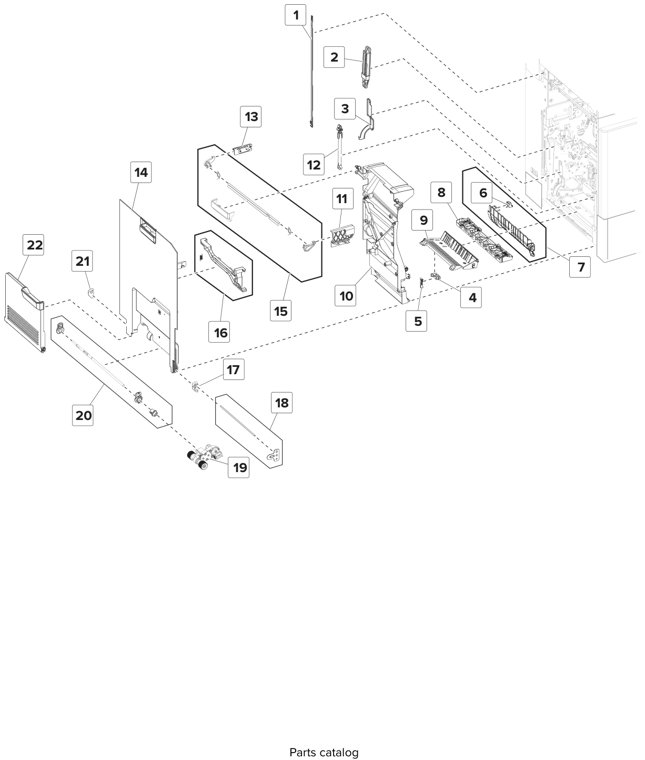

1 41X0173 Left door support strap

2 41X0174 Left door support

3 41X0073 Connector cover, metal

4 41X0684 Sensor (MPF paper present)

5 41X0058 MPF media present actuator

6 41X0914 Sensor (MPF/pass through)

7 41X0120 Deflector with sensor (MPF/pass-through)

8 41X0172 MPF tray stop

9 41X0119 MPF pick guide

10 41X0124 Left door paper guide

11 41X0081 Left door front catch

12 41X0100 Left door damper

13 41X0080 Left door rear catch

14 41X0101 Left door

15 41X0136 Left door release latch

16 41X0135 Duplex release latch

17 41X0059 MPF tray front actuator

18 41X0250 Left door rod

19 41X0956 Pick roller

20 41X0167 MPF pick shaft

21 41X0060 MPF tray rear actuator

22 41X0176 MPF tray

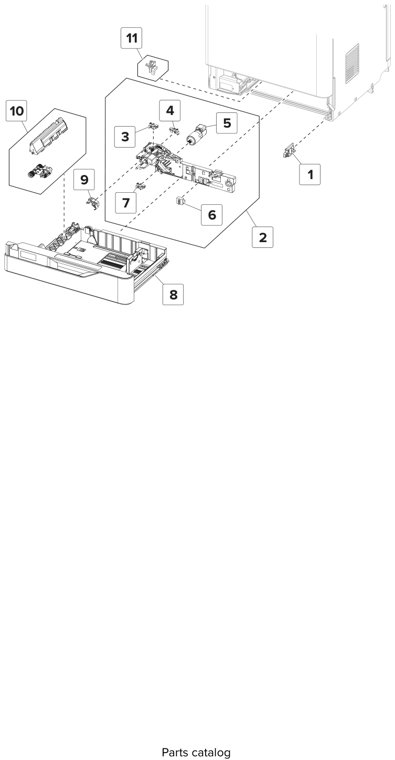

1 41X0129 Paper tray guide

2 41X0106 Paper feeder

3 41X0684 Sensor (pick roller index)

4 41X0684 Sensor (media out)

5 41X0140 Motor (pick)

6 40X7911 Sensor (media size)

7 41X0684 Sensor (media low)

8 41X0175 Media tray

9 41X0067 Feeder bearing

10 41X0999 Pick roller and separator pad

11 41X1033 Paper overfill stop

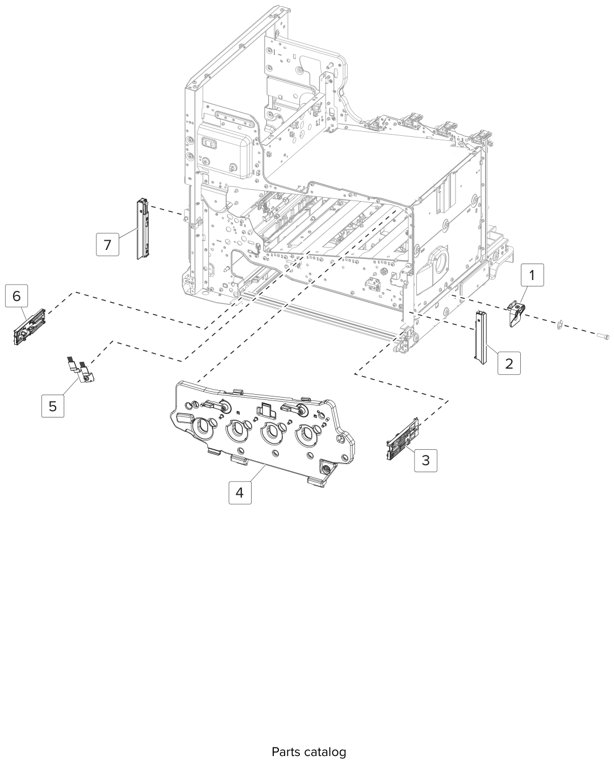

1 41X0074 Frame connector bracket

2 41X0131 Right handle

3 41X0991 Tray close rail, right

4 41X0103 PC unit/developer door

5 41X1975 Grounding plate

6 41X0992 Tray close rail, left

7 41X0130 Left handle

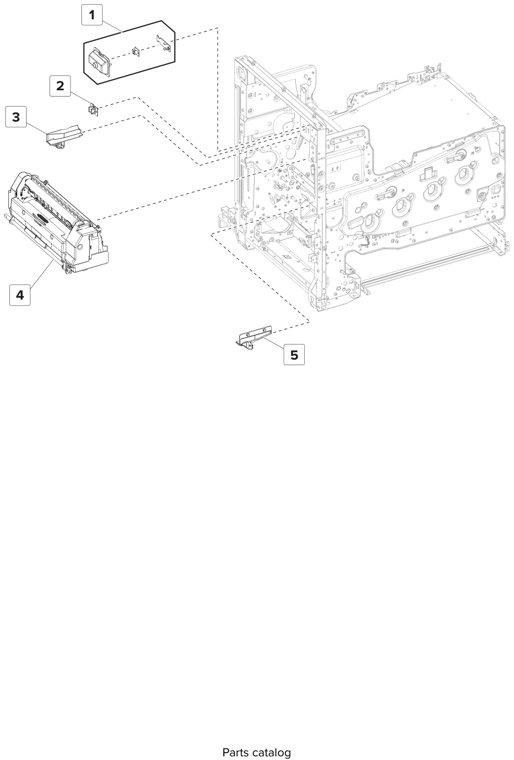

1 41X0165 Sensor (fuser temperature

2 41X0127 Fuser alignment guide

3 41X0126 Fuser rear loading guide

4 41X0246 Fuser (115 V)

4 41X0247 Fuser (230 V)

4 41X0248 Fuser (100 V)

5 41X0125 Fuser front loading guide

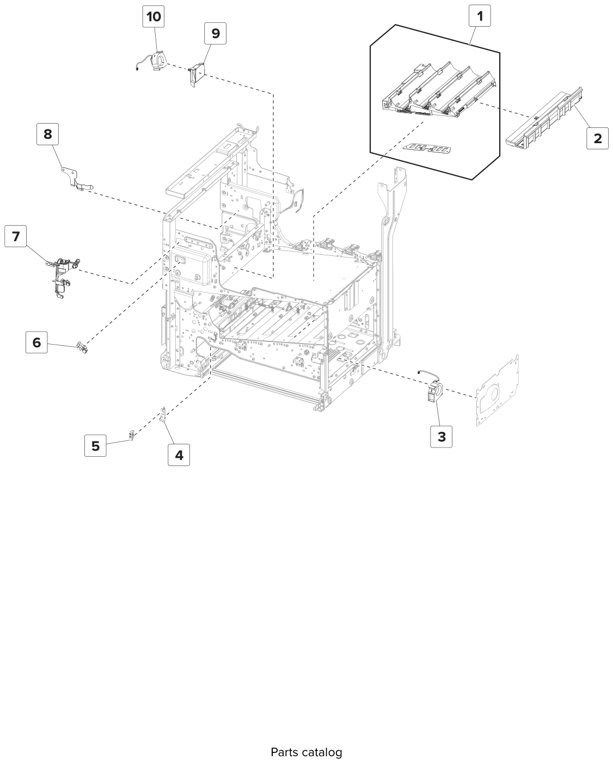

1 41X0143 Main HVPS

2 41X0117 Toner cartridge guide

3 41X0975 Printhead fan

4 41X1620 Waste toner bottle present

5 41X0570 Sensor (waste toner bottle

6 41X0684 Sensor (door interlock)

7 41X0162 Door interlock actuator

8 41X0141 Grounding plate

9 41X0973 Fan duct

10 41X0974 HVPS fan

present)

sensor bracket

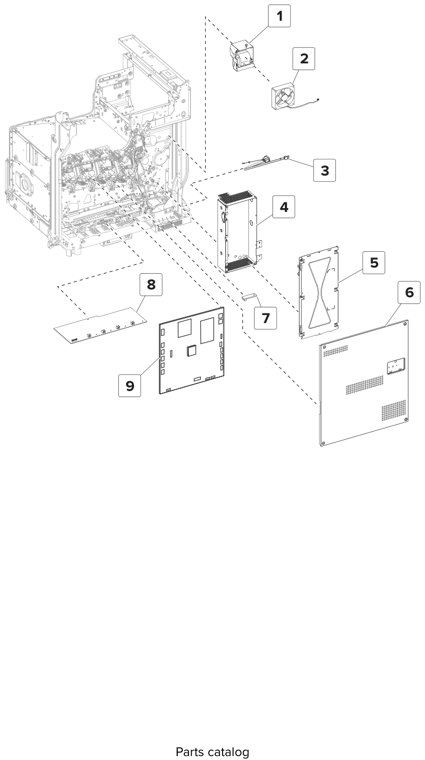

1 41X0104 Main fan duct

2 41X0954 Main fan

3 41X0260 AC power input cable

4 41X0244 LVPS cage

5 41X0242 LVPS

6 41X0087 Controller board cover

7 41X0785 Weather station

8 41X0241 Charge roller HVPS

9 41X0368 Controller board

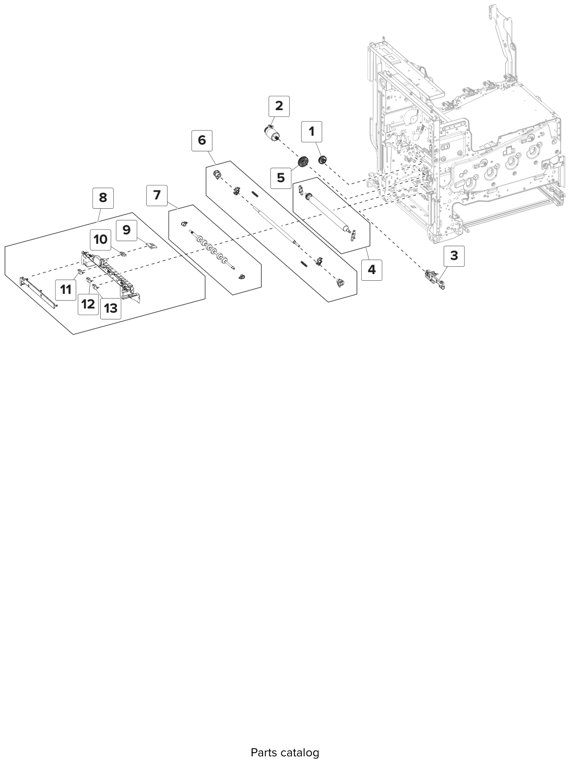

1 41X0108 Deskew roller gear

2 41X0140 Motor (deskew)

3 41X0163 Sensor (input)

4 41X0155 Deskew roller

5 41X0107 Isolation roller gear

6 41X0156 Deskew pinch roller

7 41X0168 Isolation roller shaft

8 40X7779 Sensor (deskew roller exit

9 41X0914 Sensor (near narrow media

10 41X0914 Sensor (narrow media)

11 41X0914 Sensor (deskew roller entry

12 41X0128 Deskew roller sensor guide

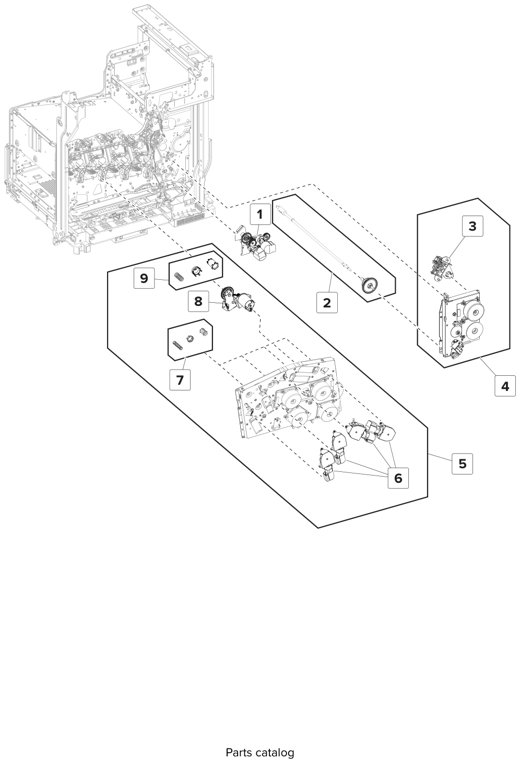

1 41X0115 MPF, reference edge gearbox

2 41X0109 Waste toner gear and shaft

3 41X0159 Sensor (waste toner full)

4 41X0111 Fuser/transfer belt motor gearbox

5 41X0112 EP, developer, toner add gearbox

6 41X0113 3 1 Toner add motor gearbox(K, C, and M)

6 41X0113 3 1 Toner add motor gearbox(Y)

7 41X1976 4 3 Toner cartridge drive coupling

8 41X0114 Motor (black only retract

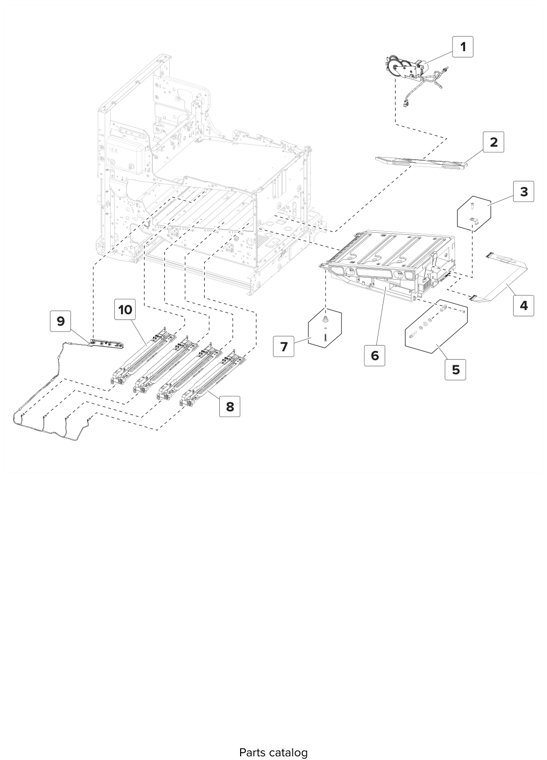

1 41X0139 Motor (printhead wiper)

2 41X0145 Printhead wiper actuator rack

3 41X0082 Printhead clamp

4 41X0076 Printhead data cable

5 41X0240 Printhead adjustment parts pack

6 41X0144 Laser printhead

7 41X0132 Printhead post

8 41X0147 3 1 Developer/PC unit CMY wiper rail

9 41X0086 Developer roll power contact

10 41X0146 Developer/PC unit K wiper rail

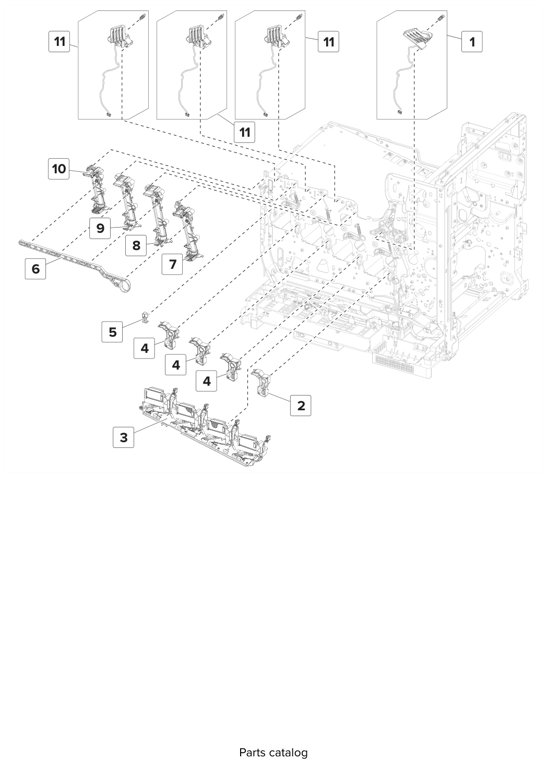

1 41X0084 Toner cartridge contact (K)

2 41X0152 Toner port retainer (K)

3 41X0069 Smart chip interface board

4 41X0151 Toner port retainer (CMY)

5 41X0150 Toner port retainer

6 41X0056 Toner supply actuator

7 41X0180 Toner add tube (K)

8 41X0178 Toner add tube (M)

9 41X0177 Toner add tube (C)

10 41X0179 Toner add tube (Y)

11 41X0083 Toner cartridge contact (CMY)

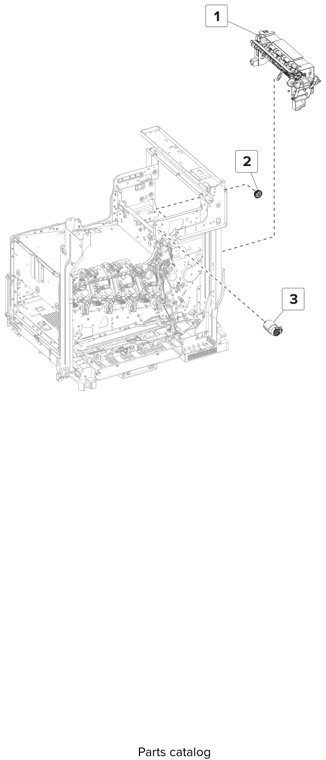

1 41X0148 Redrive

2 41X0110 Redrive gear

3 41X0451 Motor (redrive)

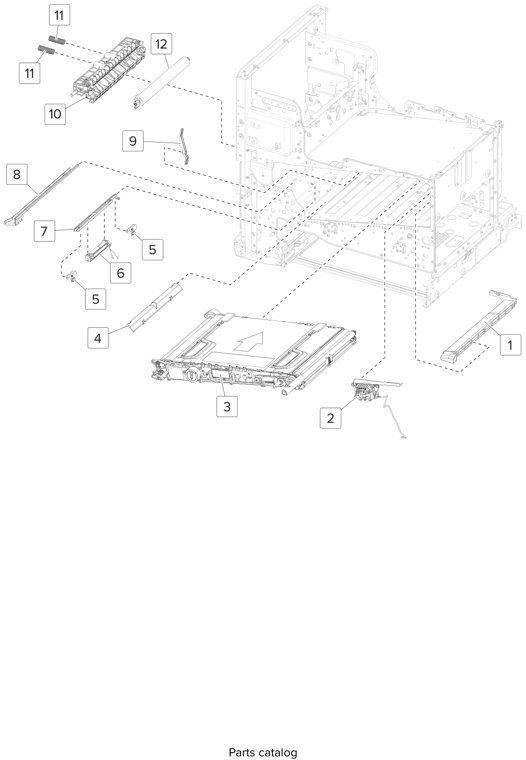

1 41X0116 Transfer belt right guide

2 41X0085 Transfer belt contact

3 41X0245 Transfer belt

4 41X0095 Wiring cover

5 41X0161 Sensor (auto alignment)

6 41X0160 Sensor (TPS)

7 41X0181 TPS sensor wiper

8 41X0118 Transfer belt left guide

9 41X0057 TPS wiper actuator

10 41X0079 Transfer roller housing

11 41X0171 Transfer roller carriage

12 41X0154 Transfer roller spring

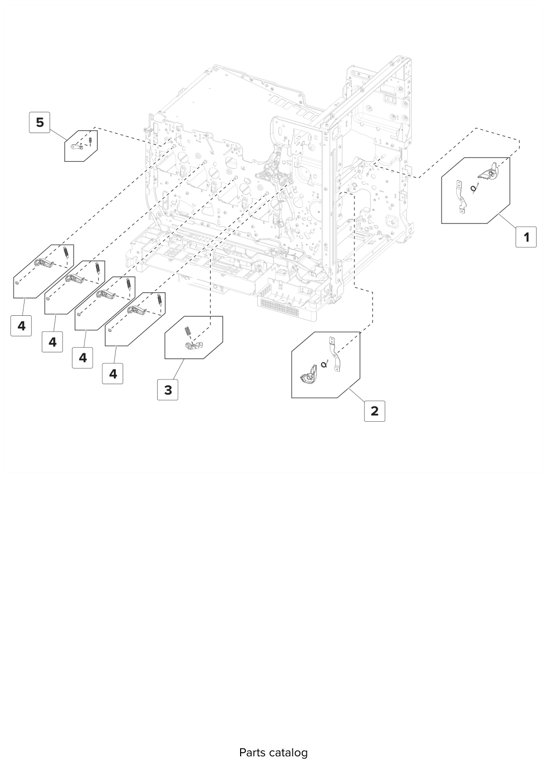

1 41X0137 Transfer roller front latch

2 41X0138 Transfer roller rear latch

3 41X0064 Transfer belt left bias arm

4 41X0062 Hold down arm

5 41X0063 Transfer belt right bias arm

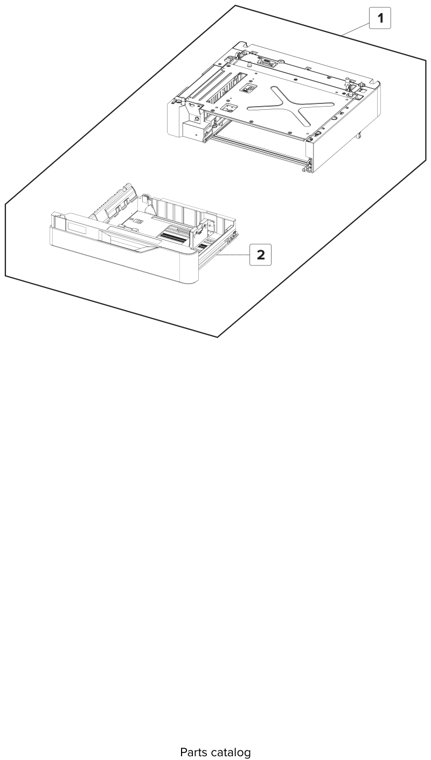

1 41X0326 550-sheet tray

2 41X0175 550-sheet tray insert

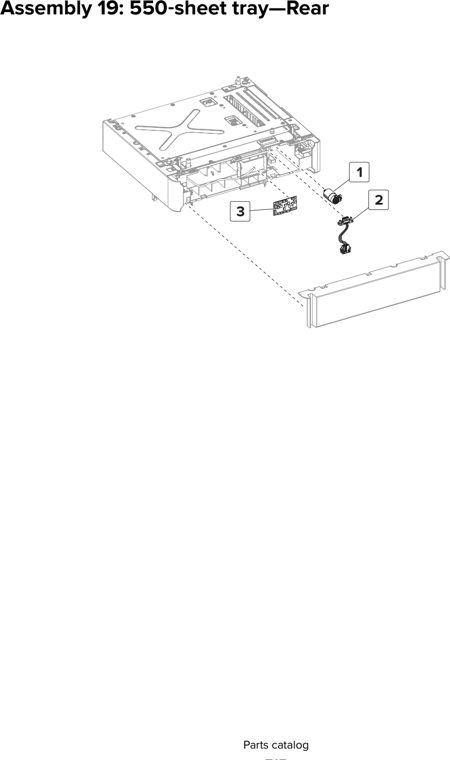

1 41X0451 Motor (550-sheet tray

2 41X0336 550‑sheet tray interface

3 41X0331 550-sheet tray controller
board cable pass‑through)

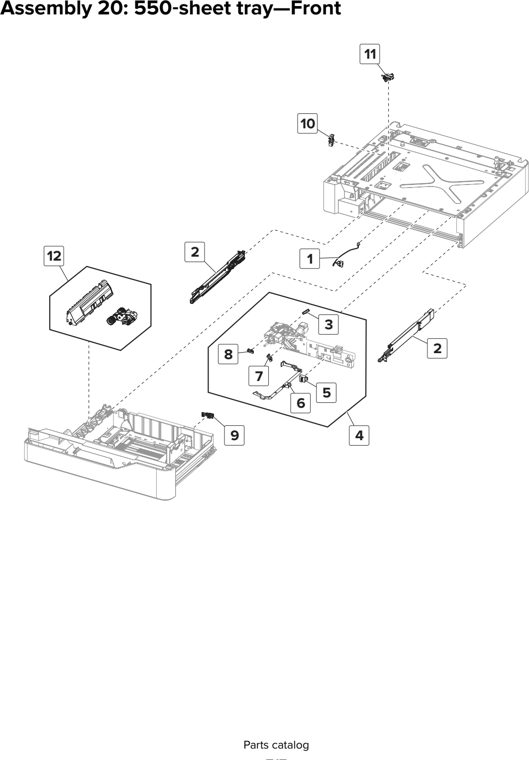

1 41X0335 550-sheet tray wake-up switch

2 41X0342 550-sheet tray rails

3 41X0684 Sensor (550-sheet tray media out)

4 41X0106 550-sheet tray paper feeder

5 40X7911 Sensor (550-sheet tray media size)

6 41X0338 550-sheet tray media out sensor actuator

7 41X0684 Sensor (550-sheet tray media low)

8 41X0684 Sensor (550-sheet tray pick roller index)

9 40X8541 550-sheet tray media size sensor actuators

10 41X0684 Sensor (550-sheet tray jam door)

11 41X0951 Sensor (550-sheet tray pass‑through)

12 41X0999 Pick roller and separator pad

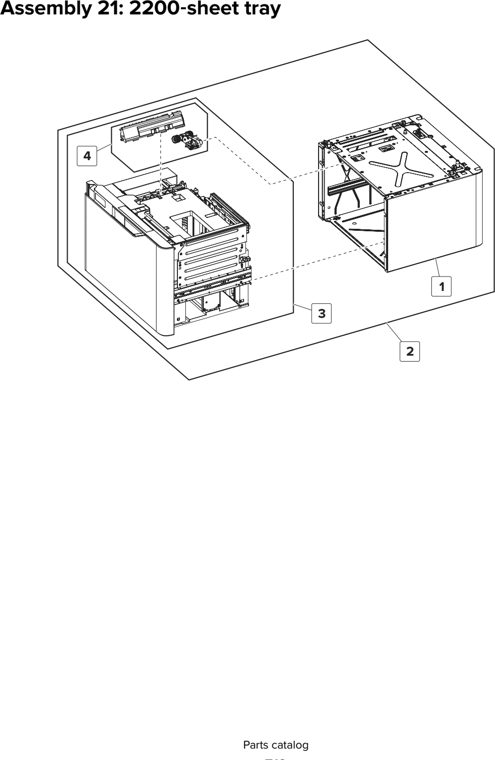

1 41X0329 2200-sheet tray base

2 41X0328 2200-sheet tray

3 41X0330 2200-sheet tray insert

4 41X0999 Pick roller and separator pad

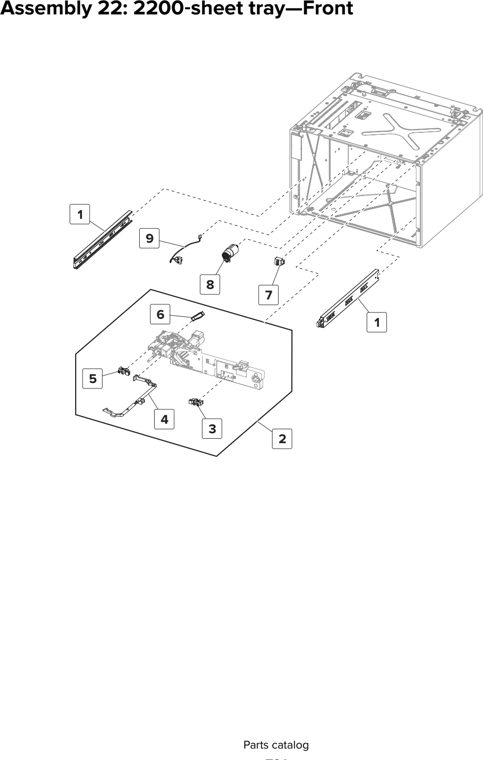

1 41X0343 2200-sheet tray rails

2 41X0369 2200-sheet tray paper feeder

3 41X0684 Sensor (2200-sheet tray media low)

4 41X0338 2200-sheet tray media out sensor actuator

5 41X0684 Sensor (2200-sheet tray pick roller index)

6 41X0684 Sensor (2200-sheet tray media out)

7 40X7911 Sensor (2200-sheet tray media size)

8 41X0140 Lift motor

9 41X0335 2200-sheet tray wake up switch

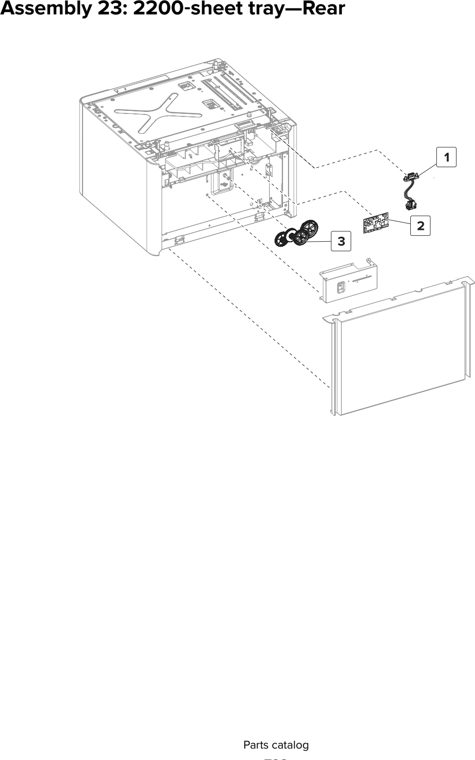

1 41X0337 2200‑sheet tray interface cable

2 41X0332 2200-sheet tray controller board

3 41X0351 2200-sheet tray elevator gears

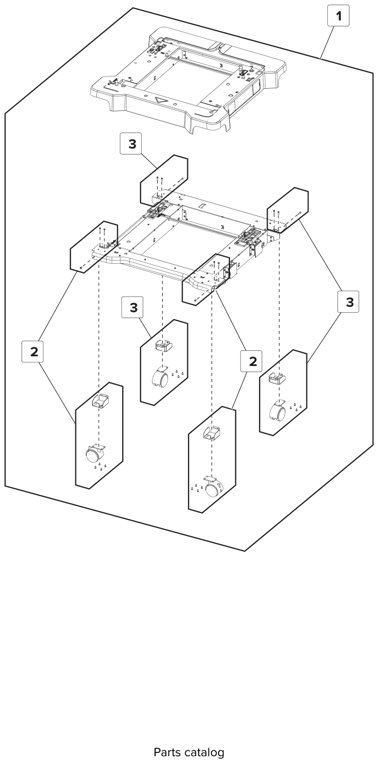

1 41X0762 Caster base

2 41X0774 Caster base locking caster

3 41X0775 Caster base non-locking caster

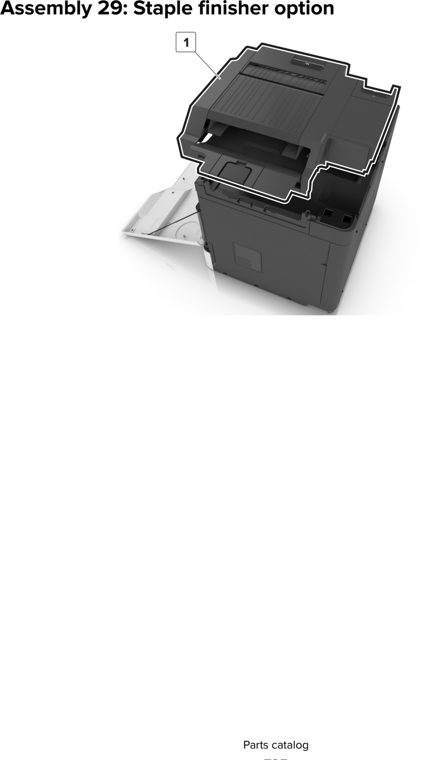

1 41X0746 Staple finisher option

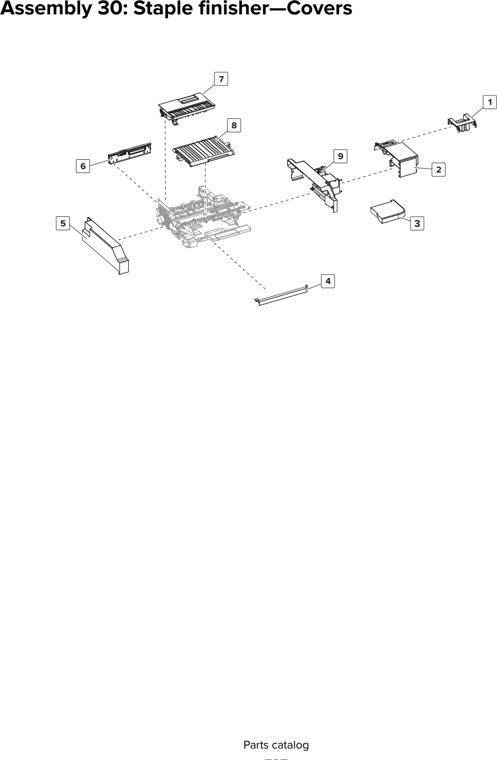

1 41X0531 Staple finisher staple cartridge door

2 41X0495 Staple finisher rear cover

3 41X0933 Staple finisher cover

4 41X0493 Staple finisher right cover

5 41X0494 Staple finisher front cover

6 41X0520 Staple finisher lock assembly

7 41X0498 Staple finisher jam door

8 41X0507 Staple finisher top cover

9 41X0497 Staple finisher inner rear cover

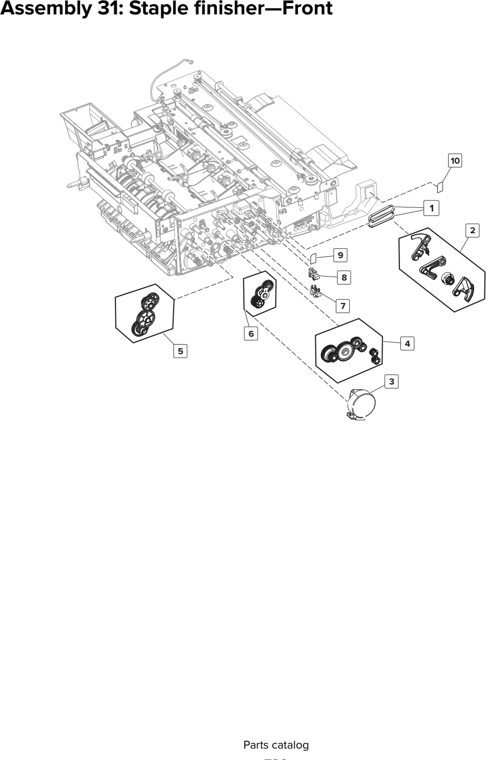

1 41X0521 Staple finisher exit roller belts

2 41X0516 Staple finisher front upper exit roller position gears

3 40X8753 Motor (staple finisher aligner paddle)

4 41X0514 Staple finisher exit gears

5 41X0512 Staple finisher transport gears

6 41X0513 Staple finisher aligner paddle gears

7 40X7301 Sensor (staple finisher aligner paddle)

8 40X7301 Sensor (staple finisher upper exit roller)

9 41X0504 Sensor (staple finisher front lower bin full)

10 41X0504 Sensor (staple finisher front upper bin full)

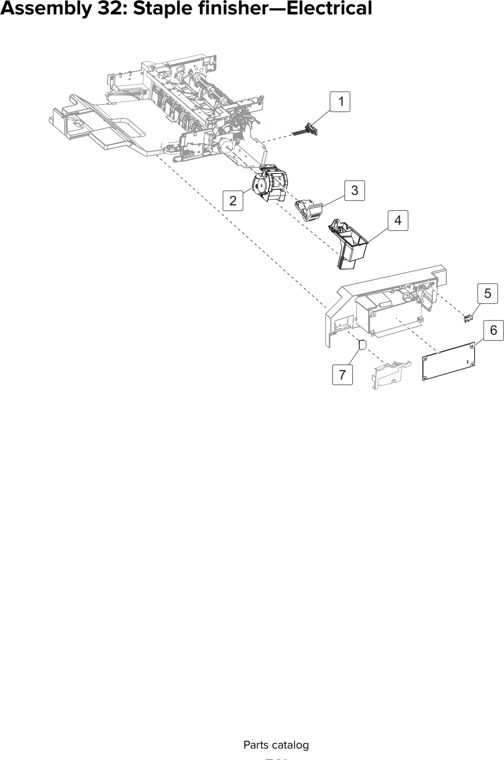

1 41X0506 Staple finisher interface cable

2 41X0501 Staple finisher staple unit

3 41X0530 Staple finisher staple cartridge holder

4 41X0500 Staple finisher staple cartridge ejector

5 41X0499 Staple finisher staple cartridge door switch

6 41X0496 Staple finisher controller board

7 41X0504 Sensor (staple finisher rear lower bin full)

NS 41X0783 Staple finisher cable parts pack

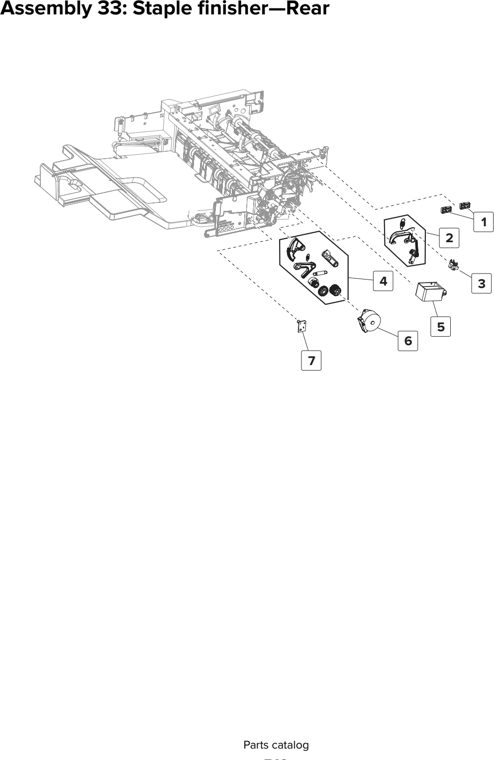

1 41X0505 1 2 Staple finisher jam door switch

2 41X0503 Staple finisher stack clamp

3 40X7301 Sensor (staple finisher stack clamp)

4 41X0784 Staple finisher rear upper exit roller position gears

5 41X0502 Staple finisher stack clamp solenoid

6 40X8256 Motor (staple finisher upper exit roller)

7 41X0504 Sensor (staple finisher rear upper bin full)

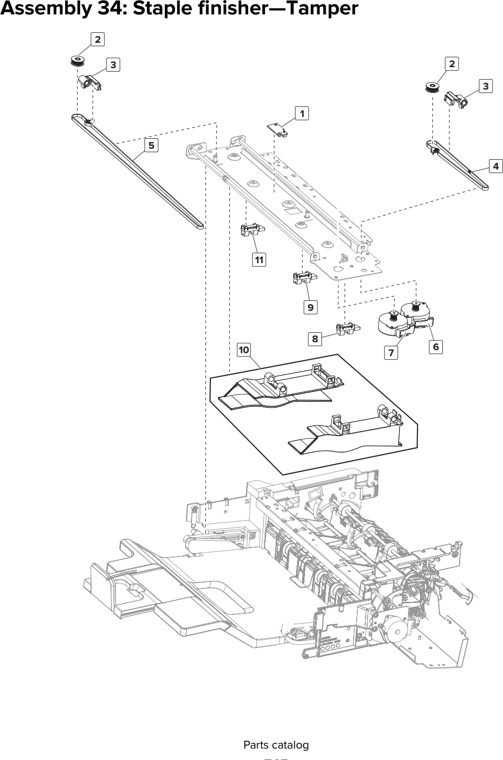

1 41X0778 Staple finisher cave light

2 41X0776 Staple finisher tamper pulley gears

3 41X0508 Staple finisher tamper belt holders

4 41X0535 Staple finisher rear tamper belt

5 41X0534 Staple finisher front tamper belt

6 40X8211 Motor (staple finisher rear tamper)

7 40X8211 1 7 Motor (staple finisher front tamper)

8 40X7301 Sensor (staple finisher rear tamper home)

9 40X7301 Sensor (staple finisher narrow media tamper)

10 41X0509 Staple finisher tampers

11 40X7301 Sensor (staple finisher front tamper home)

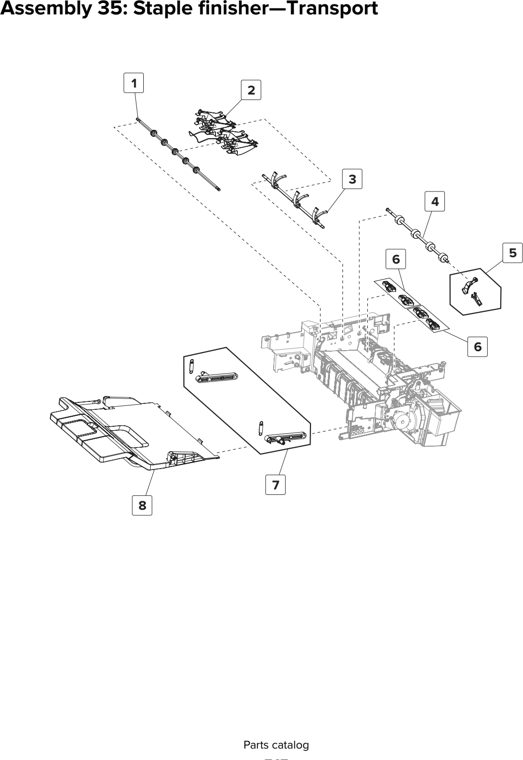

1 41X0515 Staple finisher upper exit roller

2 41X0519 Staple finisher upper paper guide

3 41X0518 Staple finisher aligner paddle

4 41X0517 Staple finisher compiler feed roller

5 41X0525 Staple finisher compiler paper guide

6 41X0526 Staple finisher compiler feed idler

7 41X0527 Staple finisher bin link

8 41X0528 Staple finisher bin

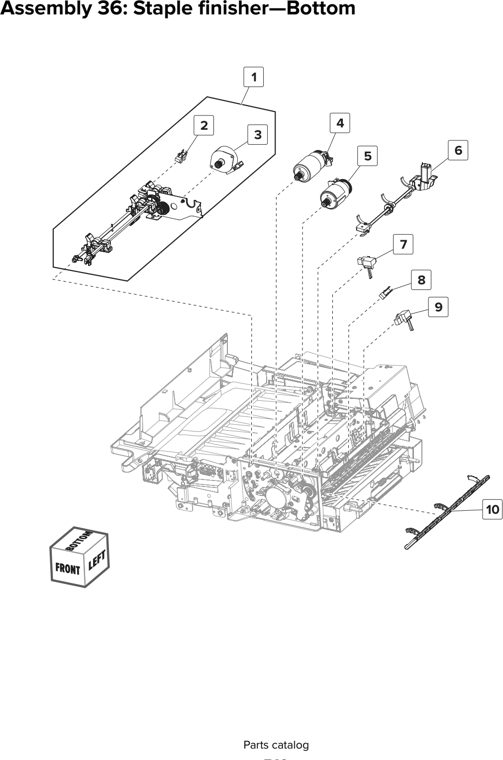

1 41X0532 Staple finisher bin clamp assembly

2 40X7301 Sensor (staple finisher bin clamp)

3 40X8256 Motor (staple finisher bin clamp)

4 41X0529 Motor (staple finisher exit

5 41X0529 Motor (staple finisher transport)

6 41X0523 Staple finisher decurl paddle

7 40X8745 Sensor (staple finisher staple unit paper present

8 40X7301 Sensor (staple finisher decurl)

9 40X8745 Sensor (staple finisher transport)

10 41X0511 Staple finisher entrance paper guide

NS 41X0786 Staple finisher screw parts pack

NS 41X0787 Staple finisher plastic clip
