Lexmark CS921 C9235 CS927 Parts

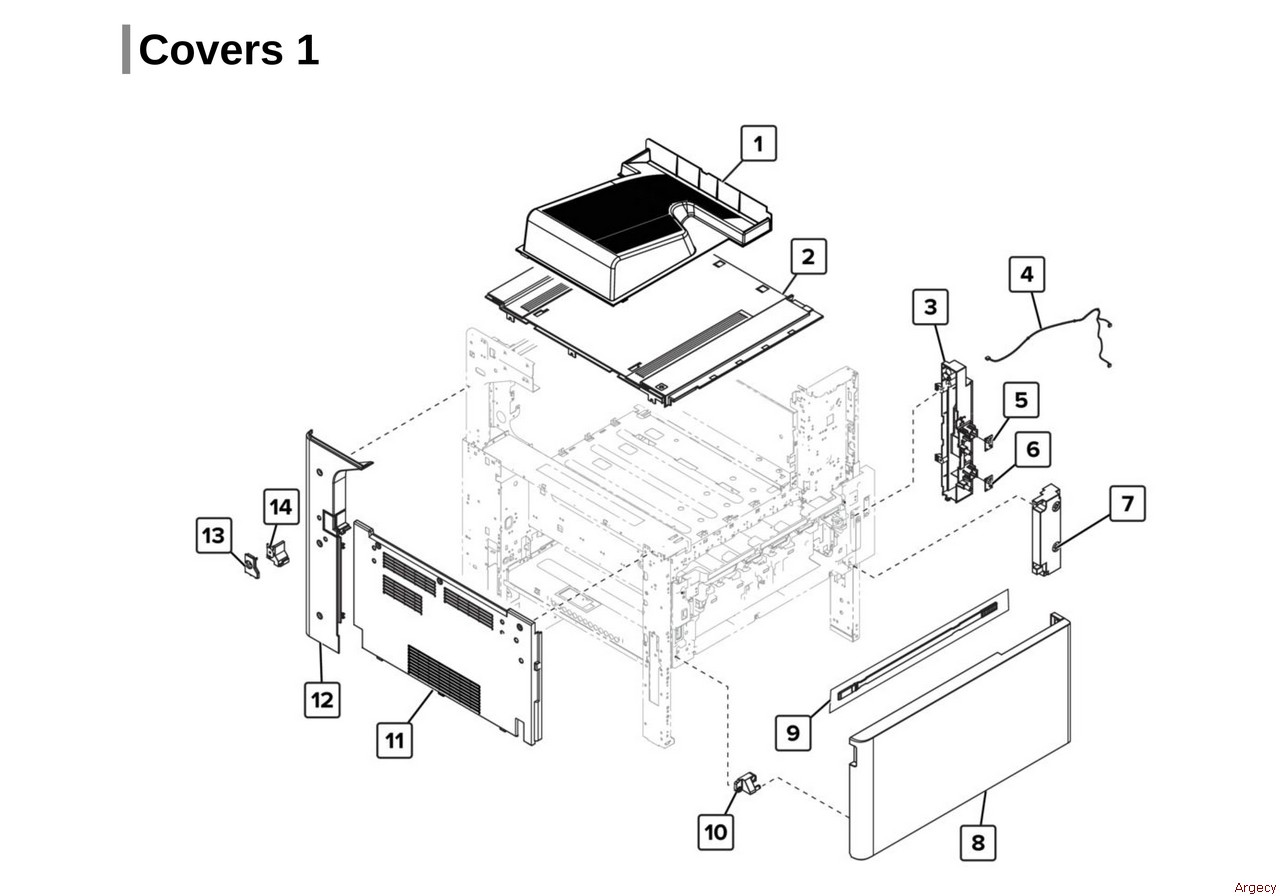

Assembly 1: Covers 1

1
41X1942 Standard bin
New
41X1942 (New)
$393.35



41X1942 Standard bin
Fully refurbished with 90-day warranty
41X1942



2
41X1414 ADF CIS jam access LATCH 2
Fully refurbished with 90-day warranty
41X1414
$302.94



3
40X9758 Tray empty board mount
New
40X9758 (New)
$86.08



40X9758 Tray empty board mount
Fully refurbished with 90-day warranty
40X9758
$70.21



4
40X8901 Tray empty board cable
New
40X8901 (New)
$18.35



40X8901 Tray empty board cable
Fully refurbished with 90-day warranty
40X8901
$11.99



5
40X8903 Tray empty indicator (LED)
New
40X8903 (New)
$21.65



40X8903 Tray empty indicator (LED)
Fully refurbished with 90-day warranty
40X8903
$19.46



6
40X8903 Tray empty indicator (LED)
New
40X8903 (New)
$21.65



40X8903 Tray empty indicator (LED)
Fully refurbished with 90-day warranty
40X8903
$19.46



7
41X1416 Tray empty LED cover
New
41X1416 (New)
$72.95



41X1416 Tray empty LED cover
Fully refurbished with 90-day warranty
"41X1416
$59.49
"



8
41X1565 Front door
New
41X1565 (New)
$506.04



41X1565 Front door
Fully refurbished with 90-day warranty
"41X1565
$369.24
"



9
41X2004 Printhead wiper
New
41X2004 (New)
$37.56



10
40X9761 Bottom front door hinge
New
40X9761 (New)
$17.18



40X9761 Bottom front door hinge
Fully refurbished with 90-day warranty
40X9761
$10.93



11
41X1793 Left cover
New
41X1793 (New)
$192.64



41X1793 Left cover
Fully refurbished with 90-day warranty
41X1793
$148.12



12
40X8899 Rear left cover
New
40X8899 (New)
$111.43



40X8899 Rear left cover
Fully refurbished with 90-day warranty
40X8899
$92.81



13
41X1944 Top left corner cover 1
New
41X1944 (New)
$24.36



14
41X1943 Top left corner cover 2
Fully refurbished with 90-day warranty
41X1943
$18.67



41X1943 Top left corner cover 2
New
41X1943 (New)
$24.36

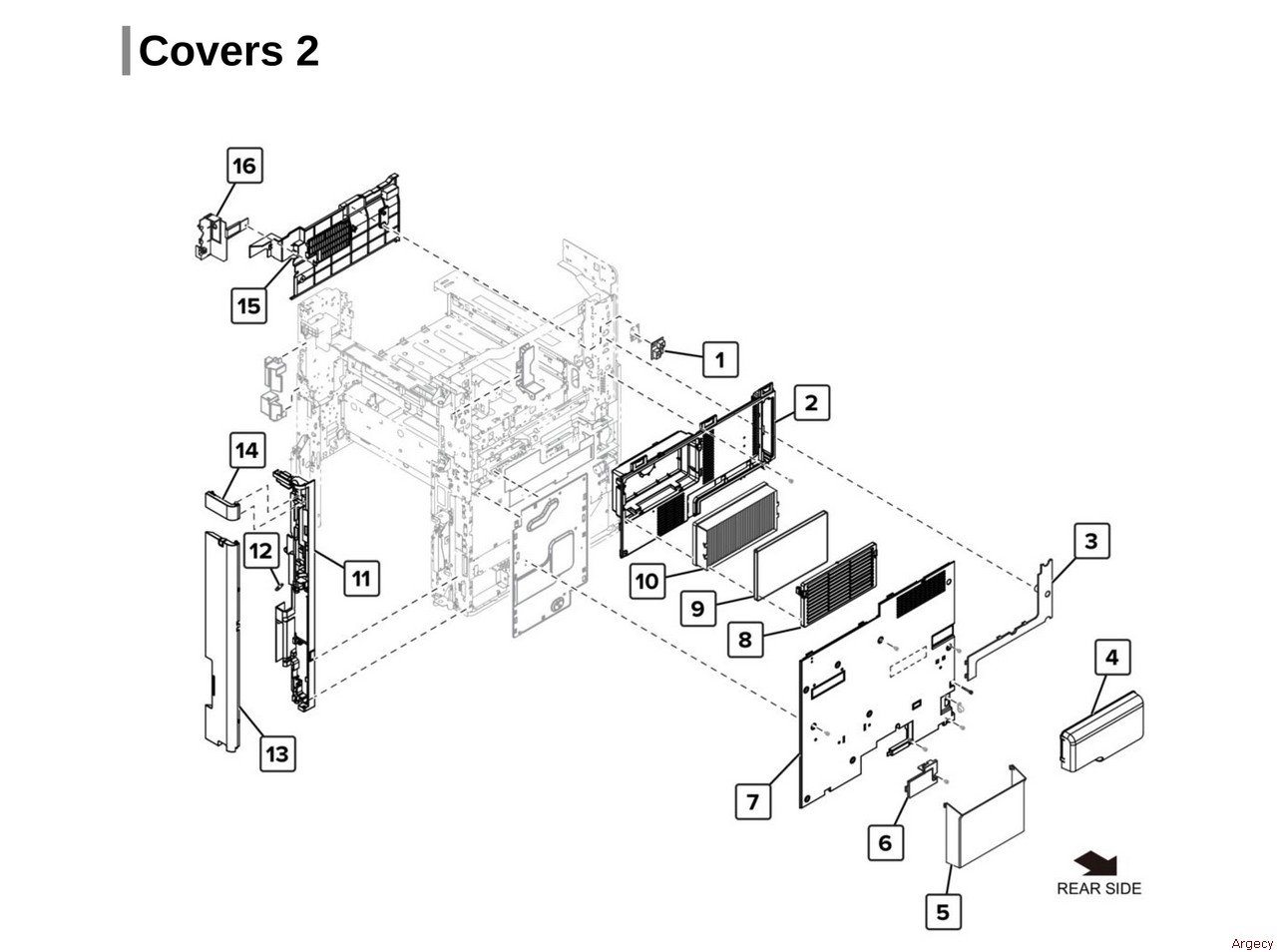

Assembly 2: Covers 2

1
41X1827 Power supply interface board
New
41X1827 (New)
$80.18



41X1827 Power supply interface board
Fully refurbished with 90-day warranty
41X1827
$65.40



2
41X1794 Upper rear cover
New
41X1794 (New)
$301.26



41X1794 Upper rear cover
Fully refurbished with 90-day warranty
41X1794
$219.78



3
40X9762 Scanner interface cable cover
New
40X9762 (New)
$46.66



40X9762 Scanner interface cable cover
Fully refurbished with 90-day warranty
40X9762
$38.04



4
41X1837 Air deflector hood
New
41X1837 (New)
$88.23



41X1837 Air deflector hood
Fully refurbished with 90-day warranty
41X1837
$71.97



5
41X1927 Document holder
New
41X1927 (New)
$83.99



41X1927 Document holder
Fully refurbished with 90-day warranty
41X1927
$64.98



6
41X1926 Option interface cable cover
New
41X1926 (New)
$46.10



41X1926 Option interface cable cover
Fully refurbished with 90-day warranty
41X1926
$37.58



7
41X1795 Lower rear cover
New
41X1795 (New)
$306.65



41X1795 Lower rear cover
Fully refurbished with 90-day warranty
41X1795
$235.82



8
41X1796 Fuser exhaust grill
New
41X1796 (New)
$74.57



41X1796 Fuser exhaust grill
Fully refurbished with 90-day warranty
41X1796
$60.82



9
41X2029 Odor filter
New
41X2029 (New)
$249.91



10
41X1797 Fuser exhaust filter
New
41X1797 (New)
$138.73



11
41X1425 Port mount
New
41X1425 (New)
$155.01



41X1425 Port mount
Fully refurbished with 90-day warranty
41X1425
$112.95



12
41X1824 Port mount cover spring
New
41X1824 (New)
$8.27



13
41X1426 Port access door
New
41X1426 (New)
$139.50



41X1426 Port access door
Fully refurbished with 90-day warranty
41X1426
$116.20



14
41X1798 Port access door extension
New
41X1798 (New)
$24.54



15
41X1825 Bin side cover
New
41X1825 (New)
$111.20



41X1825 Bin side cover
Fully refurbished with 90-day warranty
41X1825
$92.62



16
41X1429 Right bin side cover
New
41X1429 (New)
$23.01



41X1429 Right bin side cover
Fully refurbished with 90-day warranty
41X1429
$20.68

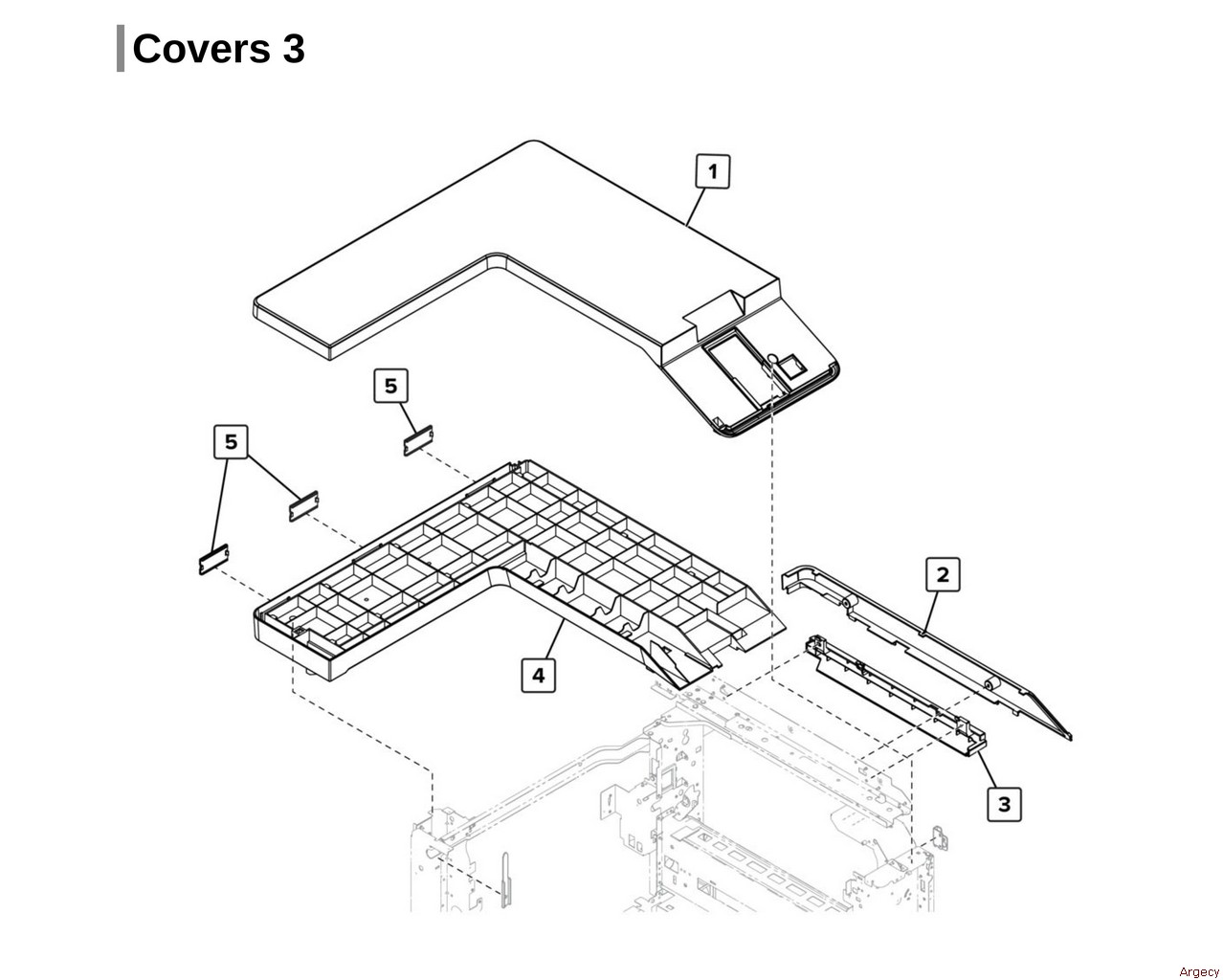

Assembly 3: Covers 3

1
41X1949 Top cover
Fully refurbished with 90-day warranty
41X1949
$270.99



41X1949 Top cover
New
41X1949 (New)
$371.42



2
41X1950 Top right cover
Fully refurbished with 90-day warranty
41X1950
$111.84



41X1950 Top right cover
New
41X1950 (New)
$141.52



3
41X1840 Top right edge cover
New
41X1840 (New)
$84.73



41X1840 Top right edge cover
Fully refurbished with 90-day warranty
41X1840
$69.12



4
41X1951 Top cover support base
Fully refurbished with 90-day warranty
41X1951
$204.35



41X1951 Top cover support base
New
41X1951 (New)
$280.11



5
41X1952 Latch cover
Fully refurbished with 90-day warranty
41X1952
$6.63



41X1952 Latch cover
New
41X1952 (New)
$12.82

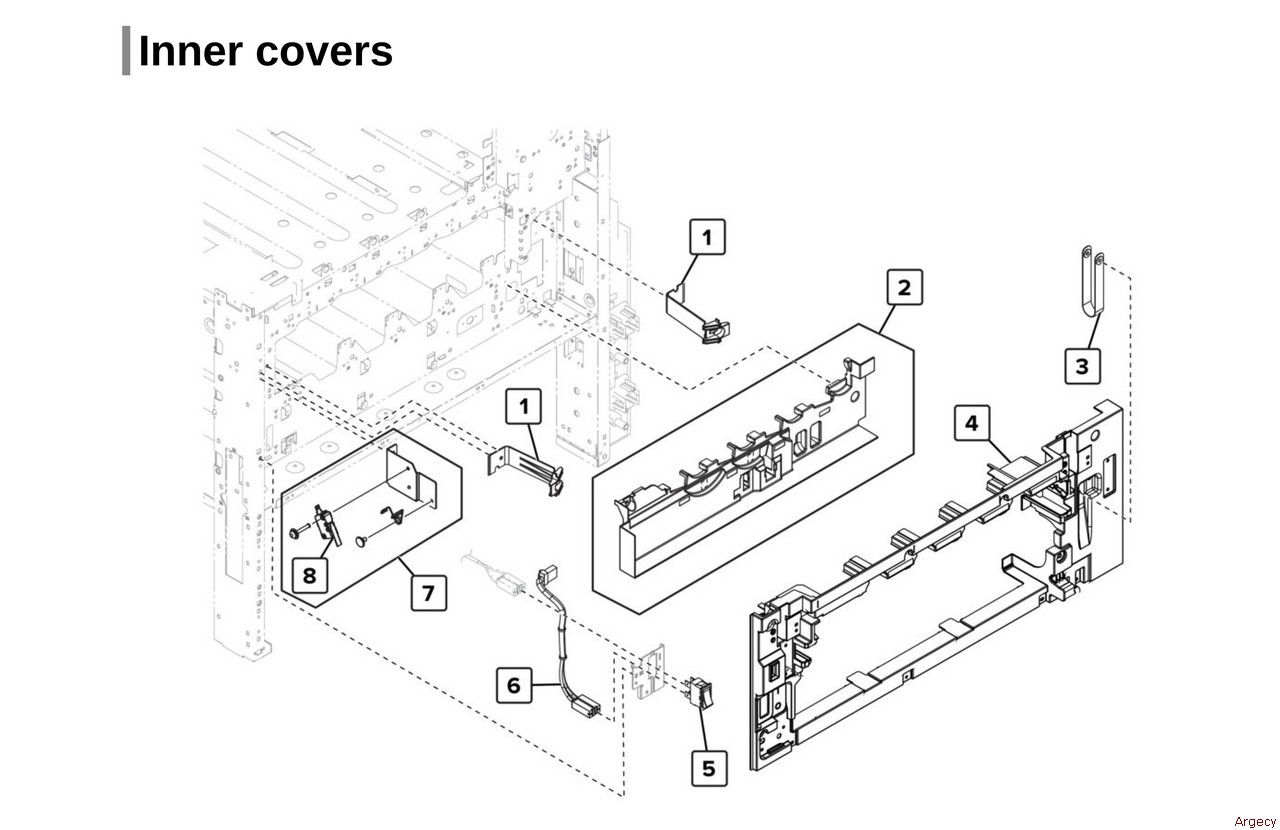

Assembly 4: Inner covers

1
40X8915 Waste toner bottle latch
New
40X8915 (New)
$16.88



40X8915 Waste toner bottle latch
Fully refurbished with 90-day warranty
40X8915
$10.66



2
41X1431 Front inner cover
New
41X1431 (New)
$114.81



41X1431 Front inner cover
Fully refurbished with 90-day warranty
41X1431
$95.63



3


4
41X1566 Waste toner door mount
New
41X1566 (New)
$237.19



41X1566 Waste toner door mount
Fully refurbished with 90-day warranty
41X1566
$173.03



5
40X8917 Main power switch
New
40X8917 (New)
$24.46



40X8917 Main power switch
Fully refurbished with 90-day warranty
40X8917
$19.92



6
41X1799 Main power switch cable
New
41X1799 (New)
$33.72



41X1799 Main power switch cable
Fully refurbished with 90-day warranty
"41X1799
$27.47
"



7
40X9963 Waste toner door switch
New
40X9963 (New)
$58.48



40X9963 Waste toner door switch
Fully refurbished with 90-day warranty
40X9963
$47.69



8
40X9527 Door switch
New
40X9527 (New)
$22.82

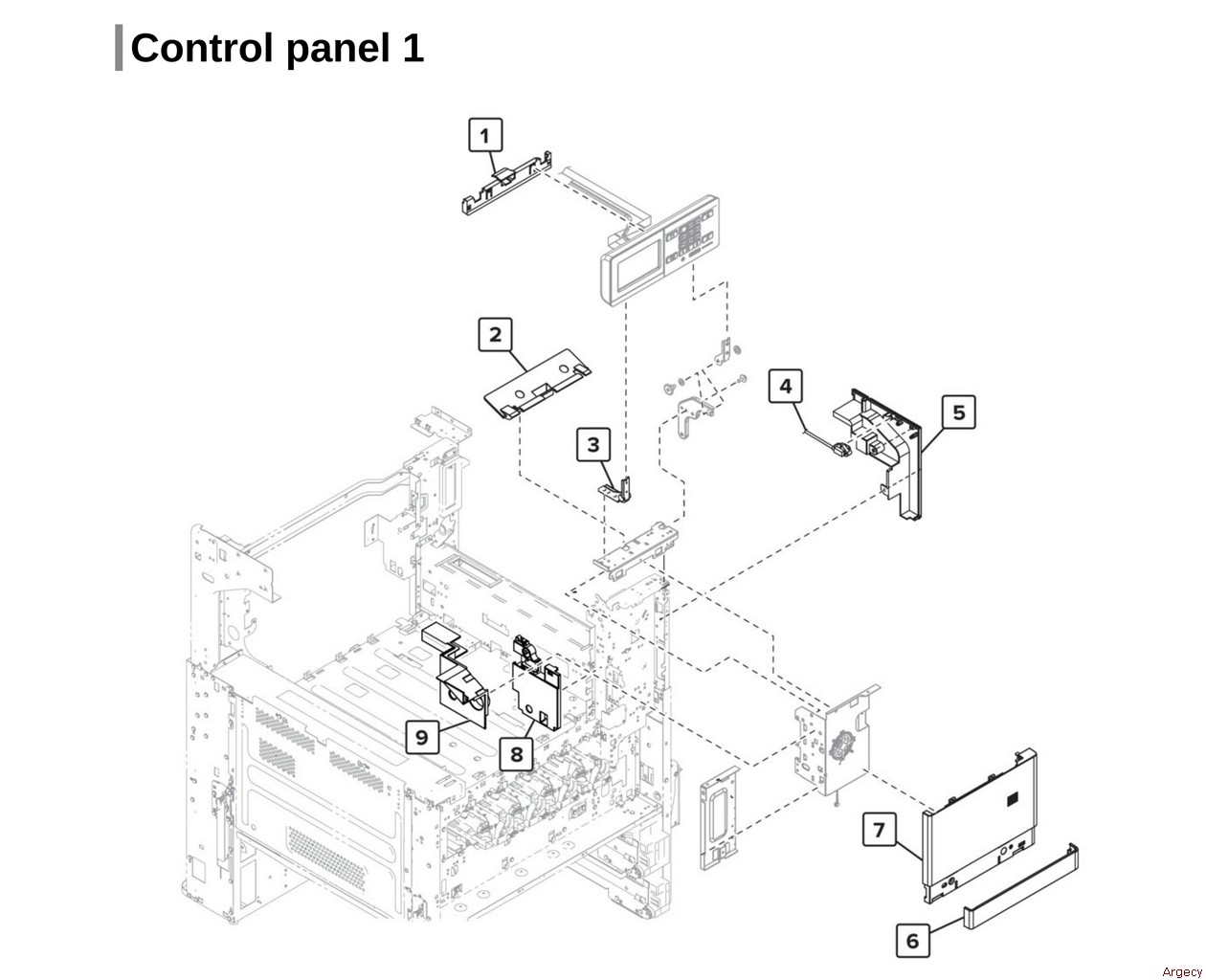

Assembly 5: Control panel 1

1

41X1922 Control panel cable guide cover
Fully refurbished with 90-day warranty
41X1922
$19.77



2
41X1921 Control panel support base
New
41X1921 (New)
$49.81



41X1921 Control panel support base
Fully refurbished with 90-day warranty
41X1921
$38.51



3
41X1948 Control panel hinge
Fully refurbished with 90-day warranty
41X1948
$123.68



41X1948 Control panel hinge
New
41X1948 (New)
$178.90



4
41X1923 USB extension cable
New
41X1923 (New)
$87.92



41X1923 USB extension cable
Fully refurbished with 90-day warranty
41X1923
$68.03



5
41X1838 USB port cover
New
41X1838 (New)
$92.02



41X1838 USB port cover
Fully refurbished with 90-day warranty
41X1838
$75.06



6
41X1764 Speaker bottom cover
New
41X1764 (New)
$32.86



41X1764 Speaker bottom cover
Fully refurbished with 90-day warranty
41X1764
$26.77



7
41X1763 Speaker cover
New
41X1763 (New)
$127.67



41X1763 Speaker cover
Fully refurbished with 90-day warranty
41X1763
$106.34



8

40X9967 Operator panel cable guide lower cover
Fully refurbished with 90-day warranty
40X9967
$36.68



9

41X1765 Control panel cable guide lower cover
Fully refurbished with 90-day warranty
41X1765
$54.27



NS
41X2111 Speaker
Fully refurbished with 90-day warranty
41X2111
$223.78



41X2111 Speaker
New
41X2111 (New)
$291.00

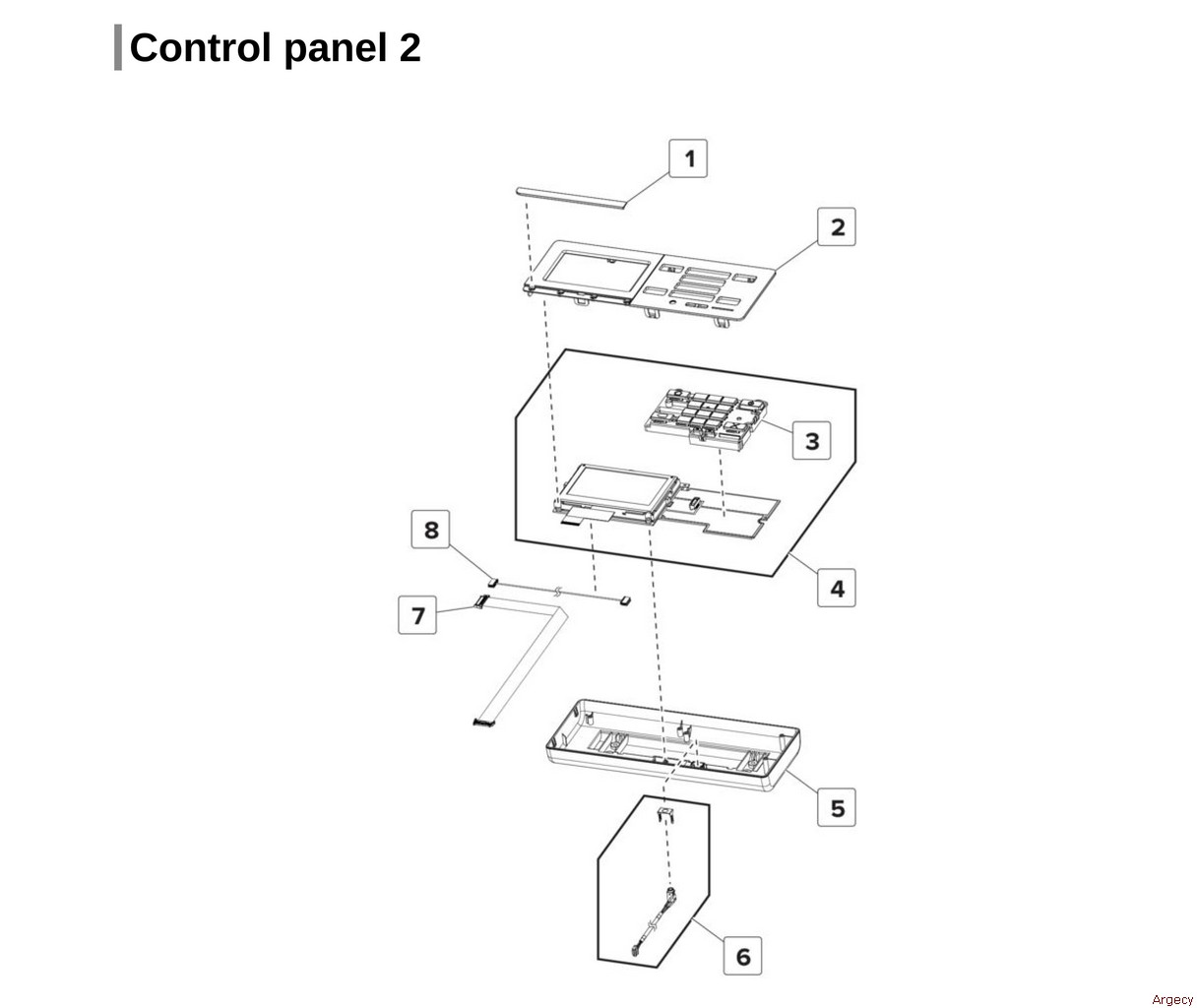

Assembly 6: Control panel 2

1 41X1464 Model plate, CS921

1 41X2106 Model plate, C9235

1 41X2107 Model plate, CS927

2
41X1467 4.3 in. control panel front cover
Fully refurbished with 90-day warranty
41X1467
$43.10





3

4
41X0050 Operator panel card
New
41X0050 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$208.06





5
41X1473 4.3 in. control panel rear
Fully refurbished with 90-day warranty
41X1473
$60.77



41X1473 4.3 in. control panel rear
New
41X1473 (New)
$74.51



6
41X1478 Headphone Jack
New
41X1478 (New)
$64.06



41X1478 Headphone Jack
Fully refurbished with 90-day warranty
41X1478
$52.24



7
41X1483 4.3 in. control panel FFC
Fully refurbished with 90-day warranty
41X1483
$53.78



41X1483 4.3 in. control panel FFC
New
41X1483 (New)
$65.95



8
41X1487 4.3 in. control panel power cable
Fully refurbished with 90-day warranty
41X1487
$43.74

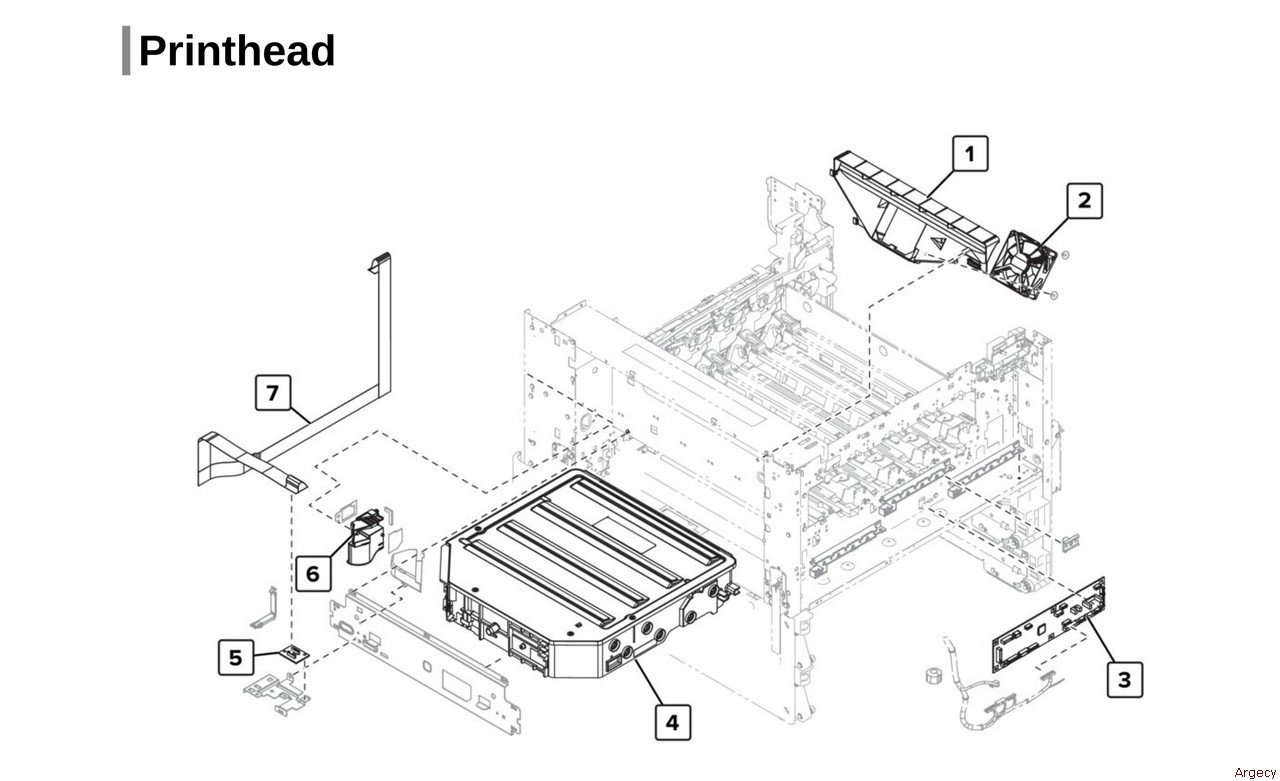

Assembly 7: Printhead

1
41X1447 Transfer belt duct
New
41X1447 (New)
$58.72



41X1447 Transfer belt duct
Fully refurbished with 90-day warranty
41X1447
$47.88



2
40X8945 Fan
New
40X8945 (New)
$53.65



40X8945 Fan
Fully refurbished with 90-day warranty
40X8945
$43.74



3
41X1567 Image controller board
New
41X1567 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$299.84



41X1567 Image controller board
Fully refurbished with 90-day warranty
41X1567
$230.58



4
41X1801 Printhead
New
41X1801 (New)
$1490.49



41X1801 Printhead
Fully refurbished with 90-day warranty
41X1801
$1145.00



5
41X1800 Printhead relay board
New
41X1800 (New)
$110.62



41X1800 Printhead relay board
Fully refurbished with 90-day warranty
41X1800
$92.13



6
41X1415 Toner filter duct
New
41X1415 (New)
$30.64



7
41X1450 Printhead FFC
New
41X1450 (New)
$75.34



41X1450 Printhead FFC
Fully refurbished with 90-day warranty
41X1450
$61.45

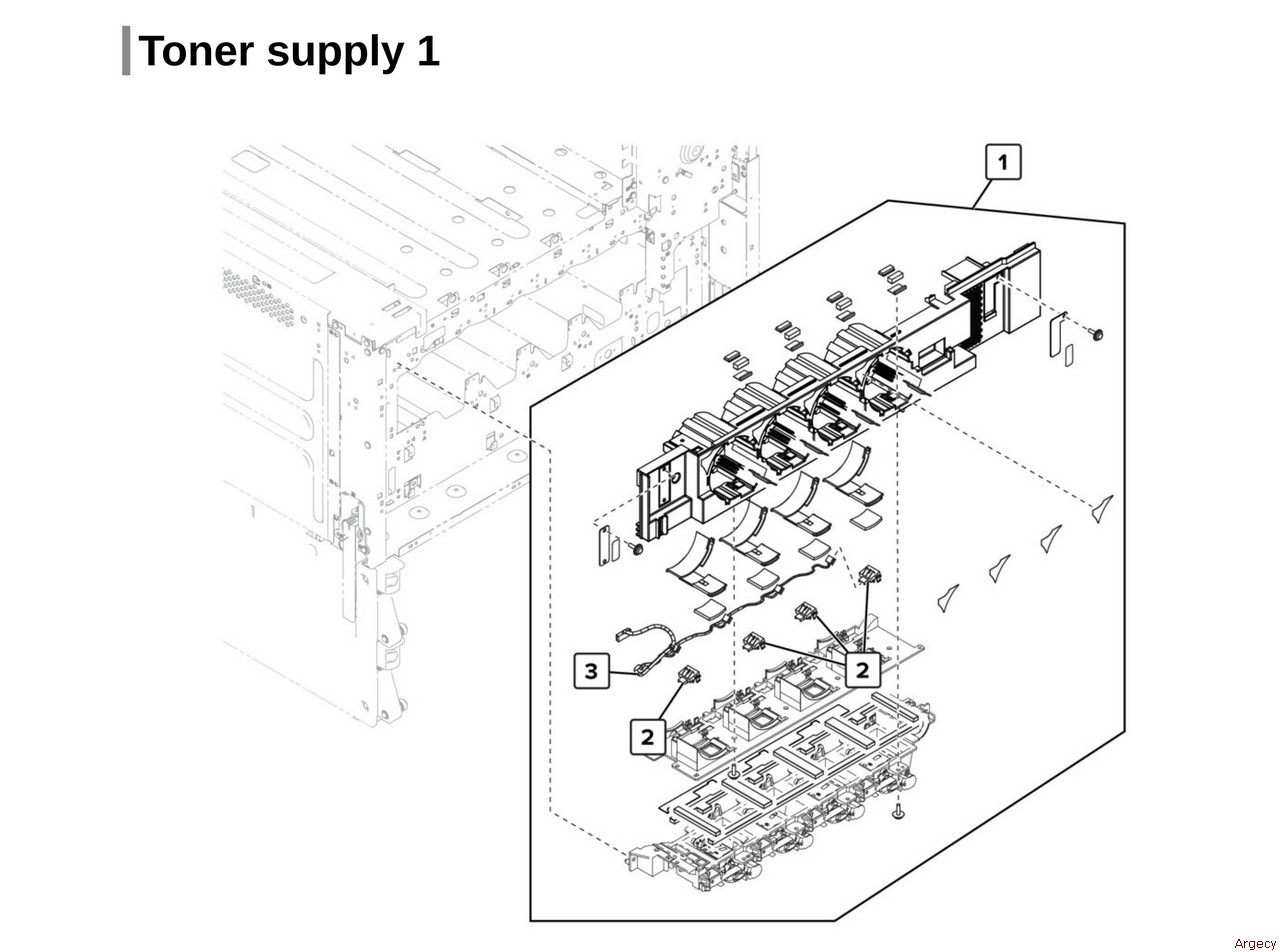

Assembly 8: Toner supply 1

1
41X1451 Toner agitator
New
41X1451 (New)
$665.07



41X1451 Toner agitator
Fully refurbished with 90-day warranty
41X1451
$511.52



2


3

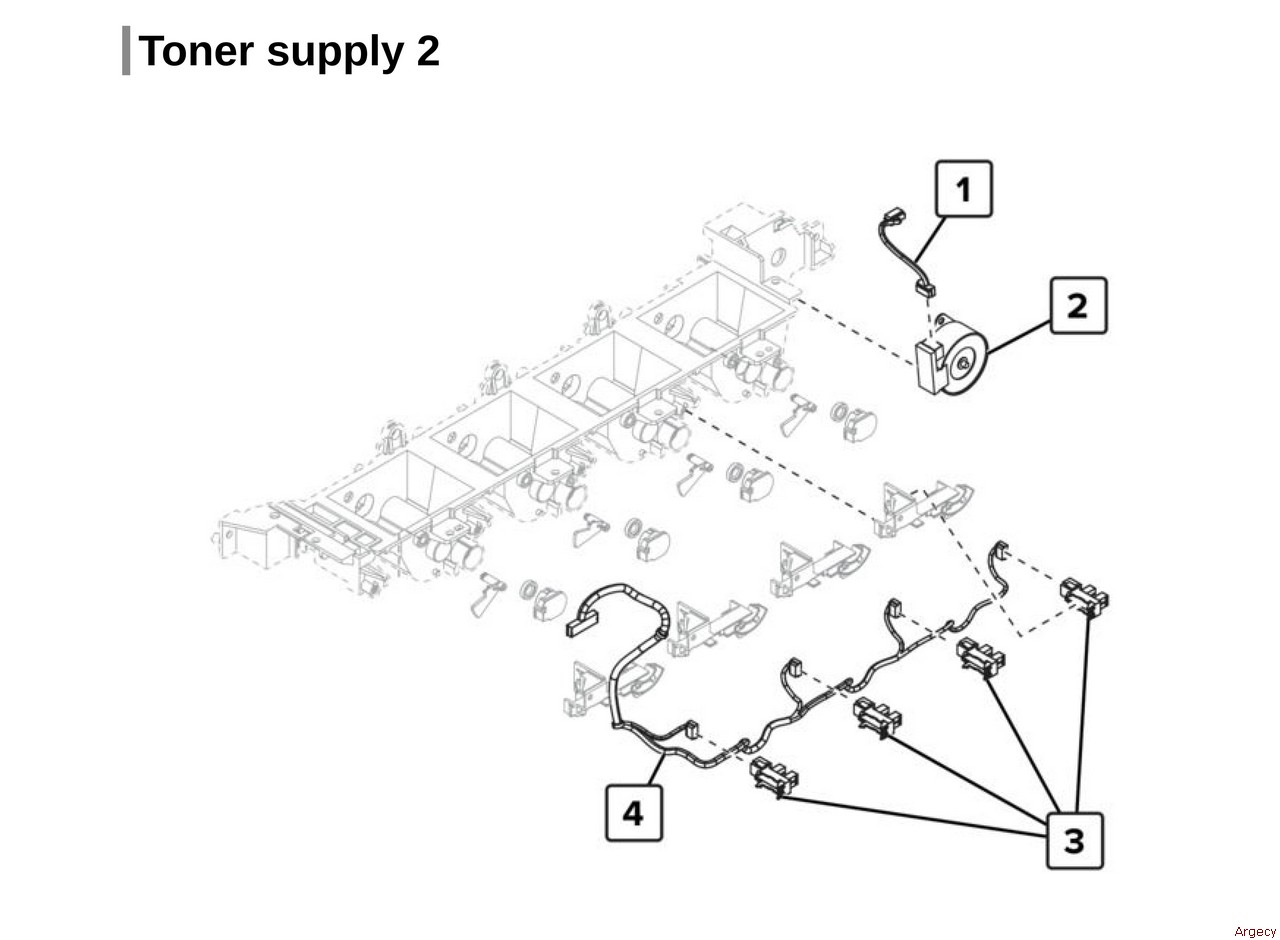

Assembly 9: Toner supply 2

1
40X8957 Toner supply motor cable
Fully refurbished with 90-day warranty
40X8957
$6.90



2
41X1452 Motor
New
41X1452 (New)
$83.16



41X1452 Motor
Fully refurbished with 90-day warranty
41X1452
$64.34



3
41X1391 Sensor
New
41X1391 (New)
$16.57



41X1391 Sensor
Fully refurbished with 90-day warranty
41X1391
$10.38



4
41X1453 Toner empty sensor cable
New
41X1453 (New)
$27.36



Assembly 10: Waste toner

1
40X8959 Waste toner duct
New
40X8959 (New)
$92.53



40X8959 Waste toner duct
Fully refurbished with 90-day warranty
40X8959
$75.48



2
41X1803 Waste toner drive
New
41X1803 (New)
$133.50



41X1803 Waste toner drive
Fully refurbished with 90-day warranty
"41X1803
$111.20
"

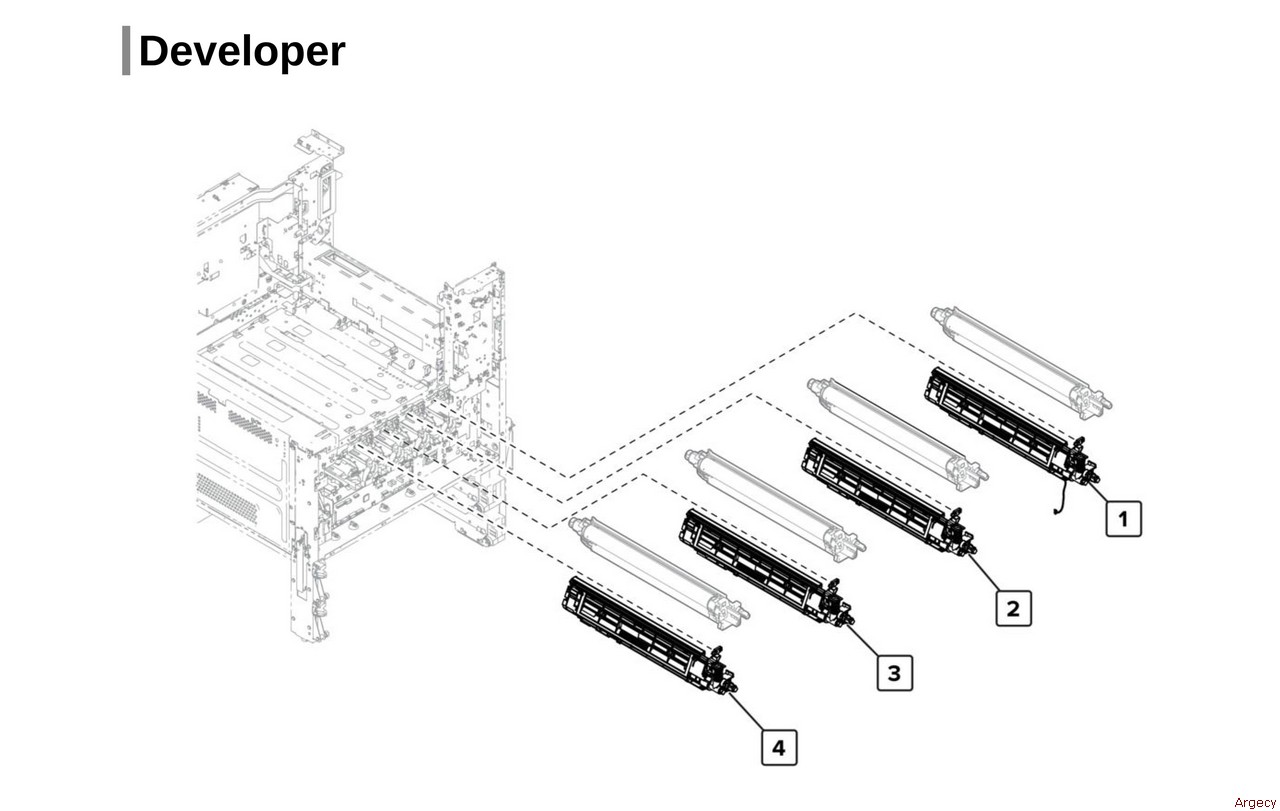

Assembly 11: Developer

1
41X1598 Black developer maintenance kit
New
41X1598 (New)
$248.30



2
41X1595 Developer unit (C)
New
41X1595 (New)
$1264.90



3
41X1596 Developer unit (M)
New
41X1596 (New)
$1264.90



4
41X1597 Developer unit (Y)
New
41X1597 (New)
$1264.90

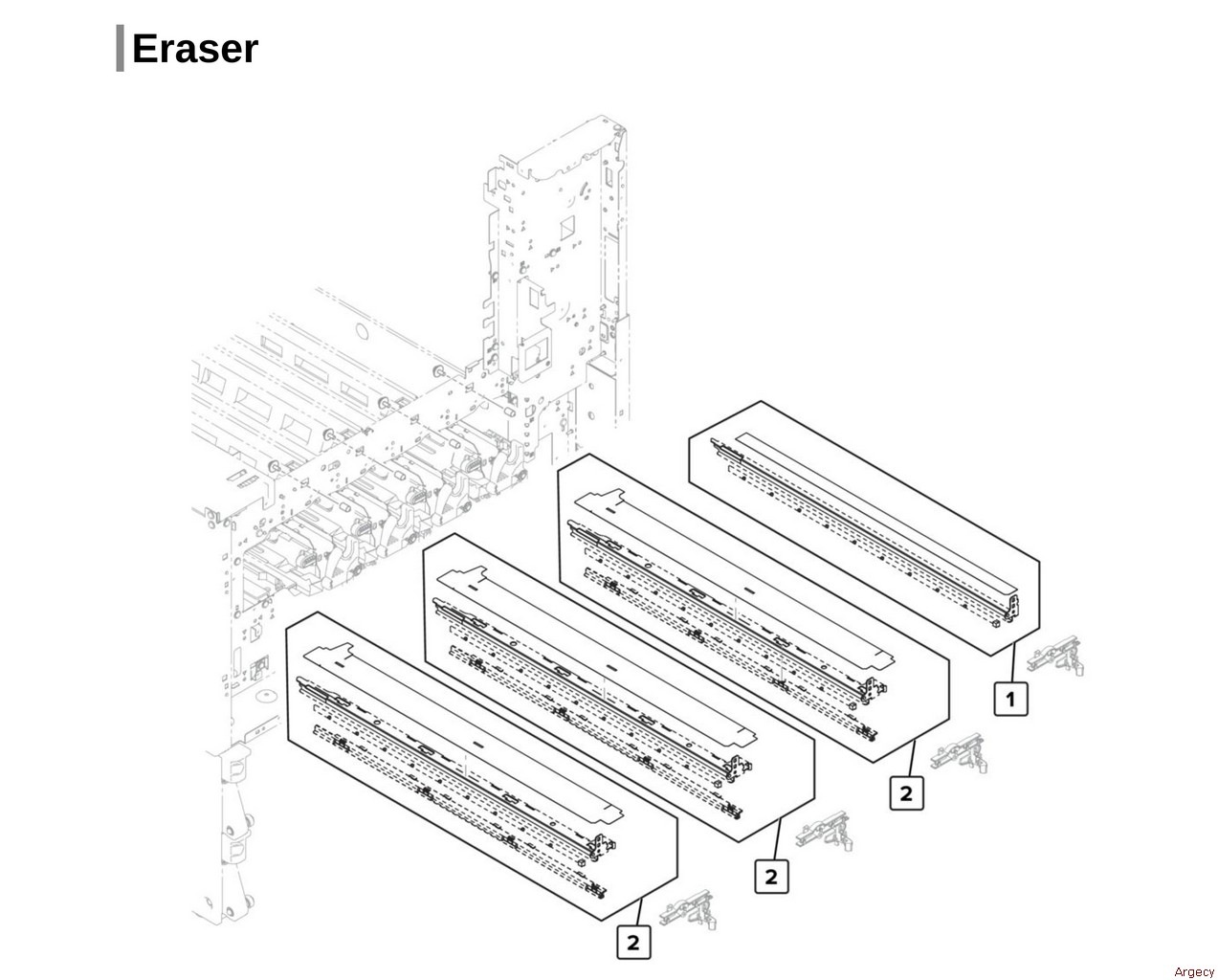

Assembly 12: Eraser

1
41X1457 Erase LED (K)
New
41X1457 (New)
$191.82



41X1457 Erase LED (K)
Fully refurbished with 90-day warranty
41X1457
$147.49



2
41X1456 Erase LED (CMY)
New
41X1456 (New)
$220.96



41X1456 Erase LED (CMY)
Fully refurbished with 90-day warranty
41X1456
$169.90

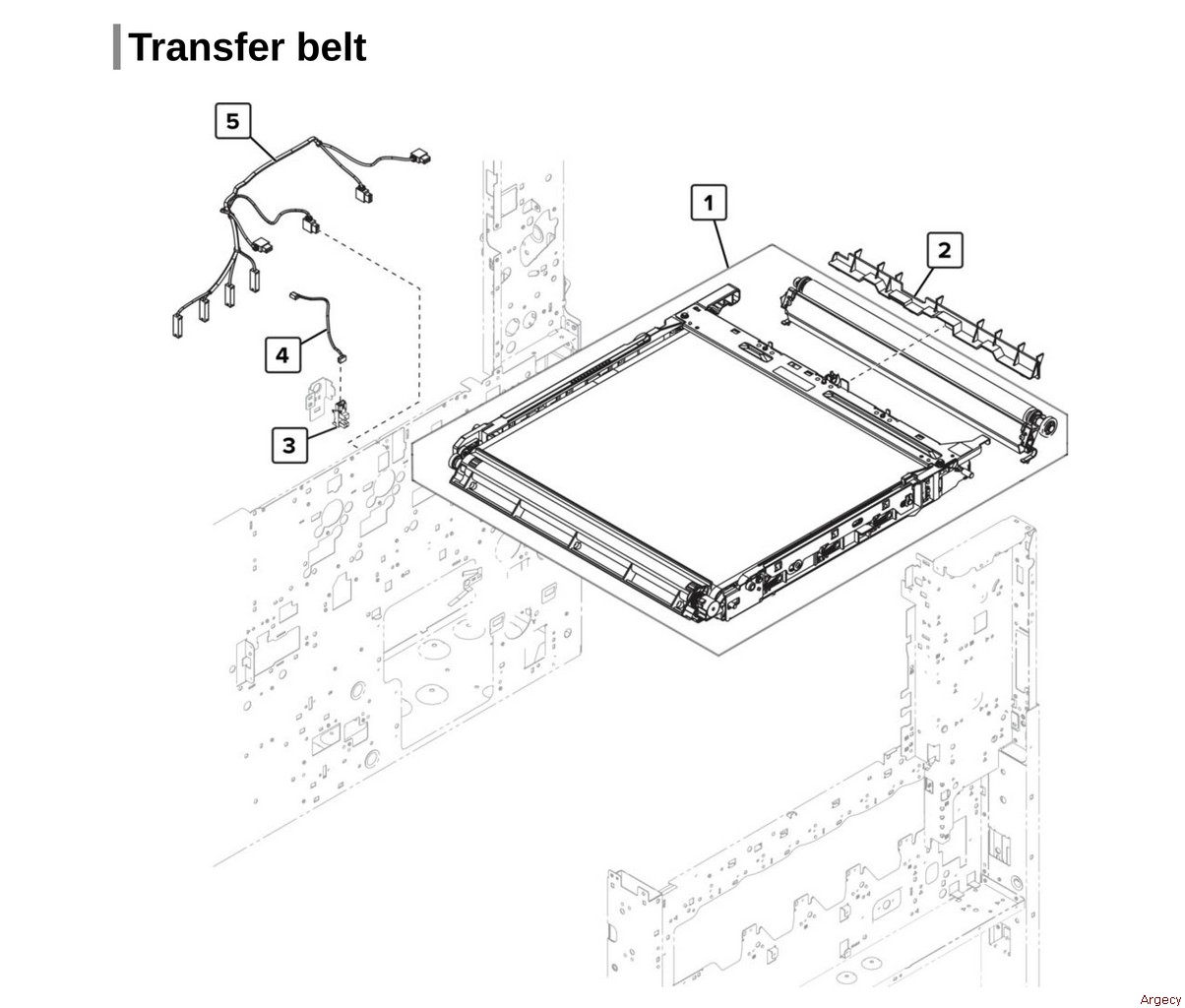

Assembly 13: Transfer belt

1
41X1459 Transfer belt
New
41X1459 (New)
$474.48



2
40X9979 Transfer belt paper guide
New
40X9979 (New)
$33.95



3
41X1444 Sensor
New
41X1444 (New)
$36.99



41X1444 Sensor
Fully refurbished with 90-day warranty
41X1444
$30.14



4

5
41X1462 Transfer belt charge cable
New
41X1462 (New)
$69.99



41X1462 Transfer belt charge cable
Fully refurbished with 90-day warranty
41X1462
$57.08

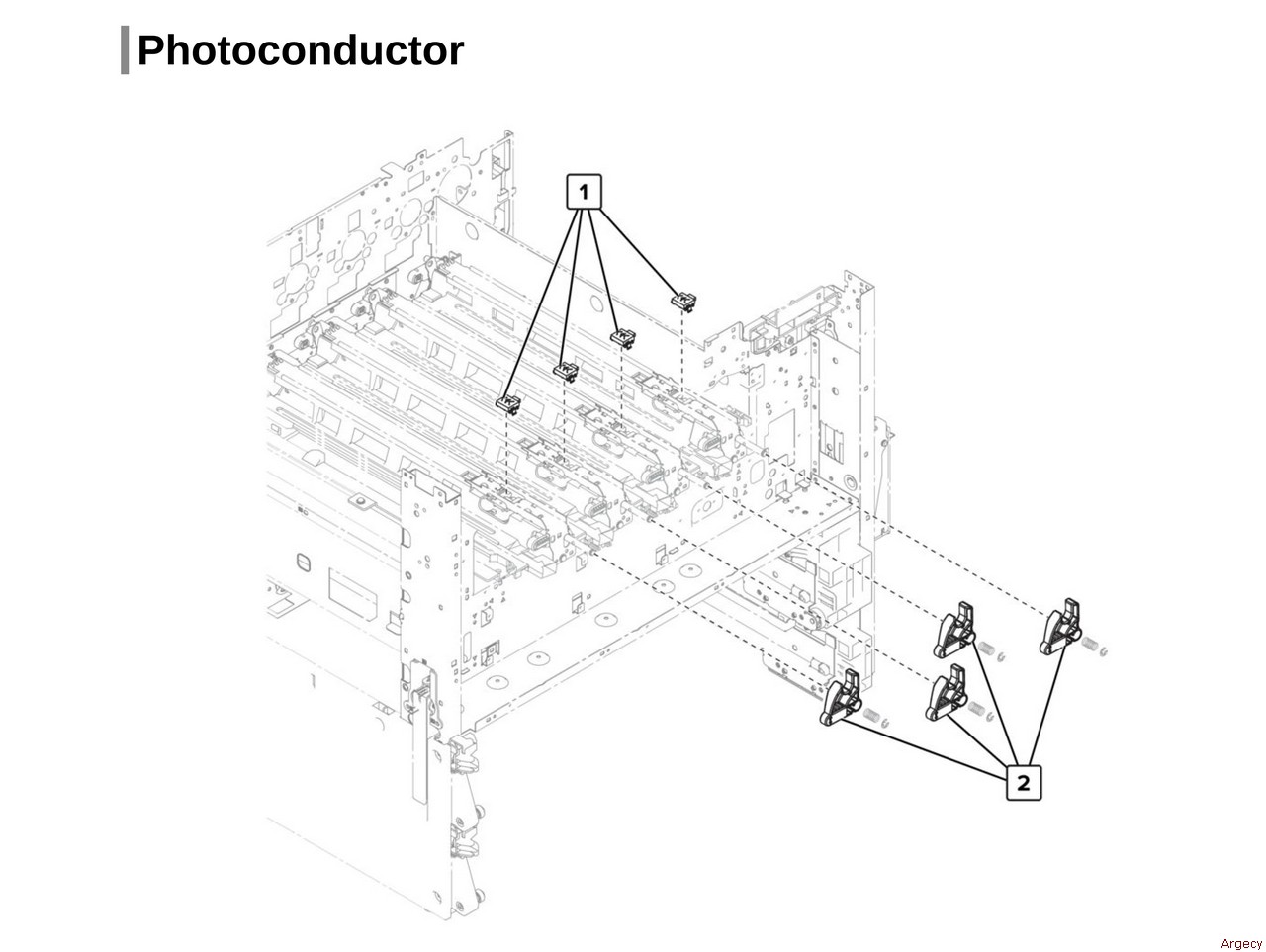

Assembly 14: Photoconductor

1


2
40X9978 Photoconductor release lever
New
40X9978 (New)
$15.70

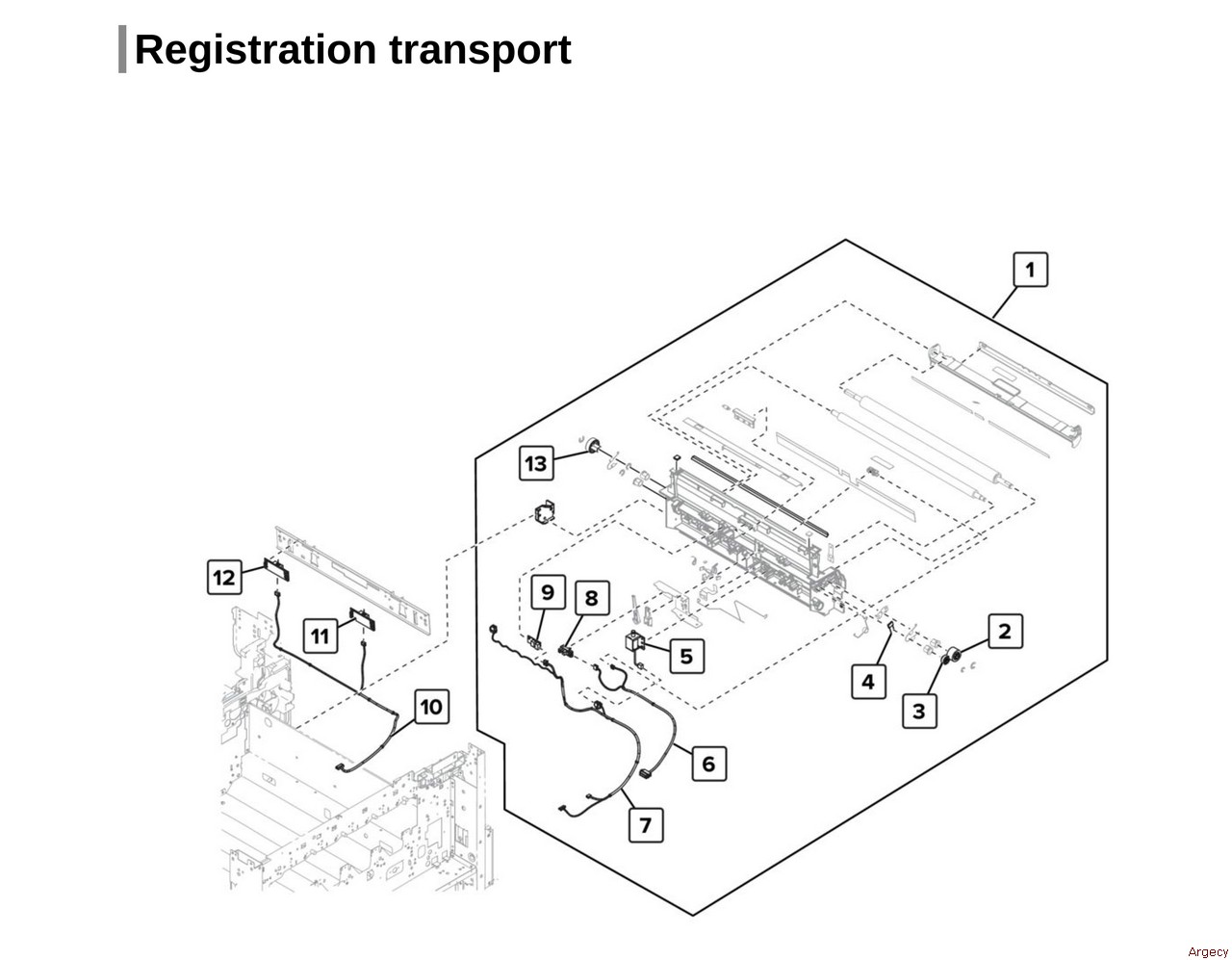

Assembly 15: Registration transport

1
41X1808 Registration transport assembly
New
41X1808 (New)
$1186.58



41X1808 Registration transport assembly
Fully refurbished with 90-day warranty
41X1808
$912.46



2


3


4
40X9009 Fixed power resistor
Fully refurbished with 90-day warranty
40X9009



5
40X8998 Toner density solenoid
New
40X8998 (New)
$57.66



40X8998 Toner density solenoid
Fully refurbished with 90-day warranty
40X8998
$47.01



6

41X1480 Registration unit sensor cable
Fully refurbished with 90-day warranty
41X1480
$34.68



7
41X1479 Humidity sensor cable
New
41X1479 (New)
$51.48



41X1479 Humidity sensor cable
Fully refurbished with 90-day warranty
41X1479
$41.97



8
41X1391 Sensor
New
41X1391 (New)
$16.57



9
41X1477 Sensor (registration humidity)
New
41X1477 (New)
$236.77



41X1477 Sensor (registration humidity)
Fully refurbished with 90-day warranty
41X1477
$182.06



10
41X1482 Toner density sensor cable
New
41X1482 (New)
$26.23



11
41X1476 Sensor (front toner density)
New
41X1476 (New)
$193.28



41X1476 Tray 2 insert
Fully refurbished with 90-day warranty
41X1476
$148.61



12
40X8999 Toner density sensor
New
40X8999 (New)
$141.66



40X8999 Toner density sensor
Fully refurbished with 90-day warranty
40X8999
$118.00



13

41X1806 Registration clutch (feed gear)
Fully refurbished with 90-day warranty
41X1806
$71.34

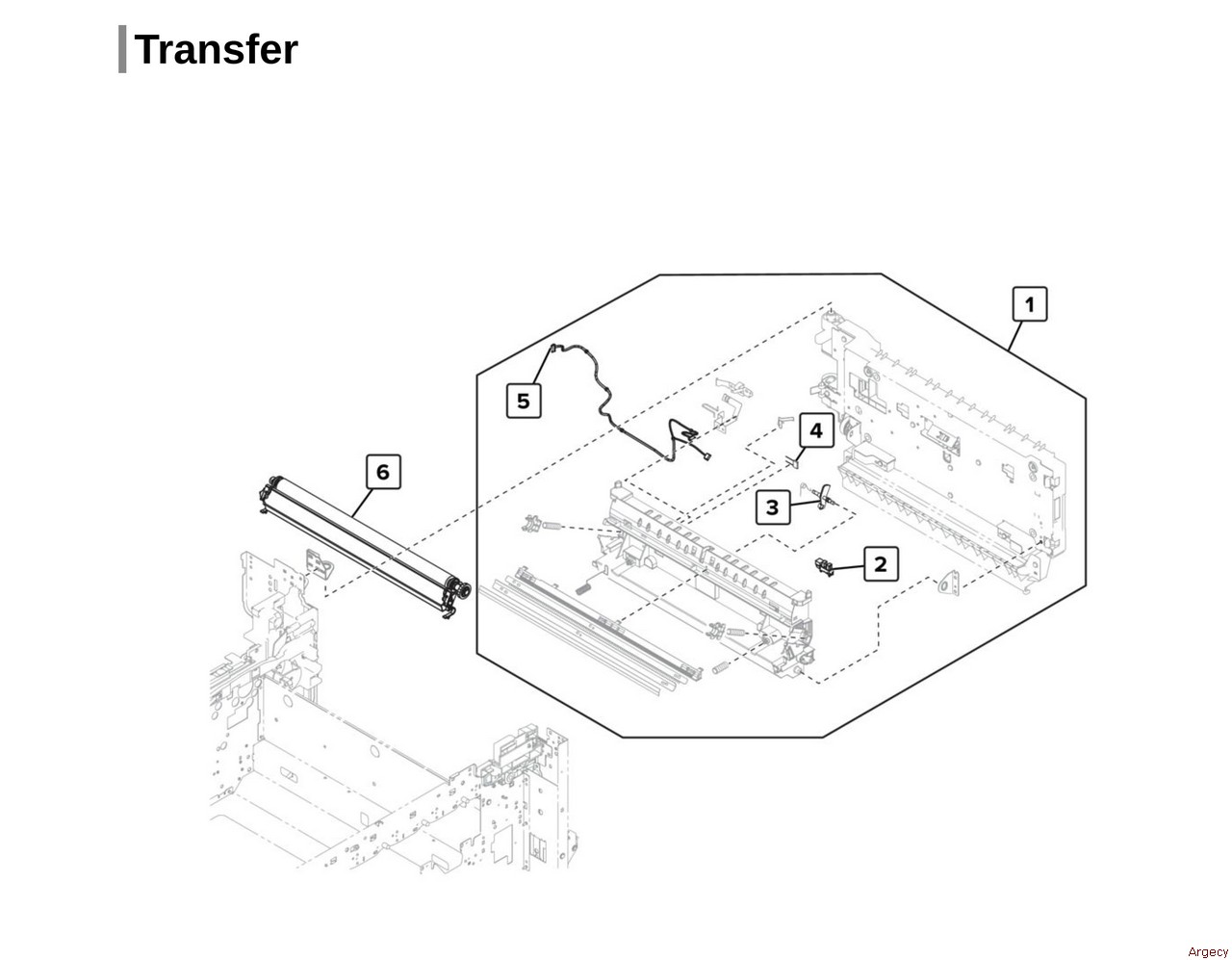

Assembly 16: Transfer

1
41X1809 Registration unit assembly
New
41X1809 (New)
$872.49



41X1809 Registration unit assembly
Fully refurbished with 90-day warranty
41X1809
$671.08



2
41X1391 Sensor
New
41X1391 (New)
$16.57



3
41X1816 Fusing speed sensor actuator
New
41X1816 (New)
$16.91



4
40X9009 Fixed power resistor
Fully refurbished with 90-day warranty
40X9009



5
40X9990 Fusing speed sensor cable
New
40X9990 (New)
$19.00



6
41X1484 Transfer roller
New
41X1484 (New)
$238.71



41X1484 Transfer roller
Fully refurbished with 90-day warranty
41X1484
$226.76

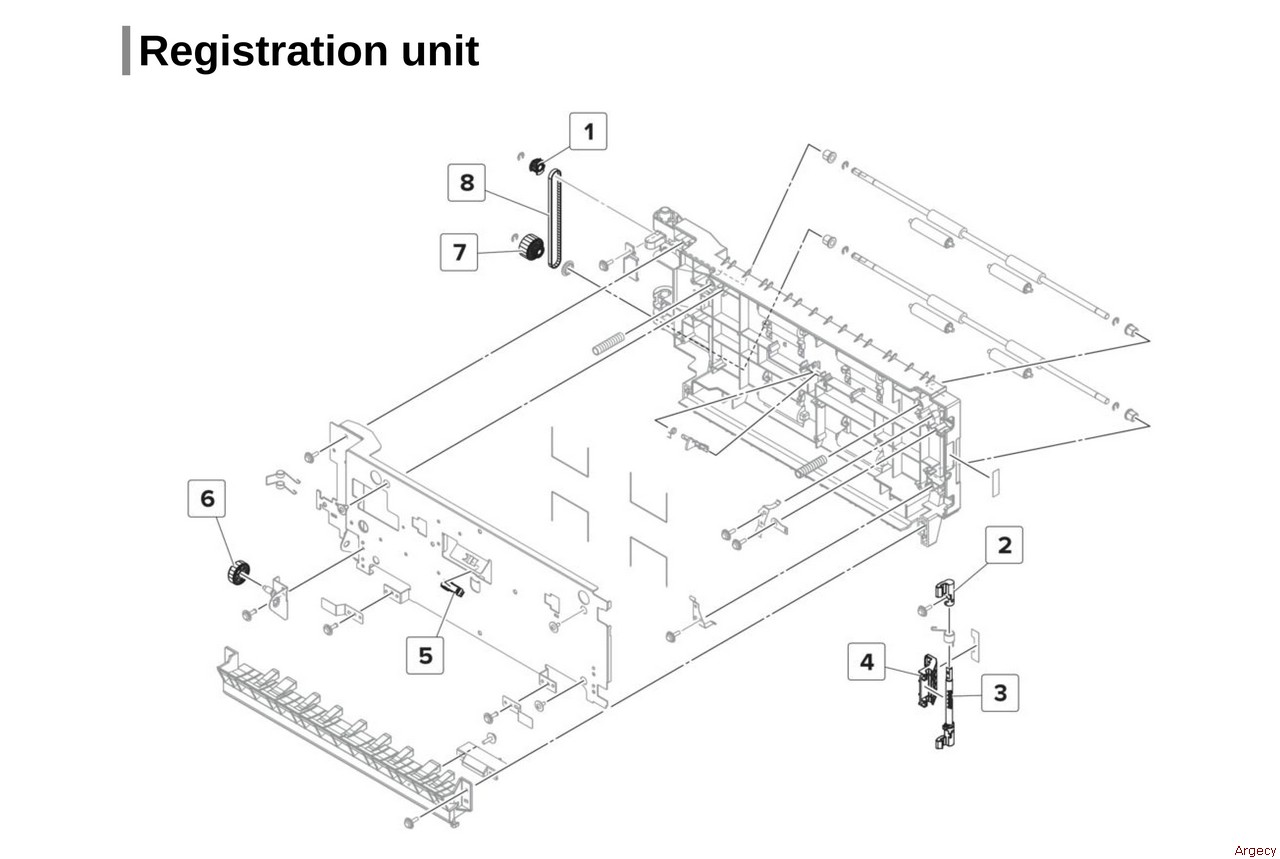

Assembly 17: Registration unit

1


2


3
40X9993 Registration unit lock shaft
Fully refurbished with 90-day warranty
40X9993
$7.45



4
40X9994 Registration unit handle
New
40X9994 (New)
$45.00



5
41X1391 Sensor
New
41X1391 (New)
$16.57



6
40X9710 Lower registration gear
Fully refurbished with 90-day warranty
40X9710
$6.40



7
40X9991 Registration drive gear
Fully refurbished with 90-day warranty
40X9991
$8.55



8
40X9013 Registration unit belt
New
40X9013 (New)
$21.34



40X9013 Registration unit belt
Fully refurbished with 90-day warranty
40X9013
$19.18

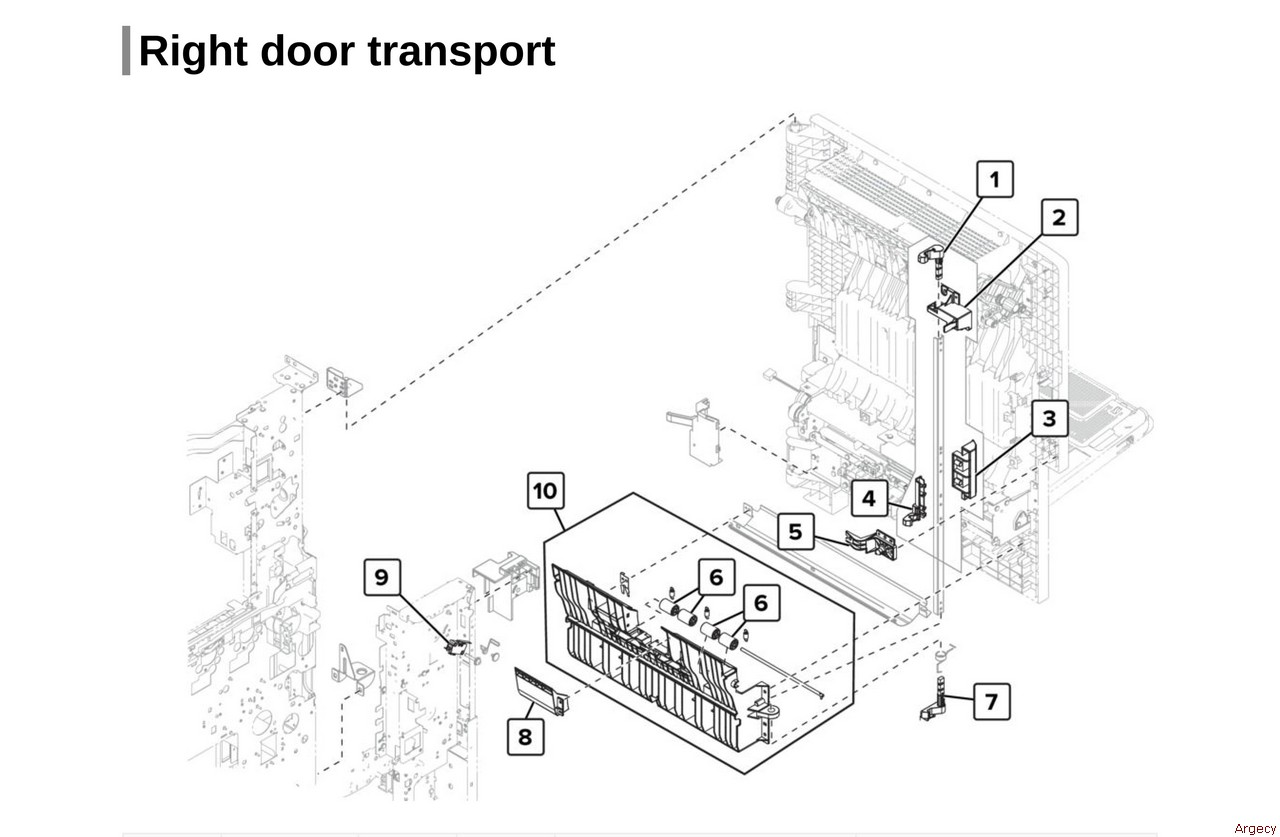

Assembly 18: Right door transport

1


2
40X9020 Right door switch actuator
New
40X9020 (New)
$22.57



40X9020 Right door switch actuator
Fully refurbished with 90-day warranty
40X9020
$20.28



3
41X1488 Right door release handle
New
41X1488 (New)
$24.46



4
40X9712 Right door middle lock
Fully refurbished with 90-day warranty
40X9712
$8.00



5
40X9715 Right door lock support
New
40X9715 (New)
$16.32



6


7
40X9713 Right door lower lock
Fully refurbished with 90-day warranty
40X9713
$6.63



8
41X1772 MPF separator access cover
New
41X1772 (New)
$15.74



9
40X9527 Door switch
New
40X9527 (New)
$22.82



10
41X1576 Tray 2 transport guide
New
41X1576 (New)
$193.46



41X1576 Tray 2 transport guide
Fully refurbished with 90-day warranty
"41X1576
$148.75
"

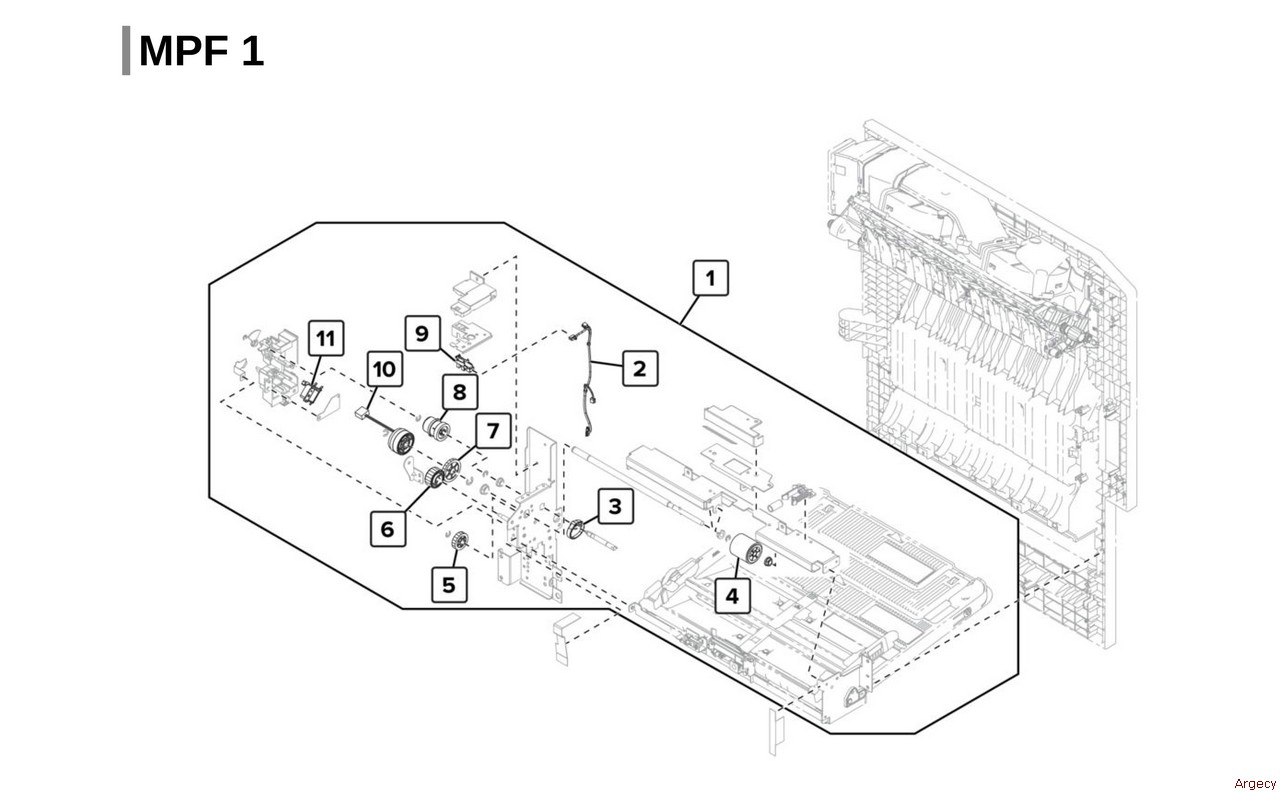

Assembly 19: MPF 1

1
41X1490 MPF
New
41X1490 (New)
$1156.16



41X1490 MPF
Fully refurbished with 90-day warranty
41X1490
$889.07



2
40X9716 MPF lift plate sensor cable
New
40X9716 (New)
$24.28



3
40X9996 MPF lift plate cam
Fully refurbished with 90-day warranty
40X9996
$6.90



4
40X9995 MPF feed roller
Fully refurbished with 90-day warranty
40X9995
$8.04



5


6
40X9718 MPF separator idler gear
Fully refurbished with 90-day warranty
40X9718
$5.84



7


8
40X9720 MPF lift plate clutch
New
40X9720 (New)
$54.70



10
40X9023 MPF feed clutch
New
40X9023 (New)
$87.46



40X9023 MPF feed clutch
Fully refurbished with 90-day warranty
40X9023
$71.34



11
41X1489 MPF lift plate solenoid
New
41X1489 (New)
$24.54



41X1489 MPF lift plate solenoid
Fully refurbished with 90-day warranty
41X1489
$22.06

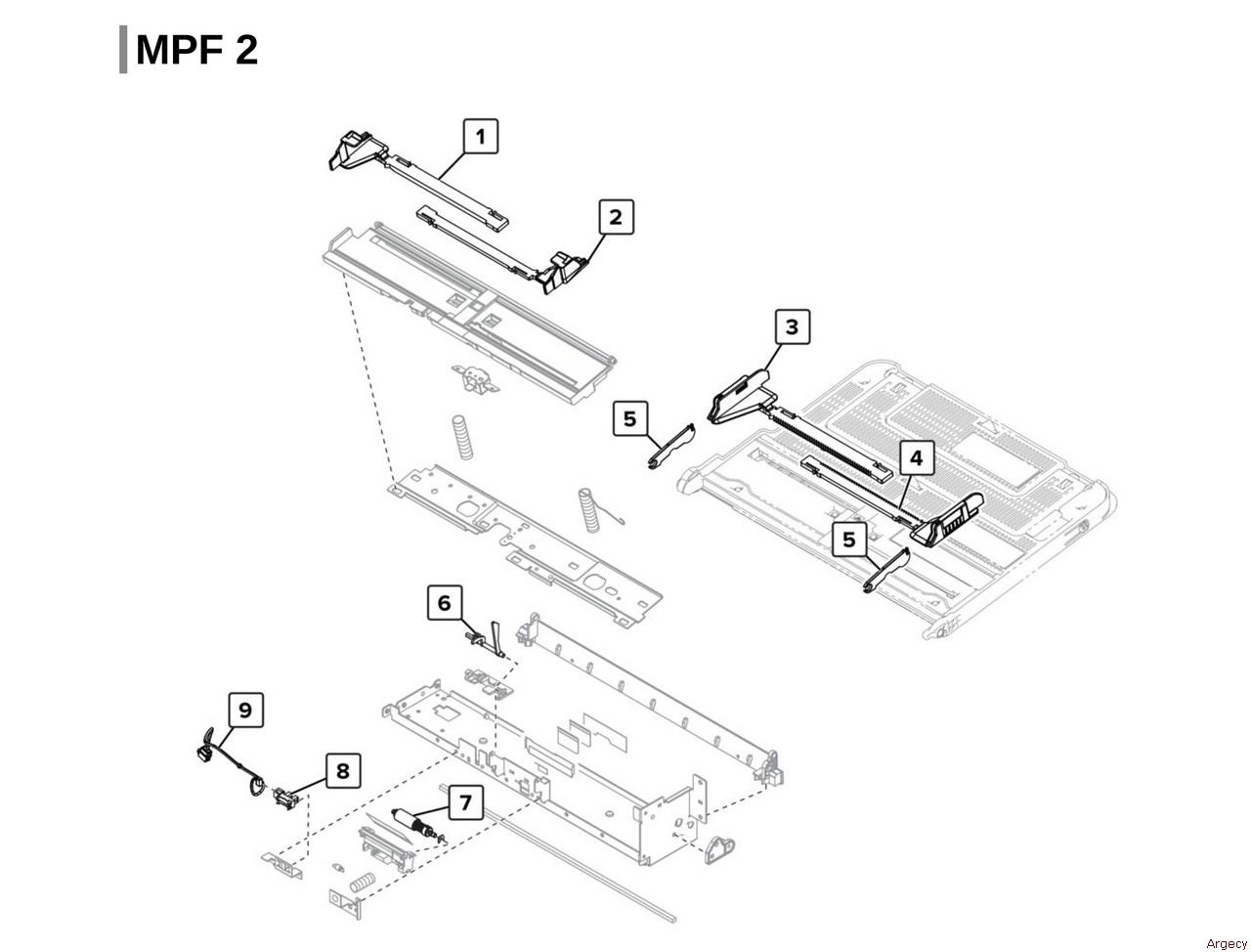

Assembly 20: MPF 2

1
41X1577 MPF rear paper guide 2
New
41X1577 (New)
$91.14



41X1577 MPF rear paper guide 2
Fully refurbished with 90-day warranty
"41X1577
$74.35
"



2
41X1578 MPF front paper guide 2
New
41X1578 (New)
$90.36



41X1578 MPF front paper guide 2
Fully refurbished with 90-day warranty
"41X1578
$73.71
"



3
41X1492 MPF rear paper guide
New
41X1492 (New)
$89.08



41X1492 MPF rear paper guide
Fully refurbished with 90-day warranty
41X1492
$72.66



4
41X1579 MPF front paper guide
New
41X1579 (New)
$87.68



41X1579 MPF front paper guide
Fully refurbished with 90-day warranty
"41X1579
$71.53
"



5
41X1491 MPF hinge arm
New
41X1491 (New)
$15.10



41X1491 MPF hinge arm
Fully refurbished with 90-day warranty
41X1491
$9.06



6
41X1495 MPF paper empty flag
New
41X1495 (New)
$12.70



7
40X9615 MPF Separator Roller
New
40X9615 (New)
$13.97



8
41X1391 Sensor
New
41X1391 (New)
$16.57



9

Assembly 21: MPF 3

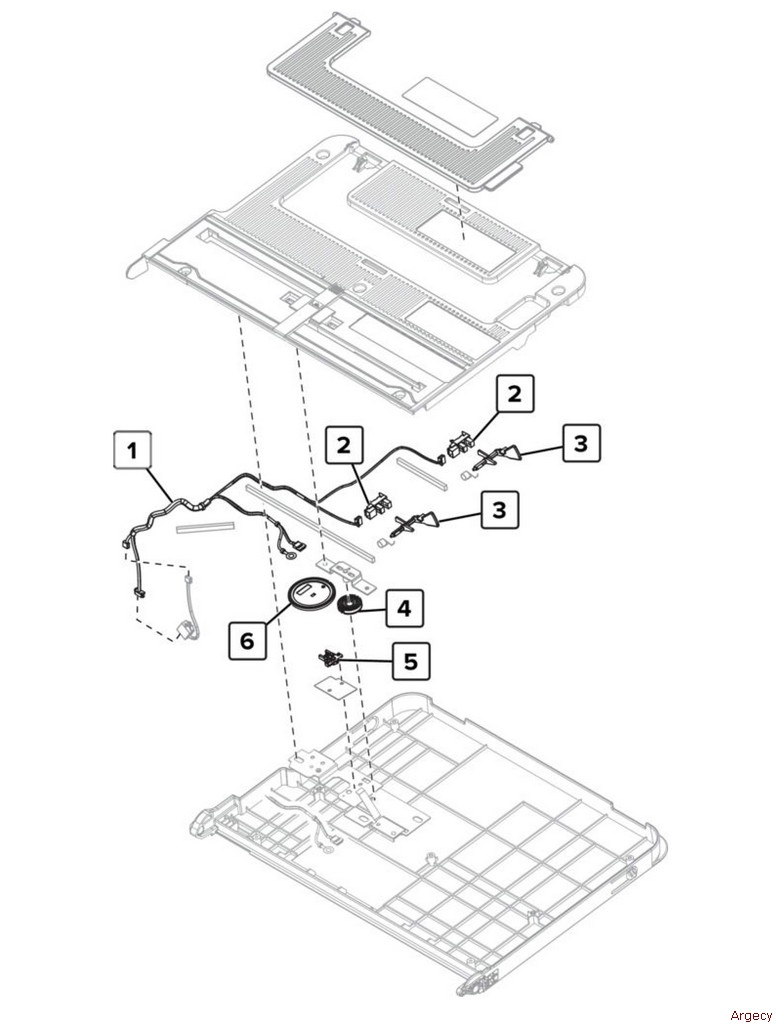

1
41X1498 MPF paper size sensor cable
New
41X1498 (New)
$64.89



41X1498 MPF paper size sensor cable
Fully refurbished with 90-day warranty
41X1498
$52.92



2
41X1391 Sensor
New
41X1391 (New)
$16.57



3


4
41X1580 MPF paper guide pinion gear
New
41X1580 (New)
$10.67



5
40X9030 MPF paper width sensor
New
40X9030 (New)
$272.92



40X9030 MPF paper width sensor
Fully refurbished with 90-day warranty
40X9030
$209.87



6
41X1497 MPF paper width gear
New
41X1497 (New)
$11.52

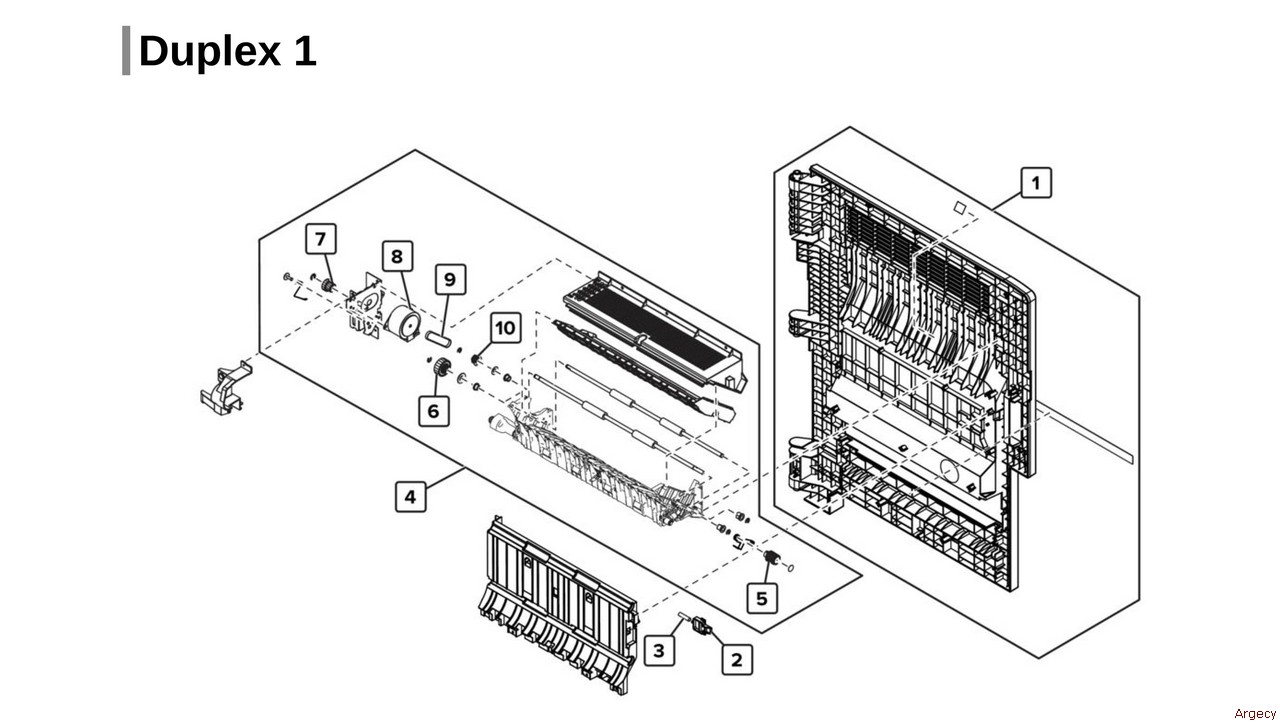

Assembly  22: Duplex 1 transport guide

1
41X1811 Right door
New
41X1811 (New)
$422.40



41X1811 Right door
Fully refurbished with 90-day warranty
41X1811
$324.85



2
41X1932 Registration unit lock
New
41X1932 (New)
$9.14



3
41X1814 Registration unit spring
New
41X1814 (New)
$5.88



4
41X1818 Duplex transport assembly
New
41X1818 (New)
$522.61



41X1818 Duplex transport assembly
Fully refurbished with 90-day warranty
41X1818
$401.94



5

6
41X1815 Duplex secondary gear
New
41X1815 (New)
$12.40



7
41X1817 Duplex primary gear
New
41X1817 (New)
$10.37



8
41X1819 Motor (duplex transport)
New
41X1819 (New)
$103.09



41X1819 Motor (duplex transport)
Fully refurbished with 90-day warranty
"41X1819
$85.86
"



9
40X9036 Duplex transport belt
New
40X9036 (New)
$19.00



40X9036 Duplex transport belt
Fully refurbished with 90-day warranty
40X9036
$17.07



10

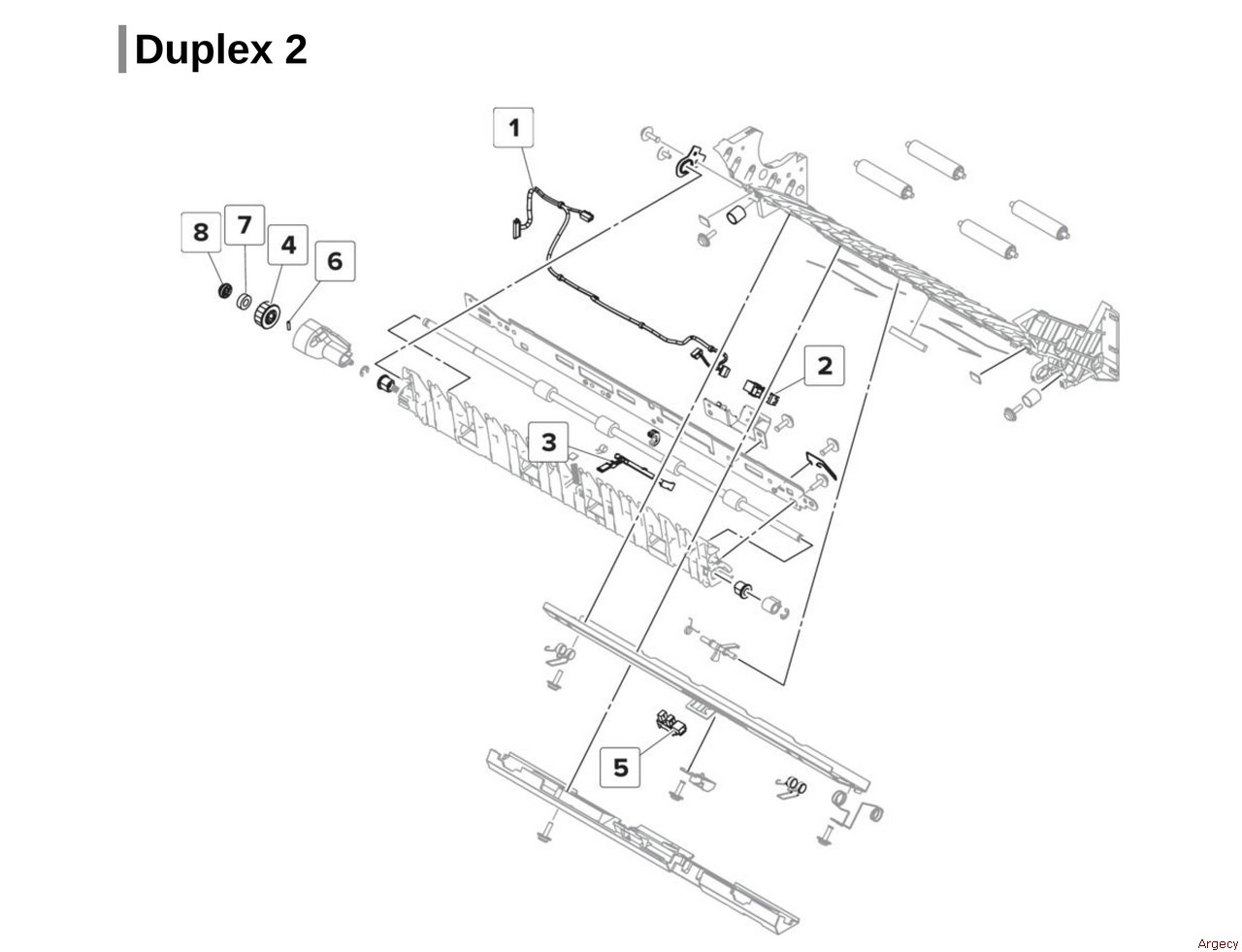

Assembly 23: Duplex 2

1
40X9723 Exit sensor cable
New
40X9723 (New)
$30.64



2
41X1391 Sensor
New
41X1391 (New)
$16.57



3
40X9039 Exit sensor actuator
New
40X9039 (New)
$11.90



4


5
41X1391 Sensor
New
41X1391 (New)
$16.57

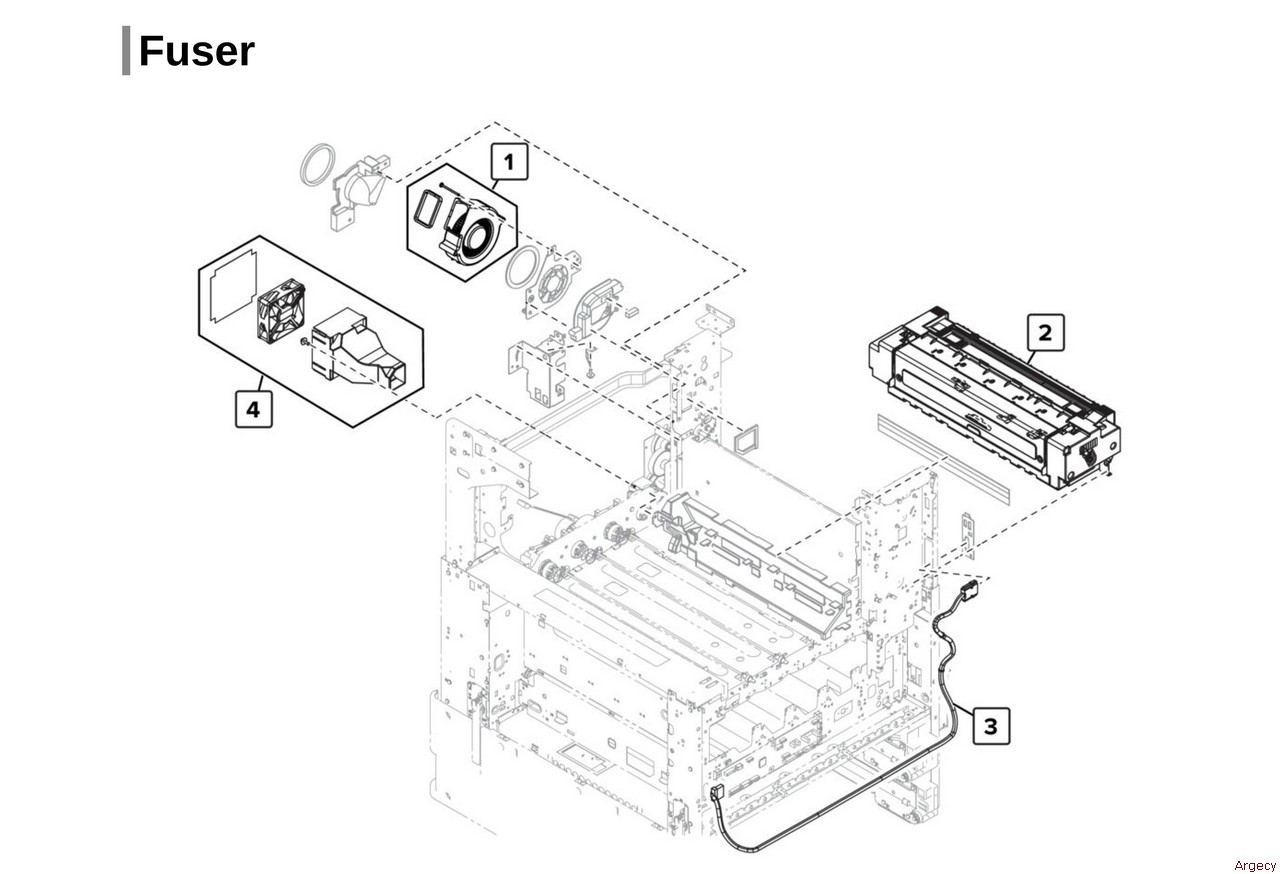

Assembly 24: Fuser

1
41X1822 Paper exit fan
New
41X1822 (New)
$187.93



41X1822 Paper exit fan
Fully refurbished with 90-day warranty
"41X1822
$137.07
"



2
41X1860 Fuser 120 V
New
41X1860 (New)
$695.09



41X1860 Fuser 120 V
New
41X1860 (New, open box)



3
41X1820 Fuser power cable
New
41X1820 (New)
$90.68



41X1820 Fuser power cable
Fully refurbished with 90-day warranty
"41X1820
$73.97
"



4
41X1821 Toner cartridge cooling fan
New
41X1821 (New)
$126.32



41X1821 Toner cartridge cooling fan
Fully refurbished with 90-day warranty
"41X1821
$105.22
"

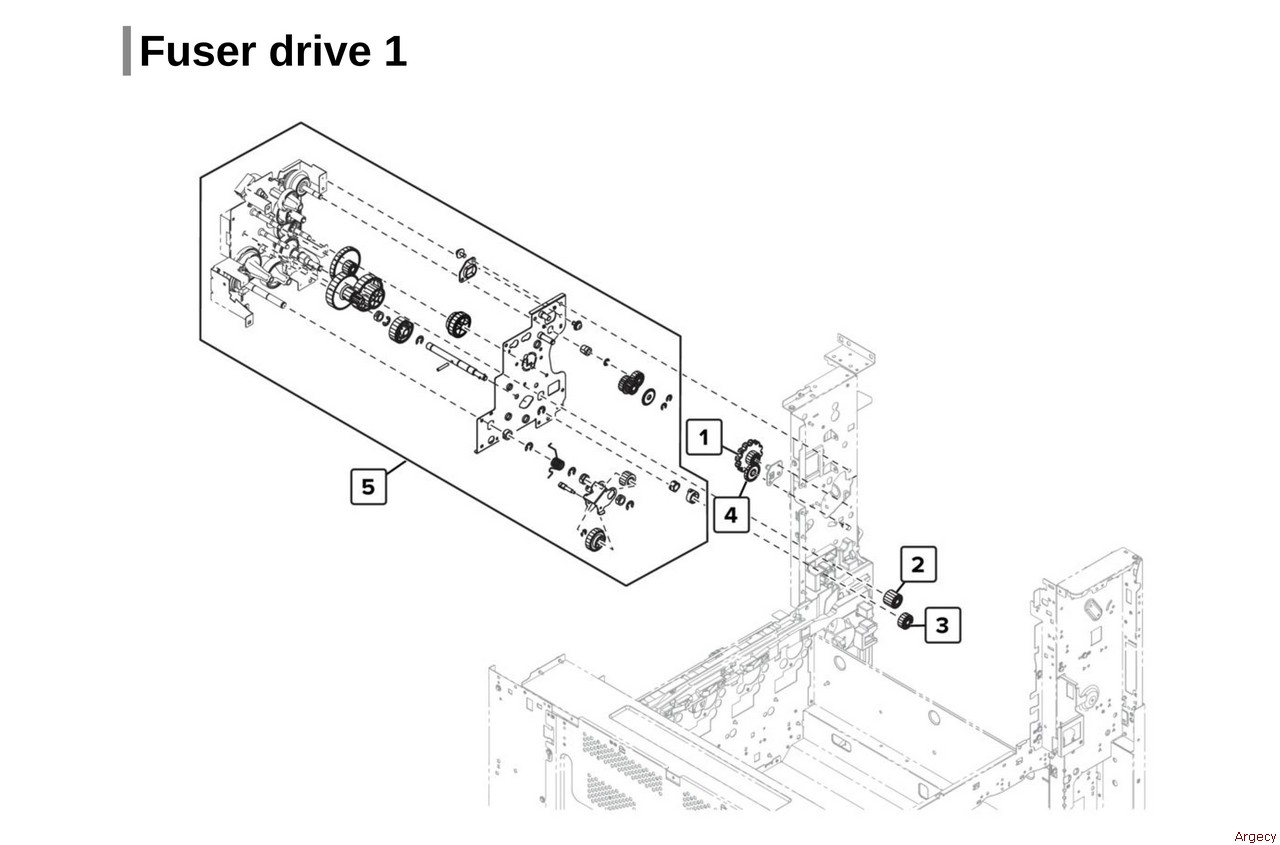

Assembly 25: Fuser drive 1

1
40X9729 Fuser pressure primary gear
New
40X9729 (New)
$189.71



40X9729 Fuser pressure primary gear
Fully refurbished with 90-day warranty
40X9729
$190.00



2
41X1834 Fuser transport primary gear
New
41X1834 (New)
$34.80



41X1834 Fuser transport primary gear
Fully refurbished with 90-day warranty
41X1834
$28.36



3

41X1835 Fuser transport secondary gear
Fully refurbished with 90-day warranty
41X1835
$21.32



4


5
41X1836 Fuser drive gearbox
New
41X1836 (New)
$547.73



41X1836 Fuser drive gearbox
Fully refurbished with 90-day warranty
41X1836

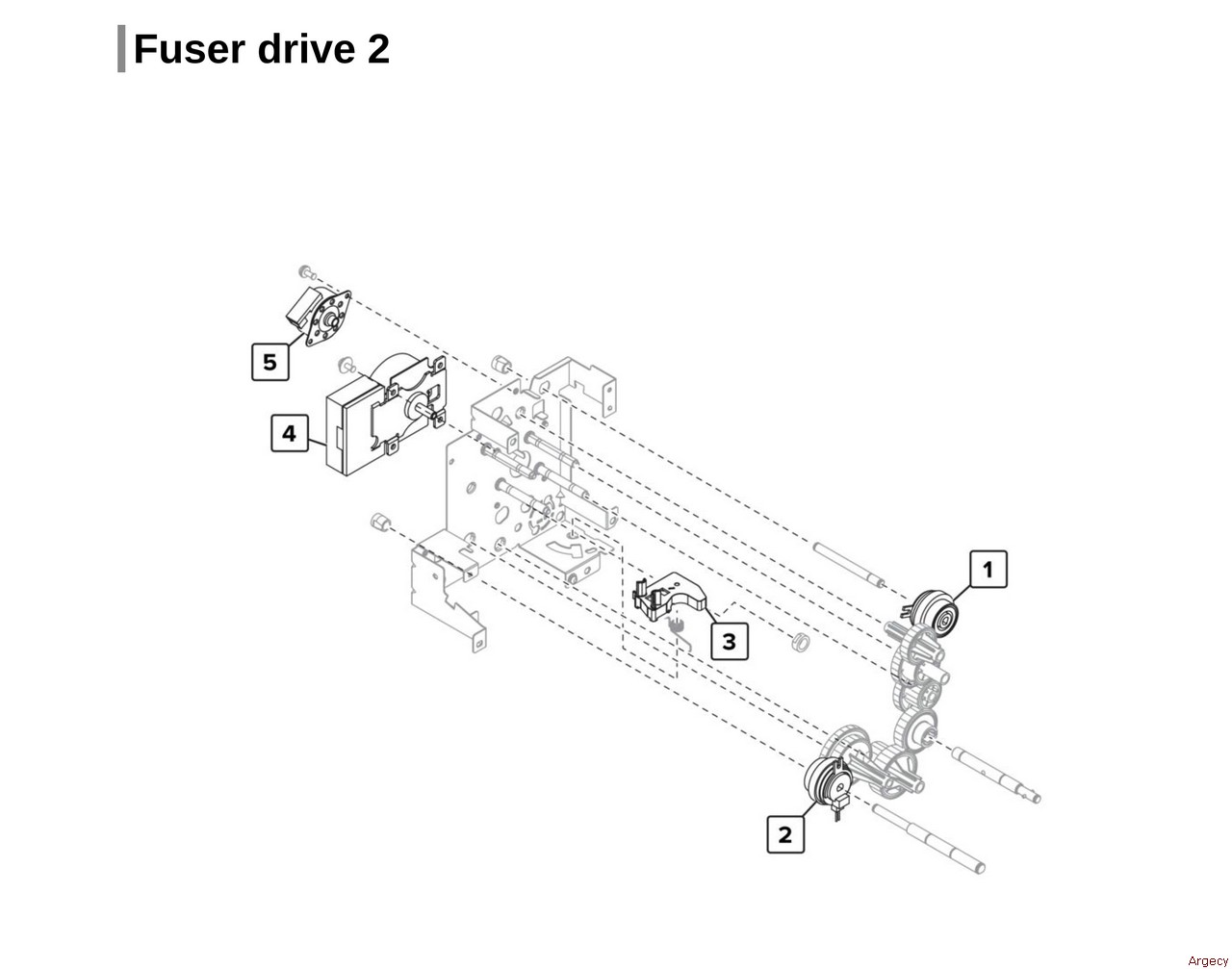

Assembly 26: Fuser drive 2

1
41X1535 Paper exit clutch
New
41X1535 (New)
$91.69



41X1535 Paper exit clutch
Fully refurbished with 90-day warranty
41X1535
$74.80



2
41X1839 CMY retract clutch
New
41X1839 (New)
$90.12



41X1839 CMY retract clutch
Fully refurbished with 90-day warranty
41X1839
$73.52



3
41X1536 Fuser drive lever
New
41X1536 (New)
$12.70



41X1536 Fuser drive lever
Fully refurbished with 90-day warranty
41X1536
$6.90



4
41X1828 Motor
New
41X1828 (New)
$197.35



41X1828 Motor
Fully refurbished with 90-day warranty
41X1828
$151.74



5
41X1452 Motor
New
41X1452 (New)
$83.16



41X1452 Motor
Fully refurbished with 90-day warranty
41X1452
$64.34

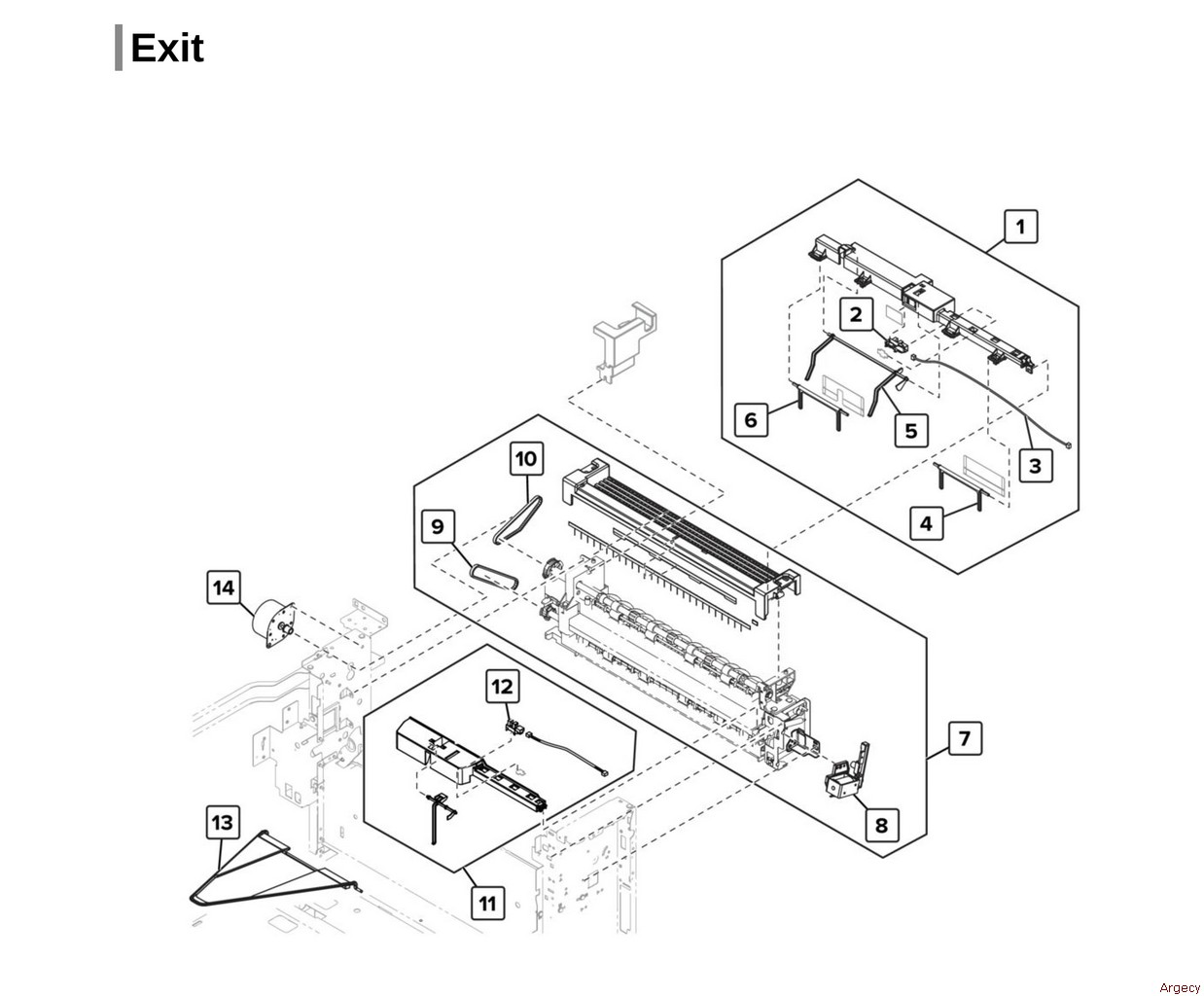

Assembly 27: Exit

1
41X1934 Redrive exit guide
New
41X1934 (New)
$131.92



41X1934 Redrive exit guide
Fully refurbished with 90-day warranty
41X1934
$104.24



2
41X1444 Sensor
New
41X1444 (New)
$36.99



41X1444 Sensor
Fully refurbished with 90-day warranty
41X1444
$30.14



3
40X9644 Redrive exit sensor cable
Fully refurbished with 90-day warranty
40X9644
$7.18



4


5
40X9714 Redrive exit sensor actuator
New
40X9714 (New)
$17.18



6


7
41X1826 Exit assembly
New
41X1826 41X1585 (New)
$870.56



41X1826 Exit assembly
Fully refurbished with 90-day warranty
41X1826 41X1585
$635.28



8
40X9161 Diverter solenoid
New
40X9161 (New)
$107.96



40X9161 Diverter solenoid
Fully refurbished with 90-day warranty
40X9161
$89.92



9
40X9156 Exit clutch belt
New
40X9156 (New)
$24.46



10
41X1823 Redrive exit belt
New
41X1823 (New)
$24.56



41X1823 Redrive exit belt
Fully refurbished with 90-day warranty
41X1823
$20.00



11
41X1935 Standard bin exit assembly
New
41X1935 (New)
$156.55



41X1935 Standard bin exit assembly
Fully refurbished with 90-day warranty
41X1935
$108.22



12
41X1444 Sensor
New
41X1444 (New)
$36.99



41X1444 Sensor
Fully refurbished with 90-day warranty
41X1444
$30.14



13
40X8974 Standard bin paper bail
New
40X8974 (New)
$36.75



40X8974 Standard bin paper bail
Fully refurbished with 90-day warranty
40X8974
$29.95



14
41X1512 Motor (redrive)
New
41X1512 (New)
$164.21



41X1512 Motor (redrive)
Fully refurbished with 90-day warranty
41X1512
$113.51

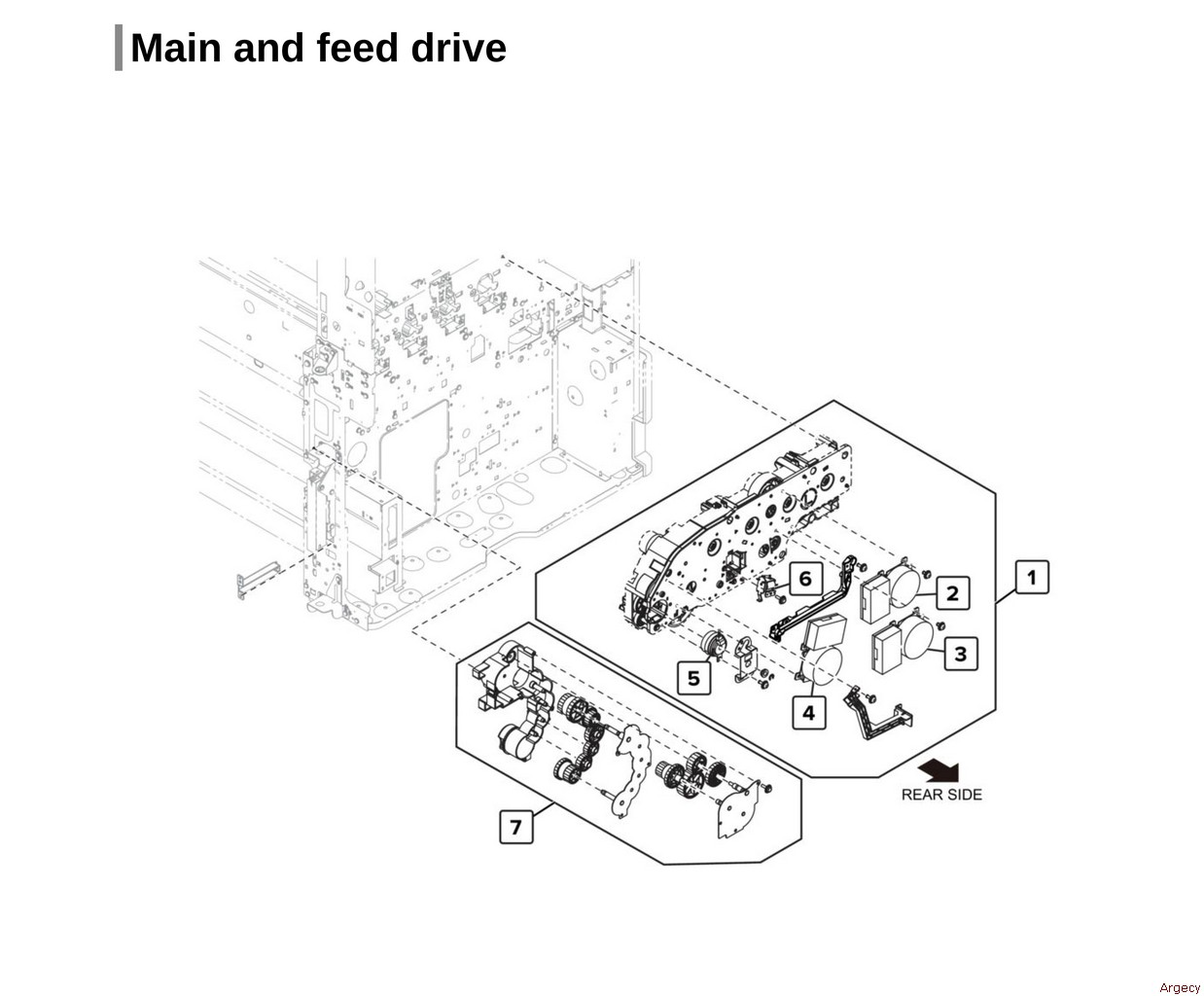

Assembly 28: Main and feed drive

1
41X1831 Main drive assembly
New
41X1831 (New)
$1294.68



41X1831 Main drive assembly
Fully refurbished with 90-day warranty
41X1831
$944.60



2
41X1828 Motor
New
41X1828 (New)
$197.35



41X1828 Motor
Fully refurbished with 90-day warranty
41X1828
$151.74



3
41X1829 Motor
New
41X1829 (New)
$192.64



41X1829 Motor
Fully refurbished with 90-day warranty
41X1829
$148.12



4
41X1830 Motor
New
41X1830 (New)
$225.20



41X1830 Motor
Fully refurbished with 90-day warranty
41X1830
$173.16



5
41X1832 Duplex clutch
New
41X1832 (New)
$91.69



41X1832 Duplex clutch
Fully refurbished with 90-day warranty
41X1832
$74.80



6
41X1519 K developer solenoid
New
41X1519 (New)
$44.44



7
41X1833 Paper feed drive assembly
New
41X1833 (New)
$222.19



41X1833 Paper feed drive assembly
Fully refurbished with 90-day warranty
41X1833
$162.08

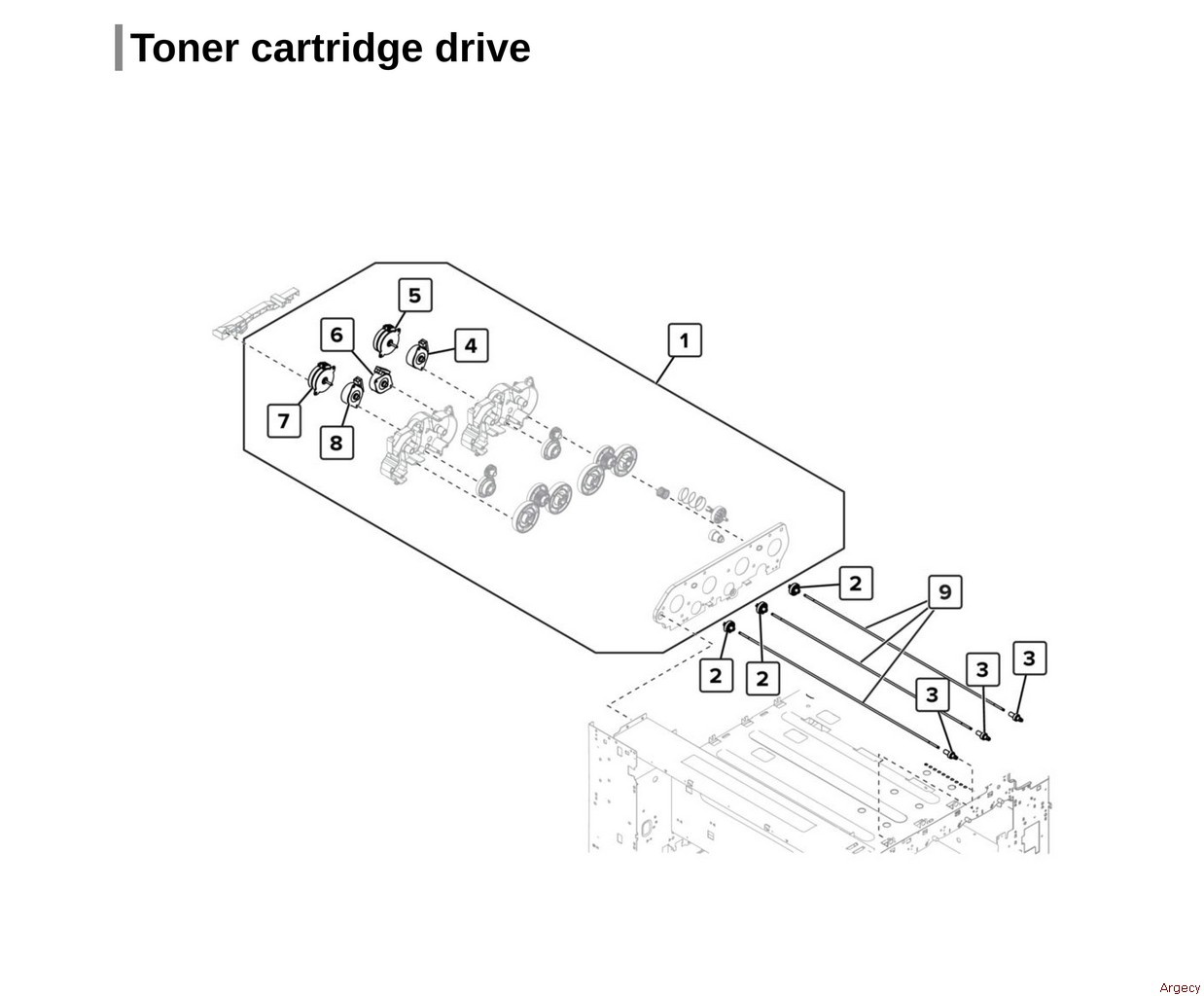

Assembly 29: Toner cartridge drive

1
41X1531 Toner cartridge drive
New
41X1531 (New)
$304.98



41X1531 Toner cartridge drive
Fully refurbished with 90-day warranty
41X1531
$222.50



2
41X1529 Toner supply gear 1
New
41X1529 (New)
$8.46



3
41X1530 Toner supply gear 2
New
41X1530 (New)
$8.46



4
41X1452 Motor
New
41X1452 (New)
$83.16



41X1452 Motor
Fully refurbished with 90-day warranty
41X1452
$64.34



5
41X1527 Motor (CK toner cartridge)
New
41X1527 (New)
$123.50



41X1527 Motor (CK toner cartridge)
Fully refurbished with 90-day warranty
41X1527
$97.58



6
41X1452 Motor
New
41X1452 (New)
$83.16



41X1452 Motor
Fully refurbished with 90-day warranty
41X1452
$64.34



7
41X1527 Motor (CK toner cartridge)
New
41X1527 (New)
$123.50



41X1527 Motor (CK toner cartridge)
Fully refurbished with 90-day warranty
41X1527
$97.58



8
41X1452 Motor
New
41X1452 (New)
$83.16



41X1452 Motor
Fully refurbished with 90-day warranty
41X1452
$64.34

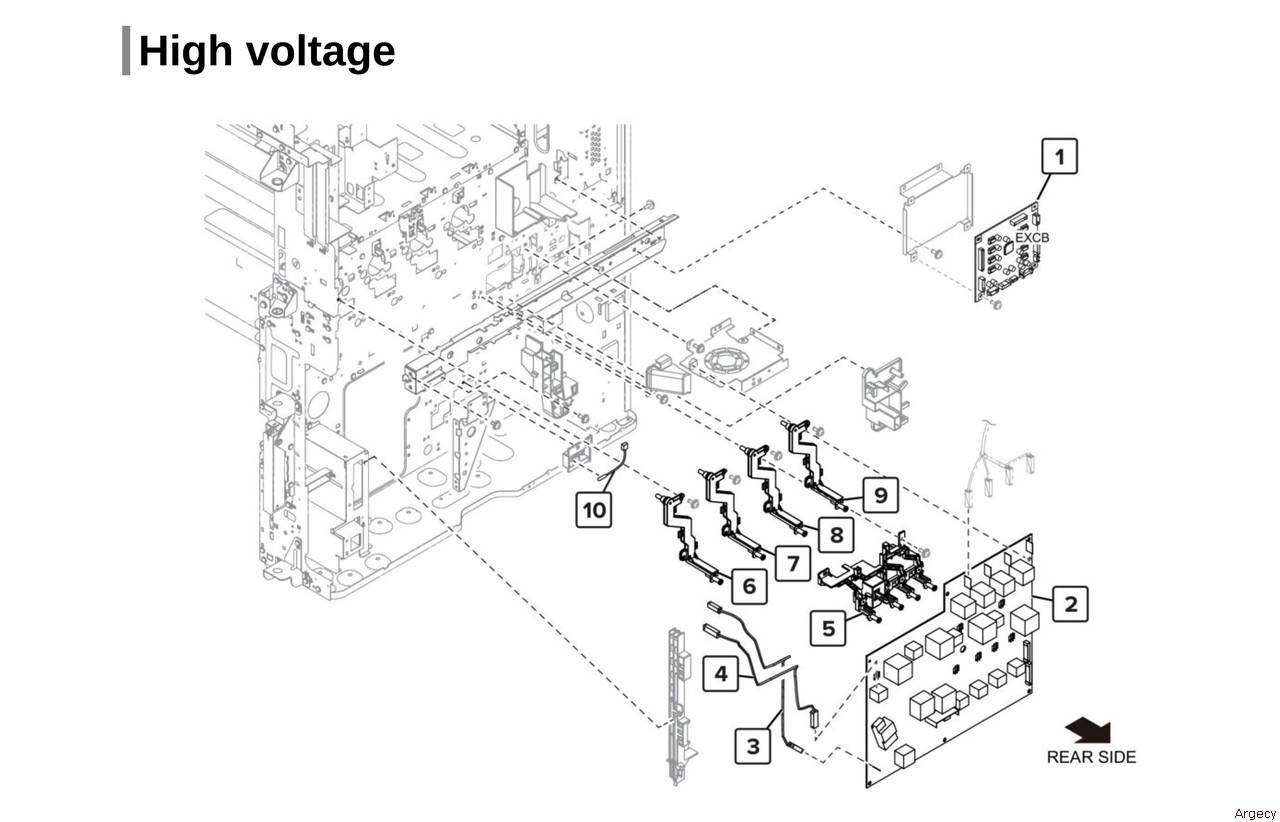

Assembly 30: High voltage

1
41X1547 Expansion controller board
New
41X1547 (New)
$538.70



41X1547 Expansion controller board
Fully refurbished with 90-day warranty
41X1547
$393.08



2
41X1841 High voltage board
New
41X1841 (New)
$909.52



41X1841 High voltage board
Fully refurbished with 90-day warranty
41X1841
$699.56



3
40X9194 High voltage charge cable
New
40X9194 (New)
$16.91



4
40X9733 High voltage transfer cable
New
40X9733 (New)
$18.35



5

41X1540 High voltage developer contact
Fully refurbished with 90-day warranty
41X1540
$63.77



6
41X1539 High voltage contact
New
41X1539 (New)
$97.08



41X1539 High voltage contact
New
41X1539 (New)
$97.08



7
41X1539 High voltage contact
New
41X1539 (New)
$97.08



41X1539 High voltage contact
Fully refurbished with 90-day warranty
41X1539
$79.20



8
41X1539 High voltage contact
New
41X1539 (New)
$97.08



41X1539 High voltage contact
New
41X1539 (New)
$97.08



9
41X1539 High voltage contact
New
41X1539 (New)
$97.08



41X1539 High voltage contact
New
41X1539 (New)
$97.08



10

40X9190 Sensor (tray 1 and 2 paper temperature)
Fully refurbished with 90-day warranty
40X9190
$98.08

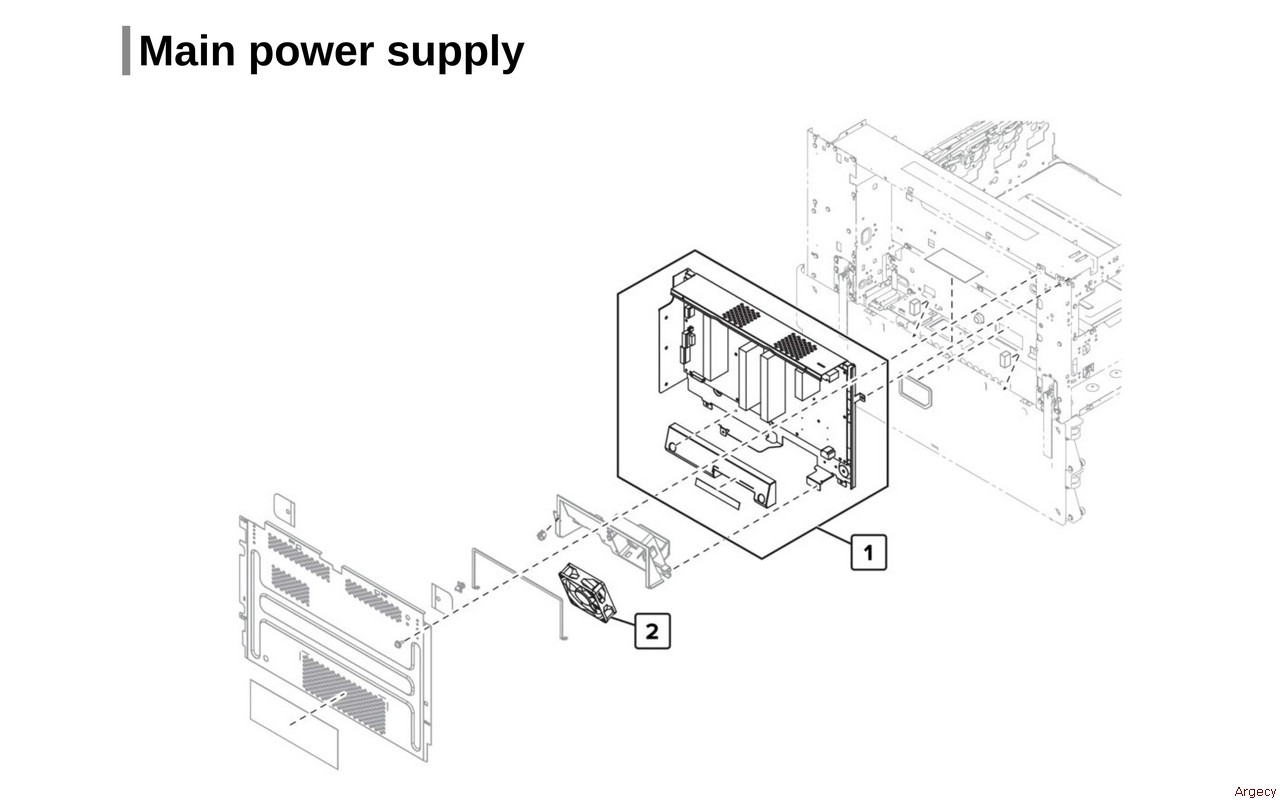

Assembly 31: Main power supply

1
41X1842 Main power supply 110
New
41X1842 (New)
$1353.69



41X1842 Main power supply 110
Fully refurbished with 90-day warranty
41X1842
$987.66



2
40X8945 Fan
New
40X8945 (New)
$53.65



40X8945 Fan
Fully refurbished with 90-day warranty
40X8945
$43.74

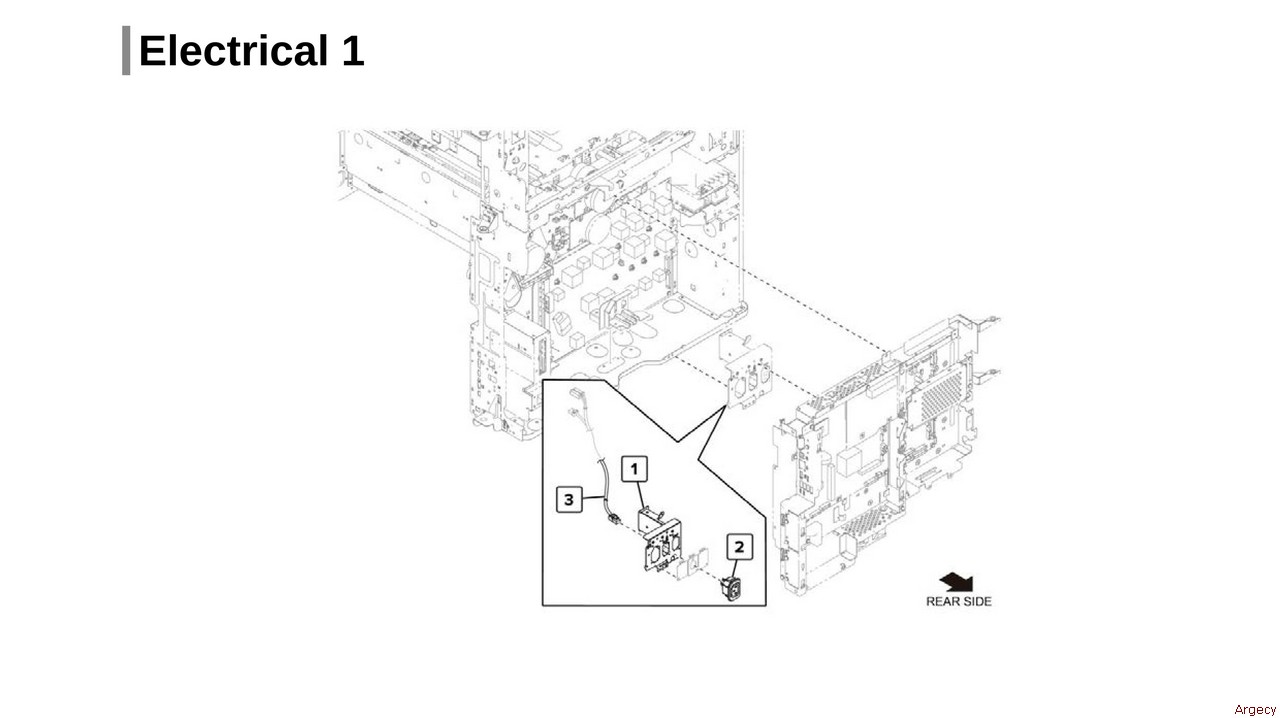

Assembly 32: Electrical 1

1
41X1845 Power socket mounting plate
New
41X1845 (New)
$108.49



41X1845 Power socket mounting plate
Fully refurbished with 90-day warranty
41X1845
$90.36



2
40X9741 Power socket
New
40X9741 (New)
$76.16



3
41X1844 Power socket cable
New
41X1844 (New)
$116.39



41X1844 Power socket cable
Fully refurbished with 90-day warranty
41X1844
$96.94

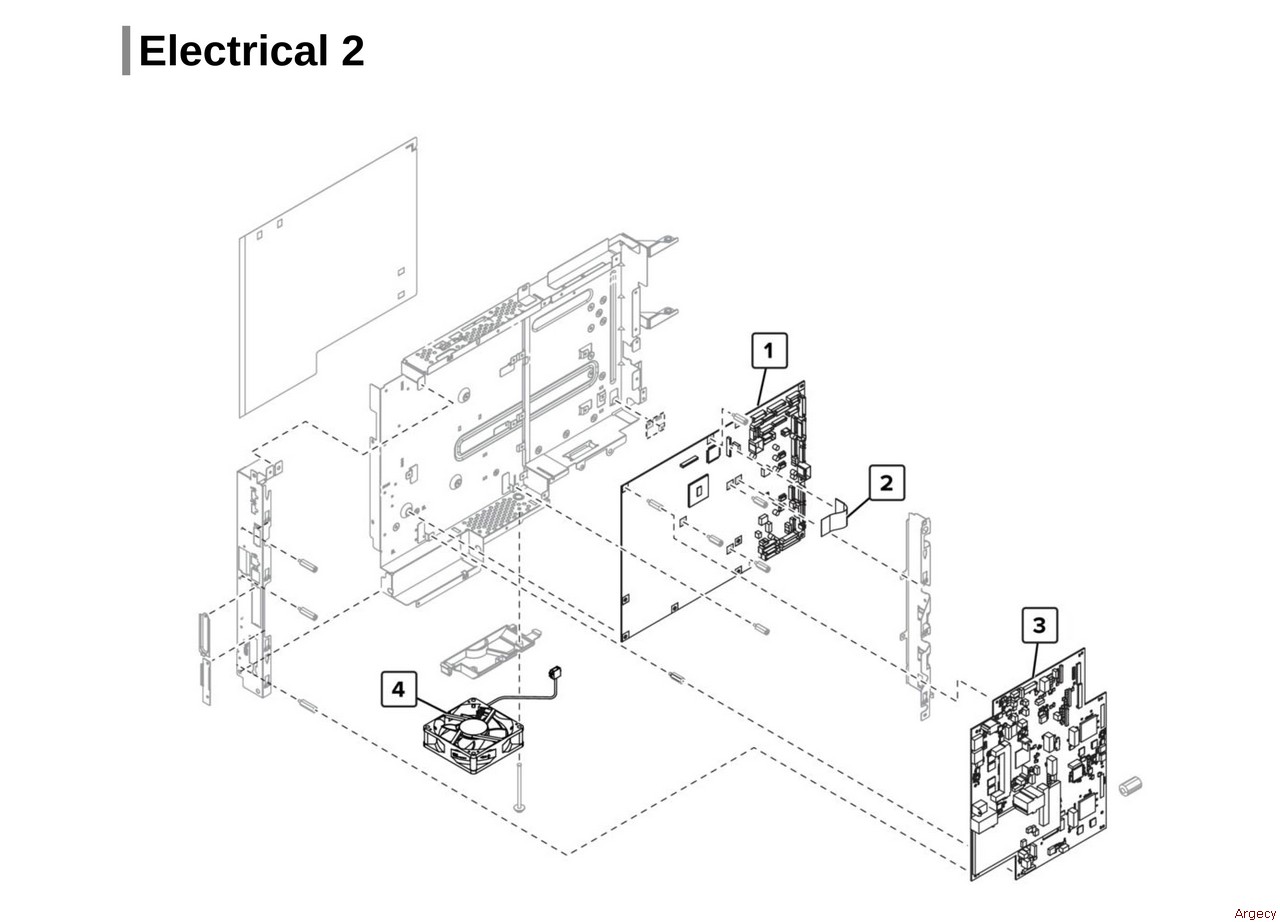

Assembly 33: Electrical 2

1
41X1846 Engine board
Fully refurbished with 90-day warranty
41X1846
$1084.00



41X1846 Engine board
New
41X1846 (New)
$1409.40



2
41X1879 Controller board upper cable
New
41X1879 (New)
$29.83



3
41X1376 Controller board
Fully refurbished with 90-day warranty
41X1376
$404.87



41X1376 Controller board
New
41X1376 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$426.75



4
40X9209 Controller card fan
New
40X9209 (New)
$103.80

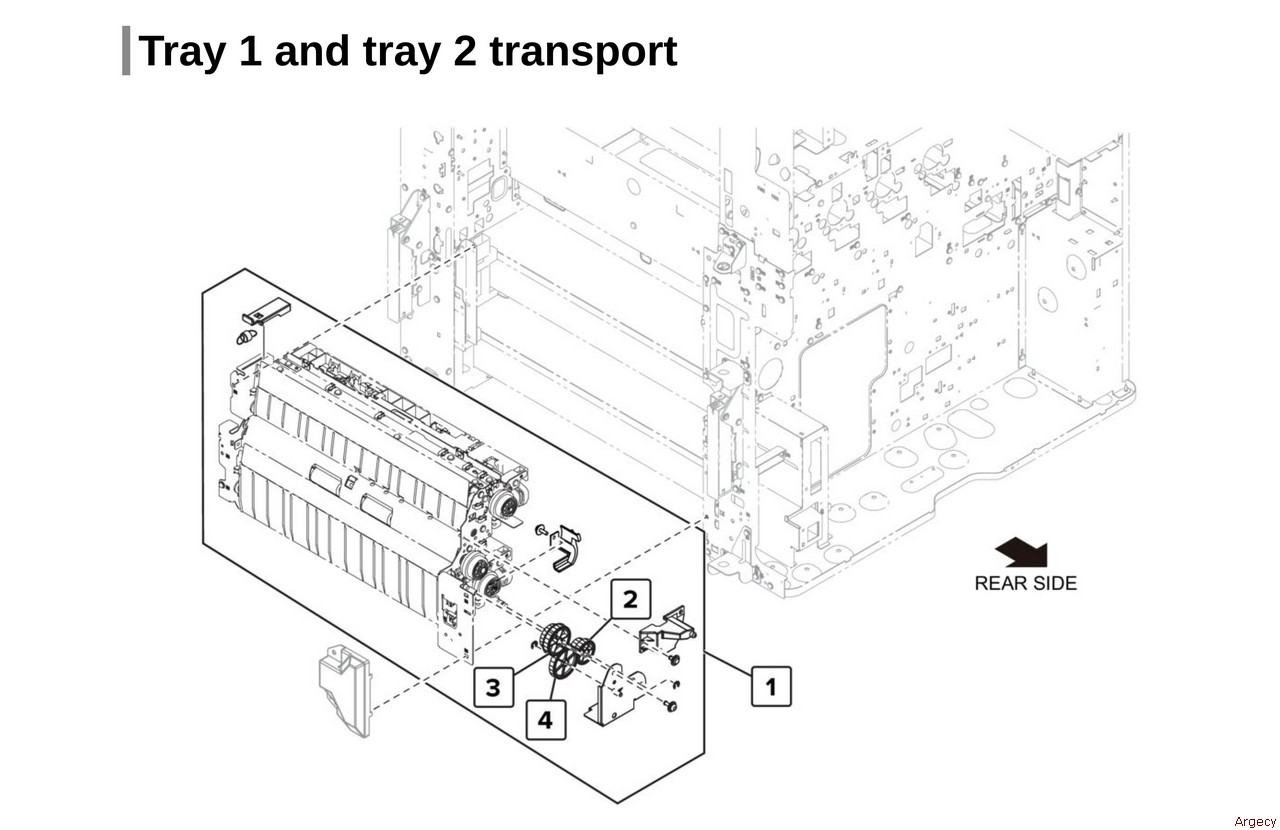

Assembly 34: Tray 1 and tray 2 transport

1

41X1804 Tray 1 and tray 2 paper feed unit
Fully refurbished with 90-day warranty
41X1804
$936.99



2
40X9980 Integrated tray 2 transport drive gear
Fully refurbished with 90-day warranty
40X9980
$8.00



3
41X1810 Tray 2 transport gear
New
41X1810 (New)
$16.32



4
41X1812 Tray 2 idler gear
New
41X1812 (New)
$15.10

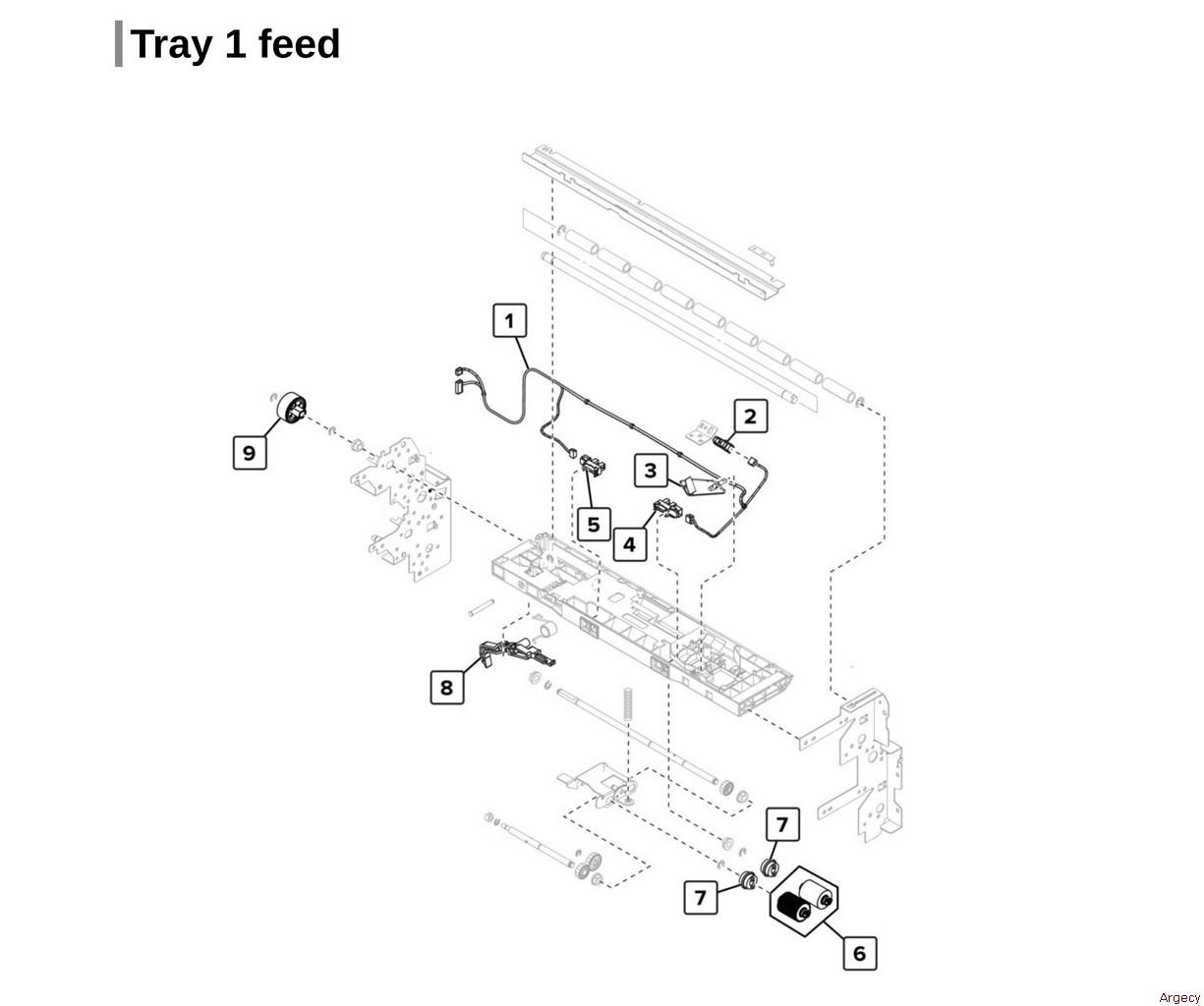

Assembly 35: Tray 1 feed

1

40X8972 Integrated tray 1 sensor cables
Fully refurbished with 90-day warranty
40X8972
$31.73



2
40X8968 Sensor (paper feed transport)
New
40X8968 (New)
$94.68



40X8968 Sensor (paper feed transport)
Fully refurbished with 90-day warranty
40X8968
$77.24



3
40X9899 Tray empty sensor actuator
Fully refurbished with 90-day warranty
40X9899
$8.00



4
41X1391 Sensor
New
41X1391 (New)
$16.57



5
41X1391 Sensor
New
41X1391 (New)
$16.57



6

7
40X9981 Roller clutch
New
40X9981 (New)
$24.86



8
40X9982 Tray set actuator
Fully refurbished with 90-day warranty
40X9982
$6.90



9
41X1805 Feed clutch
New
41X1805 (New)
$94.41



41X1805 Feed clutch
Fully refurbished with 90-day warranty
41X1805
$77.01

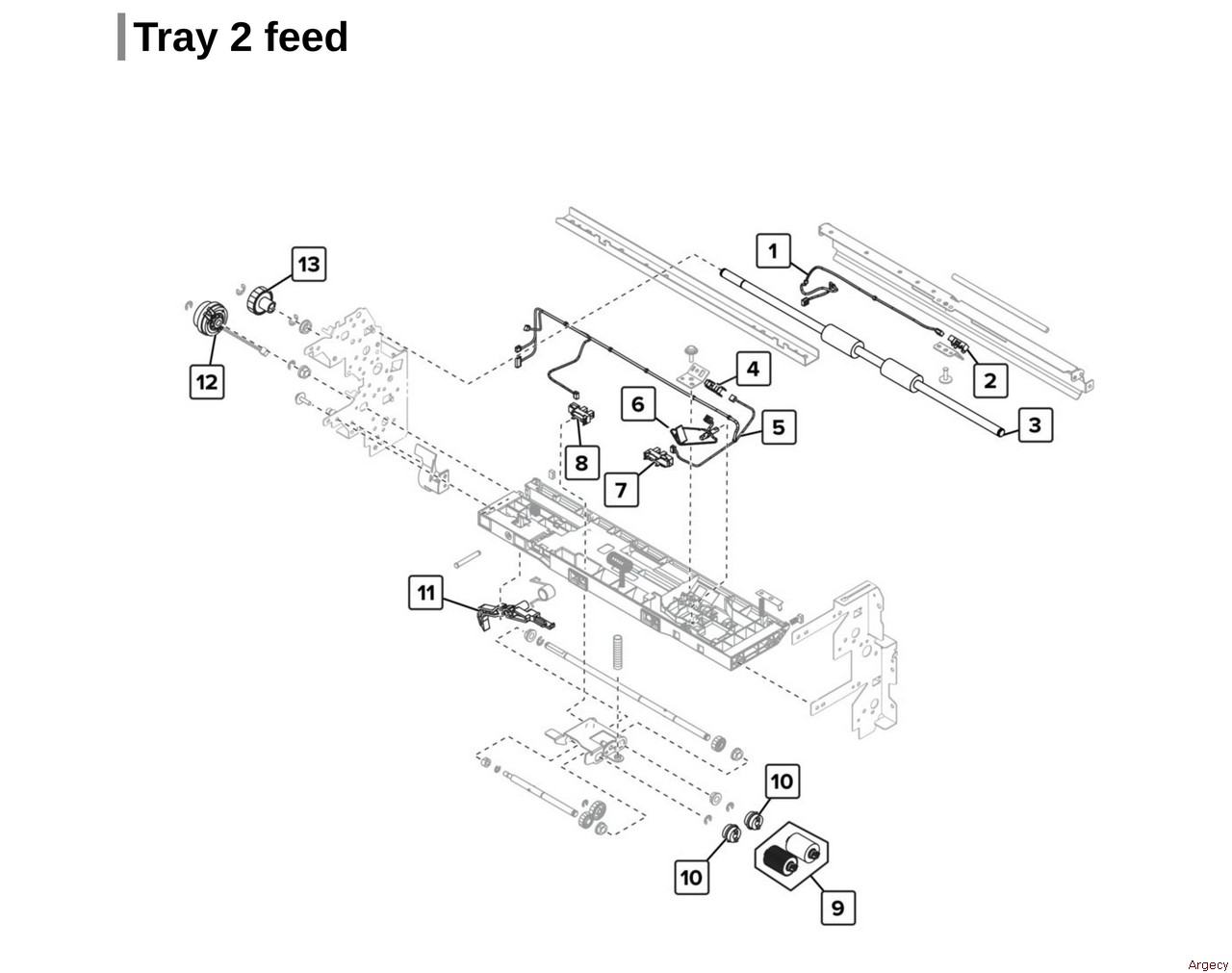

Assembly 36: Tray 2 feed

1
40X9984 Tray transport sensor cable
Fully refurbished with 90-day warranty
40X9984
$8.00



2
40X8968 Sensor (paper feed transport)
New
40X8968 (New)
$94.68



40X8968 Sensor (paper feed transport)
Fully refurbished with 90-day warranty
40X8968
$77.24



3
40X9983 Tray transport roller
New
40X9983 (New)
$90.68



4
40X8968 Sensor (paper feed transport)
New
40X8968 (New)
$94.68



40X8968 Sensor (paper feed transport)
Fully refurbished with 90-day warranty
40X8968
$77.24



5
40X9987 Paper feed sensor cable
New
40X9987 (New)
$45.57



6
40X9899 Tray empty sensor actuator
Fully refurbished with 90-day warranty
40X9899
$8.00



7
41X1391 Sensor
New
41X1391 (New)
$16.57



8
41X1391 Sensor
New
41X1391 (New)
$16.57



9

10
40X9981 Roller clutch
New
40X9981 (New)
$24.86



11
40X9982 Tray set actuator
Fully refurbished with 90-day warranty
40X9982
$6.90



12
41X1805 Feed clutch
New
41X1805 (New)
$94.41



41X1805 Feed clutch
Fully refurbished with 90-day warranty
41X1805
$77.01



13

41X1806 Registration clutch (feed gear)
Fully refurbished with 90-day warranty
41X1806
$71.34



Assembly 37: Tray 1 separator

1
40X9927 Separator roller assembly
New
40X9927 (New)
$182.81



2

3
40X9455 Separator / Roller clutch
New
40X9455 (New)
$52.27

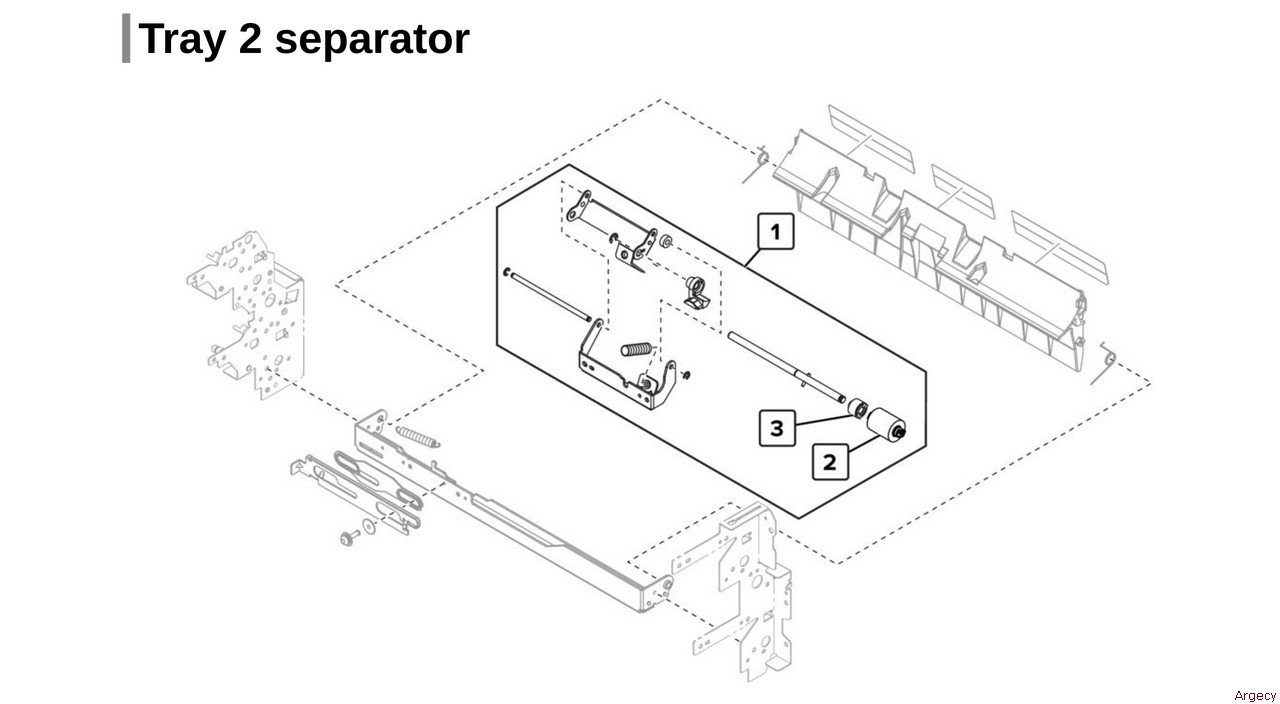

Assembly 38: Tray 2 separator

1
40X9927 Separator roller assembly
New
40X9927 (New)
$182.81



2

3
40X9455 Separator / Roller clutch
New
40X9455 (New)
$52.27

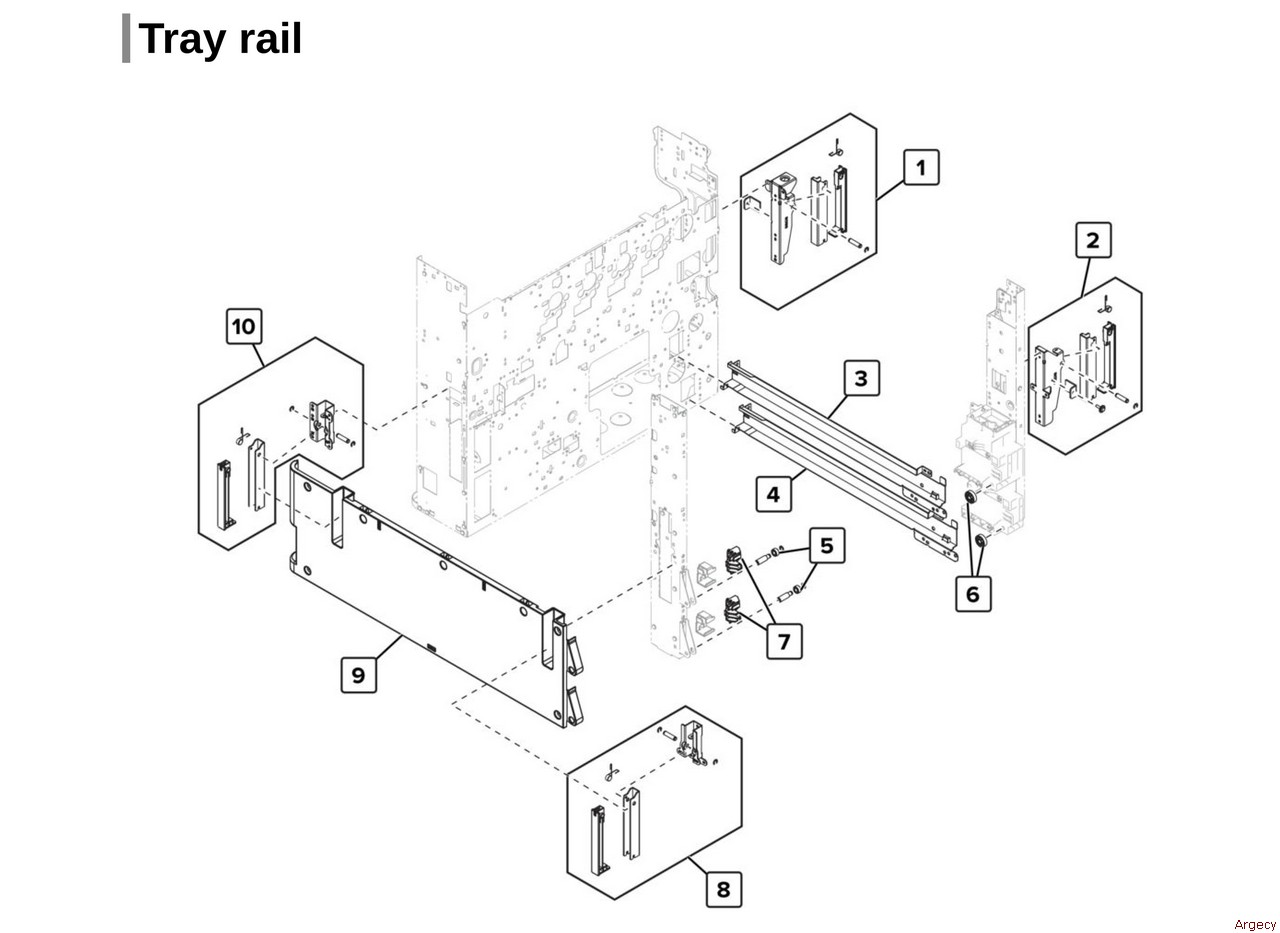

Assembly 39: Tray rail

1
40X8978 Rear right lift handle
New
40X8978 (New)
$102.44



40X8978 Rear right lift handle
Fully refurbished with 90-day warranty
40X8978
$85.32



2
40X8977 Front right lift handle
New
40X8977 (New)
$94.93



40X8977 Front right lift handle
Fully refurbished with 90-day warranty
40X8977
$77.44



3
40X8982 Tray insert rail
New
40X8982 (New)
$59.50



40X8982 Tray insert rail
Fully refurbished with 90-day warranty
40X8982
$48.52



4
40X8982 Tray insert rail
New
40X8982 (New)
$59.50



40X8982 Tray insert rail
Fully refurbished with 90-day warranty
40X8982
$48.52



5


6


7
41X1999 Tray 1 and tray 2 stoppers
New
41X1999 (New)
$23.99



8
40X8979 Front left lift handle
New
40X8979 (New)
$81.01



40X8979 Front left lift handle
Fully refurbished with 90-day warranty
40X8979
$66.08



9
41X1569 Bottom left cover
New
41X1569 (New)
$203.77



41X1569 Bottom left cover
Fully refurbished with 90-day warranty
"41X1569
$156.68
"



10
40X8980 Rear left lift handle
New
40X8980 (New)
$79.90



40X8980 Rear left lift handle
Fully refurbished with 90-day warranty
40X8980
$65.17

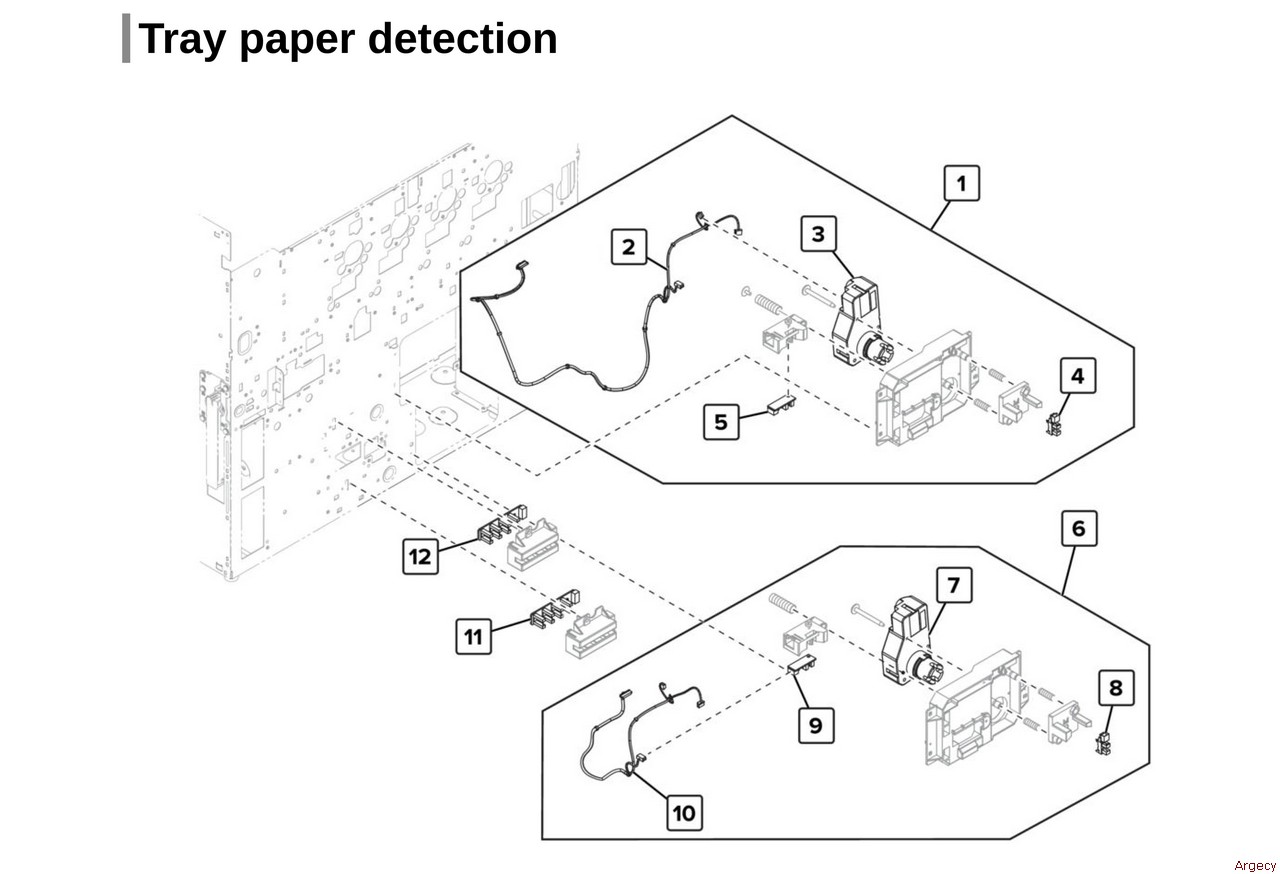

Assembly 40: Tray paper detection

1
41X1771 Tray 1 size sensing assembly
New
41X1771 (New)
$211.32



41X1771 Tray 1 size sensing assembly
Fully refurbished with 90-day warranty
41X1771
$162.49



2
41X1471 Tray 1 feed cable
New
41X1471 (New)
$36.99



41X1471 Tray 1 feed cable
Fully refurbished with 90-day warranty
41X1471
$30.14



3
40X8987 Tray lift motor
New
40X8987 (New)
$206.80



40X8987 Tray lift motor
Fully refurbished with 90-day warranty
40X8987
$159.01



4
41X1391 Sensor
New
41X1391 (New)
$16.57



5
40X8989 Paper width sensor
New
40X8989 (New)
$30.64



40X8989 Paper width sensor
Fully refurbished with 90-day warranty
40X8989
$24.96



6
41X1928 Tray 2 size sensing assembly
New
41X1928 (New)
$224.04



41X1928 Tray 2 size sensing assembly
Fully refurbished with 90-day warranty
41X1928
$163.43



7
40X8987 Tray lift motor
New
40X8987 (New)
$206.80



40X8987 Tray lift motor
Fully refurbished with 90-day warranty
40X8987
$159.01



8
41X1391 Sensor
New
41X1391 (New)
$16.57



9
40X8989 Paper width sensor
New
40X8989 (New)
$30.64



40X8989 Paper width sensor
Fully refurbished with 90-day warranty
40X8989
$24.96



10
41X1472 Tray 2 feed unit cable
New
41X1472 (New)
$39.21



41X1472 Tray 2 feed unit cable
Fully refurbished with 90-day warranty
41X1472
$31.96



11
40X8985 Paper length sensor
New
40X8985 (New)
$72.16



40X8985 Paper length sensor
Fully refurbished with 90-day warranty
40X8985
$58.85



12
40X8985 Paper length sensor
New
40X8985 (New)
$72.16



40X8985 Paper length sensor
Fully refurbished with 90-day warranty
40X8985
$58.85

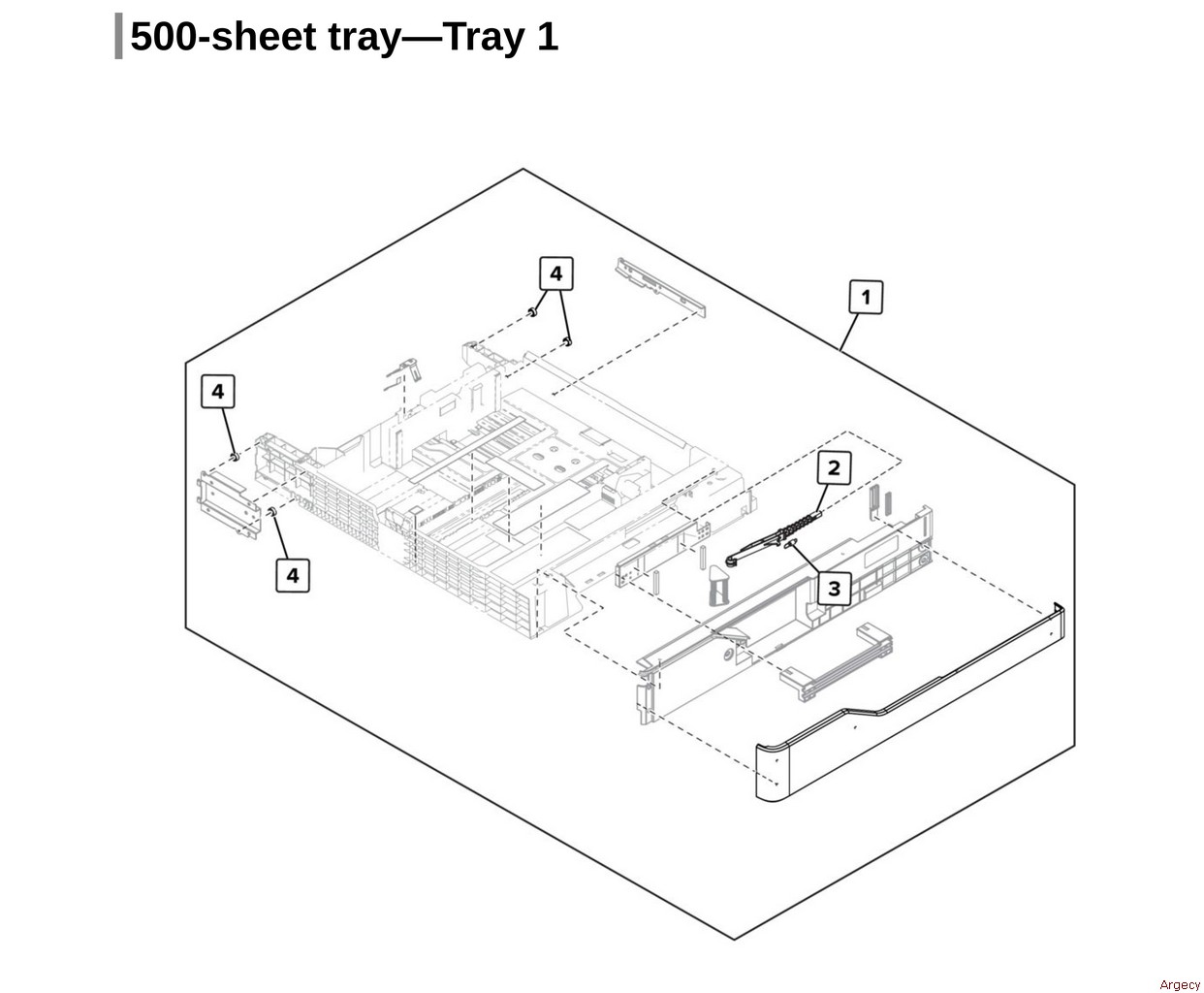

Assembly 41: 500-sheet tray—Tray 1

1
41X1474 Tray 1 insert
New
41X1474 (New)
$755.16



41X1474 Tray 2 feed unit cable
Fully refurbished with 90-day warranty
41X1474
$580.82



2
41X1929 Tray lock
New
41X1929 (New)
$17.85



3
40X9895 Pulling coil spring
New
40X9895 (New)
$7.10



4

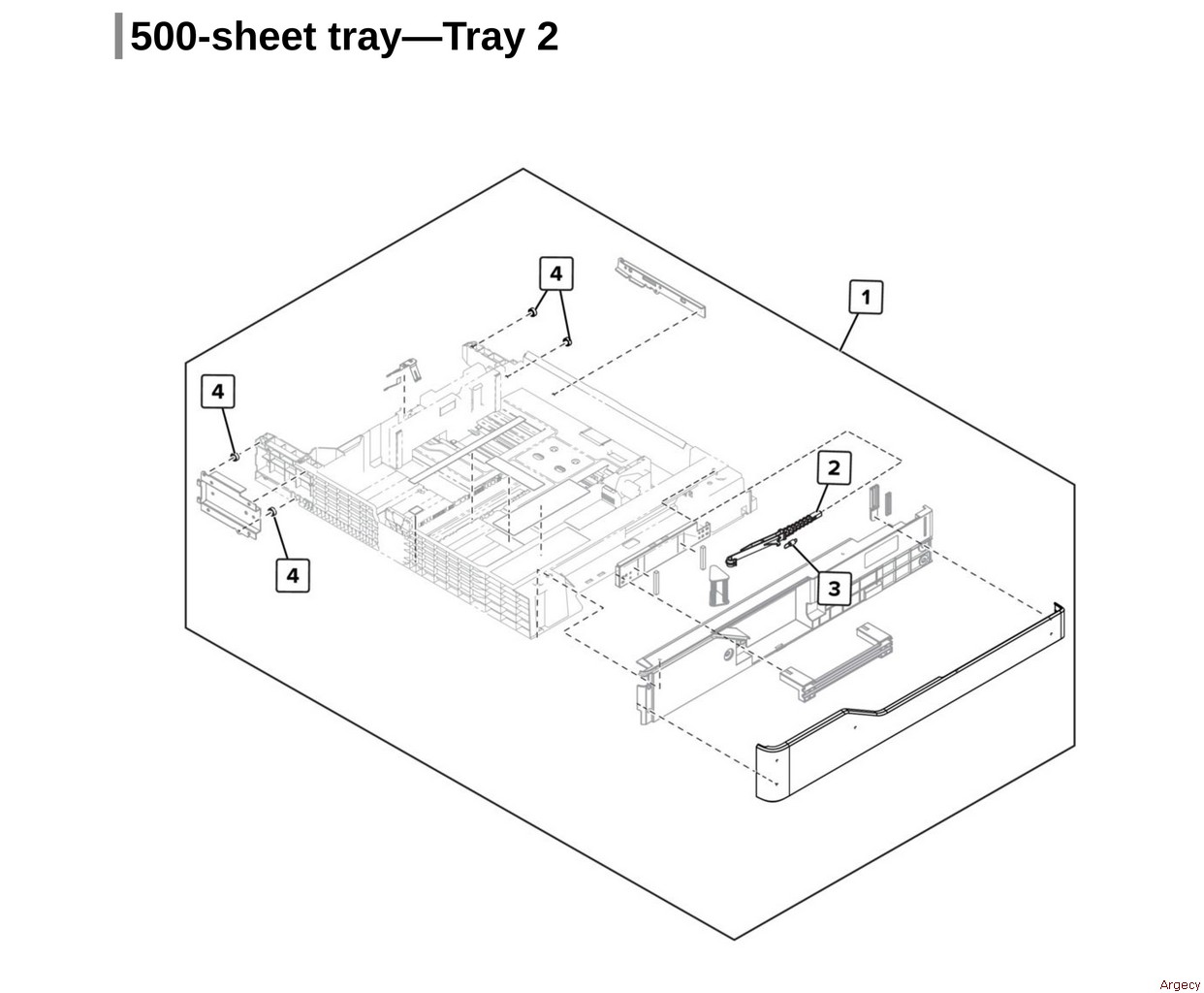

Assembly 42: 500-sheet tray—Tray 2

1
41X1475 Tray 2 insert
New
41X1475 (New)
$758.80



41X1475 Tray 1 insert
Fully refurbished with 90-day warranty
41X1475
$583.63



2
40X9304 Tray lock lever
New
40X9304 (New)
$17.18



3
40X9895 Pulling coil spring
New
40X9895 (New)
$7.10



4

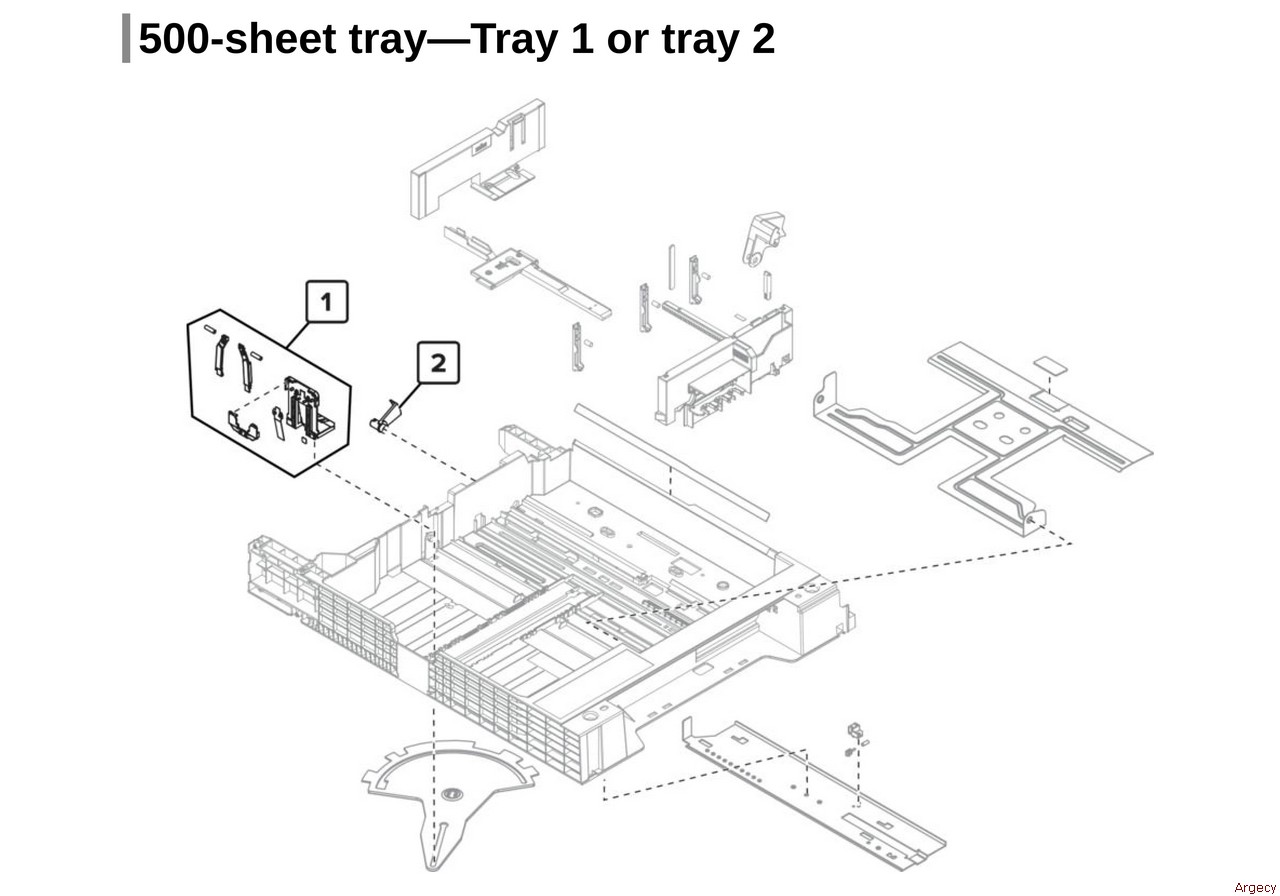

Assembly 43: 500-sheet tray—Tray 1 or tray 2
1

41X1562 Expansion controller board
Fully refurbished with 90-day warranty
41X1562
$58.85



2

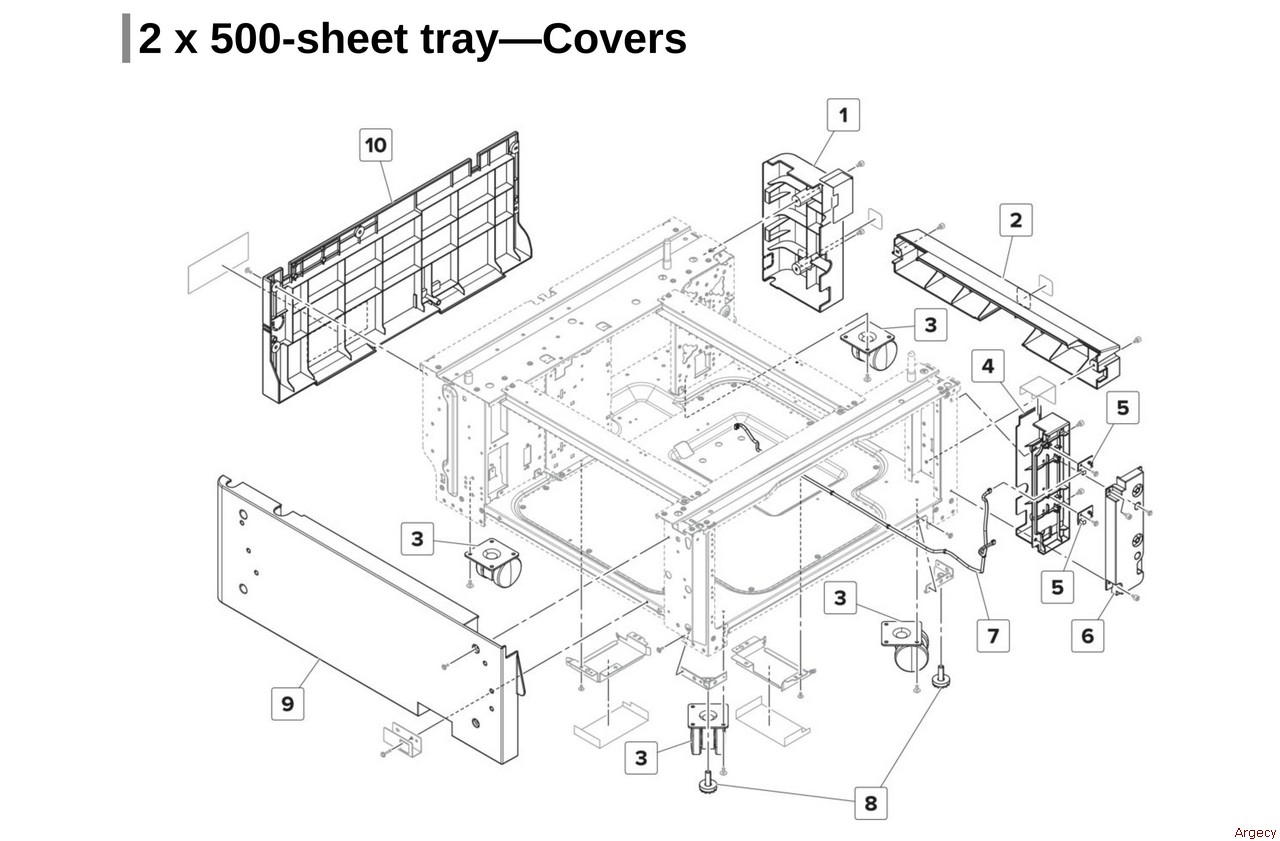

Assembly 44: 2 x 500 - sheet tray—Covers

1
40X9779 Rear right cover
New
40X9779 (New)
$105.38



40X9779 Rear right cover
Fully refurbished with 90-day warranty
40X9779
$87.77



2
40X9285 Bottom right cover
Fully refurbished with 90-day warranty
40X9285
$81.41



40X9285 Bottom right cover
New
40X9285 (New)
$97.75



3
40X9282 Caster wheel
New
40X9282 (New)
$58.72



4
41X1963 2500-sheet tray LED mount
New
41X1963 (New)
$67.00



41X1963 2500-sheet tray LED mount
Fully refurbished with 90-day warranty
41X1963
$51.82



5
40X8903 Tray empty indicator (LED)
New
40X8903 (New)
$21.65



40X8903 Tray empty indicator (LED)
Fully refurbished with 90-day warranty
40X8903
$19.46



6
41X1962 2500-sheet tray LED cover
New
41X1962 (New)
$45.70



41X1962 2500-sheet tray LED cover
Fully refurbished with 90-day warranty
41X1962
$35.33



7 40X9289 2 x 500-sheet tray empty LED cable

8
40X9283 Rubber stopper
New
40X9283 (New)
$32.86



40X9283 Rubber stopper
Fully refurbished with 90-day warranty
40X9283
$26.77



9
40X9281 Left cover
New
40X9281 (New)
$146.62



40X9281 Left cover
Fully refurbished with 90-day warranty
40X9281
$106.83



10
40X9280 Rear cover
Fully refurbished with 90-day warranty
40X9280
$145.09



40X9280 Rear cover
New
40X9280 (New)
$188.71

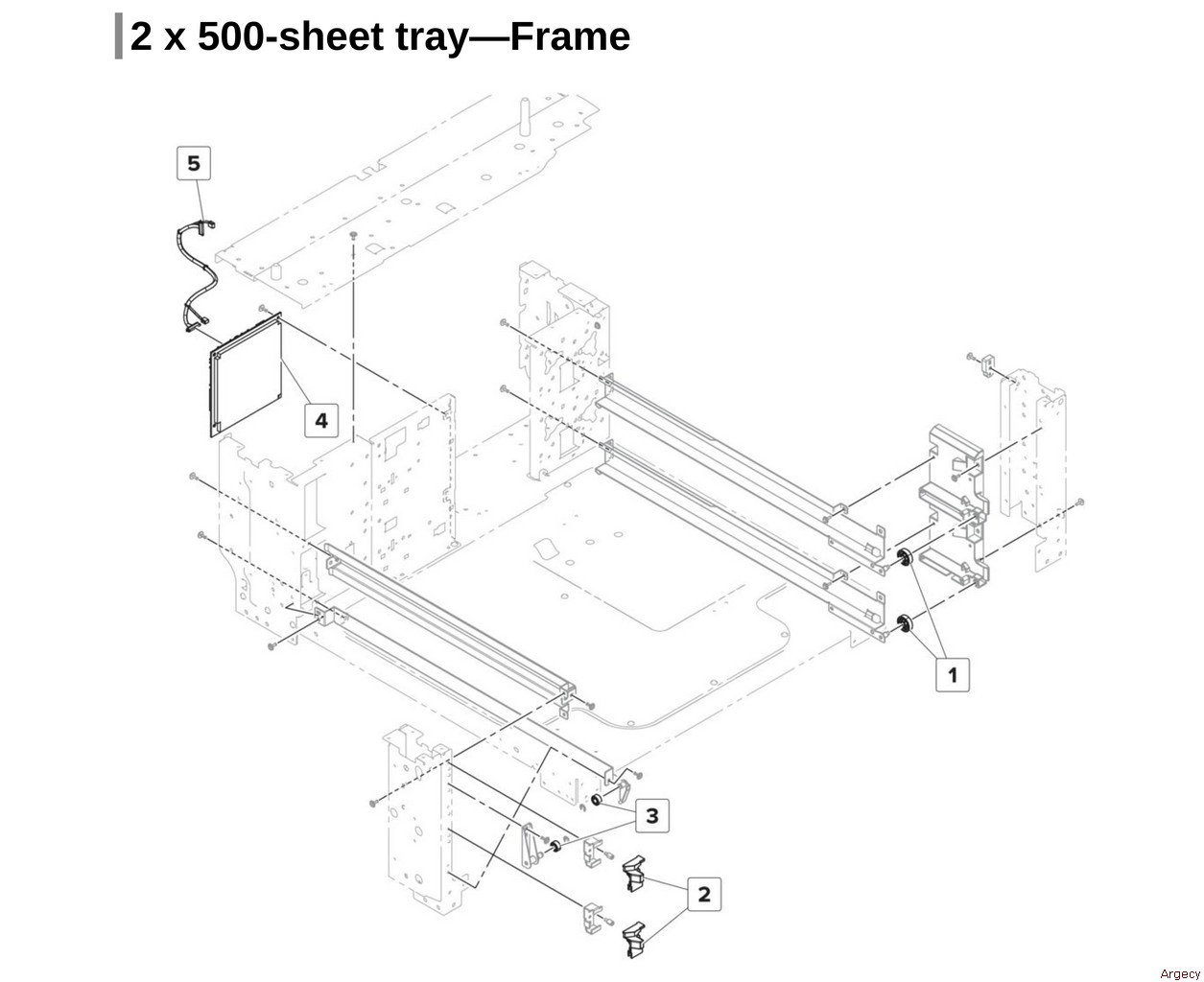

Assembly 45: 2 x 500 - sheet tray—Frame

1


2

3


4
40X9290 Controller card
New
40X9290 (New)
$262.78



5
40X9783 Interface cable
New
40X9783 (New)
$31.73

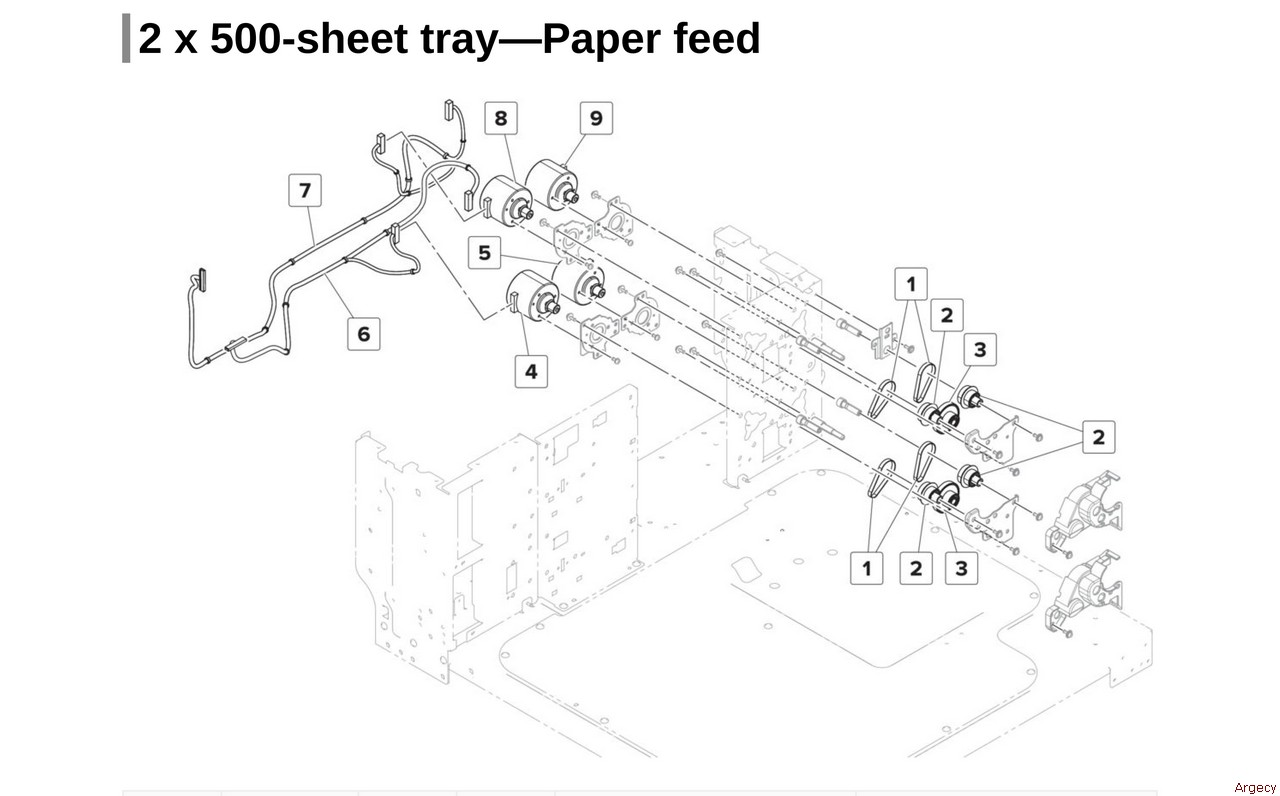

Assembly 46: 2 x 500 - sheet tray—Paper feed

1
40X9294 Feed and transport motor belt
New
40X9294 (New)
$24.60



2

3

4
40X9293 Feed and transport motor
New
40X9293 (New)
$246.04



40X9293 Feed and transport motor
Fully refurbished with 90-day warranty
40X9293
$189.19



5
40X9293 Feed and transport motor
New
40X9293 (New)
$246.04



40X9293 Feed and transport motor
Fully refurbished with 90-day warranty
40X9293
$189.19



6

7

40X9882 Feed and transport motor cable
Fully refurbished with 90-day warranty
40X9882
$54.45



8
40X9293 Feed and transport motor
New
40X9293 (New)
$246.04



40X9293 Feed and transport motor
Fully refurbished with 90-day warranty
40X9293
$189.19



9
40X9293 Feed and transport motor
New
40X9293 (New)
$246.04



40X9293 Feed and transport motor
Fully refurbished with 90-day warranty
40X9293
$189.19

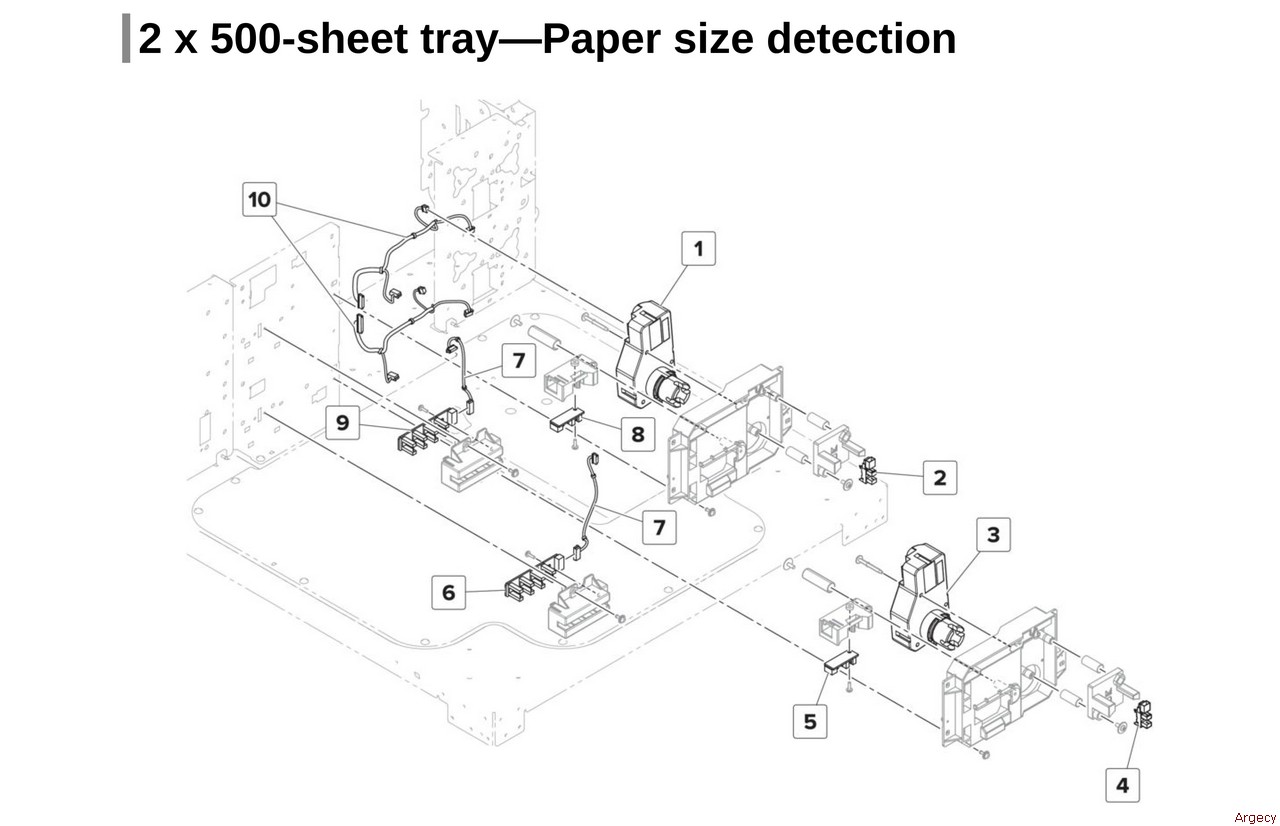

Assembly 47: 2 x 500 - sheet tray—Paper size detection

1
40X8987 Tray lift motor
New
40X8987 (New)
$206.80



40X8987 Tray lift motor
Fully refurbished with 90-day warranty
40X8987
$159.01



2
41X1391 Sensor
New
41X1391 (New)
$16.57



3
40X8987 Tray lift motor
New
40X8987 (New)
$206.80



40X8987 Tray lift motor
Fully refurbished with 90-day warranty
40X8987
$159.01



4
41X1391 Sensor
New
41X1391 (New)
$16.57



5
40X8989 Paper width sensor
New
40X8989 (New)
$30.64



40X8989 Paper width sensor
Fully refurbished with 90-day warranty
40X8989
$24.96



6
40X8985 Paper length sensor
New
40X8985 (New)
$72.16



40X8985 Paper length sensor
Fully refurbished with 90-day warranty
40X8985
$58.85



7
40X9775 Paper length sensor cable
New
40X9775 (New)
$15.10



8
40X8989 Paper width sensor
New
40X8989 (New)
$30.64



40X8989 Paper width sensor
Fully refurbished with 90-day warranty
40X8989
$24.96



9
40X8985 Paper length sensor
New
40X8985 (New)
$72.16



40X8985 Paper length sensor
Fully refurbished with 90-day warranty
40X8985
$58.85



10
40X9889 Tray lift motor cable
New
40X9889 (New)
$15.74

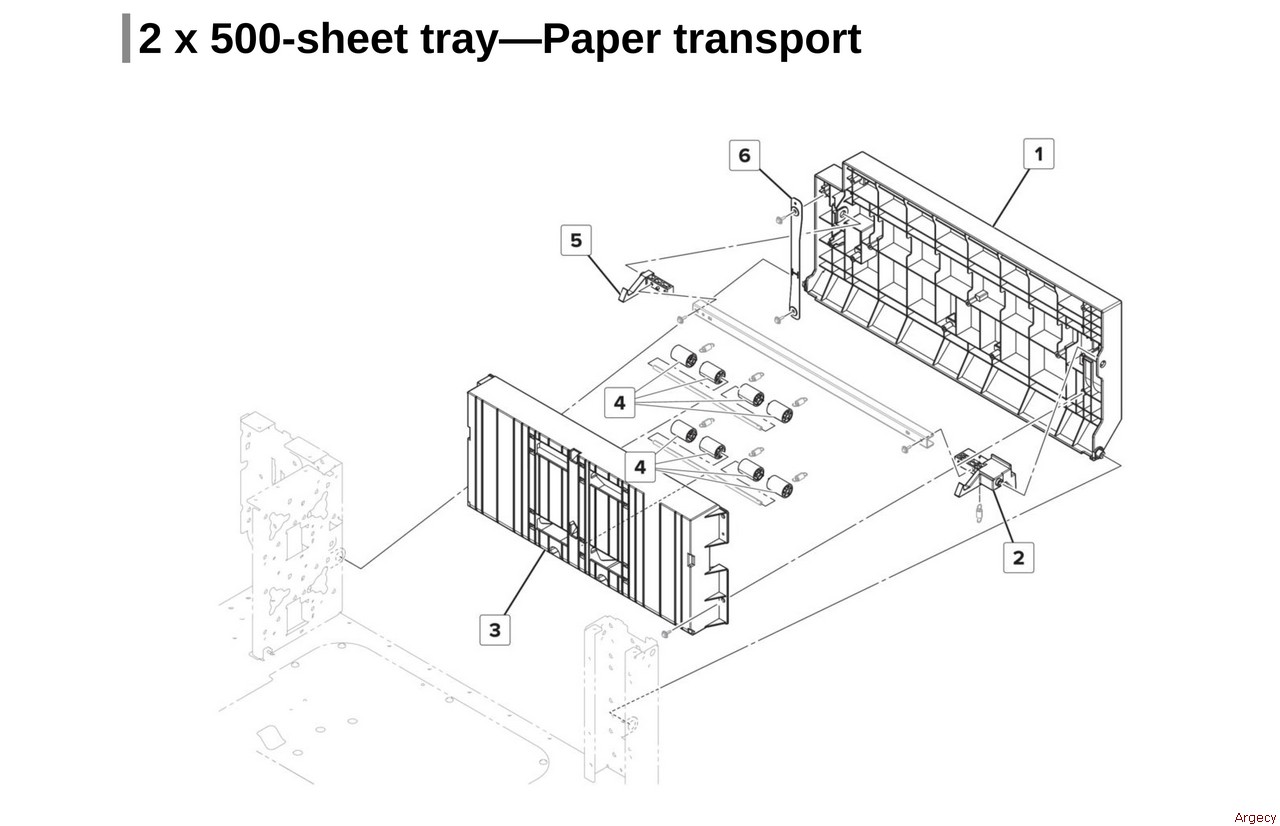

Assembly 48: 2 x 500 - sheet tray—Paper transport

1
41X1018 2500-sheet tray door
New
41X1018 (New)
$136.15



41X1018 2500-sheet tray door
Fully refurbished with 90-day warranty
41X1018
$113.41



2
41X1019 2500-sheet tray door latch left
Fully refurbished with 90-day warranty
41X1019
$21.89





3
41X1020 2 x 500-sheet tray paper guide
New
41X1020 (New)
$153.43



41X1020 2 x 500-sheet tray paper guide
Fully refurbished with 90-day warranty
41X1020
$111.80



4


5

6
40X9908 Jam access door strap
New
40X9908 (New)
$10.36

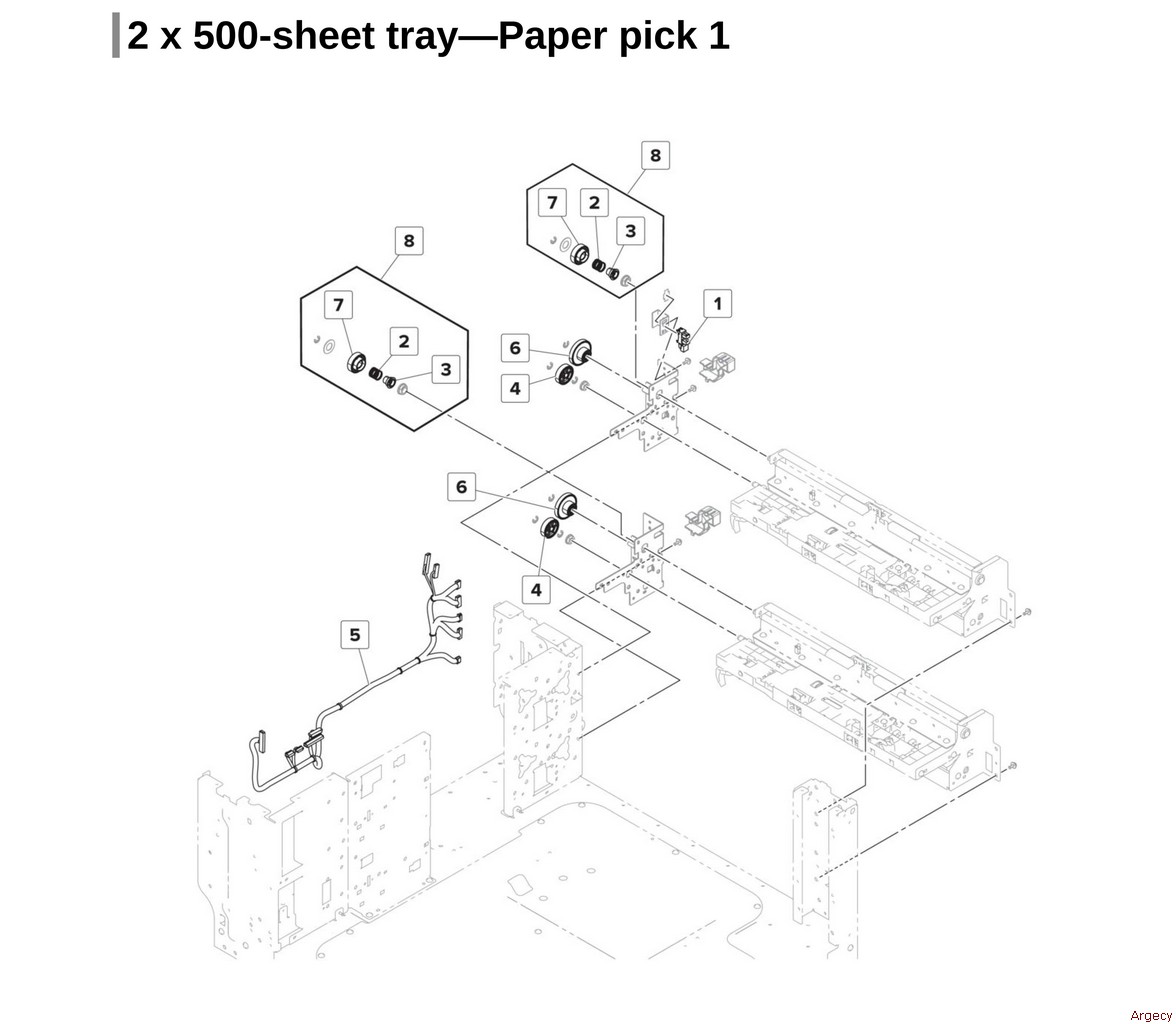

Assembly 49: 2 x 500 - sheet tray—Paper pick 1

1
41X1444 Sensor
New
41X1444 (New)
$36.99



41X1444 Sensor
Fully refurbished with 90-day warranty
41X1444
$30.14



2
40X9892 Transport gear spring
New
40X9892 (New)
$15.10



3
40X9893 Transport gear bushing
New
40X9893 (New)
$8.27



4
40X9894 Feed primary gear
New
40X9894 (New)
$9.14



5
40X9890 Cable harness
New
40X9890 (New)
$110.17



40X9890 Cable harness
Fully refurbished with 90-day warranty
40X9890
$91.76



6

7
40X9298 Transport gear
New
40X9298 (New)
$8.27

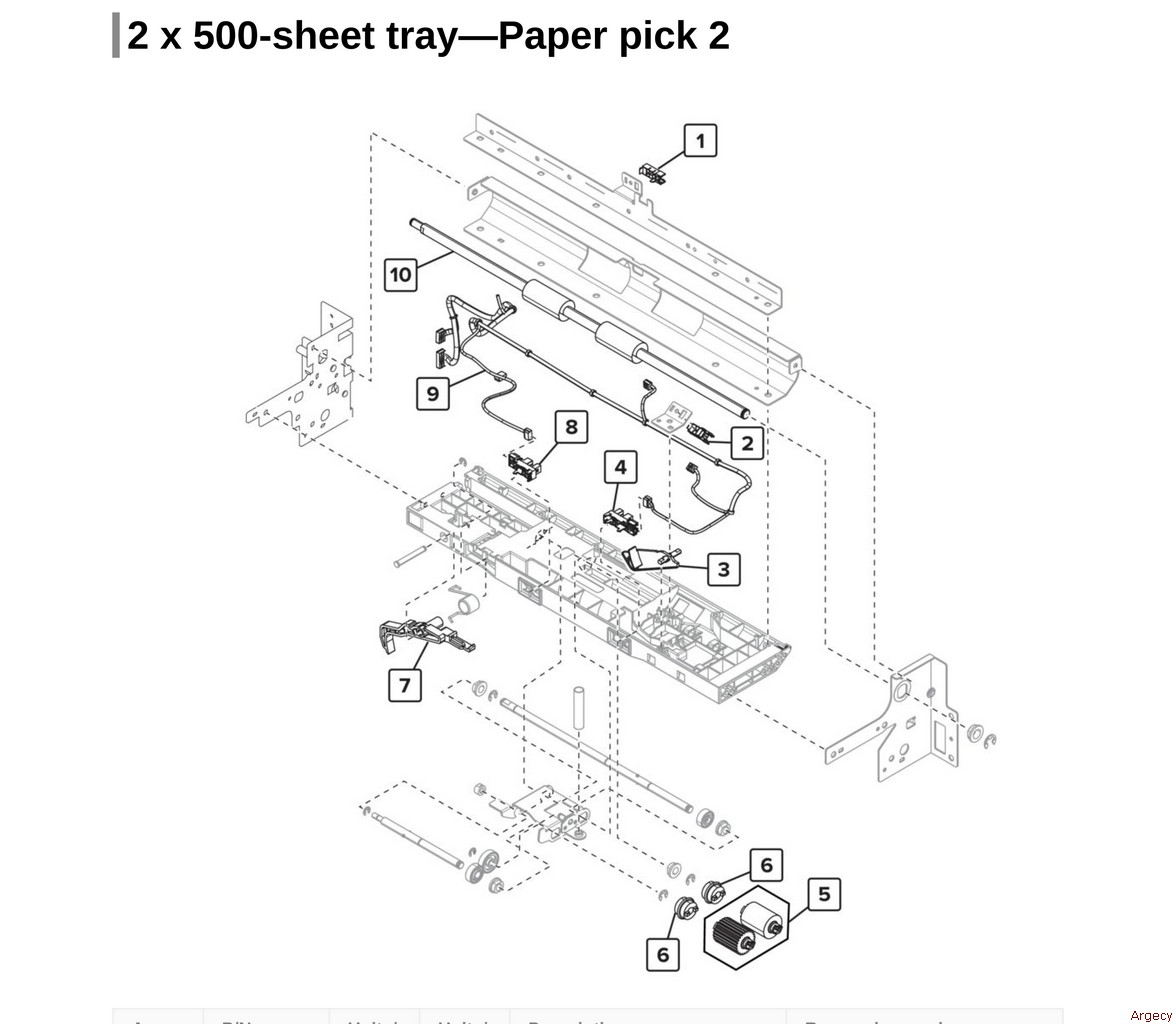

Assembly 50: 2 x 500 - sheet tray—Paper pick 2

1
40X8968 Sensor (paper feed transport)
New
40X8968 (New)
$94.68



40X8968 Sensor (paper feed transport)
Fully refurbished with 90-day warranty
40X8968
$77.24



2
40X8968 Sensor (paper feed transport)
New
40X8968 (New)
$94.68



40X8968 Sensor (paper feed transport)
Fully refurbished with 90-day warranty
40X8968
$77.24



3
40X9899 Tray empty sensor actuator
Fully refurbished with 90-day warranty
40X9899
$8.00



4
41X1391 Sensor
New
41X1391 (New)
$16.57



5

6
40X9981 Roller clutch
New
40X9981 (New)
$24.86



7
40X9982 Tray set actuator
Fully refurbished with 90-day warranty
40X9982
$6.90



8
41X1391 Sensor
New
41X1391 (New)
$16.57



9

9

10
40X9299 Transport roller
New
40X9299 (New)
$94.68



40X9299 Transport roller
Fully refurbished with 90-day warranty
40X9299
$77.24

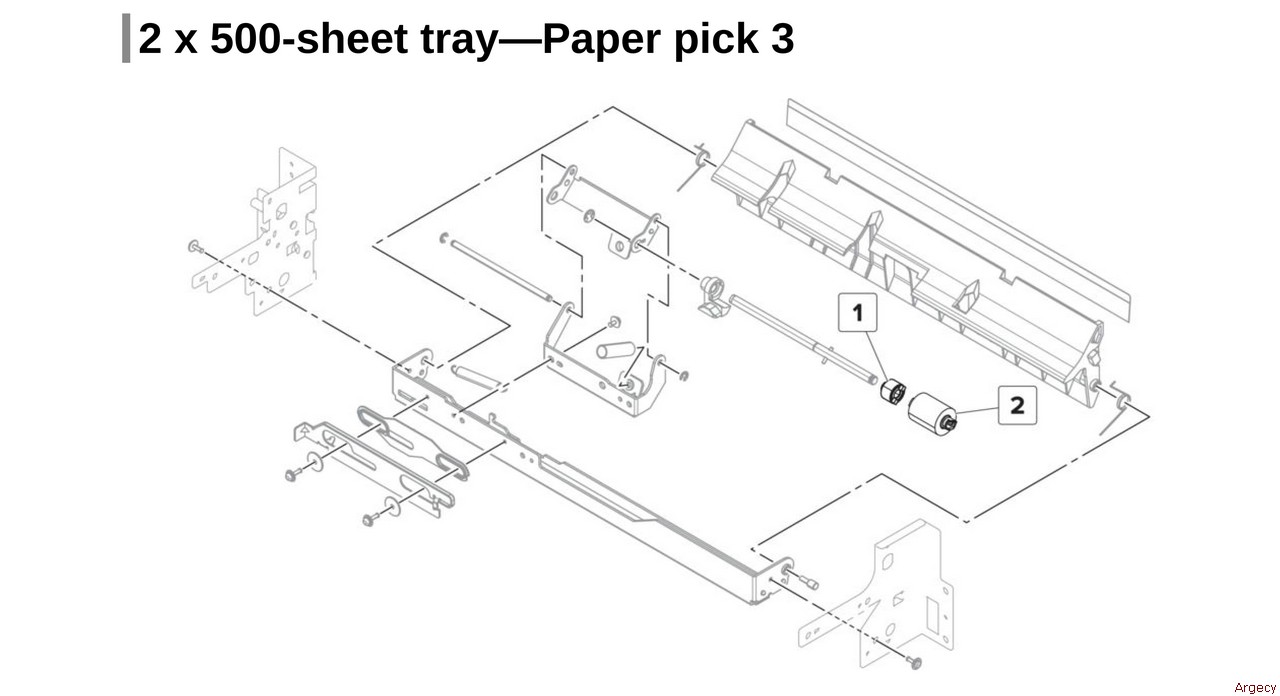

Assembly 51: 2 x 500 - sheet tray—Paper pick 3

1
40X9455 Separator / Roller clutch
New
40X9455 (New)
$52.27



2

Assembly 52: 2 x 500 - sheet tray—Tray 3

1
41X1957 Tray 3 insert
New
41X1957 (New)
$1231.00



41X1957 Tray 3 insert
Fully refurbished with 90-day warranty
41X1957
$898.83



2
41X1958 Tray 4 front cover
New
41X1958 (New)
$142.33



41X1958 Tray 4 front cover
Fully refurbished with 90-day warranty
41X1958
$112.48



3
41X1959 2500-sheet tray handle
New
41X1959 (New)
$41.36



41X1959 2500-sheet tray handle
Fully refurbished with 90-day warranty
41X1959
$31.96



4
41X1956 Tray 3 inner front cover
New
41X1956 (New)
$150.23



41X1956 Tray 3 inner front cover
Fully refurbished with 90-day warranty
41X1956
$118.72



5
40X9895 Pulling coil spring
New
40X9895 (New)
$7.10



6
40X9304 Tray lock lever
New
40X9304 (New)
$17.18



7

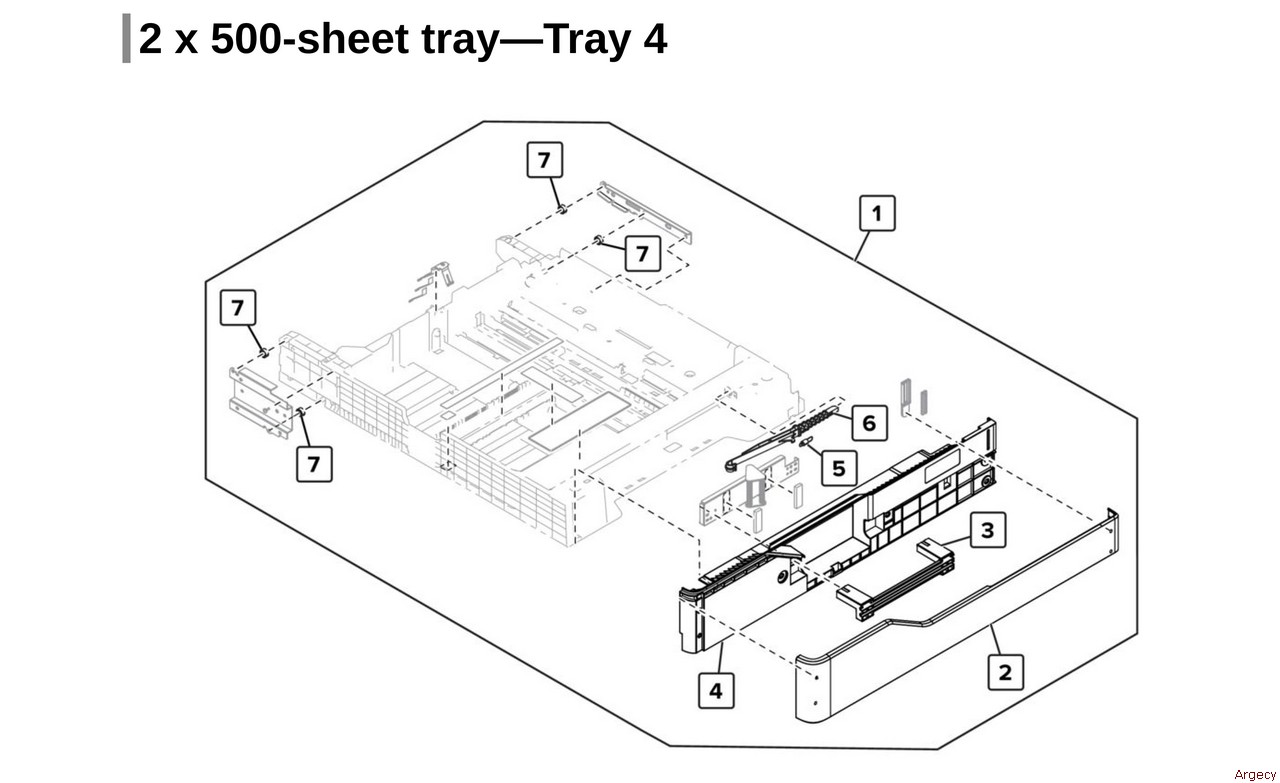

Assembly 53: 2 x 500 - sheet tray—Tray 4

1
41X1961 Tray 4 insert
New
41X1961 (New)
$1233.00



41X1961 Tray 4 insert
Fully refurbished with 90-day warranty
41X1961
$900.12



2
41X1958 Tray 4 front cover
New
41X1958 (New)
$142.33



41X1958 Tray 4 front cover
Fully refurbished with 90-day warranty
41X1958
$112.48



3
41X1959 2500-sheet tray handle
New
41X1959 (New)
$41.36



41X1959 2500-sheet tray handle
Fully refurbished with 90-day warranty
41X1959
$31.96



4
41X1960 Tray 4 inner front cover
New
41X1960 (New)
$152.61



41X1960 Tray 4 inner front cover
Fully refurbished with 90-day warranty
41X1960
$105.49



5
40X9895 Pulling coil spring
New
40X9895 (New)
$7.10



6
40X9304 Tray lock lever
New
40X9304 (New)
$17.18



7


Assembly 54: 2 x 500 - sheet tray—Tray 3 and tray 4 frame

1


2

41X1562 Expansion controller board
Fully refurbished with 90-day warranty
41X1562
$58.85



3 40X9309 2 2 x 500-tray insert paper length sensor actuator

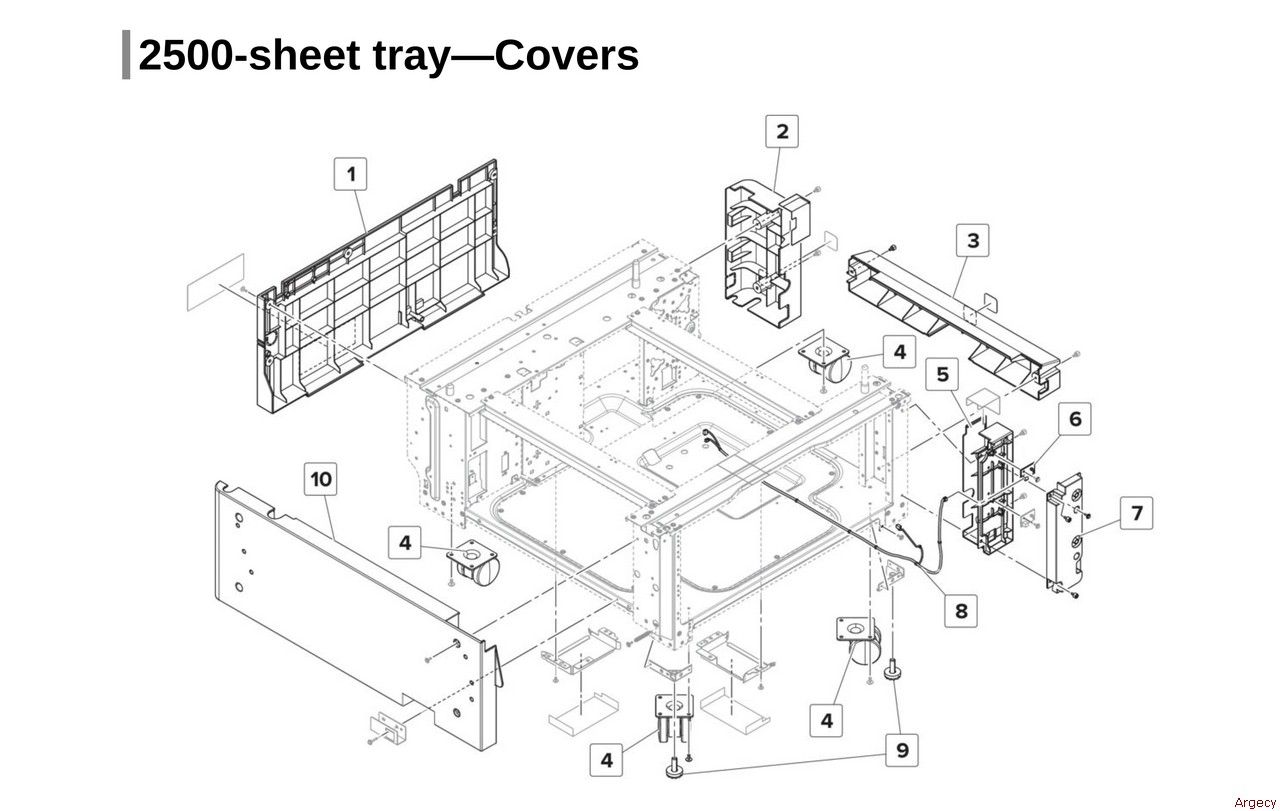

Assembly 55: 2500 - sheet tray—Covers

1
40X9280 Rear cover
New
40X9280 (New)
$188.71



40X9280 Rear cover
Fully refurbished with 90-day warranty
40X9280
$145.09



2
40X9779 Rear right cover
New
40X9779 (New)
$105.38



3
40X9285 Bottom right cover
New
40X9285 (New)
$97.75



40X9285 Bottom right cover
Fully refurbished with 90-day warranty
40X9285
$81.41



4
40X9282 Caster wheel
New
40X9282 (New)
$58.72



5
41X1963 2500-sheet tray LED mount
New
41X1963 (New)
$67.00



41X1963 2500-sheet tray LED mount
Fully refurbished with 90-day warranty
41X1963
$51.82



6
40X8903 Tray empty indicator (LED)
New
40X8903 (New)
$21.65



40X8903 Tray empty indicator (LED)
Fully refurbished with 90-day warranty
40X8903
$19.46



7
41X1962 2500-sheet tray LED cover
New
41X1962 (New)
$45.70



41X1962 2500-sheet tray LED cover
Fully refurbished with 90-day warranty
41X1962
$35.33



8

9
40X9283 Rubber stopper
New
40X9283 (New)
$32.86



10
40X9281 Left cover
Fully refurbished with 90-day warranty
40X9281
$106.83



40X9281 Left cover
New
40X9281 (New)
$146.62



Assembly 56: 2500 - sheet tray—Frame

1
41X1391 Sensor
New
41X1391 (New)
$16.57



2


3
40X9784 Tray insert guide wheel
New
40X9784 (New)
$7.23



4
40X9785 Controller card
New
40X9785 (New)
$276.60



5
40X9783 Interface cable
New
40X9783 (New)
$31.73



Assembly 57: 2500 - sheet tray—Paper feed

1
40X9293 Feed and transport motor
New
40X9293 (New)
$246.04



40X9293 Feed and transport motor
Fully refurbished with 90-day warranty
40X9293
$189.19



2
40X9293 Feed and transport motor
New
40X9293 (New)
$246.04



40X9293 Feed and transport motor
Fully refurbished with 90-day warranty
40X9293
$189.19



3
40X9294 Feed and transport motor belt
New
40X9294 (New)
$24.60



40X9294 Feed and transport motor belt
Fully refurbished with 90-day warranty
40X9294
$22.11



4

5

6

40X9896 Motor (elevator and transfer guide)
Fully refurbished with 90-day warranty
40X9896
$127.11



7

40X9896 Motor (elevator and transfer guide)
Fully refurbished with 90-day warranty
40X9896
$127.11



8

Assembly 58: 2500 - sheet tray—Paper transport

1
41X1018 2500-sheet tray door
New
41X1018 (New)
$136.15



41X1018 2500-sheet tray door
Fully refurbished with 90-day warranty
41X1018
$113.41



2
40X9908 Jam access door strap
New
40X9908 (New)
$10.36



3

4
41X1019 2500-sheet tray door latch left
Fully refurbished with 90-day warranty
41X1019
$21.89





5


Assembly 59: 2500 - sheet tray—Paper pick 1

1
40X9298 Transport gear
New
40X9298 (New)
$8.27



2
40X9892 Transport gear spring
New
40X9892 (New)
$15.10



3
40X9893 Transport gear bushing
New
40X9893 (New)
$8.27



4
41X1444 Sensor
New
41X1444 (New)
$36.99



5
40X9894 Feed primary gear
New
40X9894 (New)
$9.14



6

7
40X9786 Cable harness
Fully refurbished with 90-day warranty
40X9786



40X9786 Cable harness
New
40X9786 (New)
$170.35



Assembly 60: 2500 - sheet tray—Paper pick 2

1
40X9299 Transport roller
New
40X9299 (New)
$94.68



2
40X8968 Sensor (paper feed transport)
New
40X8968 (New)
$94.68



40X8968 Sensor (paper feed transport)
Fully refurbished with 90-day warranty
40X8968
$77.24



3
40X8968 Sensor (paper feed transport)
New
40X8968 (New)
$94.68



40X8968 Sensor (paper feed transport)
Fully refurbished with 90-day warranty
40X8968
$77.24



4
40X9787 Pick assembly sensor cable
New
40X9787 (New)
$50.05



5
41X1391 Sensor
New
41X1391 (New)
$16.57



6
41X1391 Sensor
New
41X1391 (New)
$16.57



7
40X9899 Tray empty sensor actuator
Fully refurbished with 90-day warranty
40X9899
$8.00



8

9
40X9981 Roller clutch
New
40X9981 (New)
$24.86



10
40X9982 Tray set actuator
Fully refurbished with 90-day warranty
40X9982
$6.90





Assembly 62: 2500 - sheet tray—Tray insert 1

1
41X1967 2500-sheet tray insert
New
41X1967 (New)
$1504.48



1
41X1966 2500-sheet tray insert - Letter
New
41X1966 (New)
$1499.00



41X1966 2500-sheet tray insert - Letter
Fully refurbished with 90-day warranty
41X1966
$1094.00



2
41X1964 2500-sheet tray front cover
New
41X1964 (New)
$169.77



41X1964 2500-sheet tray front cover
Fully refurbished with 90-day warranty
41X1964
$117.36



3
41X1959 2500-sheet tray handle
New
41X1959 (New)
$41.36



41X1959 2500-sheet tray handle
Fully refurbished with 90-day warranty
41X1959
$31.96



4 41X1965 2500-sheet tray inner front cover

5
40X9788 Lock lever
New
40X9788 (New)
$17.85



6
40X9895 Pulling coil spring
New
40X9895 (New)
$7.10



Assembly 63: 2500 - sheet tray—Tray insert 2

1

2
41X1391 Sensor
New
41X1391 (New)
$16.57



3
40X9792 Paper stack transfer guide
New
40X9792 (New)
$86.80



4

5

6
41X1391 Sensor
New
41X1391 (New)
$16.57



7

8
41X1391 Sensor
New
41X1391 (New)
$16.57



9

Assembly 64: 2500 - sheet tray—Tray insert 3

1
40X9796 Transfer guide primary gear
New
40X9796 (New)
$13.92



2
40X9798 Main tray elevator coupling
New
40X9798 (New)
$10.36



3

4
40X9902 Main tray elevator gear
New
40X9902 (New)
$10.36



5

6

Assembly 65: 2500 - sheet tray—Tray insert 4

1
40X9802 Tray empty sensor actuator
New
40X9802 (New)
$10.36



2
40X9801 Elevator home sensor actuator
New
40X9801 (New)
$10.36



3
41X1391 Sensor
New
41X1391 (New)
$16.57



4
41X1391 Sensor
New
41X1391 (New)
$16.57



5

6

7
40X9803 Tray transfer guide stop
New
40X9803 (New)
$16.32



8
40X9808 Transfer guide belt
New
40X9808 (New)
$72.53



40X9808 Transfer guide belt
Fully refurbished with 90-day warranty
40X9808
$59.16



9
41X1391 Sensor
New
41X1391 (New)
$16.57



10
41X1391 Sensor
New
41X1391 (New)
$16.57



11

12

13

14


15
40X9809 Tray insert sensor cable
New
40X9809 (New)
$115.90



40X9809 Tray insert sensor cable
Fully refurbished with 90-day warranty
40X9809
$96.53



16

40X9806 Tray elevator damper
Fully refurbished with 90-day warranty
40X9806



17

Assembly 66: 3000 - sheet tray—Covers

1
40X9260 Top door
New
40X9260 (New)
$238.40



40X9260 Top door
Fully refurbished with 90-day warranty
40X9260
$183.32



2
40X9255 Right cover
New
40X9255 (New)
$174.91



40X9255 Right cover
Fully refurbished with 90-day warranty
40X9255
$120.92



3
40X8903 Tray empty indicator (LED)
New
40X8903 (New)
$21.65



40X8903 Tray empty indicator (LED)
Fully refurbished with 90-day warranty
40X8903
$19.46



4
40X9257 Tray empty LED cable
New
40X9257 (New)
$8.46



5
40X9884 Tray empty LED cover
New
40X9884 (New)
$147.90



40X9884 Tray empty LED cover
Fully refurbished with 90-day warranty
40X9884
$116.87



6
40X9256 Front cover
New
40X9256 (New)
$213.17



40X9256 Front cover
Fully refurbished with 90-day warranty
40X9256
$163.91



7
40X9259 Slit cover
New
40X9259 (New)
$53.00



40X9259 Slit cover
Fully refurbished with 90-day warranty
40X9259
$40.98



8
40X9765 Left top cover
New
40X9765 (New)
$99.39



40X9765 Left top cover
Fully refurbished with 90-day warranty
40X9765
$78.52



9
40X9258 Rear cover
New
40X9258 (New)
$254.71



40X9258 Rear cover
Fully refurbished with 90-day warranty
40X9258
$185.81



Assembly 67: 3000 - sheet tray—Frame 1

1
40X9279 Caster wheel
New
40X9279 (New)
$71.05



Assembly 68: 3000 - sheet tray—Frame 2

1
40X9261 Dehumidifier
New
40X9261 (New)
$112.42



40X9261 Dehumidifier
Fully refurbished with 90-day warranty
40X9261



Assembly 69: 3000 - sheet tray—Elevator front section

1
40X9275 Release handle
New
40X9275 (New)
$18.49



2
40X9276 Elevator spring
New
40X9276 (New)
$49.81



Assembly 70: 3000 - sheet tray—Elevator rear section

1
40X9277 Elevator release spring
New
40X9277 (New)
$14.18



Assembly 71: 3000 - sheet tray—Paper feed 1

1

2
41X1874 HCF Rollers Maintenance Kit
New
41X1874 Set of three (New)
$122.62



3
40X9881 Tray empty sensor actuator
New
40X9881 (New)
$13.13



4
40X9297 Roller clutch
New
40X9297 (New)
$37.31



40X9297 Roller clutch
Fully refurbished with 90-day warranty
40X9297
$28.83



5
40X9048 Pick gear
New
40X9048 (New)
$11.52





6
40X9268 Feed and pick belt
New
40X9268 (New)
$15.65



7
40X9772 Feed gear
New
40X9772 (New)
$11.52



Assembly 72: 3000 - sheet tray—Paper feed 2

1

2

3
41X1874 HCF Rollers Maintenance Kit
New
41X1874 Set of three (New)
$122.62



4

5
40X9271 Separator belt
New
40X9271 (New)
$17.17



6

7
40X9888 Separator roller clutch
New
40X9888 (New)
$166.35



40X9888 Separator roller clutch
Fully refurbished with 90-day warranty
40X9888
$114.99



8

Assembly 73: 3000 - sheet tray—Paper transport

1
40X9273 Transport Motor
New
40X9273 (New)
$67.60



40X9273 Transport roller
Fully refurbished with 90-day warranty
40X9273
$55.13



2
40X8929 Feed sensor cable
Fully refurbished with 90-day warranty
40X8929
$22.67



3
40X9885 Feed sensor
New
40X9885 (New)
$97.62



4
40X9770 3000-sheet tray transport
New
40X9770 (New)
$8.27



5
40X9771 Feed Roller
New
40X9771 (New)
$7.87



6
40X9373 Set sensor actuator spring
New
40X9373 (New)
$9.39



7
40X9040 Set sensor actuator
Fully refurbished with 90-day warranty
40X9040
$8.00



8

9
40X9769 Transport roller drive gear
New
40X9769 (New)
$13.13



Assembly 74: 3000 - sheet tray—Drive section

1
40X9266 Door switch
New
40X9266 (New)
$43.35



40X9266 Door switch
Fully refurbished with 90-day warranty
40X9266
$33.51



2

3

4

41X2009 3000-sheet tray controller board
Fully refurbished with 90-day warranty
41X2009
$235.88



5
40X9767 Feed motor idler gear
New
40X9767 (New)
$12.70



6
40X9766 Feed and pick idler gear
New
40X9766 (New)
$12.70



7
40X9768 Feed motor gear
New
40X9768 (New)
$13.13



8

41X2008 3000-sheet tray elevator drive shaft
Fully refurbished with 90-day warranty
41X2008
$114.92



9
41X2005 3000-sheet tray elevator drive
New
41X2005 (New)
$222.36



41X2005 3000-sheet tray elevator drive
Fully refurbished with 90-day warranty
41X2005
$162.20



10

11

41X2006 Motor (3000-sheet tray elevator drive)
Fully refurbished with 90-day warranty
41X2006
$114.96



12
40X9269 Motor (feed - transport)
New
40X9269 (New)
$189.86



40X9269 Motor (feed - transport)
Fully refurbished with 90-day warranty
40X9269
$153.88



13
40X9269 Motor (feed - transport)
Fully refurbished with 90-day warranty
40X9269
$153.88



40X9269 Motor (feed - transport)
New
40X9269 (New)
$189.86



Assembly 75: 3000 - sheet tray—Wiring

NS
40X9202 Controller card cable
New
40X9202 (New)
$86.21



40X9202 Controller card cable
Fully refurbished with 90-day warranty
40X9202
$66.71



NS
40X9698 Interface cable
New
40X9698 (New)
$188.95



40X9698 Interface cable
Fully refurbished with 90-day warranty
40X9698
$137.83
