Assembly 1: Parts
1 41X2416 Top cover (CX331, MC3224, MC3326)
Lexmark 41X2416 Top cover
New
41X2416 (New)
$142.57


Lexmark 41X2416 Top cover
Fully refurbished with 90-day warranty
41X2416



1 41X2640 Top cover (CX431, MC3426, XC2326)
Lexmark 41X2640 Top cover
New
41X2640 (New)
$130.63


Lexmark 41X2640 Top cover
Fully refurbished with 90-day warranty
41X2640



2 41X2672 Scanner pivot arm
Lexmark 41X2672 Scanner pivot arm
Fully refurbished with 90-day warranty
41X2672


Lexmark 41X2672 Scanner pivot arm
New
41X2672 (New)
$18.97



3 41X2414 Rear door
Lexmark 41X2414 Rear door
Fully refurbished with 90-day warranty
41X2414
$34.36


Lexmark 41X2414 Rear door
New
41X2414 (New)
$45.05



4 41X2421 Right cover
Lexmark 41X2421 Right cover
Fully refurbished with 90-day warranty
41X2421


Lexmark 41X2421 Right cover
New
41X2421 (New)
$26.97



6 41X2635 Lower front cover
Lexmark 41X2635 Lower front cover
Fully refurbished with 90-day warranty
41X2635



7 41X2418 Inner front cover
Lexmark 41X2418 Inner front cover
Fully refurbished with 90-day warranty
41X2418


Lexmark 41X2418 Inner front cover
New
41X2418 (New)
$16.51



8 41X2417 Front door
Lexmark 41X2417 Front door
Fully refurbished with 90-day warranty
41X2417


Lexmark 41X2417 Front door
New
41X2417 (New)
$38.73



9 41X2420 Left cover
Lexmark 41X2420 Left cover
Fully refurbished with 90-day warranty
41X2420


Lexmark 41X2420 Left cover
New
41X2420 (New)
$28.01



NS 40X8273 Rubber feet
Lexmark 40x8273 Rubber foot
New
40x8273 (New)
$26.72



NS 41X2933 Fax card cover

Assembly 1: Parts parts diagram - Lexmark CX331 CX431 XC2326 XC3426 MC3224 MC3326 MC3426 Parts
Assembly 2: Drive components
1 41X2424 Gearbox
Lexmark 41X2424 Gearbox
Fully refurbished with 90-day warranty
41X2424


Lexmark 41X2424 Gearbox
New
41X2424 (New)
$152.10



2 41X2443 Motor (CMY)
Lexmark 41X2443 Motor (CMY)
Fully refurbished with 90-day warranty
41X2443


Lexmark 41X2443 Motor (CMY)
New
41X2443 (New)
$49.00



3 41X2422 Motor (K)
Lexmark 41X2422 Motor (K)
Fully refurbished with 90-day warranty
41X2422




4 41X2423 Motor (fuser)
Lexmark 41X2423 Motor (fuser)
Fully refurbished with 90-day warranty
41X2423


Lexmark 41X2423 Motor (fuser)
New
41X2423 (New)
$25.47



5 41X2425 Pick clutch
Lexmark 41X2425 Pick clutch
Fully refurbished with 90-day warranty
41X2425
$13.77


Lexmark 41X2425 Pick clutch
New
41X2425 (New)
$17.98



6 41X2425 Staging clutch
Lexmark 41X2425 Pick clutch
Fully refurbished with 90-day warranty
41X2425
$13.77


Lexmark 41X2425 Pick clutch
New
41X2425 (New)
$17.98



7 41X2620 Staging belt, gear, and pulley
Lexmark 41X2620 Staging belt gear and pulley
Fully refurbished with 90-day warranty
41X2620

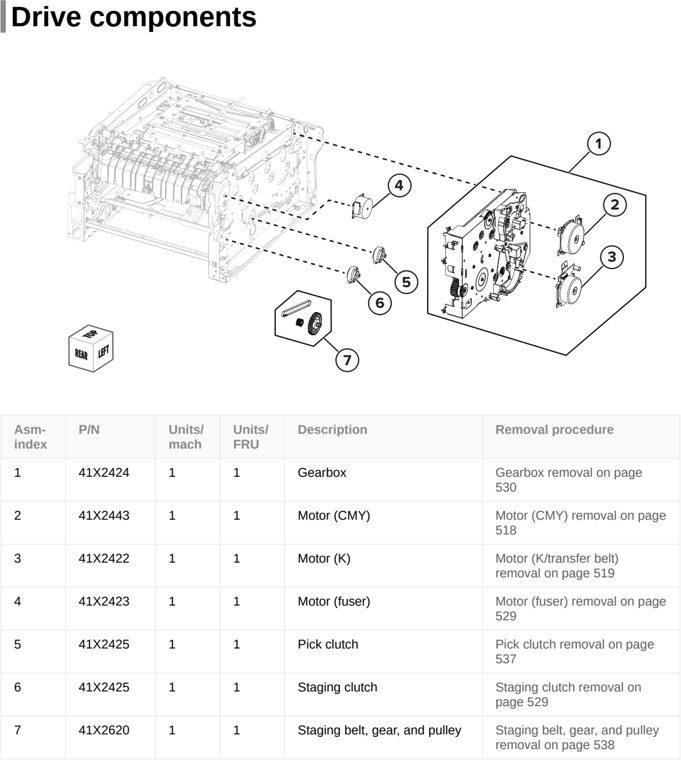

Assembly 2: Drive components parts diagram - Lexmark CX331 CX431 XC2326 XC3426 MC3224 MC3326 MC3426 Parts
Assembly 3: EP components
1 41X2392 Fuser, 110 V
Lexmark 41X2392 Fuser 110 V
Fully refurbished with 90-day warranty
41X2392


Lexmark 41X2392 Fuser 110 V
New
41X2392 (New)
$126.00



1 41X2400 Fuser, 220 V
2 41X2436 Bin flag
Lexmark 41X2436 Bin flag
Fully refurbished with 90-day warranty
41X2436


Lexmark 41X2436 Bin flag
New
41X2436 (New)
$15.23



3 41X2393 Transfer module
Lexmark 41X2393 Transfer module
Fully refurbished with 90-day warranty
41X2393
$135.00


Lexmark 41X2393 Transfer module
New
41X2393 (New)
$187.50



4 41X2435 Print cartridge tray
Lexmark 41X2435 Print cartridge tray
Fully refurbished with 90-day warranty
41X2435


Lexmark 41X2435 Print cartridge tray
New
41X2435 (New)
$49.76



5 41X2394 Printhead
Lexmark 41X2394 Printhead
Fully refurbished with 90-day warranty
41X2394
$107.50


Lexmark 41X2394 Printhead
New
41X2394 (New)
$177.99



NS 41X2674 Spring parts pack • Transfer module springs (2) • Printhead spring • Printhead bracket
Lexmark 41X2674 Spring parts pack
Fully refurbished with 90-day warranty
41X2674


Lexmark 41X2674 Spring parts pack
New
41X2674 (New)
$15.35

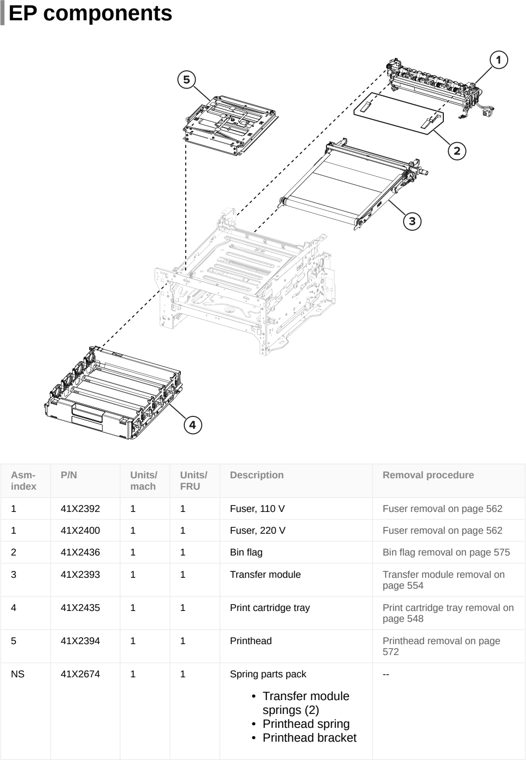

Assembly 3: EP components parts diagram - Lexmark CX331 CX431 XC2326 XC3426 MC3224 MC3326 MC3426 Parts
Assembly 4: Paper feed
1 41X2432 Separator bracket (CX331, MC3224, MC3326) page
Lexmark 41X2432 Separator bracket
New
41X2432 (New)
$33.11



1 41X2642 Separator bracket (CX431, Separator
Lexmark 41X2642 Separator bracket
New
41X2642 (New)
$37.83


Lexmark 41X2642 Separator bracket
Fully refurbished with 90-day warranty
41X2642



2 41X2638 Pick tires Pick
Lexmark 41X2638 Pick Tires
New
41X2638 Set of Two Compatible (New)


Lexmark 41X2638 Pick Tires
New
41X2638 Set of Two (New)
$15.62



3 41X2413 Tray insert
Lexmark 41X2413 Tray insert
Fully refurbished with 90-day warranty
41X2413




4 41X2426 Manual feeder
Lexmark 41X2426 Manual feeder
Fully refurbished with 90-day warranty
41X2426


Lexmark 41X2426 Manual feeder
New
41X2426 (New)
$26.65

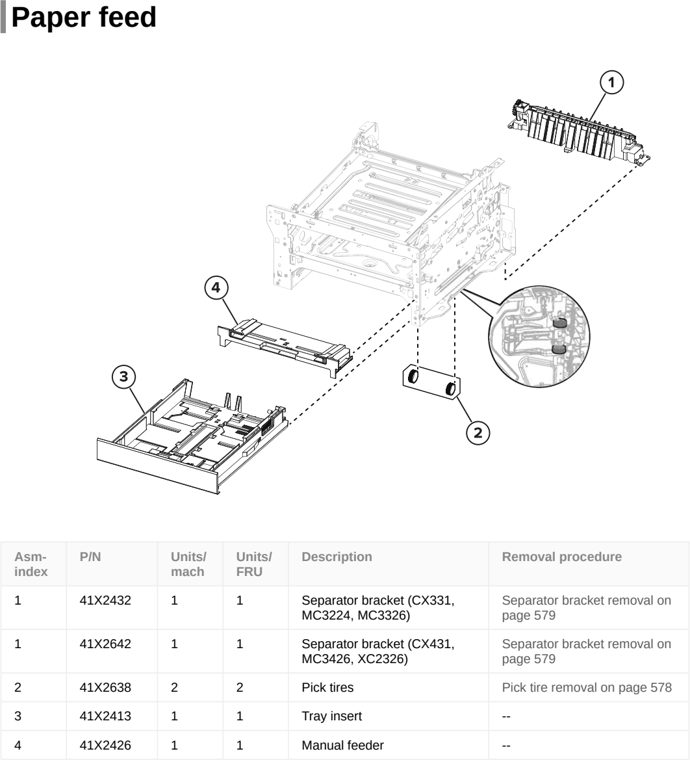

Assembly 4: Paper feed parts diagram - Lexmark CX331 CX431 XC2326 XC3426 MC3224 MC3326 MC3426 Parts
Assembly 5: Sensors
1 41X2602 Printhead interlock switch
Lexmark 41X2602 Printhead interlock switch
Fully refurbished with 90-day warranty
41X2602
$14.00




2 41X1083 Sensor (manual feeder)
Lexmark 41X1083 Sensor
New
41X1083 (New)
$13.71


Lexmark 41X1083 Sensor
Fully refurbished with 90-day warranty
41X1083



3 41X2618 Tray interlock switch
Lexmark 41X2618 Tray interlock switch
Fully refurbished with 90-day warranty
41X2618


Lexmark 41X2618 Tray interlock switch
New
41X2618 (New)
$17.96



4 41X1083 Sensor (fuser exit) page
Lexmark 41X1083 Sensor
New
41X1083 (New)
$13.71


Lexmark 41X1083 Sensor
Fully refurbished with 90-day warranty
41X1083



5 40X5413 Sensor (fuser buckle) Sensor on
Lexmark 40X5413 Fuser exit sensor
New
40X5413 (New)
$14.16


Lexmark 40X5413 Fuser exit sensor
Fully refurbished with 90-day warranty
40X5413



6 41X1083 Sensor (input) Sensor page
Lexmark 41X1083 Sensor
New
41X1083 (New)
$13.71


Lexmark 41X1083 Sensor
Fully refurbished with 90-day warranty
41X1083



7 41X1083 Sensor (bin/narrow media) Sensor removal
Lexmark 41X1083 Sensor
New
41X1083 (New)
$13.71


Lexmark 41X1083 Sensor
Fully refurbished with 90-day warranty
41X1083



8 41X2434 Sensor (waste toner bottle) Sensor removal
Lexmark 41X2434 Sensor (waste toner bottle)
Fully refurbished with 90-day warranty
41X2434

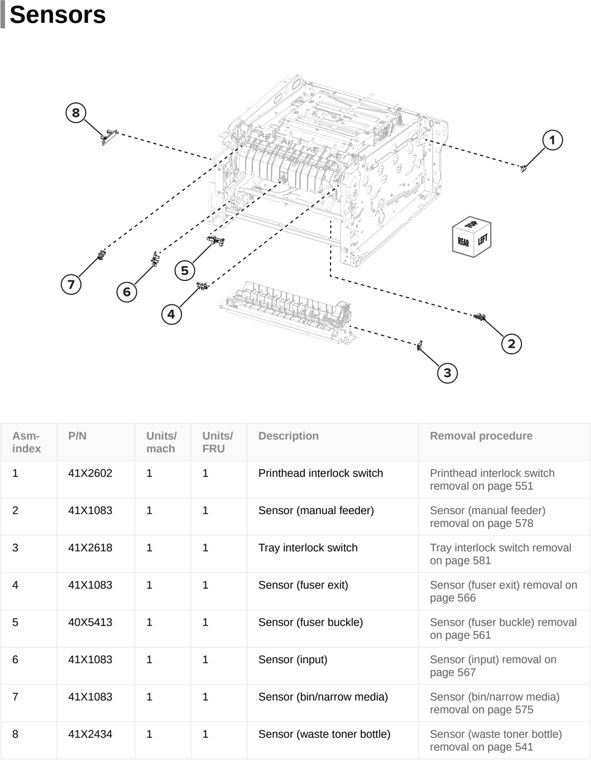

Assembly 5: Sensors parts diagram - Lexmark CX331 CX431 XC2326 XC3426 MC3224 MC3326 MC3426 Parts
Assembly 6: Electronics
1 41X4496 Fax card (CX331, MC3224adwe, MC3326, MC3426, CX431, XC2326)


2 41X2484 Exhaust fan
Lexmark 41X2484 Exhaust fan
Fully refurbished with 90-day warranty
41X2484


Lexmark 41X2484 Exhaust fan
New
41X2484 (New)
$19.95



3 41X2396 HVPS
Lexmark 41X2396 HVPS High Volt Power Supply
Fully refurbished with 90-day warranty
41X2396
$62.50




4 41X2397 LVPS, 220 V

4 41X2401 LVPS, 110 V
Lexmark 41X2401 LVPS 110 V
Fully refurbished with 90-day warranty
41X2401
$163.50


Lexmark 41X2401 LVPS 110 V
New
41X2401 (New)
$264.58



4 41X2671 LVPS, 110 V (Brazil)
5 41X2402 Controller board (CX331, MC3326)
Lexmark 41X2402 Controller board (and M)
New
41X2402 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$276.12



5 41X2970 Controller board (CX331, MC3326) Note: Make sure to upgrade the firmware to FW 074.038 version or later.
Lexmark 41X2970 Controller board (CX331, MC3326)
New
41X2970 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$225.53


Lexmark 41X2970 Controller board (CX331, MC3326)
Fully refurbished with 90-day warranty
41X2970 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED



5 41X2404 Controller board (MC3224adwe)
Lexmark 41X2404 Controller board
New
41X2404 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$268.50



5 41X2971 Controller board (MC3224adwe, MC3224i) Note: Make sure to upgrade the firmware to FW 074.038 version or later.
Lexmark 41X2971 Controller board (MC3224adwe, MC3224i) V2
New
41X2971 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$227.88


Lexmark 41X2971 Controller board (MC3224adwe, MC3224i) MFP V2
Fully refurbished with 90-day warranty
41X2971 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED



5 41X2405 Controller board (MC3224dwe)
Lexmark 41X2405 Controller board (Me)
New
41X2405 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$248.87



5 41X2972 Controller board (MC3224dwe) Note: Make sure to upgrade the firmware to FW 074.038 version or later.
Lexmark 41X2972 Controller board (MC3224dwe)
New
41X2972 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$209.58


Lexmark 41X2972 Controller board (MC3224dwe)
Fully refurbished with 90-day warranty
41X2972 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED



5 41X2639 Controller board (MC3426)
Lexmark 41X2639 Controller board (M)
New
41X2639 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$246.75



5 41X2969 Controller board (MC3426)
Lexmark 41X2969 Controller board (MC3426)
New
41X2969 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$248.11



5 41X2665 Controller board (CX431, XC2326) Notes: • This part is compatible with older printers that have 0 as the eighth character of the printer serial number. • If 41X2665 is no longer available, then replace both the ADF scanner and the printer controller board with the newer ADF scanner (41X2967) and the newer controller board (41X2968). • Make sure to upgrade the firmware to FW 074.038 version or later.
Lexmark 41X2665 Controller board (See 41X2968)
New
41X2665 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED



5 41X2968 Controller board (CX431, XC2326) Notes: • This part is compatible with new printers that have 1 or greater as the eighth character of the printer serial number. • Make sure to upgrade the firmware to FW 074.038 version or later.
Lexmark 41X2968 Controller board (CX431, XC2326)
New
41X2968 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$246.93



6 41X2601 Control panel
Lexmark 41X2601 Control Panel
New
41X2601 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$83.71



7 41X2625 Bezel (MC3224)
Lexmark 41X2625 Bezel (MC3224)
New
41X2625 (New)
$14.98



7 41X2626 Bezel (MC3224 USB)
Lexmark 41X2626 Bezel (MC3224 USB)
New
41X2626 (New)
$15.11



7 41X2627 Bezel (CX331 USB)
Lexmark 41X2627 Bezel (CX331 USB)
New
41X2627 (New)
$14.98



7 41X2628 Bezel (MC3326 USB)
Lexmark 41X2628 Bezel (MUSB)
New
41X2628 (New)
$14.98



7 41X2695 Bezel (MC3426)
Lexmark 41X2695 Bezel (MC3426)
New
41X2695 (New)
$16.00



7 41X2696 Bezel (CX431)
Lexmark 41X2696 Bezel (CX431)
New
41X2696 (New)
$16.00



7 41X2927 Bezel (XC2326)
Lexmark 41X2927 Bezel (XC2326)
New
41X2927 (New)
$16.32



NS 41X1873 Wireless network card (CX431, XC2326)
Lexmark 41X1873 Wireless module
Fully refurbished with 90-day warranty
41X1873


Lexmark 41X1873 Wireless module
New
41X1873 (New)
$92.34



NS 41X2430 Flat cables
Lexmark 41X2430 Flat cables
Fully refurbished with 90-day warranty
41X2430


Lexmark 41X2430 Flat cables
New
41X2430 (New)
$39.00



NS 41X2429 Cable parts pack • Cable harness • Motor cable • USB cable • Pick clutch cable • Staging clutch cable • TPS cable • Fuser motor cable • Fuser thermistor cable • Waste toner bottle sensor cable • LVPS cable • Speaker
Lexmark 41X2429 Cable parts pack
New
41X2429 (New)
$54.07



NS 41X2646 Cable parts pack (CX431, MC3426, XC2326) • USB cable to wireless network card (CX431, XC2326) • USB host cable • Optional tray interface cable

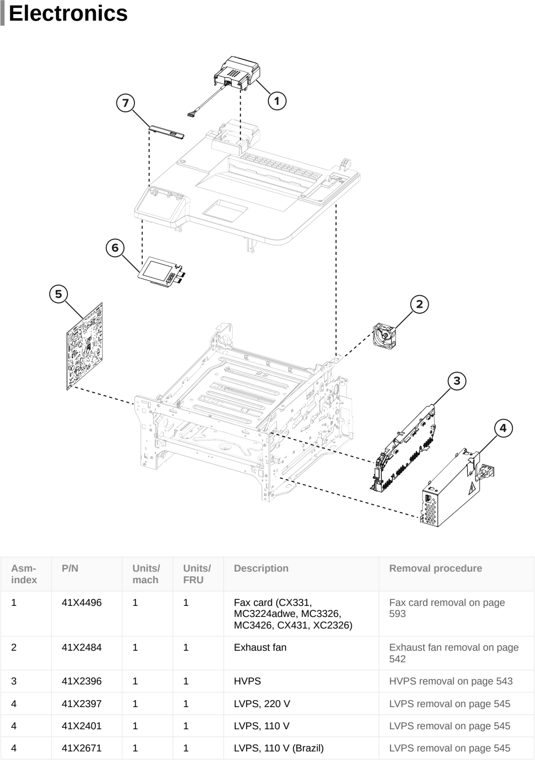

Assembly 6: Electronics parts diagram - Lexmark CX331 CX431 XC2326 XC3426 MC3224 MC3326 MC3426 Parts
Assembly 7: Scanner
1 41X2408 Flatbed scanner and ADF (CX331, MC3224adwe, MC3326)
Lexmark 41X2408 Scanner with ADF
New
41X2408 (New)
$255.00



1 41X2644 Flatbed scanner and ADF (CX431, MC3426, XC2326 Notes: • This part is compatible with older printers that have 0 as the eighth character of the printer serial number. • If 41X2644 is no longer available, then perform one of the following: ◦ For printer model MC3426, replace both the ADF scanner and the printer controller board with the newer ADF scanner (41X2967) and the newer controller board (41X2969). ◦ For printer models CX431 and XC2326, replace both the ADF scanner and the printer controller board with the newer ADF scanner (41X2967) and the newer controller board (41X2968).
Lexmark 41X2644 Flatbed scanner and ADF
Fully refurbished with 90-day warranty
41X2644


Lexmark 41X2644 Flatbed scanner and ADF
New
41X2644 (New) Please see notes below

Retired, no longer available: Contact for alternatives



1 41X2967 Flatbed scanner and ADF (CX431, MC3426, XC2326 Notes: • This part is compatible with new printers that have 1 or greater as the eighth character of the printer serial number. • Make sure to upgrade the firmware to FW 074.038 version or later.

1 41X2647 Optional 250-sheet tray (C2326, C3426, CS431, CS439, CX431, MC3426, XC2326)
Lexmark 41X2647 Optional 250-sheet tray
New
41X2647 (New)
$271.77



2 41X2510 ADF cover (CX331, MC3224adwe, MC3326, CX431, MC3426, XC2326)
Lexmark 41X2510 ADF cover
New
41X2510 (New)
$49.62



2 41X2413 250-sheet tray insert
Lexmark 41X2413 Tray insert
Fully refurbished with 90-day warranty
41X2413




3 41X2511 ADF separator pad (CX331, MC3224adwe, MC3326, CX431, MC3426, XC2326)
Lexmark 41X2511 ADF separator pad
Fully refurbished with 90-day warranty
41X2511


Lexmark 41X2511 ADF separator pad
New
41X2511 (New)
$18.99



4 41X2428 ADF tray (CX331, MC3224adwe, MC3326, CX431, MC3426, XC2326)
Lexmark 41X2428 ADF tray
Fully refurbished with 90-day warranty
41X2428
$19.70


Lexmark 41X2428 ADF tray
New
41X2428 (New)
$25.89



5 41X2409 Flatbed scanner (MC3224dwe)

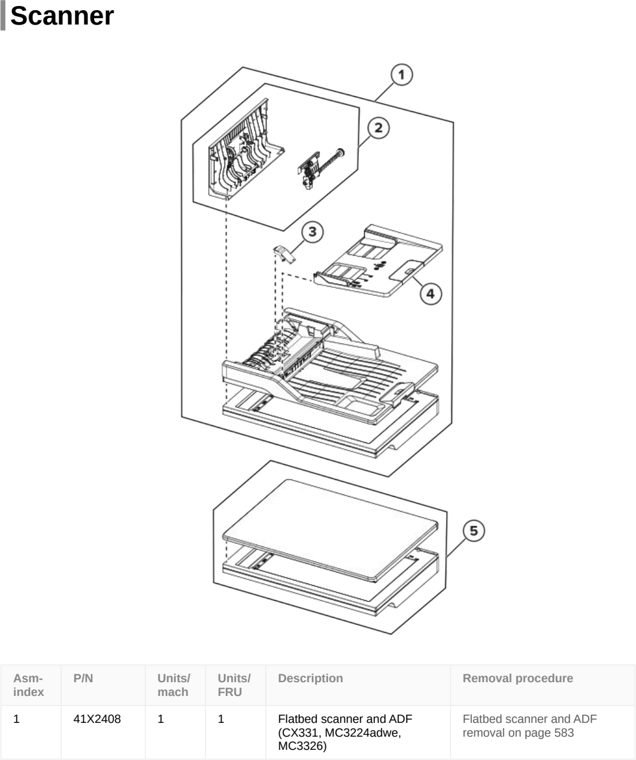

Assembly 7: Scanner parts diagram - Lexmark CX331 CX431 XC2326 XC3426 MC3224 MC3326 MC3426 Parts
Assembly 8: Miscellaneous
NS 40X0271 Power cord, straight—UK
Lexmark 40x0271 Power Cord; 2.5m, 8ft. Straight, UK, Ireland, HK, IT
New
40x0271 (New)

Retired, no longer available: Contact for alternatives



NS 40X0273 Power cord, straight—Italy
Lexmark 40x0273 Power cord; 2.5m, 8ft. Straight, Italy, Chile, Uruguay
New
40x0273 (New)
$44.20

Retired, no longer available: Contact for alternatives



NS 40X0278 Power cord, straight (6 feet)— Europe, Middle East, Indonesia, Africa
NS 40X0288 Power cord, straight (8 feet)— Argentina
Lexmark 40x0288 Power cord; 2.5m, 8ft. Straight, Argentina
New
40x0288 (New)

Retired, no longer available: Contact for alternatives



NS 40X0297 Power cord, straight (6 feet)— US, Canada, Latin America, AP


NS 40X0301 Power cord, straight (8 feet)— Australia

NS 40X0303 Power cord, straight (8 feet)— PRC

NS 40X1766 Power cord (8 feet)—Bolivia, Peru

NS 40X1772 Power cord (8 feet)— Switzerland

NS 40X1773 Power cord (8 feet)—South Africa

NS 40X1774 Power cord (8 feet)— Denmark

NS 40X1791 Power cord, straight 13A (8 feet)—Taiwan

NS 40X1792 Power cord, straight (8 feet)— South Korea

NS 40X4596 Power cord, 3‑wire 10A (8 feet)—Brazil

NS 40X7229 Power cord, straight 10A (8 feet)—India

NS 41X1872 Wireless print server (MC3426), MarkNet N8372 802.11 a/b/g/n/ac
Lexmark 41X1872 MarkNet N8372 Front WiFi FSM
Fully refurbished with 90-day warranty
41X1872

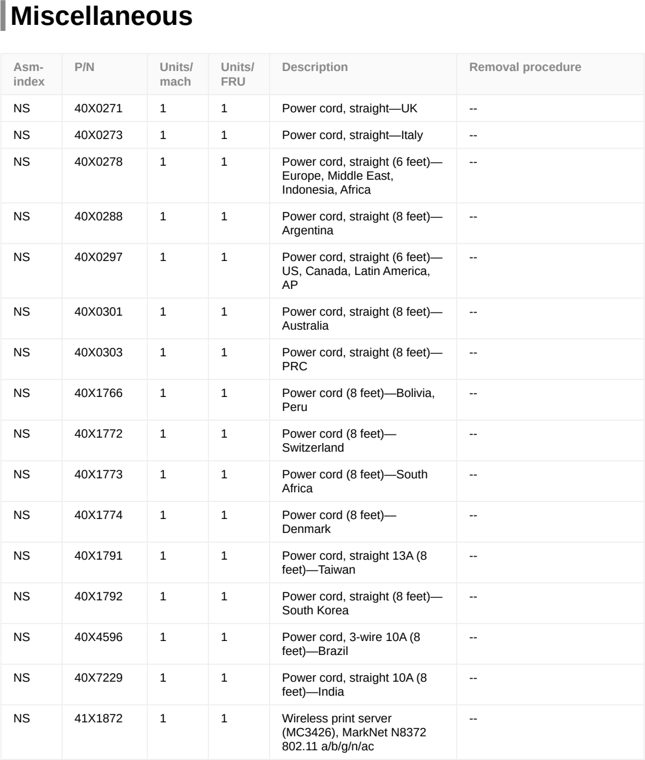

Assembly 8: Miscellaneous parts diagram - Lexmark CX331 CX431 XC2326 XC3426 MC3224 MC3326 MC3426 Parts
Other listed parts
41X4465 Right side cables
Lexmark 41X4465 Right side cables
New
41X4465 (New)
$43.27
