Lexmark E260 Parts







Please call for parts assistance

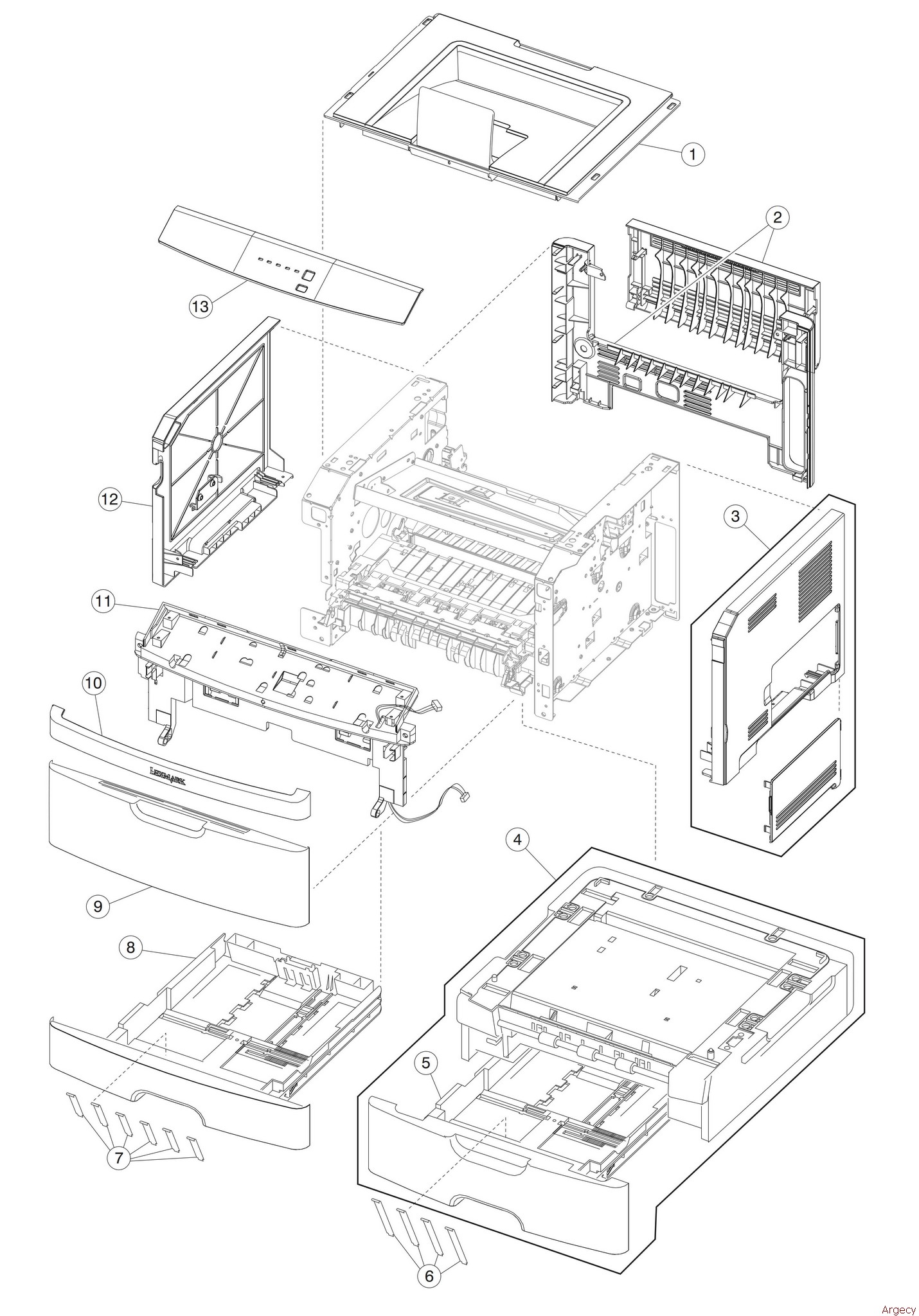

Assembly 1: Covers
1 40X5373 Top cover assembly
40X5373 Top cover assembly
Fully refurbished with 90-day warranty
40X5373 (Refurbished)



2 40X5377 Rear upper and lower cover assembly
40X5377 Rear upper and lower cover assembly
Fully refurbished with 90-day warranty
40X5377 (Refurbished)



3 40X5375 Right side cover
Lexmark 40X5375 Right side cover
New
40X5375 (New)
$14.72


Lexmark 40X5375 Right side cover
Fully refurbished with 90-day warranty
40X5375
$11.72



4 40X5398 Optional 250-sheet tray
Lexmark 40x5398 Optional 250-Sheet Drawer with Tray
Fully refurbished with 90-day warranty
40X5398
$99.00



4 40X5399 Optional 550-sheet tray
40X5399 Optional 550-sheet tray
Fully refurbished with 90-day warranty
40X5399 (Refurbished)



5 40X5394 250-sheet (Tray 2) assembly
Lexmark 40X5394 250-Sheet Tray Assembly
New
40X5394 (New)

Retired, no longer available: Contact for alternatives


Lexmark 40X5394 250-sheet tray assembly
Fully refurbished with 90-day warranty
40X5394



5 40X5395 550-sheet (Tray 2) assembly
Lexmark 40X5395 550-Sheet Paper Tray
New
40X5395 (New)
$57.71 $57.00


Lexmark 40X5395 550-sheet tray assembly
Fully refurbished with 90-day warranty
40X5395
$47.00



6 40X2855 Tray 2 wear strips (550-sheet tray only)
Lexmark 40X2855 Tray 2 wear strips 550-sheet
New
40X2855 (New)

Retired, no longer available: Contact for alternatives


Lexmark 40X2855 Tray 2 Wear Strips
Fully refurbished with 90-day warranty
40X2855

Retired, no longer available: Contact for alternatives



7 40X5382 Wear strips (250-sheet trays, optional and primary)
Lexmark 40X5382 Wear strips (250-Sheet Tray)
Fully refurbished with 90-day warranty
40X5382



8 40X5381 Primary tray
Lexmark 40X5381 Primary tray
Fully refurbished with 90-day warranty
40X5381
$34.00



9 40X5379 Front door cover
Lexmark 40X5379 Front door cover
Fully refurbished with 90-day warranty
40X5379
$15.07




10 40X5359 Nameplate cover
Lexmark 40X5359 Nameplate cover
Fully refurbished with 90-day warranty
40X5359
$13.86


Lexmark 40X5359 Nameplate cover
New
40X5359 (New)
$23.50



11 40X5378 Front access door assembly
40X5378 Front access door assembly
Fully refurbished with 90-day warranty
40X5378 (Refurbished)



12 40X5374 Left side cover
Lexmark 40X5374 Left side cover
New
40X5374 (New)
$22.39


40X5374 Left side cover
Fully refurbished with 90-day warranty
40X5374 (Refurbished)



13 40X5353 LED bezel cover, E260d
40X5353 LED bezel cover, E260d
Fully refurbished with 90-day warranty
40X5353 (Refurbished)



13 40X5389 LED bezel cover, E260dn
40X5389 LED bezel cover, E260dn
Fully refurbished with 90-day warranty
40X5389 (Refurbished)



13 40X5393 LED bezel cover, E260 (non duplex, EMEA only)

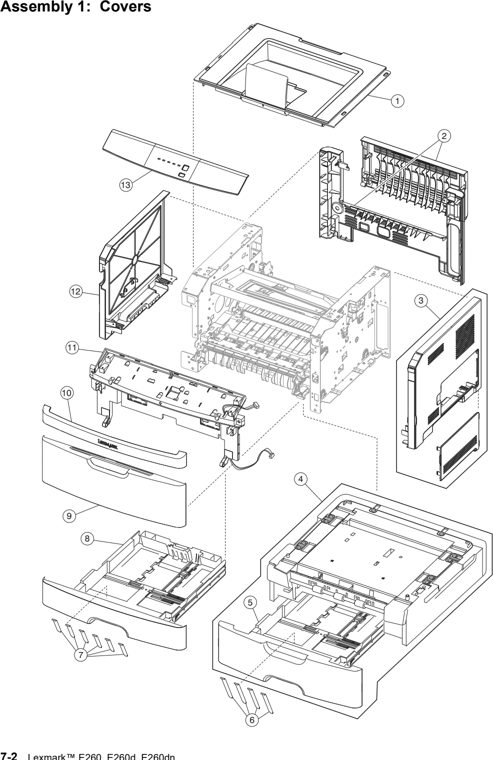

Assembly 1: Covers parts diagram - Lexmark E260 Parts

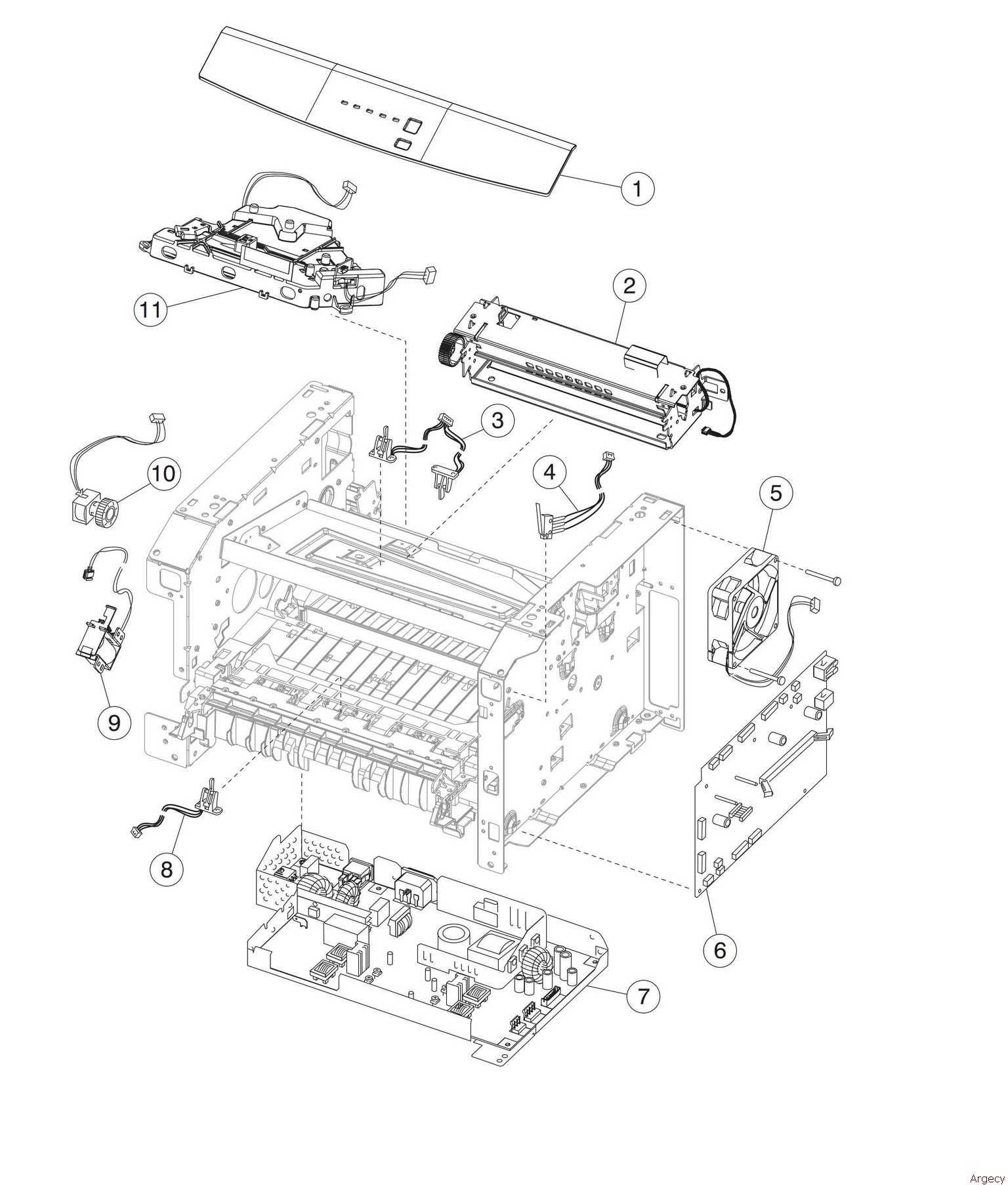

Assembly 2: Electronics
1 40X5352 LED operator panel assembly, E260/E260d/E260dn
Lexmark 40X5352 LED Operator Panel Assembly
New
40X5352 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$22.71


40X5352 LED operator panel assembly, E260/E260d/E260dn
Fully refurbished with 90-day warranty
40X5352 (Refurbished)



2 40X5344 Fuser assembly, 115V
40X5344 Fuser assembly, 115V
Fully refurbished with 90-day warranty
40X5344 (Refurbished)


Lexmark 40X5344 Fuser assembly 110-120V
New
40X5344 Compatible (New)
$134.52 $117.49



2 40X5345 Fuser assembly, 230V
2 40X5346 Fuser assembly, 100V
3 40X5365 Duplex and media sensor assembly
Lexmark 40X5365 Duplex and media sensor assembly
Fully refurbished with 90-day warranty
40X5365



4 40X5360 Access door open sensor assembly
Lexmark 40X5360 Access door open sensor assembly
Fully refurbished with 90-day warranty
40X5360



5 40X5392 Cooling fan (screws included)
Lexmark 40X5392 Cooling fan (screws included)
Fully refurbished with 90-day warranty
40X5392



6 40X5347 Controller board, E260, E260d
Lexmark 40X5347 Controller Board E360d E260d
New
40X5347 Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$123.73


Lexmark 40X5347 This part is electronically branded upon Controller Board E360d E260d
New
40X5347 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$123.73


40X5347 Controller board, E260, E260d
Fully refurbished with 90-day warranty
40X5347 (Refurbished)



6 40X5348 Controller board, E260dn
Lexmark 40X5348 Controller Board E260DN
New
40X5348 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED

Retired, no longer available: Contact for alternatives


Lexmark 40X5348 Controller Board E260DN
New
40X5348 Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED


40X5348 Controller board, E260dn
Fully refurbished with 90-day warranty
40X5348 (Refurbished)



7 40X5361 LVPS/HVPS card assembly, 110V/100V

7 40X5362 LVPS/HVPS card assembly, 220V
8 40X5366 Manual input sensor assembly
Lexmark 40X5366 Manual input sensor assembly
Fully refurbished with 90-day warranty
40X5366



9 40X5369 Manual feed solenoid
Lexmark 40X5369 Manual feed solenoid
New
40X5369 (New)
$13.72


Lexmark 40X5369 Manual feed solenoid
Fully refurbished with 90-day warranty
40X5369
$10.86



10 40X5370 Media feed (ACM) clutch
Lexmark 40X5370 Media feed (ACM) clutch
New
40X5370 (New)
$19.00


Lexmark 40X5370 Media feed (ACM) clutch
Fully refurbished with 90-day warranty
40X5370



11 40X5386 LSU, E260/E260d/E260dn (printhead)
40X5386 LSU, E260/E260d/E260dn (printhead)
Fully refurbished with 90-day warranty
40X5386 (Refurbished)

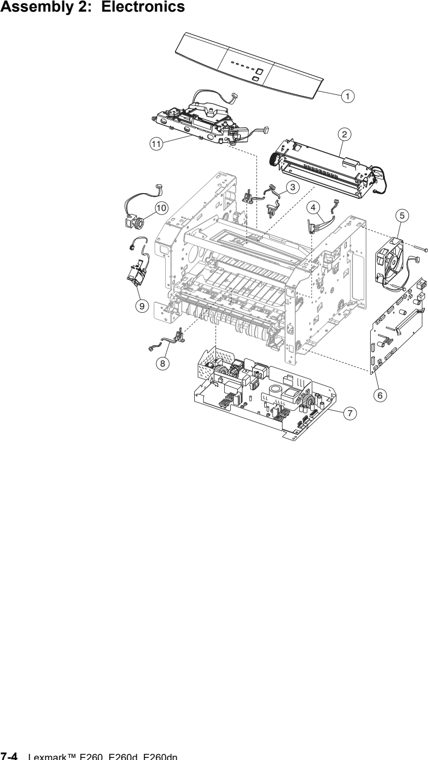

Assembly 2: Electronics parts diagram - Lexmark E260 Parts

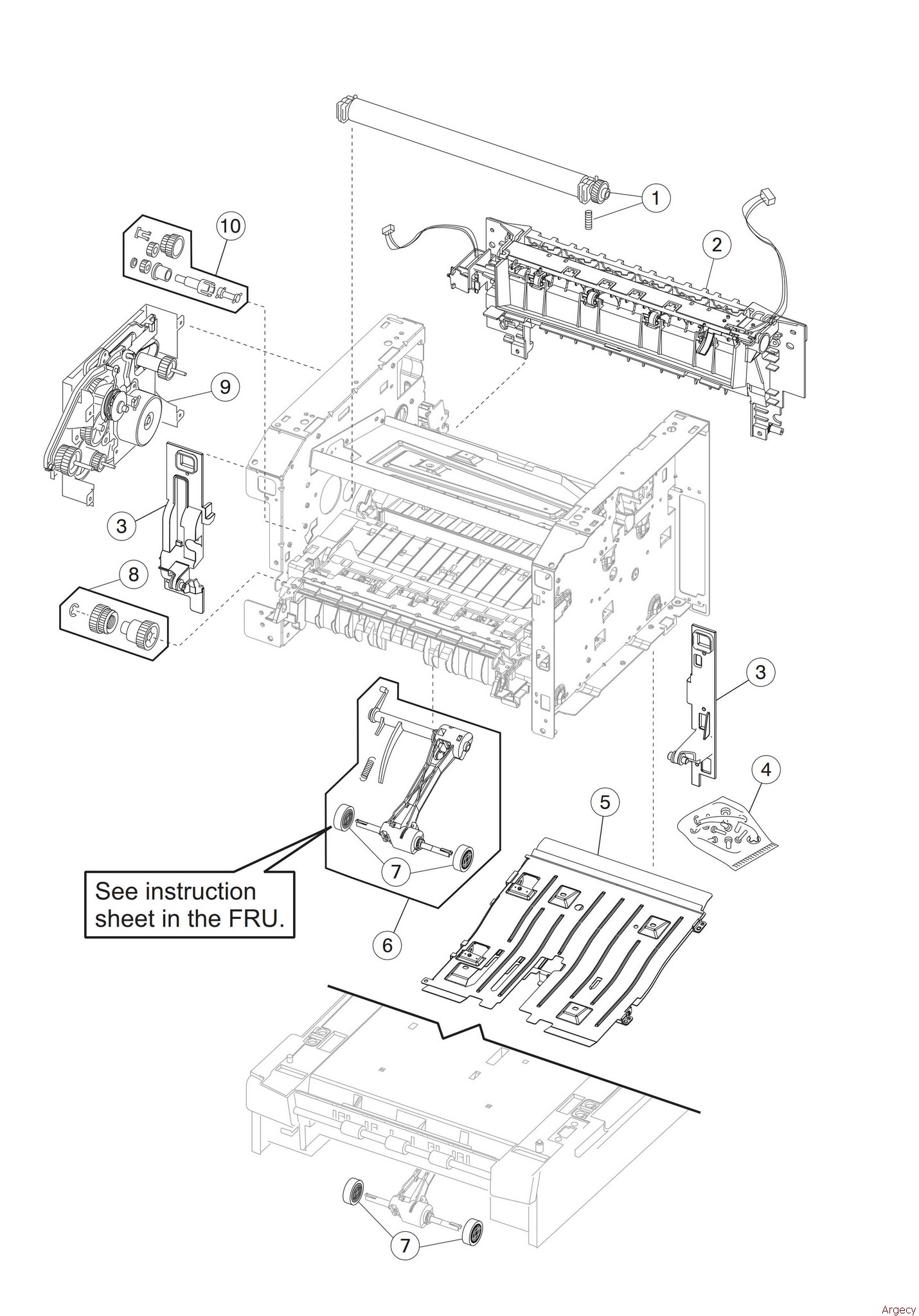

Assembly 3: Frame
1 40X5364 Transfer roll, bearings, gear, spring (CBM)
Lexmark 40X5364 Transfer Roll.
New
40X5364 (New)
$19.95



2 40X5372 Media exit guide assembly (redrive)
Lexmark 40X5372 Media Exit Guide Assembly (Redrive)
New
40X5372 (New)

Retired, no longer available: Contact for alternatives


Lexmark 40X5372 Media Exit Guide Assembly (Redrive)
Fully refurbished with 90-day warranty
40X5372
$49.00



3 40X5397 Front mounts
Lexmark 40X5397 Front mounts
Fully refurbished with 90-day warranty
40X5397
$13.41


Lexmark 40X5397 Front mounts
New
40X5397 (New)
$14.94



4 40X5396 Screws, miscellaneous
Lexmark 40X5396 Screws miscellaneous
Fully refurbished with 90-day warranty
40X5396


Lexmark 40X5396 Screws miscellaneous
New
40X5396 (New)
$19.07



5 40X5380 Complete duplex assembly (E260d/E260dn only)
Lexmark 40X5380 Complete duplex assembly
Fully refurbished with 90-day warranty
40X5380



6 40X5453 Media (ACM) drive assembly
Lexmark 40X5453 Media (ACM) drive assembly
Fully refurbished with 90-day warranty
40X5453
$25.00



7 40X5451 Paper feed, ACM tires
Lexmark 40X5451 Paper Feed, ACM Tires
New
40X5451 (New)

Retired, no longer available: Contact for alternatives


40X5451 Paper feed, ACM tires
Fully refurbished with 90-day warranty
40X5451 (Refurbished)


Lexmark 40X5451 Paper Feed, ACM Tires
New
40X5451 Compatible (New)
$15.00



7 40X5440 Tray 2 paper feed tires
Lexmark 40X5440 Tray 2 paper feed tires
New
40X5440 (New)
$17.00


40X5440 Tray 2 paper feed tires
Fully refurbished with 90-day warranty
40X5440 (Refurbished)




8 40X5368 Manual feed clutch CBM
Lexmark 40X5368 Manual feed clutch CBM
New
40X5368 (New)
$13.41


Lexmark 40X5368 Manual feed clutch CBM
Fully refurbished with 90-day warranty
40X5368



9 40X5367 Main drive gearbox (in motor)
Lexmark 40X5367 Main Drive Gearbox (In Motor)
Fully refurbished with 90-day warranty
40X5367
$78.50



10 40X5363 Duplex gear drive CBM (E260d/E260dn only)
Lexmark 40X5363 Duplex gear drive CBM
New
40X5363 WVYVK (New)
$24.65


Lexmark 40X5363 Duplex gear drive CBM
Fully refurbished with 90-day warranty
40X5363
$18.66



NS 7470094 Field relocation package assembly
7470094 Field relocation package assembly
Fully refurbished with 90-day warranty
7470094 (Refurbished)

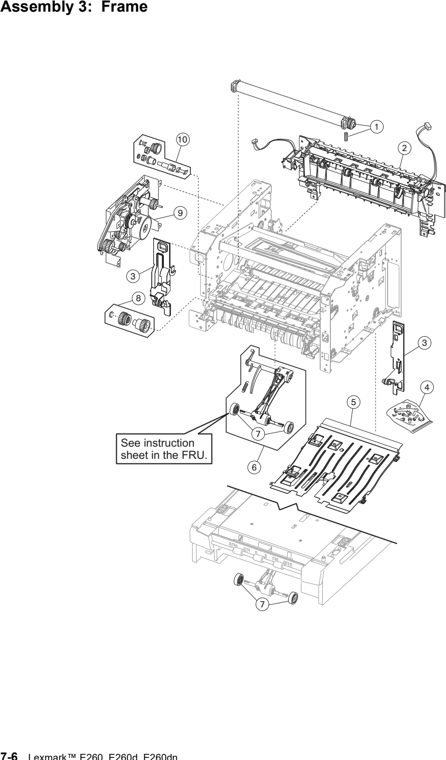

Assembly 3: Frame parts diagram - Lexmark E260 Parts

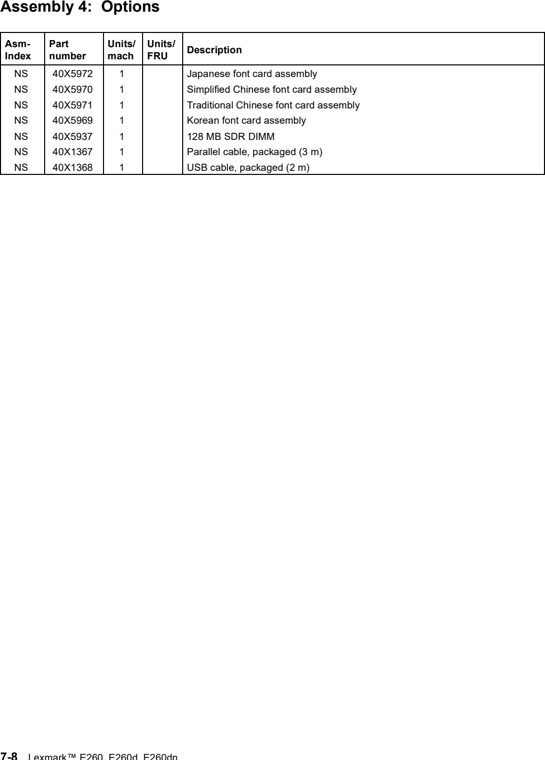

Assembly 4: Options
NS 40X5972 Japanese font card assembly
40X5972 Japanese font card assembly
Fully refurbished with 90-day warranty
40X5972 (Refurbished)



NS 40X5970 Simplified Chinese font card assembly
NS 40X5971 Traditional Chinese font card assembly
40X5971 Traditional Chines font card
Fully refurbished with 90-day warranty
40X5971 (Refurbished)



NS 40X5969 Korean font card assembly
NS 40X5937 128 MB SDR DIMM
40X5937 128MB DDR Memory
Fully refurbished with 90-day warranty
40X5937 Compatible
$225.00 $25.00



NS 40X1367 Parallel cable, packaged (3 m)
Lexmark 40X1367 Parallel Cable Packaged (3 m)
New
40X1367 (New)

Retired, no longer available: Contact for alternatives


Lexmark 40X1367 Parallel Cable Packaged (3 m)
Fully refurbished with 90-day warranty
40X1367



NS 40X1368 USB cable, packaged (2 m)
Lexmark 40X1368 2-Meter USB Cable
New
40X1368 (New)

Retired, no longer available: Contact for alternatives


Lexmark 40X1368 2-Meter USB Cable
Fully refurbished with 90-day warranty
40X1368

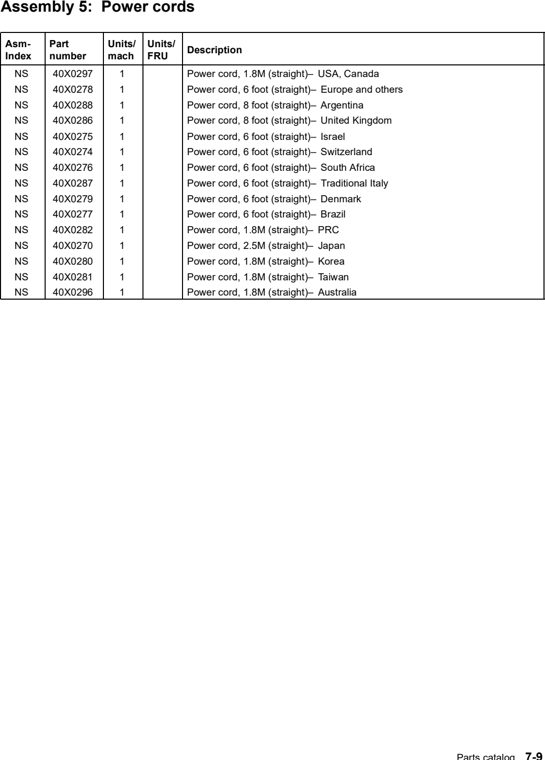

Assembly 5: Power cords
NS 40X0297 Power cord, 1.8M (straight)–USA, Canada


NS 40X0278 Power cord, 6 foot (straight)–Europe and others
NS 40X0288 Power cord, 8 foot (straight)–Argentina
NS 40X0286 Power cord, 8 foot (straight)–United Kingdom
NS 40X0275 Power cord, 6 foot (straight)–Israel
NS 40X0274 Power cord, 6 foot (straight)–Switzerland
NS 40X0276 Power cord, 6 foot (straight)–South Africa
NS 40X0287 Power cord, 6 foot (straight)–Traditional Italy
NS 40X0279 Power cord, 6 foot (straight)–Denmark
NS 40X0277 Power cord, 6 foot (straight)–Brazil
NS 40X0282 Power cord, 1.8M (straight)–PRC
NS 40X0270 Power cord, 2.5M (straight)–Japan
NS 40X0280 Power cord, 1.8M (straight)–Korea
NS 40X0281 Power cord, 1.8M (straight)–Taiwan
NS 40X0296 Power cord, 1.8M (straight)–Australia
Other listed parts
40X5376 NS Operator Panel Cable
40X5376 NS Operator Panel Cable
Fully refurbished with 90-day warranty
40X5376 (Refurbished)
