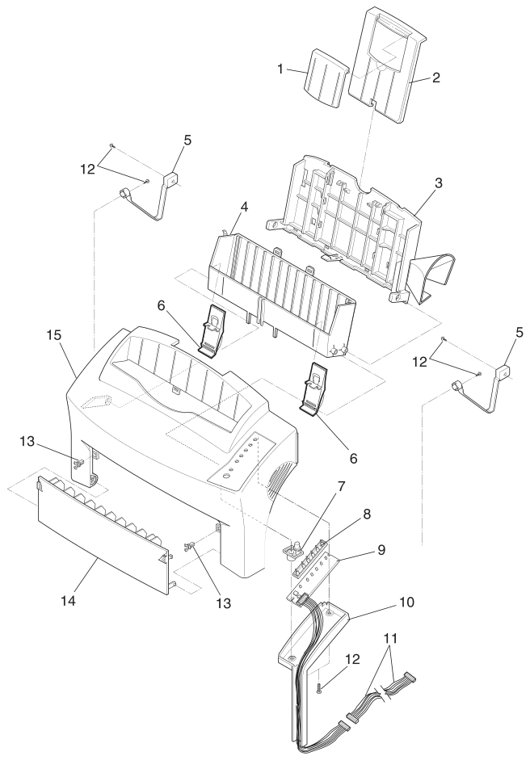

Lexmark E310 & E312 Parts

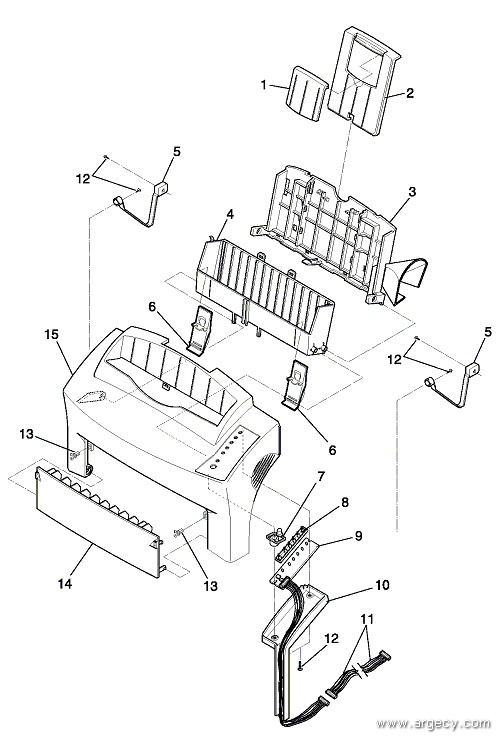

1
12G0021 Extender Paper Support
Fully refurbished with 90-day warranty
12G0021



1-2
12G0022 Support Paper E310
Fully refurbished with 90-day warranty
12G0022



1-2
12G1939 Support Paper E312
Fully refurbished with 90-day warranty
12G1939



1-3
12G0175 Cover Assembly Cooling Air Stacker
Fully refurbished with 90-day warranty
12G0175



1-4
12G0024 Stacker Assembly Paper
Fully refurbished with 90-day warranty
12G0024



1-5
12G0025 Support Open Cover
Fully refurbished with 90-day warranty
12G0025



1-6
12G0126 Guide Paper Stacker
Fully refurbished with 90-day warranty
12G0126



1-7
12G0030 Button Operator Panel
Fully refurbished with 90-day warranty
12G0030



1-8
12G0031 Lens Operator Panel
Fully refurbished with 90-day warranty
12G0031



1-9
12G0032 Panel Operator
Fully refurbished with 90-day warranty
12G0032



1-10
12G1850 Cover Op Panel Cable
Fully refurbished with 90-day warranty
12G1850



1-11
12G0027 Cable Asm Operator Panel
Fully refurbished with 90-day warranty
12G0027



1-12 Screw, Type PP 12G0101

1-13
12G0181 Latch Front Exit
Fully refurbished with 90-day warranty
12G0181



1-14
12G0029 Tray Front Exit
Fully refurbished with 90-day warranty
12G0029



1-15
12G1846 Cover Front wEnglish Overlay E310
Fully refurbished with 90-day warranty
12G1846



1-15
12G1874 Cover Front wEnglish Overlay E312
Fully refurbished with 90-day warranty
12G1874



1-15
12G3668 Cover Front w/English Overlay E312L
Fully refurbished with 90-day warranty
12G3668

Retired, no longer available: Contact for alternatives

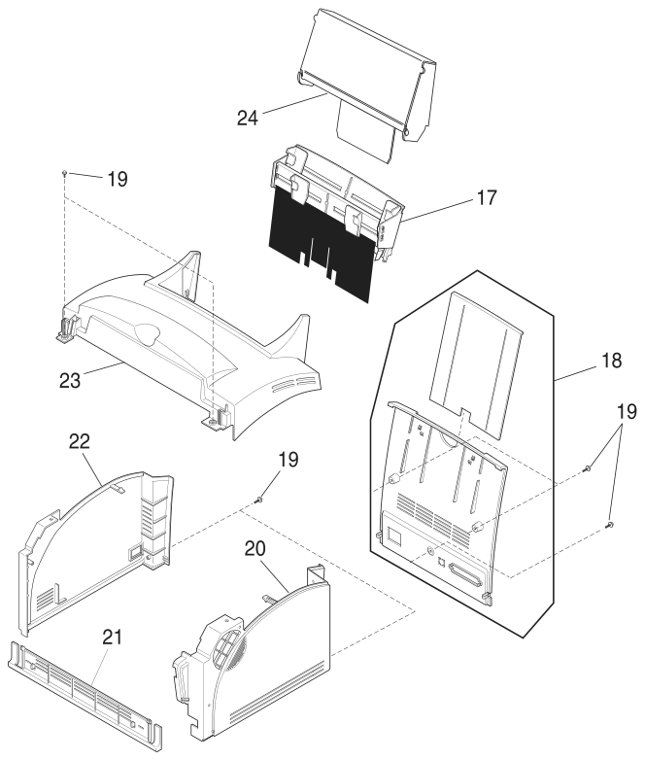

1-17
12G0035 Tray Asm Paper E310
Fully refurbished with 90-day warranty
12G0035



1-17
12G1938 Tray Assembly Paper E312
Fully refurbished with 90-day warranty
12G1938



1-18
12G0098 Cover Assembly Rear
Fully refurbished with 90-day warranty
12G0098



1-19 Screw, Type 1 PP 12G0101

1-20
12G1847 Cover Right Side
Fully refurbished with 90-day warranty
12G1847



1-21
12G0037 Cover Lower Front
Fully refurbished with 90-day warranty
12G0037



1-22
12G0040 Cover Left Side
Fully refurbished with 90-day warranty
12G0040



1-23
12G0041 Cover Top
Fully refurbished with 90-day warranty
12G0041



1-24
Lexmark C543DN Color Laser Printer
Fully refurbished with 90-day warranty
C543dn 26B0001



12G0176 Cover, Optional Paper

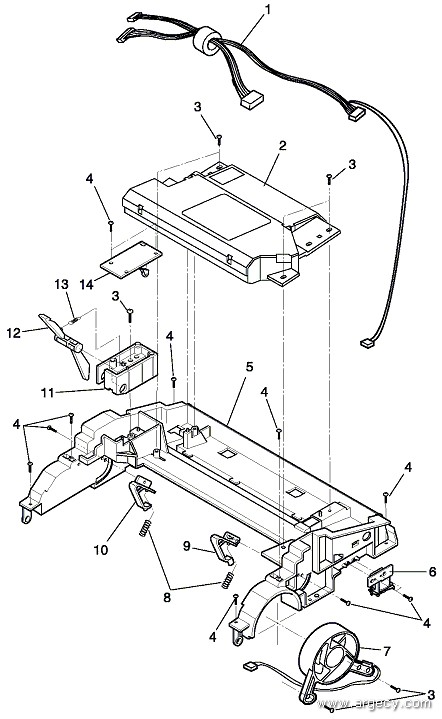

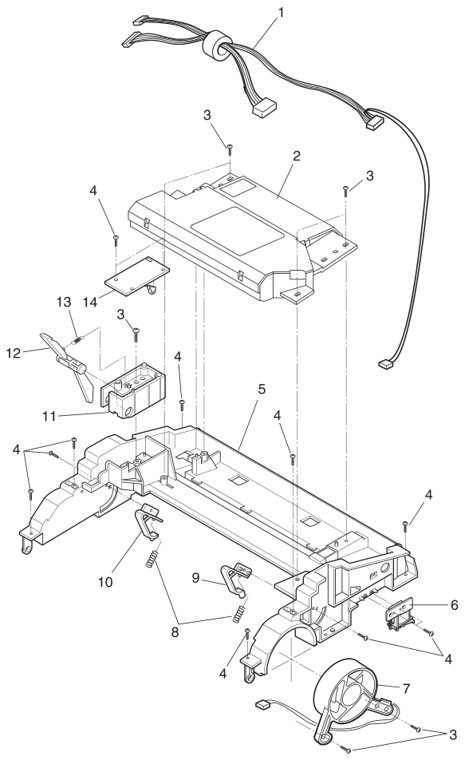

2-1
12G0099 Cable Assembly Printhead to HVPS
Fully refurbished with 90-day warranty
12G0099



2-2
12G0046 Printhead Assembly E310
Fully refurbished with 90-day warranty
12G0046



2-2
12G1879 Printhead Assembly E312
Fully refurbished with 90-day warranty
12G1879



2-3 Screw, Type 2 PP 12G0101

2-4 13 Screw, Type 3 PP 12G0101

2-5
12G0125 Frame Upper E310
Fully refurbished with 90-day warranty
12G0125



2-5
12G1882 Frame Upper E312
Fully refurbished with 90-day warranty
12G1882



2-6
12G0047 Solenoid Pick Roller Clutch E310
Fully refurbished with 90-day warranty
12G0047



2-6
12G1929 Solenoid Pick Roller Clutch E312
Fully refurbished with 90-day warranty
12G1929



2-7
12G0128 Fan Cooling
Fully refurbished with 90-day warranty
12G0128



2-8
12G0059 Spring Print Cartridge Lock
Fully refurbished with 90-day warranty
12G0059



2-9
12G0155 Lock Print Cartridge Right
Fully refurbished with 90-day warranty
12G0155



2-10
12G0154 Lock Print Cartridge Left
Fully refurbished with 90-day warranty
12G0154



2-11
12G0152 Housing Cover Open Sensor E310
Fully refurbished with 90-day warranty
12G0152



2-11
12G1883 Housing Cover Open Sensor E312
Fully refurbished with 90-day warranty
12G1883



2-12
12G0060 Lever Cover Open Sensor E310
Fully refurbished with 90-day warranty
12G0060



2-12
12G1881 Lever Cover Open Sensor E312
Fully refurbished with 90-day warranty
12G1881



2-13
12G0153 Spring Cover Open Sensor
Fully refurbished with 90-day warranty
12G0153



2-14
12G0045 Board Asm Cover Open Sensor E310
Fully refurbished with 90-day warranty
12G0045



2-14
12G1878 Board Asm Cover Open Sensor E312
Fully refurbished with 90-day warranty
12G1878


2-15

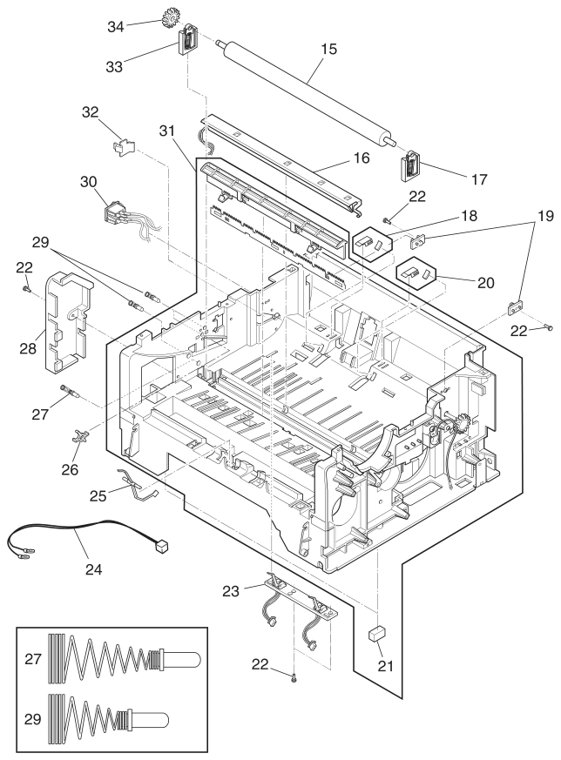

2-16
12G0057 LED Asm Pre-Transfer E310
Fully refurbished with 90-day warranty
12G0057



2-16
12G1887 LED Assembly Pre-Transfer E312
Fully refurbished with 90-day warranty
12G1887



2-17
12G0049 Bearing Asm Transfer Roller Right
Fully refurbished with 90-day warranty
12G0049



2-18
12G0119 Pad Asm Friction Left E310
Fully refurbished with 90-day warranty
12G0119



2-18
12G1931 Pad Asm Friction Left E312
Fully refurbished with 90-day warranty
12G1931



2-19
12G0127 Post Separator Asm Spring
Fully refurbished with 90-day warranty
12G0127



2-20
12G0120 Pad Asm Friction Right E310
Fully refurbished with 90-day warranty
12G0120



2-20
12G1932 Pad Asm Friction Right E312
Fully refurbished with 90-day warranty
12G1932



2-21
12G0106 2 Foot Rubber
Fully refurbished with 90-day warranty
12G0106



2-22 Screw, Type 3 PP 12G0101

2-23
12G0050 Sensor Asm Input Paper FeedSize E310
Fully refurbished with 90-day warranty
12G0050



2-23
12G1884 Sensor Assembly Input Paper Feed Size E310
Fully refurbished with 90-day warranty
12G1884



2-24
12G0113 Cable Asm Fuser Lamp
Fully refurbished with 90-day warranty
12G0113



2-25
12G0051 Flag Paper Exit Sensor E310
Fully refurbished with 90-day warranty
12G0051



2-25
12G1885 Flag Paper Exit Sensor E312
Fully refurbished with 90-day warranty
12G1885



2-26
12G0109 Guide HV Contact
Fully refurbished with 90-day warranty
12G0109



2-27
12G0052 Contact Asm HV-Transfer Roller
Fully refurbished with 90-day warranty
12G0052



2-28


2-29
12G0053 Contact Asm HV-Main
Fully refurbished with 90-day warranty
12G0053



2-30
12G0107 Cable Assembly Power Switch E310
Fully refurbished with 90-day warranty
12G0107



2-30
12G1888 Cable Assembly Power Switch E312
Fully refurbished with 90-day warranty
12G1888



2-31
12G0056 Frame Asm Lower E310
Fully refurbished with 90-day warranty
12G0056



2-31
12G1930 Frame Assembly Lower E312
Fully refurbished with 90-day warranty
12G1930



2-32
12G0130 Cover Pick Roller Access
Fully refurbished with 90-day warranty
12G0130



2-33
12G0069 Bearing Asm Transfer Roller Left
Fully refurbished with 90-day warranty
12G0069



2-34
12G0058 Gear Transfer Roller
Fully refurbished with 90-day warranty
12G0058

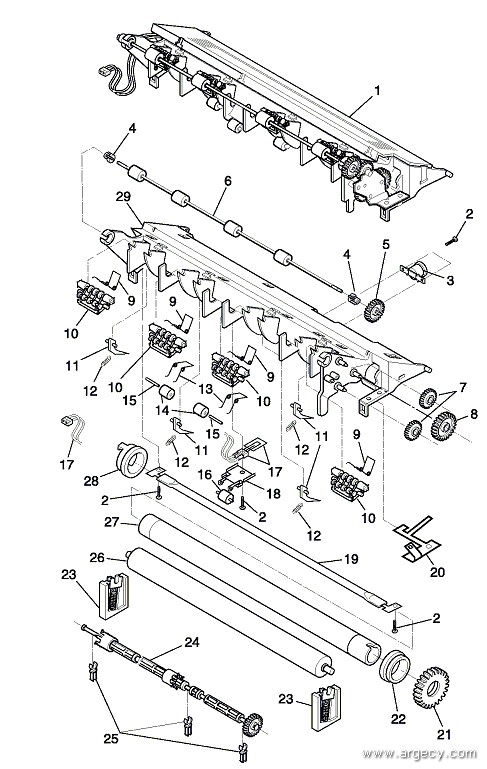

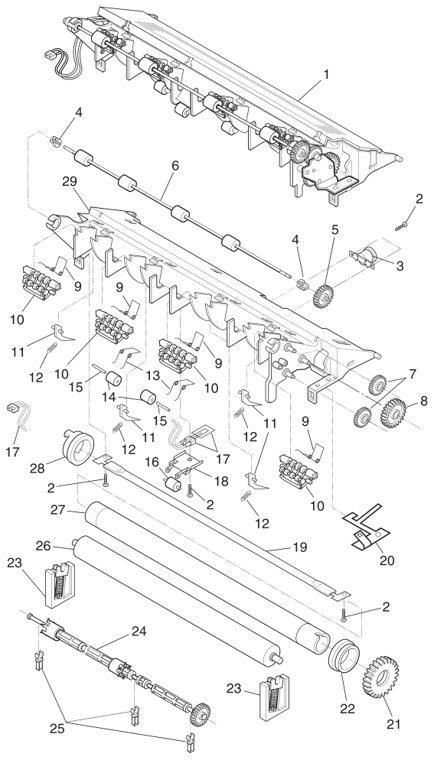

3-1
12G0074 Fuser Assembly 110 V dc E310
Fully refurbished with 90-day warranty
12G0074



3-1
12G1935 Fuser Assembly 110 V E312
Fully refurbished with 90-day warranty
12G1935



3-2 Screw, Type 3 PP 12G0101

3-3 12G0075 Fuse, Thermal

3-4
12G0166 Bearing Fuser Exit Roller
Fully refurbished with 90-day warranty
12G0166



3-5
12G0167 Gear Fuser Exit Roller
Fully refurbished with 90-day warranty
12G0167



3-6
12G0165 Roller Assembly Fuser Exit Redrive
Fully refurbished with 90-day warranty
12G0165



3-7
12G0160 Gear Redrive Idler #2
Fully refurbished with 90-day warranty
12G0160



3-8
12G0161 Gear Redrive Idler #1
Fully refurbished with 90-day warranty
12G0161



3-9
12G0159 Spring Redrive Roller
Fully refurbished with 90-day warranty
12G0159



3-10
12G0123 4 Roller Asm Redrive
Fully refurbished with 90-day warranty
12G0123



3-11
12G0103 4 Finger Detack E310
Fully refurbished with 90-day warranty
12G0103



3-11
12G1891 Finger Detack E312
Fully refurbished with 90-day warranty
12G1891



3-12
12G0157 Spring Detack Finger
Fully refurbished with 90-day warranty
12G0157

Retired, no longer available: Contact for alternatives



3-13
12G0158 Spring Fuser Exit Roller
Fully refurbished with 90-day warranty
12G0158



3-14
12G0171 Roller Fuser Exit
Fully refurbished with 90-day warranty
12G0171



3-15
12G0172 Shaft Fuser Exit Roller
Fully refurbished with 90-day warranty
12G0172

Retired, no longer available: Contact for alternatives



3-16
12G0156 Roller Fuser Exit Center
Fully refurbished with 90-day warranty
12G0156



3-17
12G0076 Thermistor Hot Roll E310
Fully refurbished with 90-day warranty
12G0076



3-17
12G1892 Thermistor Hot Roll E312
Fully refurbished with 90-day warranty
12G1892



3-18
12G1942 Holder Fuser Exit Center Roller
Fully refurbished with 90-day warranty
12G1942



3-19
12G0078 Lamp Fuser 110 V ac E310
Fully refurbished with 90-day warranty
12G0078



3-19
12G1893 Lamp Fuser 110 V ac E312
Fully refurbished with 90-day warranty
12G1893



3-20
12G0082 Plate Hot Roll Ground
Fully refurbished with 90-day warranty
12G0082



3-21
12G0081 Gear Fuser Hot Roll
Fully refurbished with 90-day warranty
12G0081



3-22
12G0080 Bearing Right Hot Roll
Fully refurbished with 90-day warranty
12G0080



3-23
12G0083 2 Bearing Asm Backup Roll
Fully refurbished with 90-day warranty
12G0083



3-24
12G0084 Roller Assembly Exit Paper Feed
Fully refurbished with 90-day warranty
12G0084



3-25
12G0174 Bushing Exit Paper Feed Roller
Fully refurbished with 90-day warranty
12G0174



3-26
12G0086 Roller Backup
Fully refurbished with 90-day warranty
12G0086



3-27
12G0079 Hot Roll Fuser
Fully refurbished with 90-day warranty
12G0079
$55.00



3-28
12G0077 Bearing Left Hot Roll
Fully refurbished with 90-day warranty
12G0077



3-29
12G3776 Frame Fuser E310
Fully refurbished with 90-day warranty
12G3776



3-29
12G3777 Frame Fuser E312
Fully refurbished with 90-day warranty
12G3777

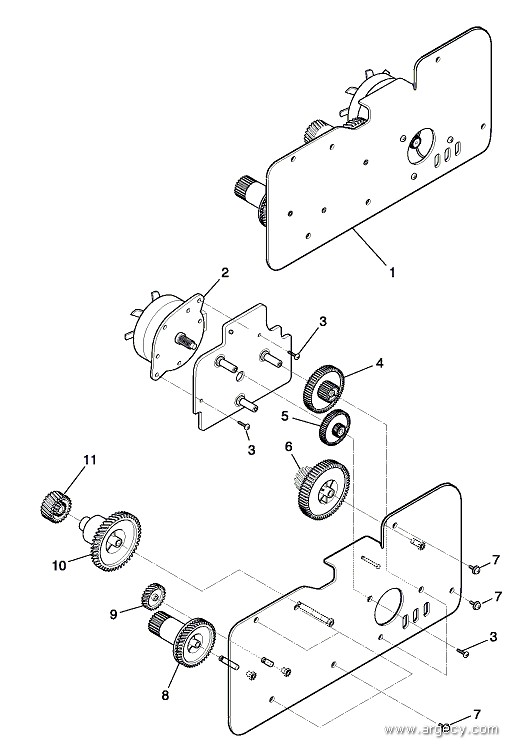

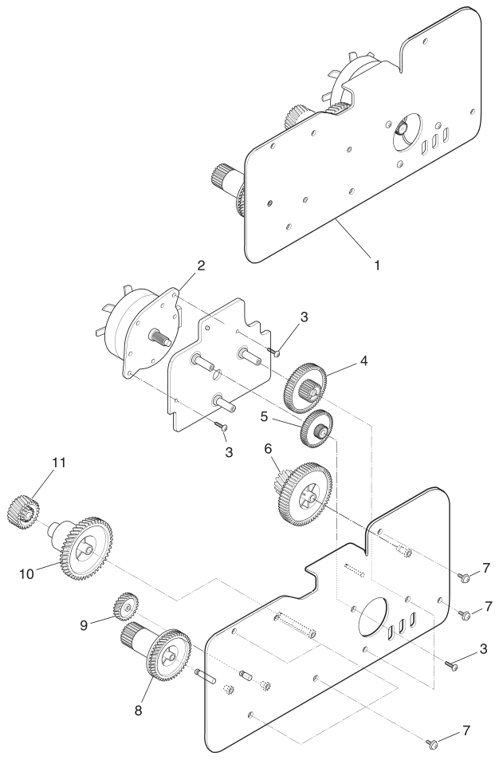

4-1
12G0042 Main Drive Assembly E310
Fully refurbished with 90-day warranty
12G0042



4-1
12G1877 Main Drive Assembly E312
Fully refurbished with 90-day warranty
12G1877



4-2
12G0044 Motor Asm Main
Fully refurbished with 90-day warranty
12G0044



4-3 Screw, Type 4 PP 12G0101

4-4 Gear, Drive Feed 1 PP 12G0102

4-5 Gear, Drive Feed 2 PP 12G0102

4-6 Gear, Input Paper Feed PP 12G0102

4-7 Screw, Type 3 PP 12G0101

4-8 Gear, Fuser Drive PP 12G0102

4-9 Gear, Idler PP 12G0102

4-10 Gear, OPC Drive 1 PP 12G0102

4-11 Gear, OPC Drive 2 PP 12G0102

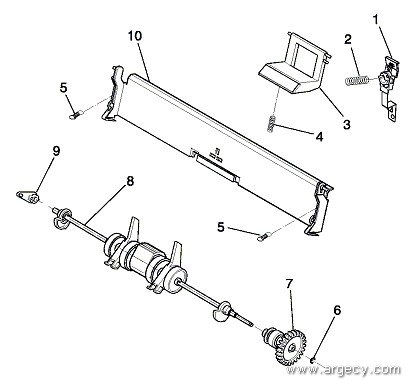

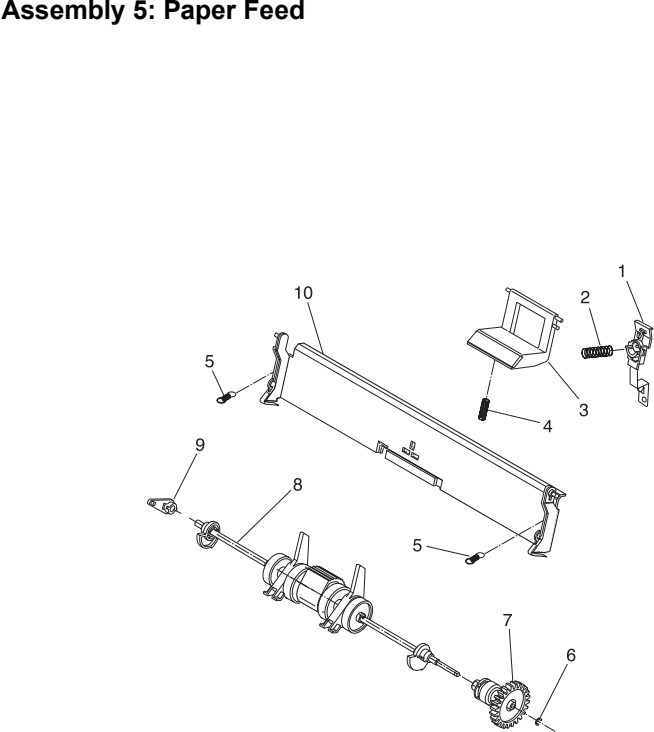

5-1
12G0063 Holder Assembly Spring
Fully refurbished with 90-day warranty
12G0063



5-2
12G0068 Spring Pad Asm Rear
Fully refurbished with 90-day warranty
12G0068



5-3

5-4
12G0121 Spring Pad Asm Lower
Fully refurbished with 90-day warranty
12G0121



5-5
12G0104 Spring Separator Asm
Fully refurbished with 90-day warranty
12G0104



5-6 Clip, E PP 12G0101

5-7


5-8

5-8

5-9
12G0066 Bearing Left Pick Roller Shaft
Fully refurbished with 90-day warranty
12G0066



5-10
12G0064 Separator Assembly Paper
Fully refurbished with 90-day warranty
12G0064

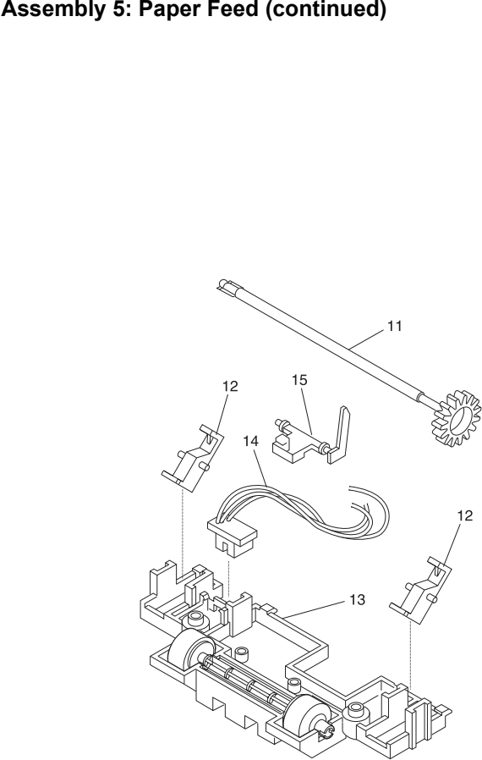

5-11
12G0105 Shaft Asm Input Paper Feed E310
Fully refurbished with 90-day warranty
12G0105



5-11
12G1934 Shaft Asm Input Paper Feed E312
Fully refurbished with 90-day warranty
12G1934



5-12
12G0072 2 Separator Secondary Paper E310
Fully refurbished with 90-day warranty
12G0072



5-13
12G0070 Roller Asm Input Paper Feed E310
Fully refurbished with 90-day warranty
12G0070



5-13

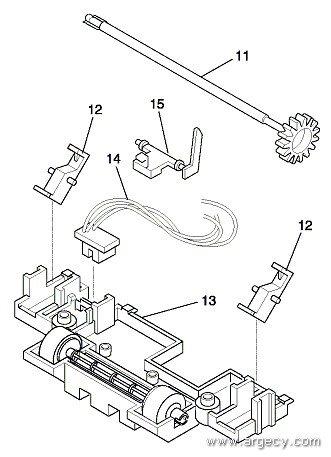

12G1889 Roller Asm Input Paper Feed E310 & E312
Fully refurbished with 90-day warranty
12G1889



5-14
12G0073 Sensor Paper Present
Fully refurbished with 90-day warranty
12G0073



5-15
12G0071 Flag Paper Sensor Present
Fully refurbished with 90-day warranty
12G0071

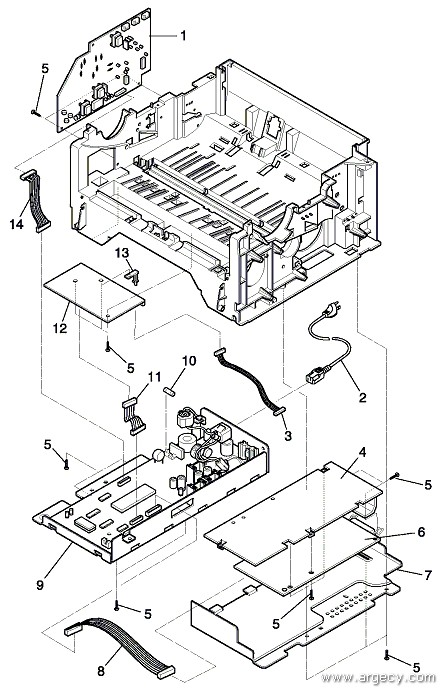

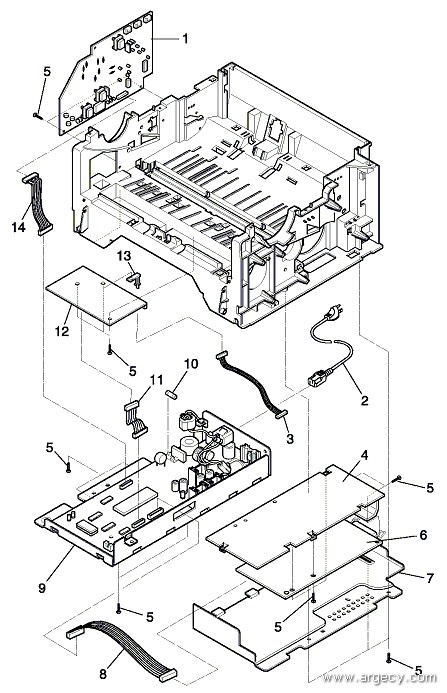

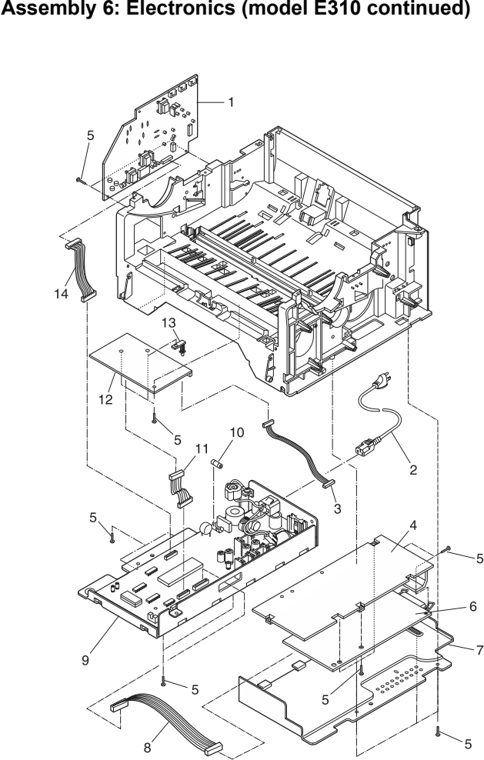

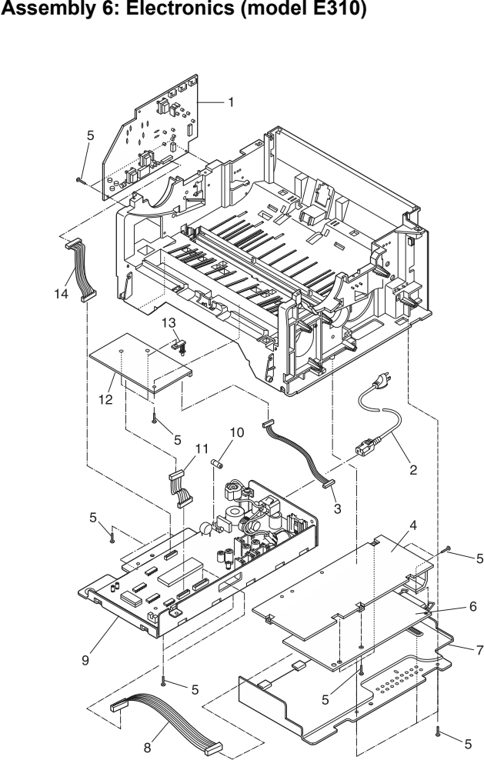

6-1
12G0087 Board Assembly HVPS E310
Fully refurbished with 90-day warranty
12G0087



6-2 1339526 Power Cord, U.S., Canada

6-3
12G0097 Cable Asm Motor to Interconnect
Fully refurbished with 90-day warranty
12G0097



6-4
12G0108 Bracket Controller Board Mounting
Fully refurbished with 90-day warranty
12G0108



6-5 Screw, Type 3 PP 12G0101

6-6
12G3786 Board Assembly Controller E310
Fully refurbished with 90-day warranty
12G3786



6-6
12G3783 Board Assembly Controller E312
Fully refurbished with 90-day warranty
12G3783



6-6
12G3784 Board Assembly Controller E312L
Fully refurbished with 90-day warranty
12G3784

Retired, no longer available: Contact for alternatives



6-7
12G0114 Panel SIMM Access
Fully refurbished with 90-day warranty
12G0114


6-8

6-9
12G0089 Board Assembly Engine LVPS-110 V ac E310
Fully refurbished with 90-day warranty
12G0089



6-10
12G0090 Fuse Power Supply-110 V ac
Fully refurbished with 90-day warranty
12G0090



6-11

6-12
12G0088 Board Assembly Interconnect E310
Fully refurbished with 90-day warranty
12G0088



6-13
12G1828 Guide Cable E310
Fully refurbished with 90-day warranty
12G1828



6-14
12G0096 Cable Assembly Engine LVPS to HVPS E310
Fully refurbished with 90-day warranty
12G0096

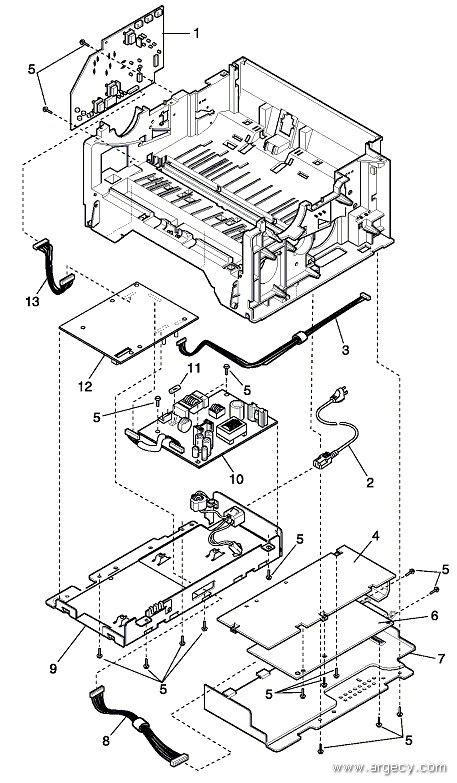

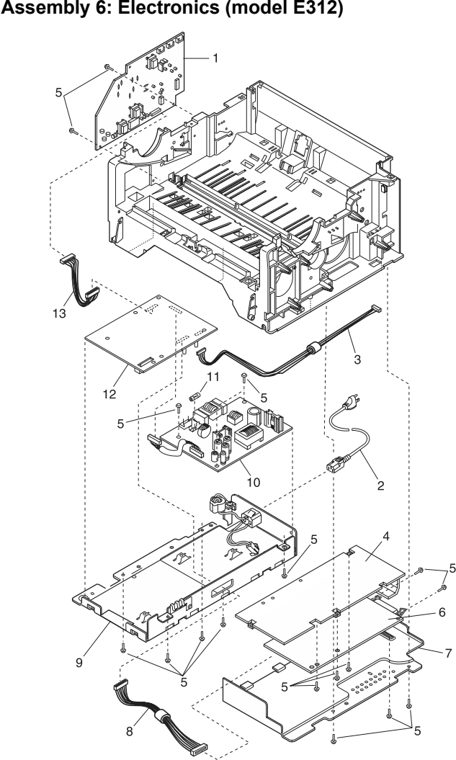

6-1
12G1896 Board Assembly HVPS E312
Fully refurbished with 90-day warranty
12G1896



6-3
12G1940 Cable Assembly Motor to Engine Board
Fully refurbished with 90-day warranty
12G1940



6-4
12G0108 Bracket Controller Board Mounting
Fully refurbished with 90-day warranty
12G0108



6-5 Screw, Type 3 PP 12G0101

6-6
12G1872 Board Assembly Controller E312
Fully refurbished with 90-day warranty
12G1872



6-7
12G0114 Panel SIMM Access
Fully refurbished with 90-day warranty
12G0114



6-8

6-9
12G1941 Shield Asm LVPS E312
Fully refurbished with 90-day warranty
12G1941



6-10
12G1898 Board Assembly LVPS-110 V ac E312
Fully refurbished with 90-day warranty
12G1898



6-11
12G0090 Fuse Power Supply-110 V ac
Fully refurbished with 90-day warranty
12G0090



6-12
12G1937 Board Assembly Engine E312
Fully refurbished with 90-day warranty
12G1937



6-13
12G1927 Cable Asm Engine to HVPS E312
Fully refurbished with 90-day warranty
12G1927
