Lexmark E320 E321 E322 E323 Parts

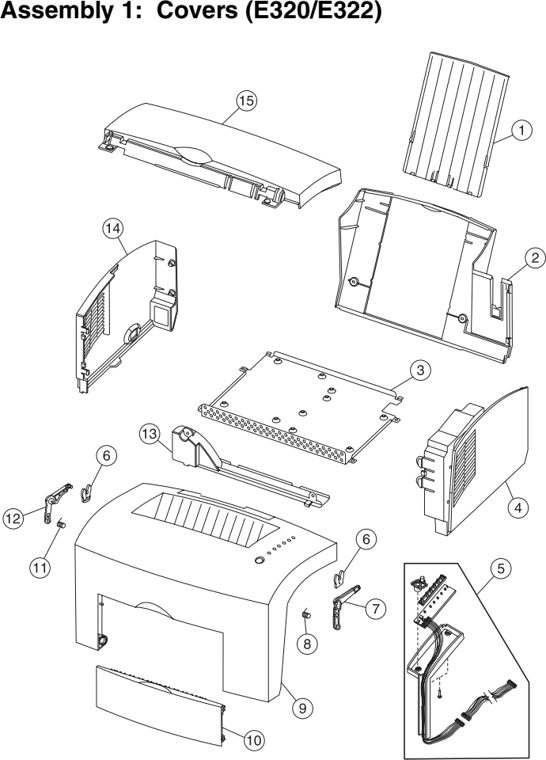

1
12G4456 Extension tray (white)
Fully refurbished with 90-day warranty
12G4456



2
12G4455 Cover rear (white)
Fully refurbished with 90-day warranty
12G4455





3
12G4458 Cover bottom
Fully refurbished with 90-day warranty
12G4458



4
12G4453 Cover right side
Fully refurbished with 90-day warranty
12G4453



5
12G4457 Assembly Operator Panel
Fully refurbished with 90-day warranty
12G4457





6 56P1099 Parts pack, bushings clip spring

7 12G4466 Hinge, right rear

8 12G4468 Hinge, right front

9 12G4535 Spring, front cover right

10
12G4543 Cover front E320
Fully refurbished with 90-day warranty
12G4543



10
12G4542 Cover front E322
Fully refurbished with 90-day warranty
12G4542



11
12G4450 Cover Access (White)
Fully refurbished with 90-day warranty
12G4450



12 12G4536 Spring, front cover left

13 12G4469 Hinge, left front

14 12G4467 Hinge, left rear

15 12G4459 Duct, cooling

16
12G4451 Cover left side (white)
Fully refurbished with 90-day warranty
12G4451



17
12G4452 Cover top
Fully refurbished with 90-day warranty
12G4452



NS 12G0176 Cover, media
1
56P1078 Assembly, Cover, Rear
Fully refurbished with 90-day warranty
56P1078
$19.00





2
12G4456 Extension tray (white)
Fully refurbished with 90-day warranty
12G4456



3
12G4455 Cover rear (white)
Fully refurbished with 90-day warranty
12G4455



4 56P1086 Duct, cooling

4 12G4459 Duct, cooling (white)

5

5

6
56P1051 Assembly, operator panel
Fully refurbished with 90-day warranty
56P1051
$33.00



56P1051 Assembly operator panel
New
56P1051 (New)
$39.00



6
56P0683 Assembly, Operator Panel
Fully refurbished with 90-day warranty
56P0683
$29.00





7 56P1099 Parts pack, bushings clip spring

8 12G4466 Hinge, right rear

9 12G4468 Hinge, right front

10 12G4535 Spring, front cover right

11
56P1064 Cover front E321
Fully refurbished with 90-day warranty
56P1064



11
56P1065 Cover front E323
Fully refurbished with 90-day warranty
56P1065



11

11

12
56P1075 Access Cover
Fully refurbished with 90-day warranty
56P1075
$16.00



12
12G4450 Cover Access (White)
Fully refurbished with 90-day warranty
12G4450



13
12G4458 Cover bottom
Fully refurbished with 90-day warranty
12G4458



14 12G4536 Spring, front cover left

15 12G4469 Hinge, left front

16 12G4467 Hinge, left rear

17
56P1094 Assembly, paper guide with exit tray
Fully refurbished with 90-day warranty
56P1094
$19.00





17

18

18
12G4451 Cover left side (white)
Fully refurbished with 90-day warranty
12G4451



19
56P1077 Cover, top
Fully refurbished with 90-day warranty
56P1077
$19.00



NS 12G0176 Cover, media

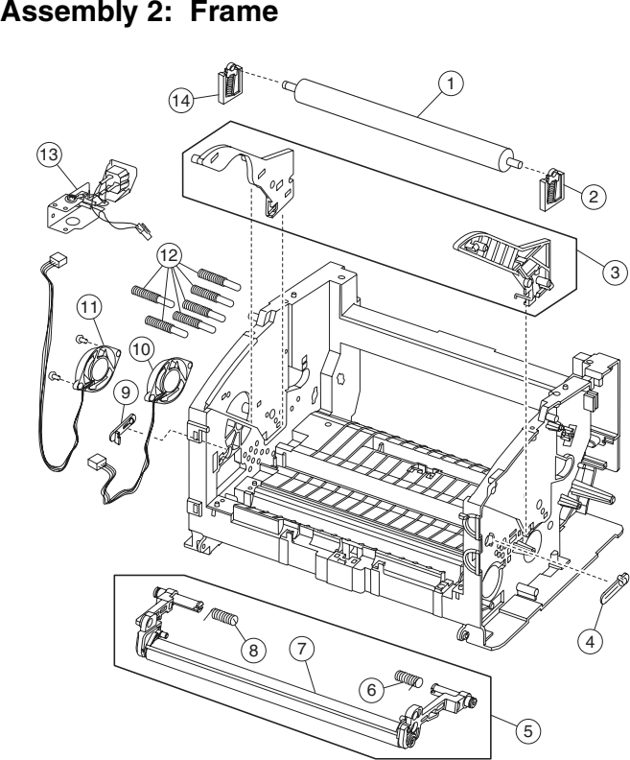

1
12G4470 Roll transfer
New
12G4470 (New)
$24.71



2 12G4471 Bearing, transfer

3 12G4473 Bill of material (B/M), rail (E320/E322 only)

3 56P1085 B/M, rail (E321/E323 only)

4 12G4534 Bracket, right

5
56P0685 Assembly Charge Roll
Fully refurbished with 90-day warranty
56P0685
$19.00



6 12G4464 Spring, charge roll right

7

8 12G4463 Spring, charge roll left

9 12G4533 Bracket, left

10
12G4460 Fan cooling (E320/E322 only)
Fully refurbished with 90-day warranty
12G4460



11

12 12G4510 Spring, HVPS (6/FRU)

13
12G4461 Switch Assembly power (white 110V)
Fully refurbished with 90-day warranty
12G4461



13* 56P1092 Switch asm., power (black 110V))

14 56P0199 Bearing, left transfer>

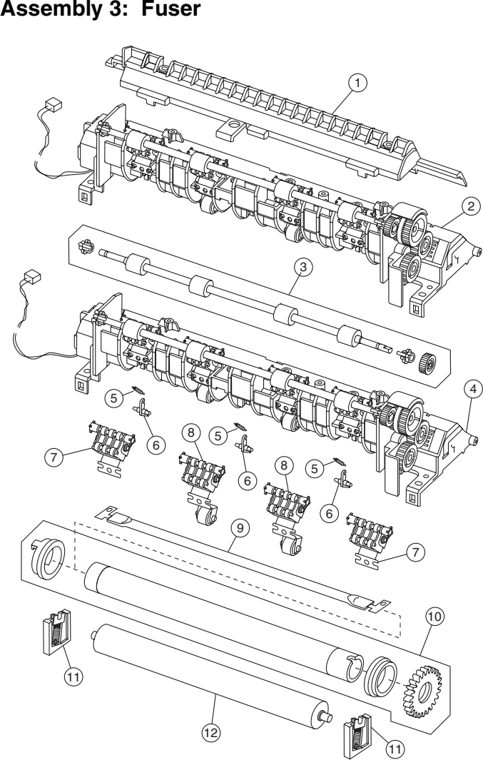

3
1 12G4488 Cover, fuser (E320/E322 only)

1 56P1082 Cover, fuser (E321/E323 only)

2
12G4484 Fuser for E230/232/234/240/242/330/332/340/342 110V
Fully refurbished with 90-day warranty
12G4484 L Advanced Exchange
$140.00



3 12G4493 Roller, exit, redrive

4
56P1053 Fuser Assembly
Fully refurbished with 90-day warranty
56P1053 Advanced Exchange
$130.00



5 56P1099 Parts pack, bushings/clip spring

6 12G4495 Pawl, detack (1 each)

7 12G4496 Roll assembly, idler (1 each)

8 12G4492 Roller, exit, idler (1 each)

9 12G4485 Lamp, fuser, 110 V

9 12G4487 Lamp, fuser, 220 V

10 12G4491 Roll, fuser, hot

11 12G4489 2 Bearing, backup roll

12 12G4494 Roll, fuser, backup

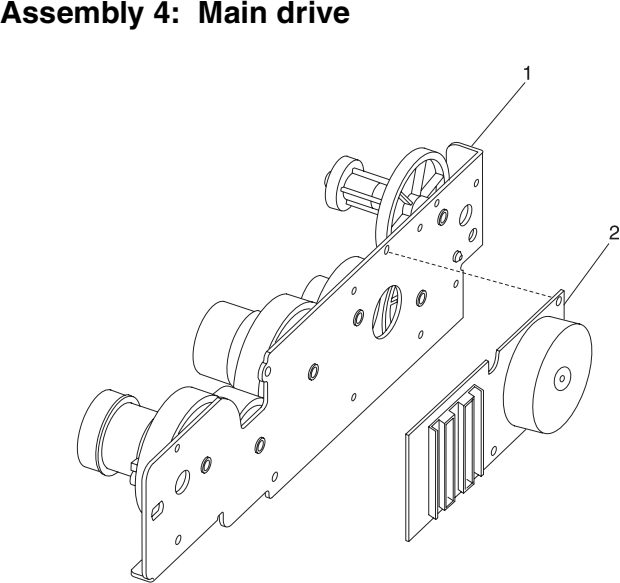

1
12G4500 Gear assembly drive (E320/E322)
Fully refurbished with 90-day warranty
12G4500



1
56P0684 Gear assembly, drive (E321/E323)
Fully refurbished with 90-day warranty
56P0684



2
12G4499 Motor drive
Fully refurbished with 90-day warranty
12G4499





2
56P1083 Motor, drive
Fully refurbished with 90-day warranty
56P1083
$25.00

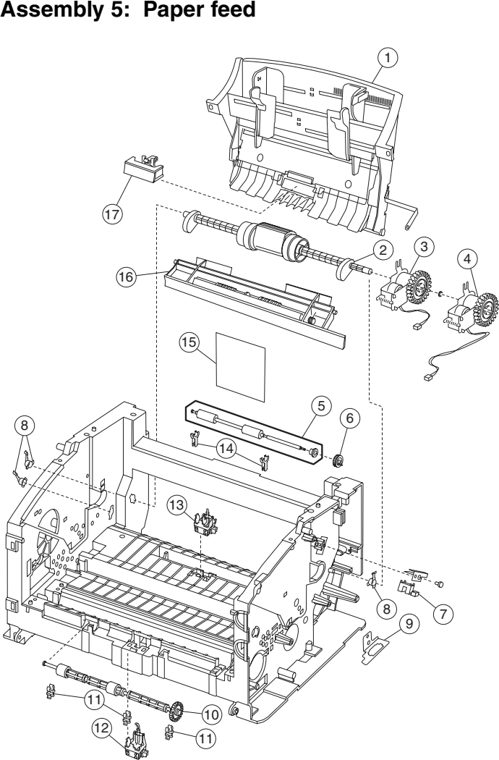

1
12G4481 Assembly sheet feed
Fully refurbished with 90-day warranty
12G4481





1
56P1079 Assembly, sheet feed (black)
Fully refurbished with 90-day warranty
56P1079
$45.00





2 12G4483 Assembly, D-roll (E320/E322 only)

2 56P0690 Assembly, D-roll (E321/E323 only)

3
12G4541 Clutch assembly paper feed (E320/E322 only)
Fully refurbished with 90-day warranty
12G4541





4
56P1063 Clutch assembly, paper feed
Fully refurbished with 90-day warranty
56P1063
$16.00



5

6 12G4540 Gear, registration roller

7
12G4477 Sensor cartridge
Fully refurbished with 90-day warranty
12G4477



8 56P1099 Parts pack, bushings/clip/spring

9 12G4482 Bracket, Tray 2 connector

10
12G4490 Roll paper feed
Fully refurbished with 90-day warranty
12G4490



11 56P1099 Parts pack, bushings/clip/spring

12 12G4476 Sensor, exit

13
12G4475 Sensor registration
Fully refurbished with 90-day warranty
12G4475



14 12G4539 Bushing, registration roller

15 12G4480 Strip, D-roll

16
12G4474 Roll assembly registration
Fully refurbished with 90-day warranty
12G4474



17

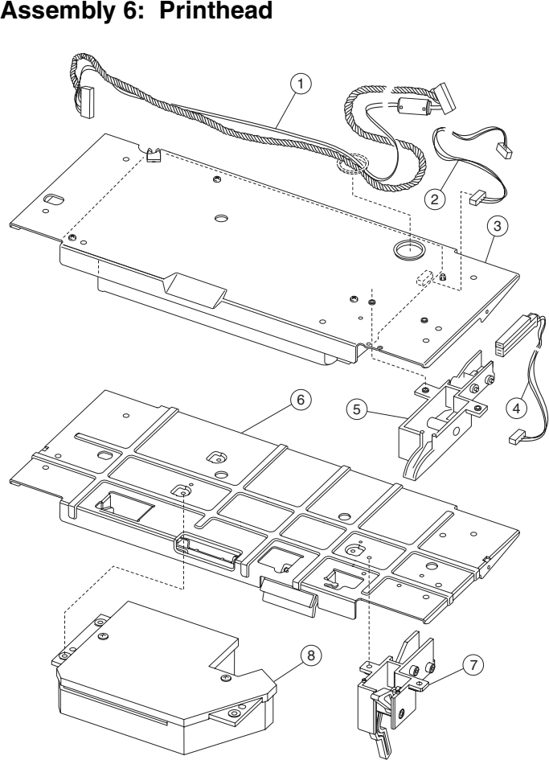

1 56P1061 Cable, LSU-J5

2 56P1068 Cable, mirror motor-J7

3
56P1087 Printhead Assembly
Fully refurbished with 90-day warranty
56P1087
$124.00





4 56P1062 Cable, cover open switch-J6

5
56P1080 Interlock, cover
Fully refurbished with 90-day warranty
56P1080



6
12G4498 Plate printhead
Fully refurbished with 90-day warranty
12G4498





7

8
12G4497 Printhead Assembly
Fully refurbished with 90-day warranty
12G4497

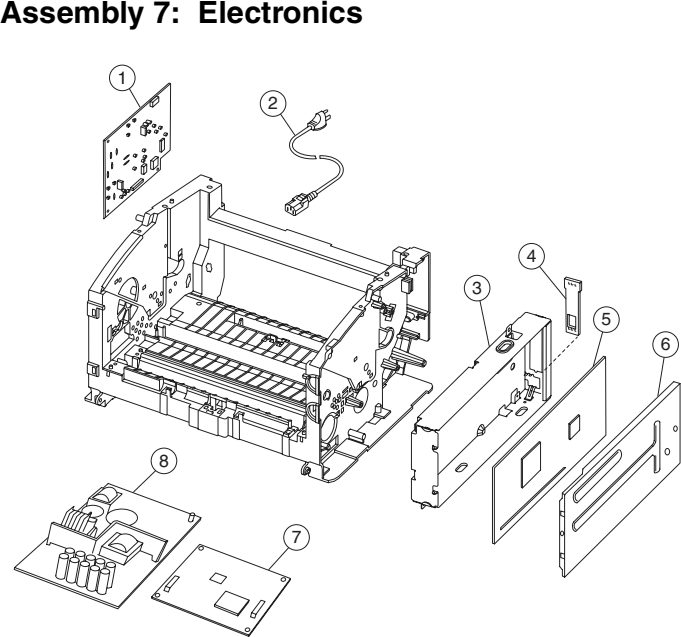

1
12G4509 Card HVPS
Fully refurbished with 90-day warranty
12G4509





2 1339526 Power cord, U.S.

3
12G4504 Cage controller (E320/E322 only)
Fully refurbished with 90-day warranty
12G4504



3

4
56P0187 Bracket, Hn controller card (E320/ E322 only)
Fully refurbished with 90-day warranty
56P0187



4
5
12G4501 Card controller E320
Fully refurbished with 90-day warranty
12G4501





5
12G4502 Card controller E322
Fully refurbished with 90-day warranty
12G4502





5
12G4503 Card controller E322 network
Fully refurbished with 90-day warranty
12G4503





5

5
56P1073 Lexmark Card, controller E323
Fully refurbished with 90-day warranty
56P1073 L

Retired, no longer available: Contact for alternatives



56P1073 Card controller E323
New
56P1073 (New)
$247.00



5
56P1074 Card Controller E323N Network
Fully refurbished with 90-day warranty
56P1074 L
$192.72





6
12G4505 Cover cage (E320/E322 only)
Fully refurbished with 90-day warranty
12G4505



6

7
12G4506 Card engine (E320/E322 only)
Fully refurbished with 90-day warranty
12G4506





8
12G4507 Card LVPS 110 V (E320/E322 only)
Fully refurbished with 90-day warranty
12G4507



8
56P1097 Card, LVPS 110
Fully refurbished with 90-day warranty
56P1097
$43.00



56P1097 Card LVPS 110 V
New
56P1097 (New)
$117.00
