Lexmark MS531 Parts

Please call for parts assistance

Looking for whole machines? Click on the link below
MS531dw

📖 Lexmark MS531 / MS631 / MS632 / MS639 / M3350: Complete Technical Guide. Specifications, maintenance & parts reference from 40 years of Lexmark expertise.

Assembly 1: Parts 1 41X1171 Top cover Lexmark 41X1171 Top cover New 41X1171 (New) $52.17 Lexmark 41X1171 Top cover Fully refurbished with 90-day warranty 41X1171 Contact for Details 2 41X2262 Output extender Lexmark 41X2262 Output extender New 41X2262 (New) $30.06 Lexmark 41X2262 Output extender Fully refurbished with 90-day warranty 41X2262 Contact for Details 3 41X1169 Rear door and cover Lexmark 41X1169 Rear door and cover New 41X1169 (New) $39.36 Lexmark 41X1169 Rear door and cover Fully refurbished with 90-day warranty 41X1169 Contact for Details 4 41X2263 Rear door Lexmark 41X2263 Rear access door New 41X2263 (New) $31.63 Lexmark 41X2263 Rear access door Fully refurbished with 90-day warranty 41X2263 Contact for Details 5 40X8520 Dust cover Lexmark 40X8520 Dust cover, 250-sheet tray New 40X8520 (New) $60.00 6 41X1165 Right cover Lexmark 41X1165 Right cover New 41X1165 (New) Contact for Details Lexmark 41X1165 Right cover Fully refurbished with 90-day warranty 41X1165 Contact for Details 7 41X1233 Controller board cover Lexmark 41X1233 Right access cover New 41X1233 (New) $31.45 Lexmark 41X1233 Right access cover Fully refurbished with 90-day warranty 41X1233 $23.95 8 41X1163 Front cover Lexmark 41X1163 Nameplate New 41X1163 (New) $30.63 Lexmark 41X1163 Nameplate Fully refurbished with 90-day warranty 41X1163 Contact for Details 9 41X1167 Left cover Lexmark 41X1167 Left cover New 41X1167 (New) $30.89 Lexmark 41X1167 Left cover Fully refurbished with 90-day warranty 41X1167 Contact for Details 10 41X2300 Access cover link Lexmark 41X2300 Access cover link New 41X2300 (New) $11.36

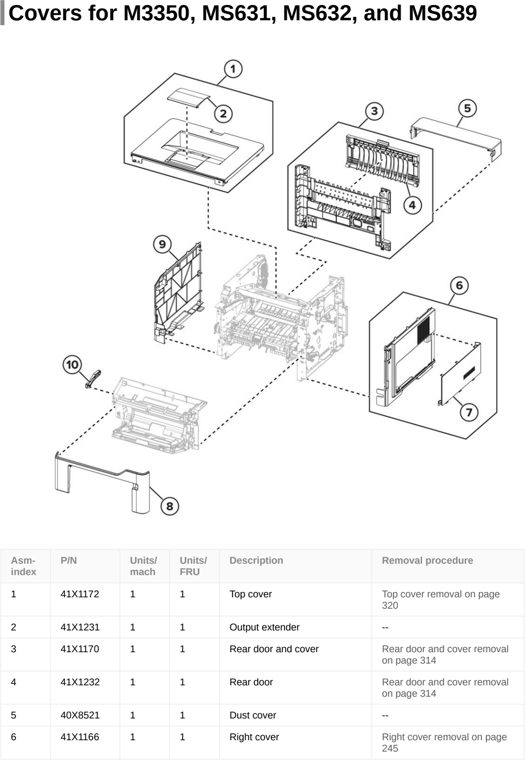

Assembly 2: Covers for M3350, MS631, MS632, and MS639 1 41X1172 Top cover Lexmark 41X1172 Top cover New 41X1172 (New) $51.83 Lexmark 41X1172 Top cover Fully refurbished with 90-day warranty 41X1172 $38.50 2 41X1231 Output extender Lexmark 41X1231 Output extender New 41X1231 (New) $30.06 Lexmark 41X1231 Output extender Fully refurbished with 90-day warranty 41X1231 $22.89 3 41X1170 Rear door and cover Lexmark 41X1170 Rear door and cover New 41X1170 (New) $53.59 Lexmark 41X1170 Rear door and cover Fully refurbished with 90-day warranty 41X1170 $38.50 4 41X1232 Rear door Lexmark 41X1232 Rear access door New 41X1232 (New) $32.40 Lexmark 41X1232 Rear access door Fully refurbished with 90-day warranty 41X1232 $24.68 5 40X8521 Dust cover Lexmark 40X8521 Dust cover 550-sheet tray New 40X8521 (New) $62.00 Lexmark 40X8521 Dust cover 550-sheet tray Fully refurbished with 90-day warranty 40X8521 $41.16 6 41X1166 Right cover Lexmark 41X1166 Right cover New 41X1166 (New) $54.56 Lexmark 41X1166 Right cover Fully refurbished with 90-day warranty 41X1166 $41.64 7 41X1233 Controller board cover Lexmark 41X1233 Right access cover New 41X1233 (New) $31.45 Lexmark 41X1233 Right access cover Fully refurbished with 90-day warranty 41X1233 $23.95 8 41X1164 Front cover Lexmark 41X1164 Nameplate New 41X1164 (New) $48.70 Lexmark 41X1164 Nameplate Fully refurbished with 90-day warranty 41X1164 $36.03 9 41X1168 Left cover Lexmark 41X1168 Left cover New 41X1168 (New) $48.87 Lexmark 41X1168 Left cover Fully refurbished with 90-day warranty 41X1168 $39.78 10 41X2300 Access cover link Lexmark 41X2300 Access cover link New 41X2300 (New) $11.36

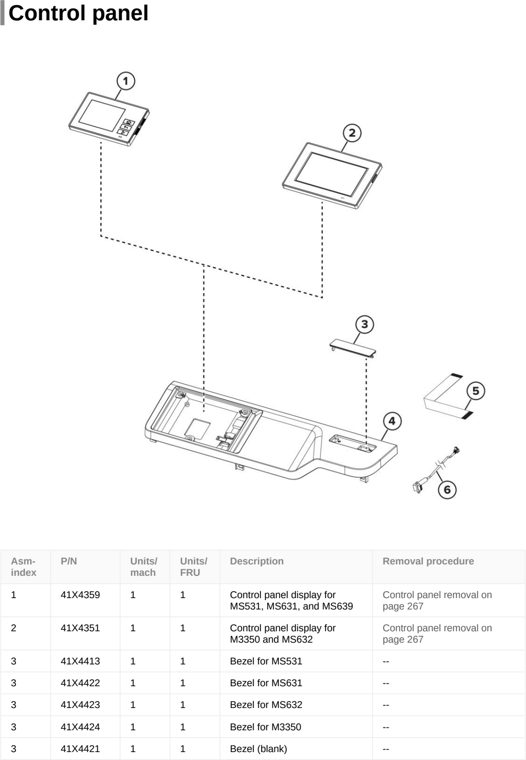

Assembly 3: Control panel 1 41X4359 Control panel display for MS531, MS631, and MS639 Lexmark 41X4359 Control panel display f New 41X4359 (New) $99.59 2 41X4351 Control panel display for M3350 and MS632 Lexmark 41X4351 Control panel display 4.3-inch control New 41X4351 (New) $167.73 Lexmark 41X4351 Control panel display 4.3-inch control Fully refurbished with 90-day warranty 41X4351 Contact for Details 3 41X4413 Bezel for MS531 Lexmark 41X4413 Bezel New 41X4413 (New) $16.77 3 41X4422 Bezel for MS631 Lexmark 41X4422 Bezel New 41X4422 (New) $16.65 3 41X4423 Bezel for MS632 Lexmark 41X4423 Bezel New 41X4423 (New) $16.65 3 41X4424 Bezel for M3350 3 41X4421 Bezel (blank) Lexmark 41X4421 Bezel (blank) New 41X4421 (New) $16.27 4 41X4412 Control panel front cover for MS531, MS631, and MS639 Lexmark 41X4412 Control panel front cover New 41X4412 (New) Contact for Details 4 41X4420 Control panel front cover for M3350 and MS632 Lexmark 41X4420 Control panel front cover New 41X4420 (New) Contact for Details 5 41X4547 Control panel FFC Lexmark 41X4547 Control panel FFC New 41X4547 (New) $19.47 6 41X4537 Front USB cable Lexmark 41X4537 Front USB cable New 41X4537 (New) Contact for Details

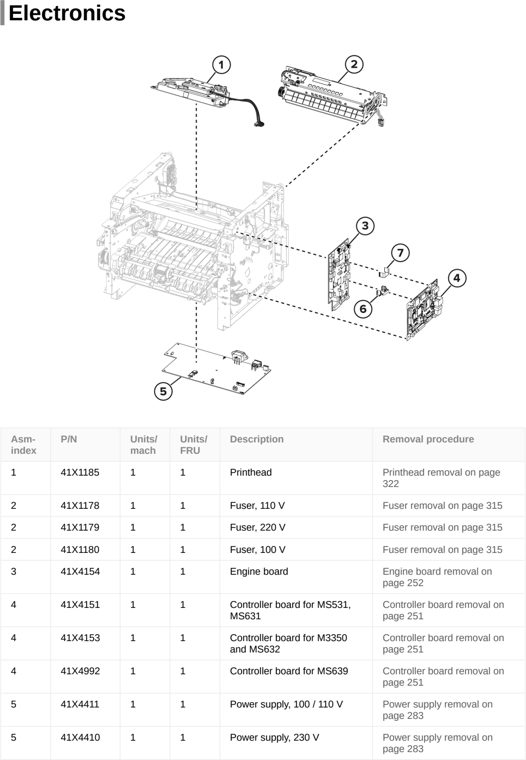

Assembly 4: Electronics 1 41X1185 Printhead Lexmark 41X1185 Printhead New 41X1185 (New) $111.50 Lexmark 41X1185 Printhead Fully refurbished with 90-day warranty 41X1185 Contact for Details 2 41X1178 Fuser, 110 V Lexmark 41X1178 Fuser 110V New 41X1178 36S3650 (New) ~~$267.00~~ $213.00 Lexmark 41X1178 Fuser 110V Fully refurbished with 90-day warranty 41X1178 Rebuilt, new parts $125.00 2 41X1179 Fuser, 220 V 2 41X1180 Fuser, 100 V 3 41X4154 Engine board Lexmark 41X4154 Engine Board New 41X4154 (New) $138.29 4 41X4151 Controller board for MS531, MS631 Lexmark 41X4151 Controller board New 41X4151 (New) $229.00 4 41X4153 Controller board for M3350 and MS632 Lexmark 41X4153 Controller board New 41X4153 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $219.00 4 41X4992 Controller board for MS639 5 41X4411 Power supply, 100 / 110 V Lexmark 41X4411 Power supply 110 V New 41X4411 (New) $128.58 5 41X4410 Power supply, 230 V 6 41X2877 Controller power cable Lexmark 41X2877 Controller power cable New 41X2877 (New) $18.02 7 41X2878 Print data cable Lexmark 41X2878 Print data cable New 41X2878 (New) $17.72 Lexmark 41X2878 Print data cable Fully refurbished with 90-day warranty 41X2878 Contact for Details

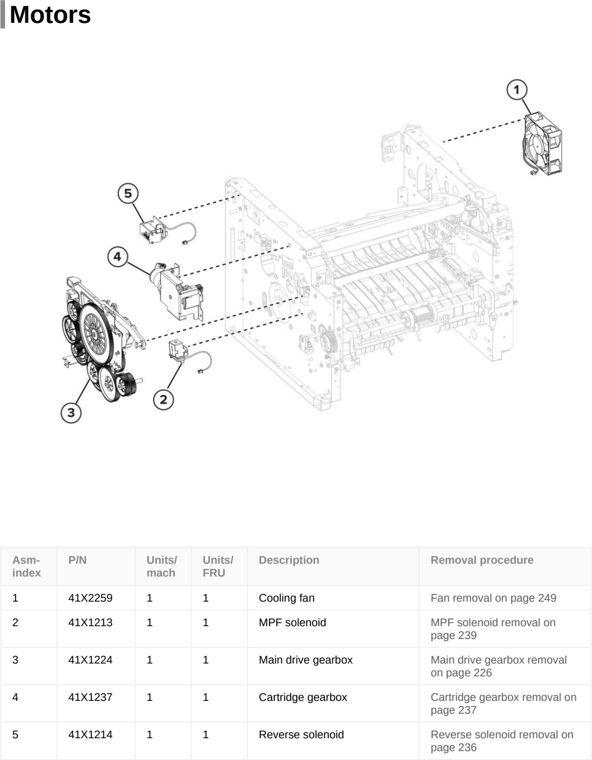

Assembly 5: Motors 1 41X2259 Cooling fan Lexmark 41X2259 Cooling fan New 41X2259 (New) $21.47 Lexmark 41X2259 Cooling fan Fully refurbished with 90-day warranty 41X2259 $16.78 2 41X1213 MPF solenoid Lexmark 41X1213 MPF solenoid New 41X1213 (New) $18.97 Lexmark 41X1213 MPF solenoid Fully refurbished with 90-day warranty 41X1213 $14.62 3 41X1224 Main drive gearbox Lexmark 41X1224 Main drive gearbox New 41X1224 (New) $169.50 Lexmark 41X1224 Main drive gearbox Fully refurbished with 90-day warranty 41X1224 $78.50 4 41X1237 Cartridge gearbox Lexmark 41X1237 Motor (cartridge) New 41X1237 (New) $108.21 Lexmark 41X1237 Motor (cartridge) Fully refurbished with 90-day warranty 41X1237 $54.50 5 41X1214 Reverse solenoid Lexmark 41X1214 Reverse solenoid New 41X1214 (New) $22.27 Lexmark 41X1214 Reverse solenoid Fully refurbished with 90-day warranty 41X1214 $17.47

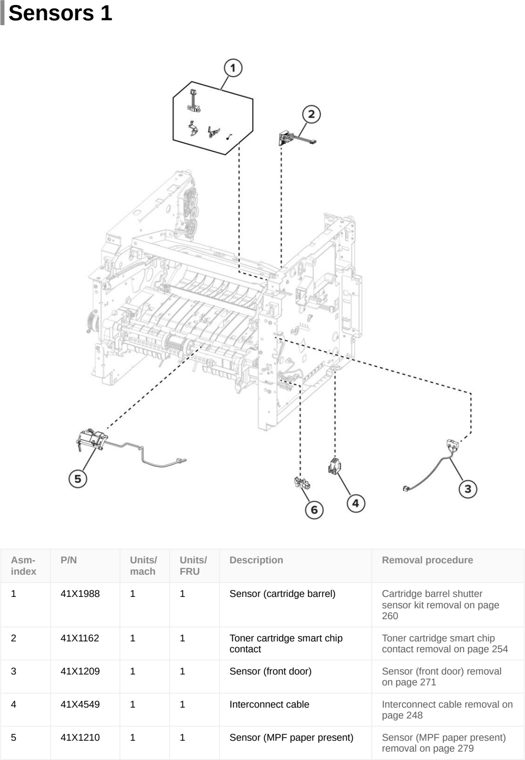

Assembly 6: Sensors 1 1 41X1988 Sensor (cartridge barrel) Lexmark 41X1988 Cartridge barrel sensor kit New 41X1988 (New) $18.97 Lexmark 41X1988 Cartridge barrel sensor kit Fully refurbished with 90-day warranty 41X1988 Contact for Details 2 41X1162 Toner cartridge smart chip contact Lexmark 41X1162 Toner cartridge smart chip contact New 41X1162 (New) $28.97 Lexmark 41X1162 Toner cartridge smart chip contact Fully refurbished with 90-day warranty 41X1162 Contact for Details 3 41X1209 Sensor (front door) Lexmark 41X1209 Sensor (front door) New 41X1209 (New) $21.81 Lexmark 41X1209 Sensor (front door) Fully refurbished with 90-day warranty 41X1209 $17.08 4 41X4549 Interconnect cable Lexmark 41X4549 Interconnect cable New 41X4549 (New) Contact for Details 5 41X1210 Sensor (MPF paper present) Lexmark 41X1210 Sensor (MPF paper present) New 41X1210 (New) $19.35 Lexmark 41X1210 Sensor (MPF paper present) Fully refurbished with 90-day warranty 41X1210 Contact for Details 6 41X4991 Sensor (tray present) Lexmark 41X4991 Sensor (tray present) New 41X4991 (New) $11.15

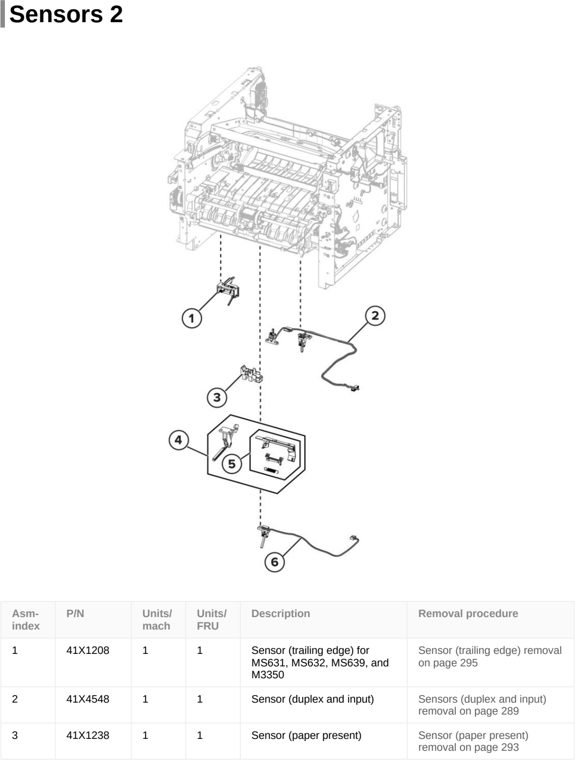

Assembly 7: Sensors 2 1 41X1208 Sensor (trailing edge) for MS631, MS632, MS639, and M3350 Lexmark 41X1208 Sensor (trailing edge) New 41X1208 (New) $28.50 Lexmark 41X1208 Sensor (trailing edge) Fully refurbished with 90-day warranty 41X1208 $23.28 2 41X4548 Sensor (duplex and input) Lexmark 41X4548 Sensor (duplex and input) New 41X4548 (New) Contact for Details 3 41X1238 Sensor (paper present) Lexmark 41X1238 Sensor (tray present) New 41X1238 (New) $20.93 Lexmark 41X1238 Sensor (tray present) Fully refurbished with 90-day warranty 41X1238 $11.59 4 41X4453 Paper present sensor flag parts kit Lexmark 41X4453 Sensor Paper Present Flag Kit New 41X4453 (New) $49.75 Lexmark 41X4453 Sensor Paper Present Flag Kit Fully refurbished with 90-day warranty 41X4453 Contact for Details 5 41X4456 Toner density sensor parts kit Lexmark 41X4456 Toner Density Sensor New 41X4456 (New) Contact for Details 6 40X8044 Sensor (index) Lexmark 40X8044 Index sensor New 40X8044 (New) $19.58 Lexmark 40X8044 Index sensor Fully refurbished with 90-day warranty 40X8044 $16.96

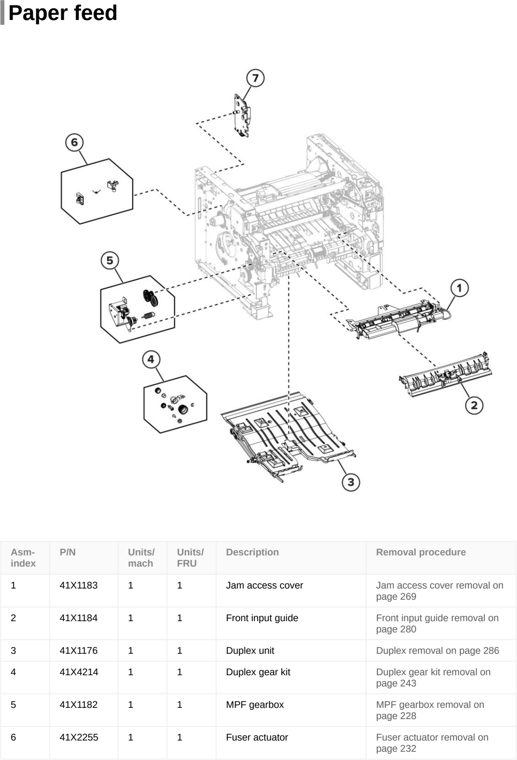

Assembly 8: Paper feed 1 41X1183 Jam access cover Lexmark 41X1183 Jam access cover New 41X1183 (New) $45.50 Lexmark 41X1183 Jam access cover Fully refurbished with 90-day warranty 41X1183 $28.50 2 41X1184 Front input guide Lexmark 41X1184 Front input guide New 41X1184 (New) $45.50 Lexmark 41X1184 Front input guide Fully refurbished with 90-day warranty 41X1184 $28.50 3 41X1176 Duplex unit Lexmark 41X1176 Duplex assembly New 41X1176 (New) $60.24 Lexmark 41X1176 Duplex assembly Fully refurbished with 90-day warranty 41X1176 $49.15 4 41X4214 Duplex gear kit Lexmark 41X4214 Access cover link New 41X4214 (New) $18.69 5 41X1182 MPF gearbox Lexmark 41X1182 MPF gearbox (MS/MX52x MS62x) New 41X1182 (New) $24.50 Lexmark 41X1182 MPF gearbox (MS/MX52x MS62x) Fully refurbished with 90-day warranty 41X1182 $20.50 6 41X2255 Fuser actuator Lexmark 41X2255 Fuser actuator New 41X2255 (New) $18.66 Lexmark 41X2255 Fuser actuator Fully refurbished with 90-day warranty 41X2255 $9.54 7 41X2268 Redrive gear plate for MS531 Lexmark 41X2268 Redrive gear plate New 41X2268 (New) $24.50 Lexmark 41X2268 Redrive gear plate Fully refurbished with 90-day warranty 41X2268 Contact for Details 7 41X2256 Redrive gear plate for MS631, MS632, MS639, and M3350 Lexmark 41X2256 Redrive gear plate New 41X2256 (New) $32.99 Lexmark 41X2256 Redrive gear plate Fully refurbished with 90-day warranty 41X2256 $25.13

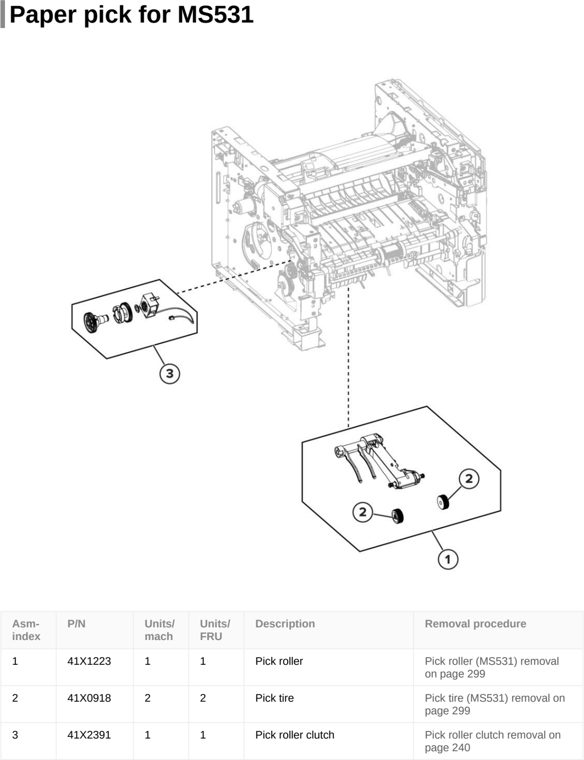

Assembly 9: Paper pick for MS531 1 41X1223 Pick roller Lexmark 41X1223 Pick roller assembly New 41X1223 (New) $30.87 Lexmark 41X1223 Pick roller assembly Fully refurbished with 90-day warranty 41X1223 Contact for Details 2 41X0918 Pick tire Lexmark 41X0918 Pick Tire New 41X0918 set of two (New) $14.10 3 41X2391 Pick roller clutch Lexmark 41X2391 Pick roller clutch New 41X2391 (New) $26.22 Lexmark 41X2391 Pick roller clutch Fully refurbished with 90-day warranty 41X2391 Contact for Details

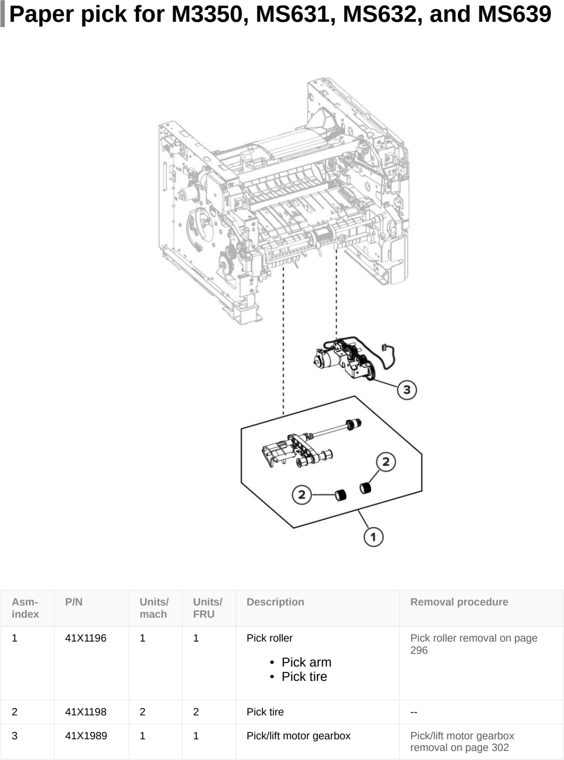

Assembly 10: Paper pick for M3350, MS631, MS632, and MS639 1 41X1196 Pick roller Lexmark 41X1196 Pick roller assembly New 41X1196 (New) $28.10 Lexmark 41X1196 Pick roller assembly Fully refurbished with 90-day warranty 41X1196 $19.50 2 41X1198 Pick tire Lexmark 41X1198 Pick Tires New 41X1198 Set of Two (New) $18.11 3 41X1989 Pick/lift motor gearbox Lexmark 41X1989 Pick/lift motor gearbox New 41X1989 (New) $114.42 Lexmark 41X1989 Pick/lift motor gearbox Fully refurbished with 90-day warranty 41X1989 $93.18

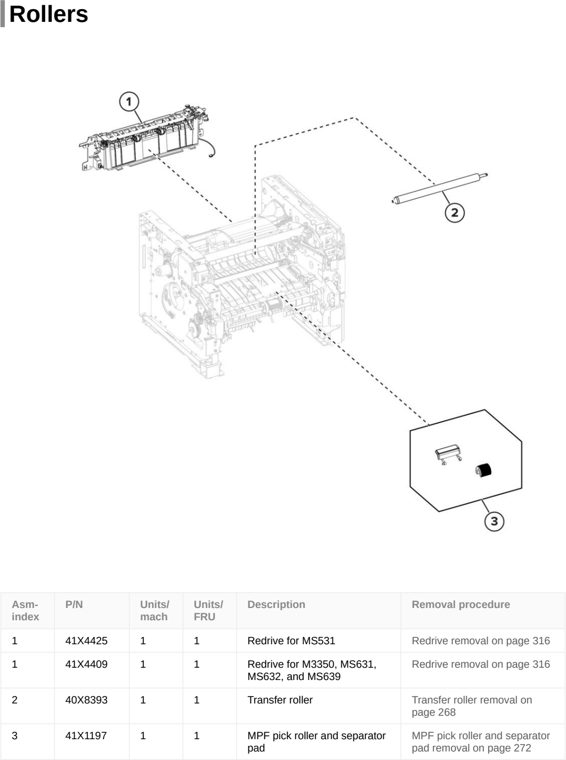

Assembly 11: Rollers 1 41X4425 Redrive for MS531 Lexmark 41X4425 Redrive New 41X4425 (New) Contact for Details 1 41X4409 Redrive for M3350, MS631, MS632, and MS639 Lexmark 41X4409 Redrive New 41X4409 (New) Contact for Details 2 40X8393 Transfer roller Lexmark 40X8393 Transfer Roll New 40X8393 (New) $19.95 3 41X1197 MPF pick roller and separator pad Lexmark 41X1197 MPF pick roller and separator pad New 41X1197 (New) $19.30 Lexmark 41X1197 MPF pick roller and separator pad Fully refurbished with 90-day warranty 41X1197 Contact for Details

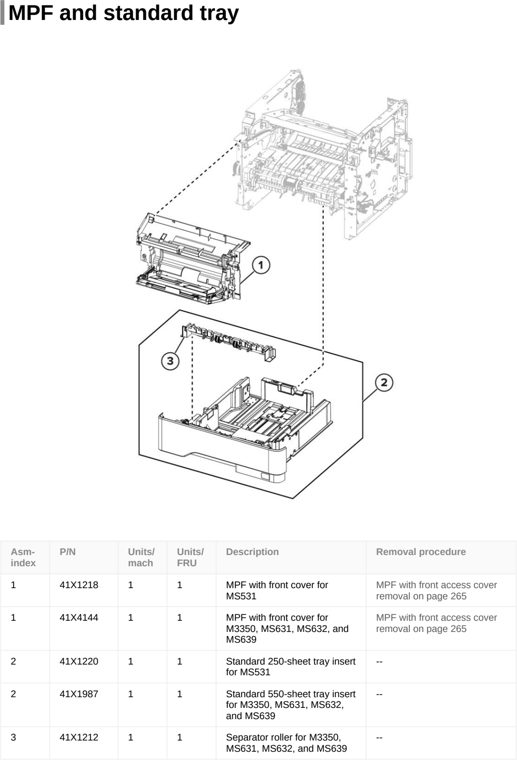

Assembly 12: MPF and standard tray 1 41X1218 MPF with front cover for MS531 Lexmark 41X1218 MPF with front access cover New 41X1218 (New) $61.53 Lexmark 41X1218 MPF with front access cover Fully refurbished with 90-day warranty 41X1218 Contact for Details 1 41X4144 MPF with front cover for M3350, MS631, MS632, and MS639 Lexmark 41X4144 MPF with front cover New 41X4144 (New) $35.65 2 41X1220 Standard 250-sheet tray insert for MS531 Lexmark 41X1220 Standard 250-sheet tray insert New 41X1220 (New) $99.55 Lexmark 41X1220 Standard 250-sheet tray insert Fully refurbished with 90-day warranty 41X1220 Contact for Details 2 41X1987 Standard 550-sheet tray insert for M3350, MS631, MS632, and MS639 Lexmark 41X1987 Standard 550-sheet tray insert New 41X1987 (New) $95.41 Lexmark 41X1987 Standard 550-sheet tray insert Fully refurbished with 90-day warranty 41X1987 $71.06 3 41X1212 Separator roller for M3350, MS631, MS632, and MS639 Lexmark 41X1212 Separator roller assembly New 41X1212 (New) $35.19 Lexmark 41X1212 Separator roller assembly Fully refurbished with 90-day warranty 41X1212 Contact for Details

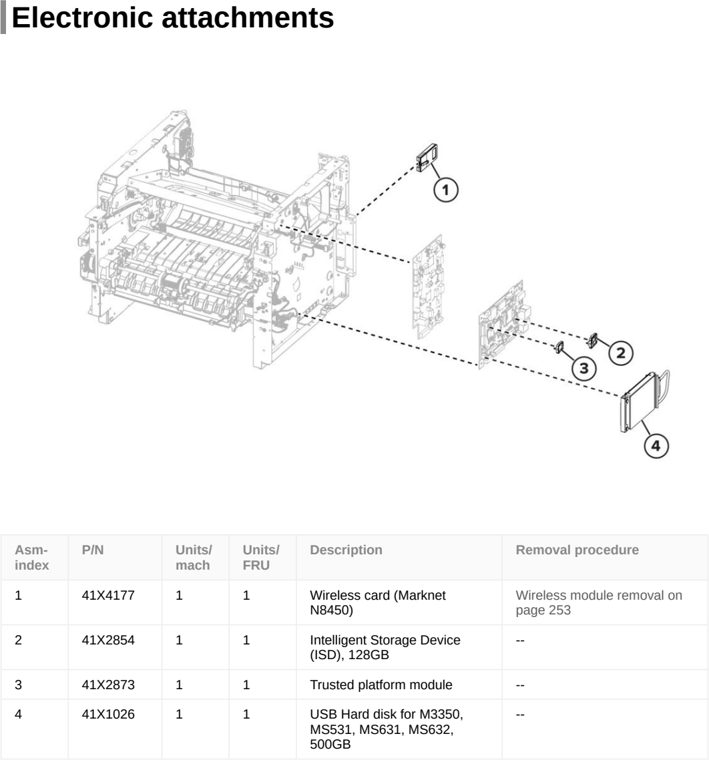

Assembly 13: Electronic attachments 1 41X4177 Wireless card (Marknet N8450) Lexmark 41X4177 Wireless card (Marknet N8450) New 41X4177 (New) $57.70 Lexmark 41X4177 Wireless card (Marknet N8450) Fully refurbished with 90-day warranty 41X4177 $44.04 2 41X2854 Intelligent Storage Device (ISD), 128GB Lexmark 41X2854 Intelligent storage drive New 41X2854 (New) $211.11 3 41X2873 Trusted platform module Lexmark 41X2873 Trusted platform module (TPM) card New 41X2873 (New) $368.00 4 41X1026 USB Hard disk for M3350, MS531, MS631, MS632, 500GB Lexmark 41X1026 Hard disk, 500GB (USB) New 41X1026 (New) $353.00 Lexmark 41X1026 Hard disk, 500GB (USB) Fully refurbished with 90-day warranty 41X1026 $209.50

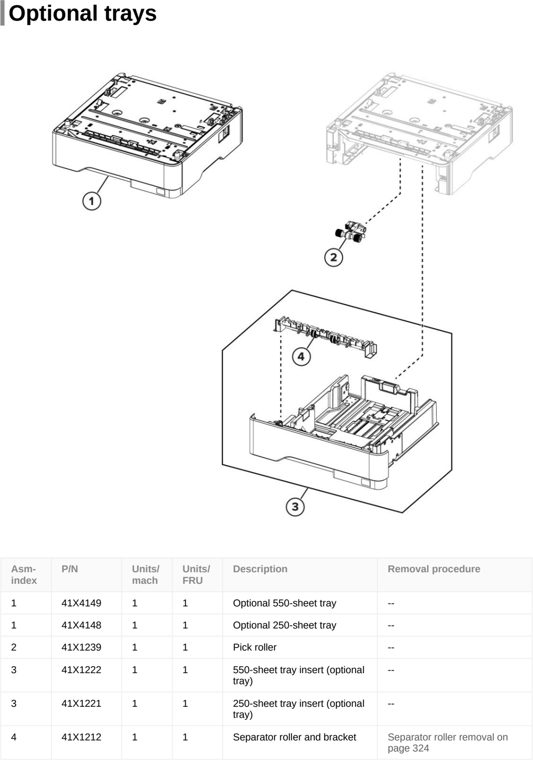

Assembly 14: Optional trays 1 41X4149 Optional 550-sheet tray Lexmark 41X4149 Optional 550-sheet tray New 41X4149 (New) $284.71 1 41X4148 Optional 250-sheet tray Lexmark 41X4148 Optional 250-sheet tray New 41X4148 (New) $271.77 2 41X1239 Pick roller Lexmark 41X1239 Pick roller New 41X1239 (New) $16.50 Lexmark 41X1239 Pick roller Fully refurbished with 90-day warranty 41X1239 Contact for Details 3 41X1222 550-sheet tray insert (optional tray) Lexmark 41X1222 550-sheet tray insert (optional tray) New 41X1222 (New) $123.50 Lexmark 41X1222 550-sheet tray insert (optional tray) Fully refurbished with 90-day warranty 41X1222 Contact for Details 3 41X1221 250-sheet tray insert (optional tray) Lexmark 41X1221 250-sheet tray insert (optional tray) New 41X1221 (New) $53.47 Lexmark 41X1221 250-sheet tray insert (optional tray) Fully refurbished with 90-day warranty 41X1221 Contact for Details 4 41X1212 Separator roller and bracket Lexmark 41X1212 Separator roller assembly New 41X1212 (New) $35.19 Lexmark 41X1212 Separator roller assembly Fully refurbished with 90-day warranty 41X1212 Contact for Details

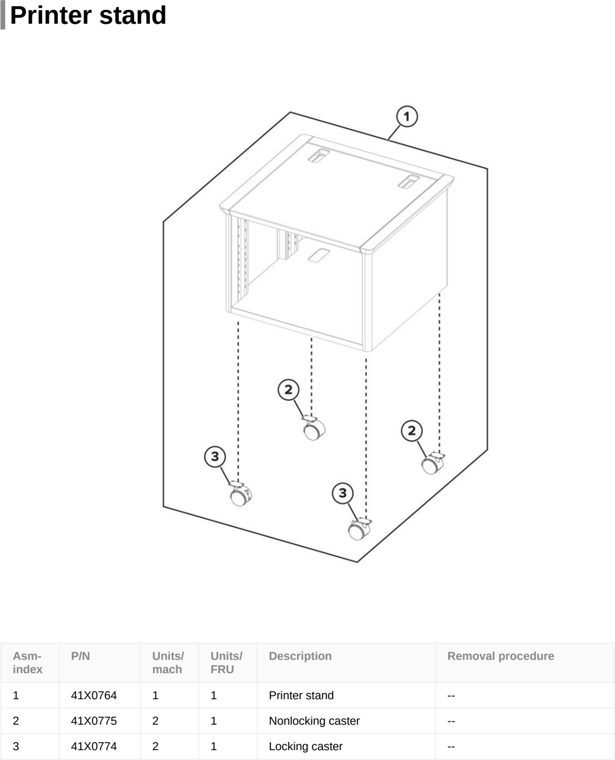

Assembly 15: Printer stand 1 41X0764 Printer stand Lexmark 41X0764 Locking caster Adjustable Stand New 41X0764 (New) $1048.44 Lexmark 41X0764 Locking caster Adjustable Stand Fully refurbished with 90-day warranty 41X0764 Contact for Details 2 41X0775 Nonlocking caster Lexmark 41X0775 Non-locking caster New 41X0775 (New) $46.52 Lexmark 41X0775 Non-locking caster Fully refurbished with 90-day warranty 41X0775 Contact for Details 3 41X0774 Locking caster Lexmark 41X0774 Locking caster New 41X0774 (New) $49.05 Lexmark 41X0774 Locking caster Fully refurbished with 90-day warranty 41X0774 Contact for Details

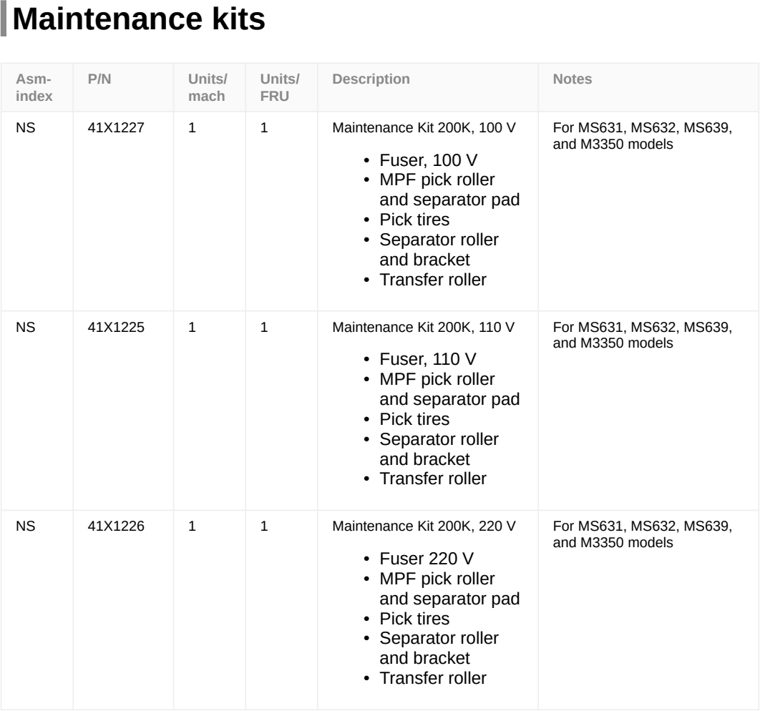

Assembly 16: Maintenance kits NS 41X1227 Maintenance Kit 200K, 100 V For MS631, MS632, MS639, and M3350 models • Fuser, 100 V • MPF pick roller and separator pad • Pick tires • Separator roller and bracket • Transfer roller NS 41X1225 Maintenance Kit 200K, 110 V For MS631, MS632, MS639, and M3350 models • Fuser, 110 V • MPF pick roller and separator pad • Pick tires • Separator roller and bracket • Transfer roller Lexmark 41X1225 Maintenance Kit 110 V New 41X1225 200K Page Yield (New) $349.00 Lexmark 41X1225 Maintenance Kit, 110 V Fully refurbished with 90-day warranty 41X1225 200K Page Yield (Rebuilt, new parts) $249.00 NS 41X1226 Maintenance Kit 200K, 220 V For MS631, MS632, MS639, and M3350 models • Fuser 220 V • MPF pick roller and separator pad • Pick tires • Separator roller and bracket • Transfer roller Lexmark 41X1226 New MS621, MS/MX622 Fuser Maintenance Kit, 220V New 41X1226 (New) $438.18 Lexmark 41X1226 MS621, MS/MX622 Fuser Maintenance Kit, 220V Fully refurbished with 90-day warranty 41X1226 Contact for Details

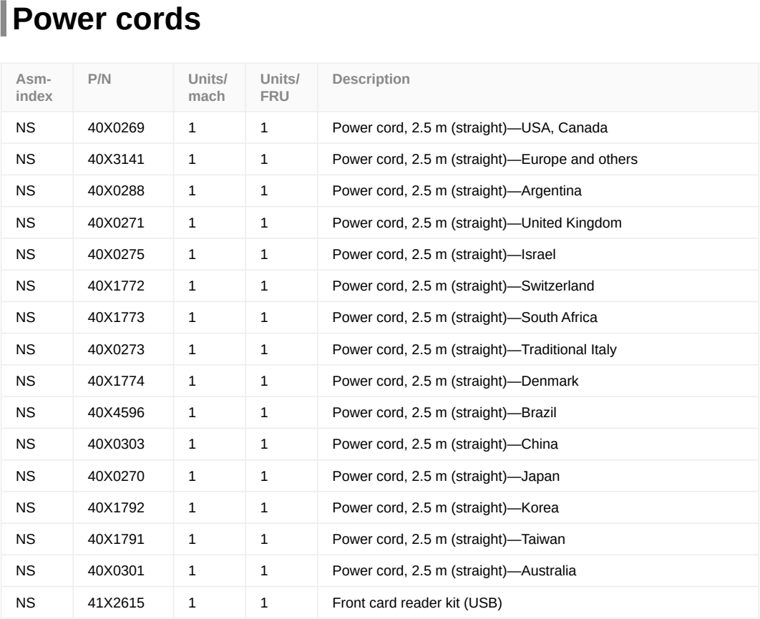

Assembly 17: Power cords NS 40X0269 Power cord, 2.5 m (straight)—USA, Canada Lexmark 40x0269 Power Cord; 2.5m, 8ft. Right angle, US, CA, La New 40x0269 (New) $30.90 NS 40X3141 Power cord, 2.5 m (straight)—Europe and others Lexmark 40x3141 Power cord; 2.5m, 8ft. Europe, Middle East, Indonesia, Africa (HV) New 40x3141 (New) Contact for Details NS 40X0288 Power cord, 2.5 m (straight)—Argentina Lexmark 40x0288 Power cord; 2.5m, 8ft. Straight, Argentina New 40x0288 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X0271 Power cord, 2.5 m (straight)—United Kingdom Lexmark 40x0271 Power Cord; 2.5m, 8ft. Straight, UK, Ireland, HK, IT New 40x0271 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X0275 Power cord, 2.5 m (straight)—Israel Lexmark 40x0275 Power cord; 1.8m, 6ft. Straight, Israel New 40x0275 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X1772 Power cord, 2.5 m (straight)—Switzerland Lexmark 40x1772 Power cord; 2.5m, 8ft. Straight, Liechtenstein, Switzerland New 40x1772 (New) Contact for Details NS 40X1773 Power cord, 2.5 m (straight)—South Africa Lexmark 40x1773 Power cord; 2.5m, 8ft. Straight, South Africa, Hong Kong, Singapore, Thailand, Malaysia New 40x1773 (New) Contact for Details NS 40X0273 Power cord, 2.5 m (straight)—Traditional Italy Lexmark 40x0273 Power cord; 2.5m, 8ft. Straight, Italy, Chile, Uruguay New 40x0273 (New) $44.20 Retired, no longer available: Contact for alternatives NS 40X1774 Power cord, 2.5 m (straight)—Denmark Lexmark 40x1774 Power cord; 2.5m, 8ft. Straight, Denmark, Finland, Norway, Sweden New 40x1774 (New) Contact for Details NS 40X4596 Power cord, 2.5 m (straight)—Brazil Lexmark 40x4596 Power cord; 2.5m, 8ft. Straight, Brazil New 40x4596 (New) Contact for Details NS 40X0303 Power cord, 2.5 m (straight)—China Lexmark 40x0303 Power cord; 2.5m, 8ft. Straight, PR China New 40x0303 (New) Contact for Details NS 40X0270 Power cord, 2.5 m (straight)—Japan Lexmark 40x0270 Power cord; 2.5m, 8ft. Straight, Japan New 40x0270 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X1792 Power cord, 2.5 m (straight)—Korea Lexmark 40x1792 Power cord; 2.5m, 8ft. Straight, Korea New 40x1792 (New) Contact for Details NS 40X1791 Power cord, 2.5 m (straight)—Taiwan Lexmark 40x1791 Power Cord; 2.5m, 8ft. Straight, Taiwan New 40x1791 (New) Contact for Details NS 40X0301 Power cord, 2.5 m (straight)—Australia Lexmark 40x0301 Power cord; 2.5m, 8ft. Straight, Australia, New Zealand New 40x0301 (New) Contact for Details NS 41X2615 Front card reader kit (USB) Lexmark 41X2615 TWN4 USB front reader kit authentication device New 41X2615 (New) $975.68
Other listed parts 41X1228 Lexmark 41X1228 Maintenance Kit 110V Lexmark 41X1228 Maintenance Kit 110V New 41X1228 200K Page Yield (New) $264.49 Lexmark 41X1228 Maintenance Kit 110V Fully refurbished with 90-day warranty 41X1228 200K Page Yield $174.50
