Printer overview: Lexmark Optra M410 Laser Printer, Lexmark Optra M412 Laser Printer.

Please call for parts assistance

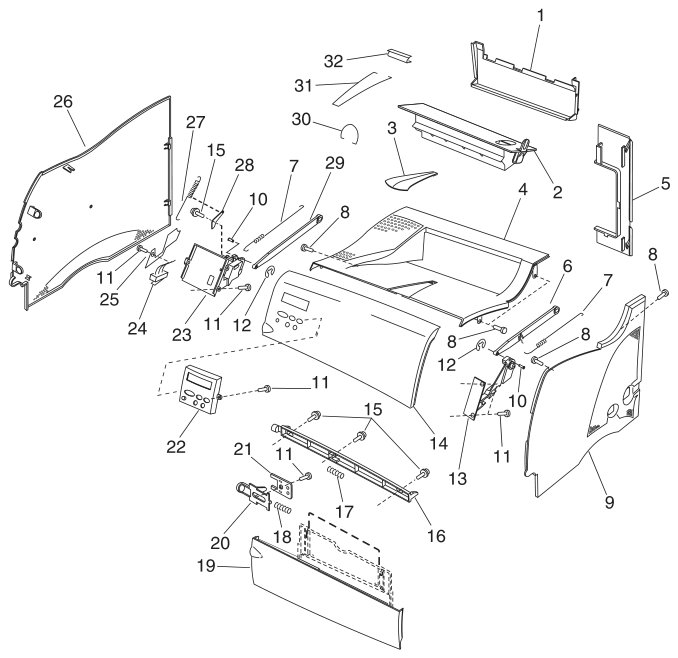

Assembly 1: Covers 1 12G0258 Cover, Exit 2 12G0259 Duct, Fuser Cooling Air 3 12G0254 Support, Paper 3 1263566 Bail Assembly, Optional 4 12G0253 Cover, Top 5 12G0257 Cover, Rear 6 12G0428 Link, Right Hinge 7 12G0267 Link, Spring 9 12G0256 Cover, Right Side 10 12G0426 Pin, Hinge 13 12G0427 Hinge, Right 14 12G0260 Cover, Upper Front M410 Lexmark 12G0260 Cover Upper Front M410 Fully refurbished with 90-day warranty 12g0260 Contact for Details 14 12G3550 Cover, Upper Front M412 Lexmark 12G3550 Cover Upper Front M412 Fully refurbished with 90-day warranty 12G3550 Contact for Details 16 12G0264 Hook, Upper 17 12G0265 Spring, Upper Hook 18 12G0431 Spring, MPF Latch 19 12G0266 Tray, MPF Input Lexmark 12G0266 Tray MPF Input Fully refurbished with 90-day warranty 12g0266 Contact for Details 20 12G0430 Latch, MPF Tray 21 12G0429 Cover, MPF Latch 22 12G0440 Panel Asm, Operator, 110V Lexmark 12G0440 Panel Assembly Operator 110V Fully refurbished with 90-day warranty 12g0440 Contact for Details 22 12G0441 Panel Asm, Operator, 220V 23 12G0424 Hinge, Left 24 12G1860 Cable Asm, Op Panel & Cover 25 12G0262 Cover, Left Hinge 26 12G0255 Cover, Left Side Lexmark 12G0255 4045 Left Side Cover Fully refurbished with 90-day warranty 12g0255 Contact for Details 27 12G0269 Spring, End Stop Parts Catalog 6-3
Assembly 1: Covers (continued) 28 12G0268 Stop, End 29 12G0425 Link, Left Hinge 30 12G0437 Bail, Optional Front Paper 31 12G0438 Bail, Main Rear Paper 32 12G0439 Holder, Rear Paper Bail NS 12G3701 Overlay NLS pack: English, French, NS 12G3702 Overlay XNLS pack: Czech, NS 12G3703 Overlay pack: French/Canadian Parts Catalog 6-5

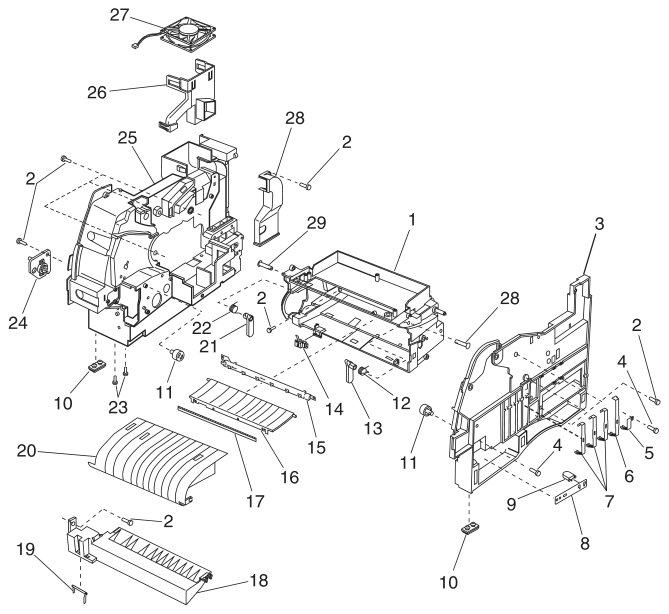

Assembly 2: Frame 1 12G0274 Frame, Base 3 12G0288 Frame, Right Side 5 12G0291 Contact, HVPS Charge 6 12G0290 Contact, HVPS Drum 7 12G0289 Contact, HVPS Drum 8 12G0293 Spring, Cartridge Locate 9 12G0292 Pin, Cartridge Locate 10 12G0250 Foot, Rubber 11 12G0423 Support, Cartridge 12 12G0277 Spring, IC Locate Arm, Right 13 12G0275 Arm, IC Locate, Right 14 12G3560 Sensor, Paper Input 15 12G0451 LED Asm, Erase 16 12G0281 Guide, Middle Paper 17 12G0282 Brush, Erase 18 12G0296 Guide, Paper 19 12G0295 Lever, Input Sensor 20 12G0280 Guide, Front Paper 21 12G0276 Arm, IC Locate, Left 22 12G0278 Spring, IC Locate Arm, Left 24 12G0294 Plate Asm, MPF 25 12G0283 Frame, Left Side 26 12G0285 Duct, Fuser Cooling Air 27 12G0284 Cable & Fan Asm, Cooling 28 12G0286 Cover, Inner Air Duct 29 12G0279 Pin, IC Locate Arm Parts Catalog 6-7

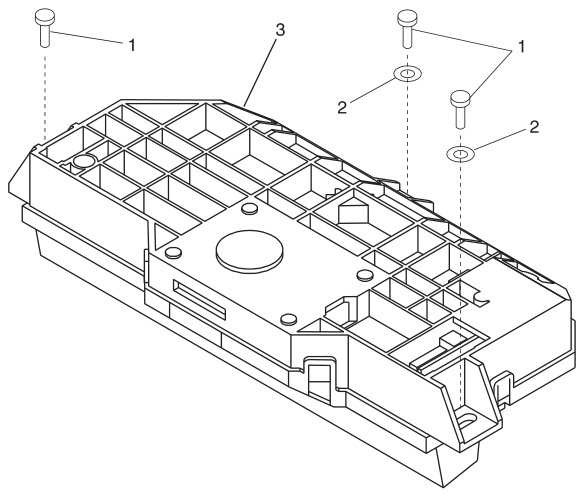

Assembly 3: Printhead 3 12G0298 Printhead, Complete M410 Lexmark 12G0298 Printhead Assembly M410 Fully refurbished with 90-day warranty 12G0298 Contact for Details 3 12G3551 Printhead, Complete M412 Parts Catalog 6-9

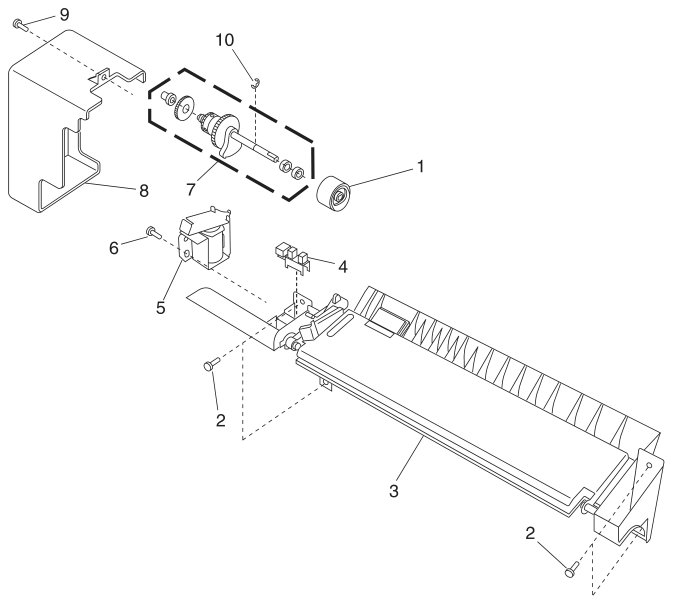

Assembly 4: Paper Feed - Multipurpose Unit 1 12G0299 Roller Asm, MPF Pick 3 12G0301 Feeder Asm, MPF 4 12G0252 Sensor, MPF Input 5 12G0251 Solenoid, MPF Pick Roller 7 12G0300 Shaft Asm, MPF Pick Roller 8 12G0302 Cover, Gear

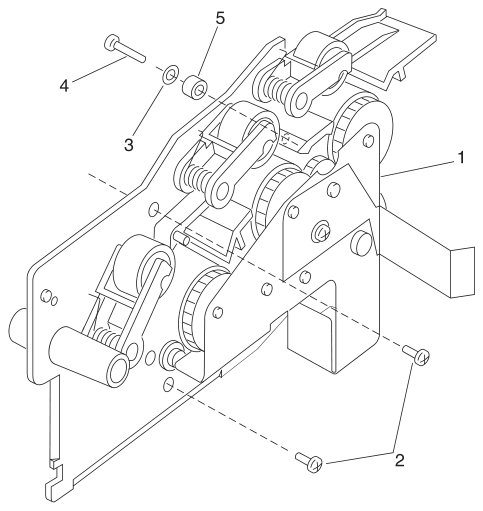

Assembly 5: Paper Feed - Alignment 1 12G0303 Aligner Asm, Paper Feed 5 12G0452 Spacer, Adjustment Screw Parts Catalog 6-13

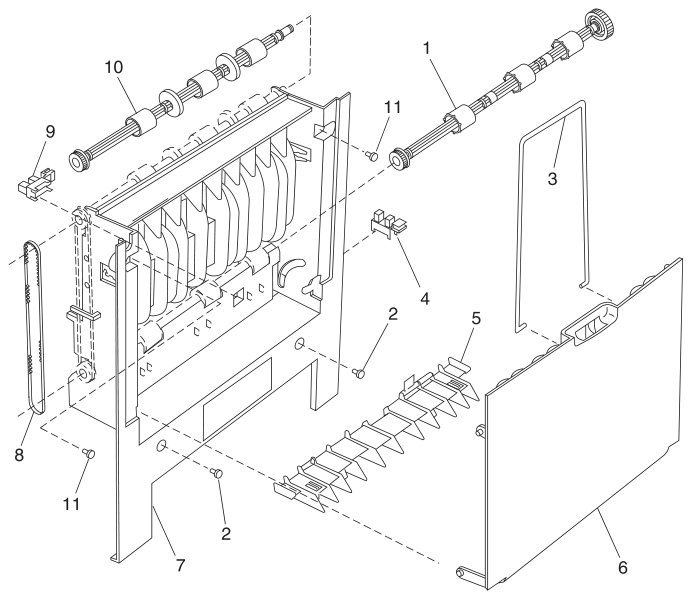

Assembly 6: Paper Feed - Output 1 12G0308 Roller, Lower Redrive 3 12G0305 Bail, Rear Door Paper 4 12G0252 Sensor, Rear Door 5 12G0309 Deflector, Paper 6 12G0304 Door, Rear 7 12G0306 Frame, Rear Paper Exit 8 12G0310 Belt, Redrive Roller 9 12G0252 Sensor, Paper Exit 10 12G0307 Roller, Upper Redrive

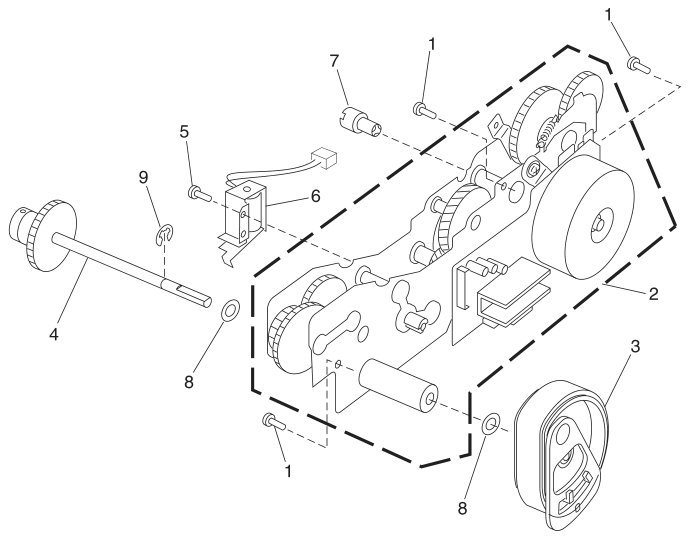

Assembly 7: Main Drive 2 12G0321 Drive Asm, Main M410 2 12G3552 Drive Asm, Main M412 3 12G0323 Roller, Pick 4 12G0322 Shaft Asm, Pick Roller 6 12G0443 Solenoid, Main Pick Roller 7 12G0324 Coupling, Spline Drive NS 12G3673 Clutch Spring, Pick Roller

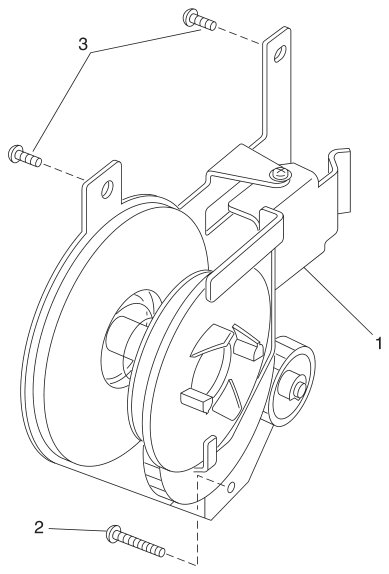

Assembly 8: Developer Drive 1 12G0325 Drive Asm, Developer

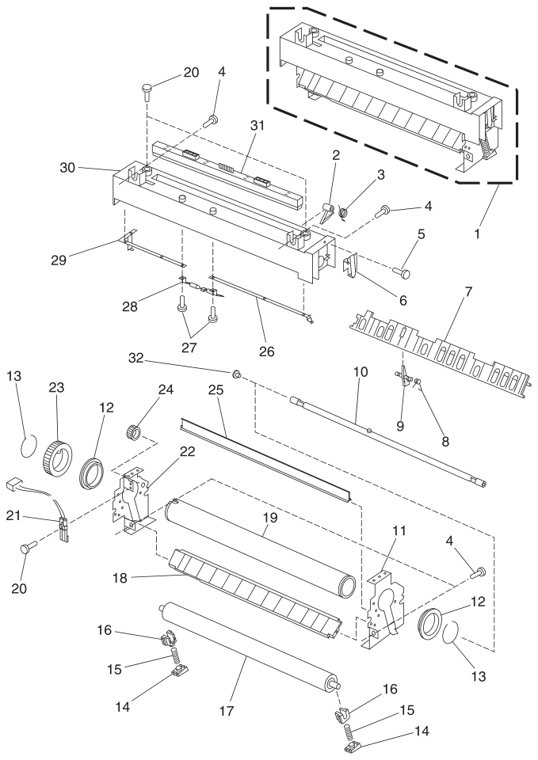

Assembly 9: Fuser 1 12G0351 Fuser Asm, 115V M410 1 12G3554 Fuser Asm, 115V M412 1 12G0352 Fuser Asm, 220V M410 1 12G3555 Fuser Asm, 220V M412 2 12G0331 Finger, Detack 3 12G0344 Spring, Detack Finger 6 12G0343 Contact, Fuser Lamp, Rear 7 12G0347 Guide, Fuser Paper Exit 8 12G0349 Spring, Exit Sensor Lever 9 12G0348 Lever, Paper Exit Sensor 10 12G0328 Lamp, 115V M410 10 12G0329 Lamp, 220V M410 10 12G3562 Lamp, 115V M412 10 12G3563 Lamp, 220V M412 11 12G0339 Frame, Right Fuser 12 12G0330 Bushing, Hot Roll 13 12G0334 Clip, Gear Retaining 14 12G0337 Stand, Bushing Spring 15 12G0336 Spring, Roller Bushing M410 15 12G3553 Spring, Roller Bushing M412 Parts Catalog 6-21
Assembly 9: Fuser (continued) 16 12G0335 Bushing, Backup Roller 17 12G0327 Roller, Fuser Backup M410 17 12G3561 Roller, Fuser Backup M412 18 12G0350 Guide, Fuser Paper Entry 19 12G0326 Hot Roll, Fuser 21 12G0353 Thermistor, Fuser 22 12G0338 Frame, Left Fuser 23 12G0332 Gear, Hot Roll 24 12G0346 Gear, Fuser Idler 25 12G0446 Guide, Upper Fuser Entry 26 12G0342 Contact, Fuser Lamp, Front 28 12G0333 Fuse, Thermal 29 12G0341 Contact, Lamp to Fuse 30 12G0340 Cover, Fuser 31 12G0345 Wiper, Fuser 32 12G0453 Cover, Lamp Parts Catalog 6-23

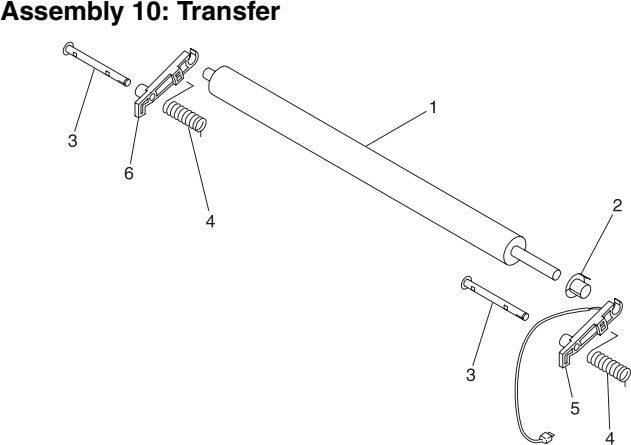

Assembly 10: Transfer 1 12G0354 Roller, Transfer 2 12G0358 Bushing, Right Roller 3 12G0355 Pin, Transfer Roller 4 12G0359 Spring, Transfer Roller 5 12G0357 Arm, Right Transfer Roller 6 12G0356 Arm, Left Transfer Roller Parts Catalog 6-25

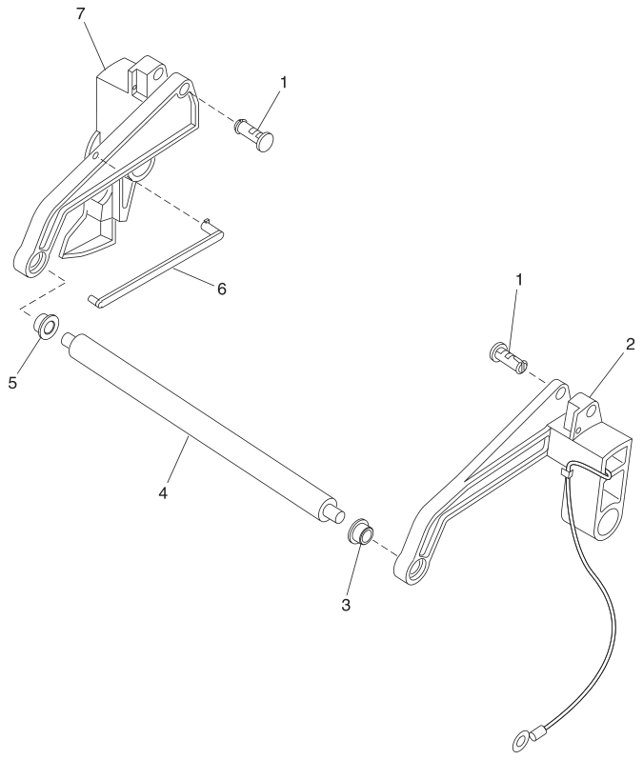

Assembly 11: Charging 1 12G0364 Pin, Charge Roller Arm 2 12G0362 Arm, Right Charge Roller 3 12G0358 Bushing, Right Roller 4 12G0360 Roller, Charge 5 12G0363 Bushing, Left Charge Roller 6 12G0365 Link, Developer Drive Engage 7 12G0361 Arm, Left Charge Roller Parts Catalog 6-27

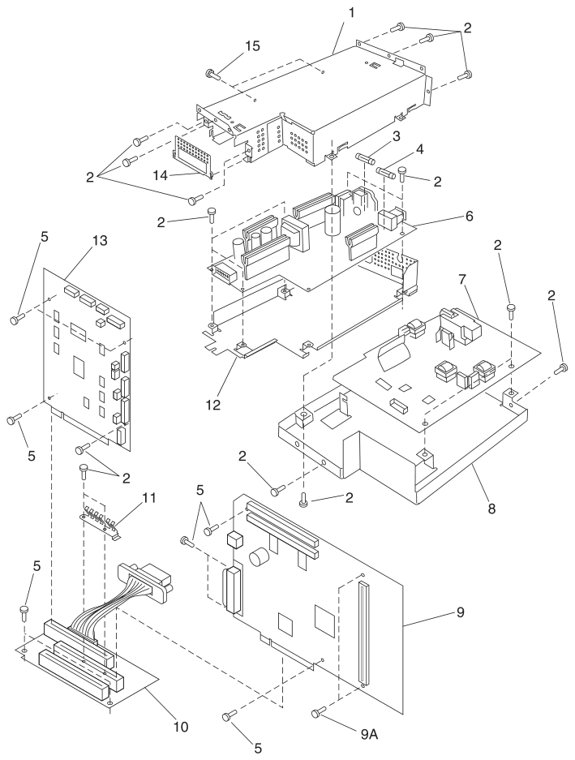

Assembly 12: Electronics 1 12G0367 Frame, Upper LVPS 3 12G0370 Fuse, 4A, 110V 3 12G0373 Fuse, 2A, 220V 4 12G0371 Fuse, 12A, 110V 4 12G0374 Fuse, 6.3A, 220V 6 12G0369 Card Asm, LVPS 110V Lexmark 12G0369 Card Assembly LVPS 110V Fully refurbished with 90-day warranty 12G0369 Retired, no longer available: Contact for alternatives Contact for Details 6 12G0372 Card Asm, LVPS 220V 7 12G0376 Card Asm, HVPS Lexmark 12G0376 Card Assembly HVPS Fully refurbished with 90-day warranty 12G0376 Contact for Details 8 12G0366 Base Plate, HVPS 9 12G3567 Card Asm, Controller/RIP M410 9 12G3556 Card Asm, Controller/RIP M412 Lexmark 12g3556 M412 RIP Board Fully refurbished with 90-day warranty 12g3556 Contact for Details 10 12G0379 Card Asm, Interconnect Lexmark 12G0379 M410 M412 Interconnect Card Assembly Fully refurbished with 90-day warranty 12g0379 $25.00 11 12G0380 Contact, Ground 12 12G0375 Frame, Lower LVPS 13 12G0378 Card Asm, Engine M410 Lexmark 12G0378 Card Assembly Engine M410 Fully refurbished with 90-day warranty 12g0378 Contact for Details 13 12G3557 Card Asm, Engine M412 Lexmark 12G3557 Card Assembly Engine M412 Fully refurbished with 90-day warranty 12G3557 Contact for Details 14 12G0368 Cover, LVPS Connector

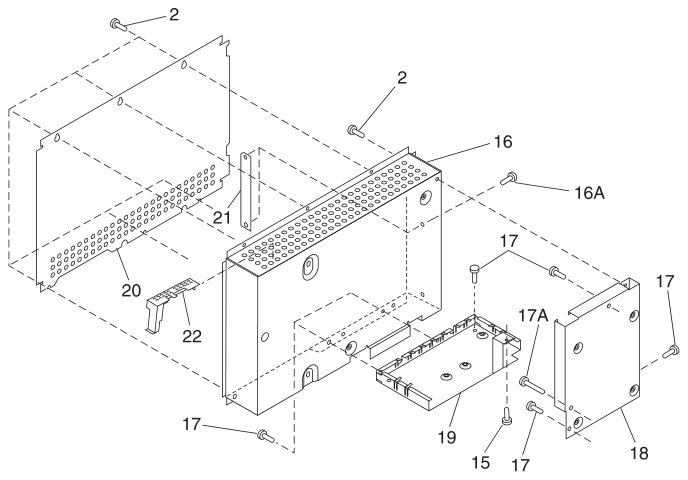

Assembly 12: Electronics (continued) 16 12G0381 Shield, Controller Board 18 12G0384 Shield, Engine Board 19 12G0383 Shield, Interface Board 20 12G0382 Cover, Controller Bd Shield 21 12G0385 Cover, Blank Bus 22 12G0436 Cover, Internal Gear Parts Catalog 6-31

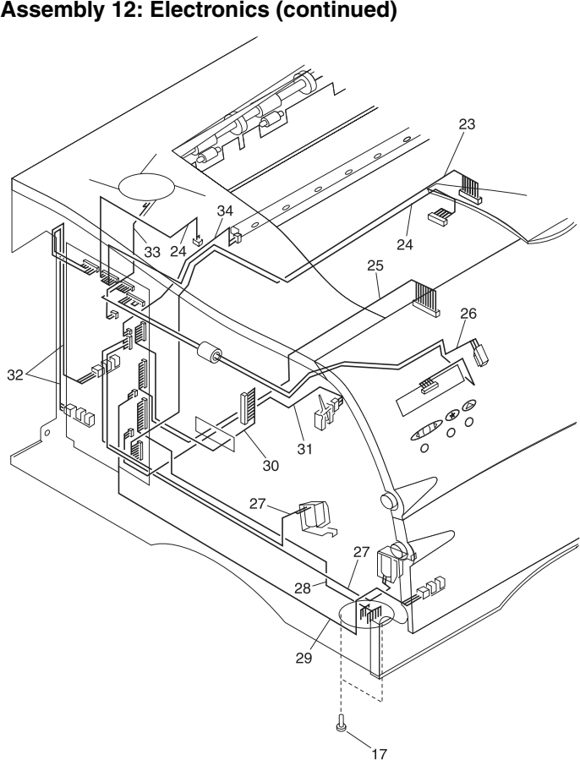

Assembly 12: Electronics (continued) 23 12G0422 Cable, Printhead 24 12G0413 Cable, Thermistor & Mirror Motor 25 12G0420 Cable, HVPS 26 12G1860 Cable Asm, Op Panel & Cover 27 12G0411 Cable, Solenoid 28 12G0421 Cable, Tray 2 M410 28 12G3559 Cable, Tray 2 M412 29 12G0417 Cable, MPF Paper Present Sensor 30 12G0419 Cable, Main Motor 31 12G0418 Cable, Paper Input Sensor 32 12G0412 Cable, Rear Door & Exit Sensor 33 12G0284 Cable & Fan Asm, Cooling 34 12G0416 Cable, Erase LED NS 1342530 Power Cord Set, Brazil (HV) NS 1342534 Power Cord Set, 8 ft. - Chile (HV) NS 1339535 Power Cord Set, 8 ft. - U.S., Canada NS 1342536 Power Cord Set, 6 ft. - Argentina NS 1339537 Power Cord Set, 8 ft. - U.K., Ireland, NS 1339538 Europe, 6 ft. NS 1339539 Power Cord Set, 6 ft. - Israel NS 1339540 Power Cord Set, 6 ft. - Switzerland NS 1339541 Power Cord Set, 6 ft. - South Africa NS 1339542 Power Cord Set, 6 ft. - Italy NS 1339543 Power Cord Set, 8 ft. - Denmark Parts Catalog 6-33

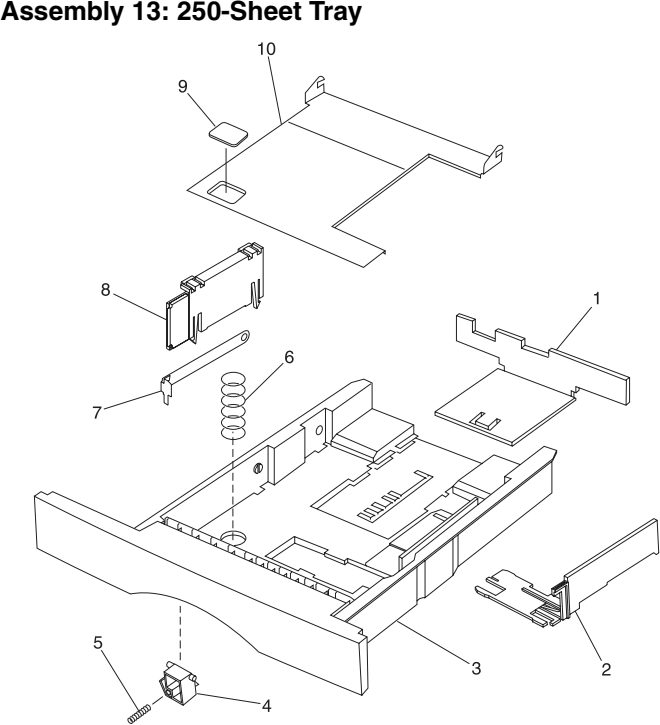

Assembly 13: 250-Sheet Tray 1 12G0315 Guide, Rear Paper 2 12G0313 Guide, Right Paper 3 12G0311 Base, 250-Sheet Paper Tray 4 12G0319 Holder, Lift Plate 5 12G0320 Spring, Lift Plate Holder 6 12G0318 Spring, Lift Plate 7 12G0314 Buckler, Corner 8 12G0316 Cover Asm, Corner Buckler 9 12G0317 Pad, Pick Roller Friction 10 12G0312 Plate, Lift Parts Catalog 6-35

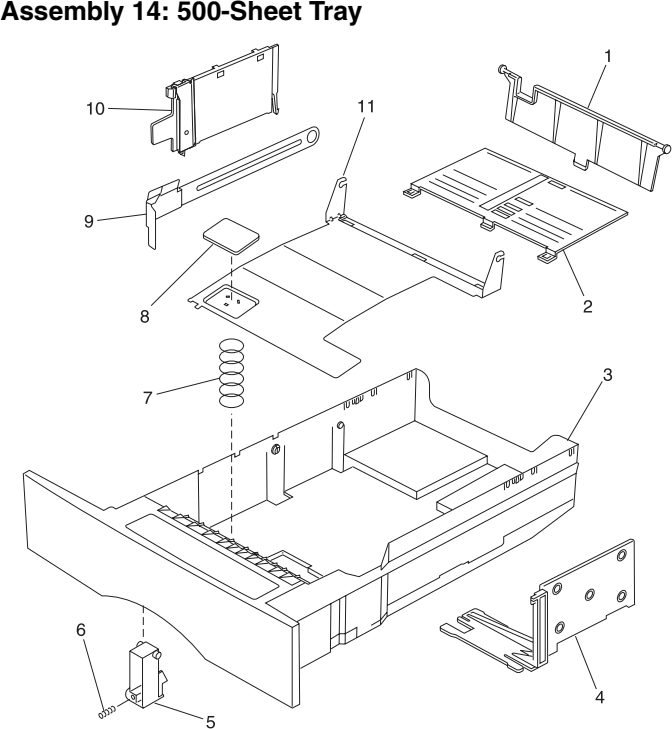

Assembly 14: 500-Sheet Tray 1 12G0391 Guide, Rear Paper 2 12G0392 Slider, Rear Paper Guide 3 12G0386 Base, 500-Sheet Paper Tray 4 12G0393 Guide, Right Paper 5 12G0390 Holder, Lift Plate 6 12G0396 Spring, Lift Plate Holder 7 12G0395 Spring, Lift Plate 8 12G0394 Pad, Pick Roller Friction 9 12G0387 Buckler, Corner 10 12G0388 Cover Asm, Corner Buckler 11 12G0389 Plate, Lift Parts Catalog 6-37

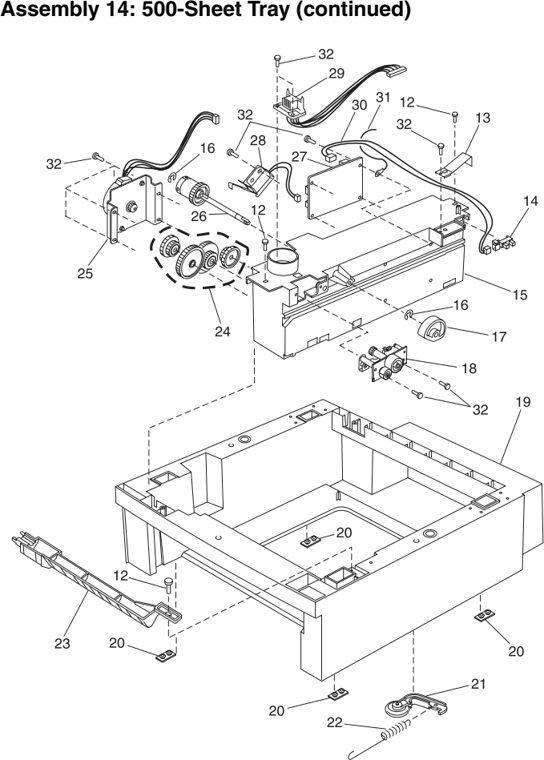

Assembly 14: 500-Sheet Tray (continued) 13 12G0404 Lever, Tray 1 Inserted 14 12G0252 Sensor, Tray 1 Inserted 15 12G0398 Frame, 500-Sheet Drive 17 12G0399 Roller, 500-Sheet Pick Lexmark 12G0399 Pickup roller (500 sheet drawer) Fully refurbished with 90-day warranty 12G0399 Contact for Details 18 12G0403 Roller Asm, Alignment 19 12G0397 Base, 500-Sheet Feeder M410 Lexmark 12G0397 Base; 500-Sheet Feeder M410 Fully refurbished with 90-day warranty 12G0397 Contact for Details 19 12G3564 Base, 500-Sheet Feeder M412 20 12G0250 Foot, Rubber 21 12G0402 Lever Asm, Tray Bias 22 12G0405 Spring, Tray Bias 23 12G0406 Guide, Paper 25 12G0409 Motor Asm, Tray 2 M410 25 12G3565 Motor Asm, Tray 2 M412 26 12G0400 Shaft Asm, 500-Sheet P. Roller 27 12G0408 Card Asm, Tray 2 M410 27 12G3558 Card Asm, Tray 2 M412 28 12G0444 Solenoid, Tray 2 Pick Roller 29 12G0407 Cable, Tray 2 Interconnect 30 12G0449 Cable, Tray 1 Sensor 31 12G0450 Cable, Tray 2 Ground

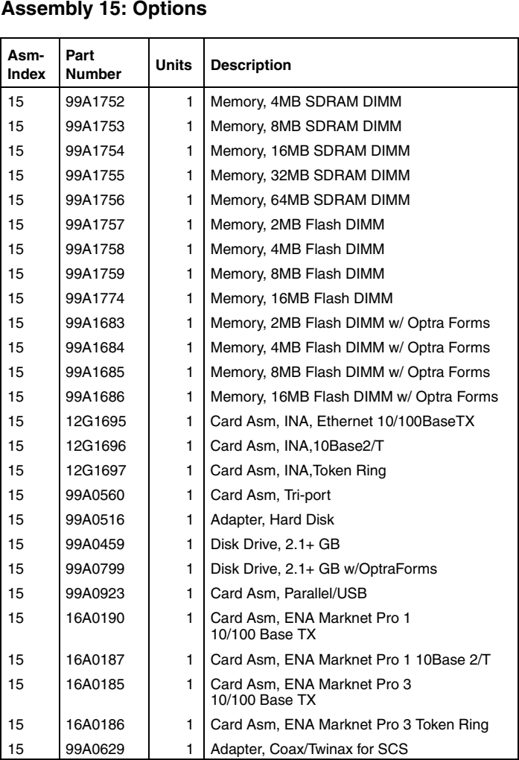

Assembly 15: Options 15 99A1752 Memory, 4MB SDRAM DIMM Lexmark 99A1752 4MB SDRAM Fully refurbished with 90-day warranty 99A1752 $5.00 15 99A1753 Memory, 8MB SDRAM DIMM Lexmark 99a1753 8MB Memory Fully refurbished with 90-day warranty 99a1753 $33.67 15 99A1754 Memory, 16MB SDRAM DIMM Lexmark 99a1754 16MB Memory Fully refurbished with 90-day warranty 99a1754 $123.17 15 99A1755 Memory, 32MB SDRAM DIMM Lexmark 99A1755 32MB Memory Fully refurbished with 90-day warranty 99A1755 $8.00 15 99A1756 Memory, 64MB SDRAM DIMM 15 99A1757 Memory, 2MB Flash DIMM Lexmark 99A1757 2MB Flash Memory Fully refurbished with 90-day warranty 99A1757 $9.00 15 99A1758 Memory, 4MB Flash DIMM 15 99A1759 Memory, 8MB Flash DIMM 15 99A1774 Memory, 16MB Flash DIMM 15 99A1683 Memory, 2MB Flash DIMM w/ Optra Forms Lexmark 99A1683 OptraForms 2MB Fully refurbished with 90-day warranty 99a1683 $107.25 15 99A1684 Memory, 4MB Flash DIMM w/ Optra Forms Lexmark 99A1684 Optra Forms 4MB Flash Memory Fully refurbished with 90-day warranty 99a1684 $115.24 15 99A1685 Memory, 8MB Flash DIMM w/ Optra Forms 15 99A1686 Memory, 16MB Flash DIMM w/ Optra Forms 15 12G1695 Card Asm, INA, Ethernet 10/100BaseTX Lexmark 12G1695 10/100 BaseTX Ethernet adapter Fully refurbished with 90-day warranty 12G1695 $19.50 15 12G1696 Card Asm, INA,10Base2/T 15 12G1697 Card Asm, INA,Token Ring 15 99A0560 Card Asm, Tri-port Lexmark 99A0560 Tri-Port Adapter (Serial, LocalTalk and Infrared) New 99A0560 (New) Contact for Details 15 99A0516 Adapter, Hard Disk Lexmark 99A0516 HDD Drive w/ Adapter 2.1Gb Fully refurbished with 90-day warranty 99A0516 $10.00 15 99A0459 Disk Drive, 2.1+ GB Lexmark 99A0459 2.1gb HDD for Optra S Fully refurbished with 90-day warranty 99A0459 $29.00 15 99A0799 Disk Drive, 2.1+ GB w/OptraForms 15 99A0923 Card Asm, Parallel/USB 15 16A0190 Card Asm, ENA Marknet Pro 1 10/100 Base TX 15 16A0187 Card Asm, ENA Marknet Pro 1 10Base 2/T 15 16A0185 Card Asm, ENA Marknet Pro 3 10/100 Base TX 15 16A0186 Card Asm, ENA Marknet Pro 3 Token Ring 15 99A0629 Adapter, Coax/Twinax for SCS Lexmark 99A0629 Coax/Twinax Interface Fully refurbished with 90-day warranty 99A0629 $61.46
Other listed parts 12G0445 12G0448
