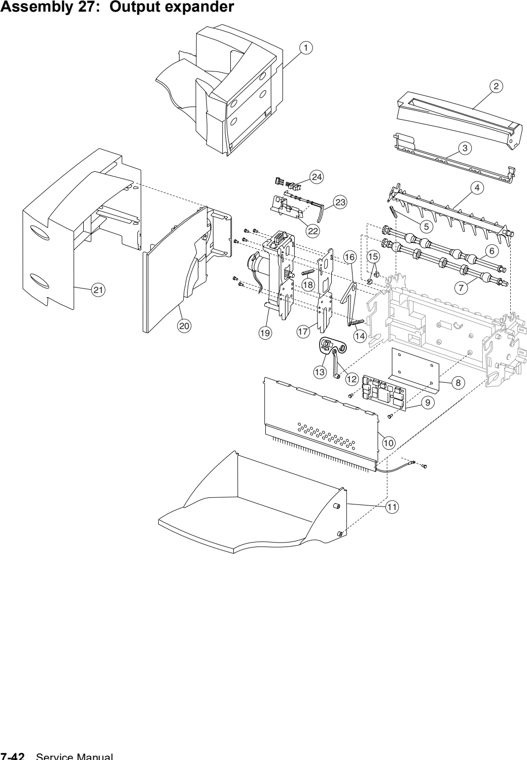

Lexmark Output Expander (Color Lasers) Parts







Please call for parts assistance

27-1

40X1980 Output Expander Complete Assembly
Fully refurbished with 90-day warranty
40X1980



2

40X1996 Right Cover
Fully refurbished with 90-day warranty
40X1996



3
40X1997 ESD Brush Cover
New
40X1997 (New)
$45.23





4
40X1988 Diverter Gate / Deflector
New
40X1988 (New)
$35.30



40X1988 Diverter Gate / Deflector
Fully refurbished with 90-day warranty
40X1988
$28.77



5 40X2000 Upper diverter spring

6 40X2007 Exit shaft assembly, also order parts packet 40X2011

7
40X1999 Lower Exit Shaft Assembly
New
40X1999 (New)
$34.75



40X1999 Lower Exit Shaft Assembly
Fully refurbished with 90-day warranty
40X1999
$28.30



also order parts packet 40X2011

8

40X1982 Output Option Card Shield
Fully refurbished with 90-day warranty
40X1982



9
40X2013 Output Expander DC Motor Board
New
40X2013 (New)
$176.87



10

40X1984 Front Control Board Cover
Fully refurbished with 90-day warranty
40X1984



11
40X1992 Output Expander Tray
New
40X1992 (New)
$41.23



40X1992 Output Expander Tray
Fully refurbished with 90-day warranty
40X1992
$33.62



12
40X2014 Diverter arm
New
40X2014 (New)
$32.64



13
40X1978 Clutch Assembly
New
40X1978 (New)
$142.33



40X1978 Clutch Assembly
Fully refurbished with 90-day warranty
40X1978
$118.56



14

15 Shaft bearing, parts packet, 40X2011

16



17

40X1981 Front Attach Bracket
Fully refurbished with 90-day warranty
40X1981



18

19



20

40X1987 Rear Support Cover
Fully refurbished with 90-day warranty
40X1987



21
40X1986 Rear Cover
New
40X1986 (New)
$48.35



40X1986 Rear Cover
Fully refurbished with 90-day warranty
40X1986
$39.41



22

40X1989 Level Sensor Bracket
Fully refurbished with 90-day warranty
40X1989



23



24 40X3265 Dual bin full sensor
https://www.argecy.com/images/ColorLaserOptions-408_cr.jpg
27.1-1 40X1994 Right jam access door assembly

2 40X2006 Lower shaft assembly, also order parts packet 40X2011

3 40X2004 Drive pulley

4 40X1983 Rear attach bracket

5 Screw, parts packet, 40X1813

6 40X1985 Front cover

7 40X2002 160-gear belt

8 40X2003 Belt idler arm assembly

9 40X2005 Belt tensioner spring

10

11 a



12 40X2015 Frame assembly

13 40X3264 Output expander pass thru sensor

14 Shaft bearing, parts packet, 40X2011

15 40X2012 Shaft assembly, middle 40T, also order parts packet 40X2011

NS 40X1998 Multi-bin stacker kit
https://www.argecy.com/images/ColorLaserOptions-410_cr.jpg
