Please call for parts assistance

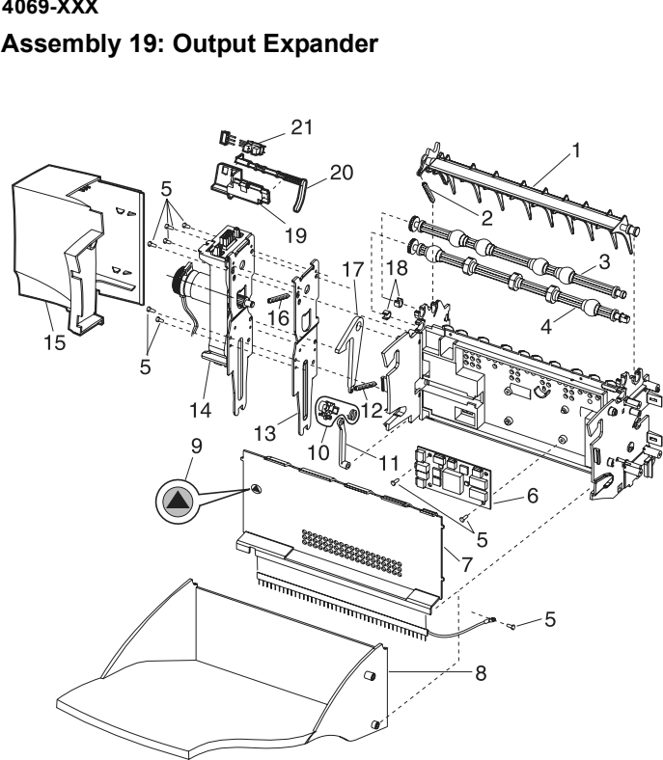

Assembly 19: Output Expander 1 99A1857 Deflector, Upper Redrive Lexmark 99A1857 Deflector Upper Redrive New 99A1857 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 99a1857 Deflector Upper Redrive Fully refurbished with 90-day warranty 99a1857 $35.00 2 99A0104 Spring, Upper Diverter Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 3 99A0369 Shaft Assembly, Exit Lexmark 99A0369 Shaft Assembly, Exit New 99A0369 (New) Contact for Details 4 99A0052 Shaft Assembly, Lower Exit 6 99A0915 Board, Output Expander DC motor Lexmark 99a0915 Output expander DC motor board New 99A0915 (New) Contact for Details 7 99A0571 Cover, Front Control Board with ESD Brush Lexmark 99A0571 Cover, Front Control Board with ESD Brush New 99A0571 (New) Contact for Details 8 99A1817 Tray, Output Expander Lexmark 99A1817 Tray, Output Expander New 99A1817 (New) Contact for Details 9 99A1666 Label, Options 10 99A1689 Spring Clutch Assembly Lexmark 99A1689 Spring Clutch Assembly New 99A1689 (New) $27.06 11 99A1688 Diverter Arm 12 99A0482 Spring, Output Tray 13 99A1784 Bracket, Attach Lexmark 99A1784 Bracket, Attach New 99A1784 (NEW) Contact for Details 14 99A0914 Output Expander Assembly, Mechanical Lexmark 99A0914 Output Expander Assembly, Mechanical Linkage New 99A0914 (New) Contact for Details 15 99A0372 Cover, Left Side Lexmark 99A0372 Cover, Left Side New 99A0372 (New) Contact for Details 16 99A0415 Spring, Swing Arm 17 99A0481 Latch, Output Tray 19 99A0409 Level Sensor Bracket Lexmark 99A0409 Bracket, Dual Sensor Mounting Upper Stacker Assembly New 99A0409 (New) Contact for Details 20 99A1580 Flag, Output Paper Level Lexmark 99A1580 Flag Output Paper Level New 99A1580 (New) Contact for Details 21 99A0414 Sensor, Dual Bin Full Parts Catalog 7-69

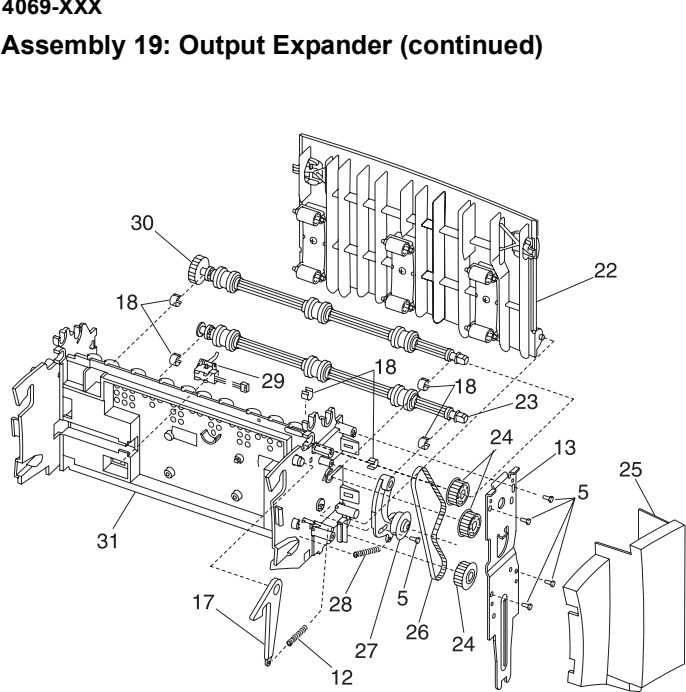

Assembly 19: Output Expander (continued) 22 99A1748 Door Assembly, Rear Access 23 99A0368 Shaft Assembly, Lower 24 99A0363 Pulley, Drive 25 99A0371 Cover, Right Side 26 99A0361 Belt, 160 Gear 27 99A0362 Arm Assembly, Belt Idler 28 99A0364 Spring, Belt Tensioner 29 99A0351 Sensor, Output Expander Pass Thru 30 99A0913 Shaft Assembly, Middle 40T 31 99A0912 Frame Assembly Parts Catalog 7-71
Other listed parts 99A0263 Screws Parts Packet Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 99A0572 Shaft Bearing Lexmark 99A0572 Shaft Bearing New 99A0572 (New) Contact for Details
