Please call for parts assistance

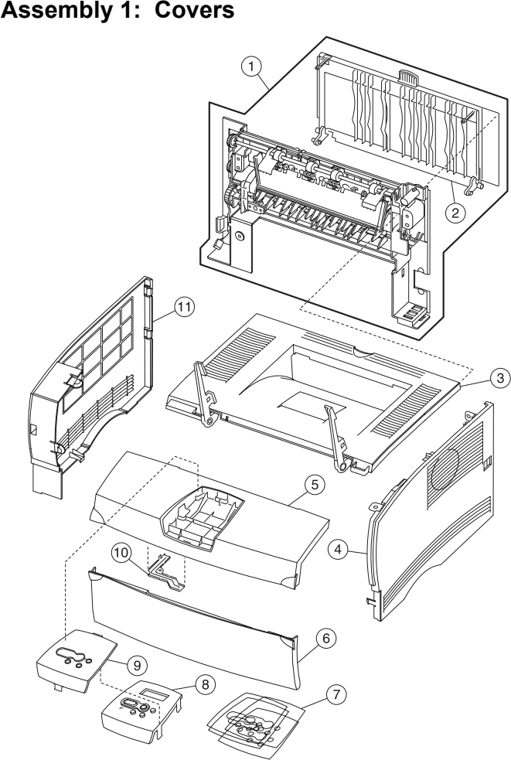

Assembly 1: Covers 1 56P2302 Rear cover assembly 56P2302 Rear cover assembly Fully refurbished with 90-day warranty 56P2302 $39.00 56P2302 Rear cover assembly New 56P2302 (New) Contact for Details 2 56P2301 Rear exit door assembly 56P2301 Rear exit door assembly Fully refurbished with 90-day warranty 56P2301 $12.00 3 56P2306 Top cover assembly 56P2306 Top cover assembly Fully refurbished with 90-day warranty 56P2306 $36.00 56P2306 Top cover assembly New 56P2306 (New) Contact for Details 4 56P2307 Right cover assembly 56P2307 Right cover assembly Fully refurbished with 90-day warranty 56P2307 $16.00 5 56P2305 Front cover assembly 56P2305 Front cover assembly Fully refurbished with 90-day warranty 56P2305 $12.00 6 56P2303 MPF door cover assembly 56P2303 MPF door cover assembly Fully refurbished with 90-day warranty 56P2303 $35.00 56P2303 MPF door cover assembly New 56P2303 (New) Contact for Details 7 56P2342 Language overlay group 56P2342 Language overlay group New 56P2342 (New) Contact for Details 8 56P2353 Operator panel assembly 56P2353 Operator panel assembly Fully refurbished with 90-day warranty 56P2353 $34.00 56P2353 Operator panel assembly New 56P2353 (New) Contact for Details 8 56P2356 Operator panel assembly (Japan) 9 56P2343 Clear bezel with logo 10 56P2354 Operator panel cable cover 56P2354 Operator panel cable cover Fully refurbished with 90-day warranty 56P2354 Contact for Details 11 56P2300 Left cover assembly Parts catalog 7-3 56P2300 Left cover assembly Fully refurbished with 90-day warranty 56P2300 $12.00

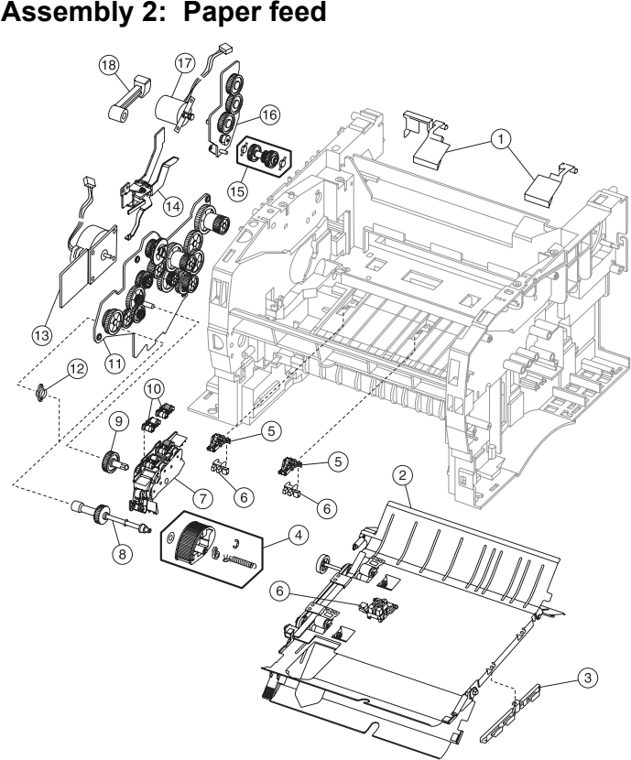

Assembly 2: Paper feed 1 56P2304 Stack control flags (output tray full flags) 56P2304 Stack control flags (output tray full flags) Fully refurbished with 90-day warranty 56P2304 $11.00 2 56P4536 Duplex assembly (101, 102) 56P4536 Duplex Assembly Fully refurbished with 90-day warranty 56P4536 $81.00 56P4536 Duplex Assembly New 56P4536 (New) Contact for Details 3 56P2365 Paper guide bracket 56P2365 Paper guide bracket Fully refurbished with 90-day warranty 56p2365 Contact for Details 4 56P2352 Paper feed roll 56P2352 Paper Feed Roll New 56P2352 (New) $20.00 5 56P0655 Paper sensor bracket, one per package 6 56P0645 Photo sensor, one per package 7 56P2309 Reference feed CBM 56P2309 Reference feed CBM New 56P2309 (New) Contact for Details 56P2309 Reference feed CBM Fully refurbished with 90-day warranty 56P2309 $38.00 8 56P0657 Paper feed assembly 56P0657 Assembly Paper Feed Fully refurbished with 90-day warranty 56P0657 $12.00 9 56P0634 Paper feed gear 56P0634 Gear Paper Feed Fully refurbished with 90-day warranty 56P0634 $24.00 10 56P2308 Backup feed roller assembly (top front 56P2308 2 Backup feed roller assembly (top front and rear) Fully refurbished with 90-day warranty 56P2308 $24.00 11 56P2326 Drive assembly—Order a lubricant to use 56P2326 Drive assembly Fully refurbished with 90-day warranty 56P2326 $59.00 56P2326 Drive assembly New 56P2326 (New) Contact for Details 12 56P2334 Paper feed/drive bushing 13 56P2325 Main drive motor assembly 56P2325 Main drive motor assembly Fully refurbished with 90-day warranty 56P2325 $36.00 56P2325 Main drive motor assembly New 56P2325 (New) Contact for Details 14 56P0638 Cartridge coupling 56P0638 Cartridge coupling Fully refurbished with 90-day warranty 56P0638 $24.00 15 56P2363 Ratchet drive 56P2363 Ratchet drive Fully refurbished with 90-day warranty 56P2363 Contact for Details 16 56P2327 Exit gear drive assembly 56P2327 Exit gear drive assembly Fully refurbished with 90-day warranty 56P2327 Contact for Details 17 56P2360 Exit drive motor 56P2360 Exit drive motor Fully refurbished with 90-day warranty 56P2360 $19.00 18 56P0639 Guide bracket Parts catalog 7-5
Assembly 3: Frame 1 56P2319 Printhead assembly 56P2319 Printhead Assembly Fully refurbished with 90-day warranty 56P2319 $89.00 56P2319 Printhead assembly New 56P2319 (New) Contact for Details 2 56P0629 Cartridge contact assembly (includes 5) 56P0629 Cartridge contact assembly (includes 5) Fully refurbished with 90-day warranty 56P0629 $38.00 3 56P0662 Base feet 4 56P0661 Tray damper 5 56P0668 Parts packet, screws and E–rings 6 56P2310 Main tray assembly, 250 56P2310 Main tray assembly, 250 New 56P2310 (New) Retired, no longer available: Contact for alternatives Contact for Details 7 56P0667 Door latch (includes 3) 8 56P0660 Paper guide roller 56P0660 Paper guide roller Fully refurbished with 90-day warranty 56P0660 Contact for Details 9 56P0672 Tray body bracket (includes 4) 10 56P2351 Entrance guide assembly with brush Parts catalog 7-7

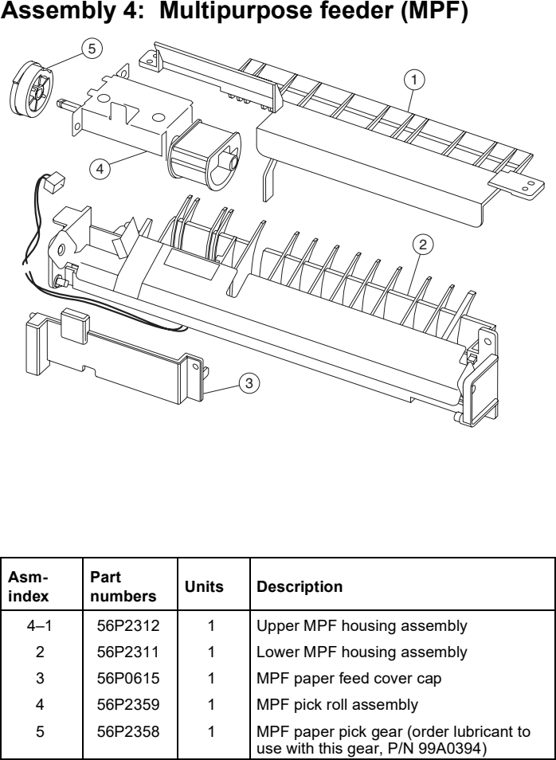

Assembly 4: Multipurpose feeder (MPF) 1 56P2312 Upper MPF housing assembly 56P2312 Upper MPF housing assembly Fully refurbished with 90-day warranty 56P2312 $24.00 2 56P2311 Lower MPF housing assembly 56P2311 Lower MPF housing assembly Fully refurbished with 90-day warranty 56P2311 $24.00 56P2311 Lower MPF housing assembly New 56P2311 (New) Contact for Details 3 56P0615 MPF paper feed cover cap 56P0615 Cap, MPF Paper Feed Cover New 56P0615 (New) Contact for Details 4 56P2359 MPF pick roll assembly 56P2359 MPF Pick Roll Assembly Fully refurbished with 90-day warranty 56P2359 $15.00 5 56P2358 MPF paper pick gear (order lubricant to 56P2358 MPF paper pick gear Fully refurbished with 90-day warranty 56P2358 Contact for Details

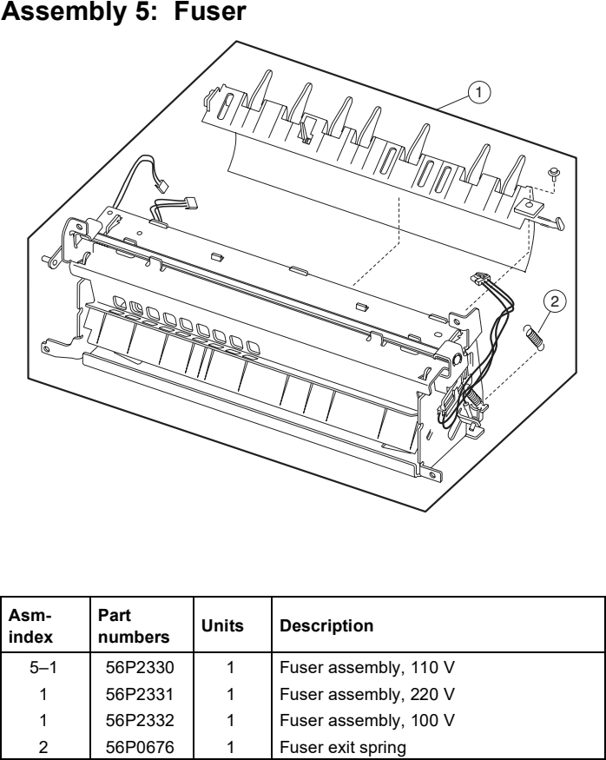

Assembly 5: Fuser 1 56P2330 Fuser assembly, 110V 56p2330 Fuser Assembly Fully refurbished with 90-day warranty 56p2330 Advanced Exchange Contact for Details 56P2330 Fuser Assembly New 56p2330 Advanced Exchange (New) Contact for Details 1 56P2331 Fuser assembly, 220V 1 56P2332 Fuser assembly, 100V 2 56P0676 Fuser exit spring Parts catalog 7-9 56P0676 Fuser exit spring Fully refurbished with 90-day warranty 56P0676 Contact for Details

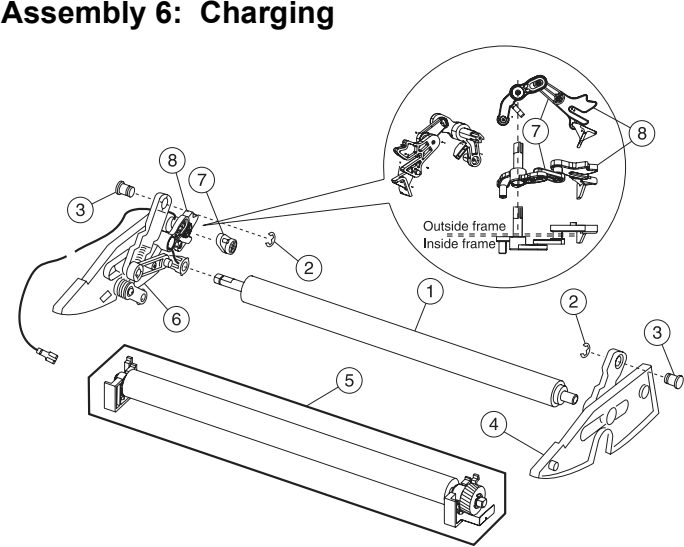

Assembly 6: Charging 1 56P0640 Charge roll 56P0640 Charge roll New 56P0640 (New) Contact for Details 2 56P0668 Parts packet, screws and E–rings 3 56P0669 Pivot hinge (quantity 2) 56P0669 Hinge Pivot (quantity 2) Fully refurbished with 90-day warranty 56P0669 Contact for Details 4 56P2328 Right guide assembly 56P2328 Right guide assembly Fully refurbished with 90-day warranty 56P2328 Contact for Details 5 56P2329 Transfer roll assembly Lexmark 56P2329 Transfer Roll Assembly New 56P2329 (New) $53.00 56P2329 Transfer roll assembly Fully refurbished with 90-day warranty 56P2329 Contact for Details 6 56P2340 Left guide assembly 56P2340 Left guide assembly New 56P2340 (New) Contact for Details 7 56P2349 Fuser lift (inner) link 56P2349 Fuser lift (inner) link Fully refurbished with 90-day warranty 56P2349 Contact for Details 8 56P2348 Fuser lift (outer) link assembly Parts catalog 7-11 56P2348 Fuser lift (outer) link assembly Fully refurbished with 90-day warranty 56P2348 $12.00 NS 56P2341 56P2341

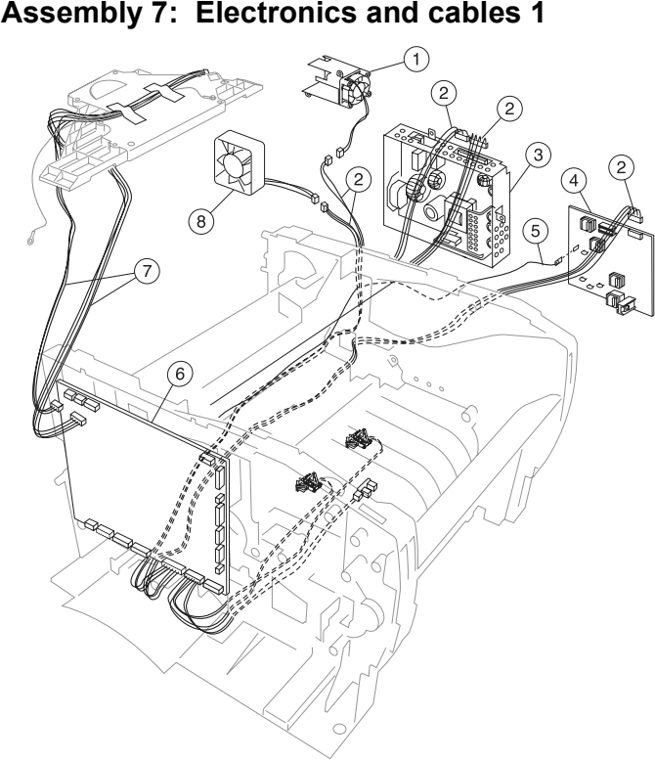

Assembly 7: Electronics and cables 1 1 56P2357 LVPS fan and housing assembly 56P2357 LVPS fan and housing assembly New 56P2357 (New) Contact for Details 2 56P2335 Main harness cable assembly, including 56P2335 Main harness cable assembly New 56P2335 (New) Contact for Details 3 56P2320 Power supply, 110V 56P2320 Power supply 110 V Fully refurbished with 90-day warranty 56P2320 $59.00 56P2320 Power supply 110 V New 56P2320 (New) Contact for Details 3 56P2321 Power supply, 220V 3 56P2339 Power supply, 100V 4 56P2322 High voltage power supply 56P2322 High voltage power supply HVPS Fully refurbished with 90-day warranty 56P2322 $59.00 5 56P2340 Left guide assembly (only the end of the 56P2340 Left guide assembly New 56P2340 (New) Contact for Details 6 56P4397 Controller card assembly, non-network 56P4397 Controller card assembly Non-Network (101 111) New 56P4397 L (New) Contact for Details 56P4397 Controller card assembly Non-Network Fully refurbished with 90-day warranty 56P4397 L Contact for Details 6 56P4398 Controller card assembly, network (102) 56P4398 Controller card assembly network (102) New 56P4398 (New) $167.00 7 56P2318 Printhead cable assembly 8 56P2323 Fuser cooling fan Parts catalog 7-13 56P2323 Fuser cooling fan Fully refurbished with 90-day warranty 56P2323 $17.00

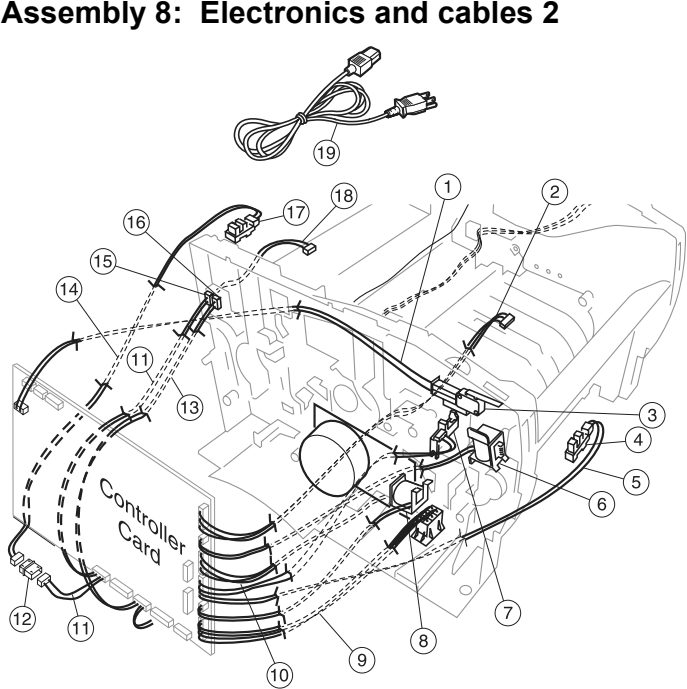

Assembly 8: Electronics and cables 2 1 56P0624 Cover switch cable assembly 2 56P2317 Operator panel cable assembly 3 56P0625 Interlock cover switch 56P0625 Interlock cover switch Fully refurbished with 90-day warranty 56P0625 $24.00 4 56P0645 Photo sensor, included with 6 and 8 56P2313 Paper feed solenoid 56P2313 Paper Feed Solenoid Fully refurbished with 90-day warranty 56P2313 $24.00 7 56P0653 Toner level sensor 56p0653 Toner level sensor New 56p0653 (New) Contact for Details 56p0653 Toner level sensor Fully refurbished with 90-day warranty 56p0653 $24.00 9 56P2324 Drawer cable assembly 10 56P2316 Motor cable assembly 11 56P2336 Output full and fuser exit cable assembly 13 56P2350 Cartridge signature button switch 14 56P0682 Output full sensor cable 15 56P0665 3–pin connector 16 56P0666 2–pin connector 17 56P0645 Photo sensor 18 56P0649 Fuser exit cable assembly Parts catalog 7-15 19 70G0478 Power cord, US, Bolivia, Canada, 19 1339528 Power cord, Bahrein, Cyprus, Iraq, 19 1339529 Power cord, Austria, Belgium, Bosnia, 19 1339530 Power cord, Israel (HV) 19 1339531 Power cord, Switzerland (HV) 19 1339532 Power cord, Lybia, Pakistan, 19 1339533 Power cord, Chile, Uruguay (HV) 19 1339534 Power cord, Denmark (HV) 19 43H5545 Power cord, PR China (HV) 19 1339548 Power cord, Brazil (LV) 19 11D0330 Power cord, Argentina 19 1339520 Power cord, U.S. (HV) RPQ Parts catalog 7-17

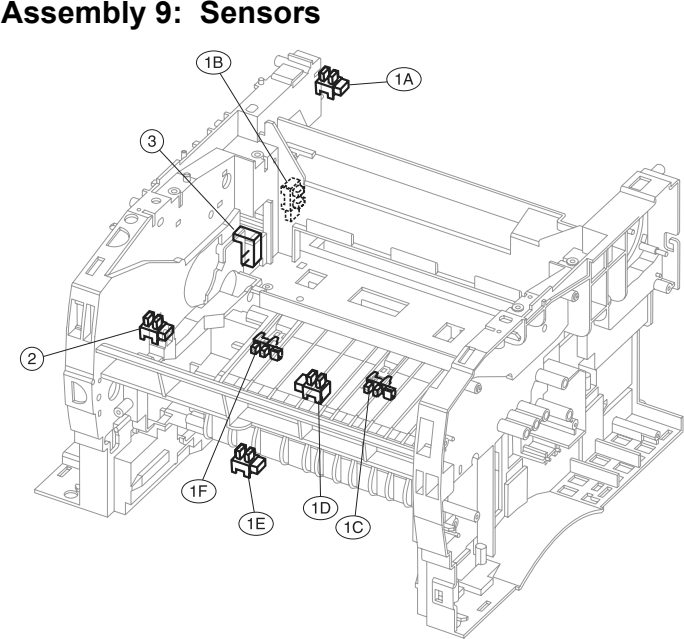

Assembly 9: Sensors 1 56P0645 Photo sensor, locations found: A—Paper path exit flag B—Fuser exit sensor C—Paper path below cartridge D—Paper path duplex E—Paper path MPF F—Paper path below cartridge 2 56P0653 Toner level sensor 56p0653 Toner level sensor New 56p0653 (New) Contact for Details 56p0653 Toner level sensor Fully refurbished with 90-day warranty 56p0653 $24.00 3 56P2350 Cartridge signature button switch Parts catalog 7-19

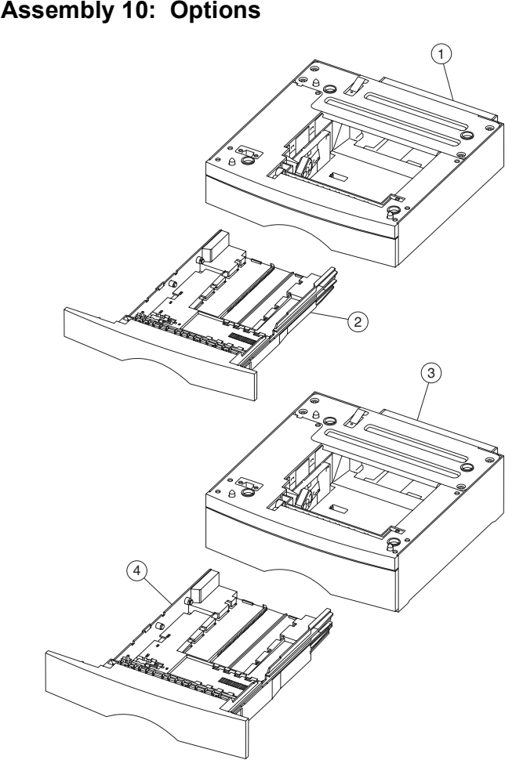

Assembly 10: Options 1 56P2346 Drawer assembly, 250 T2 and base 2 56P2344 Tray assembly, 250–sheet T2 3 56P2347 Drawer assembly, 500 T3 and base 4 56P2345 Tray, assembly, 500–sheet T3 NS 56P9996 D-Roll, 500-sheet drawer NS 56P0696 16MB SDRAM DIMM NS 56P0697 32MB SDRAM DIMM NS 56P0698 64MB SDRAM DIMM NS 56P0699 128MB SDRAM DIMM NS 56P2361 256MB PC100 kit DIMM NS 56P1417 16MB flash card assembly NS 56P1418 32MB flash card assembly NS 56P1427 Optra Forms™ 32 MB flash card asm. NS 56P1428 Optra Forms 16 MB flash card assembly NS 56P3845 Lexmark Forms card assembly NS 56P3304 ImageQuick™ card assembly (T430) NS 56P3305 PRESCRIBE card assembly NS 56P3144 PrintCryption card NS 56P3317 Bar code card NS 56P1429 Simplified Chinese font card assembly NS 56P1430 Traditional Chinese font card assembly NS 56P1438 Japanese font card assembly NS 56P2231 Korean font card assembly NS 12G9833 MarkNet™ X2011e Ethernet 10/100 NS 12G9832 MarkNet X2012e Ethernet 10/100 NS 12G9831 MarkNet X2031e Ethernet 10/100 NS 12G9830 MarkNet X2030t Token–Ring Parts catalog 7-21 NS 56P3837 IPDS and SCS/TNe card assembly NS 56P1435 External serial adapter NS 1329605 High–speed bidi parallel cable (10 ft) NS 12A2405 USB cable, 2 m NS 1038693 Serial cable, 50 ft Parts catalog 7-23

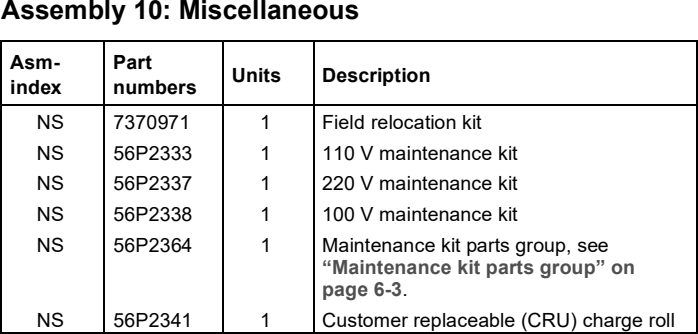

Assembly 10: Miscellaneous NS 7370971 Field relocation kit NS 56P2333 110 V maintenance kit NS 56P2337 220 V maintenance kit NS 56P2338 100 V maintenance kit NS 56P2364 Maintenance kit parts group, see NS 56P2341 Customer replaceable (CRU) charge roll
Other listed parts 56P2314 Controller card assembly, Non-Network 56P2314 Controller card assembly, Non-Network Fully refurbished with 90-day warranty 56P2314 L $79.00 56P2355 Fuser paper exit guide assembly 56P2355 Fuser paper exit guide assembly Fully refurbished with 90-day warranty 56P2355 $11.00 56P2369 Controller card assembly Non-Networkk (101 111) 56p2369 Controller card assembly Non-Networkk (101 111) Fully refurbished with 90-day warranty 56p2369 L $79.00 99A0394 IBM #23 Oil Lexmark 99A0394 IBM #23 Oil Fully refurbished with 90-day warranty 99A0394 Contact for Details
