Lexmark W812 Parts

Please call for parts assistance

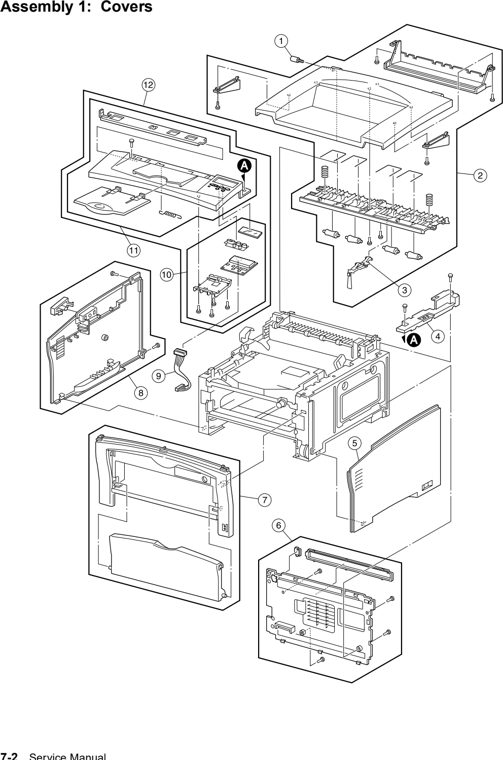

Assembly 1: Covers 1 56P0956 Screw, Shoulder 2 56P0822 Cover Assembly, Top 56P0822 1226 top cover New 56P0822 (New) Contact for Details 3 56P0958 Kit Assembly, Bin Full Sensor 4 56P0823 Cover, Upper Card Cage 56p0823 1226 Upper Card Cage Cover Fully refurbished with 90-day warranty 56p0823 $27.00 5 56P0825 Cover, Right 56P0825 1226 Right cover Fully refurbished with 90-day warranty 56P0825 $20.00 6 56P0834 Cover Assembly, Rear 56P0834 1226 rear cover Fully refurbished with 90-day warranty 56P0834 $20.00 7 56P0826 Cover Assembly, Front 56P0826 1226 front cover Fully refurbished with 90-day warranty 56P0826 Contact for Details 8 56P0827 Cover Assembly, Left 56P0827 1226 Left Cover Fully refurbished with 90-day warranty 56P0827 $20.00 9 56P0833 Cable, Operator Panel 10 56P0957 Panel Assembly, Operator, 120 V/220 V 10 56P0967 Panel Assembly, 100V 11 56P0828 Cover Assembly, Operator Panel 12 56P0959 Cover Assembly, Operator Panel with Card Assembly, 120 V/220 V 12 56P0966 Cover Assembly, Operator Panel with Card Assembly, 100 V Parts Catalog 7-3

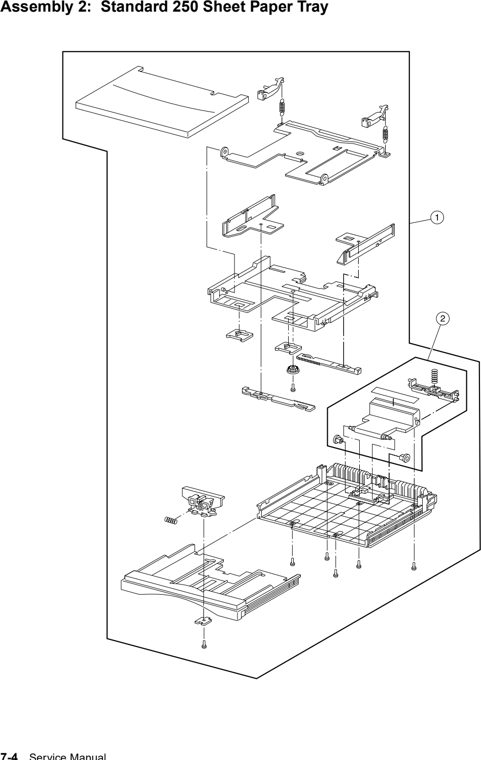

Assembly 2: Standard 250-Sheet Paper Tray 1 56P0835 Tray Assembly, 250-Sheet Paper 56P0835 1226 paper tray New 56P0835 (New) Contact for Details 2 56P0836 Pad Assembly, 250-Sheet Separator Parts Catalog 7-5

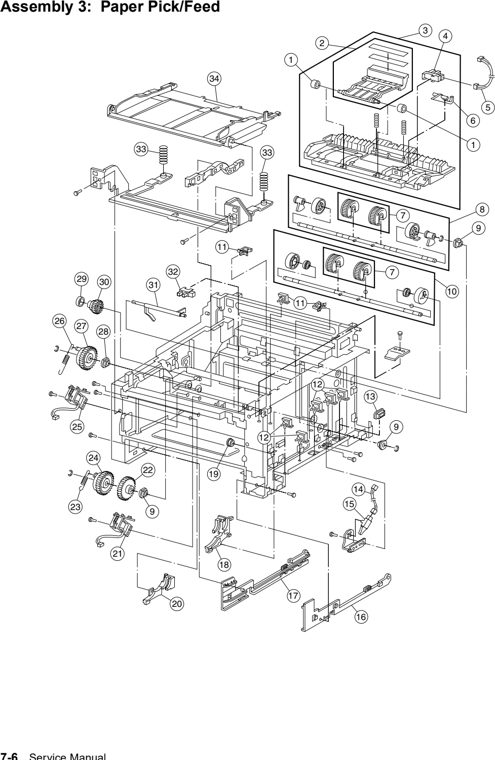

Assembly 3: Paper Pick/Feed 1 56P0867 Bearing, MPF Separator Pad 2 56P0838 Pad Assembly, MPF Separator 3 56P0837 Feed Assembly, Input Paper 4 56P0802 Sensor, Photo (Tray 1 Empty) 5 56P0840 Cable, Engine (P12) to Tray 1 Empty Sensor 6 56P0839 Flag, Tray 1 Empty 7 56P0800 Kit, Pick Roll (contains 2) 56p0800 Kit, Pick Roll (contains 2) New 56p0800 (New) $16.00 56p0800 Kit Pick Roll (contains 2) Fully refurbished with 90-day warranty 56p0800 $12.00 8 56P0841 Roll Assembly, MPF Pick 56P0841 MPF Pick roll Assembly New 56P0841 (New) $49.00 9 56P0801 Bearing, Right Feed Roll/Right Feeder 10 56P0847 Roll Assembly, Tray 1 Pick 56P0847 1226 pick roll Assembly New 56P0847 (New) $29.00 11 56P0863 Clamp, Cable 12 56P0864 Clamp, Cable 13 56P0865 Grommet, Cable 14 56P0856 Cable, Tray 1 Present Switch 15 56P0804 Switch, Tray Present Lexmark 56P0804 Switch, Tray Present Fully refurbished with 90-day warranty 56P0804 Contact for Details 16 56P0857 Guide, Tray 1 Right 17 56P0858 Guide, Tray 1 Left 18 56P0859 Holder, Tray 1 Right 19 56P0866 Grommet, Cable 20 56P0860 Holder, Tray 1 Left 21 56P0851 Solenoid, Tray 1 56P0851 Solenoid, Tray 1 New 56P0851 (New) Contact for Details 22 56P0848 Gear, 40 23 56P0850 Spring, Pick Up Tray 1 24 56P0849 Gear, Pick Up Tray 1 25 56P0846 Solenoid, MPF 56p0846 1226 MPF Solenoid Fully refurbished with 90-day warranty 56p0846 Contact for Details 26 56P0845 Spring, Pick Up MPF 27 56P0844 Gear, Pick Up MPF 28 56P0803 Bearing, Left Feed Roll 29 56P0843 Damper, Gear Vibration 30 56P0842 Gear, 23 MPF 31 56P0854 Flag, MPF Empty 32 56P0802 Sensor, Photo (MPF Empty) 33 56P0862 Spring, MPF Tray 34 56P0861 Tray Assembly, MPF Parts Catalog 7-7

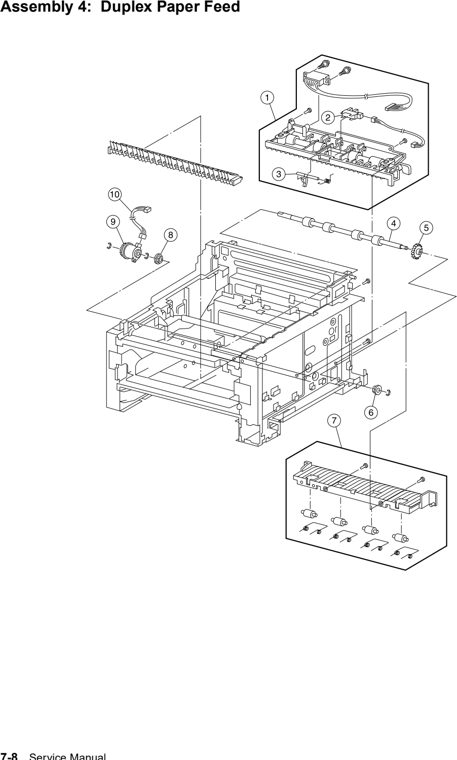

Assembly 4: Duplex Paper Feed 1 56P0868 Guide Assembly, Upper Duplex Out 2 56P0802 Sensor, Photo (Duplex Sensor 2) 3 56P0869 Flag, Duplex Output Sensor 4 56P0870 Roll Assembly, Duplex Output Feed 5 56P0872 Gear, Optional Feeder Drive 6 56P0803 Bearing, Feed Roll (Right) 7 56P0877 Guide Assembly, Lower Duplex Out 56p0877 Lower duplex out guide Assembly Fully refurbished with 90-day warranty 56p0877 $25.00 8 56P0873 Bearing, Feed Roll (Left) 9 56P0874 Clutch, Duplex Output Feed Roll 10 56P0875 Cable, Duplex Clutch Parts Catalog 7-9

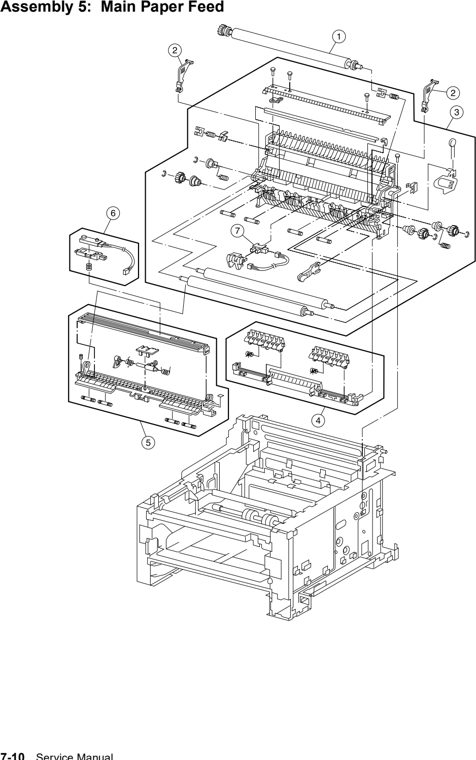

Assembly 5: Main Paper Feed 1 56P0878 Roll Assembly, Transfer 2 56P0882 Stop, Transfer Roll Assembly (for shipping purposes only) 3 56P0883 Guide Assembly, Transfer 4 56P0880 Guide Assembly, Duplex to Registration 5 56P0879 Guide Assembly, Registration Paper 6 56P0881 Sensor, Toner Low 7 56P0802 Sensor, Photo (Registration) Parts Catalog 7-11

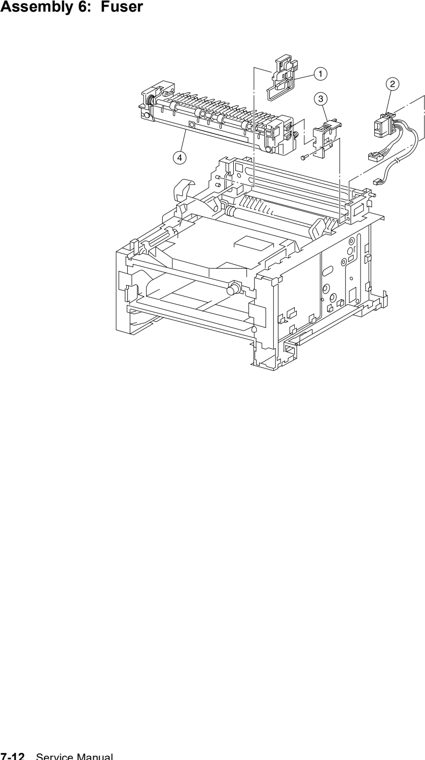

Assembly 6: Fuser 1 56P0886 Latch, Left Fuser 2 56P0888 Cable, Engine (P15) to Fuser 100V/120V 2 56P0961 Cable, Engine (P15) to Fuser 220V 3 56P0887 Latch, Right Fuser 4 56P0968 Fuser Assembly, 100 V Complete 4 56P0884 Fuser Assembly, 120 V, Complete IBM 56P0884 4526-001 (IP1226) Fuser New 56P0884 (New) $544.00 Lexmark 56P0884 W812 Fuser New 56P0884 (New) Contact for Details 4 56P0885 Fuser Assembly, 220 V, Complete Parts Catalog 7-13

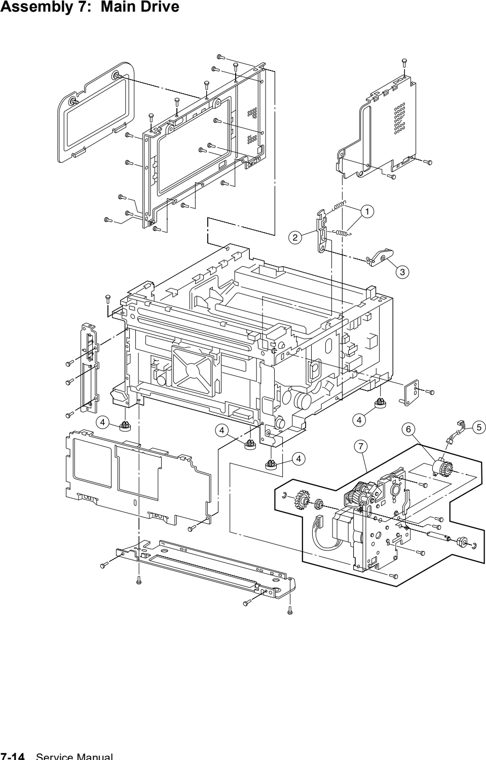

Assembly 7: Main Drive 1 56P0889 Spring, Cover Open Link 2 56P0890 Link, Cover Open 3 56P0891 Cam, Cover Open 4 56P0809 Foot, Rubber 5 56P0894 Cable, Registration Clutch 6 56P0893 Clutch, Registration Roller 7 56P0892 Drive Assembly, Main Parts Catalog 7-15

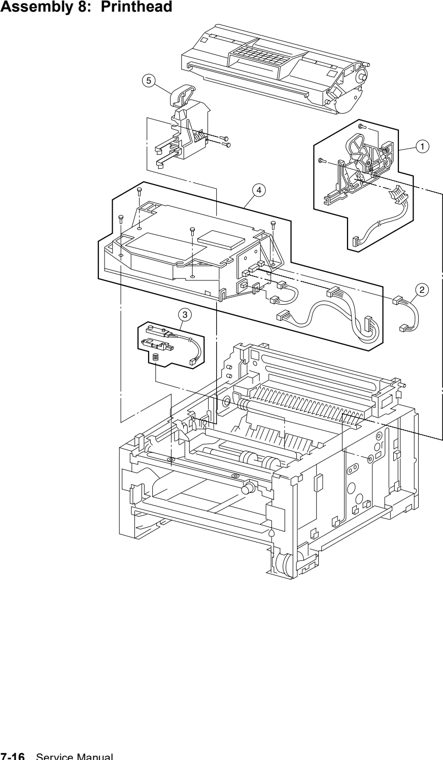

Assembly 8: Printhead 1 56P0896 Guide Assembly, Right Cartridge 56P0896 Right Cartridge Guide Assembly Fully refurbished with 90-day warranty 56P0896 $19.00 56P0896 Right Cartridge Guide Assembly New 56P0896 (New) Contact for Details 2 56P0951 Cable, Engine (P22) to Printhead Video 3 56P0881 Sensor, Toner Low 4 56P0897 Printhead, Complete Laser 56P0897 Printhead Assembly 1226 (4526) Fully refurbished with 90-day warranty 56P0897 $621.00 56P0897 Printhead Assembly 1226 (4526) New 56P0897 (New) $831.00 5 56P0895 Guide Assembly, Left Cartridge Parts Catalog 7-17 56p0895 Guide Assembly Left Cartridge New 56p0895 (New) Contact for Details 56p0895 Guide Assembly Left Cartridge Fully refurbished with 90-day warranty 56p0895 $20.00

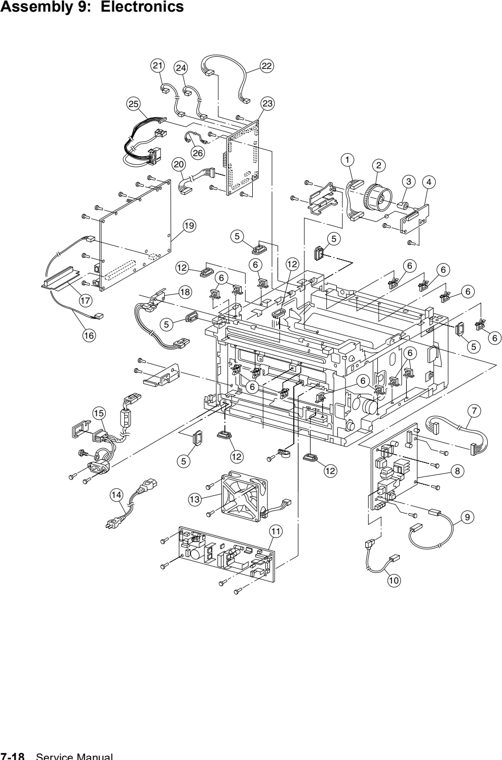

Assembly 9: Electronics 1 56P0899 Cable, Engine (P17) to Paper Size Card 2 56P0807 Dial, Paper Size 3 56P0806 Knob, Paper Size Dial 4 56P0898 Card Assembly, Paper Size 5 56P0916 Grommet, Cable 6 56P0863 Clamp, Cable 7 56P0904 Cable, Engine (P13) to HVPS 8 56P0903 Power Supply, High Voltage 9 56P0905 Cable, HVPS Detack 10 56P0906 Cable, HVPS Transfer 11 56P0907 Power Supply, Low Voltage 100V/120V 11 56P0908 Power Supply, Low Voltage, 220V 12 56P0917 Grommet, Cable 13 56P0909 Fan, Cooling 14 70G0478 Power Cord, U.S., Canada, Bolivia, Peru, Mexico, Saudi Arabia, Colombia, 14 1339528 Power Cord, UK, Ireland, UAE, Kuwait, Bahrain, Qatar, Oman, Yemen, 14 1339529 Power Cord, Austria, Belgium, Bosnia, Bulgaria, Catalan, Czech, Croatia, 14 1339530 Power Cord, Israel 14 1339531 Power Cord, Switzerland 14 1339532 Power Cord, South Africa, Pakistan 14 1339533 Power Cord, Chile, Uruguay, 14 1339534 Power Cord, Denmark 14 11D0330 Power Cord, Argentina 14 43H5545 Power Cord, PR China 14 1339548 Power Cord, Brazil 14 1339520 Power Cord, U.S. (HV) RPQ Parts Catalog 7-19 15 56P0918 Cable, Power Inlet 16 56P1218 Cable, LVPS to RIP Card Assembly 17 56P0954 Card Assembly, RIP Riser 18 56P0910 Switch, Cover Interlock 19 56P0953 Card Assembly, RIP (Network) 19 56P0952 Card Assembly, RIP 20 56P0912 Cable, Engine (P10) to LVPS 21 56P0913 Cable, Engine (P27) to LVPS (Fuser Control) 22 56P0914 Cable, Engine (P25) to MPF Empty Sensor 23 56P0911 Card Assembly, Engine 24 56P0840 Cable, Engine (P12) to Tray 1 Empty Sensor 25 56P0888 Cable, Engine (P15) to Fuser (100V/120V) 25 56P0961 Cable, Engine (P15) to Fuser (220V) 26 56P0951 Cable, Engine (P22) to Printhead Video Parts Catalog 7-21

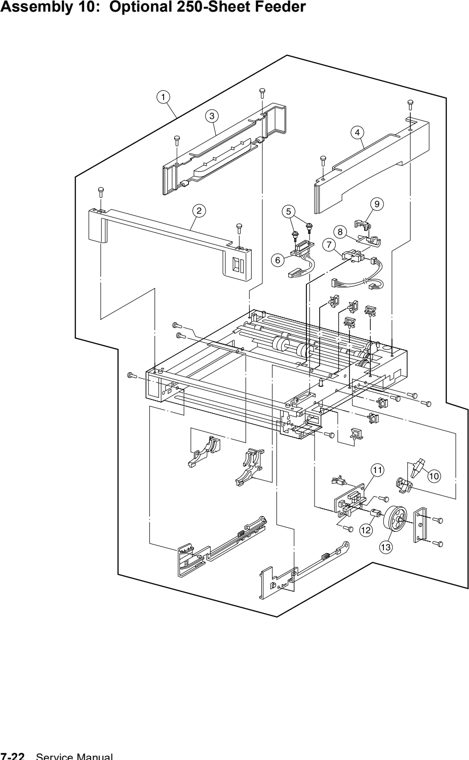

Assembly 10: Optional 250-Sheet Feeder 1 56P0808 Feeder Assembly, Optional 250-Sheet 1 56P0815 Clutch, Optional Feedroll 2 56P0919 Cover, Optional 250 Front 2 56P0800 Kit, Pick Roll (contains 2) 56p0800 Kit, Pick Roll (contains 2) New 56p0800 (New) $16.00 56p0800 Kit Pick Roll (contains 2) Fully refurbished with 90-day warranty 56p0800 $12.00 3 56P0920 Cover, Optional 250 Left Side 3 56P0817 Joint, Optional Feeder 4 56P0921 Cover, Optional 250 Right Side 4 56P0809 Foot, Rubber 5 56P0811 Screw, Optional Interconnect 5 56P0816 Solenoid, Optional 250/500 Roller 6 56P0810 Cable, Optional Interconnect 6 56P0925 Guide Assembly, Optional 250 Paper 7 56P0802 Sensor, Photo 7 56P0924 Roll Assembly, Optional 250 Pick 8 56P0922 Flag, Optional 250 Paper Empty 8 56P0814 Roll Assembly, Optional Feed Parts Catalog 7-25 9 56P0812 Clamp, Optional Sensor 10 56P0804 Switch, Tray Present Lexmark 56P0804 Switch, Tray Present Fully refurbished with 90-day warranty 56P0804 Contact for Details 11 56P0923 Card Assembly, Paper Size Optional 250 12 56P0806 Knob, Paper Size Dial 13 56P0807 Dial, Paper Size Parts Catalog 7-23

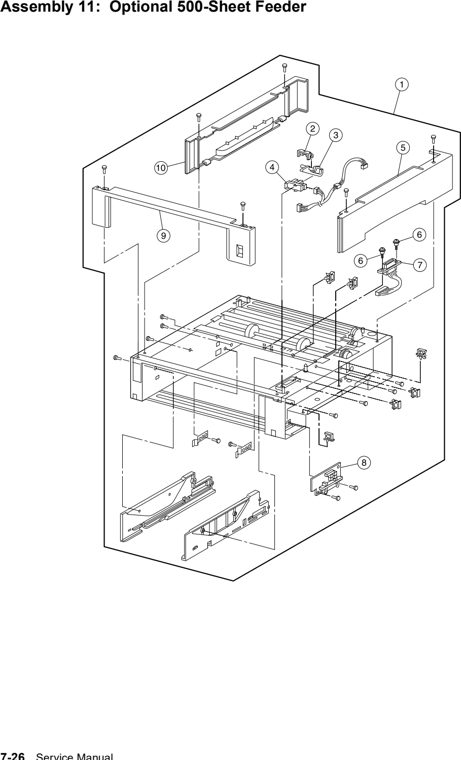

Assembly 11: Optional 500-Sheet Feeder 1 56P0813 Feeder Assembly, Optional 500-Sheet (LTR) 1 56P0962 Feeder Assembly, Optional 500-Sheet (A4) 2 56P0812 Clamp, Optional Sensor 2 56P0802 Sensor, Photo (Paper Empty) 3 56P0929 Flag, Optional 500 (Paper Empty) 3 56P0814 Roll Assembly, Optional Feed 4 56P0802 Sensor, Photo (Paper Empty) 4 56P0815 Clutch, Optional Feedroll 5 56P0928 Cover, Optional 500 Right 5 56P0932 Roll, Optional 500 Pick 6 56P0811 Screw, Optional Interconnect 6 56P0804 Sensor, Tray Present Lexmark 56P0804 Switch, Tray Present Fully refurbished with 90-day warranty 56P0804 Contact for Details 7 56P0810 Cable, Optional Interconnect 7 56P0809 Foot, Rubber 8 56P0930 Card Assembly, Optional 500 Feeder (A4) 8 56P0969 Card Assembly, Optional 500 Feeder (LTR) 8 56P0816 Solenoid, Optional 250/500 Roller 9 56P0926 Cover, Optional 500 Front (LTR) 9 56P0964 Cover, Optional 500 Front (A4) 9 56P0933 Guide Assembly, Optional 500 Paper 10 56P0927 Cover, Optional 500 Left 10 56P0817 Joint, Optional Feeder Parts Catalog 7-29 NS 56P0965 Cable, Optional 500 Feeder (LTR) Parts Catalog 7-27

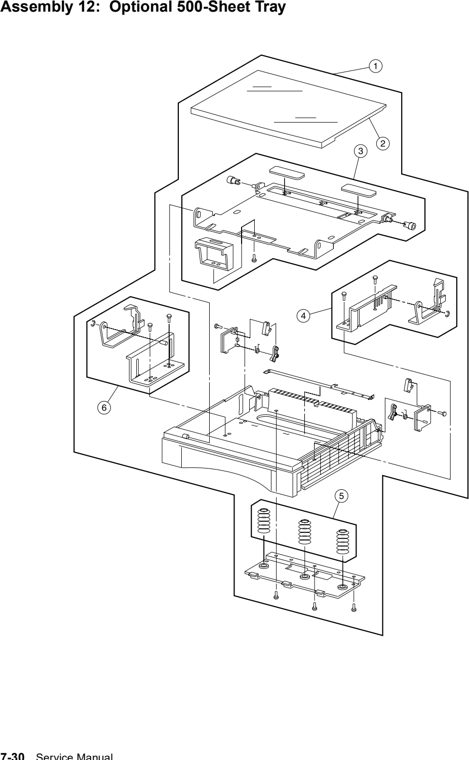

Assembly 12: Optional 500-Sheet Tray 1 56P0934 Tray Assembly, 500-Sheet (LTR) 1 56P0963 Tray Assembly, 500-Sheet (A4) 2 56P0938 Cover, Optional 500 Tray Upper 3 56P0937 Plate Assembly, Optional 500 Lift 4 56P0935 Guide Assembly, Optional 500 Tray Right 5 56P0960 Kit Assembly, Optional 500 Spring 6 56P0936 Guide Assembly, Optional 500 Tray Left Parts Catalog 7-31

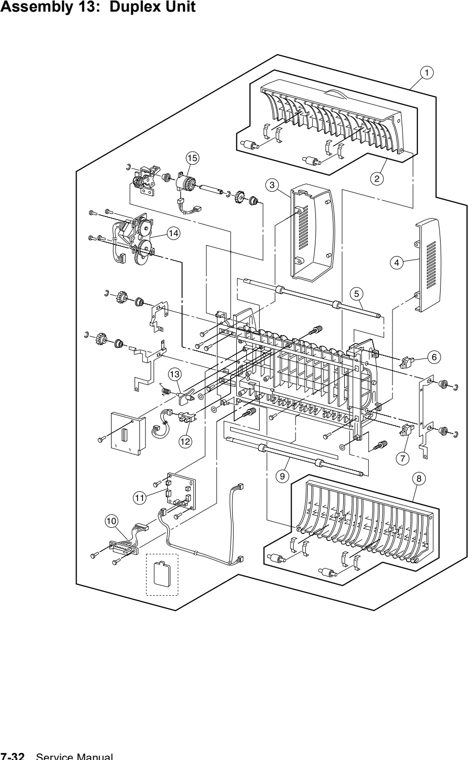

Assembly 13: Duplex Unit 1 56P0939 Duplex Assembly, Complete 56P0939 1226 Duplexer Fully refurbished with 90-day warranty 56P0939 Contact for Details 56P0939 1226 Duplexer New 56P0939 (New) Contact for Details 2 56P0940 Door Assembly, Duplex Upper Access 3 56P0942 Cover, Duplex Left Side 4 56P0943 Cover, Duplex Right Side 5 56P0946 Roll Assembly, Upper Duplex Feed 6 56P0947 Switch, Duplex Upper Door Open 56P0947 Switch, Interlock New 56P0947 (New) Contact for Details 56P0947 Switch Interlock Fully refurbished with 90-day warranty 56P0947 $16.00 7 56P0947 Switch, Duplex Lower Door Open 56P0947 Switch, Interlock New 56P0947 (New) Contact for Details 56P0947 Switch Interlock Fully refurbished with 90-day warranty 56P0947 $16.00 8 56P0941 Door Assembly, Duplex Lower Access Lexmark 56P0941 Door Assembly, Duplex Lower Access Fully refurbished with 90-day warranty 56P0941 Contact for Details 9 56P0946 Roll Assembly, Lower Duplex Feed 10 56P0945 Cable, Duplex 11 56P0944 Card Assembly, Duplex 12 56P0802 Sensor, Photo, Duplex #1 13 56P0948 Flag, Duplex Paper Sensor 14 56P0949 Motor Assembly, Duplex 15 56P0950 Clutch, Duplex Parts Catalog 7-33

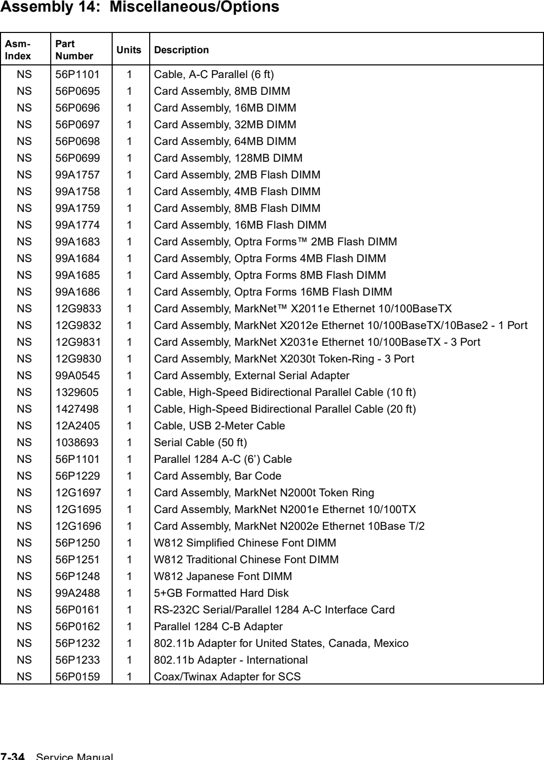

Assembly 14: Miscellaneous/Options NS 56P1101 Cable, A-C Parallel (6 ft) Parallel 1284 A-C (6’) Cable NS 56P0695 Card Assembly, 8MB DIMM NS 56P0696 Card Assembly, 16MB DIMM NS 56P0697 Card Assembly, 32MB DIMM NS 56P0698 Card Assembly, 64MB DIMM NS 56P0699 Card Assembly, 128MB DIMM NS 99A1757 Card Assembly, 2MB Flash DIMM Lexmark 99A1757 2MB Flash Memory Fully refurbished with 90-day warranty 99A1757 $9.00 NS 99A1758 Card Assembly, 4MB Flash DIMM NS 99A1759 Card Assembly, 8MB Flash DIMM NS 99A1774 Card Assembly, 16MB Flash DIMM NS 99A1683 Card Assembly, Optra Forms™ 2MB Flash DIMM Lexmark 99A1683 OptraForms 2MB Fully refurbished with 90-day warranty 99a1683 $107.25 NS 99A1684 Card Assembly, Optra Forms 4MB Flash DIMM Lexmark 99A1684 Optra Forms 4MB Flash Memory Fully refurbished with 90-day warranty 99a1684 $115.24 NS 99A1685 Card Assembly, Optra Forms 8MB Flash DIMM NS 99A1686 Card Assembly, Optra Forms 16MB Flash DIMM NS 12G9833 Card Assembly, MarkNet™ X2011e Ethernet 10/100BaseTX NS 12G9832 Card Assembly, MarkNet X2012e Ethernet 10/100BaseTX/10Base2 - 1 Port NS 12G9831 Card Assembly, MarkNet X2031e Ethernet 10/100BaseTX - 3 Port NS 12G9830 Card Assembly, MarkNet X2030t Token-Ring - 3 Port NS 99A0545 Card Assembly, External Serial Adapter NS 1329605 Cable, High-Speed Bidirectional Parallel Cable (10 ft) NS 1427498 Cable, High-Speed Bidirectional Parallel Cable (20 ft) NS 12A2405 Cable, USB 2-Meter Cable NS 1038693 Serial Cable (50 ft) NS 56P1229 Card Assembly, Bar Code Bar Code Card NS 12G1697 Card Assembly, MarkNet N2000t Token Ring NS 12G1695 Card Assembly, MarkNet N2001e Ethernet 10/100TX Lexmark 12G1695 10/100 BaseTX Ethernet adapter Fully refurbished with 90-day warranty 12G1695 $19.50 NS 12G1696 Card Assembly, MarkNet N2002e Ethernet 10Base T/2 NS 56P1250 W812 Simplified Chinese Font DIMM NS 56P1251 W812 Traditional Chinese Font DIMM NS 56P1248 W812 Japanese Font DIMM NS 99A2488 5+GB Formatted Hard Disk Lexmark 99A2488 Hard Drive With Attach Card Fully refurbished with 90-day warranty 99A2488 Contact for Details NS 56P0161 RS-232C Serial/Parallel 1284 A-C Interface Card NS 56P0162 Parallel 1284 C-B Adapter NS 56P1232 802.11b Adapter for United States, Canada, Mexico NS 56P1233 802.11b Adapter - International NS 56P0159 Coax/Twinax Adapter for SCS NS 56P3833 Card for IPDS & SCS/Tne NS 56P1256 ImageQuick™ Card NS 56P1230 Decryption Card NS 56P9926 Optra Forms Software NS 56P9927 Optra Forms Director Software Parts Catalog 7-35
Other listed parts 56P1011 1226 control panel 56P1011 1226 control panel Fully refurbished with 90-day warranty 56P1011 Contact for Details
