Lexmark X340 and X342 Parts







Looking for whole machines? Click here

1-1 40X1354 ACM and front door springs

2
40X2423 Front Cover Assembly
Fully refurbished with 90-day warranty
40X2423



40X2423 Front Cover Assembly
New
40X2423 (New) Obsolete without replacement.



3
40X2422 Rear Cover Assembly
New
40X2422 (New)
$36.56



40X2422 Rear cover assembly
Fully refurbished with 90-day warranty
40X2422
$29.66



4
40X2421 Base top cover assembly
Fully refurbished with 90-day warranty
40X2421
$20.25



40X2421 Base Top Cover Assembly
New
40X2421 (New)
$25.03



5
40X2425 Upper Right Side Cover
New
40X2425 (New)
$20.49



40X2425 Upper right side cover
Fully refurbished with 90-day warranty
40X2425
$16.54



6
40X2426 Lower right side cover
Fully refurbished with 90-day warranty
40X2426
$12.66



40X2426 Lower Right Side Cover
New
40X2426 (New)
$14.18



7
40X2433 550-Sheet Drawer with Tray complete assembly X340 X342
Fully refurbished with 90-day warranty
40X2433
$75.54





8
40X2432 550-Sheet Tray Assembly
Fully refurbished with 90-day warranty
40X2432
$49.60



40X2432 550-Sheet Tray Assembly
New
40X2432 (New)
$60.99



9
40X2420 250-Sheet Tray Assembly X34x
Fully refurbished with 90-day warranty
40X2420
$24.00



40X2420 250-Sheet Tray Assembly X34x
New
40X2420 (New)
$29.00



10
40X2424 Left Side Cover
New
40X2424 (New)
$24.34



40X2424 Left side cover
Fully refurbished with 90-day warranty
40X2424
$19.69



NS 40X2429 Legal extender cover
https://www.argecy.com/images/X340-X340n-X342n-02.jpg

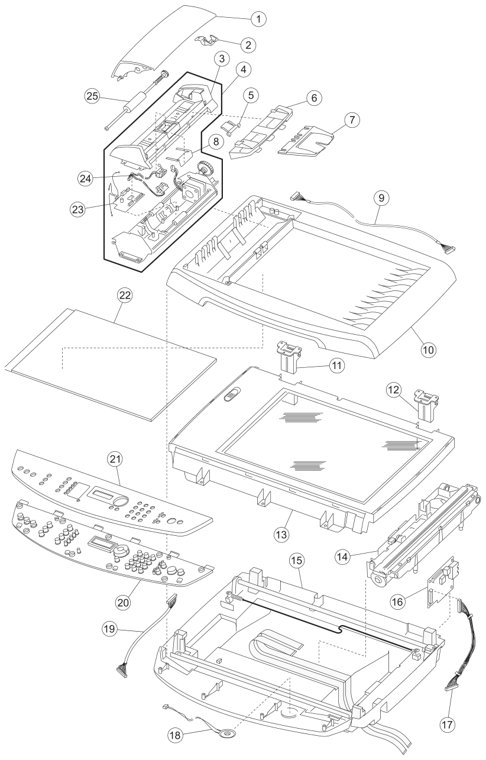

2-1 40X2400 ADF top cover

2 40X2402 Pick roll hinge

3
40X2620 Adf Top Assembly
New
40X2620 (New)
$16.52



40X2620 Adf Top Assembly
New
40X2620 (New)
$16.52



4
40X2629 ADF assembly
Fully refurbished with 90-day warranty
40X2629
$56.30



40X2629 ADF Assembly
New
40X2629 (New)
$67.76



5 40X2404 Pick roll pad

5 40X3499 High friction pick roll pad

6
40X2406 ADF input tray assembly
New
40X2406 (New)
$17.61



7 40X2407 ADF extension assembly

8 40X2405 Mylar ADF guide

9 40X2408 ADF cable

10 40X2409 Flatbed cover

11 40X2412 Black flatbed stud

12 40X2413 Silver flatbed stud

13
40X2411 Scanner top housing
Fully refurbished with 90-day warranty
40X2411



40X2411 Scanner Top Housing
New
40X2411 (New)
$29.00



14
40X2631 CCD assembly
New
40X2631 (New)
$167.13



40X2631 CCD Assembly
New
40X2631 (New)
$167.13



15
40X2415 Scanner Base Assembly
New
40X2415 (New)
$47.07



40X2415 Scanner base assembly
Fully refurbished with 90-day warranty
40X2415
$38.23



16
40X2427 Modem card
Fully refurbished with 90-day warranty
40X2427



40X2427 Modem Card
New
40X2427 (New)
$49.16



17 40X2428 Modem cable

18 40X2611 Modem speaker

19 40X2418 Operator panel cable

20
40X2417 Operator panel assembly
Fully refurbished with 90-day warranty
40X2417



40X2417 Operator Panel Assembly
New
40X2417 (New)
$44.37



21 40X2690 X 340-X340n Operator panel overlay (English)

21 40X2706 X 342n Operator panel overlay (English)

22
40X2410 Flatbed cushion
Fully refurbished with 90-day warranty
40X2410
$16.53



40X2410 Flatbed Cushion
New
40X2410 (New)
$18.48



23
40X2630 ADF Card
New
40X2630 (New)
$50.83



40X2630 ADF card
Fully refurbished with 90-day warranty
40X2630
$41.31



24 40X2619 ADF sensor assembly

25 40X2401 ADF pick roll assembly
https://www.argecy.com/images/X340-X340n-X342n-04.jpg

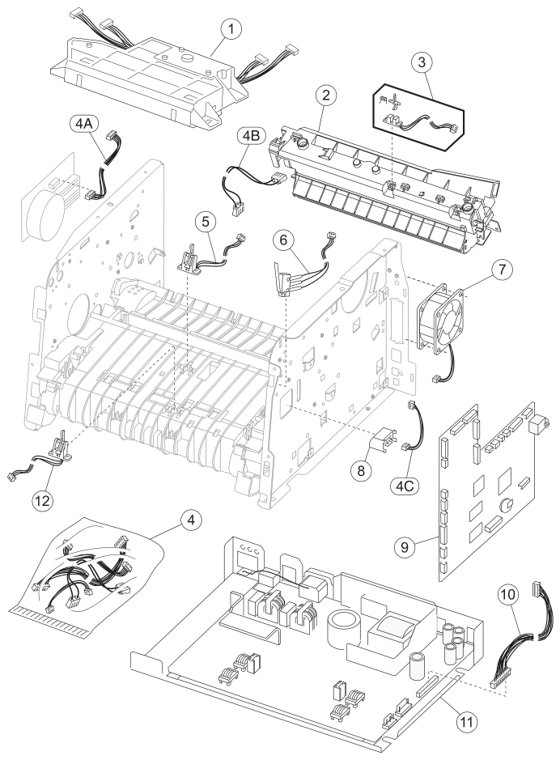

3-1
40X1303 Laser/Mirror Printhead Assembly
Fully refurbished with 90-day warranty
40X1303
$57.00



40X1303 Laser/mirror printhead assembly
Fully refurbished with 90-day warranty
40X1303
$57.00



X340, X340n, X342n

2
40X1300 Fuser Assembly, 110 V
New
40X1300 40X4194 (New)
$158.00



40X1300 Lexmark E232/330/332/E240/E340/342 Fuser Assembly
Fully refurbished with 90-day warranty
40X1300 40X4194 L
$89.00



2 40X1301 Fuser assembly, 220 V

2 40X1302 Fuser assembly, 100 V

3 40X1325 Exit sensor assembly

4 40X1333 Miscellaneous cable assemblies
Note: Do not use the included LVPS/HVPS cable. Order part 40X2416.
- - Toner sensor
- - Fuser power
- - Main drive motor

5 40X1323 Input #1 sensor assembly

6 40X1326 Cover open sensor assembly

7
40X1328 Cooling Fan
Fully refurbished with 90-day warranty
40X1328
$11.00



8 40X1332 Toner level sensor

9
40X2632 Controller Card, X340, X340n
New
40X2632 (New)
$300.32



X340-X340n

9
40X4828 Controller card X342n
New
40X4828 (New)
$300.32



X342n

10 40X2416 LVPS to controller card cable

11
40X2430 LVPS/HVPS 110V card
Fully refurbished with 90-day warranty
40X2430
$87.14



40X2430 LVPS/HVPS 110V Card
New
40X2430 (New)
$104.77



11 40X2431 LVPS/HVPS 220V card

12 40X1324 Input #2 sensor assembly (manual feeder)

NS
40X2434 Network daughter card
Fully refurbished with 90-day warranty
40X2434
$89.00



40X2434 Network Daughter Card
New
40X2434 (New)
$89.73



NS 40X2660 Ferrite core
https://www.argecy.com/images/X340-X340n-X342n-08.jpg

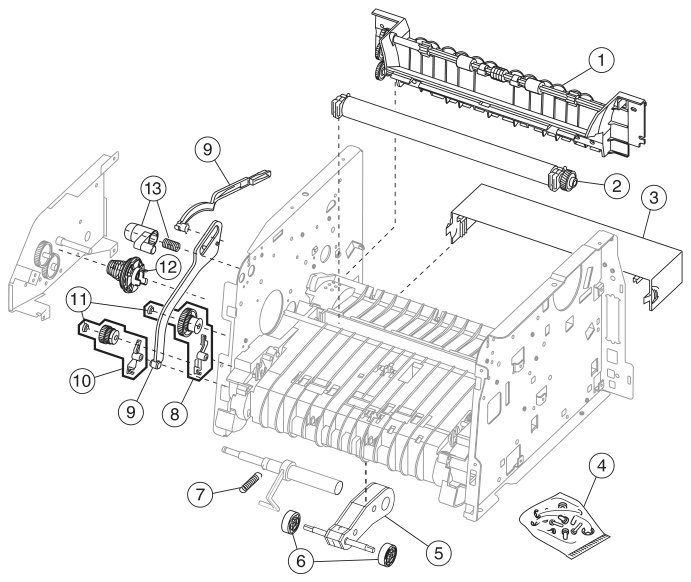

4-1
40X1334 Paper Exit Guide Assembly
Fully refurbished with 90-day warranty
40X1334
$10.20



2
40X2822 Transfer Roll Assembly
New
40X2822 (New)
$29.00



3 40X2429 Legal extender cover

4 40X1353 N/A N/A Screws, miscellaneous
TP2NC-3.0+6P-Ni (2)
M3.0*0.5+6P-Ni,2 Washer (2)
MT3.0*0.5+6PF-Ni (5)
TP2NC-3.0+6PF-Ni (4)

5
40X4731 Pick Arm Assembly
New
40X4731 (New)
$14.00



6
56P1820 Paper Feed Rubber Tires (Set of 2)
New
56P1820 40X1319 (New)
$13.00



7 40X1354 Front door and ACM springs

8 40X1331 Autocompensator clutch CBM

9 40X1338 Door-fuser idle gear link CBM

10 40X1330 Manual feed clutch CBM

11 40X1355 Plastic snap rings

12 40X1329 Developer drive coupling assembly

13 40X1337 Front access cover latch CBM
https://www.argecy.com/images/X340-X340n-X342n-10.jpg
