Please call for parts assistance

Looking for whole machines? View Printer Info

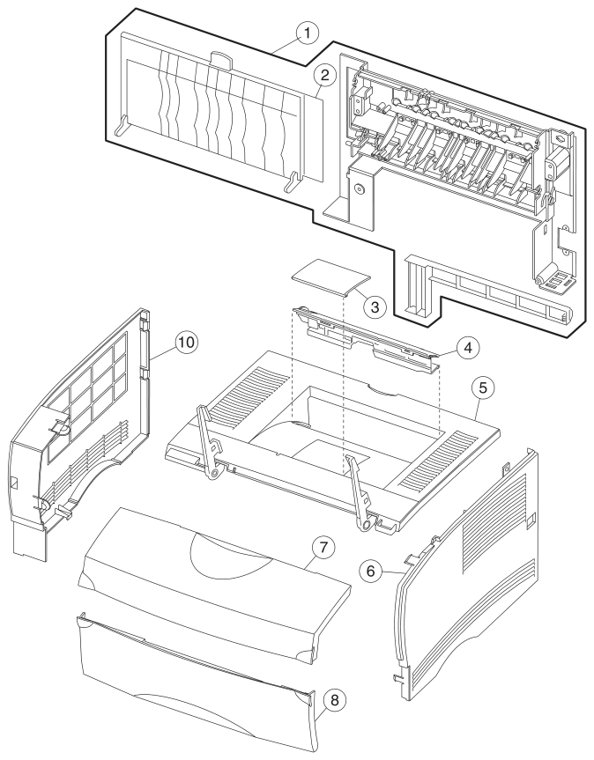

Assembly 1: Covers 1 56P2508 Cover assembly, rear 56P2508 Cover Assembly Rear Fully refurbished with 90-day warranty 56P2508 $51.00 56P2508 Rear cover assembly New 56P2508 (New) Contact for Details 2 56P0607 Door assembly, rear exit 56P0607 Door Assembly, Rear Exit New 56P0607 (New) Contact for Details 3 56P0680 Flap, paper holder 56P0680 Flap, Paper Holder New 56P0680 (New) Contact for Details 4 56P0603 Cover assembly, duct 56P0603 Cover Assembly, Duct New 56P0603 (New) Contact for Details 5 56P2258 Cover assembly, top 56P2258 Cover assembly, top New 56P2258 (New) $28.00 6 56P2257 Cover assembly, right 56P2257 Cover assembly right New 56P2257 (New) Contact for Details 7 56P2265 Cover assembly, front with display 8 56P0610 Cover assembly, MPF door 56P0610 Cover Assembly, MPF Door Fully refurbished with 90-day warranty 56P0610 $24.00 10 56P0600 Cover assembly, left Parts catalog 7-3 56P0600 Left cover assembly Fully refurbished with 90-day warranty 56P0600 $24.00 56P0600 Left cover assembly New 56P0600 (New) Contact for Details

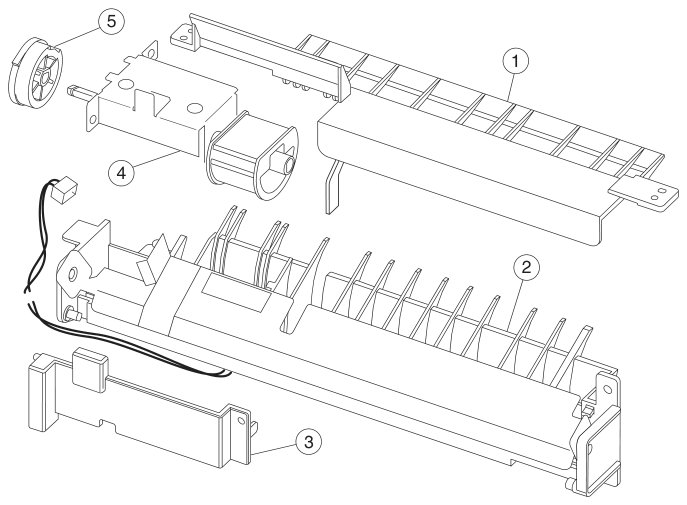

Assembly 2: Multipurpose feeder (MPF) 1 56P0612 Housing assembly, upper (MPF) 56P0612 Housing Assembly, Upper (MPF) Fully refurbished with 90-day warranty 56P0612 $24.00 2 56P0611 Housing assembly, lower (MPF) 56P0611 Housing Assembly, Lower (MPF) Fully refurbished with 90-day warranty 56P0611 $24.00 56P0611 Housing Assembly, Lower (MPF) New 56P0611 (New) Contact for Details 3 56P0615 Cap, MPF paper feed cover 56P0615 Cap, MPF Paper Feed Cover New 56P0615 (New) Contact for Details 4 56P2181 Assembly, roller (MPF) 5 56P0614 Gear, MPF paper pick Parts catalog 7-5 56P0614 Gear, MPF Paper Pick New 56P0614 (New) Contact for Details

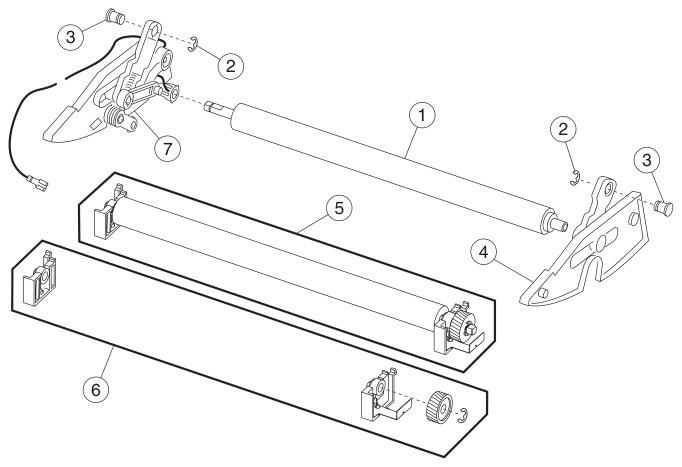

Assembly 3: Charging 1 56P0640 Roll, charge 56P0640 Charge roll New 56P0640 (New) Contact for Details 2 56P0668 Parts pack, (screws and E–rings) 3 56P0669 Hinge, pivot (quantity 2) 56P0669 Hinge Pivot (quantity 2) Fully refurbished with 90-day warranty 56P0669 Contact for Details 4 56P0642 Guide assembly, right 56P0642 Guide Assembly Right Fully refurbished with 90-day warranty 56P0642 $24.00 5 56P0643 Assembly, transfer roll 56P0643 Assembly Transfer Roll New 56P0643 (New) Contact for Details 6 56P0644 Bearings, transfer roll 56P0644 Bearings Transfer Roll New 56P0644 (New) Contact for Details 7 56P0641 Guide assembly, left Parts catalog 7-7 56P0641 Guide Assembly Left Fully refurbished with 90-day warranty 56P0641 $24.00

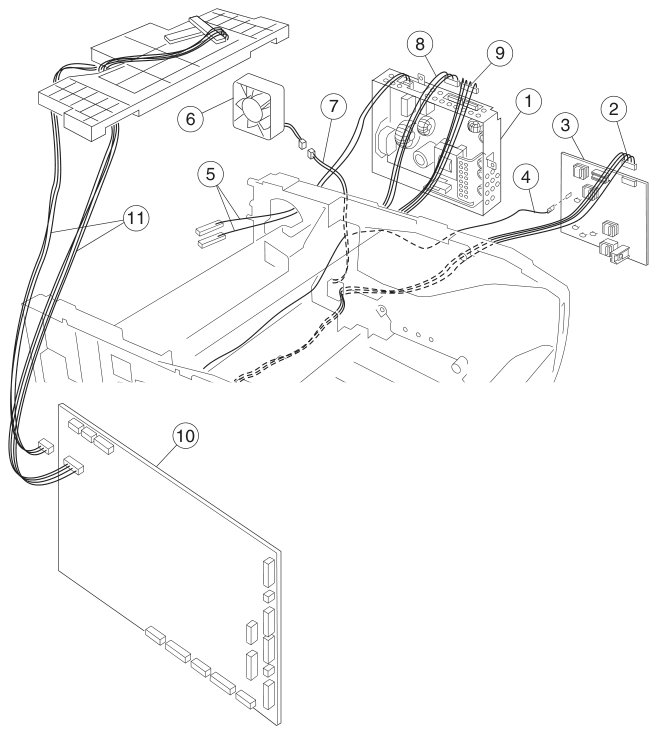

Assembly 4: Electronics and cables 1 56P2285 Power supply, 110V 56P2285 Power supply, 110 V New 56P2285 (New) $99.00 1 56P2284 Power supply, 220V 1 56P0624 Cable assembly, cover switch 2 56P0625 Switch, interlock cover 56P0625 Interlock cover switch Fully refurbished with 90-day warranty 56P0625 $24.00 2, 7, 8, 9 56P2273 Cable assembly, main harness 3 56P0628 PS, high volt 56P0628 High Voltage Power Supply HVPS New 56P0628 (New) Contact for Details 4 56P0641 Guide assembly, left 56P0641 Guide Assembly Left Fully refurbished with 90-day warranty 56P0641 $24.00 5 56P0650 Cable assembly, LVPS to fuser 5 and 7 56P0616 Solenoid, paper feed 6 56P0630 Fan, cooling 56P0630 Fan, Cooling New 56P0630 (New) Contact for Details 6 56P0653 Sensor, toner level 56p0653 Toner level sensor New 56p0653 (New) Contact for Details 8 56P0631 Cable assembly, drawer 9 56P2734 Card, RIP—NA (resistive) (See 56P2734 Card assembly, RIP New 56P2734 (New) $77.00 9 56P2735 Card, RIP—EU (reactive) (See 10 56P2734 Card, RIP—NA (resistive) 56P2734 Card assembly, RIP New 56P2734 (New) $77.00 10 56P2735 Card, RIP—EU (reactive) 10 56P0664 Cable assembly, output full (and 11 56P0622 Cable assembly, printhead 56P0622 Printhead Assembly Cable Fully refurbished with 90-day warranty 56P0622 $24.00 11 56P0652 Sensor, smart button 12 56P0682 Sensor cable, output full 13 56P0665 Connector, 3–pin 14 56P0666 Connector, 2–pin 15 56P0645 Sensor, photo NS 56P0649 Cable assembly, fuser exit NS 56P0620 Cable assembly, motor Parts catalog 7-11 NS 70G0478 Power cord, Bolivia, Canada, NS 1339528 Power cord, Bahrein, Cyprus, Iraq, NS 1339529 Power cord, Austria, Belgium, NS 1339530 Power cord, Israel (HV) NS 1339531 Power cord, Switzerland (HV) NS 1339532 Power cord, Libya, Pakistan, South NS 1339533 Power cord, Chile, Uruguay (HV) NS 1339534 Power cord, Denmark (HV) NS 43H5545 Power cord, PR China (HV) NS 1339548 Power cord, Brazil (LV) NS 11D0330 Power cord, Argentina NS 1339520 Power cord, U.S. (HV) RPQ Parts catalog 7-13

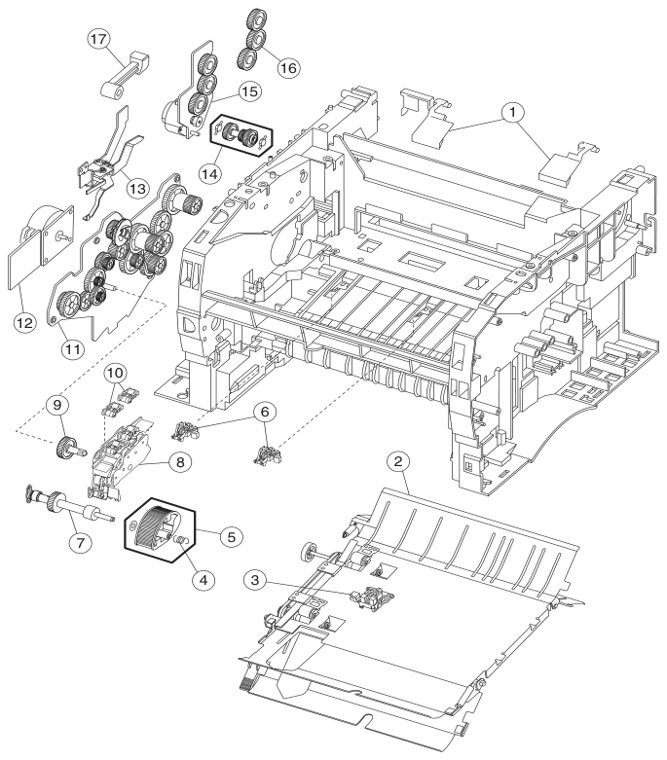

Assembly 5: Paper feed 1 56P0677 Flags, stack control 2 56P0651 Assembly, duplex 56P0651 Duplex assembly (101, 102) Fully refurbished with 90-day warranty 56P0651 $39.00 3 56P0645 Sensor, photo 4 56P0618 Spring, D–roll 5 56P0656 Roll, paper feed 56P0656 Roll, Paper Feed New 56P0656 (New) $24.00 6 56P0655 Bracket, paper sensor 7 56P0657 Assembly, paper feed 56P0657 Assembly Paper Feed Fully refurbished with 90-day warranty 56P0657 $12.00 8 56P0654 Plate assembly 56P0654 Plate Assembly Fully refurbished with 90-day warranty 56P0654 $24.00 56P0654 Plate assembly New 56P0654 (New) Contact for Details 9 56P0634 Gear, paper feed 56P0634 Gear Paper Feed Fully refurbished with 90-day warranty 56P0634 $24.00 10 56P0693 Roller asm., reference backup (top 11* 56P0633 Assembly, drive 56P0633 Assembly, Drive Fully refurbished with 90-day warranty 56P0633 $24.00 56P0633 Drive assembly New 56P0633 (New) Contact for Details 12 56P0632 Motor assembly, main drive 56P0632 Motor Assembly, Main Drive Fully refurbished with 90-day warranty 56P0632 $34.00 56P0632 Motor Assembly, Main Drive New 56P0632 (New) Contact for Details 13 56P0638 Coupling, cartridge 56P0638 Cartridge coupling Fully refurbished with 90-day warranty 56P0638 $24.00 14* 56P0637 Drive, ratchet 56P0637 Drive, Ratchet New 56P0637 (New) Contact for Details 15* 56P0635 Assembly, motor 56P0635 Assembly, Motor Fully refurbished with 90-day warranty 56P0635 $24.00 56P0635 Assembly, Motor New 56P0635 (New) Contact for Details 16* 56P0636 Gears, spur 17 56P0639 Guide, link Parts catalog 7-15

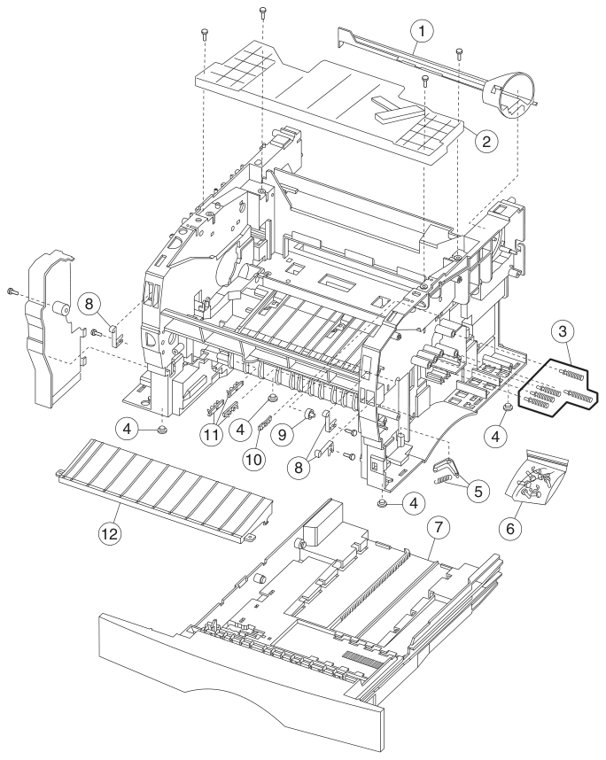

Assembly 6: Frame 1 56P0606 Duct, air 2 56P0623 Assembly, printhead 56P0623 Printhead Assembly Fully refurbished with 90-day warranty 56P0623 $119.00 56P0623 Printhead assembly New 56P0623 (New) Contact for Details 3 56P0629 Assembly, cartridge contacts 56P0629 Cartridge contact assembly (includes 5) Fully refurbished with 90-day warranty 56P0629 $38.00 4 56P0662 Feet, base 5 56P0661 Damper, tray 6 56P0668 Parts pack, (screws and E–rings) 7 56P0609 Assembly, tray 1 56P0609 Assembly Tray 1 Fully refurbished with 90-day warranty 56P0609 $47.00 8 56P0667 Latch, door (3 latches) 9 56P0660 Roller, paper guide 56P0660 Paper guide roller Fully refurbished with 90-day warranty 56P0660 Contact for Details 56P0660 Paper guide roller New 56P0660 (New) Contact for Details 10 56P0659 Bracket, shutter 11 56P0672 Bracket, body–tray 12 56P0658 Guide, entrance 56P0658 Guide, Entrance Fully refurbished with 90-day warranty 56P0658 $6.00

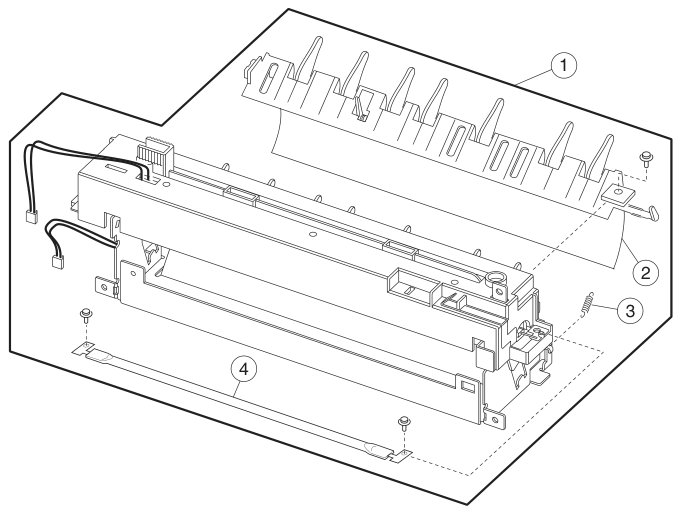

Assembly 7: Fuser 1 56P0648 Assembly, fuser (110V) 56P0648 OEM Fuser Assembly 1222 1410 New 56P0648 Advanced Exchange (New) $173.00 56P0648 Fuser Assembly 1410 1222 Fully refurbished with 90-day warranty 56P0648 Advanced Exchange $95.00 1 56P0671 Assembly, fuser (220V) 2 56P0673 Fuser assembly, paper guide 56P0673 Fuser Assembly, Paper Guide Fully refurbished with 90-day warranty 56P0673 Contact for Details 56P0673 Fuser Assembly Paper Guide New 56P0673 (New) Contact for Details 3 56P0676 Spring, fuser exit 56P0676 Fuser exit spring Fully refurbished with 90-day warranty 56P0676 Contact for Details 56P0676 Fuser exit spring New 56P0676 (New) Contact for Details 4 56P0646 Lamp, fuser (110V) 4 56P0647 Lamp, fuser (220V) Parts catalog 7-19

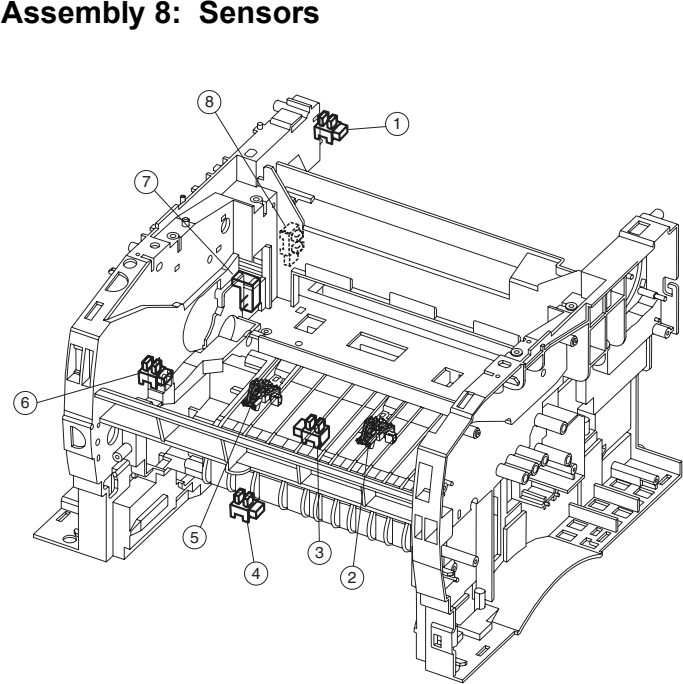

Assembly 8: Sensors and locations 2, 5 56P0655 Bracket, paper sensor 6 56P0653 Sensor, toner level 56p0653 Toner level sensor New 56p0653 (New) Contact for Details 7 56P0652 Sensor, smart button Parts catalog 7-21 8 1–5, 8 56P0645 Sensor, photo

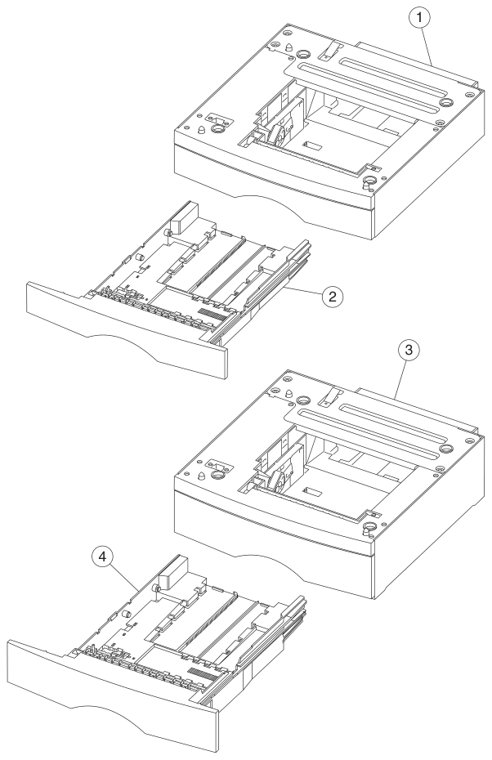

Assembly 9: Options 1 56P0674 Drawer assembly, 250–sheet 2 56P0609 Tray, 250–sheet 56P0609 Assembly Tray 1 Fully refurbished with 90-day warranty 56P0609 $47.00 2 56P0681 Tray, 250–sheet label 3 56P0675 Drawer assembly, 500–sheet 56p0675 500 Sheet drawer with Tray Fully refurbished with 90-day warranty 56P0675 Contact for Details 56p0675 500 Sheet drawer New 56P0675 (New) Contact for Details 4 56P0678 Tray, 500–sheet NS 56P0694 DIMM, 4MB SDRAM NS 56P0695 DIMM, 8MB SDRAM NS 56P0696 DIMM, 16MB SDRAM NS 56P0697 DIMM, 32MB SDRAM NS 56P0698 DIMM, 64MB SDRAM NS 56P0699 DIMM, 128MB SDRAM NS 99A1757 DIMM, 2MB flash Lexmark 99A1757 2MB Flash Memory Fully refurbished with 90-day warranty 99A1757 $9.00 NS 99A1758 DIMM, 4MB flash NS 99A1759 DIMM, 8MB flash NS 99A1774 DIMM, 16MB flash NS 56P1418 DIMM, 32MB flash NS 99A1683 DIMM, Optra Forms™ 2MB flash Lexmark 99A1683 OptraForms 2MB Fully refurbished with 90-day warranty 99a1683 $107.25 NS 99A1684 DIMM, Optra Forms 4MB flash Lexmark 99A1684 Optra Forms 4MB Flash Memory Fully refurbished with 90-day warranty 99a1684 $115.24 NS 99A1685 DIMM, Optra Forms 8MB flash NS 99A1686 DIMM, Optra Forms 16MB flash NS 56P1427 DIMM, Optra Forms 32MB flash NS 56P1248 DIMM, Japanese 8MB font NS 56P1250 DIMM, Simplified Chinese font NS 56P1251 DIMM, Traditional Chinese font NS 56P2231 DIMM, Korean font NS 12G9833 MarkNet™ X2011e Ethernet 10/100 NS 12G9832 MarkNet X2012e Ethernet 10/100 NS 12G9831 MarkNet X2031e Ethernet 10/100 NS 12G9830 MarkNet X2030t Token–Ring NS 99A0545 Adapter, external serial NS 1329605 Cable, high–speed bidirectional NS 1427498 Cable, high–speed bidirectional NS 12A2405 Cable, USB 2–meter NS 1038693 Cable, serial (50 ft) NS 7372853 Kit, field relocation Parts catalog 7-25

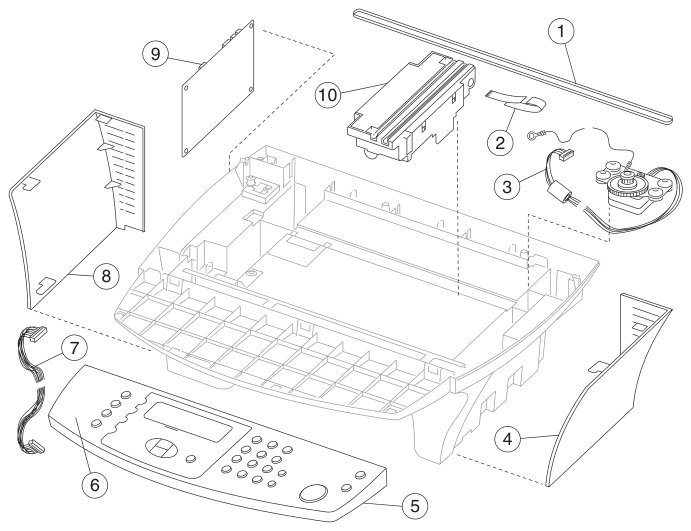

Assembly 10: Scanner base 1 56P2269 Belt, timing 56P2269 Belt, timing New 56P2269 (New) Contact for Details 2 56P2278 Cable, CCD-SCU 56P2278 Cable, CCD-SCU New 56P2278 (New) Contact for Details 3 56P2272 Motor assembly, flatbed with cable 56P2272 Motor assembly flatbed New 56P2272 (New) Contact for Details 4 56P2267 Cover, right scanner 56P2267 Cover, right scanner New 56P2267 (New) Contact for Details 5 56P2261 Panel, operator 6 56P2286 Overlay, operator panel (FIGSD) 6 56P2287 Overlay, operator panel (DNSFBP) 7 56P2276 Cable, OPU-RIP 56P2276 Cable, OPU-RIP New 56P2276 (New) $42.00 8 56P2268 Cover, left scanner 56P2268 Cover left scanner New 56P2268 (New) $39.00 9 56P2271 Card, SCU 56P2271 Card, SCU New 56P2271 (New) Contact for Details 10 56P2270 Carriage, CCD Parts catalog 7-27 56P2270 Carriage CCD New 56P2270 40X5058 (New) $1041.00

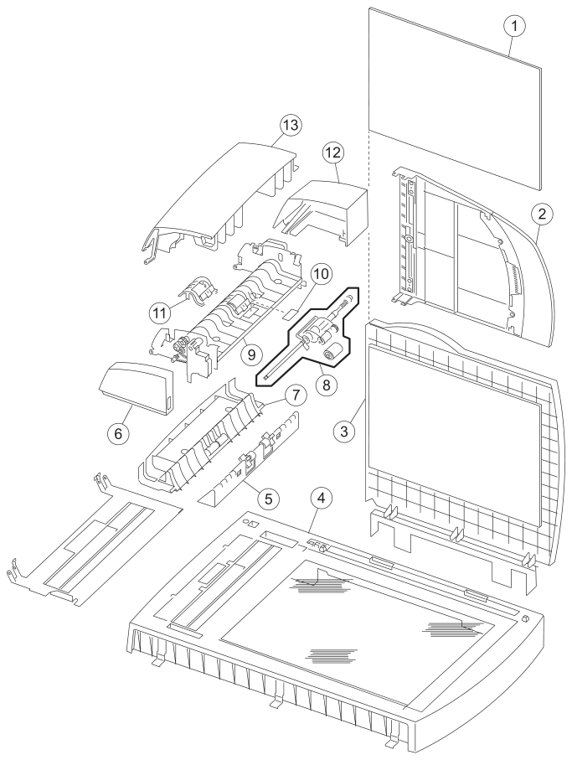

Assembly 11: Scanner top 1 56P2266 Cushion, scan cover 2 56P2263 Tray assembly, document 56P2263 Tray assembly document New 56P2263 (New) Contact for Details 3 56P2264 Cover, flatbed 56P2264 Cover flatbed New 56P2264 (New) $86.00 4 56P2262 Cover, scanner 56P2262 Cover Scanner New 56P2262 (New) Contact for Details 5 56P2251 Idler, R2 56P2251 Idler, R2 New 56P2251 (New) Contact for Details 6 56P2260 Cover, ADF left 7 56P2250 Idler, R1 8 56P2649 Roller kit, ADF pick and separator Lexmark 56P2649 Roller Assembly, Separator And ADF pick New 56P2649 (New) Contact for Details 9 56P2252 Feeder assembly, auto document 56p2252 Feeder assembly auto document New 56P2252 (New) Contact for Details 10 56P2255 Pad, pick 56P2255 Pad, pick New 56P2255 (New) $17.00 11 56P2254 Cover, separator 12 56P2259 Cover, ADF right 13 56P2256 Cover, ADF upper Parts catalog 7-29 56P2256 Cover, ADF upper New 56P2256 (New) $65.00

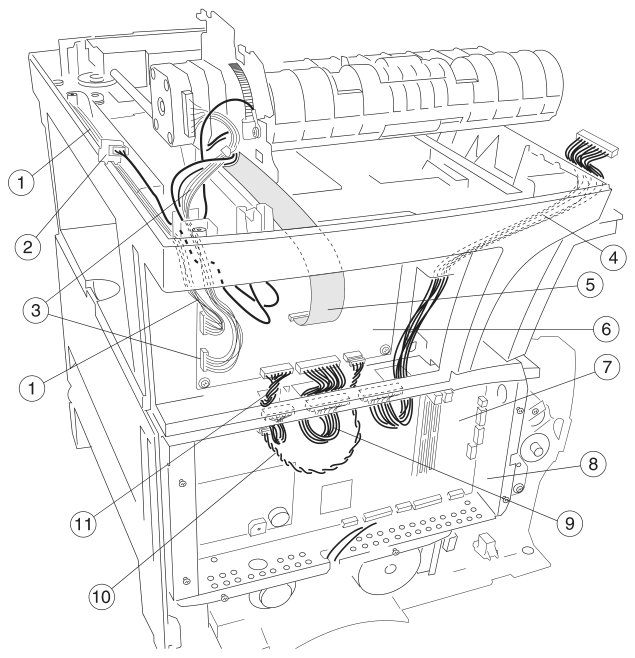

Assembly 12: Scanner cables 1 56P2272 Motor assembly, flatbed with cable 56P2272 Motor assembly flatbed New 56P2272 (New) Contact for Details 2 56P0645 Sensor, photo 3 56P2539 Motor assembly, ADF with cable to 4 56P2276 Cable assembly, OPU-RIP 56P2276 Cable, OPU-RIP New 56P2276 (New) $42.00 5 56P2278 Cable assembly, SCU-CCD 56P2278 Cable, CCD-SCU New 56P2278 (New) Contact for Details 6 56P2271 Card, SCU 56P2271 Card, SCU New 56P2271 (New) Contact for Details 7 56P2734 Card, RIP—NA (resistive) (See 56P2734 Card assembly, RIP New 56P2734 (New) $77.00 7 56P2735 Card, RIP—EU (reactive) (See 8 56P2283 Cage, card 9 56P2277 Cable assembly, SCU AFE-RIP 10 56P2517 Cable assembly, power SCU-RIP 11 56P2275 Cable assembly, SCU-RIP Parts catalog 7-31
