Please call for parts assistance

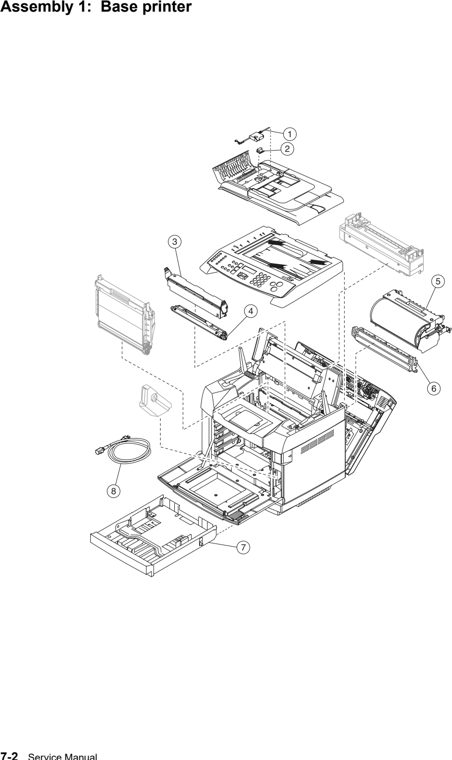

Assembly 1: Base printer 1 40X4702 ADF separator roll assembly Lexmark 40X4702 Assembly, pick roll New 40X4702 (New) Contact for Details 2 40X4703 ADF separator pad Lexmark 40X4703 ADF separator pad New 40X4703 (New) $25.00 3 40X3383 Cover, cleaning roller 4 40X3382 Roller, cleaning 5 40X3412 Transfer unit Lexmark 40X3412 Transfer unit New 40X3412 (New) Contact for Details 6 40X3418 Transfer roller assembly Lexmark 40X3418 Transfer roller assembly New 40X3418 (New) Contact for Details 7 40X4694 Paper tray, universal Lexmark 40X4694 Paper tray, universal UAT New 40X4694 (New) $99.95 8 40X0297 Power cord, USA Lexmark 40X0297 Power cord; 1.8 m, 6 ft. Straight, US, Canada, Latin America, AP Fully refurbished with 90-day warranty 40X0297 Contact for Details Lexmark 40X0297 Power cord; 1.8 m, 6 ft. Straight, US, Canada, Latin America, AP New 40X0297 (New) Contact for Details 8 40X1766 Power cord, LV, USA, APG, Bolivia, Canada, Columbia, Lexmark 40X1766 Power cord; 2.5 m 8 ft. Straight Bolivia Peru New 40X1766 (New) Contact for Details 8 40X0301 Power cord, HV, Argentina Lexmark 40x0301 Power cord; 2.5m, 8ft. Straight, Australia, New Zealand New 40x0301 (New) Contact for Details 8 40X1767 Power cord, HV, Brazil 8 40X0273 Power cord, HV, Chile Lexmark 40x0273 Power cord; 2.5m, 8ft. Straight, Italy, Chile, Uruguay New 40x0273 (New) Retired, no longer available: Contact for alternatives Contact for Details 8 40X0286 Power cord, HV, UK, Ireland 8 40X0278 Power cord, HV, Austria, Belgium, Euro English, Finland, 8 40X0275 Power cord, HV, Israel Lexmark 40x0275 Power cord; 1.8m, 6ft. Straight, Israel New 40x0275 (New) Retired, no longer available: Contact for alternatives Contact for Details 8 40X0274 Power cord, HV, Switzerland French, Switzerland 8 40X0276 Power cord, HV, South Africa 8 40X0287 Power cord, HV, Italy 8 40X0279 Power cord, HV, Denmark NS 40X4716 Cover, Legal Extender Parts catalog 7-3

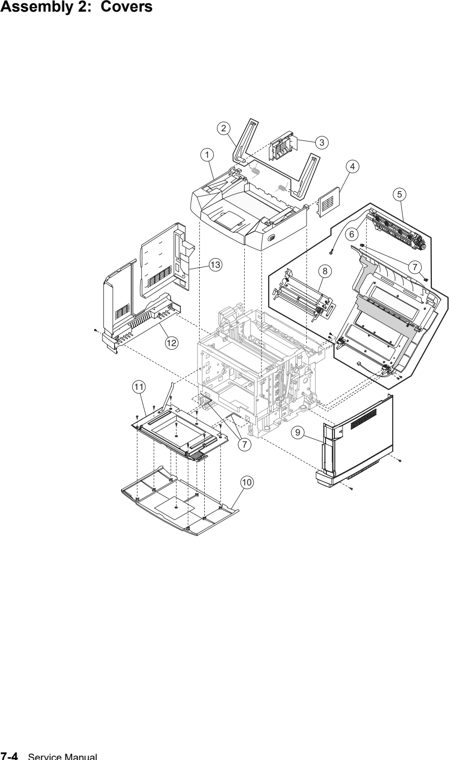

Assembly 2: Covers 1 40X4686 Cover assembly, top Lexmark 40X4686 Cover assembly, top New 40X4686 (New) Contact for Details 2 40X4706 Arm, scanner (contains the left and right arms) 3 40X4698 Cover, top left 4 40X4699 Cover, top right 5 40X4692 Rear cover assembly (includes 40X3428, and 40X3430) Lexmark 40X4692 Rear cover Assembly New 40X4692 (New) Contact for Details 6 40X3428 Assembly, paper exit (contains fuser exit sensor and flag) Lexmark 40X3428 Paper exit assembly New 40X3428 (New) Contact for Details Lexmark 40X3428 Paper exit assembly Fully refurbished with 90-day warranty 40X3428 Contact for Details 7 40X4718 Packet, parts 8 40X3430 Assembly, registration Lexmark 40X3430 Registration assembly New 40X3430 (New) Contact for Details Lexmark 40X3430 Registration assembly Fully refurbished with 90-day warranty 40X3430 Contact for Details 9 40X3385 Cover, right Lexmark 40X3385 Right cover New 40X3385 (New) Contact for Details Lexmark 40X3385 Right cover Fully refurbished with 90-day warranty 40X3385 Contact for Details 10 40X3388 Cover, front Lexmark 40X3388 Front cover New 40X3388 (New) Contact for Details Lexmark 40X3388 Front cover Fully refurbished with 90-day warranty 40X3388 Contact for Details 11 40X3387 Cover, inner front Lexmark 40X3387 Inner Front cover Fully refurbished with 90-day warranty 40X3387 Contact for Details Lexmark 40X3387 Inner Front cover New 40X3387 (New) Contact for Details 12 40X4687 Cover, front left Lexmark 40X4687 Front left Cover New 40X4687 (New) Contact for Details 13 40X4688 Cover, rear left Lexmark 40X4688 Rear left Cover New 40X4688 (New) Contact for Details NS 40X4716 Cover, legal extender Parts catalog 7-5

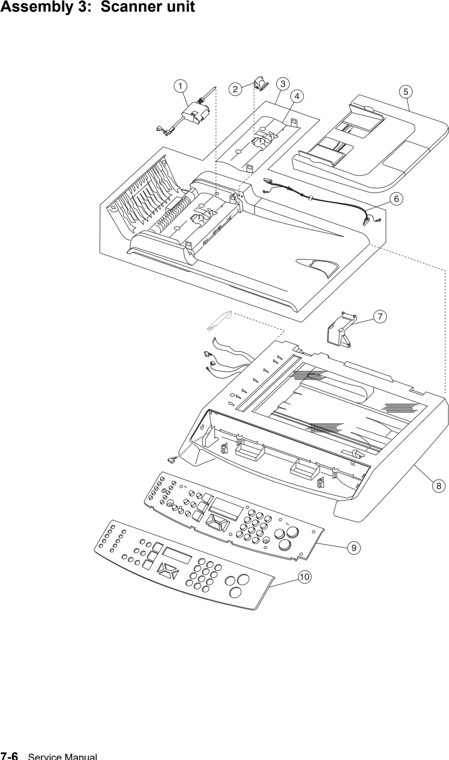

Assembly 3: Scanner Unit 1 40X4702 Assembly, pick roll Lexmark 40X4702 Assembly, pick roll New 40X4702 (New) Contact for Details 2 40X4703 Pad, ADF separator Lexmark 40X4703 ADF separator pad New 40X4703 (New) $25.00 3 40X4701 Assembly, ADF Lexmark 40X4701 ADF assembly New 40X4701 (New) Contact for Details 4 40X4709 Cover, ADF mechanism Lexmark 40X4709 ADF mechanism Cover New 40X4709 (New) Contact for Details 5 40X4708 Tray, ADF input Lexmark 40X4708 ADF input tray New 40X4708 (New) Contact for Details 6 40X4714 Cable, ADF Lexmark 40X4714 ADF cable New 40X4714 (New) Contact for Details 7 40X4713 Guide, Cable 8 40X4700 Assembly, flatbed Lexmark 40X4700 Flatbed scan unit assembly New 40X4700 (New) Contact for Details 9 40X4693 Panel, operator (X 500) 9 40X4695 Panel, operator (X 502) Lexmark 40X4695 Operator Panel, X502n New 40X4695 (New) $174.59 10 40X4721 X 500 Bezel, operator panel 10 40X4722 X 502 Bezel, operator panel Parts catalog 7-7 Lexmark 40X4722 Operator panel Bezel, X502n New 40X4722 (New) Contact for Details

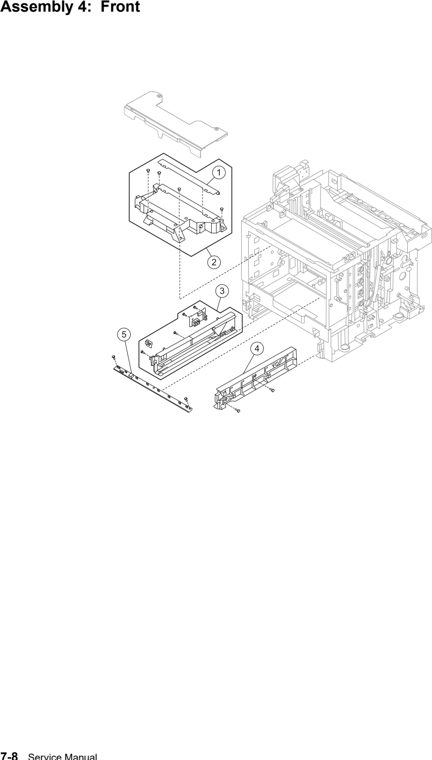

Assembly 4: Front 1 40X3441 Cover, laser unit assembly lens Lexmark 40X3441 Laser unit assembly lens Cover Fully refurbished with 90-day warranty 40X3441 Contact for Details Lexmark 40X3441 Laser unit assembly lens Cover New 40X3441 (New) Contact for Details 2 40X3400 Laser unit assembly (printhead) Lexmark 40X3400 Laser unit assembly (printhead) Fully refurbished with 90-day warranty 40X3400 $97.21 Lexmark 40X3400 Laser unit assembly (printhead) New 40X3400 (New) Contact for Details 3 40X3431 Left tray guide assembly with cable (includes paper size Lexmark 40X3431 Left tray guide assembly with cable New 40X3431 (New) Contact for Details Lexmark 40X3431 Left tray guide assembly with cable Fully refurbished with 90-day warranty 40X3431 Contact for Details 4 40X3401 Right tray guide 5 40X3416 Lamp, erase Parts catalog 7-9 Lexmark 40X3416 Erase lamp Fully refurbished with 90-day warranty 40X3416 Contact for Details Lexmark 40X3416 Erase lamp New 40X3416 (New) Contact for Details

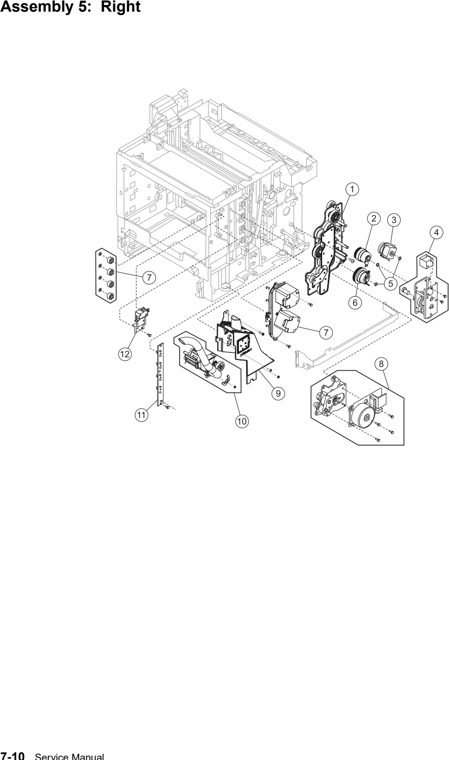

Assembly 5: Right 1 40X3395 Gear assembly, main drive Lexmark 40X3395 Main drive Gear assembly Fully refurbished with 90-day warranty 40X3395 Contact for Details Lexmark 40X3395 Main drive Gear assembly New 40X3395 (New) Contact for Details 2 40X3391 Clutch, registration Lexmark 40X3391 Registration Clutch New 40X3391 (New) Contact for Details Lexmark 40X3391 Registration Clutch Fully refurbished with 90-day warranty 40X3391 Contact for Details 3 40X3393 Clutch, transfer roller Lexmark 40X3393 Transfer roller Clutch Fully refurbished with 90-day warranty 40X3393 Contact for Details Lexmark 40X3393 Transfer roller Clutch New 40X3393 (New) Contact for Details 4 40X3394 Clutch, cleaning roller Lexmark 40X3394 Cleaning roller Clutch Fully refurbished with 90-day warranty 40X3394 Contact for Details Lexmark 40X3394 Cleaning roller Clutch New 40X3394 (New) Contact for Details 5 40X4718 Packet, parts 6 40X3390 Clutch, paper feed Lexmark 40X3390 Paper feed Clutch Fully refurbished with 90-day warranty 40X3390 Contact for Details Lexmark 40X3390 Paper feed Clutch New 40X3390 (New) Contact for Details 7 40X3397 Drive assembly, developer Lexmark 40X3397 Developer Drive assembly Fully refurbished with 90-day warranty 40X3397 Contact for Details Lexmark 40X3397 Developer Drive assembly New 40X3397 (New) Contact for Details 8 40X3389 Motor assembly, main Lexmark 40X3389 Main Motor Assembly Fully refurbished with 90-day warranty 40X3389 Contact for Details Lexmark 40X3389 Main Motor Assembly New 40X3389 (New) Contact for Details 9 40X3398 Assembly, waste toner holder Lexmark 40X3398 Waste toner holder Assembly New 40X3398 (New) Contact for Details Lexmark 40X3398 Waste toner holder Assembly Fully refurbished with 90-day warranty 40X3398 Contact for Details 10 40X3396 Waste toner feeder Lexmark 40X3396 Waste toner feeder New 40X3396 (New) Contact for Details Lexmark 40X3396 Waste toner feeder Fully refurbished with 90-day warranty 40X3396 Contact for Details 11 40X3399 Sensor, toner, sender TPD (This is a two-piece sensor system. Ordering of this part number includes both the right and left side.) Lexmark 40X3399 Toner Receiver TTR and sender TPD Sensor Fully refurbished with 90-day warranty 40X3399 Contact for Details Lexmark 40X3399 Toner Receiver TTR and sender TPD Sensor New 40X3399 (New) Contact for Details 12 40X3432 Assembly, interlock switch Parts catalog 7-11 Lexmark 40X3432 Switch Fully refurbished with 90-day warranty 40X3432 Contact for Details

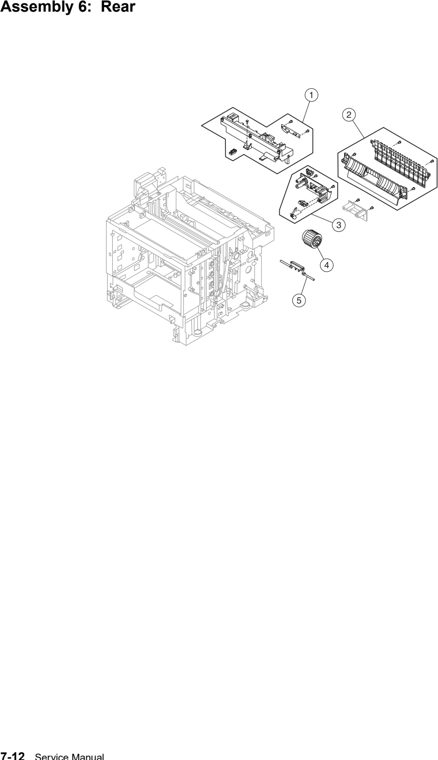

Assembly 6: Rear 1 40X3429 Assembly, bracket (includes marker sensor (transfer belt unit), toner density sensor) Lexmark 40X3429 Bracket assembly Fully refurbished with 90-day warranty 40X3429 Contact for Details Lexmark 40X3429 Bracket assembly New 40X3429 (New) Contact for Details 2 40X3433 Paper guide assembly Lexmark 40X3433 Paper guide assembly New 40X3433 (New) Contact for Details Lexmark 40X3433 Paper guide assembly Fully refurbished with 90-day warranty 40X3433 Contact for Details 3 40X3413 Paper guide (C) assembly with cable (includes registration sensor, tray empty sensor) Lexmark 40X3413 Paper guide (C) assembly with cable New 40X3413 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X3413 Paper guide (C) assembly with cable Fully refurbished with 90-day warranty 40X3413 Retired, no longer available: Contact for alternatives Contact for Details 4 40X3414 Roller, paper feed Lexmark 40X3414 Paper feed Roller Fully refurbished with 90-day warranty 40X3414 $24.63 Lexmark 40X3414 Paper feed Roller New 40X3414 (New) Contact for Details 5 40X3415 Pad, separator Parts catalog 7-13 Lexmark 40X3415 Separator Pad New 40X3415 (New) Contact for Details Lexmark 40X3415 Separator Pad Fully refurbished with 90-day warranty 40X3415 Contact for Details

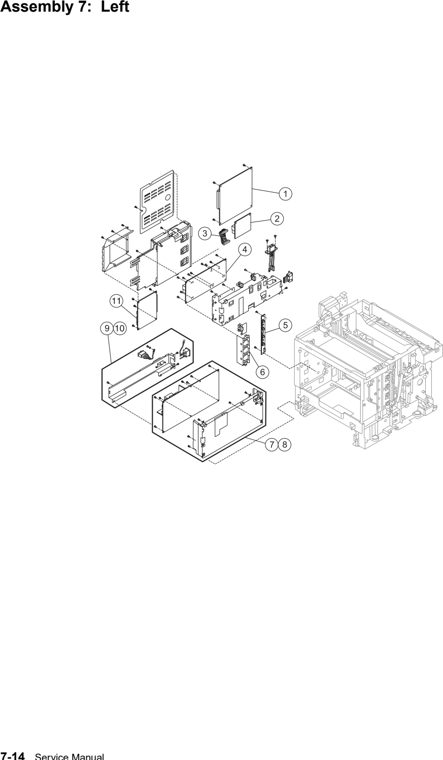

Assembly 7: Left 1 40X4696 Board, Network RIP (US) Lexmark 40X4696 Network RIP Board New 40X4696 (New) Contact for Details 2 40X4711 Card, modem US Lexmark 40X4711 Modem Card US New 40X4711 (New) $39.75 3 40X4715 Cable, modem Lexmark 40X4715 Modem Cable New 40X4715 (New) Contact for Details 4 40X3405 Power supply, high voltage Lexmark 40X3405 High voltage power Supply HVPS New 40X3405 (New) Contact for Details Lexmark 40X3405 High Voltage Power Supply HVPS Fully refurbished with 90-day warranty 40X3405 Contact for Details 5 40X3399 Sensor, toner, receiver TTR (This is a two-piece sensor Lexmark 40X3399 Toner Receiver TTR and sender TPD Sensor Fully refurbished with 90-day warranty 40X3399 Contact for Details Lexmark 40X3399 Toner Receiver TTR and sender TPD Sensor New 40X3399 (New) Contact for Details 6 40X3410 Sensor, toner present Lexmark 40X3410 Toner present Sensor New 40X3410 (New) Contact for Details Lexmark 40X3410 Toner present Sensor Fully refurbished with 90-day warranty 40X3410 Contact for Details 7 40X4704 Power supply, 110 V low voltage Lexmark 40X4704 Power supply, 110 V low voltage Fully refurbished with 90-day warranty 40X4704 $61.46 8 40X4705 Power supply, 220 V low voltage 9 40X4719 Bracket, 110 V power supply Lexmark 40X4719 Power supply Bracket, 110 V New 40X4719 (New) Contact for Details 10 40X4720 Bracket, 220 V power supply 11 40X4689 Board, engine controller Parts catalog 7-15 Lexmark 40X4689 Board, engine controller New 40X4689 (New) $364.81

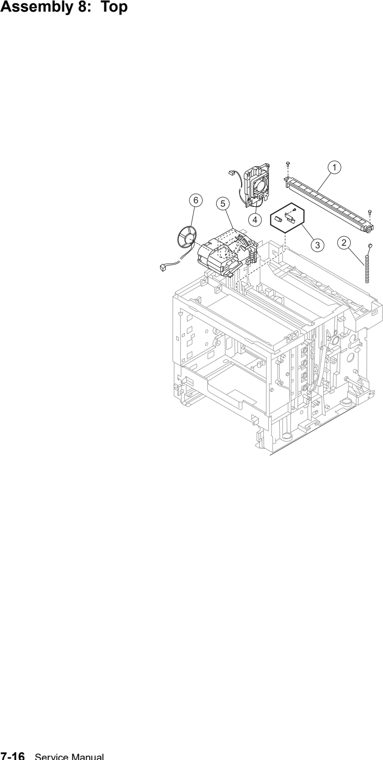

Assembly 8: Top 1 40X3402 Auger, waste toner Lexmark 40X3402 Waste toner Auger Fully refurbished with 90-day warranty 40X3402 Contact for Details Lexmark 40X3402 Waste toner Auger New 40X3402 (New) Contact for Details 2 40X3403 Agitator, waste toner Lexmark 40X3403 Waste toner Agitator Fully refurbished with 90-day warranty 40X3403 Contact for Details Lexmark 40X3403 Waste toner Agitator New 40X3403 (New) Contact for Details 3 40X3434 Assembly, marker sensor (OPC) (includes bracket) Lexmark 40X3434 Marker sensor (OPC) assembly Fully refurbished with 90-day warranty 40X3434 Contact for Details Lexmark 40X3434 Marker sensor (OPC) assembly New 40X3434 (New) Contact for Details 4 40X4691 Assembly, fuser fan Lexmark 40X4691 Assembly, fuser fan New 40X4691 (New) Contact for Details 5 40X4690 Fan, power supply (includes top cover interlock switch and rear cover assembly interlock switch) Lexmark 40X4690 Fan, power supply Fully refurbished with 90-day warranty 40X4690 $24.71 6 40X4710 Speaker, modem Parts catalog 7-17

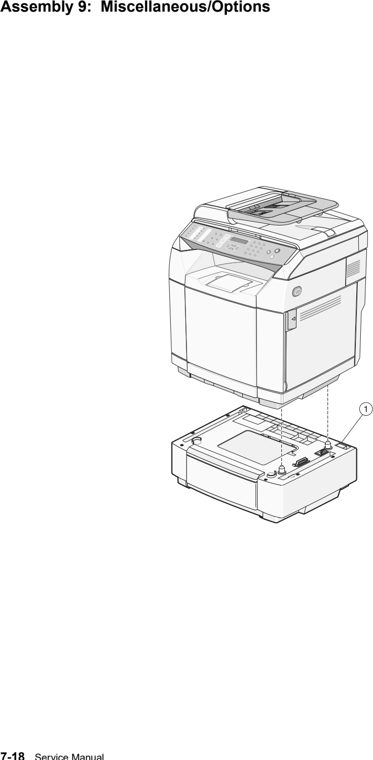

Assembly 9: Miscellaneous/Options 1 40X3421 Assembly, secondary paper feed Lexmark 40X3421 530-Sheet Drawer complete assembly C500n X500 X502 New 40X3421 (New) Contact for Details Lexmark 40X3421 530-Sheet Drawer complete assembly C500n X500 X502 Fully refurbished with 90-day warranty 40X3421 $290.00 NS 40X4717 Parts packet, harness NS 40X3442 Cable, 120V fuser NS 40X3443 Cable, 240V fuser NS 40X4718 Parts packet, screw NS 7372640 Field relocation kit NS 14D0403 Cable, USB, 2-meter Parts catalog 7-19
Other listed parts 40X4382 Print cartridge HV contact Lexmark 40X4382 Print cartridge HV contact New 40X4382 8NJTP (New) Contact for Details 40X4383 Cleaning blade contact Lexmark 40X4383 Cleaning blade contact New 40X4383 (New) $13.12
