Lexmark X560 Parts







Please call for parts assistance

Assembly 1: Covers
1 40X4894 Rear cover
Lexmark 40X4894 Rear cover
Fully refurbished with 90-day warranty
40X4894


Lexmark 40X4894 Rear Cover
New
40X4894 (New)
$96.84

Retired, no longer available: Contact for alternatives



2 40X4895 Tray cover
Lexmark 40X4895 Tray Cover
New
40X4895 (New)
$36.71


Lexmark 40X4895 Tray cover
Fully refurbished with 90-day warranty
40X4895
$29.91



3 40X4896 Right pole cover
Lexmark 40X4896 Right Pole Cover
New
40X4896 (New)
$58.03


Lexmark 40X4896 Right pole cover
Fully refurbished with 90-day warranty
40X4896
$47.32



4 40X4897 Right cover
Lexmark 40X4897 Right cover
Fully refurbished with 90-day warranty
40X4897
$82.46


Lexmark 40X4897 Right Cover
New
40X4897 (New)
$99.02



5 40X4898 Left cover
Lexmark 40X4898 Left cover
Fully refurbished with 90-day warranty
40X4898
$78.13


Lexmark 40X4898 Left Cover
New
40X4898 (New)
$95.77



6 40X4899 Left pole cover
Lexmark 40X4899 Left Pole Cover
New
40X4899 (New)
$58.03


Lexmark 40X4899 Left pole cover
Fully refurbished with 90-day warranty
40X4899
$47.32



7 40X4889 Top cover
Lexmark 40X4889 Top cover
Fully refurbished with 90-day warranty
40X4889
$114.31


Lexmark 40X4889 Top cover
New
40X4889 (New)
$137.23



8 40X4891 Inner left pole cover
Lexmark 40X4891 Inner Left Pole Cover
New
40X4891 (New)
$17.62


Lexmark 40X4891 Inner left pole cover
Fully refurbished with 90-day warranty
40X4891
$15.82



9 40X4893 Bottom cover
Lexmark 40X4893 Bottom cover
Fully refurbished with 90-day warranty
40X4893
$45.94


Lexmark 40X4893 Bottom Cover
New
40X4893 (New)
$56.32



10 40X4890 Extension cover
11 40X4892 Inner right pole cover
Lexmark 40X4892 Inner Right Pole Cover
New
40X4892 (New)
$19.43


Lexmark 40X4892 Inner right pole cover
Fully refurbished with 90-day warranty
40X4892
$17.46



NS 40X4881 Feet (four in package) Parts catalog 7-3

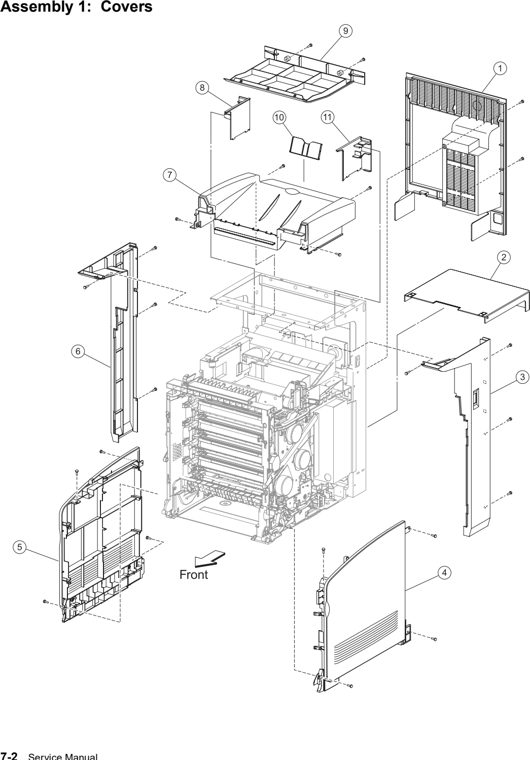

Assembly 1: Covers parts diagram - Lexmark X560 Parts
Assembly 2: Front cover and operator panel
1 40X4900 Operator panel
Lexmark 40X4900 Operator panel
Fully refurbished with 90-day warranty
40X4900
$150.00


Lexmark 40X4900 Operator Panel
New
40X4900 (New)
$195.08



2 40X4902 Front cover assembly
Lexmark 40X4902 Front cover assembly
Fully refurbished with 90-day warranty
40X4902
$156.90


Lexmark 40X4902 Front Cover Assembly
New
40X4902 (New)
$204.06



3 40X4903 MP feeder cover assembly
Lexmark 40X4903 Multipurpose feeder cover assembly
Fully refurbished with 90-day warranty
40X4903



NS 40X4884 Shaft pivot (one per package)
Lexmark 40X4884 Shaft pivot
Fully refurbished with 90-day warranty
40X4884
$23.45


Lexmark 40X4884 Shaft Pivot
New
40X4884 (New)
$28.79

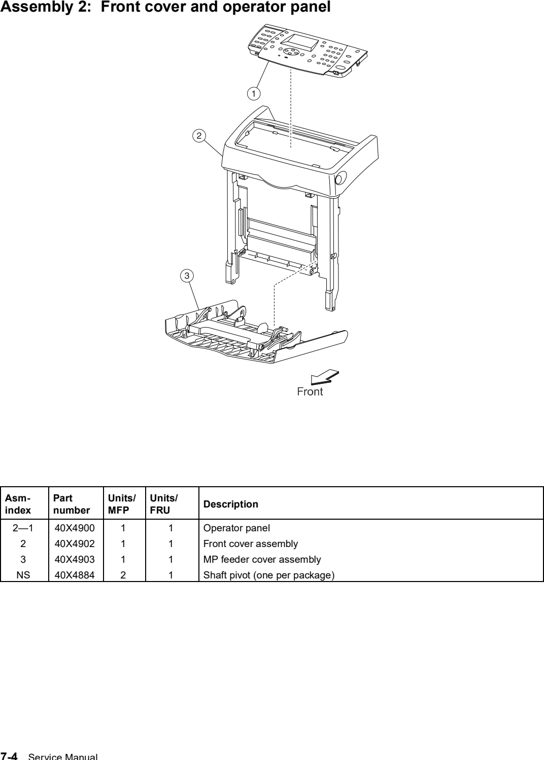

Assembly 2: Front cover and operator panel parts diagram - Lexmark X560 Parts
Assembly 3: Scanner
1 40X4924 ADF maintenance kit
Lexmark 40X4924 ADF maintenance kit
Fully refurbished with 90-day warranty
40X4924


Lexmark 40X4924 ADF Maintenance Kit
New
40X4924 (New)
$129.00



2 40X4919 ADF tray assembly
Lexmark 40X4919 ADF tray assembly
Fully refurbished with 90-day warranty
40X4919
$77.98


Lexmark 40X4919 ADF Tray Assembly
New
40X4919 (New)
$95.57



3 40X4920 Scanner assembly Parts catalog 7-5
Lexmark 40X4920 Scanner assembly
Fully refurbished with 90-day warranty
40X4920


Lexmark 40X4920 Scanner Assembly
New
40X4920 (New)

Retired, no longer available: Contact for alternatives

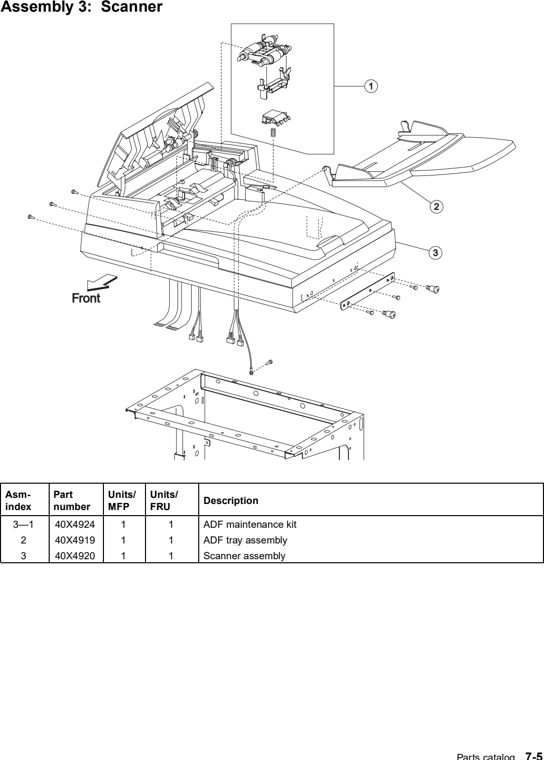

Assembly 3: Scanner parts diagram - Lexmark X560 Parts
Assembly 4: Imaging
1 40X4904 Printhead assembly
Lexmark 40X4904 Printhead assembly
New
40X4904 (New)
$1014.00


Lexmark 40X4904 Printhead assembly
Fully refurbished with 90-day warranty
40X4904



2 40X4869 Toner sensor assembly
Lexmark 40X4869 Toner sensor assembly
Fully refurbished with 90-day warranty
40X4869
$22.37


Lexmark 40X4869 Toner sensor assembly
New
40X4869 (New)
$27.46



3 40X4870 Toner motor
Lexmark 40X4870 Toner motor
Fully refurbished with 90-day warranty
40X4870
$68.30


Lexmark 40X4870 Toner motor
New
40X4870 (New)
$83.73



4 40X4871 Erase lamp assembly
Lexmark 40X4871 Erase lamp assembly
New
40X4871 (New)
$75.42


Lexmark 40X4871 Erase lamp assembly
Fully refurbished with 90-day warranty
40X4871
$61.51



5 40X4872 High-voltage power supply (HVPS)
Lexmark 40X4872 High-voltage power supply (HVPS)
Fully refurbished with 90-day warranty
40X4872
$227.29



NS 40X4786 Plate A latch
NS 40X4785 Plate AD latch Parts catalog 7-7

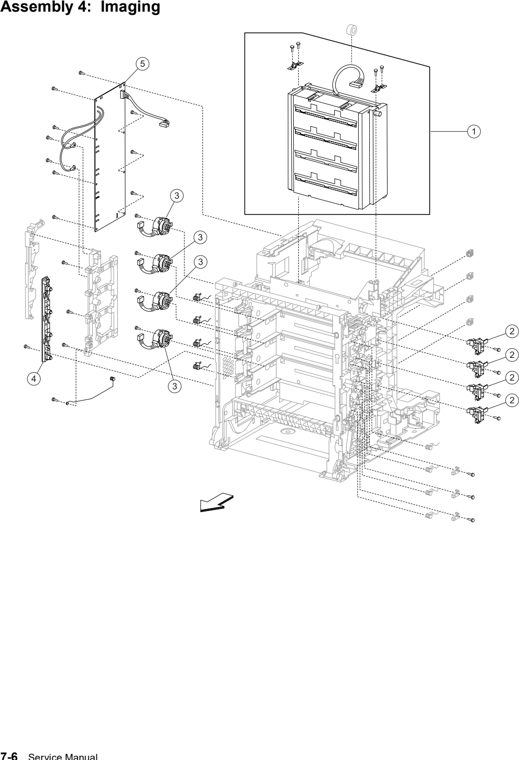

Assembly 4: Imaging parts diagram - Lexmark X560 Parts
Assembly 5: Paper transport
1 40X4877 Spur assembly
Lexmark 40X4877 Spur assembly
New
40X4877 (New)
$40.89


Lexmark 40X4877 Spur assembly
Fully refurbished with 90-day warranty
40X4877
$33.34



2 40X4882 Main drive assembly
Lexmark 40X4882 Main drive assembly
Fully refurbished with 90-day warranty
40X4882
$181.25


Lexmark 40X4882 Main Drive Assembly
New
40X4882 (New)
$235.72



3 40X4883 Feed drive assembly (PH drive)
Lexmark 40X4883 Feed drive assembly (PH drive)
Fully refurbished with 90-day warranty
40X4883
$123.59




4 40X4880 Right door link assembly
Lexmark 40X4880 Right door link assembly
Fully refurbished with 90-day warranty
40X4880
$19.99



5 40X4864 Feed solenoid
Lexmark 40X4864 Feed solenoid
New
40X4864 (New)
$28.43


Lexmark 40X4864 Feed solenoid
Fully refurbished with 90-day warranty
40X4864
$23.15



6 40X4878 Size switch assembly
7 40X4865 MP feeder feed kit
Lexmark 40X4865 Multipurpose feeder feed kit
New
40X4865 Compatible (New)
$21.50



8 40X4863 Feed clutch
9 40X4923 Registration clutch
10 40X5080 Turn clutch
11 40X4867 Paper feed assembly w/o clutches
Lexmark 40X4867 Paper feed assembly w/o clutches
Fully refurbished with 90-day warranty
40X4867
$158.56



12 40X4921 Paper feed assembly with clutches
Lexmark 40X4921 Paper feed assembly with clutches
Fully refurbished with 90-day warranty
40X4921
$148.17



13 40X4879 Left door link assembly
Lexmark 40X4879 Left door link assembly
Fully refurbished with 90-day warranty
40X4879
$20.62


Lexmark 40X4879 Left Door Link Assembly
New
40X4879 (New)
$25.32



NS 40X5082 Transparency sensor
Lexmark 40X5082 Transparency sensor
New
40X5082 (New)
$24.47


Lexmark 40X5082 Transparency sensor
Fully refurbished with 90-day warranty
40X5082
$19.94



NS 40X5081 Transparency LED Parts catalog 7-9
Lexmark 40X5081 Transparency LED
New
40X5081 (New)
$24.44


Lexmark 40X5081 Transparency LED
Fully refurbished with 90-day warranty
40X5081
$19.89

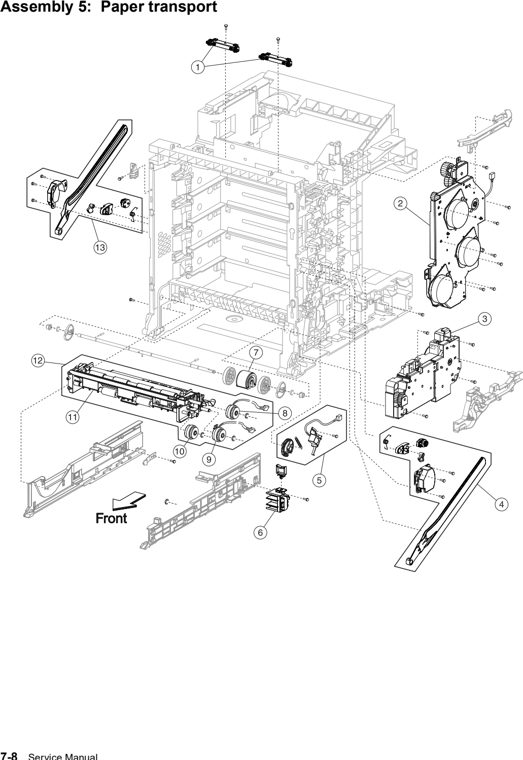

Assembly 5: Paper transport parts diagram - Lexmark X560 Parts
Assembly 6: 250-sheet tray
1 40X4862 MP feeder separator roll kit


2 40X4866 Feed roll kit (250- and 550-sheet tray)
Lexmark 40X4866 Feed roll kit (250- and 550-sheet tray)
Fully refurbished with 90-day warranty
40X4866 Compatible (New)
$21.50




3 40X4859 250-sheet tray assembly Parts catalog 7-11

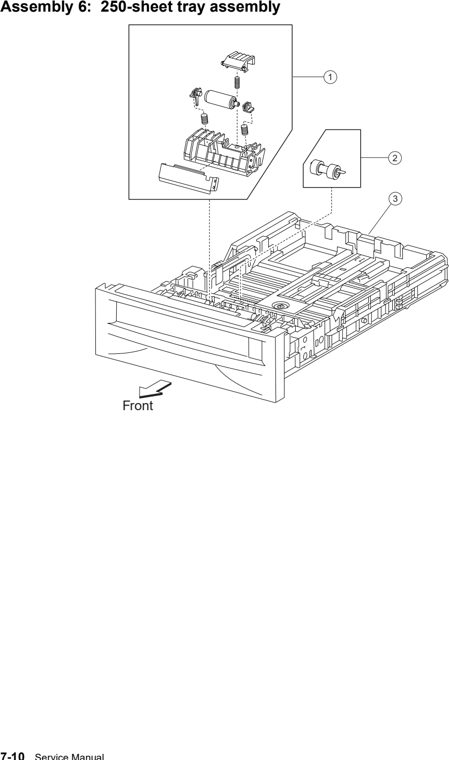

Assembly 6: 250-sheet tray parts diagram - Lexmark X560 Parts
Assembly 7: Electrical 1
1 40X4905 Engine board
Lexmark 40X4905 Engine board
New
40X4905 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED

Retired, no longer available: Contact for alternatives


Lexmark 40X4905 Engine board
Fully refurbished with 90-day warranty
40X4905 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED

Retired, no longer available: Contact for alternatives



2 40X4906 Fax card
Lexmark 40X4906 Fax card
New
40X4906 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$189.45


Lexmark 40X4906 Fax card
Fully refurbished with 90-day warranty
40X4906 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$145.65



3 40X4907 RIP board
Lexmark 40X4907 RIP board
Fully refurbished with 90-day warranty
40X4907




4 40X5301 256MB DIMM

4 40X5302 512MB DIMM

4 40X5303 1G DIMM
Lexmark 40X5303 1024MB DDR2-DRAM
New
40X5303 (New)
$168.00



5 40X5091 Multi-Protocol Network Card Parts catalog 7-13

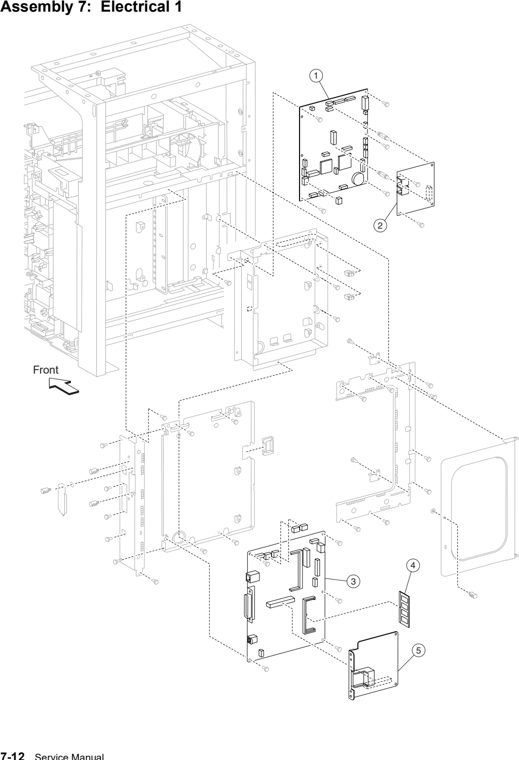

Assembly 7: Electrical 1 parts diagram - Lexmark X560 Parts
Assembly 8: Electrical 2
1 40X4910 Speaker assembly
Lexmark 40X4910 Speaker assembly
Fully refurbished with 90-day warranty
40X4910
$26.40


Lexmark 40X4910 Speaker assembly
New
40X4910 (New)
$32.41



2 40X4911 Fan assembly
Lexmark 40X4911 Fan assembly
New
40X4911 (New)
$26.55


Lexmark 40X4911 Fan assembly
Fully refurbished with 90-day warranty
40X4911
$21.62



3 40X4913 Controller board
Lexmark 40X4913 Controller board
Fully refurbished with 90-day warranty
40X4913 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$284.30


Lexmark 40X4913 Controller board
New
40X4913 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$369.68



4 40X4912 Humidity sensor
Lexmark 40X4912 Humidity sensor
Fully refurbished with 90-day warranty
40X4912
$30.96


Lexmark 40X4912 Humidity sensor
New
40X4912 (New)
$38.00



5 40X4914 115 V Low-voltage power supply (LVPS)
Lexmark 40X4914 115 V Low-voltage power supply (LVPS)
Fully refurbished with 90-day warranty
40X4914
$154.37




5 40X4915 230 V Low-voltage power supply (LVPS)
6 40X0269 Power cord, straight (8 ft)—U.S.

6 40X0288 Power cord, HV, straight (8 ft)—Argentina
Lexmark 40x0288 Power cord; 2.5m, 8ft. Straight, Argentina
New
40x0288 (New)

Retired, no longer available: Contact for alternatives



6 40X0301 Power cord, straight (8 ft)—Australia, New Zealand

6 40X1767 Power cord, HV, straight (8 ft)—Brazil
6 40X0273 Power cord, HV, straight (8 ft)—Chili Power cord, HV, straight (8 ft)—Italy
Lexmark 40x0273 Power cord; 2.5m, 8ft. Straight, Italy, Chile, Uruguay
New
40x0273 (New)
$44.20

Retired, no longer available: Contact for alternatives



6 40X1774 Power cord, HV, straight (8 ft)—Denmark

6 40X0275 Power cord, HV, straight (8 ft)—Israel
Lexmark 40x0275 Power cord; 1.8m, 6ft. Straight, Israel
New
40x0275 (New)

Retired, no longer available: Contact for alternatives



6 40X1773 Power cord, HV, straight (8 ft)—South Africa

6 40X0271 Power cord, HV, straight (8 ft)—U.K., Ireland
Lexmark 40x0271 Power Cord; 2.5m, 8ft. Straight, UK, Ireland, HK, IT
New
40x0271 (New)

Retired, no longer available: Contact for alternatives



6 40X1772 Power cord, straight (8 ft)—Switzerland

6 40X1766 Power cord, straight (8 ft)—Bolivia, Peru

6 40X0303 Power cord, straight (8 ft)—PRC

6 40X1792 Power cord, straight (8 ft)—Korea

6 40X1791 Power cord, straight (8 ft)—Taiwan

7 40X4886 EEPROM XPRO
Lexmark 40X4886 EEPROM XPRO
New
40X4886 (New)
$24.44


Lexmark 40X4886 EEPROM XPRO
Fully refurbished with 90-day warranty
40X4886
$19.89



8 40X4908 Interlock harness
Lexmark 40X4908 Interlock harness
Fully refurbished with 90-day warranty
40X4908
$24.55


Lexmark 40X4908 Interlock harness
New
40X4908 (New)
$30.14



9 40X4909 Power switch Parts catalog 7-15

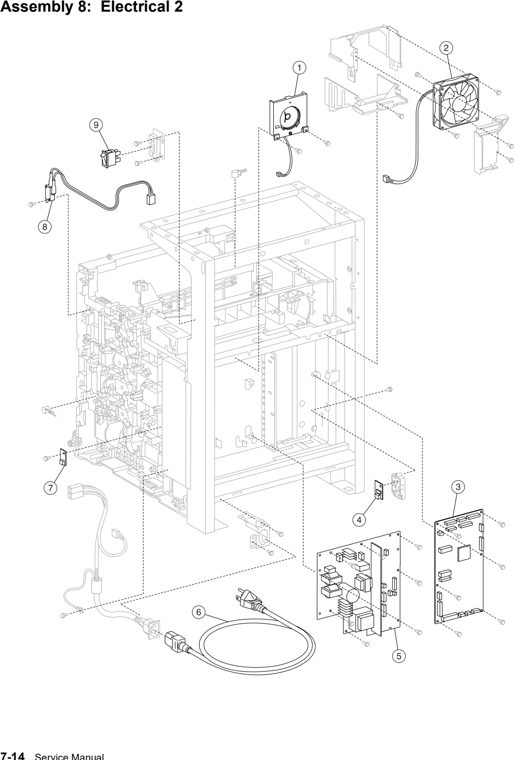

Assembly 8: Electrical 2 parts diagram - Lexmark X560 Parts

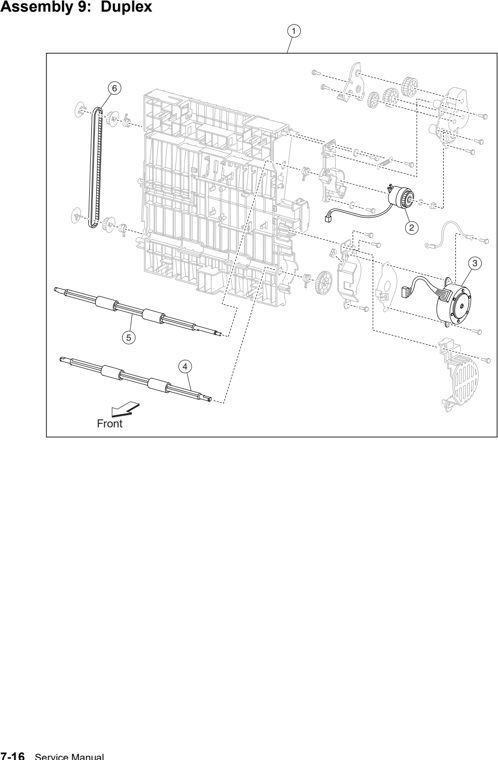

Assembly 9: Duplex unit
1 40X4885 Duplex unit, complete
Lexmark 40X4885 Duplex Unit Complete Assembly
New
40X4885 (New)

Retired, no longer available: Contact for alternatives


Lexmark 40X4885 Duplex unit complete assembly
Fully refurbished with 90-day warranty
40X4885



2 40X5074 Duplex clutch
3 40X5077 Duplex motor
Lexmark 40X5077 Duplex motor
New
40X5077 (New)
$40.78



4 40X5076 Duplex roll 2
Lexmark 40X5076 Duplex roll 2
New
40X5076 (New)
$18.63



5 40X5075 Duplex roll 1
6 40X5073 Duplex belt Parts catalog 7-17
Assembly 9: Duplex unit parts diagram - Lexmark X560 Parts
Assembly 10: 550-sheet feeder 1
1 40X4916 550-sheet feeder, complete
Lexmark 40X4916 550-sheet feeder complete assembly
Fully refurbished with 90-day warranty
40X4916
$819.05



2 40X4888 550-sheet feeder tray
Lexmark 40X4888 550-sheet feeder tray complete assembly
Fully refurbished with 90-day warranty
40X4888
$182.39



3 40X5084 Caster, non-locking (rear)
Lexmark 40X5084 Non-locking (rear) Caster
Fully refurbished with 90-day warranty
40X5084
$15.32



4 40X5085 Caster, locking (front)
Lexmark 40X5085 Locking (front) Caster
New
40X5085 (New)
$18.63


Lexmark 40X5085 Locking (front) Caster
Fully refurbished with 90-day warranty
40X5085
$16.73



5 40X5087 Feeder foot (front right or rear left)
6 40X5086 Feeder foot (front left or rear right)
Lexmark 40X5086 Feeder foot (front left or rear right)
Fully refurbished with 90-day warranty
40X5086
$35.53

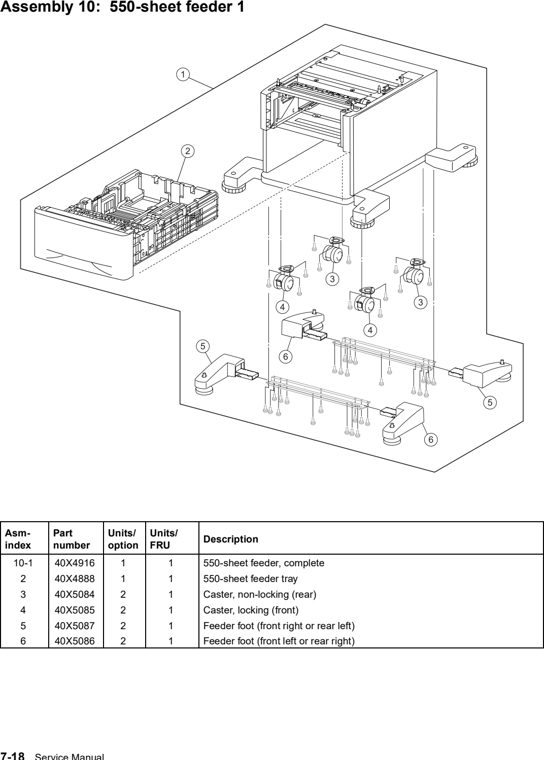

Assembly 10: 550-sheet feeder 1 parts diagram - Lexmark X560 Parts
Assembly 11: 550-sheet feeder 2
1 40X4922 Option paper feed assembly

2 40X5088 Turn clutch
3 40X5089 Feed clutch
4 40X4878 Size switch assembly
5 40X5078 Option feeder controller board

6 40X5079 Option feeder drive assembly Parts catalog 7-19
Lexmark 40X5079 Option feeder drive assembly
Fully refurbished with 90-day warranty
40X5079
$119.48

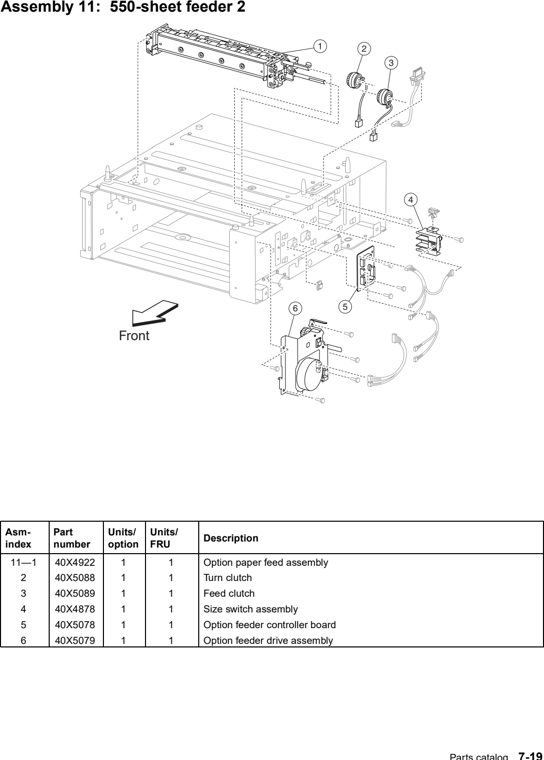

Assembly 11: 550-sheet feeder 2 parts diagram - Lexmark X560 Parts
Assembly 12: Options and supplies
1 40X4860 115 V fuser

1 40X4861 230 V fuser
2 40X4866 Feed roll kit (250- and 550-sheet tray)
Lexmark 40X4866 Feed roll kit (250- and 550-sheet tray)
Fully refurbished with 90-day warranty
40X4866 Compatible (New)
$21.50




3 40X4865 MP feeder feed kit
Lexmark 40X4865 Multipurpose feeder feed kit
New
40X4865 Compatible (New)
$21.50



4 40X4885 Duplex unit
Lexmark 40X4885 Duplex Unit Complete Assembly
New
40X4885 (New)

Retired, no longer available: Contact for alternatives


Lexmark 40X4885 Duplex unit complete assembly
Fully refurbished with 90-day warranty
40X4885



5 40X4868 Transfer belt
Lexmark 40X4868 Transfer Belt
New
40X4868 (New)

Retired, no longer available: Contact for alternatives


Lexmark 40X4868 Transfer belt
Fully refurbished with 90-day warranty
40X4868



6 40X4874 Duplex gate
Lexmark 40X4874 Duplex gate
New
40X4874 (New)
$26.38


Lexmark 40X4874 Duplex gate
Fully refurbished with 90-day warranty
40X4874
$21.47



N/S 40X5303 1GB DIMM
Lexmark 40X5303 1024MB DDR2-DRAM
New
40X5303 (New)
$168.00



NS 40X4924 ADF maintenance kit
Lexmark 40X4924 ADF maintenance kit
Fully refurbished with 90-day warranty
40X4924


Lexmark 40X4924 ADF Maintenance Kit
New
40X4924 (New)
$129.00



NS 40X4862 MP feeder separator roll kit


NS 40X4859 250-sheet tray

NS 40X4888 550-sheet feeder tray
Lexmark 40X4888 550-sheet feeder tray complete assembly
Fully refurbished with 90-day warranty
40X4888
$182.39



NS 7377732 Relocation kit
NS 40X5301 256MB DIMM

NS 40X5302 512MB DIMM

NS 40X5090 Screw kit Parts catalog 7-21

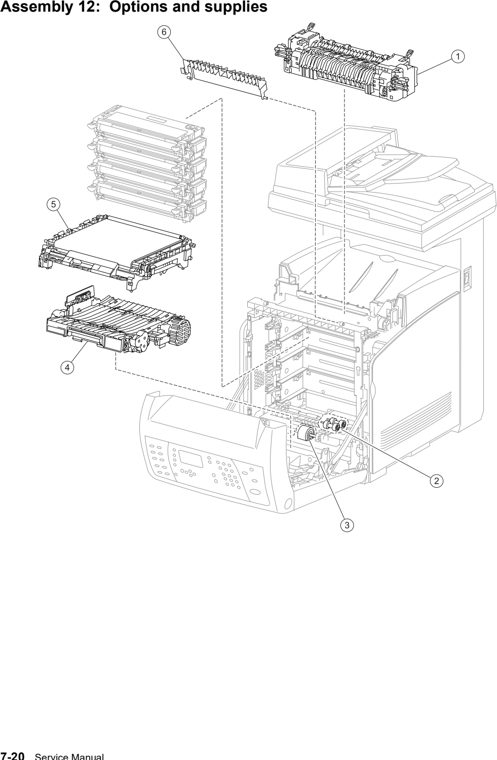

Assembly 12: Options and supplies parts diagram - Lexmark X560 Parts
