Oki MC363dn Parts






Please call for assistance

1 46554903 Scanner Unit_MC363 (ODA/AOS) ODA/AOS/OAU

2 44597102 Hinge Assy FB

3 44526701 Cover Side (L)

4 46360601 Cover Side (R) W Soft Switch

5 44371902 Cover IF W

6 Cover Front

7 Cover Hinge (R)

8 Cover Hinge (RB)

9 Plate Support Stay L

10 Cover Stay (L)

11 Plate Logo

12 Plate Name MC363

13 44454101 Case Cassette Assy. 750

14 44452304 Side R Assy

15 44452402 Side L Assy.

16 44452502 Base Assy

17 44452602 Sensor Assy. Regist

18 44452703 Front Assy. Hop/Reg

19 44359201 Frame Assy. MPT

20 44359601 Cover Assy. MPT

21 Cover Assy. Rear

22 44364104 Eject Assy. 750E

23 44453512 Cover Top Assy

24 44317201 LED Head Unit 51TRA 600dpi

25 44883701 PWR unit ACDC Switch Power Unit (Low Voltage 100V)

25 44883801 PWR unit ACDC Switch Power Unit (Low Voltage 230V)

27 46397721 MC363 (ODNA) maintenance board ODNA

28 Plate Shield (CU)

29 Plate Lockout

30 Switch Assy. InterLock

30 46565301 Switch Assy. Interlock 750E

31 Plate Front

32 44474001 OR Board ORZ Board ORZ (High Voltage)

32 44474002 OR Board ORZ Board ORZ (High Voltage)

33 44369801 Gear Liftup C

34 44352601 Motor DC (I)N ID Motor

35 44353601 Motor Fan (Blower) ID Fan

36 Plate Assy. Board A

37 44454003 FG Assy Fuser 750E

38 44352501 Motor FAN (60x25) Front Fan/Rear Fan

39 44453801 Shaft Liftup Assy

40 43073101 Motor Pulse HOP

41 Holder Assy. SoftSW

42 Cover WLAN

43 Wireless LAN Module

(DNUB O1) Only Japan

44 CONN Cord AMP16P

AMP16P PWR unit PUCU

45 CONN Cord JST3P JST3P POW Save

46 CONN Cord JST4P JST4P Soft switch CUPU

47 CONN Cord JST9P JST9P ID Motor PU

48 CONN Cord JST3P INLET for 750MLK

49 CONN Cord AMP16P AMP16P PWR unit PUCU

50 SMCD 24 62BD (1.0) ORZ PU

51 CONN Cord AMP4P AMP4P Hop motor PU

52 Printer NIP Config DICOM  C711 W LAN

MFP Unit 52 CONN Cord JST6P JST6P W LAN

MFP Unit 53 CONN Cord USB AMP5P Host USB

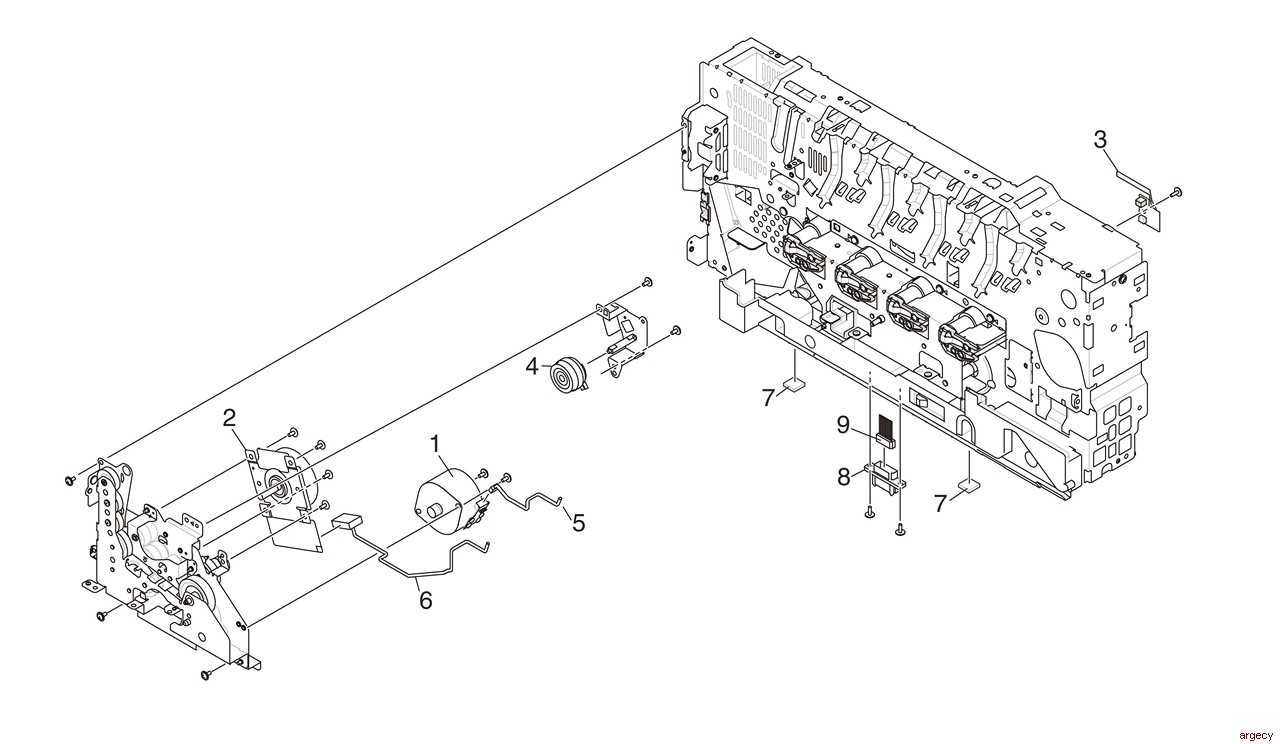

1 43073101 Motor Pulse HOP Belt Motor

2 44349601 Motor DC (F) Fuser Motor

3 44505801 OR DOD Board DOD

4 44369901 Gear Assy. CL35Z25 Up/Down CL

5 CONN Cord AMP4P AMP4P Belt Motor PU

6 CONN Cord JST8P JST8P Fuser Motor PU

7 Rubber Foot

8 56740480 (2233013P0080) 9715B 08Z02 G4C

9 44430401 CONN Cord AMP8P AMP8P

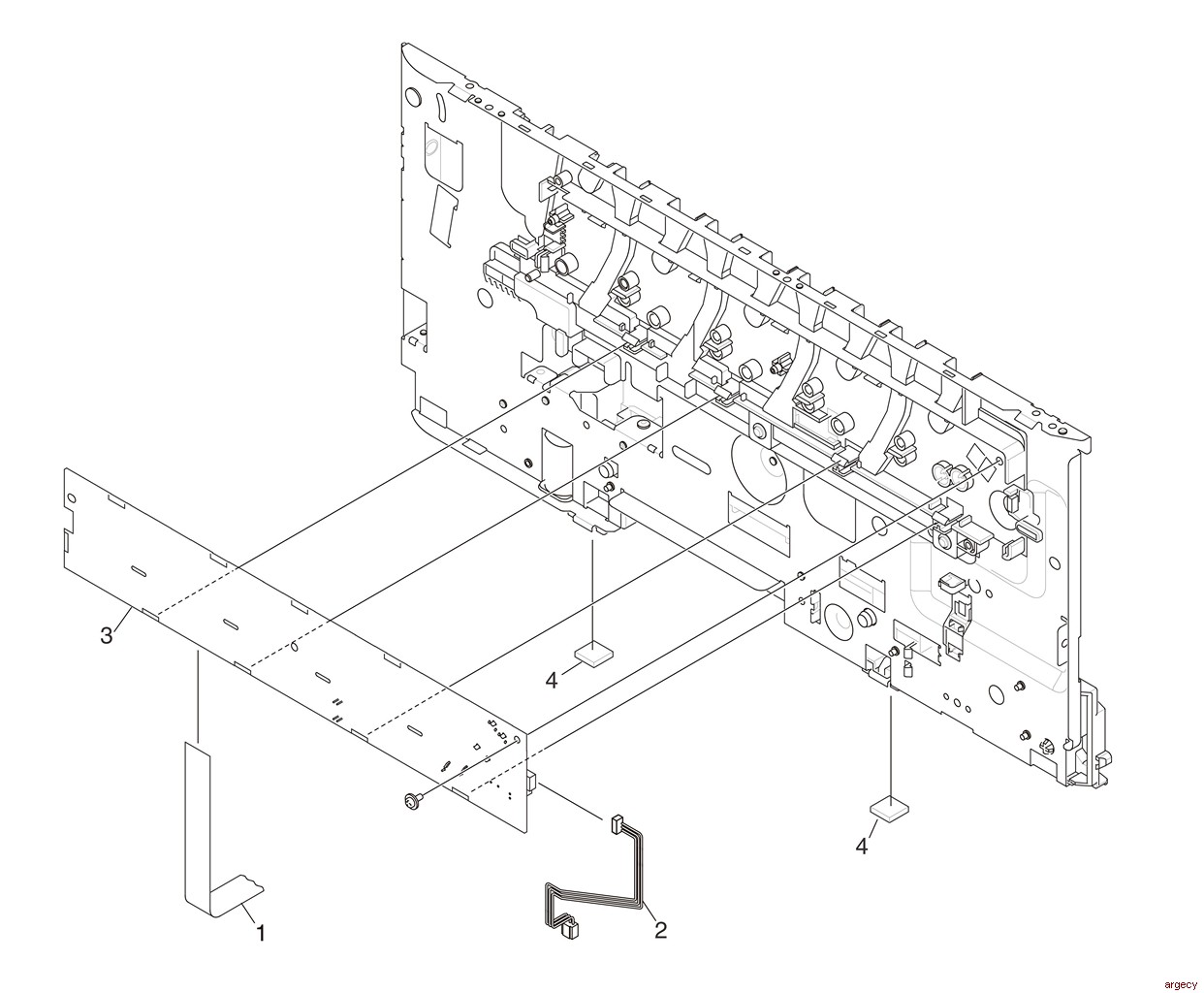

1 46303905 FFC P1.0 A L525 N18 ZHE PU

2 CONN Cord AMP3P AMP3P ZHE Cass. SNS

3 46374201 OR Board ZHE (Toner Sensor Board)

4 Rubber Foot

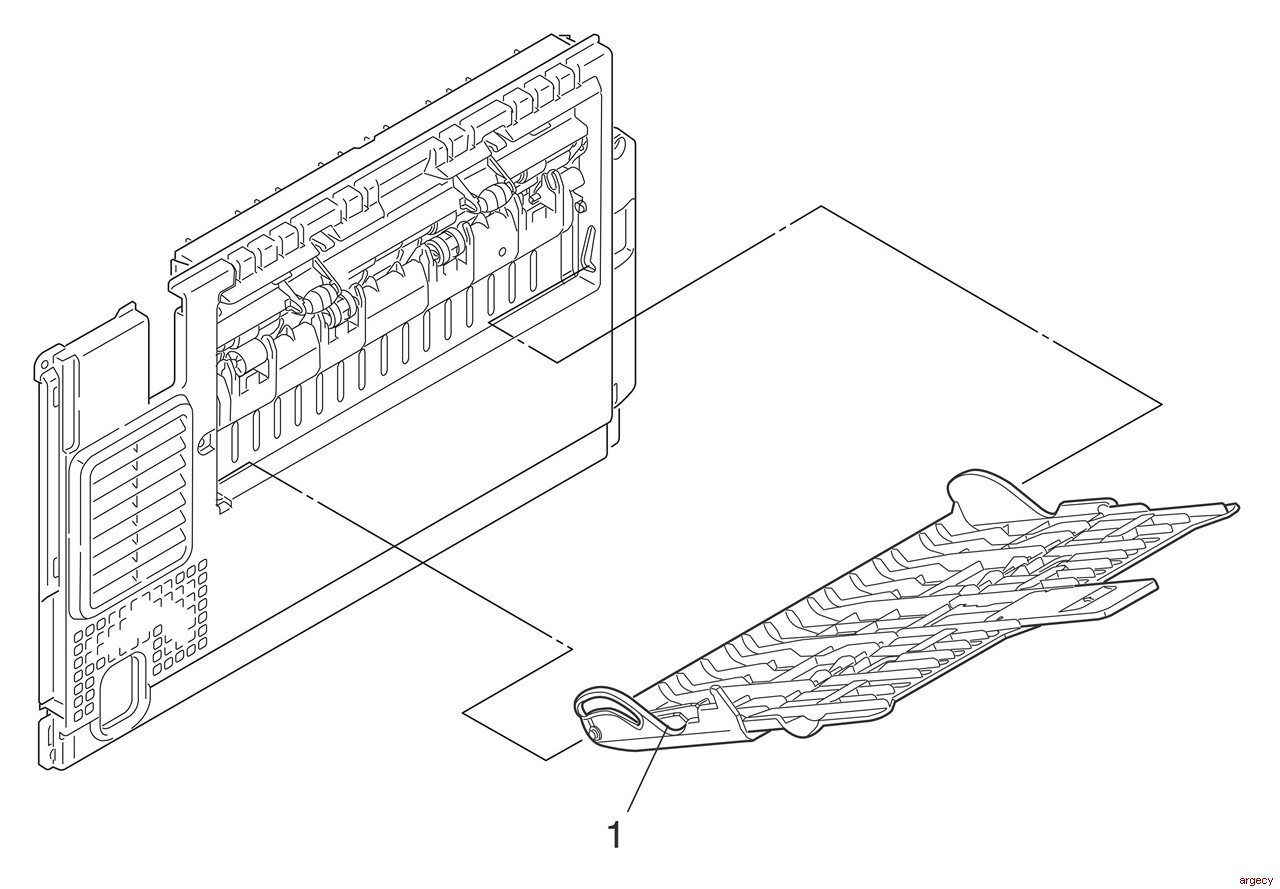

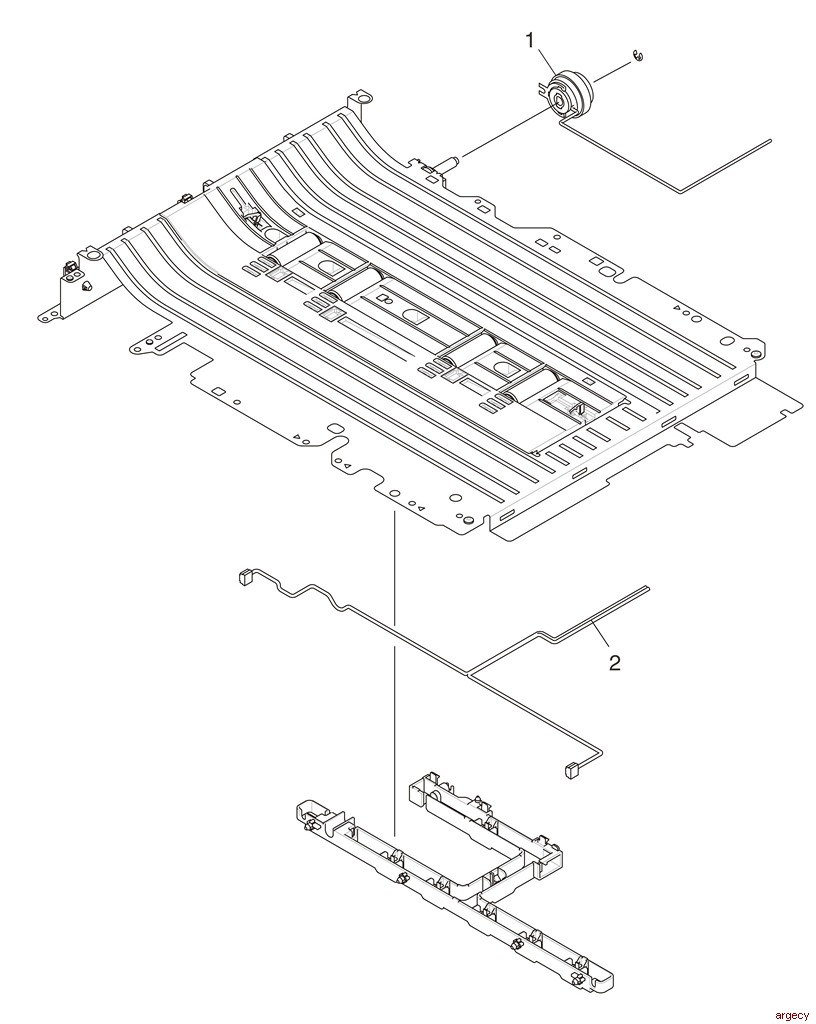

1 44354901 Gear Assy. CL25Z19 Duplex CL

2 CONN Cord AMP6P AMP3P AMP3P PU Dup. SNS

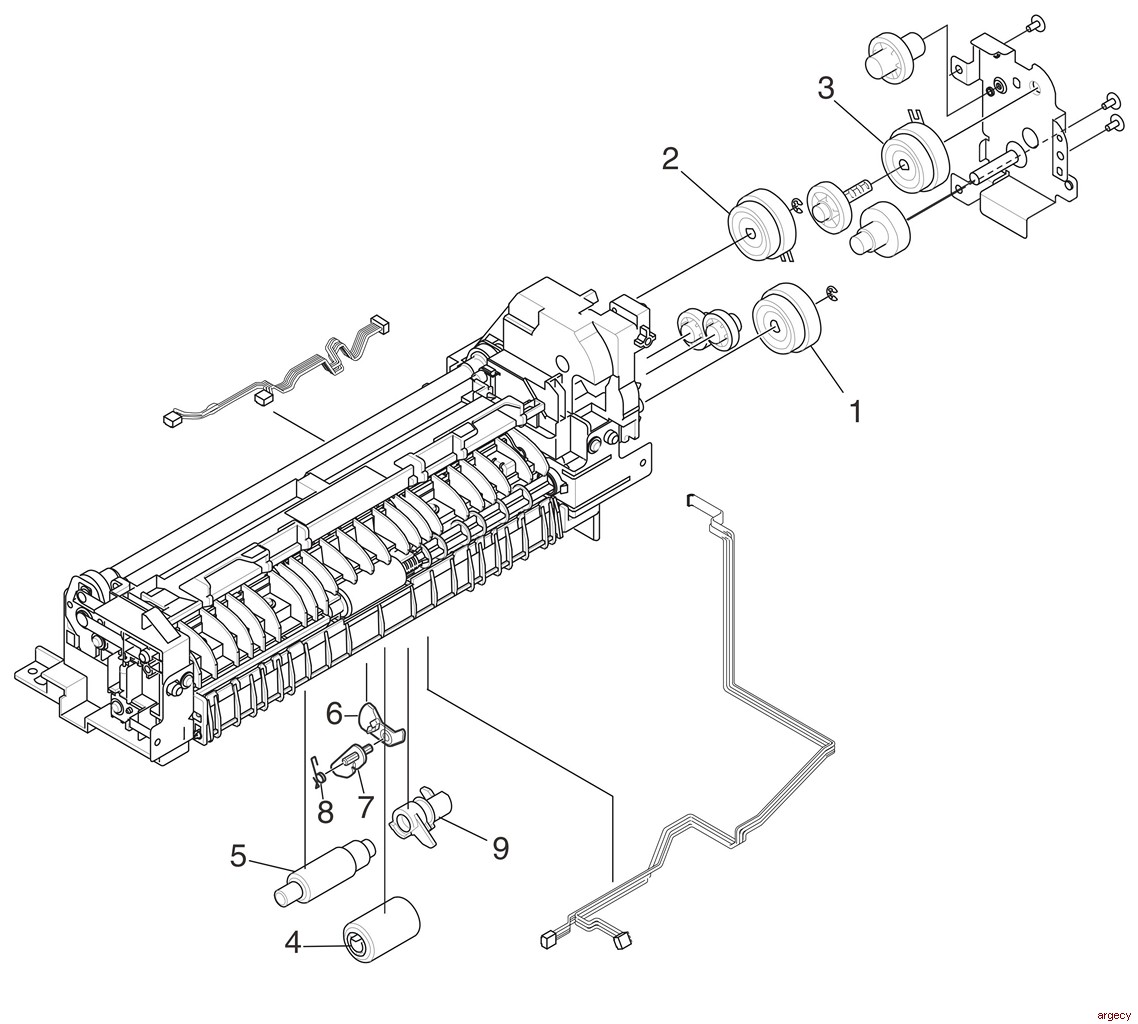

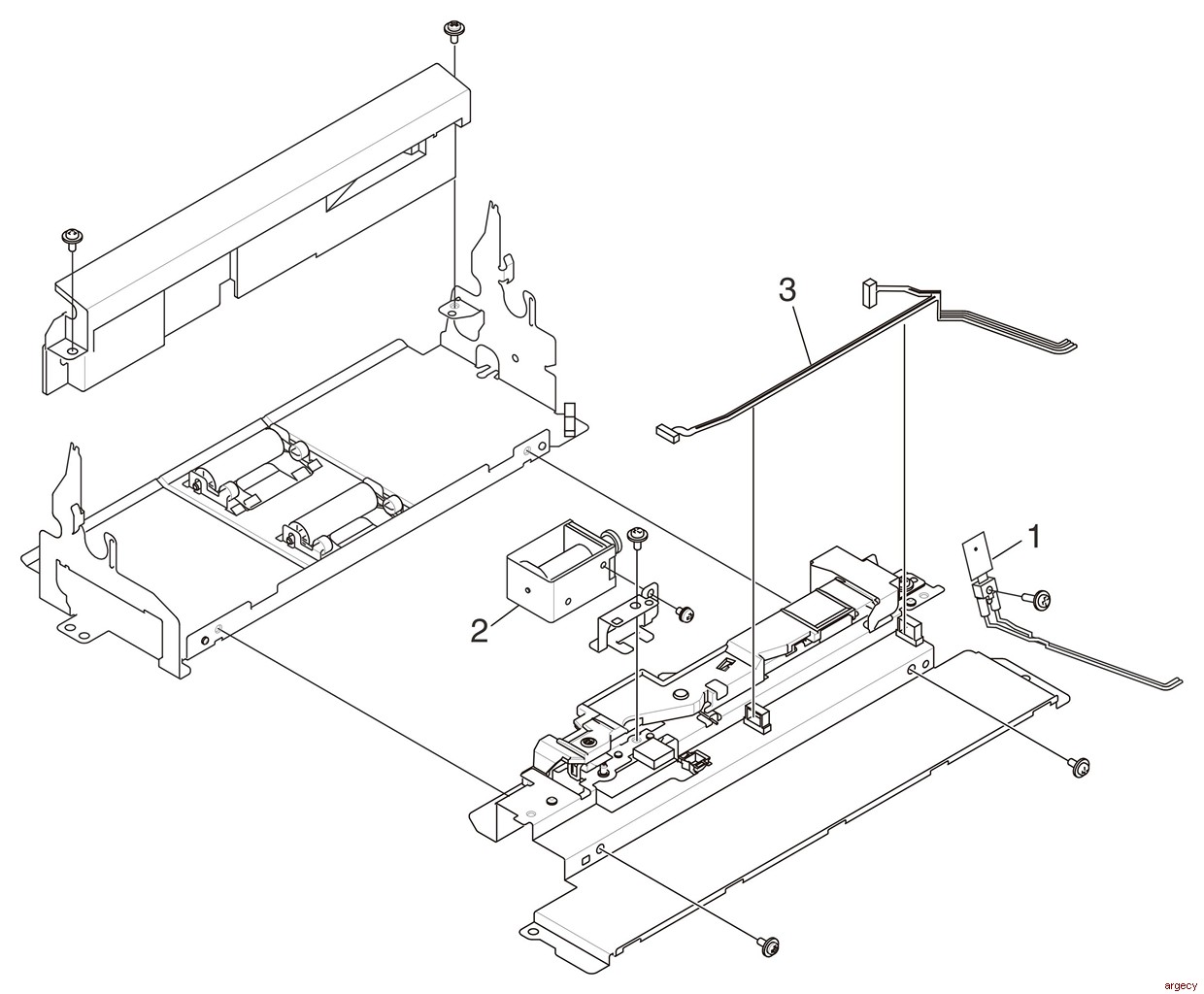

1 42605201 Thermistor Belt

2 42058304 Solenoid Shutter

3 46197701 CONN Cord AMP10P AMP5P AMP5P Sensor Assy PU
1 44261403 Clutch 3.5 Hop CL

2 44261404 Clutch 4.5 Reg CL

3 44261406 Clutch 3.5 TP CL

4 44483301 Roller Assy Hopping

5 44483601 Roller Assy PickUp

6 44549801 Lever End

7 45695901 Lever End Sub

8 44550001 Spring Lever End

9 44358001 Lever Sensor Hopping
1 44498001 Cable Head Assy

2 46359801 Frame Head L

3 46359901 Frame Head R

4 46359701 Frame Head

5 44366901 Lever Lock Top
1 44369501 Cover Assy. Stacker
1 43963101 Spring Retard
Case Cassette Assy.

2 44384701 Frame Assy. Retard

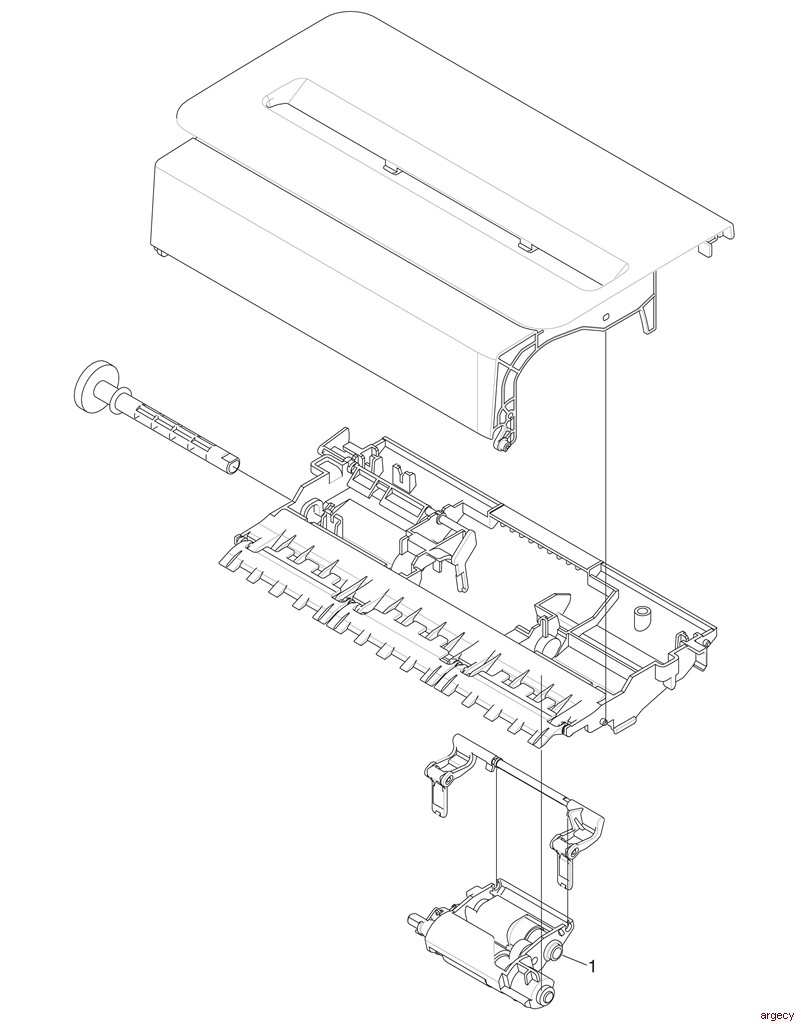

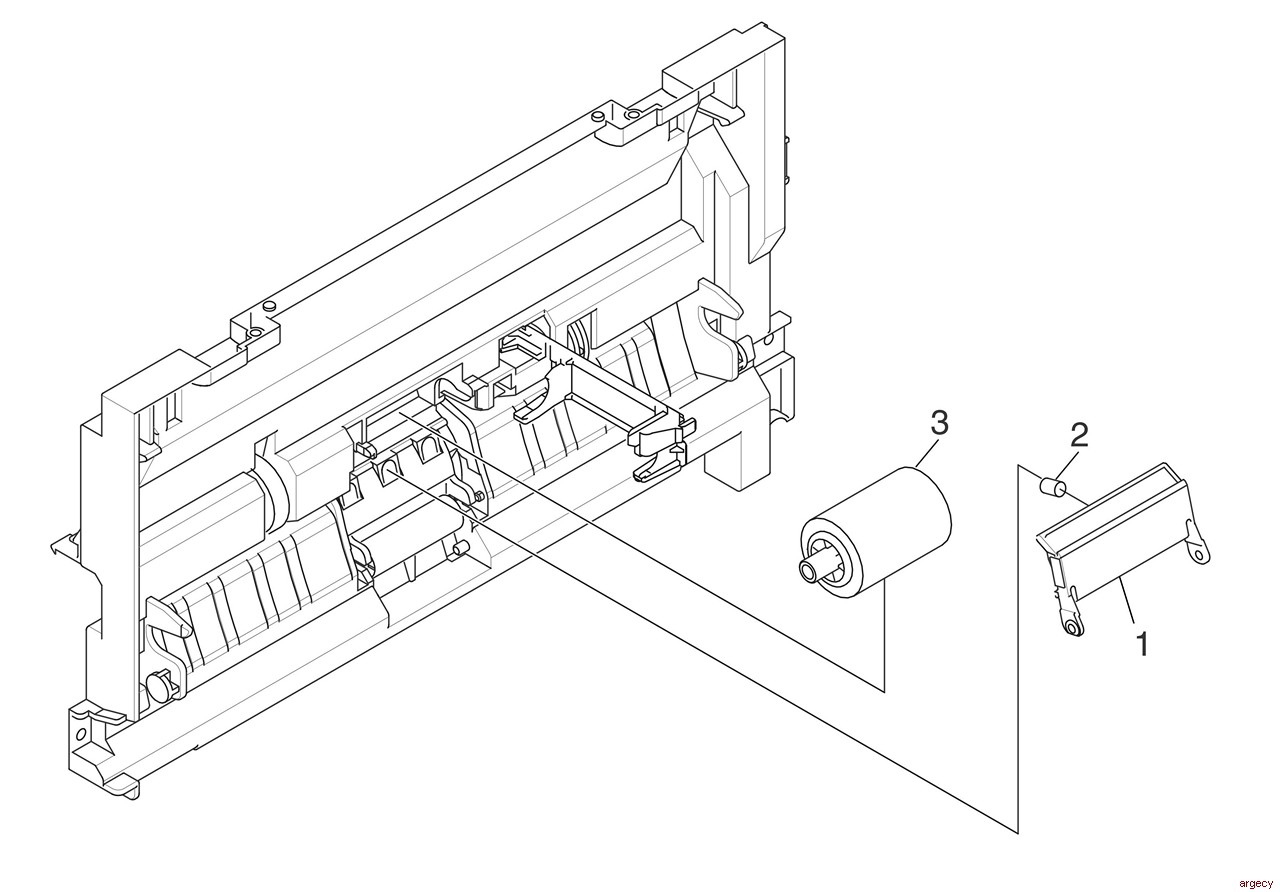

1 43922402 Frame Assy. Separator

2 44009301 Spring Separator

3 43922301 Roller Assy MPT

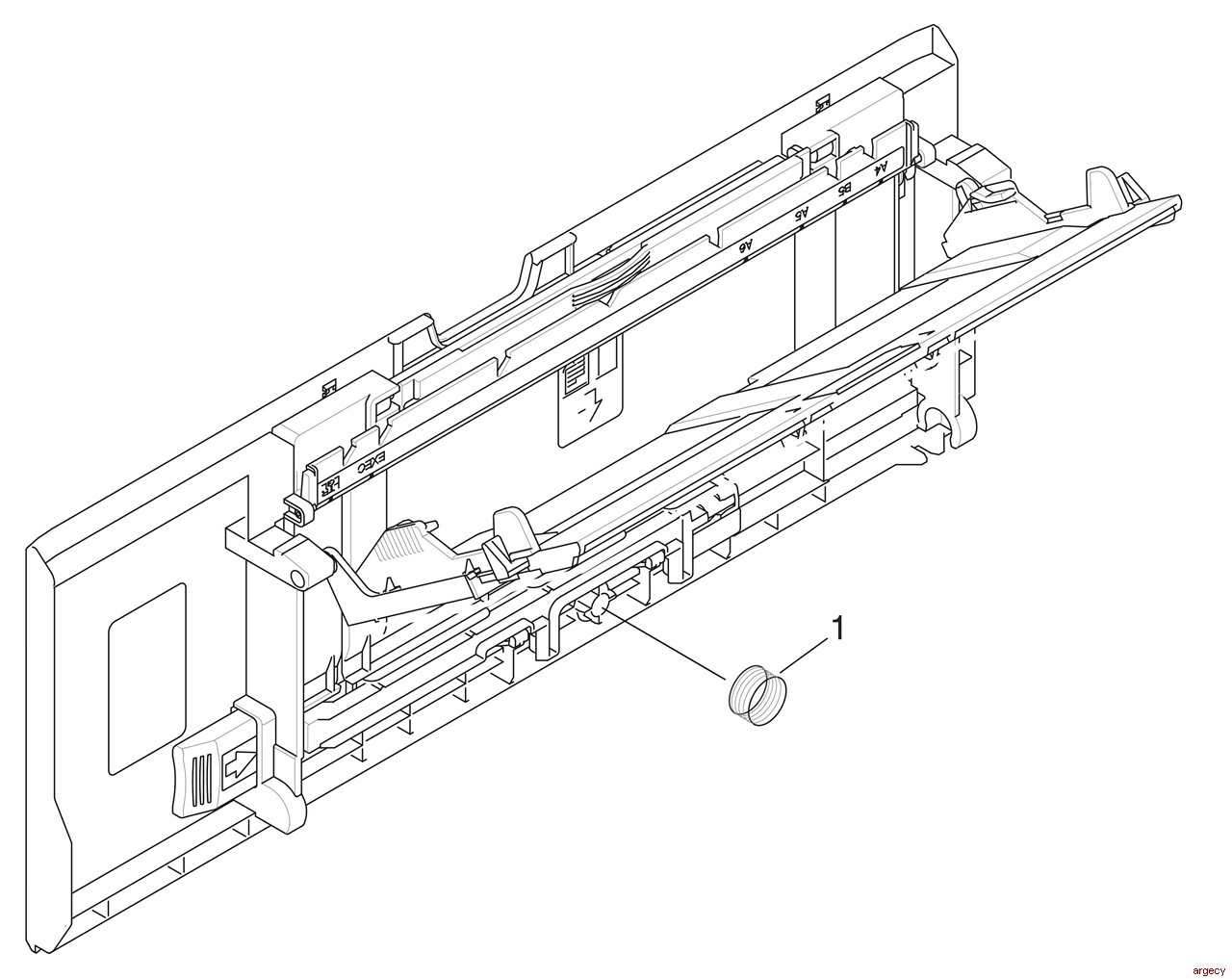

1 42073501 Spring Hopper

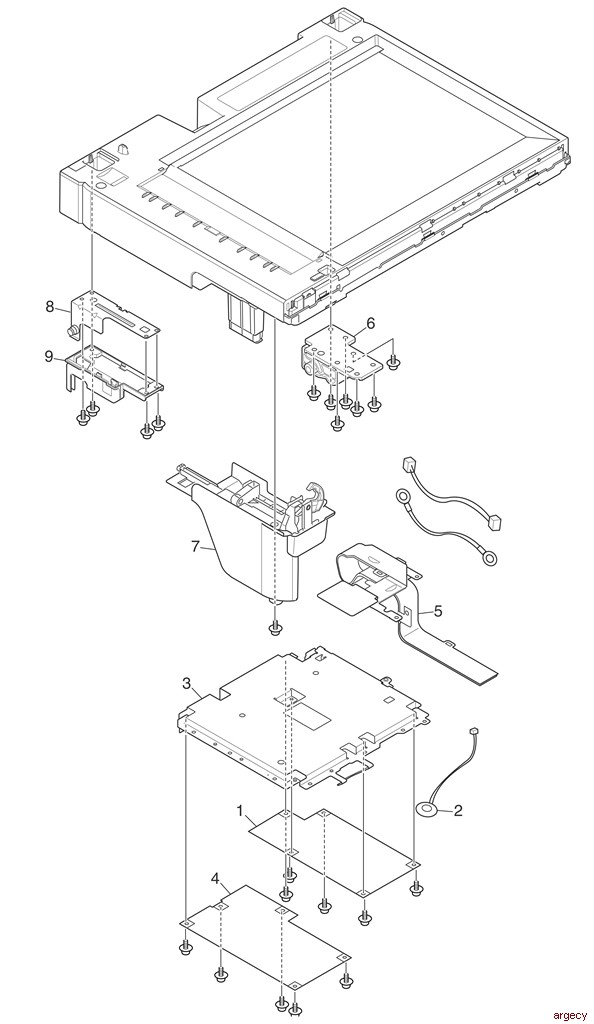

1 46554911 ADF Unit MC363

2 46554923 Flatbed Unit MC363 (ODA/AOS)

3 44659501 Sheet Document

4 44538001 Spring PW ADF

5 Paper Weight Assy

6 Cover ADF R Assy

7 44538701 Tray Assy Document

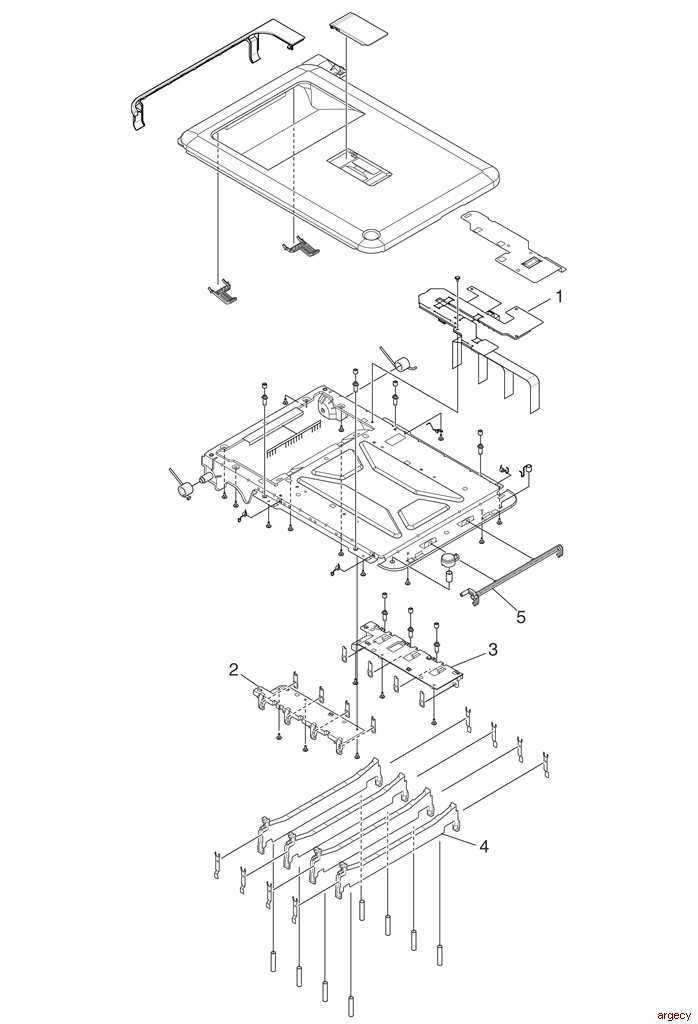

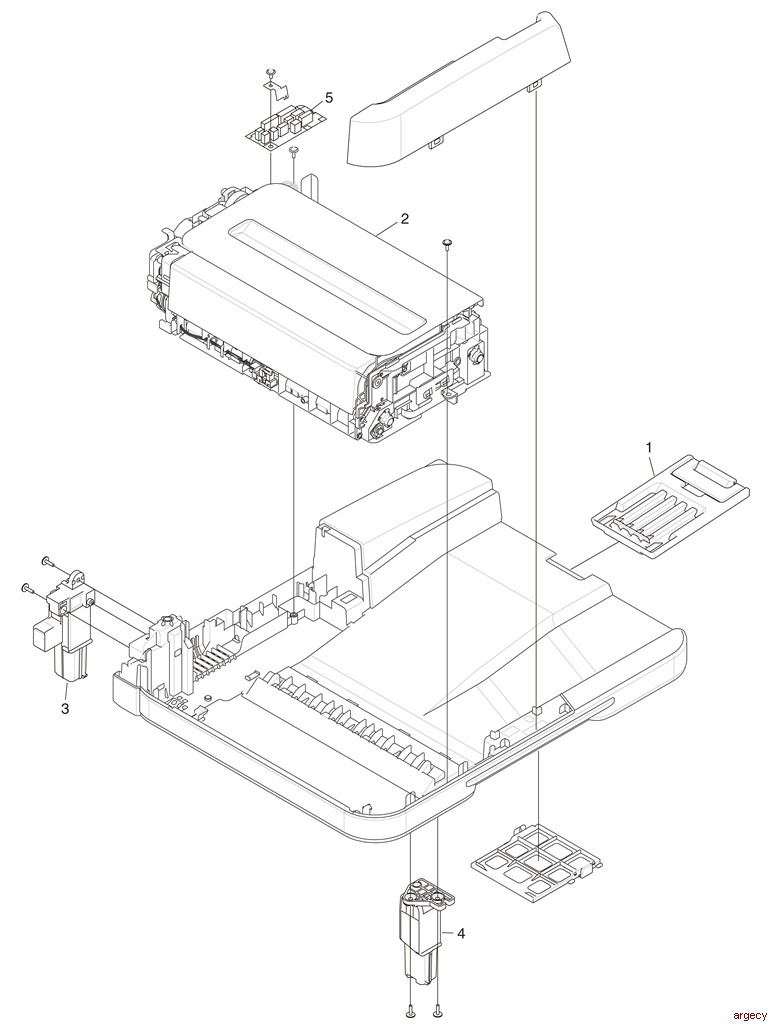

1 44529101 Guide Assy Exit Sub

2 44939202 ADF Assy

3 44539301 Hinge Assy L

4 44539901 Hinge Assy R

5 44604601 OR ADF Board

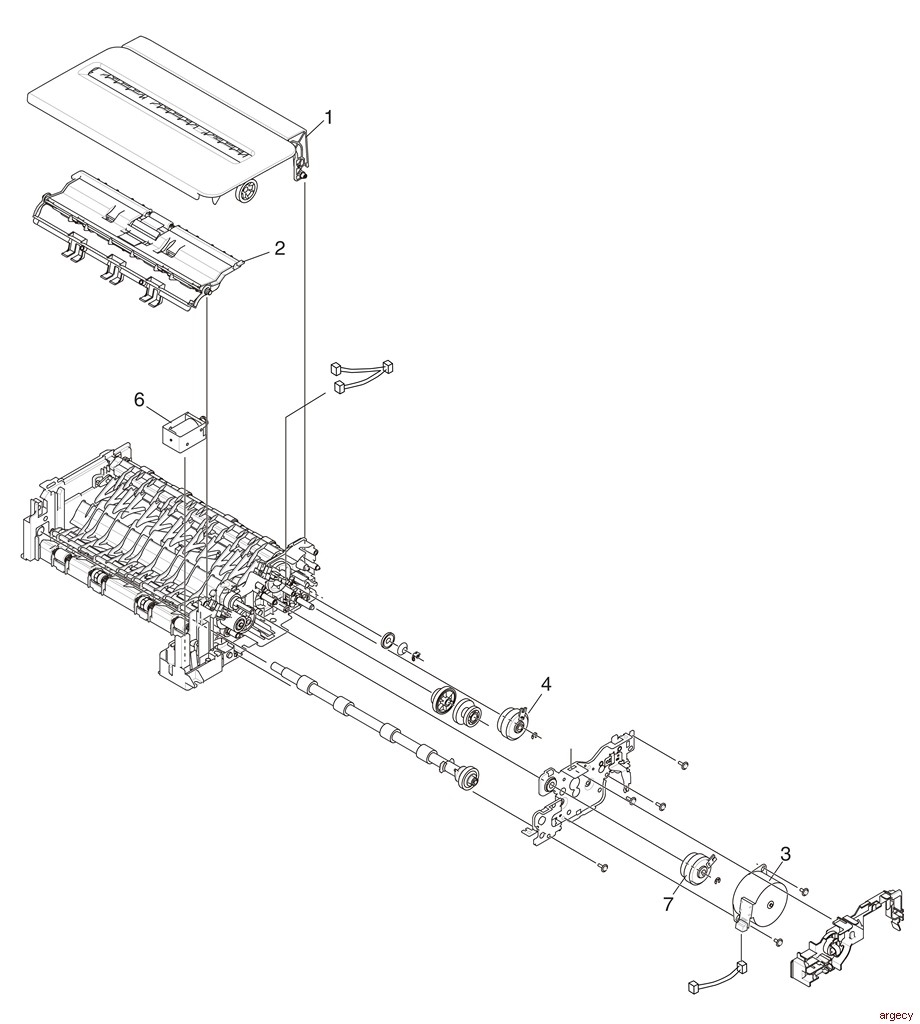

1 44530103  Cover Assy Top -ADF

2 44532402 Guide Assy A

3 43075101 Motor Pulse Belt ADF Motor

4 44261401 Clutch ADF Reg CL

6 42058303 Solenoid ADF Sol

7 44261406 Clutch 3.5 ADF Hop CL (Same part of Front Assy. Hop/Reg No.7)
1 44531101 Frame Assy Hopping ADF

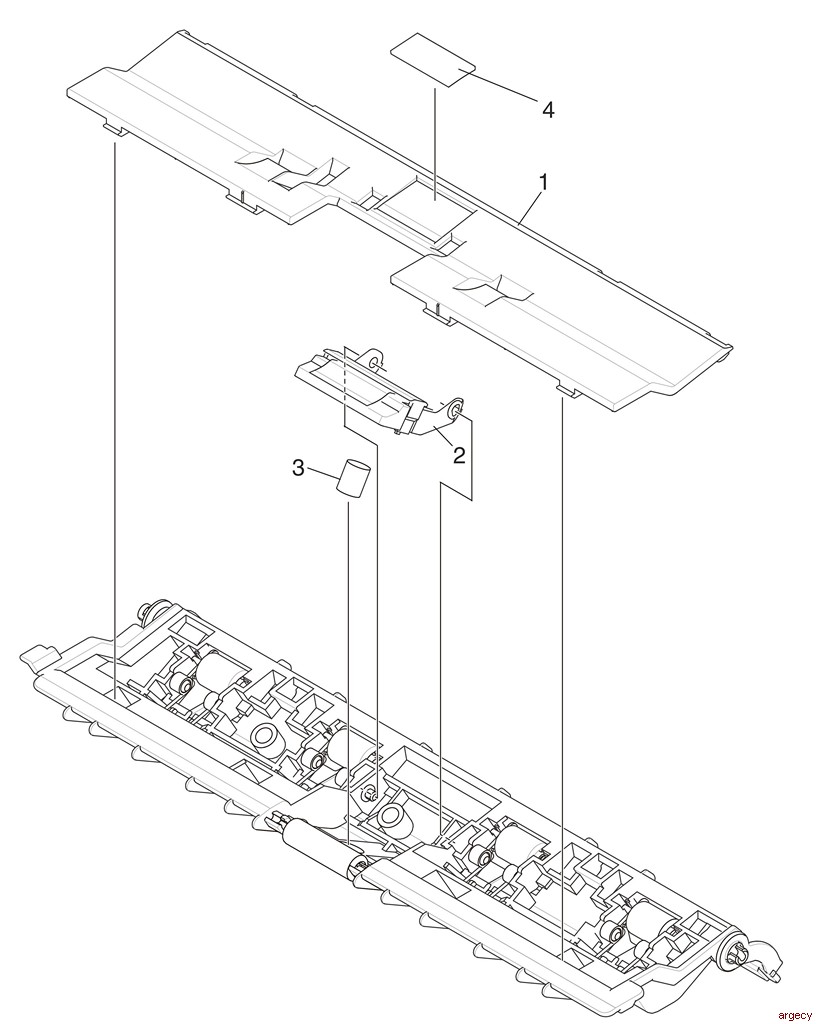

1 44532601 Guide A Sub

2 44532702 Frame Assy Separator

3 44533001 Spring Separator

4 44533301 Rubber Friction

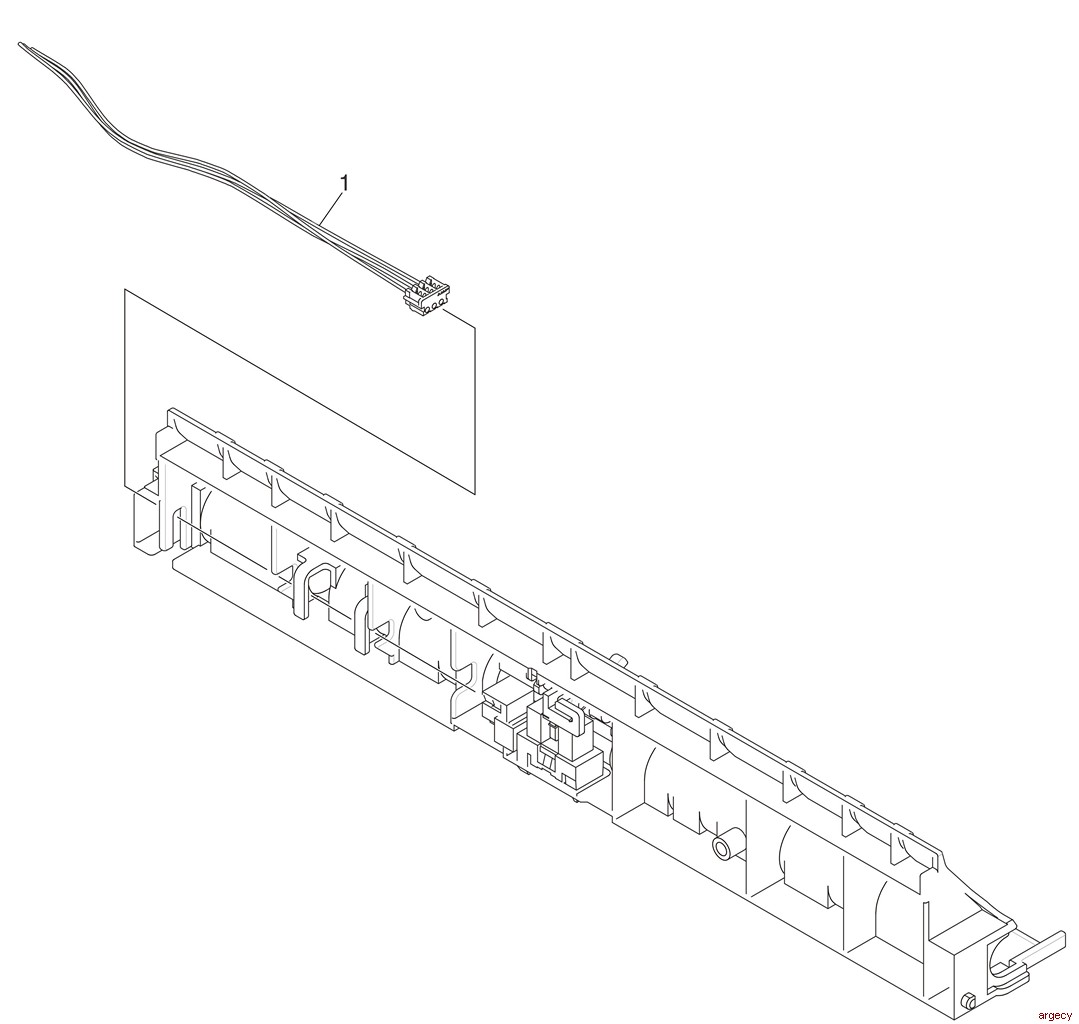

1 CONN Cord AMP3P JST3P ADF Rev SNS
1 CONN Cord AMP3P ADF Reg SNS

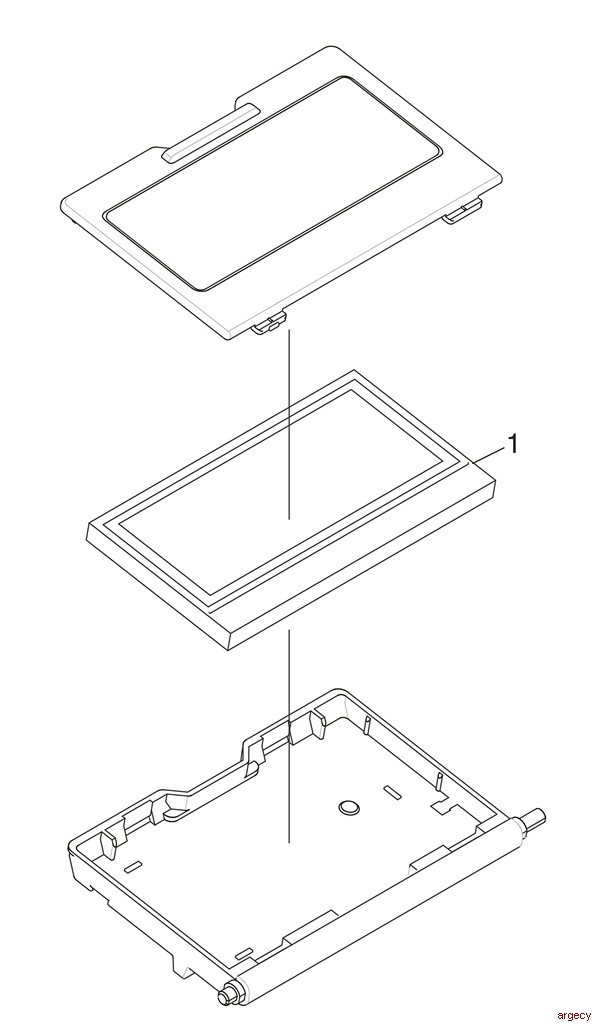

1 FB MC363 (OEL) OEL Frame Assy

1 FB MC363 (JPN) JPN

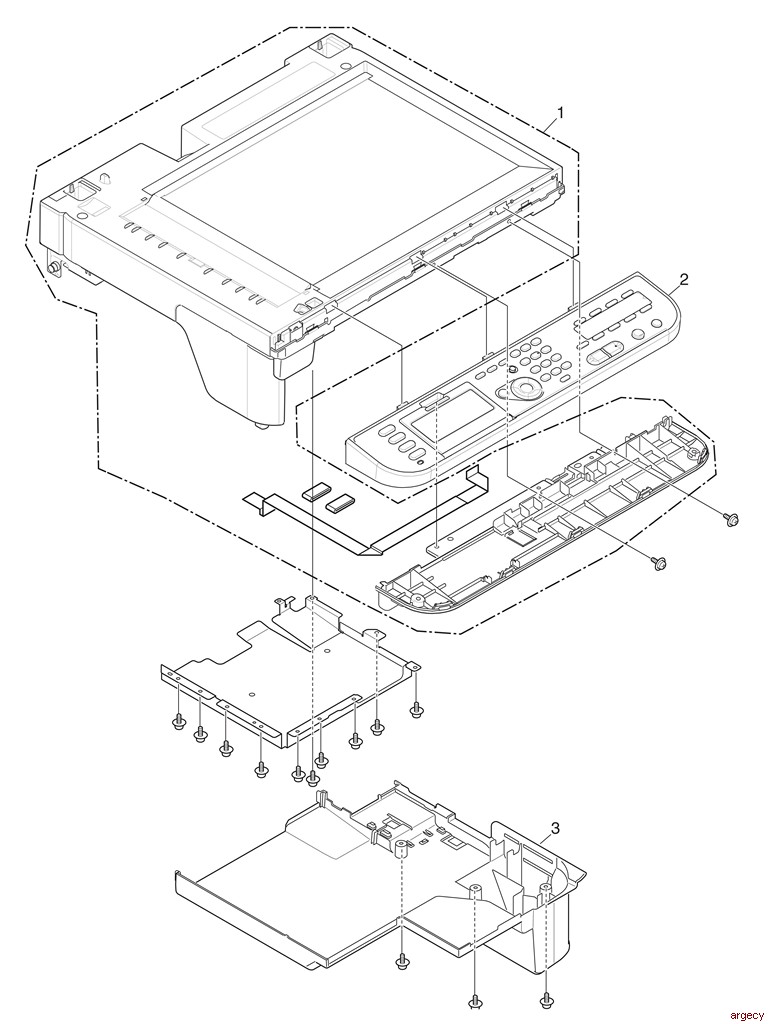

1 46554933 Scanner  Unit MC363 (ODA/AOS) ODA/AOS/OAU

2 Frame Assy OP MC363 (overseas) Oversea
OP (MC363) JPN JPN

3 Cover Bottom
 1 46373901 OR Board 77S

2 44908701 Speaker Assy.

3 Plate Board (SU)

4 45885104 Board FXS Maintenance Board

5 Film Assy. FFC (CU SU)

6 Cam Hinge

7 Cover Assy LFW

8 Plate Hinge L (Caulking)

9 Cover Hinge (L)

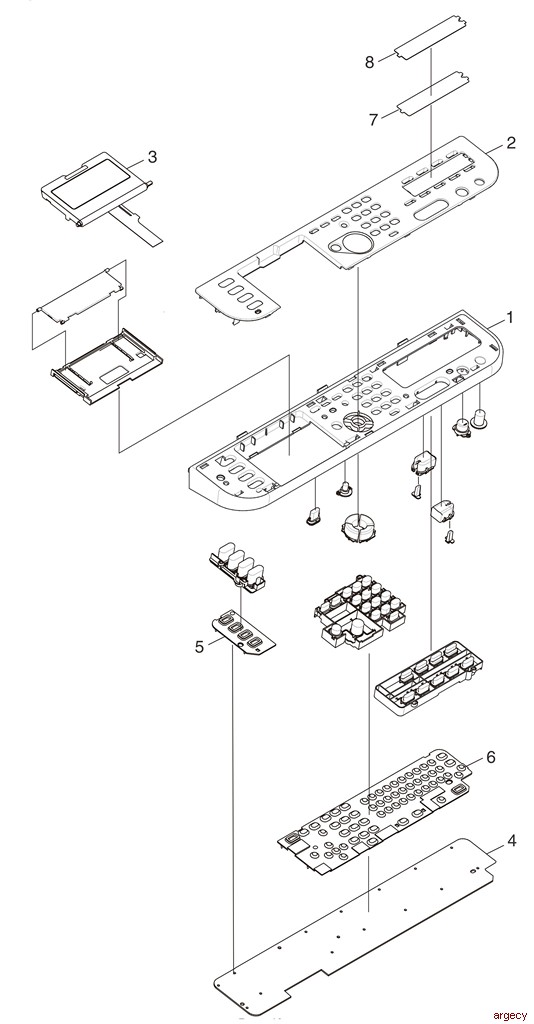

1 Frame OP Panel (B)

2 Cover OP Panel (B) overseas Oversea

3 44596901 LCD Assy

4 44604302 OR OPE Board 2

5 Rubber Pad (L)

6 Rubber Pad (R)

7 Sheet One Touch

8 Flim One Touch
1 JIC MSGF012138 07

1 BTG 320128C FBWAGGA3
