Ricoh LCIT RT5000 B832 Parts

›Parts for Printers, MFPs, and Scanners›Ricoh Parts





Please call for parts assistance

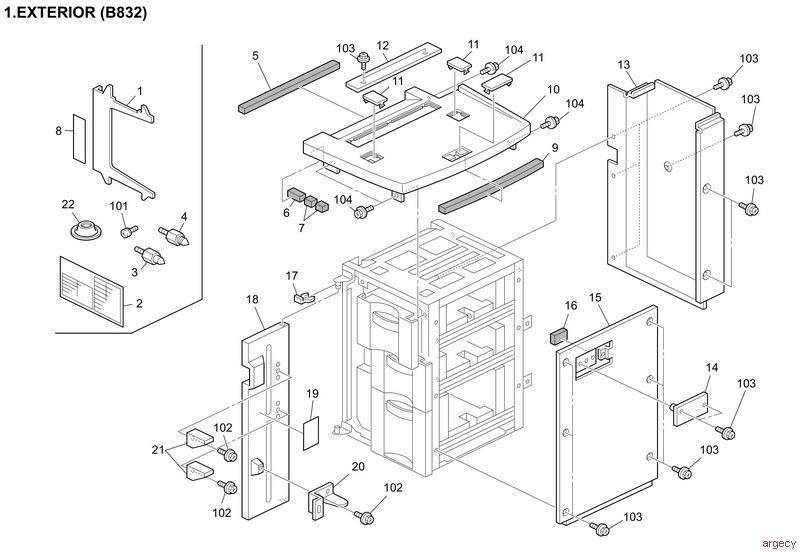

1.EXTERIOR (B832)
1 B511 2785 End Fence:Tab
2 B832 1308 Decal - Paper Size
3 B832 1101 Positioning Pin - Lower
4 B832 1100 Positioning Pin - Upper
5 B832 1371 Spacer Cushion
6 B832 1374 Cover Cushion - Front Left
7 B832 1376 Cover Cushion - Front Middle
8 B832 1344 Decal - End Fence Tab
9 B832 1372 Cover Cushion - Right
10 B511 1370 Cover:Upper
11 B024 1365 Cap - 38x77
12 B511 1378 Cover:Cover:Upper
13 B511 1379 Cover - Rear
14 B511 1386 Cover:Right:Key Counter
15 B511 1385 Cover:Right
16 B832 2729 Tray Cushion
17 5447 2681 Snap Ring
18 B511 1360 Cover:Left
19 B832 1309 Decal - Misfeed Removal
20 B832 1368 Cover Magnet Catch - Left
21 B832 1595 Door Cover - Small
22 B132 1226 Holder:Stand
101 0950 4008Z Philips Truss Screw - M4x8
102 0450 4008N Tapping Screw - M4x8
103 0451 4008N Tapping Screw:4x8
104 0451 4012N Tapping Screw:4x12
Parts diagram - Ricoh LCIT RT5000 B832 Parts

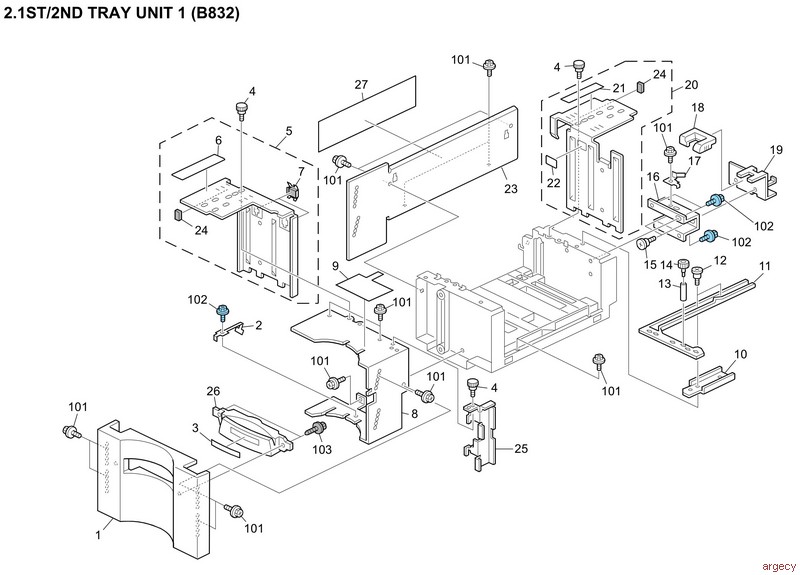

2.1ST/2ND TRAY UNIT 1 (B832)
1 B832 1380 Tray Cover (s)
2 B511 2895 Stopper:End Fence:No.4
2 B511 2896 Stopper:End Fence:No.5
3 B832 1312 Decal - Display (4)
3 B832 1313 Decal - Display (5)
4 B832 2877 Knob Screw:Tray:Guide:Green
5 B832 2871 No.1,2 Side Fence - Front (NA)
5 B303 2871 Side Fence:Front:No.1,2:Ass'y (EU)
6 B832 1304 Decal - Side Fence Front
7 B303 2777 Paper Guide Mylar
8 B832 2823 Upper Cover - Duplex Tray
9 B832 1341 Decal - End Fence Size Indication 4-5
10 B511 2783 Guide Fence Bracket
11 B511 2660 Slider:End Fence
12 AA14 3857 Screw - M4X5
13 B511 2788 Silicone Tube:End Fence
14 B832 2787 Knob Screw:End Fence:Press Fit
15 AA14 3562 Screw:M4:Dia6x1.2
16 B511 2886 Sensor Bracket
17 B303 2898 Spring Plate
18 B303 2888 Paper Size Lever
19 B511 2897 Paper Size Actuator
20 B832 2898 No.1,2 Side Fence - Rear (NA)
20 B511 2875 Side Fence:Rear:No.1,2:Ass'y (EU)
21 B832 1305 Decal - Side Fence Rear
22 B511 2674 Decal:Display:Paper Volume
23 B832 2821 Guide Plate - Front
24 B303 2645 Noise Absorber Seal - 16.5x4.2x3
25 B511 2852 End Fence:Front:1k
26 B247 6634 Grip - Paper Tray Cover
27 B832 1343 Decal - Paper Supply 4-5
101 0451 4008N Tapping Screw:4x8
102 0454 4006Q Tapping Screw:4x6
103 0450 4010N Tapping Screw:M4x10
Parts diagram - Ricoh LCIT RT5000 B832 Parts

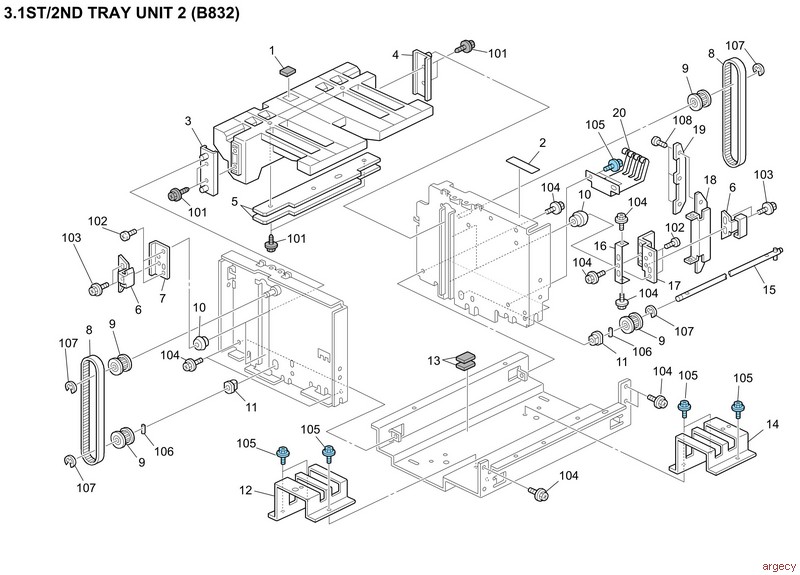

3.1ST/2ND TRAY UNIT 2 (B832)
1 A667 2656 Friction Pad
2 B303 1303 Decal - Paper Size
3 B511 2439 Bracket:Paper Tray:Front
4 B511 2438 Bracket:Paper Tray:Rear
5 B511 2737 Weight Plate
6 B832 2670 Belt Fix Bracket
7 B511 2742 Bracket
8 AA04 3910 Timing Belt - B100S5M435
9 AB03 0548 Pulley - 16T
10 A335 4351 Guide Roller
11 AA08 2096 Bushing - 8x12x7
12 B511 2728 Side Fence Stay - Front
13 B832 2729 Tray Cushion
14 B511 2729 Side Fence Stay - Rear
15 B303 2851 Paper Lift Shaft - 1k
16 B832 2757 Spring Plate
17 B511 2752 Bracket
18 B511 2747 Paper Actuator
19 B303 2748 Actuator Cover
20 B303 2723 Grounding Plate
101 0450 4014P Tapping Screw - 4x14
102 0354 0060N Screw-m4x6
103 0451 3008N Tapping Screw - M3x8
104 0451 4008N Tapping Screw:4x8
105 0454 4006Q Tapping Screw:4x6
106 0633 0140G Parallel Pin - 3x14
107 0720 0060E Retaining Ring - M6
108 0314 0040N Pan Head Screw - M4x4
Parts diagram - Ricoh LCIT RT5000 B832 Parts

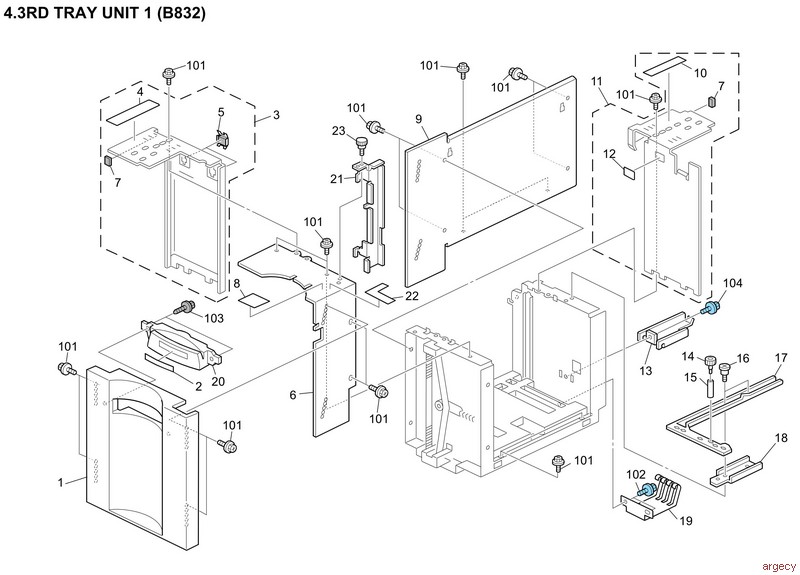

4.3RD TRAY UNIT 1 (B832)
1 B832 1381 Tray Cover (l)
2 B832 1314 Decal - Display (6)
3 B511 2769 Side Fence:Front:No.3:Ass'y
4 B832 1304 Decal - Side Fence Front
5 B303 2777 Paper Guide Mylar
6 B832 2723 Tray Cover - Upper
7 B303 2645 Noise Absorber Seal - 16.5x4.2x3
8 B832 1311 Decal - Paper Supply (6)
9 B832 2721 Guide Plate - Front
10 B832 1305 Decal - Side Fence Rear
11 B511 2774 Side Fence:Rear:No.3:Ass'y
12 B511 2674 Decal:Display:Paper Volume
13 B511 2727 Sensor Bracket
14 B832 2787 Knob Screw:End Fence:Press Fit
15 B511 2788 Silicone Tube:End Fence
16 AA14 3857 Screw - M4X5
17 B832 2660 End Fence Slider
18 B511 2783 Guide Fence Bracket
19 B303 2723 Grounding Plate
20 B247 6634 Grip - Paper Tray Cover
21 B511 2857 End Fence:Front:2.5k
22 B511 1342 Decal - End Fence Size Indication 6
23 B832 2877 Knob Screw:Tray:Guide:Green
101 0451 4008N Tapping Screw:4x8
102 0454 4006Q Tapping Screw:4x6
103 0450 4010N Tapping Screw:M4x10
104 0454 4008Q Tapping Screw - M4x8
Parts diagram - Ricoh LCIT RT5000 B832 Parts

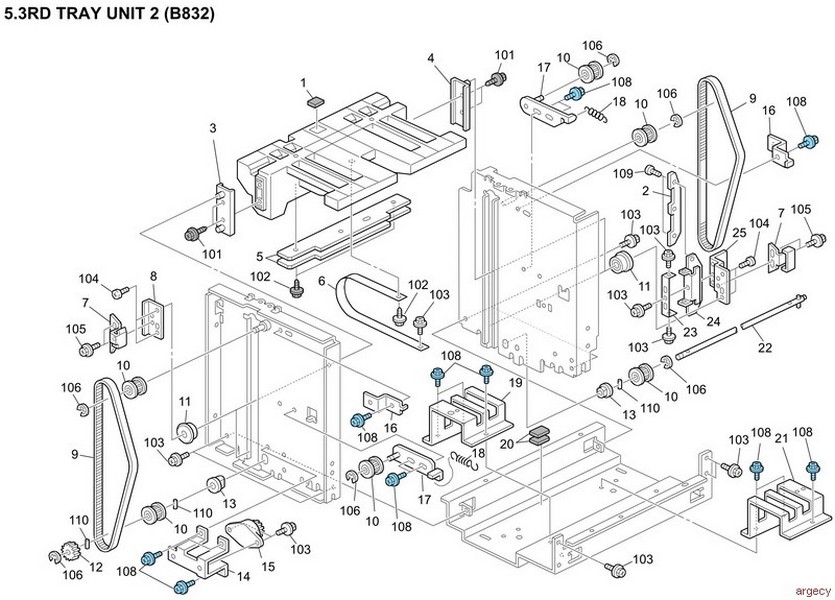

5.3RD TRAY UNIT 2 (B832)
1 A667 2656 Friction Pad
2 B303 2748 Actuator Cover
3 B511 2439 Bracket:Paper Tray:Front
4 B511 2438 Bracket:Paper Tray:Rear
5 B511 2737 Weight Plate
6 B303 2734 Paper Stopper
7 B832 2670 Belt Fix Bracket
8 B511 2742 Bracket
9 AA04 3909 Timing Belt - B100S5M780
10 AB03 0548 Pulley - 16T
11 A335 4351 Guide Roller
12 AB01 4140 Gear - 24Z
13 AA08 2096 Bushing - 8x12x7
14 B511 2793 Oil Damper Bracket
15 B303 2791 Oil Dumper
16 B511 2736 Side Plate Bracket
17 B511 2761 Tightener Bracket
18 A267 2787 Tension Spring - Lock Lever
19 B511 2728 Side Fence Stay - Front
20 B832 2729 Tray Cushion
21 B511 2729 Side Fence Stay - Rear
22 B303 2751 Paper Lift Shaft - 2.5k
23 B832 2757 Spring Plate
24 B511 2747 Paper Actuator
25 B511 2752 Bracket
101 0450 4014P Tapping Screw - 4x14
102 0450 4010N Tapping Screw:M4x10
103 0451 4008N Tapping Screw:4x8
104 0354 0060N Screw-m4x6
105 0451 3008N Tapping Screw - M3x8
106 0720 0060E Retaining Ring - M6
107 0454 4008Q Tapping Screw - M4x8
108 0454 4006Q Tapping Screw:4x6
109 0314 0040N Pan Head Screw - M4x4
110 0633 0140G Parallel Pin - 3x14
Parts diagram - Ricoh LCIT RT5000 B832 Parts

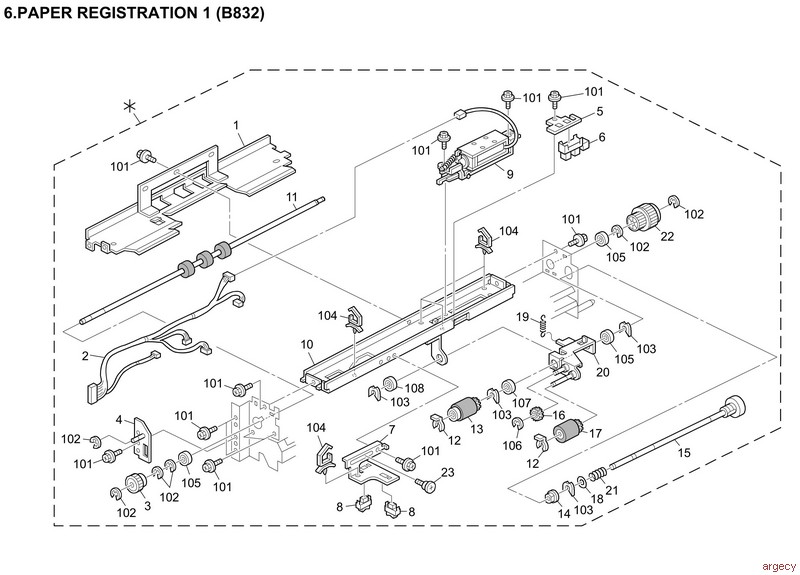

6.PAPER REGISTRATION 1 (B832)
1 B832 2520 Guide Plate - Feed
2 B832 5311 Harness - Paper Feed Unit
3 AB01 1478 Gear - 18Z
4 B832 2631 Stay
5 B511 2677 Sensor Bracket
6 AW02 0145 Photointerruptor:Flat
7 B832 2577 Paper Feed Sensor Bracket
8 AW01 0122 Paper Feed Sensor
9 B832 2578 DC Solenoid 24V
10 B832 2571 Stay:Feed:Peen
11 AF02 1410 Transport Roller
12 AA10 0014 Retaining Ring C - Separate
13 AF03 1081 Paper Feed Roller:Feed:Manual Feed
AF03-1081 Roller - Paper Feed Manual
New
AF03-1081 (New)
Contact for Details

AF031081 Roller Paper Feed Manual
New
AF031081 (New)
Contact for Details

14 AA08 3015 Roller Clutch
15 B832 2585 Feed Roller Shaft
16 5447 2706 Gear - 15T
17 AF03 0080 Paper Feed Roller:Pickup
AF03-0080 Roller - Bypass Pick-Up
New
AF03-0080 (New)
Contact for Details

AF030080 Roller Bypass Pick-Up
New
AF030080 (New)
Contact for Details

AF03-0080 Paper Pickup Roller Kit-LL Aficio MP9000/1100/1350/ Pro907/1107EX/1357EX
New
AF03-0080, AF03-1080, AF03-2080 Compatible (New)
$26.46

CET511018 Ricoh Aficio MP9000/1100/1350/ Pro907/1107EX/1357EX Paper Pickup Roller Kit-LL
New
CET511018 AF03-0080 AF03-1080 AF03-2080 one each Compatible (New)
$16.82

18 B132 4119 Spacer:Gear:Idler
19 AA06 6677 Tension Spring
20 B832 2574 Pickup Arm
21 AA06 3204 Compression Spring
22 AB01 7724 Gear - 23Z/28Z
23 AA14 3812 Screw - Scale
101 0451 4008N Tapping Screw:4x8
102 0720 0060E Retaining Ring - M6
103 0805 0088 Retaining Ring - M6
104 1105 0511 Harness Clamp - LWS-0306ZC
105 0742 3808 Ball Bearing - 8x16x5
106 0720 0040E Retaining Ring - M4
107 0741 3708 Ball Bearing - 8x12x3.5mm
Parts diagram - Ricoh LCIT RT5000 B832 Parts

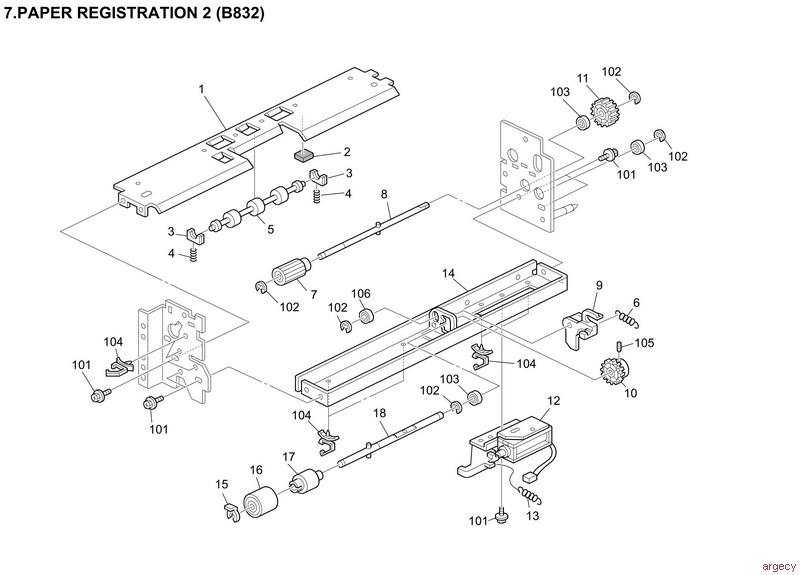

7.PAPER REGISTRATION 2 (B832)
1 B832 2535 Reverse Guide Plate
2 A229 2692 Damping Insulation
3 AA08 4059 Ball Bearing Holder
4 B833 2565 Compression Spring
5 B834 2568 Transport Roller - Driven
6 B833 2567 Tension Spring
7 AB01 1392 Drive Reverse Gear - 24z
8 B234 6222 Reverse Drive Shaft
9 B303 2556 Reverse Pressure Lever
10 AB01 1591 Gear:Reverse
11 BB01 3008 Gear - 31Z
12 B832 2558 DC Solenoid 24V
13 AA06 0575 Release Spring
14 B832 2541 Stay
15 AA10 0014 Retaining Ring C - Separate
16 AF03 2080 Paper Feed Roller:Separate
AF03-2080 Separation Roller Long Life
New
AF03-2080 (New)
Contact for Details

AF032080 Separation Roller Long Life
New
AF032080 (New)
Contact for Details

AF03-0080 Paper Pickup Roller Kit-LL Aficio MP9000/1100/1350/ Pro907/1107EX/1357EX
New
AF03-0080, AF03-1080, AF03-2080 Compatible (New)
$26.46

AF03-0081 Paper Pickup Roller Kit PU Aficio 1060/2075/MP5500/6500/7503/ 9003/IM 7000/9000
New
AF03-0081, AF03-1082, AF03-2080 Compatible (New)
$24.00

17 B234 6300 Torque Limiter
18 B234 6223 Driven Reverse Shaft
101 0451 4008N Tapping Screw:4x8
102 0720 0040E Retaining Ring - M4
103 0741 3706 Ball Bearing - 6x10x3
104 1105 0511 Harness Clamp - LWS-0306ZC
105 0573 0030E Hexagon Headless Set Screw - M3x3
106 0741 3506 Ball Bearing - 6x12x4 Mm
Parts diagram - Ricoh LCIT RT5000 B832 Parts

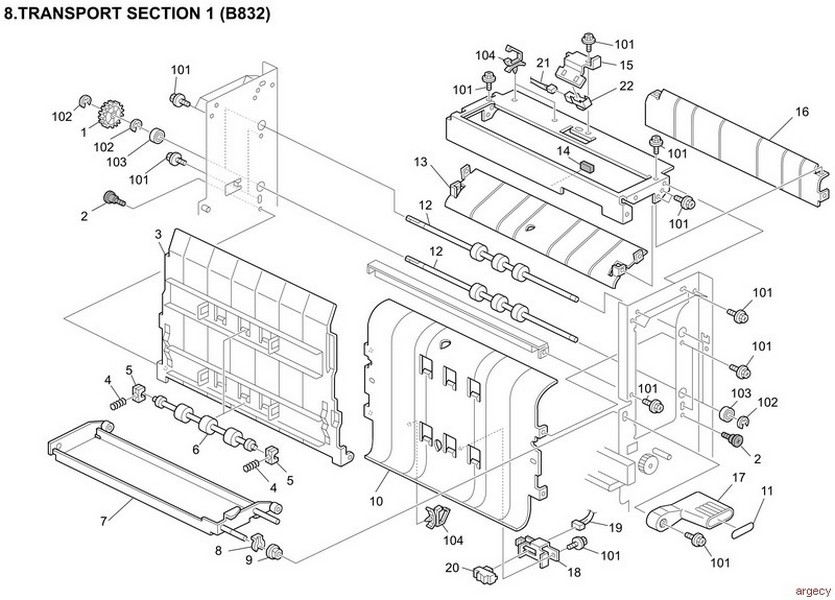

8.TRANSPORT SECTION 1 (B832)
1 AB01 3654 Gear - 30Z
2 AA14 3810 Development Cover Screw
3 B832 3615 Guide Plate - Upper
4 AA06 6675 Compression Spring
5 AA08 4059 Ball Bearing Holder
6 B834 2568 Transport Roller - Driven
7 B511 3751 Guide Plate Release Stay - Upper
8 5447 2681 Snap Ring
9 AA08 2070 Bushing - 8x16x7
10 B832 3687 Guide Plate - Upper Right
11 B303 1306 Decal - Instruction
12 AF02 1411 Drive Transport Roller - CCW
13 B511 3302 Guide Plate - Lower
14 B832 3909 Bracket Cushion
15 B832 3656 Transport Sensor Bracket No.4
16 B511 3306 Guide Plate - 7
17 B303 3682 Misfeed Removal Knob
18 B832 3883 Sensor Bracket
19 B832 5330 Harness - Sensor 6
20 AW01 0122 Paper Feed Sensor
21 B832 5301 Harness - Sensor Four Way
22 AW01 0118 Paper Feed Sensor
101 0451 4008N Tapping Screw:4x8
102 0720 0060E Retaining Ring - M6
103 0742 3808 Ball Bearing - 8x16x5
104 1105 0511 Harness Clamp - LWS-0306ZC
Parts diagram - Ricoh LCIT RT5000 B832 Parts

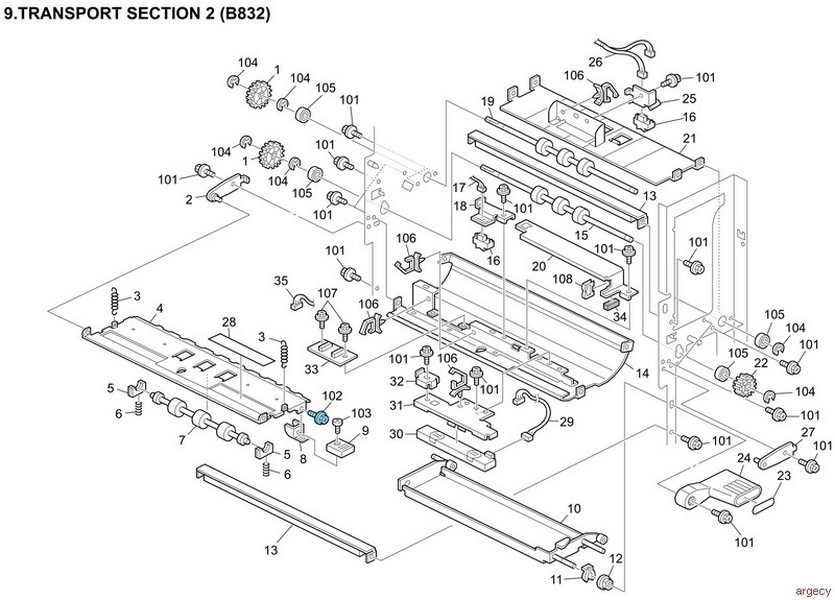

9.TRANSPORT SECTION 2 (B832)
1 AB01 3654 Gear - 30Z
2 B832 3950 Contact Point Bracket - Rear
3 AA06 6680 Spring
4 B832 3920 Guide Plate - Lower
5 AA08 4059 Ball Bearing Holder
6 AA06 6675 Compression Spring
7 B834 2568 Transport Roller - Driven
8 B511 3637 Lever
9 A353 2243 Lever Knob
10 B511 3761 Guide Plate Release Stay - Lower
11 5447 2681 Snap Ring
12 AA08 2070 Bushing - 8x16x7
13 B511 3817 Stay:Misfeed Removal:Stopper
14 B832 3930 Exit Guide Plate - Middle Upper
15 AF02 1413 Drive Transport Roller - Connecting
16 AW01 0122 Paper Feed Sensor
17 B832 5318 Harness - Sensor Exit
18 B832 3915 Cover - Paper Feed Sensor
19 AF02 1412 Drive Transport Roller - Cw
20 B832 3911 PCB Cover
21 B832 3688 Entrance Guide Plate - Middle Upper
22 AB01 4152 Gear - 32Z
23 B303 1307 Decal - Instruction
24 B303 3682 Misfeed Removal Knob
25 B832 3654 Transport Sensor Stay - Entrance
26 B832 5302 Harness - Sensor Middle
27 B832 3940 Contact Point Bracket
28 B832 3925 Sheet - Registration Sensor
29 B832 5340 Harness - Registration Sensor
30 B234 2750 Contact Image Sensor
31 B832 3685 Sensor Bracket
32 B832 3745 Registration Sensor Bracket Holder
33 B234 5280 PCB Crb
34 B832 3909 Bracket Cushion
35 B832 5317 Harness - Interface Crb
101 0451 4008N Tapping Screw:4x8
102 0454 4008Q Tapping Screw - M4x8
103 0313 0040N Screw:M3x4
104 0720 0060E Retaining Ring - M6
105 0742 3808 Ball Bearing - 8x16x5
106 1105 0511 Harness Clamp - LWS-0306ZC
107 0451 3008N Tapping Screw - M3x8
108 1105 0358 Edge Saddle - Eds-0607m
Parts diagram - Ricoh LCIT RT5000 B832 Parts

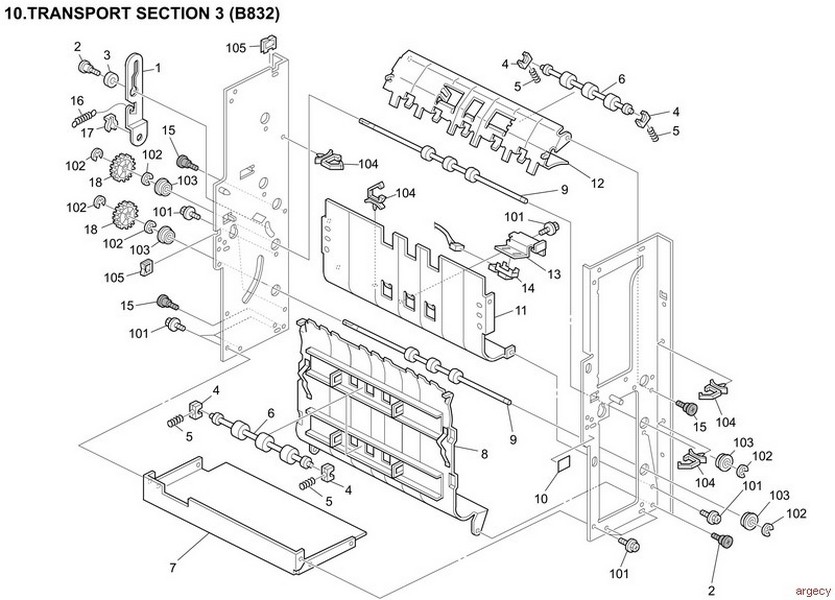

10.TRANSPORT SECTION 3 (B832)
1 B511 3680 Linkage Bracket
2 5408 2035 Stepped Screw - M4
3 B303 3685 Link Spacer
4 AA08 4059 Ball Bearing Holder
5 AA06 6675 Compression Spring
6 B834 2568 Transport Roller - Driven
7 B303 3830 Upper Support Stay
8 B832 3694 Guide Plate - Lower Left
9 AF02 1412 Drive Transport Roller - CW
10 B832 1320 Decal - Knob (u6)
11 B832 3689 Guide Plate - Lower Right
12 B511 3621 Guide Plate - Link
13 B832 3655 Transport Sensor Bracket No.6
14 AW01 0118 Paper Feed Sensor
15 AA14 3810 Development Cover Screw
16 AA06 6670 Tension Spring
17 5215 2621 Snap Ring - M6
18 AB01 3654 Gear - 30Z
101 0451 4008N Tapping Screw:4x8
102 0720 0060E Retaining Ring - M6
103 0742 3808 Ball Bearing - 8x16x5
104 1105 0511 Harness Clamp - LWS-0306ZC
105 1105 0358 Edge Saddle - Eds-0607m
Parts diagram - Ricoh LCIT RT5000 B832 Parts

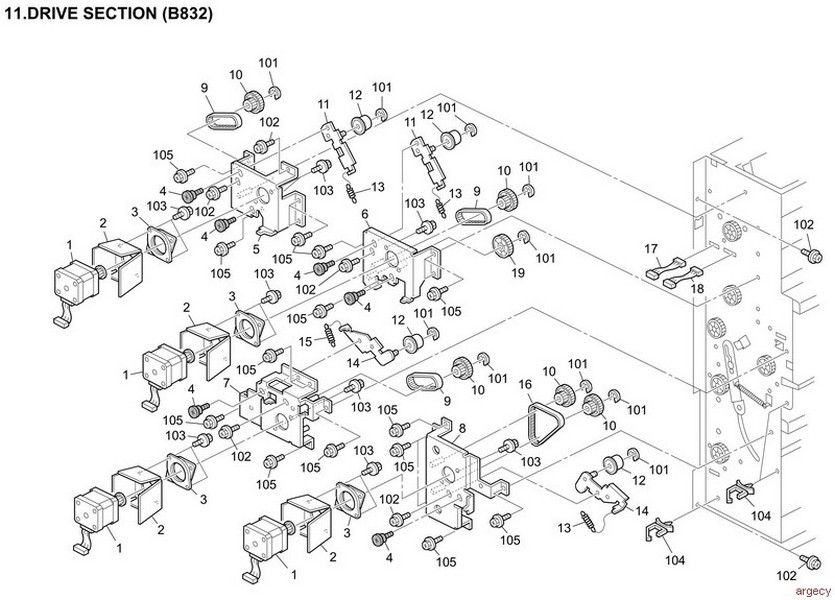

11.DRIVE SECTION (B832)
1 AX04 0158 Stepper Motor DC2.64V 6.3W
2 B832 3510 Heat Sink
3 A232 4666 Cushion - Stepper Motor
4 AA14 3810 Development Cover Screw
5 B832 3585 Bracket:Drive:Upper:Peen
6 B832 3575 Drive Bracket - Entrance
7 B832 3595 Drive Bracket - Exit
8 B832 3565 Drive Bracket - Lower
9 AA04 2551 Timing Belt - S2M128
10 AB03 2725 Timing Pulley - 25T/30Z
11 B832 3775 Tension Bracket
12 AB03 0665 Idler Pulley - 18z
13 B234 6508 Tension Spring
14 B832 3785 Tension Bracket - Lower
15 AA06 6670 Tension Spring
16 AA04 2552 Timing Belt - B60S2M176
17 B832 5306 Harness - Sensor Transport
18 B832 5305 Harness - Sensor Middle
19 AB03 2726 Gear - 30Z
101 0720 0060E Retaining Ring - M6
102 0451 4008N Tapping Screw:4x8
103 0451 3006N Tapping Screw - 3x6
104 1105 0511 Harness Clamp - LWS-0306ZC
105 0454 4006Q Tapping Screw:4x6
Parts diagram - Ricoh LCIT RT5000 B832 Parts

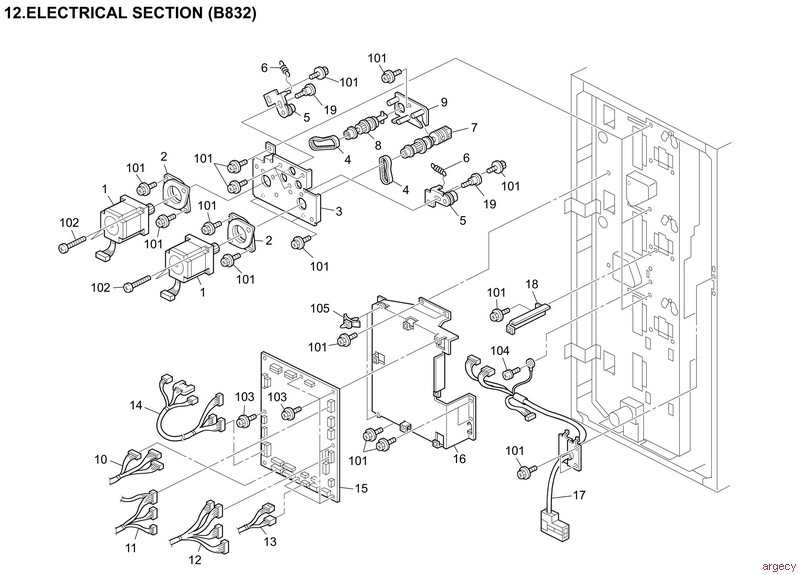

12.ELECTRICAL SECTION (B832)
1 AX04 0157 Stepper Motor DC1.68V 6.7W
2 AA16 1122 Motor Cushion
3 B832 1725 Drive Bracket - Paper Feed Unit
4 AA04 2550 Timing Belt - S2M138
5 B832 1750 Tension Bracket
6 B234 6508 Tension Spring
7 B832 1730 Drive Shaft - Grip
8 B832 1740 Drive Shaft - Paper Feed
9 B832 1718 Drive Bracket
10 B832 5312 Harness - Paper Feed Unit
11 B832 5300 Harness - Stepper Motor
12 B832 5307 Harness - Interface
13 B832 5303 Harness - Safety Switch
14 B832 5313 Harness - Transport Sensor
15 B832 5110 PCB A4 Large Capacity Tray
B8325110 Large Capacity Tray Pcb Rt5000
Fully refurbished with 90-day warranty
B8325110
Contact for Details

16 B832 1088 PWB Bracket
17 B832 5190 Harness - Interface
18 B511 1595 Stay:Cover:Rear
19 AA14 3562 Screw:M4:DIA6X1.2
101 0451 4008N Tapping Screw:4x8
102 0314 0080N Philips Pan Head Screw - M4x8
103 0451 3008N Tapping Screw - M3x8
104 0950 4008Z Philips Truss Screw - M4x8
105 1105 0194 PCB Stud
Parts diagram - Ricoh LCIT RT5000 B832 Parts

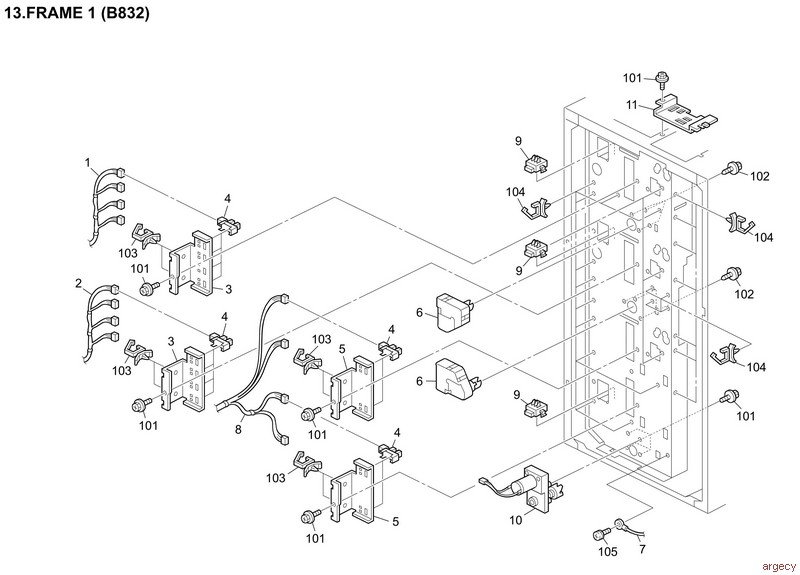

13.FRAME 1 (B832)
1 B832 5308 Harness - Paper Volume Sensor 4t
2 B832 5309 Harness - Paper Volume Sensor 5t
3 B303 1181 Sensor Bracket
4 AW02 0145 Photointerruptor:Flat
5 B303 1182 Sensor Bracket
6 B132 6760 DC Motor 24V 19.6W
7 B832 5315 Harness - Earth
8 B832 5310 Harness - Paper Volume Sensor 6t
9 H515 5054 Paper Size Sensor
10 B832 1021 DC Motor 24V 19.6W
11 B832 1065 Connector Bracket
101 0451 4008N Tapping Screw:4x8
102 0451 4010N Tapping Screw:4x10
103 1105 0508 Harness Clamp - LWS-0711
104 1105 0488 Harness Clamp
105 0950 4008Z Philips Truss Screw - M4x8
Parts diagram - Ricoh LCIT RT5000 B832 Parts

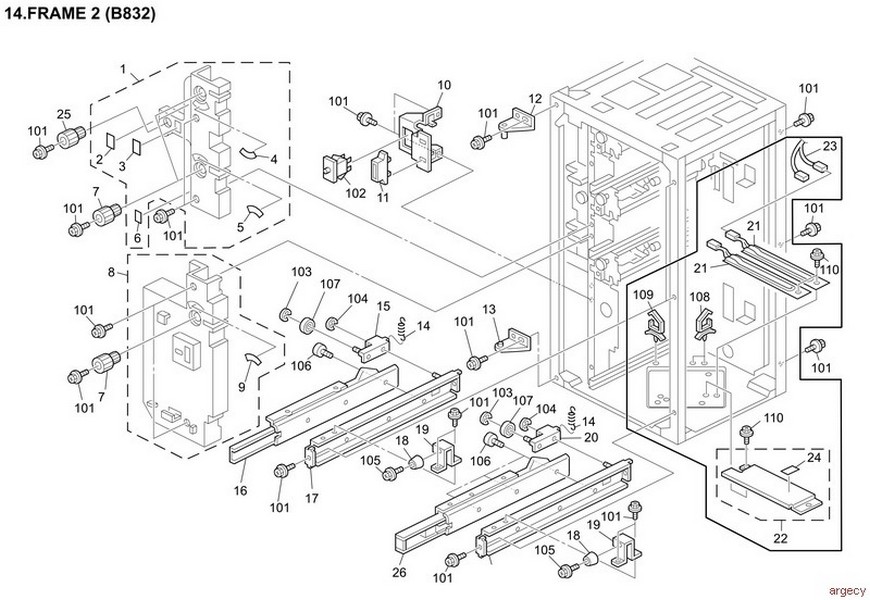

14.FRAME 2 (B832)
1 B832 1461 Inner Cover - Upper
2 B832 1331 Decal - Misfeed Removal (U1)
3 B832 1333 Decal - Misfeed Removal (U7)
4 B832 1316 Decal - Knob (U2)
5 B832 1318 Decal - Knob (U4)
6 B832 1332 Decal - Misfeed Removal (U3)
7 B832 0067 Knob - Misfeed Removal
8 B832 1462 Inner Cover - Lower
9 B832 1319 Decal - Knob (U5)
10 B832 1171 Safety Switch Bracket
11 AG07 1012 Magnet Catch:Ass'y
12 B511 1034 Hinge:Cover:Upper:Peen
13 B511 1355 Lower Hinge
14 AA06 0814 Lock Spring
15 B511 1132 Arm Lock Bracket
16 B303 1125 Right Slide Rail
17 B511 1137 Support Stay
18 5446 2560 Cushion - Paper Tray
19 B511 1136 Rail Bracket
20 B511 1134 Arm Lock Bracket
21 AX40 0012 Heater - 230V/18W
22 B834 3870 Cover:Dehumidifier:Heater:Adhesion
23 B832 5316 Harness - Heater
24 GA00 0036 Decal - (high Temperature) Left
25 AG05 0067 Knob - Transport Roller
26 B303 1155 Right Slide Rail
101 0451 4008N Tapping Screw:4x8
102 1204 2382 Interlock Switch - Fail-ca22
103 0720 0060E Retaining Ring - M6
104 0720 0040E Retaining Ring - M4
105 0451 4010N Tapping Screw:4x10
106 0453 4008N Binding Self Tapping Screw:4x8
107 0740 3808 Ball Bearing - 8x16x5mm
108 1105 0310 Harness Clamp - LWS-1S
109 1105 0292 Wire Saddle
110 0314 0060N Screw - M4x6
Parts diagram - Ricoh LCIT RT5000 B832 Parts

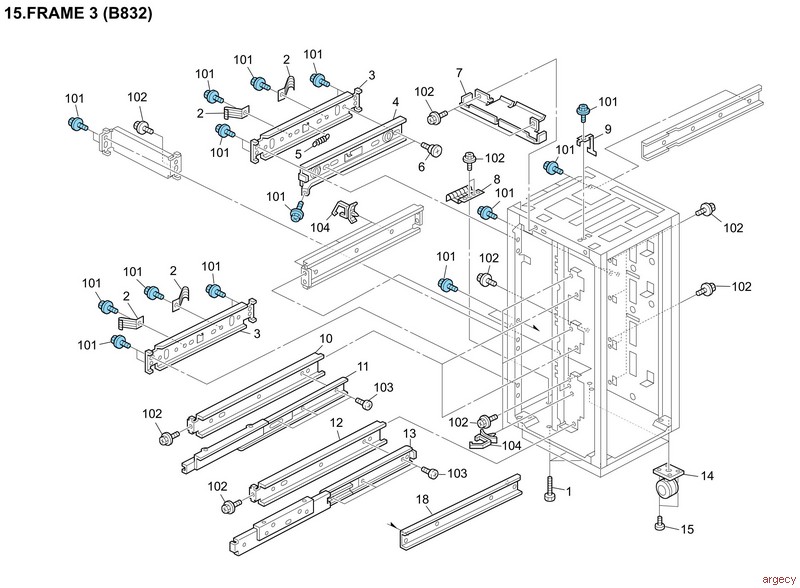

15.FRAME 3 (B832)
1 AA14 3798 Hexagonal Bolt:M12x35
2 B303 1116 Grounding Plate
3 B511 1112 Support Stay
4 B511 1114 Support Stay
5 AA06 6671 Lock Spring
6 AA14 0912 Screw - 8X14X2.8
7 B832 1373 Cover - Upper Front
8 B832 1183 Ground Plate - Lower
9 B511 2895 Stopper:End Fence:No.4
10 B511 1147 Support Stay
11 B303 1145 Left Slide Rail
12 B303 1147 Support Stay
13 B303 1165 Left Slide Rail
14 AH01 2014 Caster - 60kgf
15 A507 1096 Philips Screw - M5x6
101 0454 4008Q Tapping Screw - M4x8
102 0451 4008N Tapping Screw:4x8
103 0453 4008N Binding Self Tapping Screw:4x8
104 1105 0488 Harness Clamp
Parts diagram - Ricoh LCIT RT5000 B832 Parts
6. PAPER REGISTRATION 1 (B832) (Ricoh parts catalog)
B832 2500 Paper Feed Unit
