Printer overview: Sharp MX-C407P Color Printer.

Please call for parts assistance

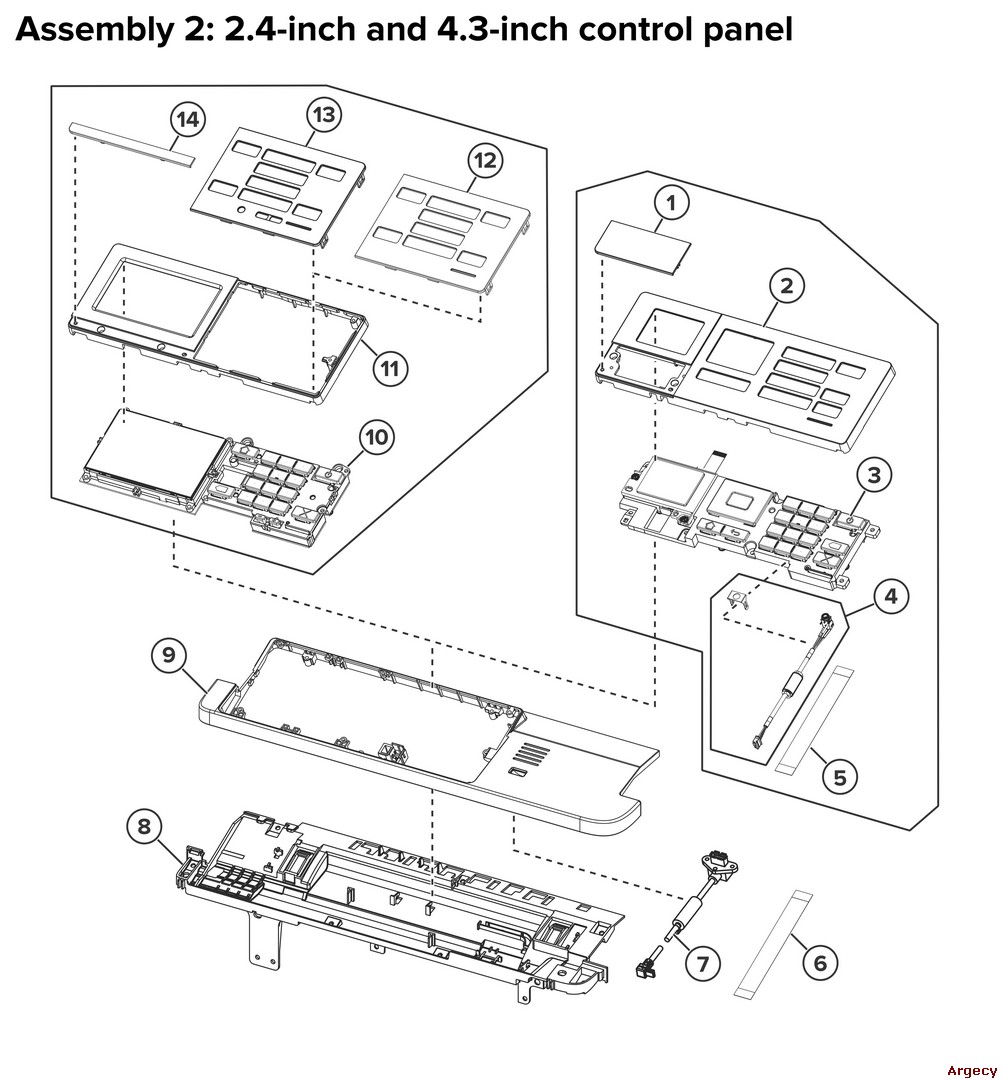

Assembly 2: 2.4-inch and 4.3-inch control panel 6 0SP41X2021 Control panel ribbon cable 7 0SP41X1307 USB cable 8 0SP41X1305 Control panel base cover 9 0SP41X1306 4.3-inch control panel top cover 10 0SP41X2113 4.3-inch control panel assembly 11 0SP41X1302 4.3-inch control panel bezel 12 0SP41X2115 4.3-inch control panel keyboard cover without volume 13 0SP41X1310 4.3-inch control panel keyboard cover 14 0SP41X2048 Control panel badge cover NS 0SP41X2119 Control panel power cable

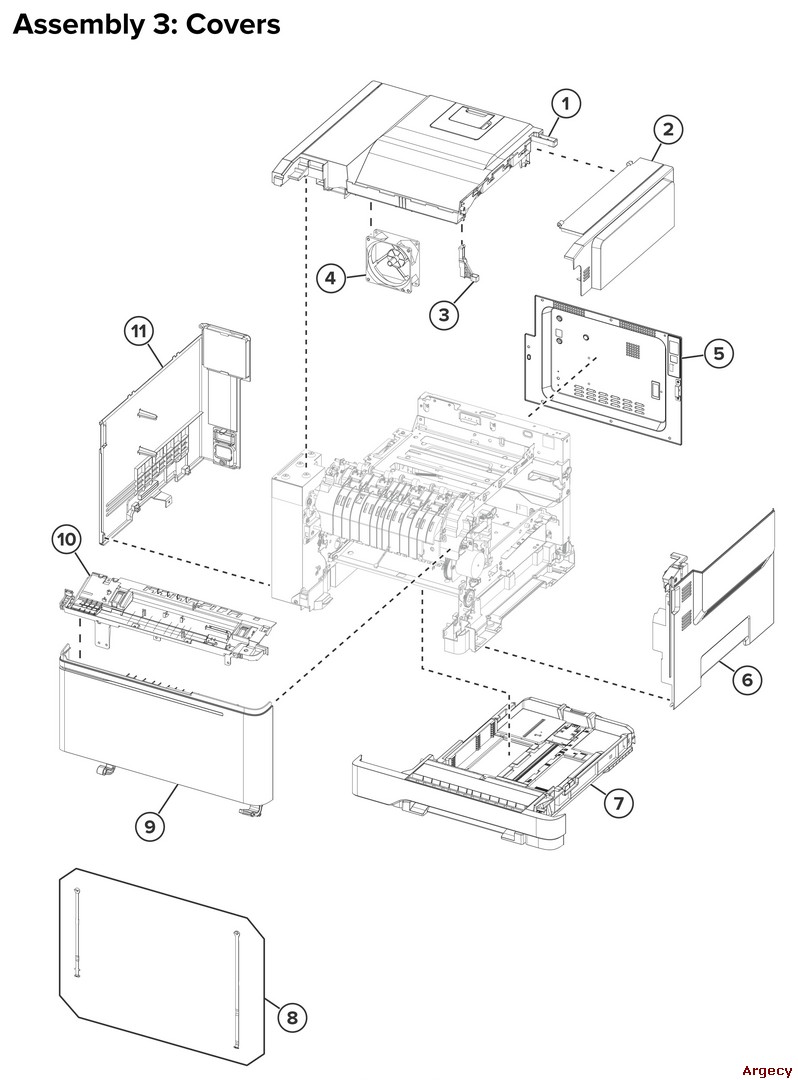

Assembly 3: Covers 1 0SP40X7633 Top cover 2 0SP40X7621 Toner cover 3 0SP40X9244 Front toner door bracket 4 OSP41X0397/// Main fan New 0SP41X0397 (New) $47.32 5 0SP41X2100 Rear cover 6 0SP40X7630 Right cover 7 OSP41X1285/// 250-sheet tray assembly New 0SP41X1285 (New) Contact for Details 8 OSP40X7619/// Front cover straps New 0SP40X7619 (New) $23.50 9 OSP41X1286/// Front Door Assembly New 0SP41X1286 (New) $81.85 10 0SP41X1305 Control panel base 11 OSP41X1291/// Left Cover New 0SP41X1291 (New) $56.64

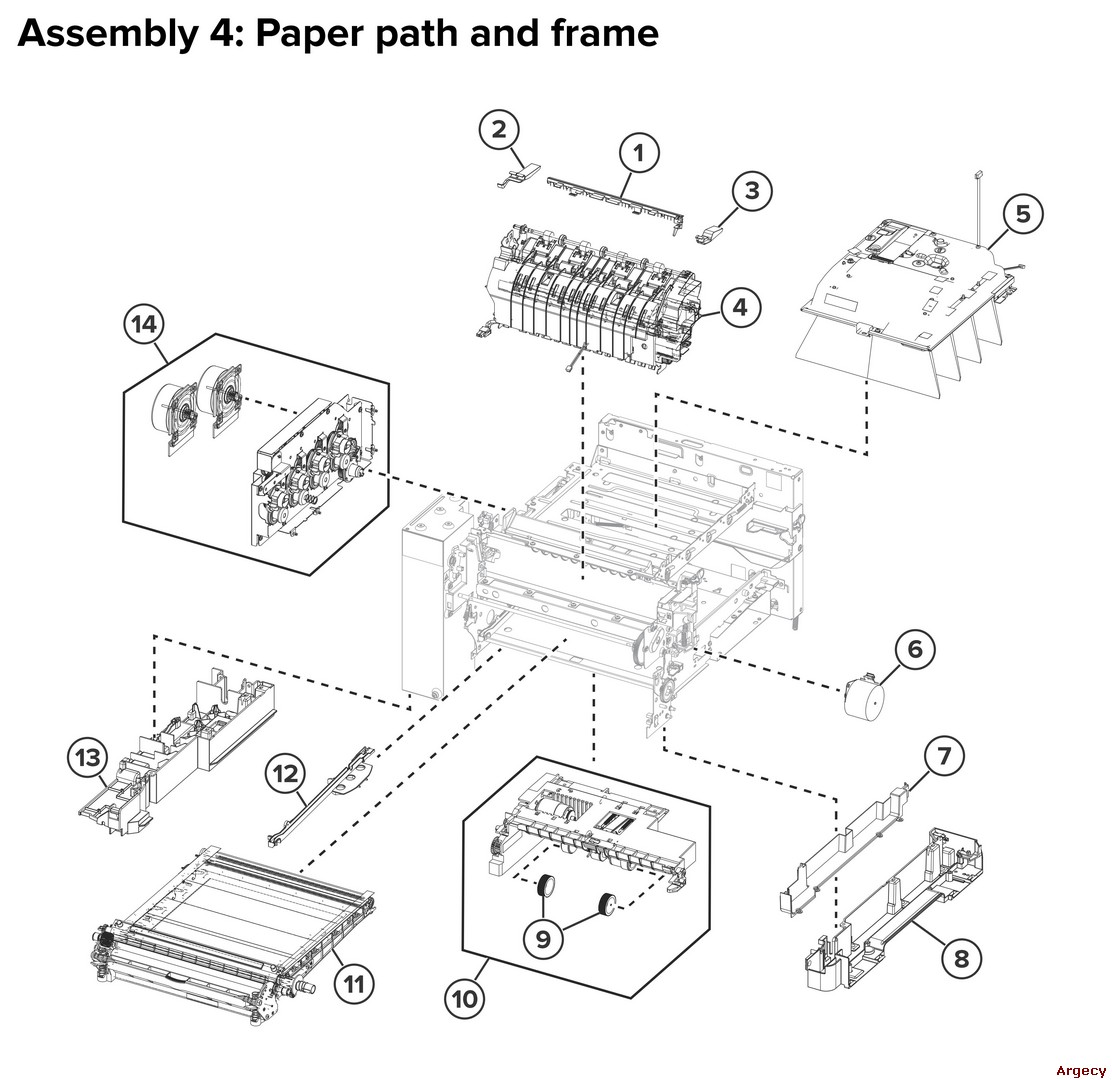

Assembly 4: Paper path and frame 1 0SP41X2305 Fuser deflector 2 0SP41X2349 Narrow media/bin full flag 3 0SP41X2350 Right deflector flag 4 OSP41X1041/// 110 V Fuser New 0SP41X1041 (New) $225.00 5 OSP41X1040/// Printhead New 0SP41X1040 (New) $270.95 6 OSP40X7629/// Fuser drive motor assembly New 0SP40X7629 (New) $43.30 7 OSP41X2327/// Subframe Cable Cover New 0SP41X2327 (New) $28.04 8 OSP41X1312/// Lower Right Subframe New 0SP41X1312 (New) $44.50 9 OSP40X5168/// Pick Tires New 0SP40X5168 Set of Two (New) $23.30 10 OSP41X1292/// Media Feeder New 0SP41X1292 (New) $98.60 11 OSP41X1039/// Transfer Module New 0SP41X1039 (New) $349.00 12 OSP41X0580/// ITU guide New 0SP41X0580 (New) $31.21 13 OSP41X2326/// Lower Left Subframe New 0SP41X2326 (New) $33.37 14 OSP41X1289/// EP Drive Assembly New 0SP41X1289 (New) $219.58 NS 0SP41X2360 Sub-frame foot

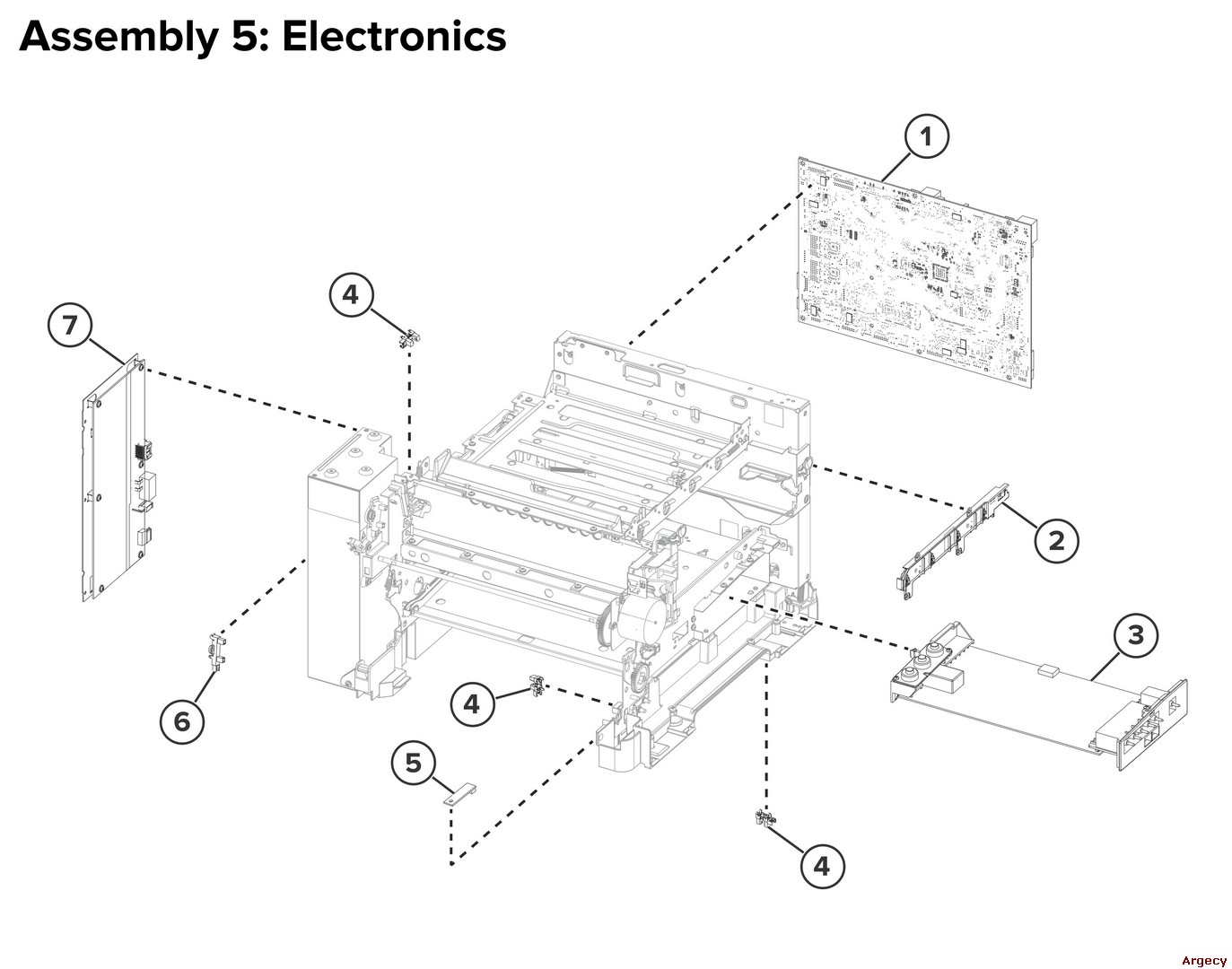

Assembly 5: Electronics 1 OSP41X1790/// Controller Board MX-C407P New 0SP41X1790 (New) $443.00 2 OSP40X7620/// Toner meter cycle card assembly New 0SP40X7620 (New) $39.98 3 OSP41X1042/// High Voltage Power Supply New 0SP41X1042 (New) $148.73 4 OSP40X7301/// New Photo sensor and retainer (one per package) New 0SP40X7301 (New) $26.21 Sensor (tray present) Sensor (duplex) Sensor (narrow media/bin full) 5 OSP41X1290/// Weather Station New 0SP41X1290 (New) $31.66 6 OSP40X5413/// Fuser exit sensor New 0SP40X5413 (New) $26.13 7 OSP41X1043/// 175 W Low Voltage Power Supply New 0SP41X1043 (New) $314.46 NS 0SP41X1311 Speaker

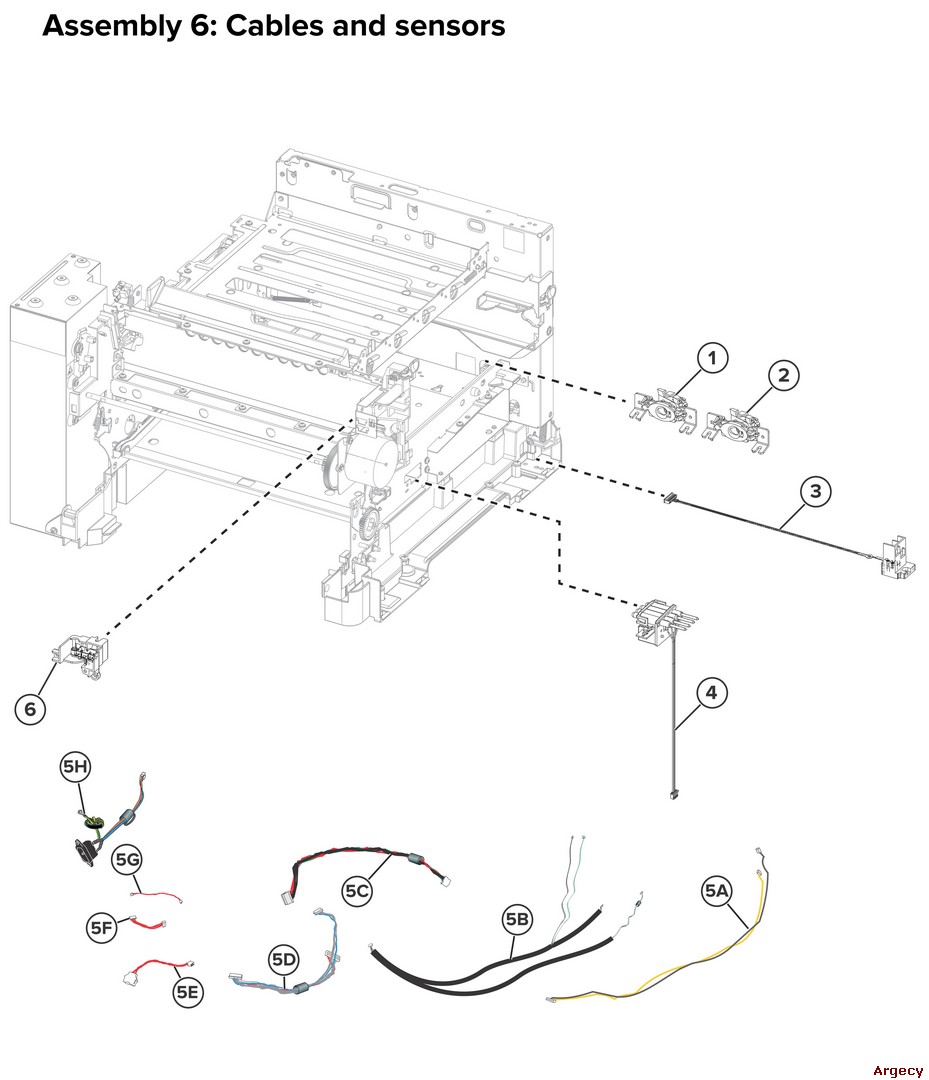

Assembly 6: Cables and sensors 1 OSP41X1904/// Sensor (left toner patch with thermistor) New 0SP41X1904 (New) $33.10 2 OSP41X2348/// Sensor (right toner patch with thermistor) New 0SP41X2348 (New) $38.46 3 OSP41X1722/// Waste toner bottle contact block New 0SP41X1722 (New) $26.20 4 OSP41X1723/// Toner cartridge contact New 0SP41X1723 (New) $30.93 5A OSP41X2328/// Fuser Exit Narrow Media To Controller Board Cable New 0SP41X2328 (New) $25.13 5B OSP41X2329/// Fuser/input sensor cable New 0SP41X2329 (New) $31.49 5C OSP41X2332/// LVPS to controller board cable New 0SP41X2332 (New) $33.28 5D OSP41X2330/// EP motor to controller board cable New 0SP41X2330 (New) $32.21 5E OSP41X2335/// Tray 2 to controller board cable New 0SP41X2335 (New) $26.96 5F OSP41X2334/// HVPS to controller board cable New 0SP41X2334 (New) $28.13 5G OSP41X2336/// Tray present sensor cable New 0SP41X2336 (New) $23.63 5H OSP41X2331/// AC power to LVPS cable New 0SP41X2331 (New) $32.21 6 OSP41X1561/// Front and right side interlock switch cover assembly New 0SP41X1561 (New) $29.58 NS 0SP41X2333 Weather station cable

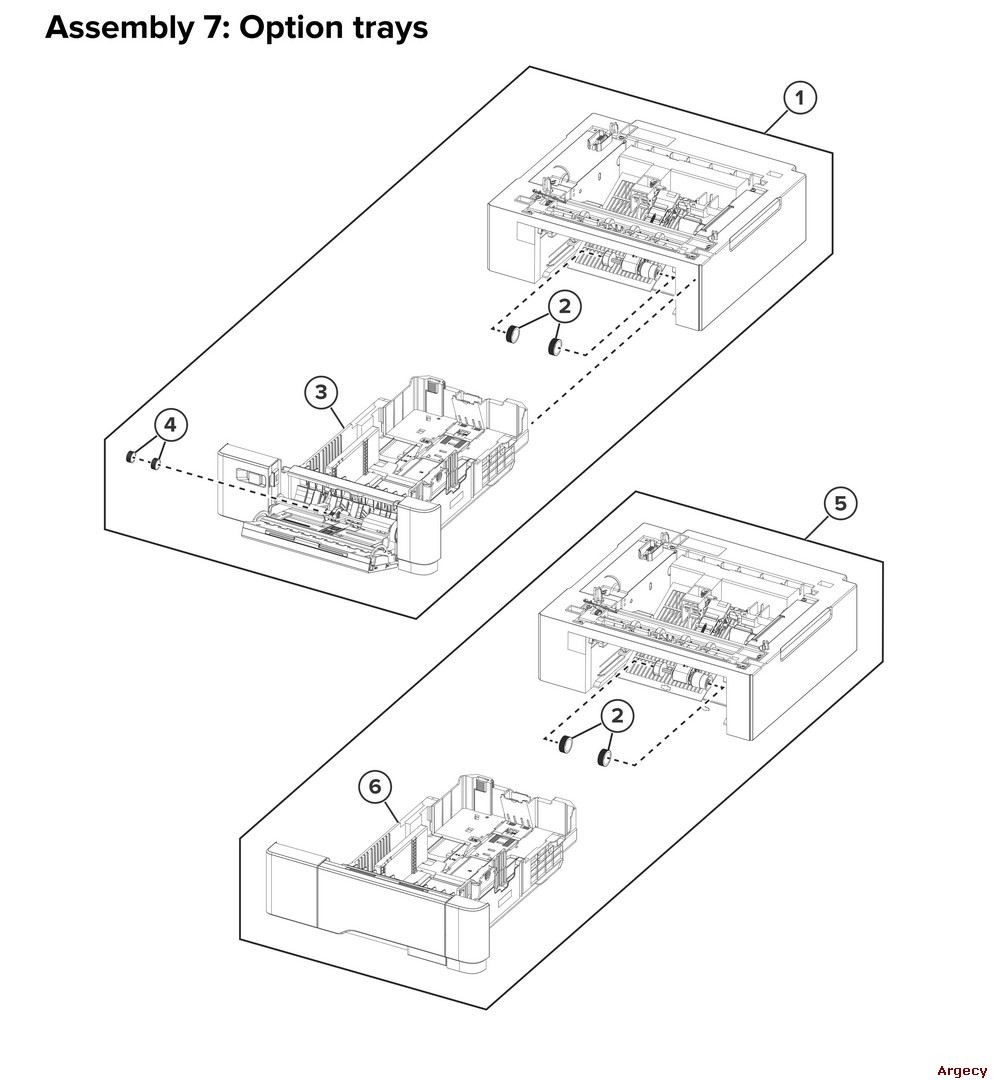

Assembly 7: Option trays 1 OSP41X1783/// Optional 650-sheet duo tray New 0SP41X1783 (New) $262.30 2 OSP40X5168/// Pick Tires New 0SP40X5168 Set of Two (New) $23.30 3 OSP41X1784/// 650-sheet duo tray insert New 0SP41X1784 (New) $160.59 4 OSP40X7178/// MPF Pick Tires and Wear Strip New 0SP40X7178 (New) Contact for Details 5 OSP41X1780/// 550-sheet tray New 0SP41X1780 (New) $300.40 6 OSP41X1781/// 550-sheet tray insert New 0SP41X1781 (New) $119.13
2-line control panel (Lexmark service manual) 1 41X2070 CS321 control panel badge cover 41X2070 CS321 control panel badge cover New 41X2070 (New) Contact for Details 41X2070 CS321 control panel badge cover Fully refurbished with 90-day warranty 41X2070 (Refurbished) Contact for Details 1 41X2127 SC2325 control panel badge cover Lexmark 41X2127 C2325 control panel badge cover New 41X2127 (New) $11.23 Lexmark 41X2127 C2325 control panel badge cover Fully refurbished with 90-day warranty 41X2127 Contact for Details 2 41X2044 2-line control panel bezel Lexmark 41X2044 2-line Control Panel Bezel New 41X2044 (New) $17.84 Lexmark 41X2044 2-line Control Panel Bezel Fully refurbished with 90-day warranty 41X2044 Contact for Details 3 41X2047 2-line control panel assembly Lexmark 41X2047 Control panel display assembly New 41X2047 (New) $68.50 Lexmark 41X2047 Control panel display assembly Fully refurbished with 90-day warranty 41X2047 Contact for Details 4 41X2045 2-line control panel top cover Lexmark 41X2045 2-line Control Panel Top Cover New 41X2045 (New) $18.51 Lexmark 41X2045 2-line Control Panel Top Cover Fully refurbished with 90-day warranty 41X2045 Contact for Details 5 41X2046 2-line control panel ribbon cable Lexmark 41X2046 2-line Control Panel Ribbon Cable New 41X2046 (New) Contact for Details Lexmark 41X2046 2-line Control Panel Ribbon Cable Fully refurbished with 90-day warranty 41X2046 Contact for Details
2.4-inch and 4.3-inch control panel (Lexmark service manual) 1 41X2049 CS421 control panel badge cover Lexmark 41X2049 CS421 control panel badge cover New 41X2049 (New) Contact for Details 41X2049 CS421 control panel badge cover Fully refurbished with 90-day warranty 41X2049 (Refurbished) Contact for Details 1 41X2050 CS521 control panel badge cover Lexmark 41X2050 CS521 control panel badge cover New 41X2050 (New) Contact for Details 41X2050 CS521 control panel badge cover Fully refurbished with 90-day warranty 41X2050 (Refurbished) Contact for Details 1 41X2132 SC2425 control panel badge cover Lexmark 41X2132 C2425 control panel badge cover New 41X2132 (New) $10.74 41X2132 SC2425 control panel badge cover Fully refurbished with 90-day warranty 41X2132 (Refurbished) Contact for Details 1 41X2133 SC2535 control panel badge cover Lexmark 41X2133 C2535 control panel badge cover New 41X2133 (New) $10.74 41X2133 SC2535 control panel badge cover Fully refurbished with 90-day warranty 41X2133 (Refurbished) Contact for Details 2 41X1304 2.4-inch control panel bezel (CS421, C2425, CS521, and CS2535) Lexmark 41X1304 2.4-inch control panel bezel New 41X1304 (New) $17.18 Lexmark 41X1304 2.4-inch control panel bezel Fully refurbished with 90-day warranty 41X1304 Contact for Details 3 41X1627 2.4-inch control panel assembly (CS421, C2425, CS521, and CS2535) OSP41X1627/// Control panel display assembly New 0SP41X1627 (New) Contact for Details Lexmark 41X1627 Control panel display assembly Fully refurbished with 90-day warranty 41X1627 Contact for Details 4 41X1308 Headphone cable Lexmark 41X1308 Headphone cable New 41X1308 (New) $23.38 Lexmark 41X1308 Headphone cable Fully refurbished with 90-day warranty 41X1308 Contact for Details 5 41X1309 2.4‑inch control panel FFC (CS421, C2425, CS521, and CS2535) Lexmark 41X1309 2.4-inch Control Panel FFC New 41X1309 (New) $18.54 41X1309 2.4 inch control panel FFC (CS421, C2425, CS521, and CS2535) Fully refurbished with 90-day warranty 41X1309 (Refurbished) Contact for Details 14 41X2134 C2240 control panel badge cover Lexmark 41X2134 C2240 Control Panel Badge Cover New 41X2134 (New) $12.76 41X2134 C2240 control panel badge cover Fully refurbished with 90-day warranty 41X2134 (Refurbished) Contact for Details
Covers (Lexmark service manual) 5 41X1788 Rear cover, CS3x, CS4x, CS52x Lexmark 41X1788 Rear cover New 41X1788 (New) $29.86 Lexmark 41X1788 Rear cover Fully refurbished with 90-day warranty 41X1788 Contact for Details
Electronics (Lexmark service manual) 1 41X1789 Controller board (CS421 and C2425) Lexmark 41X1789 Controller board New 41X1789 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $353.50 41X1789 Controller board (CS421 and C2425) Fully refurbished with 90-day warranty 41X1789 (Refurbished) Contact for Details 1 41X2098 Controller board (CS521 and CS2535) Lexmark 41X2098 Controller board (and C2535) New 41X2098 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $392.50 41X2098 Controller board (CS521 and CS2535) Fully refurbished with 90-day warranty 41X2098 (Refurbished) Contact for Details 1 41X2140 Controller board (CS2325) Lexmark 41X2140 Controller board (C2325) New 41X2140 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $392.50 Lexmark 41X2140 Controller board (C2325) Fully refurbished with 90-day warranty 41X2140 Contact for Details 7 41X2019 110 W low-voltage power supply (CS2325) Lexmark 41X2019 110 W low-voltage power supply (C2325) New 41X2019 (New) $304.50 Lexmark 41X2019 110 W low-voltage power supply (C2325) Fully refurbished with 90-day warranty 41X2019 Contact for Details
Miscellaneous (Lexmark service manual) NS 41X2096 115 V Fuser maintenance kit Lexmark 41X2096 115 V Fuser maintenance kit New 41X2096 (New) $186.50 Lexmark 41X2096 115 V Fuser maintenance kit Fully refurbished with 90-day warranty 41X2096 Contact for Details NS 40X9934 320 GB SATA hard disk drive Lexmark 40X9934 500GB SATA Hard disk New 40X9934 (New) $299.00 Lexmark 40X9934 500GB SATA Hard disk Fully refurbished with 90-day warranty 40X9934 $161.00 NS 41X1373 SATA hard disk drive with FIPS OSP41X1373/// Hard disk drive SATA with FIPS New 0SP41X1373 (New) $827.49 OSP41X1373/// Hard disk drive SATA with FIPS Fully refurbished with 90-day warranty 0SP41X1373 Contact for Details NS 41X1873 Wireless network card cardlet without cable Lexmark 41X1873 Wireless module New 41X1873 (New) $92.34 Lexmark 41X1873 Wireless module Fully refurbished with 90-day warranty 41X1873 Contact for Details NS 41X1871 port vertical fax card Lexmark 41X1871 1 port vertical fax card New 41X1871 (New) $152.86 Lexmark 41X1871 1 port vertical fax card Fully refurbished with 90-day warranty 41X1871 Contact for Details NS 40X4823 1284-B THCK parallel adapter Lexmark 40X4823 Parallel 1284-B interface card New 40X4823 (New) $168.98 Lexmark 40X4823 Parallel 1284-B interface card Fully refurbished with 90-day warranty 40X4823 $80.00 NS 41X1945 N8230 fiber ISP with side cover adapter OSP41X1945/// New MarkNet N8230 Fiber Ethernet 100BASEFX (LC) 1000BASE-SX (LC) (Fiber + side backpack) New 0SP41X1945 (New) $1140.84 OSP41X1945/// MarkNet N8230 Fiber Ethernet 100BASEFX (LC) 1000BASE-SX (LC) (Fiber + side backpack) Fully refurbished with 90-day warranty 0SP41X1945 Contact for Details NS 41X1946 N8230 fiber ISP with backpack adapter OSP41X1946/// MarkNet N8230 Fiber Ethernet 100BASEFX (LC) 1000BASE-SX (LC) (Fiber + side cover) New 0SP41X1946 (New) $1012.80 Lexmark 41X1946 MarkNet N8230 Fiber Ethernet 100BASEFX (LC) 1000BASE-SX (LC) (Fiber + side cover) (MX52x) Fully refurbished with 90-day warranty 41X1946 Contact for Details NS 41X1016 Japanese font card 41X1016 Font card, Japanese New 41X1016 (New) Contact for Details 41X1016 Font card, Japanese Fully refurbished with 90-day warranty 41X1016 (Refurbished) Contact for Details NS 41X1010 256 MB flash card Lexmark 41X1010 Flash memory 256 MB New 41X1010 (New) $92.60 Lexmark 41X1010 Flash memory 256 MB Fully refurbished with 90-day warranty 41X1010 $62.50 NS 41X2055 Security element smart card with interconnect Smart card OSP41X2055/// Smart card New 0SP41X2055 (New) $281.20 OSP41X2055/// Smart card Fully refurbished with 90-day warranty 0SP41X2055 Contact for Details NS 41X0020 Serial ISP with backpack adapter Lexmark 41X0020 CS72x SVC Adapter Serial ISP with Backpa New 41X0020 (New) $380.50 Lexmark 41X0020 CS72x SVC Adapter Serial ISP with Backpa Fully refurbished with 90-day warranty 41X0020 $226.50 NS 41X0997 Contact front solutions module Lexmark 41X0997 Contact Front Authentication Device New 41X0997 (New) $256.22 Lexmark 41X0997 Contact Front Authentication Device Fully refurbished with 90-day warranty 41X0997 Contact for Details NS 41X0998 Contactless front solutions module Lexmark 41X0998 Contactless Front Authentication Device New 41X0998 (New) $817.80 Lexmark 41X0998 Contactless Front Authentication Device Fully refurbished with 90-day warranty 41X0998 Contact for Details NS 41X0045 English keyboard 41X0045 Keyboard, English New 41X0045 (New) Contact for Details 41X0045 Keyboard, English Fully refurbished with 90-day warranty 41X0045 (Refurbished) Contact for Details NS 41X0046 French keyboard 41X0046 Keyboard, French New 41X0046 (New) Contact for Details 41X0046 Keyboard, French Fully refurbished with 90-day warranty 41X0046 (Refurbished) Contact for Details NS 41X0048 German keyboard 41X0048 Keyboard, German New 41X0048 (New) Contact for Details 41X0048 Keyboard, German Fully refurbished with 90-day warranty 41X0048 (Refurbished) Contact for Details NS 41X0049 Spanish keyboard 41X0049 Keyboard, Spanish New 41X0049 (New) Contact for Details 41X0049 Keyboard, Spanish Fully refurbished with 90-day warranty 41X0049 (Refurbished) Contact for Details NS 41X2033 PCIe 8 GB x32 DDP RAM card OSP41X2033/// RAM card PCIe 8GB x32 DDP New 0SP41X2033 (New) Contact for Details Lexmark 41X2033 RAM card PCIe 8GB x32 DDP Fully refurbished with 90-day warranty 41X2033 Contact for Details NS 41X2302 Braille label kit OSP41X2302/// Braille label kit New 0SP41X2302 (New) $176.20 Lexmark 41X2302 Braille label kit Fully refurbished with 90-day warranty 41X2302 Contact for Details NS 41X0357 110 V surge protector Lexmark 41X0357 Surge Protective Device 110-120V New 41X0357 (New) $86.22 Lexmark 41X0357 Surge Protective Device 110-120V Fully refurbished with 90-day warranty 41X0357 Contact for Details NS 40X1367 ft. parallel cable Lexmark 40X1367 Parallel Cable Packaged (3 m) New 40X1367 (New) $26.03 Retired, no longer available: Contact for alternatives Lexmark 40X1367 Parallel Cable Packaged (3 m) Fully refurbished with 90-day warranty 40X1367 Contact for Details NS 40X1368 USB cable Lexmark 40X1368 2-Meter USB Cable New 40X1368 (New) $23.70 Retired, no longer available: Contact for alternatives Lexmark 40X1368 2-Meter USB Cable Fully refurbished with 90-day warranty 40X1368 Contact for Details NS 40X7648 Screws parts pack Lexmark 40X7648 Screw part packet New 40X7648 (New) $79.49 Lexmark 40X7648 Screws parts packet Fully refurbished with 90-day warranty 40X7648 Contact for Details NS 40X7652 Spring kit Lexmark 40X7652 Spring parts package New 40X7652 (New) $11.32 Lexmark 40X7652 Spring parts package Fully refurbished with 90-day warranty 40X7652 Contact for Details
