T2248 and T2348 Parts
| Please scroll to the bottom of the page for prices |  |
| Please scroll to the bottom of the page for prices |  |
 | |
| Please scroll to the bottom of the page for prices |  |
| Please scroll to the bottom of the page for prices |  |
| Please scroll to the bottom of the page for prices |  |
| Please scroll to the bottom of the page for prices |  |
| Please scroll to the bottom of the page for prices |  |
| Please scroll to the bottom of the page for prices |  |
| Please scroll to the bottom of the page for prices |  |
| Please scroll to the bottom of the page for prices |  |
| SPL Reference # | Description | RSPL | 2248 | 2348 | Part Number |

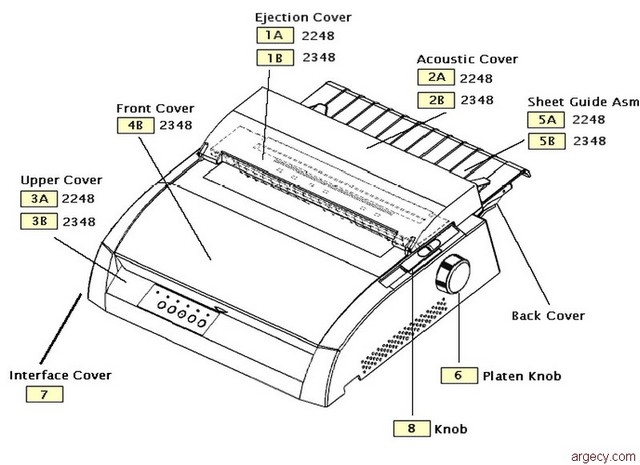

| 01.01.1A | EJECTION COVER ASM | Y | Y | KA02008-D959 | |
| 01.01.1B | EJECTION COVER ASM | Y | Y | ||
| 01.01.2A | ACOUSTIC COVER | Y | Y | ||
| 01.01.2B | ACOUSTIC COVER | Y | Y | ||
| 01.01.3A | UPPER COVER ASM | Y | Y | KA02008-D965 | |
| 01.01.3B | UPPER COVER ASM | Y | Y | ||
| 01.01.4B | FRONT COVER ASM | Y | Y | ||
| 01.01.5A | SHEET GUIDE ASM | Y | Y | ||
| 01.01.5B | SHEET GUIDE ASM | Y | Y | ||
| 01.01.6 | PLATEN KNOB | Y | Y | Y | KA02008-D980 |
| 01.01.7 | INTERFACE COVER | Y | Y | Y | KA02008-D984 |
| 01.01.8 | KNOB | Y | Y | Y | KA02008-D983 |

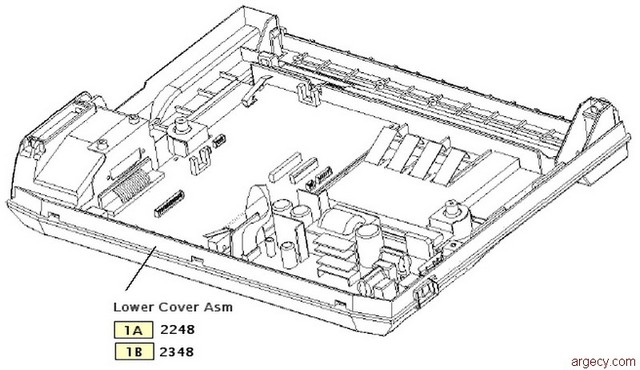

| 01.02.1A | LOWER COVER ASM | Y | Y | KA02008-D966 | |
| 01.02.1B | LOWER COVER ASM | Y | Y | KA02010-D967 | |

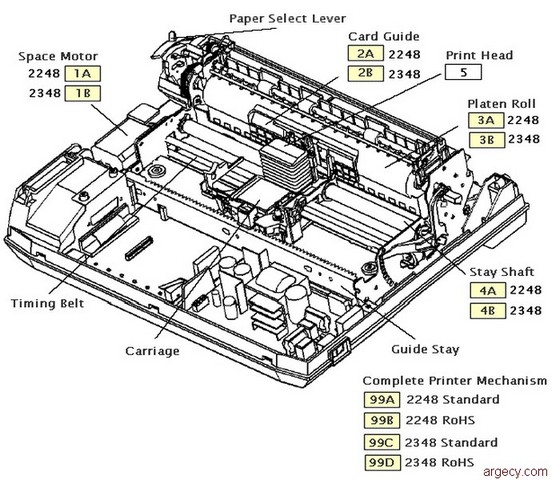

| 02.01.1A | SP MOTOR SUB ASM | Y | Y | ||
| 02.01.1B | SP MOTOR SUB ASM | Y | Y | ||
| 02.01.2A | CARD GUIDE ASM | Y | Y | KA02008-D970 | |
| 02.01.2B | CARD GUIDE ASM | Y | Y | KA02010-D970 | |
| 02.01.3A | PLATEN ROLL ASM | Y | Y | ||
| 02.01.3B | PLATEN ROLL ASM | Y | Y | ||
| 02.01.4A | STAY SHAFT ASM | Y | Y | KA02008-D969 | |
| 02.01.4B | STAY SHAFT ASM | Y | Y | KA02010-D969 | |
| >02.01.5 | PRINT HEAD | Y | Y | ||
| 02.01.99A | PRINTER MECH UNIT - STD | Y | Y | KA02008-D955 | |
| 02.01.99B | PRINTER MECH UNIT - RoHS | Y | Y | KA02013-D955 | |
| 02.01.99C | PRINTER MECH UNIT - STD | Y | Y | KA02010-D955 | |
| 02.01.99D | PRINTER MECH UNIT - RoHS | Y | Y | KA02014-D955 | |

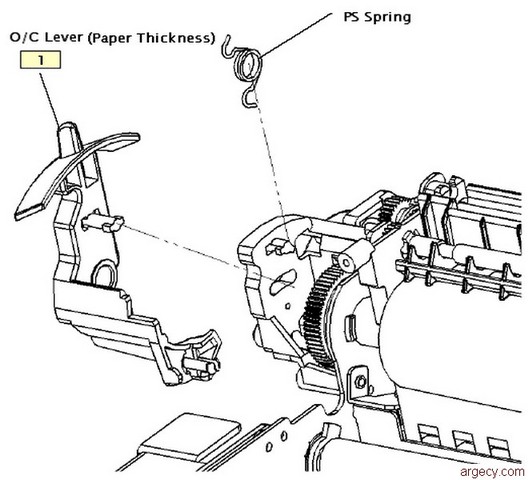

| 02.02.1 | O/C LEVER | Y | Y | Y | |

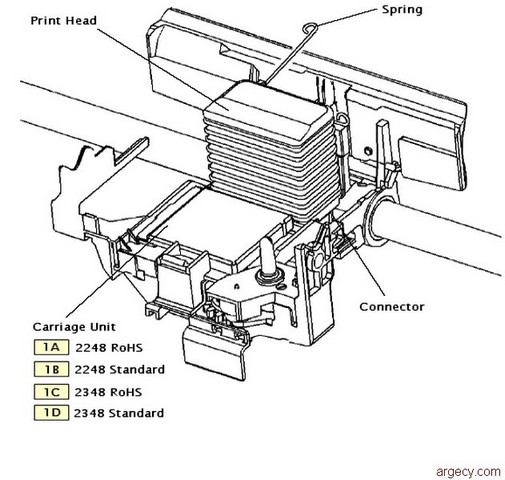

| 02.03.1A | CARRIAGE UNIT - RoHS | Y | Y | ||
| 02.03.1B | CARRIAGE UNIT - STD | Y | Y | KA02008-D956 | |
| 02.03.1C | CARRIAGE UNIT - RoHS | Y | Y | ||
| 02.03.1D | CARRIAGE UNIT - STD | Y | Y | KA02010-D956 | |

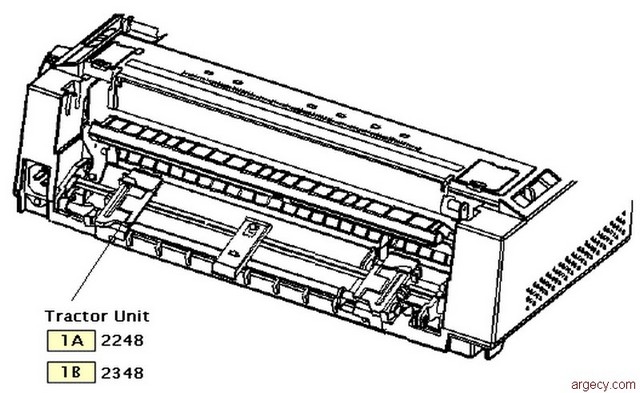

| 02.04.1A | TRACTOR UNIT | Y | Y | ||
| 02.04.1B | TRACTOR UNIT | Y | Y | ||

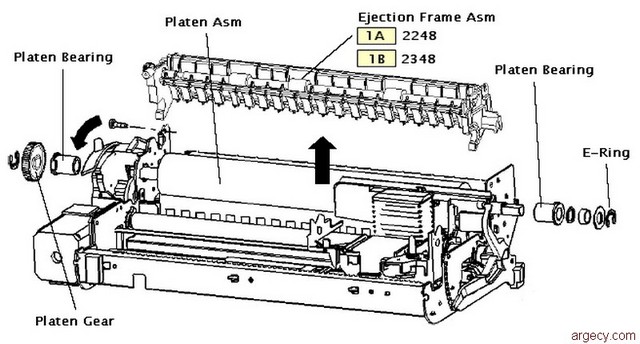

| 02.05.1A | EJECTION FRAME ASM | Y | Y | KA02008-D971 | |
| 02.05.1B | EJECTION FRAME ASM | Y | Y | KA02010-D971 | |

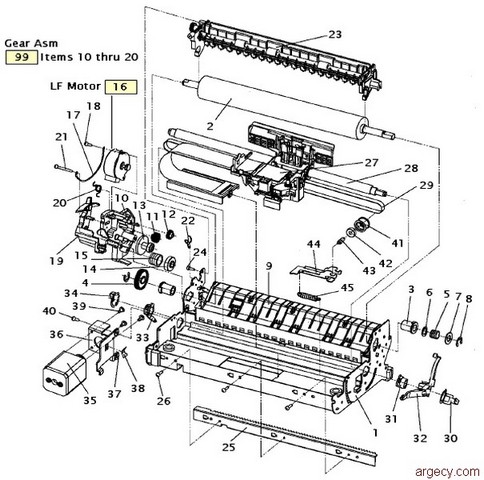

| 02.06.16 | LF MOTOR | Y | Y | Y | |
| 02.06.99 | GEAR ASM | Y | Y | Y | |

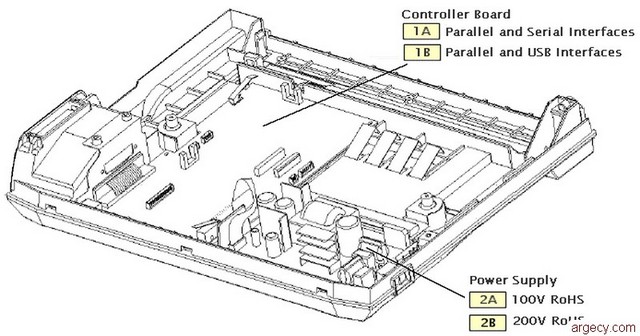

| 03.01.1A | CTLR BOARD, PAR & SER INTF | Y | Y | Y | |
| 03.01.1B | CTLR BOARD, PAR & USB INTF | Y | Y | Y | |
| 03.01.2A | POWER SUPPLY 100V RoHS | Y | Y | Y | |
| 03.01.2B | POWER SUPPLY 200V RoHS | Y | Y | Y | KA02008-D998 |

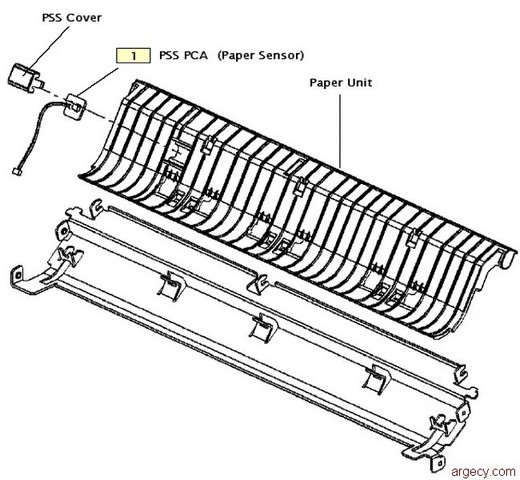

| 03.02.1 | PSS PCA | Y | Y | Y | |

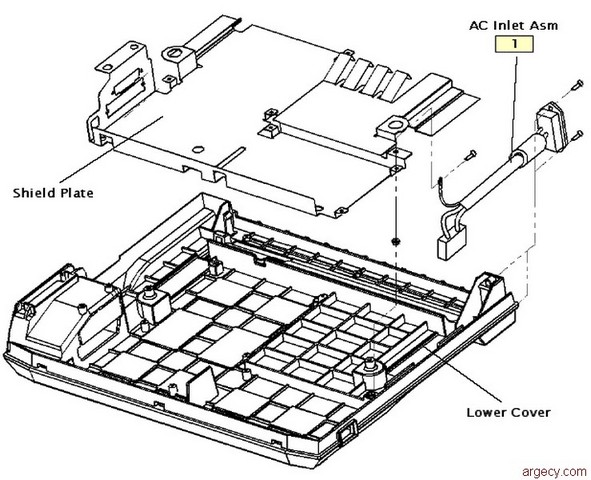

| 03.03.1 | AC INLET ASM | Y | Y | Y | KA02008-D967 |
| .. | LEFT SIDE PAD | Y | Y | Y | KA02008-D989 |
| . | RIGHT SIDE PAD | Y | Y | Y | KA02008-D988 |
