Tharo H434 & H436 Parts

›Parts for Printers, MFPs, and Scanners›Tharo Parts
  Tharo H434 & H436 Parts



Please call for parts assistance

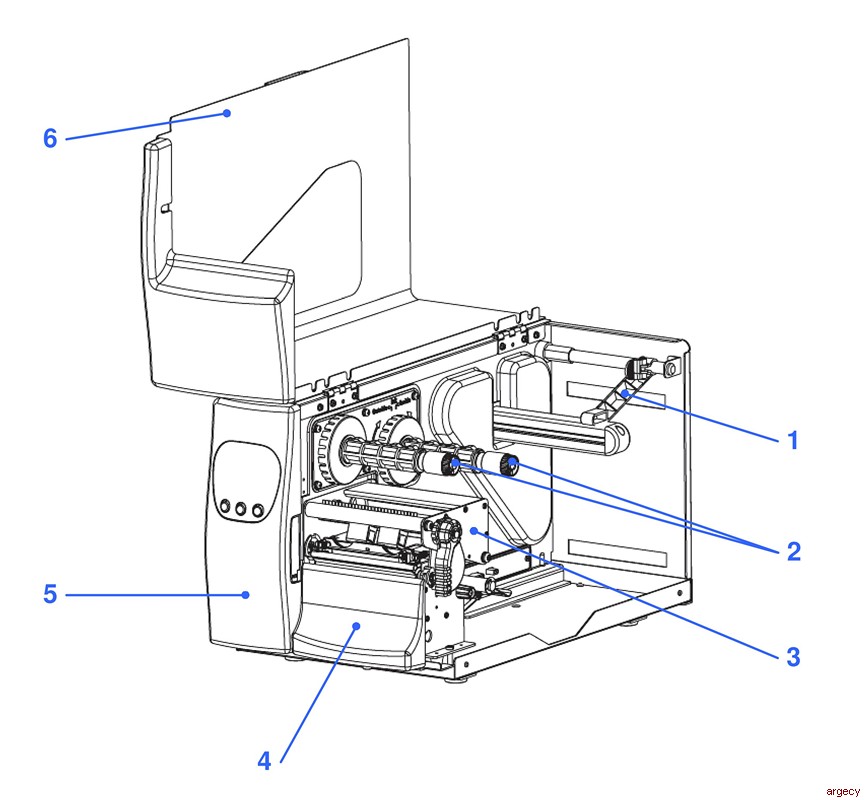

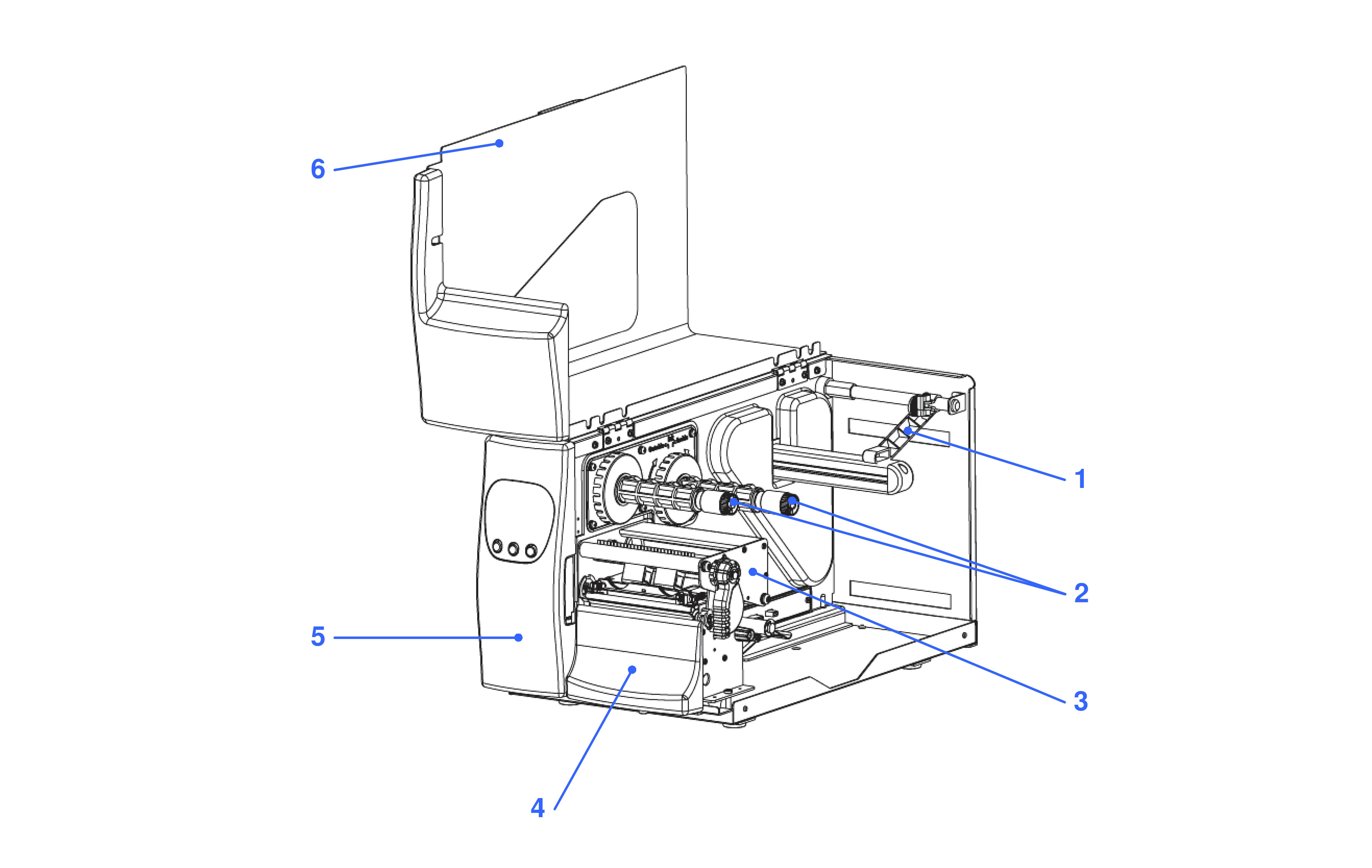

1 700-050000-001 LABEL ROLL GUIDE

2 Part Group RIBBON MODULE

3 Part Group MECHANISM

4 700-031903-021 BOTTOM FRONT COVER

5 700-031703-031 LEFT PANEL

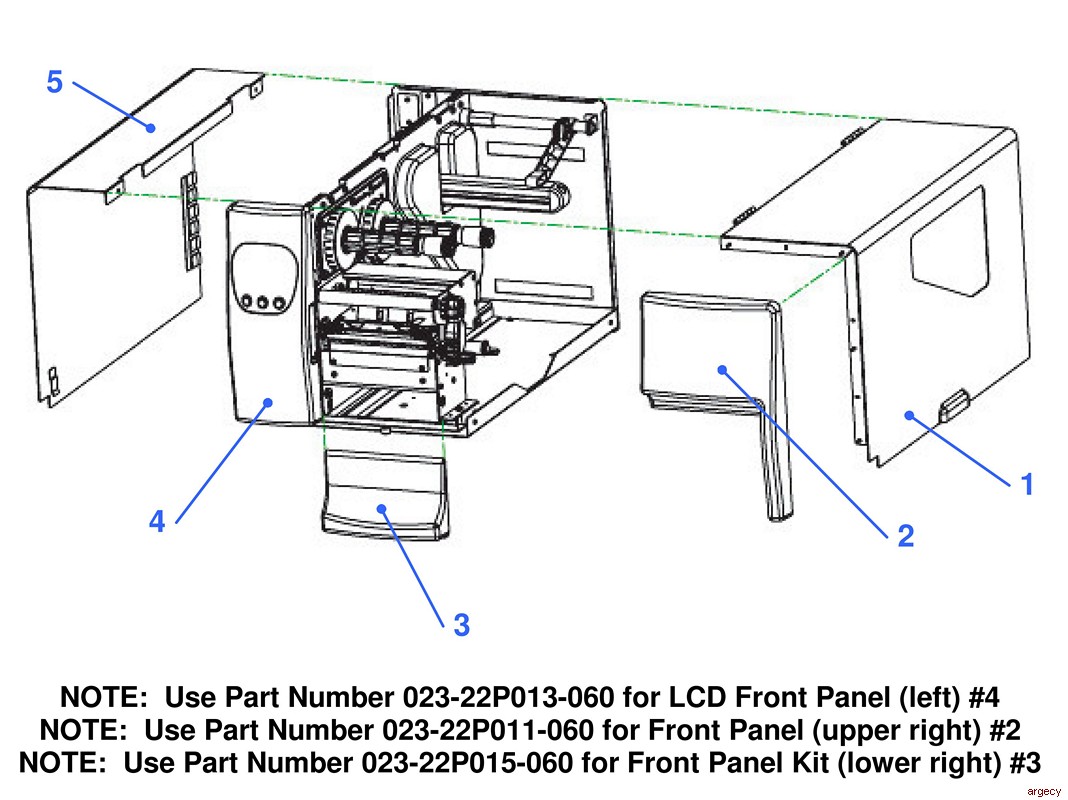

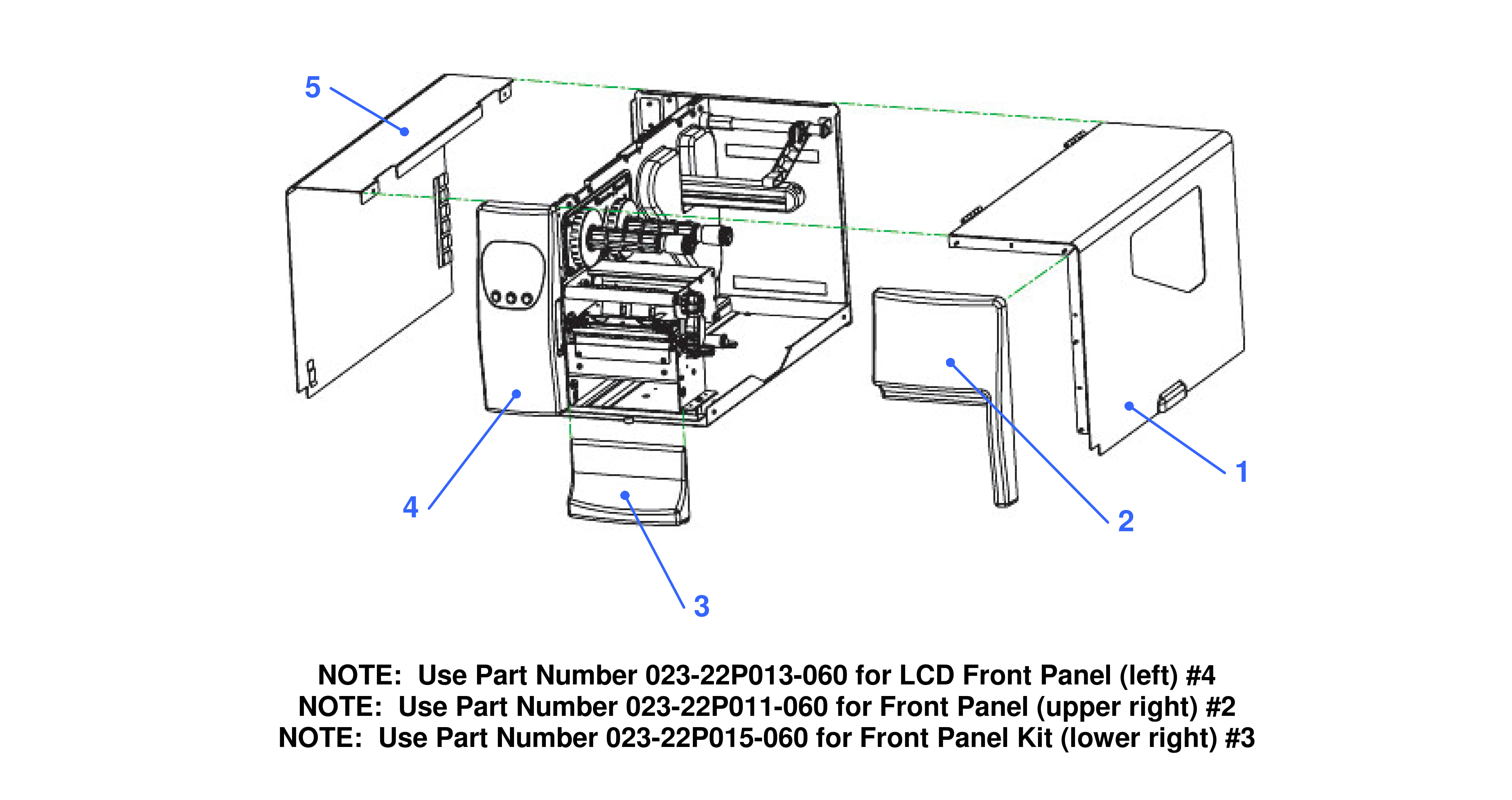

6 720-058000-010 TOP RIGHT COVER		Tharo H434 & H436 Parts
1 720-058000-010 TOP RIGHT COVER

2 700-031803-021 TOP RIGHT PANEL

3 700-031903-021 BOTTOM FRONT COVER

4 700-031703-031 LEFT PANEL

5 720-058100-010 TOP LEFT COVER		Tharo H434 & H436 Parts image 2

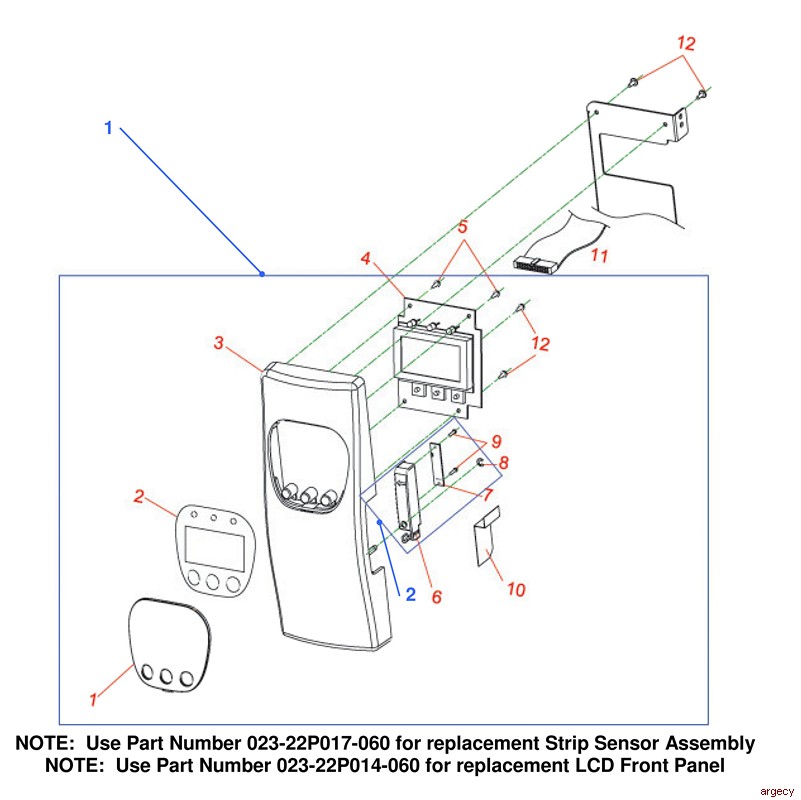

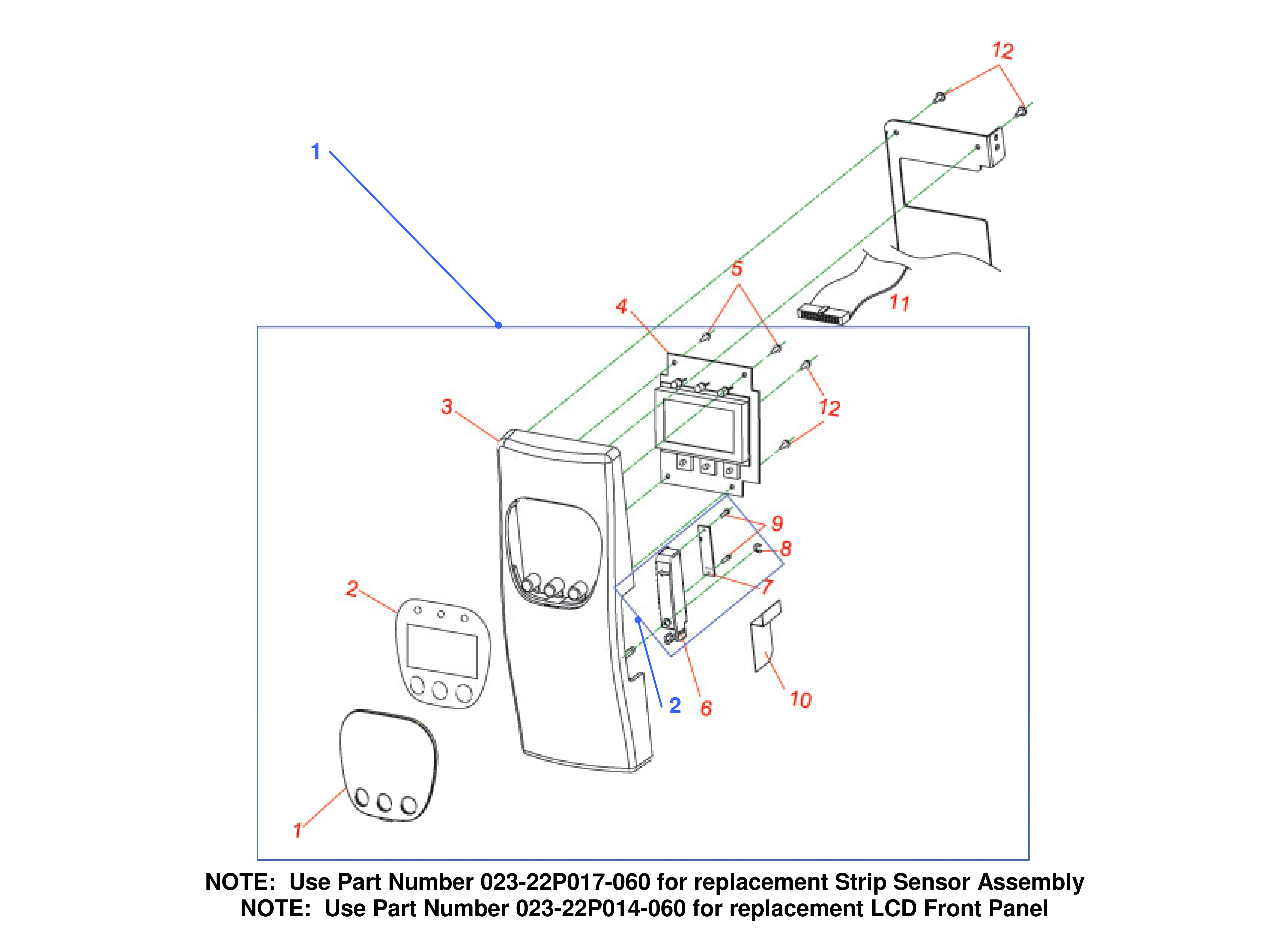

1. LCD Left Panel Module Parts

1 700-041000-001 LCD PANEL

2 755-006300-010 NAME PLATE

3 700-031703-031 LEFT PANEL

4 160-000103-030 LCD BOARD ASSEMBLY

5 765-230085-245 TAPPING SCREW/T/BK/3*8 (TAP/III)

2. Strip Sensor Module Parts

6 700-036003-011 STRIP PCB BOX

7 160-000114-001 STRIP SENSOR ASSEMBLY

8 775-620307-063 E-RING /Φ3.0*Φ7.0*0.6t/mm

9 765-217054-145 TAPPING SCREW/P/NI/1.7*5 (TAP/III)

10 745-001800-000 MYLAR PLATE

11 227-126004-060 HOUSING 254FC-26Px2

12 765-230085-245 TAPPING SCREW/T/BK/3*8 (TAP/III)		Tharo H434 & H436 Parts image 3

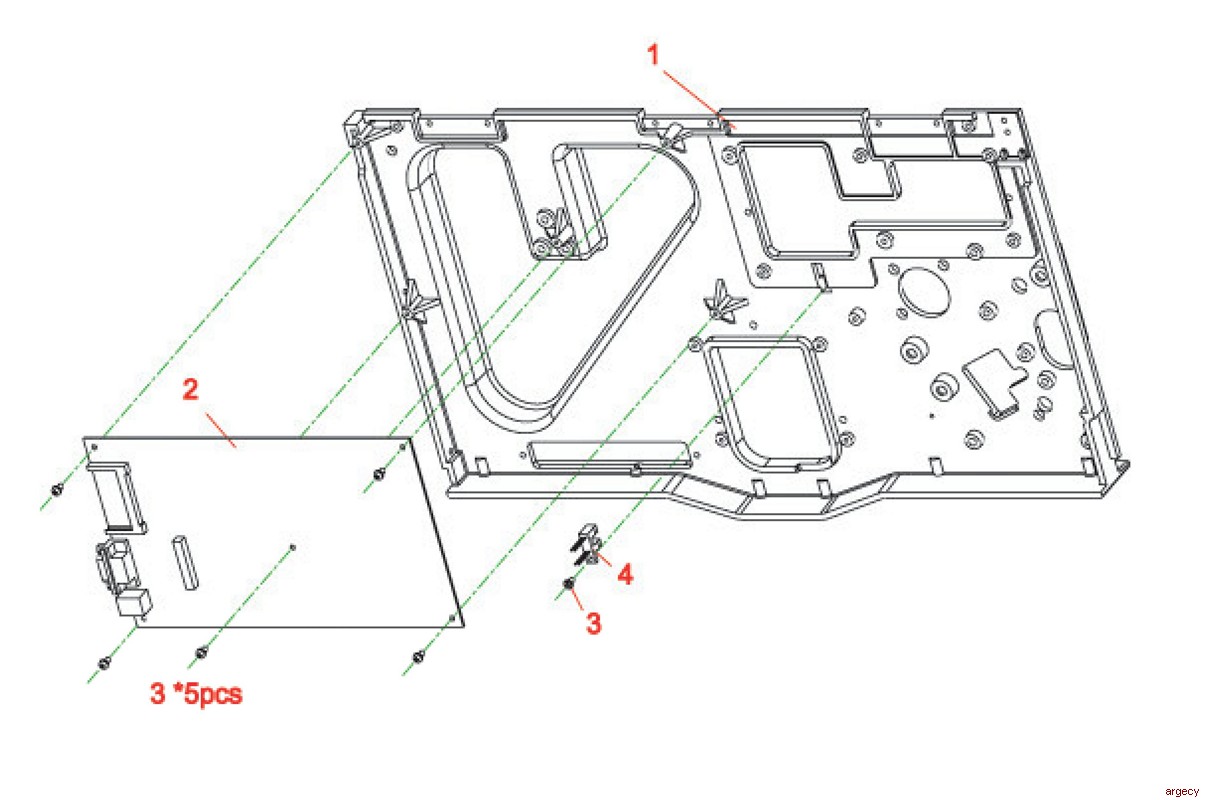

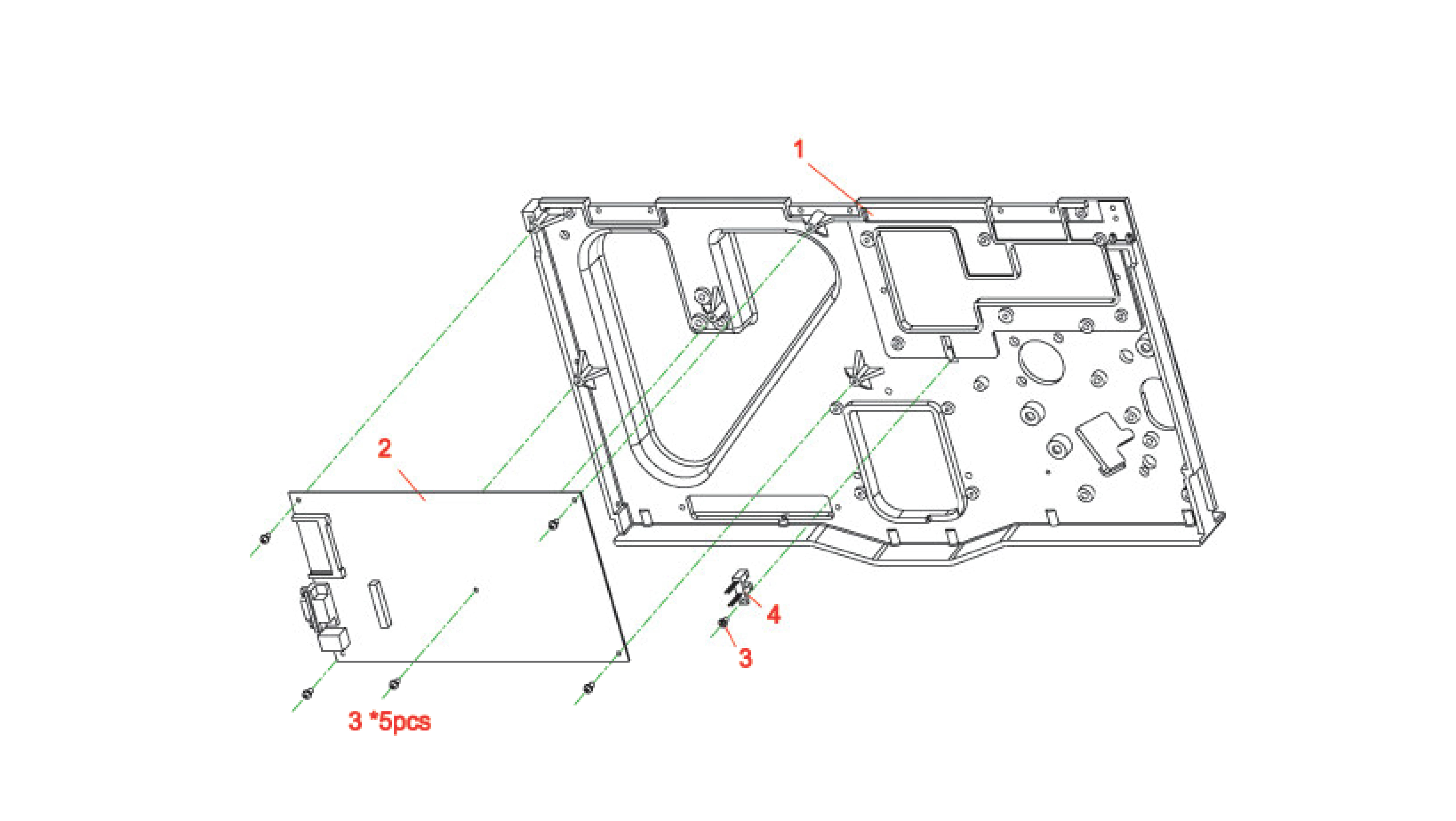

1 710-045100-000 MIDDLE PLATE

2 023-22P006-060 MAIN PCB ASSEMBLY

3 765-130064-142 MACHINE SCREW/P/NI/M3*6

4 160-100019-000 RIBBON SENSOR OUT ASSEMBLY 		Tharo H434 & H436 Parts image 4

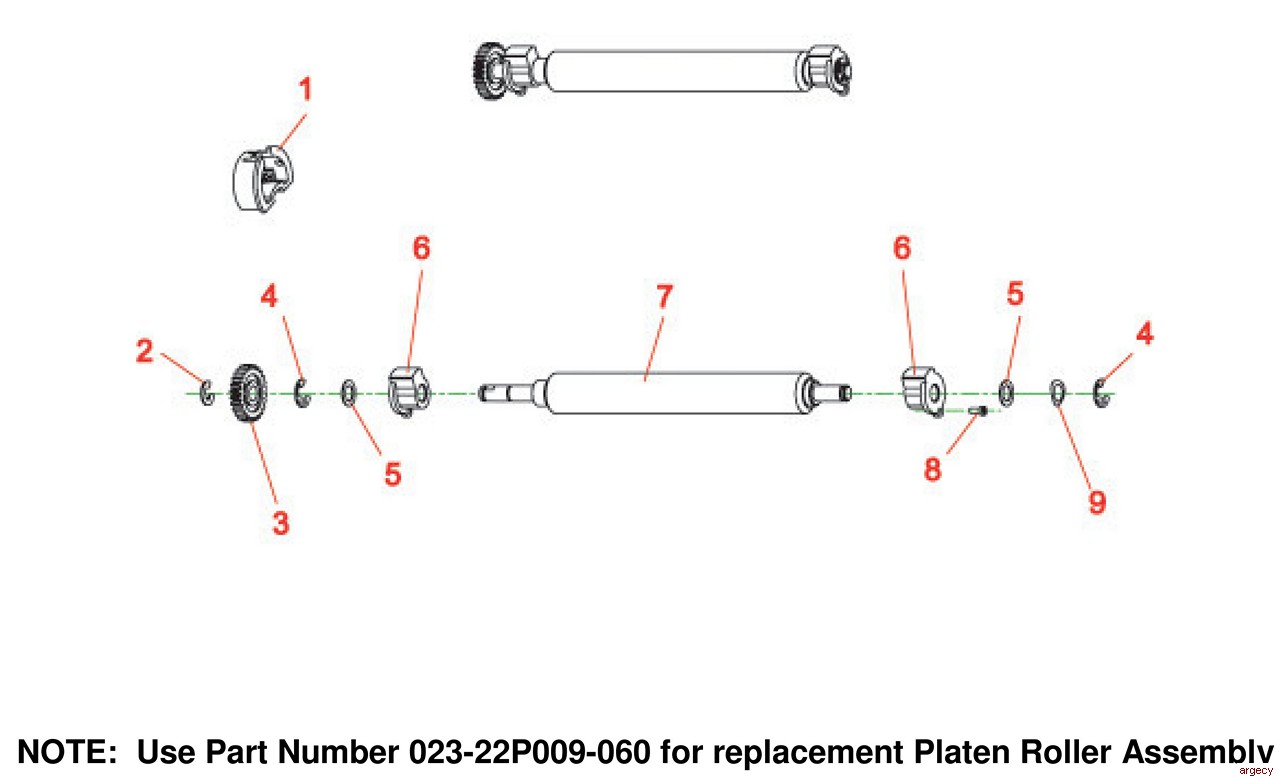

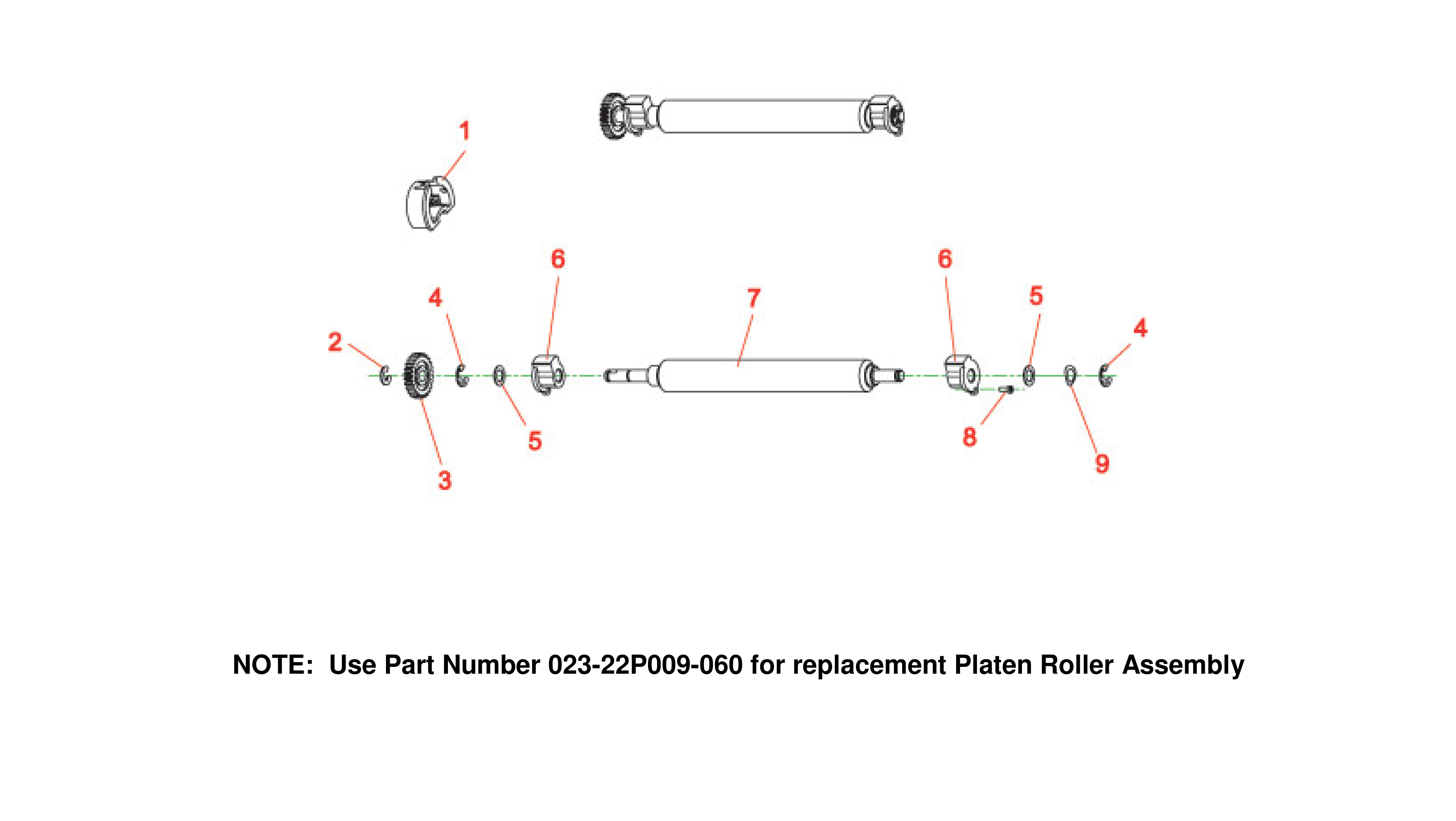

1 700-045800-001 PLATEN-BUSHING-CAP (NL66/Green) 2 775-620409-063 E-RING /Φ4.0*9.0*0.6t/mm (BK)

3 715-012608-100 GEAR/26T*M0.8 (NL66)

4 775-620511-063 E-RING /Φ5.0*Φ11*0.6t/mm

5 775-C60609-053 GRAPHITE WASHER/Φ6.2*9.5*0.5t

6 730-000800-000 PLATEN BUSHING (BRONZE)

7 705-002100-000 PLATEN

8 765-120052-140 MACHINE SCREW/I/NI/M2*5

9 775-520610-013 WAVE WASHER /Φ6.8*Φ10.6*0.15t/mm 		Tharo H434 & H436 Parts image 5

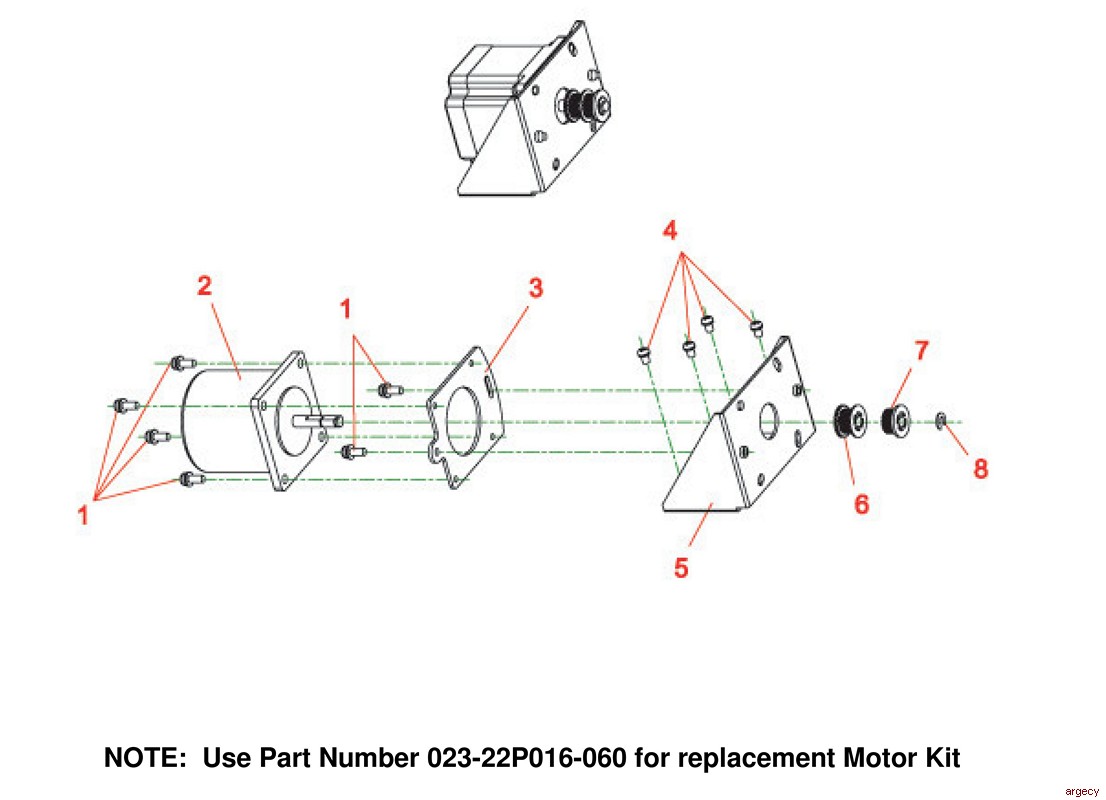

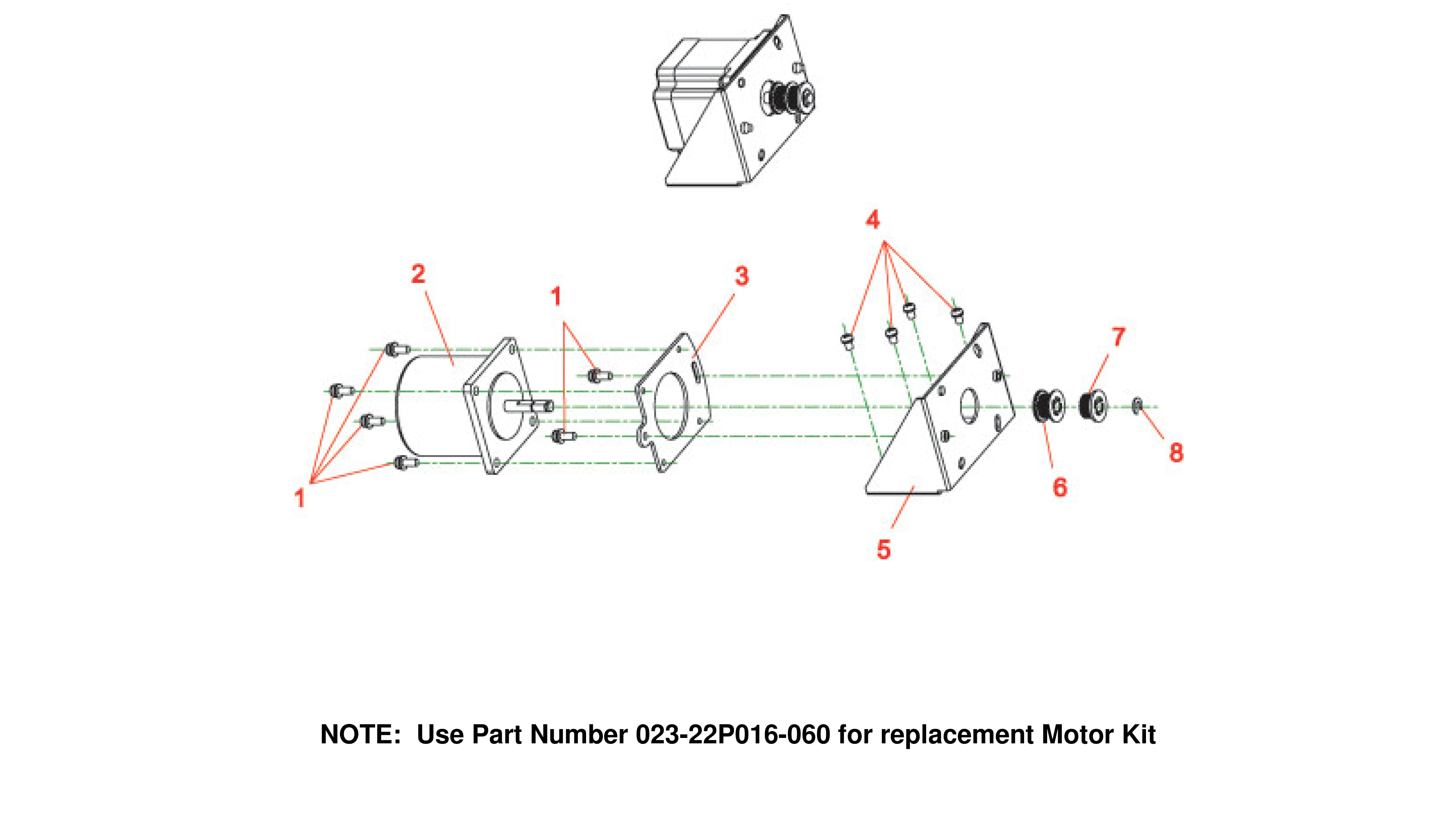

1 765-140104-141 MACHINE SCREW/P/NI/M4*10

2 220-345602-104 MOTOR/4S56Q-03554SE

3 725-046500-001 MOTOR PLATE (SECC 2.0t)

4 765-140064-142 MACHINE SCREW/P/NI/M4*6

5 725-046600-001 MOTOR BRACKET (SECC 1.6t)

6 715-032522-100 GEAR DOUBLE HUB MXL-025/22T

7 715-032522-101 GEAR MXL-025/22T

8 775-620409-063 E-RING /Φ4.0*9.0*0.6t/mm (BK)		Tharo H434 & H436 Parts image 6

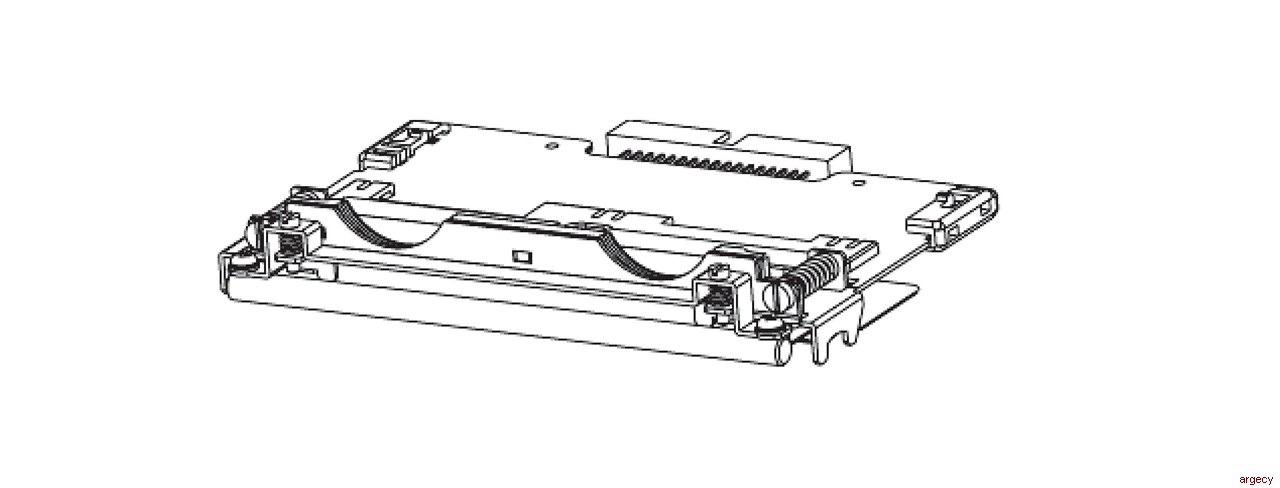

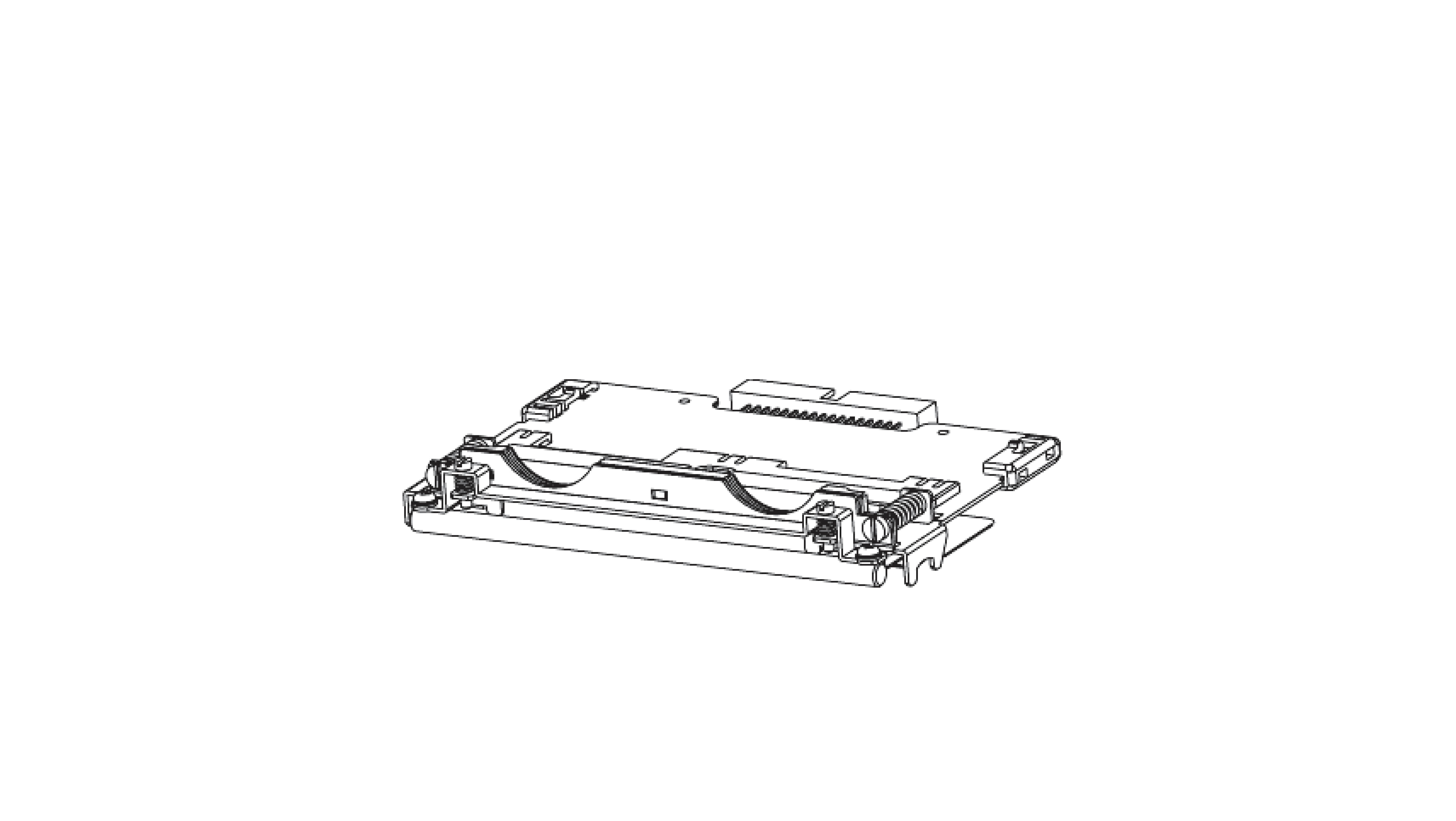

023-22P005-060 TPH MODULE 203dpi 203dpi

023-23P001-060 TPH MODULE 300dpi 300dpi 		Tharo H434 & H436 Parts image 7

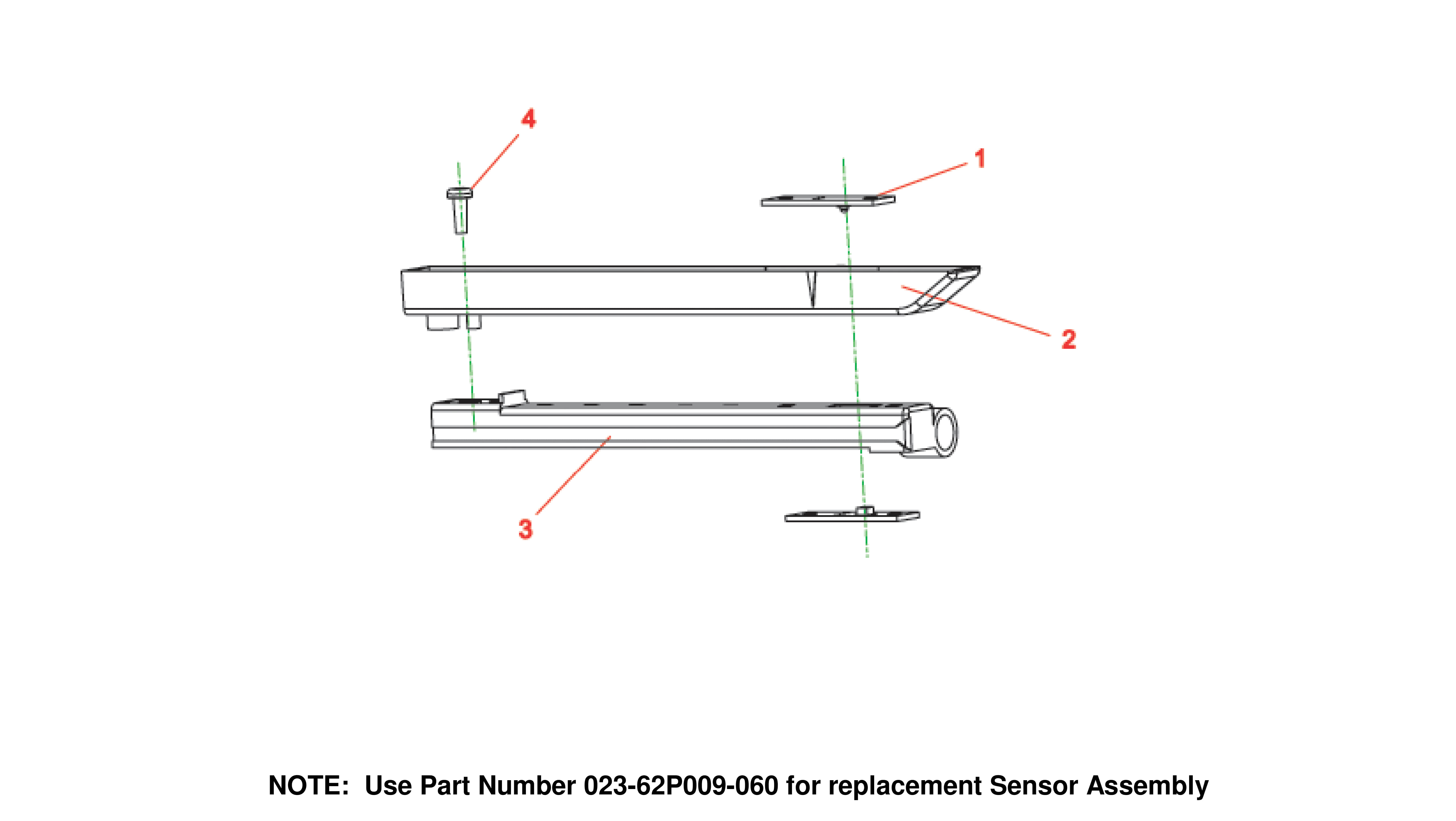

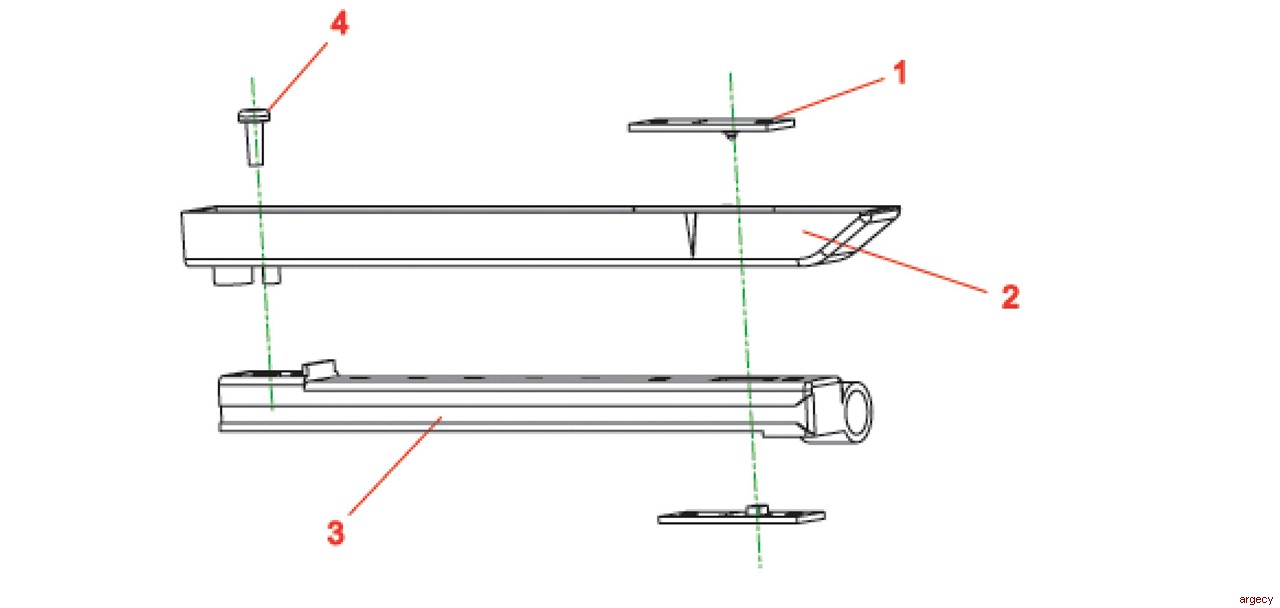

1 160-000104-100 BLACK MARK & SEE-THROUGH PCB

2 700-045900-001 MOVABLE SENSOR BOX-UP

3 700-046000-001 MOVABLE SENSOR BOX-DOWN

4 765-230084-145 TAPPING /P/NI/3*8 (TAP/III) 		Tharo H434 & H436 Parts image 8

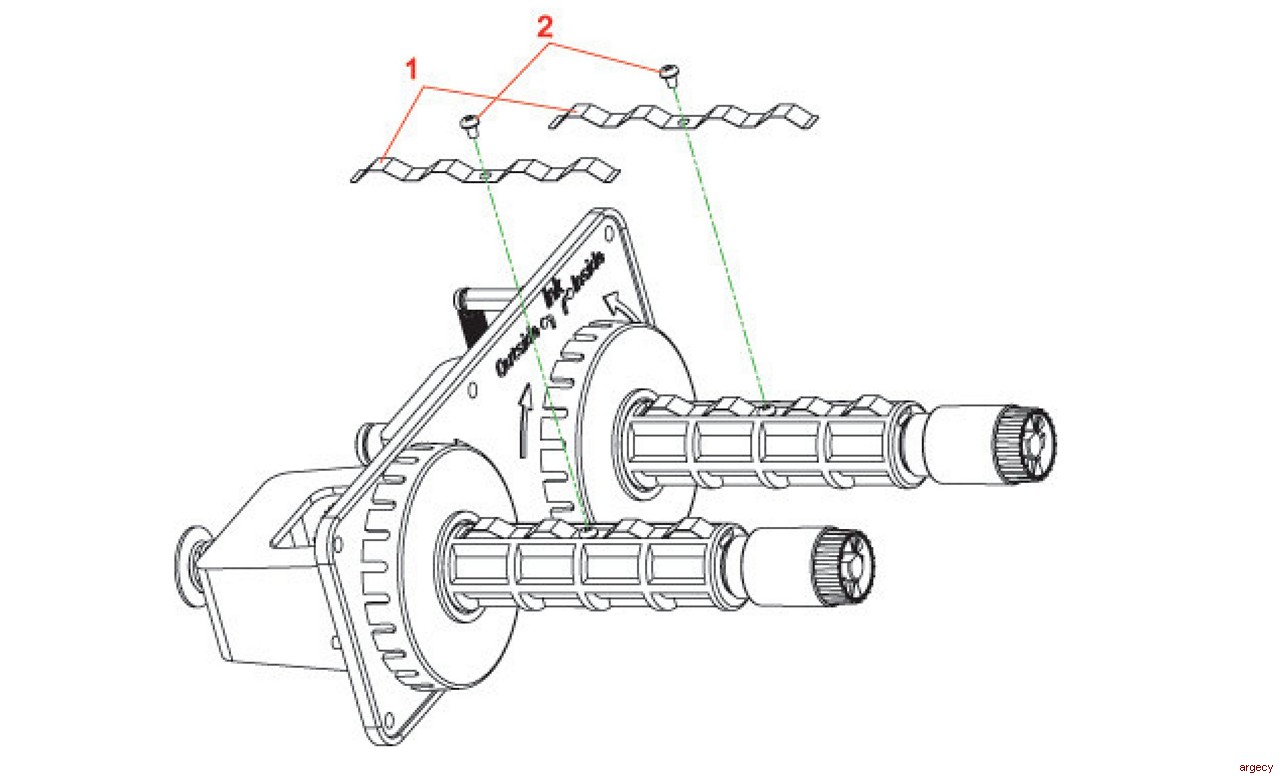

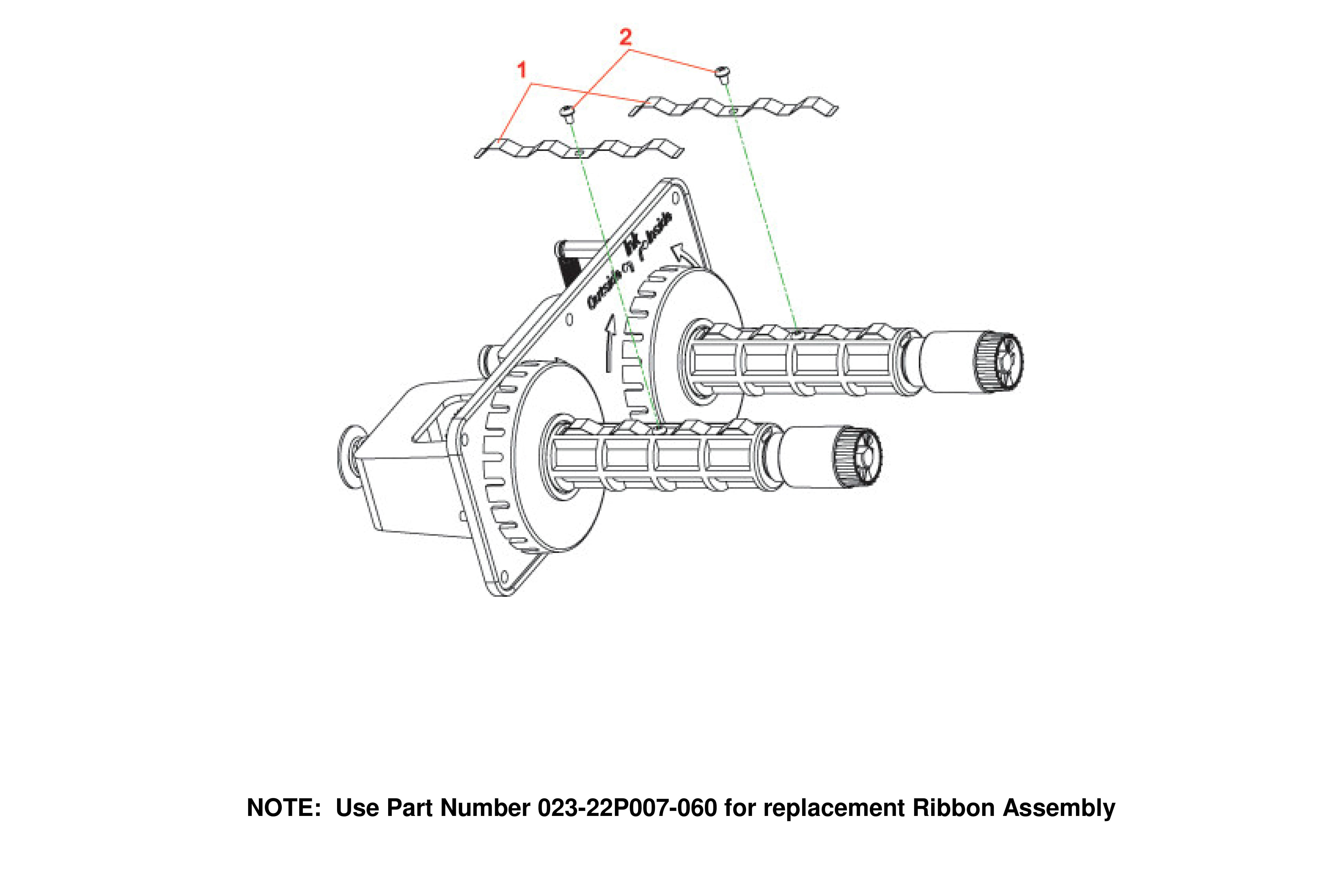

1 725-027900-001 RIBBON CORE,SPRING BLADE/SUS 301 0.2t

2 765-230044-143 TAPPING SCREW/P/NI/3*4 (Triangle) 		Tharo H434 & H436 Parts image 9

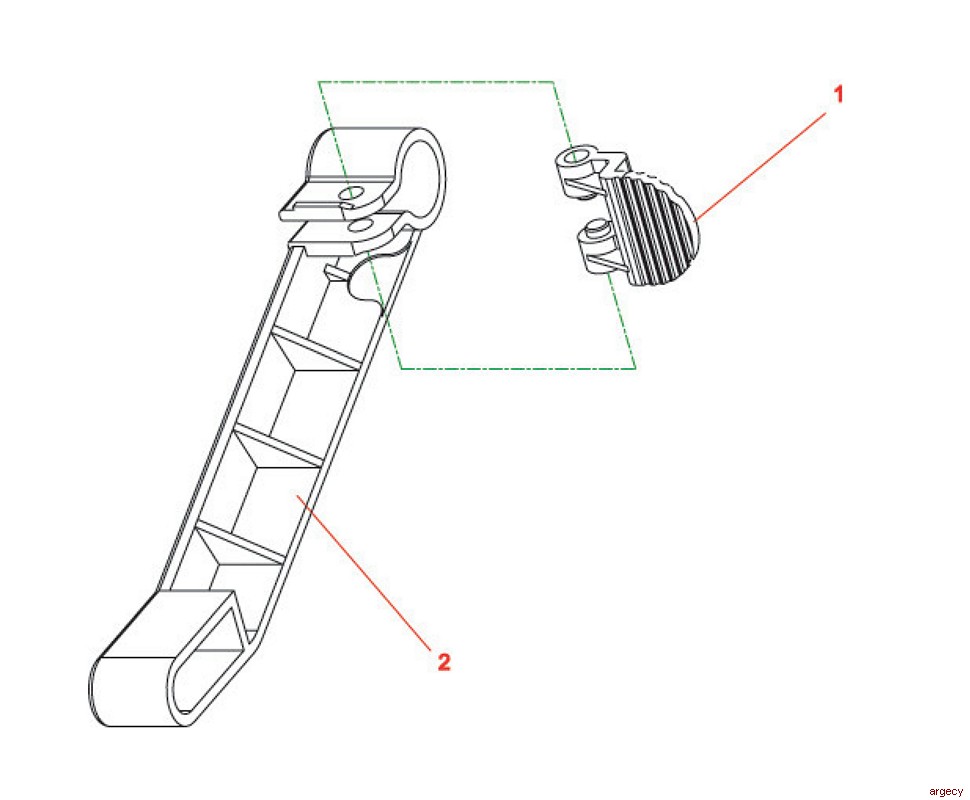

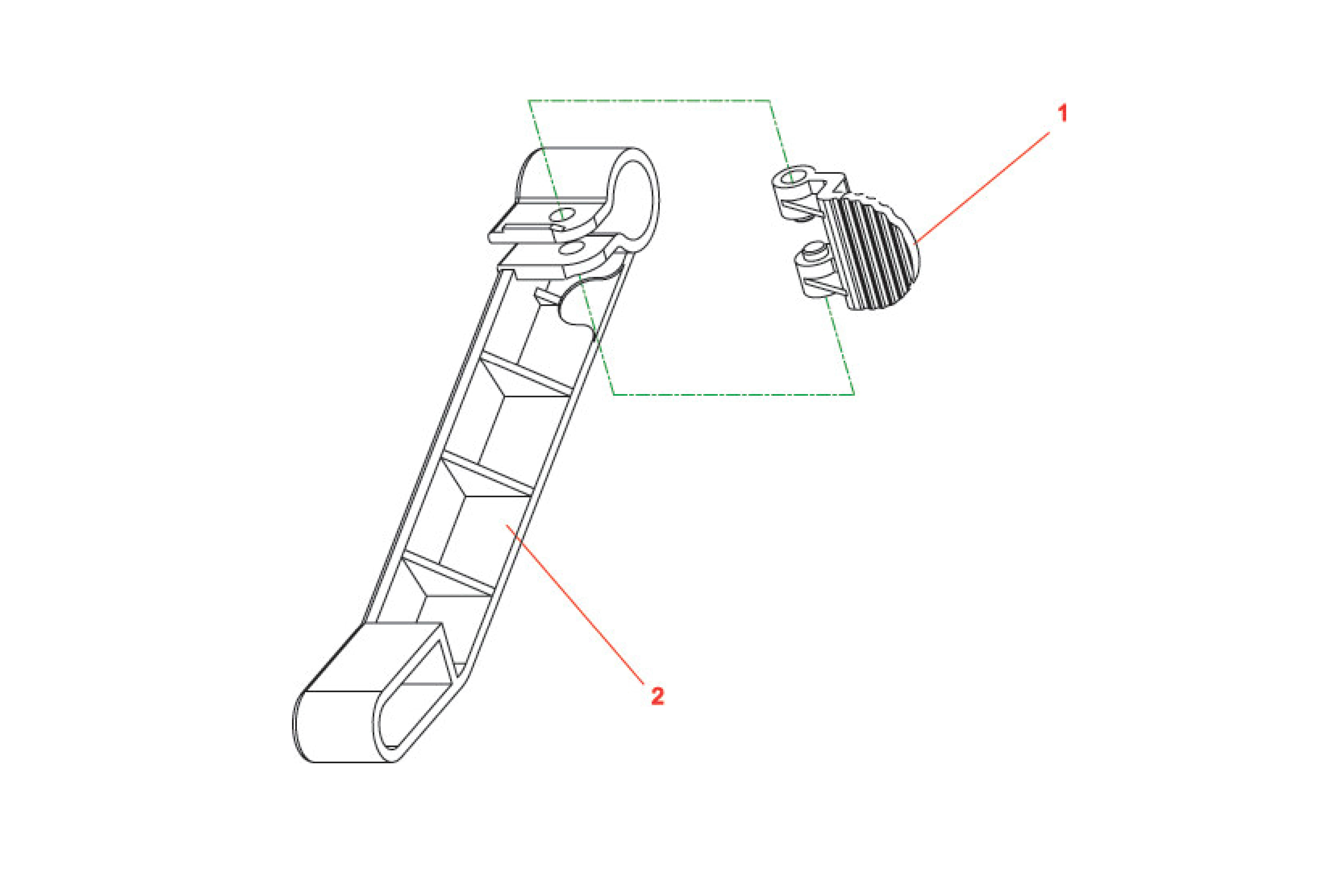

>1 700-050200-001 LABEL ROLL GUIDE STOPPER KNOB

2 700-050000-001 LABEL ROLL GUIDE		Tharo H434 & H436 Parts image 10

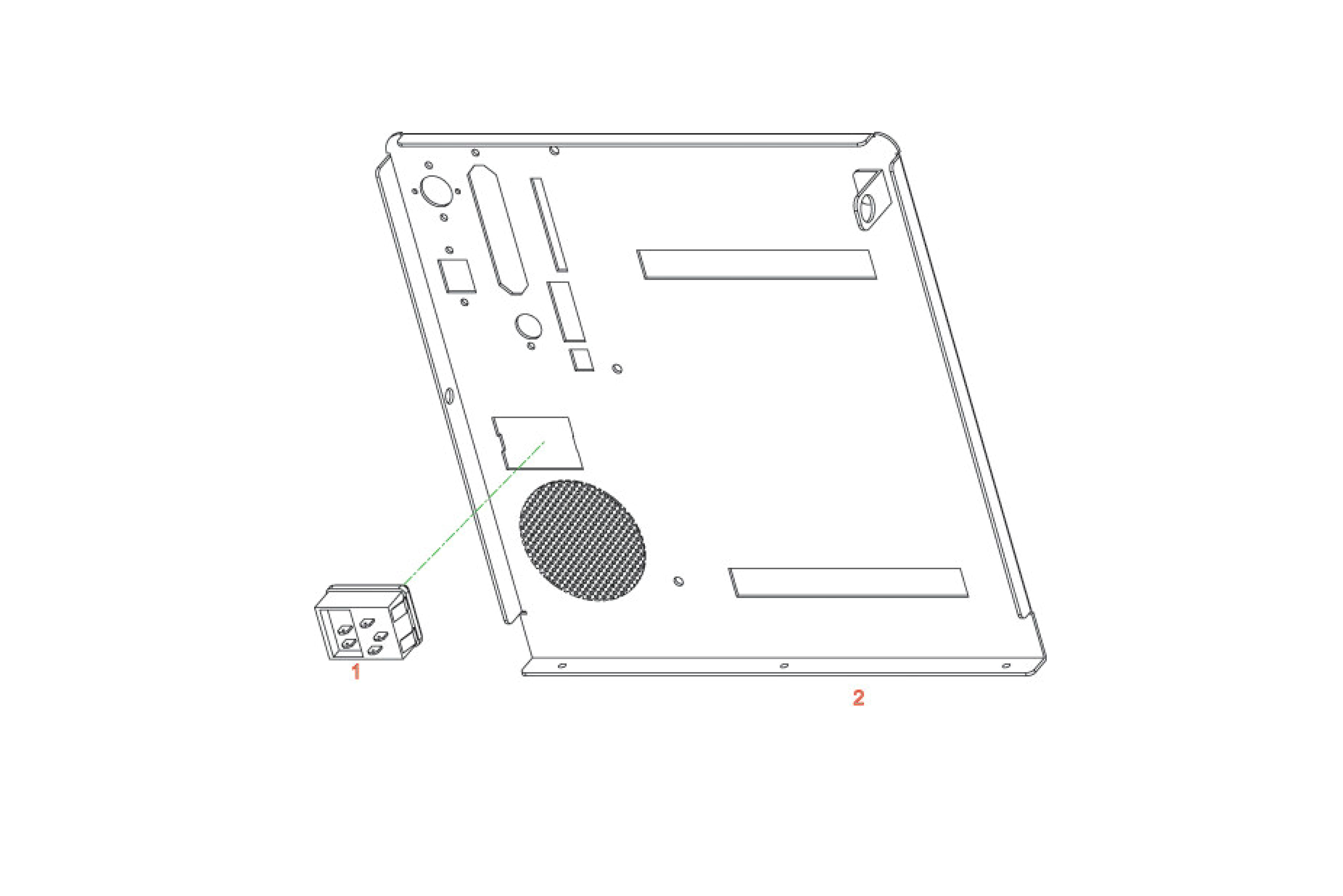

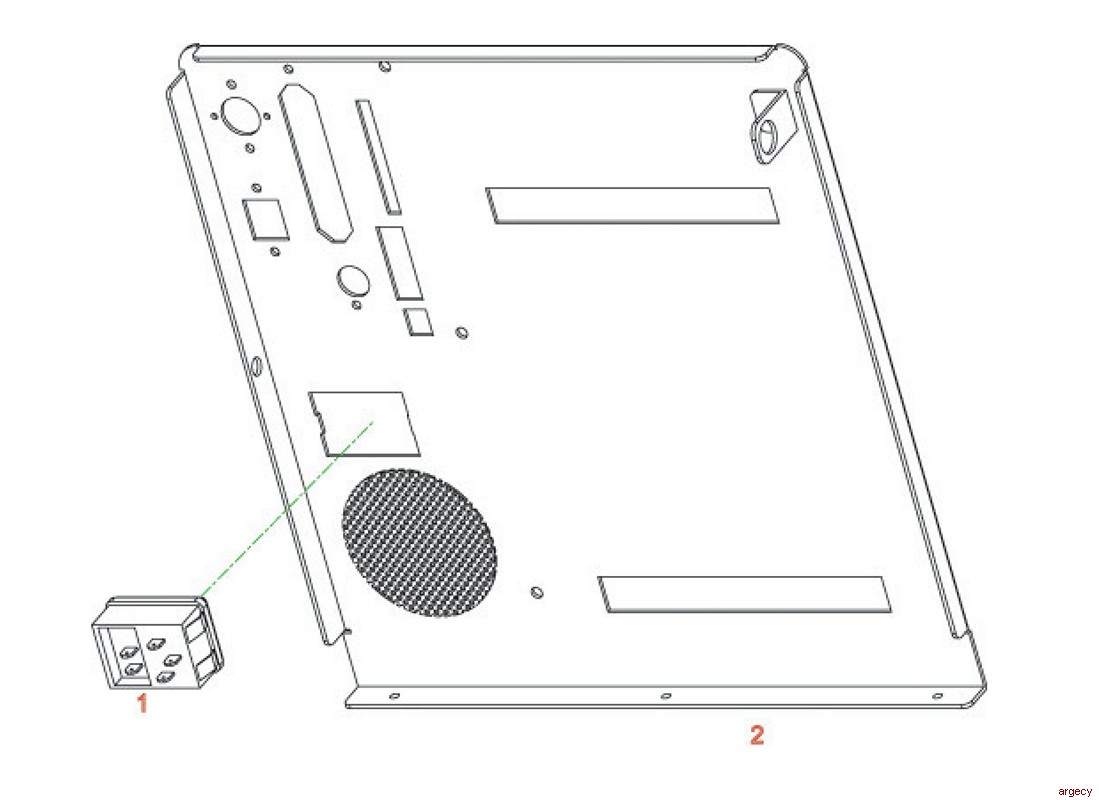

1 150-000022-000 POWER SWITCH ASSEMBLYTharo H434 & H436 Parts image 11

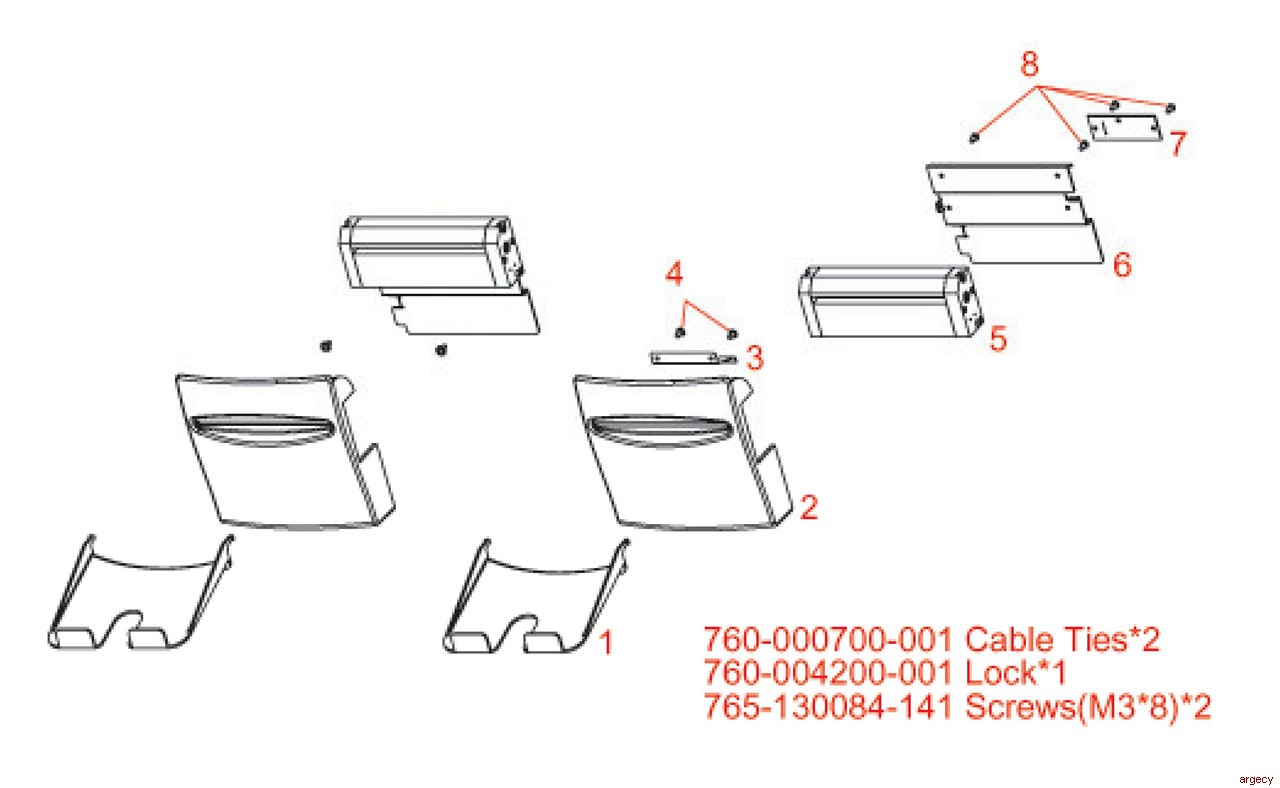

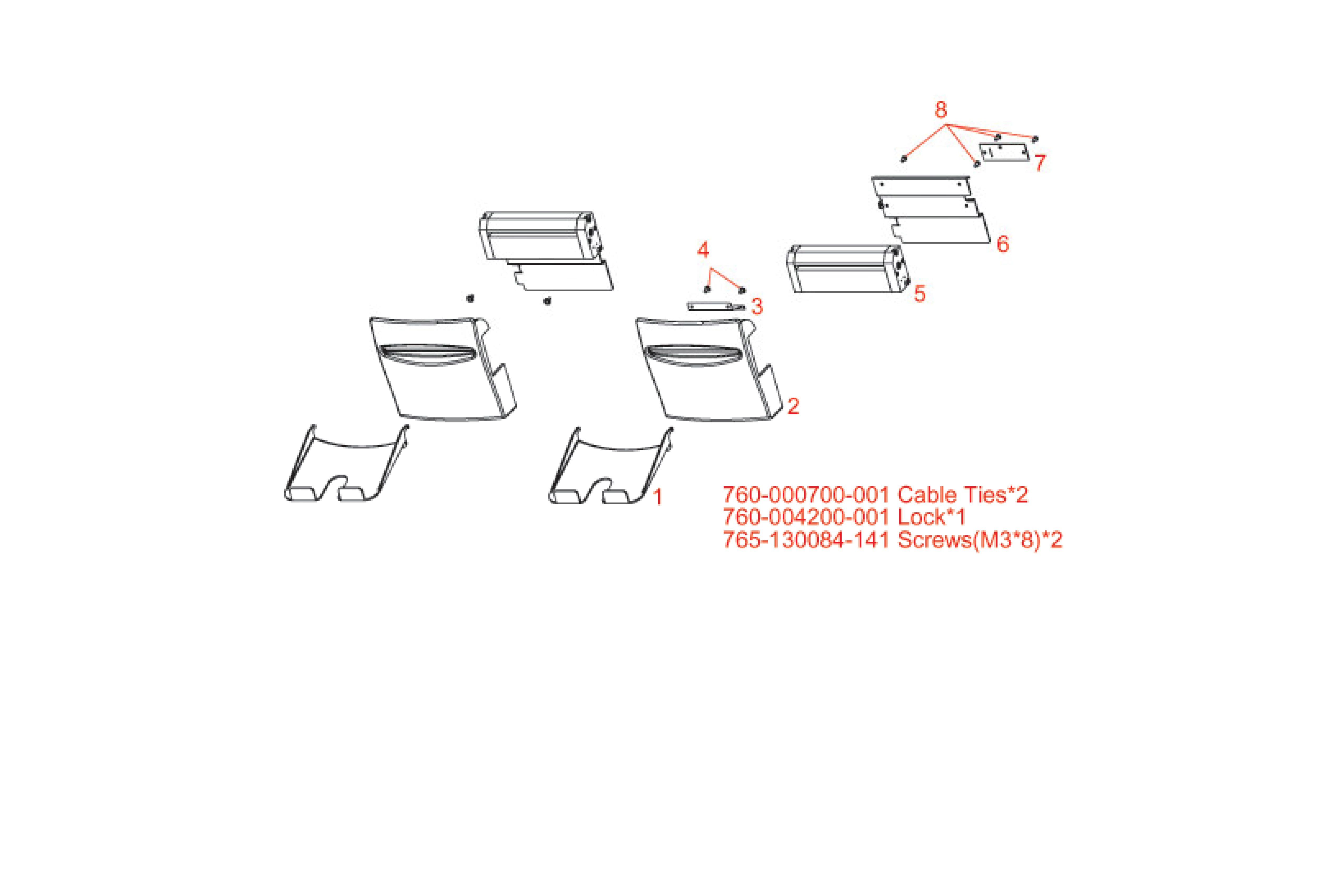

1 700-036303-001 TICKET TRAY, Black

2 700-036203-001 R/CUTTER COVER, Black

3 720-040700-000 CUTTER SPLINT/SUS 301 0.5t

4 765-230064-148 TAP/P/NI (FW)Φ3*6 (TAP/III)

5 230-140002-100 4" ROTARY CUTTER

6 720-059200-000 CUTTER BRACKET

7 160-000064-020 CUTTER PCB ASSEMBLY

8 765-130064-142 MACHINE SCREW/P/NI/M3*6

2 720-057700-000 BACK PLATE		Tharo H434 & H436 Parts image 12

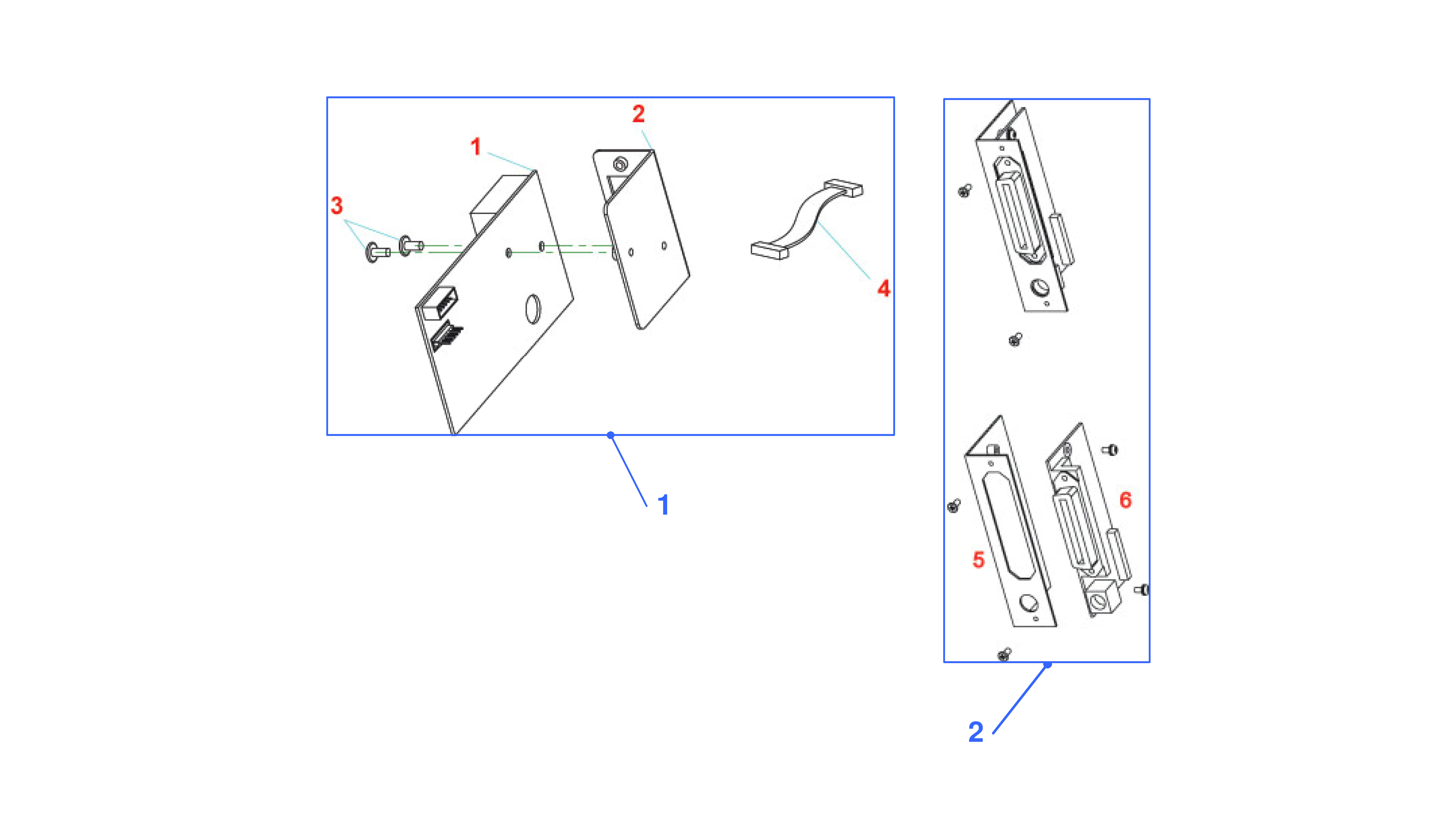

1 160-000192-000 ETHERNET ASSEMBLY

2 725-065300-002 ETHERNET BRACKET

3 765-130065-240 MACHINE SCREW T/BK/M3*6

4 227-106013-040 HOUSING PHD2.0-2*6P#28 /N130mm

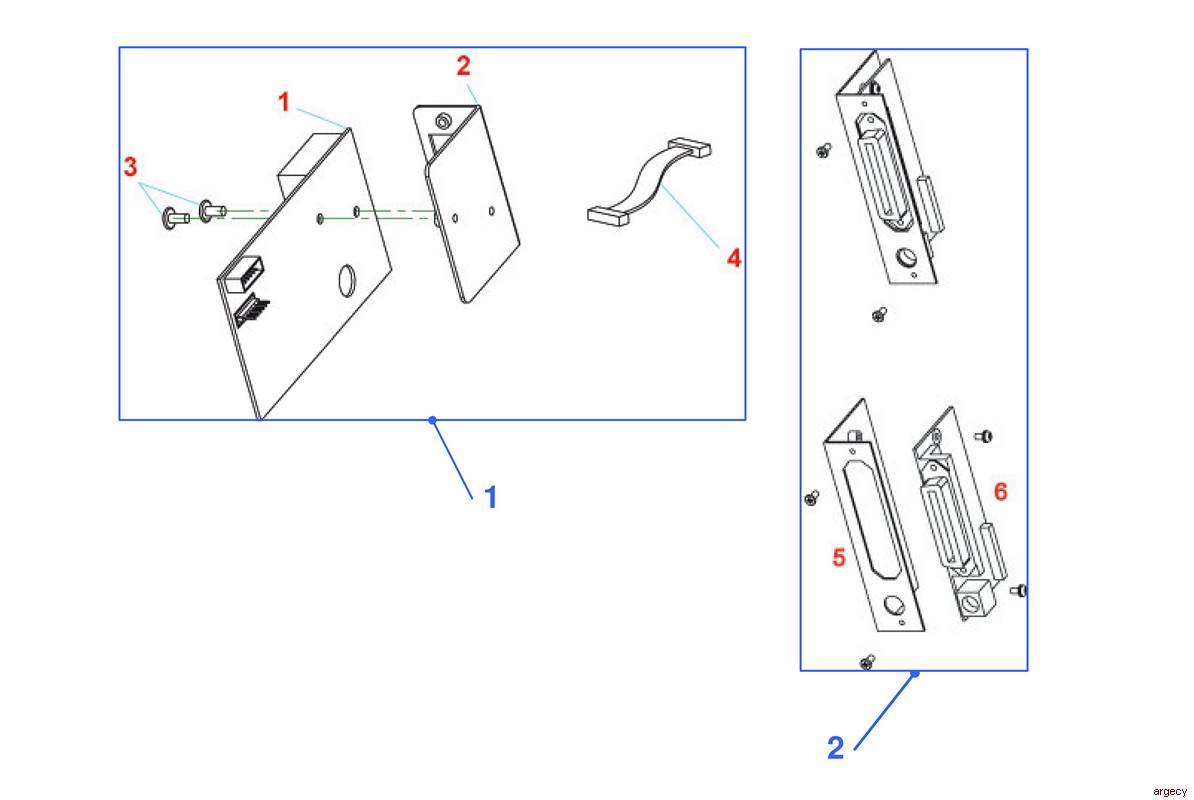

2. Parallel/PS2 Module

5 725-057100-002 BRACKET, PARALLEL PCB

6 160-000176-000 PARALLEL ADAPTOR BOARD ASSEMBLY 		Tharo H434 & H436 Parts image 13

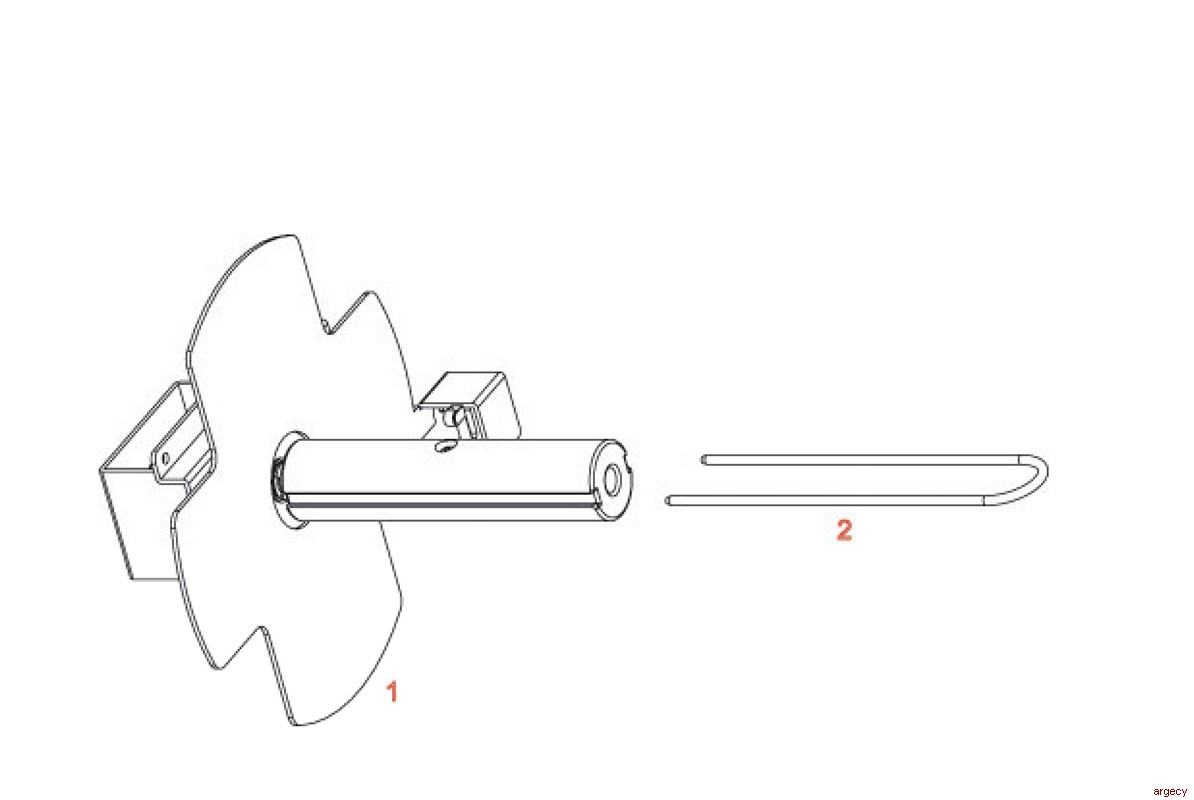

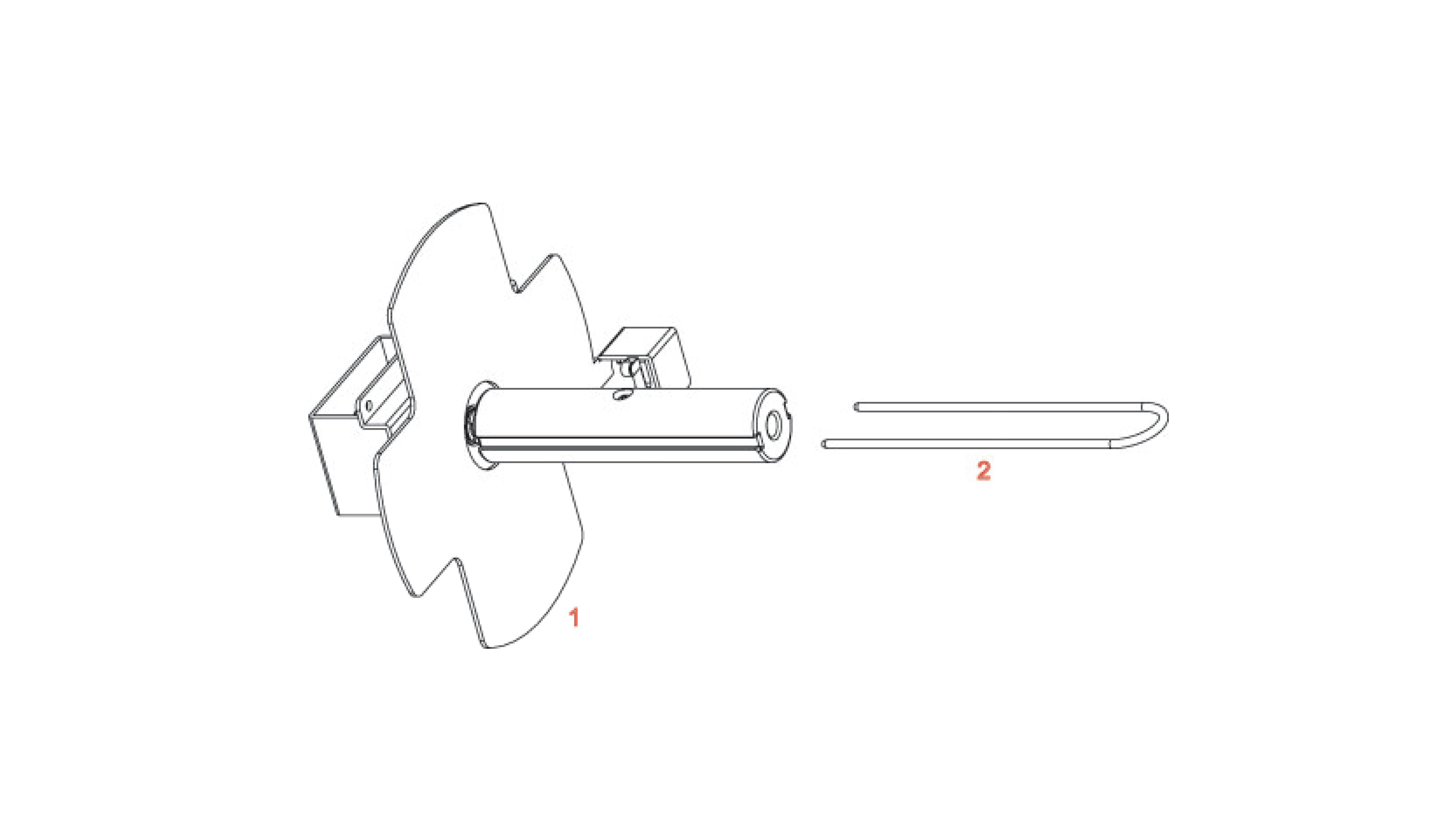

1 031-22P004-000 INTERNAL REWIND

2 750-028400-000 U SHAPED CLIP




Tharo H434 & H436 Parts image 14

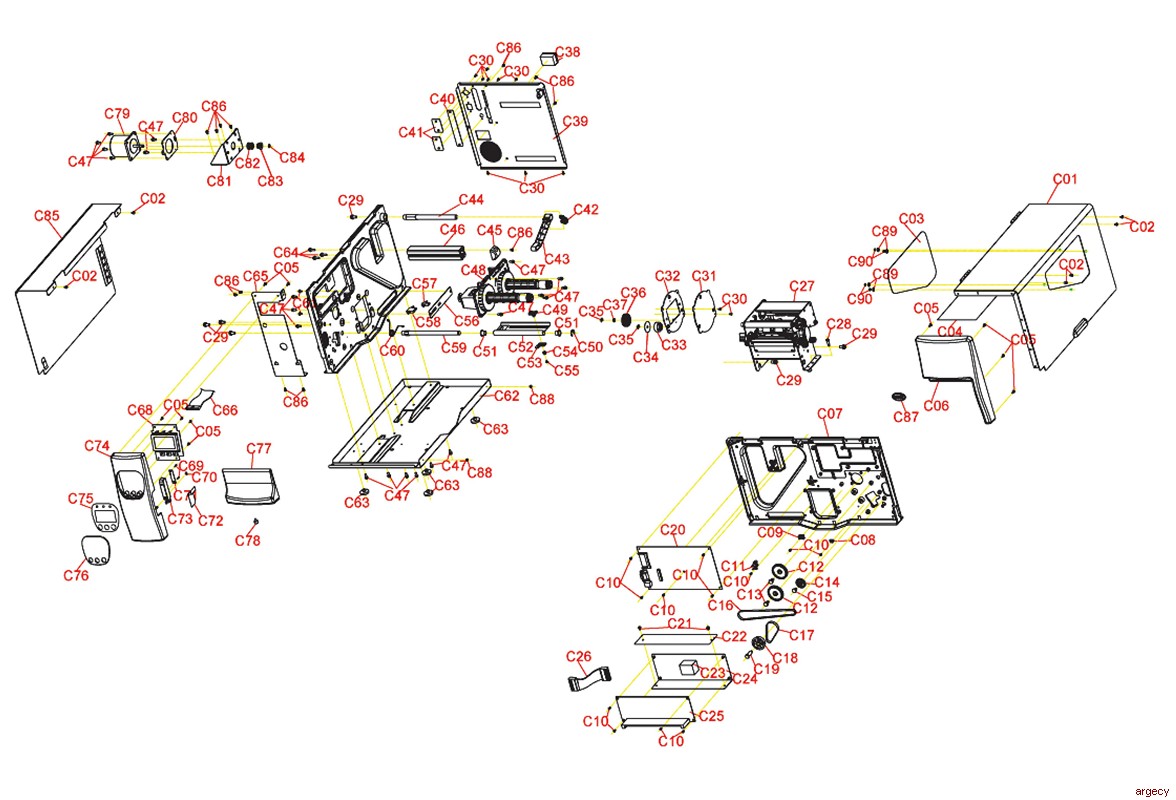

C-01 720-058000-010 TOP RIGHT COVER 1

C-02 765-130066-146 HEX. SCREW M3*6 6

C-03 745-002300-000 ACRYLIC PLATE 1

C-04 325-017800-103 RIBBON & LABEL INSTRUCTION LABEL 1

C-05 765-230085-245 TAPPING SCREW/T/BK/3*8 (TAP/III) 10

C-06 700-031803-021 RIGHT COVER 1

C-07 710-045100-000 MIDDLE PLATE 1

C-08 760-001200-001 CABLE CLAMP /CC-1SS 1

C-09 760-004000-001 WIRE CLAMP / AB-1 1

C-10 765-130064-142 MACHINE SCREW/P/NI/M3*6 (SPW ONLY) 12

C-11 160-100019-000 RIBBON SENSOR OUT ASSEMBLY 1

C-12 715-015208-100 GEAR 52T*M0.8 (NL66) 2

C-13 720-043700-000 GEAR SHAFT (52T) 2

C-14 715-013208-100 GEAR 32T*M0.8 (NL66) 1

C-15 720-049100-000 GEAR SHAFT (32T) 1

C-16 760-005100-001 ROUND BELT/ 160MXL 1

C-17 760-005200-001 ROUND BELT/ 105MXL 1

C-18 715-025120-100 DOUBLE GEAR 51/20T 1

C-19 720-043800-000 GEAR SHAFT (34T/20T) 1

C-20 160-000175-003 MAIN PCB ASSEMBLY 1

C-21 765-140064-144 WASHER M4*6 2

C-22 745-001600-000 MYLAR (FOR POWER BRACKET) 1

C-23 745-001200-000 SPONGE 20*20*5T/MM 1

C-24 725-051900-002 POWER BRACKET 1

C-25 215-300012-004 SWITCHING POWER /AB-LPP-150-024 1

C-26 227-106009-070 HOUSING 396VH-6P*2/ UL-1007 #18 N150MM 1

C-27 MECHANISM 1

C-28 720-058600-000 MECHANISM SCREW 1

C-29 765-160124-141 MACHINE SCREW/P/NI/M6*12 (SPW & FW) 6

C-30 765-130062-140 MACHINE SCREW/I/NI/M3*6 (#2) 11

C-31 725-047100-001 REWIND MODULE COVER PLATE/SPCC1.5T 1

C-32 725-047000-001 REWIND MODULE BRACKET (SPCC 1.5T) 1

C-33 715-024036-100 DOUBLE GEAR (40T/36T) 1

C-34 775-B30629-051 NYLON WASHER/ Φ6.0*Φ29*0.5T/ MM 1

C-35 775-620511-063 E-RING /Φ5.0*Φ11*0.6T/MM 2

C-36 715-016405-101 GEAR/64T*M0.5 (NL66) 1

C-37 775-C60609-053 GRAPHITE WASHER/Φ6.2*9.5*0.5T 1

C-38 150-000022-000 POWER SW ASSEMBLY 1

C-39 720-057700-000 BACK PLATE 1

C-40 725-056500-002 PARALLEL PORT COVER 1

C-41 725-048100-001 ETHERNET COVER PLATE 2

C-42 700-050200-001 LABEL ROLL GUIDE STOPPER KNOB 1

C-43 700-050000-001 LABEL ROLL GUIDE 1

C-44 720-052500-000 LABEL ROLL GUIDE SHAFT 1

C-45 700-049900-001 LABEL ROLL BRACKET CAP 1

C-46 735-001000-002 LABEL ROLL BAR 1

C-47 765-140104-141 MACHINE SCREW / P / NI / M4*10 (SPW/FW) 21

C-48 RIBBON ASSEMBLY 1

C-49 700-050100-001 LABEL GUIDE KNOB (NL66 GREEN #A4637D) 1

C-50 775-620918-082 E-RING /NI Φ9.0*Φ18*0.8T/MM 1

C-51 730-000900-000 BEARING /6028CT 2

C-52 725-053200-011 LABEL TENSION PLATE 1

C-53 700-046100-001 LABEL GUIDE (NL66 GREEN #A4637D) 1

C-54 750-032400-000 LABEL GUIDE SPRING 1

C-55 765-230064-148 TAP / P/ N I (FW) Φ3*6 (TAP/III) # 1-092430-00 1C-56 725-046900-001 CONNECTOR PLATE (SPCC 1.5T) 1

C-57 227-102014-080 1.58-2P-MALE/1007#26 130MM/PH2.0-2P 1

C-58 227-105010-080 1.58 HOUSING 5P MALE/ #26 /N130MM 1

C-59 720-052200-000 LABEL GUIDE SHAFT 1

C-60 750-034400-000 LABEL TENSION PLATE SPRING 1

C-61 765-130084-141 MACHINE SCREW / P / NI / M3*8 (SPW/FWΦ8) 2

C-62 720-057600-000 BOTTOM PLATE 1

C-63 760-005300-001 RUBBER FOOT (GL-24L-B) 4

C-64 765-140164-141 MACHINE SCREW/ P / NI / M4*16 (SPW/FW) 3

C-65 720-058500-010 PANEL BRACKET 1

C-66 227-126004-060 HOUSING 254FC-26PX2 /N250MM 1

C-68 160-000103-030 LCD BOARD ASSEMBLY 1

C-69 765-217054-145 TAPPING SCREW / P / NI / 1.7*5 (TAP/III) 2

C-70 775-620307-063 E-RING /Φ3.0*Φ7.0*0.6T/MM #1-092406-00 1

C-71 160-000114-001 (TONE DETECT) STRIP SENSOR ASSEMBLY 1

C-72 745-001800-000 MYLAR PLATE / 60*25*0.38T 1

C-73 700-036003-011 STRIP PCB BOX 1

C-74 700-031703-031 LEFT PANEL 1

C-75 755-006300-010 NAME PLATE 1

C-76 700-041000-001 LCD PANEL 1

C-77 700-031903-021 BOTTOM RIGHT PANEL 1

C-78 760-004700-002 HAND SCREW /M4*10*6 1

C-79 220-345602-104 MOTOR/4S56Q-03554SE 1

C-80 725-046500-001 MOTOR PLATE (SECC 2.0T) 1

C-81 725-046600-001 MOTOR BRACKET (SECC 1.6T) 1

C-82 715-032522-100 GEAR DOUBLE HUB MXL-025/22T 1

C-83 715-032522-101 GEAR MXL-025/22T 1

C-84 775-620409-063 E-RING /Φ4.0*9.0*0.6T/MM (BK)1-092401-00 1

C-85 720-058100-000 TOP LEFT COVER (SPCC 1.2T #KC01-0016) 1

C-86 765-140064-142 MACHINE SCREW/P/NI/M4*6 12

C-87 755-006500-000 BRAND PLATE 1

C-88 760-001600-001 SNAP RIVET/SR2.6-3.2 (BLACK) 2

C-89 775-720310-033 O-RING /Φ3.0*Φ10*0.3t/mm (SPN-3) 4

C-90 765-330553-200 NUT/BK/M3.0*5.5 4 		Tharo H434 & H436 Parts image 15

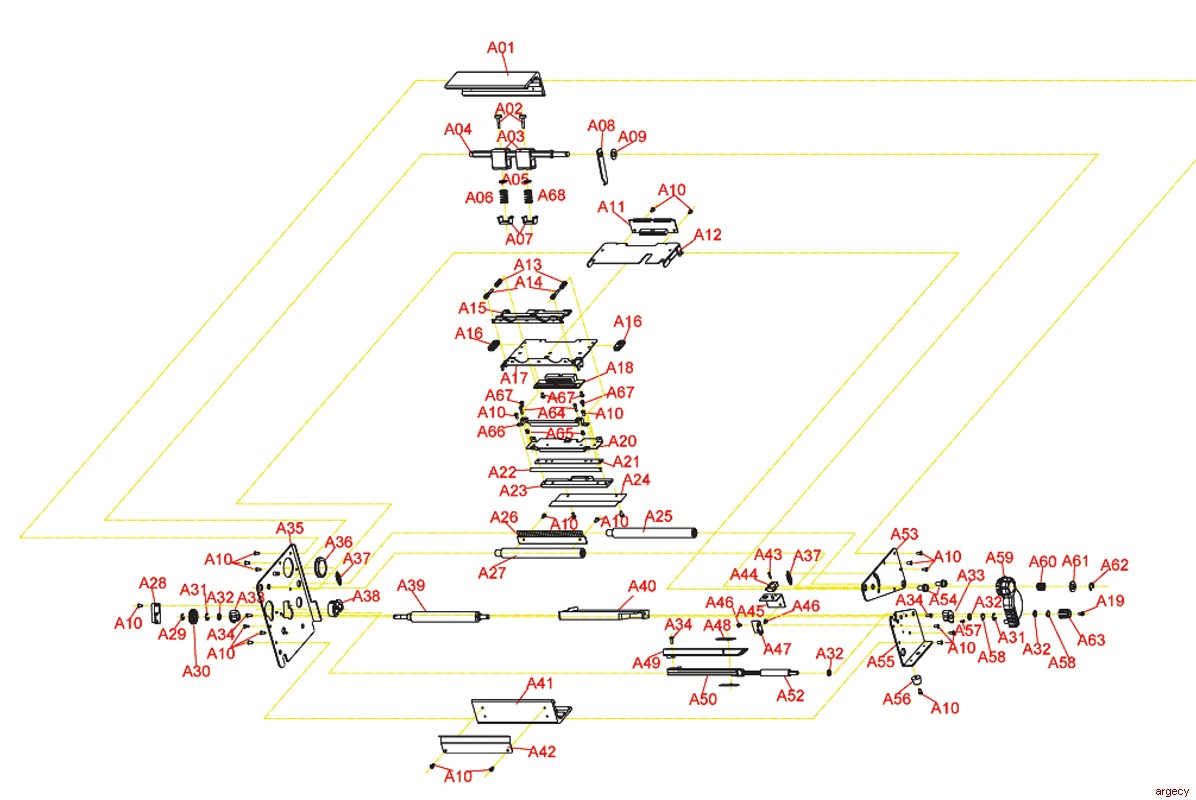

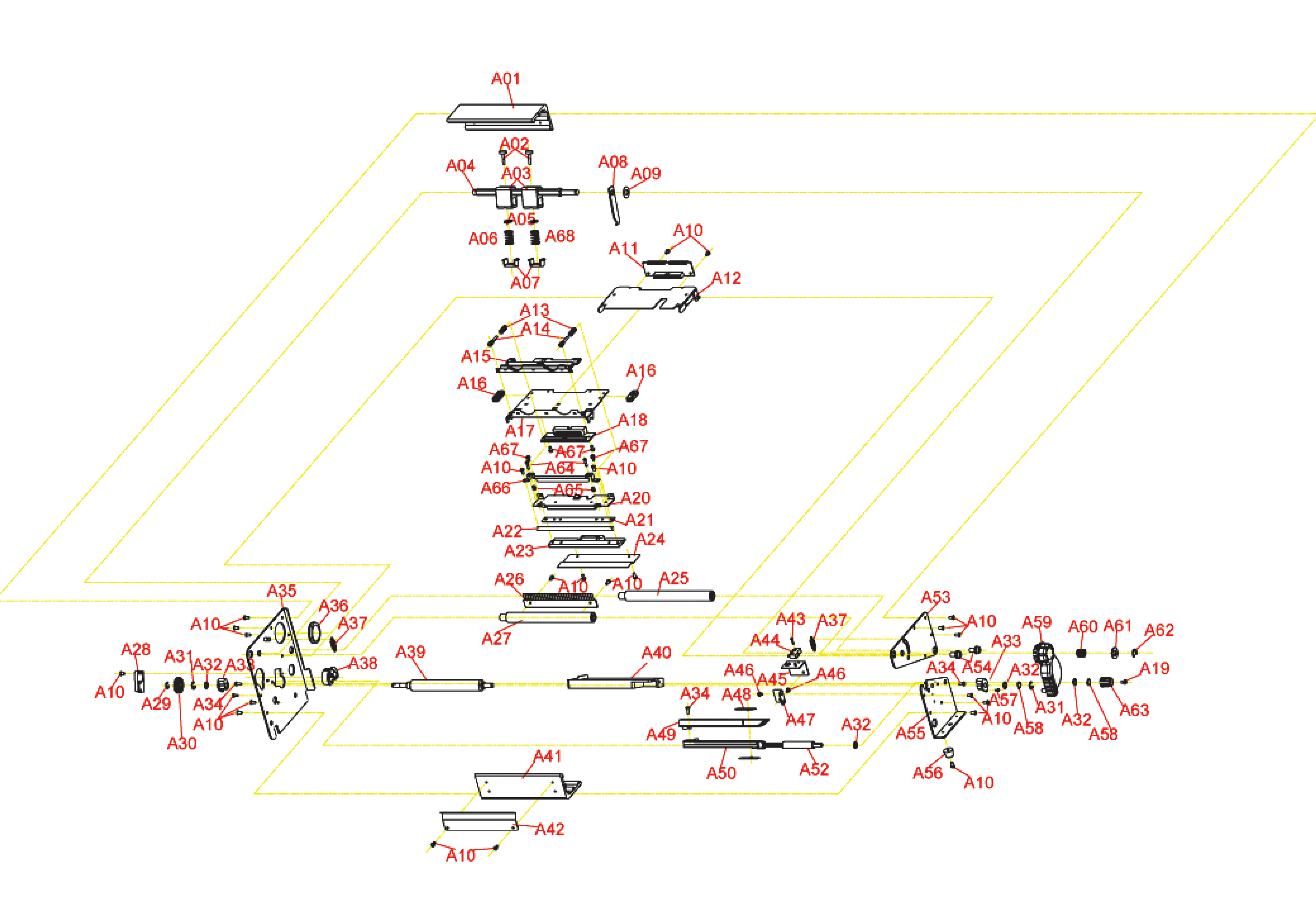

A-01 735-000200-002 MID BRACKET/TOP 1

A-02 720-038600-000 PRESSURE POSITION SCREW 2

A-03 700-045200-001 TPH SPRING BOX (PC+10%GF GREEN#4637D) 2

A-04 720-057500-000 TPH PRESSURE ROTARY SHAFT 1

A-05 725-039600-002 WASHER / D11.7*1.6T 2

A-06 750-031800-000 TPH SPRING 1

A-07 700-050300-001 TPH PRESSURE LUMP (PC+10%GF GREEN #4637D) 2

A-08 725-034200-001 TPH LEVER HOOK (SUS 304) 1

A-09 775-230816-053 GRAPHITE WASHER/Φ8.1*Φ16*0.5T 1

A-10 765-130062-140 MACHINE SCREW/I/NI/M3*6 (#2) 24

A-11 160-000177-001 TPH EXTEND PCB ASSEMBLY 1

A-12 725-052700-001 TPH BRACKET 1

A-13 750-029800-000 TPH POSITION ADJ SPRING Φ0.8*6.0*16.1*7N 2

A-14 720-038500-000 TPH POSITION ADJUSTMENT SCREW 2

A-15 700-051600-021 TPH PLATE 1

A-16 700-045300-001 TPH VICE BRACKET GUIDE (NL66 GREEN) 2

A-17 725-057200-001 TPH VICE-BRACKET 1

A-18 160-000178-001 TPH ADAPTOR PCB ASSEMBLY (200dpi) 1

160-000178-011 TPH ADAPTOR PCB ASSEMBLY (300dpi) 1

A-19 765-130064-142 MACHINE SCREW/P/NI/M3*6 (SPW ONLY) 1

A-20 725-061900-001 TPH ADJUSTMENT BRACKET 1

A-21 725-056600-001 TPH WASHER 1

A-22 720-057400-000 RIBBON SHIELD SHAFT 1

A-23 219-114240-002 TPH/ KPC-108-8TAE1-GO 1

219-124240-002 TPH/ KPG-106-12TAO1-GO 1

A-24 725-057400-001 TPH COVER 1

A-25 720-052400-000 RIBBON ROD 1

A-26 720-057200-000 ANTISTATIC BRUSH 1

A-27 720-057100-000 LOCATING SHAFT 1

A-28 700-050500-001 MOVABLE SENSOR STOPPER PLATE 1

A-29 775-620409-063 E-RING /Φ4.0*9.0*0.6T/MM (BK)1-092401-00 1

A-30 715-012608-100 GEAR/26T*M0.8 (NL66) 1

A-31 775-620511-063 E-RING /Φ5.0*Φ11*0.6T/MM 2

A-32 775-C60609-053 GRAPHITE WASHER/Φ6.2*9.5*0.5T 4

A-33 730-000800-000 PLATEN BUSH (BRONZE) 2

A-34 765-230084-145 TAPPING /P/NI/3*8 (TAP/III) #1-092405-00 3

A-35 725-045900-001 LEFT PLATE (SPCC 2.0T) 1

A-36 760-003900-001 SNAP BUSHING / SB-2530 1

A-37 750-033700-000 PRINTHEAD LIFT SPRING 2

A-38 700-045800-001 PLATEN-BUSH-CAP (NL66/GREEN) 1

A-39 705-002100-010 PLATEN 1

A-40 700-051800-001 MOVABLE SENSOR HOLDER 1

A-41 735-000100-002 BOTTOM MECH,BRACKET 1

A-42 725-053100-001 TEAR OFF BAR 1

A-43 765-120084-140 MACHINE SCREW/P/NI/M2*8 1

A-44 160-100016-000 SENSOR,HEADLIFT SWITCH 1

A-45 725-047500-001 SWITCH BRACKET (SECC 1.2T) 1

A-46 765-130044-142 MACH SCREW /P/NI/M3*4 (SPW ONLY) 2

A-47 725-047400-001 SWITCH HOLDER BRACKET (SECC 1.2T) 1

A-48 160-000104-100 BLACK MARK & SEE-THROUGH PCB ASSEMBLY 1

A-49 700-045900-001 MOVABLE SENSOR BOX-UP (PC+10%GF BLACK)) 1

A-50 700-046000-001 MOVABLE SENSOR BOX-DOWN (PC/BLACK) 1

A-52 720-052300-000 MOVABLE SENSOR ROTARY SHAFT 1

A-53 725-046000-001 RIGHT-UP PLATE (SPCC 2.0T) 1

A-54 765-160124-141 MACHINE SCREW/P/NI/M6*12 (SPW & FW) 2

A-55 725-046100-001 RIGHT- DOWN PLATE (SPCC 2.0T) 1

A-56 760-003600-001 RUBBER FOOT (GL-2) 1

A-57 765-120052-140 MACHINE SCREW/I/NI/M2*5 1

A-58 775-520610-013 WAVE WASHER Φ6.8*Φ10.6*0.15T 2

A-59 150-000032-010 TPH LEVER / (PC+GF#590745-001 GREEN) 1

A-60 750-027500-010 TPH LEVER SPRING / Φ1.0*11*12.5L*5N 1

A-61 775-210816-155 PLANE WASHER/Φ8.2*Φ16*1.5T 1 A-62 775-620612-082 E-RING /Φ6.0*Φ12*0.8/MM 1

A-63 700-049200-001 SENSOR KNOB (ABS/GREEN) 1

A-64 720-050700-000 RIBBON SHIELD ADJUSTMENT SCREW 2

A-65 750-031900-000 RIBBON SHIELD ADJUSTMENT SPRING 2

A-66 725-062100-001 RIBBON SHIELD ADJUSTMENT BRCAKET 1

A-67 765-13006A-102 MACHINE SCREW/P/NI/M3*6 (SPW ONLY) 4

A-68 750-029600-000 TPH SPRING, (C) D9.1*D1.2*20.5L*7N 1B-01 760-006400-002 SPRING TWIG /Φ2.5*16L 2

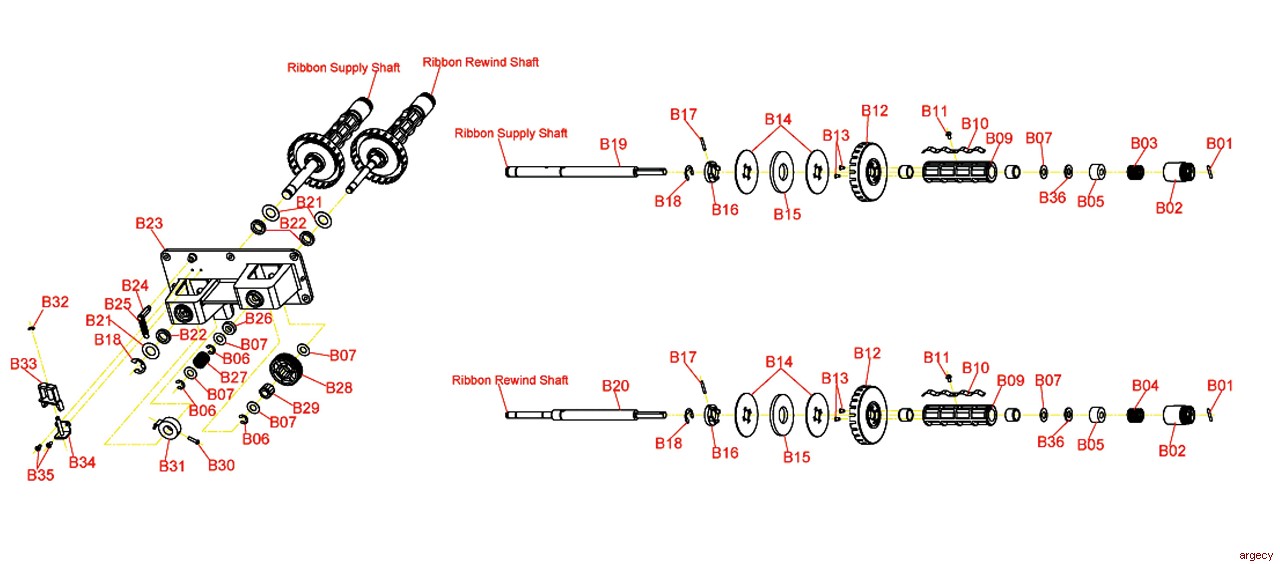

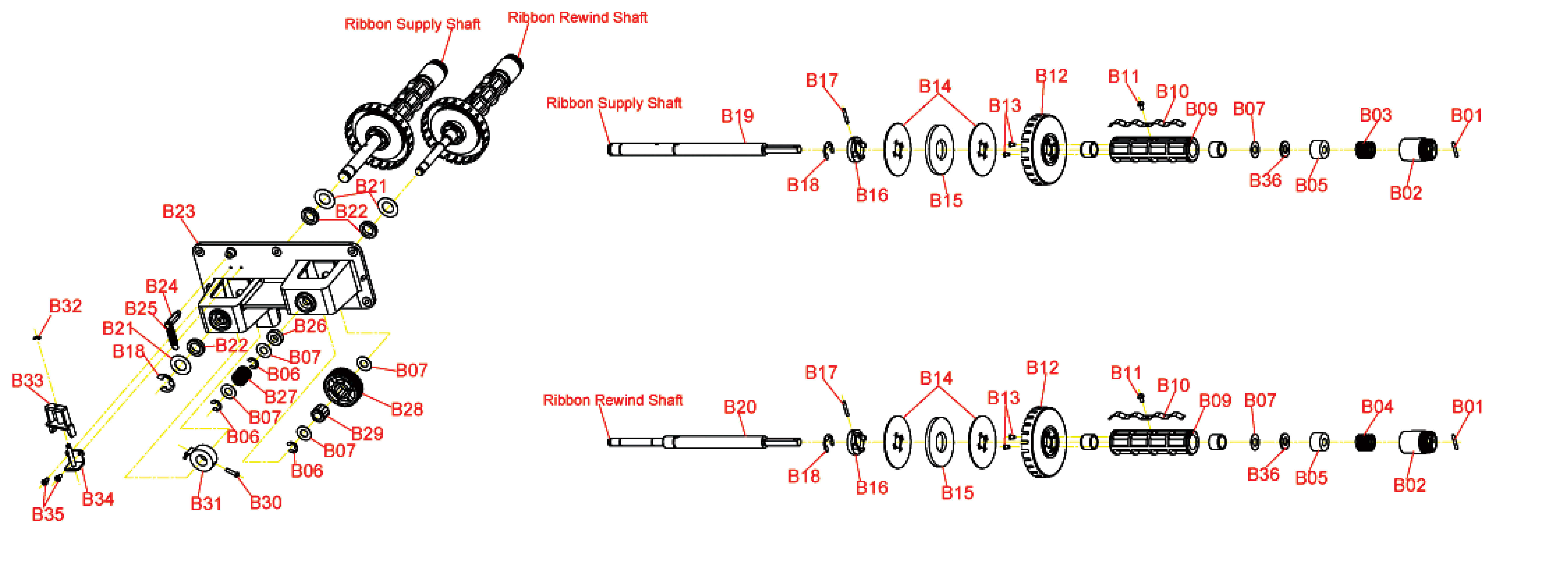

B-02 700-030201-001 4 NOTCH KNOB (ABS/Green#A4637D) 2

B-03 750-029500-010 RIBBON SUPPLY SPRING 1

B-04 750-027400-000 RIBBON COMPRESS SPRING 1

B-05 700-029901-001 Φ18 FRICTION PLATE (ABS/GREEN) 2

B-06 775-620612-082 E-RING /Φ6.0*Φ12*0.8/mm 3

B-07 775-230816-053 GRAPHITE WASHER /Φ8.1*Φ16*0.5t/mm 6

B-09 150-000033-030 ROD,RIBBON/ (ABS #4637D Green) 2

B-10 725-027900-001 Ribbon Core, Spring Blade/SUS 301 0.2t #074072-001 2

B-11 765-230044-143 TAPPING SCREW/P/NI/3*4 (Triangle) 2

B-12 700-049400-001 RIBBON SENSOR PLATE (ABS Black) 2

B-13 765-226067-245 TAPPING SCREW/F/BK/2.6*6 (TAP/III) 4

B-14 725-050500-001 FRICTION PLATE (SUS 304 1.2t) 4

B-15 745-000900-000 WOOL FIBER (Φ50*Φ20*4t ) 2

B-16 700-049300-001 RIBBON FRICTION PLATE HOLDER (ABS Green) 2

B-17 760-007100-002 SPRING TWIG /D2.5*25L 2

B-18 775-621020-102 E-RING /NI/Φ10*Φ20*1.0t/mm 3

B-19 720-052000-010 RIBBON SUPPLY SHAFT 1

B-20 720-052100-000 RIBBON REWIND SHAFT 1

B-21 775-C61222-053 GRAPHITE WASHER/Φ12.2*22*0.5t 3

B-22 760-007200-002 BALL BEARING /Φ12*Φ18*4t/mm #6701 3

B-23 710-047800-000 RIBBON SHAFT BRACKET 1

B-24 720-050800-000 RIBBON RETURN SPRING HOLDER SHAFT 1

B-25 750-032500-000 RIBBON RETURN SPRING 1

B-26 760-007300-002 BALL BEARING /Φ8*Φ16*5t/mm #688 1

B-27 750-031500-000 RIBBON COMPRESS SPRING 1

B-28 715-014608-100 GEAR 46T*M0.8 /NL66 1

B-29 760-006000-022 ONE WAY CLU 1WC0812/ HEXAGON*Φ8/ 1

B-30 765-130124-140 MACHINE SCREW/P/NI/M3*12 1

B-31 700-049500-001 RIBBON RETURN CAP (ABS/Green) 1

B-32 775-620307-063 E-RING /Φ3.0*Φ7.0*0.6t/mm #1-092406-00 1

B-33 700-045700-001 RIBBON IN OUT ADJUSTMENT KNOB (ABS/Green) 1

B-34 725-051500-001 RIBBON IN-OUT ADJUSTMENT KNOB BRACKET 1

B-35 765-130062-140 MACHINE SCREW/I/NI/M3*6 (#2) 2 B-36 775-210816-155 PLANE WASHER/Φ8.2*Φ16*1.5t/mm 2 		Tharo H434 & H436 Parts image 19
B-01 760-006400-002 SPRING TWIG /Φ2.5*16L 2

B-02 700-030201-001 4 NOTCH KNOB (ABS/Green#A4637D) 2

B-03 750-029500-010 RIBBON SUPPLY SPRING 1

B-04 750-027400-000 RIBBON COMPRESS SPRING 1

B-05 700-029901-001 Φ18 FRICTION PLATE (ABS/GREEN) 2

B-06 775-620612-082 E-RING /Φ6.0*Φ12*0.8/mm 3

B-07 775-230816-053 GRAPHITE WASHER /Φ8.1*Φ16*0.5t/mm 6

B-09 150-000033-030 ROD,RIBBON/ (ABS #4637D Green) 2

B-10 725-027900-001 Ribbon Core, Spring Blade/SUS 301 0.2t #074072-001 2

B-11 765-230044-143 TAPPING SCREW/P/NI/3*4 (Triangle) 2

B-12 700-049400-001 RIBBON SENSOR PLATE (ABS Black) 2

B-13 765-226067-245 TAPPING SCREW/F/BK/2.6*6 (TAP/III) 4

B-14 725-050500-001 FRICTION PLATE (SUS 304 1.2t) 4

B-15 745-000900-000 WOOL FIBER (Φ50*Φ20*4t ) 2

B-16 700-049300-001 RIBBON FRICTION PLATE HOLDER (ABS Green) 2

B-17 760-007100-002 SPRING TWIG /D2.5*25L 2

B-18 775-621020-102 E-RING /NI/Φ10*Φ20*1.0t/mm 3

B-19 720-052000-010 RIBBON SUPPLY SHAFT 1

B-20 720-052100-000 RIBBON REWIND SHAFT 1

B-21 775-C61222-053 GRAPHITE WASHER/Φ12.2*22*0.5t 3

B-22 760-007200-002 BALL BEARING /Φ12*Φ18*4t/mm #6701 3

B-23 710-047800-000 RIBBON SHAFT BRACKET 1

B-24 720-050800-000 RIBBON RETURN SPRING HOLDER SHAFT 1

B-25 750-032500-000 RIBBON RETURN SPRING 1

B-26 760-007300-002 BALL BEARING /Φ8*Φ16*5t/mm #688 1

B-27 750-031500-000 RIBBON COMPRESS SPRING 1

B-28 715-014608-100 GEAR 46T*M0.8 /NL66 1

B-29 760-006000-022 ONE WAY CLU 1WC0812/ HEXAGON*Φ8/ 1

B-30 765-130124-140 MACHINE SCREW/P/NI/M3*12 1

B-31 700-049500-001 RIBBON RETURN CAP (ABS/Green) 1

B-32 775-620307-063 E-RING /Φ3.0*Φ7.0*0.6t/mm #1-092406-00 1

B-33 700-045700-001 RIBBON IN OUT ADJUSTMENT KNOB (ABS/Green) 1

B-34 725-051500-001 RIBBON IN-OUT ADJUSTMENT KNOB BRACKET 1

B-35 765-130062-140 MACHINE SCREW/I/NI/M3*6 (#2) 2

B-36 775-210816-155 PLANE WASHER/Φ8.2*Φ16*1.5t/mm 2

Tharo H434 & H436 Parts image 22
