TSC Desktop Barcode Printers






Current Line 3-1-2021

Desktop Barcode Printers

ResolutionMax. print speedMax. print widthMax. print lengthRibbon WidthMedia type
Printing methodLCD / LED DisplayMemory / Flash
Tx200
TX200
8 dots/mm (203 DPI)203 mm (8")/second 108 mm (4.25") 25,400 mm (1,000")40 mm ~ 110 mm (1.6" ~ 4.3") Continuous, die-cut, black mark, fan-fold, notch (outside wound)Thermal Transfer & Direct ThermalLED panel with 8 big icons128MB / 128MB
Ttp 247
TTP-247
8 dots/mm (203 DPI) 178 mm (7")/second 108 mm (4.25") 2,286 mm (90") 40 mm ~ 110 mm (1.6" ~ 4.3")Continuous, die-cut, black mark, fan-fold, notch (outside wound)Thermal Transfer & Direct Thermal1 LED (3 colors: green, amber & red) 8MB / 4MB
Tc0297
TC200
8 dots/mm (203 DPI) 152 mm (6")/second108 mm (4.25") 2,286 mm (90")40 mm ~ 110 mm (1.6" ~ 4.3") Continuous, die-cut, black mark, fan-fold, notch (outside wound)Thermal Transfer & Direct Thermal1 LED (3 colors: green, amber & red)8MB / 4MB
Te200 1
TE200
8 dots/mm (203 DPI) 152.4 mm (6")/second 108 mm (4.25") 2,794 mm (110")40 mm ~ 110 mm (1.6" ~ 4.3") Continuous, die-cut, black mark, fan-fold, notch (outside wound)Thermal Transfer & Direct Thermal1 LED (3 colors: green, amber & red) 16MB / 8MB
Ttp 244Pro
TTP-244 Pro
8 dots/mm (203 DPI)127 mm (5")/second108 mm (4.25")2,286 mm (90")40 mm ~ 110 mm (1.6" ~ 4.3")Continuous, die-cut, black mark, fan-fold, notched (outside wound)Thermal Transfer & Direct Thermal3 LED (Power, Error, On-line)8MB / 4MB
Ttp 244Ce

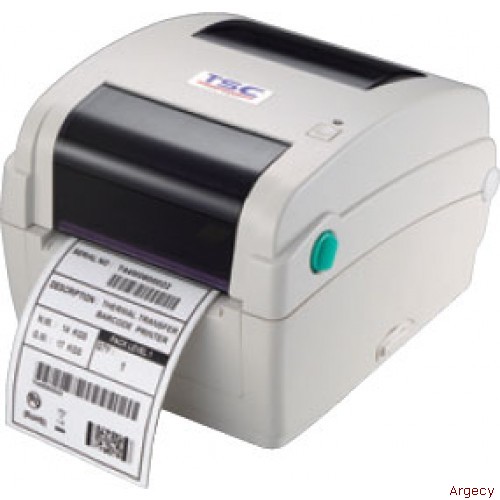

TTP-244CE Basic
8 dots/mm (203 DPI)102 mm (4")/second108 mm (4.25")2,286 mm (90")40 mm ~ 110 mm (1.6" ~ 4.3")Continuous, die-cut, black mark, fan-fold, notched (outside wound)Thermal Transfer & Direct Thermal1 LED (3 colors: green, amber & red)8MB / 4MB
Ttp 243Plus
TTP-243 Pro
8 dots/mm (203 DPI)76 mm (3")/second108 mm (4.25")2,286 mm (90")40 mm ~ 110 mm (1.6" ~ 4.3")Continuous, die-cut, black mark, fan-fold, notched (outside wound)Thermal Transfer & Direct Thermal3 LEDs (Power, Error, On-line)8MB / 4MB
Tdp 247
TDP-247
8 dots/mm (203 DPI)178 mm (7")/second108 mm (4.25")2,286 mm (90")40 mm ~ 110 mm (1.6" ~ 4.3")Continuous, die-cut, black mark, fan-fold, notched (outside wound)Direct Thermal1 LED (3 colors: green, amber & red)8MB / 4MB
Da210
DA210
8 dots/mm (203 DPI)152.4 mm (6")/second108 mm (4.25")2,794 mm (110")
Continuous, black mark, fan-fold, notched (outside wound)
Media width
Direct Thermal1 LED (3 colors: green, amber & red)16MB 8MB

Retired Models:

Model Printing Method Resolution Max. Print Width Max. Print Length Max. Print Speed
TDP-225 Direct Thermal 203 dpi 2.13" 90" 5 ips

Model Printing Method Resolution Max. Print Width Max. Print Length Max. Print Speed
TDP-225W Direct Thermal 203 dpi 2.05" 90" 5 ips

Model Printing Method Resolution Max. Print Width Max. Print Length Max. Print Speed
TDP-244 Direct Thermal 203 dpi 4.25" 90" 4 ips

Model Printing Method Resolution Max. Print Width Max. Print Length Max. Print Speed
TDP-345 Direct Thermal 300 dpi 4.17" 40" 5 ips

Model Printing Method Resolution Max. Print Width Max. Print Length Max. Print Speed
TTP-225 Thermal Transfer 203 dpi 2.13" 90" 5 ips
TTP-323 Thermal Transfer 300 dpi 2.13" 40" 3 ips

Model Printing Method Resolution Max. Print Width Max. Print Length Max. Print Speed
TTP-342 Pro Thermal Transfer 300 dpi 4.09" 40" 2 ips

Model Printing Method Resolution Max. Print Width Max. Print Length Max. Print Speed
TTP-244 Plus Thermal Transfer 203 dpi 4.25" 90" 4 ips

Model Printing Method Resolution Max. Print Width Max. Print Length Max. Print Speed
TA300 Thermal Transfer 300 dpi 4.09" 40" 3 ips

Model Printing Method Resolution Max. Print Width Max. Print Length Max. Print Speed
TTP-245C Thermal Transfer 203 dpi 4.25" 90" 6 ips
TTP-343C Thermal Transfer 300 dpi 4.17" 40" 4 ips
Model Printing Method Resolution Max. Print Width Max. Print Length Max. Print Speed
TTP-345 Thermal Transfer 300 dpi 4.17" 40" 5 ips
