Please call for parts assistance

These are TSC's current part numbers for the MB241 Series (MB241, MB341, MB241T, MB341T), taken from the TSC MB241 Series Parts List. Regional variants sold only outside North America are not listed.

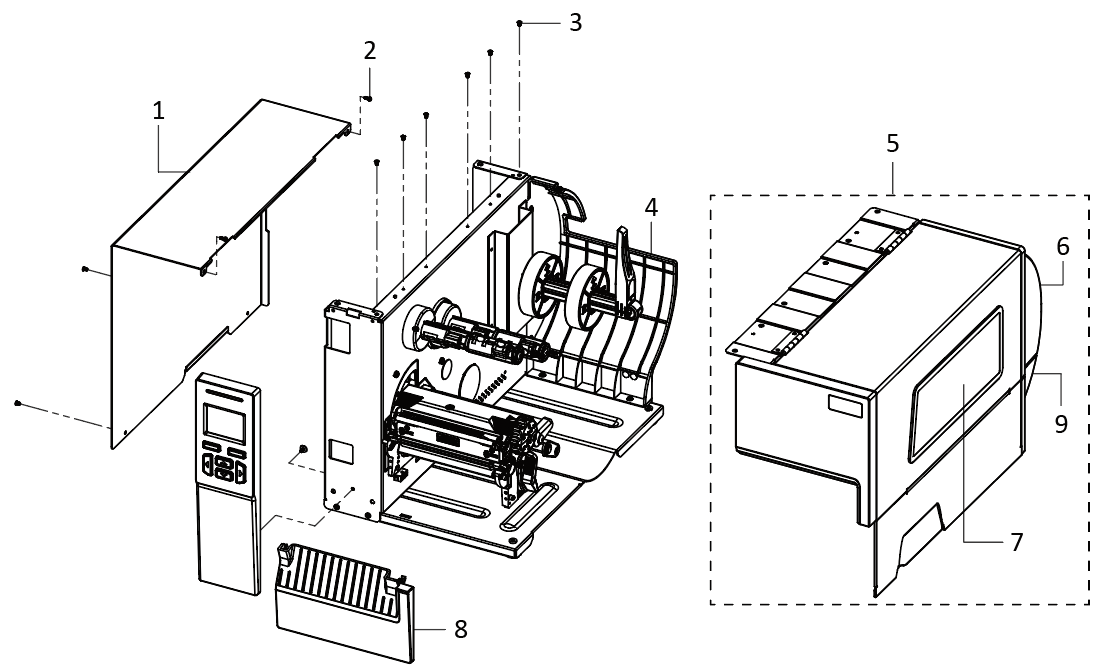

1. Printer Cover Assemblies No. Part No. Also Known As Description 1 SP-MB241-0001 - ELECTRONICS COVER (1SET/BOX) 2* - - SCREW, M3X4 3* - - SCREW, M3X5 4 SP-MB241-0002 - LOWER MEDIA COVER (1SET/BOX) 5 SP-MB241-0003 - TOP RIGHT SIDE COVER ASSY (1SET/BOX) 6 SP-MB241-0004 - UPPER REAR MEDIA COVER (1SET/BOX) 7 SP-MB241-0014 - MEDIA WINDOW (1SET/BOX) 8 30-0680003-00LF Lower Front Panel Parts, Ncnr New 30-0680003-00LF 30-0680003-10LF (New) $1.50 SP-MB240-0010 SP-MB240-0010 Lower Front Panel (1SET/BOX) New SP-MB240-0010 (New) $15.00 30-0680003-10LF Lower front panel Fully refurbished with 90-day warranty 30-0680003-10LF (Refurbished) Contact for Details 30-0680003-10LF LOWER FRONT PANEL (1SET/BOX) 9 SP-MB241-0005 - MEDIA HINGE COVER (1SET/BOX)

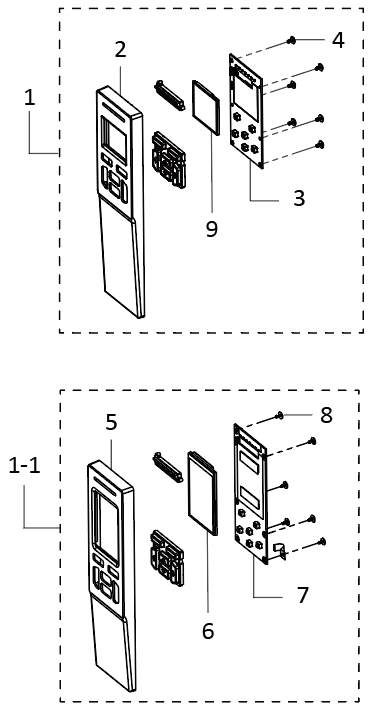

2. LCD panel & Keypad Assembly No. Part No. Also Known As Description 1 SP-MB241-0006 - 2.3-INCH LCD ASSY, MB241 (1SET/BOX) 1-1 98-0680048-00LF SP-MB240-0012 LCD Panel Assembly MB240T (1 Set/Box) New 98-0680048-00LF (New) $210.00 SP-MB240-0012 SP-MB240-0012 LCD Panel Assy, MB240T (1SET/BOX) New SP-MB240-0012 (New) $231.00 98-0680048-00LF LCD PANEL ASSY, MB241T (1SET/BOX) 2 SP-MB241-0007 - 2.3-INCH FRONT PANEL COVER, MB241 (1SET/BOX) 3 SP-MB241-0008 - 2.3-INCH PANEL BOARD ASSY, MB241 (1SET/BOX) 4* - - SCREW, TP3X6 5 SP-MB240-0015 SP-MB240-0015 LCD Front Panel Cover, MB240T (1SET/BOX) New SP-MB240-0015 (New) $46.80 - LCD FRONT PANEL COVER, MB240T (1SET/BOX) 6 SP-MB240-0016 SP-MB240-0016 3.5-INCH LCD, MB240T (1SET/BOX) New SP-MB240-0016 (New) $152.00 - 3.5-INCH LCD, MB240T (1SET/BOX) 7 98-068K067-20LF SP-MB240-0017 LCD Panel Board Assembly MB240T (1 Set/Box) New 98-068K067-20LF (New) $69.00 SP-MB240-0017 SP-MB240-0017 LCD Panel Board Assy, MB240T (1SET/BOX) New SP-MB240-0017 (New) $76.00 98-068K067-20LF LCD PANEL BOARD ASSY, MB240T (1SET/BOX) 8* - - SCREW, TP3X6 9 SP-MB241-0015 - 2.3-INCH LCD, MB241 (1SET/BOX) N/S SP-MB240-0018 SP-MB240-0018 LCD Ffc Cable, MB240T (1SET/BOX) New SP-MB240-0018 (New) $28.00 - LCD FFC CABLE, MB240T (1SET/BOX) N/S SP-MB241-0009 - LED CABLE, MB240 (1SET/BOX)

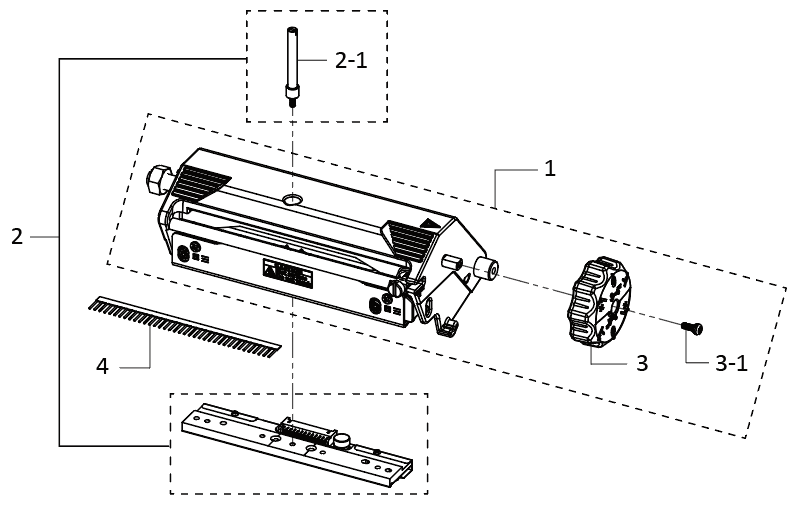

3. Print Engine Top Mechanism Assembly No. Part No. Also Known As Description 98-0680031-00LF Printhead Assembly MB240 and MB240T 203DPI New 98-0680031-00LF PH-MB240-0001 (New) $451.00 $359.00 PH-MB240-0001 TSC PH-MB240-0001 / PHMB2400001 MB240, MB240T, MB241T 203dpi Printhead New PH-MB240-0001 (New) Contact for Details - PRINTHEAD ASSY, MB240 (1SET/BOX) 98-0680031-01LF PH-MB240-0004 PH-MB240-0002 Printhead Assembly MB340 and MB340T 300DPI New 98-0680031-01LF PH-MB240-0004 PH-MB240-0002 (New) $599.00 PH-MB240-0002 - PRINTHEAD ASSY, MB340 (1SET/BOX) N/S SP-MB240-0022 SP-MB240-0022 Printhead Harness Cable (1SET/BOX) New SP-MB240-0022 (New) $63.00 - PRINTHEAD HARNESS CABLE (1SET/BOX) 2-1 98-0680076-00LF SP-MB240-0021 Printhead LOCKING SCREW (2PCS/Box) New 98-0680076-00LF (New) Contact for Details SP-MB240-0021 SP-MB240-0021 Printhead Locking Screw New SP-MB240-0021 (New) $59.00 98-0680076-00LF PRINTHEAD LOCKING SCREW (2PCS/BOX) 3 30-0680011-00LF SP-MB240-0044 Printhead PRESSURE ADJUST KNOB (3SET/Box) New 30-0680011-00LF (New) Contact for Details SP-MB240-0044 30-0680011-00LF PRINTHEAD PRESSURE ADJUST KNOB (3SET/BOX) 3-1* - - SCREW, M3X8L 4 SP-MB241-0010 - ANTISTATIC BRUSH (5PC/BOX) N/S SP-MB241-0018 - Heat line adjustment pad (2PCS/BOX)

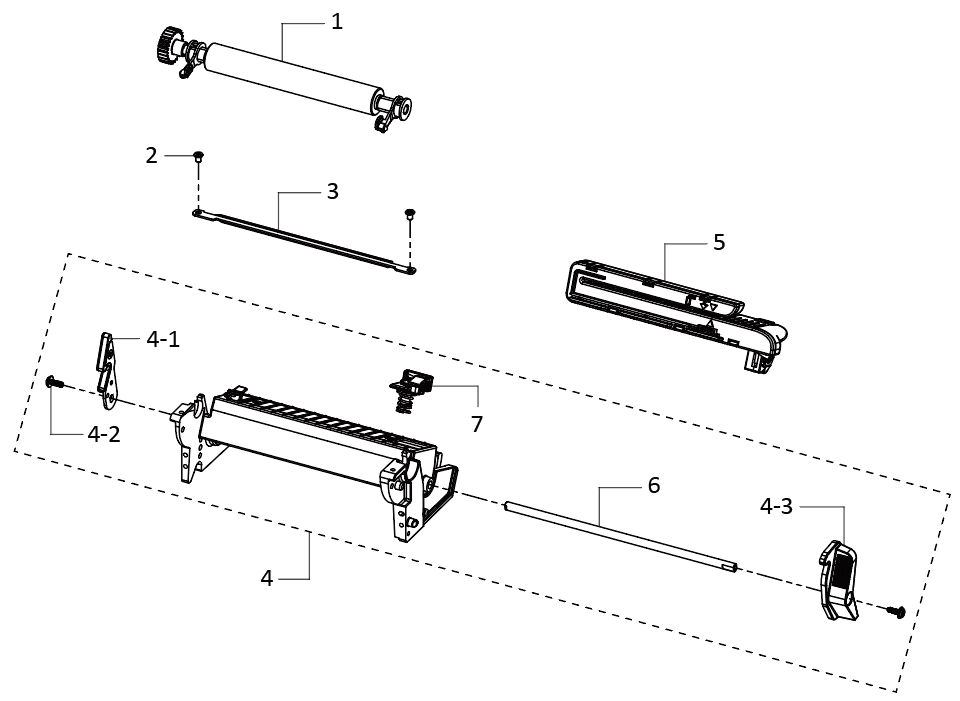

4. Print Engine Lower Mechanism Assembly No. Part No. Also Known As Description 1 98-0680014-00LF Platen roller assembly New 98-0680014-00LF Replaced by SP-MB240-0023 (New) $72.00 SP-MB240-0023 SP-MB240-0023 Platen Roller New SP-MB240-0023 (New) $72.00 - PLATEN ROLLER ASSY (1SET/BOX) 2* - - SCREW, M3X4 3 SP-MB240-0024 - TEAR BAR (5PCS/BOX) 4 SP-MB240-0025 - PRINT ENGINE LOWER MECHANISM ASSY (1SET/BOX) 4-1 98-0680080-00LF SP-MB240-0027 Handle INNER Hook (3SET/Box) New 98-0680080-00LF (New) Contact for Details SP-MB240-0027 SP-MB240-0027 Handle, Inner Hook (3SET/BOX) New SP-MB240-0027 (New) $58.00 98-0680080-00LF HANDLE, INNER HOOK (3SET/BOX) 4-2* - - SCREW, M3X5 4-3 98-0680079-00LF SP-MB240-0026 Handle OUTER Hook (3SET/Box) New 98-0680079-00LF (New) Contact for Details SP-MB240-0026 SP-MB240-0026 Handle, Outter Hook (3SET/BOX) New SP-MB240-0026 (New) $66.00 98-0680079-00LF HANDLE, OUTTER HOOK (3SET/BOX) SP-MB240-0028 SP-MB240-0028 Media Sensor Assy (1SET/BOX) New SP-MB240-0028 (New) $80.00 - MEDIA SENSOR ASSY (1SET/BOX) 5 - - MEDIA SENSOR ASSY_LINERLESS SP-MB240-0071 - (1SET/BOX) 6 SP-MB241-0011 - HOOK MAIN SHAFT AXIS (1SET/BOX) 7 SP-MB241-0016 SP-MB241-0016 Label Guide, 1 Set 1 Box New SP-MB241-0016 (New) $69.00 - LABEL GUIDE (1SET/BOX)

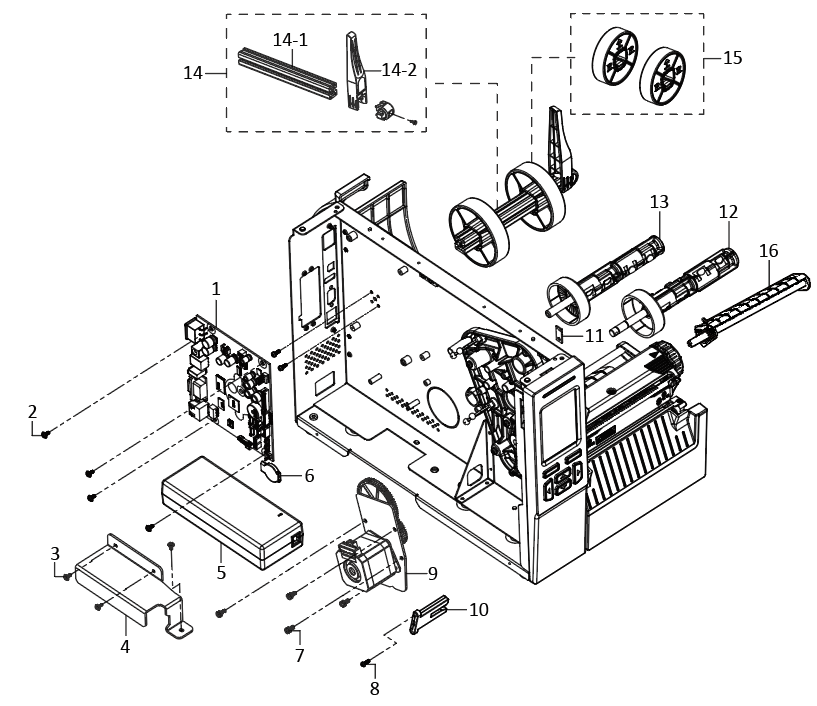

5. Electronics Maintenance Kit & Drive system No. Part No. Also Known As Description 1 SP-MB241-0012 - MAIN BOARD ASSY (1SET/BOX) 2* - - SCREW, M3X6, FOR MAIN BOARD ASSY 3* - - SCREW, M3X6 4 98-0680081-00LF SP-MB240-0030 Power Bracket For Power Supply (1 Set/Box) New 98-0680081-00LF (New) Contact for Details SP-MB240-0030 98-0680081-00LF POWER BRACKET, FOR POWER SUPPLY (1SET/BOX) 5 98-0680070-00LF SP-MB240-0031 Power Supply UNIT (1 Set/Box) New 98-0680070-00LF (New) $150.00 SP-MB240-0031 SP-MB240-0031 Power Supply Unit (1SET/BOX) New SP-MB240-0031 (New) $165.00 98-0680070-00LF POWER SUPPLY UNIT (1SET/BOX) 7* - - PSC/BOX) SCREW, M4X8L, FOR STEPPING MOTOR ASSY 8* - - SCREW, M3X8 9 SP-MB240-0033 - STEPPING MOTOR ASSY (1SET/BOX) 10 SP-MB240-0034 SP-MB240-0034 Ribbon End Sensor Assy (1SET/BOX) New SP-MB240-0034 (New) $30.00 - RIBBON END SENSOR ASSY (1SET/BOX) 11 SP-MB240-0035 SP-MB240-0035 Ribbon Encoder Sensor Assy (1SET/BOX) New SP-MB240-0035 (New) $31.00 - RIBBON ENCODER SENSOR ASSY (1SET/BOX) 12 SP-MB240-0036 SP-MB240-0036 Ribbon Rewind Spindle Assy (1SET/BOX) New SP-MB240-0036 (New) $70.00 - RIBBON REWIND SPINDLE ASSY (1SET/BOX) 13 SP-MB240-0037 SP-MB240-0037 Ribbon Supply Spindle Assy (1SET/BOX) New SP-MB240-0037 (New) $42.00 - RIBBON SUPPLY SPINDLE ASSY (1SET/BOX) 14 SP-MB240-0038 SP-MB240-0038 Label Supply Spindle Assy (1SET/BOX) New SP-MB240-0038 (New) $55.00 - LABEL SUPPLY SPINDLE ASSY (1SET/BOX) 14-1 SP-MB240-0039 SP-MB240-0039 Label Supply Spindle (1SET/BOX) New SP-MB240-0039 (New) $26.00 - LABEL SUPPLY SPINDLE (1SET/BOX) 14-2 SP-MB240-0070 - LABEL ROLL GUARD (10 SET/BOX) 15 SP-COM-0018 SP-COM-0018 3-INCH Core Adapter (4SET/BOX) New SP-COM-0018 (New) $24.00 - 3-INCH CORE ADAPTER (4SET/BOX) 16 SP-MB240-0009 SP-MB240-0009 Media Damper Assy (1SET/BOX) New SP-MB240-0009 (New) $91.00 - MEDIA DAMPER ASSY (1SET/BOX) N/S 98-0680087-00LF SP-MB240-0042 HOUSING WIRE New 98-0680087-00LF (New) Contact for Details SP-MB240-0042 98-0680087-00LF HOUSING+WIRE, 2.0MM 8 PIN+ 2.0MM, N/S SP-MB241-0013 - ADOPTER CABLE, FOR PEEL-OFF OR CUTTER KIT (1SET/BOX)

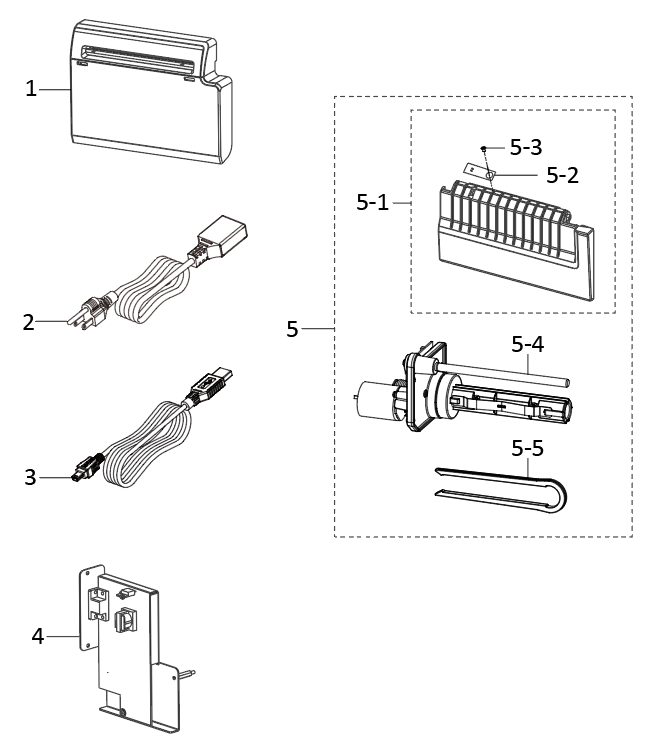

6. Option & Accessories No. Part No. Also Known As Description 1 CUT-MB240-0001 CUT-MB240-0001 Regular Guillotine Cutter Module (1SET/BOX) Thermal-cutter New CUT-MB240-0001 (New) $566.00 $551.85 - REGULAR GUILLOTINE CUTTER MODULE (1SET/BOX) 72-0180100-00LF SP-COM-1001 Power Cord IEC C13 US (1PC/BAG) New 72-0180100-00LF (New) Contact for Details 72-0180100-00LF Power cord/ US Fully refurbished with 90-day warranty 72-0180100-00LF (Refurbished) Contact for Details SP-COM-1001 72-0180100-00LF POWER CORD, IEC C13, US (1PC/BAG) 5 98-0680016-01LF PEL-MB240-0002 Peel-Off Kit (1 Set/Box) New 98-0680016-01LF (New) Contact for Details PEL-MB240-0002 98-0680016-01LF PEEL-OFF KIT (1SET/BOX) 5-1 98-0680017-10LF SP-MB240-0001 Peel-Off Module (1 Set/Box) New 98-0680017-10LF (New) Contact for Details SP-MB240-0001 98-0680017-10LF PEEL-OFF MODULE (1SET/BOX) 5-3* - - SCREW, M3X4 5-4 SP-MB240-0002 - LINER REWINDING SPINDLE ASSY (1SET/BOX) WF-COM-1005 - SLOT-IN WI-FI + BT COMBO UPGRADE KIT (US) (1SET/BOX) WF-COM-1002 - SLOT-IN Wi-Fi + BT COMBO MODULE (US) (1SET/BOX) 11 TEAR-MB240-0001 TEAR-MB240-0001 Linerless Tear-off Kit (1SET/BOX) New TEAR-MB240-0001 (New) $385.00 - LINERLESS TEAR-OFF KIT (1SET/BOX) 12 CUT-MB240-0002 CUT-MB240-0002 Linerless Cutter Kit (1SET/BOX) Thermal-cutter New CUT-MB240-0002 (New) $1012.00 $986.70 - LINERLESS CUTTER KIT (1SET/BOX) N/S SP-COM-0001 CLEANING PEN (MOQ 12pcs/CTN) New SP-COM-0001 (New) $120.00 SP-COM-0001 98-0T80022-00LF LINERLESS PRINTER CLEANING KIT (1SET/BOX) N/S 98-0680095-00LF SP-MB240-0058 Field Kit HARDWARE (1 Set/Box) New 98-0680095-00LF (New) Contact for Details SP-MB240-0058 SP-MB240-0058 Field Kit, Hardware 1SE/BOX New SP-MB240-0058 (New) $65.00 $63.38 98-0680095-00LF FIELD KIT, HARDWARE (1SET/BOX) N/S SP-MB241-0017 - RE-SHIP KIT (1SET/BOX)

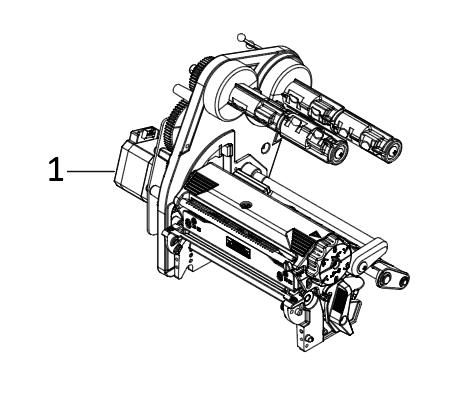

7. MB Print Module No. Part No. Also Known As Description PM-MB241-0001 - PRINT MODULE (203 DPI) WITHOUT MAIN BOARD, POWER SUPPLY UNIT AND POWER 1 - - CORD PRINT MODULE (300 DPI) WITHOUT MAIN PM-MB241-0002 - BOARD, POWER SUPPLY UNIT AND POWER CORD
