TSC MH241 Parts






Please call for parts assistance

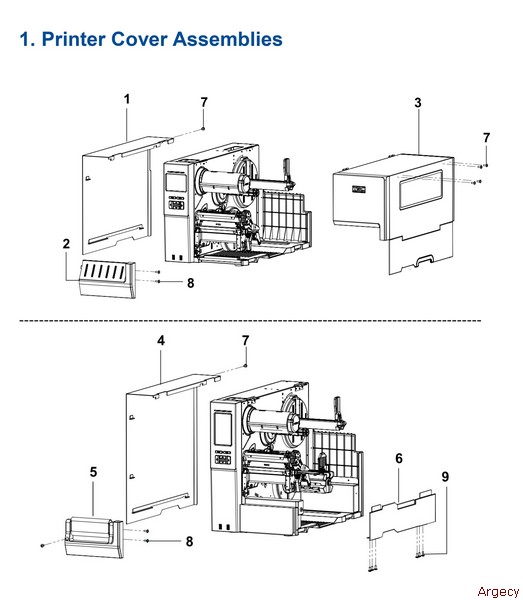

1. Printer Cover Assemblies
1

SP-MH241-0001
ELECTRONIC COVER (MH241/MH241T SERIES)
2SP-MH241-0002LOWER FRONT COVER (MH241/MH241T)
3
SP-MH241-0003 Media Cover Assembly
New
SP-MH241-0003 (New)
$232.00



SP-MH241-0003
MEDIA COVER ASSY
4SP-MH241-0004ELECTRONIC COVER (MH241P SERIES)
5SP-MH241-0005LOWER FRONT COVER (MH241P SERIES)
6SP-MH241-0006ELECTRONIC LOWER COVER
7*--MACHINE SPRING WASHER SCREW, M3*6
8*--MACHINE SCREW, M3*6
9*--MACHINE SCREW, M3*5

*NOTE= Available only in Hardware Field Kit (P/N= SP-MH241-0052)

2. LCD Panel & Keypad Assembly

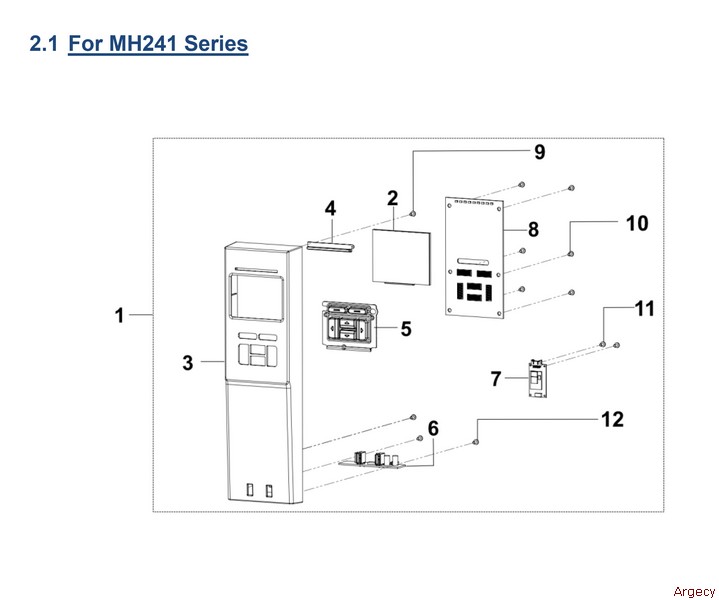

2.1 For MH241 Series
1

SP-MH241-0007
LCD PANEL COVER ASSY (MH241 SERIES)
2
SP-MH241-0008 3.5 LCD (MH241 Series)
New
SP-MH241-0008 (New)
$113.00



SP-MH241-0008
3.5 LCD (MH241 Series)
3

SP-MH241-0009
LEFT FRONT PANEL COVER ASSY (MH241 SERIES)
4SP-MH241-0010LED LIGHT GUIDE
5SP-MH241-0011KEYPAD
6
SP-MH241-0012 USB Host PCB Assembly
New
SP-MH241-0012 (New)
$63.00



SP-MH241-0012
USB HOST PCB ASSY
7
SP-MH241-0013 MFI BT Module
New
SP-MH241-0013 (New)
$169.00



SP-MH241-0013
MFI BT MODULE
8

SP-MH241-0014
LCD PANEL BOARD ASSY ( MH241 SERIES)
9*--SELF-TAPPING SCREW, TP3*10
10*--SELF-TAPPING WASHER SCREW, TP3*5
11*--SELF-TAPPING SCREW, TP2*5
12*--SELF-TAPPING WASHER SCREW, TP3*6

*NOTE= Available only in Hardware Field Kit (P/N= SP-MH241-0052)

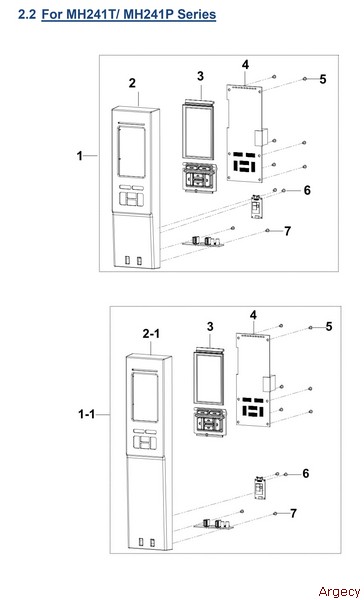

2.2 For MH241T/MH241P Series
1

SP-MH241-0015
LCD PANEL COVER ASSY (MH241T SERIES)
1-1

SP-MH241-0016
LCD PANEL COVER ASSY (MH241P SERIES)
2

SP-MH241-0017
LEFT FRONT PANEL COVER ASSY (MH241T SERIES)
2-1

SP-MH241-0018
LEFT FRONT PANEL COVER ASSY (MH241P SERIES)
3
SP-MH241-0019 4.3-inch LCD
New
SP-MH241-0019 (New)
$182.00



SP-MH241-0019
4.3 LCD (MH241T/MH241P SERIES)
4
SP-MH241-0020 Stepping Motor Assembly
New
SP-MH241-0020 (New)
$69.00



SP-MH241-0020
LCD PANEL BORAD ASSY (MH241T/ MH241P SERIES)
5*--SELF-TAPPING WASHER SCREW, TP3*5
6*--SELF-TAPPING SCREW, TP2*5
7*--SELF-TAPPING WASHER SCREW,TP3*6

*NOTE= Available only in Hardware Field Kit (P/N= SP-MH241-0052)
3. Left Side Assemblies
1
SP-MH241-0021 Internal Rewinding Spindle Assembly
New
SP-MH241-0021 (New)
$175.00



SP-MH241-0021
STEPPING MOTOR ASSEMBLY
2
SP-MH241-0022 Media End Sensor
New
SP-MH241-0022 (New)
$75.00



SP-MH241-0022
MEDIA END SENSOR ASSEMBLY
3

SP-MH241-0023
MAIN BOARD ASSEMBLY, MH241
4SP-MH241-0024GPIO INTERFACE ASSEMBLY (DB15F, INCLUDING PARALLEL PORT)
5
SP-MH241-0025 Power Supply
New
SP-MH241-0025 (New)
$269.00



SP-MH241-0025
POWER SUPPLY
6*--MACHINE SPRING WASHER SCREW, M4*8
7*--MACHINE SCREW, M3*6
8*--MACHINE WASHER SCREW, M3*12

*NOTE= Available only in Hardware Field Kit (P/N= SP-MH241-0052)

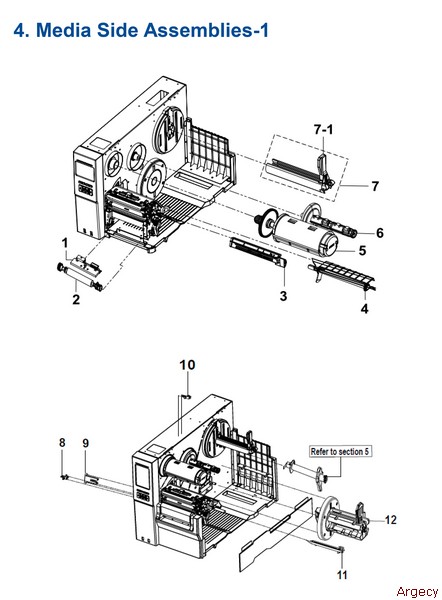

No.Part No.Description
1
PH-MH241-0001 Printhead Assembly MH240
New
PH-MH241-0001 (New)
$578.00



PH-MH241-0001
PRNTHD ASSY, MH241
PH-MH241-0002 203dpi Printhead Assembly MH340
New
PH-MH241-0002 (New)
$655.00



PH-MH241-0002
PRNTHD ASSY, MH341
SalePH-MH241-0003 Printhead Assembly MH640
New
PH-MH241-0003 (New)
$1265.00 $865.00



PH-MH241-0003
PRNTHD ASSY, MH641
2
SP-MH241-0029 Platen Roller Assembly
New
SP-MH241-0029 (New)
$75.00



SP-MH241-0029
PLATEN ROLLER ASSY
3
SP-MH241-0030 Media Sensor Module Assembly
New
SP-MH241-0030 (New)
$88.00



SP-MH241-0030
MEDIA SENSOR MODULE ASSY
4SP-MH241-0031MEDIA DAMPER ASSY
5
SP-MH241-0032 Ribbon Rewind Spindle Assembly
New
SP-MH241-0032 (New)
$88.00



SP-MH241-0032
RIBBON REWIND SPINDLE ASSY
6
SP-MH241-0033 Ribbon Supply Spindle Assembly
New
SP-MH241-0033 (New)
$38.00



SP-MH241-0033
RIBBON SUPPLY SPINDLE ASSY
7

SP-MH241-0034
LABEL SUPPLY SPINDLE ASSY (MH241/MH241T SERIES)
SP-MH241-0035LABEL SUPPLY SPINDLE ASSY (MH241P SERIES)
8
SP-MH241-0036 TPH Open Sensor Assembly
New
SP-MH241-0036 (New)
$13.00



SP-MH241-0036
TPH OPEN SENSOR ASSY
9
SP-MH241-0037 Ribbon End Sensor Assembly
New
SP-MH241-0037 (New)
$27.00



SP-MH241-0037
RIBBON END SENSOR ASSY
10
SP-MH241-0038 Ribbon Encoder Sensor Assembly
New
SP-MH241-0038 (New)
$19.00



SP-MH241-0038
RIBBON ENCODER SENSOR ASSY
11
SP-MH241-0039 Label Guide Module
New
SP-MH241-0039 (New)
$19.00



SP-MH241-0039
LABEL GUIDE MODULE
12

SP-MH241-0040
INTERNAL REWINDER ASSY (MH241P SERIES)

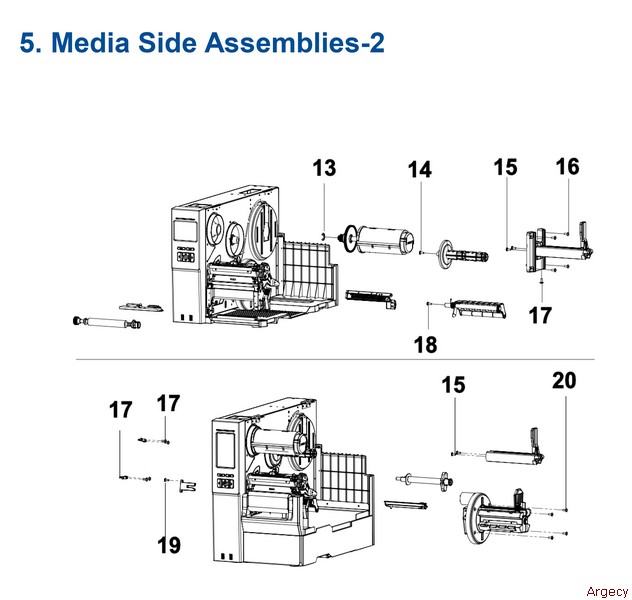

4-2. Right Side Assemblies (13-20)
13*--E-RING ID10*OD20*T1.0
14*--MACHINE SCREW, M6*12
15*--MACHINE WASHER SCREW, M4*10
16*--MACHINE SCREW, M4*15
17*--MACHINE SCREW, M3*6
18*--MACHINE SPRING WASHER SCREW, M4*10
19*--MACHINE SCREW, M3*8
20*--MACHINE SCREW, M4*8


*NOTE= Available only in Hardware Field Kit (P/N= SP-MH241-0052)
5. Accessories
1SP-COM-1001POWER CORD, US
2SP-COM-0002USB CABLE (1500mm)
N/SSP-COM-0001CLEANING PEN (MOQ 12pcs/CTN)
N/SSP-MH241-0041PACKING CARTON_MH241
N/SSP-MH241-0042FRONT CUSHION PACKING
N/SSP-MH241-0043REAR CUSHION PACKING
N/SSP-MH241-0044TOP CUSHION PACKING
N/SSP-MH241-0045RIBBON SPINDLE CUSHION PACKING
N/SSP-MH241-0046TPH CUSHION PACKING
N/SSP-MH241-0047PACKING POLYBAG
N/SSP-MH241-0052FIELD KIT, HARDWARE, MH241

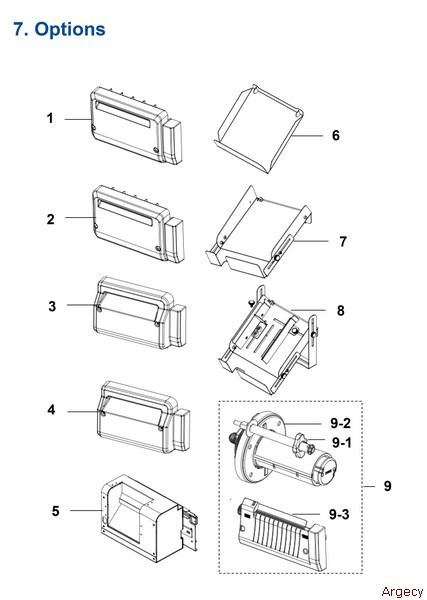

6. Options
1
CUT-MH241-0001 Regular Cutter (Guillotine)
Fully refurbished with 90-day warranty
CUT-MH241-0001



CUT-MH241-0001
REGULAR CUTTER (GUILLOTINE)
3
CUT-MH241-0004 Heavy Duty Cutter Module
Fully refurbished with 90-day warranty
CUT-MH241-0004



CUT-MH241-0004
HEAVY DUTY CUTTER (GUILLOTINE)
4
CUT-MH241-0005 Care Label Cutter Module
Fully refurbished with 90-day warranty
CUT-MH241-0005



CUT-MH241-0005
CARE LABEL CUTTER (GUILLOTINE)
6

OP-MH241-0001
BASIC CUTTER TRAY (FOR HEAVY DUTY AND CARE LABEL CUTTER ONLY)
7

OP-MH241-0002
ADVANCED CUTTER TRAY (FOR HEAVY DUTY AND CARE LABEL CUTTER ONLY)
8

OP-COM-0001
UNIVERSAL CUTTER TRAY
9
PEL-MH241-0001 Peel-Off Kit (MH241/MH241T Only)
Fully refurbished with 90-day warranty
PEL-MH241-0001



PEL-MH241-0001
PEEL-OFF KIT (MH241/MH241T ONLY)
9-1SP-MH241-0048MEDIA GUIDE FOR PEEL-OFF MODULE ASSY (SPARE PARTS)
9-2SP-MH241-0049INTERNAL REWINDER SPINDLE FOR PEEL-OFF MODULE ASSY (SPARE PARTS)
9-3SP-MH241-0050PEEL-OFF MODULE PANEL (SPARE PARTS)

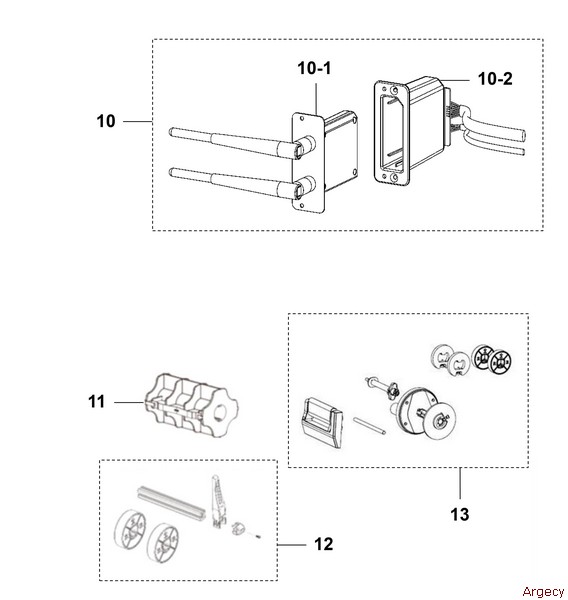

10

WF-COM-1001
SLOT-IN WI-FI + BT COMBO UPGRADE KIT (US)
10-1

WF-COM-1002
SLOT-IN Wi-Fi + BT COMBO MODULE (US)
10-2

SP-MH241-0051
SLOT-IN Wi-Fi + BT HOUSING (SPAREPARTS)
11

OP-MH241-0004
REWINDER ADOPTER (3 LABEL CORE)
12
OP-MH241-0005 Label Supply Spindle Assembly
Fully refurbished with 90-day warranty
OP-MH241-0005



OP-MH241-0005
LABEL SUPPLY SPINDLE (1 I.D. ROLL)
13REW-MH241-0001INTERNAL REWINDER KIT (5 O.D., MH241/MH241T ONLY)
