TSC T4000 Parts

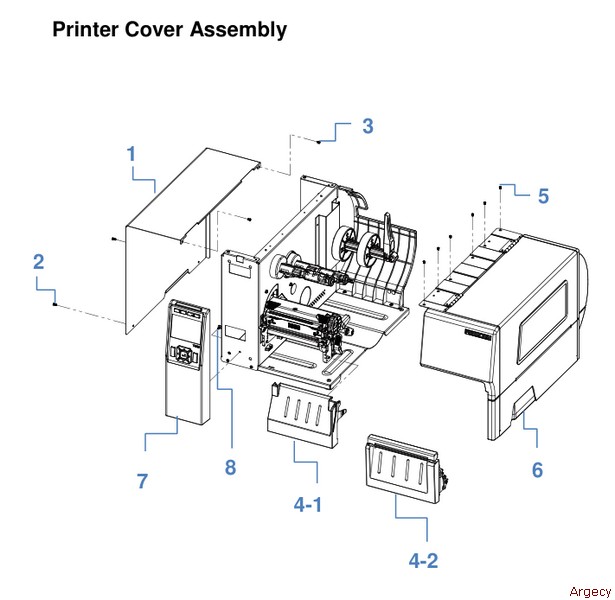

| Printer Cover Assembly 1 98-0720054-00LF Assy, Cover, Side (32-0720004-00LF) 2 37-1503008-29LF* Screw, M3x8 3 37-1503004-32LF* Screw, M3x4 4-1 98-0720044-00LF Media Cover, Front (30-0720002-00LF) 4-2 98-0720080-00LF Assy, RFID Tear, 30dB, T4xRx 5 37-1503005-22LF* Screw, M3x5 6 98-0720055-00LF Assy, Cover, Media (98-0720003-00LF) 7 98-0720042-00LF Assy, Control Panel (98-0720004-00LF) 8 37-1403008-74LF* Screw, TP3x8 |
 |

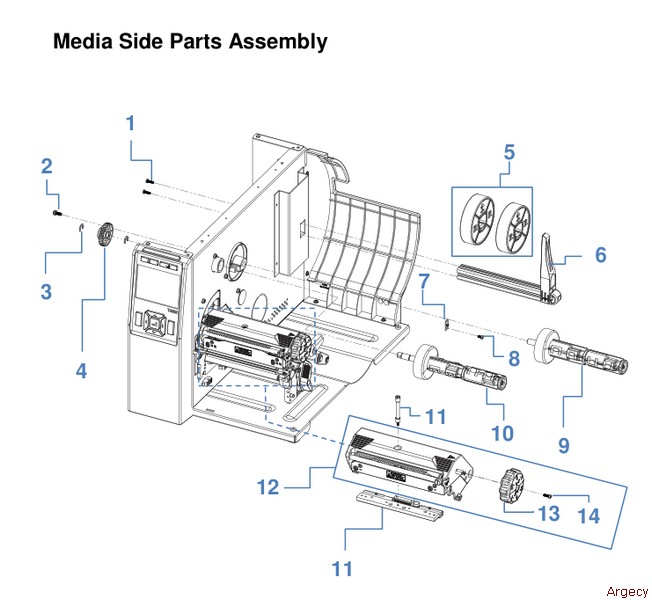

| Media Side Parts Assembly 1 37-1503010-84LF* Screw, M3x10 2 37-1504010-84LF* Screw, M4x10 3 37-3460120-04LF* E-ring 4 98-0720045-00LF Gear, Ribbon Rewind (98-0720031-00LF) 5 98-0720034-00LF Adapter, 3" Core 6 98-0720046-00LF Spindle, Media (98-0720002-00LF) 7 98-0720047-00LF Sensor, Ribbon Status (98-0680064-00LF) 8 37-1503006-14LF* Screw, M3x6 9 98-00720048-00LF Spindle, Ribbon Supply, T4x04 (98-0680008-00LF) 9 98-0720056-00LF Spindle, Ribbon Supply, T4xR4 (98-0720027-00LF) 10 98-0720049-00LF Spindle, Ribbon Rewind, T4x04 (98-0680007-00LF) 10 98-0720057-00LF Spindle, Ribbon Rewind, T4xR4 (98-0720026-00LF) 11 98-0720032-00LF Assy, Printhead with Screw, 203 dpi 11 98-0720032-01LF Assy, Printhead with Screw, 300 dpi 12 98-0720092-00LF Upper base module, 1set/box 13 98-0720093-00LF Printhead pressure adjust knob, 3set/box 14 37-1503008-84LF* Screw, M3X8L |
 |

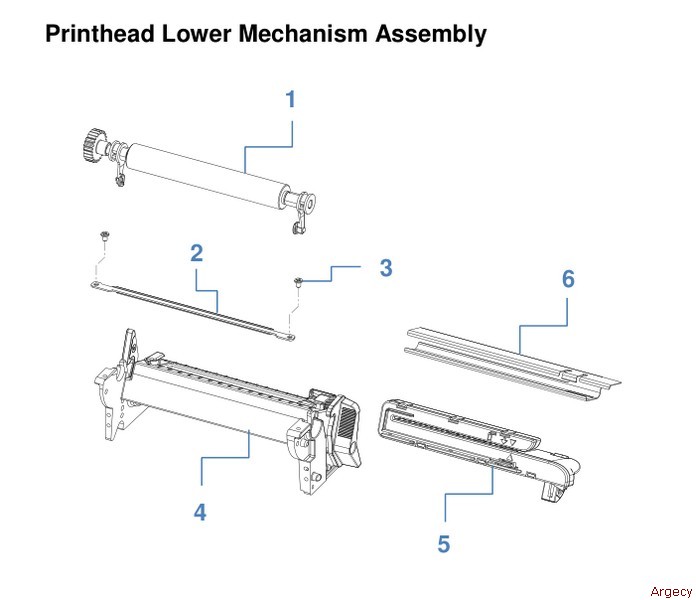

| Printhead Lower Mechanism Assembly 1 98-0720050-00LF Platen (98-0680014-00LF) 2 98-0720060-00LF Tear Bar (32-0420008-10LF) 3 37-1503004-G4LF* Screw, M3x4 4 98-0720051-00LF Printhead Lower Mechanism (98-0720017-00LF) 5 98-0720052-00LF Sensor, Media (98-0720012-00LF) 6 98-0720059-00LF Metal Cover, Sensor, T4xRx (32-0720008-00LF) |
 |

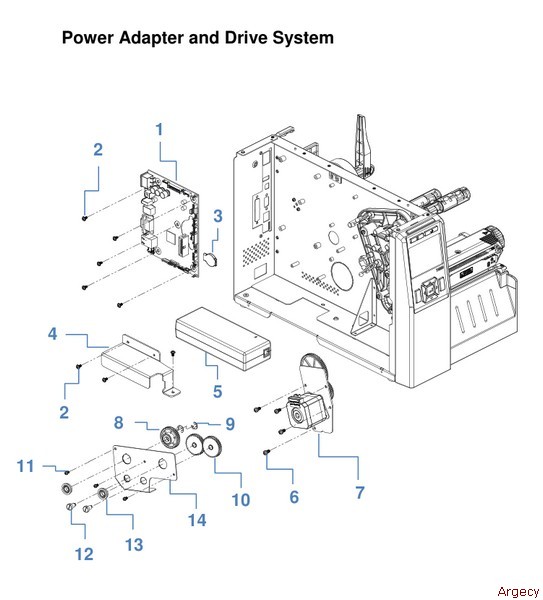

| Power Adapter and Drive System 1 98-0720035-00LF Controller PCBA 2 37-1503006-74LF* Screw, M3x6 3 72-0520010-01LF RTC 4 98-0720073-00LF Bracket (32-0680011-00LF) 5 98-0720043-00LF Power Adapter (62-0680090-10LF) 6 37-1504008-84LF* Screw, M4x8L 7 98-0720053-00LF Motor, Stepping (98-0680006-00LF) 8 98-0720045-01LF Assy, Gears, T4xRx (98-0720031-01LF) 9 37-3460120-04LF* E-ring, T4xRx 10 30-0420027-00LF* Gears, 40T-0.8M, T4xRx 11 37-1503006-84LF* Screw, M3*6, T4xRx 12 32-0420041-00LF* Screw, Gear, T4xRx 13 36-0160012-00LF* Bearing, T4xRx 14 32-0720013-00LF* Bracket, Gear, T4xRx |
 |

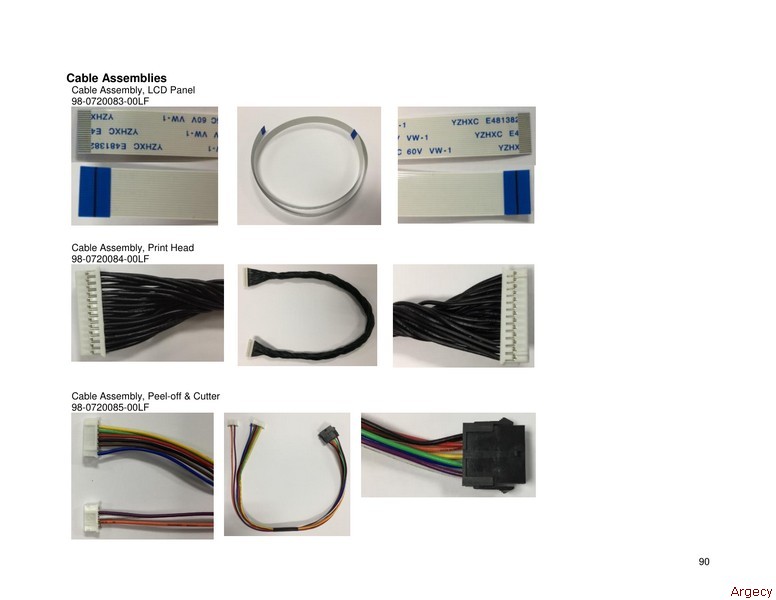

| Cable Assemblies 1 98-0720083-00LF Cable Assembly, LCD Panel 2 98-0720084-00LF Cable Assembly, Print Head 3 98-0720085-00LF Cable Assembly, Peel-off & Cutter 4 98-0720086-00LF Cable Assembly, Head Open Sensor 5 98-0720087-00LF Cable Assembly, Ribbon Encoder Sensor 6 98-0720088-00LF Cable Assembly, Media Receiver Sensor & Black Mark Sensor 7 98-0720089-00LF Cable Assembly, Media Emitter Sensor |
 |

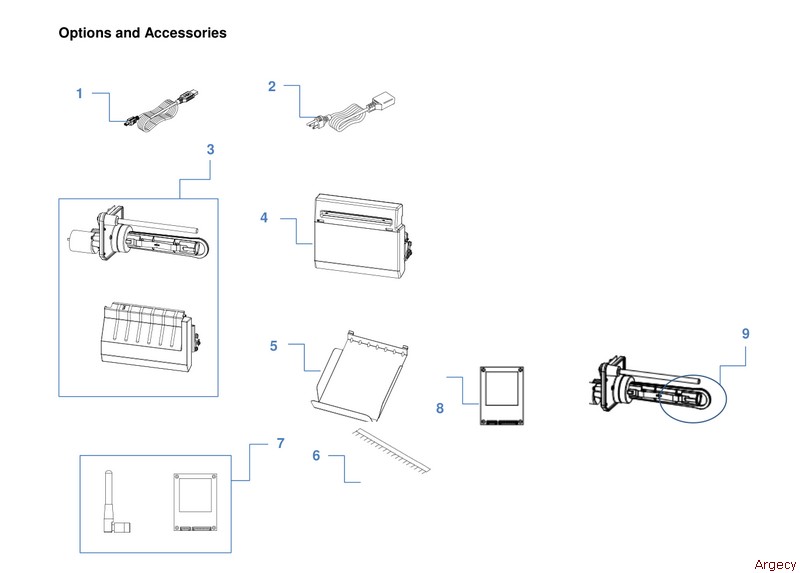

| Options and Accessories 1 72-0010030-00LF Cable, USB 2 72-0180100-00LF Power Cord, US 2 72-0180100-01LF Power Cord, EU 2 72-0180100-02LF Power Cord, UK 2 72-0180100-0GLF Power Cord, KC 2 72-0180100-0MLF Power Cord, TW 2 72-0180100-0HLF Power Cord, IN 2 72-0180100-0DLF Power Cord, CN 3 98-0720013-00LF Peel Dispenser 4 98-0720015-00LF Media Cutter, T4x0x 4 98-0720081-00LF RFID Media Cutter, 30dB, T4xRx 5 98-0720029-00LF Cutter Tray 6 98-0720082-00LF Static Brush, Cutter T4000 7 98-0720028-00LF Option Kit, Wi-Fi, T4000 8 98-0720019-00LF Option Kit, Blue Tooth, T4000 9 98-0720074-00LF Rewinder Clip, T4000 (x10) |
 |
