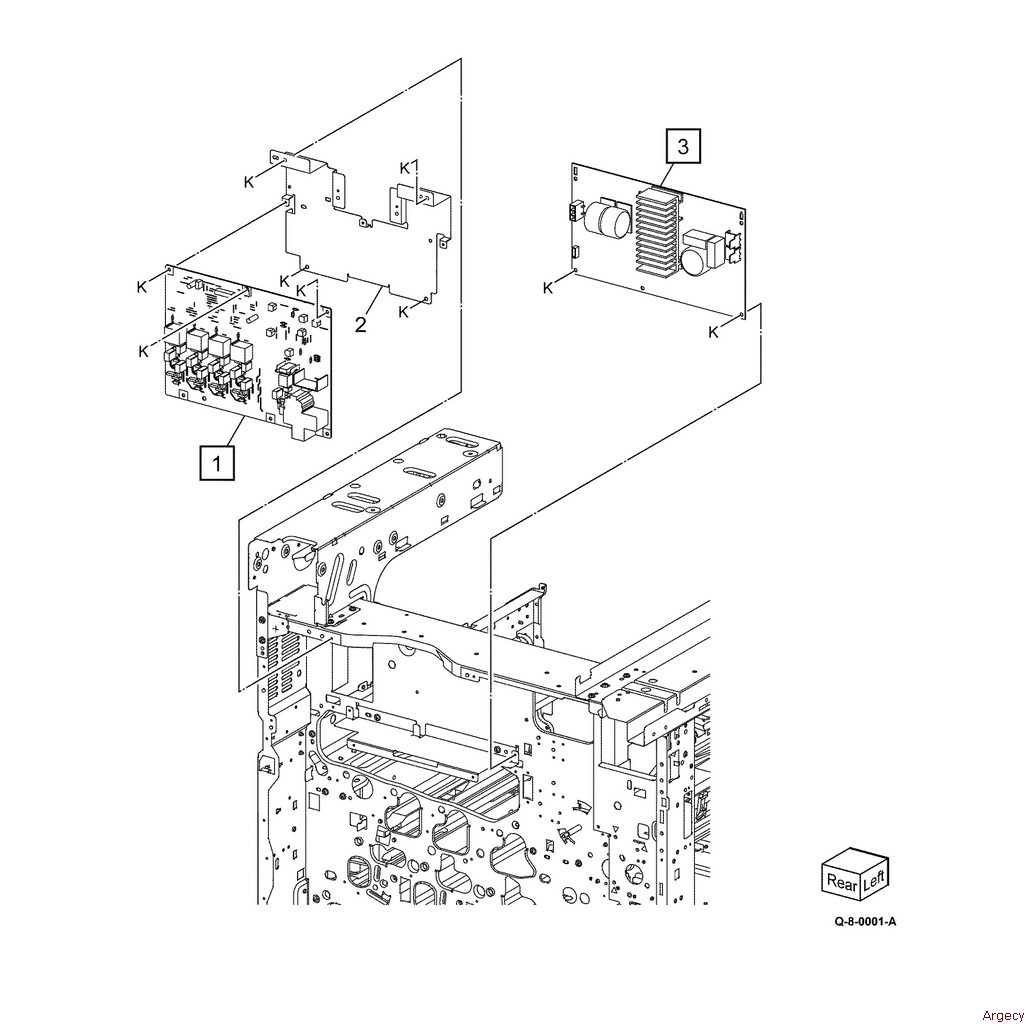

PL 1.05 Electrical - Rear (1 of 3) 1 105E23241 PSHV-CC43 New 105E23241 (New) $272.00 1 105E23261 BTR HVPS PWB (C8170) (REP 1.1) 2 — Bracket (Not Spared) 3 105E23510 Fuser Heater Power Supply - 110V New 105E23510 (New) $406.64 3 105E23530 Fuser Heater Power Supply 110V New 105E23530 (New) 3-4 Day Lead $428.40

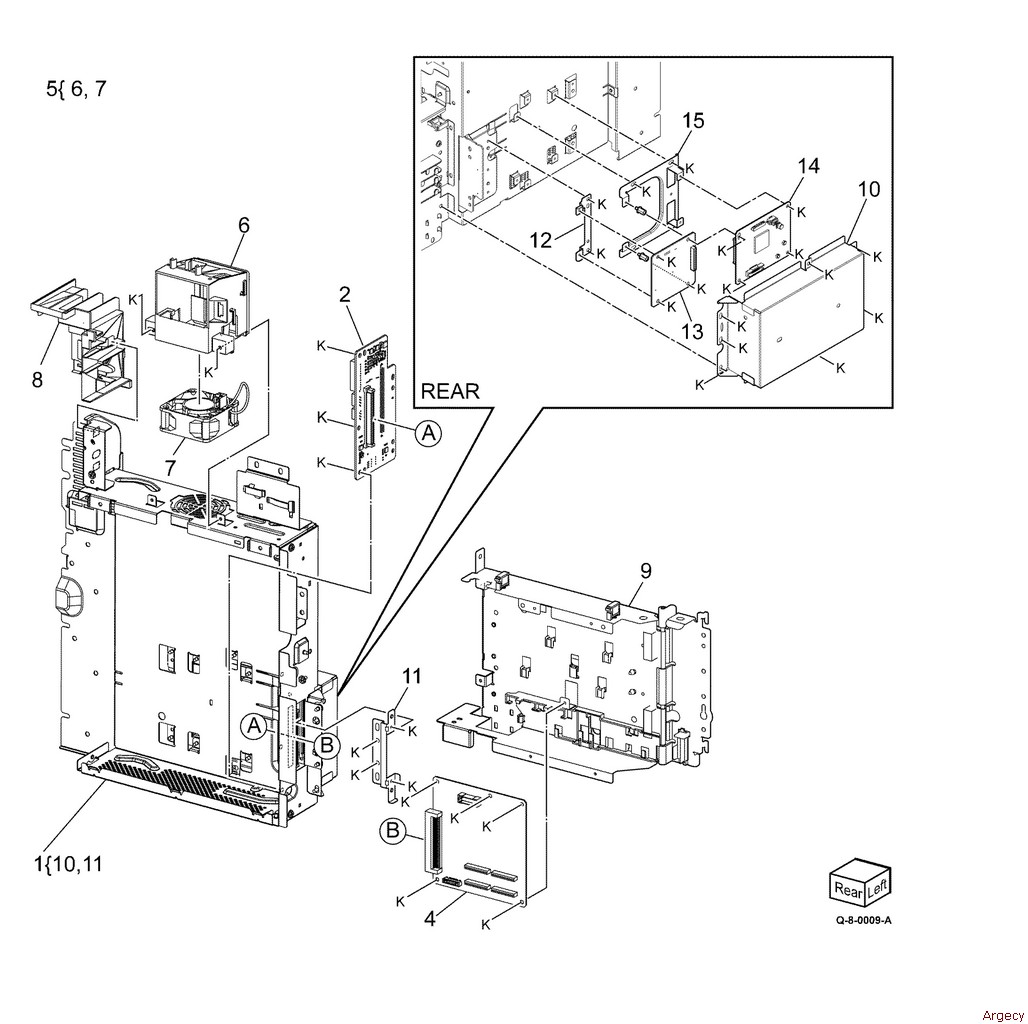

PL 1.10 Electrical - Rear (2 of 3) 1 101K69950 GFI Chassis Assembly New 101K69950 (New) $293.76 101K69950 GFI Chassis Assembly Fully refurbished with 90-day warranty 101K69950 $114.75 1 101K69960 GFI Chassis Assembly New 101K69960 (New) 3-4 Day Lead $171.36 2 961K01400 Motor Drive PWB New 961K01400 (New) 3-4 Day Lead $578.00 3 — Motor drive chassis assembly (Not Spared) 4 — Power cord bracket (Not Spared) 5 117E24670 125V Power Cord New 117E24670 (New) 3-4 Day Lead $527.68 5 917W03005 Power cord New 917W03005 (New) 3-4 Day Lead $107.44 917W03005 Power cord Fully refurbished with 90-day warranty 917W03005 Contact for Details 6 — HCF connector switch

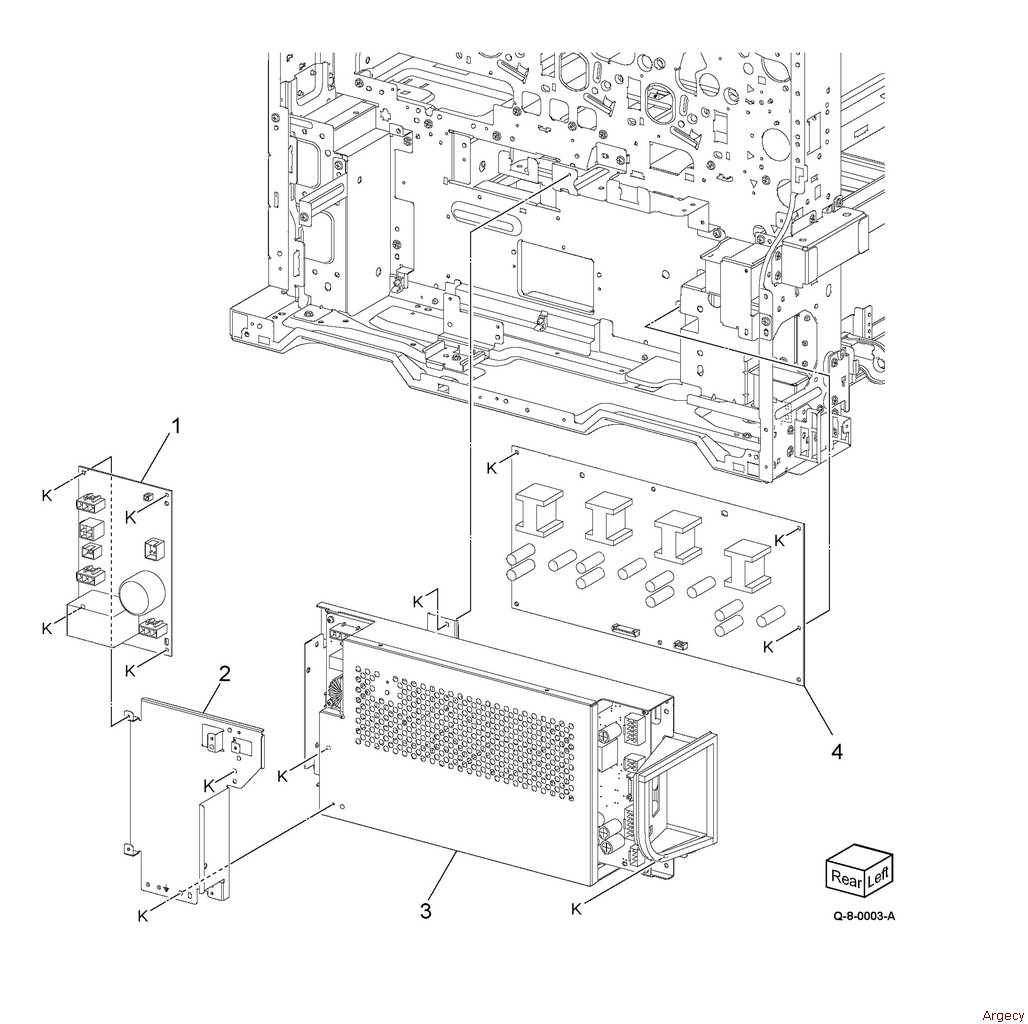

PL 1.15 Electrical - Rear (3 of 3) 1 105K34181 AC Drive PWB - 110V New 105K34181 (New) $138.72 1 105K34200 AC Drive PWB 110V New 105K34200 (New) 3-4 Day Lead $134.64 2 — AC bracket (Not Spared) 3 112K91400 Low Voltage Power Supply (LVPS) Assembly New 112K91400 (New) $496.40 112K91400 Low Voltage Power Supply (LVPS) Assembly Fully refurbished with 90-day warranty 112K91400 $251.60 4 105E22573 Developer Bias High Voltage Power Supply (HVPS) PWB New 105E22573 (New) $325.04
PL 1.20 Electrical - Front/Right 1 049K46300 Main power switch (REP 1.8) 2 — BCR HVPS cover (Not Spared) 3 — Cover (Not Spared) 4 105E23230 BCR High Voltage Power Supply (HVPS) PWB New 105E23230 (New) $431.12 5 105E23250 BCR High Voltage Power Supply (HVPS) PWB New 105E23250 (New) 3-4 Day Lead $291.04

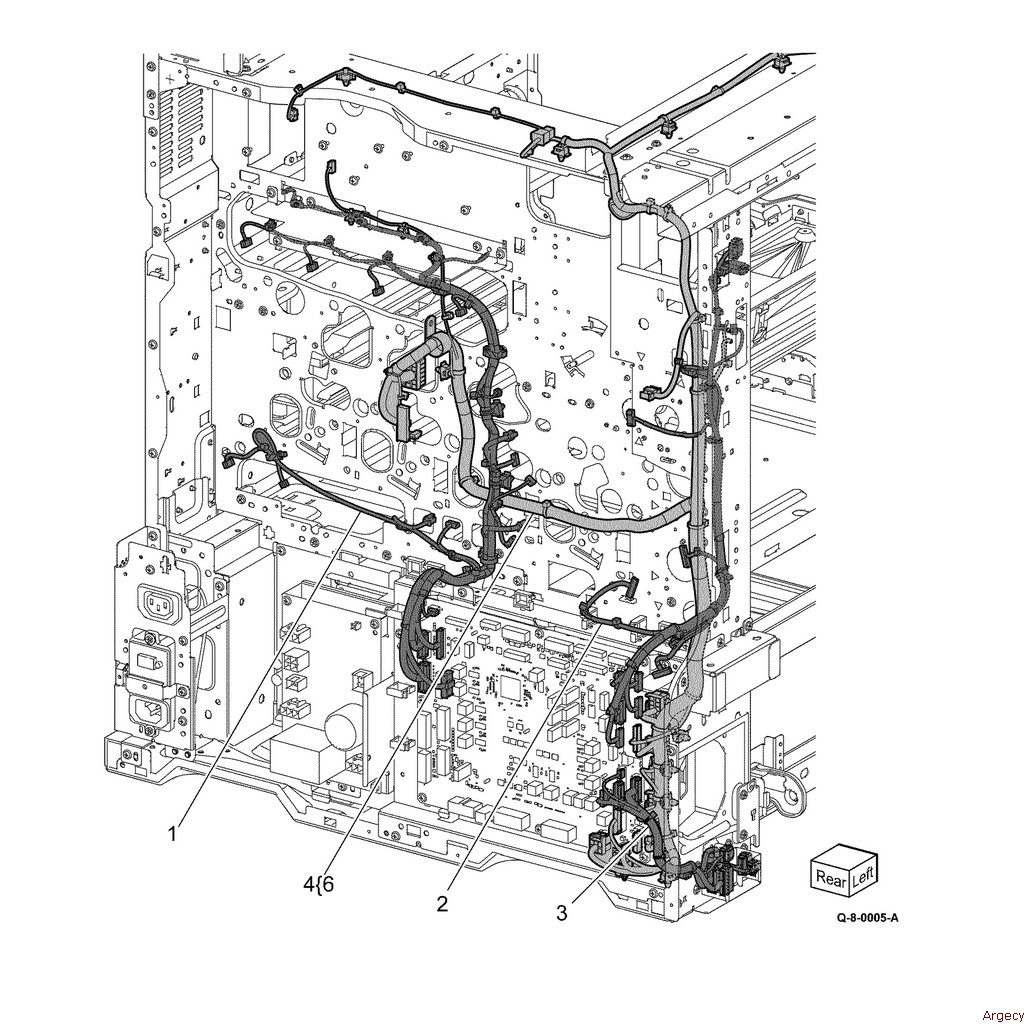

PL 1.25 Wire Harness 1 — Drive harness (C8130/ C8135/ C8145/ C8155) 1 — Drive Harness (C8170) 2 — PH drive harness (C8130/ C8135/ C8145/ C8155) 2 — PH drive harness (C8170) 3 — LH harness (C8130/ C8135) 2 — LH harness (C8145/ C8155) 2 — LH harness (C8170) 4 — DC power harness (C8130/ C8135) 4 — DC power harness (C8145/ C8155) 4 — DC power harness (C8170) 5 952K13252 Interface Harness HCF New 952K13252 (New) 3-4 Day Lead $82.96 6 952K44950 Wire Harness Fuser New 952K44950 (New) 3-4 Day Lead $96.56 6 952K44960 Wire Harness Fuser New 952K44960 (New) 3-4 Day Lead $96.56

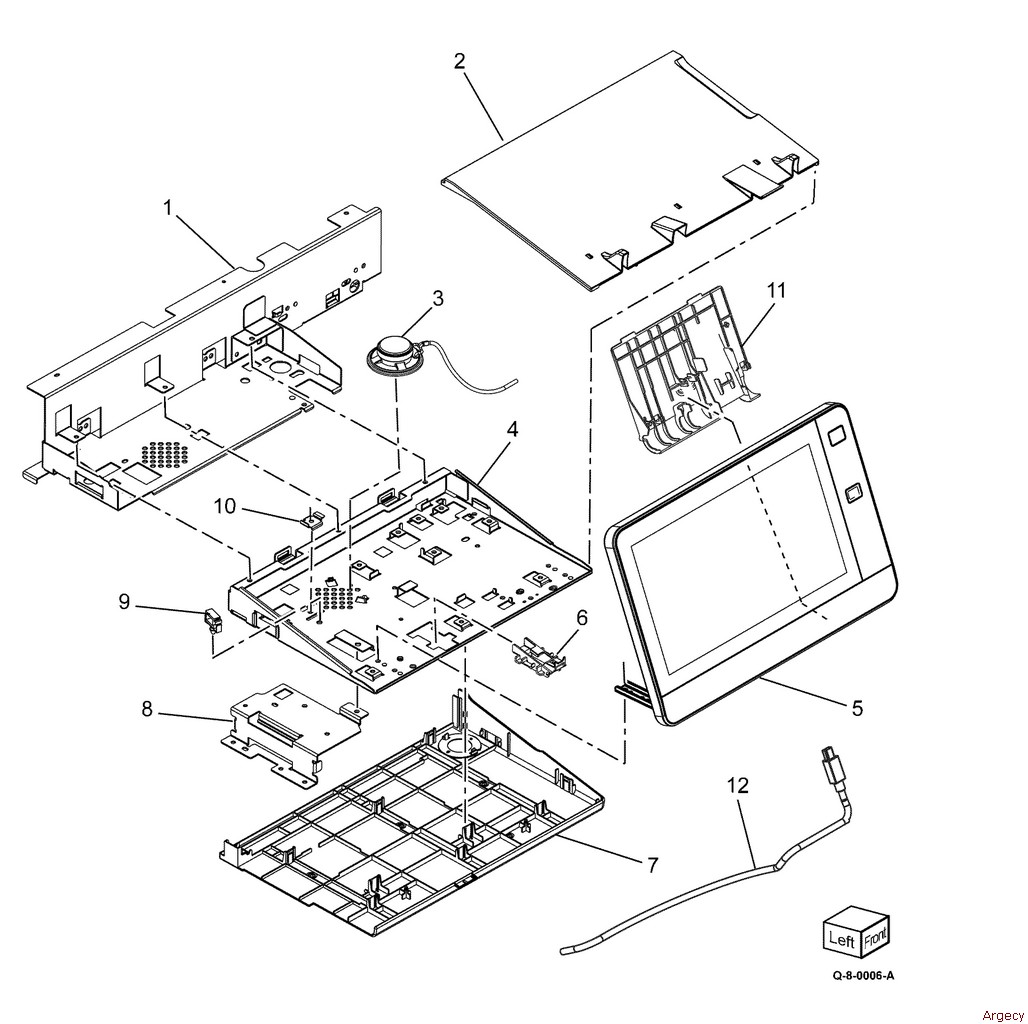

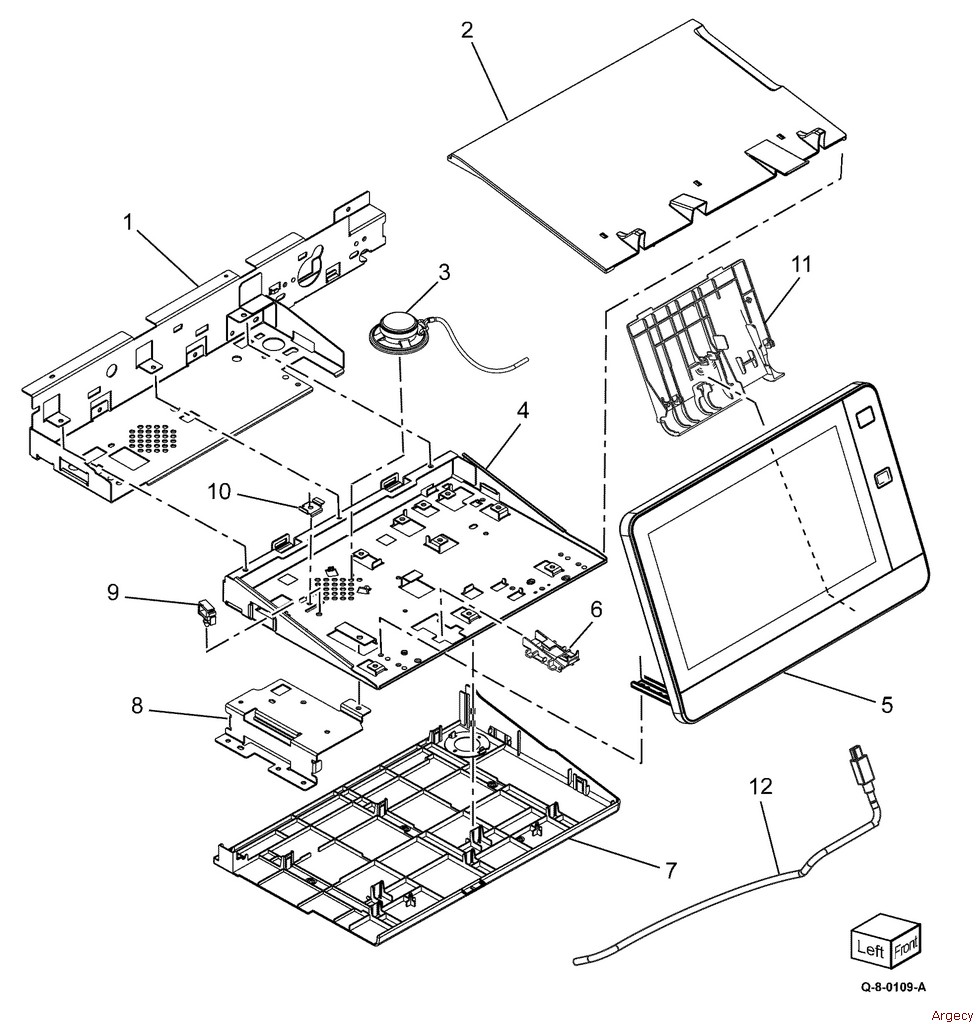

PL 2.05 User Interface (C8130/ C8135/ C8145/ C8155) 1 — Mounting bracket 2 — Top cover 3 930K00420 Speaker 4 — Base plate 5 084K43260 User Interface Assembly New 084K43260 (New) $527.68 084K43260 User Interface Assembly Fully refurbished with 90-day warranty 084K43260 $238.00 6 — Cable bracket 7 — Base cover 8 — Bracket 9 — Cable clamp 10 — Speaker clamp plate 11 — Cable cover (P/O PL 2.05 Item 5) 12 952K36970 UI cable
PL 2.10 User Interface (C8170) 1 — Mounting bracket 2 — Top cover 3 930K00420 Speaker 4 — Base plate 5 084K43260 User Interface Assembly New 084K43260 (New) $527.68 084K43260 User Interface Assembly Fully refurbished with 90-day warranty 084K43260 $238.00 6 — Cable bracket 7 — Base cover 8 — Bracket 9 — Cable clamp 10 — Speaker clamp plate 11 — Cable cover (P/O PL 2.10 Item 5) 12 952K36970 UI cable
PL 3.05 Control Unit (ESS PWB) 1 607K30340 Controller PWB Fully refurbished with 90-day warranty 607K30340 3-4 Day Lead $673.20 607K30340 Controller PWB New 607K30340 (New) 3-4 Day Lead $1013.20 1 607K30091 Main Board New 607K30091 (New) 3-4 Day Lead $1217.20 2 — HDD bracket 3 121E32860 HDD 500 GB GSA Option New 121E32860 (New) $251.60 3 121E32880 SSD - 128 GB New 121E32880 (New) 3-4 Day Lead $428.40 4 962K40460 Power/Data Harness ESS PWB New 962K40460 (New) 3-4 Day Lead $96.56 5 112K01140 Riser PWB New 112K01140 (New) $136.00 6 — Fax cradle (Not Spared) 7 — Fax module 8 — Bluetooth dongle (P/O PL 25.10 Item 4) 9 — Fax blanking plate 10 — Thumbscrew 11 207E22240 Battery Lithium 3V 220 Mah Flat Coin Cell 20Mm Pb Free New 207E22240 (New) 3-4 Day Lead $72.08 12 — Wi-fi dongle (P/O PL 25.10 Item 3)

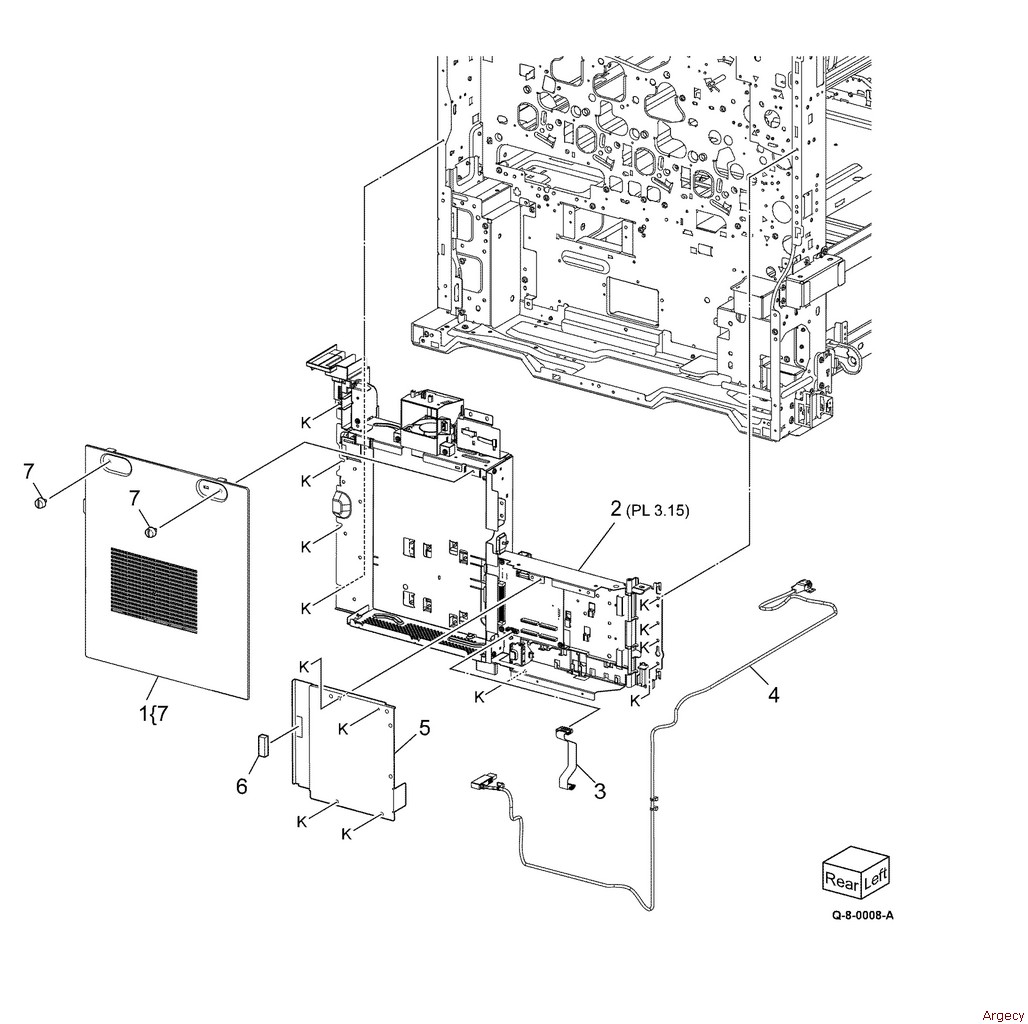

PL 3.10 Video Contact Chassis Unit 1 — Controller cover assembly kit 2 — Video contact chassis assembly (Not Spared) 3 117K50450 Motor Drive Ribbon Cable New 117K50450 (New) $104.72 4 117K50370 USB Cable New 117K50370 (New) 3-4 Day Lead $82.96 5 — DFE cover (Not Spared) 6 — Shield gasket (Not Spared) 7 — Thumbscrew (P/O PL 3.10 Item 1)

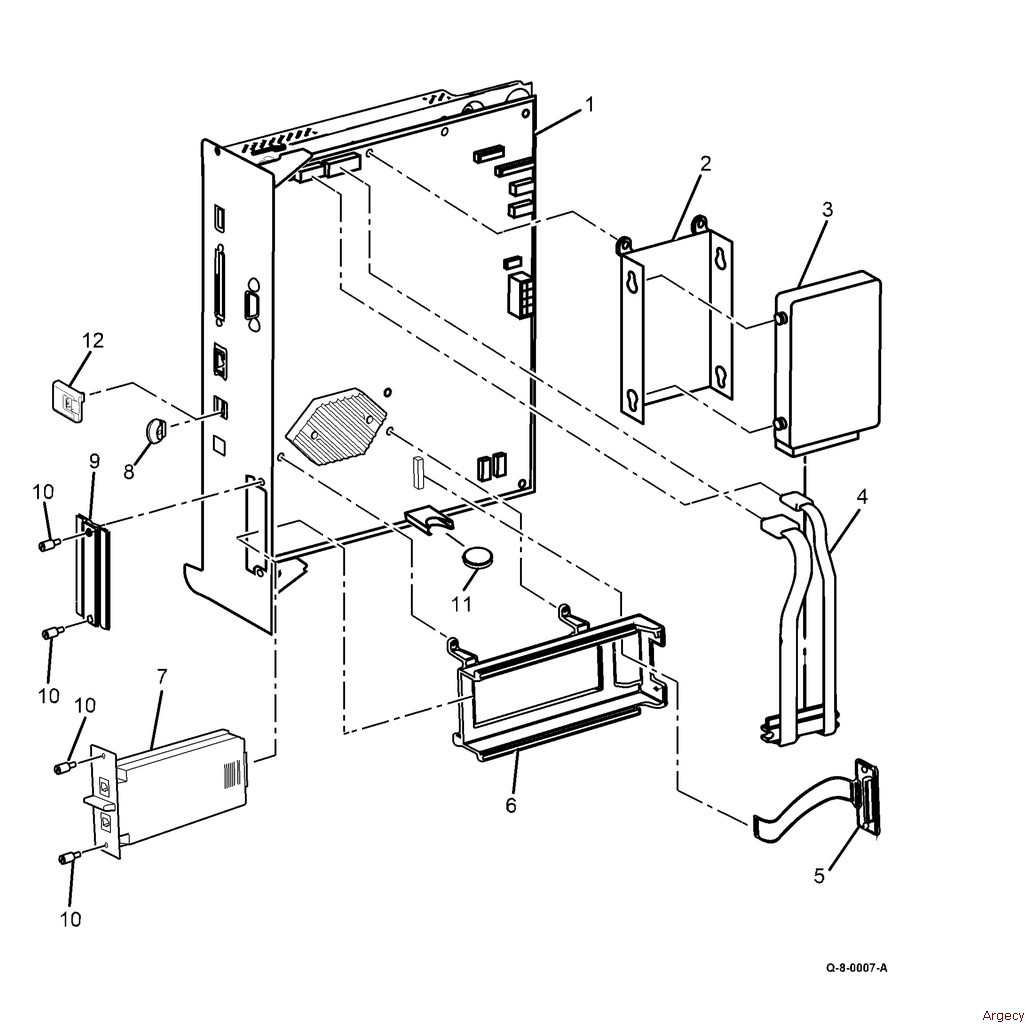

PL 3.15 Video Contact Chassis Assembly 1 — Controller chassis assembly (Not Spared) 2 960K81580 Back Plane PWB New 960K81580 (New) $167.28 3 — Not used 4 960K81372 Halftone PWB New 960K81372 (New) $367.20 5 054K55232 Duct Asly ESS New 054K55232 (New) $89.76 6 — ESS duct (P/O PL 3.15 Item 5) 7 — ESS fan (P/O PL 3.15 Item 5) 8 — ESS inner cover 9 — Video chassis assembly (P/O PL 3.15 Item 1) 10 — MCU PWB cover (P/O PL 3.15 Item 1) 11 — BP bracket (P/O PL 3.15 Item 1) 12 — Support bracket 13 960K81590 Rely PWB New 960K81590 (New) $126.48 14 961K02011 MCU PWB New 961K02011 (New) $257.04 14 961K02001 MCU PWB New 961K02001 (New) $257.04 14 961K01991 MCU PWB New 961K01991 (New) 3-4 Day Lead $257.04 15 — MCU PWB support bracket (P/O PL 3.15 Item 1)

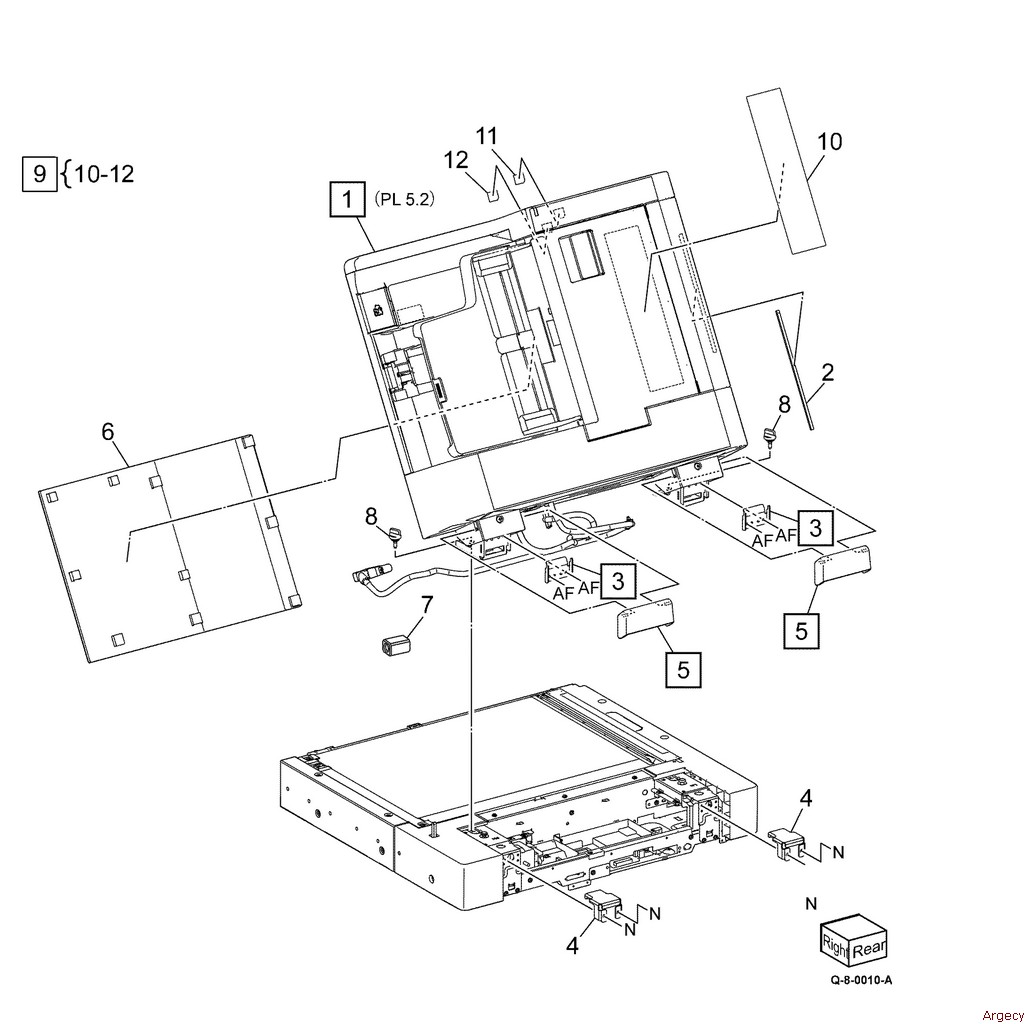

PL 5.1 DADF Component (250) (C8170) 1 859K15665 DADF 250 Assembly New 859K15665 (New) $1974.72 2 — Seal (Not Spared) 3 — Counterbalance Bracket (Not Spared) 4 — DADF Support (Not Spared) 5 — Counterbalance Cover (Not Spared) 6 004K03761 DADF Platen Cushion 250 Sheet New 004K03761 (New) 3-4 Day Lead $171.36 7 — Ferrite Core (Not Spared) 8 003k91881 Mounting Bracket Screws (Docking Plate Screw) New 003K91881 (New) Contact for Details 003k91881 Mounting Bracket Screws (Docking Plate Screw) Fully refurbished with 90-day warranty 003K91881 Contact for Details 9 — Label Kit (Eng) 10 — Label (Instruction) (P/O PL 5.1 Item 9) 11 — Label (Clean) (P/O PL 5.1 Item 9) 12 — Label (Clean Point) (P/O PL 5.1 Item 9)

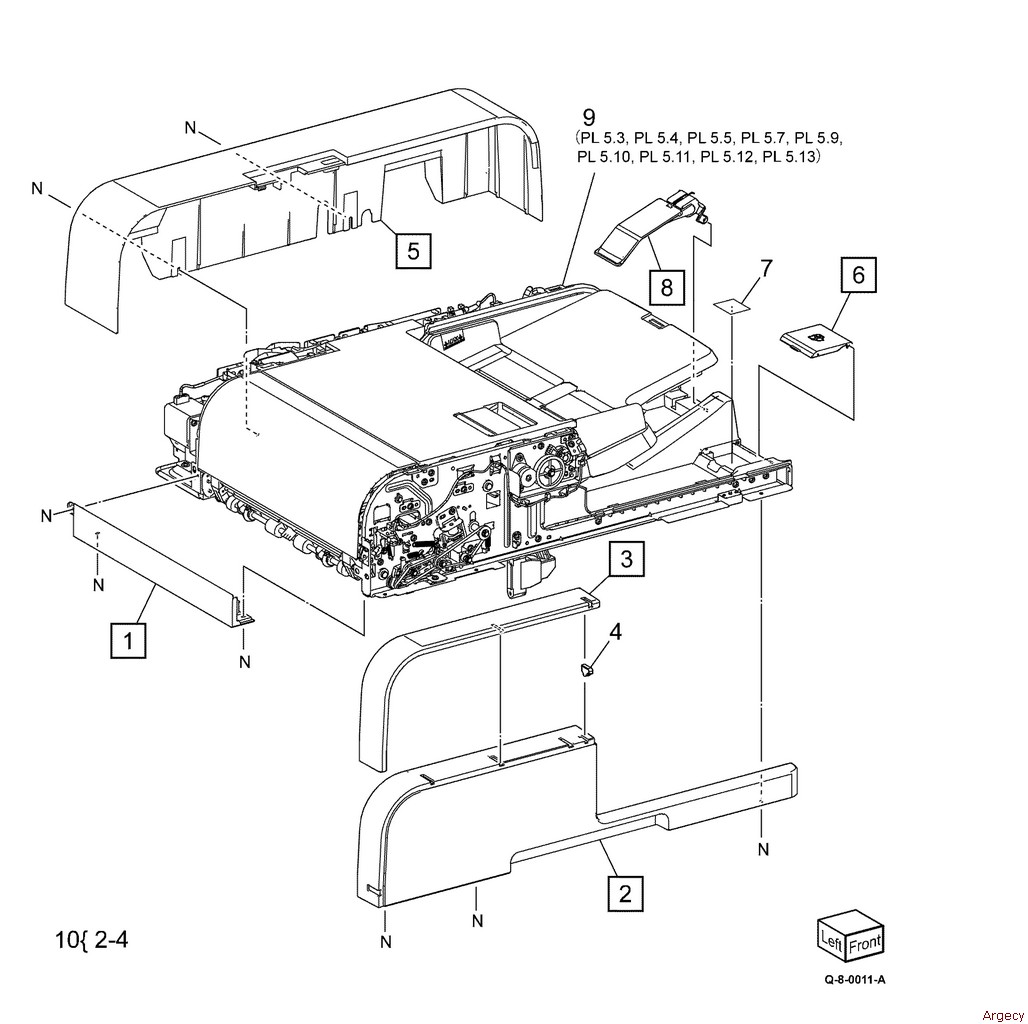

PL 5.2 DADF, DADF Cover (250) (C8170) 1 822E38552 Left Lower Cover DADF New 822E38552 (New) 3-4 Day Lead $134.64 2 822E38503 DADF Front Cvr New 822E38503 (New) 3-4 Day Lead $161.84 3 822E38511 DADF Fr Top Cvr New 822E38511 (New) 3-4 Day Lead $96.56 4 062E18370 LED Lens New 062E18370 (New) 3-4 Day Lead $59.84 5 822E38523 DADF Rear Cover New 822E38523 (New) 3-4 Day Lead $168.64 6 822E38581 Exit Cloth Cvr New 822E38581 (New) 3-4 Day Lead $78.88 7 042E92802 Cloth Cleaner New 042E92802 (New) 3-4 Day Lead $76.16 8 003K22351 Stopper New 003K22351 (New) 3-4 Day Lead $96.56 9 — DADF (REF: PL 5.3, PL 5.4, PL 5.5, PL 5.7, PL 5.9, PL 5.10, PL 5.11, PL 5.12, PL 5.13) 10 948K35130 Front Cover Assembly DADF 250 New 948K35130 (New) 3-4 Day Lead $102.00
PL 5.3 DADF PWB (250) (C8170) 1 — P Clamp (Not Spared) 2 121E25180 Core (NFT-10) New 121E25180 (New) 3-4 Day Lead $76.16 3 117K48791 IIT-DADF Cable New 117K48791 (New) 3-4 Day Lead $102.00 4 960K98360 DADF PWB New 960K98360 (New) 3-4 Day Lead $386.24 5 — Harness Guide (REP 5.56) 6 — Bracket PWB (Not Spared) 7 952K37150 Wire Harness Sig DADF 250 New 952K37150 (New) 3-4 Day Lead $96.56 8 036K92480 Left Counter Balance New 036K92480 (New) 3-4 Day Lead $168.64 9 036K92490 Right Counter Balance New 036K92490 (New) 3-4 Day Lead $148.24 10 — Right Bracket (Not Spared) 11 — Screw (Not Spared) 12 121E88780 Core (TFT-102010N) New 121E88780 (New) 3-4 Day Lead $76.16
PL 5.4 DCDC PWB (250) (C8170) 1 — DCDC PWB Assembly 2 — Bracket PWB (Not Spared) 3 960K96780 DCDC PWB New 960K96780 (New) 3-4 Day Lead $189.04 4 117K50391 Controller Cable DADF New 117K50391 (New) 3-4 Day Lead $165.92 5 049K45911 Flat Cable New 049K45911 (New) 3-4 Day Lead $114.24 6 — Stopper Bracket (Not Spared) 7 835E12131 Gasket New 835E12131 (New) 3-4 Day Lead $59.84 8 — Tape (Not Spared) 9 930K04140 CIS DADF 250 Assembly New 930K04140 (New) 3-4 Day Lead $1670.08 10 952K47100 Wire Harness New 952K47100 (New) 3-4 Day Lead $73.44
PL 5.5 Document Tray, Tray Feed (250) (C8170) 1 127K74090 Tray Motor Assembly DADF New 127K74090 (New) 3-4 Day Lead $179.52 2 023E28620 Belt New 023E28620 (New) 3-4 Day Lead $48.96 3 899E14300 Tension Spring 4 — Feed Idler Bracket Assembly (Not Spared) 5 — Pulley (52T/23T) (Not Spared) 6 — Idler Roller 7 023E28661 Belt New 023E28661 (New) 3-4 Day Lead $85.68 8 — Tension Spring (Not Spared) 9 127K74030 Tray Motor Assembly DADF New 127K74030 (New) 3-4 Day Lead $122.40 10 050K75074 DADF Doc Tray New 050K75074 (New) 3-4 Day Lead $325.04 11 — Tray Damper Bracket Assembly (Not Spared) 12 — Oil Damper (REP 5.17) 13 — LED Bracket (Not Spared) 14 — Document Set LED (REP 5.17) 15 — Screw (Not Spared)

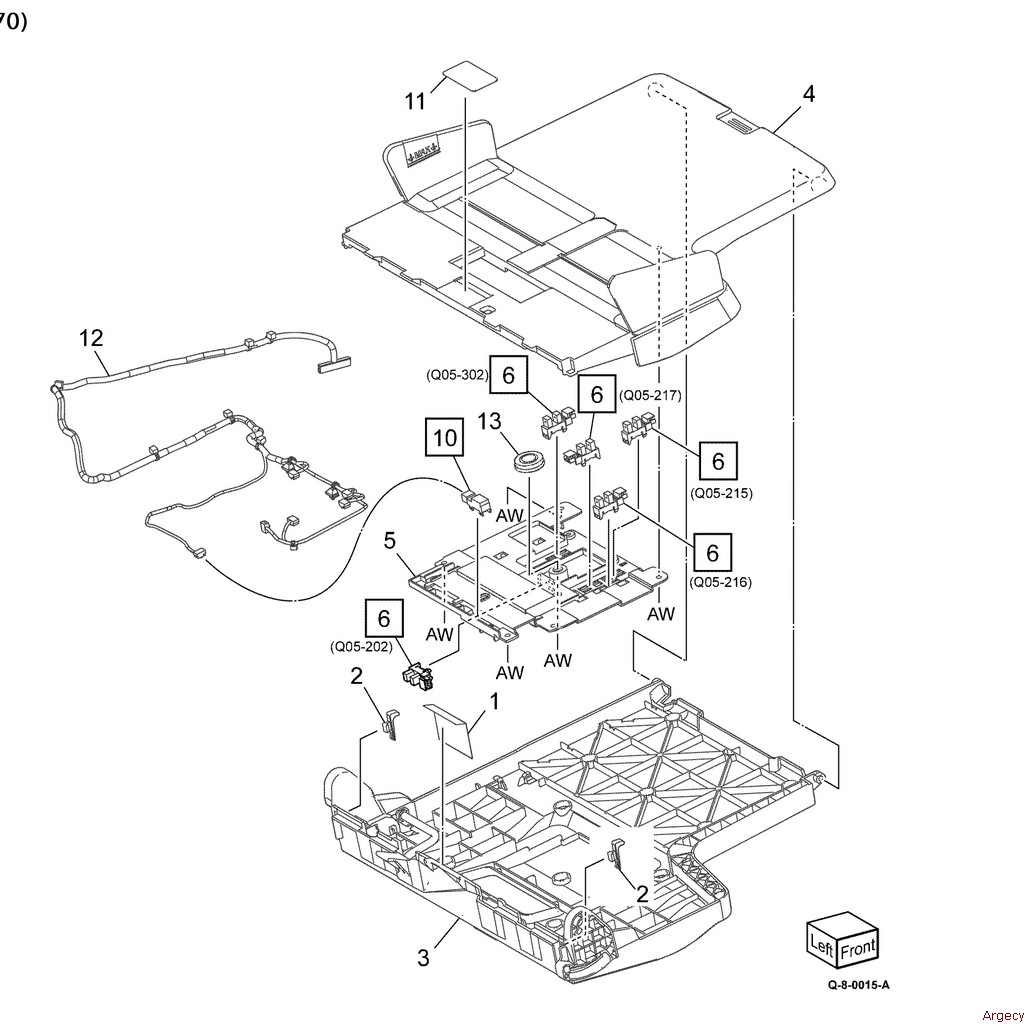

PL 5.6 DADF Document Tray (250) (C8170) 1 063K00762 Film and Tape Assembly 2 — Tray Block (P/O PL 5.5 Item 10) 3 — Bottom Tray Assembly (P/O PL 5.5 Item 10) 4 — Upper Tray Assembly (P/O PL 5.5 Item 10) 5 — Inner Cover (P/O PL 5.5 Item 10) 6 930W00111 Sensor New 930W00111 930W00122 930W00121 130E82190 (New) 4-5 day lead time to ship $37.00 930W00122 Tray APS Sensor 1 DADF 130 New 930W00122 (New) 3-4 Day Lead $37.00 7 — Not Used 8 — Not Used 9 — Not Used 10 930W00212 Tray 4 Feed Out Sensor New 930W00212 (New) 3-4 Day Lead $43.52 930W00212 Tray 4 Feed Out Sensor Fully refurbished with 90-day warranty 930W00212 3-4 Day Lead $36.00 11 019K99061 Retard Pad New 019K99061 (New) 3-4 Day Lead $59.84 12 — Wire Harness (Tray) (P/O PL 5.5 Item 10) 13 — Pinion Gear (P/O PL 5.5 Item 10)

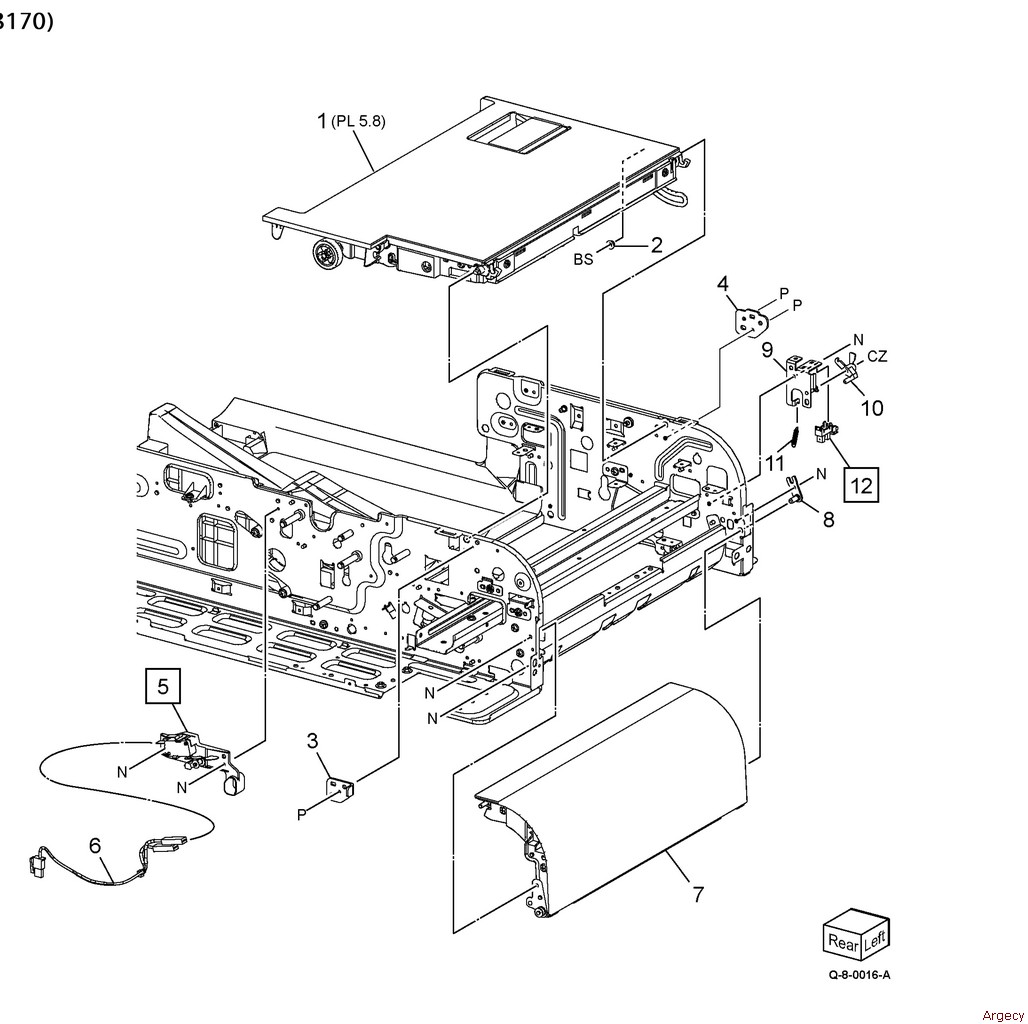

PL 5.7 DADF Feeder Cover Unit (250) (C8170) 1 054K55155 DADF Feeder Cov New 054K55155 (New) 3-4 Day Lead $489.60 2 — Stopper Roll (Not Spared) 3 — Rear Hinge (Not Spared) 4 — Front Hinge (Not Spared) 5 110K18130 Feeder Cover Interlock Switch DADF New 110K18130 (New) 3-4 Day Lead $95.20 6 — Wire Harness (Interlock Switch) (Not Spared) 7 948K00991 Left Cover Assembly DADF 250 New 948K00991 (New) 3-4 Day Lead $198.56 8 — Front Bracket Assembly (Not Spared) 9 — Switch Bracket (Not Spared) 10 120E35980 Actuator New 120E35980 (New) 3-4 Day Lead $36.00 11 899E15560 Tension Spring 12 930W00111 Sensor New 930W00111 930W00122 930W00121 130E82190 (New) 4-5 day lead time to ship $37.00 930W00122 Tray APS Sensor 1 DADF 130 New 930W00122 (New) 3-4 Day Lead $37.00

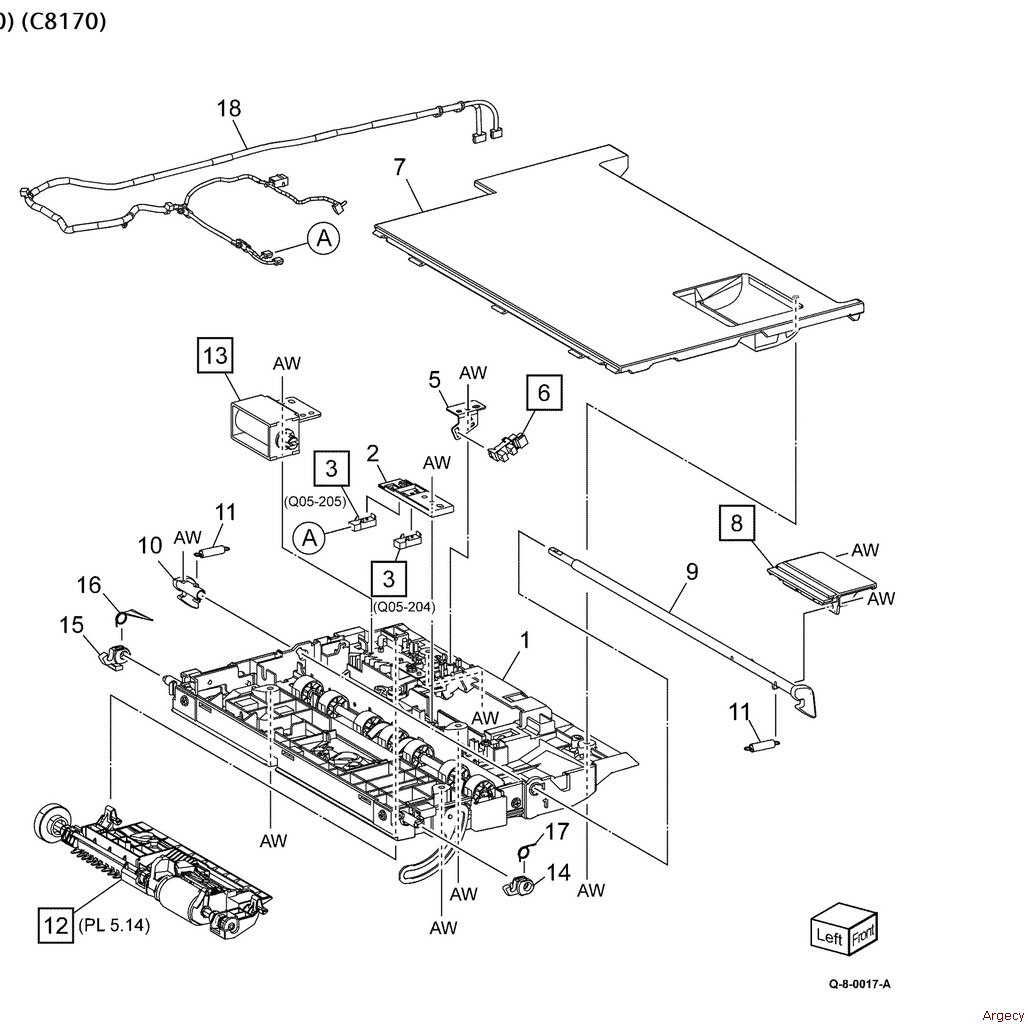

PL 5.8 DADF Feeder Cover Assembly (250) (C8170) 1 — DADF Feeder Cover (P/O PL 5.7 Item 1) 2 — Feed Sensor Bracket (P/O PL 5.7 Item 1) 3 930W00222 Exit Sensor New 930W00222 (New) 3-4 Day Lead $53.04 4 — Not Used 5 — DADF Level Sensor Bracket (P/O PL 5.7 Item 1) 6 930W00111 Sensor New 930W00111 930W00122 930W00121 130E82190 (New) 4-5 day lead time to ship $37.00 930W00122 Tray APS Sensor 1 DADF 130 New 930W00122 (New) 3-4 Day Lead $37.00 7 — Upper Feeder Cover (P/O PL 5.7 Item 1) 8 011E29160 Latch Lever New 011E29160 (New) 3-4 Day Lead $59.84 9 806E47360 Latch Shaft New 806E47360 (New) 3-4 Day Lead $73.44 10 803E26090 Rear Latch New 803E26090 (New) 3-4 Day Lead $59.84 11 809E99510 Lever Spring New 809E99510 (New) 3-4 Day Lead $44.88 12 948K00881 DADF Nudger Housing Assembly DADF 250 New 948K00881 (New) 3-4 Day Lead $167.28 13 121K57831 Nudger Solenoid Assembly DADF New 121K57831 (New) 3-4 Day Lead $123.76 14 803E08630 Left Cover Front LA New 803E08630 (New) 3-4 Day Lead $44.88 15 803E08640 RT Cover Latch New 803E08640 (New) 3-4 Day Lead $59.84 16 — Rear Spring (P/O PL 5.7 Item 1) 17 — Front Spring (P/O PL 5.7 Item 1) 18 — Wire Harness (Top Sig) (P/O PL 5.7 Item 1)

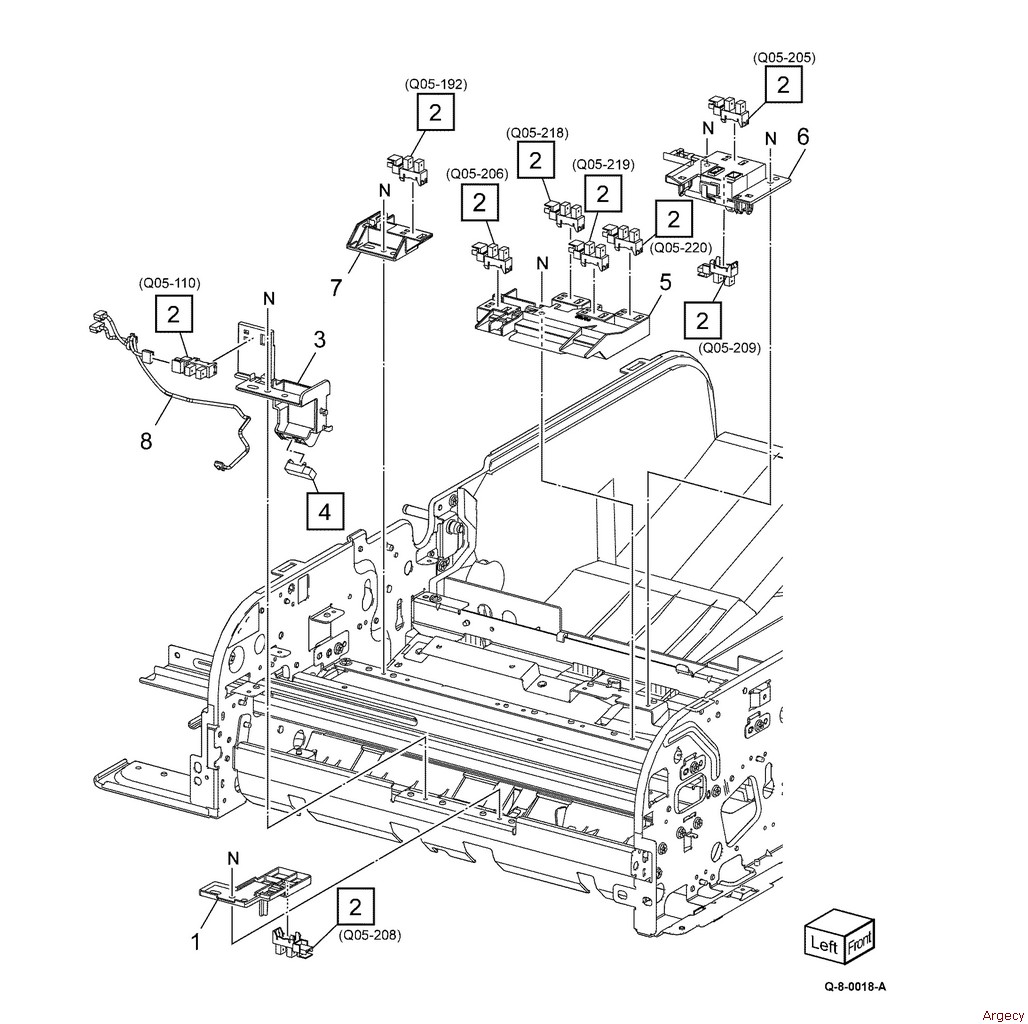

PL 5.9 Sensor Component (250) (C8170) 1 — Out Sensor Bracket (Not Spared) 2 930W00111 Sensor New 930W00111 930W00122 930W00121 130E82190 (New) 4-5 day lead time to ship $37.00 930W00122 Tray APS Sensor 1 DADF 130 New 930W00122 (New) 3-4 Day Lead $37.00 3 — DADF Lead Registration Sensor Bracket (Not Spared) 4 930W00222 Exit Sensor New 930W00222 (New) 3-4 Day Lead $53.04 5 — APS Sensor Bracket (Not Spared) 6 — Exit Sensor Assembly (Not Spared) 7 — Skew Sensor Bracket (Not Spared) 8 — Wire Harness (DADF Regi. Sensor)

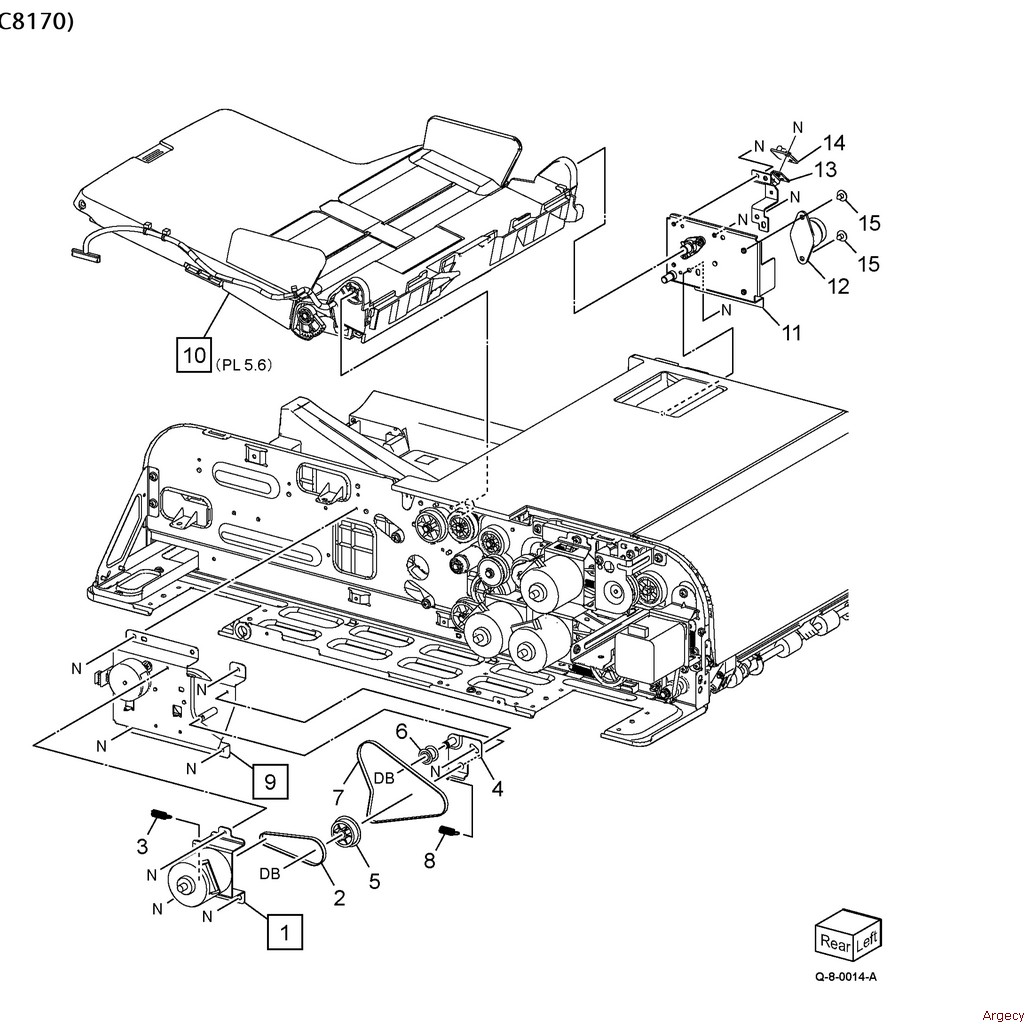

PL 5.10 Drive Component (250) (C8170) 1 127K75920 Pre Registration Motor DADF New 127K75920 (New) 3-4 Day Lead $179.52 2 899E15560 Tension Spring 3 — Drive Bracket Assembly (Not Spared) 4 023E28620 Belt New 023E28620 (New) 3-4 Day Lead $48.96 5 — Belt (DADF Take Away Clutch) (REP 5.38) 6 121K52310 DADF feed clutch Takeaway clutch New 121K52310 (New) 3-4 Day Lead $107.44 121K52310 DADF feed clutch Takeaway clutch Fully refurbished with 90-day warranty 121K52310 Contact for Details 7 — DADF Take Away Clutch Stopper (Not Spared) 8 127K74121 DADF Exit Motor New 127K74121 (New) 3-4 Day Lead $208.08 9 023E28630 DADF Pre-registration Belt New 023E28630 (New) 3-4 Day Lead $59.84 10 127K74101 Platen Motor Assembly DADF New 127K74101 (New) 3-4 Day Lead $208.08 11 023E28640 Belt DADF Plate New 023E28640 (New) 3-4 Day Lead $48.96 12 127K74000 Registration Motor DADF New 127K74000 (New) 3-4 Day Lead $165.92 13 023E28760 DADF Registration Belt New 023E28760 (New) 3-4 Day Lead $63.92 14 — Motor Assembly Harness (Not Spared)

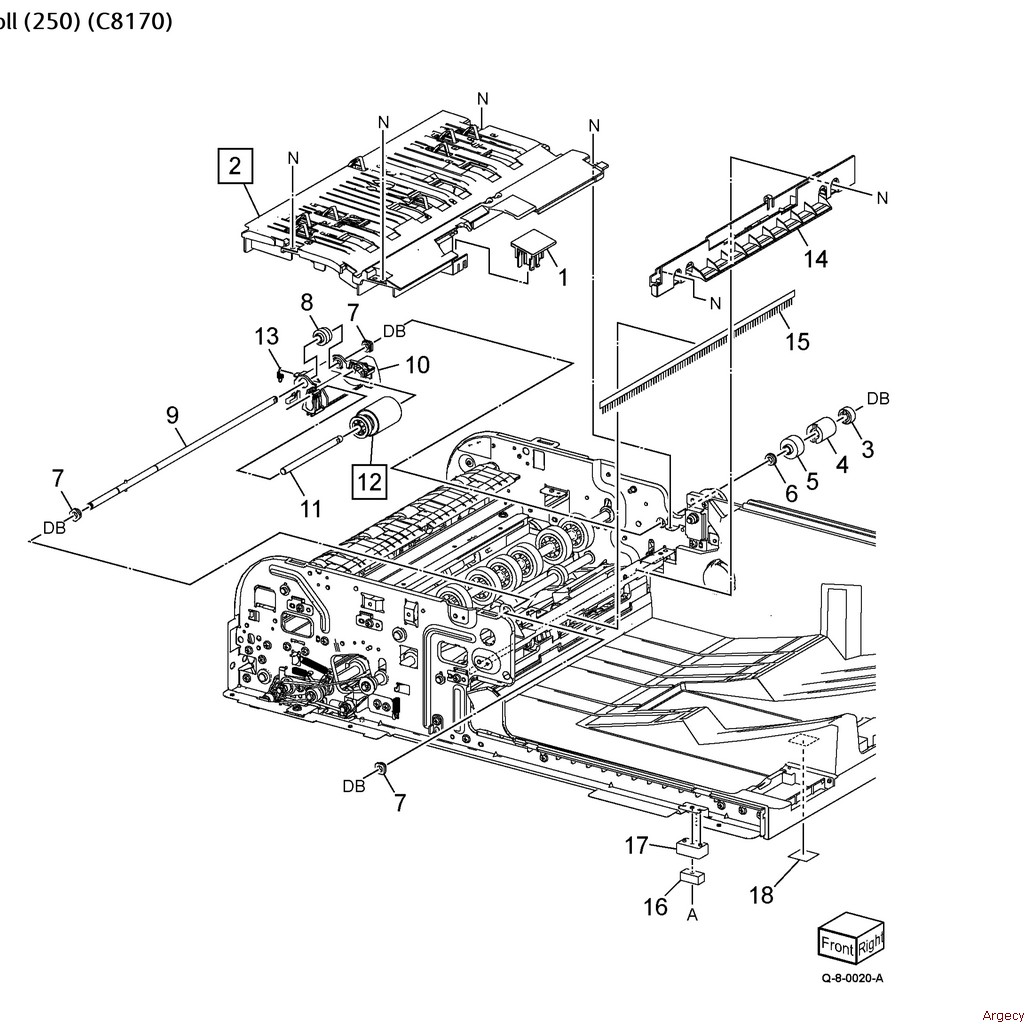

PL 5.11 Lower Chute Assembly, Retard Roll (250) (C8170) 1 054E60531 Retard Chute Cover New 054E60531 (New) 3-4 Day Lead $59.84 2 054K55143 Lower Chute Assembly New 054K55143 (New) 3-4 Day Lead $130.56 3 — Clutch Stopper (Not Spared) 4 005K14230 Friction Clutch New 005K14230 (New) 3-4 Day Lead $102.00 5 — Gear (21T) (Not Spared) 6 — Ball Bearing (Not Spared) 7 — Sleeve Bearing (Not Spared) 8 — Pivot Gear (Not Spared) 9 — Pivot Shaft (Not Spared) 10 — Retard Holder (Not Spared) 11 — Retard Shaft (Not Spared) 12 859K02461 Retard Roll Lower Chute Assembly New 859K02461 (New) 3-4 Day Lead $80.24 13 899E13651 Retard Spring (REP 5.44) 14 — Exit Guide (Not Spared) 15 105E22470 Exit Eliminator New 105E22470 (New) 3-4 Day Lead $63.92 16 921W20101 Magnet Interlock 17 — Magnet Cover (Not Spared) 18 063E07290 Cushion Fastener Tape

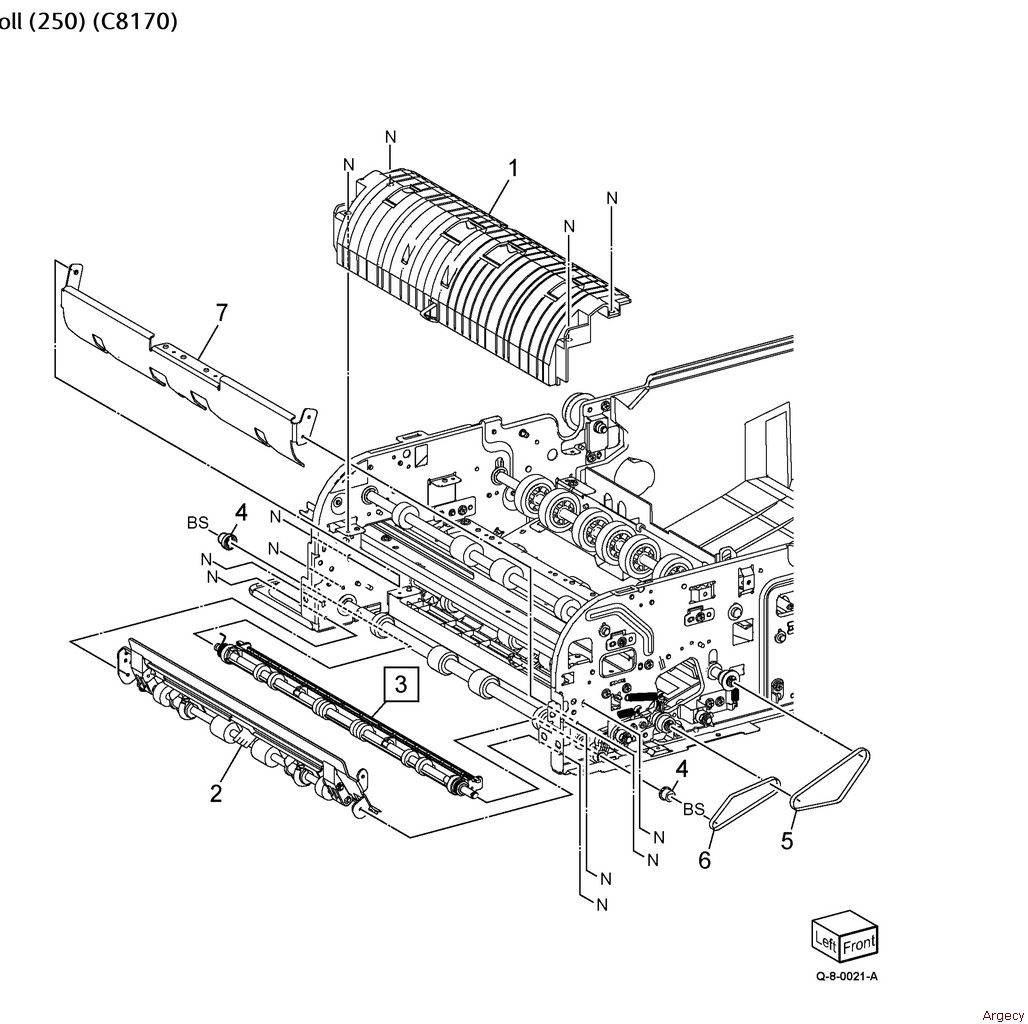

PL 5.12 Pre Regi. In Chute, Platen High Roll (250) (C8170) 1 054K55160 Pre Regi. In Ch New 054K55160 (New) 3-4 Day Lead $102.00 2 054K55100 Regi. Out Chute New 054K55100 (New) 3-4 Day Lead $123.76 3 859K02620 Platen High Roller Assembly New 859K02620 (New) 3-4 Day Lead $130.56 4 — Pulley (20T) (Not Spared) 5 023E28630 DADF Pre-registration Belt New 023E28630 (New) 3-4 Day Lead $59.84 6 023E28620 Belt New 023E28620 (New) 3-4 Day Lead $48.96 7 — Regi. In Chute (Not Spared)

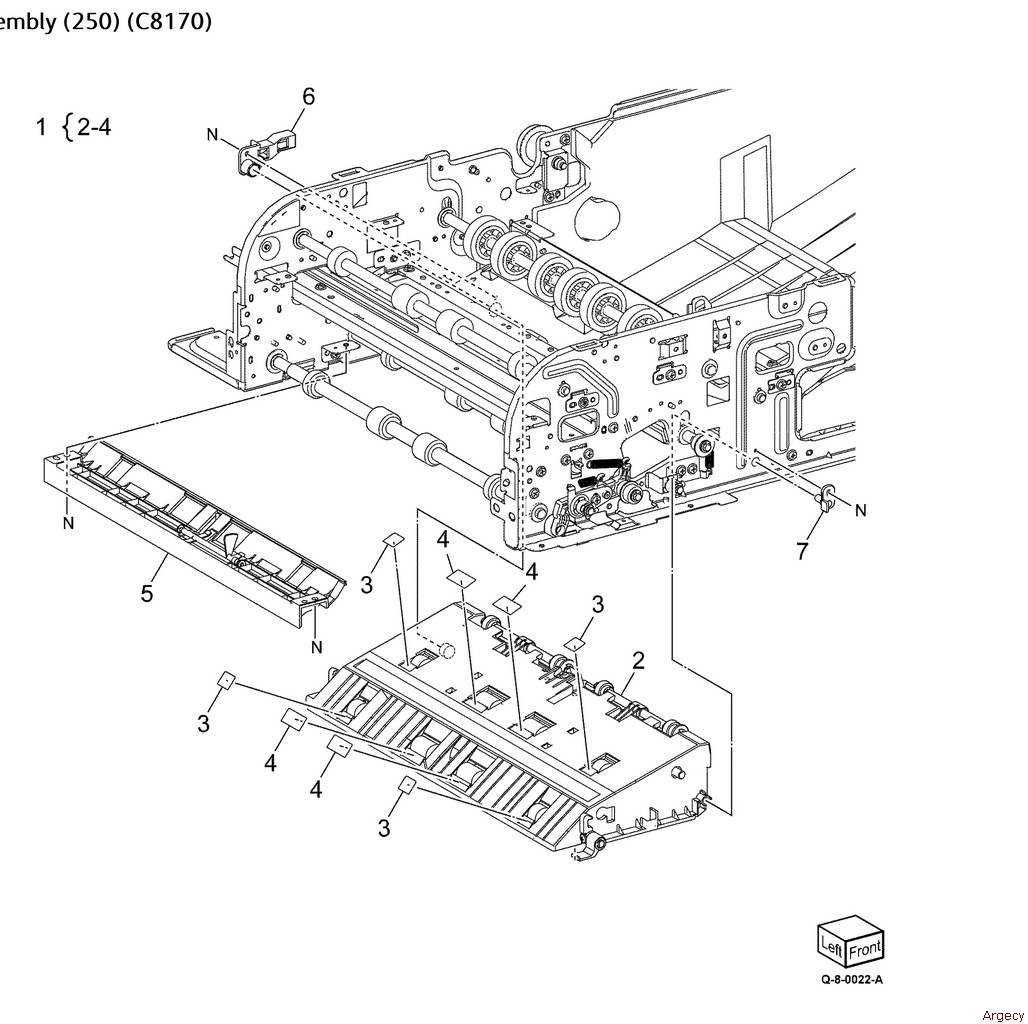

PL 5.13 Exit Lower Chute, Out Chute Assembly (250) (C8170) 1 054K60741 Exit Lower Chute Assembly New 054K60741 (New) 3-4 Day Lead $666.40 2 — Exit Lower Chute (P/O PL 5.13 Item 1) 3 063K00710 Film S (REP 5.52) 4 063K00720 Film W (REP 5.52) 5 054K55130 Out Chute Assembly New 054K55130 (New) 3-4 Day Lead $102.00 6 — Exit Rear Hinge (Not Spared) 7 — Front Hinge (Not Spared)

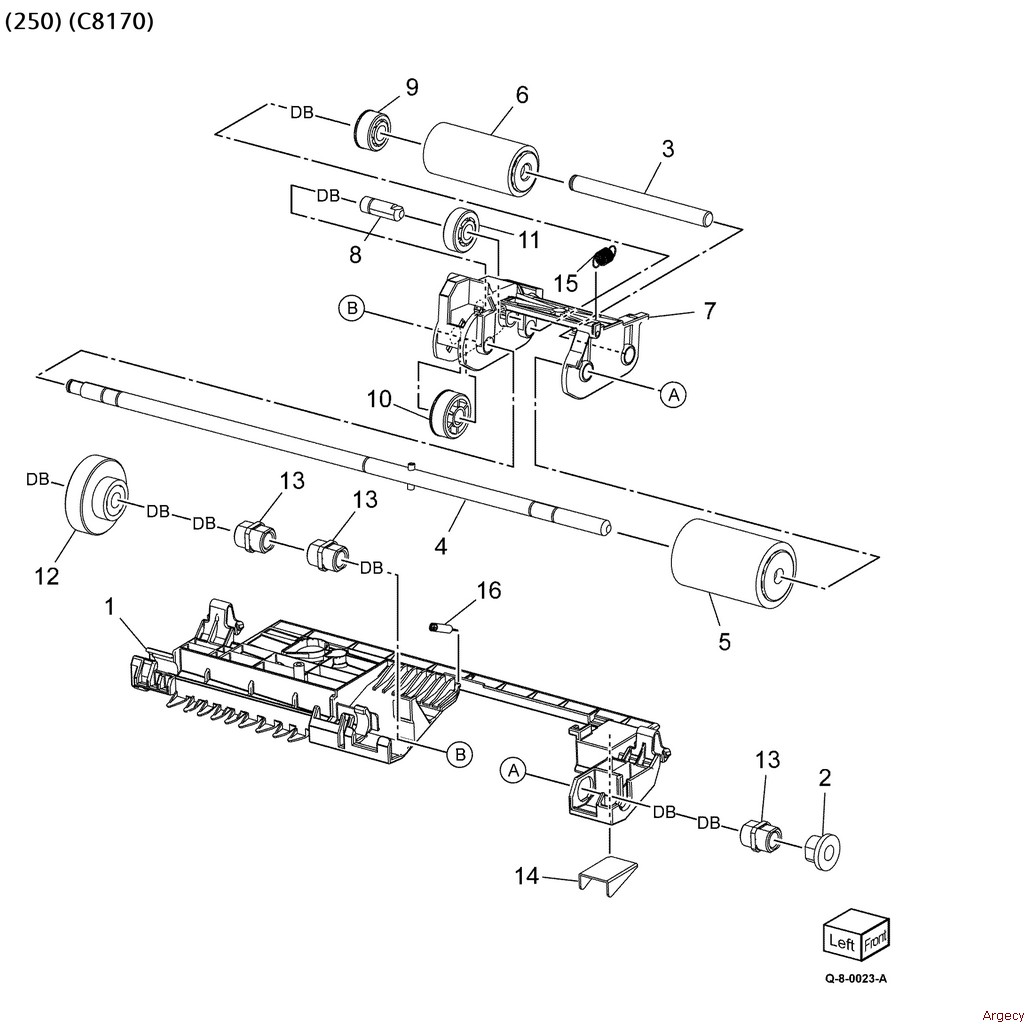

PL 5.14 DADF Nudger Housing Assembly (250) (C8170) 1 — Feeder Chute Cover (Not Spared) 2 — Bearing (Not Spared) 3 — Nudger Shaft (Not Spared) 4 — Feed Shaft (Not Spared) 5 059K29520 Feed Roll New 059K29520 (New) $43.52 6 059K31270 Feed Roll Document Feeder New 059K31270 (New) 3-4 Day Lead $63.92 7 — Nudger Housing (Not Spared) 8 — Idler Gear Shaft (Not Spared) 9 — Gear (27T) (Not Spared) 10 — Gear (33T) (Not Spared) 11 — Gear (31T) (Not Spared) 12 — Gear Assembly (26T) (Not Spared) 13 — Bearing (PF101) (Not Spared) 14 — Sensor Shield (Not Spared) 15 — Front Nudger Spring (Not Spared) 16 — Rear Nudger Spring (Not Spared)

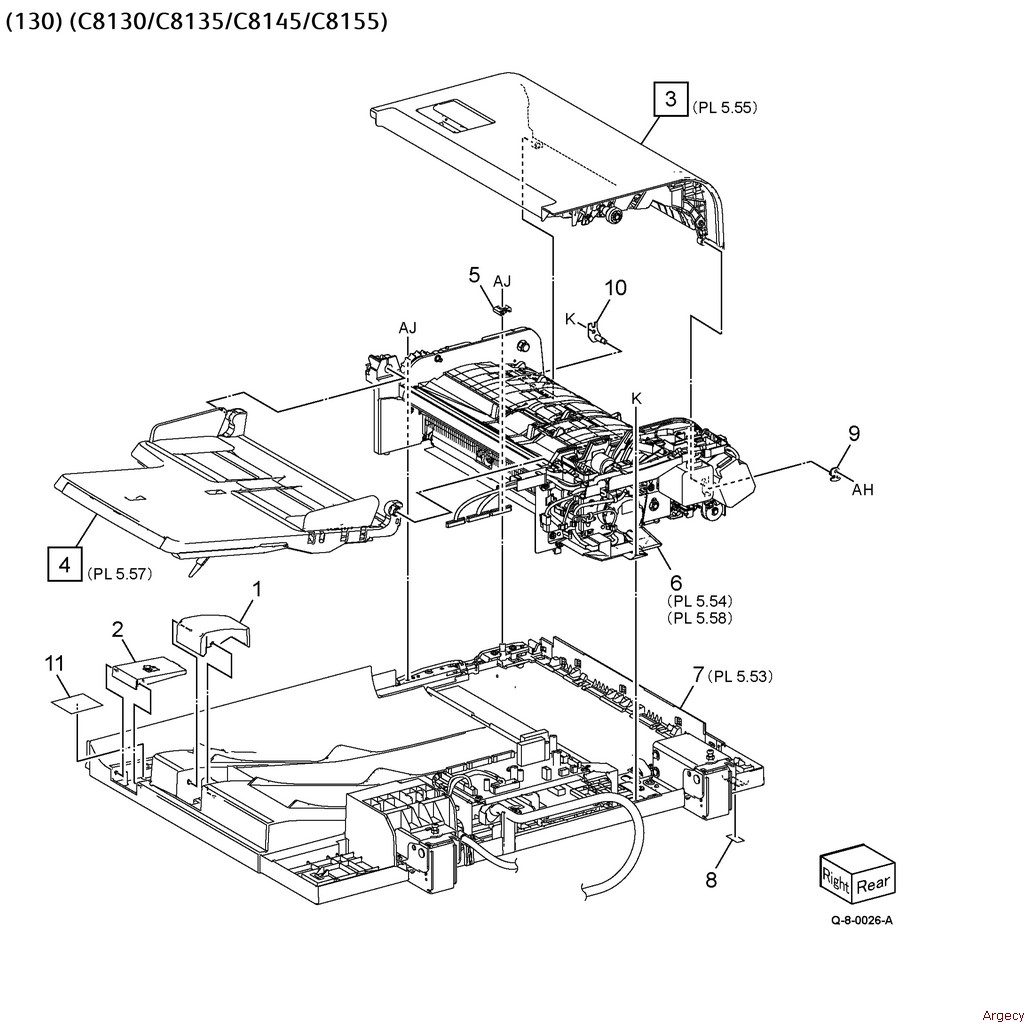

PL 5.50 DADF Component (130) (C8130/ C8135/ C8145/ C8155) 1 859K16553 DADF Assembly New 859K16553 (New) $1557.20 2 004K03890 DADF Platen Cushion 130 Sheet New 004K03890 (New) 3-4 Day Lead $93.84 3 003k91881 Mounting Bracket Screws (Docking Plate Screw) New 003K91881 (New) Contact for Details 003k91881 Mounting Bracket Screws (Docking Plate Screw) Fully refurbished with 90-day warranty 003K91881 Contact for Details 4 — Label (instruction) (P/O PL 5.50 Item 6) 5 — Seal base frame 6 — DADF label kit

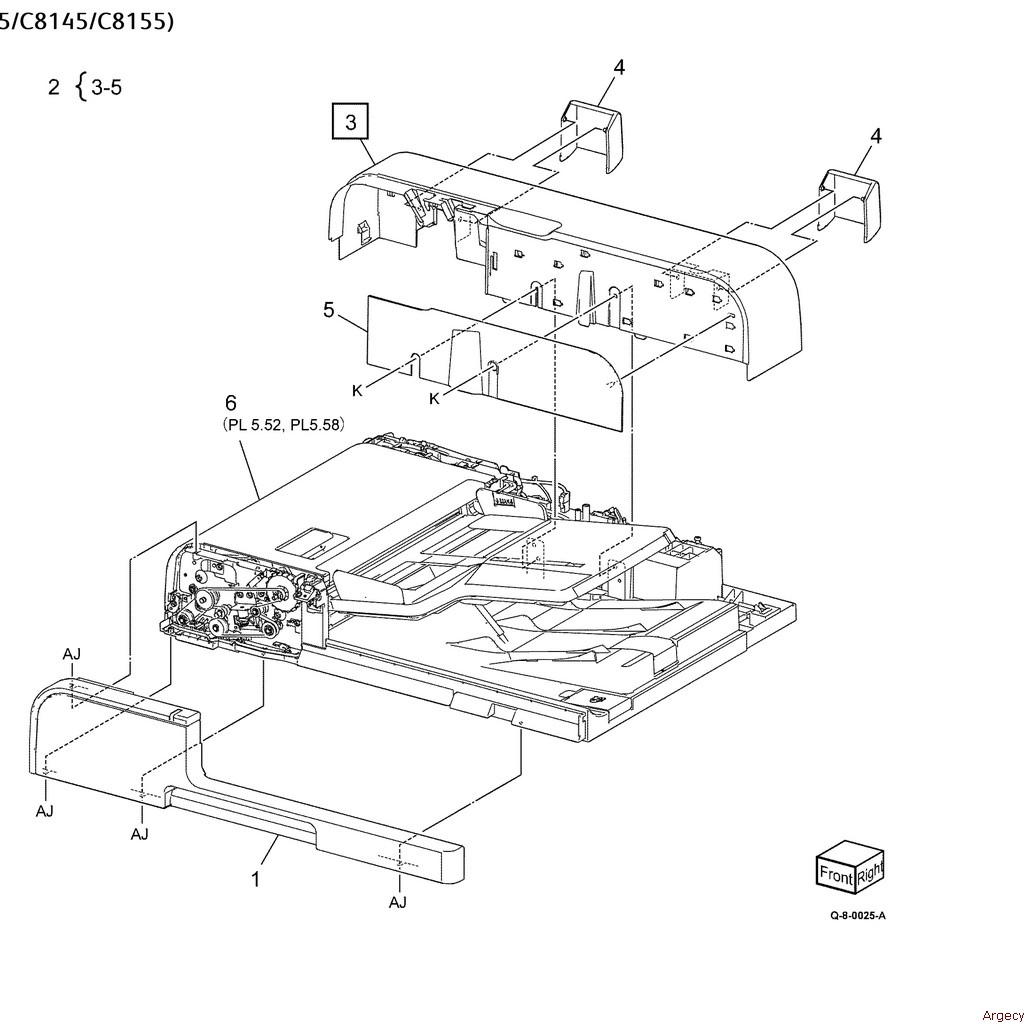

PL 5.51 DADF Cover (130) (C8130/ C8135/ C8145/ C8155) 1 948K26800 Front Cover DADF 10 New 948K26800 (New) 3-4 Day Lead $118.32 2 — Rear cover assembly (REP 5.63) 3 — Rear cover (P/O PL 5.51 Item 2) 4 — Counter balance cover (P/O PL 5.51 Item 2) 5 — Rear cover base (P/O PL 5.51 Item 2) 6 — Feeder assembly (REP 5.64)
PL 5.52 DADF Top Cover, Document Tray (130) (C8130/ C8135/ C8145/ C8155) 1 803E30190 Stopper New 803E30190 (New) 3-4 Day Lead $59.84 2 819E01660 Cloth Holder DADF New 819E01660 (New) 3-4 Day Lead $59.84 3 859K02254 Top Cover DADF New 859K02254 (New) 3-4 Day Lead $193.12 4 050K79643 Document tray (REP 5.69) 5 — Collar 6 — Regi./Retard chute/Invert unit (REP 5.75) 7 — Base frame unit 8 — Label (Clean) 9 — Stud bracket (rear) 10 — Stud bracket (front) 11 042E92802 Cloth Cleaner New 042E92802 (New) 3-4 Day Lead $76.16
PL 5.53 DADF Base Frame Assembly (130) (C8130/ C8135/ C8145/ C8155) 1 036K92372 Left Counter Balance New 036K92372 (New) 3-4 Day Lead $138.72 2 036K92382 Right Counter Balance New 036K92382 (New) 3-4 Day Lead $133.28 2 036K92091 Rght Count Bala New 036K92091 (New) 3-4 Day Lead $118.32 3 960K97240 (SCC) DADF PWB Fully refurbished with 90-day warranty 960K97240 3-4 Day Lead $134.64 960K97240 (SCC) DADF PWB New 960K97240 (New) 3-4 Day Lead $310.08 4 — PWB bracket 5 117K48791 IIT-DADF Cable New 117K48791 (New) 3-4 Day Lead $102.00 6 835E12131 Gasket New 835E12131 (New) 3-4 Day Lead $59.84 7 — Ground plate 8 — Front base bracket 9 960K81482 DCDC PWB New 960K81482 (New) 3-4 Day Lead $198.56 10 117K50441 Controller Cable DADF New 117K50441 (New) 3-4 Day Lead $193.12 11 — PWB bracket 12 — Flat Cable (DCDC-CIS)
PL 5.54 Regi. / Retard Chute/ Invert Unit (130) (C8130/ C8135/ C8145/ C8155) 1 930K04170 CIS DADF 250 Assembly New 930K04170 (New) 3-4 Day Lead $628.32 2 — Document set LED 3 — Document set LED PWB 4 869E17370 Bracket-LED New 869E17370 (New) 3-4 Day Lead $59.84 5 930W00111 Sensor New 930W00111 930W00122 930W00121 130E82190 (New) 4-5 day lead time to ship $37.00 930W00122 Tray APS Sensor 1 DADF 130 New 930W00122 (New) 3-4 Day Lead $37.00 6 — Wire harness (DADF feed out sensor) 7 — Spring 8 — DADF APS sensor guide 9 — DADF sensor guide 10 — Actuator (Out) 11 — Actuator (Regi.) 12 — Spring 13 — Retard chute assembly (REP 5.76) 14 059K78301 Retard Roller - ADF 130 New 059K78301 (New) 3-4 Day Lead $80.24 15 848K99190 Retard CRU cover assembly New 848K99190 (New) 3-4 Day Lead $72.08 848K99190 Retard CRU cover assembly Fully refurbished with 90-day warranty 848K99190 Contact for Details 16 — Frame assembly 17 — Retard shaft 18 — Actuator 19 — Bracket
PL 5.55 Top Cover (130) (C8130/ C8135/ C8145/ C8155) 1 — Label (Jam clear) 2 — Feed upper chute 3 120K92810 Actuator New 120K92810 (New) 3-4 Day Lead $66.64 4 059K73511 DADF Pick-Up Assembly New 059K73511 (New) $102.00 5 — Spring

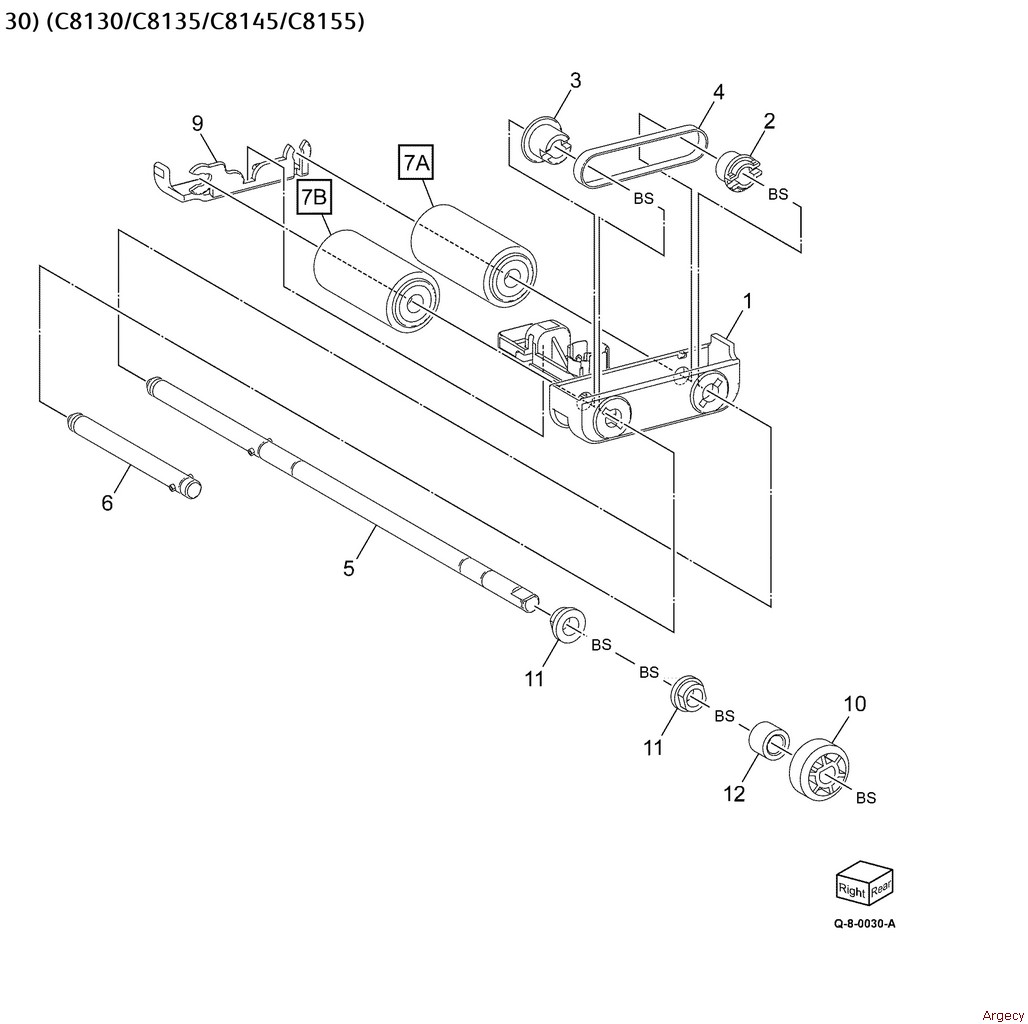

PL 5.56 Feeder / Nudger Roll Assembly (130) (C8130/ C8135/ C8145/ C8155) 1 — Housing 2 — Feed pulley 3 — Nudger pulley 4 — Belt 5 — Feed shaft 6 — Nudger shaft 7 859K23440 Roll Assembly-Kit New 859K23440 (New) 3-4 Day Lead $108.80 8 — Not used 9 — Housing 10 — Gear 11 — Bearing 12 — Collar

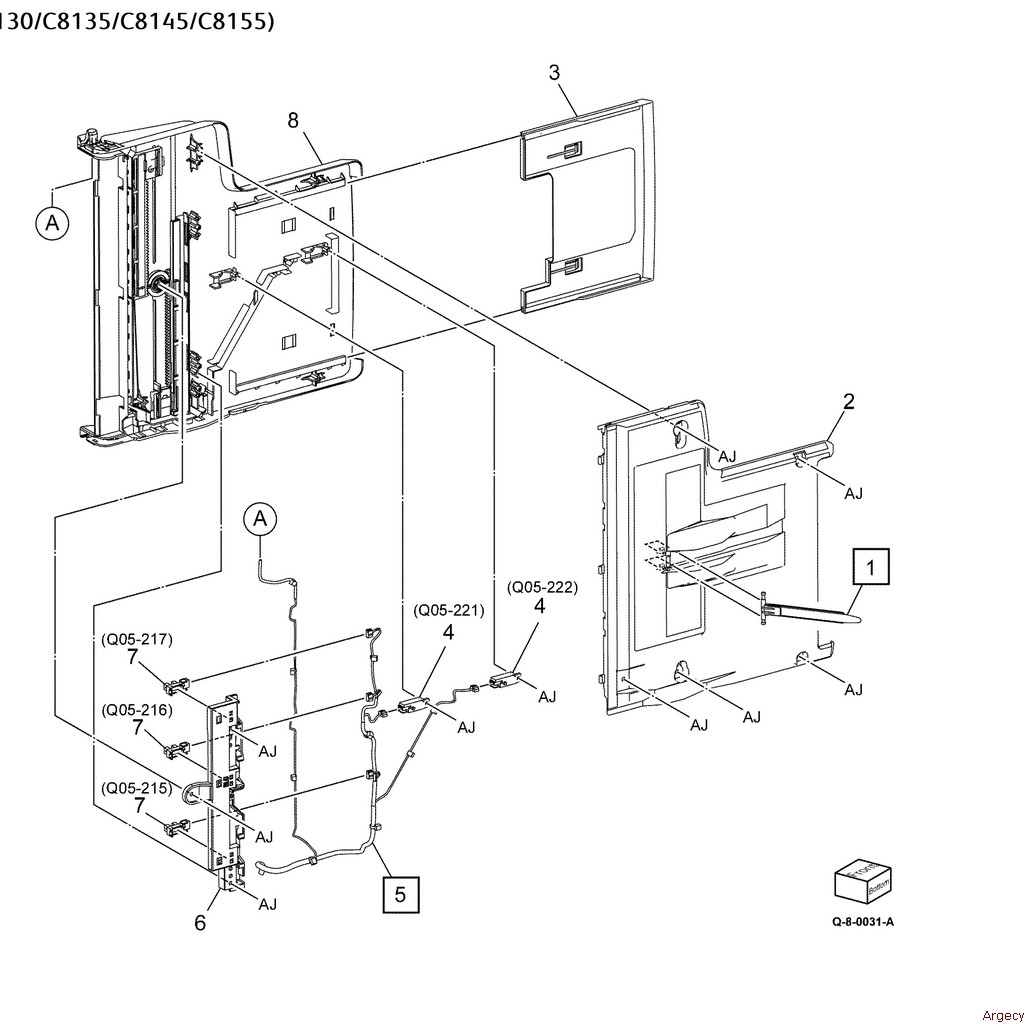

PL 5.57 DADF Document Tray (130) (C8130/ C8135/ C8145/ C8155) 1 — Guide 2 — Tray cover 3 — End tray 4 930W00241 Document Tray Size Sensor New 930W00241 (New) 3-4 Day Lead $85.68 5 — Tray wire harness 6 — DADF Tray APS sensor bracket 7 930W00111 Sensor New 930W00111 930W00122 930W00121 130E82190 (New) 4-5 day lead time to ship $37.00 930W00121 BTR contact/retract sensor New 930W00121 (New) 3-4 Day Lead $37.00 8 — Upper tray assembly

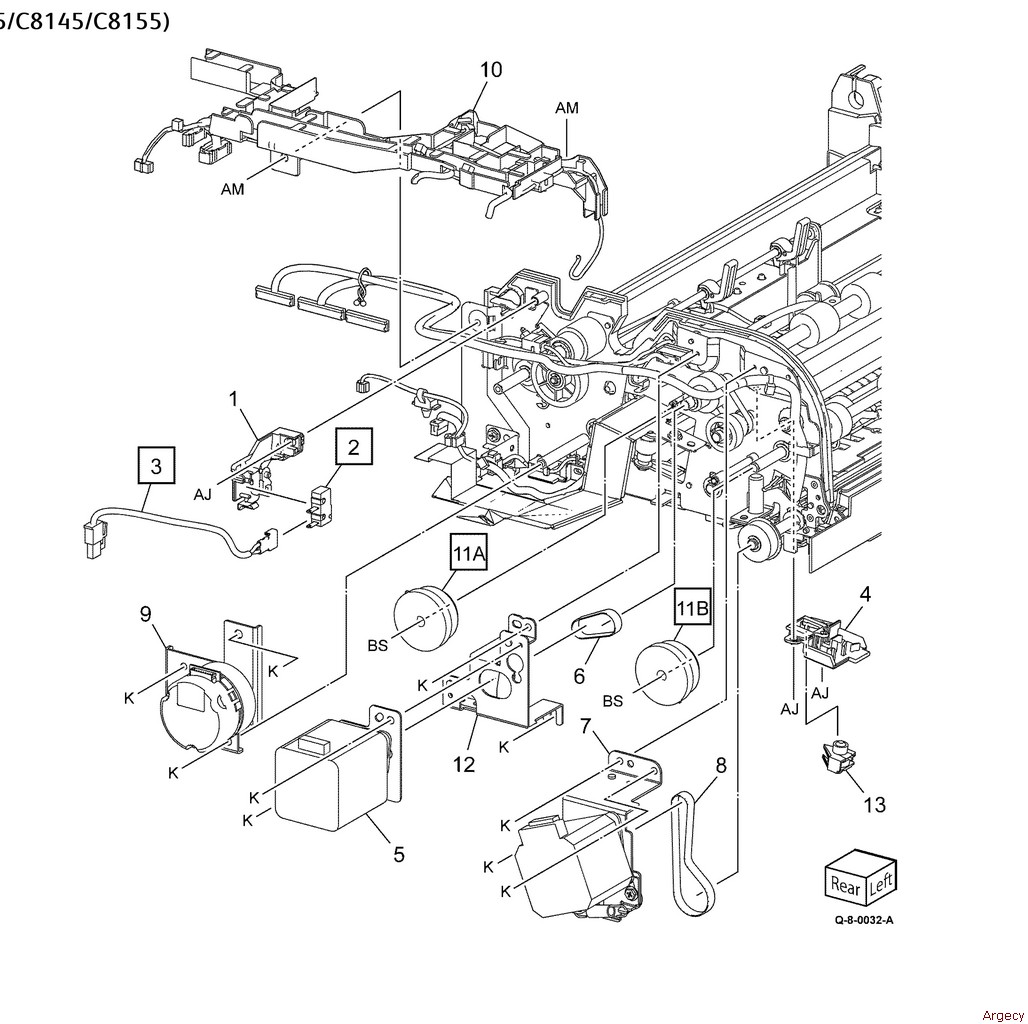

PL 5.58 DADF Drive (130) (C8130/ C8135/ C8145/ C8155) 1 — Interlock bracket 2 110K16320 Switch Assembly New 110K16320 (New) 3-4 Day Lead $48.96 3 952K08300 Harness Assembly DADF 130 New 952K08300 (New) 3-4 Day Lead $59.84 4 — Holder 5 127K79230 Pre Registration Motor DADF New 127K79230 (New) 3-4 Day Lead $152.32 6 423W23654 Belt DADF Drive New 423W23654 (New) 3-4 Day Lead $76.16 7 127K73990 Registration Motor DADF New 127K73990 (New) 3-4 Day Lead $123.76 8 423W28155 Belt DADF Drive New 423W28155 (New) 3-4 Day Lead $59.84 9 127K75451 DADF feed motor (REP 5.73) 10 — Harness guide 11 121K53461 Take Away Clutch A DADF New 121K53461 (New) 3-4 Day Lead $78.88 12 — Bracket assembly 13 — Stamp solenoid
PL 10.05 Fuser 1 007K21640 Retract Motor Assembly New 007K21640 (New) $146.88 2 — Motor bracket (P/O PL 10.05 Item 1) 3 — Gear (17/40T) (P/O PL 10.05 Item 1) 4 — Gear (17/54T) (P/O PL 10.05 Item 1) 5 — Roll latch motor (P/O PL 10.05 Item 1) 6 007K21650 Retract gear assembly New 007K21650 (New) 3-4 Day Lead $102.00 7 — Support (Not Spared) 8 — Spring (Not Spared) 9 — Adjust plate (Not Spared) 10 — Front fuser bracket (Not Spared) 11 — Rear fuser bracket (Not Spared) 12 — Front stopper lever (Not Spared) 13 — Rear stopper lever (Not Spared) 14 607K22310 Fuser Unit Universal New 607K22310 (New) 3-4 Day Lead $569.84 14 607K22320 Fuser Unit - Unversal Voltage New 607K22320 (New) $809.20 14 607K22330 Fusing Unit New 607K22330 (New) $659.60 15 — Fuser heater coil - see below for variants 15 104K91480 Fuser Coil Unit - 110-120V New 104K91480 (New) $238.00 104K91480 Fuser Coil Unit - 110-120V Fully refurbished with 90-day warranty 104K91480 $115.60 15 104K91294 Fuser Coil Assembly 110V Fully refurbished with 90-day warranty 104K91294 $210.80 104K91294 Fuser Coil Assembly 110V New 104K91294 (New) 3-4 Day Lead $548.08 15 104K91279 220V (C8130/ C8135/ C8145/ C8155) (REP 10.3) 15 104K91304 220V (C8170) 16 — Holder (Not Spared) 17 011K05090 Fuser Stopper Lever Assembly New 011K05090 (New) 3-4 Day Lead $76.16
PL 10.10 Exit 1 Transport Components 1 859K03371 Exit 1 Transport Assembly - Low New 859K03371 (New) $136.00 1 859K03381 Exit 1 Transport Assembly - High Fully refurbished with 90-day warranty 859K03381 3-4 Day Lead $134.64 859K03381 Exit 1 Transport Assembly High New 859K03381 (New) 3-4 Day Lead $206.72 2 — Exit 1 transport (P/O PL 10.10 Item 1) 3 127K52280 Exit 1 OCT Motor (7525 7530 7535) (Offset Catch Tray) New 127K52280 (New) 3-4 Day Lead $66.64 127K52280 Exit 1 OCT Motor (7525 7530 7535) (Offset Catch Tray) Fully refurbished with 90-day warranty 127K52280 Contact for Details 3 127K60880 Exit 1 OCT Motor (7545 7556) (Offset Catch Tray) New 127K60880 (New) 3-4 Day Lead $96.56 127K60880 Exit 1 OCT Motor (7545 7556) (Offset Catch Tray) Fully refurbished with 90-day warranty 127K60880 Contact for Details 4 — Ground spring (P/O PL 10.10 Item 1) 5 — Bracket (Not Spared) 6 013E46800 Bearing New 013E46800 (New) 3-4 Day Lead $76.16 7 — Front guide (P/O PL 10.10 Item 12) 8 930W00113 Sensor New 930W00113 (New) 3-4 Day Lead $66.64 930W00113 IIT Regi. Sensor Fully refurbished with 90-day warranty 930W00113 $37.00 9 — Exit 1 OCT home position sensor cover (P/O PL 10.10 Item 12) 10 807E20620 Exit 1 drive gear New 807E20620 (New) 3-4 Day Lead $76.16 11 948K02070 Motor cover New 948K02070 (New) 3-4 Day Lead $78.88 12 032K10662 Exit 1 Sensor Guide Assembly New 032K10662 (New) $102.00 13 055E58970 Exit 1 Guard New 055E58970 (New) 3-4 Day Lead $39.44 055E58970 Exit 1 Guard Fully refurbished with 90-day warranty 055E58970 Contact for Details 14 — Exit 1 OCT full stack sensor (Q77-124) (P/O PL 10.10 Item 1)

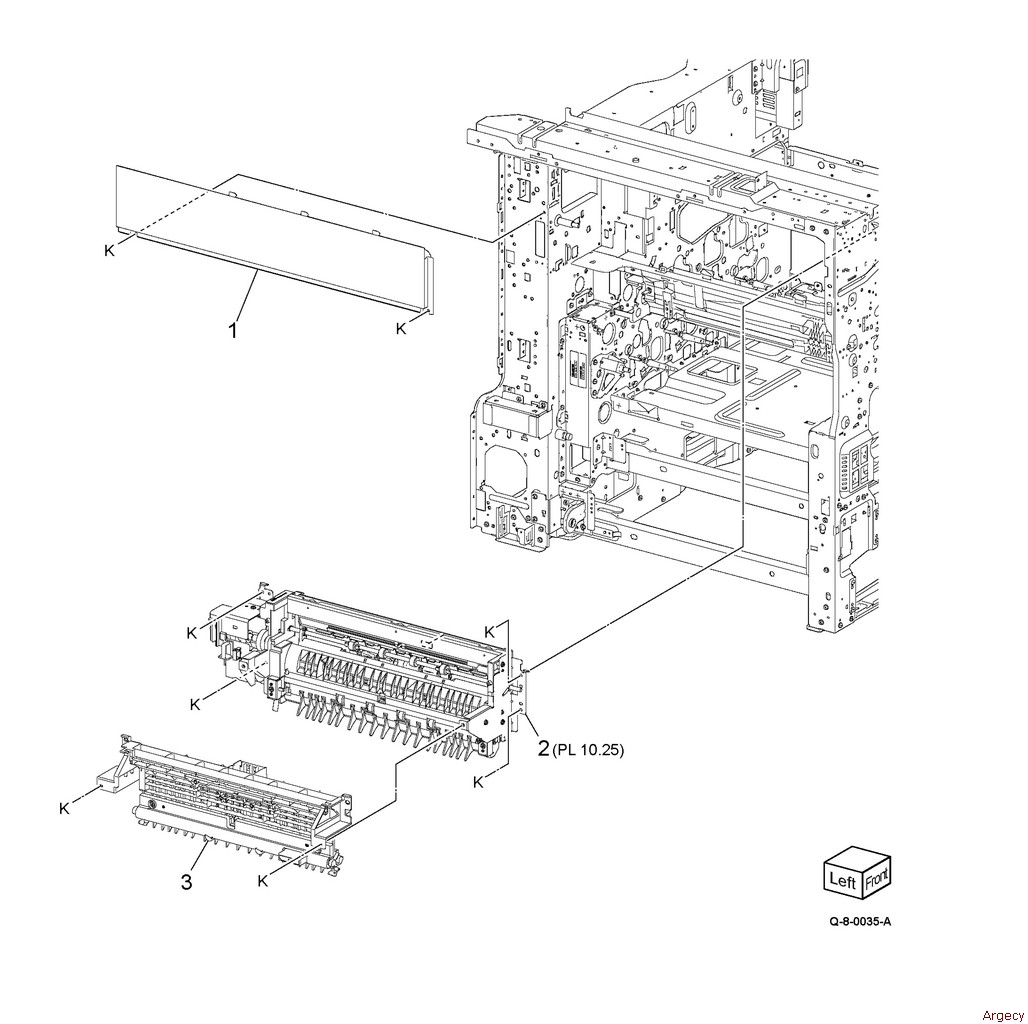

PL 10.15 Exit 2 Transport Components 1 822E33800 Left top cover New 822E33800 (New) 3-4 Day Lead $138.72 2 — Exit 2 transport assembly (C8130/ C8135) (REP 10.8) 2 — Exit 2 transport assembly (C8145/ C8155/ C8170) (REP 10.8) 3 — Top chute assembly (Not Spared)
PL 10.20 Face Up Tray Assembly 1 859K03409 Exit 2 Transport Assembly - Low New 859K03409 (New) $386.24 1 859K03419 Exit 2 Transport Assembly - High New 859K03419 (New) $406.64 859K03419 Exit 2 Transport Assembly - High Fully refurbished with 90-day warranty 859K03419 $216.24 2 054K56102 Face Up Chute Assembly New 054K56102 (New) $267.92 054K56102 Face Up Chute Assembly Fully refurbished with 90-day warranty 054K56102 $115.60 3 — Left hand top cover 4 822E39130 Face Up Tray Cover New 822E39130 (New) 3-4 Day Lead $81.60 5 050K75161 Face Up Tray New 050K75161 (New) 3-4 Day Lead $134.64 6 — Exit 2 paper weight assembly
PL 10.25 Exit 2 Transport Assembly 1 — Harness guide (P/O PL 10.15 Item 2) 2 007K21701 Exit 2 Drive Assembly New 007K21701 (New) 3-4 Day Lead $297.84 3 — Exit 2 drive bracket assembly (P/O PL 10.25 Item 2) 4 — Motor bracket (P/O PL 10.25 Item 2) 5 — Exit 2 drive motor (MOT77-060) (P/O PL 10.25 Item 2) 6 — Exit 2 guide assembly (P/O PL 10.15 Item 2) 7 — Bearing (P/O PL 10.15 Item 2) 8 — Exit 2 chute assembly (P/O PL 10.15 Item 2) 9 — Bearing (P/O PL 10.15 Item 2) 10 — Gear (P/O PL 10.15 Item 2) 11 121K58240 Exit 1 Gate Solenoid New 121K58240 (New) 3-4 Day Lead $102.00 12 — Link (P/O PL 10.15 Item 2) 13 — Harness guide (P/O PL 10.15 Item 2) 14 930W00113 Sensor New 930W00113 (New) 3-4 Day Lead $66.64 930W00113 IIT Regi. Sensor Fully refurbished with 90-day warranty 930W00113 $37.00 15 930W00211 Sensor New 930W00211 (New) 3-4 Day Lead $43.52 930W00211 Sensor Fully refurbished with 90-day warranty 930W00211 3-4 Day Lead $36.00 16 — Offset gear (P/O PL 10.15 Item 2) (REP 10.12) 17 — Motor bracket (P/O PL 10.15 Item 2) 18 127K52280 Exit 1 OCT Motor (7525 7530 7535) (Offset Catch Tray) New 127K52280 (New) 3-4 Day Lead $66.64 127K52280 Exit 1 OCT Motor (7525 7530 7535) (Offset Catch Tray) Fully refurbished with 90-day warranty 127K52280 Contact for Details 18 127K60880 Exit 1 OCT Motor (7545 7556) (Offset Catch Tray) New 127K60880 (New) 3-4 Day Lead $96.56 127K60880 Exit 1 OCT Motor (7545 7556) (Offset Catch Tray) Fully refurbished with 90-day warranty 127K60880 Contact for Details 19 — Exit 2 transport chassis (P/O PL 10.15 Item 2) 20 036K92441 Exit 2 bail arm assembly New 036K92441 (New) 3-4 Day Lead $82.96 21 036K92411 Exit 1 Bail Arm Assembly Exit 2 Transport New 036K92411 (New) 3-4 Day Lead $76.16
PL 10.30 Face Up Chute Assembly 1 — Gear bracket 2 007K23630 One Way Gear New 007K23630 (New) 3-4 Day Lead $69.36 3 110E11580 Switch- Cab (Door B Interlock Switch) Fully refurbished with 90-day warranty 110E11580 Contact for Details 110E11580 Switch- Cab (Door B Interlock Switch) New 110E11580 (New) 3-4 Day Lead $35.00 4 921W11601 Exit gate solenoid New 921W11601 (New) 3-4 Day Lead $85.68 921W11601 Exit gate solenoid Fully refurbished with 90-day warranty 921W11601 Contact for Details 5 — Solenoid link 6 930W00211 Sensor New 930W00211 (New) 3-4 Day Lead $43.52 930W00211 Sensor Fully refurbished with 90-day warranty 930W00211 3-4 Day Lead $36.00 7 — Face up chute

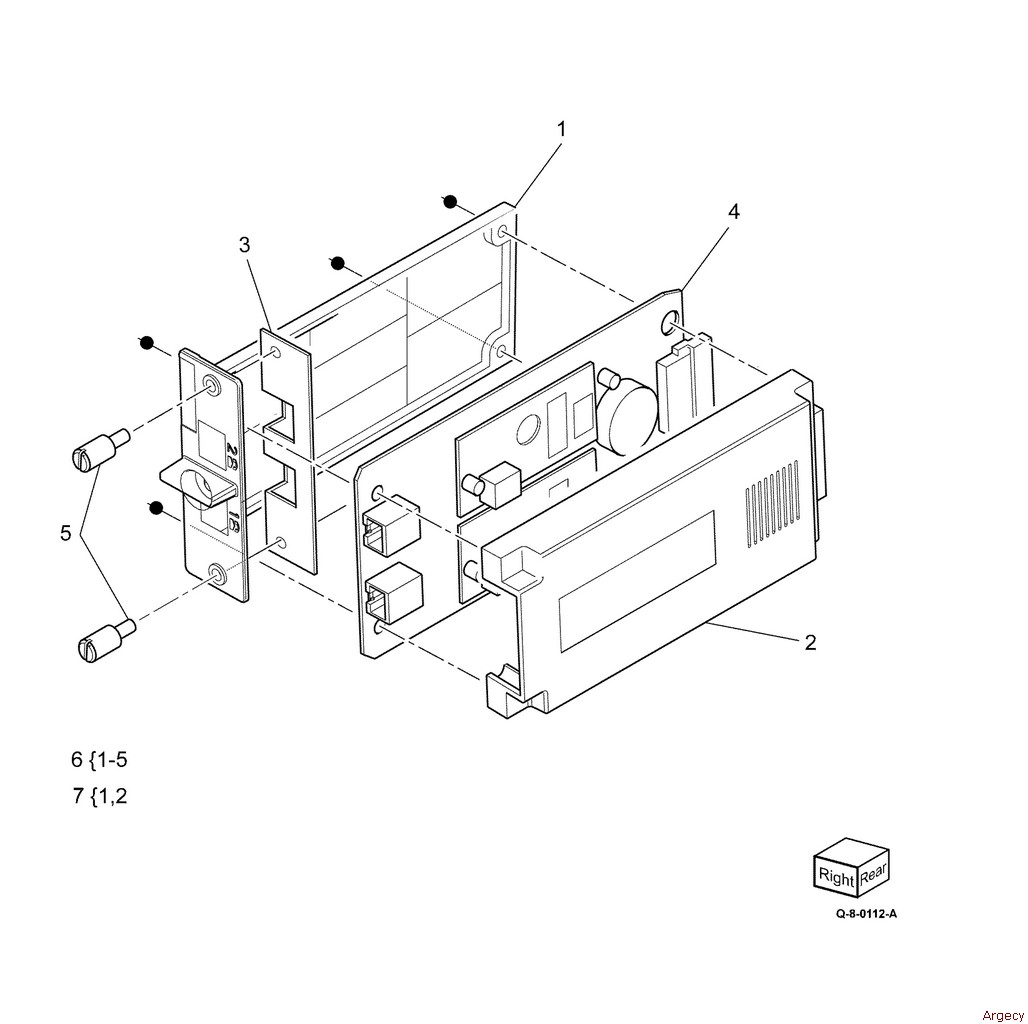

PL 20.10 Fax Module 1 — Front cover (P/O PL 20.10 Item 7) 2 — Rear Cover (P/O PL 20.10 Item 7) 3 — Ground Plate (P/O PL 20.10 Item 6) 4 — Fax PWB (P/O PL 20.10 Item 6) 5 — Thumbscrew (P/O PL 20.10 Item 6) 6 497K16440 2 Line Fax Kit New 497K16440 (New) 3-4 Day Lead $1897.20 6 497K16430 Fax PWBA Line 1 Fully refurbished with 90-day warranty 497K16430 $161.84 497K16430 Fax PWBA Line 1 New 497K16430 (New) 3-4 Day Lead $383.52 6 497K16420 2 Line fax kit (XE) 6 497K16410 1 Line fax kit (XE) 6 497K16560 2 Line fax kit (CFax 34) 6 497K16550 1 line fax kit (CFax 34) 6 — Fax Module 7 — Fax Covers Assembly Note: 497K part numbers are for reference only.
PL 25.10 Accessories 1 498K08260 Convenience stapler (XE) 2 498K08250 Convenience Stapler New 498K08250 (New) $428.40 3 497K21540 Interface 802.11b/g/n/ac / Wireless Kit New 497K21540 (New) 3-4 Day Lead $251.60 4 497K21550 Bluetooth kit 5 — HDD / IJO kit 6 — RFID Reader 7 — USB keyboard/ Shelf kit 8 — Long sheet feed kit 9 — Foreign device interface kit Note: 497K/498K part numbers are for reference only.
PL 26.10 Consumables and Tools 1 — Toner cartridge (Y)- see below for variants — 006R01745 Worldwide (Metered) — 006R01749 NASG/XE — 006R01757 DMO (C8130/ C8135) — 006R01761 DMO (C8145/ C8155/ C8170) 2 — Toner cartridge (M)- see below for variants — 006R01744 Worldwide (Metered) — 006R01748 NASG/XE — 006R01760 DMO (C8145/ C8155/ C8170) 3 — Toner cartridge (C)- see below for variants — 006R01743 Worldwide (Metered) — 006R01747 NASG/XE — 006R01756 DMO (C8130/ C8135) — 006R01755 DMO (C8130/ C8135) — 006R01759 DMO (C8145/ C8155/ C8170) 4 — Toner cartridge (K)- see below for variants — 006R01742 Worldwide (Metered) — 006R01746 NASG/XE — 006R01754 DMO (C8130/ C8135) — 006R01758 DMO (C8145/ C8155/ C8170)
PL 28.05 Covers (Front) 1 948K00255 Inner Cover Assembly New 948K00255 (New) $107.44 2 822E35582 Inner Lower Cover New 822E35582 (New) 3-4 Day Lead $78.88 3 — Inner right cap cover (Not Spared) 4 — Inner hinge cover assembly (Not Spared) 5 — Inner left cover (Not Spared) 6 — Inner right cover (Not Spared) 7 674K05081 Front cover strap kit New 674K05081 (New) 3-4 Day Lead $81.60 8 948K32930 Front Cover Assembly Fully refurbished with 90-day warranty 948K32930 $142.80 948K32930 Front Cover Assembly New 948K32930 (New) 3-4 Day Lead $227.12 9 110K18350 Front cover interlock switch New 110K18350 (New) 3-4 Day Lead $53.04 10 — Bracket (P/O PL 28.05 Item 9) 11 — Front cover interlock switch (P/O PL 28.05 Item 9) 12 — Front cover open switch (P/O PL 28.05 Item 9) 13 822E25031 Scoop Cover New 822E25031 (New) 3-4 Day Lead $76.16 14 003K23140 Knob New 003K23140 (New) 3-4 Day Lead $59.84 15 971E14990 Logo badge

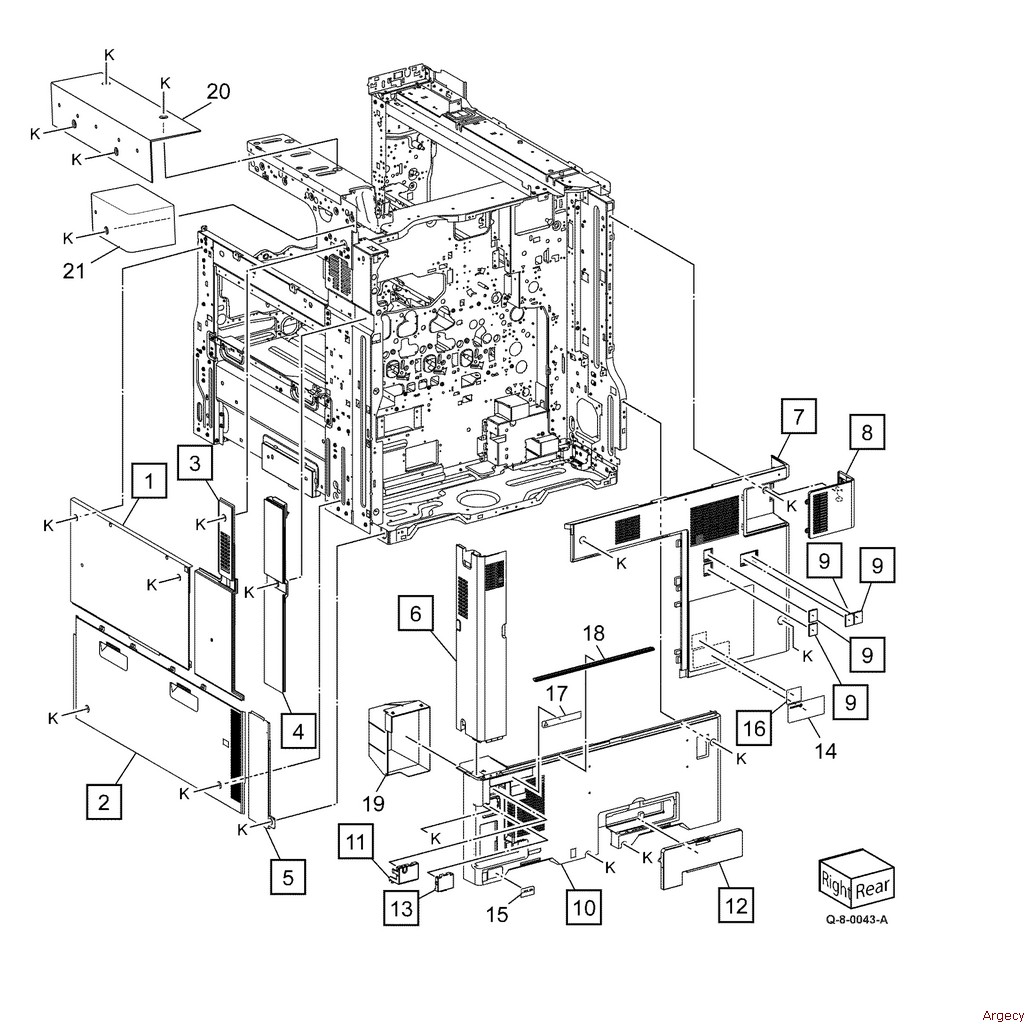

PL 28.10 Covers (Rear) 1 822E25191 Upper right front cover New 822E25191 (New) 3-4 Day Lead $133.28 2 822E25133 Lower right front cover New 822E25133 (New) 3-4 Day Lead $186.32 3 822E33951 Upper right rear cover New 822E33951 (New) 3-4 Day Lead $111.52 4 — Upper right rear cover 2 (C8170) 5 — Upper rear cover (C8170) 6 822E25311 ESS rear cover New 822E25311 (New) 3-4 Day Lead $122.40 7 — Upper rear cover 8 822E25420 Left rear cover New 822E25420 (New) 3-4 Day Lead $89.76 9 — Cap cover (Not Spared) 10 822E25443 Lower rear cover New 822E25443 (New) 3-4 Day Lead $165.92 11 — EPSV cover (Not Spared) 12 822E25602 MCU cover 13 — Outlet cover (Not Spared) 14 — Label (Date) (Not Spared) 15 — Label (GFI) (Not Spared) 16 — Label (Warning) (Not Spared) 17 — Label (Earth) (Not Spared) 18 — Gasket (Not Spared) 19 — Rear suction duct (C8170) (Not Spared) 20 — Right cover (Blue) (C8130/ C8135/ C8145/ C8155) 21 — Rear right cover (White) (C8130/ C8135/ C8145/ C8155)

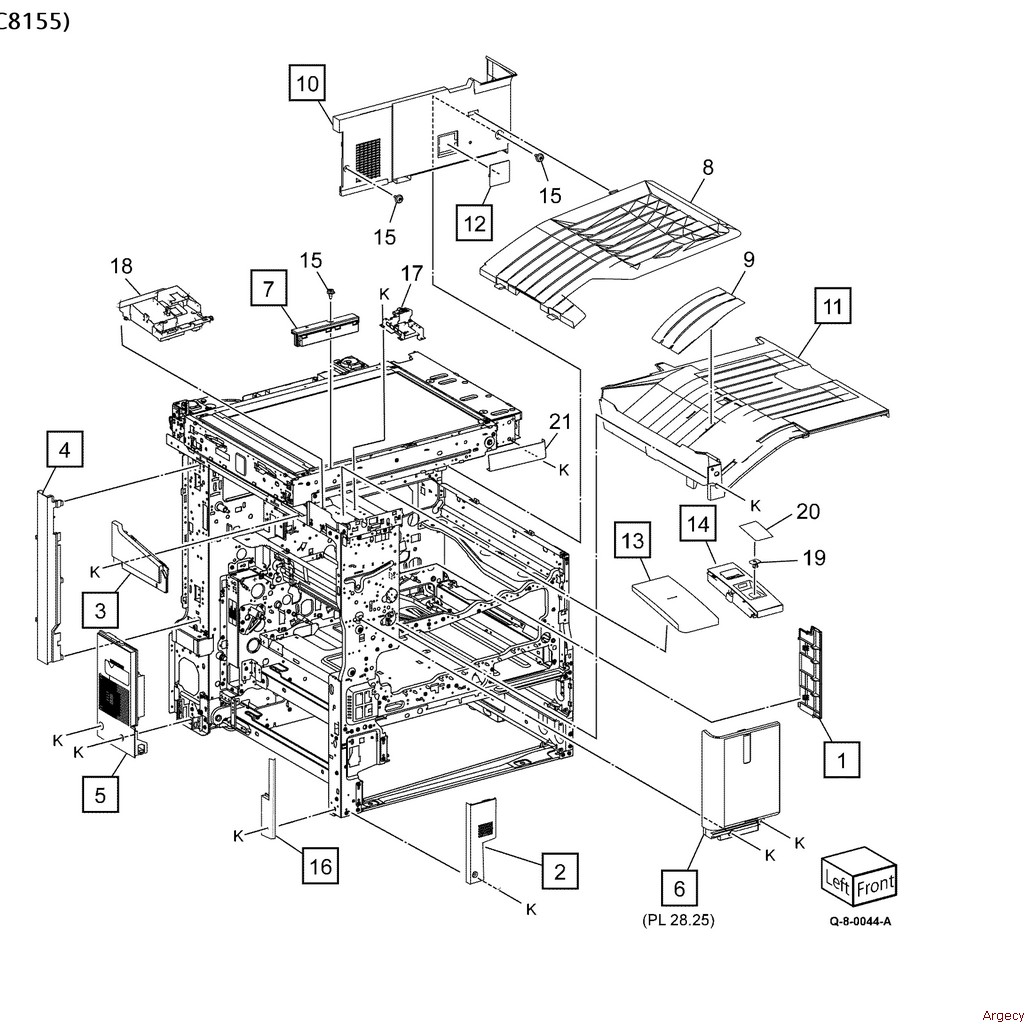

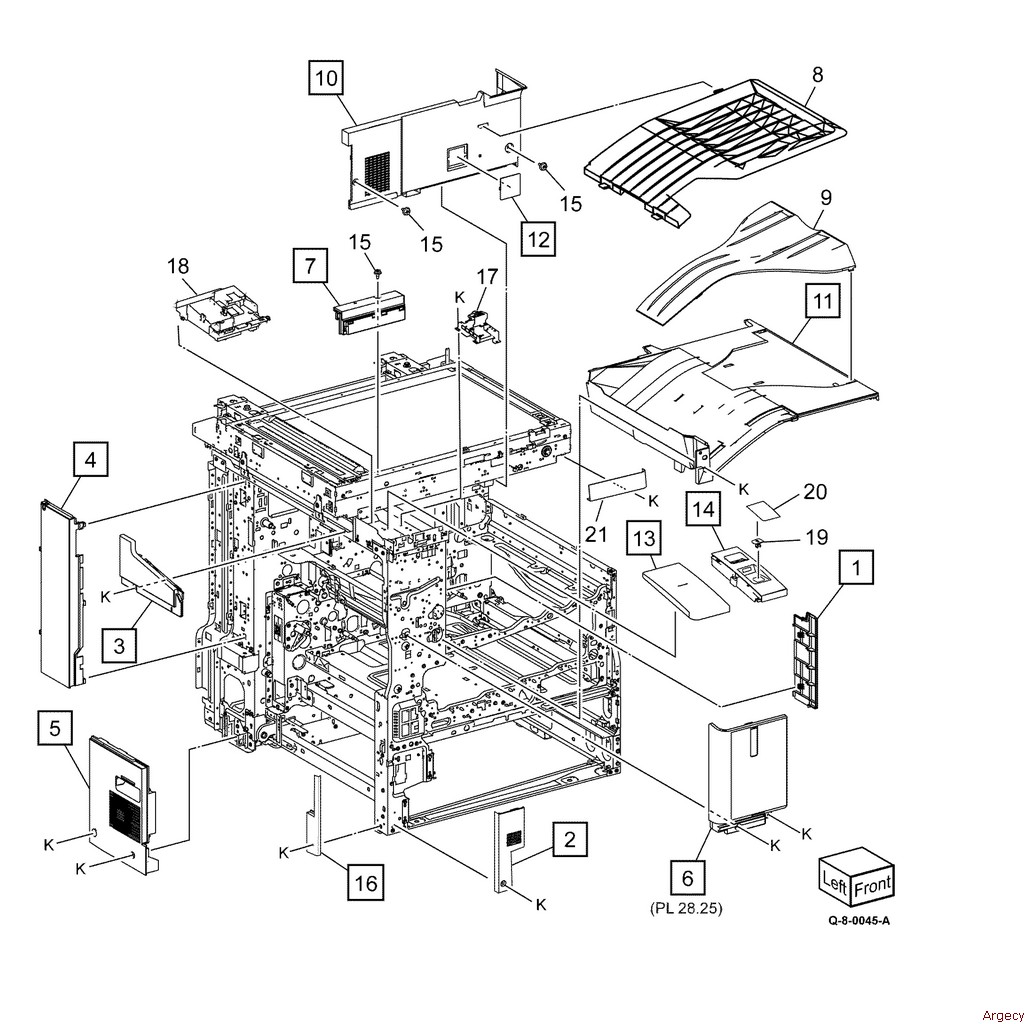

PL 28.15 Covers (C8130/ C8135/ C8145/ C8155) 1 — Front exit cover (Not Spared) 2 — Tray inner cover (Not Spared) 3 — Pillar cover 4 822E25072 Upper left cover New 822E25072 (New) 3-4 Day Lead $106.08 5 822E25112 Lower left cover New 822E25112 (New) 3-4 Day Lead $87.04 6 — Front left cover (with Human Motion Sensor) (REF: PL 28.25) (REP 28.1) 7 — IIT front cover 8 050E32924 Exit 2 tray New 050E32924 (New) 3-4 Day Lead $152.32 9 — Add tray 10 — Top rear cover (Not Spared) 11 — Top cover (C8130/ C8135) 11 — Top cover (C8145/ C8155) 12 — Blind cover 13 — Card reader cover 14 — SWEA cover 2 (REP 28.2) 15 — Screw (Not Spared) 16 — Inner tray LH cover 17 — USB bracket assembly 18 — Inner cover 19 — Icon USB cover 20 822E35423 USB Cover New 822E35423 (New) 3-4 Day Lead $59.84 21 — IIT Lower front right cover
PL 28.20 Covers (C8170) 1 — Front exit cover 2 — Tray inner front cover 3 — Top pillar cover 4 — L/H upper cover 5 — L/H lower cover 6 948K23770 Front Left Cover New 948K23770 (New) $174.08 7 — IIT front cover 8 — Exit 2 tray 9 — Add tray 10 — Top rear cover 11 — Top cover 12 — Blind cover 13 — IC card reader cover 14 — SWEA cover 2 (REP 28.2) 15 — Screw (Not Spared) 16 — Tray inner LH cover 17 — USB bracket assembly 18 — Inner cover 19 — Icon USB cover 20 822E35423 USB Cover New 822E35423 (New) 3-4 Day Lead $59.84 21 — IIT Lower front right cover
PL 28.25 Front Left Cover Compartment 1 — Front left cover (P/O PL 28.25 Item 10) 2 — Lens (P/O PL 28.25 Item 10) 3 — LED lens (P/O PL 28.25 Item 10) 4 130E20270 Human Motion Sensor New 130E20270 (New) 3-4 Day Lead $81.60 5 — Ground plate (P/O PL 28.25 Item 10) 6 — Human motion sensor bracket (P/O PL 28.25 Item 10) 7 — Wire harness (P/O PL 28.25 Item 10) 8 960K76290 Human Motion LED New 960K76290 (New) 3-4 Day Lead $76.16 9 960K86660 Human Motion Sensor New 960K86660 (New) 3-4 Day Lead $138.72 10 — Pillar cover assembly
PL 28.30 Workshelf 1 — Workshelf base cover (P/O PL 28.30 Item 7) 2 — Bracket (P/O PL 28.30 Item 7) 3 — Workshelf bracket (P/O PL 28.30 Item 7) 4 — Blind cover (P/O PL 28.30 Item 7) 5 — Thumbscrew (P/O PL 28.30 Item 7) 6 — Workshelf top cover (P/O PL 28.30 Item 7) 7 497K20750 Workshelf kit

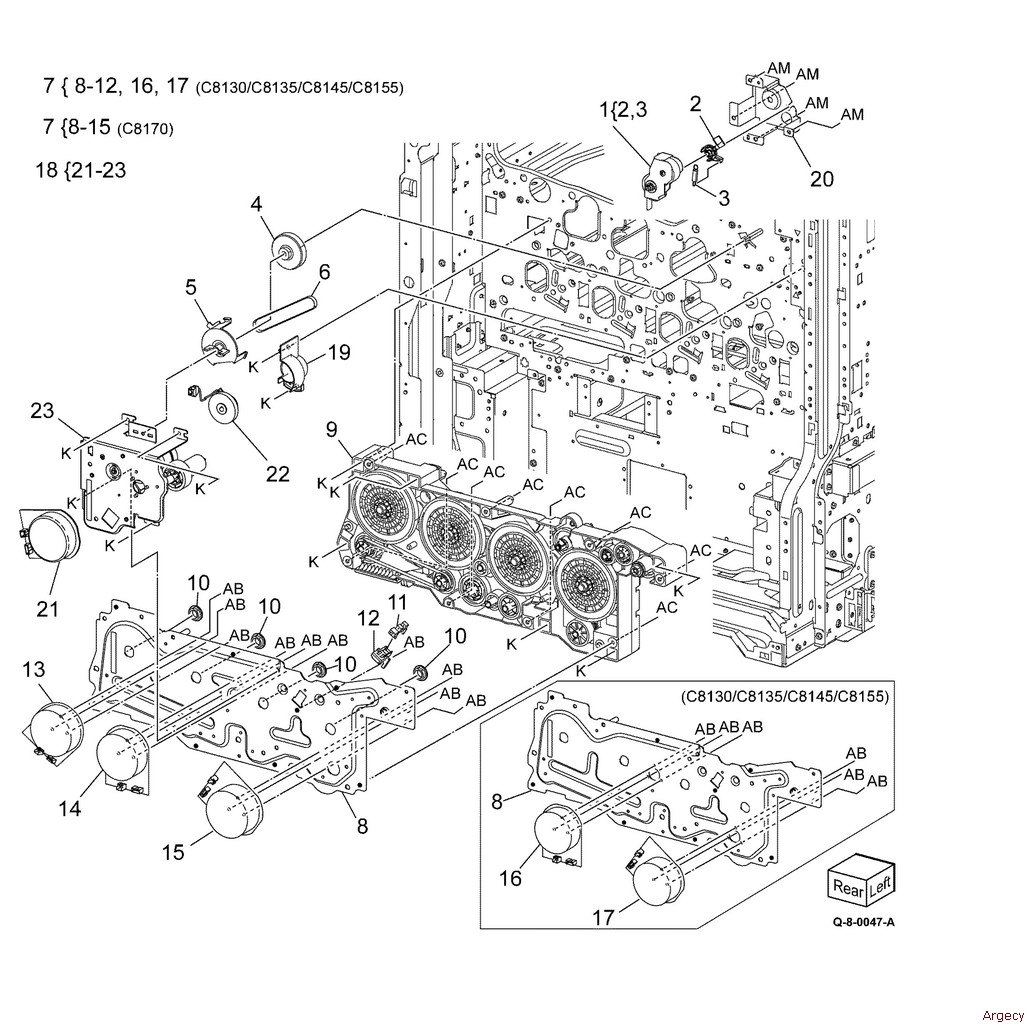

PL 40.05 Main Drive Assembly 1 607K20460 Fuser Input Bracket Assembly New 607K20460 (New) 3-4 Day Lead $59.84 1 607K20470 Fuser Input Bracket Assembly New 607K20470 (New) 3-4 Day Lead $59.84 1 607K20480 Fuser Input Bracket Assembly High Speed Models New 607K20480 (New) 3-4 Day Lead $59.84 2 — Spacer (P/O PL 40.05 Item 1) 3 — Spring (P/O PL 40.05 Item 1) 4 807E51730 Gear - Helical Exit 45/22T New 807E51730 (New) $93.84 5 005E38390 Flange New 005E38390 (New) $59.84 6 423W10354 Drive Belt-Synchronous - Bare Back New 423W10354 (New) $44.88 6 423W10355 Belt New 423W10355 (New) 3-4 Day Lead $76.16 423W10355 Belt Fully refurbished with 90-day warranty 423W10355 Contact for Details 7 007K21545 Main Drive Assembly - Low Speed New 007K21545 (New) 3-4 Day Lead $420.24 7 007K22595 Main drive assembly New 007K22595 (New) 3-4 Day Lead $537.20 7 007K21554 Main Drive Assembly High Speed New 007K21554 (New) 3-4 Day Lead $448.80 8 — Drum drive bracket assembly (P/O PL 40.05 Item 7) 9 — Drum drive housing assembly (P/O PL 40.05 Item 7) 10 — Bearing (P/O PL 40.05 Item 7) 11 930W00111 Sensor New 930W00111 930W00122 930W00121 130E82190 (New) 4-5 day lead time to ship $37.00 930W00121 BTR contact/retract sensor New 930W00121 (New) 3-4 Day Lead $37.00 12 — Sensor bracket (P/O PL 40.05 Item 7) 13 — Drum (C, M, Y) motor (C8170) (MOT42-007) (P/O PL 40.05 Item 7) 14 — Developer motor (C8170) (P/O PL 40.05 Item 7) 15 — Drum/developer (K)/ IBT motor (C8170) (P/O PL 40.05 Item 7) 16 — Drum (C, M, Y) motor (C8130/ C8135/ C8145/ C8155) (P/O PL 40.05 Item 7) 17 — Drum/developer (K)/ IBT motor (C8130/ C8135/ C8145/ C8155) (MOT42-001) (P/O PL 40.05 Item 7) 18 007K21444 Fuser Drive Assembly New 007K21444 (New) $161.84 19 — Gear cover (Not Spared) 20 — Bracket (Not Spared) 21 — Fuser unit drive motor (P/O PL 40.05 Item 16) 22 — BTR contact/retract clutch assembly (P/O PL 40.05 Item 16) 23 — Fuser drive bracket assembly (P/O PL 40.05 Item 18)

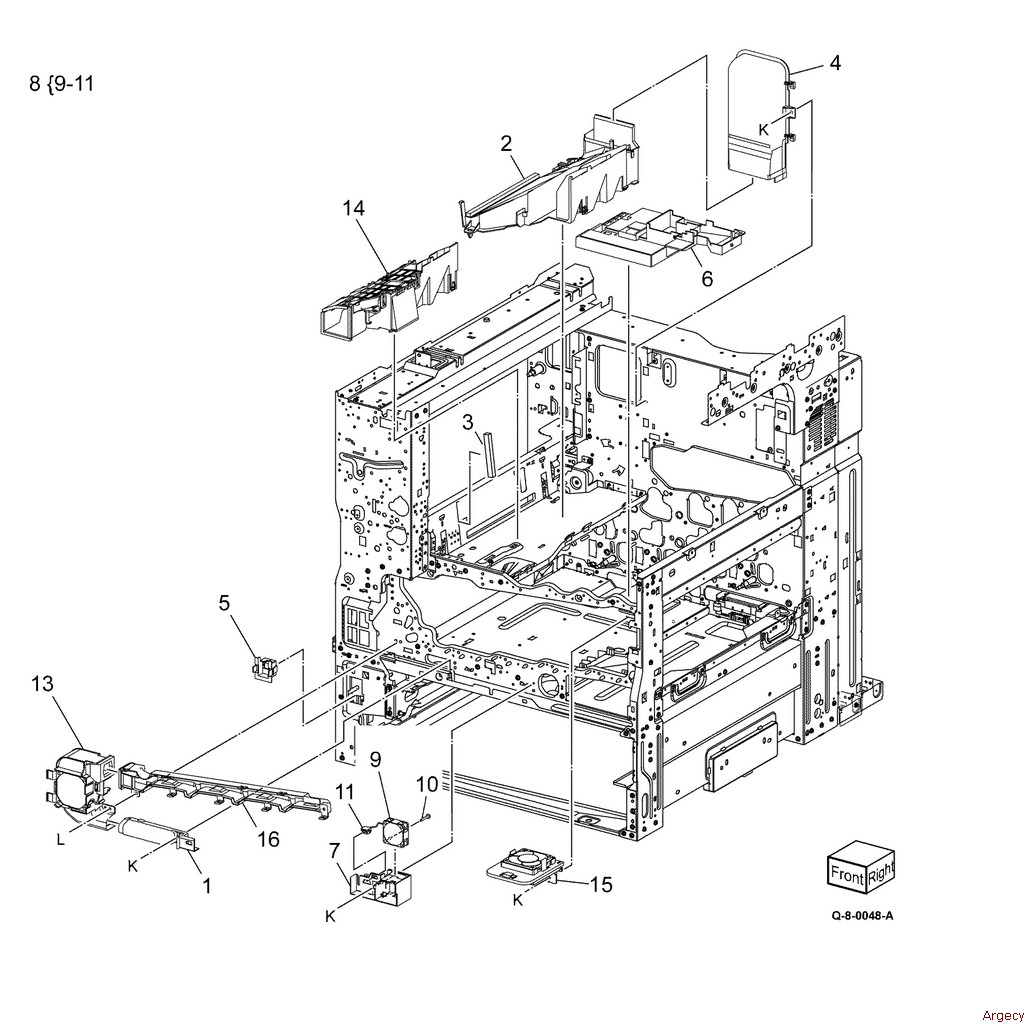

PL 40.10 NOHAD (front) 1 054E59370 P2 Duct New 054E59370 (New) 3-4 Day Lead $73.44 2 — Fuser duct assembly (Not Spared) 3 — Fuser seal (Not Spared) 4 — Fuser duct (Not Spared) 5 930K00500 Temp/Humidity Sensor New 930K00500 (New) $106.08 6 — Rear duct (Not Spared) 7 054E58001 P1 Duct (Low) New 054E58001 (New) 3-4 Day Lead $73.44 8 054K55040 Duct Assembly New 054K55040 (New) $95.20 9 — Front/right marking fan (C8145/ C8155/ C8170) (P/O PL 40.10 Item 8) 10 — Screw (P/O PL 40.10 Item 8) 11 — Connector (P/O PL 40.10 Item 8) 12 — Not used 13 054K55030 Front/Left Marking Fan Assembly (Mot42-067) New 054K55030 (New) $130.56 14 054K54981 Toner Cartridge Cooling Fan Assembly New 054K54981 (New) $114.24 15 054K55060 Marking Fan Duct Assembly (Mot42-025) New 054K55060 (New) $126.48 16 — Front duct (C8145/ C8155/ C8170) (Not Spared)
PL 40.15 NOHAD (rear) 1 054K55010 Rear Fuser Duct Fan New 054K55010 (New) 3-4 Day Lead $81.60 2 054K55050 Fuser Unit Exhaust Fan Assembly (Mot42-058) New 054K55050 (New) $136.00 3 815K16761 Side plate New 815K16761 (New) 3-4 Day Lead $104.72 4 127K74210 Fan Assembly - Std 80X25L New 127K74210 (New) $111.52 5 — Screw (P/O PL 40.15 Item 4) 6 — Connector (P/O PL 40.15 Item 4) 7 — Bracket (C8130/ C8135/ C8145/ C8155) (P/O PL 40.15 Item 8) 8 054K55210 IHPS Intake Duct Assembly (Mot42-069) New 054K55210 (New) $119.68 9 — Bracket (C8170) 10 008R08104 Fan Filter Estimated Yield: 500K New 008R08104 (New) $47.60 11 054K54990 Toner Cartridge Exhaust Fan Assembly New 054K54990 (New) $134.64 12 054K60390 Suction Fan Duct Assembly New 054K60390 (New) 3-4 Day Lead $136.00 13 — Suction base plate assembly (C8170) 14 054E58220 Fuser Unit Exhaust Duct New 054E58220 (New) 3-4 Day Lead $76.16

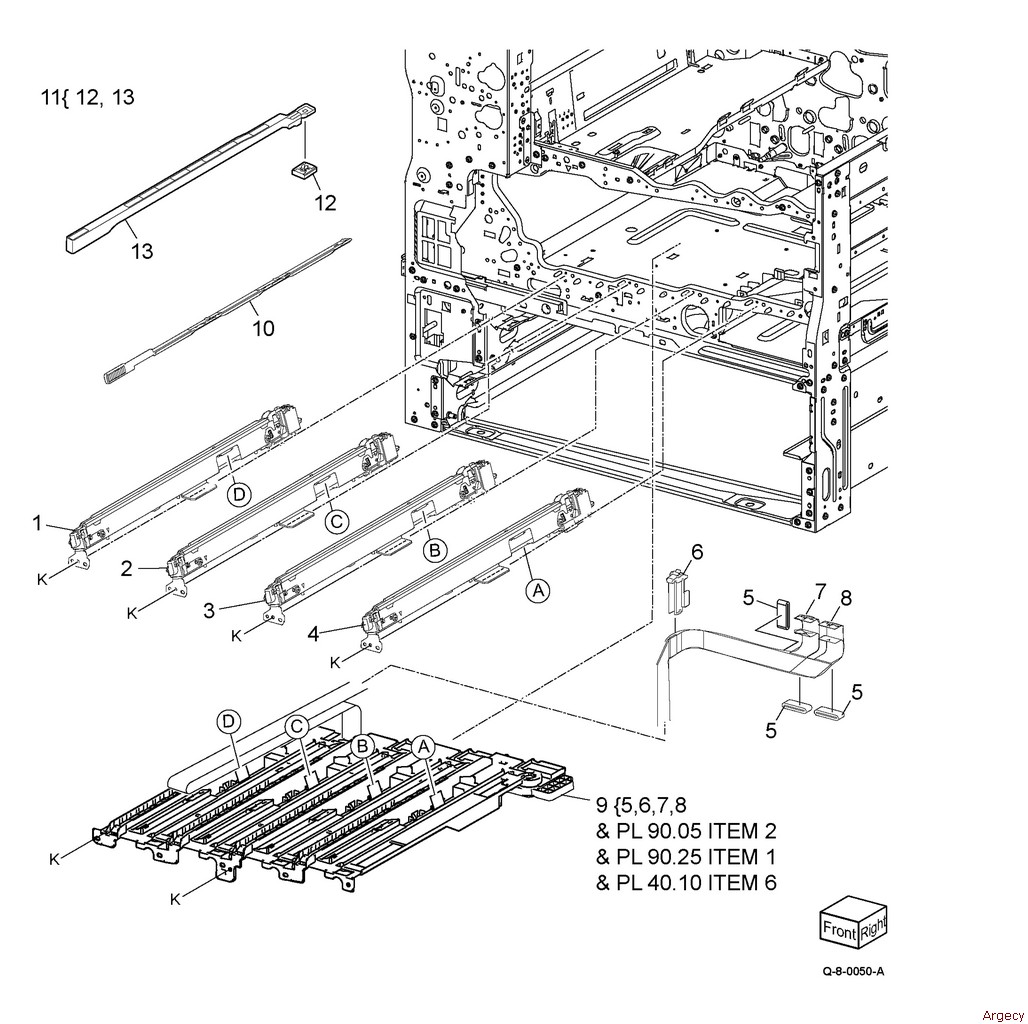

PL 60.05 LPH Module 1 930K00722 LPH Module Assembly New 930K00722 (New) $224.40 1 930K02795 LPH Module Assembly New 930K02795 (New) 3-4 Day Lead $293.76 2 — LPH assembly (C) (REP 60.1) 3 — LPH assembly (M) (REP 60.1) 4 — LPH assembly (Y) (REP 60.1) 5 121E24600 Core Ferrite New 121E24600 (New) 3-4 Day Lead $59.84 6 — FFC guide (P/O PL 60.05 Item 9) 7 — FFC cable (P/O PL 60.05 Item 9) 8 — FFC cable (P/O PL 60.05 Item 9) 9 607K02720 FFC Cable Assembly Kit New 607K02720 (New) $213.52 9 607K02730 Cable Assembly Kit New 607K02730 (New) 3-4 Day Lead $247.52 10 042K94930 LPH cleaner New 042K94930 (New) 3-4 Day Lead $134.64 11 042K95890 Cleaner Assembly Kit New 042K95890 (New) 3-4 Day Lead $133.28 12 — Cleaner base assembly (P/O PL 60.05 Item 11) 13 — Cleaner rod (P/O PL 60.05 Item 11)

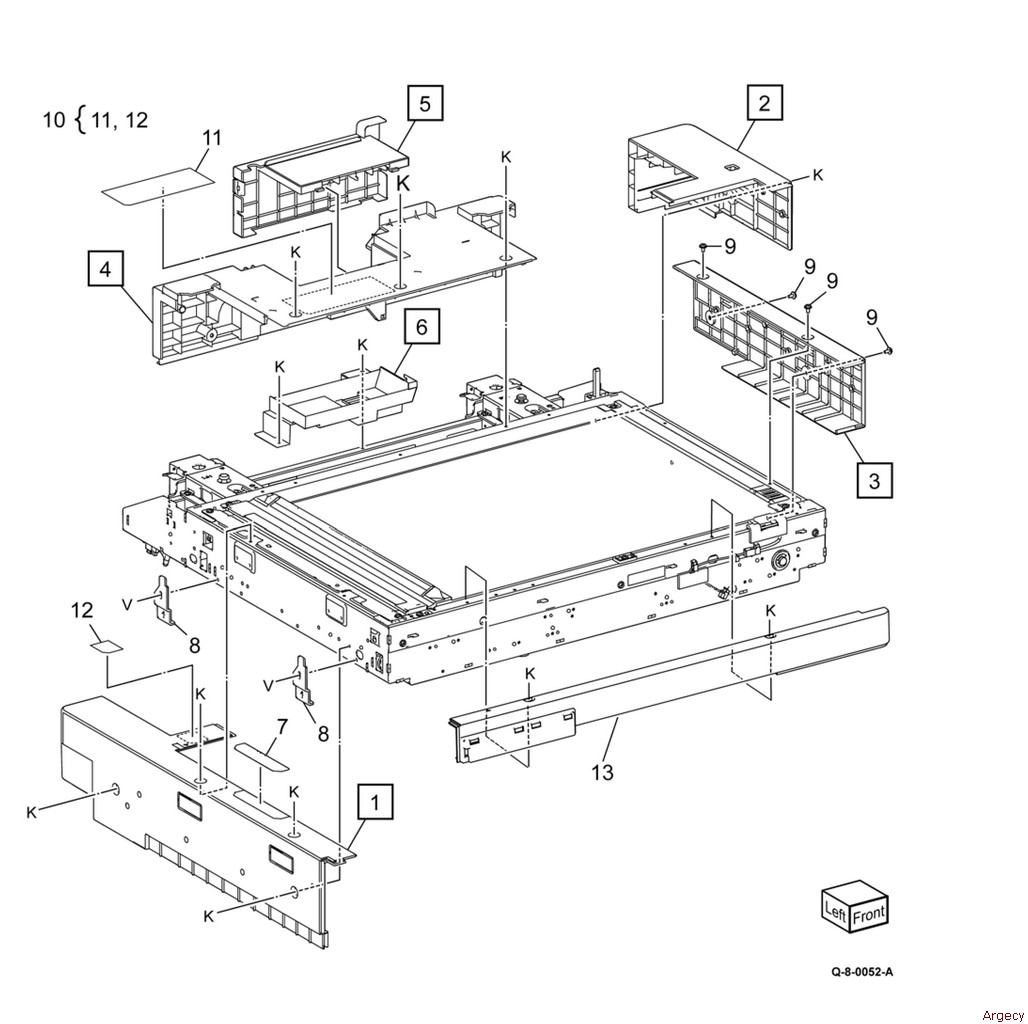

PL 60.10 Platen/IIT Cover (C8170) 1 — IIT Left cover 2 — IIT Right cover (W) 3 — IIT Right cover (B) 4 — IIT Rear cover 5 822E26471 IF Cover DADF New 822E26471 (New) 3-4 Day Lead $76.16 6 — IIT Trans PWB cover 7 — Sensor shield 8 — Left stopper 9 — Screw (Black) 10 — Label kit 11 — Label (Caution) (P/O PL 60.10 Item 10) 12 — Label (Clean) (P/O PL 60.10 Item 10) 13 — IIT Front cover
PL 60.15 Platen Glass (C8170) 1 815K10441 Right Plate 2 — CVT Glass Plate (REP 60.3) 3 090K93660 CVT Platen Glass New 090K93660 (New) 3-4 Day Lead $126.48 4 090K93570 Platen Glass New 090K93570 (New) 3-4 Day Lead $231.20 5 — Front Glass Support 6 — Rear Glass Support
PL 60.20 CCD Lens (C8170) 1 — CCD Lens cover assembly 2 — CCD Fan assembly 3 607K02350 CCD Lens Kit New 607K02350 (New) 3-4 Day Lead $799.68 4 — Conductor (P/O PL 60.20 Item 3) 5 130K64150 APS Sensor New 130K64150 (New) 3-4 Day Lead $47.60 130K64150 APS Sensor Fully refurbished with 90-day warranty 130K64150 Contact for Details 6 — APS Sensor cover 7 — APS Sensor bracket 8 952K35020 Power Harness CCD New 952K35020 (New) 3-4 Day Lead $78.88 9 952K45130 Wire Harness Signal CCD New 952K45130 (New) 3-4 Day Lead $82.96 10 952K31270 CCD Cont Video Ribbon Cable New 952K31270 (New) 3-4 Day Lead $81.60 11 960K98030 IIT Trans PWB New 960K98030 (New) 3-4 Day Lead $350.88 12 — Pin assembly (P/O PL 60.20 Item 3) 13 — Clamp 14 — PWB bracket 15 — Lens assembly (P/O PL 60.20 Item 3) 16 117K49220 IIT Cont I/O Ribbon Cable CCD Lens New 117K49220 (New) 3-4 Day Lead $96.56
PL 60.25 Carriage Cable/Motor (C8170) 1 — Actuator assembly 2 130E87280 Sensor New 130E87280 (New) $51.00 130E87280 Sensor New 130E87280 (New) Contact for Details 3 — Front Carriage Cable 4 — Rear Carriage Cable (REP 60.19) 5 — Idler Pulley 6 023E26740 Belt New 023E26740 (New) 3-4 Day Lead $133.28 7 127K77850 Carriage Motor New 127K77850 (New) 3-4 Day Lead $134.64 8 — Platen Interlock Switch 9 — Tension Spring 10 — Clamp 11 — Clamp 12 — IIT Regi. Sensor Bracket 13 930w00112 Sensor-Photo In (No Paper And Level Sensor) New 930W00112 (New) 3-4 Day Lead $39.44 930w00112 Sensor-Photo In (No Paper And Level Sensor) Fully refurbished with 90-day warranty 930W00112 Contact for Details

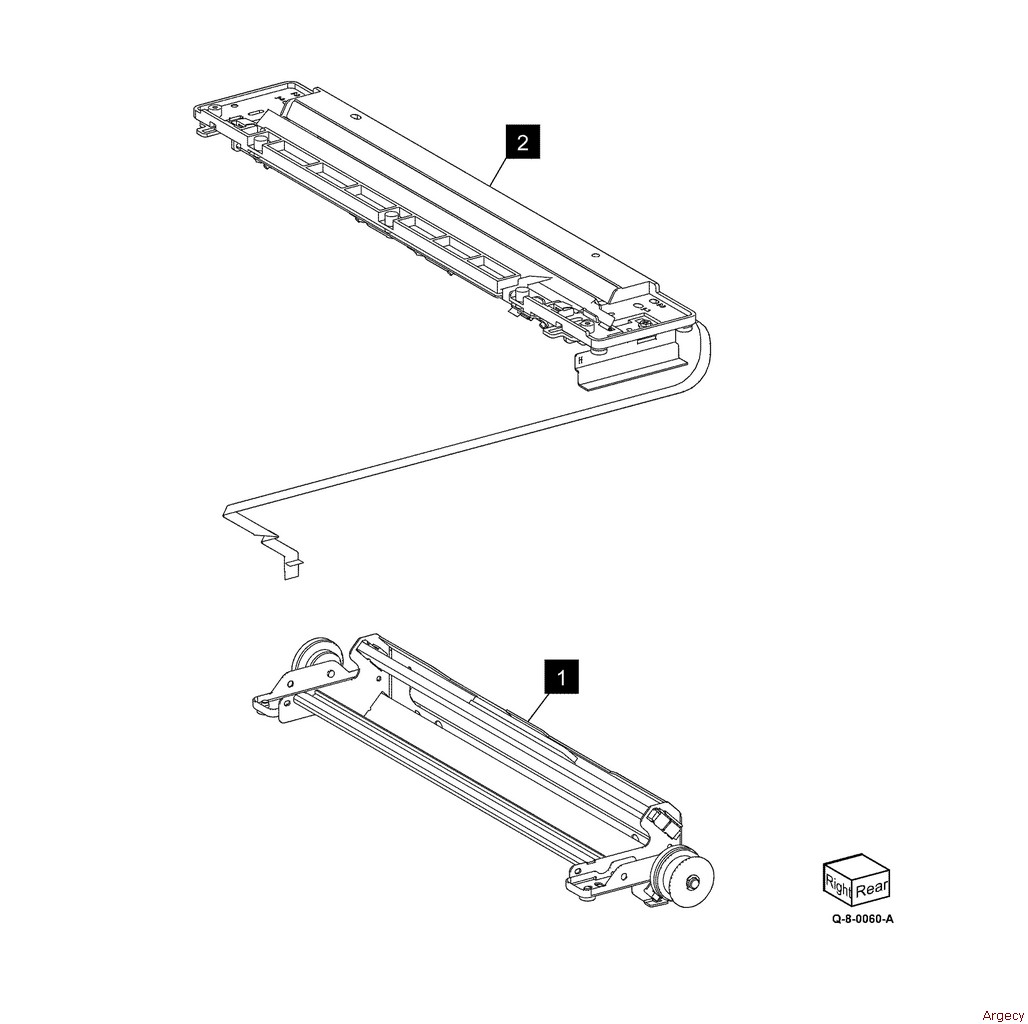

PL 60.30 Full/Half Carriage (C8170) 1 041K95850 Half Rate Carriage Assembly New 041K95850 (New) 3-4 Day Lead $208.08 2 041K96632 Full Rate Carriage Assembly New 041K96632 (New) 3-4 Day Lead $161.84

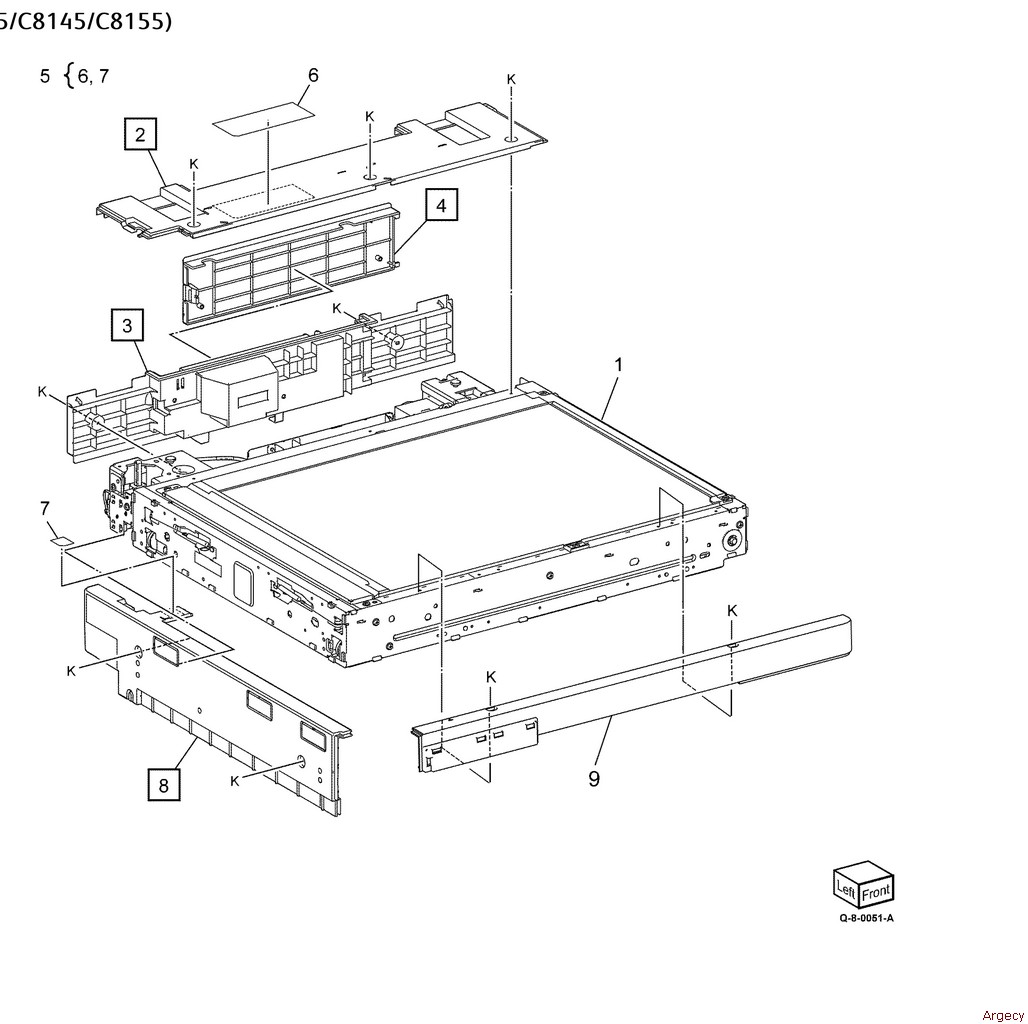

PL 60.35 Platen/IIT Cover (C8130/ C8135/ C8145/ C8155) 1 — IIT assembly 2 — IIT Top cover 3 — IIT Rear cover 4 822E26611 IF Cover DADF New 822E26611 (New) 3-4 Day Lead $76.16 5 — Label kit 6 — Label (Caution) (P/O PL 60.35 Item 5) 7 — Label (Clean) (P/O PL 60.35 Item 5) 8 — IIT Left cover 9 — IIT Front cover

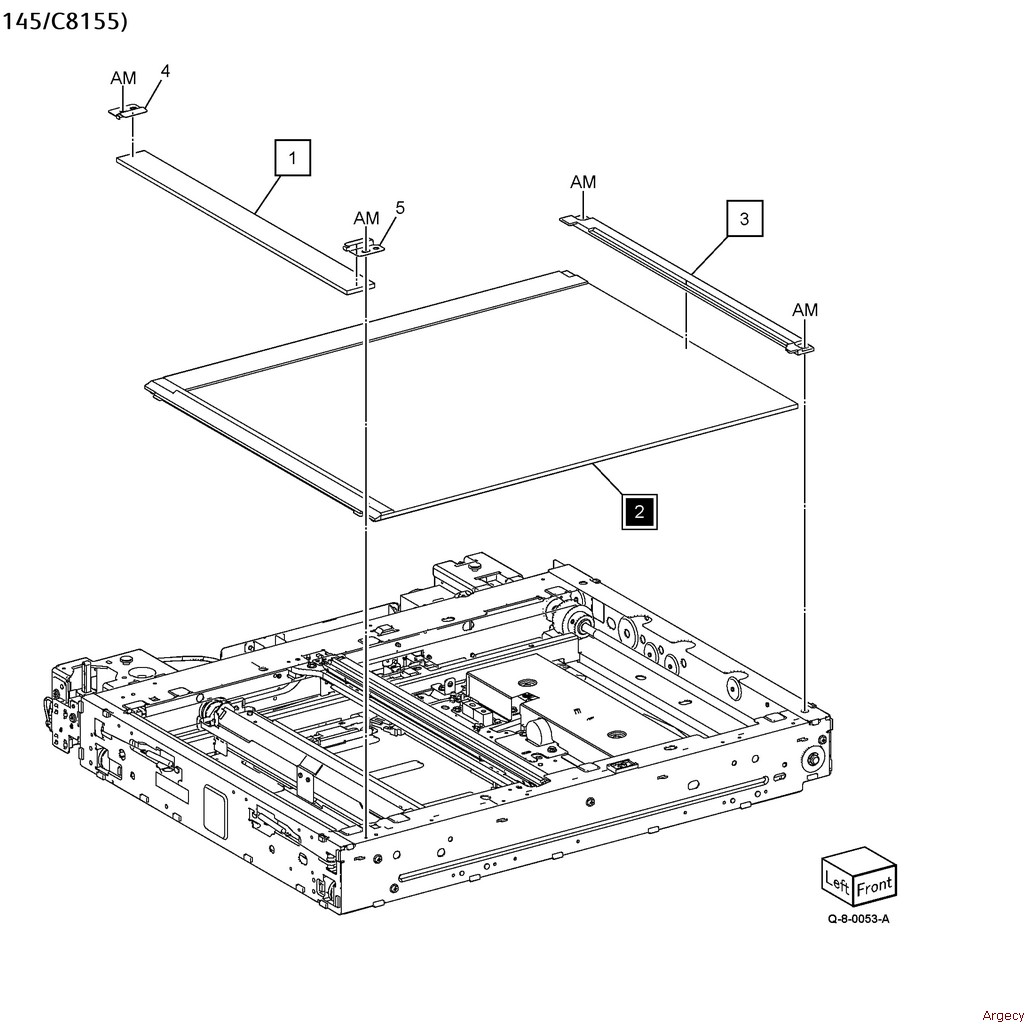

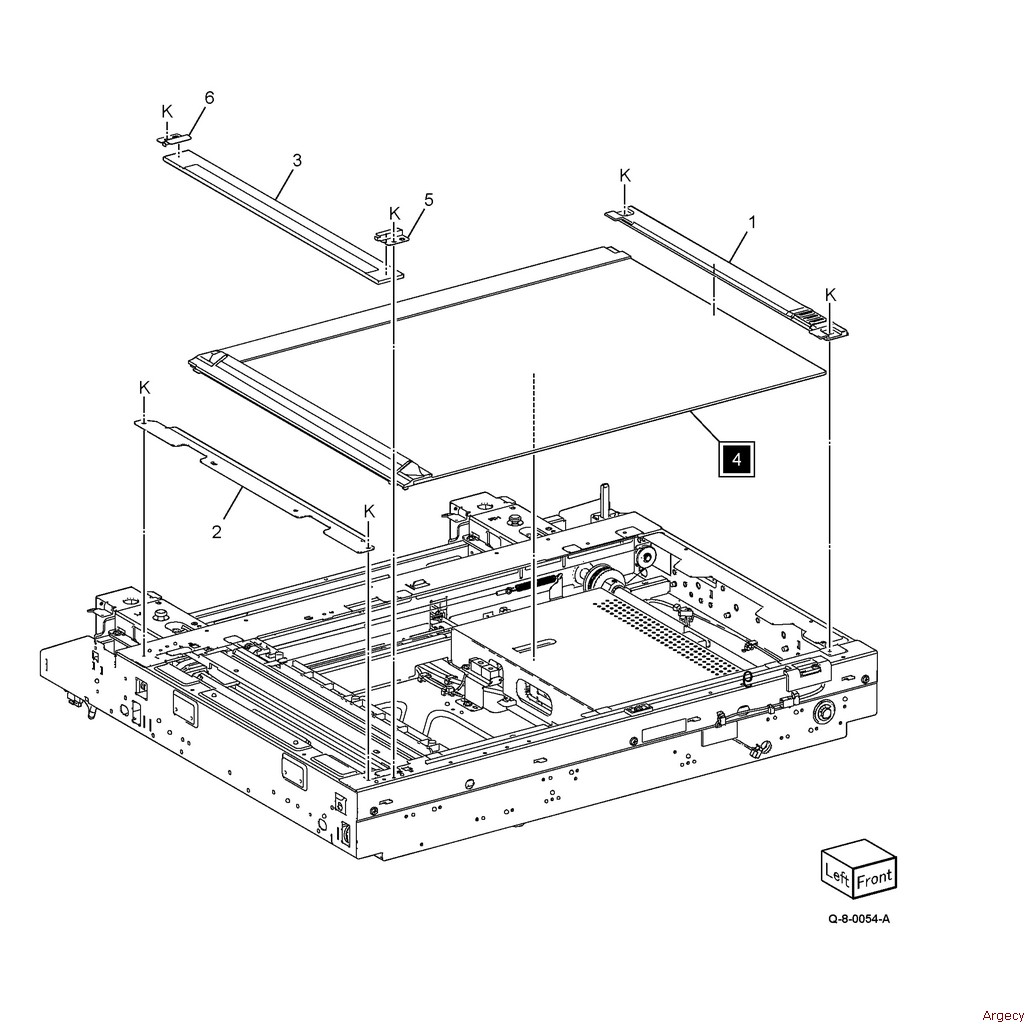

PL 60.40 Platen Glass (C8130/ C8135/ C8145/ C8155) 1 090K93650 CVT Platen Glass New 090K93650 (New) 3-4 Day Lead $89.76 2 090K93580 Document glass New 090K93580 (New) 3-4 Day Lead $150.96 090K93580 Document glass Fully refurbished with 90-day warranty 090K93580 3-4 Day Lead $46.24 3 815E58942 Plate Right New 815E58942 (New) 3-4 Day Lead $72.08 4 — Rear glass support 5 — Front glass support
PL 60.45 CCD Lens (C8130/ C8135/ C8145/ C8155) 1 — CCD Lens cover 2 607K13310 CCD Lens Kit Fully refurbished with 90-day warranty 607K13310 $183.60 607K13310 CCD Lens Kit New 607K13310 (New) 3-4 Day Lead $406.64 3 — Pin assembly (P/O PL 60.45 Item 2) 4 952K31240 CCD Cont Video Ribbon Cable New 952K31240 (New) 3-4 Day Lead $95.20 5 120K93101 Actuator Assembly New 120K93101 (New) 3-4 Day Lead $78.88 6 952K31662 Platen Angle Sensor Harness New 952K31662 (New) 3-4 Day Lead $59.84 7 960K97880 IIT Trans PWB Fully refurbished with 90-day warranty 960K97880 $107.44 960K97880 IIT Trans PWB New 960K97880 (New) 3-4 Day Lead $182.24 8 952K31301 CCD Power Harness New 952K31301 (New) 3-4 Day Lead $81.60 9 952K36950 APS Sensor Harness CCD New 952K36950 (New) 3-4 Day Lead $59.84 10 — Conductor (P/O PL 60.45 Item 2) 11 130K64150 APS Sensor New 130K64150 (New) 3-4 Day Lead $47.60 130K64150 APS Sensor Fully refurbished with 90-day warranty 130K64150 Contact for Details 12 — Clamp 13 — Platen angle sensor (P/O PL 60.45 Item 5) 14 — Platen close sensor (P/O PL 60.45 Item 5) 15 — Angle sensor bracket (P/O PL 60.45 Item 5) 16 — Actuator support (P/O PL 60.45 Item 5) 17 — Actuator (P/O PL 60.45 Item 5) 18 — Extension spring (P/O PL 60.45 Item 5) 19 — Lens assembly (P/O PL 60.45 Item 2) 20 117K48921 IIT Cont I/O Ribbon Cable CCD Lens New 117K48921 (New) 3-4 Day Lead $73.44

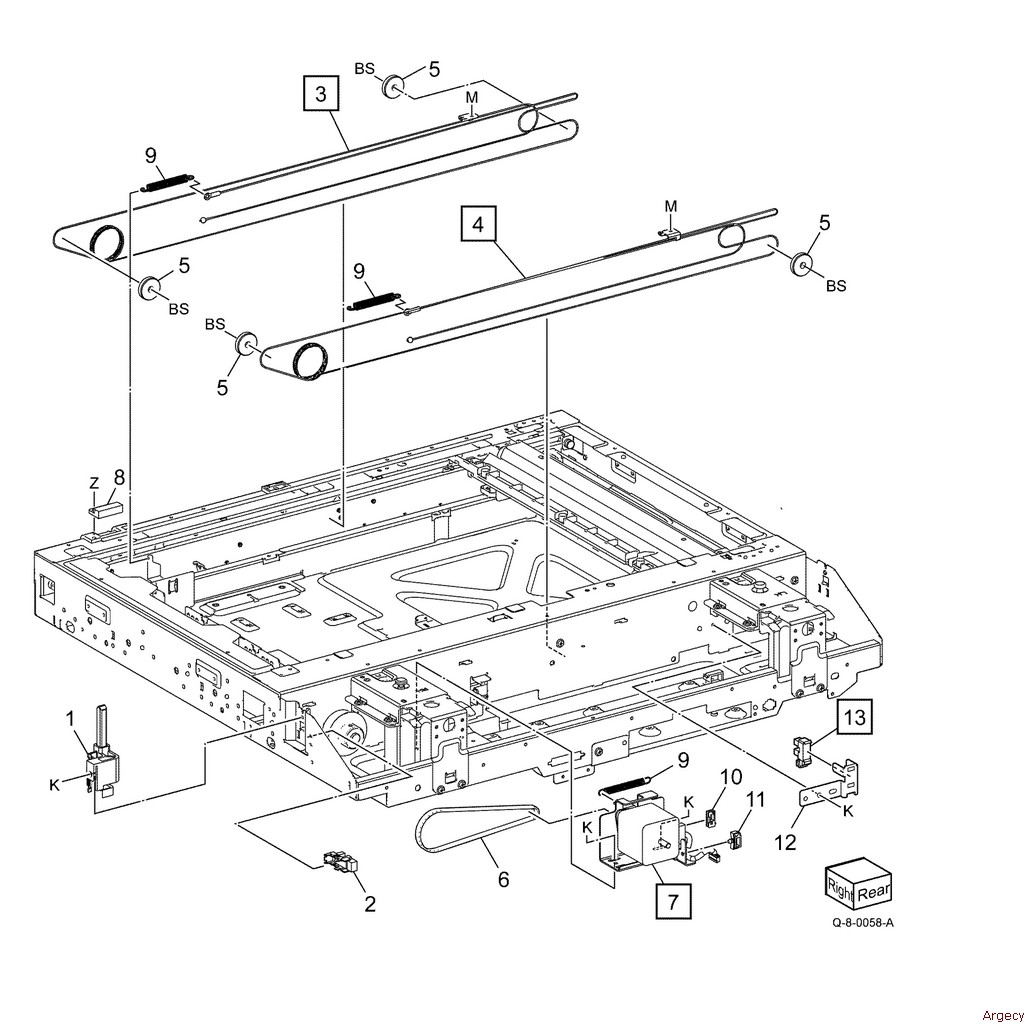

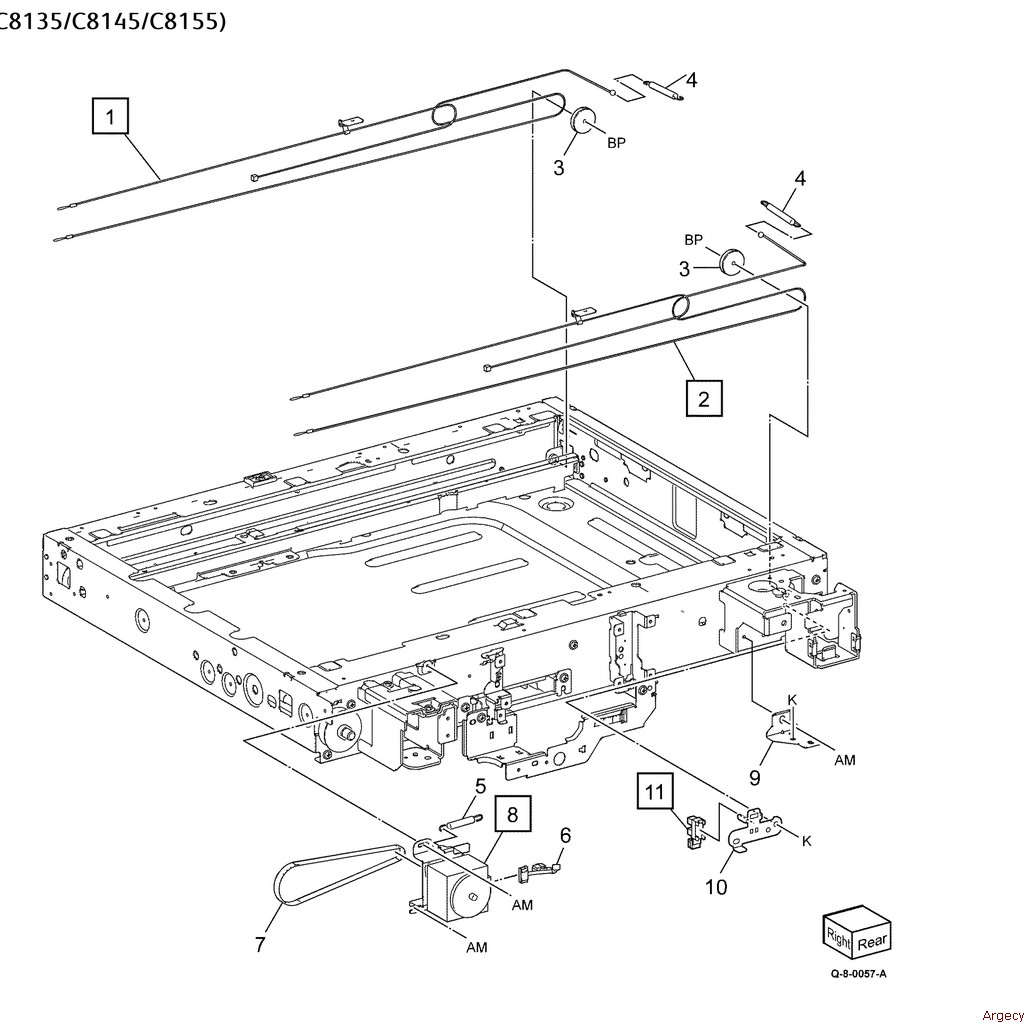

PL 60.50 Carriage Cable/Motor (C8130/ C8135/ C8145/ C8155) 1 — Front carriage cable (REP 60.30) 2 — Rear carriage cable (REP 60.30) 3 — Idler Pulley 4 — Tension Spring 5 — Tension Spring 6 952K31250 Carriage Motor Harness New 952K31250 (New) 3-4 Day Lead $59.84 7 023E27590 Timing Belt 8 127K61330 Carriage Motor Fully refurbished with 90-day warranty 127K61330 $46.24 127K61330 Carriage Motor New 127K61330 (New) 3-4 Day Lead $163.20 9 — Bracket 10 — IIT Regi. Sensor bracket 11 930W00123 IIT Regi. Sensor Fully refurbished with 90-day warranty 930W00123 $37.00 930W00123 Sensor New 930W00123 (New) 3-4 Day Lead $66.64

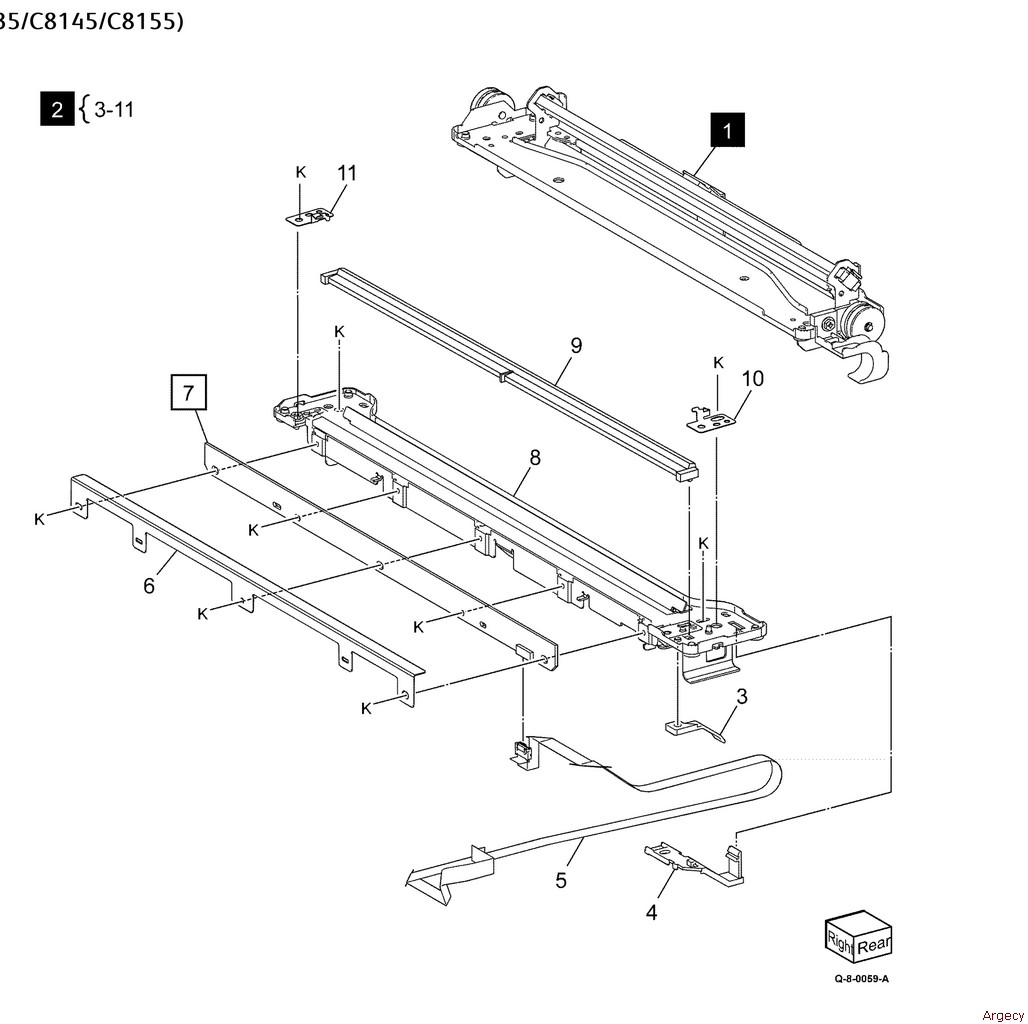

PL 60.55 Full/Half Carriage (C8130/ C8135/ C8145/ C8155) 1 041K96431 Half rate carriage New 041K96431 (New) 3-4 Day Lead $138.72 041K96431 Half rate carriage Fully refurbished with 90-day warranty 041K96431 3-4 Day Lead $39.44 2 041K96641 Full Rate Carriage Assembly New 041K96641 (New) 3-4 Day Lead $170.00 3 — Cord Guide (P/O PL 60.55 Item 2) 4 — Cord Guide (P/O PL 60.55 Item 2) 5 952K31260 LED Flat Cable New 952K31260 (New) 3-4 Day Lead $81.60 5 952K43480 LED Ribbon Cable Full/Half Carriage New 952K43480 (New) 3-4 Day Lead $59.84 6 — LED Bracket (P/O PL 60.55 Item 2) 7 960K81532 LED PWB New 960K81532 (New) 3-4 Day Lead $126.48 8 — LED Lamp Assembly (P/O PL 60.55 Item 2) (REP 60.31) 9 — Light guide (P/O PL 60.55 Item 2) (REP 60.33) 10 — Rear securing plate (P/O PL 60.55 Item 2) 11 — Front securing plate (P/O PL 60.55 Item 2)

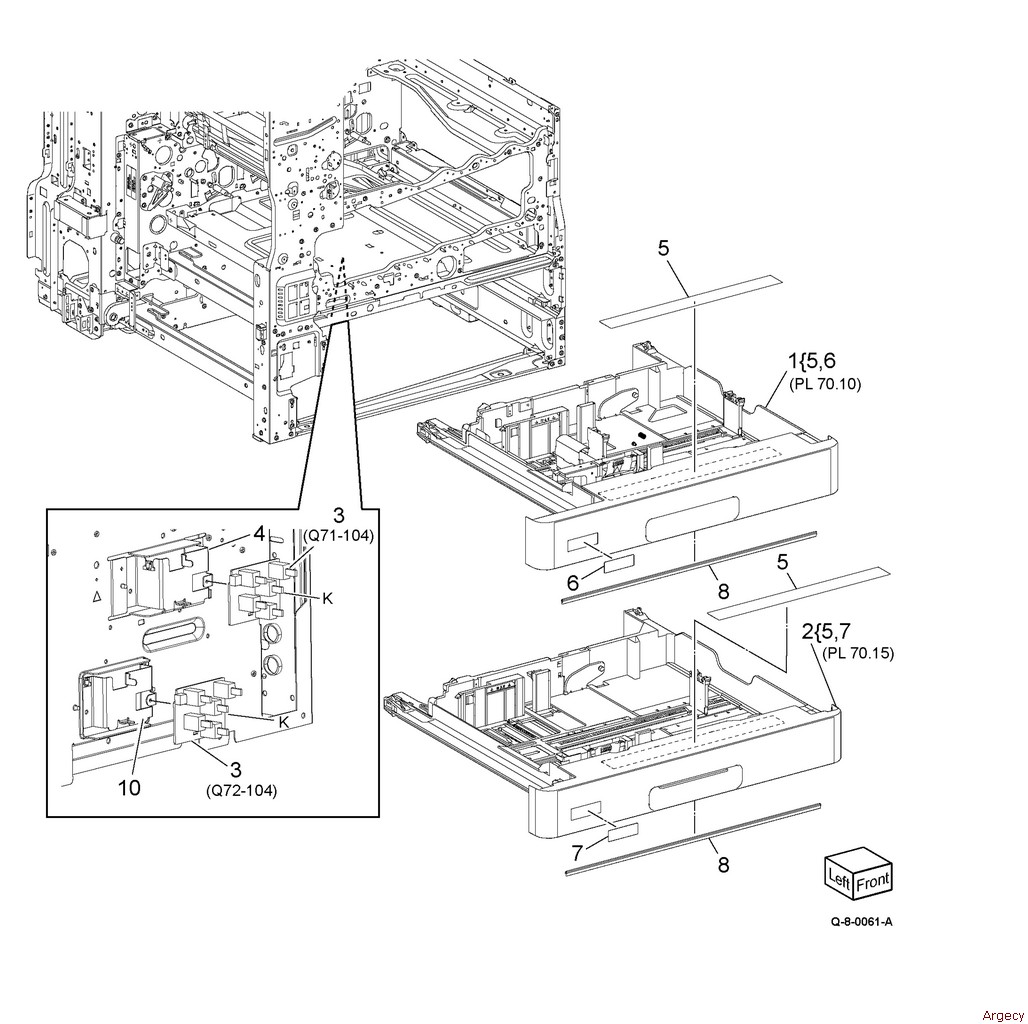

PL 70.05 Tray 1 2 Assembly 1 607K10600 Tray 1 Assembly New 607K10600 (New) 3-4 Day Lead $527.68 2 607K10610 Tray 2-4 kit New 607K10610 (New) 3-4 Day Lead $539.92 3 110K11680 Tray 1 Paper Size Switch Fully refurbished with 90-day warranty 110K11680 $46.24 110K11680 Switch Assembly P S (Paper Size Switch) New 110K11680 (New) $114.00 4 — Bracket (Not Spared) 5 — Label (instruction) (P/O PL 70.05 Item 1 PL 70.05 item 2) 6 — Label (No. 1) (P/O PL 70.05 Item 1) 7 — Label (No. 2) (P/O PL 70.05 Item 2) 8 — Gasket (Not Spared) 9 — Not used 10 — Bracket (Not Spared)
PL 70.10 Tray 1 Assembly 1 807E13521 Pinion New 807E13521 (New) 3-4 Day Lead $85.68 807E13521 Pinion Fully refurbished with 90-day warranty 807E13521 3-4 Day Lead $22.00 2 809E89880 Spring New 809E89880 (New) 3-4 Day Lead $59.84 3 607K02250 End guide kit 4 604K20542 Kit - Tray Gear Fully refurbished with 90-day warranty 604K20542 3-4 Day Lead $32.00 604K20542 Gear Kit New 604K20542 (New) 3-4 Day Lead $50.32 5 — Gear (13) (P/O PL 70.10 Item 4) 6 — Gear (13/60) (P/O PL 70.10 Item 4) 7 — Gear assembly (P/O PL 70.10 Item 4) 8 — Bracket (P/O PL 70.05 Item 1) 9 — Cassette assembly (P/O PL 70.05 Item 1) 10 607K02261 Front side guide kit 11 — Front side guide (P/O PL 70.10 Item 10) 12 — Pad (P/O PL 70.10 Item 10) 13 607K02274 Rear Side Guide Kit Tray 1 New 607K02274 (New) 3-4 Day Lead $138.72 14 — Rear side guide (P/O PL 70.10 Item 13) 15 — Pad (P/O PL 70.10 Item 13) 16 — Label (MAX) (P/O PL 70.10 Item 13) 17 — Side actuator (P/O PL 70.05 Item 1) 18 — Lift plate (P/O PL 70.05 Item 1) Note: All parts are part of PL 70.05 Item 1.

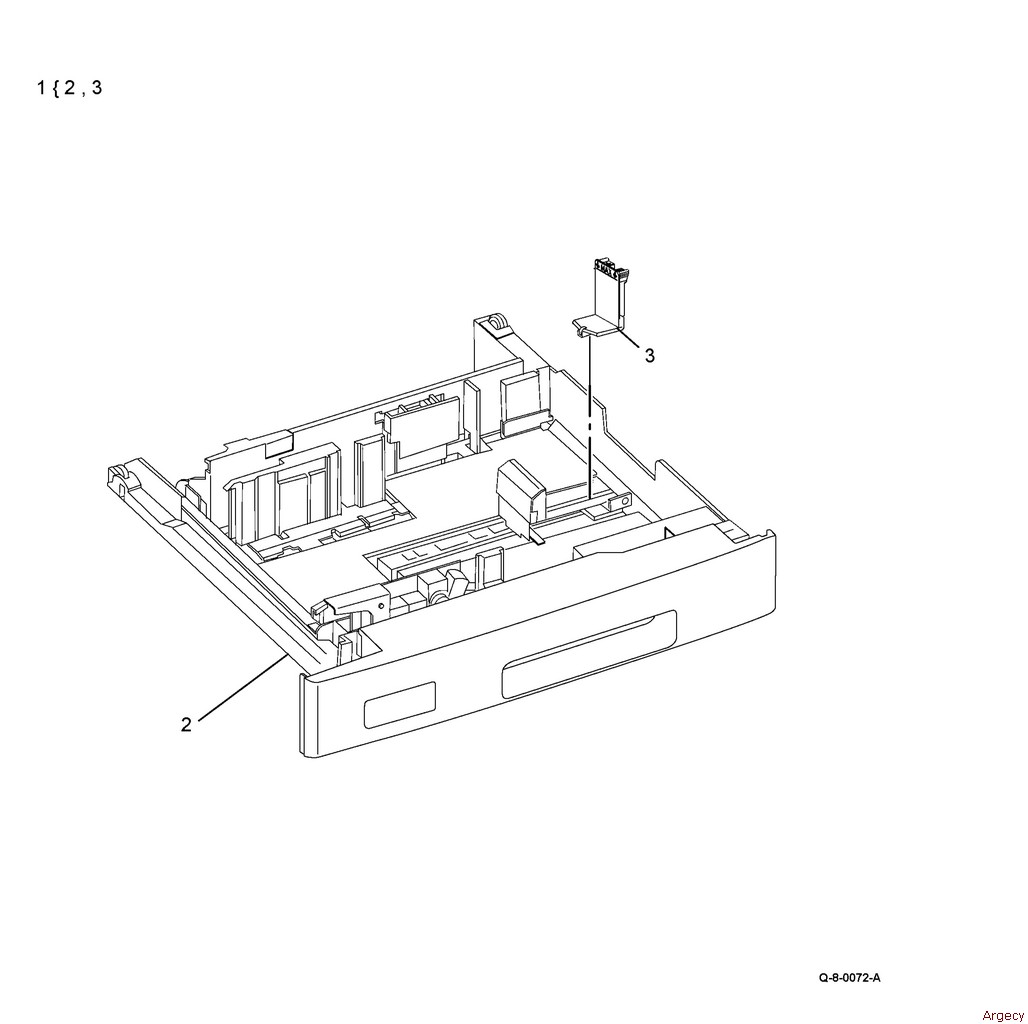

PL 70.15 Tray 2 Assembly 1 807E13521 Pinion New 807E13521 (New) 3-4 Day Lead $85.68 807E13521 Pinion Fully refurbished with 90-day warranty 807E13521 3-4 Day Lead $22.00 2 607K02250 End guide kit 3 — Tray gear kit (Not Spared) 4 — Gear (13) (P/O PL 70.15 Item 3) 5 — Gear (13/60) (P/O PL 70.15 Item 3) 6 — Gear assembly (P/O PL 70.15 Item 3) 7 — Bracket (P/O PL 70.05 Item 2) 8 — Cassette assembly (P/O PL 70.05 Item 2) 9 607K02261 Front side guide kit 10 — Front side guide (P/O PL 70.15 Item 9) 11 — Pad (P/O PL 70.15 Item 9) 12 607K02274 Rear Side Guide Kit Tray 1 New 607K02274 (New) 3-4 Day Lead $138.72 13 — Rear side guide (P/O PL 70.15 Item 12) 14 — Pad (P/O PL 70.15 Item 12) 15 — Label (MAX) (P/O PL 70.15 Item 12) 16 — Side actuator (P/O PL 70.05 Item 2) 17 — Lift plate (P/O PL 70.05 Item 2) Note: All parts are part of PL 70.05 Item 2.

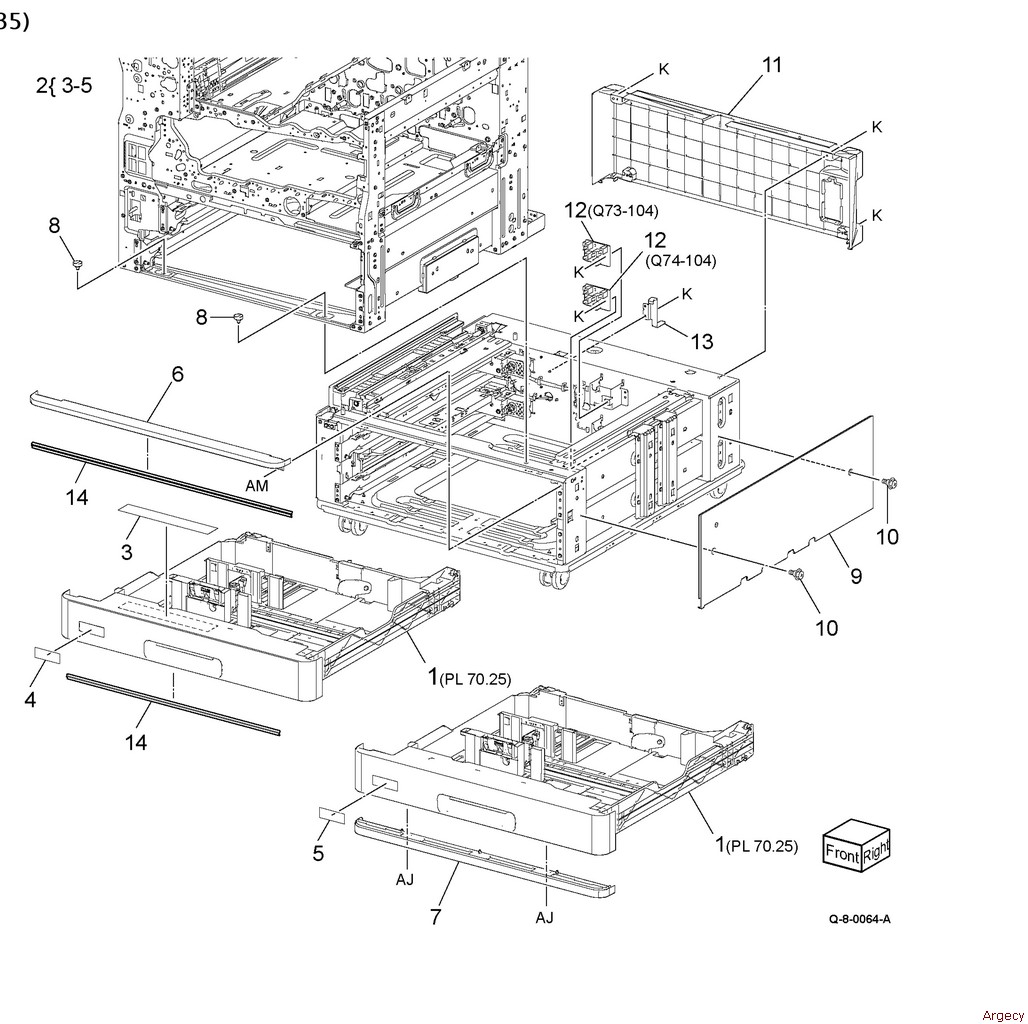

PL 70.20 2TM Components (C8130/ C8135) 1 607K10610 Tray 2-4 kit New 607K10610 (New) 3-4 Day Lead $539.92 2 — 2TM tray label kit 3 — Label (instruction) (P/O PL 70.20 Item 2) 4 — Label (No. 3) (P/O PL 70.20 Item 2) 5 — Label (No. 4) (P/O PL 70.20 Item 2) 6 — Top cover (Not Spared) 7 822E41111 Foot cover New 822E41111 (New) 3-4 Day Lead $122.40 8 — Docking screw (Not Spared) 9 822E41071 Right cover New 822E41071 (New) 3-4 Day Lead $146.88 10 — Shoulder screw (Not Spared) 11 822E41013 Rear cover New 822E41013 (New) 3-4 Day Lead $190.40 12 110K11680 Tray 1 Paper Size Switch Fully refurbished with 90-day warranty 110K11680 $46.24 110K11680 Switch Assembly P S (Paper Size Switch) New 110K11680 (New) $114.00 13 — Joint bracket (Not Spared) 14 — Gasket (Not Spared)

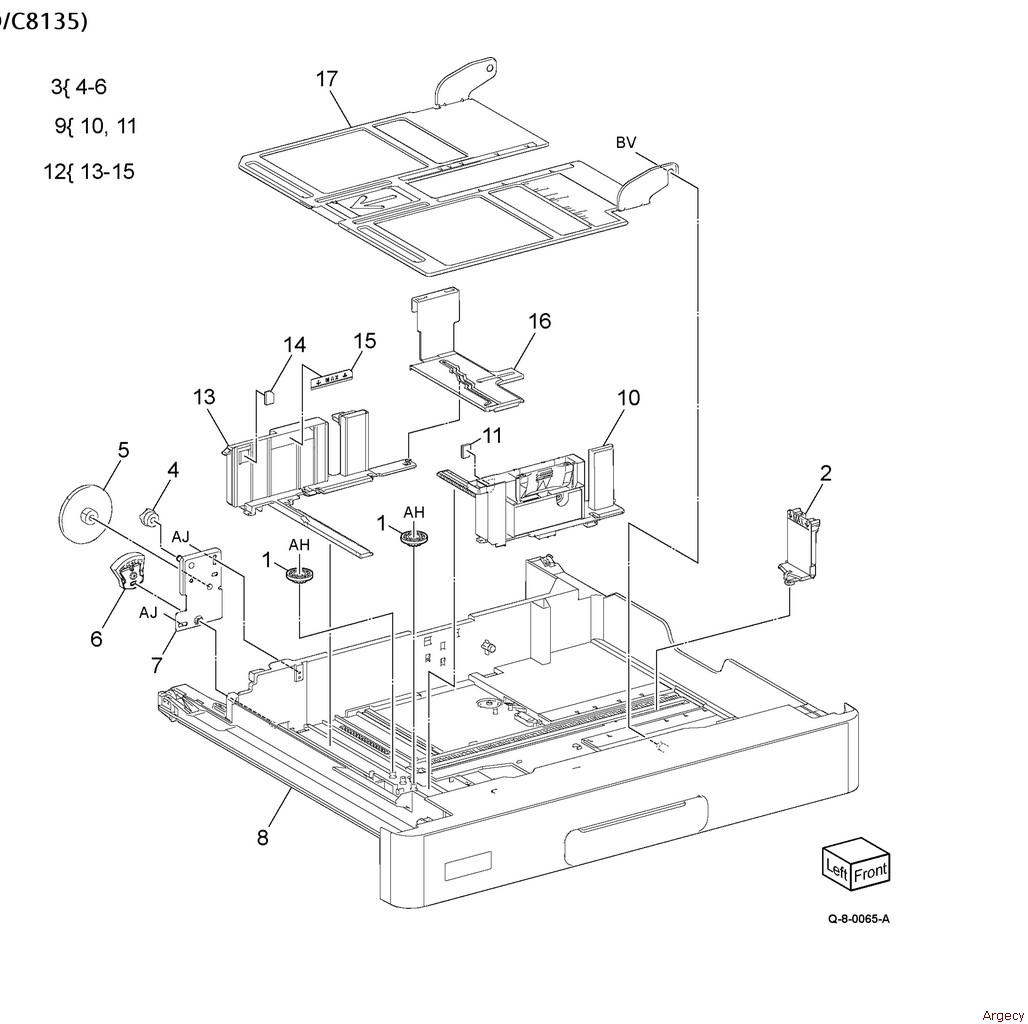

PL 70.25 2TM Tray 3/4 Assembly (C8130/ C8135) 1 807E13521 Pinion New 807E13521 (New) 3-4 Day Lead $85.68 807E13521 Pinion Fully refurbished with 90-day warranty 807E13521 3-4 Day Lead $22.00 2 607K02250 End guide kit 3 604K20542 Kit - Tray Gear Fully refurbished with 90-day warranty 604K20542 3-4 Day Lead $32.00 604K20542 Gear Kit New 604K20542 (New) 3-4 Day Lead $50.32 4 — Gear (13) (P/O PL 70.25 Item 3) 5 — Gear (13/60) (P/O PL 70.25 Item 3) 6 — Gear assembly (P/O PL 70.25 Item 3) 7 — Bracket (P/O PL 70.20 Item 1) 8 — Tray assembly (P/O PL 70.20 Item 1) 9 607K02261 Front side guide kit 10 — Front side guide (P/O PL 70.25 Item 9) 11 — Pad (P/O PL 70.25 Item 9) 12 607K02274 Rear Side Guide Kit Tray 1 New 607K02274 (New) 3-4 Day Lead $138.72 13 — Rear side guide (P/O PL 70.25 Item 12) 14 — Pad (P/O PL 70.25 Item 12) 15 — Label (MAX) (P/O PL 70.25 Item 12) 16 — Side actuator (P/O PL 70.20 Item 1) 17 — Lift plate (P/O PL 70.20 Item 1) Note: All parts are part of PL 70.20 Item 1.

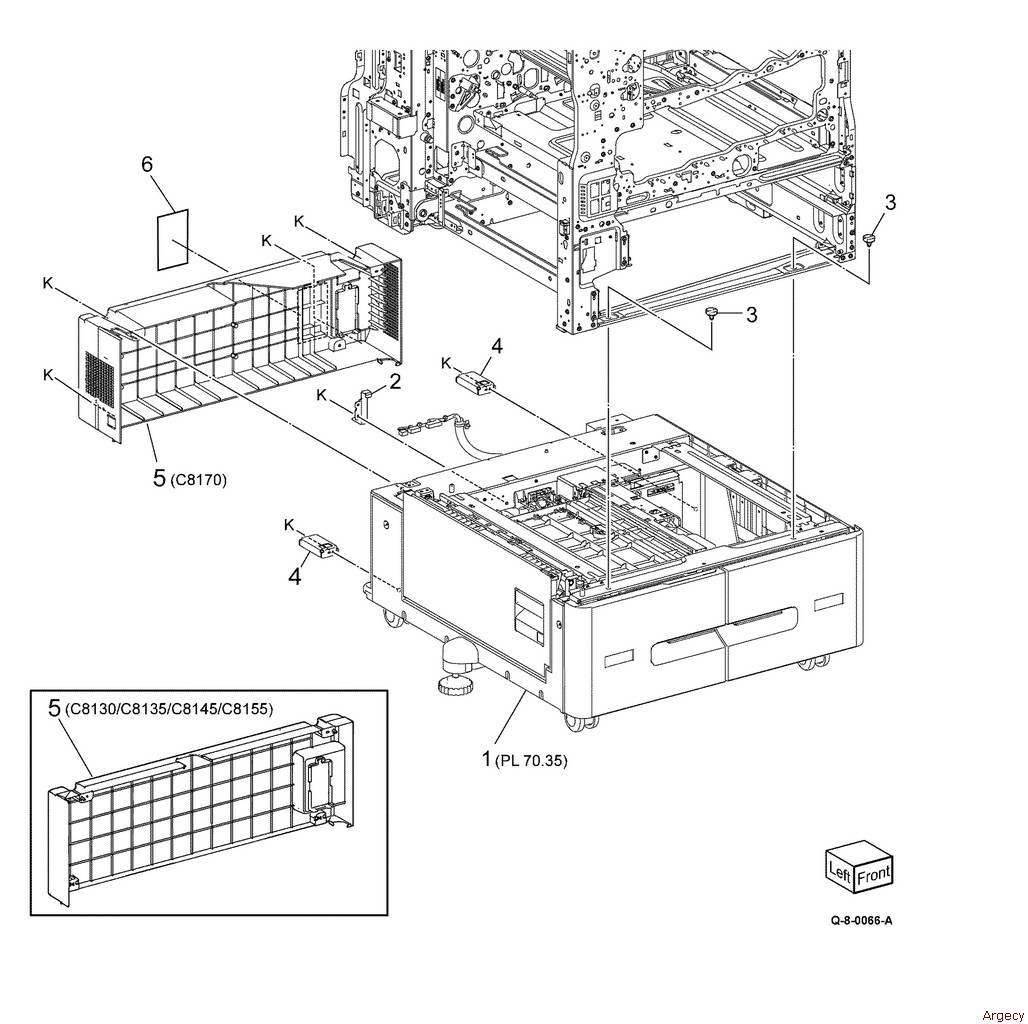

PL 70.30 TTM Components 1 — TTM module 2 — Joint bracket (Not Spared) 3 — Docking screw (Not Spared) 4 — Cover bracket (Not Spared) 5 822E41013 Rear cover New 822E41013 (New) 3-4 Day Lead $190.40 5 — Rear cover (C8170) 6 — Label (Caution) (C8170)

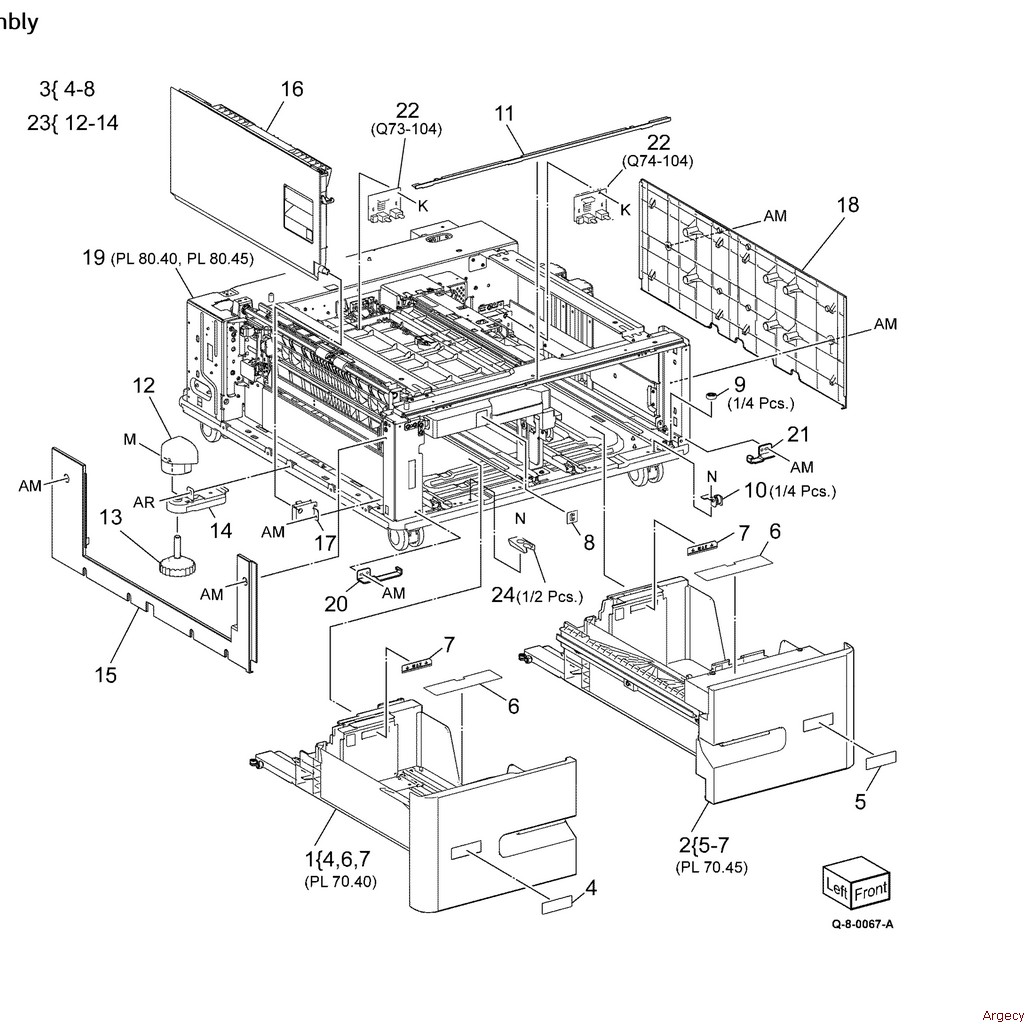

PL 70.35 TTM Covers and Tray 3/4 Assembly 1 607K10500 TTM Tray 4 assembly New 607K10500 (New) 3-4 Day Lead $539.92 607K10500 Tray 3 Assembly - Left - TTM Fully refurbished with 90-day warranty 607K10500 $238.00 2 607K10491 Tray 4 Assembly - Right - TTM New 607K10491 (New) $560.32 607K10491 Tray 4 Assembly - Right - TTM Fully refurbished with 90-day warranty 607K10491 $265.20 3 607K02290 TTM Label Kit New 607K02290 (New) 3-4 Day Lead $73.44 4 — Label (No. 3) (P/O PL 70.35 Item 1) 5 — Label (No. 4) (P/O PL 70.35 Item 2) 6 — Label (instruction) (P/O PL 70.35 Item 1 PL 70.35 Item 2) 7 — Label (MAX) (P/O PL 70.35 Item 1 PL 70.35 Item 2) 8 — Label (C) (Not Spared) 9 059E05060 Roll New 059E05060 (New) 3-4 Day Lead $76.16 059E05060 Roll Fully refurbished with 90-day warranty 059E05060 Contact for Details 10 — Roller bracket assembly (Not Spared) 11 — Top cover (Not Spared) 12 822E41860 Foot Cover New 822E41860 (New) 3-4 Day Lead $69.36 13 — Adjuster foot (P/O PL 70.35 Item 23) 14 869E29540 Foot Bracket New 869E29540 (New) 3-4 Day Lead $59.84 15 822E41053 Left cover New 822E41053 (New) 3-4 Day Lead $134.64 16 948K12040 Left Door Assembly - TTM New 948K12040 (New) $179.52 17 — Pivot bracket (Not Spared) 18 822E41071 Right cover New 822E41071 (New) 3-4 Day Lead $146.88 19 — TTM frame assembly (Not Spared) 20 803E25172 Left Stopper New 803E25172 (New) 3-4 Day Lead $76.16 21 803E25161 Right Stopper TTM New 803E25161 (New) 3-4 Day Lead $59.84 22 110K11820 Tray 3 4 Paper Size Sensor New 110K11820 (New) Contact for Details 110K11820 Tray 3 - Tray 4 Size Sensor Fully refurbished with 90-day warranty 110K11820 $39.44 22 110K17960 Tray 3 paper size sensor New 110K17960 (New) 3-4 Day Lead $102.00 23 — Adjuster foot assembly 24 803E01200 Stopper New 803E01200 (New) 3-4 Day Lead $59.84 803E01200 Tray Stopper - TTM Fully refurbished with 90-day warranty 803E01200 $34.00
PL 70.40 TTM Tray 3 Assembly 1 — Tray 3 chassis assembly 2 — Tray 3 chassis (P/O PL 70.40 Item 1) 3 059E13120 Upper Roller New 059E13120 (New) 3-4 Day Lead $59.84 4 807E55441 Pinion New 807E55441 (New) 3-4 Day Lead $59.84 5 019E71680 Pad New 019E71680 (New) 3-4 Day Lead $76.16 6 948K01846 Tray 3 Cover Assembly New 948K01846 (New) 3-4 Day Lead $104.72 7 822E45010 Lever Assembly-Stop New 822E45010 (New) 3-4 Day Lead $69.36
PL 70.45 TTM Tray 4 Assembly 1 — Tray 4 chassis assembly (P/O PL 70.35 Item 2) 2 — Tray 4 chassis (P/O PL 70.45 Item 1) 3 059E13120 Upper Roller New 059E13120 (New) 3-4 Day Lead $59.84 4 807E55441 Pinion New 807E55441 (New) 3-4 Day Lead $59.84 5 019E71680 Pad New 019E71680 (New) 3-4 Day Lead $76.16 6 948K01835 Tray 4 Cover Assembly New 948K01835 (New) 3-4 Day Lead $106.08 7 822E45010 Lever Assembly-Stop New 822E45010 (New) 3-4 Day Lead $69.36
PL 70.50 Bypass Tray Components 1 029E54810 Pivot New 029E54810 (New) 3-4 Day Lead $59.84 2 — Harness guide (Not Spared) 3 — Stopper link (Not Spared) 4 054K59296 MSI Takeaway Assembly New 054K59296 (New) 3-4 Day Lead $178.16 5 — Upper feedhead assembly (P/O PL 70.50 Item 17) 6 — Lower feedhead assembly (P/O PL 70.50 Item 17) 7 — Stopper plate (Not Spared) 8 — Knob (P/O PL 70.50 Item 17) 9 — Tray assembly (P/O PL 70.50 Item 16) 10 — Extension tray (P/O PL 70.50 Item 16) 11 — Chute front (P/O PL 70.50 Item 17) 12 — Top chute assembly (P/O PL 70.50 Item 17) 13 — Label (MAX) (P/O PL 70.50 Item 16) 14 — Label (instruction) (P/O PL 70.50 Item 16) 15 — Harness cover (P/O PL 70.50 Item 16) 16 607K10633 Bypass Tray Kit New 607K10633 (New) 3-4 Day Lead $281.52 17 607K15040 Bypass Feeder Kit New 607K15040 (New) 3-4 Day Lead $369.92
PL 70.55 Bypass Tray Assembly 1 930K01010 Paper Size Sensor Assembly Bypass Tray New 930K01010 (New) 3-4 Day Lead $76.16 2 — Link (P/O PL 70.55 Item 8) 3 — Spring (P/O PL 70.55 Item 8) 4 — Tray plate (P/O PL 70.55 Item 8) 5 930W00113 Sensor New 930W00113 (New) 3-4 Day Lead $66.64 930W00113 IIT Regi. Sensor Fully refurbished with 90-day warranty 930W00113 $37.00 6 — No paper sensor harness (P/O PL 70.55 Item 8) 7 — Bypass tray (P/O PL 70.55 Item 8) 8 050K78354 MSI Tray Assembly New 050K78354 (New) 3-4 Day Lead $133.28
PL 70.70 Envelope Tray 1 497K17880 Envelope Tray New 497K17880 (New) 3-4 Day Lead $648.72 2 — Envelope tray (P/O PL 70.70 Item 1) 3 — End guide (P/O PL 70.70 Item 1)

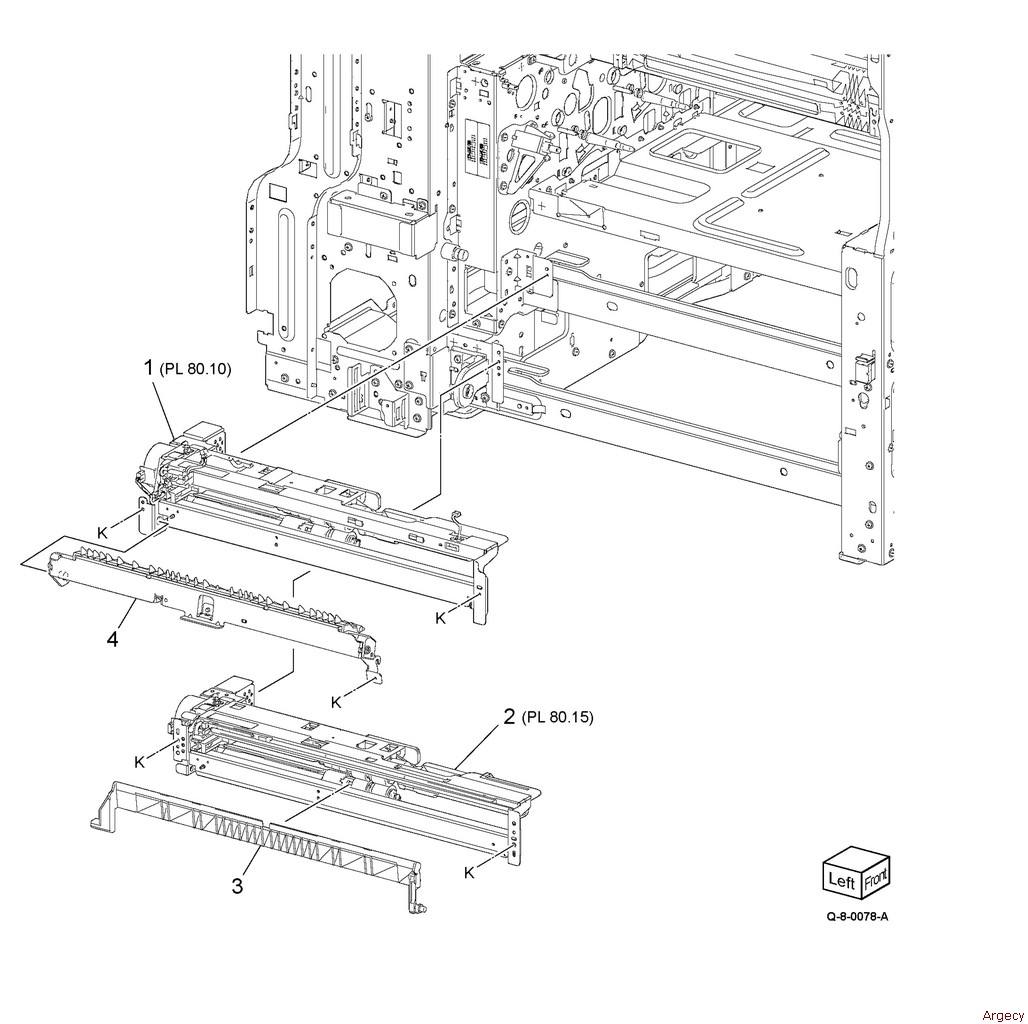

PL 80.05 Tray 1 2 Feedhead Assembly 1 859K14371 Tray 1 Feedhead Assembly New 859K14371 (New) 3-4 Day Lead $291.04 1 859K14321 Tray 1 Feedhead Assembly New 859K14321 (New) $297.84 2 859K14390 Tray 2 Feedhead Assembly New 859K14390 (New) $217.60 2 859K14340 Tray 2 Feedhead Assembly New 859K14340 (New) $221.68 3 054E36442 Feed Out Chute - Tray 1/2 New 054E36442 (New) $136.00 4 054K55444 Feedhead chute assembly New 054K55444 (New) 3-4 Day Lead $134.64
PL 80.10 Tray 1 Feedhead Assembly 1 — Feed roll (P/O PL 80.10 Item 11) (REP 80.3) 2 — Nudger roll (P/O PL 80.10 Item 11) (REP 80.3) 3 — Retard roll (P/O PL 80.10 Item 11) (REP 80.3) 4 930W00211 Sensor New 930W00211 (New) 3-4 Day Lead $43.52 930W00211 Sensor Fully refurbished with 90-day warranty 930W00211 3-4 Day Lead $36.00 5 054E49660 Chute New 054E49660 (New) 3-4 Day Lead $76.16 6 — Wire harness (P/O PL 80.10 Item 7) 7 — Feedhead frame assembly (P/O PL 80.05 Item 1) 8 930W00113 Sensor New 930W00113 (New) 3-4 Day Lead $66.64 930W00113 IIT Regi. Sensor Fully refurbished with 90-day warranty 930W00113 $37.00 9 127K52790 Lift Up Motor New 127K52790 (New) 3-4 Day Lead $100.64 127K52790 Lift Up Motor Fully refurbished with 90-day warranty 127K52790 3-4 Day Lead $59.84 10 — Gear (P/O PL 80.10 Item 9) 11 676K12691 Roller Kit - 3 Rollers New 676K12691 (New) $39.44 676K12691 Roller Kit - 3 Rollers New 676K12691 Compatible (New) $16.34

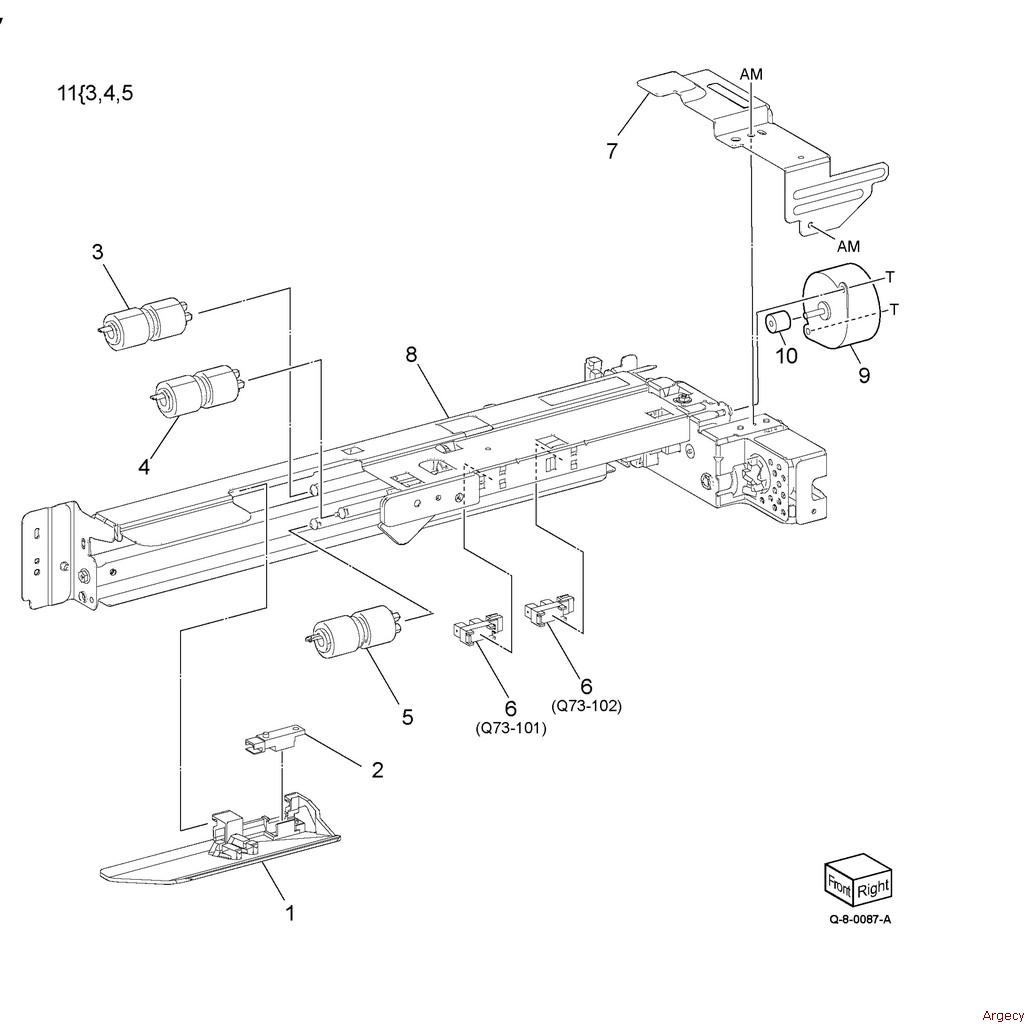

PL 80.15 Tray 2 Feedhead Assembly 1 — Feed roll (P/O PL 80.15 Item 10) (REP 80.3) 2 — Nudger roll (P/O PL 80.15 Item 10) (REP 80.3) 3 — Retard roll (P/O PL 80.15 Item 10) (REP 80.3) 4 930W00211 Sensor New 930W00211 (New) 3-4 Day Lead $43.52 930W00211 Sensor Fully refurbished with 90-day warranty 930W00211 3-4 Day Lead $36.00 5 — Chute (P/O PL 80.15 Item 6) 6 — Feedhead frame assembly (P/O PL 80.05 Item 2) 7 930W00113 Sensor New 930W00113 (New) 3-4 Day Lead $66.64 930W00113 IIT Regi. Sensor Fully refurbished with 90-day warranty 930W00113 $37.00 8 127K52790 Lift Up Motor New 127K52790 (New) 3-4 Day Lead $100.64 127K52790 Lift Up Motor Fully refurbished with 90-day warranty 127K52790 3-4 Day Lead $59.84 9 — Gear (P/O PL 80.15 Item 8) 10 676K12691 Roller Kit - 3 Rollers New 676K12691 (New) $39.44 676K12691 Roller Kit - 3 Rollers New 676K12691 Compatible (New) $16.34
PL 80.20 2TM Left Cover Feedhead Assembly (C8130/ C8135) 1 948K12050 Left door assembly New 948K12050 (New) 3-4 Day Lead $190.40 2 — Latch holder (Not Spared) 3 — Pivot bracket (Not Spared) 4 822E41860 Foot Cover New 822E41860 (New) 3-4 Day Lead $69.36 5 — Adjuster foot (P/O PL 80.20 Item 12) 6 869E29540 Foot Bracket New 869E29540 (New) 3-4 Day Lead $59.84 7 822E41053 Left cover New 822E41053 (New) 3-4 Day Lead $134.64 8 948K01811 2Tm Left Door Interlock Switch (S77-306) New 948K01811 (New) 3-4 Day Lead $88.40 9 822E27982 Connector cover New 822E27982 (New) 3-4 Day Lead $78.88 10 859K14410 2TM Feedhead 1/2 Assembly New 859K14410 (New) 3-4 Day Lead $221.68 11 054E36442 Feed Out Chute - Tray 1/2 New 054E36442 (New) $136.00 12 607K11480 Adjuster foot assembly New 607K11480 (New) 3-4 Day Lead $133.28 13 — L/H cover support

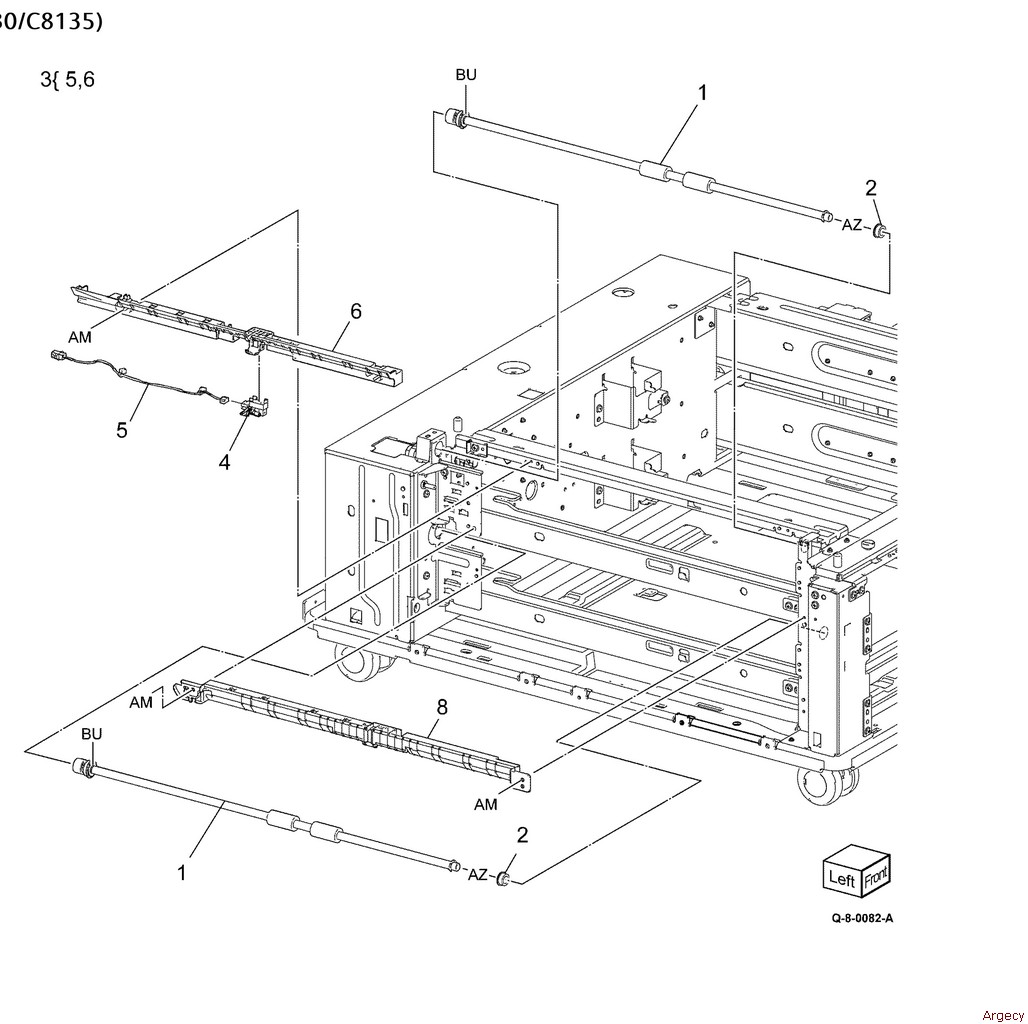

PL 80.25 2TM Takeaway Assembly (C8130/ C8135) 1 859K07790 Takeaway Roll Assembly (Upper) New 859K07790 (New) $142.80 2 413W88650 Bearing New 413W88650 (New) 3-4 Day Lead $29.00 3 054K55191 Tray 3 chute assembly New 054K55191 (New) 3-4 Day Lead $123.76 4 930W00123 IIT Regi. Sensor Fully refurbished with 90-day warranty 930W00123 $37.00 930W00123 Sensor New 930W00123 (New) 3-4 Day Lead $66.64 5 — Tray 3 feed out sensor harness (P/O PL 80.25 Item 3) 6 — Tray 3 chute (P/O PL 80.25 Item 3) 7 — Not used 8 054E59620 Tray Chute New 054E59620 (New) 3-4 Day Lead $76.16

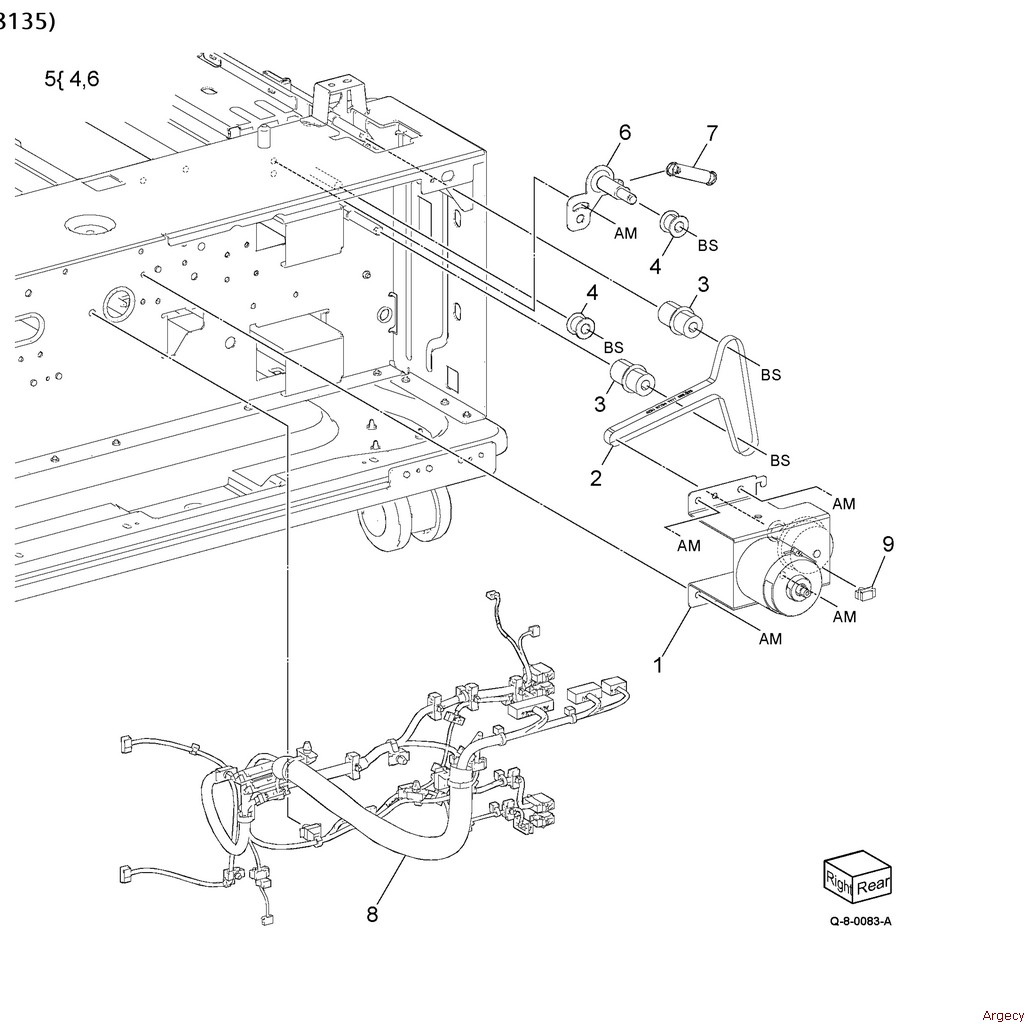

PL 80.30 2TM Drive Assembly (C8130/ C8135) 1 049K41791 Takeaway Motor Assembly New 049K41791 (New) $220.32 2 423W37754 Belt-Synchronous - Bare Back New 423W37754 (New) $72.08 3 020E51630 Pulley (24T) New 020E51630 (New) $70.20 4 059E03590 Roll New 059E03590 (New) 3-4 Day Lead $85.68 059E03590 Roll Fully refurbished with 90-day warranty 059E03590 Contact for Details 5 049K31890 Tension Bracket Assembly New 049K31890 (New) 3-4 Day Lead $69.36 6 — Tension bracket (P/O PL 80.30 Item 5) 7 899E15320 Spring 8 952K45580 Wire Harness Assembly New 952K45580 (New) 3-4 Day Lead $122.40 9 — Clamp (Not Spared)

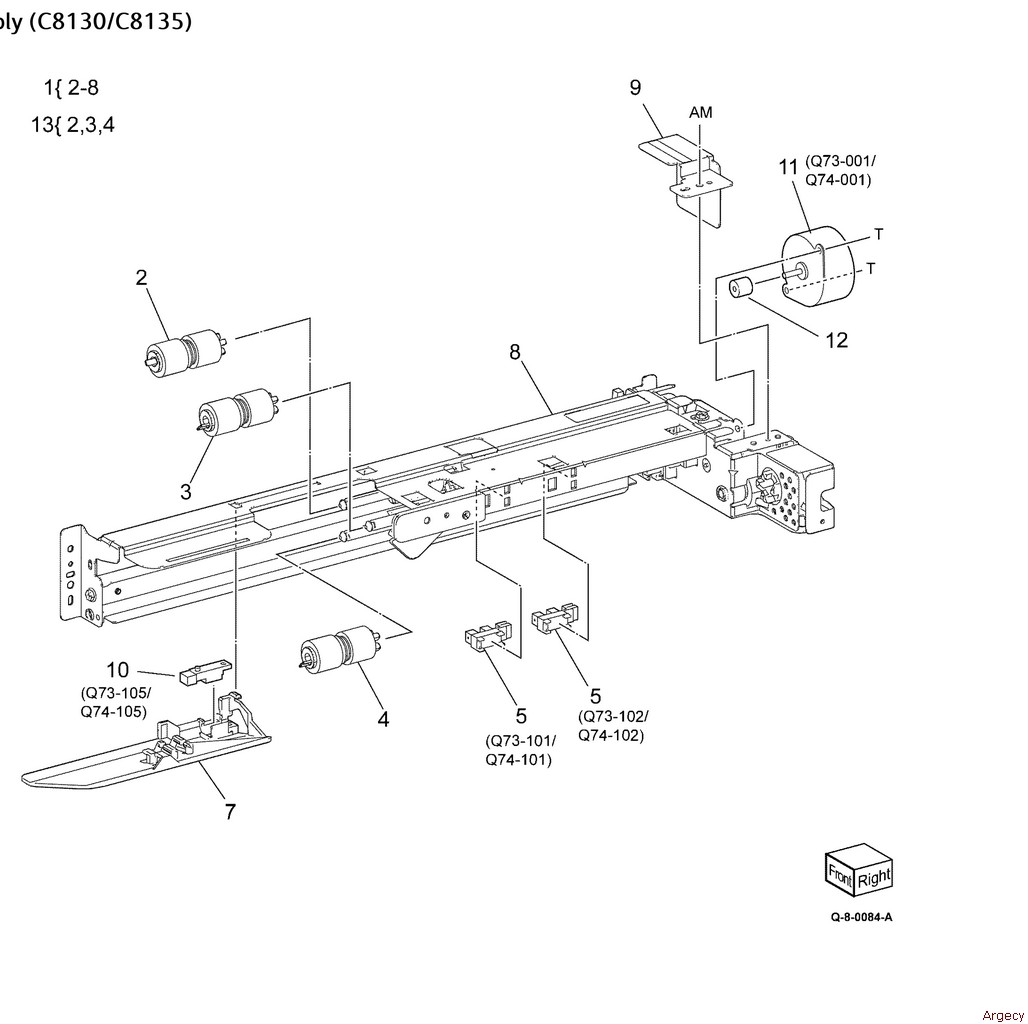

PL 80.35 2TM Tray 3 44 Feedhead Assembly (C8130/ C8135) 1 859K14410 2TM Feedhead 1/2 Assembly New 859K14410 (New) 3-4 Day Lead $221.68 2 — Feed roll (P/O PL 80.35 Item 13) (REP 80.12) 3 — Nudger roll (P/O PL 80.35 Item 13) (REP 80.12) 4 — Retard roll (P/O PL 80.35 Item 13) (REP 80.12) 5 930W00113 Sensor New 930W00113 (New) 3-4 Day Lead $66.64 930W00113 IIT Regi. Sensor Fully refurbished with 90-day warranty 930W00113 $37.00 6 — Not used 7 — Chute 8 — Feedhead frame (P/O PL 80.35 Item 1) 9 — Bracket (Not Spared) 10 930W00211 Sensor New 930W00211 (New) 3-4 Day Lead $43.52 930W00211 Sensor Fully refurbished with 90-day warranty 930W00211 3-4 Day Lead $36.00 11 127K52790 Lift Up Motor New 127K52790 (New) 3-4 Day Lead $100.64 127K52790 Lift Up Motor Fully refurbished with 90-day warranty 127K52790 3-4 Day Lead $59.84 12 — Gear (P/O PL 80.35 Item 11) 13 676K12691 Roller Kit - 3 Rollers New 676K12691 (New) $39.44 676K12691 Roller Kit - 3 Rollers New 676K12691 Compatible (New) $16.34
PL 80.40 TTM Transport Assembly / Tray 3 4 Feedhead Assembly 1 948K01811 2Tm Left Door Interlock Switch (S77-306) New 948K01811 (New) 3-4 Day Lead $88.40 2 — Connector cover (Not Spared) 3 859K14420 Tray 3 Feedhead Assembly - TTM New 859K14420 (New) $251.60 4 054E33803 Feed out chute New 054E33803 (New) 3-4 Day Lead $85.68 054E33803 Chute Feed Out Fully refurbished with 90-day warranty 054E33803 $46.24 5 859K14440 Transport Assembly - TTM New 859K14440 (New) 3-4 Day Lead $578.00 6 — TTM transport assembly (P/O PL 80.40 Item 5) 7 859K17810 Tray 4 Feedhead Assembly - TTM Fully refurbished with 90-day warranty 859K17810 $129.20 859K17810 Tray 4 Feedhead Assembly TTM New 859K17810 (New) 3-4 Day Lead $329.12 8 — Takeaway chute assembly 9 054E39560 Lower Chute New 054E39560 (New) 3-4 Day Lead $44.88 054E39560 Lower Chute Fully refurbished with 90-day warranty 054E39560 Contact for Details 10 859K07790 Takeaway Roll Assembly (Upper) New 859K07790 (New) $142.80 11 — Transport stopper (Not Spared) 12 413W88650 Bearing New 413W88650 (New) 3-4 Day Lead $29.00 13 — Not used 14 — Actuator (P/O PL 80.40 Item 8) 15 — Spring (P/O PL 80.40 Item 8) 16 — Feed out sensor 3 (Q73-103) (P/O PL 80.40 Item 8) 17 — Harness assembly (P/O PL 80.40 Item 8) 18 — Takeaway chute (P/O PL 80.40 Item 8)
PL 80.45 TTM Drive Assembly 1 101K69981 GFI Chassis Assembly TTM New 101K69981 (New) 3-4 Day Lead $168.64 2 105E21602 Sub LVSP HSPD New 105E21602 (New) 3-4 Day Lead $312.80 3 049K31911 Takeaway Motor Bracket Assembly TTM New 049K31911 (New) 3-4 Day Lead $176.80 4 005E37900 Collar New 005E37900 (New) 3-4 Day Lead $59.84 5 020E51640 Pulley (48T) New 020E51640 (New) $70.20 6 — Belt 7 059E03590 Roll New 059E03590 (New) 3-4 Day Lead $85.68 059E03590 Roll Fully refurbished with 90-day warranty 059E03590 Contact for Details 8 020E51630 Pulley (24T) New 020E51630 (New) $70.20 9 — Tension bracket assembly (Not Spared) 10 899E15320 Spring 11 049K35270 Transport Bracket Assembly TTM New 049K35270 (New) 3-4 Day Lead $69.36 12 952K31631 Drawer Harness TTM New 952K31631 (New) 3-4 Day Lead $85.68 13 — Shoulder screw (Not Spared) 14 — Spring (Not Spared) 15 — Connector bracket (Not Spared) 16 952K45380 Wire Harness TTM New 952K45380 (New) 3-4 Day Lead $136.00
PL 80.50 TTM Tray 3 Feedhead Assembly 1 054E23461 Chute (P/O PL 9.3 Item 1) New 054E23461 (New) 3-4 Day Lead $96.56 054E23461 Chute (P/O PL 9.3 Item 1) Fully refurbished with 90-day warranty 054E23461 Contact for Details 2 930W00211 Sensor New 930W00211 (New) 3-4 Day Lead $43.52 930W00211 Sensor Fully refurbished with 90-day warranty 930W00211 3-4 Day Lead $36.00 3 — Feed roll (P/O PL 80.50 Item 11) (REP 80.16) 4 — Nudger roll (P/O PL 80.50 Item 11) (REP 80.16) 5 — Retard roll (P/O PL 80.50 Item 11) (REP 80.16) 6 930W00113 Sensor New 930W00113 (New) 3-4 Day Lead $66.64 930W00113 IIT Regi. Sensor Fully refurbished with 90-day warranty 930W00113 $37.00 7 — Feedhead cover (P/O PL 80.40 Item 3) 8 — Feedhead frame (P/O PL 80.40 Item 3) 9 — Tray 3 feed/lift motor (MOT73-001) (P/O PL 80.40 Item 3) 10 — Gear (P/O PL 80.50 Item 9) 11 676K12691 Roller Kit - 3 Rollers New 676K12691 (New) $39.44 676K12691 Roller Kit - 3 Rollers New 676K12691 Compatible (New) $16.34
PL 80.55 TTM Tray 4 Feedhead Assembly 1 054E23461 Chute (P/O PL 9.3 Item 1) New 054E23461 (New) 3-4 Day Lead $96.56 054E23461 Chute (P/O PL 9.3 Item 1) Fully refurbished with 90-day warranty 054E23461 Contact for Details 2 930W00211 Sensor New 930W00211 (New) 3-4 Day Lead $43.52 930W00211 Sensor Fully refurbished with 90-day warranty 930W00211 3-4 Day Lead $36.00 3 — Feed roll (P/O PL 80.55 Item 11) (REP 80.16) 4 — Nudger roll (P/O PL 80.55 Item 11) (REP 80.16) 5 — Retard roll (P/O PL 80.55 Item 11) (REP 80.16) 6 930W00113 Sensor New 930W00113 (New) 3-4 Day Lead $66.64 930W00113 IIT Regi. Sensor Fully refurbished with 90-day warranty 930W00113 $37.00 7 — Feedhead cover (P/O PL 80.40 Item 7) 8 — Feedhead frame (P/O PL 80.40 Item 7) 9 — Tray 4 feed/lift motor (MOT74-001) (P/O PL 80.40 Item 7) 10 — Gear (P/O PL 80.55 Item 9) 11 676K12691 Roller Kit - 3 Rollers New 676K12691 (New) $39.44 676K12691 Roller Kit - 3 Rollers New 676K12691 Compatible (New) $16.34
PL 80.60 TTM Transport Assembly 1 607K02280 Upper Chute Transport Kit New 607K02280 (New) 3-4 Day Lead $115.60 2 — Upper chute transport (P/O PL 80.60 Item 1) 3 930W00212 Tray 4 Feed Out Sensor New 930W00212 (New) 3-4 Day Lead $43.52 930W00212 Tray 4 Feed Out Sensor Fully refurbished with 90-day warranty 930W00212 3-4 Day Lead $36.00 4 — Label (Transport) (P/O PL 80.60 Item 1) 5 — Feed out sensor cover (Not Spared) 6 — Feed out sensor harness (Not Spared) 7 859K02971 Transport Roll Assembly TTM New 859K02971 (New) 3-4 Day Lead $74.80 8 859K07801 Transport Roll New 859K07801 (New) May be up to 3-days lead time $85.05 9 413W88650 Bearing New 413W88650 (New) 3-4 Day Lead $29.00 10 — Pulley (Not Spared) 11 — Belt (Not Spared) 12 — Collar (Not Spared) 13 — Lower chute transport (Not Spared) 14 — Rear jam clearance handle (Not Spared) 15 — Washer (Not Spared) 16 — Front jam clearance handle (Not Spared)
PL 80.65 Left Cover Components 1 859K24470 Left Hand Cover Assembly New 859K24470 (New) 3-4 Day Lead $680.00 1 859K24460 Left Hand Cover Assembly New 859K24460 (New) 3-4 Day Lead $564.40 2 008R08103 Transfer Roll Second Bias - Estimated Yield: 200 - 000 New 008R08103 (New- Open box) $72.91 008R08103 Transfer Roll Second Bias - Estimated Yield: 200 - 000 New 008R08103 (New) $121.04 3 — Label (P/O PL 80.65 Item 17) 4 869E24730 Rear left support New 869E24730 (New) 3-4 Day Lead $96.56 5 — Support bracket (Not Spared) 6 — Shaft (Not Spared) 7 011K04800 Front Lever Assembly New 011K04800 (New) $81.60 8 011K04810 Rear Lever Assembly New 011K04810 (New) $82.96 9 110K18150 Interlock Switch Assembly New 110K18150 (New) $130.56 10 — Switch bracket (P/O PL 80.65 Item 9) 11 — Switch plate (P/O PL 80.65 Item 9) 12 — Left cover interlock switch (P/O PL 80.65 Item 9) 13 — Caution label kit (Not Spared) 14 — Label (Finger caution) (P/O PL 80.65 Item 1) 15 — Label (Caution) (P/O PL 80.65 Item 1) 16 — Rear bracket (Not Spared) 17 — 2nd BTR assembly

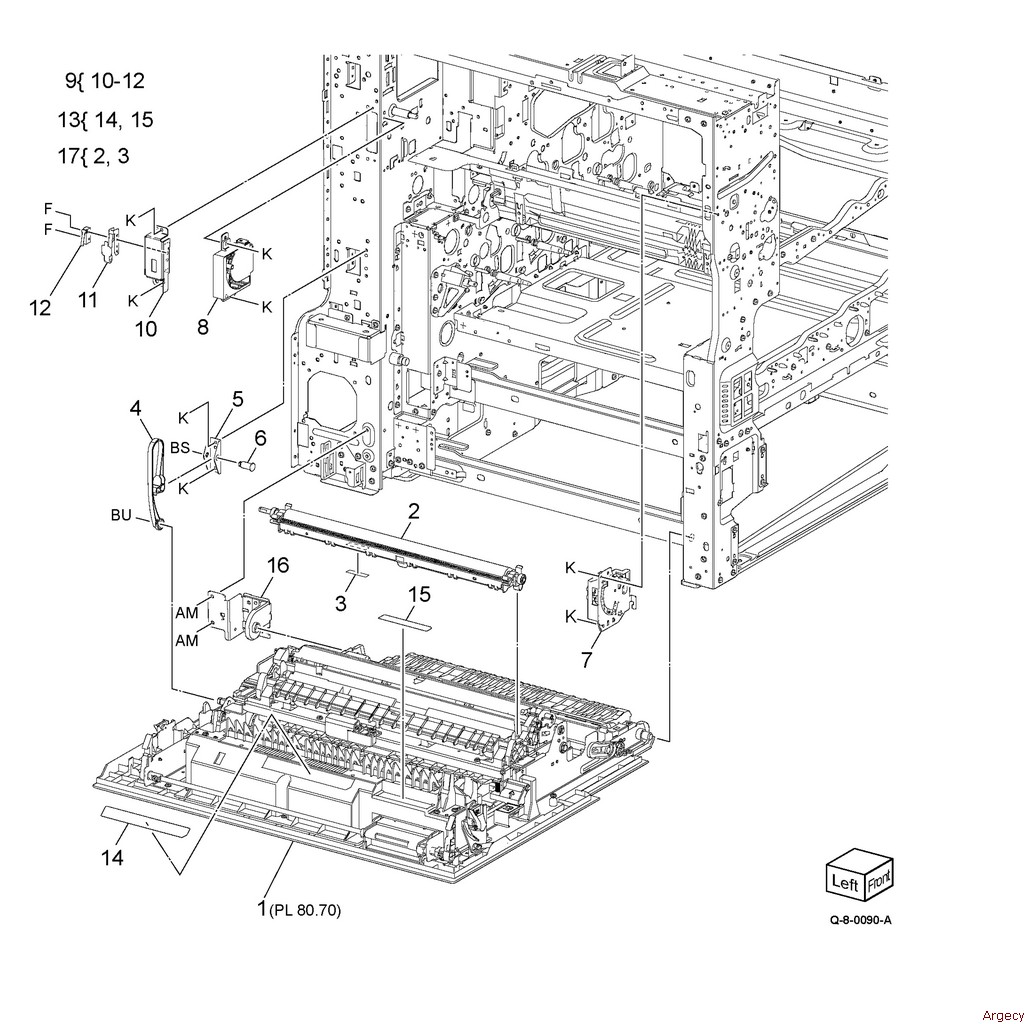

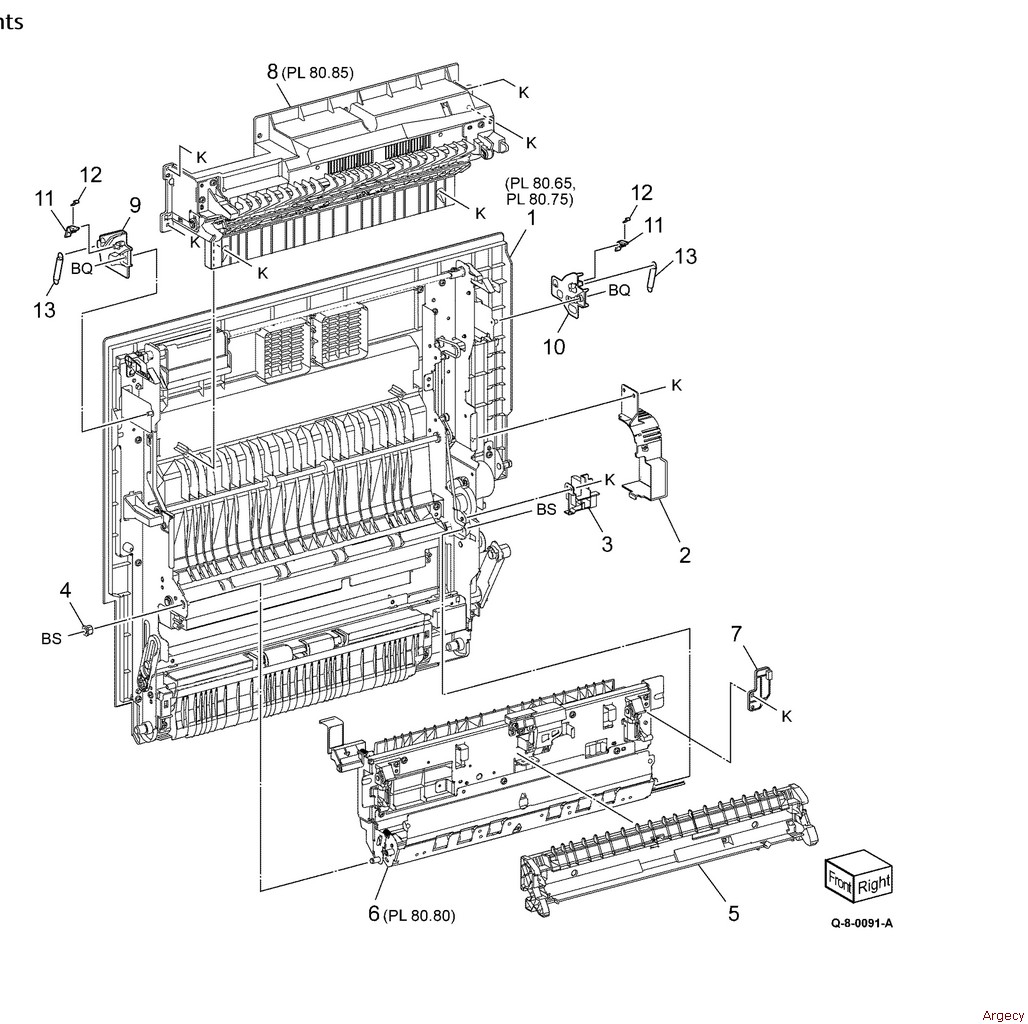

PL 80.70 Left Cover Transport Components 1 — Left cover assembly (REF: PL 80.75) 2 — Duplex motor cover 3 — Harness guide 4 — Bearing 5 948K01623 2nd BTR Housing Assembly New 948K01623 (New) 3-4 Day Lead $95.20 6 — Duplex inner chute assembly (REF: PL 80.80) (REP 80.24) 7 — Link (P/O PL 80.70 Item 6) 8 054K56213 Duplex Chute Assembly New 054K56213 (New) 3-4 Day Lead $138.72 8 054K57964 Duplex Chute Assembly New 054K57964 (New) 3-4 Day Lead $168.64 9 — Front toggle guide 10 — Rear toggle guide 11 — Toggle gate 12 — Spring 13 — Toggle spring Note: All parts are part of PL 80.65 Item 1.
PL 80.75 Left Cover Transport Assembly 1 054K56131 Lower Chute Assembly New 054K56131 (New) 3-4 Day Lead $106.08 2 011E28973 Transport Assembly Left Cover Handle New 011E28973 (New) 3-4 Day Lead $37.00 3 — Spring 4 011E28993 Front Latch New 011E28993 (New) 3-4 Day Lead $59.84 5 011E29000 Rear Latch New 011E29000 (New) 3-4 Day Lead $59.84 6 — Shaft 7 — Pulley 8 — Gear (P/O PL 80.75 Item 27) 9 — Gear/pulley 10 — Duplex motor (MOT77-071) (P/O PL 80.75 Item 27) 11 — Belt 12 — Belt 13 869E18601 Front Support New 869E18601 (New) 3-4 Day Lead $59.84 14 — Front toggle guide assembly 15 — Spring 16 — Rear toggle guide assembly 17 — Close stopper 18 — Link assembly 19 — Connector cover 20 — Harness assembly 21 — Left cover assembly 22 — Mid duplex roll assembly 23 — Lower duplex roll assembly 24 — Bracket (P/O PL 80.75 Item 27) 25 — Belt (P/O PL 80.75 Item 27) 26 — Pad (P/O PL 80.75 Item 27) 27 049K45260 Duplex Drive Assembly New 049K45260 (New) 3-4 Day Lead $134.64 Note: All components are part of PL 80.65 Item 1

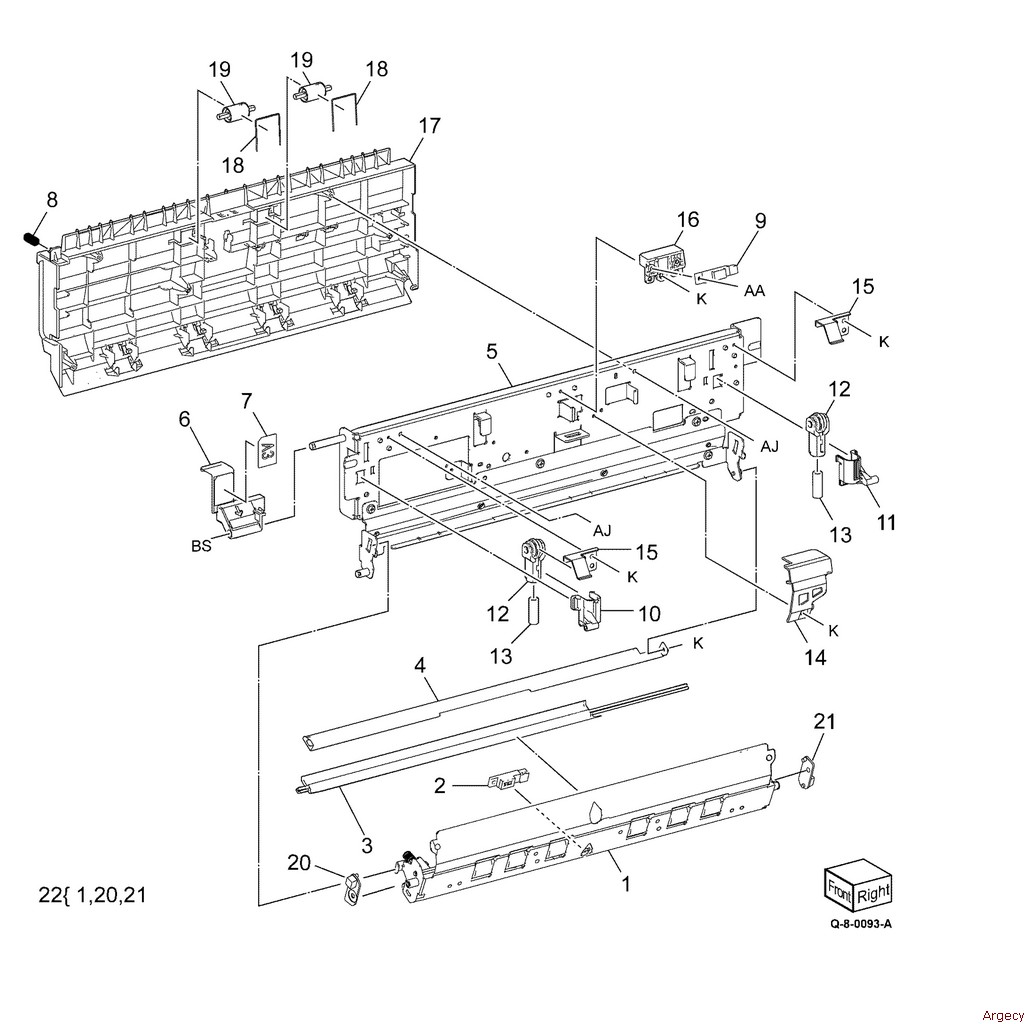

PL 80.80 Duplex Inner Chute Assembly 1 — Registration chute assembly (P/O PL 80.80 Item 22) 2 930W00211 Sensor New 930W00211 (New) 3-4 Day Lead $43.52 930W00211 Sensor Fully refurbished with 90-day warranty 930W00211 3-4 Day Lead $36.00 3 — Registration heater assembly 4 — Registration heater bracket 5 — Registration tie plate 6 — Handle (REP 80.27) 7 — Label (A3) 8 — Spring 9 130E87410 Sensor New 130E87410 (New) 3-4 Day Lead $81.60 10 — Front spring housing 11 — Rear spring housing 12 — 2nd roller assembly 13 — Spring 14 — Harness cover 15 — BTR bracket 16 — POB jam sensor holder 17 — Duplex inner chute 18 899E15700 Pinch spring 19 607K20560 Pinch Roller New 607K20560 (New) 3-4 Day Lead $48.96 20 — Registration front pinch plate (P/O PL 80.80 Item 22) 21 — Registration rear pinch plate (P/O PL 80.80 Item 22) 22 607K14930 Registration Chute Assembly New 607K14930 (New) 3-4 Day Lead $123.76 Note: All components are part of PL 80.65 Item 1
PL 80.85 Duplex Chute Assembly 1 — Pulley 2 — Front holder assembly 3 — Rear holder assembly 4 — Duplex chute housing assembly 5 — Upper duplex roll assembly 6 — Bearing 7 — Fan bracket (C8170) 8 127K74180 Fan Assembly STD 60 New 127K74180 (New) 3-4 Day Lead $102.00 9 — Screw (C8170) 10 — Wire harness (C8170) Note: All components are part of PL 80.65 Item 1
PL 80.90 Registration Transport Assembly 1 859K15190 Registration Transport Assembly New 859K15190 (New) $146.88 859K15190 Registration Transport Assy Fully refurbished with 90-day warranty 859K15190 3-4 Day Lead $66.64 2 — Registration transport (P/O PL 80.90 Item 1) 3 — Chute holder (P/O PL 80.90 Item 1) 4 — Not used 5 054K55492 Chute New 054K55492 (New) $104.72 6 032E48421 Chute Guide New 032E48421 (New) 3-4 Day Lead $59.84 7 859K02290 Takeaway Roll 2 Assembly New 859K02290 (New) $73.44 7 859K07200 Takeaway roll 2 assembly New 859K07200 (New) 3-4 Day Lead $89.76 8 807E52000 Drive Gear New 807E52000 (New) $89.76 9 013E46820 Bearing New 013E46820 (New) 3-4 Day Lead $76.16 10 — Connector cover (Not Spared) 11 054K56173 Upper Chute Assembly New 054K56173 (New) $76.16
PL 80.95 Registration Drive Assembly 1 007K23700 Registration Drive Assembly New 007K23700 (New) 3-4 Day Lead $231.20 007K23700 Registration Drive Assembly Fully refurbished with 90-day warranty 007K23700 3-4 Day Lead $121.04 2 — Motor bracket (P/O PL 80.95 Item 1) 3 — Block (P/O PL 80.95 Item 1) 4 — Registration motor (MOT77-055) (P/O PL 80.95 Item 1) 5 — Takeaway motor 1 (MOT77-050) (P/O PL 80.95 Item 1) 6 — Gear (39/22) (P/O PL 80.95 Item 1) 7 — Gear (30/18) (P/O PL 80.95 Item 1) 8 — Shaft (P/O PL 80.95 Item 1) 9 — Bearing (P/O PL 80.95 Item 1) 10 — Bearing (P/O PL 80.95 Item 1) 11 — Gear (37) (P/O PL 80.95 Item 1) 12 — Gear (25) (P/O PL 80.95 Item 1) 13 — Bracket (P/O PL 80.95 Item 1) 14 — Screw (P/O PL 80.95 Item 1) 15 007K22022 Takeaway Drive Assembly New 007K22022 (New) $227.12 16 — Takeaway motor 2 bracket (P/O PL 80.95 Item 15) 17 — Takeaway motor 2 (MOT77-051) (P/O PL 80.95 Item 15) 18 — Gear (18) (P/O PL 80.95 Item 15) 19 — Gear (Z39/22) (P/O PL 80.95 Item 15) 20 — Screw (P/O PL 80.95 Item 15) 21 — Drive bracket (Not Spared)
PL 80.115 Bypass Tray Takeaway Assembly 1 930W00211 Sensor New 930W00211 (New) 3-4 Day Lead $43.52 930W00211 Sensor Fully refurbished with 90-day warranty 930W00211 3-4 Day Lead $36.00 2 — Feed out sensor holder 3 — Feed out sensor harness 4 — Spring 5 — Spring 6 — Pinch chute 7 — Tie plate 8 — Miler plate Note: All parts are part of PL 70.50 Item 4.

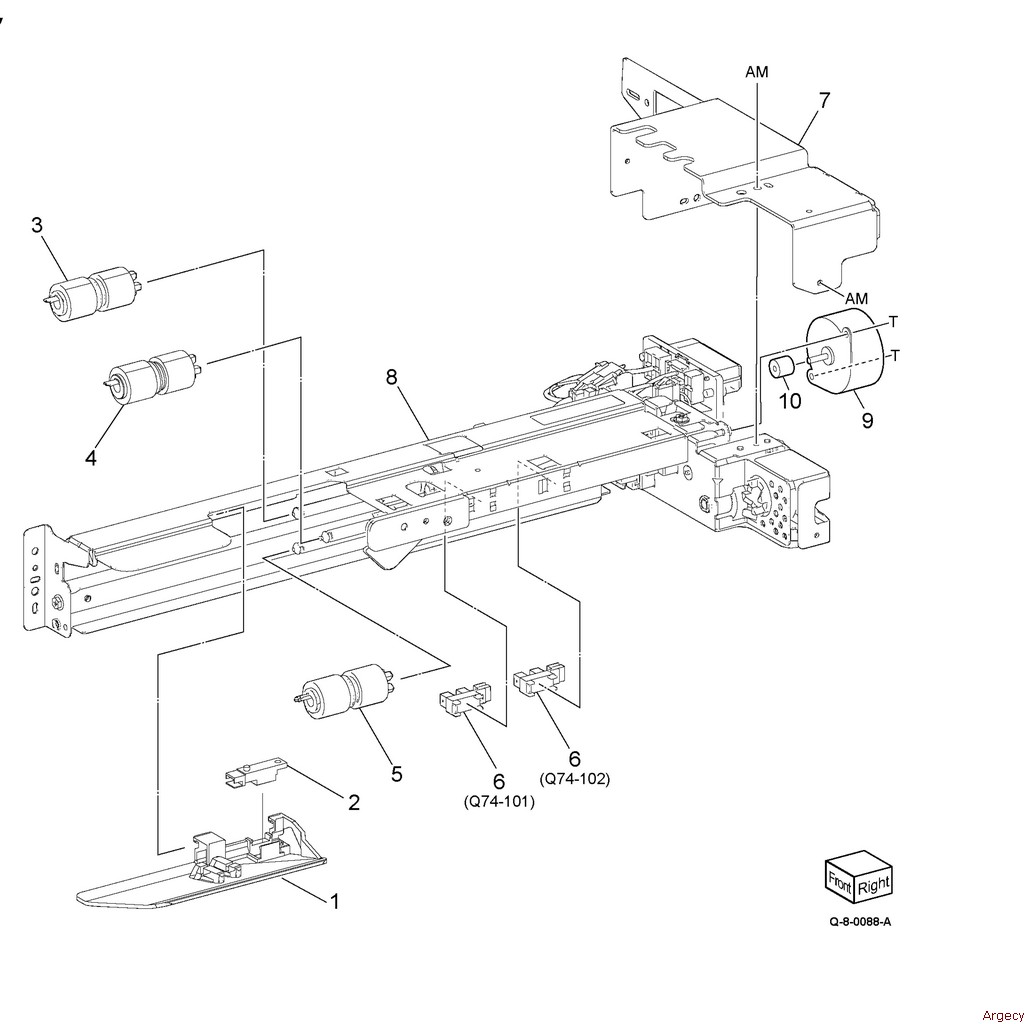

PL 80.120 Bypass Tray Feedhead Assembly 1 127K52790 Lift Up Motor New 127K52790 (New) 3-4 Day Lead $100.64 127K52790 Lift Up Motor Fully refurbished with 90-day warranty 127K52790 3-4 Day Lead $59.84 2 930W00113 Sensor New 930W00113 (New) 3-4 Day Lead $66.64 930W00113 IIT Regi. Sensor Fully refurbished with 90-day warranty 930W00113 $37.00 3 952K30302 Harness Assembly Bypass Tray New 952K30302 (New) 3-4 Day Lead $76.16 4 — Upper feedhead assembly (P/O PL 80.120 Item 10) 5 — Lower frame (P/O PL 80.120 Item 10) 6 676K61351 Feed Rollers - Tray 5 (MPT) New 676K61351 (New) $81.60 7 — Feed roll (P/O PL 80.120 Item 6) 8 — Nudger roll (P/O PL 80.120 Item 6) 9 — Retard roll (P/O PL 80.120 Item 6) 10 607K15040 Bypass Feeder Kit New 607K15040 (New) 3-4 Day Lead $369.92
PL 90.05 Developer Unit 1 948K01510 Conductor housing assembly New 948K01510 (New) 3-4 Day Lead $102.00 2 948K01530 Developer conductor housing New 948K01530 (New) 3-4 Day Lead $133.28 3 010E96730 Plunger New 010E96730 (New) 3-4 Day Lead $89.76 4 948K13034 Developer Housing Kit New 948K13034 (New- Open box) $538.66 948K13034 Developer Housing Kit New 948K13034 (New Pull) $592.52 948K13034 Developer Housing Kit New 948K13034 (New) 3-4 Day Lead $597.04 4 948K13024 Developer Housing Assembly New 948K13024 (New) $292.40 5 — Developer assembly (P/O PL 90.05 Item 4) (See NOTE) (REP 90.3) 6 815K16880 Developer Plate Assembly Yellow New 815K16880 (New) 3-4 Day Lead $76.16 6 815K16910 Developer Plate Assembly Black New 815K16910 (New) 3-4 Day Lead $73.44 6 815K16900 Developer Plate Assembly Cyan New 815K16900 (New) 3-4 Day Lead $76.16 6 815K16890 Developer Plate Assembly Magenta New 815K16890 (New) 3-4 Day Lead $76.16 7 948K11800 Gear Cover New 948K11800 (New) 3-4 Day Lead $69.36 8 676K51561 Developer - Yellow New 676K51561 (New) $73.44 9 676K51551 Developer - Magenta New 676K51551 (New) $73.44 10 676K51541 Developer - Cyan New 676K51541 (New) $73.44 11 676K51531 Developer - Black New 676K51531 (New) $59.84 12 — Harness guide (Not Spared) 13 — Wire harness (P/O PL 90.05 Item 4) 14 930K00330 ATC Sensor New 930K00330 (New) 3-4 Day Lead $81.60 Note: When ordering item 4 also order relevant Developer material items 8,9,10 or 11.

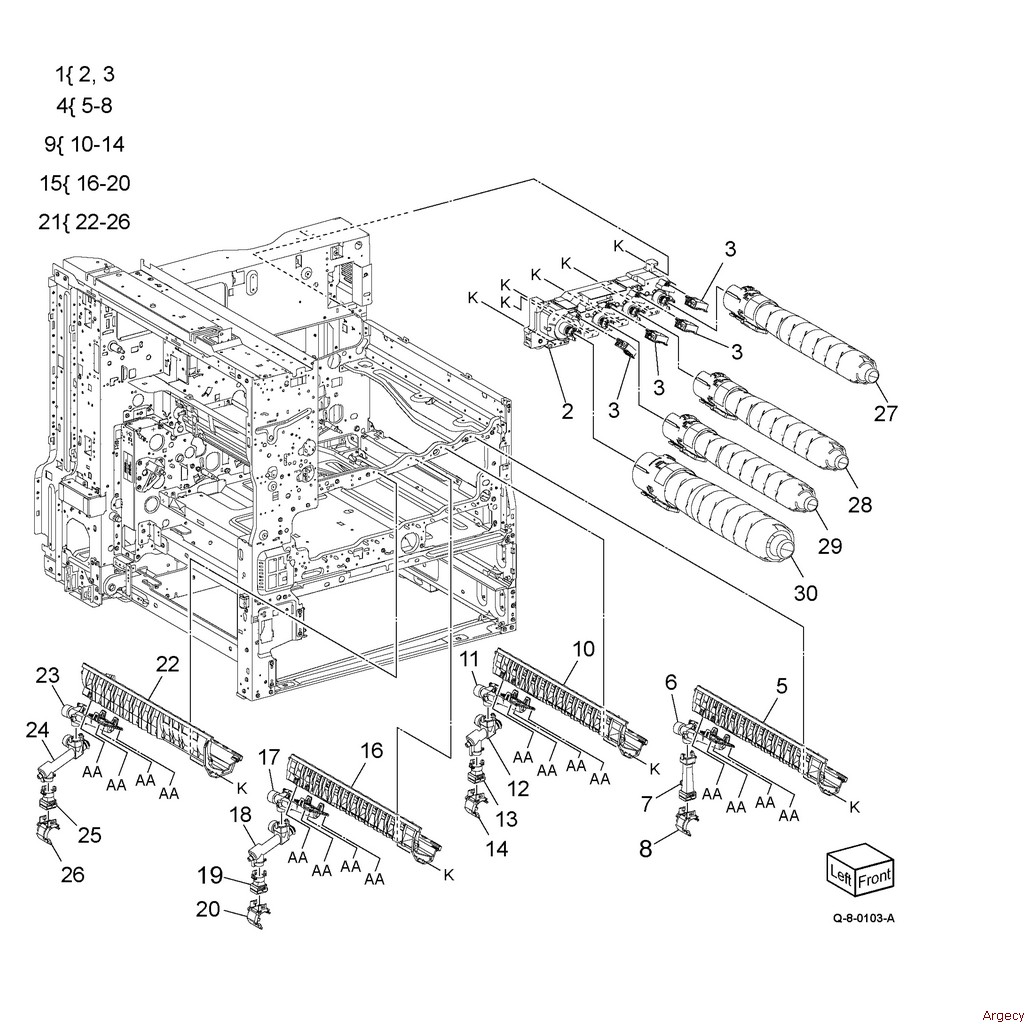

PL 90.10 Toner Dispense 1 007K21500 Toner Dispense Motor Assembly New 007K21500 (New) 3-4 Day Lead $216.24 2 — Drive assembly (P/O PL 90.10 Item 1) 3 019K16490 Toner CRUM connector assembly New 019K16490 (New) 3-4 Day Lead $47.60 4 094K94141 Dispenser Assembly - Yellow New 094K94141 (New) $159.12 5 — Toner guide assembly (P/O PL 90.10 Item 4) 6 — Main pipe (Y) (P/O PL 90.10 Item 4) 7 — Lower pipe (Y) (P/O PL 90.10 Item 4) 8 — Shutter (Y) (P/O PL 90.10 Item 4) 9 094K94151 Dispenser Assembly - Magenta New 094K94151 (New) $167.28 10 — Toner guide assembly (M) (P/O PL 90.10 Item 9) 11 — Main pipe (M) (P/O PL 90.10 Item 9) 12 — Sub pipe (M) (P/O PL 90.10 Item 9) 13 — Lower pipe (M) (P/O PL 90.10 Item 9) 14 — Shutter (M) (P/O PL 90.10 Item 9) 15 094K94161 Dispenser Assembly - Cyan New 094K94161 (New) $167.28 16 — Toner guide assembly (C) (P/O PL 90.10 Item 15) 17 — Main pipe (C) (P/O PL 90.10 Item 15) 18 — Sub pipe (C) (P/O PL 90.10 Item 15) 19 — Lower pipe (C) (P/O PL 90.10 Item 15) 20 — Shutter (C) (P/O PL 90.10 Item 15) 21 094K94171 Dispenser Assembly - Black New 094K94171 (New) $167.28 22 — Toner guide assembly (K) (P/O PL 90.10 Item 21) 23 — Main pipe (K) (P/O PL 90.10 Item 21) 24 — Sub pipe (K) (P/O PL 90.10 Item 21) 25 — Lower pipe (K) (P/O PL 90.10 Item 21) 26 — Shutter (K) (P/O PL 90.10 Item 21) 27 — Toner cartridge (Y) (REF: PL 26.10 Item 1) 28 — Toner cartridge (M) (REF: PL 26.10 Item 2) 29 — Toner cartridge (C) (REF: PL 26.10 Item 3) 30 — Toner cartridge (K) (REF: PL 26.10 Item 4)

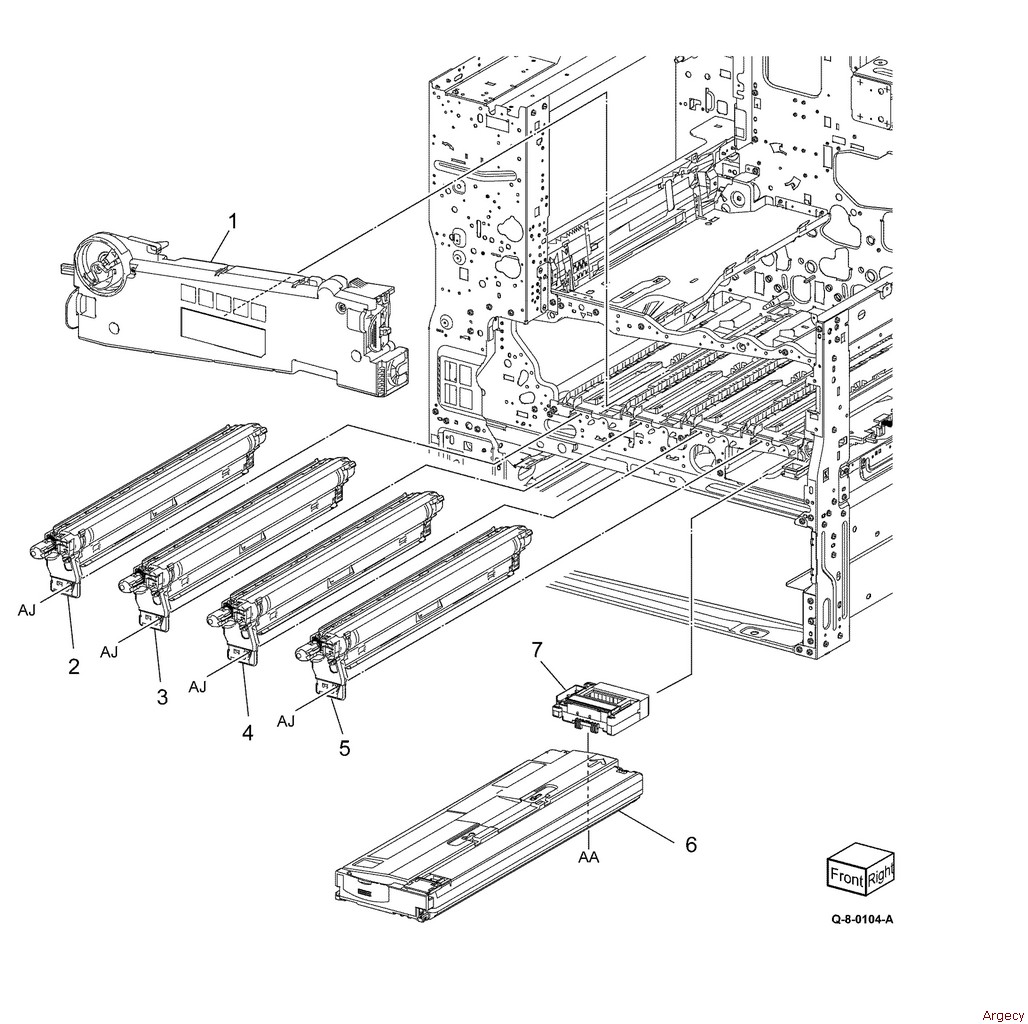

PL 90.15 Xerographic Components 1 948K00016 Waste Toner Transport Assembly New 948K00016 (New) $291.04 2 — Drum assembly (K) (NOTE) (REP 90.11) 3 — Drum assembly (C) (NOTE) (REP 90.11) 4 — Drum assembly (M) (NOTE) (REP 90.11) 5 — Drum assembly (Y) (NOTE) (REP 90.11) 6 008R08101 Waste Toner Container - Estimated Yield: 69 - 000 New 008R08101 (New) $103.36 6 008R08102 Waste Toner Container - Estimated Yield: 69 - 000 New 008R08102 (New) $112.88 7 — Suction case (C8170) Note: The part number for all Drum assemblies is 013R00681 Drum Cartridge - Estimated Yield: 180 - 000 New 013R00681 (New) $374.00 013R00681 Drum Cartridge New 013R00681 Compatible (New) $230.18 .

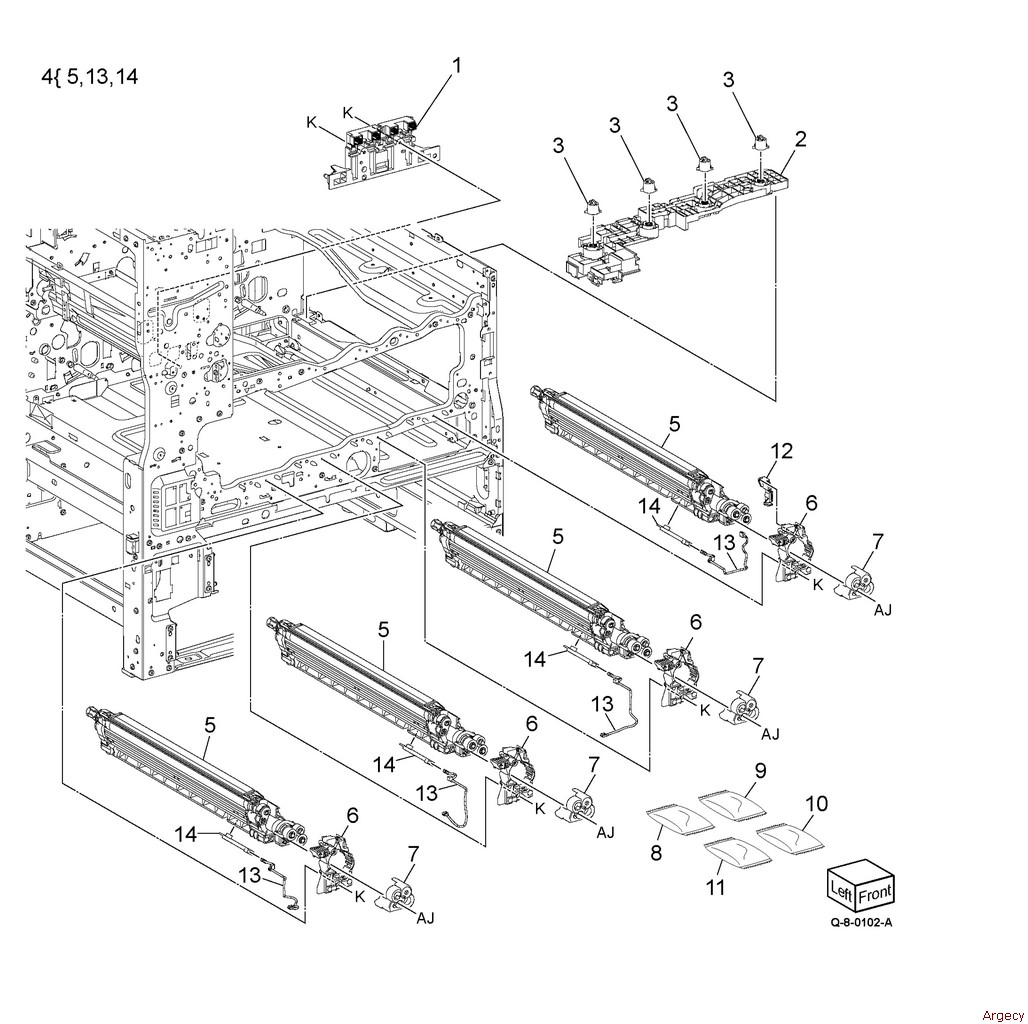

PL 90.20 Xerographic Assembly (1 of 2) 1 948K02890 Gear Housing Assembly New 948K02890 (New) 3-4 Day Lead $82.96 2 806E47221 Agitator Drive Shaft New 806E47221 (New) $59.84 3 413W11660 Sleeve bearing New 413W11660 (New) 3-4 Day Lead $34.00 4 807E52060 Gear New 807E52060 (New) 3-4 Day Lead $89.76 5 807E51980 Helical gear New 807E51980 (New) 3-4 Day Lead $89.76 6 930W00511 Toner full sensor New 930W00511 (New) $95.85 930W00511 Waste toner bottle full sensor New 930W00511 (New) $85.68 7 130E81600 Waste Toner Bottle Position Sensor New 130E81600 (New) 3-4 Day Lead $66.64 130E81600 IIT Regi. Sensor Fully refurbished with 90-day warranty 130E81600 $37.00 8 032E47030 Bottle Guide New 032E47030 (New) 3-4 Day Lead $81.60 9 948K00350 Agitator Motor Assembly New 948K00350 (New) 3-4 Day Lead $134.64 10 — Handle assembly (Not Spared) 11 052K14000 Joint Pipe Assembly New 052K14000 (New) $39.44
PL 90.25 Xerographic Assembly (2 of 2) 1 — Marking guide (P/O PL 60.05 Item 1) 2 948K00060 Housing Assembly New 948K00060 (New) $183.60 3 113E48880 Drum CRUM Connector New 113E48880 (New) $34.00

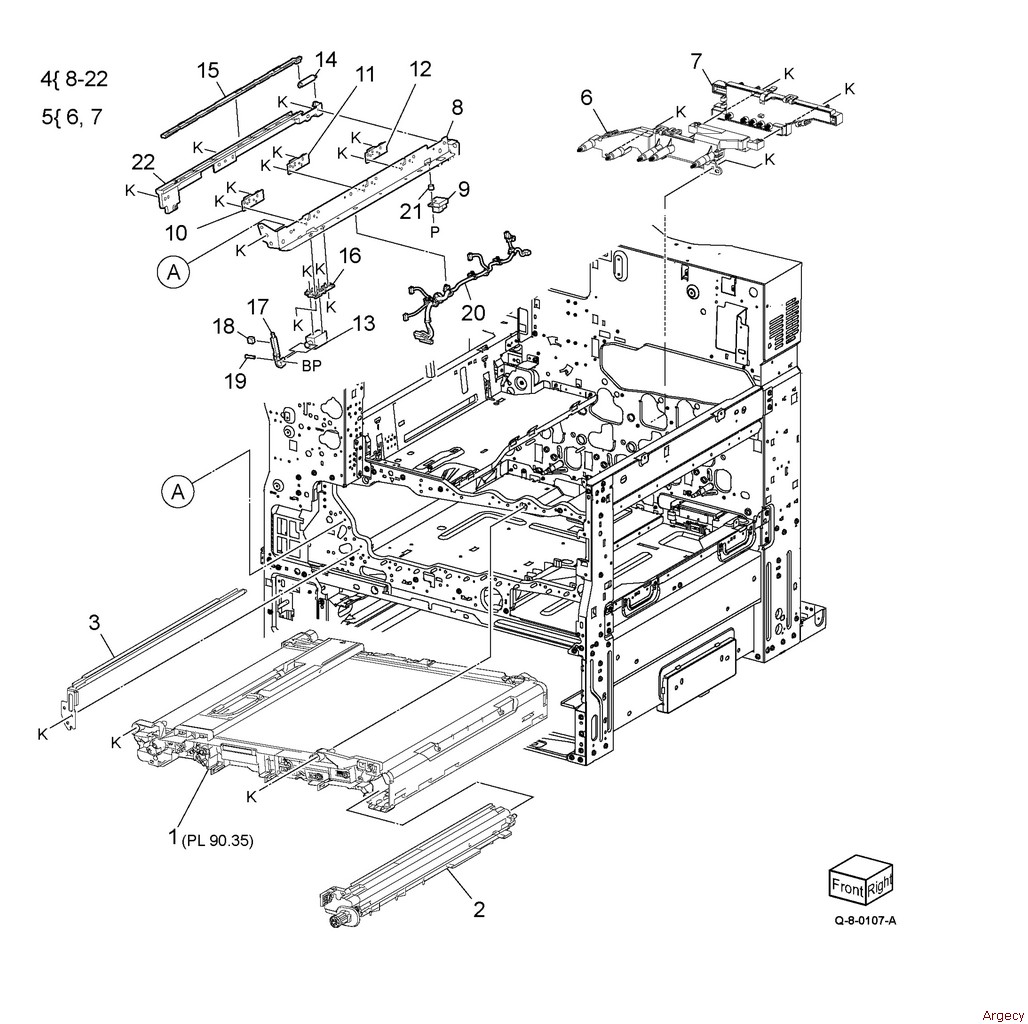

PL 90.30 IBT Belt Unit Components 1 607K08607 IBT Belt Assembly New 607K08607 (New) $556.24 2 001R00623 Transfer Belt Cleaner New 001R00623 (New) 3-4 Day Lead $107.44 3 — IBT lower guide (Not Spared) 4 930K02752 MOB ADC Assembly New 930K02752 (New) $322.32 5 948K01955 Conductor housing assembly New 948K01955 (New) 3-4 Day Lead $138.72 6 — Lower conductor housing assembly (P/O PL 90.30 Item 5) 7 — Upper conductor housing assembly (P/O PL 90.30 Item 5) 8 — Bracket (P/O PL 90.30 Item 4) 9 — Temp/Humidity sensor (internal) (P/O PL 90.30 Item 4) 10 — Front MOB sensor (P/O PL 90.30 Item 4) 11 — ADC sensor (Q92-029) (P/O PL 90.30 Item 4) 12 — Rear MOB sensor (P/O PL 90.30 Item 4) 13 — Shutter solenoid (P/O PL 90.30 Item 4) 14 — Spring (P/O PL 90.30 Item 4) 15 — Shutter (P/O PL 90.30 Item 4) 16 — Solenoid holder (P/O PL 90.30 Item 4) 17 — Arm (P/O PL 90.30 Item 4) 18 — Cushion (P/O PL 90.30 Item 4) 19 — Pin (P/O PL 90.30 Item 4) 20 — MOBC harness assembly (P/O PL 90.30 Item 4) 21 — Humidity spacer (P/O PL 90.30 Item 4) 22 — Cover (P/O PL 90.30 Item 4)

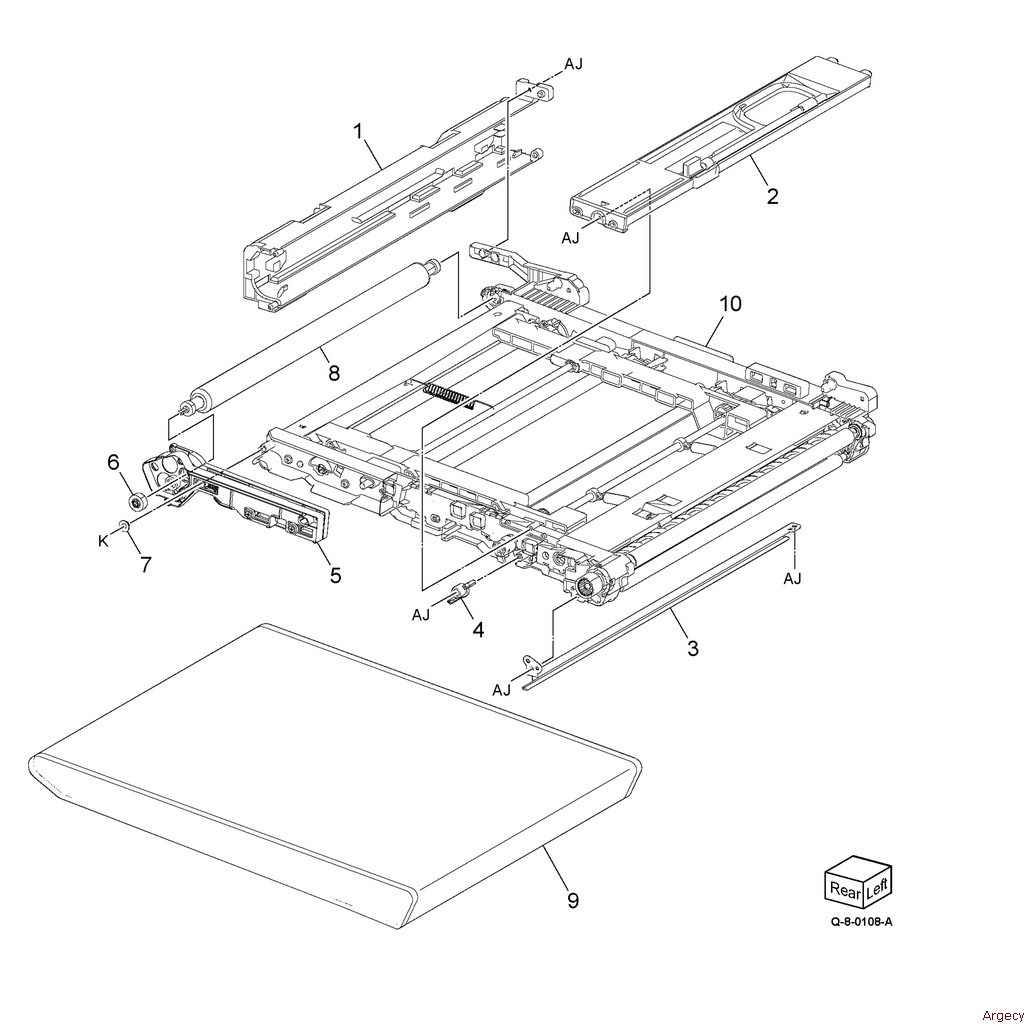

PL 90.35 IBT Belt Unit Assembly 1 — Cleaner housing guide 2 — Handle holder 3 — IBT upper guide 4 — Belt arm 5 — Tension holder assembly 6 — Tension gear 7 — Tension collar 8 859K02811 Tension Roller Assembly IBT New 859K02811 (New) 3-4 Day Lead $85.68 9 064K94660 IBT Belt Assembly New 064K94660 (New) $270.64 10 — IBT handle unit Note: All parts are part of PL 90.30 Item 1.
