Xerox C410 Parts






Please call for parts

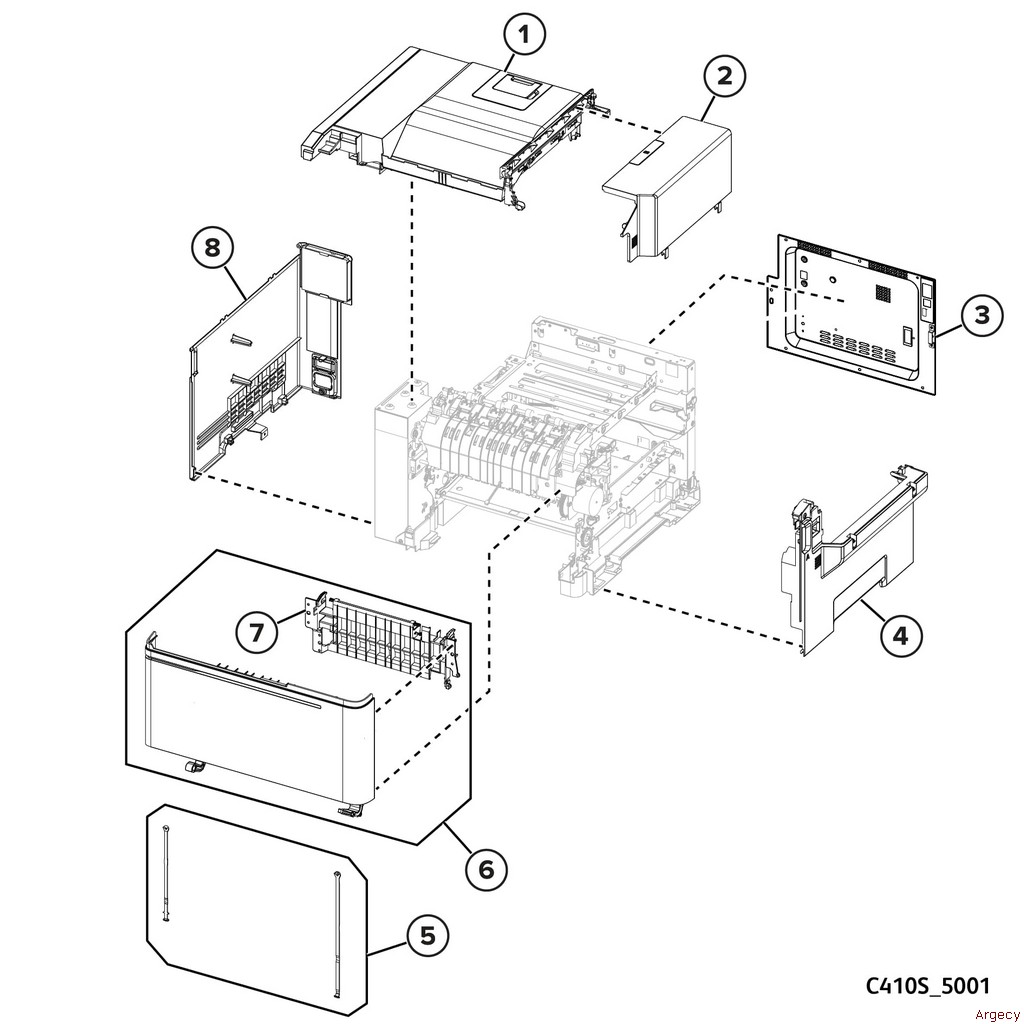

Covers 1
1

2

3

4

5
003N01189 Door Straps
Fully refurbished with 90-day warranty
003N01189



6

7 Front door inner
8

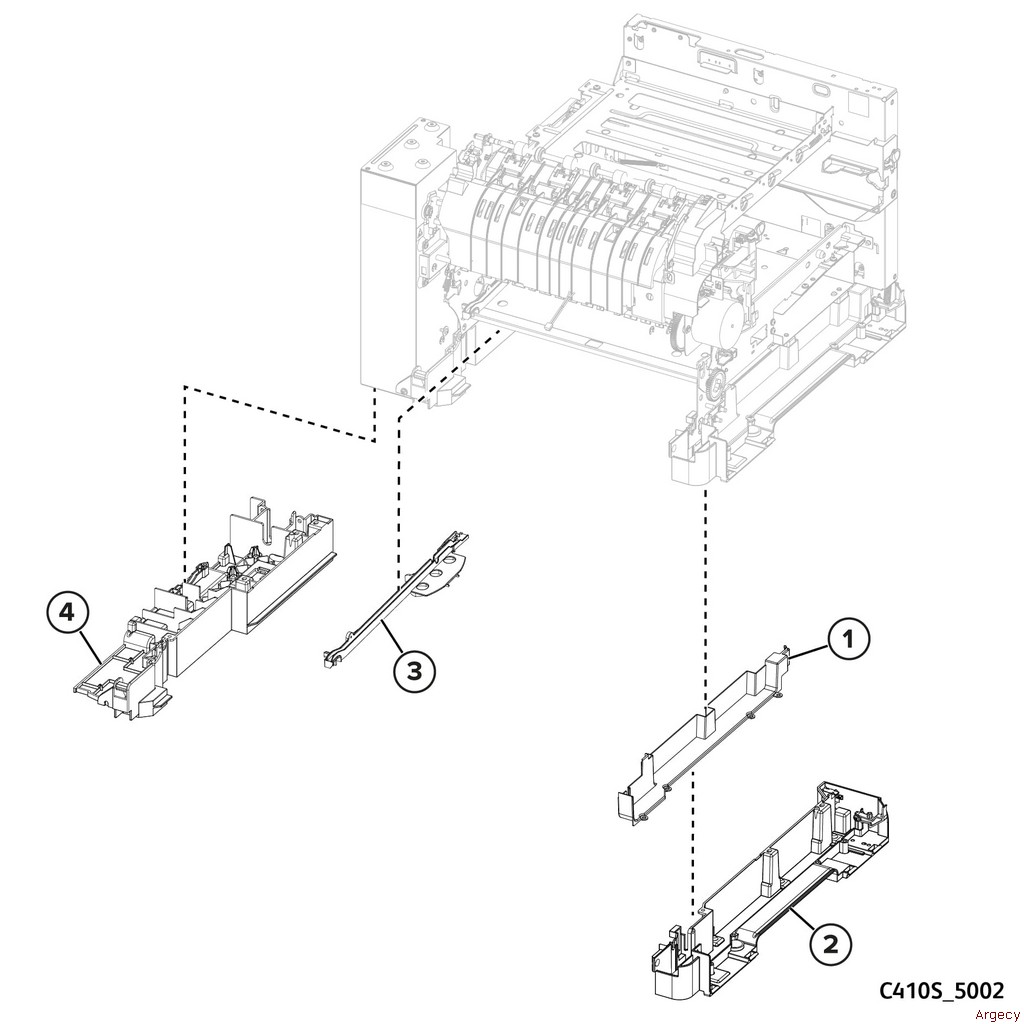

Covers 2
1
117N02189 Subframe Cable Cover
Fully refurbished with 90-day warranty
117N02189



2

3
133N23274 Transfer Module Guide
Fully refurbished with 90-day warranty
133N23274



4

2

3
133N23274 Transfer Module Guide
Fully refurbished with 90-day warranty
133N23274



4

3
133N23274 Transfer Module Guide
Fully refurbished with 90-day warranty
133N23274

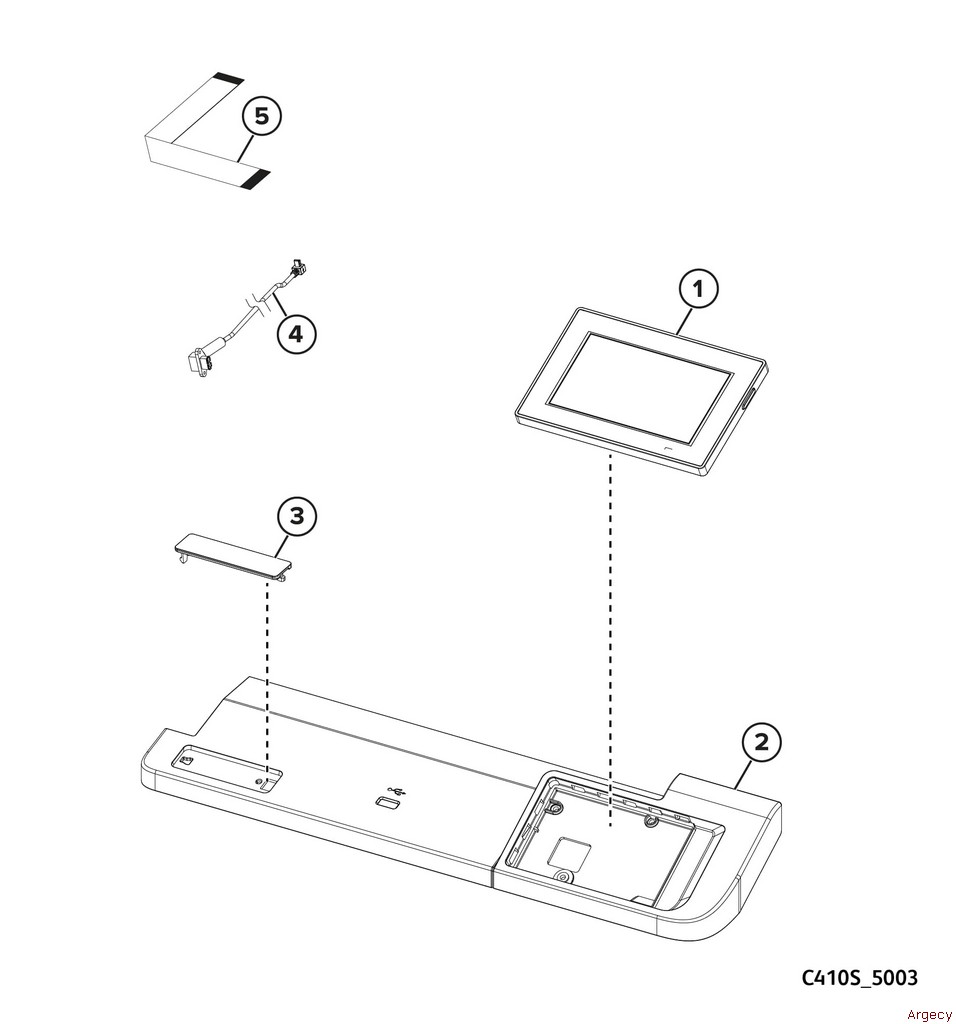

Control Panel
1

2

3

4

5

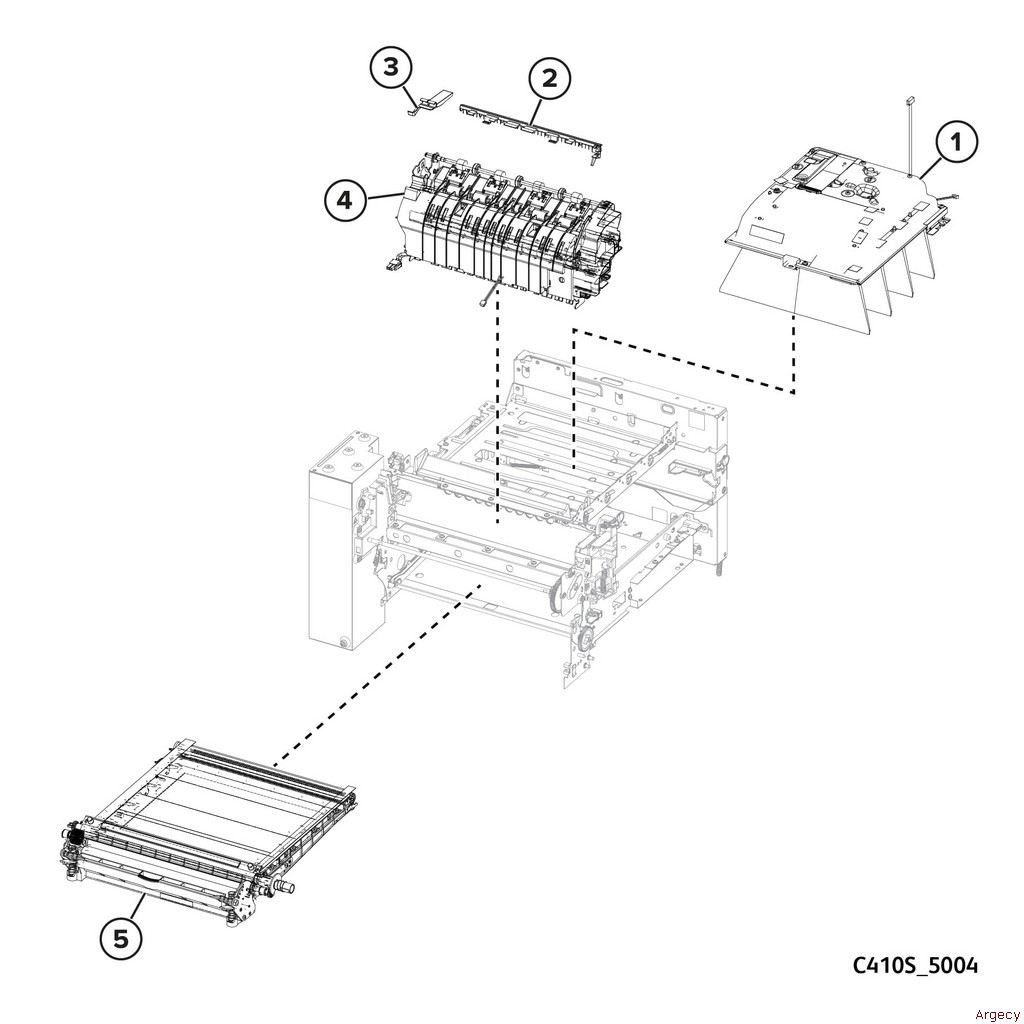

EP components
1

2

3

4

4 126N00520 Fuser, 220 V Fuser
5
133N23275 Transfer Module
Fully refurbished with 90-day warranty
133N23275

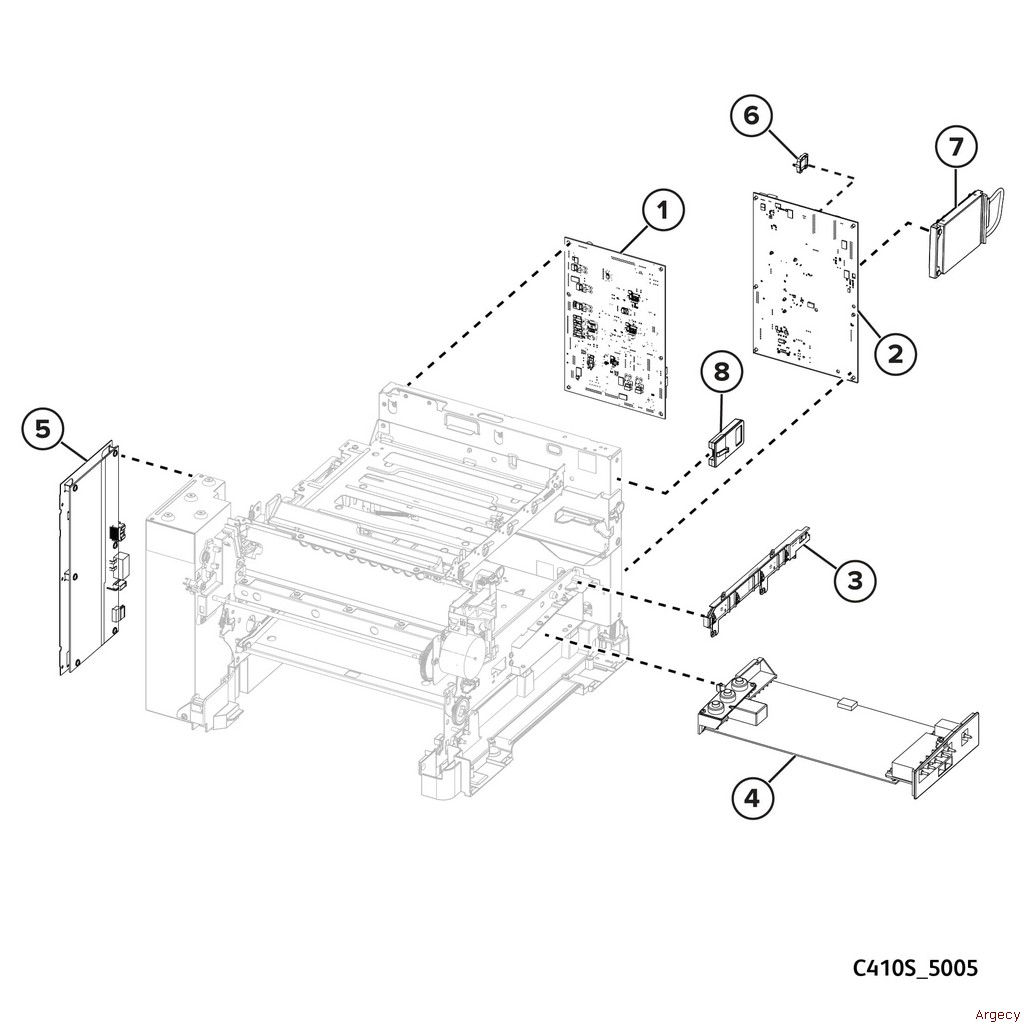

Electronics
1

2

3

4

5 105N02413 LVPS (220 V)
5

6

7 Optional 500 +GB HDD
8 Optional wireless network adapter

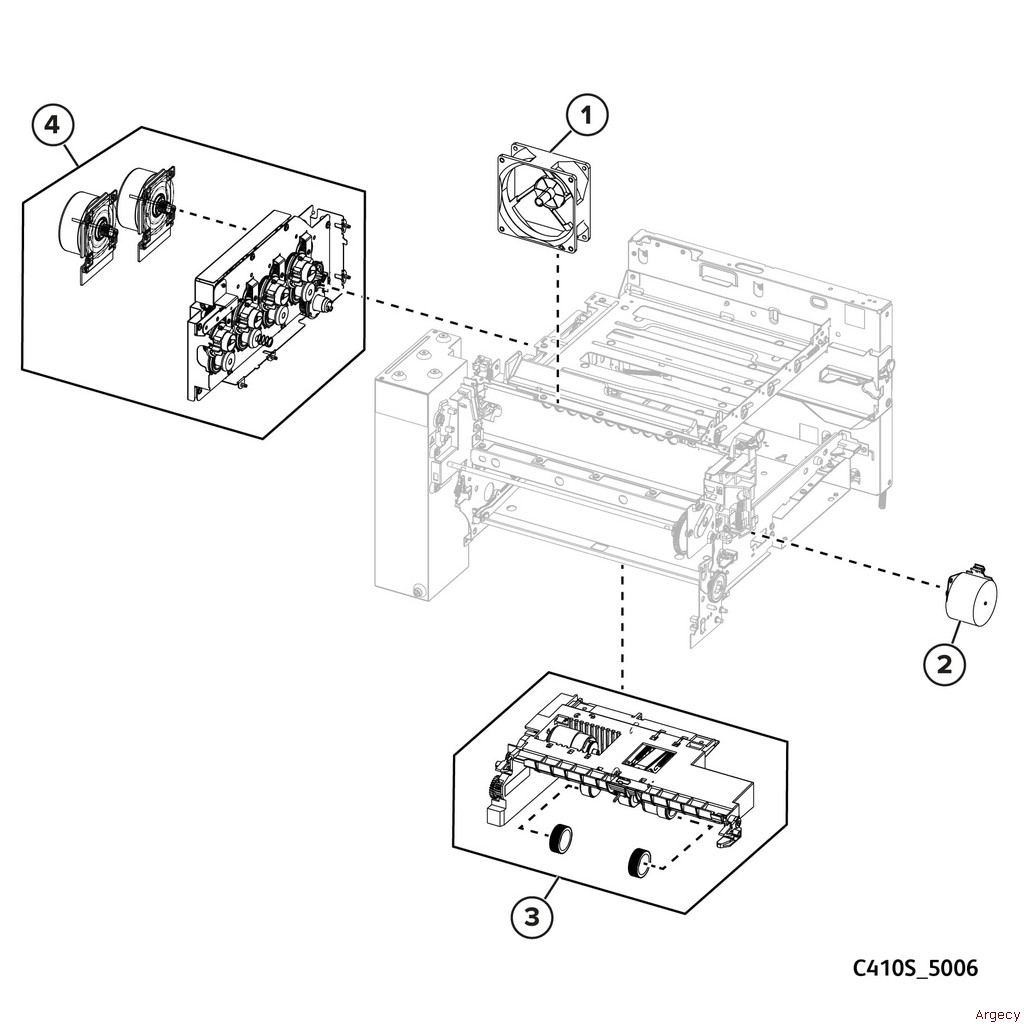

Motors
1
127N07965 Fan
Fully refurbished with 90-day warranty
127N07965



2
127N07961 Motor (Fuser Drive)
Fully refurbished with 90-day warranty
127N07961



3
022N02898 Media Feeder
Fully refurbished with 90-day warranty
022N02898



4
007N01851 Ep Drive
Fully refurbished with 90-day warranty
007N01851

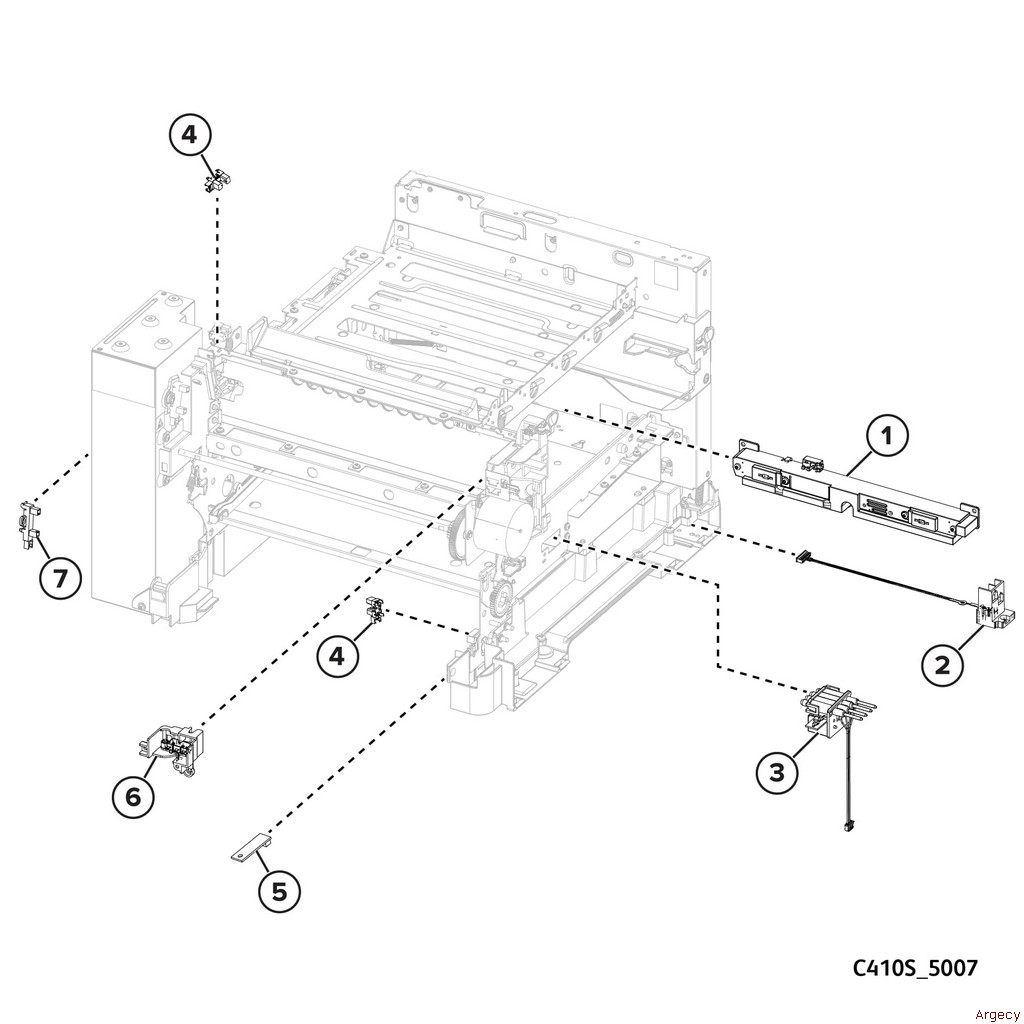

Sensors
1

2
014N00528 Waste Toner Bottle Contact Block
Fully refurbished with 90-day warranty
014N00528



2
014N00528 Waste Toner Bottle Contact Block
Fully refurbished with 90-day warranty
014N00528



3

4
130N01896 Photo Sensors:
Fully refurbished with 90-day warranty
130N01896



• Sensors (duplex)
• Sensors (narrow media/bin full)
5

6

7
130N01895 Sensor (Fuser Exit)
Fully refurbished with 90-day warranty
130N01895

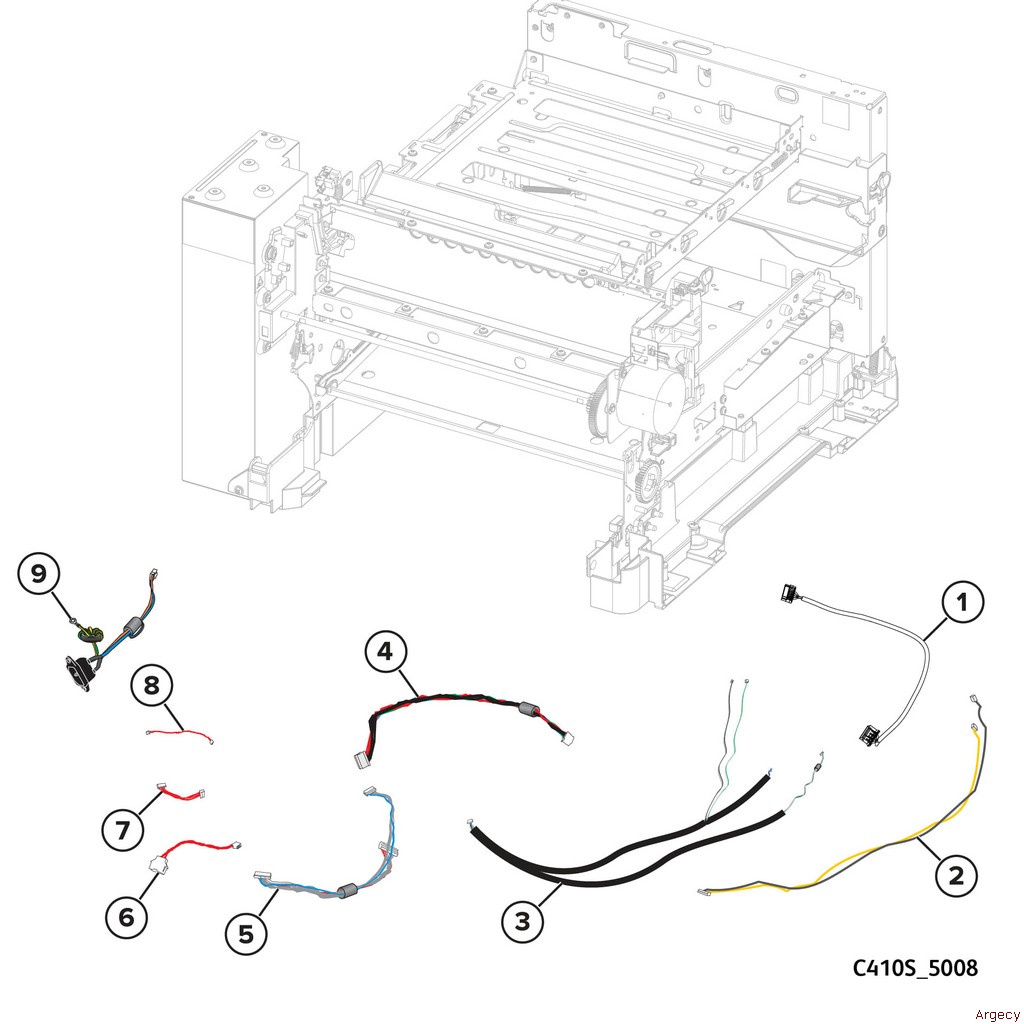

Cables
1

2

3

4

5
117N02190 Ep Motor To Controller Board Cable
Fully refurbished with 90-day warranty
117N02190



6

7
117N02193 Hvps To Controller Board Cable
Fully refurbished with 90-day warranty
117N02193



8

9
112N00258 Ac Power To Lvps Cable
Fully refurbished with 90-day warranty
112N00258


Trays
1

2
022N02894 1 2 Pick Arm Roller
New
022N02894 (New)
$18.71



3 Optional 650-sheet duo tray
4
022N02895 Mpf Rollers
Fully refurbished with 90-day warranty
022N02895



5

6 Optional 550-sheet tray
7
Accessories
NS 497N07994 Adjustable Printer Stand
NS 017N00320 Adjustable stand non-locking caster
NS 017N00319 Adjustable stand locking caster
NS 097S05244 Printer Stand
NS 097N02470 Optional wireless network adapter
NS 097N02464 Optional 500+GB HDD
NS 097N02465 550-Sheet Tray
NS 097N02468 550+100-Sheet Tray
Consumables
1

2
013R00700 Black Imaging Kit
Fully refurbished with 90-day warranty
013R00700



3
013R00701 Black And Color Image
Fully refurbished with 90-day warranty
013R00701



4 006R04677 Black Std
5 006R04685 Black High-Capacity
6 006R04693 Black WW Metered
7 006R04697 Black WW
8 006R04764 Black High-Capacity DMO
9 006R04678 Cyan Std WW
10 006R04686 Cyan High-Capacity
11 006R04694 Cyan WW Metered
12 006R04698 Cyan WW
13 006R04765 Cyan High-Capacity DMO
14 006R04679 Magenta Std WW
15 006R04687 Magenta High-Capacity
16 006R04695 Magenta WW Metered
17 006R04699 Magenta WW
18 006R04766 Magenta High-Capacity DMO
19 006R04680 Yellow Std WW
20 006R04688 Yellow High-Capacity
21 006R04696 Yellow WW Metered
22 006R04700 Yellow WW
23 006R04767 Yellow High-Capacity DMO
