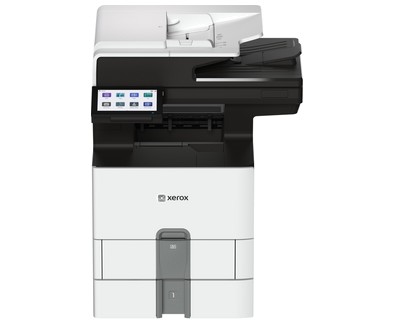

Xerox MX732e Mono Laser MFP - Toner, Parts & Supplies

Features

• Black & White Laser All-in-One
• Duplex (2-sided) Printing: Integrated Duplex
• Print Speed: Up to 65 ppm (Letter)
• Recommended Monthly Page Volume: 5,000 - 75,000 pages

•

Looking for Xerox MX732 / MX733 Parts?

Abstract

The Xerox MX732e is a monochrome laser multifunction printer (print, copy, color scan and iFax; analog fax with the optional 497K26240 2-Port Fax Card) for large workgroups, one of the Xerox 7 and 8 M-Series machines launched in October 2026 and built by Lexmark (machine type 7467). It prints and copies up to 65 pages per minute (Letter) with integrated duplex printing and is run from a 7-inch (17.8 cm) e-Task color touch screen. A quad-core 1.2 GHz processor and 4 GB of memory come standard. Scanning is through a 200-sheet automatic document feeder at up to 160 sides per minute (Letter, duplex).

Included paper handling: 100-Sheet Multipurpose Feeder, Integrated Duplex, 550-Sheet Output Bin, 550-Sheet Input. Standard input is 650 sheets, expandable to 3,300 sheets with optional trays; recommended monthly volume is 5,000 - 75,000 pages with a maximum duty cycle of up to 300,000 pages per month. It uses the shared 7/8 M-Series supplies: return program toner cartridges yielding up to 15,000 / 35,000 pages and a 225,000-page imaging unit.

Supplies

Part & Description	Order
006R05311 Return Program 15K Toner Cartridge Page yield: 15,000	006R05311 Return Program 15K Toner Cartridge for Xerox MS731 / MS831 / MS832 / MS833 / MX732 / MX733 / MX831 / MX833 New 006R05311 15K Page Yield (New) Contact for Details
006R05312 Return Program 35K Toner Cartridge Page yield: 35,000	006R05312 Return Program 35K Toner Cartridge for Xerox MS731 / MS831 / MS832 / MS833 / MX732 / MX733 / MX831 / MX833 New 006R05312 35K Page Yield (New) Contact for Details
006R05267 35K Toner Cartridge Page yield: 35,000	006R05267 35K Toner Cartridge for Xerox MS831 / MX732 New 006R05267 35K Page Yield (New) Contact for Details
013R00713 Return Program 225K Imaging Unit Page yield: 225,000	013R00713 Return Program 225K Imaging Unit for Xerox MS731 / MS831 / MS832 / MS833 / MX732 / MX733 / MX831 / MX833 New 013R00713 225K Page Yield (New) Contact for Details
013R00714 225K Imaging Unit Page yield: 225,000	013R00714 225K Imaging Unit for Xerox MS731 / MS831 / MS832 / MS833 / MX732 / MX733 / MX831 / MX833 New 013R00714 225K Page Yield (New) Contact for Details

This is an FCC Class A device. Not intended for use in residential or domestic environments.

Options & Accessories

Part & Description	Order
Paper Handling
097S05324 250-Sheet Tray	Xerox 097S05324 250-Sheet Tray for MS731 / MS831 / MS832 / MS833 / MX732 / MX733 New 097S05324 (New) Contact for Details
097S05327 2100-Sheet Tray	Xerox 097S05327 2100-Sheet Tray for MS731 / MS831 / MS832 / MS833 / MX732 / MX733 New 097S05327 (New) Contact for Details
097S05332 550-Sheet Tray Insert	Xerox 097S05332 550-Sheet Tray Insert for MS731 / MS831 / MS832 / MS833 / MX732 / MX733 New 097S05332 (New) Contact for Details
097S05326 550-Sheet Lockable Tray	Xerox 097S05326 550-Sheet Lockable Tray for MS731 / MS831 / MS832 / MS833 / MX732 / MX733 New 097S05326 (New) Contact for Details
097S05331 250-Sheet Tray Insert	Xerox 097S05331 250-Sheet Tray Insert for MS731 / MS831 / MS832 / MS833 / MX732 / MX733 New 097S05331 (New) Contact for Details
097S05325 550-Sheet Tray	Xerox 097S05325 550-Sheet Tray for MS731 / MS831 / MS832 / MS833 / MX732 / MX733 New 097S05325 (New) Contact for Details
Finishing
097S05341 Convenience Stapler	Xerox 097S05341 Convenience Stapler for MX732 / MX733 New 097S05341 (New) Contact for Details
Furniture
497K26950 Caster Base	Xerox 497K26950 Caster Base for MS731 / MS831 / MS832 / MS833 / MX732 / MX733 New 497K26950 (New) Contact for Details
097S05317 Adjustable Printer Stand	Xerox 097S05317 Adjustable Printer Stand for MS731 / MS831 / MS832 / MS833 / MX732 / MX733 New 097S05317 (New) Contact for Details
097S05316 Swivel Cabinet	Xerox 097S05316 Swivel Cabinet New 097S05316 (New) $313.00
497K26970 Spacer	Xerox 497K26970 Spacer for MS731 / MS831 / MS832 / MS833 / MX732 / MX733 New 497K26970 (New) Contact for Details
Storage
497K26260 Removable HDD Kit	Xerox 497K26260 Removable HDD Kit for MS731 / MS831 / MS832 / MS833 / MX732 / MX733 / MX831 / MX833 New 497K26260 (New) Contact for Details
097S05314 Intelligent Storage Drive	Xerox 097S05314 Intelligent Storage Drive New 097S05314 (New) $371.00 $371.00
497K26250 500GB Hard Disk Drive (SATA)	Xerox 497K26250 500GB Hard Disk Drive (SATA) for MX732 / MX733 / MX831 / MX833 New 497K26250 (New) Contact for Details
497K27370 256GB SSD (SATA)	Xerox 497K27370 256GB SSD (SATA) for MX732 / MX733 / MX831 / MX833 New 497K27370 (New) Contact for Details
Connectivity
497K26240 2-Port Fax Card	Xerox 497K26240 2-Port Fax Card for MX732 / MX733 / MX831 / MX833 New 497K26240 (New) Contact for Details
497K26270 English Keyboard	Xerox 497K26270 English Keyboard New 497K26270 (New) $340.00
Authentication
497K26210 TWN4 Front Reader-P LEGIC Kit	Xerox 497K26210 TWN4 Front Reader-P LEGIC Kit New 497K26210 (New) Contact for Details
497K25970 TWN4 USB Front Reader	Xerox 497K25970 TWN4 USB Front Reader New 497K25970 (New) Contact for Details
497K27160 TWN4 MultiTech-PI DT-U20-b-LM Kit	Xerox 497K27160 TWN4 MultiTech-PI DT-U20-b-LM Kit New 497K27160 (New) Contact for Details
497K26300 Contact Card Reader FSM	Xerox 497K26300 Contact Card Reader FSM New 497K26300 (New) Contact for Details

In the Box

• Xerox MX732e multifunction laser printer.
• Up to 7,500 pages starter return program black toner cartridge.
• Up to 225,000 pages return program imaging unit.
• Wordless Setup Sheet (Network and Local Attachment)
• Power Cord(s) – Country Dependent
• Warranty Information (Country Dependent)
• Safety Information Sheet
• Safety Data Sheets

Box contents may vary by country and/or reseller. Ethernet, USB or parallel cable not included.

---

Technical Specifications

General Specs

Part #	100S15064
Machine Type	7467
Print Technology	Black & White Laser All-in-One
Function	Scanning Copying iFax Printing
Workgroup Size	Large Workgroup
Display	Xerox e-Task 7-inch (17.8 cm) color touch screen
Media Sizes Supported	A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Hagaki Card, Letter, B5 Envelope, Statement, C5 Envelope, Executive, DL Envelope, Folio, 10 Envelope
Included Paper Handling	100-Sheet Multipurpose Feeder, Integrated Duplex, 550-Sheet Output Bin, 550-Sheet Input
Standard Ports	10/100/1000 Ethernet, Front USB 2.0 Specification Hi-Speed Certified port (Type A), 802.11a/b/g/n/ac + Apple iBeacon, USB 2.0 Specification Hi-Speed Certified (Type B)
Size (in. - H x W x D)	28.42 x 22 x 21.70 in.
Weight (lb.)	84 lb.
Packaged Size (in. - H x W x D)	39.76 x 29.13 x 27.56 in.
Packaged Weight (lb.)	123.46 lb.

---

Copying

Copy Speed	Up to: Black: 65 cpm (Letter)
Copy Speed Duplex	Up to: Black: 39 spm (Letter)
Time to First Copy	As fast as: Black: 4.2 seconds
Reduce / Enlarge Range	25 - 400 %

---

Faxing

Modem Speed	ITU T.30, V.34 Half-Duplex, 33.6 Kbps
Fax Transmission Speed	< 3 seconds per page

---

Printing

Print Speed	Up to: Black: 65 ppm (Letter)
Print Speed Duplex	Up to: Black: 39 spm (Letter)
Time to First Page	As fast as: Black: 4.2 seconds
Print Resolution	Black: 1200 IQ (1200 x 600 dpi)
Duplex	2-sided: Integrated Duplex

---

Scanning

Scanner Type / ADF Scan	Flatbed scanner with automatic document feeder Duplex Automatic Document Feed (DADF)
Scan Area	8.5 x 14 inches (Maximum)
A4/Ltr Simplex Scan Speed	Up to: Black: 76/80 sides per minute Color: 76/80 sides per minute
A4/Ltr Duplex Scan Speed	Up to: Black: 152/160 sides per minute Color: 152/160 sides per minute
Scan Technology	CCD
Optical Scanning Resolution	Up to 600 x 600 dpi
Scan File Formats	Send as: TIFF, Secure PDF, PDF, JPEG, JPG
Scan Destinations	e-mail, USB or Network connected computer, USB Flash drive, FTP
ADF	200-Sheet Automatic Document Feeder
ADF Paper Input Capacity / ADF Paper Output Capacity	Up to: 200 pages 20 lb or 75 gsm bond

---

Paper Handling

Media Types Supported	Card Stock, Plain Paper, Rough Cotton, Glossy Paper, Vinyl Labels, Light Paper (60-70gsm / 16-18lb bond), Heavy Paper (100-150gsm / 28-39lb bond), Colored Paper, Labels, Letterhead, Preprinted, Heavy Glossy, Bond, Custom Type, Recycled
Number of Paper Inputs	Standard: 2 Maximum: 5
Paper Input Capacity	Standard: 650 pages 20 lb or 75 gsm bond Maximum: 3,300 pages 20 lb or 75 gsm bond
Paper Output Capacity	Up to: Standard: 550 pages 20 lb or 75 gsm bond Maximum: 550 pages 20 lb or 75 gsm bond
Paper Weight Range Supported	lb.: 16 - 58 lb. (Standard Tray) 16 - 58 lb. (Multipurpose Feeder)
Optional Paper Handling	2100-Sheet Tray, 550-Sheet Lockable Tray, 550-Sheet Tray Insert, Caster Base, 250-Sheet Tray Insert, 250-Sheet Tray, 550-Sheet Tray
Recommended Monthly Page Volume	5,000 - 75,000 pages
Maximum Monthly Duty Cycle	Up to: 300,000 pages per month

---

Cartridges & Imaging

Laser Cartridge Yields	up to: 35,000-page High Yield Cartridge
Imaging Unit Estimated Yield	Up to: 225,000 pages (3 average letter/A4 pages per job, ~5% coverage)
Cartridge(s) Shipping with Product	7,500-page Return Program Toner Cartridge

---

Hardware

Processor Speed	Quad Core, 1.2 GHz
Memory	Standard: 4 GB Maximum: 4 GB
Hard Disk	Intelligent Storage Drive (optional); Magnetic Hard Disk (optional)
Printer Languages	Standard: PCL 5, PCLm, PCL6 / XL, Personal Printer Data Stream (PPDS), PostScript, PDF, DocFilters, Direct Image
Touch Screen Display	Yes

---

Connectivity

Direct USB	Yes
Ethernet Network	Yes
Wireless	Yes

---

Electrical & Operation

ENERGY STAR	Yes
ENERGY STAR Typical Electricity Consumption	TEC: 0.88 kilowatt-hours per week
Noise Level	Operating: 14 dBA (Idle) 56 dBA (Print) 59 dBA (Copy) 56 dBA (Scan)
Duplex Print Noise Level	Operating: 56 dBA
Average Power	0.2 watts (Hibernate Mode) 0.94 watts (Sleep Mode) 63.8 watts (Ready Mode) 849 watts (Printing)

---

Warranties

Limited Warranty	See Statement of Limited Warranty: 1-Year Onsite Repair, Next Business Day

---

Specifications from the Xerox MX732e product page (lexmark.com, October 2026). Print and copy speeds measured in accordance with ISO/IEC 24734 and ISO/IEC 24735. Cartridge yields per ISO/IEC 19752.
