28.10 Covers 1 002N03711 Rear door (REP 28.10) 2 — Rear cover (REP 28.11) 3 — Controller board access door 4 — Right cover (REP 28.4) 5 — Inner right cover 6 002N03714 Front door (REP 28.7) 7 002N03779 Front door bracket (REP 28.6) 8 — Inner left cover (REP 28.8) 9 — Left cover (REP 28.1) 10 — Front door pivot 11 — Front door pins 12 — Printhead access cover
60.05 Scanner Covers 1 Flatbed covers 1 — Upper hinge cover 2 — Scanner front upper cover 3 — Scanner rear cover 4 — Scanner right upper cover 5 — Scanner support right cover 6 — Column right front cover 7 — Column left front cover 8 — Scanner support left cover 9 — Scanner left upper cover 10 — Lower hinge cover
60.10 Scanner Covers 1 — Bin extender 2 — Scanner support rear cover 3 002N03715 Redrive cover 4 — Paper stacking bail (P/O PL 60.10 Item 3) 5 — Bin support 6 002N03712 Right trim cover 7 — Top cover
10.10 Fuser 1 115R00163 Fuser, 110V (REP 10.1) — 115R00162 Fuser, 110V A4 (See Note) (REP 10.1) — 126N00509 Fuser, 220V LTR (See Note) (REP 10.1) 2 — Fuser attach bracket
90.05 Xerographic Components 1 1 116R00036 Transfer roller 2 130N01994 Toner density sensor (REP 90.6) 3 130N02000 Input sensor (P/O PL 90.05 Item 2) 4 022N02960 Transfer roller contact 5 — Toner cartridge bias roller (P/O PL 90.05 Item 7) 6 — Guide roller (P/O PL 90.05 Item 5) 7 032N00585 High voltage contact guide 8 117N02400 Toner sensor harness 9 117N02402 Toner motor harness
1.1 Electrical 1 1 — Speaker 2 — Harness holder 3 117N02394 HVPS shield 4 105N02408 HVPS (REP 1.1)
1.15 Electrical 2  1 050N00756 550-sheet optional tray harness 2 112N00271 AC power socket 3 105N02409 LVPS (110V/220V) (REP 1.2) 4 105N02411 LVPS harness 5 117N02403 USB host harness
90.10 Xerographic Components 2 1 055N00344 TC shutter sensor actuator (REP 90.1) (REP 90.1) 2 130N01996 Toner CRUM sensor 3 009N01773 Toner smart chip spring (REP 90.5) 4 130N01993 Toner low sensor (REP 90.3) 5 — Imaging unit side bias roller 6 — Tray bias roller, rear(6a)/Tray bias roller, top(6b)/Tray bias roller, front(6c)
80.20 Sensors 1 — Bin full sensor cover 2 130N02001 Bin Full Sensor assembly 3 — Bin full sensor (P/O PL 80.20 Item 2) (REP 80.10) 4 117N02401 Paper Size sensor cable 5 130N01984 Paper Size Sensor 6 — Paper size sensor cover 7 130N01897 Rear door interlock sensor (REP 80.5)
80.05 Duplex Paper Path 1 050N00760 Bypass tray 2 116R00037 Bypass tray pick roller (P/O PL80.05 Item 1) (See Note) 3 019N01168 Bypass tray retard pad (P/O PL80.05 Item 1) 4 — Bypass tray drive/support (P/O PL80.05 Item 1) 5 — Bypass tray front door (P/O PL80.05 Item 1) 6 — Bypass tray extension (P/O PL80.05 Item 1) 7 — Duplex pinch roller (REP 80.8) 8 130N01995 Duplex sensor assembly 9 — Duplex sensor (P/O PL 80.05 Item 8) 10 127N08061 Duplex motor (REP 80.7) 11 117N02398 Sensor/redrive motor harness
80.10 Paper Path 1 — Imaging unit clamp 2 002N03699 Rear door pivot 3 026N00902 Aligner (REP 80.15) 4 009N01774 Aligner spring (P/O PL 80.10 Item 3) 5 022N02957 Aligner screw (P/O PL 80.10 Item 3) 6 — Gear cover 7 007N01922 Optional tray drive gear 8 — Reference edge aligner 9 127N08065 Bypass motor 10 — Inner guide deflector (REP 80.2) 11 127N08064 Redrive motor 12 007N01921 Upper redrive (REP 80.6)

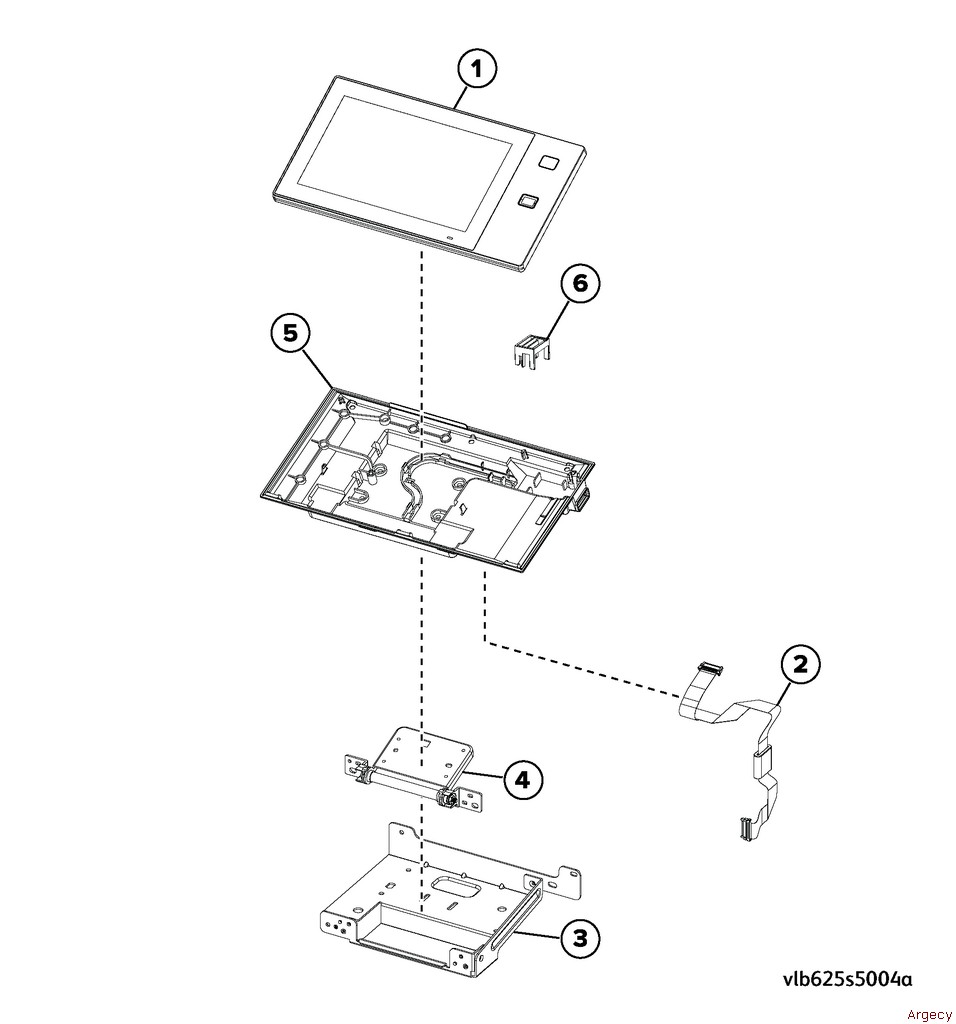

2.10 User Interface 1 002N03701 Control panel display 2 117N02390 Control panel harness 3 — Control panel bracket 4 003N01204 Control panel hinge 5 — Control panel rear cover 6 030N00842 USB Support Bracket (REP 2.2)
80.25 paper Feed Assembly 1 — Pick roller (P/O PL 70.10 Item 5) (See Note 1) 2 022N02958 Paper feeder (REP 80.1) 3 117N02397 Feeder/Paper path harness (A) 4 117N02399 Feeder/Paper path harness (B) 5 — Paper size sensor actuator (P/O PL 80.25 Item 6) 6 050N00761 550 Sheet tray insert 7 — Separator pad (P/O PL 80.25 Item 6) (P/O PL 70.10 Item 5) (See Note 1) 8 014N00526 Special media separator pad (See Note 2)
5.10 DADF 1 022N02962 DADF Assembly
5.15 DADF Components 1 1 — DADF rear cover (REP 5.3, page 382) 2 050N00762 DADF tray (REP 5.6) 3 038N00588 Paper bail 4 — DADF bin extender 5 019N01169 Scanner glass pad 6 002N03720 DADF bottom door (REP 5.8) 7 — DADF front cover (REP 5.7, page 384) 8 — DADF left lower cover
5.20 DADF Components 2 1 116R00034 DADF maintenance kit (See Note) 2 105N02410 Torque limiter 3 — DADF input guide (REP 5.17) 4 014N00524 Lift-plate shim 5 — DADF right hinge 6 — DADF left hinge 7 — Float plate guide 8 — Float plate 9 — DADF front drive train (REP 5.9) 10 002N03716 Roller cover (P/O PL 5.20 Item 3)
5.25 DADF Components 3 1 002N03717 DADF cover assy 2 130N02004 DADF gap sensor (P/O PL 5.25 Item 1) 3 002N03718 Pick roller cover (P/O PL 5.25 Item 1) (REP 5.1) 4 130N01983 DADF Deskew Sensor (P/O PL 5.25 Item 1) 5 016N00358 Bushing 6 — DADF top door cover (P/O PL 5.25 Item 1) (REP 5.14)
5.30 DADF Components 4 1 130N02003 DADF cover interlock upper 2 130N01982 DADF cover interlock lower 3 120N00587 DADF cover interlock actuator (REP 5.16) 4 130N01990 DADF scan sensor 5 130N01992 DADF pick sensor 6 120N00591 DADF exit actuator (REP 5.21) 7 130N01982 DADF exit sensor 8 130N02002 DADF closed sensor assembly 9 130N01982 DADF closed sensor (P/O PL 5.30 Item 8) 10 120N00589 Exit retainer
5.35 DADF Components 5 2 109N00914 DADF scanner CCD (REP 5.20) 3 130N01986 DADF Multifeed sensor 4 — DADF rear drive gears (REP 5.15) 5 127N08069 DADF motor (REP 5.11) 6 127N08056 DADF Calibration roller motor (REP 5.12) 7 109N00912 DADF controller PWB (REP 5.5) 8 117N02392 DADF harness kit

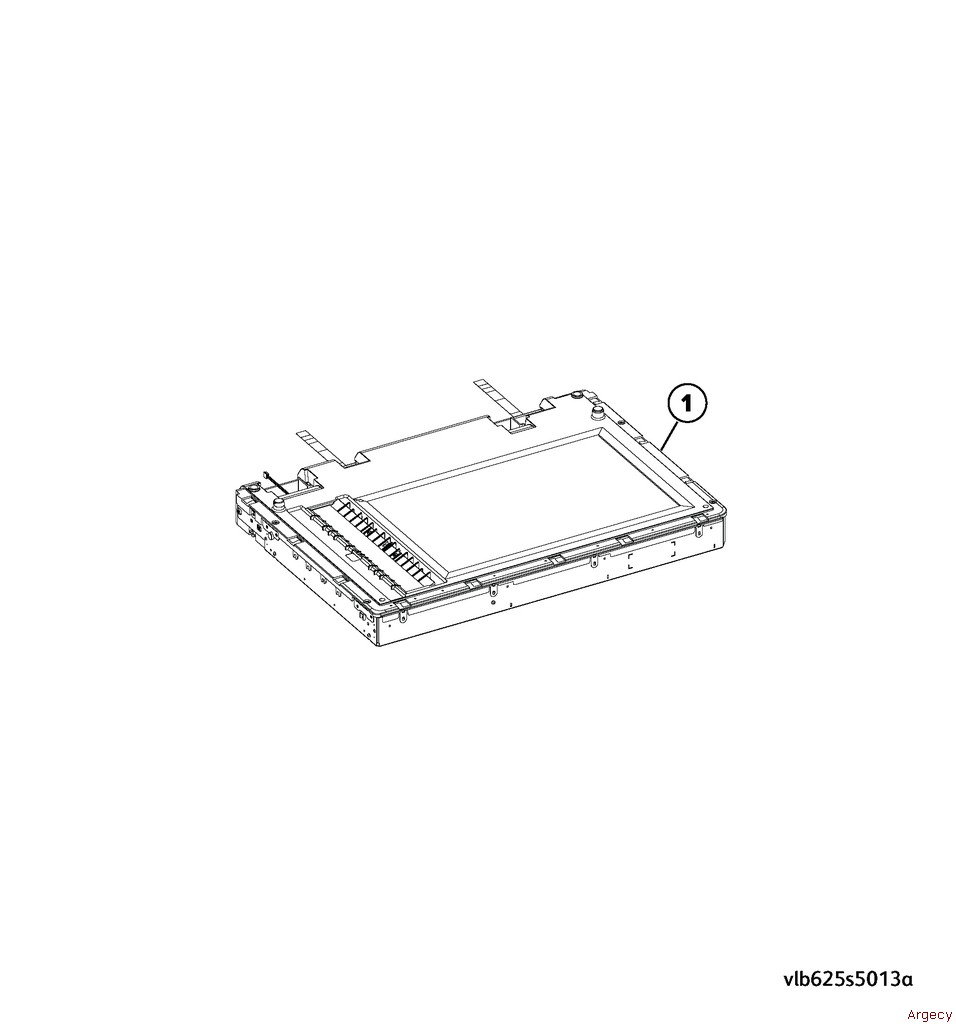

60.20 Scanner 1 109N00910 Scanner assembly
60.25 Scanner Components 1 1 002N03719 Scanner cover 2 130N02003 CCDM sensor 3 — Hinge roller
60.30 Scanner Components 2 1 — Scanner motor 2 — Scanner gear 3 — Scanner belt 4 — Scanner tensioner pulley 5 109N00913 Scanner CCDM 6 109N00916 CCDM FFC
70.10 550 Sheet Tray Option 1 1 — 550 Sheet Tray Assy (REP 70.5) 2 050N00761 550 Sheet Tray Insert (P/O PL 70.10 Item 1) 3 — Separator pad (P/O PL 70.10 Item 2) (P/O PL 70.10 Item 5) 4 014N00526 Special media separator pad (See Note 2) 5 116R00035 Paper tray maintenance kit (See Note 1) Note: 1. HFSI. To reset HFSI counter, refer to dC135 Note: 2. This part should only be used for customers having issues feeding special media (Heavy cardstock, Labels, Enve- lopes, etc)
70.15 550 Sheet Tray Option 2 1 117N02395 Interface harness 2 130N01998 Pass-through sensor 3 130N01997 Pick Sensor 4 — Right cover (REP 70.7) 5 — Paper size sensor actuator 6 — Pick roller (P/O PL 70.10 Item 5) (REP 70.3) 7 — Front cover (REP 70.9) 8 130N01984 Paper size sensor (REP 70.1) 9 127N08067 Transport motor 10 109N00915 Controller PWB 11 — Left cover (REP 70.6) 12 022N02958 Paper feeder 13 — Paper present sensor (P/O PL 70.15 Item 12) 14 — Pick roller index sensor (P/O PL 70.15 Item 12) 15 — Rear cover (REP 70.8)
70.20 2100 Sheet Tray Option 1 1 — HCF tray assembly (REP 70.12) 2 — HCF base (P/O PL 70.20 Item 1) 3 050N00763 HCF tray insert (P/O PL 70.20 Item 1) (REP 70.13) 4 — HCF separator pad (P/O PL 70.20 Item 3) (P/O PL 70.10 Item 5) (See Note 1) 5 — HCF A5 length guide (P/O PL 70.20 Item 3) 6 — HCF front cover (P/O PL 70.20 Item 3) 7 014N00526 Special media separator pad (See Note 2) 8 — HCF tray level indicator Note: 1. HFSI. To reset HFSI counter, refer to dC135 Note: 2. This part should only be used for customers having issues feeding special media (Heavy cardstock, Labels, Enve- lopes, etc)
70.25 2100 Sheet Tray Option 2 1 — HCF right cover (REP 70.16) 2 007N01923 HCF elevator drive 3 — HCF tray rails 4 — HCF left cover (REP 70.15) 5 127N08068 HCF transport motor 6 109N00911 HCF controller PWB 7 117N02396 HCF interface harness 8 — HCF rear cover (REP 70.14)
70.30 2100 Sheet Tray Option 3  1 130N01897 HCF near empty sensor (1a)/HCF A5 length sensor (1b) 2 130N01985 HCF elevator sensor actuator 3 130N01984 HCF paper size sensor 4 — HCF bellcrank 5 — HCF pick roller (P/O PL 70.10 Item 5) (See Note) 6 130N01998 HCF pick sensor 7 022N02959 HCF paper feeder 8 — HCF pick roller index sensor (P/O PL 70.30 Item 7) 9 — HCF paper present sensor (P/O PL 70.30 Item 7) Note: HFSI. To reset HFSI counter, refer to dC135
