Xerox Versalink C415 Parts

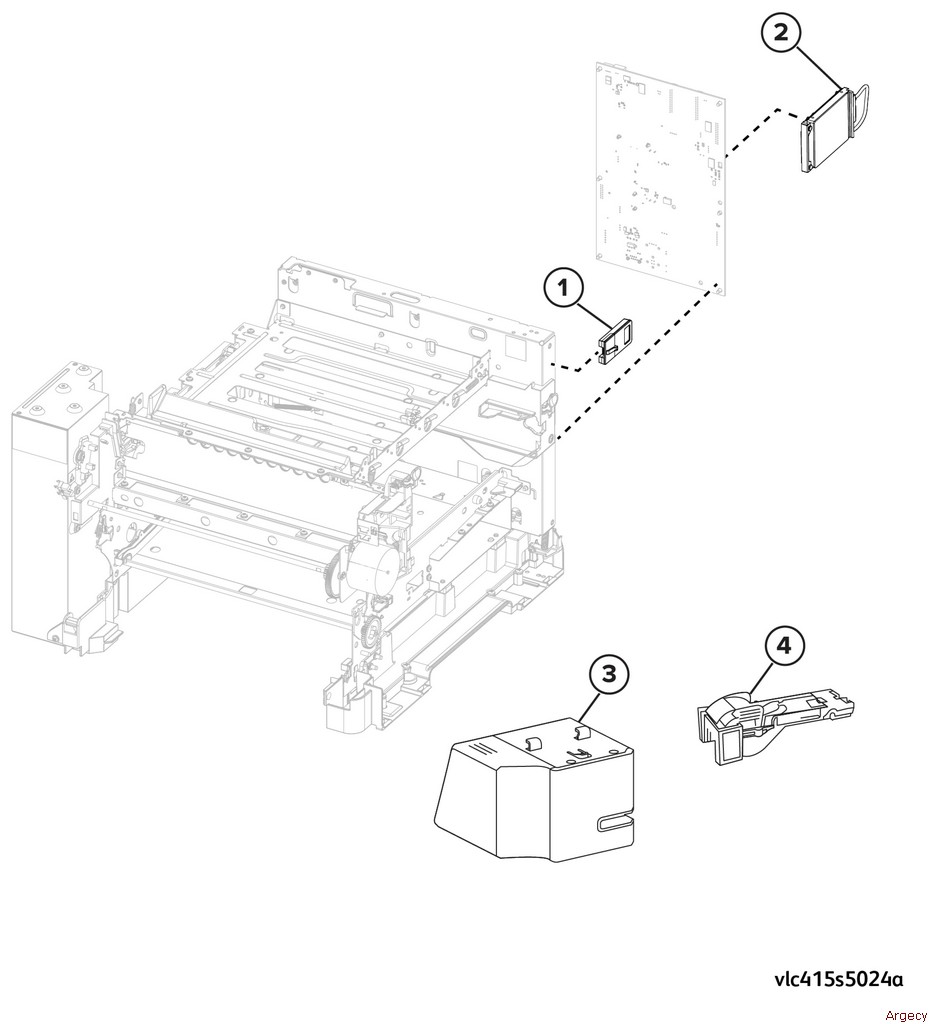

| 1 140N63970 Toner meter PWB (REP 90.1) 2 105N02414 HVPS (REP 1.1) 3 105N02413 LVPS 220V (REP 1.2) — 105N02412 LVPS 110V (REP 1.2) 4 140N63971 Drive PWB (Engine Board) (REP 1.3) |  | |

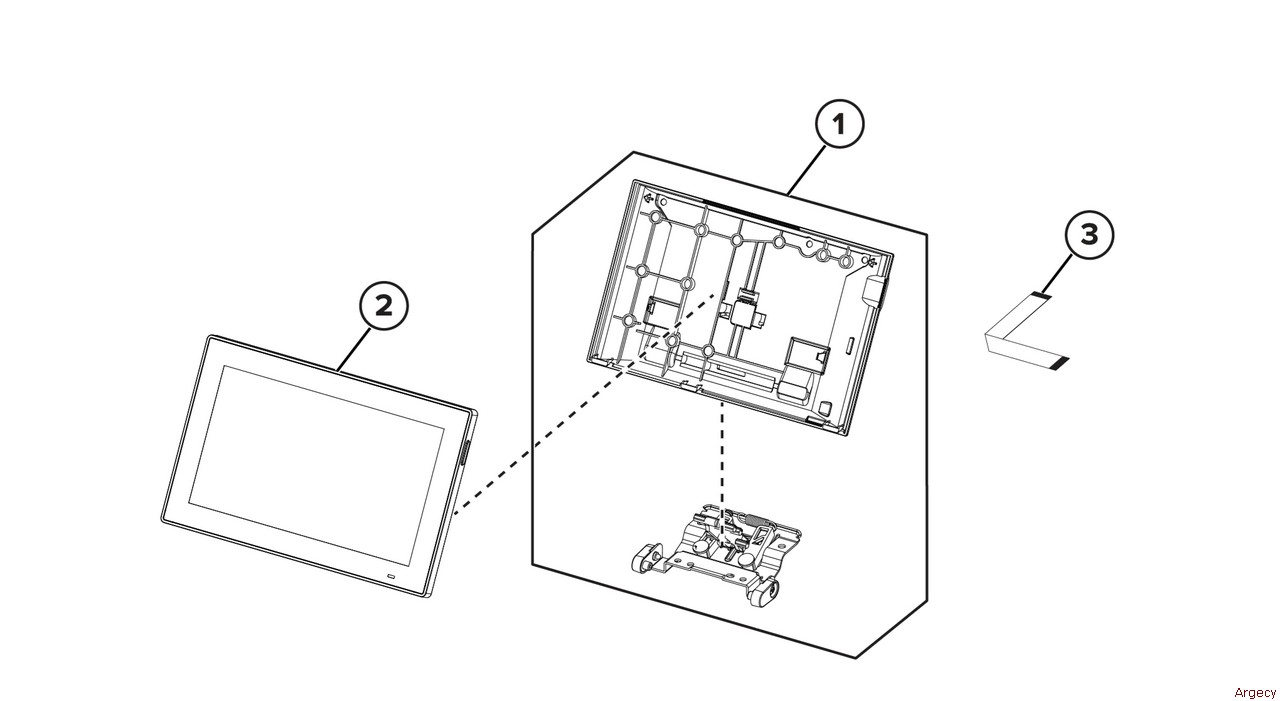

| 1 003N01207 Control panel hinge (REP 2.2) 2 002N03701 Control panel (REP 2.1) 3 109N00929 Control panel FFC | | |

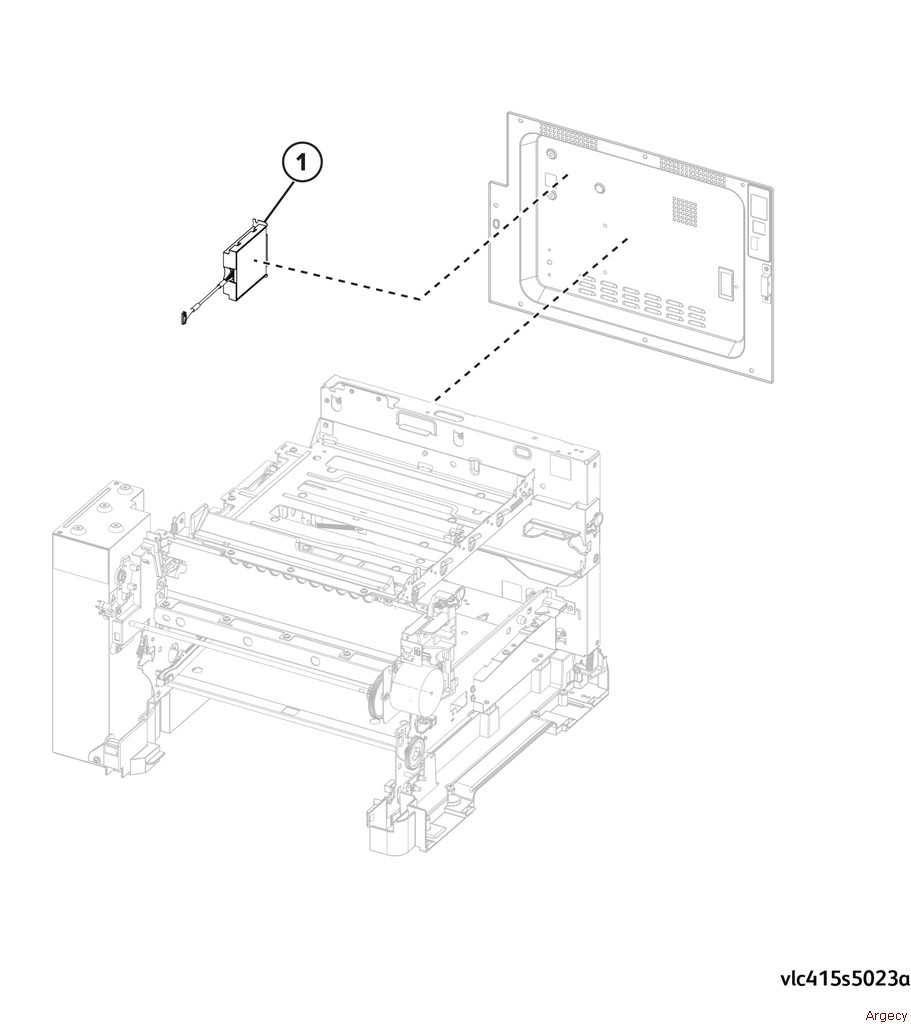

| 1 109N00927 Controller PWB (REP 3.1) 2 133N23278 Trusted platform module (TPM) |
 | |

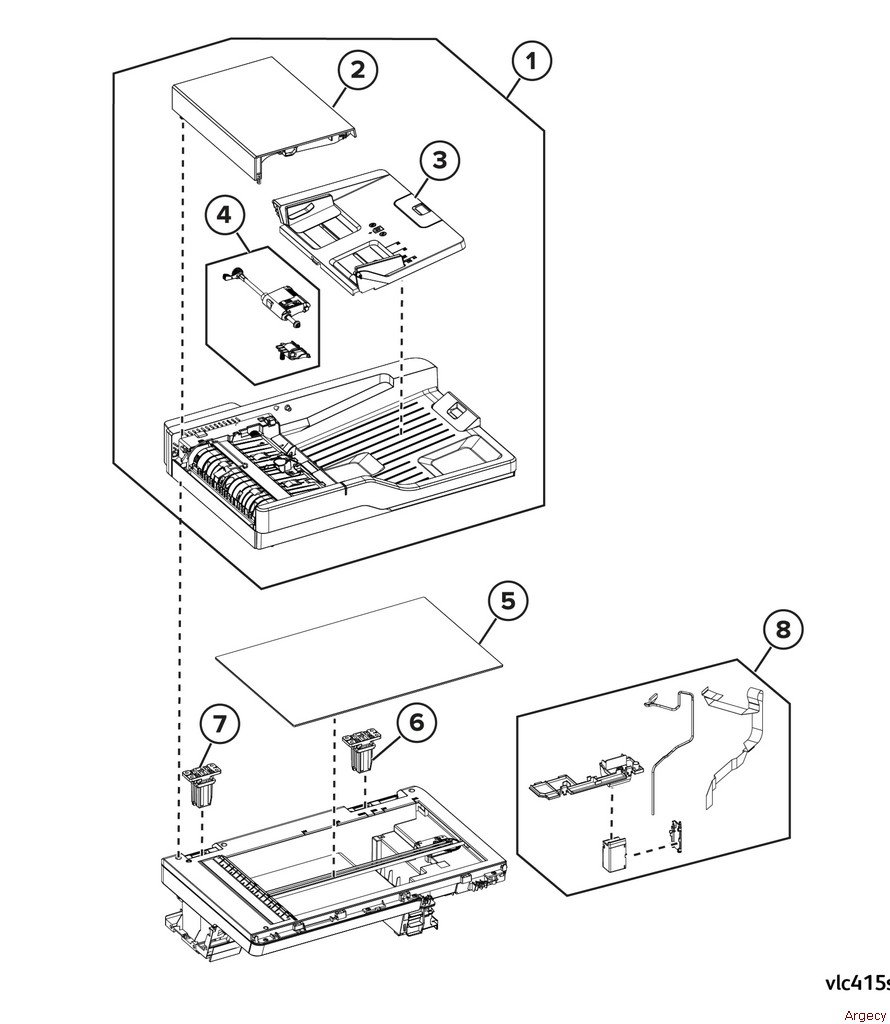

| 1 022N02978 DADF assembly (REP 5.1) 2 002N03741 DADF top cover (P/O PL 5.05 Item 1) (REP 5.2) 3 050N00757 DADF tray (P/O PL 5.05 Item 1) 4 116R00039 DADF maintenance kit (P/O PL 5.05 Item 1) (REP 5.5) (See Note) 5 019N01167 Scanner glass pad (REP 5.3) 6 003N01200 DADF right hinge (REP 5.4) 7 003N01202 DADF left hinge (REP 5.4) 8 117N02408 DADF harness kit Note: HFSI. To reset HFSI counter, refer to dC135 |
 | |

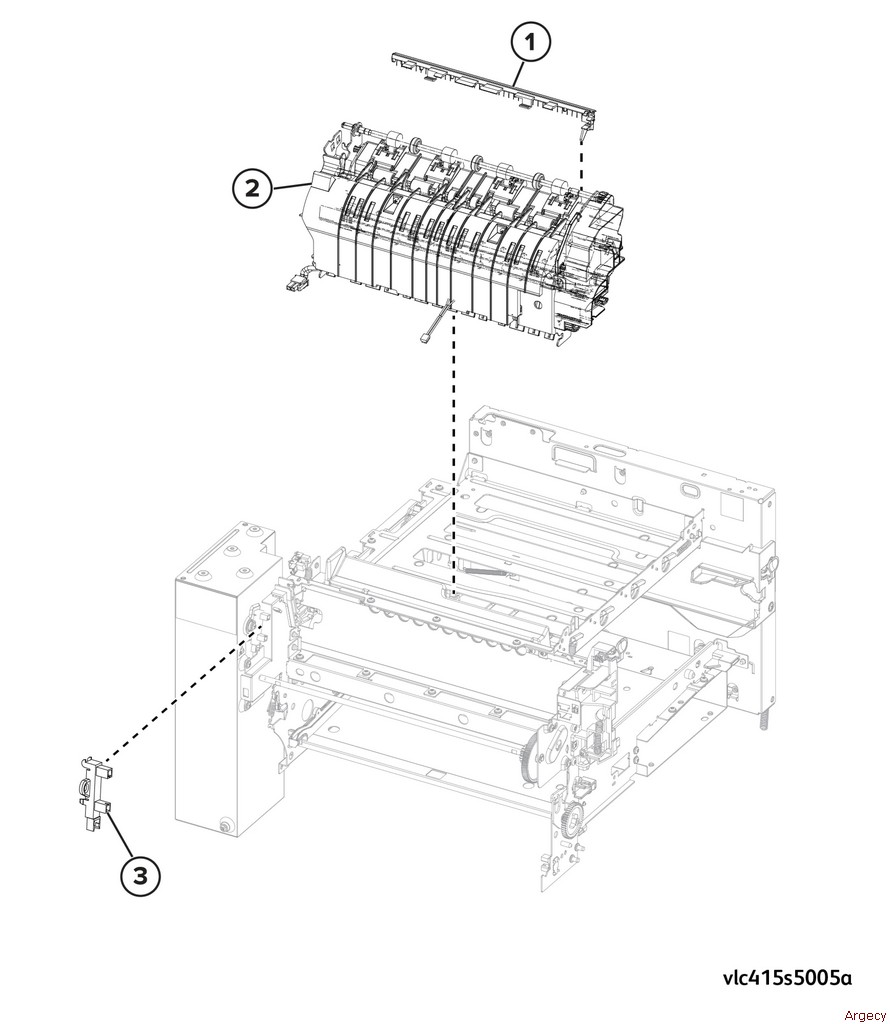

| 1 126N00514 Fuser deflector 2 126N00519 Fuser, 110 V (REP 10.1) 3 130N01895 Fuser exit sensor (REP 10.3) Note: HFSI. To reset HFSI counter, refer to dC135 |
 | |
|
1 091N80393 Fax PWB 2 497K24460 Optional Fax Disable Kit (Not Shown) (See Note) 3 497K24470 Optional Fax Removal Kit (Not Shown) (See Note) Note: For special request only. |
 | |
| 1 097N02470 Optional wireless network adapter 2 097N02466 500+GB Hard Disk Drive 3 097N02442 Convenience stapler (110V) — 097N02463 Convenience stapler (220V) 4 019N01170 Staple cartridge holder 5 497N07994 Adjustable Stand (Not Shown) 6 497N05244 Printer Stand (Not Shown) 7 017N00320 Adjustable stand nonlocking caster (Not Shown) 8 017N00319 Adjustable stand locking caster (Not Shown) 9 097N02465 550 Sheet Tray (Not Shown) 10 097N02468 650 Sheet Duo Tray (Not Shown) |
 | |
|
1 006R04694 Cyan WW Metered 2 006R04695 Magenta WW Metered 3 006R04696 Yellow WW Metered 4 006R04693 Black WW Metered 5 006R04678 Cyan Std WW Sold 6 006R04679 Magenta Std WW Sold 7 006R04680 Yellow Std WW Sold 8 006R04677 Black Std WW Sold 9 006R04686 Cyan High-Capacity NA Sold 10 006R04765 Cyan High-Capacity XE Sold 11 006R04687 Magenta High-Capacity NA Sold 12 006R04766 Magenta High-Capacity XE Sold 13 006R04688 Yellow High-Capacity NA Sold 14 006R04767 Yellow High-Capacity XE Sold 15 006R04685 Black High-Capacity NA Sold 16 006R04764 Black High-Capacity XE Sold 17 006R04698 Cyan WW Sold (See Note) 18 006R04699 Magenta WW Sold (See Note) 19 006R04700 Yellow WW Sold (See Note) 20 006R04697 Black WW Sold (See Note) 21 013R00700 Black Imaging Kit 22 013R00701 Black and color imaging Kit 23 008R13325 Waste Toner Bottle 24 008R13347 Staple Cartridges | ||
|

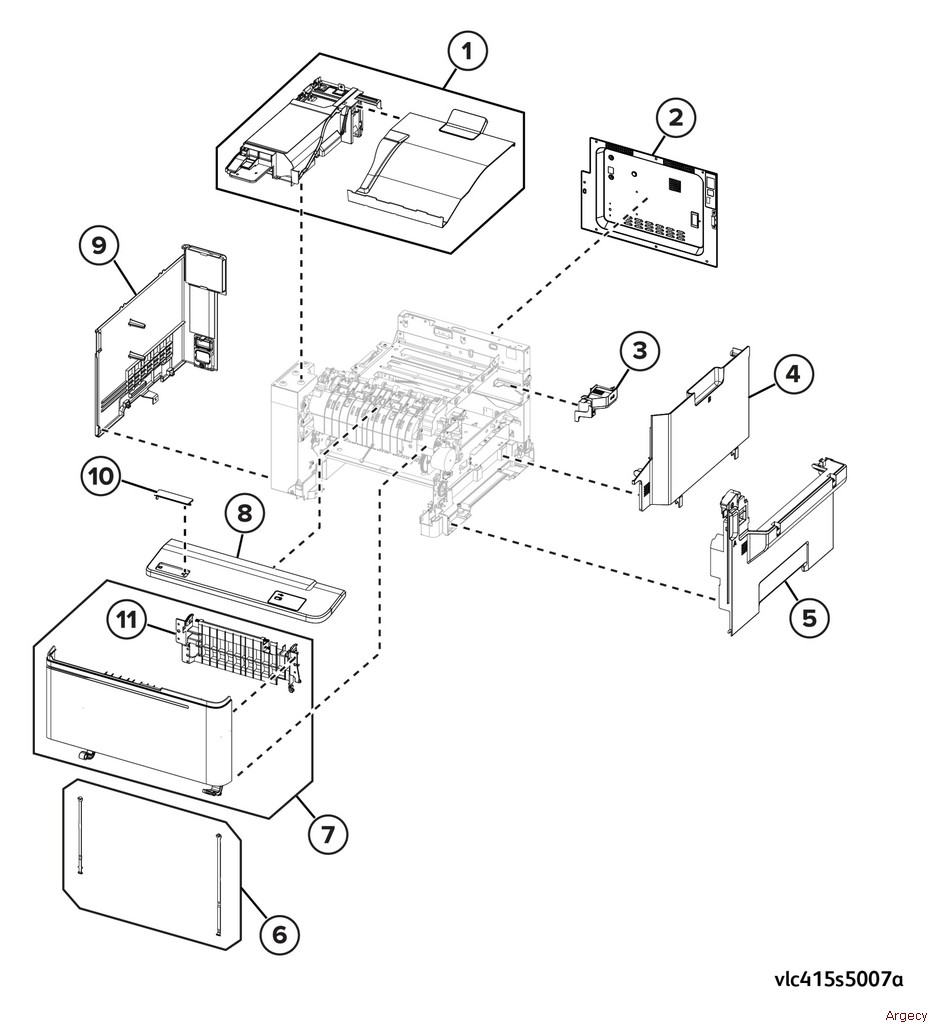

1 002N03751 Top cover (REP 28.4) 2 002N03760 Rear cover (REP 28.5) 3 002N03752 Connectivity cover 4 002N03750 Toner access door 5 002N03745 Right cover 6 003N01189 Door straps 7 002N03754 Front door (REP 28.6) 8 002N03753 Top access cover 9 002N03746 Left side cover (REP 28.1) 10 002N03749 Bezel (C415) 11 — Front Door Inner Paper Feed Guide (P/O PL 28.05 Item 7) (REP 28.7) |  | |

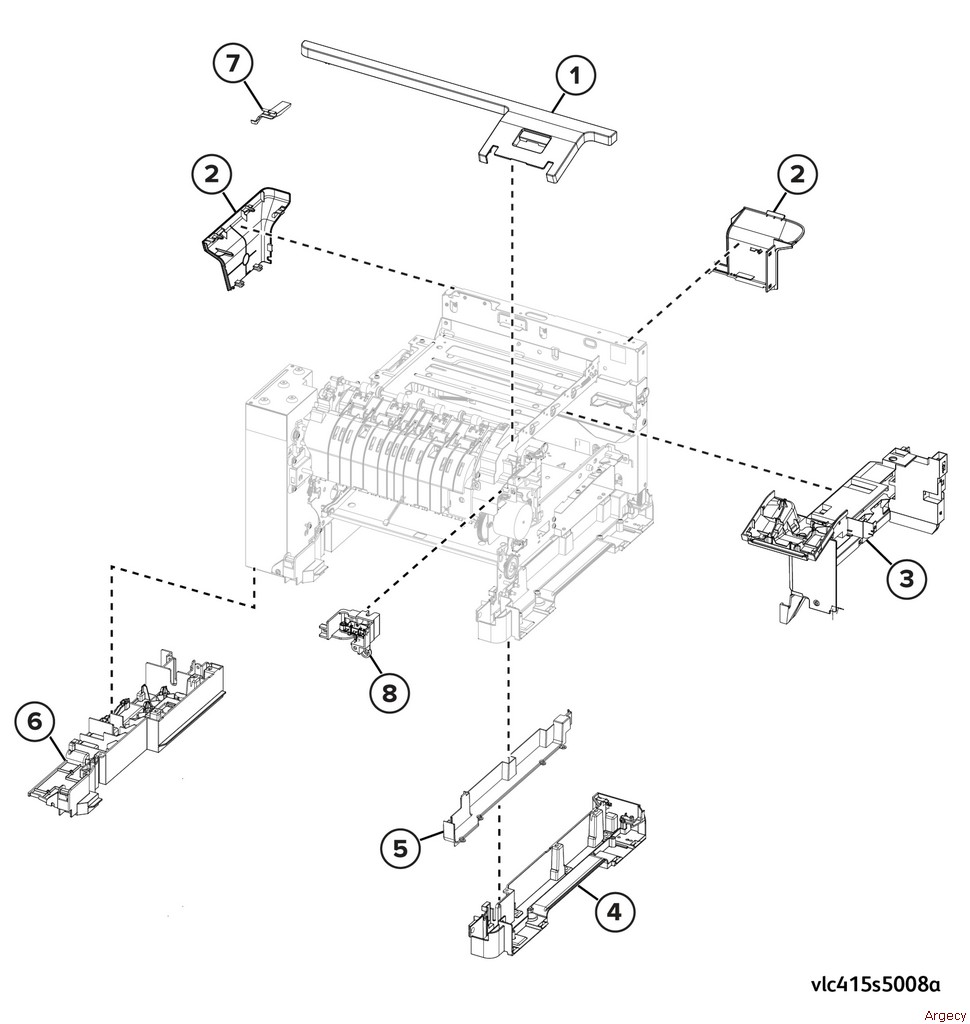

| 1 002N03748 Control panel base cover 2 109N00924 Scanner rear access (left and right) cover 3 109N00925 Scanner right support (REP 60.3) 4 001N00610 Lower right subframe (REP 28.3) 5 117N02189 Subframe cable cover 6 001N00609 Lower left subframe (REP 28.2) 7 053N00378 Bin full flag 8 002N03757 Interlock switch cover |  | |
|

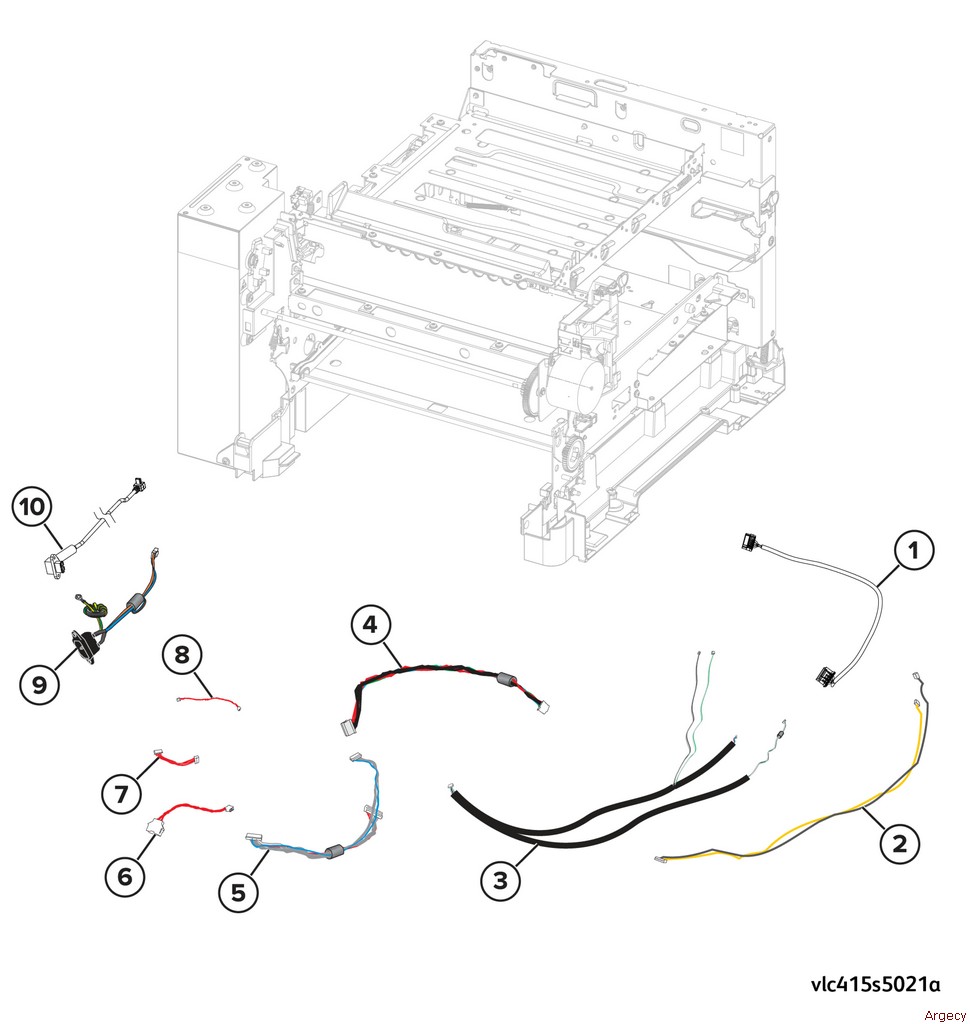

1 117N02410 Weather station harness 2 126N00450 Fuser exit narrow media to controller PWB harness 3 117N02414 Fuser/Input sensor harness 4 117N02413 LVPS to controller PWB harness 5 117N02190 EP motor to controller PWB harness 6 117N02412 Tray 2 to controller PWB harness 7 117N02193 HVPS to controller PWB harness 8 117N02411 Tray present sensor harness 9 112N00258 AC power to LVPS harness 10 117N02415 Front USB harness |
| |
|

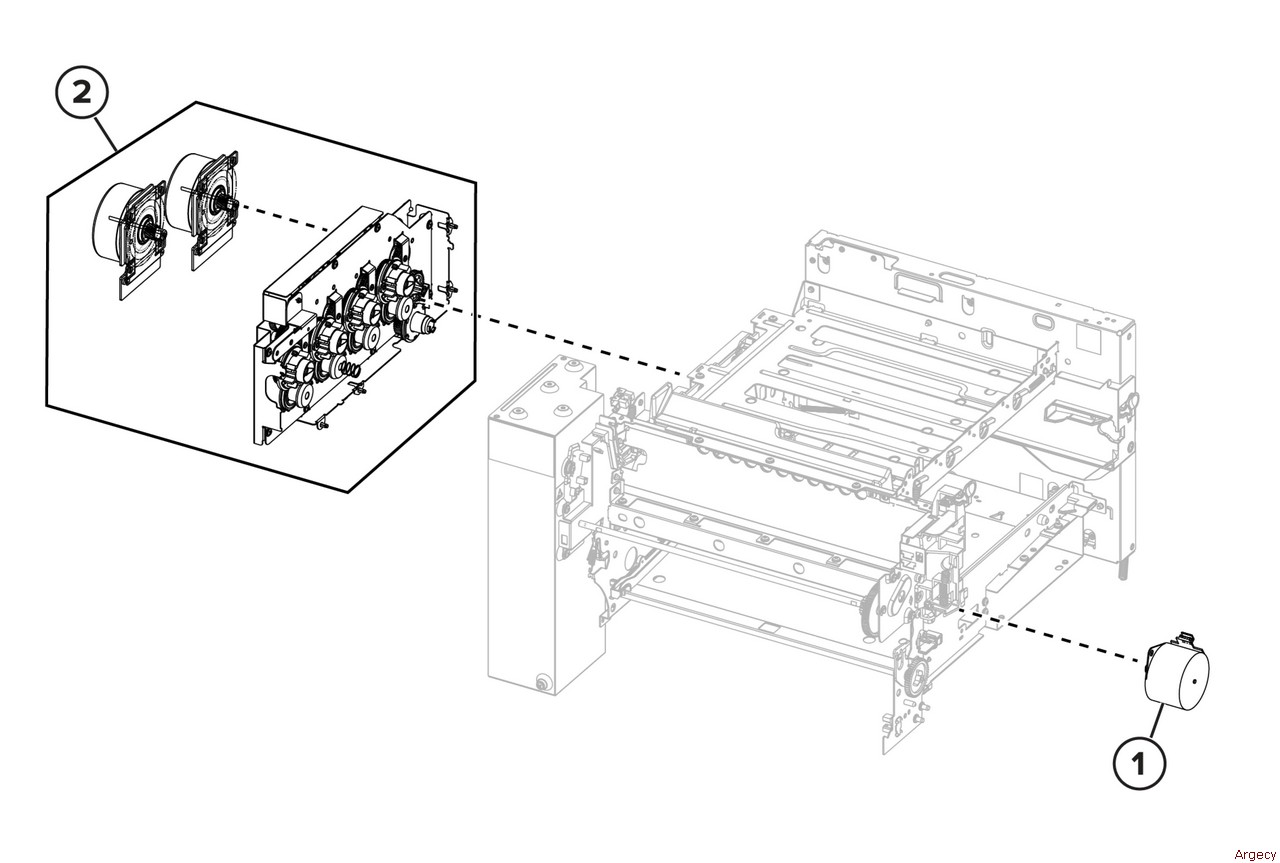

1 127N07961 Fuser drive motor (REP 10.2) 2 007N01851 EP drive assy (REP 40.1) |
 | |
|

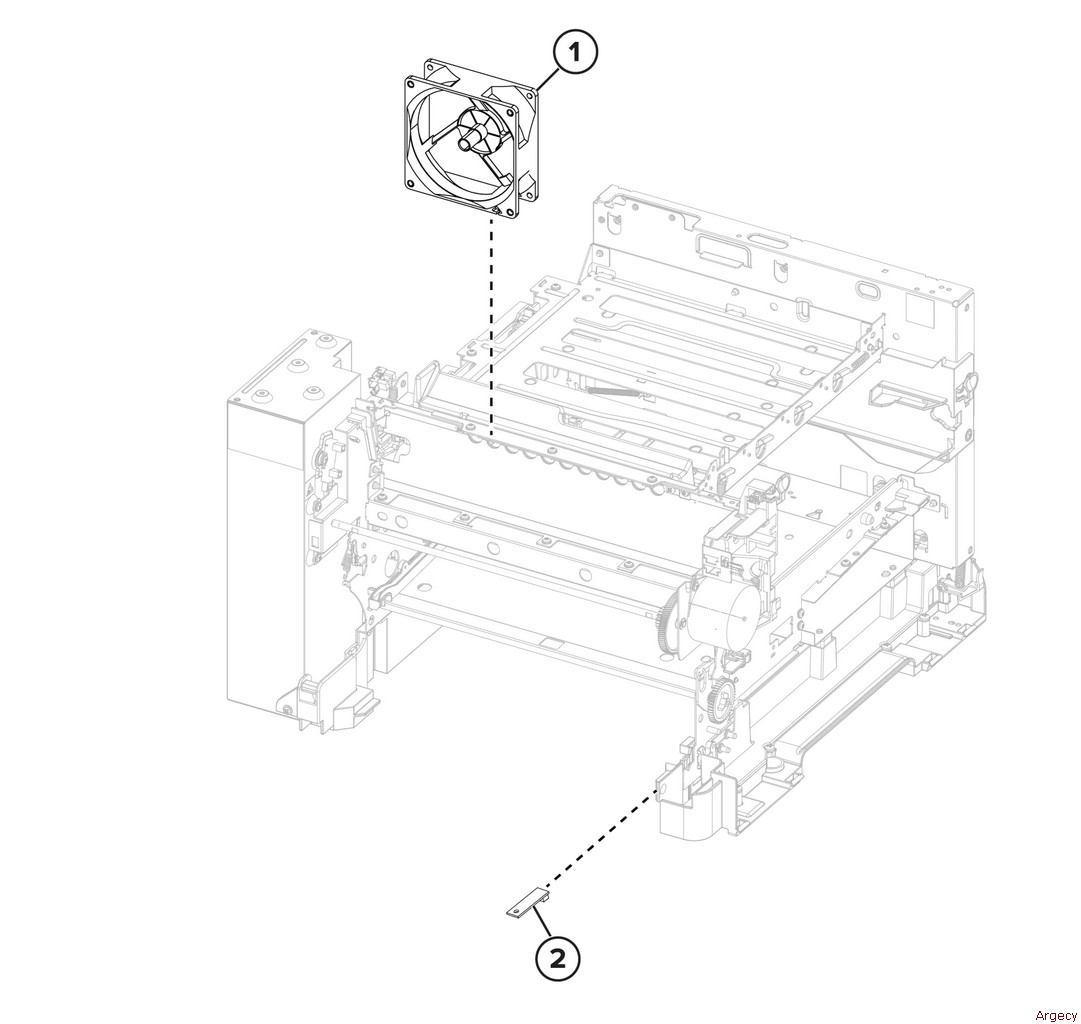

1 127N07965 System fan 2 130N01909 Weather station |
 | |
| 1 046N00246 Printhead (REP 60.1) |
 | |

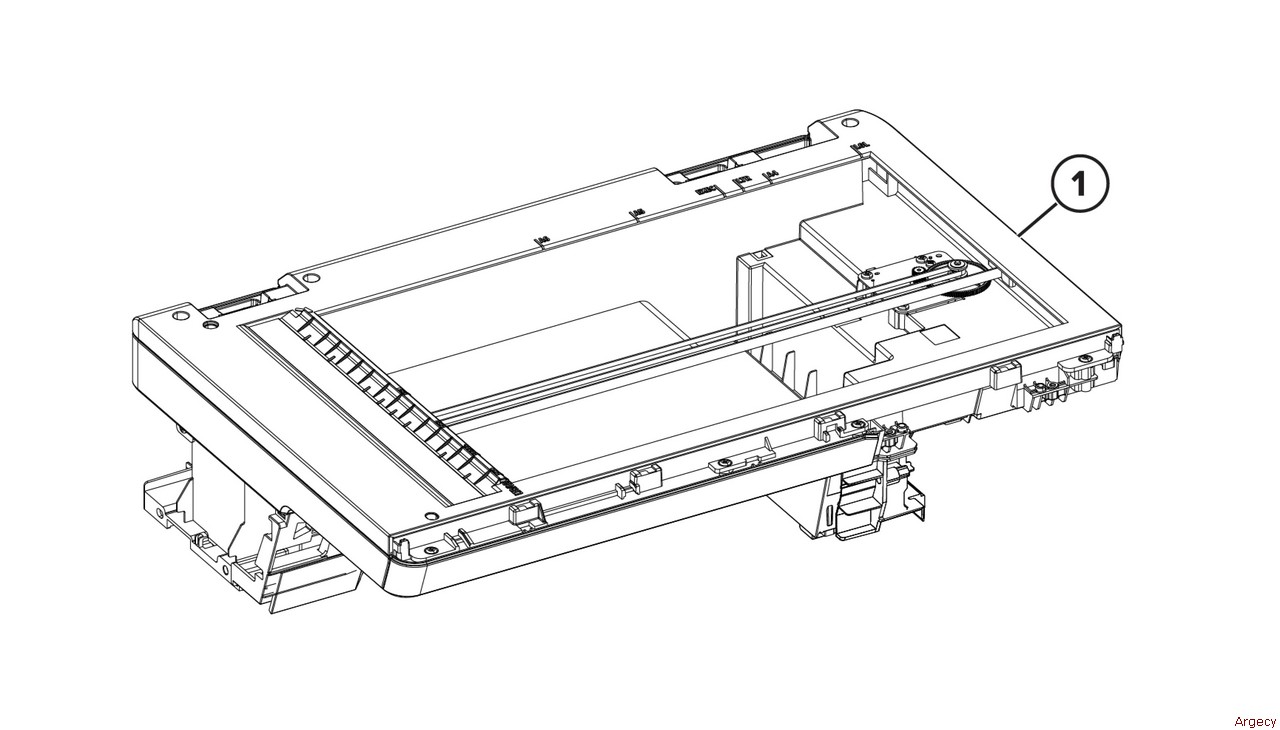

| 1 109N00923 Flatbed scanner (REP 60.2) |
 | |

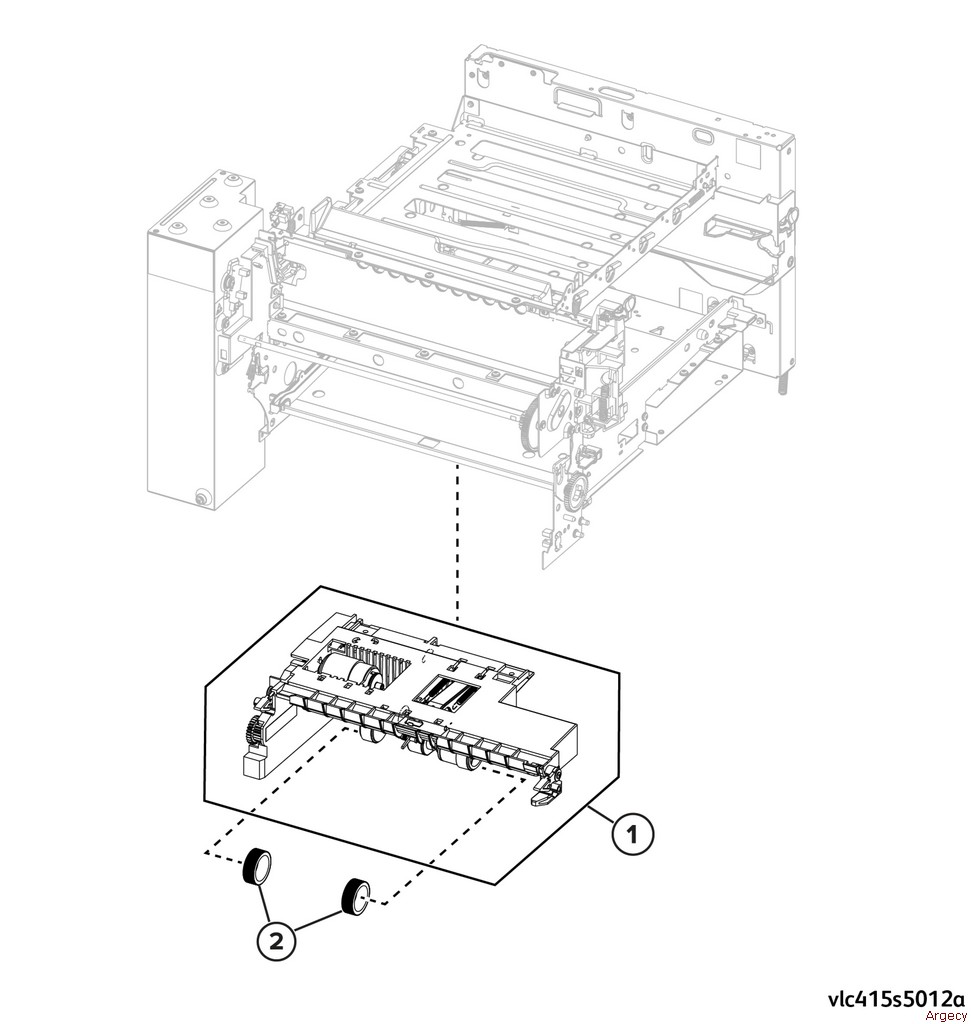

| 1 022N02898 Media feeder (REP 80.1) 2 022N02894 Pick Tires (REP 70.1) (See Note) Note: HFSI. To reset HFSI counter, refer to dC135 |
 | |
| 1 050N00765 250-sheet tray |
| |

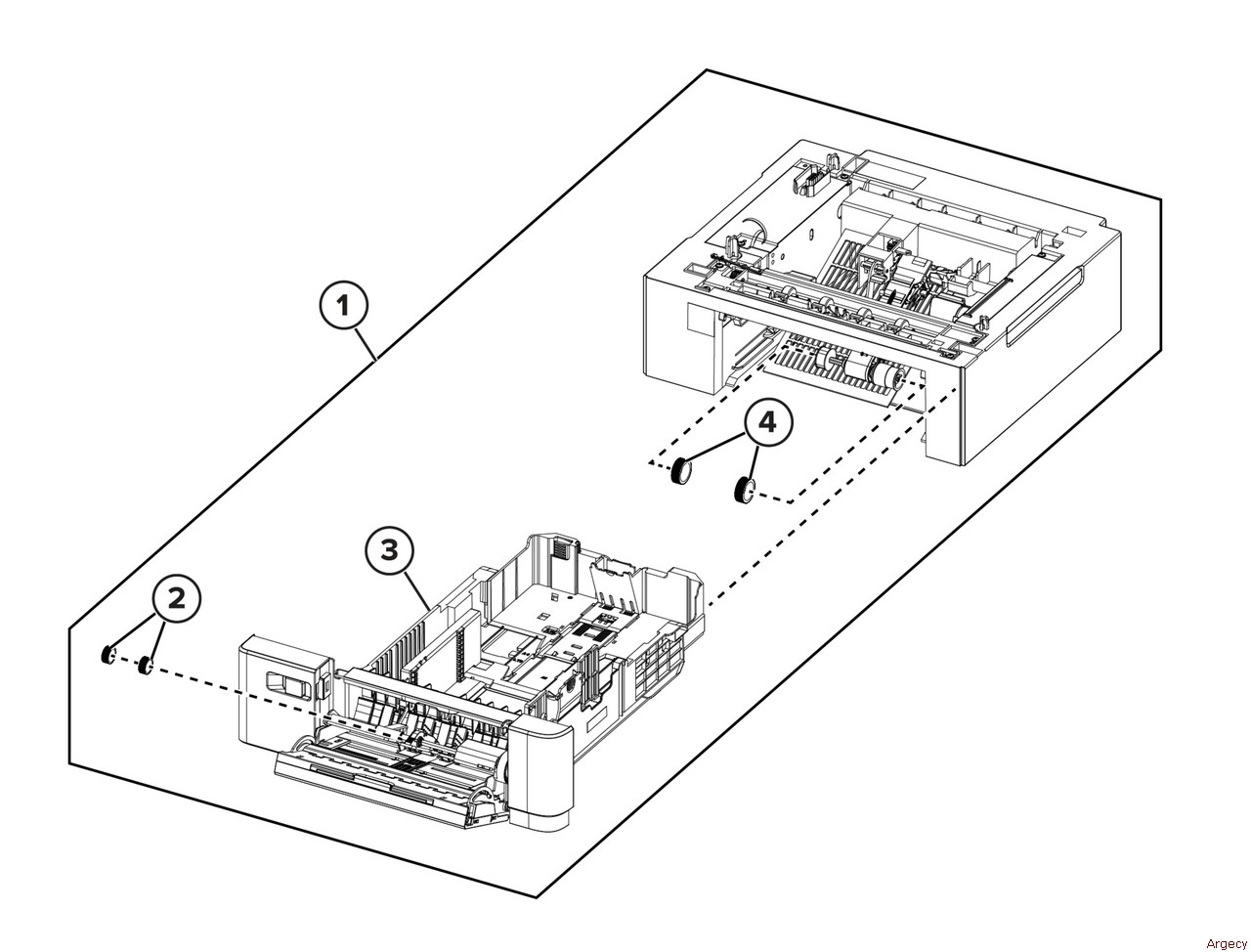

| 1 — Optional 650-sheet duo tray 2 022N02895 Optional 650-sheet tray bypass pick rollers (P/O PL 70.15 Item 1)(See Note) 3 050N00767 Optional 650-sheet duo tray insert (P/O PL 70.15 Item 1) 4 022N02894 Pick tires (P/O PL 70.15 Item 1) (REP 70.1) (See Note) Note: HFSI. To reset HFSI counter, refer to dC135 |
 | |
|
1 — Optional 550-sheet tray 2 050N00766 Optional 550-sheet tray insert (P/O PL 70.20 Item 1) 3 022N02894 Pick tires (P/O PL 70.20 Item 1) (REP 70.1) (See Note) Note: HFSI. To reset HFSI counter, refer to dC135 |
 | |

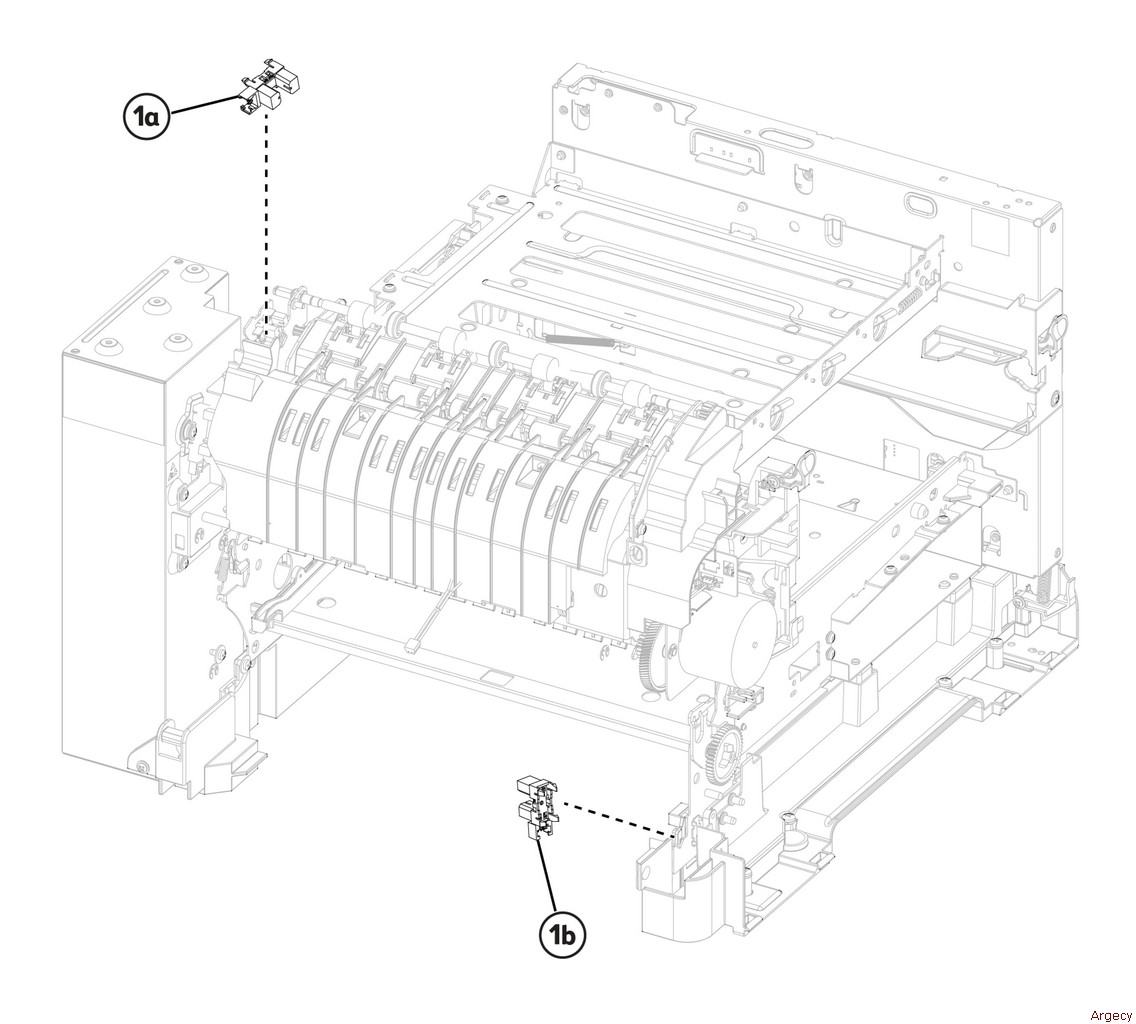

| 1 130N01896 Sensors (narrow media/bin full) 1a/Sensors (narrow media/bin full) 1b (REP 80.2) |
 | |
|

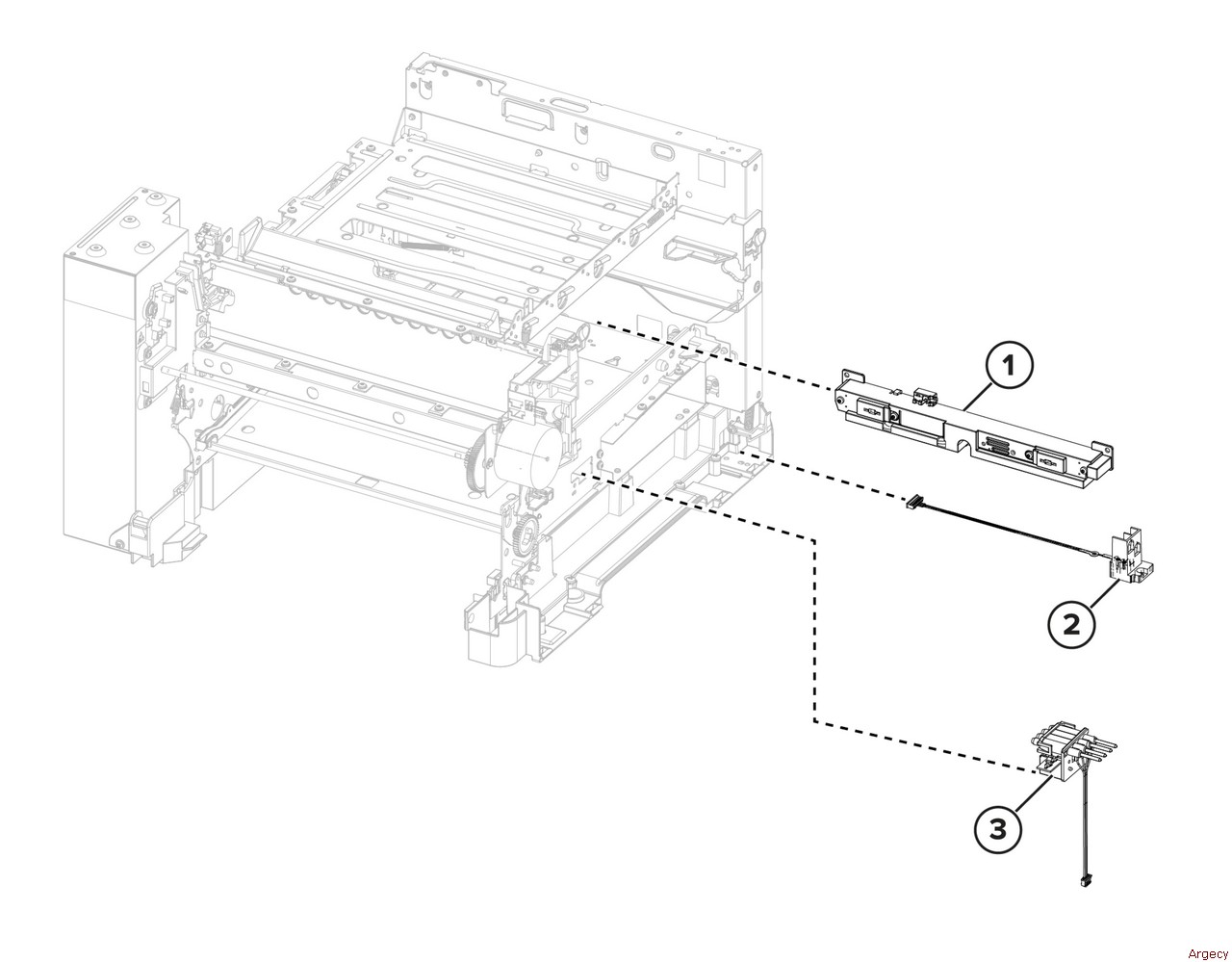

1 130N02009 Toner patch sensor (REP 90.2) 2 014N00528 Waste toner bottle contact block (REP 90.5) 3 108N00643 Toner cartridge contact (REP 90.3) |  | |

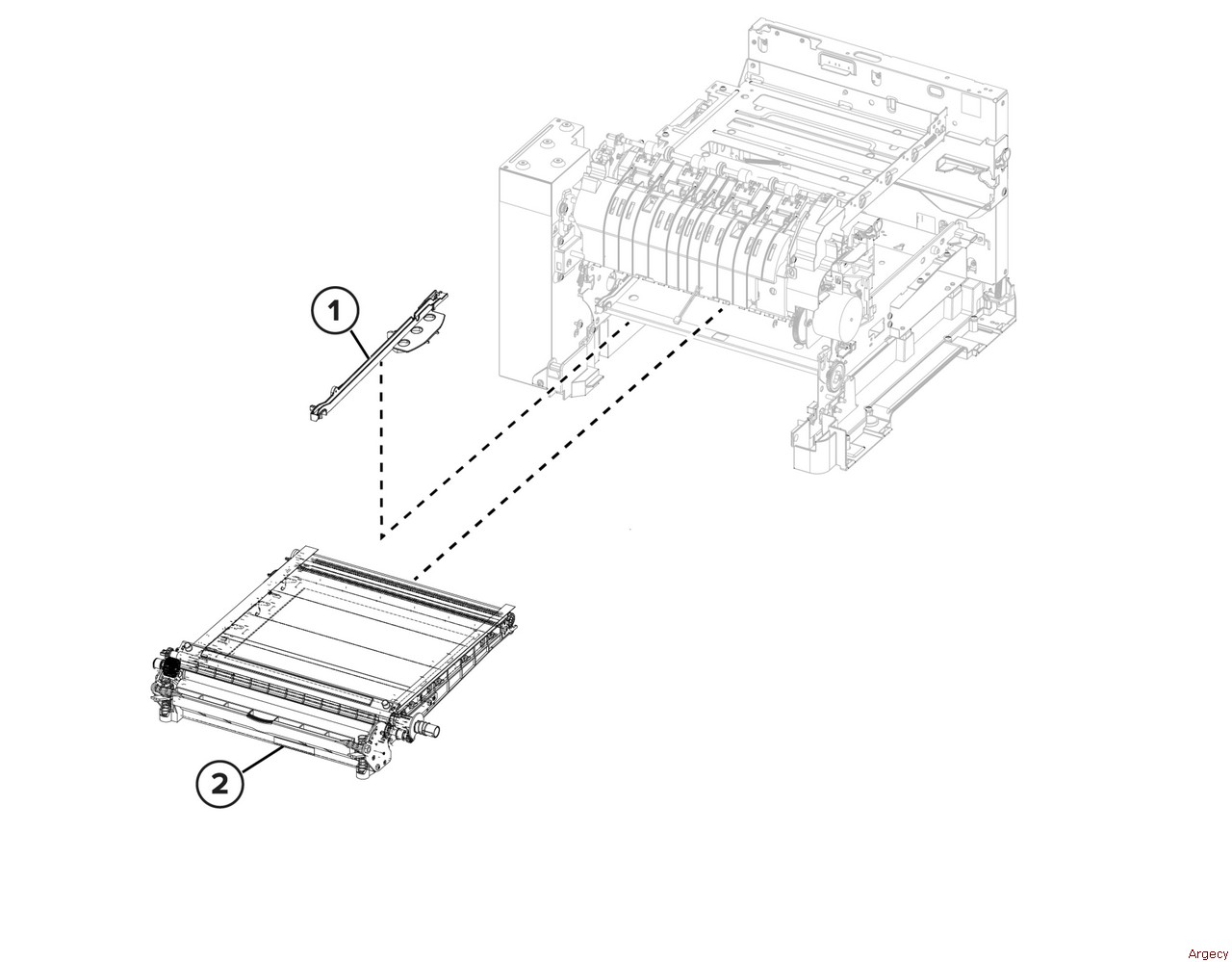

| 1 133N23274 Transfer module guide (REP 90.7) 2 133N23275 Transfer module (REP 90.6) |
 |
