Zebra ZT600 Series Parts






Please call for parts

1 Electronics Cover ZT600 Series P1083320-004 1

2 Media Cover (includes window) ZT610 P1083320-005 1

2 Media Cover (includes window) ZT620 P1083320-006 1

3 Window for the Media Cover ZT600 Series P1083320-007 1

4 Covers for Options ZT600 Series P1083320-092 1

5 Feet for the Printer ZT600 Series P1083320-095 12

6 Trim Panels ZT610 P1083320-008 1

6 Trim Panels ZT620 P1083320-009 1

7 Standard Control Panel ZT610 P1083320-001 1

7 Standard Control Panel ZT620 P1083320-108 1

7 Touch Screen Control Panel ZT610 P1083320-122 1

7 Touch Screen Control Panel ZT620 P1083320-123 1

Covers for the Touch Screen Control Panel (Qty of 3) P1083320-125 3

Cover for the USB Port ZT600 Series P1083320-003 3
1 Printhead 203 dpi ZT610 P1083320-010 1

1 Printhead 300 dpi ZT610 P1083320-011 1

1 Printhead 600 dpi ZT610 P1083320-012 1

1 Printhead 203 dpi ZT620 P1083320-015 1

1 Printhead 300 dpi ZT620 P1083320-016 1

2 Print Mechanism Hardware (includes printhead cables and ground contact) ZT610 P1083320-022 1

2 Print Mechanism Hardware (includes printhead cables and ground contact) ZT620 P1083320-023 1

Printhead Mounting Screw (Qty 5) ZT600 Series P1083320-112 5

3 Ground Contact ZT600 Series P1083320-024 1

4 Pivot Bar and Toggle Assemblies ZT610 P1083320-027 1

4 Pivot Bar and Toggle Assemblies ZT620 P1083320-028 1

5 Toggle Assemblies Only (Qty of 2) ZT600 Series P1083320-029 2

Ruler for Toggle Position ZT610 P1083320-025 1

Ruler for Toggle Position ZT620 P1083320-026 1

6 Ribbon Strip Plate and Static Brush ZT610 P1083320-030 1

6 Ribbon Strip Plate and Static Brush ZT620 P1083320-031 1

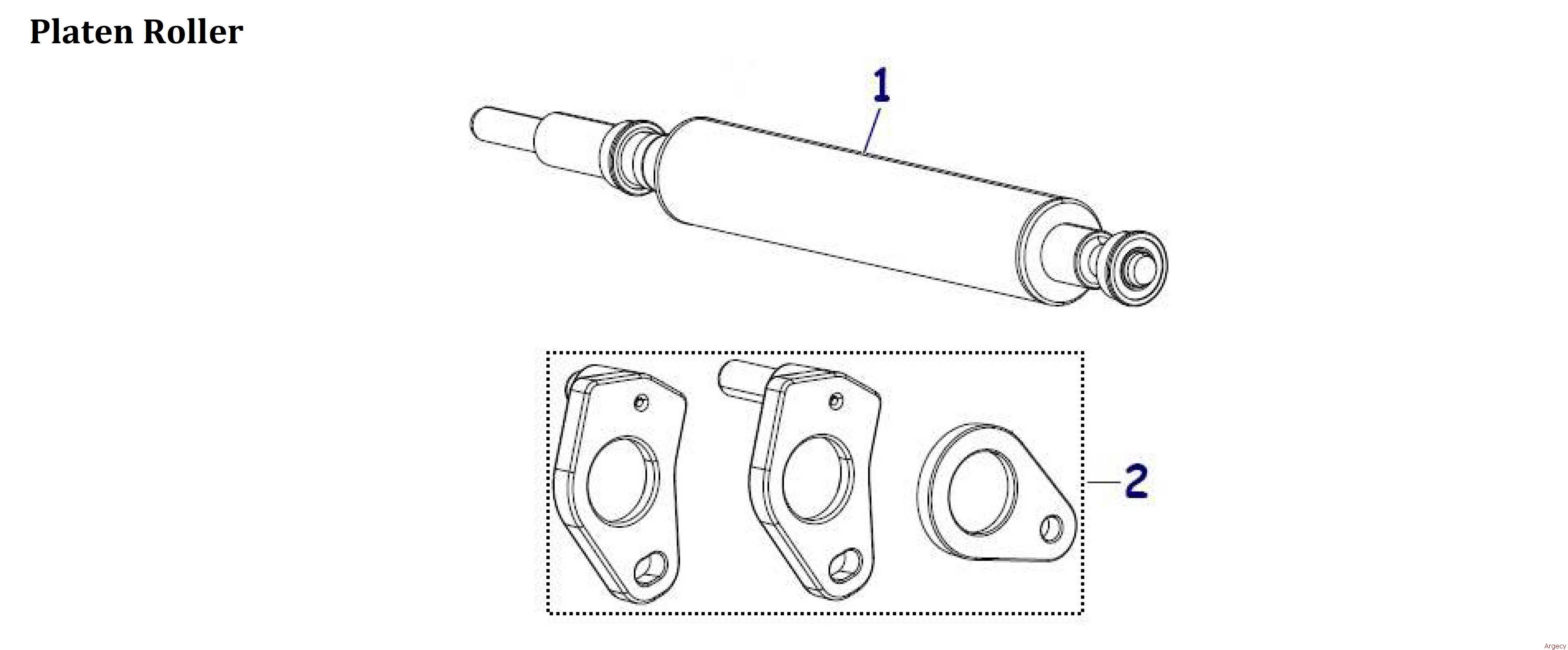

1 Platen Roller ZT610 P1083320-032 1

1 Platen Roller ZT620 P1083320-033 1

2 Retainers for Roller Bearings ZT600 Series P1083320-034 1
1 Main Logic Board ZT600 Series P1083320-124 1

2 Power Supply ZT600 Series P1083320-043 1

3 Connectivity PCBA ZT600 Series P1083320-036 1

4 USB PCBA & Cover ZT600 Series P1083320-045 1

5 Internal Print Server IPv4 (Ethernet) ZT600 Series P1083320-039 1

6 Zebranet Wireless Card 802.11ac USA and Canada ZT600 Series P1083320-037A 1

6 Zebranet Wireless Card 802.11ac Japan ZT600 Series P1083320-037B 1

6 Zebranet Wireless Card 802.11ac All Countries except USA, Canada and Japan

ZT600 Series P1083320-037C 1

Wi-Fi Replacment Antenna for 802.11ac and n P1037974-053 1

Magnetic Mount for Wi-Fi Antenna (antenna not included) 39518M 1

7 USB Host Card ZT600 Series P1083320-094 1

8 Applicator Interface Card 5V-24V ZT600 Series P1083320-038 1

9 Parallel Port Card ZT600 Series P1083320-040 1

10 RFID Upgrade USA and Canada ZT610 P1083320-041A 1

10 RFID Upgrade USA and Canada ZT620 P1083320-102A 1

Replacement RFID Hardware and Cables ZT600 Series P1083320-042 1

External PrintServer IPv4 ZT600 Series P1031031 1

External PrintServer IPv6 ZT600 Series P1000219 1

Electronics Cables ZT600 Series (various power and data cables, does NOT include printhead cables) P1083320-046 1

USA Power Cord 46693
1 Media Sensor ZT600 Series P1083320-047 1

2 Reflective Sensor (black mark sensor) ZT600 Series P1083320-048 1

3 Ribbon Out Sensor ZT600 Series P1083320-051 1

4 Take Label Sensors ZT600 Series P1083320-052 1

5 Head Open Sensor ZT600 Series P1083320-053 1

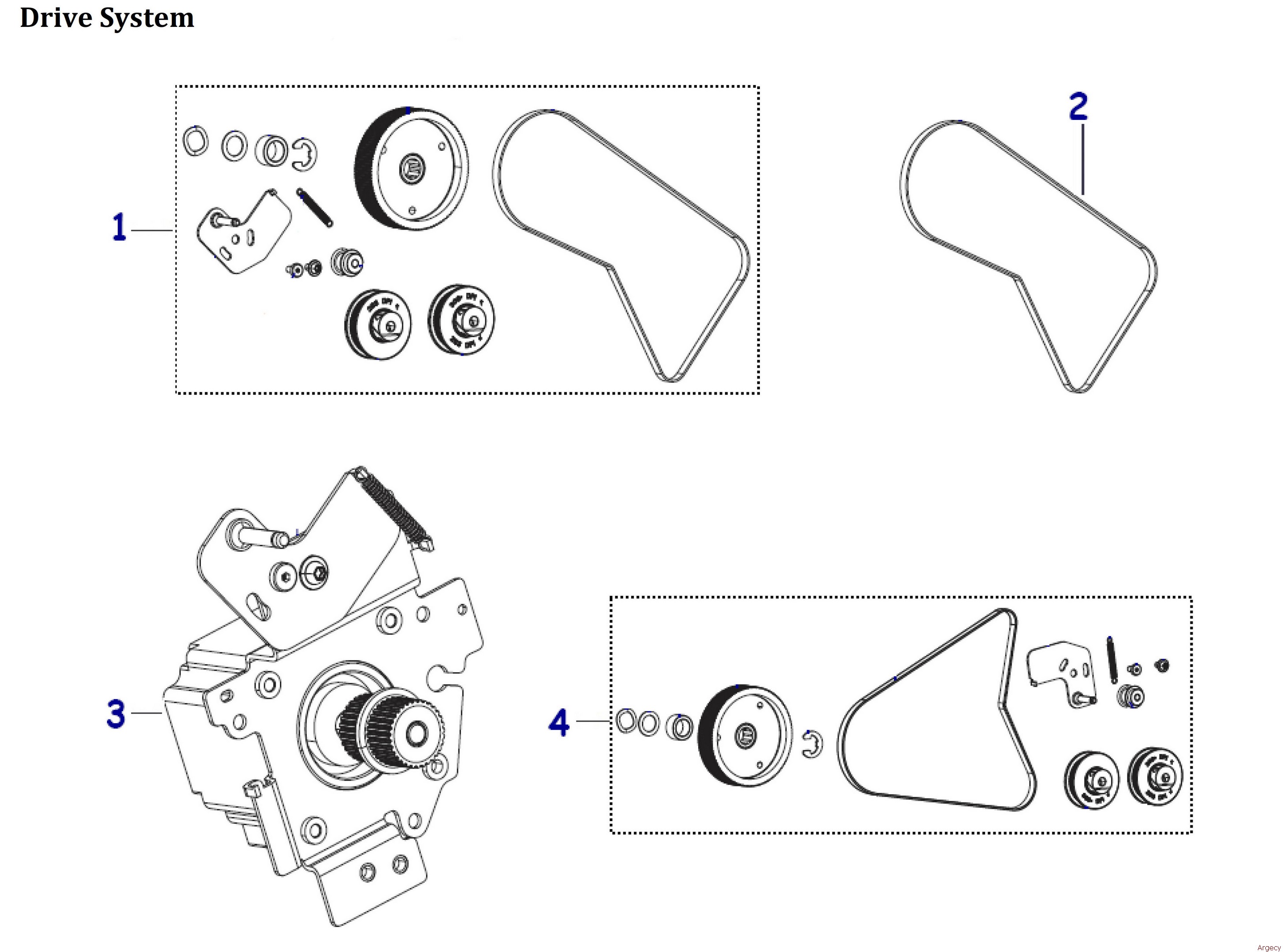

1 Main Drive System ZT600 Series (includes pulleys and belt for all dpi) P1083320-054 1

2 Drive Belt for the Main Drive System or Rewind Drive System (works for all dpi) ZT600 Series P1083320-056 1

3 Drive Motor with Pulley Assembly (works for all dpi) ZT600 Series P1083320-057 1 Idler Pulleys (Qty of 5) ZT600 Series P1083320-055 1

4 Rewind Drive System (includes pulleys and belt for all dpi) ZT600 Series P1083320-058 1
1 Ribbon Take Up Spindle ZT610 P1083320-068 1

1 Ribbon Take Up Spindle ZT620 P1083320-069 1

2 Ribbon Supply Spindle (standard spindle on all printers) ZT610 P1083320-063 1

2 Ribbon Supply Spindle (standard spindle on all printers) ZT620 P1083320-065 1

2 Inside Coated Ribbon Supply Spindle (optional field-installed spindle) ZT610 P1083320-064 1

2 Inside Coated Ribbon Supply Spindle (optional field-installed spindle) ZT620 P1083320-066 1

Hardware for the Ribbon Supply Spindle (includes blades, springs, spring

housing, nut, screws) ZT600 Series P1083320-067 1

3 Media Supply Spindle for 3" ID Cores (standard spindle on all printers) ZT610 P1083320-060 1

3 Media Supply Spindle for 3" ID Cores (standard spindle on all printers) ZT620 P1083320-062 1

3 Media Supply Spindle for 40mm ID Cores (optional field-installed spindle) ZT610 P1083320-113 1

3 Media Supply Spindle for 40mm ID Cores (optional field-installed spindle) ZT620 P1083320-114 1

4 Media Supply Hanger (optional field-installed hanger) ZT610 P1083320-059 1

4 Media Supply Hanger (optional field-installed hanger) ZT620 P1083320-061 1

5 Replacement Media Rewind Spindle (includes bearing) ZT610 P1083320-070 1

5 Replacement Media Rewind Spindle (includes bearing) ZT620 P1083320-071 1
1 Peel/Tear Bar ZT610 P1083320-078 1

1 Peel/Tear Bar ZT620 P1083320-079 1

2 Media Support ZT610 P1083320-076 1

2 Media Support ZT620 P1083320-077 1

3 Media Guide Assembly ZT610 (includes black mark sensor) P1083320-074 1

3 Media Guide Assembly ZT620 (includes black mark sensor) P1083320-075 1

4 Media Dancer ZT610 P1083320-072 1

4 Media Dancer ZT620 P1083320-073 1

5 Ribbon Rollers ZT610 P1083320-080 1

5 Ribbon Rollers ZT620 P1083320-081 1

6 Lights for the Media and Ribbon Path ZT600 Series P1083320-044 1
1 Cutter Upgrade ZT610 P1083320-118 1

1 Cutter Upgrade ZT620 P1083320-119 1

2 Media Rewind Upgrade ZT610 P1083320-084 1

2 Media Rewind Upgrade ZT620 P1083320-085 1
1 Cover with PCBA for the Cutter ZT610 P1083320-120 1

1 Cover with PCBA for the Cutter ZT620 P1083320-121 1

2 Catch Tray for the Cutter ZT610 P1083320-086 1

2 Catch Tray for the Cutter ZT620 P1083320-087 1

Guard with Static Brush for the Cutter ZT610 P1066612 1

Guard with Static Brush for the Cutter ZT620 P1066613 1
1 Rewind Roller ZT610 P1083320-103 1

1 Rewind Roller ZT620 P1083320-104 1

2 Retainers for Roller Bearings ZT600 Series P1083320-034 1

3 Media Rewind Plate for Tear/Peel ZT610 P1083320-090 1

3 Media Rewind Plate for Tear/Peel ZT620 P1083320-091 1

Replacement Media Rewind Spindle (includes bearing) ZT610 P1083320-070 1

Replacement Media Rewind Spindle (includes bearing) ZT620 P1083320-071 1

J Hook (Qty of 2) ZT610 P1006121 2

J Hook (Qty of 2) ZT620 P1006123 2
