IBM Infoprint 1454 & 1464 (4924) Parts

Please call for parts assistance

Looking for whole machines?
View Printer Info

Assembly 1: Covers 1 56P2821 Top cover assembly 56P2821 Top cover assembly New 56P2821 (New) $47.00 56P2821 Top Cover Assembly Fully refurbished with 90-day warranty 56P2821 $38.00 1.1–1 56P2819 Left upper cover assembly 56P2819 Left upper cover assembly New 56P2819 (New) $24.00 56P2819 Left upper cover assembly Fully refurbished with 90-day warranty 56P2819 $16.00 2 56P2838 250 output flag and retainer 56P2838 250 output flag and retainer New 56P2838 (New) Contact for Details 3 56P1539 Cable, options - stacker, including output bin sensor 56P1539 Cable, Options - Stacker, Including Output Bin Sensor Fully refurbished with 90-day warranty 56P1539 $16.00 3 56P2809 Pivot, left upper cover 56P2809 Pivot, left upper cover New 56P2809 (New) Contact for Details 4 56P2820 Redrive cap cover assembly 56P2820 Redrive Cap Cover Assembly New 56P2820 (New) $30.00 56P2820 Redrive Cap Cover Assembly Fully refurbished with 90-day warranty 56P2820 $28.00 4 53P9913 Jam access spring 53P9913 Jam Access Spring New 53P9913 (New) $24.00 5 53P9812 Machine pad 53P9812 Machine pad Fully refurbished with 90-day warranty 53P9812 Contact for Details 5 56P2835 Lower access jam door assembly 56P2835 Lower access jam door assembly New 56P2835 (New) $13.00 6 53P9821 Top front support bracket 6 56P2814 Left lower pivot cover 56P2814 Left lower pivot cover Fully refurbished with 90-day warranty 56P2814 Contact for Details 7 56P2813 Right rear cover 56P2813 Right rear cover New 56P2813 (New) $47.00 56P2813 Right rear cover Fully refurbished with 90-day warranty 56P2813 $38.00 7 56P2812 Cover, left lower 56P2812 Cover left lower New 56P2812 (New) $47.00 56P2812 Cover left lower Fully refurbished with 90-day warranty 56P2812 $34.00 8 56P2815 Waste container door 56P2815 Waste container door New 56P2815 (New) Contact for Details 9 56P2810 Right front cover 9 56P2800 Blank, TLI/SN label 10 53P9819 Ground cable 53P9819 Ground cable Fully refurbished with 90-day warranty 53P9819 Contact for Details 11 56P2837 Lower right door assembly 56P2837 Lower right door assembly New 56P2837 (New) $30.00 56P2837 Lower right door assembly Fully refurbished with 90-day warranty 56P2837 $20.00 11 56P2824 Rear cover 56P2824 Rear cover New 56P2824 (New) $43.00 56P2824 Rear cover Fully refurbished with 90-day warranty 56P2824 $24.00 12 53P9837 Front right light shield cover 53P9837 Front Right Light Shield Cover New 53P9837 (New) $24.00 53P9837 Front Right Light Shield Cover Fully refurbished with 90-day warranty 53P9837 $19.00 12 53P9815 Fuser latch slide 53P9815 2 Fuser latch slide Fully refurbished with 90-day warranty 53P9815 Contact for Details 13 56P2216 Shield, door spring 56P2216 Shield, door spring New 56P2216 (New) Contact for Details 56P2216 Shield door spring Fully refurbished with 90-day warranty 56P2216 Contact for Details 13 53P9816 Fuser latch slide spring 53P9816 2 Fuser latch slide spring Fully refurbished with 90-day warranty 53P9816 Contact for Details 14 53P9775 Fuser top duct 53P9775 Fuser top duct Fully refurbished with 90-day warranty 53P9775 Contact for Details 15 53P9808 Spring, rear hold down 53P9808 4 Spring rear hold down Fully refurbished with 90-day warranty 53P9808 Contact for Details 15 53P9818 Duplex actuator arm assembly 53P9818 Duplex actuator arm assembly Fully refurbished with 90-day warranty 53P9818 Contact for Details 16 53P9782 Bellcrank, front hold down 53P9782 4 Bellcrank front hold down Fully refurbished with 90-day warranty 53P9782 Contact for Details 16 56P1500 RIP fan duct 56P1500 RIP fan duct Fully refurbished with 90-day warranty 56P1500 Contact for Details 17 56P2246 Detent spring 56P2246 Detent spring Fully refurbished with 90-day warranty 56P2246 Contact for Details 17 53P9792 Fuser wall duct 53P9792 Fuser wall duct Fully refurbished with 90-day warranty 53P9792 Contact for Details 18 56P2218 Detent, front access door 56P2218 Detent, front access door New 56P2218 (New) Contact for Details 18 53P9791 Fuser bottom duct 53P9791 Fuser Bottom Duct Fully refurbished with 90-day warranty 53P9791 $28.00 19 56P2219 Housing, front access door 56P2219 Housing, front access door Fully refurbished with 90-day warranty 56P2219 Contact for Details 19 56P2290 Fuser left duct 56P2290 Fuser left duct Fully refurbished with 90-day warranty 56P2290 Contact for Details 20 56P2816 Handle, front access door 20 56P2291 Redrive belt cover duct 56P2291 Redrive belt cover duct Fully refurbished with 90-day warranty 56P2291 Contact for Details 21 56P2951 Front cover assembly (1454 only) 56P2951 Front cover assembly (1454 only) New 56P2951 (New) $47.00 56P2951 Front cover assembly (1454 only) Fully refurbished with 90-day warranty 56P2951 Contact for Details 21 56P2950 Front cover assembly (1464 only) 56P2950 Front cover assembly (1464 only) Fully refurbished with 90-day warranty 56P2950 $27.00 22 56P2811 Front lower right cover 56P2811 Front lower right cover New 56P2811 (New) $47.00 56P2811 Front lower right cover Fully refurbished with 90-day warranty 56P2811 $34.00 23 56P2822 Front right handle cover assembly 56P2822 Front right handle cover assembly Fully refurbished with 90-day warranty 56P2822 Contact for Details 24 56P2808 Paper path access door 56P2808 Paper Path Access Door New 56P2808 (New) $27.00 56P2808 Paper Path Access Door Fully refurbished with 90-day warranty 56P2808 $19.00 25 53P9835 Spring, paper path access door 26 56P2807 Front lower left cover 56P2807 Front lower left cover Fully refurbished with 90-day warranty 56P2807 Contact for Details 27 56P2823 Front left handle cover assembly 56P2823 Front left handle cover assembly Fully refurbished with 90-day warranty 56P2823 Contact for Details 28 53P9836 Left front light shield cover 53P9836 Left front light shield cover Fully refurbished with 90-day warranty 53P9836 Contact for Details 29 56P1277 Paper tray guide 56P1277 Paper tray guide New 56P1277 (New) $116.00 56P1277 Paper Tray Guide Fully refurbished with 90-day warranty 56P1277 Contact for Details 30 56P2920 Operator panel logo kit 31 56P2844 Operator panel assembly Lexmark 56P2844 Operator panel assembly New 56P2844 (New) Retired, no longer available: Contact for alternatives Contact for Details 33 53P9831 Front upper pivot cover 53P9831 Front upper pivot cover Fully refurbished with 90-day warranty 53P9831 Contact for Details 34 53P9829 Front access door support 53P9829 Front access door support Fully refurbished with 90-day warranty 53P9829 Contact for Details 35 56P2489 Label, top paper jam, Infoprint 1464 only 56P2489 Label, top paper jam, Infoprint 1464 only Fully refurbished with 90-day warranty 56P2489 Contact for Details 56P2489 Label top paper jam Infoprint 1464 only New 56P2489 (New) Contact for Details 35 56P2505 Label, top paper jam, Infoprint 1454 only 56P2505 Label, top paper jam, Infoprint 1454 only Fully refurbished with 90-day warranty 56P2505 Contact for Details 56P2505 Label top paper jam Infoprint 1454 only Fully refurbished with 90-day warranty 56P2505 Contact for Details NS 56P2954 Bezel, operator panel Parts catalog 7-3 56P2954 Bezel, operator panel Fully refurbished with 90-day warranty 56P2954 Contact for Details 56P2954 Bezel operator panel Fully refurbished with 90-day warranty 56P2954 Contact for Details NS 53P9925 Cable tie (6 in pack) NS 53P9926 Cable tie pad Parts catalog 7-5 53P9926 IBM 1220 Bracket Fully refurbished with 90-day warranty 53P9926 Contact for Details

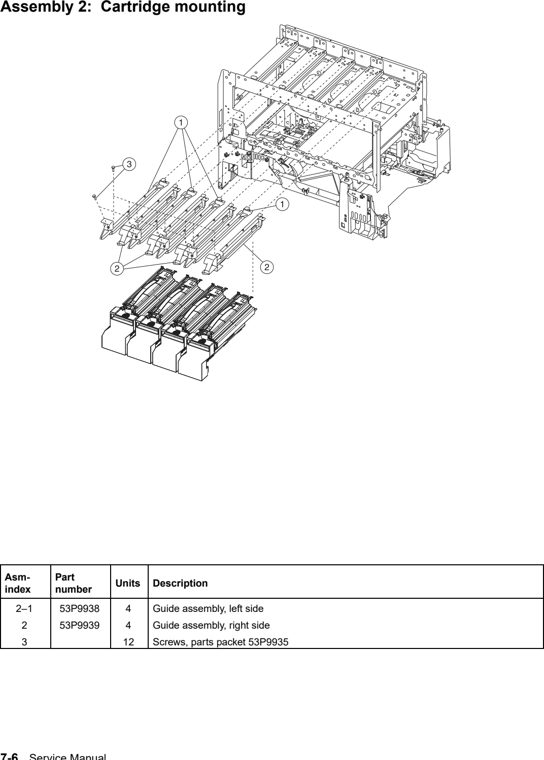

Assembly 2: Cartridge mounting 1 53P9938 Guide assembly, left side 53P9938 Guide Assembly Left Side New 53P9938 (New) $12.00 2 53P9939 Guide assembly, right side 53P9939 Guide Assembly Right Side New 53P9939 (New) $16.00

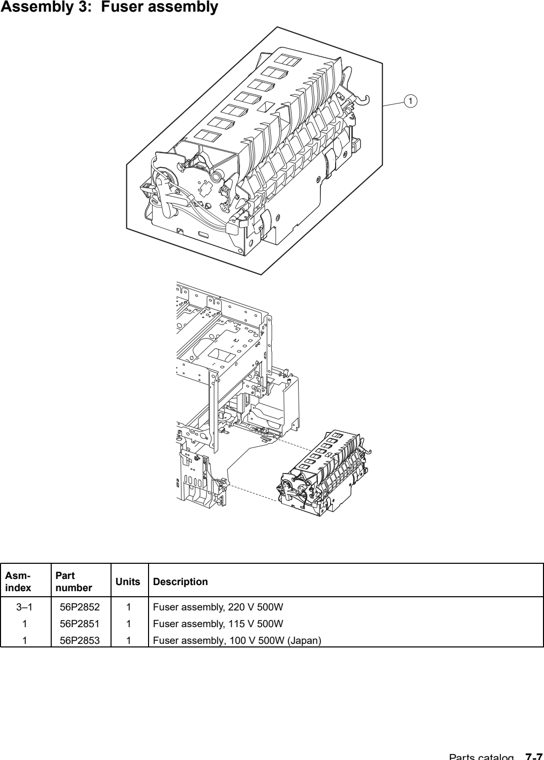

Assembly 3: Fuser assembly 1 56P2852 Fuser assembly, 220 V 500W 1 56P2851 Fuser assembly, 115 V 500W 56P2851 Fuser assembly 115 V 500W New 56P2851 (New) $170.12 1 56P2853 Fuser assembly, 100 V 500W (Japan) Parts catalog 7-7

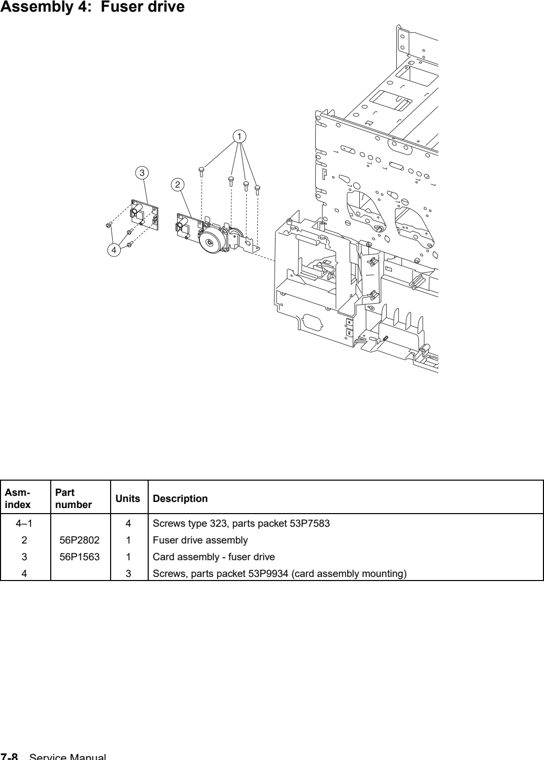

Assembly 4: Fuser drive 2 56P2802 Fuser drive assembly 56P2802 Fuser Drive Assembly Fully refurbished with 90-day warranty 56P2802 $39.00 56P2802 Fuser Drive Assembly New 56P2802 (New) Contact for Details 3 56P1563 Card assembly - fuser drive 56P1563 Card assembly - fuser drive New 56P1563 (New) $15.00

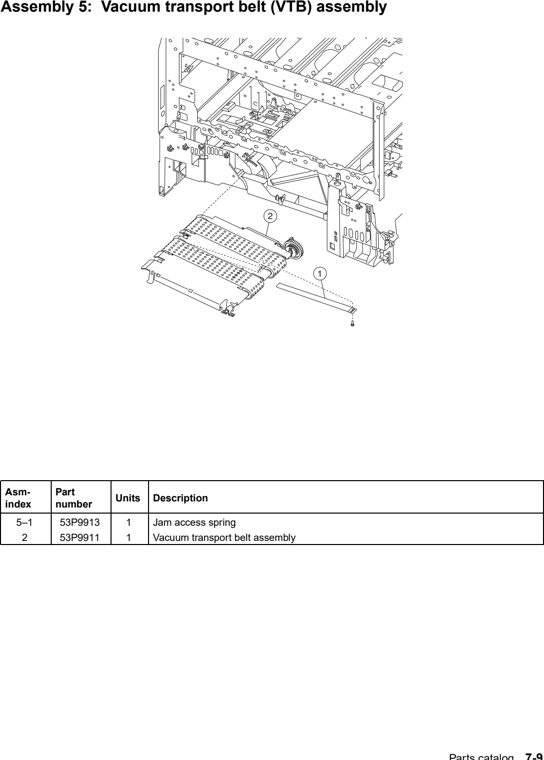

Assembly 5: Vacuum transport belt (VTB) assembly 1 53P9913 Jam access spring 53P9913 Jam Access Spring New 53P9913 (New) $24.00 2 53P9911 Vacuum transport belt assembly Parts catalog 7-9 53P9911 Vacuum Transport Belt Assembly New 53P9911 (New) $75.00

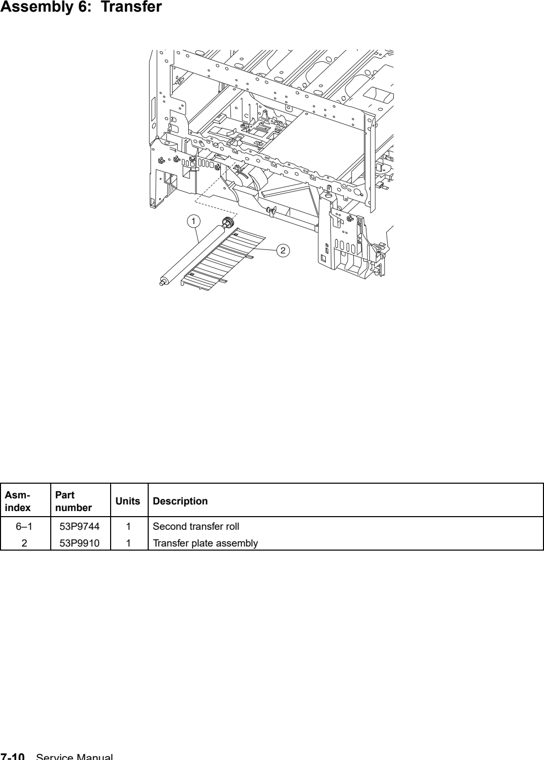

Assembly 6: Transfer 1 53P9744 Second transfer roll 53P9744 Second Transfer Roll New 53P9744 (New) $99.00 2 53P9910 Transfer plate assembly 53P9910 Transfer Plate Assembly New 53P9910 (New) $19.00

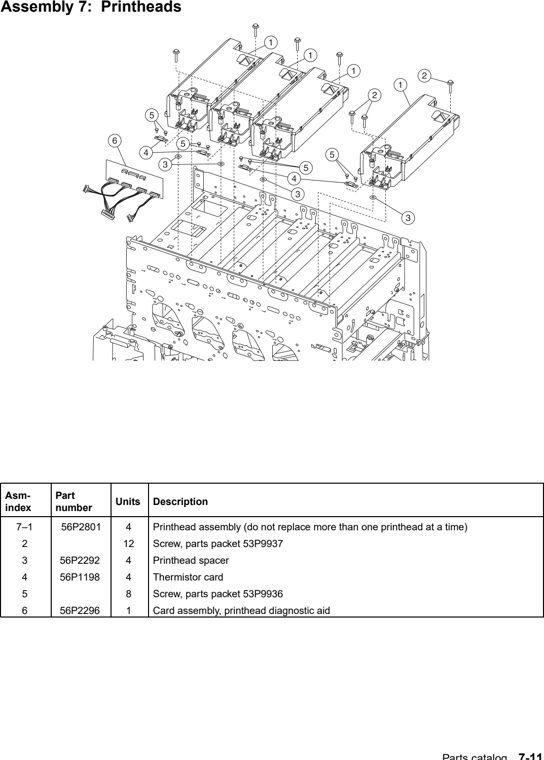

Assembly 7: Printheads 1 56P2801 Printhead assembly (do not replace more than one printhead at a time) 56P2801 Printhead Assembly New 56P2801 (New) Contact for Details 56P2801 Printhead Assembly Fully refurbished with 90-day warranty 56P2801 $197.00 3 56P2292 Printhead spacer 56P2292 4 Printhead spacer Fully refurbished with 90-day warranty 56P2292 Contact for Details 4 56P1198 Thermistor card 56P1198 Thermistor card New 56P1198 (New) $18.00 6 56P2296 Card assembly, printhead diagnostic aid Parts catalog 7-11 56P2296 Card Assembly, Printhead Diagnostic Aid New 56P2296 (New) Contact for Details

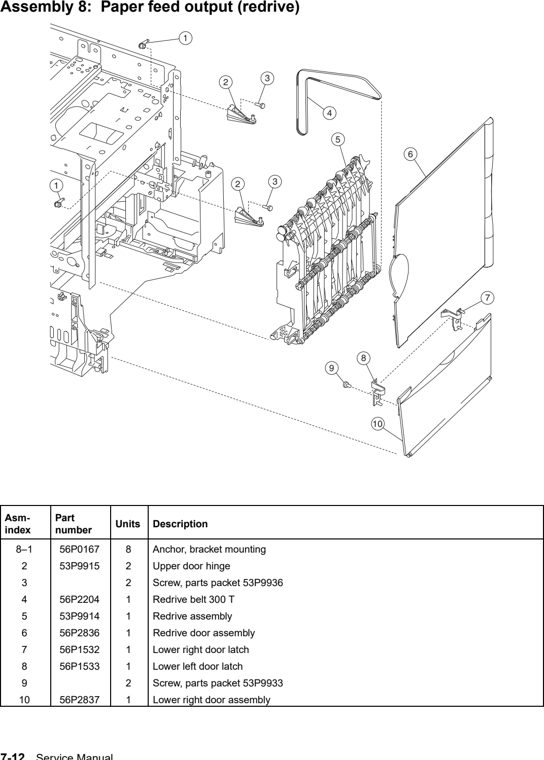

Assembly 8: Paper feed output (redrive) 1 56P0167 Anchor, bracket mounting 56P0167 Anchor bracket mounting Fully refurbished with 90-day warranty 56P0167 Contact for Details 2 53P9915 Upper door hinge 53P9915 2 Upper door hinge Fully refurbished with 90-day warranty 53P9915 Contact for Details 4 56P2204 Redrive belt 300 T 56P2204 Redrive belt 300 T New 56P2204 (New) $22.00 5 53P9914 Redrive assembly 53P9914 Redrive Assembly New 53P9914 (New) $63.00 53P9914 Redrive Assembly Fully refurbished with 90-day warranty 53P9914 $53.00 6 56P2836 Redrive door assembly 56P2836 Redrive door assembly New 56P2836 (New) Contact for Details 7 56P1532 Lower right door latch 56P1532 Lower right door latch Fully refurbished with 90-day warranty 56P1532 Contact for Details 8 56P1533 Lower left door latch 56P1533 Lower left door latch Fully refurbished with 90-day warranty 56P1533 Contact for Details 10 56P2837 Lower right door assembly 56P2837 Lower right door assembly New 56P2837 (New) $30.00 56P2837 Lower right door assembly Fully refurbished with 90-day warranty 56P2837 $20.00

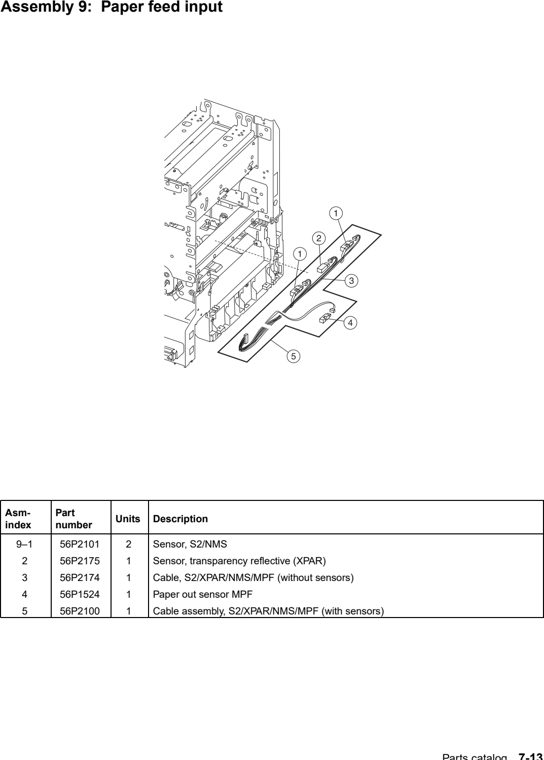

Assembly 9: Paper feed input 1 56P2101 Sensor, S2/NMS 56P2101 Sensor S2/NMS Fully refurbished with 90-day warranty 56P2101 $24.00 2 56P2175 Sensor, transparency reflective (XPAR) 56P2175 Sensor, transparency reflective (XPAR) Fully refurbished with 90-day warranty 56P2175 Contact for Details 3 56P2174 Cable, S2/XPAR/NMS/MPF (without sensors) 56P2174 Cable, S2/XPAR/NMS/MPF (without sensors) Fully refurbished with 90-day warranty 56P2174 Contact for Details 4 56P1524 Paper out sensor MPF 56P1524 Paper out sensor MPF Fully refurbished with 90-day warranty 56P1524 Contact for Details 5 56P2100 Cable assembly, S2/XPAR/NMS/MPF (with sensors) Parts catalog 7-13 56P2100 Cable assembly S2/XPAR/NMS/MPF (with sensors) New 56P2100 (New) $31.00 56P2100 Cable assembly S2/XPAR/NMS/MPF (with sensors) Fully refurbished with 90-day warranty 56P2100 $24.00

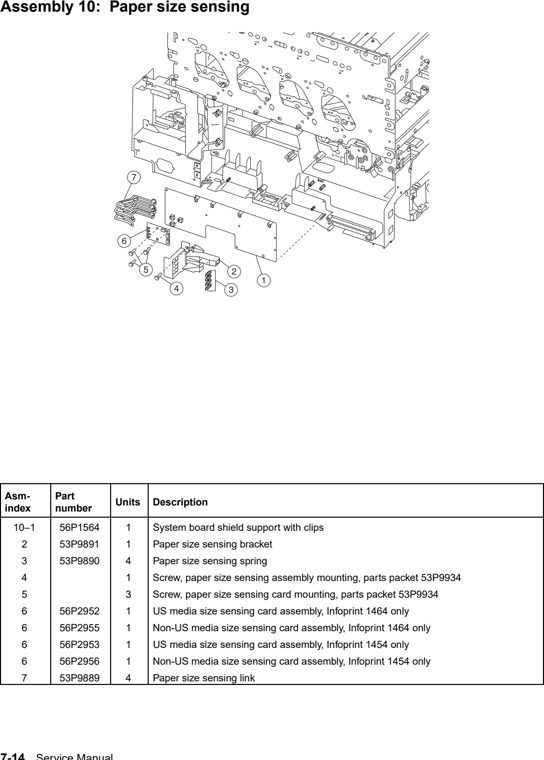

Assembly 10: Paper size sensing 1 56P1564 System board shield support with clips 56P1564 System board shield support with clips Fully refurbished with 90-day warranty 56P1564 Contact for Details 2 53P9891 Paper size sensing bracket 53P9891 Paper Size Sen Bracket Fully refurbished with 90-day warranty 53P9891 Contact for Details 3 53P9890 Paper size sensing spring 53P9890 Paper size sensing spring Fully refurbished with 90-day warranty 53P9890 Contact for Details 6 56P2952 US media size sensing card assembly, Infoprint 1464 only 56P2952 US Media Size Sensing Card Assembly, Infoprint 1464 Only Fully refurbished with 90-day warranty 56P2952 $56.00 6 56P2955 Non-US media size sensing card assembly, Infoprint 1464 only 6 56P2953 US media size sensing card assembly, Infoprint 1454 only 56P2953 New US media size sensing card assembly Infoprint 1454 only New 56P2953 (New) $89.00 56P2953 US media size sensing card assembly Infoprint 1454 only Fully refurbished with 90-day warranty 56P2953 $60.00 6 56P2956 Non-US media size sensing card assembly, Infoprint 1454 only 7 53P9889 Paper size sensing link 53P9889 Paper Size Sensing Link Fully refurbished with 90-day warranty 53P9889 $23.00

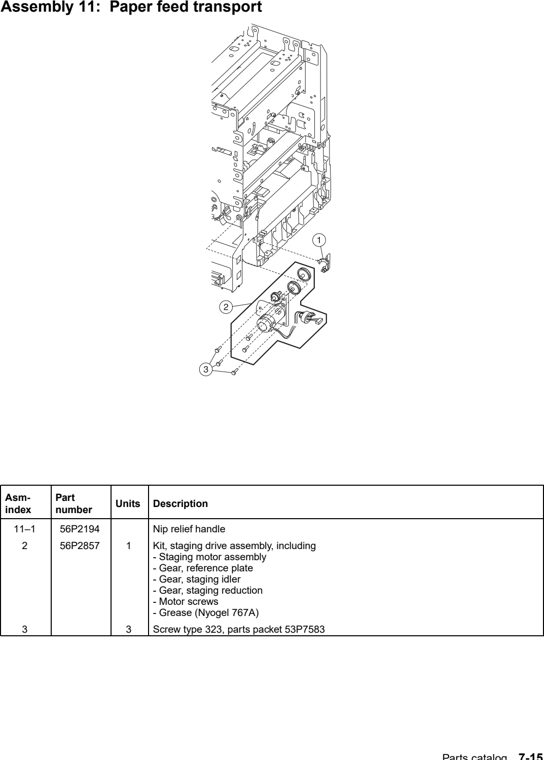

Assembly 11: Paper feed transport 1 56P2194 Nip relief handle 56P2194 ip relief handle Fully refurbished with 90-day warranty 56P2194 Contact for Details 56P2194 ip relief handle New 56P2194 (New) Contact for Details 2 56P2857 Kit, staging drive assembly, including - Staging motor assembly - Gear, reference plate - Gear, staging idler - Gear, staging reduction - Motor screws - Grease (Nyogel 767A) 56p2857 Kit, staging drive assembly New 56p2857 (New) $40.00 56p2857 Kit staging drive assembly Fully refurbished with 90-day warranty 56p2857 $32.00

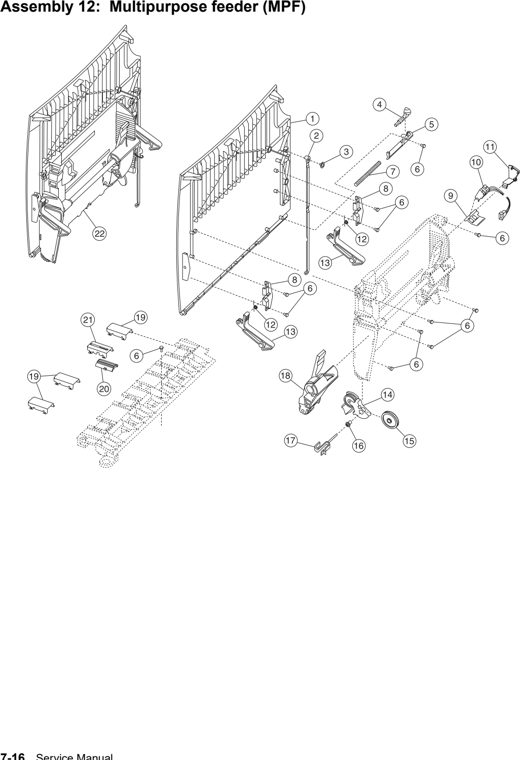

Assembly 12: Multipurpose feeder (MPF) 1 56P2825 MP feeder door cover 56P2825 MP feeder door cover New 56P2825 (New) $22.00 56P2825 MP feeder door cover Fully refurbished with 90-day warranty 56P2825 $17.00 2 53P9883 Door hinge restraint 53P9883 Door hinge restraint Fully refurbished with 90-day warranty 53P9883 Contact for Details 4 56P2826 Frame bias latch 5 56P2827 Frame bias latch cover 7 53P9877 Frame bias spring 53P9877 Frame bias spring Fully refurbished with 90-day warranty 53P9877 Contact for Details 8 56P2831 MPF support bracket cover 56P2831 MPF support bracket cover Fully refurbished with 90-day warranty 56P2831 Contact for Details 9 56P2828 Sensor mount bracket 56P2828 Sensor mount bracket Fully refurbished with 90-day warranty 56P2828 Contact for Details 10 56P1524 Paper out sensor MPF 56P1524 Paper out sensor MPF Fully refurbished with 90-day warranty 56P1524 Contact for Details 11 56P2829 MPF cable cover 56P2829 MPF cable cover Fully refurbished with 90-day warranty 56P2829 Contact for Details 12 53P9881 MPF support bracket spring 53P9881 2 MPF support bracket spring Fully refurbished with 90-day warranty 53P9881 Contact for Details 13 56P2833 MPF support bracket 56P2833 2 MPF support bracket Fully refurbished with 90-day warranty 56P2833 Contact for Details 14 53P9885 MPF bracket assembly 53P9885 MPF bracket assembly Fully refurbished with 90-day warranty 53P9885 Contact for Details 15 53P9886 MPF drive gear 53P9886 MPF drive gear Fully refurbished with 90-day warranty 53P9886 Contact for Details 16 53P9888 MPF drive gear bushing 53P9888 MPF drive gear bushing Fully refurbished with 90-day warranty 53P9888 Contact for Details 17 53P9887 MPF drive gear shaft 53P9887 MPF drive gear shaft Fully refurbished with 90-day warranty 53P9887 Contact for Details 18 56P2832 MPF autocompensator pick assembly 56P2832 MPF autocompensator pick assembly New 56P2832 (New) $13.50 19 53P9787 Rib housing 53P9787 3 Rib housing Fully refurbished with 90-day warranty 53P9787 Contact for Details 20 53P9870 Friction buckler 53P9870 Friction buckler Fully refurbished with 90-day warranty 53P9870 Contact for Details 21 53P9781 Buckler housing 53P9781 Buckler housing Fully refurbished with 90-day warranty 53P9781 Contact for Details 22 56P2830 MPF door assembly Parts catalog 7-17 56P2830 MPF door assembly New 56P2830 (New) $24.00 56P2830 MPF door assembly Fully refurbished with 90-day warranty 56P2830 $39.00

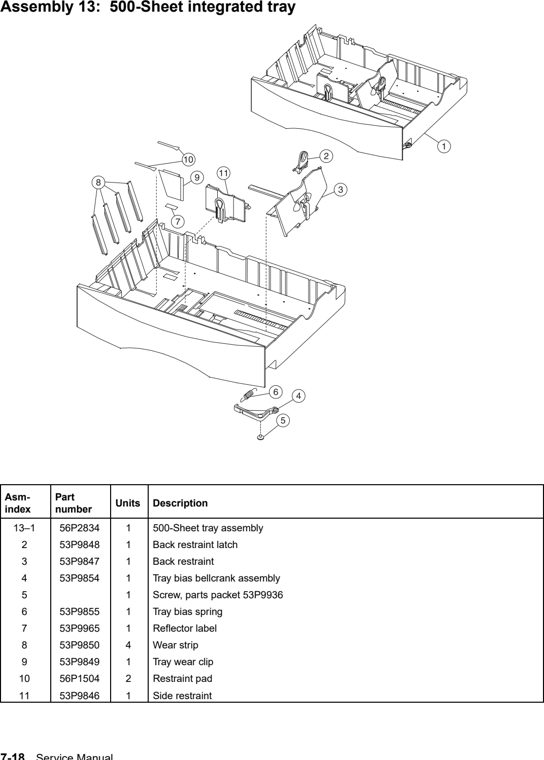

Assembly 13: 500-Sheet integrated tray 1 56P2834 500-Sheet tray assembly 56P2834 500-Sheet tray assembly New 56P2834 (New) $45.00 56P2834 500-Sheet tray assembly Fully refurbished with 90-day warranty 56P2834 $38.00 2 53P9848 Back restraint latch 3 53P9847 Back restraint 4 53P9854 Tray bias bellcrank assembly 6 53P9855 Tray bias spring 7 53P9965 Reflector label 8 53P9850 Wear strip 9 53P9849 Tray wear clip 10 56P1504 Restraint pad 11 53P9846 Side restraint

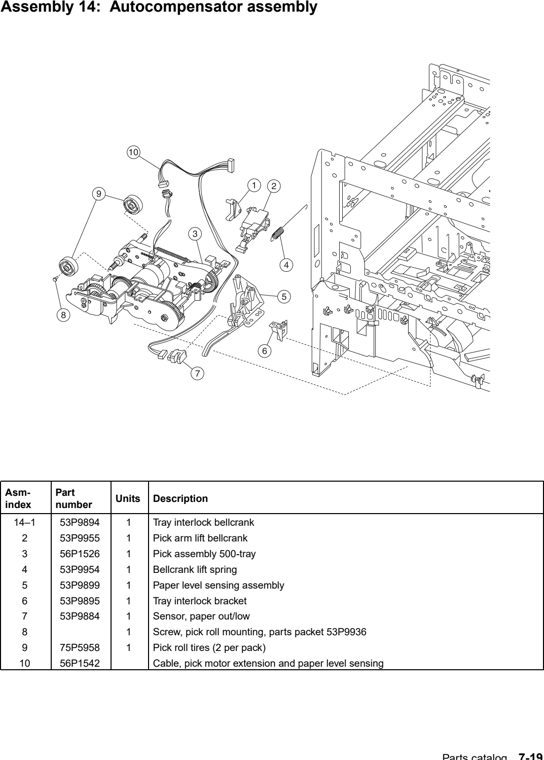

Assembly 14: Autocompensator assembly 1 53P9894 Tray interlock bellcrank 53P9894 Tray interlock bellcrank Fully refurbished with 90-day warranty 53P9894 Contact for Details 2 53P9955 Pick arm lift bellcrank 53P9955 Pick arm lift bellcrank Fully refurbished with 90-day warranty 53P9955 Contact for Details 3 56P1526 Pick assembly 500-tray 56P1526 Pick assembly 500-tray New 56P1526 (New) $75.00 4 53P9954 Bellcrank lift spring 53P9954 Bellcrank lift spring New 53P9954 (New) $95.00 53P9954 Bellcrank lift spring Fully refurbished with 90-day warranty 53P9954 $76.00 5 53P9899 Paper level sensing assembly 53P9899 Paper level sensing assembly Fully refurbished with 90-day warranty 53P9899 Contact for Details 6 53P9895 Tray interlock bracket 53P9895 Tray interlock bracket Fully refurbished with 90-day warranty 53P9895 Contact for Details 7 53P9884 Sensor, paper out/low 53P9884 Sensor paper out/low Fully refurbished with 90-day warranty 53P9884 Contact for Details 9 75P5958 Pick roll tires (2 per pack) 75P5958 Pick roll tires (2 per pack) New 75P5958 (New) $16.00 10 56P1542 Cable, pick motor extension and paper level sensing Parts catalog 7-19 56P1542 Cable pick motor extension and paper level sensing Fully refurbished with 90-day warranty 56P1542 Contact for Details 56P1542 Cable pick motor extension and paper level sensing New 56P1542 (New) Contact for Details

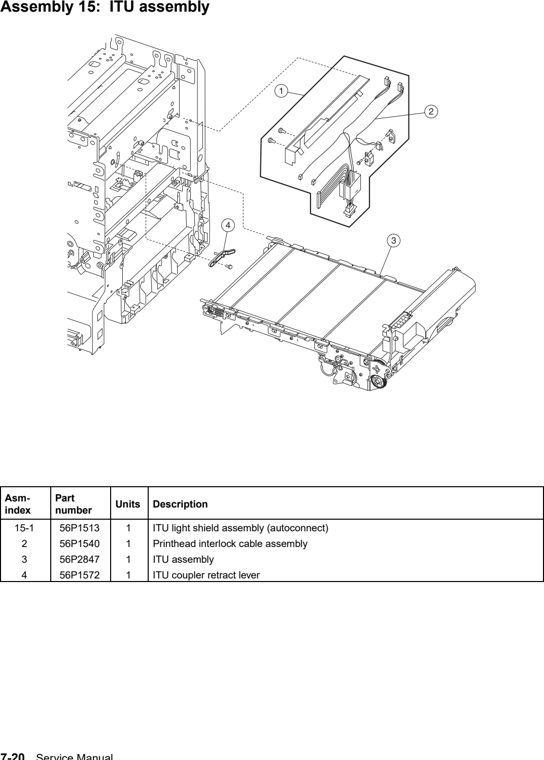

Assembly 15: ITU assembly 1 56P1513 ITU light shield assembly (autoconnect) 56P1513 ITU light shield assembly (autoconnect) New 56P1513 (New) $39.00 56P1513 ITU light shield assembly (autoconnect) Fully refurbished with 90-day warranty 56P1513 $26.00 2 56P1540 Printhead interlock cable assembly 56P1540 Printhead Interlock Cable Assembly Fully refurbished with 90-day warranty 56P1540 Contact for Details 56P1540 Printhead Interlock Cable Assembly New 56P1540 (New) Contact for Details 3 56P2847 ITU assembly 56P2847 ITU Assembly (Image Transfer Unit) New 56P2847 I (New) $639.00 4 56P1572 ITU coupler retract lever 56P1572 ITU coupler retract lever Fully refurbished with 90-day warranty 56P1572 Contact for Details

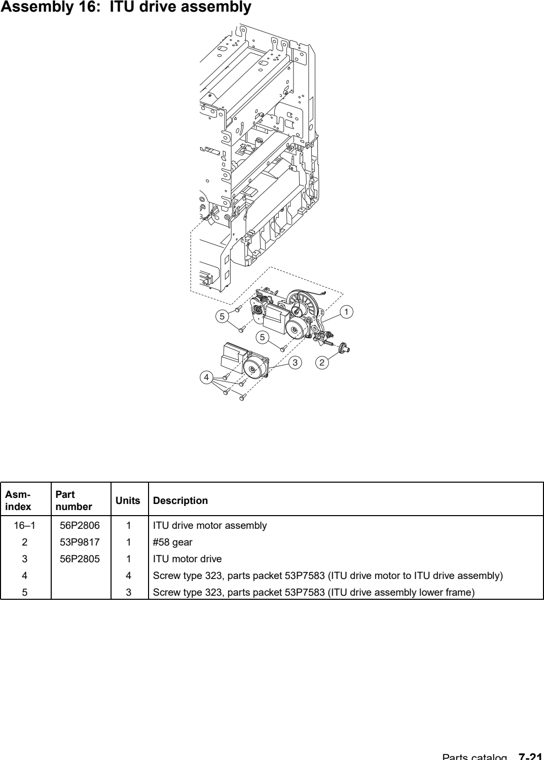

Assembly 16: ITU drive assembly 1 56P2806 ITU drive motor assembly 56P2806 ITU Drive Motor Assembly New 56P2806 (New) $115.00 56P2806 ITU Drive Motor Assembly Fully refurbished with 90-day warranty 56P2806 $85.00 2 53P9817 #58 gear 3 56P2805 ITU motor drive 56P2805 ITU motor drive New 56P2805 (New) $75.00 56P2805 ITU motor drive Fully refurbished with 90-day warranty 56P2805 $46.00

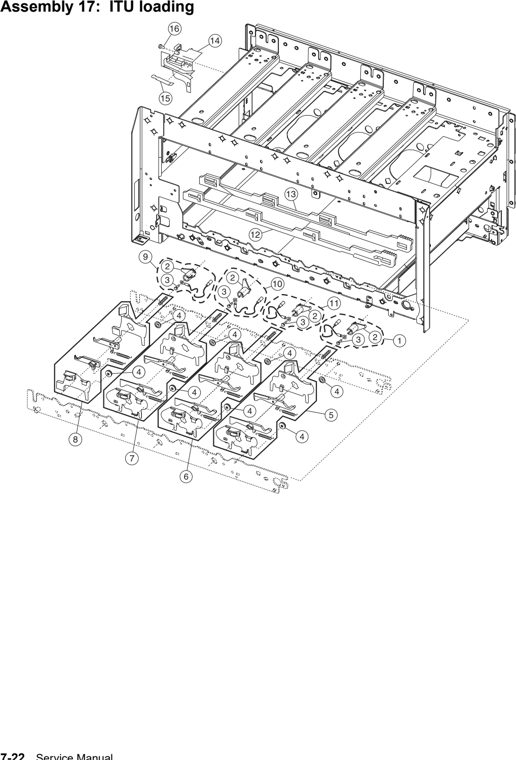

Assembly 17: ITU loading 1 56P1568 Yellow terminal contact assembly 56P1568 Yellow terminal contact assembly Fully refurbished with 90-day warranty 56P1568 Contact for Details 56P1568 Yellow terminal contact assembly New 56P1568 (New) Contact for Details 2 53P9865 Terminal, contact spring 53P9865 Terminal contact spring Fully refurbished with 90-day warranty 53P9865 Contact for Details 4 53P9786 Cartridge support roller 53P9786 8 Cartridge support roller Fully refurbished with 90-day warranty 53P9786 Contact for Details 5 56P1495 Parts packet, ITU loading - yellow, including - Yellow BOR spring - Rear block guide - Rear transfer bellcrank - Front V block guide - Front transfer bellcrank - High voltage contact spring 6 56P1496 Parts packet, ITU loading - cyan, including - Cyan BOR spring - Rear V block guide - Rear transfer bellcrank - Front V block guide - Front transfer bellcrank - High voltage contact spring 7 56P1497 Parts packet, ITU loading - magenta, including - Magenta BOR spring - Rear V block guide - Rear transfer bellcrank - Front V block guide - Front transfer bellcrank - High voltage contact spring 8 56P1498 Parts packet, ITU loading - black, including - Black BOR spring - Rear block guide - Rear transfer bellcrank - Front V block guide - Front transfer bellcrank - High voltage contact spring 9 56P1565 Black terminal contact assembly 56P1565 Black terminal contact assembly Fully refurbished with 90-day warranty 56P1565 Contact for Details 56P1565 Black terminal contact assembly New 56P1565 (New) Contact for Details 10 56P1566 Magenta terminal contact assembly 56P1566 Magenta terminal contact assembly Fully refurbished with 90-day warranty 56P1566 Contact for Details 56P1566 Magenta terminal contact assembly New 56P1566 (New) Contact for Details 11 56P1567 Cyan terminal contact assembly 56P1567 Cyan Terminal Contact Assembly Fully refurbished with 90-day warranty 56P1567 Contact for Details 56P1567 Cyan Terminal Contact Assembly New 56P1567 (New) Contact for Details 12 56P0594 Cam, BOR front 56P0594 Cam, BOR front New 56P0594 (New) Contact for Details 13 56P0595 Cam, BOR rear 56P0595 Cam, BOR rear New 56P0595 (New) Contact for Details 14 56P0560 Rear ITU guide 56P0560 Rear ITU guide New 56P0560 (New) $94.00 56P0560 Assembly Rear Upper Guide Fully refurbished with 90-day warranty 56P0560 Contact for Details 15 53P9866 ITU bias spring 53P9866 ITU bias spring Fully refurbished with 90-day warranty 53P9866 Contact for Details

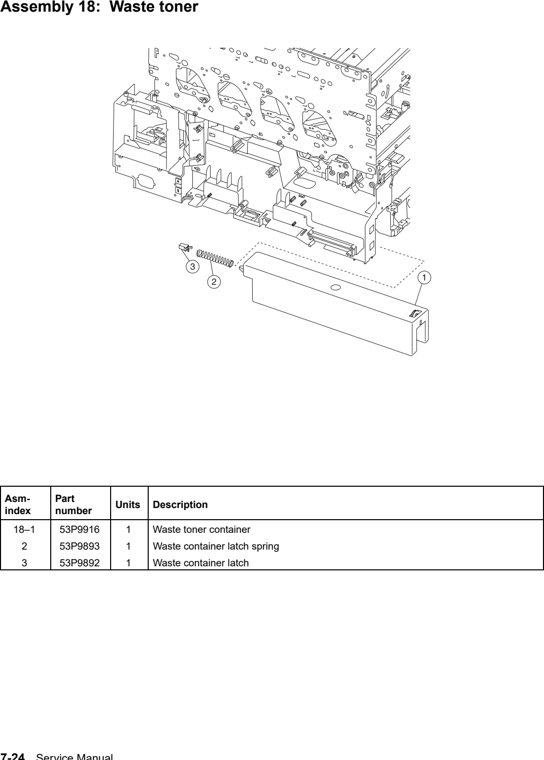

Assembly 18: Waste toner 1 53P9916 Waste toner container 53P9916 Waste Toner Container New 53P9916 (New) $20.00 2 53P9893 Waste container latch spring 53P9893 Waste Container Latch Spring Fully refurbished with 90-day warranty 53P9893 Contact for Details 3 53P9892 Waste container latch 53P9892 Waste container latch Fully refurbished with 90-day warranty 53P9892 Contact for Details

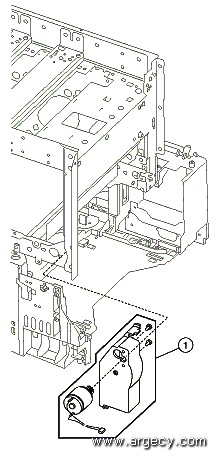

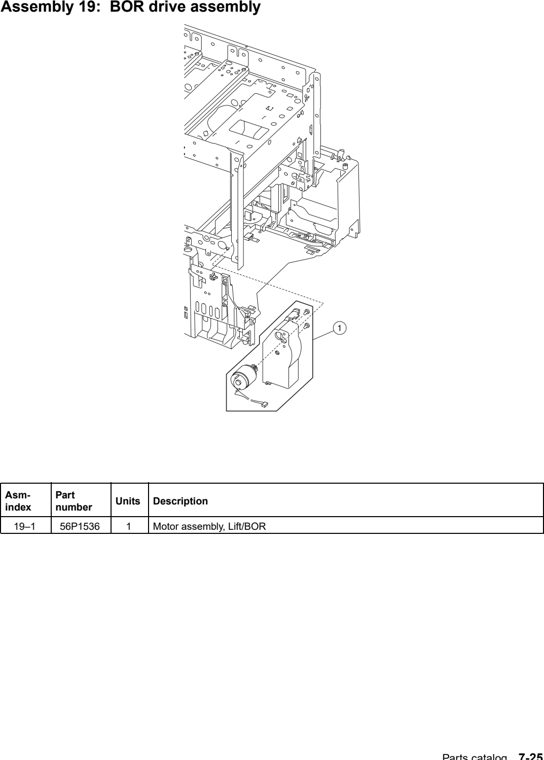

Assembly 19: BOR drive assembly 1 56P1536 Motor assembly, Lift/BOR Parts catalog 7-25 56P1536 Motor assembly Lift/BOR New 56P1536 (New) $30.00 56P1536 Motor assembly Lift/BOR Fully refurbished with 90-day warranty 56P1536 Contact for Details

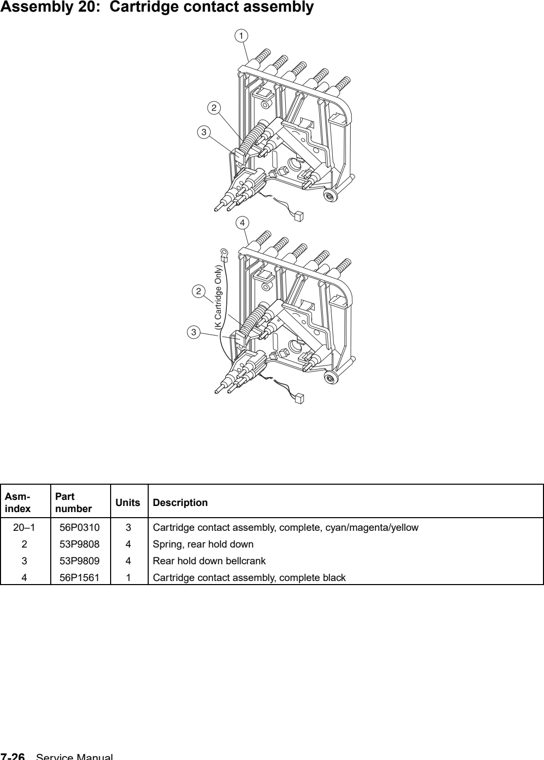

Assembly 20: Cartridge contact assembly 1 56P0310 Cartridge contact assembly, complete, cyan/magenta/yellow 56P0310 Cartridge contact assembly complete cyan/magenta/yellow New 56P0310 (New) $22.00 56P0310 Cartridge contact assembly, complete, cyan, magenta, yellow Fully refurbished with 90-day warranty 56P0310 Contact for Details 2 53P9808 Spring, rear hold down 53P9808 4 Spring rear hold down Fully refurbished with 90-day warranty 53P9808 Contact for Details 3 53P9809 Rear hold down bellcrank 53P9809 Rear hold down bellcrank Fully refurbished with 90-day warranty 53P9809 Contact for Details 4 56P1561 Cartridge contact assembly, complete black 56P1561 Cartridge contact assembly complete black New 56P1561 (New) $22.00

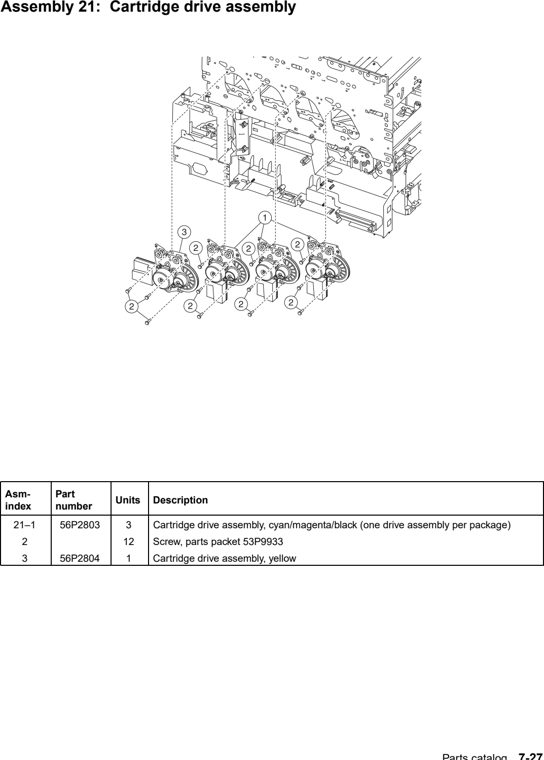

Assembly 21: Cartridge drive assembly 1 56P2803 Cartridge drive assembly, cyan/magenta/black (one drive assembly per package) 56P2803 Cartridge drive assembly cyan/magenta/black (one drive assembly per package) New 56P2803 (New) $158.00 56P2803 Cartridge drive assembly cyan/magenta/black (one drive assembly per package) Fully refurbished with 90-day warranty 56P2803 $89.00 3 56P2804 Cartridge drive assembly, yellow Parts catalog 7-27 56P2804 Cartridge drive assembly, yellow New 56P2804 (New) $76.00 56P2804 Cartridge Drive Assembly, Yellow Fully refurbished with 90-day warranty 56P2804 $47.00

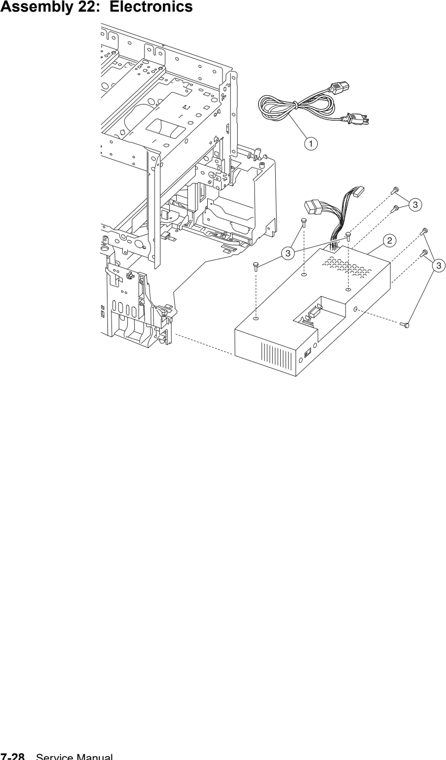

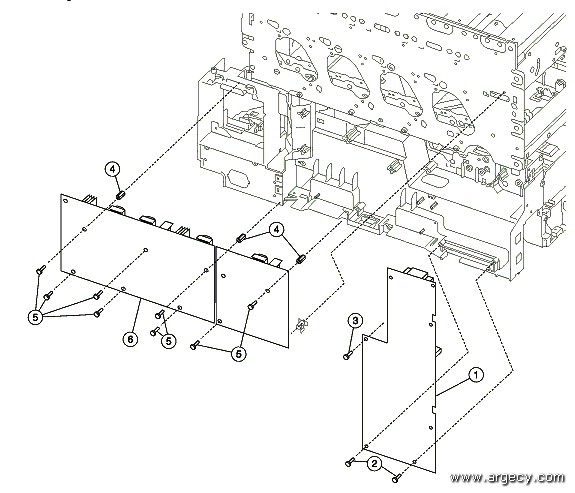

Assembly 22: Electronics 1 11A9095 Power cord set (LV)—U.S., Asia Pacific (English), Canada, Colombia, Costa Rica, Dominican Republic, Ecuador, El Salvador, Guatemala, Honduras, Japan, Mexico, Nicaragua, Panama, Puerto Rico, Saudi Arabia, Taiwan, Venezuela, Virgin Islands 11A9095 Power cord; 2.5 m 8 ft. Straight US Canada Latin America (LV) Fully refurbished with 90-day warranty 11A9095 Contact for Details 1 43H5544 Power cord set (HV)—PRC 1 1339517 Power cord set (HV)—Bolivia, Peru 1 1339544 Power cord set (HV)—Argentina 1 1339529 Power cord set —African countries - Bluemark, Austria, Belgium, Bulgaria, Catalan, CIS, Croatia, Finland, France, Germany, Greece, Hungary, Italy, Macedonia, Netherlands, Norway, Poland, Portugal, Romania, Russia, Slovenia, Spain, Sweden, Turkey, Yugoslavia (Serbia and Montenegro) 1 1339530 Power cord set (HV)—Israel 1 1339531 Power cord set (HV)—Switzerland 1 1339532 Power cord set—Botswana, Lesotho, Namibia, South Africa 1 1339524 Power cord set (HV)—Chile, Uruguay 1 1339534 Power cord set—Denmark 1 1339550 Power cord set (LV)—Brazil 1 1339520 Power cord set (HV)—Paraguay 1 1339528 Power cord set (HV)—Ireland, UK 2 56P1514 LVPS, 115V/230V switchable 56P1514 LVPS, 115V/230V Switchable New 56p1514 15G1050 (New) Contact for Details Lexmark 56P1514 LVPS, 115V/230V Switchable Fully refurbished with 90-day warranty 15G1050 56p1514 Contact for Details 2 56P1547 Cable clip 56P1547 Cable clip Fully refurbished with 90-day warranty 56P1547 Contact for Details 56P1547 Cable clip New 56P1547 (New) Contact for Details 2 53P9912 VTB fan gap cover 53P9912 VTB fan gap cover Fully refurbished with 90-day warranty 53P9912 Contact for Details 3 56P1518 System board shield assembly with clips 56P1518 System board shield assembly with clips Fully refurbished with 90-day warranty 56P1518 Contact for Details 56P1518 System board shield assembly with clips New 56P1518 (New) Contact for Details 3 56P1509 Fuser fan assembly with cable 56P1509 Fuser fan assembly with cable New 56P1509 (New) $47.00 56P1509 Fuser fan assembly with cable Fully refurbished with 90-day warranty 56P1509 $38.00 4 56P1545 Cable, ground 56P1545 Cable ground Fully refurbished with 90-day warranty 56P1545 Contact for Details 56P1545 Cable ground New 56P1545 (New) Contact for Details 4 53P7112 Standoff, high voltage power supply - developer board 53P7112 Standoff high voltage power supply developer board Fully refurbished with 90-day warranty 53P7112 Contact for Details 4 53P7584 Screws, fuser fan mounting 5 56P1564 System board shield support with clips 56P1564 System board shield support with clips Fully refurbished with 90-day warranty 56P1564 Contact for Details 5 56P1538 RIP fan, 92 mm 56P1538 RIP fan 92 mm New 56P1538 (New) $35.00 56P1538 RIP fan 92 mm Fully refurbished with 90-day warranty 56P1538 $28.00 6 56P2897 Developer HVPS board 56P2897 Developer HVPS board New 56P2897 (New) $95.00 56P2897 Developer HVPS board Fully refurbished with 90-day warranty 56P2897 $66.00 6 56P1500 RIP fan duct 56P1500 RIP fan duct Fully refurbished with 90-day warranty 56P1500 Contact for Details 7 56P2841 System board, network 56P2841 IBM System Board, Network (RIP) New 56P2841 I (New) $209.00 8 53P9770 Stand off 53P9770 Stand off Fully refurbished with 90-day warranty 53P9770 Contact for Details 9 56P2297 Card assembly, bar code 56P2297 Card assembly, bar code New 56P2297 (New) Contact for Details 10 56P9910 128MB SDRAM card assembly 56P9910 128MB SDRAM card assembly New 56P9910 (New) $16.56 56P9910 128MB SDRAM card assembly Fully refurbished with 90-day warranty 56P9910 $45.00 10 53P9924 64MB SDRAM card assembly 53P9924 64MB SDRAM Fully refurbished with 90-day warranty 53P9924 Contact for Details 11 53P8477 Ethernet blank shield, use with non-network system boards 53P8477 Ethernet blank shield use with nonnetwork system boards Fully refurbished with 90-day warranty 53P8477 Contact for Details 12 56P2236 Shield, parallel port 56P2236 Shield parallel port Fully refurbished with 90-day warranty 56P2236 Contact for Details 56P2236 Shield parallel port New 56P2236 (New) Contact for Details 13 56P1543 INA blank flat shield, use when options are not installed Parts catalog 7-31 56P1543 INA blank flat shield use when options are not installed Fully refurbished with 90-day warranty 56P1543 Contact for Details 56P1543 INA blank flat shield use when options are not installed New 56P1543 (New) Contact for Details 22.1–1 56P1517 System board outer shield 56P1517 System board outer shield Fully refurbished with 90-day warranty 56P1517 Contact for Details 22.2–1 53P9762 Transfer HVPS board 53P9762 Transfer HVPS Board New 53P9762 (New) $129.00 22.3–1 56P1551 VTB fan, 60 mm 56P1551 VTB fan 60 mm New 56P1551 (New) Contact for Details 56P1551 VTB fan 60 mm Fully refurbished with 90-day warranty 56P1551 $25.00

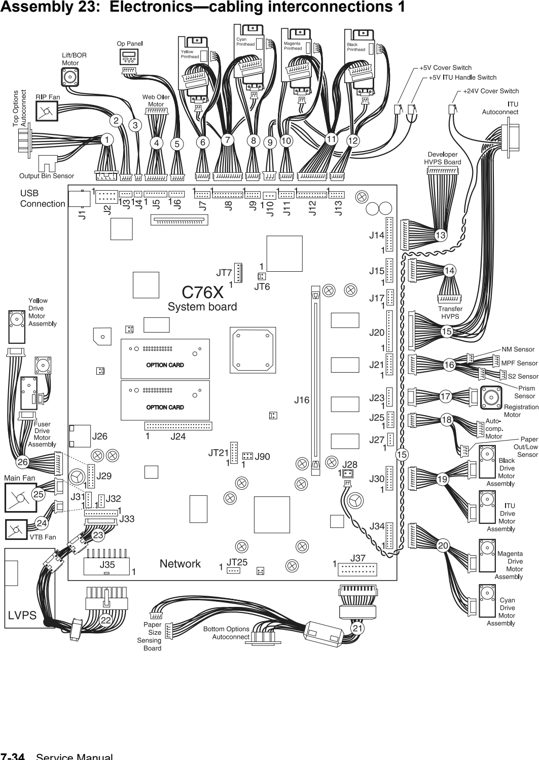

Assembly 23: Electronics—cabling interconnections 1 1 56P1539 Cable, options - stacker with output bin sensor 56P1539 Cable, Options - Stacker, Including Output Bin Sensor Fully refurbished with 90-day warranty 56P1539 $16.00 2 56P1538 RIP fan, 92 mm 56P1538 RIP fan 92 mm New 56P1538 (New) $35.00 56P1538 RIP fan 92 mm Fully refurbished with 90-day warranty 56P1538 $28.00 3 56P1536 Motor assembly, Lift/BOR 56P1536 Motor assembly Lift/BOR New 56P1536 (New) $30.00 56P1536 Motor assembly Lift/BOR Fully refurbished with 90-day warranty 56P1536 Contact for Details 4 56P1550 Cable, oiler motor driver 5 53P9756 Cable, operator panel 6 56P2801 Printhead assembly - yellow mirror motor (attached to yellow printhead) 56P2801 Printhead Assembly New 56P2801 (New) Contact for Details 56P2801 Printhead Assembly Fully refurbished with 90-day warranty 56P2801 $197.00 7 56P1549 Cable, laser - cyan/yellow 8 56P2801 Printhead assembly - cyan mirror motor (attached to cyan printhead) 56P2801 Printhead Assembly New 56P2801 (New) Contact for Details 56P2801 Printhead Assembly Fully refurbished with 90-day warranty 56P2801 $197.00 9 56P1540 Printhead interlock cable assembly 56P1540 Printhead Interlock Cable Assembly Fully refurbished with 90-day warranty 56P1540 Contact for Details 56P1540 Printhead Interlock Cable Assembly New 56P1540 (New) Contact for Details 10 56P2801 Printhead assembly - magenta mirror motor (attached to magenta printhead) 56P2801 Printhead Assembly New 56P2801 (New) Contact for Details 56P2801 Printhead Assembly Fully refurbished with 90-day warranty 56P2801 $197.00 11 56P1548 Cable, laser - black/magenta 12 56P2801 Printhead assembly - black mirror motor (attached to black printhead) 56P2801 Printhead Assembly New 56P2801 (New) Contact for Details 56P2801 Printhead Assembly Fully refurbished with 90-day warranty 56P2801 $197.00 13 56P1501 Cable, HVPS control - developer 14 56P1502 Cable, HVPS control - transfer 15 56P1513 ITU light shield assembly (autoconnect) 56P1513 ITU light shield assembly (autoconnect) New 56P1513 (New) $39.00 56P1513 ITU light shield assembly (autoconnect) Fully refurbished with 90-day warranty 56P1513 $26.00 16 56P2174 Cable, S2/XPAR/NMS/MPF (without sensors) 56P2174 Cable, S2/XPAR/NMS/MPF (without sensors) Fully refurbished with 90-day warranty 56P2174 Contact for Details 17 56P2857 Registration motor assembly with cable 56p2857 Kit, staging drive assembly New 56p2857 (New) $40.00 56p2857 Kit staging drive assembly Fully refurbished with 90-day warranty 56p2857 $32.00 18 56P1542 Cable, pick motor extension and paper level sensing 56P1542 Cable pick motor extension and paper level sensing Fully refurbished with 90-day warranty 56P1542 Contact for Details 56P1542 Cable pick motor extension and paper level sensing New 56P1542 (New) Contact for Details 19 56P1508 Cable, ITU and K cartridge motor 20 56P1507 Cable, C and M cartridge motor 21 56P1503 Cable assembly - options bottom/paper size sensing 22 56P1514 LVPS assembly - with cable - power 56P1514 LVPS, 115V/230V Switchable New 56p1514 15G1050 (New) Contact for Details Lexmark 56P1514 LVPS, 115V/230V Switchable Fully refurbished with 90-day warranty 15G1050 56p1514 Contact for Details 23 56P1514 LVPS assembly - for fuser DC control 56P1514 LVPS, 115V/230V Switchable New 56p1514 15G1050 (New) Contact for Details Lexmark 56P1514 LVPS, 115V/230V Switchable Fully refurbished with 90-day warranty 15G1050 56p1514 Contact for Details 24 56P1551 VTB fan, 60 mm 56P1551 VTB fan 60 mm New 56P1551 (New) Contact for Details 56P1551 VTB fan 60 mm Fully refurbished with 90-day warranty 56P1551 $25.00 25 56P1509 Fuser fan assembly with cable 56P1509 Fuser fan assembly with cable New 56P1509 (New) $47.00 56P1509 Fuser fan assembly with cable Fully refurbished with 90-day warranty 56P1509 $38.00 26 56P1506 Cable, fuser and Y cartridge motor

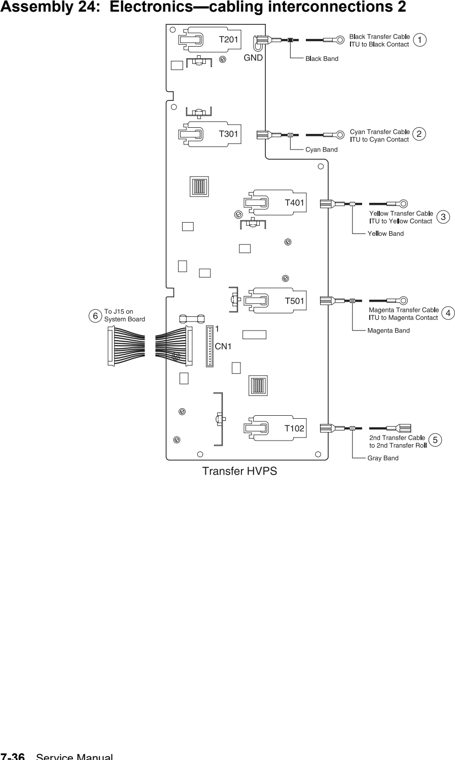

Assembly 24: Electronics—cabling interconnections 2 1 56P1565 Black terminal contact assembly 56P1565 Black terminal contact assembly Fully refurbished with 90-day warranty 56P1565 Contact for Details 56P1565 Black terminal contact assembly New 56P1565 (New) Contact for Details 2 56P1567 Cyan terminal contact assembly 56P1567 Cyan Terminal Contact Assembly Fully refurbished with 90-day warranty 56P1567 Contact for Details 56P1567 Cyan Terminal Contact Assembly New 56P1567 (New) Contact for Details 3 56P1568 Yellow terminal contact assembly 56P1568 Yellow terminal contact assembly Fully refurbished with 90-day warranty 56P1568 Contact for Details 56P1568 Yellow terminal contact assembly New 56P1568 (New) Contact for Details 4 56P1566 Magenta terminal contact assembly 56P1566 Magenta terminal contact assembly Fully refurbished with 90-day warranty 56P1566 Contact for Details 56P1566 Magenta terminal contact assembly New 56P1566 (New) Contact for Details 5 56P0174 Cable assembly, second transfer voltage 56P0174 Cable assembly second transfer voltage New 56P0174 (New) $31.00 56P0174 Cable assembly second transfer voltage Fully refurbished with 90-day warranty 56P0174 $31.00 6 56P1502 Cable, HVPS control - transfer Parts catalog 7-37

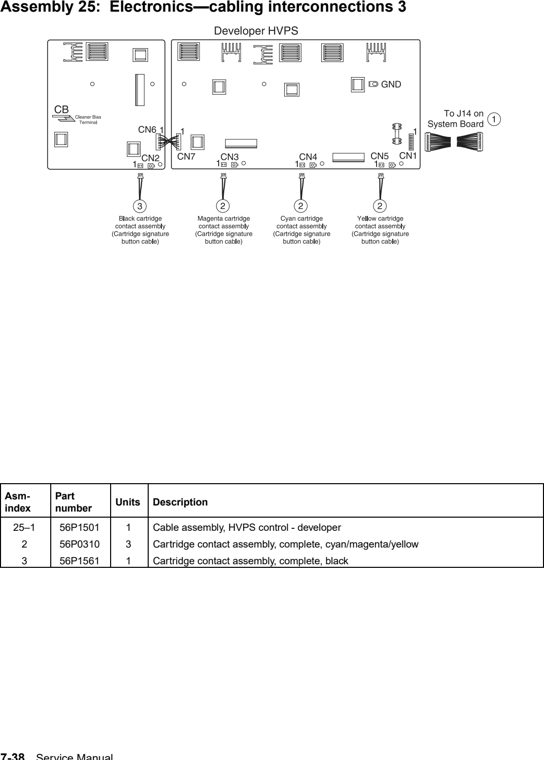

Assembly 25: Electronics—cabling interconnections 3 1 56P1501 Cable assembly, HVPS control - developer 2 56P0310 Cartridge contact assembly, complete, cyan/magenta/yellow 56P0310 Cartridge contact assembly complete cyan/magenta/yellow New 56P0310 (New) $22.00 56P0310 Cartridge contact assembly, complete, cyan, magenta, yellow Fully refurbished with 90-day warranty 56P0310 Contact for Details 3 56P1561 Cartridge contact assembly, complete, black 56P1561 Cartridge contact assembly complete black New 56P1561 (New) $22.00

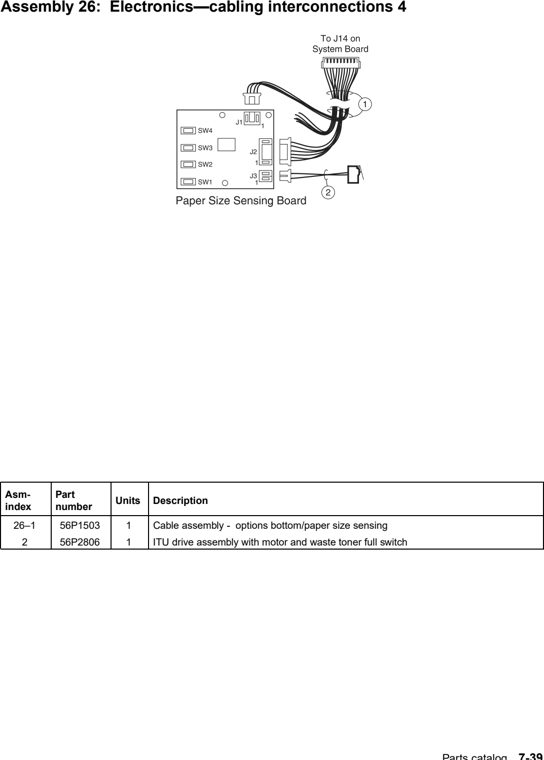

Assembly 26: Electronics—cabling interconnections 4 1 56P1503 Cable assembly - options bottom/paper size sensing 2 56P2806 ITU drive assembly with motor and waste toner full switch Parts catalog 7-39 56P2806 ITU Drive Motor Assembly New 56P2806 (New) $115.00 56P2806 ITU Drive Motor Assembly Fully refurbished with 90-day warranty 56P2806 $85.00

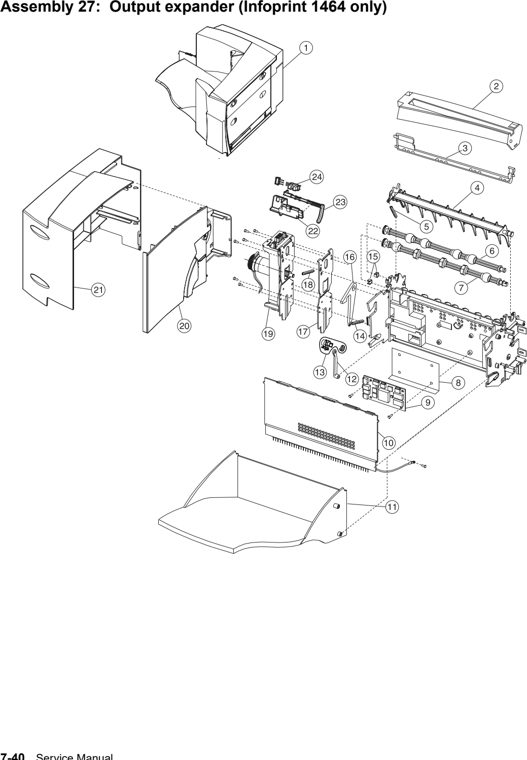

Assembly 27: Output expander (Infoprint 1464 only) 1 56P2870 Output expander, complete 2 56P2918 Right cover 2 53P8300 Shaft assembly, lower, also order parts packet 53P8359 53P8300 Shaft Assembly Lower New 53P8300 (NEW) $24.00 3 56P2919 ESD brush cover 3 53P8298 Pulley, drive 53P8298 Pulley, Drive New 53P8298 (NEW) $12.00 4 56P2875 Deflector, upper redrive, also order 53P8222 4 56P0410 Bracket, rear attach 5 53P8222 Spring, upper diverter 53P8222 Spring, Upper Diverter Fully refurbished with 90-day warranty 53P8222 Contact for Details 6 53P8301 Shaft assembly, exit, also order parts packet 53P8359 53P8206 Shaft Assembly, Stacker Lower Exit Upper Stacker Assembly New 53P8301 (New) $31.00 6 56P2872 Cover, front 7 53P8206 Shaft assembly, lower exit, also order parts packet 53P8359 7 53P8296 Belt, 160 gear 53P8296 Belt, 160G Upper Stacker Assembly New 53P8296 (New) $21.00 8 56P0407 Shield, output option card 8 53P8297 Arm assembly, belt idler 53P8297 Arm Asm, Belt Idler New 53P8297 (New) $19.00 9 53P8413 Board, output expander DC motor 53P8413 Output Expander DC Motor Board New 53P8413 (NEW) $157.00 9 53P8299 Spring, belt tensioner 53P8299 Spring, Belt Tensioner New 53P8299 (NEW) $13.50 10 56P2871 Cover, front control board 10 53P8338 Spring, output tray 11 56P2879 Tray, output expander 11 56P2878 Latch, output tray 12 53P8512 Diverter arm 12 56P2899 Frame assembly 13 53P8513 Spring clutch assembly 53P8513 Spring Clutch Assembly New 53P8513 (NEW) $26.00 13 53P8295 Sensor, output expander pass thru 53P8295 Sensor, Stacker Pass thru New 53P8295 (New) $21.00 14 53P8338 Spring, output tray 15 53P8411 Shaft assembly, middle 40T, also order parts packet 53P8359 53P8411 Shaft Assembly Middle 40T New 53P8411 (NEW) $26.00 16 56P2878 Latch, output tray 17 56P0406 Bracket, front attach 18 53P8321 Spring, swing arm 19 56P2917 Output expander assembly, mechanical linkage 56p2917 Drive Assembly Stacker Fully refurbished with 90-day warranty 56p2917 Contact for Details 20 56P2874 Cover, rear support 21 56P2873 Rear cover 22 56P2876 Level sensor bracket 23 56P2877 Flag, output paper level 24 53P8320 Sensor, dual bin full Parts catalog 7-41 53P8320 Bin full sensor New 53P8320 (NEW) $38.00 27.1–1 56P2916 Door assembly, right jam access NS 56P2943 Kit, multi-bin stacker Parts catalog 7-43

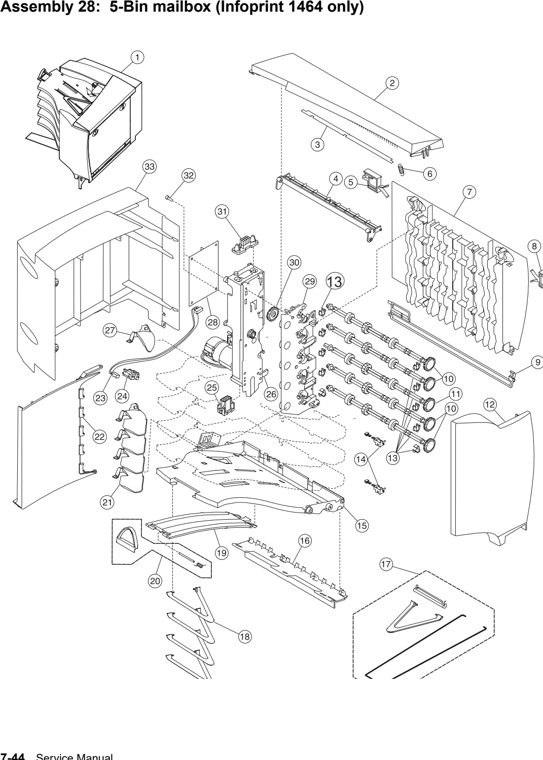

Assembly 28: 5-Bin mailbox (Infoprint 1464 only) 1 56P2880 5-Bin mailbox, complete 2 56P2820 Redrive cap cover assembly 56P2820 Redrive Cap Cover Assembly New 56P2820 (New) $30.00 56P2820 Redrive Cap Cover Assembly Fully refurbished with 90-day warranty 56P2820 $28.00 2 56P2936 Frame asm, right side 3 56P2937 Cover, wire 4 56P2882 Cover, top bin 4 53P8547 Cam, diverter actuator 53P8547 Cam, Diverter Actuator New 53P8547 (NEW) $16.00 5 56P2931 Latch, access door rear 5 53P8550 Spring, diverter actuator 6 53P8222 Spring, upper diverter 53P8222 Spring, Upper Diverter Fully refurbished with 90-day warranty 53P8222 Contact for Details 6 53P8548 Latch, diverter actuator 53P8548 Latch, Diverter Actuator New 53P8548 (NEW) $11.00 7 56P2889 Door, front 7 53P8549 Arbor, diverter actuator 53P8549 Arbor, Diverter Actuator New 53P8549 (NEW) $15.00 8 56P2881 Latch, access door front 8 53P8592 Retainer, C-clip 9 56P2930 Cover, right 9 56P0418 Bracket, attach front 10 53P8542 Shaft asm, drive 53P8542 Shaft Assembly, Drive New 53P8542 (New) $19.00 10 53P8551 Solenoid, diverter 53P8551 Solenoid, Diverter New 53P8551 (New) $23.00 11 53P8543 Shaft asm, drive with gear 53P8543 Shaft Assembly, Drive W/Gear New 53P8543 (New) $26.00 11 56P2938 Deflector, paper exit w/brush 12 56P2886 Cover, right side 12 56P2934 Deflector, paper 13 53P8544 Packet, drive shaft bushing 53P8544 Packet, Drive Shaft Bushing New 53P8544 (NEW) $16.00 13 53P8590 Deflector 53P8590 Deflector New 53P8590 (New) Contact for Details 14 53P8560 Sensor, 5-bin mailbox pass thru 53P8560 Packet, Drive Shaft Bushing New 53P8560 (NEW) $16.00 14 56P2933 Deflector, paper top bin 15 56P2885 Tray, paper cap 56p2885 Tray Paper cap 18mm New 56p2885 (New) $45.00 56p2885 Tray Paper cap 18mm Fully refurbished with 90-day warranty 56p2885 $36.00 16 56P2884 Bracket asm, bail attach 17 56P2940 Kit, 5-bin mailbox asm 19 56P2932 Support, paper tray 20 56P2939 Stop asm, paper tray 21 56P2935 Flag, bin full 22 56P2887 Rear structural cover 23 53P8554 Cable, dual sensor 53P8554 Cable, Dual Sensor New 53P8554 (NEW) $21.00 24 53P8555 Sensor, dual bin level 53P8555 Sensor, Dual Paper Height New 53P8555 (NEW) $26.00 25 53P8537 Cable asm, lower autoconnect 53P8537 Cable Assembly, Lower Auto Connect New 53P8537 (New) $23.00 26 53P8535 Drive asm, main DC drive 53P8535 Drive Assembly, Main DC Driver New 53P8535 (New) $99.00 27 56P2883 Flag, bin full 28 53P8558 Board asm, 5-bin mailbox system 53P8558 Board Assembly, 5-Bin Mailbox System New 53P8558 (New) $154.00 28.1–1 53P8559 Spring, diverter 53P8559 Spring, Diverter New 53P8559 (NEW) $25.00 29 56P2941 Frame asm, left w/clutch asm 30 53P8589 Gear, drive 53P8589 Gear, Drive New 53P8589 (NEW) $29.00 31 53P8538 Cable asm, upper autoconnect 53P8538 Cable Assembly, Upper Auto Connect New 53P8538 (New) $33.00 33 56P2888 Cover, left side Parts catalog 7-45 NS 56P0421 Spring, static ground NS 53P8534 Roller asm, rear access door 53P8534 Roller Assembly, Rear Access Door New 53P8534 (New) $19.00 NS 53P8536 32 ppm drive gear 53P8536 Gear Drive New 53P8536 (NEW) $14.00 NS 53P8591 Retainer, R-ring NS 53P8330 Retainer NS 56P0550 Cable, tray media level sensor Parts catalog 7-47

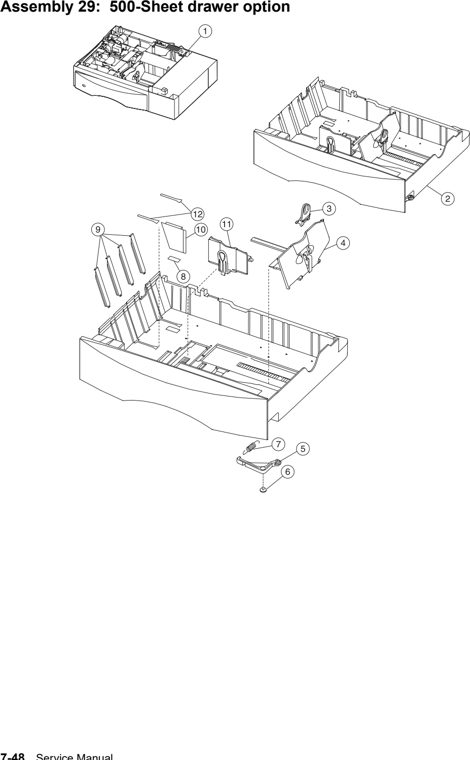

Assembly 29: 500-Sheet drawer option 1 56P2850 500-Sheet drawer option, complete 56p2850 500 Sheet Drawer with Tray New 56p2850 (New) $75.00 56p2850 500 Sheet Drawer with Tray Fully refurbished with 90-day warranty 56p2850 $55.00 2 56P2834 500-Sheet tray assembly 56P2834 500-Sheet tray assembly New 56P2834 (New) $45.00 56P2834 500-Sheet tray assembly Fully refurbished with 90-day warranty 56P2834 $38.00 3 53P9848 Back restraint latch 3 56P2868 500-Sheet option tray pick assembly 56p2868 Pick assembly 500 tray option New 56p2868 (New) $112.00 56p2868 Pick assembly 500 tray option Fully refurbished with 90-day warranty 56p2868 $66.00 4 53P9847 Back restraint 4 53P9962 Paper level sensing assembly 5 53P9854 Tray bias bellcrank assembly 5 53P9894 Tray interlock bellcrank 53P9894 Tray interlock bellcrank Fully refurbished with 90-day warranty 53P9894 Contact for Details 6 56P2859 Cover, frame 7 53P9855 Tray bias spring 7 53P9550 Pass thru sensor 8 53P9965 Reflector label 8 53P9959 Hinge 9 53P9850 Wear strip 9 53P9956 Electronics/size sensing assembly with system board 10 53P9849 Tray wear clip 10 53P9955 Pick arm lift bellcrank 53P9955 Pick arm lift bellcrank Fully refurbished with 90-day warranty 53P9955 Contact for Details 11 53P9846 Side restraint 11 53P9963 Paper size sensing assembly 12 56P1504 Restraint pad Parts catalog 7-49 12 53P9954 Bellcrank lift spring 53P9954 Bellcrank lift spring New 53P9954 (New) $95.00 53P9954 Bellcrank lift spring Fully refurbished with 90-day warranty 53P9954 $76.00 13 56P2858 500 base assembly 14 53P9812 Machine pad 53P9812 Machine pad Fully refurbished with 90-day warranty 53P9812 Contact for Details 15 56P1571 Plate, 500 support assembly 56P1571 Plate, 500 support assembly New 56P1571 (New) $56.00 56P1571 Plate 500 support assembly Fully refurbished with 90-day warranty 56P1571 $56.00 16 56P2867 Paper guide 17 53P9960 Wall support plate 18 56P2869 Base door assembly 19 53P9958 Spring 20 56P2849 500 option deflector 21 56P2176 Grounding spring 22 75P5958 Pick roll tires (2 per pack) 75P5958 Pick roll tires (2 per pack) New 75P5958 (New) $16.00 29.1–1 56P0168 Drive assembly, 500 option 2 56P0168 Drive assembly, 500 option 2 New 56P0168 (New) $448.00 56P0168 Drive assembly 500 option 2 Fully refurbished with 90-day warranty 56P0168 $448.00 NS 53P9925 Cable tie (6 in a pack) Parts catalog 7-51

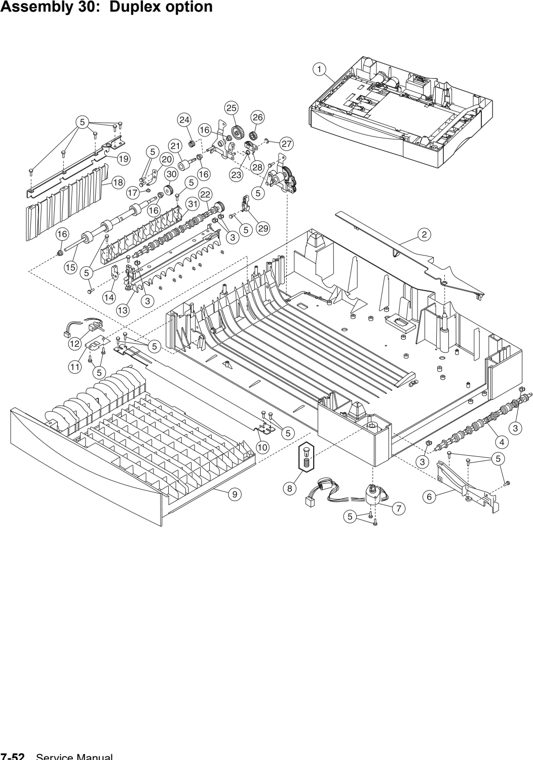

Assembly 30: Duplex option 1 56P2860 Duplex option, complete 56P2860 Duplex Assembly New 56P2860 (New) Contact for Details 56P2860 Duplex Assembly Fully refurbished with 90-day warranty 56P2860 Contact for Details 2 56P2863 Back cover 56p2863 Cover Back New 56p2863 (New) $109.00 56p2863 Cover Back Fully refurbished with 90-day warranty 56p2863 $76.00 2 56P0462 Autoconnect cable assembly 56P0462 Autoconnect cable assembly New 56P0462 (New) Contact for Details 56P0462 Autoconnect cable assembly Fully refurbished with 90-day warranty 56P0462 $77.00 3 56P2898 Redrive bearing 3 56P0463 DC forward/reverse motor assembly 4 56P0447 Duplex entry shaft assembly 4 56P0464 DC duplex feed motor 6 56P0434 Right side front tray guide 56P0434 Right side front tray guide New 56P0434 (New) Contact for Details 56P0434 Right side front tray guide Fully refurbished with 90-day warranty 56P0434 $69.00 6 53P9925 Cable tie (6 in pack) 7 56P0483 Deflector actuator assembly 56P0483 Deflector actuator assembly New 56P0483 (New) $78.00 56P0483 Deflector actuator assembly Fully refurbished with 90-day warranty 56P0483 $78.00 7 56P0459 Back support 56P0459 Back support New 56P0459 (New) Contact for Details 56P0459 Back support Fully refurbished with 90-day warranty 56P0459 $75.00 8 56P1570 Deflector follower assembly 8 56P0430 Duplex card assembly 56P0430 Duplex Card Assembly New 56P0430 (New) $342.00 56P0430 Duplex Card Assembly Fully refurbished with 90-day warranty 56P0430 $91.00 9 56P2861 Duplex front jam tray assembly 9 56P2484 Belt, transfer 10 56P0457 Duplex support bracket 10 56P2862 Right jam clearance tray assembly 56p2862 Tray Assembly Right Jam Clearance New 56p2862 (New) $75.00 56p2862 Tray Assembly Right Jam Clearance Fully refurbished with 90-day warranty 56p2862 $56.00 11 56P2866 Sensor mount plate 11 56P0458 Chassis ground spring 56P0458 Chassis ground spring New 56P0458 (New) Contact for Details 56P0458 Chassis ground spring Fully refurbished with 90-day warranty 56P0458 $77.00 12 56P0442 Duplex exit sensor 12 53P8592 Retainer, C-clip 13 56P0435 Duplex shaft mount 13 56P0478 Aligner spring 14 56P0479 Front decurl assembly 14 53P8279 Paper guide assembly 15 56P0444 F/R backup shaft assembly 56P0444 F/R Backup Shaft Assembly New 56P0444 (New) Contact for Details 56P0444 F/R backup shaft assembly Fully refurbished with 90-day warranty 56P0444 $106.00 15 56P0465 Drive alignment shaft assembly 56P0465 Drive alignment shaft assembly New 56P0465 (New) Contact for Details 56P0465 Drive alignment shaft assembly Fully refurbished with 90-day warranty 56P0465 $74.00 16 56P0476 5 mm bushing 16 56P0477 Reduction gear shaft 17 56P0473 Brake pad 56P0473 Brake pad New 56P0473 (New) Contact for Details 56P0473 Brake pad Fully refurbished with 90-day warranty 56P0473 $58.00 17 56P0451 Right backup spring assembly 56P0451 Right Backup spring assembly New 56P0451 (New) Contact for Details 56P0451 Right Backup spring assembly Fully refurbished with 90-day warranty 56P0451 $65.00 18 56P2865 Duplex paper guide 18 53P8536 32 ppm drive gear 53P8536 Gear Drive New 53P8536 (NEW) $14.00 19 56P0454 Wall support 56P0454 Wall support New 56P0454 (New) Contact for Details 56P0454 Wall support Fully refurbished with 90-day warranty 56P0454 $80.00 19 56P0452 Left backup spring assembly 56P0452 Left backup spring assembly New 56P0452 (New) Contact for Details 56P0452 Left backup spring assembly Fully refurbished with 90-day warranty 56P0452 $115.00 20 56P0475 Brake spring 56P0475 Brake spring New 56P0475 (New) Contact for Details 56P0475 Brake spring Fully refurbished with 90-day warranty 56P0475 $73.00 20 56P2864 Upper rib assembly 21 56P0472 Pass thru shaft assembly 56P0472 Pass thru shaft assembly New 56P0472 (New) Contact for Details 56P0472 Pass thru shaft assembly Fully refurbished with 90-day warranty 56P0472 $71.00 21 56P0437 Duplex input sensor 22 56P0441 Duplex shaft assembly 23 56P0468 Pass thru spring 56P0468 Pass thru spring New 56P0468 (New) Contact for Details 56P0468 Pass thru spring Fully refurbished with 90-day warranty 56P0468 $47.00 24 56P0470 Aligner arm spring 56P0470 Aligner arm spring New 56P0470 (New) Contact for Details 56P0470 Aligner arm spring Fully refurbished with 90-day warranty 56P0470 $66.00 25 56P0466 Spur drive gear 56P0466 Spur drive gear New 56P0466 (New) Contact for Details 56P0466 Spur drive gear Fully refurbished with 90-day warranty 56P0466 $57.00 26 56P0467 26T duplex gear 28 56P0471 Bellcrank assembly 29 56P0474 Decurl BAC assembly 56P0474 Decurl BAC assembly New 56P0474 (New) Contact for Details 56P0474 Decurl BAC assembly Fully refurbished with 90-day warranty 56P0474 $70.00 30 56P0445 40T shaft drive F/R gear 56P0445 40T shaft drive F/R gear New 56P0445 (New) Contact for Details 56P0445 40T shaft drive F/R gear Fully refurbished with 90-day warranty 56P0445 $70.00 30.1–1 56P0456 Duplex support plate 31 56P0449 Support decurl guide 56P0449 Support decurl guide New 56P0449 (New) Contact for Details 56P0449 Support decurl guide Fully refurbished with 90-day warranty 56P0449 $86.00 NS 56P0482 Pulley washer Parts catalog 7-53

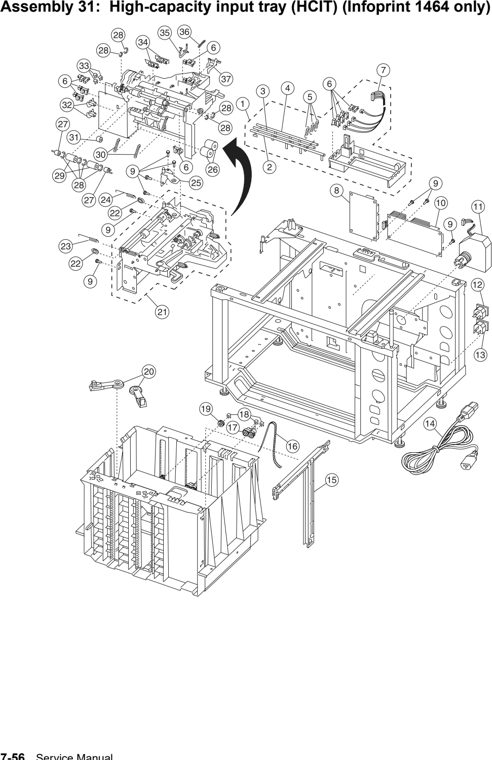

Assembly 31: HCIT (Infoprint 1464 only) 1 56P0561 Paper size sensor box assembly 56P0561 Paper size sensor box assembly New 56P0561 (New) Contact for Details 56P0561 Paper size sensor box assembly Fully refurbished with 90-day warranty 56P0561 $26.00 2 56P0519 Flag, paper size F 2 56P2903 Right side cover 3 56P0520 Flag, paper size C 3 56P0491 Caster, movable 4 56P0518 Flag, paper size R 5 56P0522 Spring, paper size flag 5 56P0493 F adjuster 6 56P0516 Sensor, photo interrupter 6 56P2901 Front cover 7 56P0511 Paper size sensors cable 7 56P2902 Cover, main CA 8 56P0494 System control board 56P0494 System Control Board New 56P0494 (New) $217.00 56P0494 System Control Board Fully refurbished with 90-day warranty 56P0494 Contact for Details 8 56P0492 Caster, fixed 9 56P2904 Left side cover 10 56P0495 LVPS 56P0495 LVPS Low Voltage Power Supply New 56P0495 (New) $247.00 56P0495 LVPS Low Voltage Power Supply Fully refurbished with 90-day warranty 56P0495 $167.00 10 56P2906 Upper left side jam cover 11 56P0513 Elevator motor assembly 56P0513 Elevator motor assembly New 56P0513 (New) $63.00 56P0513 Elevator motor assembly Fully refurbished with 90-day warranty 56P0513 $43.00 11 56P0507 Locating pin, options front right 12 56P0497 AC power outlet 12 56P0506 Locating pin, options rear left 13 56P0498 AC power inlet 13 56P0514 Options autoconnect cable assembly 14 56P0490 Jumper, AC power cord 14 56P0517 Options cable mounting plate 15 56P0524 Paper tray guide 16 56P0547 Elevator lift belt 17 56P0549 Elevator lift 18 56P0563 Ring 7, elevator lift gear/elevator lift 19 56P0548 Elevator lift gear 20 56P0523 Paper tray arms 21 56P0525 Feed unit, complete assembly 22 56P0527 Bushing 23 56P0533 Spring, feed unit front 24 56P0534 Spring, feed unit rear 25 56P0562 Feed cover 26 56P0542 Separation/torque roller 27 56P0529 Feed cam 29 56P0528 Feed roller 30 56P0530 Spring, feed unit 31 56P0532 Bushing, 060 31.1–1 56P2905 Rear cover 32 56P0544 Emitter timing wheel 33 56P0535 Clip, plastic 5W 34 56P0526 Sensors, special optical 35 56P0536 Level sensor flag 36 56P0540 Spring, extension 37 56P0539 Near empty sensor flag Parts catalog 7-57 NS 56P0509 Cable, feed unit special sensors NS 56P0510 Cable, feed unit sensors NS 56P0512 Cable, elevator motor NS 56P0515 Magnetic latch NS 56P0541 Tray present lever NS 56P0543 Cable clamp NS 56P0564 Kit, stabilizer with mounting screws Parts catalog 7-59

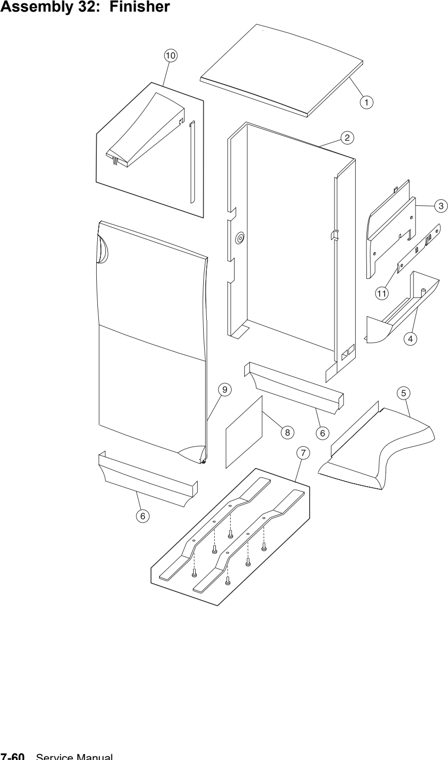

Assembly 32: Finisher 1 56P0321 Top cover (tall finisher) 1 56P1287 Scanner plate (short finisher) 2 56P0569 Rear cover (tall finisher) 2 56P1285 Rear cover (short finisher) 2 56P0357 Actuation assembly 2 56P0385 Solenoid drop assembly 56P0385 Solenoid drop assembly New 56P0385 (New) $114.00 56P0385 Solenoid drop assembly Fully refurbished with 90-day warranty 56P0385 $114.00 3 56P0573 Upper right side cover (tall finisher) 3 56P1286 Upper right side cover (short finisher) 3 56P1471 HCOF control board assembly 56P1471 HCOF Control Board Assembly New 56P1471 (New) $332.00 56P1471 HCOF Control Board Assembly Fully refurbished with 90-day warranty 56P1471 $332.00 3 56P0347 Jogger fence homing sensor (EE-SX1235A-P2) 4 56P0574 Lower tray cover 4 56P0325 Motor assembly paper feed 56P0325 Motor assembly paper feed New 56P0325 (New) Contact for Details 56p0325 Motor assembly paper feed Fully refurbished with 90-day warranty 56p0325 Contact for Details 4 56P0384 Accumulator belt (hook) 56P0384 Accumulator belt (hook) New 56P0384 (New) $111.00 56P0384 Accumulator belt (hook) Fully refurbished with 90-day warranty 56P0384 $111.00 5 56P0576 Bottom kick cover 5 56P0332 Accumulator paper feed belt (40S3M900) 5 56P2294 Accumulator drive belt (B30S2M334) 56P2294 Accumulator Drive Belt (B30S2M334) New 56P2294 (New) $25.00 56P2294 Accumulator drive belt (B30S2M334) Fully refurbished with 90-day warranty 56P2294 Contact for Details 6 56P0575 Front/rear lower cover 56P0575 Front/rear lower cover New 56P0575 (New) Contact for Details 56P0575 Front/rear lower cover Fully refurbished with 90-day warranty 56P0575 $81.00 6 56P2294 Accumulator drive belt (B30S2M334) 56P2294 Accumulator Drive Belt (B30S2M334) New 56P2294 (New) $25.00 56P2294 Accumulator drive belt (B30S2M334) Fully refurbished with 90-day warranty 56P2294 Contact for Details 6 56P0319 Accumulator w/o stapler 7 56P0387 Bar tip unit 56P0387 Bar tip unit New 56P0387 (New) $174.00 56P0387 Bar tip unit Fully refurbished with 90-day warranty 56P0387 $174.00 7 56P0315 Punch assembly 7 56P0348 Drop timing sensor (OS-535223-602) 8 56P0577 Lower right side cover 56P0577 Lower right side cover New 56P0577 (New) Contact for Details 56P0577 Lower right side cover Fully refurbished with 90-day warranty 56P0577 $73.00 8 56P0345 Punch motor homing sensor (GP1A73A) 8 56P0349 Accumulator homing sensor (OS-311D-A5) 9 56P0320 Cover front door 56P0320 Cover front door New 56P0320 (New) $277.00 56P0320 Cover front door Fully refurbished with 90-day warranty 56P0320 $277.00 9 56P0318 Box, chad 9 56P0316 Staple assembly 10 56P0566 Finisher install kit 10 56P0329 Inverter D drive belt (40S3M225) 10 56P0358 Accumulator slides 11 56P1290 Cover wire Parts catalog 7-61 11 56P0383 Solenoid inverter 56P0383 Solenoid inverter New 56P0383 (New) $38.00 56P0383 Solenoid inverter Fully refurbished with 90-day warranty 56P0383 $38.00 11 56P0317 Staple cartridge 12 56P0347 Jogger fence homing sensor (EE-SX460-P1-CHN) 12 56P0346 Exit timing sensor (EE-SPY415) 13 56P0342 Caster 13 56P0344 Inverter timing sensor (OJ511K-A5) 14 56P0338 Low voltage power supply 56P0338 Low voltage power supply New 56P0338 (New) $270.00 56P0338 Low Voltage Power Supply LVPS Fully refurbished with 90-day warranty 56P0338 Contact for Details 14 56P0330 Paper feed-input belt (40S3M279) 15 56P0333 Tray elevation belt (60S6M1420) 15 56P0351 Cover open switch 16 56P0323 Output tray offset motor and gear assembly 56P0323 Output tray offset motor and gear assembly New 56P0323 (New) $122.00 56P0323 Output tray offset motor and gear assembly Fully refurbished with 90-day warranty 56P0323 $122.00 16 56P2295 Jogger fence belt (B40S2M460) 56P2295 Jogger fence belt (B40S2M460) New 56P2295 (New) $25.00 56P2295 Jogger fence belt (B40S2M460) Fully refurbished with 90-day warranty 56P2295 $25.00 17 56P0386 Fan assembly DC motor 18 56P0322 Tray paper 56P0322 Tray Paper New 56P0322 (New) $95.00 56P0322 Tray Paper Fully refurbished with 90-day warranty 56P0322 $95.00 19 56P0326 Flag paper full 56P0326 Flag paper full New 56P0326 (New) $47.00 56P0326 Flag paper full Fully refurbished with 90-day warranty 56P0326 $47.00 20 56P0331 Exit foam Roller drive belt (40S3M80) 21 56P0334 Tray elevation drive belt (170P2M4) 22 56P0335 Exit roller drive belt (40S2M264) 23 56P0336 Output tray offset drive belt (40S2M134) 24 56P0337 Punch belt (40S2M176) 25 56P0578 Tray wall cover 56P0578 Tray wall cover New 56P0578 (New) Contact for Details 56P0578 Tray wall cover Fully refurbished with 90-day warranty 56P0578 $59.00 26 56P0327 Paper feed belt (40S3M888) 27 56P0343 Punch timing sensor (OJ-541-A5) 28 56P0350 Paper surface sensor (EE-SX460-P1-CHN) 29 56P0352 Printer docking switch SS-5FL-3T(10E) 30 56P0388 Tray limit switches (includes two) 56P0388 Tray limit switches (includes two) New 56P0388 (New) $46.00 56P0388 Tray limit switches (includes two) Fully refurbished with 90-day warranty 56P0388 $46.00 31 56P0346 Exit timing sensor (EE-SPY415) 32 56P0328 Inverter transfer belt (40S3M198) 32.1–1 56P0324 Motor assembly elevator tray 32.2–1 56P0355 Guide vertical paper 56P0355 Guide vertical paper New 56P0355 (New) $95.00 56P0355 Guide vertical paper Fully refurbished with 90-day warranty 56P0355 $95.00 NS 56P0340 Communications cable NS 56P0341 Power cord NS 56P0354 Bracket finisher alignment NS 56P0356 Pack magnet, strong and weak and door latch Parts catalog 7-63 NS 56P0382 Harness cable assembly D5 - low voltage power supply to low voltage power relay board Parts catalog 7-65

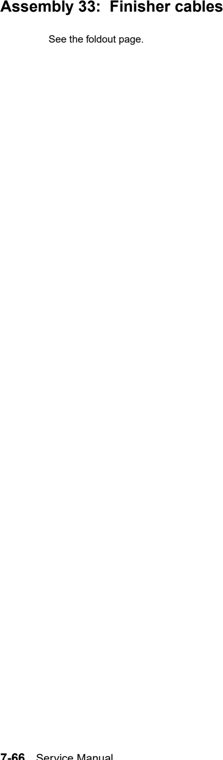

Assembly 33: Finisher cables 1 56P0340 Communications cable 2 56P0341 Power cord 3 56P0359 Harness cable assembly H2 - system board to drop solenoid 4 56P0360 Harness cable assembly H3 - system board to harness cable assembly H4/drop timing sensor/punch motor homing sensor/inverter timing sensor 5 56P0361 Harness cable assembly H4 - harness cable H3 to punch timing sensor 6 56P0362 Harness cable assembly H5 - system board to printer docking switch 7 56P0363 Harness cable assembly H6 - system board to fan 8 56P0364 Harness cable assembly S1 - stapler cable to stapler assembly 9 56P1280 Harness cable assembly stapler - system board to cable S1/jogger fence homing sensor/accumulator homing sensor/jogger motor accumulator drive motor 10 56P0368 Harness cable assembly S5 - system board to chad box full sensor 11 56P0369 Harness cable assembly E2 - cable E5 to exit timing sensor 12 56P0370 Harness cable assembly E3 - cable E5 to paper surface upper sensor/paper surface lower sensor 13 56P0371 Harness cable assembly E5 - system board to cable E2/E3 14 56P0372 Harness cable assembly E6 - cable E8 to tray limit switches 15 56P0373 Harness cable assembly E7 - cable E8 to output tray offset sensor 16 56P0374 Harness cable assembly E8 - system board to E6/E7 17 56P0375 Harness cable assembly E9 - cable E10 to output offset motor 18 56P0376 Harness cable assembly E10 - system board to cable E9 19 56P0378 Harness cable assembly R1 - system board to inverter solenoid/inverter jam sensor 20 56P0379 Harness cable assembly D1 - system board to front door switch 21 56P0380 Harness cable assembly D2 - system board to low voltage power supply 22 56P0381 Harness cable assembly D3 - low voltage power supply relay board to AC input/output 23 56P0382 Harness cable assembly D5 - low voltage power supply to low voltage power supply relay board. Parts catalog 7-67

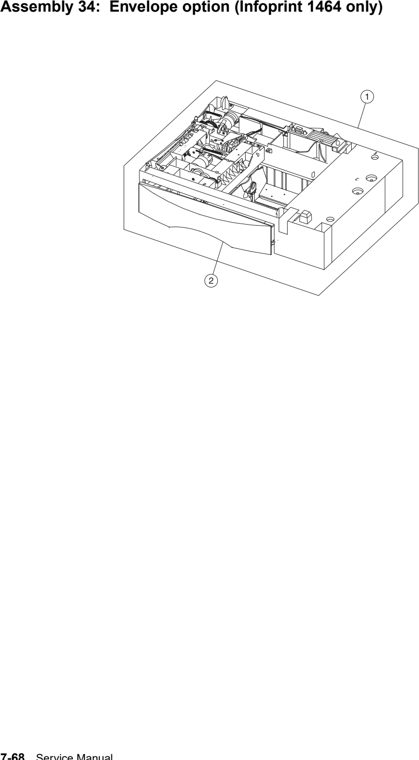

Assembly 34: Envelope option (Infoprint 1464 only) 1 56P2890 Envelope option (complete) 56p2890 Envelope Feeder New 56p2890 (New) $299.00 2 56P2891 Envelope tray assembly Parts catalog 7-69

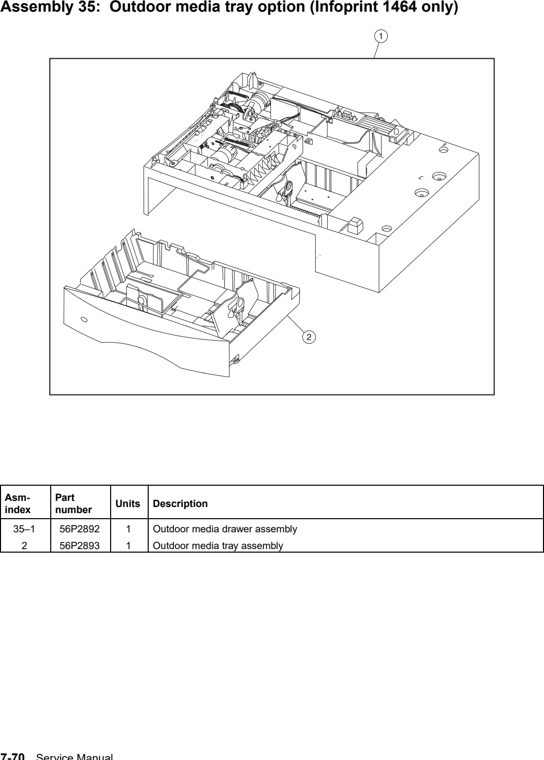

Assembly 35: Outdoor media tray option (Infoprint 1464 only) 1 56P2892 Outdoor media drawer assembly 2 56P2893 Outdoor media tray assembly

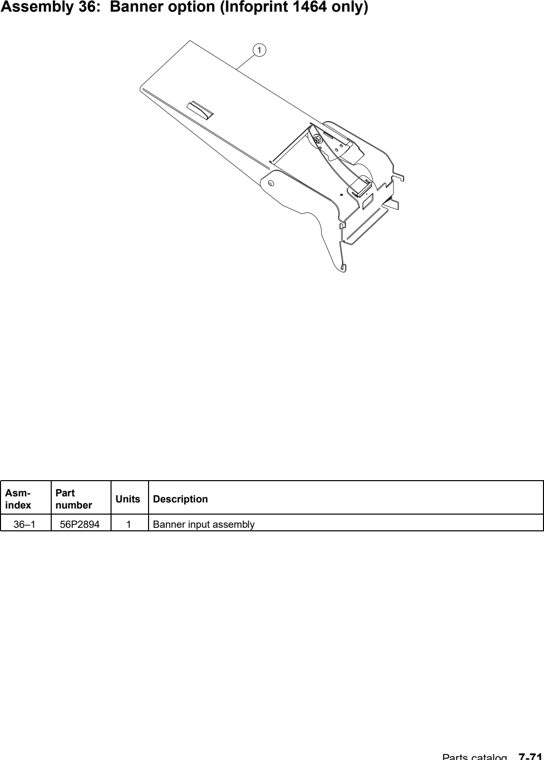

Assembly 36: Banner option (Infoprint 1464 only) 1 56P2894 Banner input assembly Parts catalog 7-71

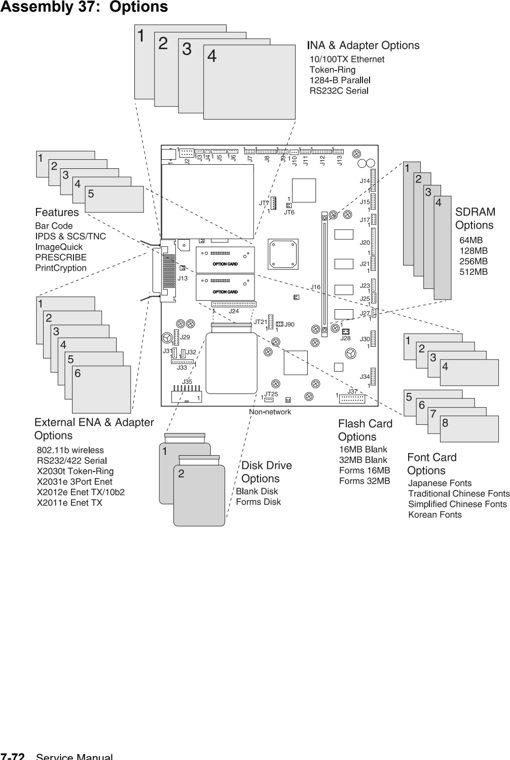

Assembly 37: Options NS 53P9924 64MB SDRAM card assembly 53P9924 64MB SDRAM Fully refurbished with 90-day warranty 53P9924 Contact for Details NS 56P9910 128MB SDRAM card assembly 56P9910 128MB SDRAM card assembly New 56P9910 (New) $16.56 56P9910 128MB SDRAM card assembly Fully refurbished with 90-day warranty 56P9910 $45.00 NS 56P9911 256MB SDRAM card assembly NS 56P2223 512MB SDRAM card assembly 56p2223 512MB Memory New 56p2223 (New) $189.00 NS 56P1417 16MB Flash DIMM card assembly 56P1417 16MB Flash SIMM New 56P1417 (New) $43.00 56P1417 16MB Flash SIMM Fully refurbished with 90-day warranty 56P1417 Contact for Details NS 56P1418 32MB Flash DIMM card assembly 56P1418 32MB Flash New 56P1418 (New) Contact for Details NS 56P1430 Traditional Chinese font DIMM card assembly NS 56P1429 Simplified Chinese font DIMM card assembly NS 56P1437 Adapter, parallel 1284-B 56p1437 Parallel 1284-B interface card New 56p1437 (New) $15.00 56p1437 Parallel 1284-B interface card Fully refurbished with 90-day warranty 56p1437 Contact for Details NS 56P9982 Hard Disk, 20GB with/Adapter (formatted) 56P9982 20+ GB Hard Drive With Adapter New 56p9982 (New) $570.00 56P9982 20+ GB Hard Drive With Adapter Fully refurbished with 90-day warranty 56p9982 Contact for Details NS 56P1428 Lexmark Forms 16MB Flash DIMM NS 56P1427 Lexmark Forms 32MB Flash DIMM NS 56P9942 Hard Drive Mounting Kit NS 56P1741 MarkNet™ Token-Ring Print Internal Server NS 56P1431 MarkNet X2011e Ethernet 10/100BaseTX - 1 Port External Server NS 56P1432 MarkNet X2012e Ethernet 10BaseT/2 10BaseTX/10Base 2 - 1 Port External Server NS 56P1435 External serial adapter (RS 232) NS 56P0159 Coax/Twinax adapter for SCS 56P0159 Coax/Twinax Adapter New 56P0159 (New) Contact for Details 56P0159 Coax/Twinax Adapter Fully refurbished with 90-day warranty 56P0159 $245.00 NS 56P1436 RS-232 serial interface card NS 56P3090 IPDS/SCS card assembly NS 56P1438 Japanese font card assembly NS 56P2231 Korean font card assembly card assembly NS 56P2299 PrintCryption™ card assembly NS 56P2248 ImageQuick™ card assembly NS 56P1433 MarkNet X2031e Ethernet 10/100BaseTX - 3 Port External Server NS 56P1434 MarkNet X2030t Token-Ring External Server NS 56P1742 MarkNet N2101e Ethernet 10/100BaseTX Internal Server NS 56P9932 Lexmark Forms hard disk, 5GB or larger w/adapter NS 53P7069 High speed bi-directional parallel cable (10 ft) NS 53P7071 Serial cable, soft NS 56P2297 Bar code card assembly 56P2297 Card assembly, bar code New 56P2297 (New) Contact for Details NS 56P2242 802.11g Wireless Print Server, external Ethernet to wireless (USA, Canada only) NS 56P2243 802.11g Wireless Print Server, external Ethernet to wireless(All countries except USA and Canada) NS 56P2744 802.11g Wireless Print Server, external USB to wireless (USA, Canada only) NS 56P2745 802.11g Wireless Print Server, external USB to wireless (All countries except USA and Canada) Parts catalog 7-73

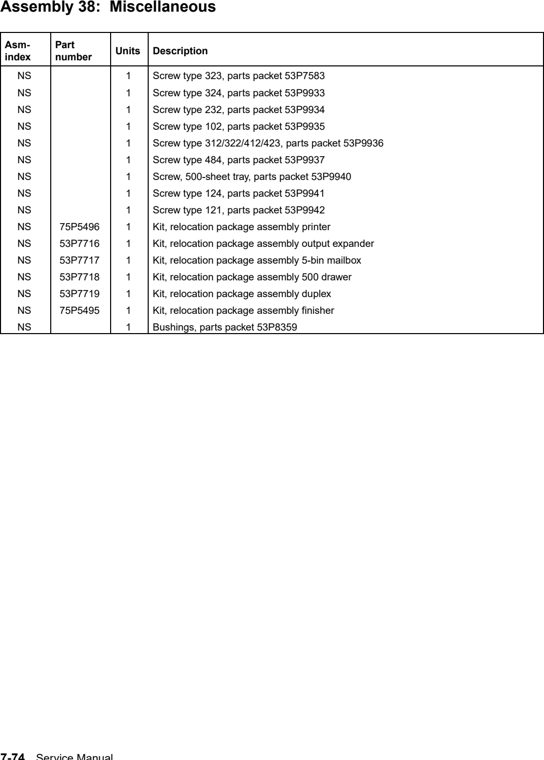

Assembly 38: Miscellaneous NS 75P5496 Kit, relocation package assembly printer NS 53P7716 Kit, relocation package assembly output expander NS 53P7717 Kit, relocation package assembly 5-bin mailbox NS 53P7718 Kit, relocation package assembly 500 drawer NS 53P7719 Kit, relocation package assembly duplex NS 75P5495 Kit, relocation package assembly finisher
Other listed parts 53P7583 53P9933 53P9934 53P9935 53P9936 53P9937 (TFR HVPS board to frame) 53P9942 56P2220 56P2818 Front access door Assembly 56P2818 Front access door Assembly New 56P2818 (New) $56.00 56P2818 Front access door Assembly Fully refurbished with 90-day warranty 56P2818 $43.00 56P2942 7621464
