Lexmark C780 & C782 Parts







Please call for parts assistance

1
1
40X1628 Top Cover Assembly
New
40X1628 (New)
$25.81



40X1628 Top Cover Assembly
Fully refurbished with 90-day warranty
40X1628
$54.35



Also order cable tie parts packet (P/N 40X1648)

2 40X1631 250 output flag and retainer

3 40X1637 Top autoconnect and output bin sensor 1xx/3xx only

3

40X1777 Output Options Autoconnect and Bin Sensor
Fully refurbished with 90-day warranty
40X1777
$31.10



4
40X1638 Redrive Cap Cover
New
40X1638 (New)
$19.21



5 40X1601 Machine pad

6 40X1602 Top front support bracket

7 40X1622 Right rear cover

8 Screw type 324, parts packet (40X1635)

9 40X1620 Right front cover

10 Screw type 323, parts packet (40X1633)

11
40X1634 Lower Right Door Assembly
New
40X1634 (New)
$21.54



12 40X1605 Front right light shield

13 40X1615 Front cover rear pivot cover

14

40X1607 Front Cover Backplate Assembly
Fully refurbished with 90-day warranty
40X1607
$33.00



15 40X1608 Detent link spring

16 40X1672 Bellcrank detent bearing

17 40X1636 Rear hold down spring

18 40X1610 Front hold down bellcrank

19
40X1609 Detent Link
New
40X1609 (New)
$42.48



40X1609 Detent Link
Fully refurbished with 90-day warranty
40X1609
$34.62



20 40X1623 Front access door handle

21
40X1614 Front Cover
New
40X1614 (New)
$56.55



40X1614 Front Cover
Fully refurbished with 90-day warranty
40X1614
$46.10



22



23 40X1625 Operator panel bezel with overlays
1xx only

23 40X1822 Operator panel bezel with overlays 2xx only

23 40X1624 Operator panel bezel with overlays 3xx only

23

24 40X1627 Clear LCD lens

25 40X1621 Front lower right cover

26 40X1629 Front right handle cover assembly

27 40X1768 Reference edge nip release strap

28 40X1619 Paper path access door

29 40X1603 Paper path access door spring

30 40X1618 Front lower left cover

31 40X1630 Front left handle cover assembly

32 40X1604 Left front light shield cover

33 40X1606 Paper tray guide

34 40X1612 Detent bellcrank

35 40X1613 Bellcrank detent spring

36
40X1611 Front Access Door Support
New
40X1611 (New)
$23.56



40X1611 Front Access Door Support
Fully refurbished with 90-day warranty
40X1611
$29.66



37 40X1616 Top paper jam label 3xx/4xx only

37 40X1617 Top paper jam label
1xx/2xx only
1.1
1
40X1657 Left Upper Cover Assembly
New
40X1657 (New)
$26.41



2 Screw type 323, parts packet, (40X1633)

3 40X1653 Left upper pivot cover

4 40X1787 Jam access door spring

5

6 40X1655 Left lower pivot cover

7 40X1654 Left lower cover

8 40X1656 Waste container door

9 40X1647 Ground cable

10
40X1644 Rear Cover
New
40X1644 (New)
$65.49



40X1644 Rear Cover
Fully refurbished with 90-day warranty
40X1644
$53.41



11 40X1643 Fuser latch slide

12 40X1645 Fuser latch slide spring

13 40X1640 Fuser top duct

14 40X1646 Duplex actuator arm assembly

15 40X1662 RIP fan duct

16 40X1642 Fuser wall duct

17 40X1641 Fuser bottom duct

18 40X1650 Fuser left duct

19 40X1652 Redrive belt cover duct

NS 40X1648 Cable tie (6 in pack)
Note: Use to secure cables to the inner system board shield)

NS 40X1649 Cable tie mount

NS 40X1671 Cable tie (6 in pack)

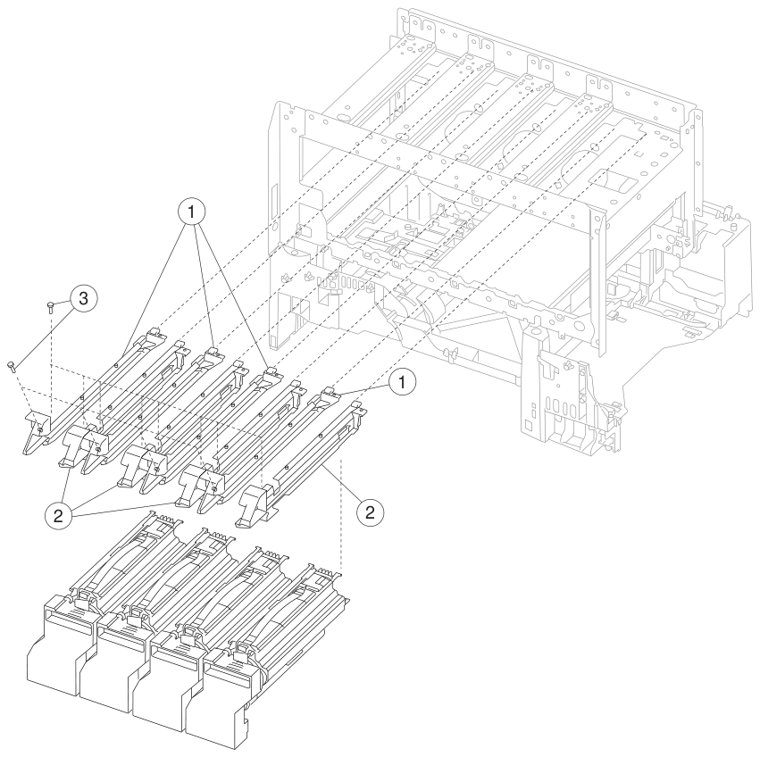

2
1
40X1663 Left Side Guide Assembly
New
40X1663 (New)
$24.87



40X1663 Left Side Guide Assembly
Fully refurbished with 90-day warranty
40X1663
$20.24



2


3
1



1


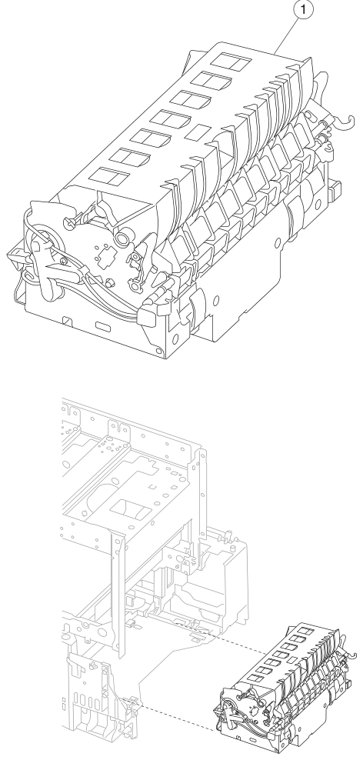

3
1
40X1674 Web Oiler Assembly
New
40X1674 (New)
$573.16



40X1674 Web Oiler Assembly
Fully refurbished with 90-day warranty
40X1674
$440.83



2

40X1670 Web Oiler Driver Board Assembly
Fully refurbished with 90-day warranty
40X1670
$46.23



3

40X1669 Web Oiler Index Drive Assembly
Fully refurbished with 90-day warranty
40X1669
$78.32


4
1 Screws type 323, parts packet (40X1633)

2

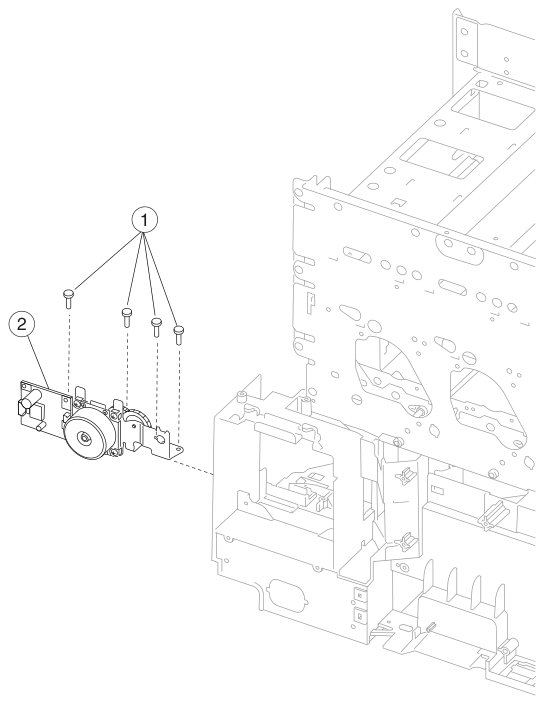

40X1661 Fuser Drive Assembly
New
40X1661 (New)
$147.08



40X1661 Fuser Drive Assembly
Fully refurbished with 90-day warranty
40X1661
$107.17


5
1 40X1660 Jam access spring

2

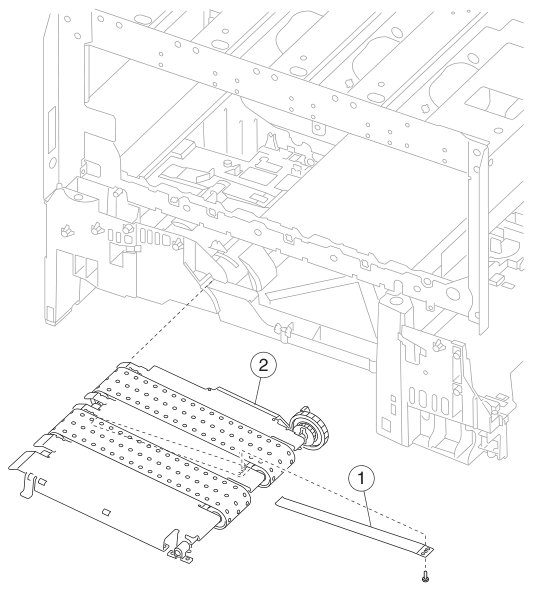

40X1677 Vacuum Transport Belt Assembly
Fully refurbished with 90-day warranty
40X1677
$26.54


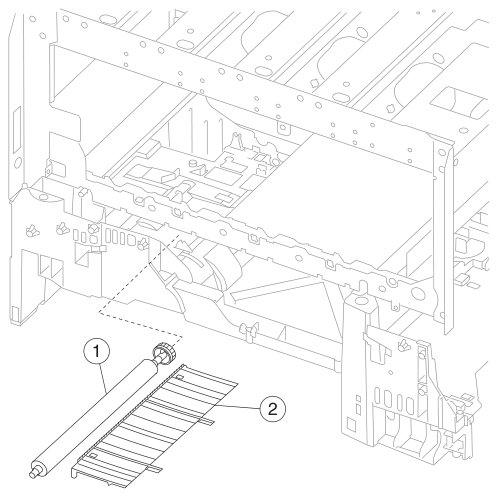

6
1
40X1678 Second Transfer Roll
New
40X1678 (New)

Retired, no longer available: Contact for alternatives



2

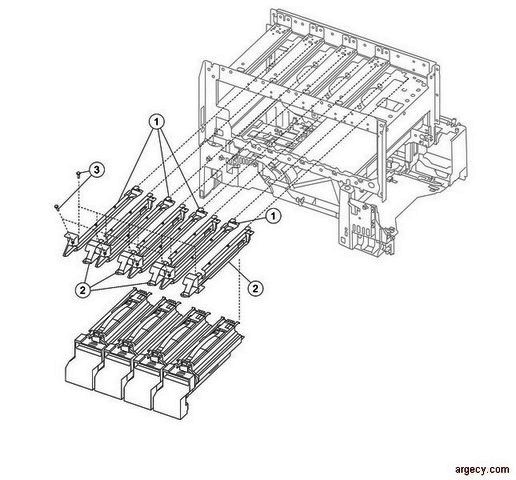

7
1

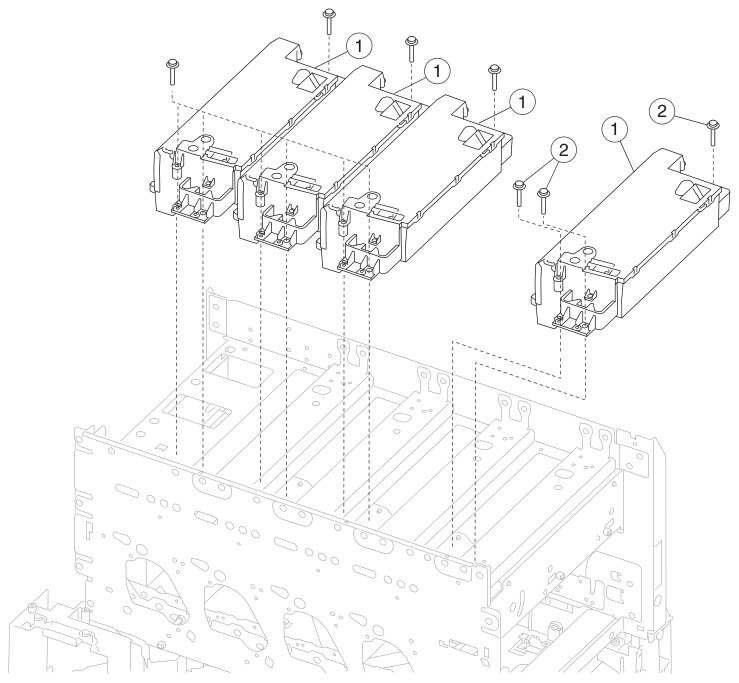

40x1683 Printhead Assembly, C77x, C78x
New
40x1683 40X1828 40X1778 (New)
$215.20



40x1683 Printhead Assembly C77x C78x
Fully refurbished with 90-day warranty
40x1683 40X1828 40X1778
$94.71



(do not replace more than one printhead at a time)

Also order cable tie parts packet (P/N 40X1648)

2 Screw type 484, parts packet (40X1632)

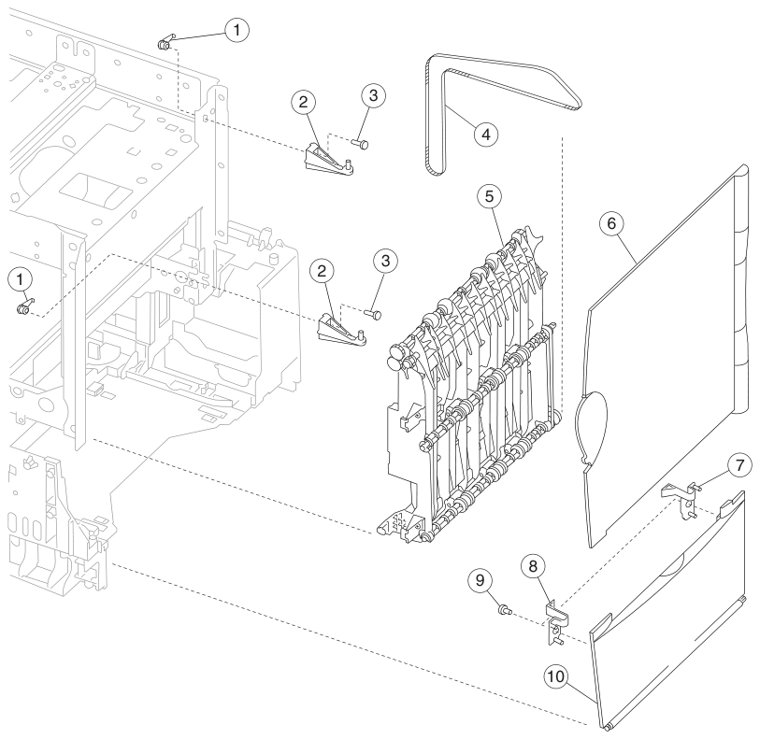

8
1 40X1686 Bracket mounting anchor (2 per package)

2 40X1685 Upper door hinge

3 Screw type 312/322/412/423, parts packet, (40X1691)

4 40X1689 Redrive belt 300 T

5

40X1684 Redrive Assembly
Fully refurbished with 90-day warranty
40X1684
$28.96



6
40X1690 Redrive door assembly
New
40X1690 (New)
$24.71



7 40X1687 Lower right door latch

8 40X1688 Lower left door latch

9 Screw type 324, parts packet (40X1635)

10
40X1634 Lower Right Door Assembly
New
40X1634 (New)
$21.54


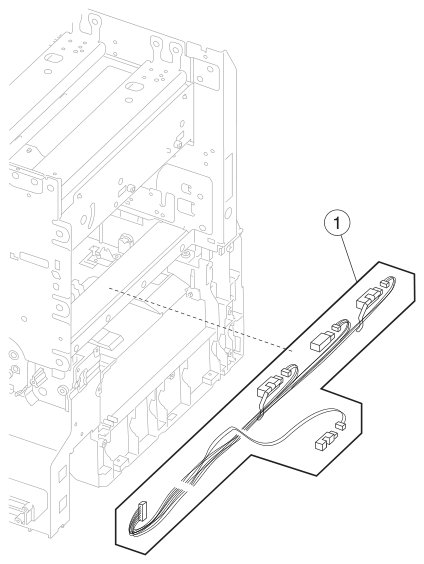

9
1
10

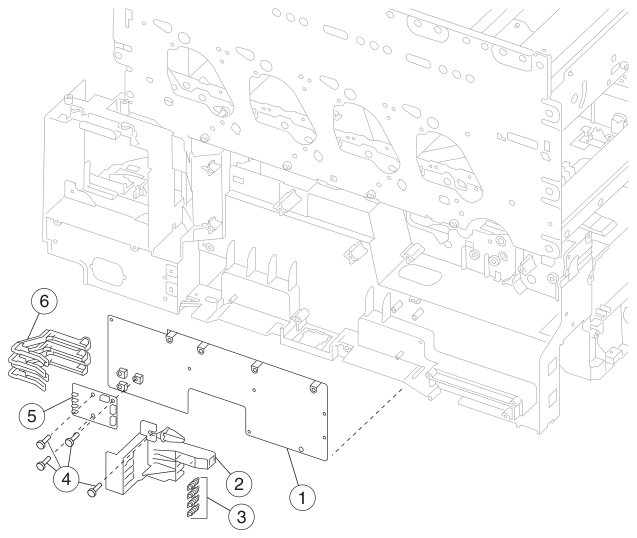

1 40X1700 System board shield support with clips
Also order cable tie parts packet (P/N 40X1648)

2 40X1698 Media size sensing bracket
Also order cable tie parts packet (P/N 40X1648)

3 40X1697 Media size sensing spring
Also order cable tie parts packet (P/N 40X1648)

4 Screw type 232, parts packet, 40X1676 (media size sensing assembly mounting)

5

Also order cable tie parts packet (P/N 40X1648)

6

Also order cable tie parts packet (P/N 40X1648)

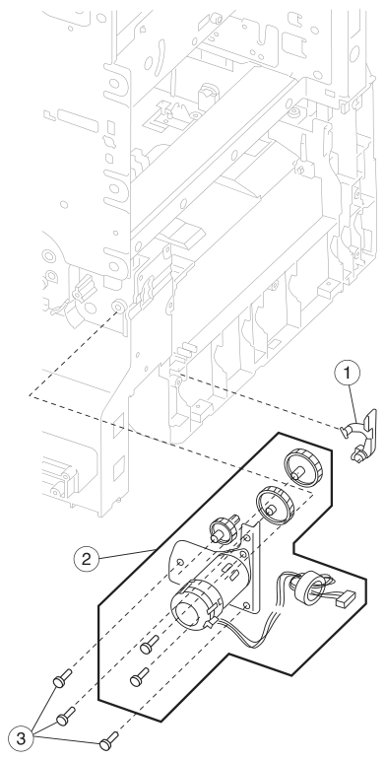

11
1 40X1701 Nip relief handle

Also order cable tie parts packet (P/N 40X1648)

2

40X1702 Registration motor assembly kit
Fully refurbished with 90-day warranty
40X1702
$16.85



including:
(also order cable tie parts packet, P/N 40X1648)
- Staging motor assembly
- Gear, reference plate
- Gear, staging idler
- Gear, staging reduction
- Motor screws

3 Screw type 323, parts packet, 40X1633

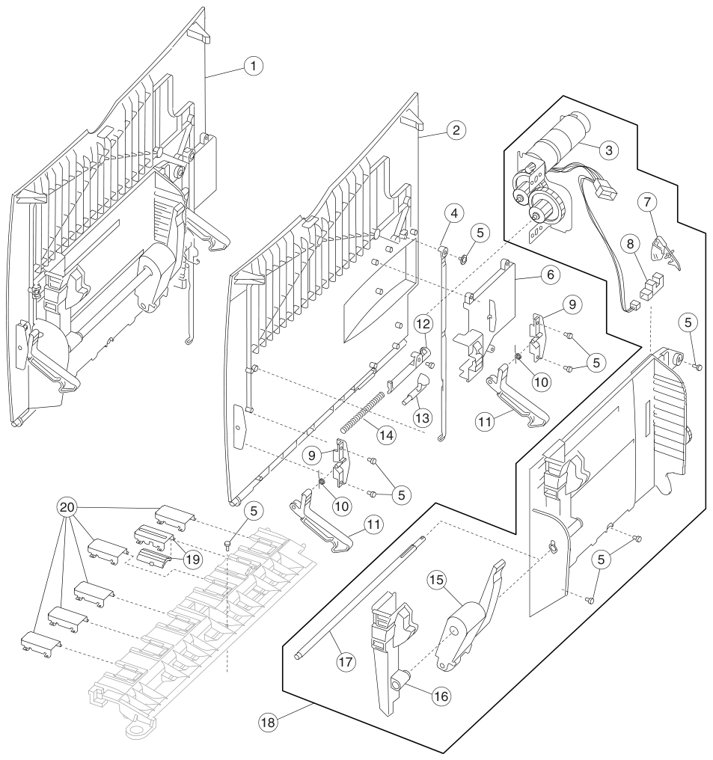

12
1
40X1714 MPF Door Assembly
New
40X1714 (New)
$41.96



40X1714 MPF Door Assembly
Fully refurbished with 90-day warranty
40X1714
$34.71



1xx/3xx

1
40X1841 MPF Door Assembly
New
40X1841 (New)
$96.09



40X1841 MPF Door Assembly
Fully refurbished with 90-day warranty
40X1841
$28.96



2
40X1711 MPF Door Cover
New
40X1711 (New)
$25.88



3 40X1853 MPF drive assembly

4 40X1708 Door hinge restraint

5 Screw type 312/322/412/423, parts packet, 40X1691

6 40X1710 MPF gear cover

7 40X1673 MPF paper out flag

8 40X1852 Paper out sensor MPF

9 40X1715 MPF support bracket cover

10 40X1707 MPF support bracket spring

11 40X1717 MPF support bracket

12 40X1713 Frame bias latch cover

13 40X1712 Frame bias latch

14 40X1706 Frame bias spring

15 40X1716 MPF autocompensator pick assembly

16 40X1736 MPF side restraint

17 40X1682 MPF pick shaft

18

40X1709 MPF Feed Assembly
Fully refurbished with 90-day warranty
40X1709



18
40X1840 MPF Feed Assembly
New
40X1840 (New)
$69.39



40X1840 MPF Feed Assembly
Fully refurbished with 90-day warranty
40X1840
$56.60



19 40X1808 Friction buckler and buckler housing

20 40X1704 Rib housing

NS 40X1854 MPF motor/sensor cable
13
1

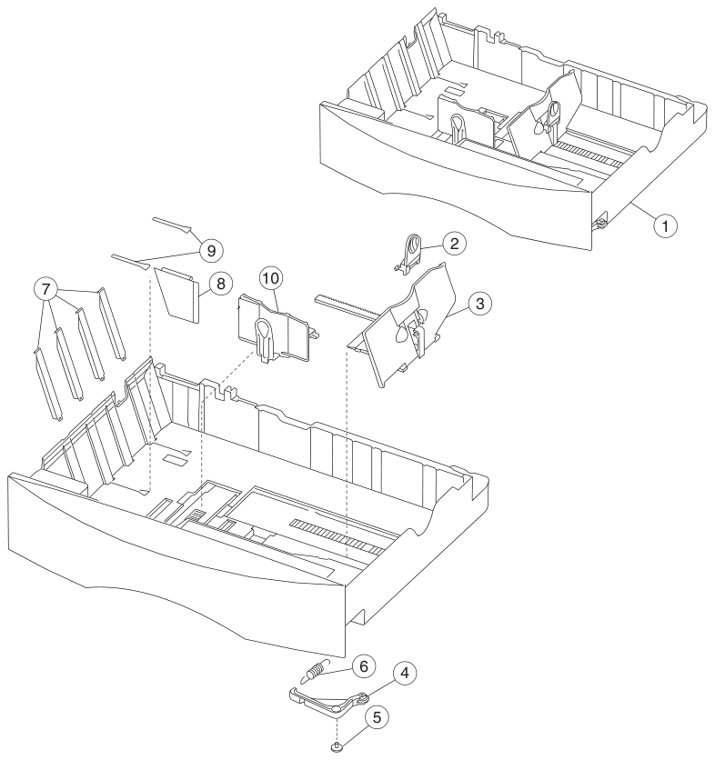

2 40X1720 Back restraint latch

3 40X1719 Back restraint

4 40X1723 Tray bias bellcrank assembly

5 Screw type 312/322/412/423, parts packet, 40X1691

6 40X1725 Tray bias spring

7 40X1722 Wear strip

8 40X1885 Tray wear clip

9 40X1727 Restraint pad

10 40X1718 Side restraint

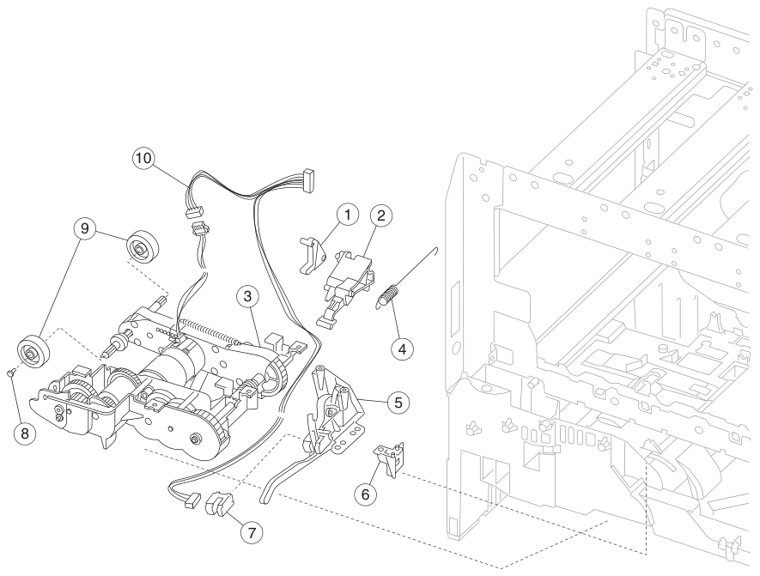

14
1 40X1730 Tray interlock bellcrank

2 40X1741 Pick arm lift bellcrank

3
40X1724 Pick Assembly 500-Tray
New
40X1724 (New)
$33.51



40X1724 Pick Assembly 500-Tray
Fully refurbished with 90-day warranty
40X1724
$24.71



4 40X1734 Bellcrank lift spring

5

6 40X1731 Tray interlock bracket

7
40X1729 Sensor Paper Out/Low
New
40X1729 (New)
$18.56



8 Screw type 312/322/412/423, parts packet, 40X1691 (pick roll mounting)

9 40X1765 Pick roll tires (2 per pack)

10 40X1733 Pick motor extension and paper level sensing cable

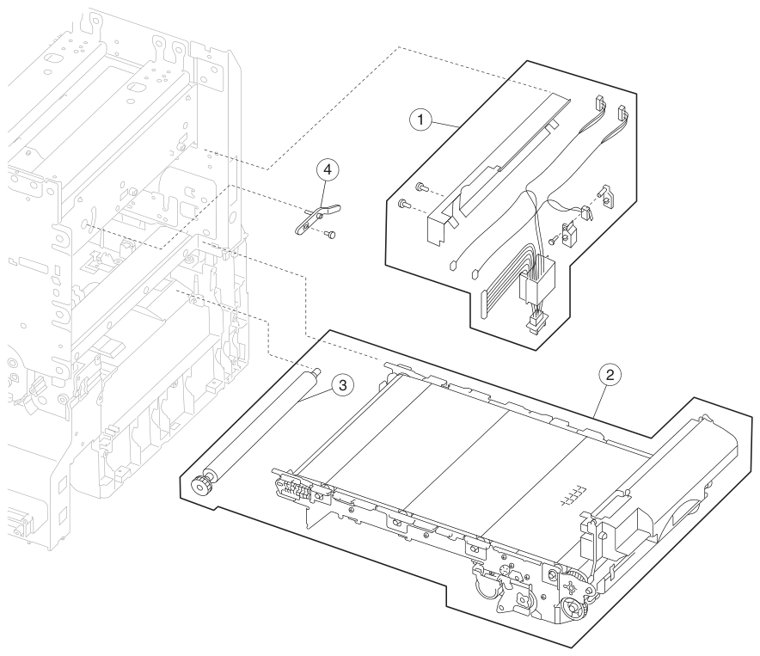

15-1
40X1739 ITU Light Shield Assembly
New
40X1739 (New)
$55.10



2

1xx/3xx only

2

3
40X1678 Second Transfer Roll
New
40X1678 (New)

Retired, no longer available: Contact for alternatives



4 40X1737 ITU coupler retract lever

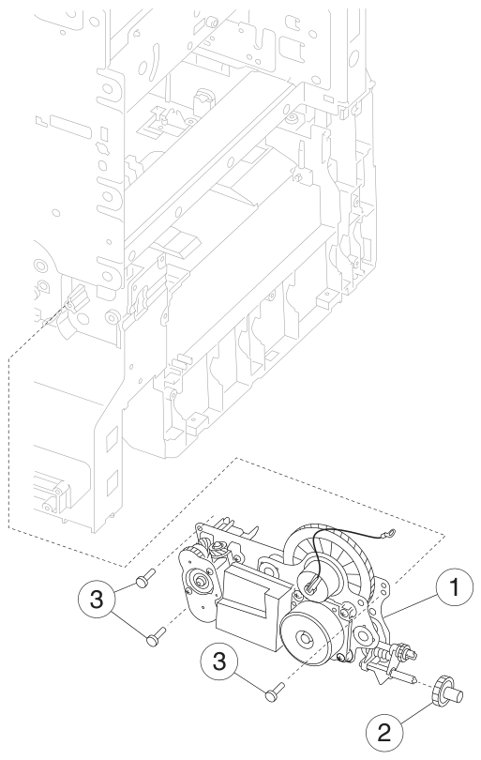

16

1
40X1735 ITU Drive Assembly
New
40X1735 (New)
$39.78



40X1735 ITU Drive Assembly
Fully refurbished with 90-day warranty
40X1735
$28.96



Also order cable tie parts packet (P/N 40X1648)

1
40X1823 ITU Drive Assembly
Fully refurbished with 90-day warranty
40X1823
$28.96



40X1823 ITU Drive Assembly
New
40X1823 (New)
$39.78



Also order cable tie parts packet (P/N 40X1648).

2 40X1742 #58 gear
Also order cable tie parts packet (P/N 40X1648)

3 Screw type 323, parts packet, 40X1633 (ITU drive assembly lower frame)

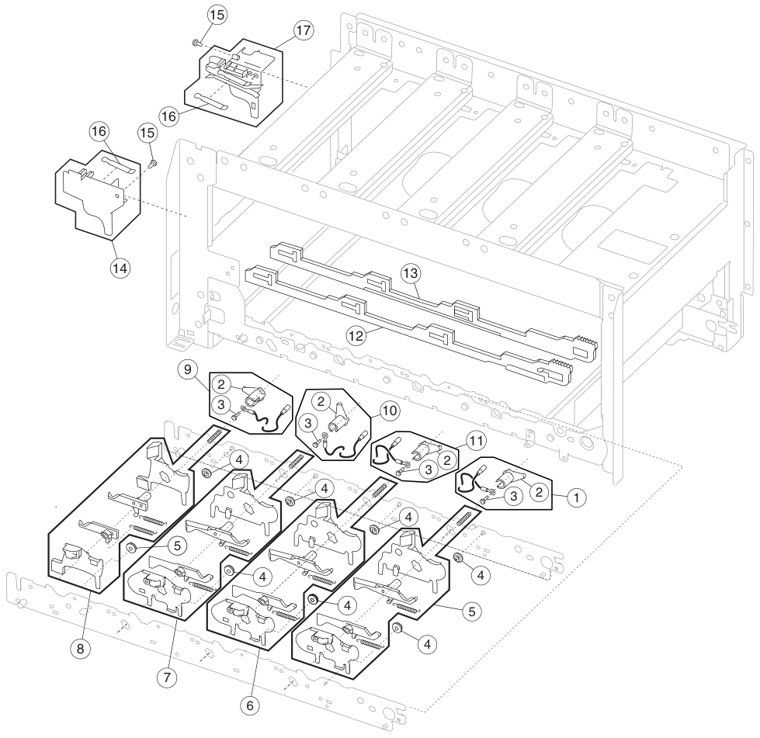

17

1 40X1761 Yellow terminal contact assembly

2 40X1744 Contact spring terminal

3 Screw type 312/322/412/423, parts packet, 40X1691

4 40X1743 Cartridge support roller

5 40X1749 Parts packet, ITU loading yellow, including
- Yellow BOR spring
- Rear block guide
- Rear transfer bellcrank
- Front V block guide
- Front transfer bellcrank
- High voltage contact spring

6 40X1750 Parts packet, ITU loading cyan, including
- Cyan BOR spring
- Rear V block guide
- Rear transfer bellcrank
- Front V block guide
- Front transfer bellcrank
- High voltage contact spring

7 40X1751 Parts packet, ITU loading (1xx/3xx) magenta, including
- Magenta BOR spring
- Rear V block guide
- Rear transfer bellcrank
- Front V block guide
- Front transfer bellcrank
- High voltage contact spring

7

ITU loading (2xx/4xx) magenta, including
- Magenta BOR spring
- Rear V block guide
- Rear transfer bellcrank
- Front V block guide
- Front transfer bellcrank
- High voltage contact spring

8 40X1752 Parts packet, ITU loading black, including
- Black BOR spring
- Rear block guide
- Rear transfer bellcrank
- Front V block guide
- Front transfer bellcrank
- High voltage contact spring

9 40X1753 Black terminal contact assembly

10 40X1757 Magenta terminal contact assembly

11 40X1759 Cyan terminal contact assembly

12 40X1747 BOR front cam

13 40X1748 BOR rear cam

14 40X1770 Front ITU guide

15 Screw type 323, parts packet, 40X1633

16 40X1745 ITU bias spring

17 40X1746 Rear ITU guide

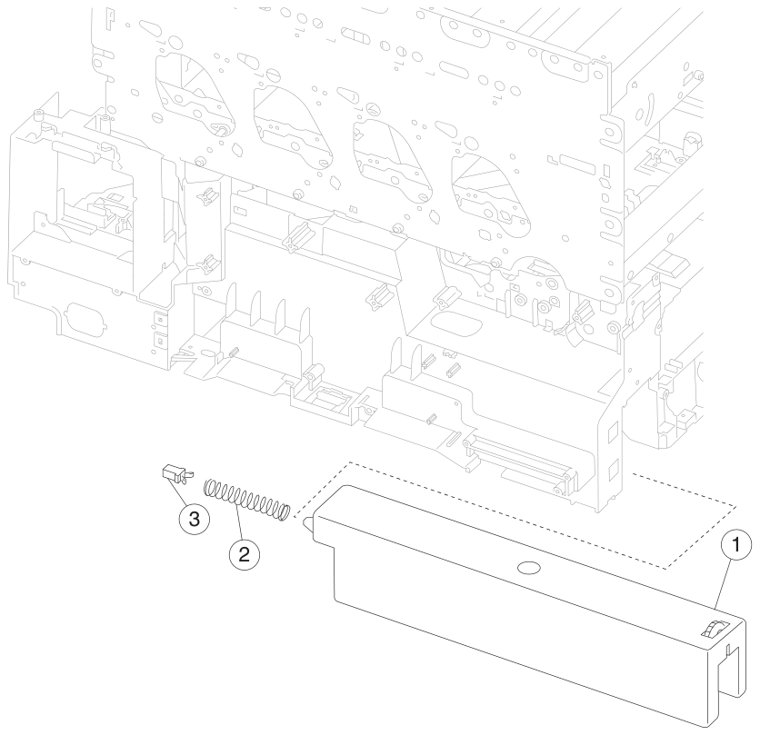

18

1
40X1756 Waste Toner Container
New
40X1756 (New)
$20.71



2 40X1755 Waste container latch spring
Also order cable tie parts packet (P/N 40X1648)

3 40X1754 Waste container latch
Also order cable tie parts packet (P/N 40X1648)

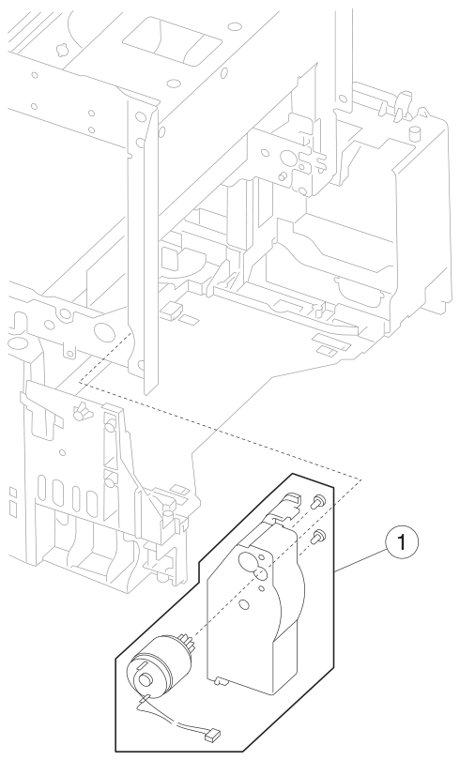

19
1
40X1758 Lift/BOR Assembly
New
40X1758 (New)
$12.50


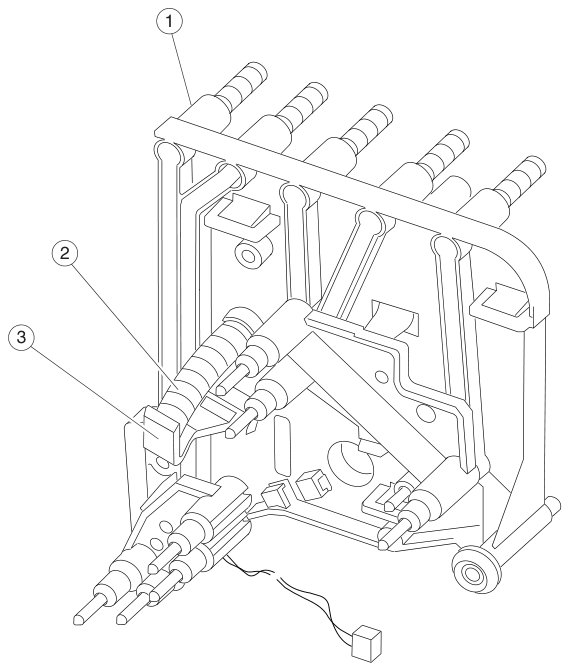

20

1

Also order cable tie parts packet (P/N 40X1648)

2 40X1636 Rear hold down spring
Also order cable tie parts packet (P/N 40X1648)

3 40X1760 Rear hold down bellcrank
Also order cable tie parts packet (P/N 40X1648)

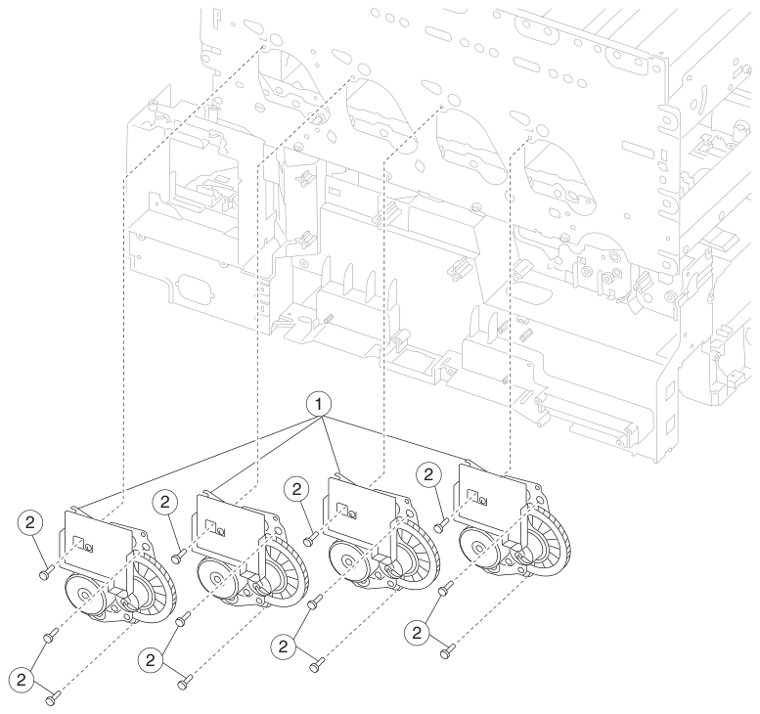

21
1
40X1764 Cartridge Drive Assembly
New
40X1764 One Drive Assembly Per Package (New)
$77.71



40X1764 Cartridge Drive Assembly
Fully refurbished with 90-day warranty
40X1764 One Drive Assembly Per Package
$38.71



1xx/3xx only (one drive assembly per package)
Also order cable tie parts packet (P/N 40X1648)

1
40X1824 Cartridge Drive Assembly
New
40X1824 (New)
$59.71



40X1824 Cartridge Drive Assembly
Fully refurbished with 90-day warranty
40X1824
$44.71



Also order cable tie parts packet (P/N 40X1648)

2 Screw type 324, parts packet, 40X1635
22

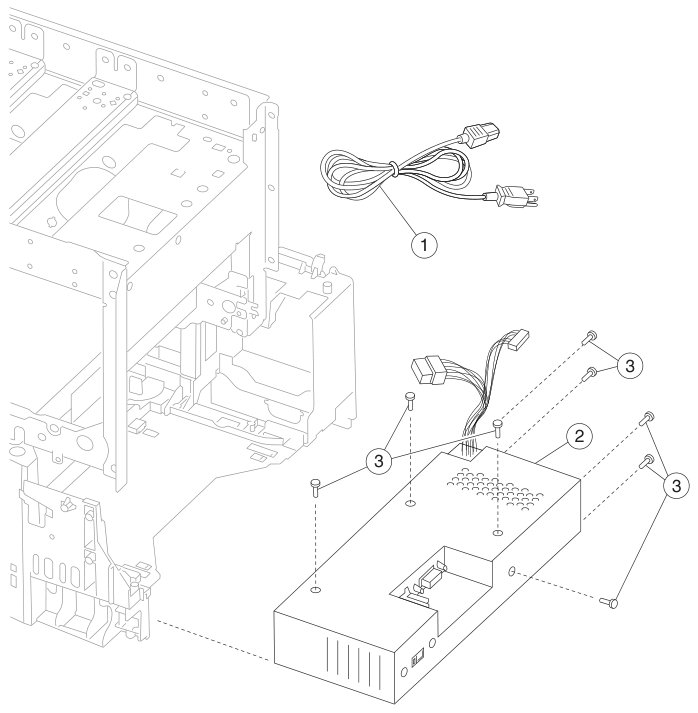

1 40X0269 Power cord set, 8 ft (straight) U.S., Asia Pacific (English), Canada,

2
40X1781 LVPS Assembly With Cable
New
40X1781 (New)
$397.00



40X1781 LVPS Assembly With Cable
Fully refurbished with 90-day warranty
40X1781



3 Screw type 121, parts packet, 40X1780
22

1

2 40X1786 Cable clip

3

Also order cable tie parts packet (P/N 40X1648)

4 40X1785 Ground cable

5 40X1700 System board shield support with clips

6 Screw type 232, parts packet, 40X1676

7
40x1775 System Board, Network, C77x
New
40x1775 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$669.72





1xx/3xx only

Also order cable tie parts packet (P/N 40X1648)

7
40X1817 System Board, Network C772 C782
Fully refurbished with 90-day warranty
40X1817 40x1829 10z0983 L This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$749.00



40X1817 System Board Network C772 C782
New
40X1817 40x1829 10Z0983 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$964.72



40X1817 System Board, Network C772 C782
New
40X1817 40X1829 10z0983 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$964.72



2xx/4xx.only

Also order cable tie parts packet (P/N 40X1648)

10 40X1784 INA blank flat shield, use when options are not installed
22-2

1
40X1793 Transfer HVPS board
New
40X1793 (New)
$51.71



40X1793 Transfer HVPS board
Fully refurbished with 90-day warranty
40X1793
$38.71



2 Screw type 323, parts packet, 40X1633 (TFR HVPS board to frame)

3 Screw type 324, parts packet, 40X1635 (TFR HVPS board to frame)

4 40X1794 Standoff, high voltage power supply developer board

5 Screw type 121, parts packet, 40X1780

6
40X1795 Developer HVPS board
New
40X1795 (New)
$72.28



1xx/3xx only
Also order cable tie parts packet (P/N 40X1648)

6
40X1825 Developer HVPS Board
New
40X1825 (New)
$174.67



40X1824 Cartridge Drive Assembly
Fully refurbished with 90-day warranty
40X1824
$44.71



Also order cable tie parts packet (P/N 40X1648)
22.3

1
40X1800 VTB Fan 60 mm
New
40X1800 (New)
$20.56



2 40X1796 VTB fan gap cover

3
40X1798 Fuser Fan Assembly With Cable
New
40X1798 (New)
$44.71



40X1798 Fuser Fan Assembly With Cable
Fully refurbished with 90-day warranty
40X1798
$29.71



4 Screws, parts packet, 40X1797 (fuser fan mounting)

5
40X1799 RIP Fan 92 mm
New
40X1799 (New)
$24.96



40X1799 RIP Fan 92 mm
Fully refurbished with 90-day warranty
40X1799
$24.71



6 40X1662 RIP fan duct

7 Screw type 324, parts packet, 40X1635

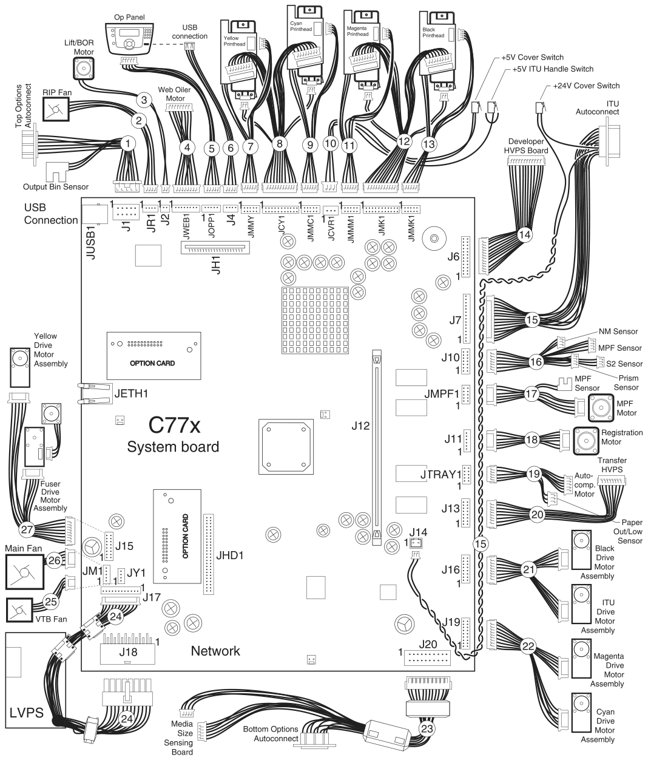

23-1 40X1637 Top autoconnect and output bin sensor-1xx/3xx only
1

40X1777 Output Options Autoconnect and Bin Sensor
Fully refurbished with 90-day warranty
40X1777
$31.10



2
40X1799 RIP Fan 92 mm
New
40X1799 (New)
$24.96



40X1799 RIP Fan 92 mm
Fully refurbished with 90-day warranty
40X1799
$24.71



3
40X1758 Lift/BOR Assembly
New
40X1758 (New)
$12.50



40X1758 Lift/BOR Assembly
Fully refurbished with 90-day warranty
40X1758
$15.07



4 40X1807 Oiler motor driver cable

5 40X1801 Operator panel cable

6 40X1769 Operator panel USB cable

7
40X1828 Printhead Assembly
New
40X1828 (New)
$215.20



40X1828 Printhead Assembly
Fully refurbished with 90-day warranty
40X1828
$94.71



8 40X1806 Laser cable- cyan/yellow

9
40X1828 Printhead Assembly
New
40X1828 (New)
$215.20



40X1828 Printhead Assembly
Fully refurbished with 90-day warranty
40X1828
$94.71



10
40X1828 Printhead Assembly
New
40X1828 (New)
$215.20



40X1828 Printhead Assembly
Fully refurbished with 90-day warranty
40X1828
$94.71



11
40X1828 Printhead Assembly
New
40X1828 (New)
$215.20



40X1828 Printhead Assembly
Fully refurbished with 90-day warranty
40X1828
$94.71



12 40X1805 Laser cable- black/magenta

13
40X1828 Printhead Assembly
New
40X1828 (New)
$215.20



40X1828 Printhead Assembly
Fully refurbished with 90-day warranty
40X1828
$94.71



14 40X1810 HVPS control cable- developer

15
40X1739 ITU Light Shield Assembly
New
40X1739 (New)
$55.10



40X1739 ITU Light Shield Assembly
Fully refurbished with 90-day warranty
40X1739
$44.92



16

40X1692 S2/XPAR/NMS/MPF Cable Assembly (With Sensors)
Fully refurbished with 90-day warranty
40X1692
$125.00



17 40X1854 MPF motor/sensor cable

18

40X1702 Registration motor assembly kit
Fully refurbished with 90-day warranty
40X1702
$16.85



19 40X1733 Pick motor extension and paper level sensing cable

20 40X1809 HVPS control cable- transfer

21



22

23

40X1811 Options Bottom/Media Size Sensing Cable Assembly
Fully refurbished with 90-day warranty
40X1811
$17.41



24
40X1781 LVPS Assembly With Cable
New
40X1781 (New)
$397.00



40X1781 LVPS Assembly With Cable
Fully refurbished with 90-day warranty
40X1781



25
40X1800 VTB Fan 60 mm
New
40X1800 (New)
$20.56



40X1800 VTB Fan 60 mm
Fully refurbished with 90-day warranty
40X1800
$25.89



26
40X1798 Fuser Fan Assembly With Cable
New
40X1798 (New)
$44.71



40X1798 Fuser Fan Assembly With Cable
Fully refurbished with 90-day warranty
40X1798
$29.71



27

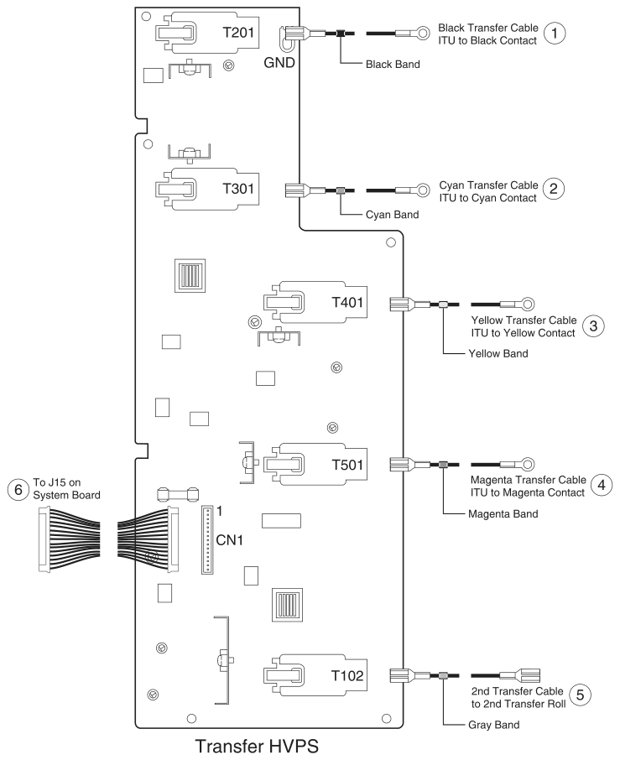

24-1 40X1753 Black terminal contact assembly

2 40X1759 Cyan terminal contact assembly

3 40X1761 Yellow terminal contact assembly

4 40X1757 Magenta terminal contact assembly

5 40X1812 Second transfer voltage cable assembly

6 40X1809 HVPS control cable- transfer

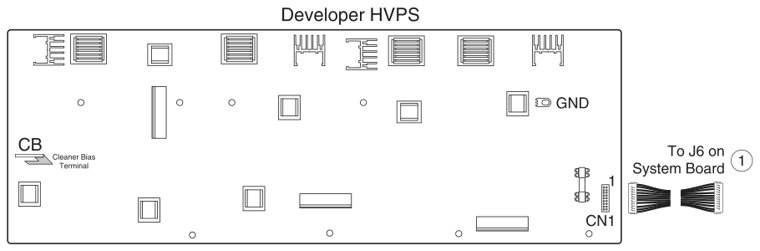

25-1 40X1810 HVPS control cable- developer

2

40X1762 Cartridge Contact Assembly Complete
Fully refurbished with 90-day warranty
40X1762
$43.05


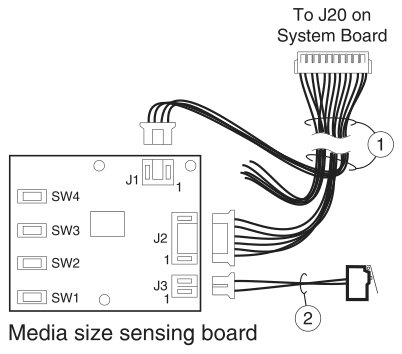

26-1

2
40X1823 ITU Drive Assembly
New
40X1823 (New)
$39.78



40X1823 ITU Drive Assembly
Fully refurbished with 90-day warranty
40X1823
$28.96

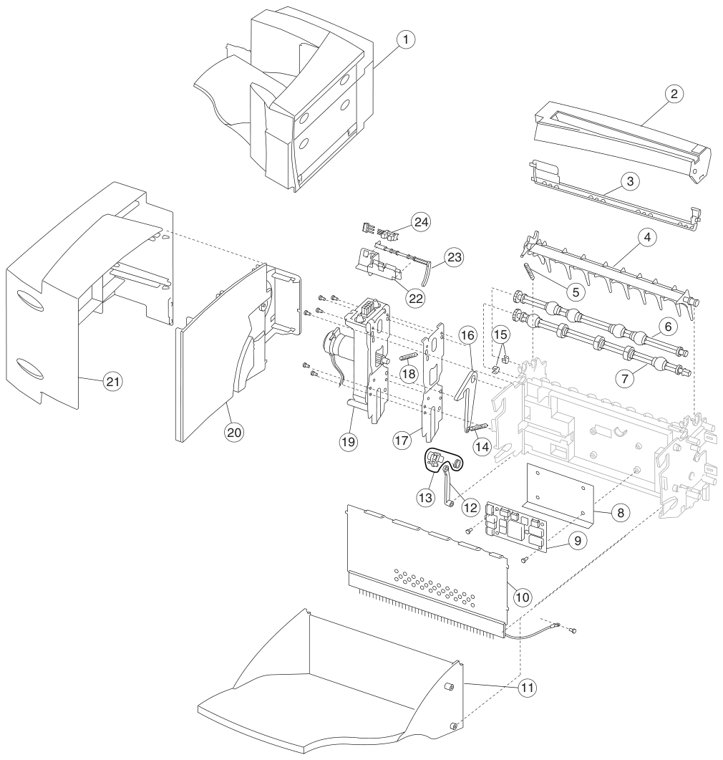

27-1

40X1980 Output Expander Complete Assembly
Fully refurbished with 90-day warranty
40X1980



2

40X1996 Right Cover
Fully refurbished with 90-day warranty
40X1996



3
40X1997 ESD Brush Cover
New
40X1997 (New)
$45.23





4
40X1988 Diverter Gate / Deflector
New
40X1988 (New)
$35.30



40X1988 Diverter Gate / Deflector
Fully refurbished with 90-day warranty
40X1988
$28.77



5

6
40X2007 Exit Shaft Assembly
New
40X2007 (New)
$34.87



7
40X1999 Lower Exit Shaft Assembly
New
40X1999 (New)
$34.75



40X1999 Lower Exit Shaft Assembly
Fully refurbished with 90-day warranty
40X1999
$28.30



8

40X1982 Output Option Card Shield
Fully refurbished with 90-day warranty
40X1982



9
40X2013 Output Expander DC Motor Board
New
40X2013 (New)
$176.87



10

40X1984 Front Control Board Cover
Fully refurbished with 90-day warranty
40X1984



11
40X1992 Output Expander Tray
New
40X1992 (New)
$41.23



40X1992 Output Expander Tray
Fully refurbished with 90-day warranty
40X1992
$33.62



12
40X2014 Diverter arm
New
40X2014 (New)
$32.64



13
40X1978 Clutch Assembly
New
40X1978 (New)
$142.33



40X1978 Clutch Assembly
Fully refurbished with 90-day warranty
40X1978
$118.56



14

15 Shaft bearing, parts packet, 40X2011

16



17

40X1981 Front Attach Bracket
Fully refurbished with 90-day warranty
40X1981



18

19



20

40X1987 Rear Support Cover
Fully refurbished with 90-day warranty
40X1987



21
40X1986 Rear Cover
New
40X1986 (New)
$48.35



40X1986 Rear Cover
Fully refurbished with 90-day warranty
40X1986
$39.41



22



23



24 40X3265 Dual bin full sensor
27.1-1 40X1994 Right jam access door assembly

2 40X2006 Lower shaft assembly, also order parts packet 40X2011

3 40X2004 Drive pulley

4 40X1983 Rear attach bracket

5 Screw, parts packet, 40X1813

6 40X1985 Front cover

7 40X2002 160-gear belt

8 40X2003 Belt idler arm assembly

9 40X2005 Belt tensioner spring

10

11



12 40X2015 Frame assembly

13 40X3264 Output expander pass thru sensor

14 Shaft bearing, parts packet, 40X2011

15 40X2012 Shaft assembly, middle 40T, also order parts packet 40X2011

NS 40X1998 Multi-bin stacker kit

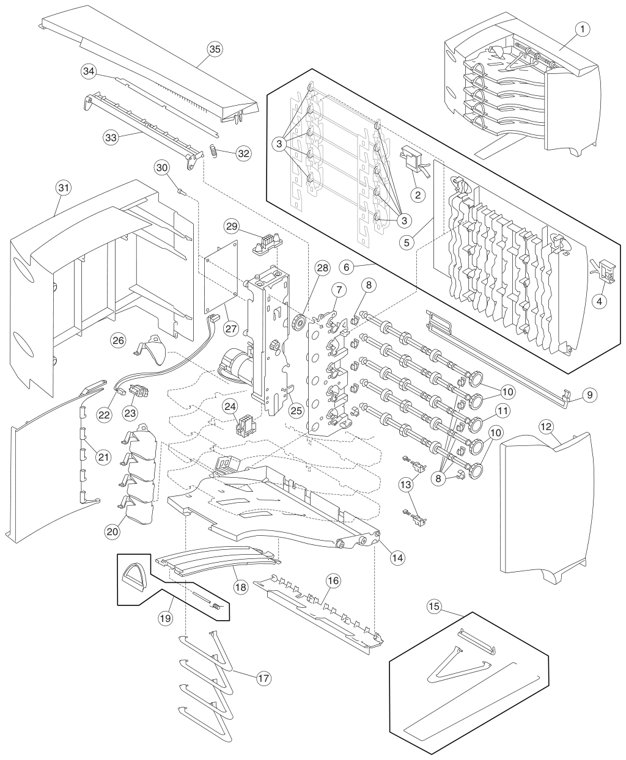

28-1
40X2020 5-Bin Mailbox
New
40x2020 (New)
$459.71



2 40X2157 Access door rear latch

3 40X2049 Rear access door roller assembly

4 40X2024 Access door front latch

5 40X2032 Front door cover

6 40X4268 Front door assembly

7 40X2044 Left frame assembly w/clutch assembly

8 40X2056 Drive shaft bushing packet

9 40X2033 Right cover

10 40X2054 Drive shaft assembly

11 40X2055 Drive with gear shaft assembly

12 40X2029 Front cover

13 40X3242 5-bin mailbox pass thru sensor

14 40X2028 Paper cap tray

15 40X2043 5-bin mailbox assembly kit

16 40X2027 Bail attach bracket assembly

17 Bail, order P/N 40X2043, 5-bin mailbox assembly kit

18 40X2035 Paper tray support

19 40X2042 Paper tray stop assembly

20
40X2038 Media bin full actuator
Fully refurbished with 90-day warranty
40X2038
$39.48



21 40X2030 Rear structural cover

22 40X2023 Tray media level sensor cable

23 40X3240 Dual bin level sensor

24 40X2052 Lower autoconnect cable assembly

25 40X2050 Main DC drive assembly

26 40X2026 Bin full flag

27

28 40X2067 Drive gear

29 40X2053 Upper autoconnect cable assembly

30 Screw, parts packet, 40X2046 (board mounting)

31

32

33 40X2025 Top bin cover

34 40X2040 Wire cover

35
40X1638 Redrive Cap Cover
New
40X1638 (New)
$19.21



40X1638 Redrive Cap Cover
Fully refurbished with 90-day warranty
40X1638
$17.25


28.1-1 40X2065 Diverter spring

2 40X2039 Right side frame assembly

3 Screw type 323, parts packet, 40X1633

4 40X2057 Diverter actuator cam

5 40X2060 Diverter actuator spring

6 40X2058 Diverter actuator latch

7 40X2059 Diverter actuator arbor

8 40X2069 C-clip retainer

9 40X2021 Attach front bracket

10
40X2061 Diverter gate solenoid
Fully refurbished with 90-day warranty
40X2061
$27.70



11 40X2022 Static ground contact

12 40X2041 Paper exit deflector w/brush

13 40X2037 Paper deflector

14 40X2068 Deflector

15
40X2036 Media bin 5th diverter
Fully refurbished with 90-day warranty
40X2036
$41.10



NS 40X1968 Drive gear

NS 40X2047 Roller retainer

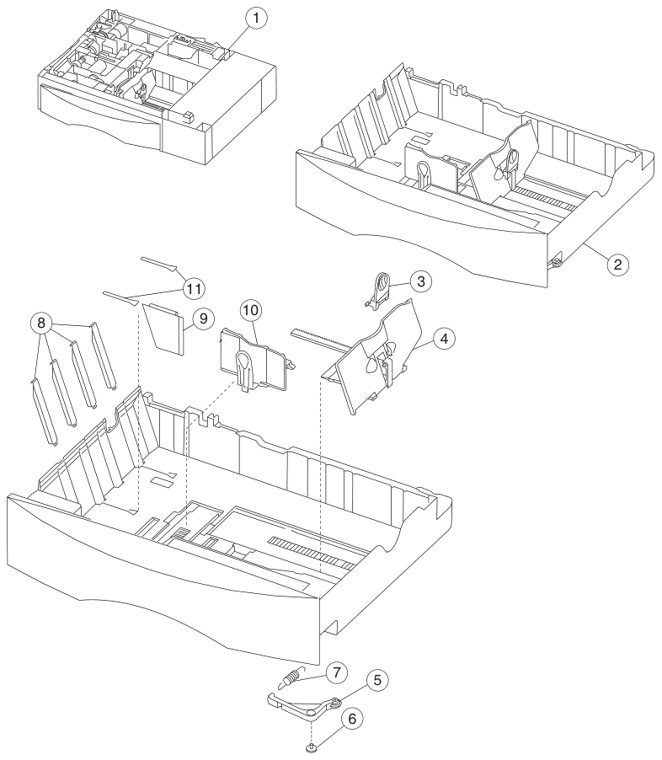

29-1

40X1880 500-Sheet Drawer Complete Assembly with Tray
Fully refurbished with 90-day warranty
40X1880
$58.21



2

40X1728 500-Sheet Tray Complete Assembly
Fully refurbished with 90-day warranty
40X1728
$22.00



3 40X1720 Back restraint latch

4 40X1719 Back restraint

5 40X1723 Tray bias bellcrank assembly

6 Screw type 312/322/412/423, parts packet, 40X1691

7 40X1725 Tray bias spring

8 40X1722 Wear strip

9 40X1721 Tray wear clip

10 40X1885 Tray wear clip

11 40X1727 Restraint pad
29.1-1
40X1901 Drive Assembly, 500 Option 2
New
40X1901 (New)
$24.71



2 Screw type 323, parts packet, 40X1633

3

4 40X1898 Paper level sensing assembly

5 40X1938 Autoconnect cable assembly

6 40X1648 Cable tie (6 in a pack)
Note: To secure cables to the inner system board shield)

7 40X1908 Frame cover

8 40X1730 Tray interlock bellcrank

9 40X1891 Pass thru sensor

10 40X1896 Hinge

11 40X1894 Electronics/size sensing assembly with system board

12 40X1741 Pick arm lift bellcrank

13 40X1899 Media size sensing assembly

14 40X1734 Bellcrank lift spring

15 40X1907 500-Sheet base assembly

16 40X1601 Machine pad

17 40X1903 Plate, 500-Sheet support assembly

18 40X1909 Paper guide

19 40X1897 Wall support plate

20 40X1911 Base door assembly

21 40X1895 500-sheet option spring

22 40X1913 500-Sheet option deflector

23 40X1765 Pick roll tires (2 per pack)

NS 40X1671 Cable tie (6 in pack)
30-1

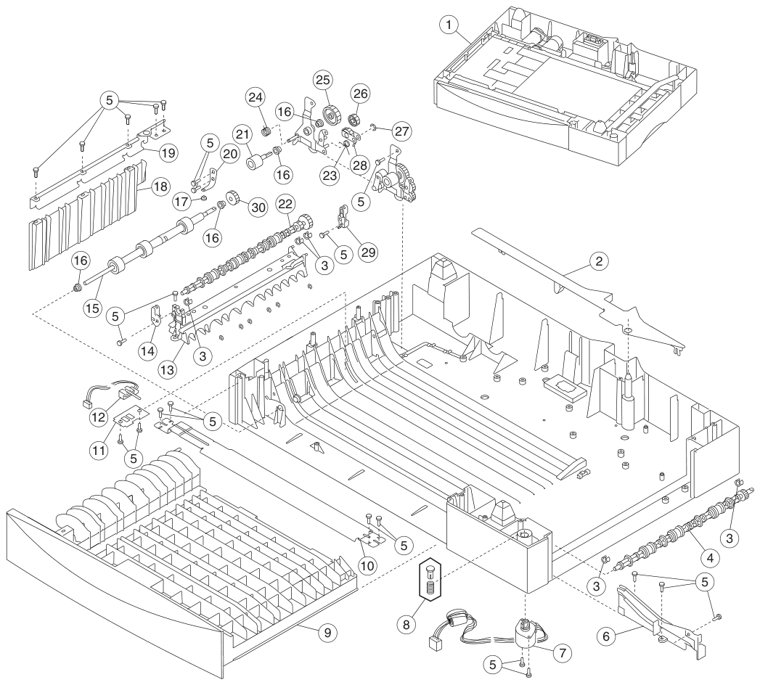

40X1920 Duplexer
New
40X1920 (New)
$299.00



2 40X1961 Back cover

3 40X1965 Redrive bearing

4 40X1930 Duplex entry shaft assembly

5 Screw type 312/322/412/423, parts packet, 40X1691

6 40X1923 Right side front tray guide

7 40X1956 Deflector actuator assembly

8 40X1957 Deflector follower assembly

9 40X1959 Duplex front jam tray assembly

10 40X1935 Duplex support bracket

11 40X1964 Sensor mount plate

12 40X1927 Duplex exit sensor

13 40X1924 Duplex shaft mount

14 40X1954 Front decurl assembly

15 40X1979 F/R backup shaft assembly

16 40X1951 5 mm bushing

17 40X1948 Brake pad

18 40X1963 Duplex paper guide

19 40X1933 Wall support

20 40X1950 Brake spring

21 40X1947 Pass thru shaft assembly

22 40X1926 Duplex shaft assembly

23 40X1944 Pass thru spring

24 40X1814 Aligner arm spring

25 40X1942 Spur drive gear

26 40X1943 26T duplex gear

27 Retainer, parts packet, 40X1966

28 40X1946 Bellcrank assembly

29 40X1949 Decurl BAC assembly

30 40X1929 40T shaft drive F/R gear

NS 40X1955 Pulley washer
30.1-1 40X1934 Duplex support plate

2 40X1938 Autoconnect cable assembly

3 40X1939 DC forward/reverse motor assembly

4 40X1940 DC duplex feed motor

5 Screw type 323, parts packet, 40X1633

6 40X1648 Cable tie (6 in pack)

7 40X1937 Back support

8 40X1922 Duplex card assembly

9 40X1958 Transfer belt

10 40X1960 Right jam clearance tray assembly

11 40X1969 C-clip retainer

12 40X1953 Aligner spring

13 40X1967 Paper guide assembly

14 40X1941 Drive alignment shaft assembly

15 40X1952 Reduction gear shaft

16 40X1931 Right backup spring assembly

17 40X1968 Drive gear

18 40X1932 Left backup spring assembly

19 40X1962 Upper rib assembly

20 40X1925 Duplex input sensor

21 Screw type 324, parts packet 440X1635

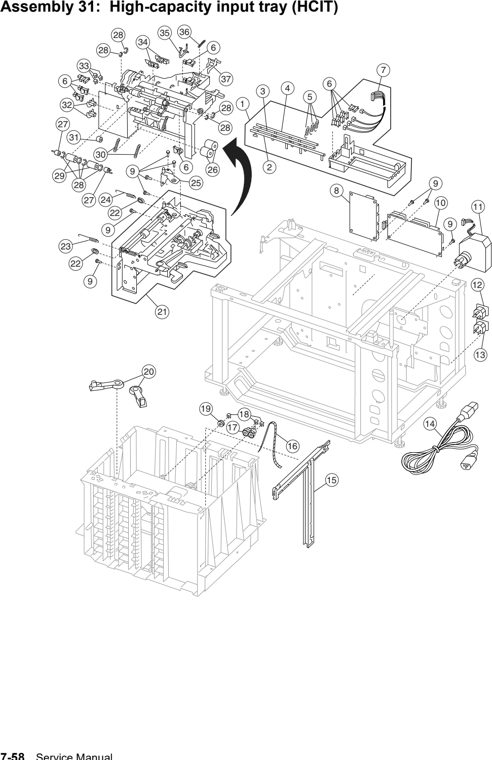

31-1 40X2137 Paper size sensor box assembly

2 40X2111 Flag, paper size F

3 40X2112 Flag, paper size C

4 40X2110 Flag, paper size R

5 40X2113 Spring, paper size flag

6 40X2108 Sensor, photo interrupter

7 40X2103 Paper size sensors cable

8 40X2095 System control board

9 Screw type 312/322/412/423, parts packet, 40X1691

10

40x2096 Low Volt Power Supply (LVPS)
Fully refurbished with 90-day warranty
40x2096



11 40X2105 Elevator motor assembly

12 40X2097 AC power outlet

13 40X2098 AC power inlet

14 40X2091 AC power cord jumper

15 40X2115 Paper tray guide

16 40X2134 Elevator lift belt

17 40X2136 Elevator lift

18 40X2139 Ring 7, elevator lift gear/elevator lift

19 40X2135 Elevator lift gear

20 40X2114 Paper tray arms

21
40X2116 Feed Unit, Complete Assembly
Fully refurbished with 90-day warranty
40X2116



22 40X2118 Bushing

23 40X2124 Front feed unit spring

24 40X2125 Rear feed unit spring

25 40X2138 Feed cover

26 40X2131 Separation/torque roller

27 40X2120 Feed cam

28 E-clips, parts packet, 40X2122

29 40X2119 Feed roller

30 40X2121 Feed unit spring

31 40X2123 060 bushing

32 40X2133 Emitter timing wheel

33 40X2126 Plastic 5W clip

34 40X2117 Special optical sensors

35 40X2127 Level sensor flag

36 40X2129 Extension spring

37 40X2128 Near empty sensor flag

NS

40x2090 2000-Sheet High Capacity Feeder, complete assembly
Fully refurbished with 90-day warranty
40x2090 5061-HC2


31.1-1 40X2145 Rear cover

2 40X2143 Right side cover

3 40X2092 Caster, movable

4 Screw type 312/322/412/423, parts packet, 40X1691

5 40X2094 F adjuster

6 40X2141 Front cover

7 40X2142 Cover, main CA

8 40X2093 Caster, fixed

9 40X2144 Left side cover

10 40X2146 Upper left side jam cover

11 40X2100 Locating pin, options front right

12 40X2099 Locating pin, options rear left

13 40X2106 Options autoconnect cable assembly

14 40X2109 Options cable mounting plate

NS 40X2101 Feed unit special sensors cable

NS 40X2102 Feed unit sensors cable

NS 40X2104 Elevator motor cable

NS 40X2107 Magnetic latch

NS 40X2130 Tray present lever

NS 40X2132 Cable clamp

NS 40X2140 Stabilizer kit with mounting screws

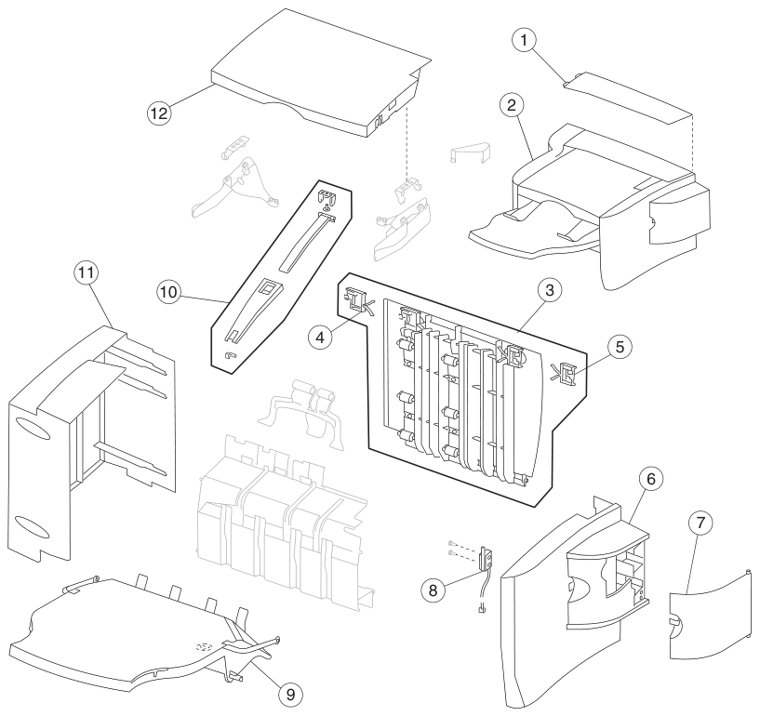

32-1

2
Sale40X2150 StapleSmart Finisher, complete assembly
New
40X2150 (New)
$1772.19 $599.00



3

4 40X2156 Front door latch

5 40X2157 Access door rear latch

6

7

8

40X3274 Stapler access door switch assembly
Fully refurbished with 90-day warranty
40X3274
$29.68



9
40X3277 Output assembly tray
New
40X3277 (New)
$72.49



40X3277 Output assembly tray
Fully refurbished with 90-day warranty
40X3277
$59.12



10
40X1816 Stacking Bail Kit
New
40X1816 (New)
$43.46



40X1816 Stacking Bail Kit
Fully refurbished with 90-day warranty
40X1816



11

12
32.1-1
40X3278 Stapler assembly
New
40X3278 (New)
$258.33



40X3278 Stapler assembly
Fully refurbished with 90-day warranty
40X3278
$198.65


32.2-1
40X3279 Switch assembly
New
40X3279 (New)
$130.12



40X3279 Switch assembly
Fully refurbished with 90-day warranty
40X3279
$108.38



2 99A0104 Spring, upper diverter
32.3-1 99A2480 StapleSmart wheels maintenance kit
33-1

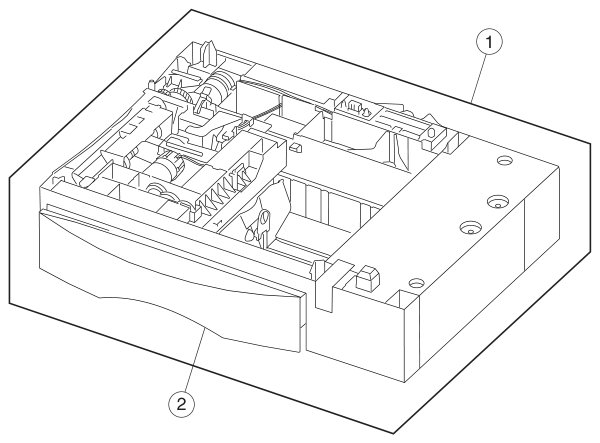

Sale40X1842 Envelope Drawer Complete Assembly
New
40X1842 (New)
$97.00 $55.00



40X1842 Envelope Drawer Complete Assembly
Fully refurbished with 90-day warranty
40X1842
$35.00



2
40X1843 Envelope Tray Assembly
New
40X1843 (New)
$30.93



40X1843 Envelope Tray Assembly
Fully refurbished with 90-day warranty
40X1843
$54.71



NS 40X2080 Envelope feeder pick tire

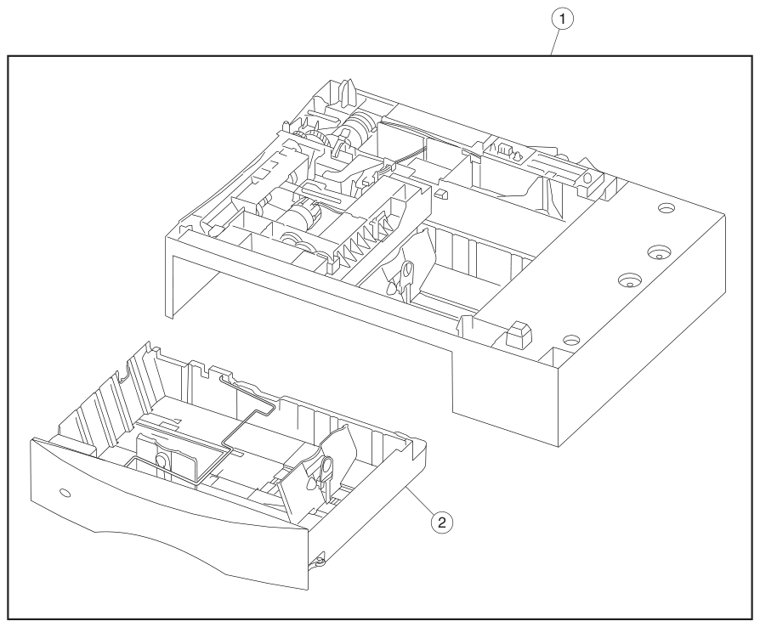

35-1 40X2083 Outdoor media drawer assembly

2 40X2084 Outdoor media tray assembly

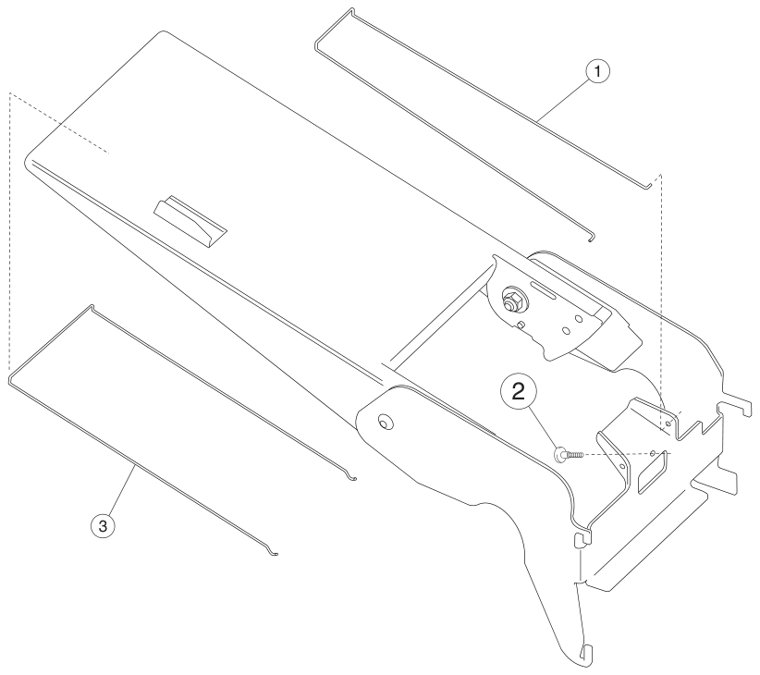

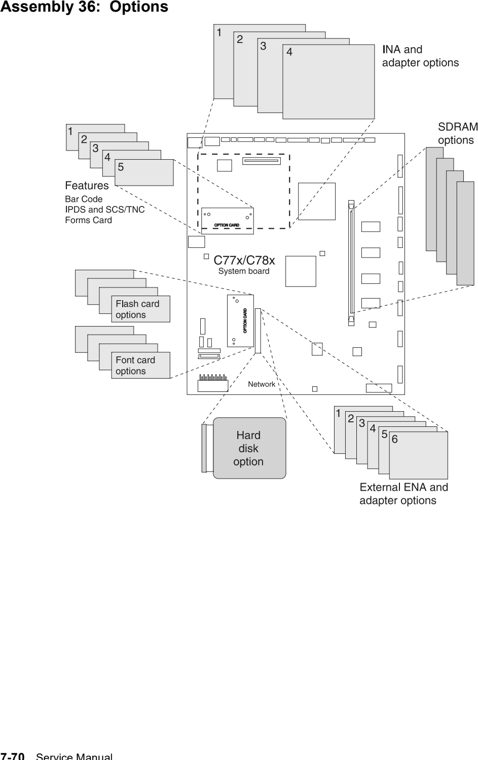

36-1 40X2086 Paper support bail

2 40X2088 Banner option screw

3 40X2087 Wire bail
