Lexmark MS312 MS315 MS317 MS415 MS417 M1140+ Parts
Looking for whole machines? Click on the link below:
MS312 MS315 MS415
MS317
MS417
📖 Lexmark MS310 / MS312 / MS315 / MS317: Complete Technical Guide. Specifications, maintenance & parts reference from 40 years of Lexmark expertise.
Please call for parts assistance

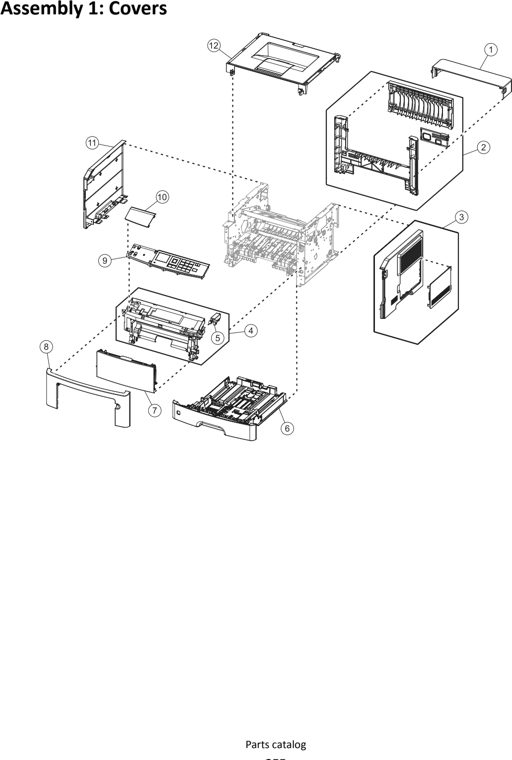

| Assembly 1: Covers 1 40X8520 Dust cover (250‑sheet tray) 2 40X8054 Rear door and cover 3 40X8052 Right cover 4 40X8056 Front access cover 5 40X9148 Cartridge plunger 6 40X8303 250-sheet tray 7 40X8302 MPF assembly 8 40X8051 Nameplate 9 40X8059 Control panel assembly 10 40X9659 Bezel (MS315) 10 40X9660 Bezel (MS415 and M1140+) 11 40X8053 Left cover 12 40X8055 Top cover NS 40X8273 Rubber foot | ![]() |

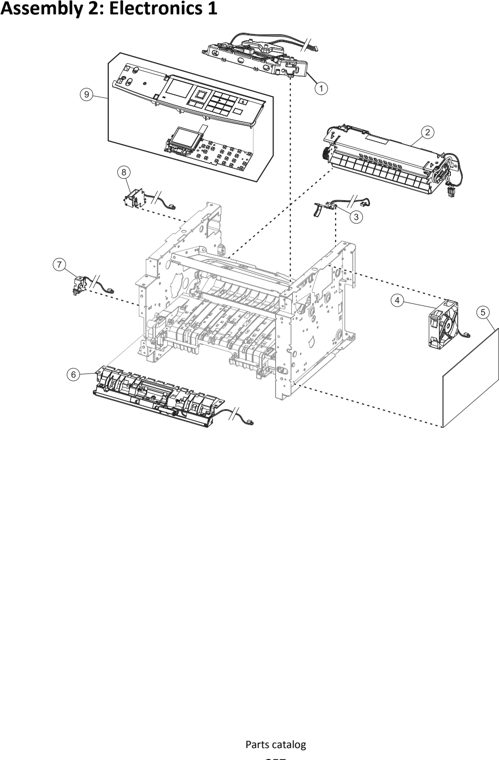

| Assembly 2: Electronics 1 1 40X8081 Laser scanning unit Lexmark 40X8081 Laser Scanning Unit (LSU) MS315, MS41x, MX410 Fully refurbished with 90-day warranty 40X8081 Galvo $38.50 2 40X8343 Fuser, 100 V 2 40X8023 Fuser, 110 V 2 40X8024 Fuser, 220 V 3 40X8050 Narrow media/bin full Lexmark 40X8050 Narrow media / Bin full sensor Fully refurbished with 90-day warranty 40X8050 $21.50 4 40X8276 Cooling fan 5 40X9657 Controller board Lexmark 40X9657 Controller card (galvo LSU), New 40X9657 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $62.50 6 40X8280 Front input guide 7 40X8300 MPF solenoid 8 40X8301 Reverse solenoid 9 40X8292 Control panel assembly Lexmark 40x8292 Operator panel assembly New 40x8292 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $92.00 Lexmark 40X8292 Operator panel assembly Fully refurbished with 90-day warranty 40X8292 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED | ![]() |

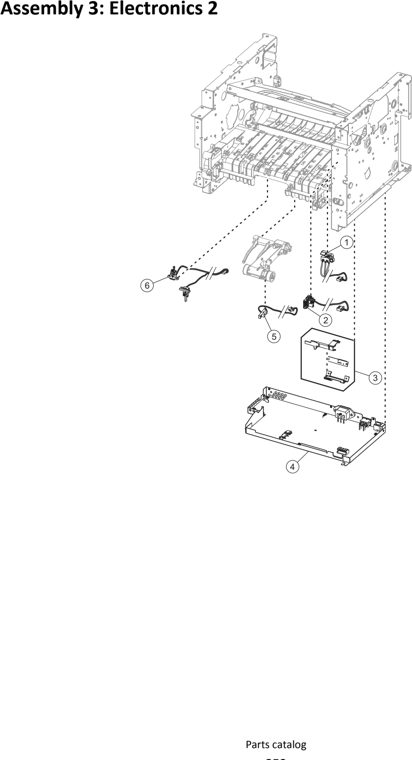

| Assembly 3: Electronics 2 1 40X8048 Front door sensor 2 40X8266 Toner cartridge smart chip contact 3 40X8046 Toner density sensor 4 40X7795 Power supply, 100 V/110 V 4 40X7796 Power supply, 220 V Lexmark 40X7796 MX61x SVC Power Supply 220 Power Supply- Fully refurbished with 90-day warranty 40X7796 $105.50 5 40X8047 Trailing edge sensor 6 40X8043 Duplex sensor and input sensor | ![]() |

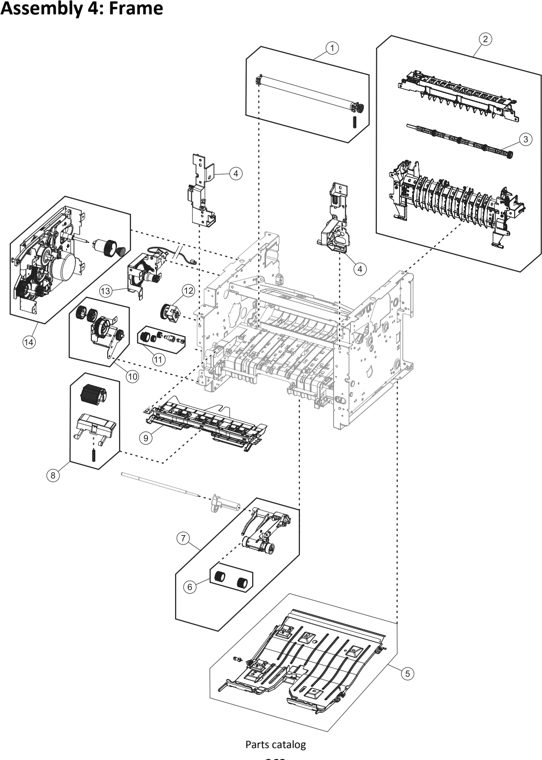

| Assembly 4: Frame 1 40X8393 Transfer roll 2 40X8298 Redrive assembly 3 40X8850 Redrive shaft 4 40X8299 Front mounts 5 40X8275 Duplex assembly 6 40X8296 Pick tires 7 40X8260 ACM assembly Lexmark 40X8260 ACM (autocompensator mechanism) assembly MS/MS/ New 40X8260 41X0919 Compatible (New) Lexmark 40X8260 ACM (autocompensator mechanism) assembly MS/MS/MX4 Fully refurbished with 90-day warranty 40X8260 $22.00 8 40X8295 MPF pick roller and Separator pad 9 40X8279 Jam access cover 10 40X8278 MPF gearbox 11 40X8277 Duplex gear assembly 12 40X8265 ACM clutch, includes: • Insulated displacement connector (IDC), 40X8682—2 pieces 13 40X8083 Cartridge gearbox 14 40X8085 Main drive gearbox NS 40X8394 Screw kit, contains: • MT3x0.5+8PF‑NI—10 pieces • MT3x0.5+6PF‑NI—10 pieces • TP2NC‑3+6PF‑NI—10 pieces | ![]() |

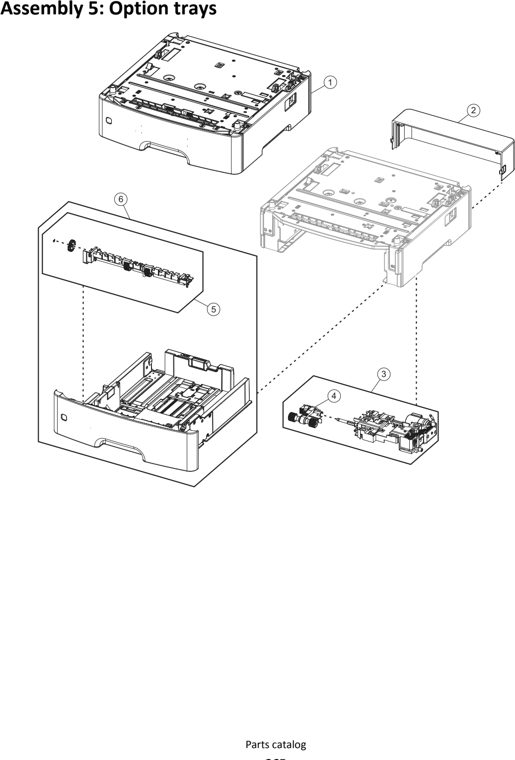

| Assembly 5: Option trays 1 40X8287 250-sheet tray 1 40X8286 550-sheet tray 1 40X9654 550-sheet tray, lockable 2 40X8520 Dust cover, 250‑sheet tray 2 40X8521 Dust cover, 550‑sheet tray 3 40X8262 ACM assembly Lexmark 40X8262 ACM (autocompensator mechanism) assembly Fully refurbished with 90-day warranty 40X8262 $34.78 4 40X8443 Pick roller assembly 5 40X8444 Separator roll assembly 6 40X8305 250-sheet tray insert 6 40X8086 550-sheet tray insert Lexmark 40X8086 550-Sheet tray insert for printer Fully refurbished with 90-day warranty 40X8086 $94.00 | ![]() |

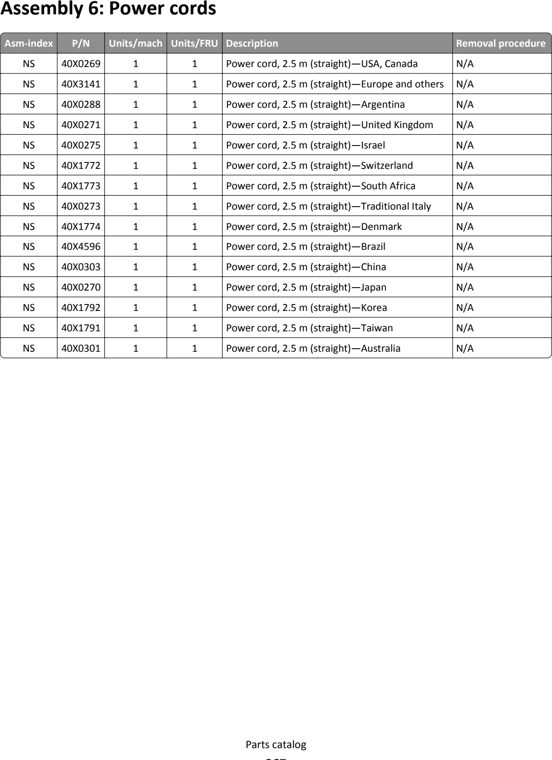

| Assembly 6: Power cords NS 40X0269 Power cord, 2.5 m (straight)—USA, Canada 40X0269 Power cord, 2.5 m (straight)-USA, Canada Fully refurbished with 90-day warranty 40X0269 (Refurbished) NS 40X3141 Power cord, 2.5 m (straight)—Europe and others NS 40X0288 Power cord, 2.5 m (straight)—Argentina NS 40X0271 Power cord, 2.5 m (straight)—United Kingdom NS 40X0275 Power cord, 2.5 m (straight)—Israel NS 40X1772 Power cord, 2.5 m (straight)—Switzerland NS 40X1773 Power cord, 2.5 m (straight)—South Africa NS 40X0273 Power cord, 2.5 m (straight)—Traditional Italy NS 40X1774 Power cord, 2.5 m (straight)—Denmark NS 40X4596 Power cord, 2.5 m (straight)—Brazil NS 40X0303 Power cord, 2.5 m (straight)—China NS 40X0270 Power cord, 2.5 m (straight)—Japan NS 40X1792 Power cord, 2.5 m (straight)—Korea NS 40X1791 Power cord, 2.5 m (straight)—Taiwan NS 40X0301 Power cord, 2.5 m (straight)—Australia | |
| Assembly 7: Miscellaneous NS 40X8737 RFID card reader NS 40X8330 MarkNet N8352 802.11 b/g/n Wireless Print Server 40X8330 MarkNet N8352 802.11 b/g/n Wireless Print Server Fully refurbished with 90-day warranty 40X8330 (Refurbished) NS 40X8570 Font card, Arabic NS 40X8571 Font card, Hebrew NS 40X8568 Font card, Korean NS 40X8569 Font card, Japanese NS 40X8556 Font card, Traditional Chinese NS 40X8557 Font card, Simplified Chinese NS 40X8555 256MB flash card NS 40X1368 USB cable, packaged (2 m) Lexmark 40X1368 2-Meter USB Cable New 40X1368 (New) Retired, no longer available: Contact for alternatives NS 40X8694 Relocation kit | |
| Other listed parts 41X0362 Laser scanning unit (LSU) (Polygon) Lexmark 41X0362 Laser scanning unit (LSU) (Polygon) Fully refurbished with 90-day warranty 41X0362 40X8080 41X0363 Polygon laser scanning unit frame 41X0994 MPF tray links |
