📖 Lexmark W850: Complete Technical Guide. Specifications, maintenance & parts reference from 40 years of Lexmark expertise.

Please call for parts assistance

Looking for whole machines? View Printer Info

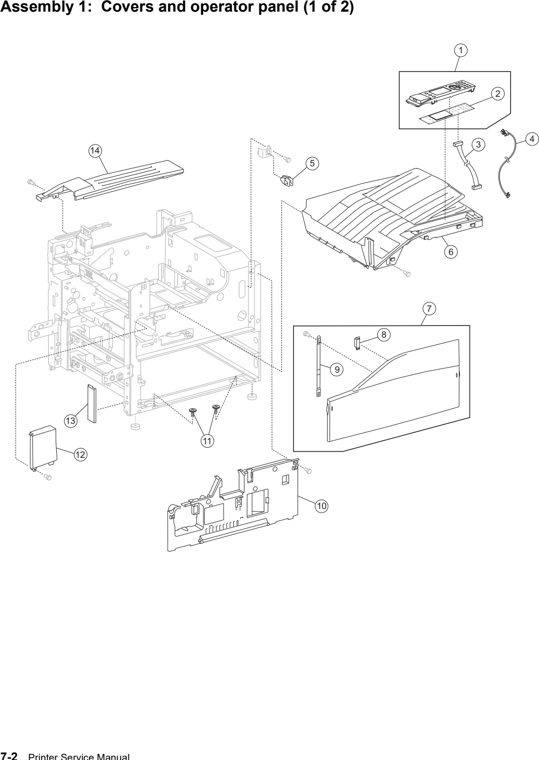

Assembly 1: Covers and operator panel (1 of 2) 1 40X5566 Operator panel assembly Lexmark 40X5566 Operator panel assembly New 40X5566 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 2 40X5561 Operator panel controller card Lexmark 40X5561 Operator panel controller card New 40X5561 (New) $94.91 3 40X5563 Operator panel cable Lexmark 40X5563 Operator panel cable New 40X5563 (New) $60.51 Lexmark 40X5563 Operator panel cable Fully refurbished with 90-day warranty 40X5563 $49.35 4 40X5564 Operator panel USB cable assembly Lexmark 40X5564 Operator panel USB cable assembly New 40X5564 (New) $34.09 Lexmark 40X5564 Operator panel USB cable assembly Fully refurbished with 90-day warranty 40X5564 $27.78 5 40X0553 Switch (printer front door interlock) Lexmark 40X0553 Switch New 40X0553 (New) $29.00 Lexmark 40X0553 Switch Fully refurbished with 90-day warranty 40X0553 $17.56 6 40X0558 Top cover assembly Lexmark 40X0558 Top Cover Assembly New 40X0558 (New) $45.00 Lexmark 40X0558 Top Cover Assembly Fully refurbished with 90-day warranty 40X0558 $60.75 7 40X5565 Printer front door cover assembly Lexmark 40X5565 Front Door Cover Assembly New 40X5565 (New) $85.32 Lexmark 40X5565 Front Door Cover Assembly Fully refurbished with 90-day warranty 40X5565 $69.60 8 40X0560 Front door magnetic catch Lexmark 40X0560 Front door magnetic catch Fully refurbished with 90-day warranty 40X0560 $17.77 9 40X0561 Front door support strap Lexmark 40X0561 Front Door Support Strap New 40X0561 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0561 Front door support strap Fully refurbished with 90-day warranty 40X0561 $54.92 10 40X0562 Front inner cover Lexmark 40X0562 Front Inner Cover New 40X0562 (New) $21.90 Lexmark 40X0562 Front inner cover Fully refurbished with 90-day warranty 40X0562 $17.83 11 40X0960 2TM/TTM retaining screws Lexmark 40X0960 Retaining screws New 40X0960 (New) Contact for Details Lexmark 40X0960 Retaining screws Fully refurbished with 90-day warranty 40X0960 $12.73 12 40X0551 Front left cover Lexmark 40X0551 Front Left Cover New 40X0551 (New) $24.71 Lexmark 40X0551 Front left cover Fully refurbished with 90-day warranty 40X0551 $25.00 13 40X0550 Left lower cover Lexmark 40X0550 Left Lower Cover New 40X0550 (New) $30.03 Lexmark 40X0550 Left Lower Cover Fully refurbished with 90-day warranty 40X0550 $24.71 14 40X0552 Top rear cover Lexmark 40X0552 Top Rear Cover New 40X0552 (New) $24.71 Lexmark 40X0552 Top Rear Cover Fully refurbished with 90-day warranty 40X0552 $49.85

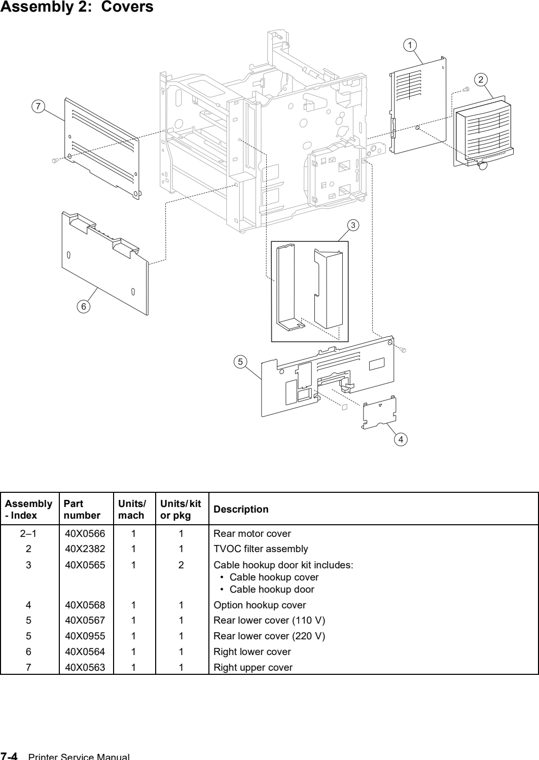

Assembly 2: Covers 1 40X0566 Rear motor cover Lexmark 40X0566 Rear motor cover New 40X0566 (New) $29.87 Lexmark 40X0566 Rear motor cover Fully refurbished with 90-day warranty 40X0566 $30.15 2 40X2382 TVOC filter assembly Lexmark 40X2382 TVOC Filter Assembly New 40X2382 (New) $60.30 Lexmark 40X2382 TVOC Filter Assembly Fully refurbished with 90-day warranty 40X2382 $49.17 3 40X0565 Cable hookup door kit includes: • Cable hookup cover • Cable hookup door Lexmark 40X0565 Cable hookup door kit New 40X0565 (New) $24.50 Lexmark 40X0565 Cable hookup door kit Fully refurbished with 90-day warranty 40X0565 $22.00 4 40X0568 Option hookup cover Lexmark 40X0568 Option hookup cover Fully refurbished with 90-day warranty 40X0568 $9.38 5 40X0567 Rear lower cover (110V) Lexmark 40X0567 Rear lower cover (110 V) New 40X0567 (New) $35.00 Lexmark 40X0567 Rear lower cover (110 V) Fully refurbished with 90-day warranty 40X0567 $49.75 5 40X0955 Rear lower cover (220V) 6 40X0564 Right lower cover Lexmark 40X0564 Right Lower Cover New 40X0564 (New) $31.60 Lexmark 40X0564 Right Lower Cover Fully refurbished with 90-day warranty 40X0564 $66.44 7 40X0563 Right upper cover Lexmark 40X0563 Right Upper Cover New 40X0563 (New) $31.94 Lexmark 40X0563 Right Upper Cover Fully refurbished with 90-day warranty 40X0563 $39.71

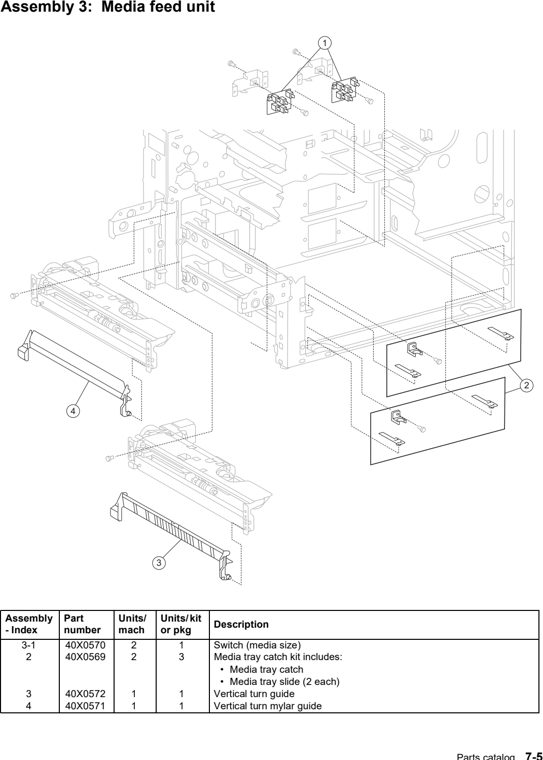

Assembly 3: Media feed unit 1 40X0570 Switch (media size) Lexmark 40X0570 Switch (Media Size) New 40X0570 (New) $47.87 2 40X0569 Media tray catch kit includes: • Media tray catch • Media tray slide (2 each) Lexmark 40X0569 Media Tray Catch Kit New 40X0569 (New) $19.55 Lexmark 40X0569 Media tray catch kit Fully refurbished with 90-day warranty 40X0569 $17.56 3 40X0572 Vertical turn guide Lexmark 40X0572 Vertical Turn Guide New 40X0572 (New) $24.21 Lexmark 40X0572 Vertical turn guide Fully refurbished with 90-day warranty 40X0572 $19.71 4 40X0571 Vertical turn mylar guide Parts catalog 7-5 Lexmark 40X0571 Vertical Turn Mylar Guide New 40X0571 (New) Contact for Details Lexmark 40X0571 Vertical Turn Mylar Guide Fully refurbished with 90-day warranty 40X0571 $45.00

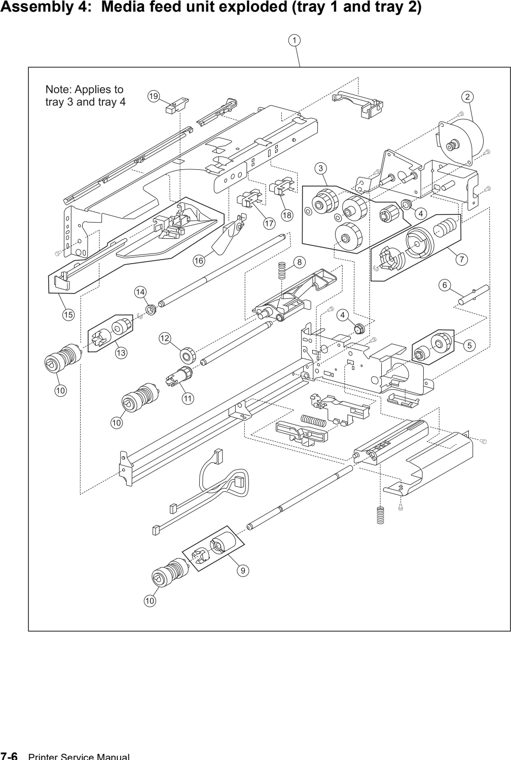

Assembly 4: Media feed unit exploded (tray 1 and tray 2) 1 40X0581 Media feed unit assembly Lexmark 40x0581 Media Feed Unit Assembly (Assembled) New 40X0581 (New) $70.75 Lexmark 40X0581 Media Feed Unit Assembly (Assembled) Fully refurbished with 90-day warranty 40x0581 $33.75 2 40X0582 Media feed lift motor Lexmark 40X0582 Media feed lift motor New 40X0582 (New) $35.23 Lexmark 40X0582 Media feed lift motor Fully refurbished with 90-day warranty 40X0582 $28.71 3 40X0585 Media feed drive gear kit includes: • Media feed unit drive gear 13T • Media feed unit drive gear 28/21T • Media feed unit drive gear 29T • Media feed unit drive gear 27T • 2 mm washer (2 each) Lexmark 40X0585 Media Feed Drive Gear Kit New 40X0585 (New) $43.89 4 40X0880 Bushing 6 mm Lexmark 40X0880 Bushing 6 mm New 40X0880 (New) $19.48 Lexmark 40X0880 Bushing 6 mm Fully refurbished with 90-day warranty 40X0880 Contact for Details 5 40X0967 Media tray lift one-way clutch/gear kit includes: • Media tray lift one-way clutch • Media tray lift one-way gear Lexmark 40X0967 Media tray lift one-way clutch and gear New 40X0967 (New) $36.19 Lexmark 40X0967 Media tray lift one-way clutch and gear Fully refurbished with 90-day warranty 40X0967 $29.48 6 40X0968 Media tray lift one-way shaft Lexmark 40X0968 Media tray lift one-way shaft New 40X0968 (New) $33.60 Lexmark 40X0968 Media tray lift one-way shaft Fully refurbished with 90-day warranty 40X0968 $27.38 7 40X0583 Tray lift coupling kit includes: • Tray lift coupling • Tray lift coupling gear 31T • Spring Lexmark 40X0583 Tray Lift Coupling Kit New 40X0583 (New) $35.73 Lexmark 40X0583 Tray Lift Coupling Kit Fully refurbished with 90-day warranty 40X0583 $29.11 8 40X0590 Pick roll assembly spring Lexmark 40X0590 Pick Roll Assembly Spring New 40X0590 (New) $16.60 9 40X0593 Separation roll friction clutch kit includes: • Separation roll one-way friction clutch • Separation roll spacer Lexmark 40X0593 Separation Roll Friction Clutch Kit New 40X0593 (New) $22.74 10 40X0594 Feed unit roll kit includes: • Feed roll (2) • Pick roll (2) • Separation roll (2) Lexmark 40x0594 Feed Roll Kit (Qty 6) New 40x0594 (New) $39.50 Lexmark 40x0594 Feed Roll Kit (Qty 6) New 40x0594 Compatible (New) Contact for Details 11 40X0970 Pick roll drive gear Lexmark 40X0970 Pick roll drive gear New 40X0970 (New) $13.57 12 40X0969 Pick roll idler gear Lexmark 40X0969 Pick roll idler gear New 40X0969 (New) Contact for Details 13 40X0591 Feed roll one-way clutch kit includes: • Feed roll one-way clutch • Feed roll one-way gear 22T Lexmark 40X0591 Feed Roll One-Way Clutch Kit New 40X0591 (New) $40.76 Lexmark 40X0591 Feed roll one-way clutch kit Fully refurbished with 90-day warranty 40X0591 $33.23 14 40X0952 Bushing 6 mm 15 40X0586 Media feed unit front guide kit includes: • Media feed unit front guide • Media feed unit front guide rail Lexmark 40X0586 Media Feed Unit Front Guide Kit New 40X0586 (New) $24.71 Lexmark 40X0586 Media Feed Unit Front Guide Kit Fully refurbished with 90-day warranty 40X0586 $25.00 16 40X0587 Media out actuator Lexmark 40X0587 Media Out Actuator New 40X0587 (New) $33.00 Lexmark 40X0587 Media Out Actuator Fully refurbished with 90-day warranty 40X0587 Contact for Details 17 40X0588 Sensor (media out) Lexmark 40X0588 Sensor New 40X0588 (New) $40.12 18 40X0588 Sensor (media level) Lexmark 40X0588 Sensor New 40X0588 (New) $40.12 19 40X0589 Sensor (pre-feed) Lexmark 40X0589 Sensor (pre-feed tray 2 feed-out ADF registration) Fully refurbished with 90-day warranty 40X0589 $24.41 Lexmark 40X0589 Sensor (pre-feed tray 2 feed-out ADF registration) New 40X0589 (New) $30.23

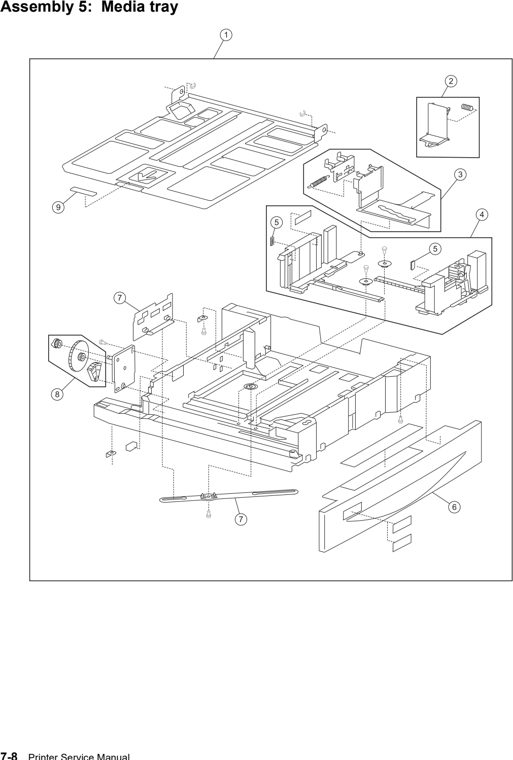

Assembly 5: Media tray 1 40X0573 Media tray assembly includes: (this comes assembled) • Media tray assembly • Labels (2 each) Lexmark 40X0573 Media Tray Assembly 500 Sheet New 40X0573 (New) $275.00 Lexmark 40X0573 Media Tray Assembly Fully refurbished with 90-day warranty 40X0573 $95.00 2 40X0578 Media tray end guide kit includes: • Media tray end guide • Spring Lexmark 40X0578 Media Tray End Guide Kit New 40X0578 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0578 Media Tray End Guide Kit Fully refurbished with 90-day warranty 40X0578 $29.11 3 40X0577 Media tray side guide actuator kit includes: • Media tray side guide actuator • Media tray side guide slide • Spring Lexmark 40X0577 Media Tray Side Guide Actuator Kit New 40X0577 (New) $82.31 Lexmark 40X0577 Media Tray Side Guide Actuator Kit Fully refurbished with 90-day warranty 40X0577 $67.13 4 40X0576 Media tray side guide kit includes: • Media max label • Front media tray guide assembly • Rear media tray guide • Pinion gear (2 each) Lexmark 40X0576 Media Tray Side Guide Kit New 40X0576 (New) $161.25 Lexmark 40X0576 Media Tray Side Guide Kit Fully refurbished with 90-day warranty 40X0576 $111.48 5 40X0966 Media tray separation brush Lexmark 40X0966 Media tray separation brush New 40X0966 (New) $11.58 Lexmark 40X0966 Media tray separation brush Fully refurbished with 90-day warranty 40X0966 Contact for Details 6 40X0574 Media tray front cover includes: • Media tray front cover • Labels (2 each) Lexmark 40X0574 Media Tray Front Cover New 40X0574 (New) $59.03 Lexmark 40X0574 Media Tray Front Cover Fully refurbished with 90-day warranty 40X0574 $48.14 7 40X0579 Media tray end guide actuator kit includes: • Media end guide actuator • Actuator link Note: The graphic on the previous page, shows two #7 callouts. These callouts are the two items that make up the media tray end guide actuator kit. Lexmark 40X0579 Media Tray End Guide Actuator Kit New 40X0579 (New) $99.00 Lexmark 40X0579 Media Tray End Guide Actuator Kit Fully refurbished with 90-day warranty 40X0579 $82.45 8 40X0580 Media tray lift gear kit includes: • Tray lift coupling gear 13T • Tray lift gear 13/60T • Tray lift sector gear 12T Lexmark 40X0580 Tray Lift Sector Gear only Fully refurbished with 90-day warranty 40X0580 $36.00 Lexmark 40X0580 Tray Lift Sector Gear only New 40X0580 (New) $50.16 9 40X0965 Media tray separation pad Parts catalog 7-9 Lexmark 40X0965 Media tray separation pad New 40X0965 (New) $15.93

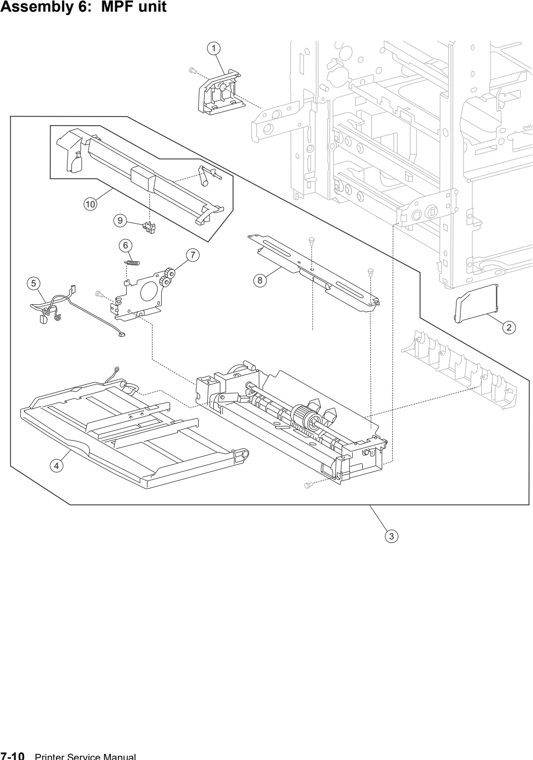

Assembly 6: MPF unit 1 40X0600 MPF rear cover Lexmark 40X0600 Multipurpose Feeder Rear Cover New 40X0600 (New) $74.00 Lexmark 40X0600 MPF Rear Cover Fully refurbished with 90-day warranty 40X0600 $24.71 2 40X0599 MPF front cover Lexmark 40X0599 Multipurpose Feeder Front Cover New 40X0599 (New) $27.50 Lexmark 40X0599 Multipurpose Feeder Front Cover Fully refurbished with 90-day warranty 40X0599 $24.71 3 40X6000 MPF feed unit assembly Lexmark 40X6000 Multipurpose Feed Unit Assembly New 40X6000 (New) $229.00 Lexmark 40X6000 Multipurpose Feed Unit Assembly Fully refurbished with 90-day warranty 40X6000 $155.37 4 40X0608 MPF fold down tray assembly Lexmark 40X0608 MPF Fold Down Tray Assembly New 40X0608 (New) $94.94 Lexmark 40X0608 MPF Fold Down Tray Assembly Fully refurbished with 90-day warranty 40X0608 $73.45 5 40X0597 MPF unit cable assembly Lexmark 40X0597 MPF Unit Cable Assembly New 40X0597 (New) $19.70 Lexmark 40X0597 MPF unit cable assembly Fully refurbished with 90-day warranty 40X0597 $24.81 6 40X0755 MPF pickup spring Lexmark 40X0755 Multipurpose Feeder Pickup Spring New 40X0755 (New) $29.28 Lexmark 40X0755 Multipurpose Feeder Pickup Spring Fully refurbished with 90-day warranty 40X0755 $56.82 7 40X0598 MPF idler gear bracket assembly Lexmark 40X0598 MPF Idler Gear Bracket Assembly New 40X0598 (New) $24.71 Lexmark 40X0598 MPF Idler gear bracket assembly Fully refurbished with 90-day warranty 40X0598 $43.67 8 40X0601 MPF transport pinch roll assembly Lexmark 40X0601 MPF Transport Pinch Roll Assembly New 40X0601 (New) $45.98 Lexmark 40X0601 MPF Transport Pinch Roll Assembly Fully refurbished with 90-day warranty 40X0601 $95.92 9 40X0588 Sensor (MPF media out) Lexmark 40X0588 Sensor New 40X0588 (New) $40.12 10 40X0596 MPF media out actuator kit includes: • MPF media out actuator • Upper frame Parts catalog 7-11 Lexmark 40X0596 MPF Media Out Actuator Kit New 40X0596 (New) $65.16 Lexmark 40X0596 MPF media out actuator kit Fully refurbished with 90-day warranty 40X0596 $122.06

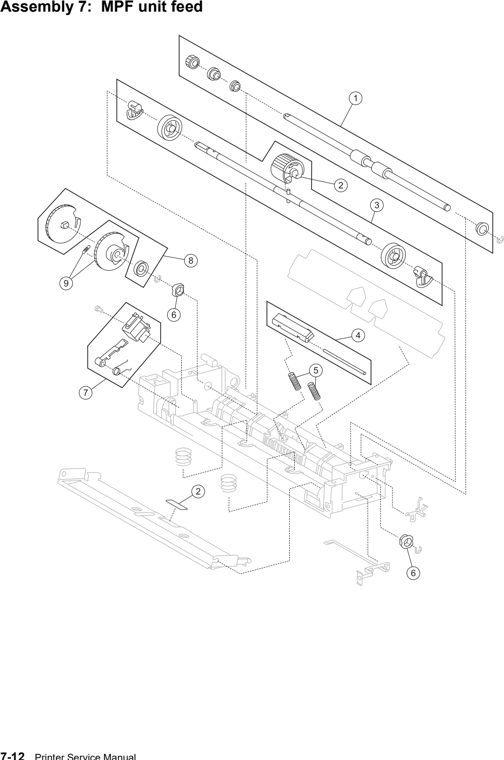

Assembly 7: MPF unit feed 1 40X0605 MPF transport roll kit includes: • MPF transport shaft collar • MPF transport gear 18T • MPF transport roll assembly • Bushing 8 mm (2 each) Lexmark 40X0605 MPF Transport Roll Kit New 40X0605 (New) $94.71 2 40X0603 MPF pick roll kit includes: • MPF pressure pad • MPF pick roll assembly Lexmark 40X0603 Multipurpose Feeder Pick Roll Kit New 40X0603 (New) Contact for Details 3 40X1382 MPF feed shaft kit includes: • MPF feed shaft • MPF feed shaft cam rear • MPF feed shaft cam front • MPF feed shaft roll core (2 each) • MPF feed roll assembly Lexmark 40X1382 MPF Feed Shaft Kit New 40X1382 (New) $68.73 4 40X0974 MPF pressure pad kit includes: • Shaft • MPF pressure pad Lexmark 40X0974 MPF pressure pad kit New 40X0974 (New) $68.84 5 40X1380 MPF pressure pad spring 6 40X1381 MPF feed shaft bushing 7 40X0606 MFP pick solenoid kit includes: • Pick lever • Pick solenoid • Spring Lexmark 40X0606 MPF Pick Solenoid Kit New 40X0606 (New) $42.30 8 40X0971 MPF feed drive gear kit includes: • MPF feed gear • MPF feed gear stopper 9 40X0973 MPF feed cam gear kit includes: • MPF feed cam gear • Spring Parts catalog 7-13 Lexmark 40X0973 MPF feed cam gear kit New 40X0973 (New) $32.92

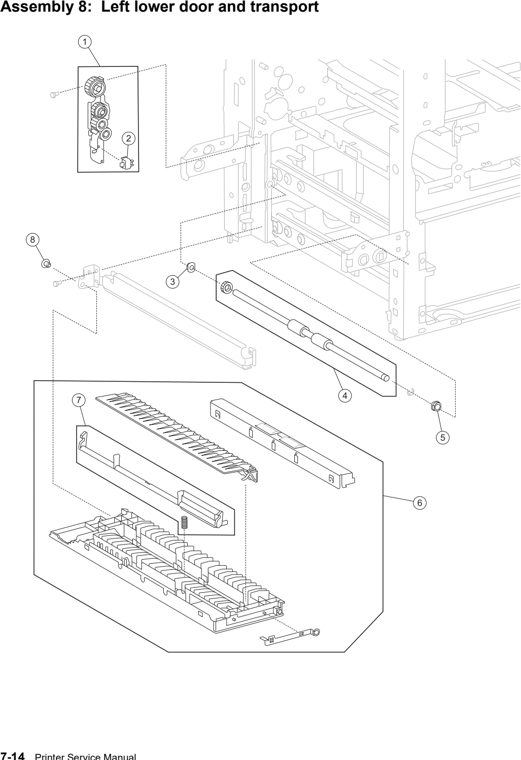

Assembly 8: Left lower door and transport 1 40X0609 Vertical drive gear assembly Lexmark 40X0609 Vertical Drive Gear Assembly New 40X0609 (New) $238.15 Lexmark 40X0609 Vertical Drive Gear Assembly Fully refurbished with 90-day warranty 40X0609 $45.21 2 40X0610 Switch (left lower door interlock) Lexmark 40X0610 Switch (left lower door interlock) New 40X0610 (New) $14.33 3 40X1386 Bushing 6 mm (transport roll rear) Lexmark 40X1386 Bushing 6 mm (transport roll rear) New 40X1386 (New) $24.71 4 40X1387 Transport roll kit includes: • Transport roll assembly • Transport roll gear 18T Lexmark 40X1387 Transport Roll Kit New 40X1387 (New) $197.00 Lexmark 40X1387 Transport Roll Kit Fully refurbished with 90-day warranty 40X1387 $127.00 5 40X1388 Bushing 8 mm Lexmark 40X1388 Bushing 8 mm New 40X1388 (New) $18.36 Lexmark 40X1388 Bushing 8 mm Fully refurbished with 90-day warranty 40X1388 $9.27 6 40X0612 Printer left lower door assembly (this comes assembled) Lexmark 40X0612 Left Lower Door Assembly (Assembled) New 40X0612 (New) $76.59 Lexmark 40X0612 Left Lower Door Assembly (Assembled) Fully refurbished with 90-day warranty 40X0612 $49.00 7 40X0614 Left lower door handle kit includes: • Left lower door handle • Spring Lexmark 40X0614 Left Lower Door Handle Kit New 40X0614 (New) $88.07 Lexmark 40X0614 Left Lower Door Handle Kit Fully refurbished with 90-day warranty 40X0614 $71.84 8 40X0613 Hinge pin Parts catalog 7-15 Lexmark 40X0613 Hinge pin New 40X0613 (New) Contact for Details

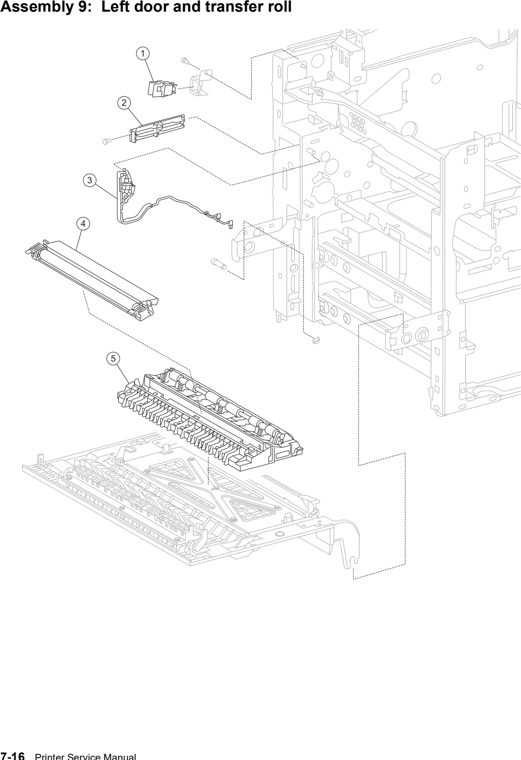

Assembly 9: Left door and transfer roll 1 40X0553 Switch (printer left door interlock) Lexmark 40X0553 Switch New 40X0553 (New) $29.00 Lexmark 40X0553 Switch Fully refurbished with 90-day warranty 40X0553 $17.56 2 40X0618 PC cartridge shutter link Lexmark 40X0618 PC Cartridge Shutter Link New 40X0618 (New) $27.37 Lexmark 40X0618 PC Cartridge Shutter Link Fully refurbished with 90-day warranty 40X0618 $24.71 3 40X0617 Transfer roll power contact Lexmark 40X0617 Transfer Roll Power Contact New 40X0617 (New) $27.89 Lexmark 40X0617 Transfer Roll Power Contact Fully refurbished with 90-day warranty 40X0617 $24.71 4 40X0616 Transfer roll assembly Lexmark 40X0616 Transfer Roll Assembly New 40X0616 (New) $59.98 Lexmark 40X0616 Transfer Roll Assembly New 40X0616 Compatible (New) Contact for Details 5 40X0619 Transfer roll guide assembly Parts catalog 7-17 Lexmark 40X0619 Transfer Roll Guide Assembly New 40X0619 (New) Contact for Details Lexmark 40X0619 Transfer Roll Guide Assembly Fully refurbished with 90-day warranty 40X0619 $37.50

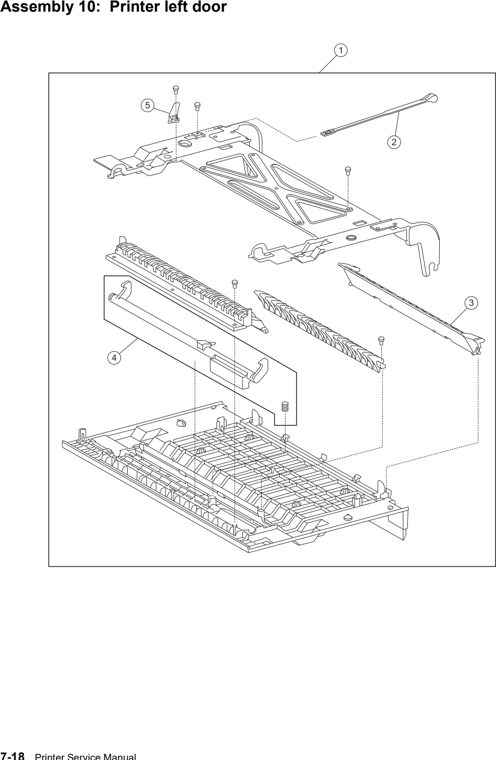

Assembly 10: Printer left door 1 40X0620 Printer left door assembly (this comes assembled) Lexmark 40X0620 Left Door Assembly New 40X0620 (New) $249.00 Lexmark 40X0620 Left Door Assembly (Assembled) Fully refurbished with 90-day warranty 40X0620 $185.00 2 40X0624 Printer left door support strap Lexmark 40X0624 Left Door Support Strap New 40X0624 (New) $79.00 Lexmark 40X0624 Left Door Support Strap Fully refurbished with 90-day warranty 40X0624 $60.50 3 40X0623 Left door duplex entrance guide Lexmark 40X0623 Left Door Duplex Entrance Guide New 40X0623 (New) $71.80 Lexmark 40X0623 Left Door Duplex Entrance Guide Fully refurbished with 90-day warranty 40X0623 $58.55 4 40X0621 Printer left door assembly handle kit includes: • Printer left door assembly handle • Spring Lexmark 40X0621 Left Door Assembly Handle Kit New 40X0621 (New) $154.00 Lexmark 40X0621 Registration Mylar Guide Assembly Fully refurbished with 90-day warranty 40X0621 Contact for Details 5 40X0622 PC cartridge shutter actuator Parts catalog 7-19 Lexmark 40X0622 PC Cartridge Shutter Actuator New 40X0622 (New) $55.67 Lexmark 40X0622 PC Cartridge Shutter Actuator Fully refurbished with 90-day warranty 40X0622 Contact for Details

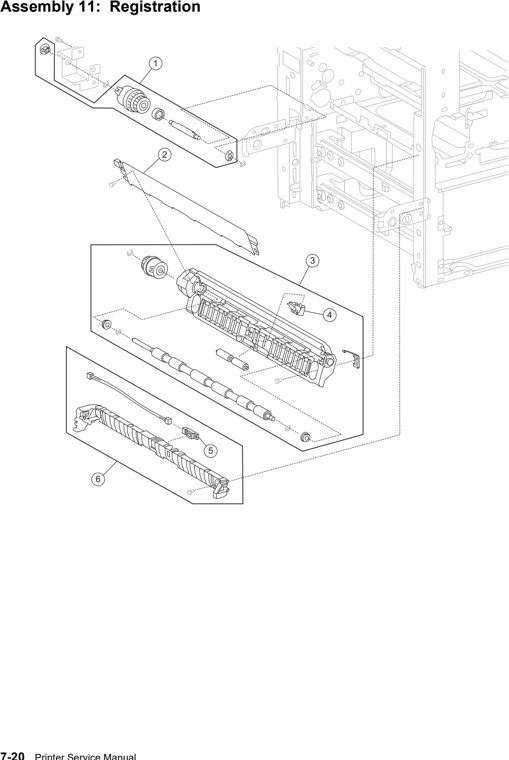

Assembly 11: Registration 1 40X0629 Transport clutch assembly includes: • Bushing 4.5 mm front • Bushing 4.5 mm rear • Shaft • Transport clutch gear 19T • Transport clutch Lexmark 40X0629 Transport Clutch Assembly New 40X0629 (New) Contact for Details Lexmark 40X0629 Transport Clutch Assembly Fully refurbished with 90-day warranty 40X0629 $110.20 2 40X0628 Registration mylar guide assembly Lexmark 40X0628 Registration Mylar Guide assembly New 40X0628 (New) Contact for Details Lexmark 40X0628 Registration Mylar Guide assembly Fully refurbished with 90-day warranty 40X0628 Contact for Details 3 40X0625 Registration roll assembly (this comes assembled) Lexmark 40X0625 Registration Roll Assembly New 40X0625 (New) $124.50 Lexmark 40X0625 Registration roll assembly Fully refurbished with 90-day warranty 40X0625 $68.50 4 40X0627 Sensor (registration) Lexmark 40X0627 Sensor (registration) New 40X0627 (New) $75.50 Lexmark 40X0627 Sensor (registration) Fully refurbished with 90-day warranty 40X0627 $61.59 5 40X0589 Sensor (tray 2 feed-out) Lexmark 40X0589 Sensor (pre-feed tray 2 feed-out ADF registration) Fully refurbished with 90-day warranty 40X0589 $24.41 Lexmark 40X0589 Sensor (pre-feed tray 2 feed-out ADF registration) New 40X0589 (New) $30.23 6 40X0630 Tray 2 feed-out sensor guide (this comes assembled) Parts catalog 7-21 Lexmark 40X0630 Tray feed-out sensor guide New 40X0630 (New) $16.41 Lexmark 40X0630 Tray 2 feed-out sensor guide (assembled) Fully refurbished with 90-day warranty 40X0630 $11.72

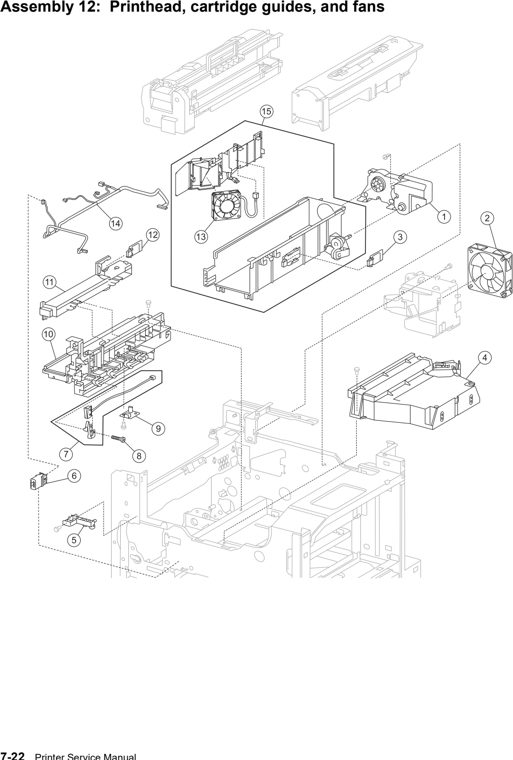

Assembly 12: Printhead, cartridge guides, and fans 1 40X0639 Toner add motor assembly Lexmark 40X0639 Toner Add Motor Assembly New 40X0639 (New) $35.00 Lexmark 40X0639 Toner Add Motor Assembly Fully refurbished with 90-day warranty 40X0639 $28.53 2 40X0640 Fuser cooling fan Lexmark 40X0640 Fuser Cooling Fan Fully refurbished with 90-day warranty 40X0640 $23.71 Lexmark 40X0640 Fuser Cooling Fan New 40X0640 (New) Contact for Details 3 40X0636 Sensor (RFID toner cartridge) Lexmark 40X0636 Sensor (RFID toner PC cartridge) New 40X0636 (New) $21.47 Lexmark 40X0636 Sensor Fully refurbished with 90-day warranty 40X0636 Contact for Details 4 40X0641 Printhead assembly Lexmark 40X0641 Printhead Assembly New 40X0641 Advanced Exchange (New) Contact for Details 40X0641 Printhead Assembly Fully refurbished with 90-day warranty 40X0641 Contact for Details 5 40X0631 PC cartridge stop Lexmark 40X0631 PC cartridge stop New 40X0631 (New) $27.05 Lexmark 40X0631 PC cartridge stop Fully refurbished with 90-day warranty 40X0631 $56.92 6 40X0644 PC cartridge sensor connector Lexmark 40X0644 PC Cartridge Sensor Connector New 40X0644 (New) $23.00 Lexmark 40X0644 PC cartridge sensor connector Fully refurbished with 90-day warranty 40X0644 $19.94 7 40X1390 Switch (PC cartridge interlock) kit includes: • Backup spring • Switch (PC cartridge interlock) Lexmark 40X1390 Switch (PC cartridge interlock) kit New 40X1390 (New) $41.96 Lexmark 40X1390 Switch (PC cartridge interlock) kit Fully refurbished with 90-day warranty 40X1390 $32.21 8 40X1389 PC cartridge interlock switch screw 9 40X0633 Sensor (hum & temp) Lexmark 40X0633 Sensor (humidity & temperature) Fully refurbished with 90-day warranty 40X0633 $11.75 10 40X0634 PC cartridge guide assembly Lexmark 40X0634 PC cartridge guide assembly New 40X0634 (New) $70.00 Lexmark 40X0634 PC cartridge guide assembly Fully refurbished with 90-day warranty 40X0634 $33.00 11 40X0635 Laser opening guide Lexmark 40X0635 Laser opening guide New 40X0635 (New) $70.00 Lexmark 40X0635 Laser opening guide Fully refurbished with 90-day warranty 40X0635 $33.00 12 40X0636 Sensor (RFID PC cartridge) Lexmark 40X0636 Sensor (RFID toner PC cartridge) New 40X0636 (New) $21.47 Lexmark 40X0636 Sensor Fully refurbished with 90-day warranty 40X0636 Contact for Details 13 40X0643 PC cartridge cooling fan Lexmark 40X0643 PC Cartridge Cooling Fan New 40X0643 (New) $45.00 Lexmark 40X0643 PC Cartridge Cooling Fan Fully refurbished with 90-day warranty 40X0643 Contact for Details 14 40X0637 Multi connector cable assembly 1 Lexmark 40X0637 Multi-Connector Cable Assembly 1 New 40X0637 (New) $31.25 Lexmark 40X0637 Multi-connector cable assembly 1 Fully refurbished with 90-day warranty 40X0637 $31.25 15 40X0638 Toner cartridge guide kit includes: • Toner cartridge guide assembly • PC cartridge cooling fan duct • PC cartridge cooling fan Parts catalog 7-23 Lexmark 40X0638 Toner Cartridge Guide Assembly New 40X0638 (New) $74.46 Lexmark 40X0638 Toner cartridge guide assembly Fully refurbished with 90-day warranty 40X0638 $48.46

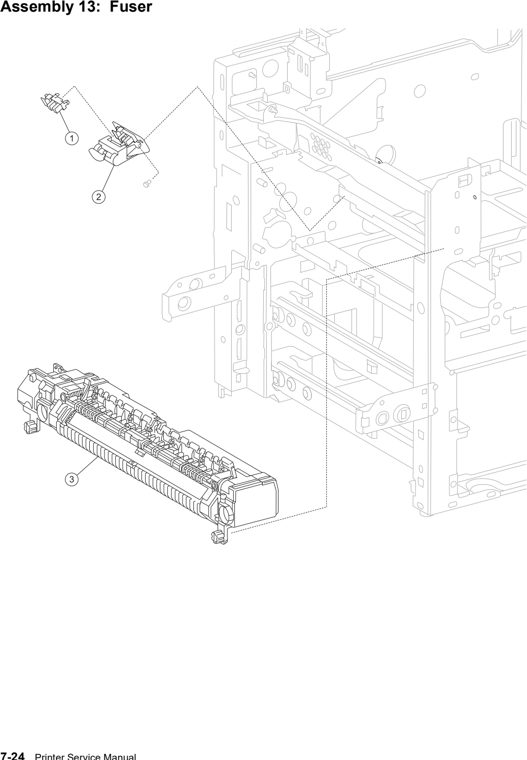

Assembly 13: Fuser 1 40X0588 Sensor (fuser exit) Lexmark 40X0588 Sensor New 40X0588 (New) $40.12 2 40X5931 Sensor (fuser exit) assembly with actuator Lexmark 40X5931 Sensor Assembly Fully refurbished with 90-day warranty 40x5985 Contact for Details 3 40X0647 Fuser assembly 110V (this comes assembled) Lexmark 40X0647 Fuser Assembly New 40X0647 Advanced Exchange (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0647 Fuser assembly 110-120V New 40X0647 (New) $389.00 Lexmark 40X0647 Fuser assembly 110-120V Fully refurbished with 90-day warranty 40X0647 $234.00 3 40X0648 Fuser assembly 220V (this comes assembled) 3 40X0646 Fuser assembly 100V (this comes assembled) Parts catalog 7-25

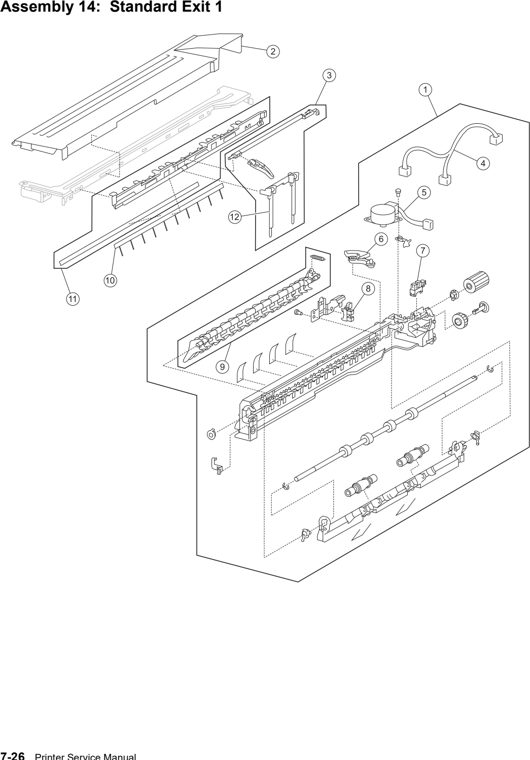

Assembly 14: Standard Exit 1 1 40X0649 Exit 1 media shift assembly (this comes assembled) Lexmark 40X0649 Exit 1 Media Shift Assembly New 40X0649 (New) Allow 7-10 days $272.00 Lexmark 40X0649 Exit 1 Media Shift Assembly Fully refurbished with 90-day warranty 40X0649 $125.00 2 40X0655 Standard exit 1 top cover Lexmark 40X0655 Standard Exit 1 Top Cover New 40X0655 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0655 Standard Exit 1 Top Cover Fully refurbished with 90-day warranty 40X0655 Contact for Details 3 40X0657 Standard bin full exit 1 actuator kit includes: • Standard bin full exit 1 actuator shaft • Standard bin full exit 1 actuator • Output guide Lexmark 40X0657 Bin full Actuator Kit New 40X0657 (New) $29.18 Lexmark 40X0657 Bin full actuator kit Fully refurbished with 90-day warranty 40X0657 $24.31 4 40X0650 Exit 1 sensor cable assembly Lexmark 40X0650 Exit 1 Sensor Cable Assembly New 40X0650 (New) $25.96 Lexmark 40X0650 Exit sensor cable assembly Fully refurbished with 90-day warranty 40X0650 $26.24 5 40X0651 Media shift motor Lexmark 40X0651 Media Shift Motor New 40X0651 (New) $62.10 Lexmark 40X0651 Media Shift Motor Fully refurbished with 90-day warranty 40X0651 $50.64 6 40X0653 Exit 1 media shift gear Lexmark 40X0653 Exit media shift gear New 40X0653 (New) $14.97 Lexmark 40X0653 Exit 1 media shift gear Fully refurbished with 90-day warranty 40X0653 $13.44 7 40X0588 Sensor (standard bin full exit 1) Lexmark 40X0588 Sensor New 40X0588 (New) $40.12 8 40X0588 Sensor (exit 1 media shift HP) Lexmark 40X0588 Sensor New 40X0588 (New) $40.12 9 40X0654 Media diverter gate kit includes: • Media diverter gate • Spring Lexmark 40X0654 Media Diverter Gate Kit New 40X0654 (New) $129.00 Lexmark 40X0654 Media Diverter Gate Kit Fully refurbished with 90-day warranty 40X0654 $97.00 10 40X1391 Exit 1 static eliminator Lexmark 40X1391 Exit static eliminator New 40X1391 (New) $13.03 Lexmark 40X1391 Exit static eliminator Fully refurbished with 90-day warranty 40X1391 Contact for Details 11 40X1392 Exit 1 media exit guide kit includes: • Exit 1 media guide • Exit 1 media guide pad Lexmark 40X1392 Exit 1 Media Exit Guide Kit New 40X1392 (New) $34.71 Lexmark 40X1392 Exit 1 media exit guide kit Fully refurbished with 90-day warranty 40X1392 $24.71 12 40X2389 Output guide

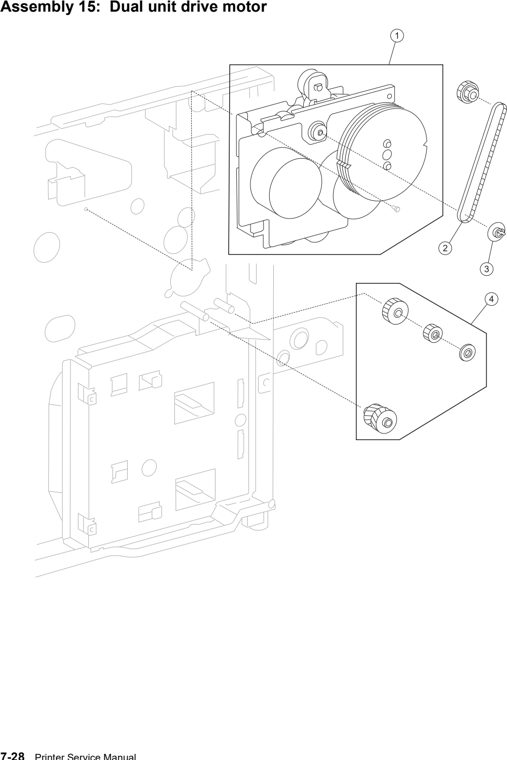

Assembly 15: Dual unit drive motor 1 40X0660 Dual drive motor assembly Lexmark 40X0660 Dual Drive Motor Assembly New 40X0660 (New) $97.00 Lexmark 40X0660 Dual Drive Motor Assembly Fully refurbished with 90-day warranty 40X0660 $59.50 2 40X0659 Exit 1 drive belt 3 40X0661 Drive belt flange Lexmark 40X0661 Drive belt flange New 40X0661 (New) $11.53 4 40X0658 MPF & transport roll idler gear kit includes: • Transport roll idler gear 28T • MPF idler gear 18T • Flange • Transport/MPF idler gear 21/21T Parts catalog 7-29 Lexmark 40X0658 MPF & Transport Roll Idler Gear Kit New 40X0658 (New) $24.71 Lexmark 40X0658 MPF & transport roll idler gear kit Fully refurbished with 90-day warranty 40X0658 $26.05

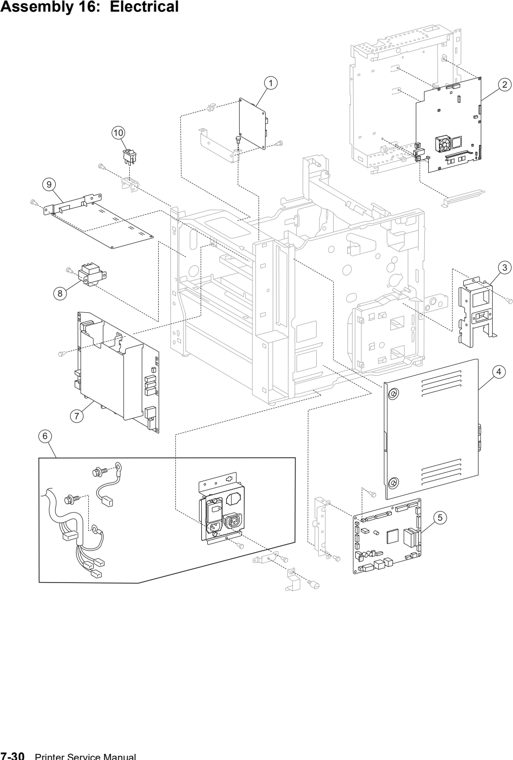

Assembly 16: Electrical 1 40X0664 Exit interface card assembly Lexmark 40X0664 Exit Interface Card Assembly New 40X0664 (New) $23.53 Lexmark 40X0664 Exit Interface Card Assembly Fully refurbished with 90-day warranty 40X0664 $18.00 2 40X5562 RIP card assembly Lexmark 40X5562 RIP Card Assembly W850 New 40X5562 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 3 40X0673 HCF hookup connector assembly Lexmark 40X0673 HCF Hookup Connector Assembly New 40X0673 (New) $25.00 Lexmark 40X0673 HCF Hookup Connector Assembly Fully refurbished with 90-day warranty 40X0673 $25.00 4 40X0672 Rear RIP card cover Lexmark 40X0672 Rear RIP Card Cover New 40X0672 (New) $15.78 5 40X0665 Printer engine card assembly Lexmark 40X0665 Engine Card Assembly Fully refurbished with 90-day warranty 40X0665 L $208.00 6 40X0670 AC power input socket kit includes: • Screws 4 mm (2 each) • Bracket • AC power input socket • Ground wire • Main AC cable assembly • Finisher AC output Lexmark 40X0670 AC Power Input Socket Kit New 40X0670 (New) $100.81 Lexmark 40X0670 AC Power Input Socket Kit Fully refurbished with 90-day warranty 40X0670 $101.10 7 40X0666 LVPS 100/110V Lexmark 40X0666 LVPS 100/110V New 40X0666 (New) $58.88 Lexmark 40X0666 LVPS 100/110V Fully refurbished with 90-day warranty 40X0666 $32.00 7 40X0667 LVPS 220V 8 40X0668 Choke coil 220V (220V model only) 9 40X0662 HVPS Lexmark 40X0662 HVPS New 40X0662 (New) $15.34 Lexmark 40X0662 HVPS Fully refurbished with 90-day warranty 40X0662 $11.75 10 40X0663 Switch (main power) Lexmark 40X0663 Switch (Main Power) New 40X0663 (New) $14.31

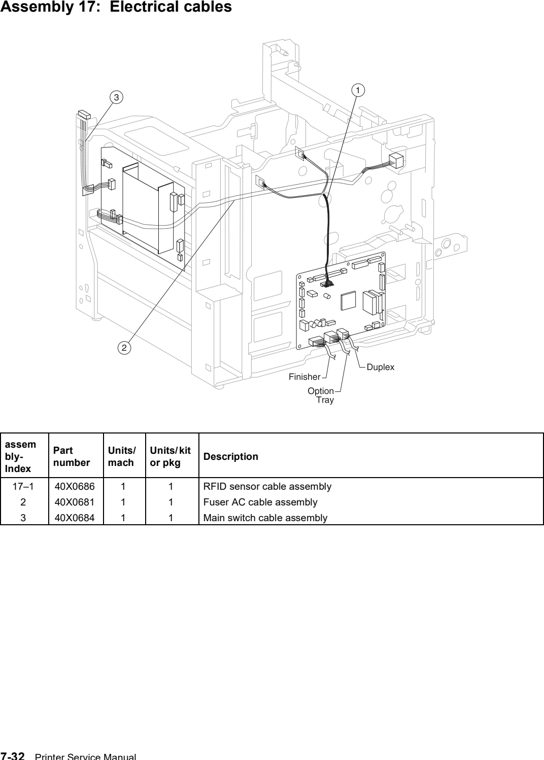

Assembly 17: Electrical cables 1 40X0686 RFID sensor cable assembly Lexmark 40X0686 RFID sensor cable assembly Fully refurbished with 90-day warranty 40X0686 $46.03 2 40X0681 Fuser AC cable assembly Lexmark 40X0681 Fuser AC Cable Assembly New 40X0681 (New) $196.62 Lexmark 40X0681 Fuser AC cable assembly Fully refurbished with 90-day warranty 40X0681 $189.03 3 40X0684 Main switch cable assembly Lexmark 40X0684 Main Switch Cable Assembly New 40X0684 (New) $30.65 Lexmark 40X0684 Main switch cable assembly Fully refurbished with 90-day warranty 40X0684 $64.49

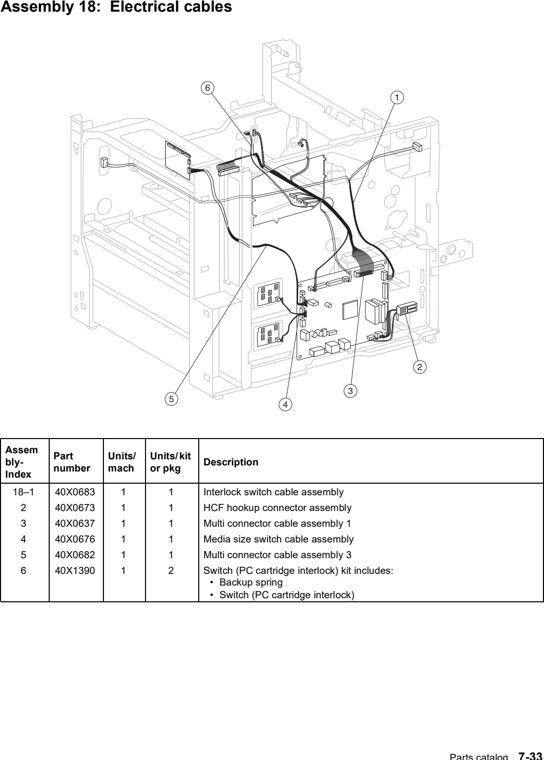

Assembly 18: Electrical cables 1 40X0683 Interlock switch cable assembly Lexmark 40X0683 Interlock switch cable assembly Fully refurbished with 90-day warranty 40X0683 $54.71 2 40X0673 HCF hookup connector assembly Lexmark 40X0673 HCF Hookup Connector Assembly New 40X0673 (New) $25.00 Lexmark 40X0673 HCF Hookup Connector Assembly Fully refurbished with 90-day warranty 40X0673 $25.00 3 40X0637 Multi connector cable assembly 1 Lexmark 40X0637 Multi-Connector Cable Assembly 1 New 40X0637 (New) $31.25 Lexmark 40X0637 Multi-connector cable assembly 1 Fully refurbished with 90-day warranty 40X0637 $31.25 4 40X0676 Media size switch cable assembly Lexmark 40X0676 Media Size Switch Cable Assembly New 40X0676 (New) $27.31 Lexmark 40X0676 Media Size Switch Cable Assembly Fully refurbished with 90-day warranty 40X0676 $57.48 5 40X0682 Multi connector cable assembly 3 Lexmark 40X0682 Multi Connector Cable Assembly 3 New 40X0682 (New) $114.23 Lexmark 40X0682 Multi connector cable assembly 3 Fully refurbished with 90-day warranty 40X0682 $114.23 6 40X1390 Switch (PC cartridge interlock) kit includes: • Backup spring • Switch (PC cartridge interlock) Parts catalog 7-33 Lexmark 40X1390 Switch (PC cartridge interlock) kit New 40X1390 (New) $41.96 Lexmark 40X1390 Switch (PC cartridge interlock) kit Fully refurbished with 90-day warranty 40X1390 $32.21

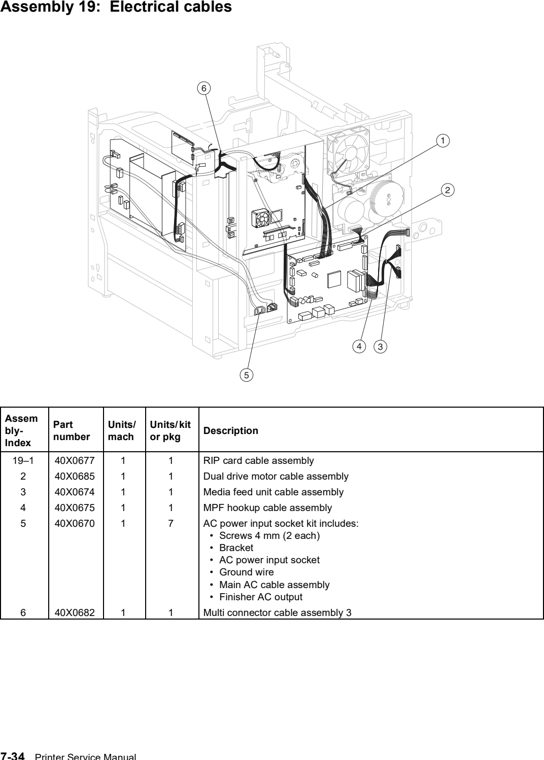

Assembly 19: Electrical cables 1 40X0677 RIP card cable assembly Lexmark 40X0677 RIP Card Cable Assembly New 40X0677 (New) $24.71 Lexmark 40X0677 RIP card cable assembly Fully refurbished with 90-day warranty 40X0677 $45.30 2 40X0685 Dual drive motor cable assembly Lexmark 40X0685 Dual Drive Motor Cable Assembly New 40X0685 (New) $27.55 Lexmark 40X0685 Dual drive motor cable assembly Fully refurbished with 90-day warranty 40X0685 $57.98 3 40X0674 Media feed unit cable assembly Lexmark 40X0674 Media Feed Unit Cable Assembly New 40X0674 (New) $39.17 Lexmark 40X0674 Media Feed Unit Cable Assembly Fully refurbished with 90-day warranty 40X0674 $84.02 4 40X0675 MPF hookup cable assembly Lexmark 40X0675 MPF Hookup Cable Assembly New 40X0675 (New) $27.55 Lexmark 40X0675 MPF Hookup Cable Assembly Fully refurbished with 90-day warranty 40X0675 $57.98 5 40X0670 AC power input socket kit includes: • Screws 4 mm (2 each) • Bracket • AC power input socket • Ground wire • Main AC cable assembly • Finisher AC output Lexmark 40X0670 AC Power Input Socket Kit New 40X0670 (New) $100.81 Lexmark 40X0670 AC Power Input Socket Kit Fully refurbished with 90-day warranty 40X0670 $101.10 6 40X0682 Multi connector cable assembly 3 Lexmark 40X0682 Multi Connector Cable Assembly 3 New 40X0682 (New) $114.23 Lexmark 40X0682 Multi connector cable assembly 3 Fully refurbished with 90-day warranty 40X0682 $114.23

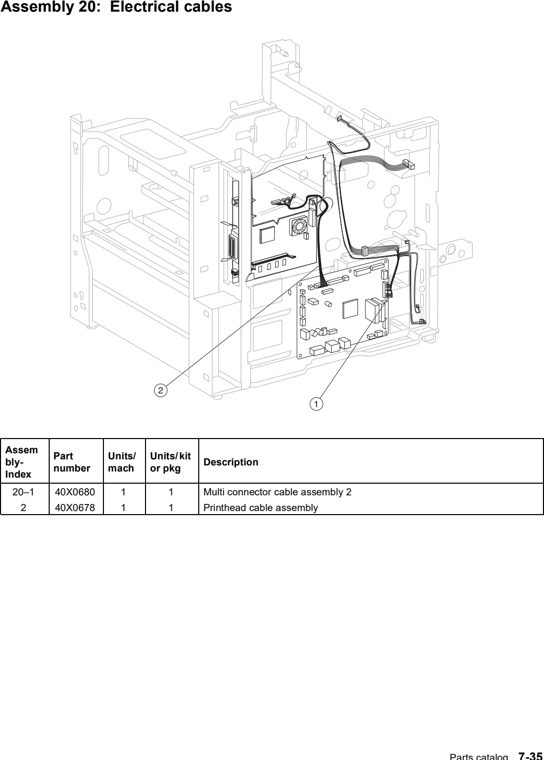

Assembly 20: Electrical cables 1 40X0680 Multi connector cable assembly 2 Lexmark 40X0680 Multi Connector Cable Assembly 2 New 40X0680 (New) $58.98 Lexmark 40X0680 Multi connector cable assembly 2 Fully refurbished with 90-day warranty 40X0680 $45.62 2 40X0678 Printhead cable assembly Parts catalog 7-35 Lexmark 40X0678 Printhead Cable Assembly New 40X0678 (New) $45.62 Lexmark 40X0678 Printhead cable assembly Fully refurbished with 90-day warranty 40X0678 $45.91

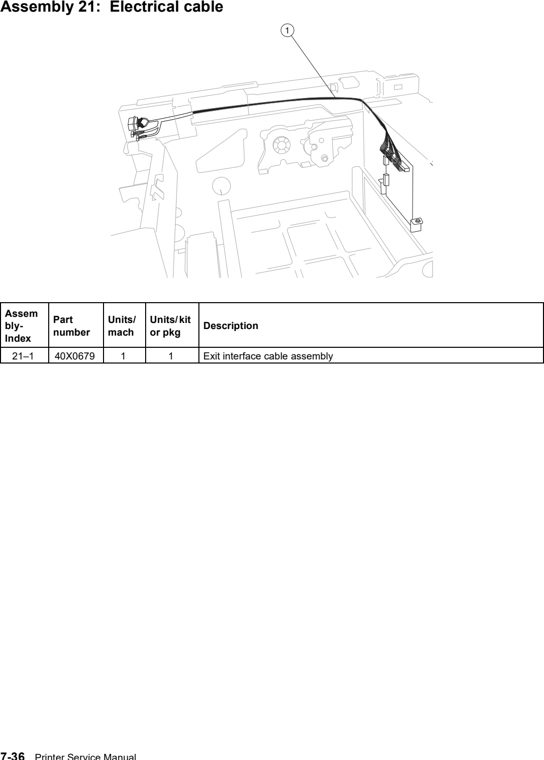

Assembly 21: Electrical cable 1 40X0679 Exit interface cable assembly Lexmark 40X0679 Exit Interface Cable Assembly New 40X0679 (New) $25.03 Lexmark 40X0679 Exit interface cable assembly Fully refurbished with 90-day warranty 40X0679 $52.69

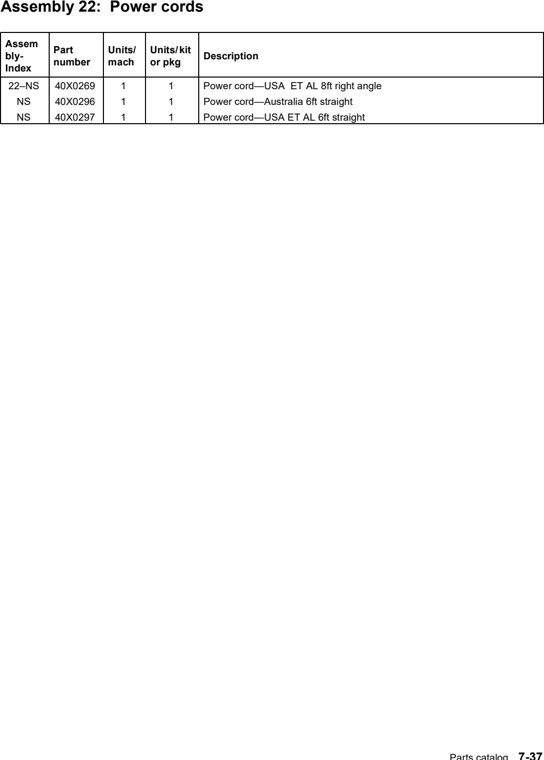

Assembly 22: Power cords NS 40X0269 Power cord—USA ET AL 8ft right angle Lexmark 40x0269 Power Cord; 2.5m, 8ft. Right angle, US, CA, La New 40x0269 (New) $30.90 NS 40X0296 Power cord—Australia 6ft straight NS 40X0297 Power cord—USA ET AL 6ft straight Parts catalog 7-37 Lexmark 40X0297 Power cord; 1.8 m, 6 ft. Straight, US, Canada, Latin America, AP New 40X0297 (New) Contact for Details Lexmark 40X0297 Power cord; 1.8 m, 6 ft. Straight, US, Canada, Latin America, AP Fully refurbished with 90-day warranty 40X0297 Contact for Details

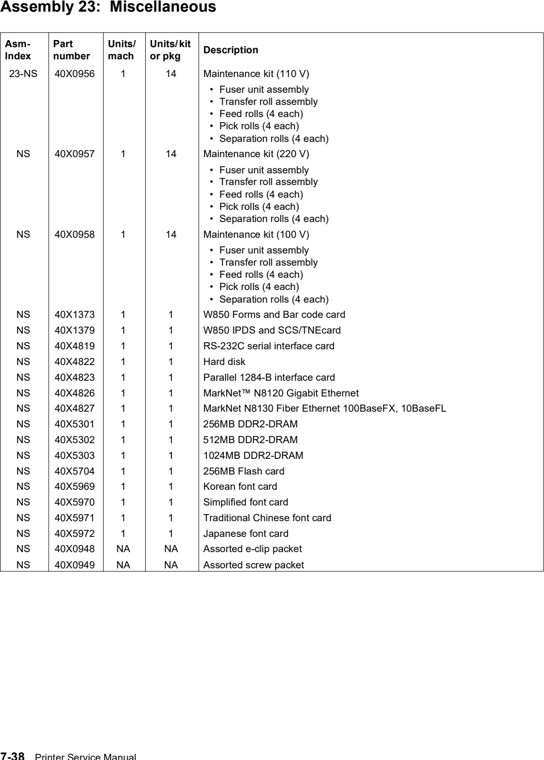

Assembly 23: Miscellaneous NS 40X0956 Maintenance kit (110V) • Fuser unit assembly • Transfer roll assembly • Feed rolls (4 each) • Pick rolls (4 each) • Separation rolls (4 each) Lexmark 40X0956 Maintenance Kit New 40X0956 Compatible (New) $309.00 Lexmark 40X0956 Maintenance Kit W850 Fully refurbished with 90-day warranty 40X0956 $265.50 NS 40X0957 Maintenance kit (220V) • Fuser unit assembly • Transfer roll assembly • Feed rolls (4 each) • Pick rolls (4 each) • Separation rolls (4 each) Lexmark 40X0957 Maintenance Kit (HV) New 40X0957 (New) Contact for Details NS 40X0958 Maintenance kit (100V) • Fuser unit assembly • Transfer roll assembly • Feed rolls (4 each) • Pick rolls (4 each) • Separation rolls (4 each) NS 40X1373 W850 Forms and Bar code card NS 40X1379 W850 IPDS and SCS/TNEcard NS 40X4819 RS-232C serial interface card Lexmark 40X4819 RS-232C serial interface card New 40X4819 (New) $241.00 NS 40X4822 Hard disk Lexmark 40X4822 Hard disk New 40X4822 (New) $359.00 Lexmark 40X4822 Hard disk Fully refurbished with 90-day warranty 40X4822 Contact for Details NS 40X4823 Parallel 1284-B interface card Lexmark 40X4823 Parallel 1284-B interface card New 40X4823 (New) $168.98 Lexmark 40X4823 Parallel 1284-B interface card Fully refurbished with 90-day warranty 40X4823 $80.00 NS 40X4826 MarkNet™ N8120 Gigabit Ethernet Lexmark 40x4826 MarkNet N8120 GigaBit Ethernet New 40x4826 (New) $465.41 Lexmark 40x4826 MarkNet N8120 GigaBit Ethernet Fully refurbished with 90-day warranty 40X4826 $145.00 NS 40X4827 MarkNet N8130 Fiber Ethernet 100BaseFX, 10BaseFL Lexmark 40X4827 MarkNet N8130 Fiber Ethernet 100BaseFX, 10BaseFL Print Server New 40X4827 (New) $691.15 NS 40X5301 256MB DDR2-DRAM Lexmark 40X5301 X56x SVC Memory 256M DDR M New 40X5301 (New) $199.50 NS 40X5302 512MB DDR2-DRAM Lexmark 40X5302 X56x SVC Memory 512M DDR M New 40X5302 (New) $129.99 NS 40X5303 1024MB DDR2-DRAM Lexmark 40X5303 1024MB DDR2-DRAM New 40X5303 (New) $168.00 NS 40X5704 256MB Flash card Lexmark 40X5704 256MB Flash Memory Card New 40X5704 11B75N-00 (New) $38.50 Lexmark 40X5704 256MB Flash Memory Card Fully refurbished with 90-day warranty 40X5704 11B75N-00 $25.00 NS 40X5969 Korean font card NS 40X5970 Simplified font card NS 40X5971 Traditional Chinese font card NS 40X5972 Japanese font card NS 40X0948 Assorted e-clip packet NS 40X0949 Assorted screw packet
Other listed parts 40X0645 Sensor Assembly Lexmark 40x0645 Sensor Assembly New 40X0645 40x5931 Contact for Details
